Development of Green Ports with the Consideration of Coastal Wave Energy

Abstract

Considering the rapid development of maritime logistics, the reduction of energy consumption at ports is important in the sustainable development of global economics. Oceans have been known as sources of clean energy, and wave energy is attracting more and more attention from both scholars and practitioners. Even though much effort has been made to develop advanced technologies of wave energy, it is still not clear how ports and electricity plants will evaluate its performance and make decisions on the investment. This paper analyzed the decision framework of ports and electricity plants that can decide how much to invest into wave energy converters, by considering the uncertainty of wave energy supply. A mathematical model is developed to obtain the optimal decisions of a single port and electricity plant for different cases. We show that in most cases, the port has a no lower motivation for investing in the wave energy than the electricity plant. Our theoretical analyses also shed light on the impacts of the parameters on the optimal decisions. Considering the difficulty in estimating the uncertainty of wave energy supply, we extend the distribution-free model to our problem which can make our model more practical.

1. Introduction

Greenhouse gas emissions are a serious problem in sustainability in the modern world. Meanwhile, with the development of globalization, maritime logistics has been more and more important in the international trade [1]. As key nodes in global supply chains, ports play an important role in not only productivity but also energy consumption. Governments and port authorities in many countries have proposed future plans of reducing greenhouse gas emission in port segments. For instance, the Ministry of Transport of China announced China’s thirteenth five-year plan (from 2016 to 2020) about the target reduction of greenhouse gas emission. It proposes that compared with the year of 2015, both of the energy consumption per unit throughput and CO₂ emission of ports in China should be respectively decreased by 2% until 2020. The energy consumption per unit turnover and CO₂ emission of vessels in China should be respectively decreased by 6% and 7%, compared with the year of 2015.

Table 1. China’s target of reducing CO₂ emission in 2020 with the year of 2015 as a benchmark.

Index	Industry	Expected Target in 2020 (%)
CO2 Emission	Passenger Vehicle	−2.6
	Truck	−8
	Vessel	−7
	City Transport	−12.5
	Port	−2

shows the detailed target of CO₂ emission reduction in 2020 proposed by Ministry of Transport of China.

Generally speaking, there are two main types of sources of greenhouse gas emission at port segment. The first one is a direct source which results from the fuel oil used at ports, such as yard trucks, vessels, and other oil-consuming equipment. The second source is an indirect one related to the electricity. Many types of equipment such as the quay crane, yard crane, and Automated Guided Vehicle (also well known as AGV), are using electricity as the power. If the electricity is converted from coal, then consuming this type of electricity also leads to CO₂ and SO₂ emission. Therefore, many new approaches have been developed to reduce greenhouse gas emission on the side of energy supply for port and shipping, such as wind turbines, photovoltaics, wave energy, and foldable containers [2,3,4]. This practice could be more meaningful under the limitation of greenhouse gas emission set by International Maritime Organization.

Ocean energy could be one of the fruitful directions among the current renewable energy sources because of its huge amount of reserves, such as wave energy [5,6]. It is approximately estimated that the potential wave energy in the world is as high as 2 TW [7]. As one important type of ocean energy, wave energy is attracting more and more attention from not only academic but also commerce and society. Considering that it can be obtained from wave energy converters along coastlines, many people have the reason to believe that it has the potential to improve the sustainability of port operation and city development.

There are many studies on green port development. Acciaro et al. qualitatively discussed the role of port authorities in seaports’ energy management with wind or wave as an example of sources of clean energy for seaports [8]. Chen and Pak proposed a Delphi evaluation framework to analyze the green performance of main ports in China, in which low-carbon and energy saving are considered as important indices [9]. Schipper et al. implemented a methodology to assess the efficiency and sustainability of port plans and the results illustrate that social and environmental factors should be combined with economy into a long-term plan [10]. Wan et al. developed an evaluation model to quantitatively measure the green port development, by using drivers, pressures, states, impacts, and responses as indices [11]. Chen and Lam implemented a two-stage data envelopment analysis method to evaluate the sustainability of ports based on the relationship between ports and cities [12]. Vaio et al. focused on the decision-making process of port authorities and investigated the key performance indicators with the consideration of sustainability [13]. See Shi et al. [14] for a detailed review of the themes and methods in the research evolution of green shipping [14].

Even though the wave energy technology has not been widely implemented as a commercial operation, there are a large number of scholars and research institutes who conducted various designs of wave energy converters or developed new analytical models [15,16,17,18,19,20,21]. However, the economic analysis of the wave energy and operational decisions of energy suppliers and consumers (e.g., electricity plant and ports) have rarely been touched upon. In this paper, we consider an electricity supply chain with a single port (she) and a single electricity plant (he). Supply chain members can decide how much to invest into wave energy converters to get electricity with the aim of maximize their own profits. We attempted to answer the following questions.

(i) What are the optimal decisions of the port and electricity plant when they have to decide on the investment in wave energy converters under uncertain wave energy supply, and who is more incentivized to invest?

(ii) How parameters influence the optimal decisions of supply chain members and how government (or authority) can encourage them to implement wave energy?

(iii) What is an efficient decision approach when the distribution of wave energy supply is not fully known?

Based on the characteristics of wave energy, we develop a model by considering the electricity generated from wave energy as a newsvendor-type product. Newsvendor-type product is a classic type of product with some unique characteristics. First, managers usually have a single opportunity to make a decision for this product in a period due to the long lead-time of supply [22]. For instance, it is not easy for a newsvendor to buy newspapers from the publisher in the afternoon when the former finds a stock out. The port or electricity plant managers may also find difficulty in getting more wave energy capacity in a short time by expanding the wave energy converters, because the construction could be relatively time consuming. Second, the demand of newsvendor-type product is usually uncertain. For example, toggeries may fail to exactly estimate the demand of cloths of a certain style in one season in advance. Even though the port’s electricity demand could be known, the wave energy supply is relatively uncertain because of the dynamic natural conditions and global climate change. Even though numerical models have been developed to estimate the wave condition, it still could be worthwhile investigating the optimal investment decision under uncertain wave supply. The first reason is that predicting the amount of wave supply in a long-term (such as one year) within a small range of error usually requires a comprehensive data collection in long history. This work could be unavailable for many developing countries who attempt to build new ports. The second reason is that error is quite difficult to eliminate in the prediction for specific coastlines of ports. Even though the error can be limited within a range, making decisions to maximize the expected profit by considering the uncertainty of wave supply could be more appropriate in some cases than making decisions by using an exact amount of wave supply obtained from the prediction. We show that this supply uncertainty makes the wave energy share the same modeling logic of newsvendor-type products (see Section 3). Third, the essential problem in newsvendor-type product is the phenomenon of double marginalization that results from the difference between supplier’s production cost and wholesale price charged for the retailer. Because the wholesale price is higher than the supplier’s production cost, the retailer’s optimal order quantity under the decentralized control is lower than the supply-chain-wide optimal order quantity [23,24,25]. Our study also illustrates that the motivations of the port and electricity plant on investing in wave energy converters vary due to the difference between price and production cost of electricity.

The remaining paper is organized as follows. Motivation and challenges of implementing wave energy converters are discussed in Section 2. Section 3 proposes the mathematical model and developed optimal decisions under different cases. In the same section, that model is extended to distribution-free model to show how to make good decisions when the information of wave energy supply is partially available. Section 4 illustrates the model and findings with a numerical experiment. Managerial insights on policies of encouraging green ports are discussed in Section 5. We summarize the concluding remarks and suggest future research directions in Section 6.

2. Motivation and Challenges of Wave Energy Implementation

2.1. Motivation for Implementation of Wave Energy

Considering the large and increasing numbers of ports and containers in the world, we may conjecture that the greenhouse gas emission would be more serious if this traditional type of electricity remains common. Without a doubt, it can bring high challenges to the sustainability of ports and shipping. The second disadvantage of traditional electricity of seaports is the uncertainly of the market price of coal according to the world-wide demand and supply. This price may further influence the price of electricity that results in uncertainty of cost for ports. In addition, because more and more mega-vessels are involved in the current shipping industry, deep-water ports are becoming popular. Many deep-water ports are located on islands due to the geographical condition, such as several container and cargo terminals of Shanghai and Ningbo-Zhoushan port. Hence, it would not be beneficial to build a traditional electricity plant on an isolated island for port with the consideration of economy of scale and the transportation cost of materials from the mainland to the port, e.g., coal.

In contrast with the above disadvantages of traditional electricity, the wave energy has its specific characteristics which could be interesting to port managers and governments. Because the converters generate electricity by using the movement of wave, this process does not discharge greenhouse gas. Moreover, this process requires no materials like coal. Hence, the cost is relatively certain and independent of the exogenous prices of materials. Considering that wave energy acts as the material, the converters might have plenty of materials along some coastlines. Hence, there might exist ports near which the wave energy supply is considerable. In addition, generally speaking, the electricity price is increasing due to the development of economics and higher electricity demand. For example, it is reported that the average price of electricity in China (unit: CNY per KWh) has been increased from 0.54 in July 2003 to 0.79 in the same month in 2013 [26]. As a consequence, we can conjecture that wave energy could be more competitive when the economy is developing and the price of traditional electricity increases.

2.2. Challenge

Without any doubt, there exist limitations and challenges of the implementation of wave energy converters; otherwise they should have been ubiquitous at ports. Uihlein and Magagna conducted a comprehensive review on the current state of research in wave and tidal current energy [27]. Several challenges of implementing wave energy are uncovered in that study. For instance, it would be important to improve the resource assessment to reduce uncertainties about amiable resources which can make investors more confident in wave energy. While more and more sophisticated models on wave resource assessment are developed, a harmonization of approaches are still missing. From the views of economy and sustainability, we summarize the following three main challenges.

First, the investment in implementing the wave energy converters could be higher than the traditional electricity in current days. One reason is that the technology of the wave energy converters is new. The second reason is the converters’ construction condition is along the coastline line and partially underwater, which is much more complicated than hinterland. In addition, the fixed cost of this implementation can also be high due to the preliminary investigation into the wave condition, construction of infrastructure, staff training, and so on. This high investment leads to high average cost of wave energy that may make small ports or electricity plants hesitate to invest in wave energy converters.

Second, uncertainty of wave supply can make the decisions on investment complex and the expected benefit of wave energy unclear. For one thing, exactly estimating the wave condition in future can be quite challenging. Managers may have difficulty in deciding the optimal capacity of wave energy converters when the exact amount of wave supply is unknown. Moreover, the decisions sometimes require some information of the uncertain wave supply, such as the distribution of wave supply in one year. It could be time consuming and costly to collect the information, and in some cases this information would be unavailable due to the natural condition.

Third, how can governments (or authority) encourage the implementation of wave energy involves a long list of potential polices. Prior to making policies, governments should understand how wave-energy electricity impacts the benefits of ports and electricity plants. Different organizations can have different levels of preference for this new type of electricity. In addition, governments need to compare the performance of different policies, such as encouraging the port to sell surplus electricity to the grid, increasing the price of traditional electricity, charging the electricity plant a penalty fee for traditional electricity, and so on. All these questions may require an analytical study to get the optimal solutions.

3. Model Formulation and Analysis

3.1. Mathematical Formulation

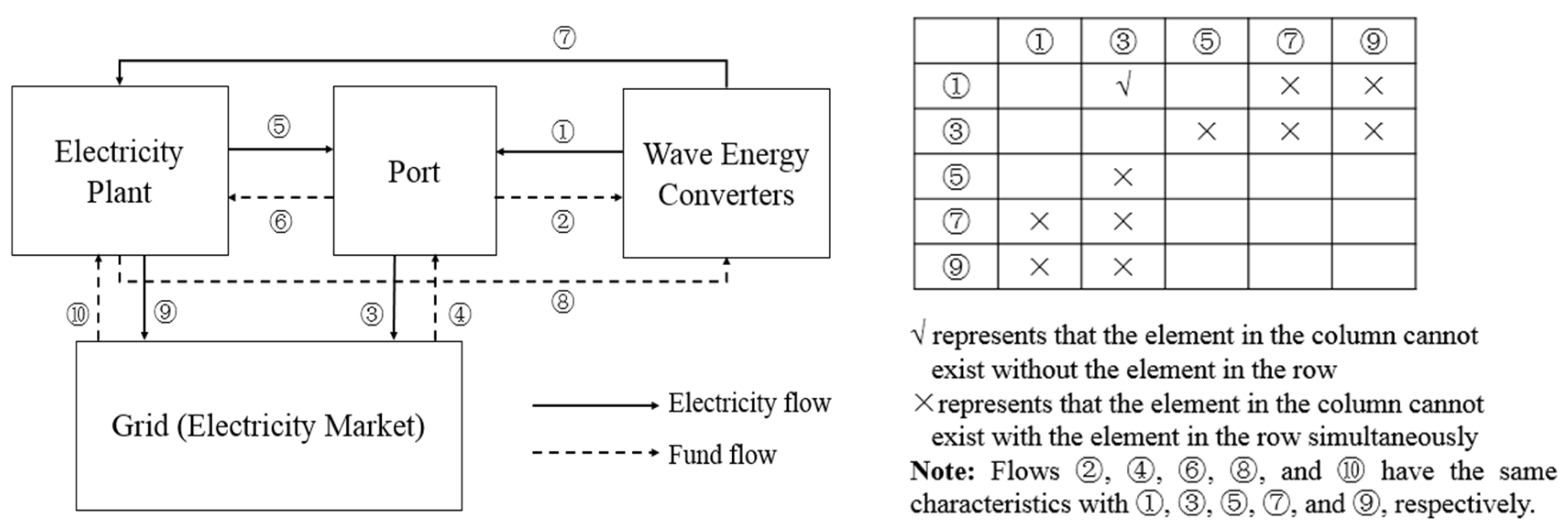

We consider electricity management problem consisting of a seaport and an electricity plant. The port has a fixed service demand for a time period.

Because the converter converts the wave energy to electricity with the natural wave energy, we assume that the material cost for the wave energy is small and c_e < c_t. For a capacity of wave energy converters, we can obtain the corresponding q based on η, that is q = ηQ. Figure 1 illustrates the framework of the problem under consideration. Note that some flows may not be independent of others. When the port invests in wave energy converters, she spends c_rq/η + c_emin{q,X} wherein min{q,X} is the amount of electricity generated by the converters (Flows ① and ②). If there is surplus electricity from Flow ①, then the port can sell it to the grid with a salvage value. Hence, Flows ③ and ④ cannot exist without the above two flows. If the electricity from Flow ① cannot satisfy the port’s demand, then the port has to purchase traditional electricity from the electricity plant at a price of w (Flows ⑤ and ⑥). It means that Flows ⑤ and ⑥ cannot exist with Flows ③ and ④ simultaneously. When the electricity plant invests in wave energy converters, he may get wave-energy electricity, and sell it and traditional electricity to the port at a price of w (Flows ⑤, ⑥, ⑦, and ⑧). Note that Flow ⑤ may contain both types of electricity. In addition, the plant can also sell surplus wave-energy electricity to the grid when he invests in the converters (Flows ⑨ and ⑩). Because we do not consider the case wherein the port and the electricity plant invest in wave energy converters simultaneously, Flows ①, ②, ③ and ④ cannot exist with Flows ⑦, ⑧, ⑨ and ⑩.

3.2. The Case Wherein the Port Invests in the Wave Energy Converters

Because q = ηQ, we can obtain the port’s profit function with one decision variable, q. Let П_p(q|w) be the profit function of the port. If q is no greater than D/β, then the port will always purchase a positive amount of electricity from the electricity plant. When there is no salvage value of the surplus electricity, the port cannot benefit from a q higher than D/β. In this case, we can obtain the port’s objective function as follows.

$$\mathrm{Max} {\Pi }_p\left(q|w\right)=pD-c_{e}E\min \left(q,X\right)-c_r\frac{q}{\eta }-w\left(\frac{D}{\beta }-E\min \left(q,X\right)\right)$$

(1)

s.t. q ≤ D/β.

Let q* be the port’s optimal q to maximize her own expected profit.

Proposition 1.

Suppose that the port invests in the wave energy converters and there is no salvage value for surplus electricity of the port.

(i)

if w ≤ c_r/η + c_e, then q* = 0.

(ii)

w > c_r/η + c_e, the port’s optimal q satisfies

$$q^{\ast }=\min \left\{\frac{D}{\beta },F^{-1}\left(1-\frac{c_r}{\eta \left(w-c_e\right)}\right)\right\}$$

(2)

Proof.

(i) Without a doubt, q should be no greater than U. When q is higher than L, Objective Function (1) can be written as

$$\begin{array}{l}{\Pi }_p\left(q|w\right)\\ =pD-c_e\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-\frac{c_r}{\eta }q-w\left(\frac{D}{\beta }-{\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx-}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)\\ =pD+\left(w-c_e\right)\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-\frac{c_r}{\eta }q-w\frac{D}{\beta }\end{array}$$

(3)

with q ≤ D/β. It is easy to show that $\frac{d{\Pi }_p\left(q|w\right)}{dq}=\left(w-c_e\right)\left(qf\left(q\right)+\left(1-F\left(q\right)\right)-qf\left(q\right)\right)-\frac{c_r}{\eta }$. Considering that 0 ≤ F(q) ≤ 1 for any a q ∈ [L,U], we can obtain that dП_p(q|w)/dp is always smaller than zero if w − c_e ≤ c_r/η. In this case, П_p(q|w) is always decreasing with q and then q* = L. When q is no greater than L, the expected amount of electricity generated from wave energy is equal to q. In this case, Objective Function (1) can be written as П_p(q|w) = pD + (w − c_e)q − c_rq/η − wD/β. In this case, q* = 0 and П_p(0|w) > П_p(L|w) if w ≤ c_r/η + c_e. Hence, we have q* = 0 if w ≤ c_r/η + c_e.

(ii) Because there is no salvage value of the surplus electricity, we can find the optimal q under Objective Function (1) with q* ≤ D/β. If w ≥ c_r/η + c_e, then we have w ≥ c_e and $\frac{d^2{\Pi }_p\left(q|w\right)}{d{q}^2}=-\left(w-c_e\right)\left(f\left(q\right)\right)<0$. Therefore, П_p(q|w) will achieve the maximum value with q* that satisfies dП_p(q*|w)/dp = 0. By letting dП_p(q|w)/dp = 0, from Equation (3) we have (w − c_e)(1 − F(q)) − c_r/η = 0. Hence, we can find that П_p(q|w) is increasing with q within the range of [L, F⁻¹(1 − c_r/η/(w − c_e))]. According to the П_p(q|w) in the above proof when q ≤ L, we can see that П_p(L|w) is greater than П_p(q|w) for any q ≤ L when w ≤ c_r/η + c_e. Therefore, we have П_p(F⁻¹(1 − c_r/η/(w − c_e))|w) > П_p(L|w). Then, q* should be equal to the minimum one between D/β and F⁻¹(1 − c_r/η/(w − c_e)). □

From Proposition 1, we can see that if w is no higher than the sum of the unit production cost of electricity generated by wave energy converters and the transformed construction cost of unit maximum amount of electricity (i.e., c_e + c_r/η), then the port has no motivation for investing in the wave energy converters because purchasing traditional electricity from the plant is more beneficial than investing in wave energy converters. If w > c_r/η + c_e, then the port may benefit from operating her own wave energy converters within a limited range. Because the electricity generated from wave energy in a period is uncertain, the marginal cost saving from wave energy is decreasing with q. In addition, considering that c_e and c_r/η influence the marginal cost of wave energy, we can find that a higher c_e or c_r/η may make the port to invest less in the wave energy converters. On the other hand, however, w presents the marginal cost saving of wave energy. Therefore, a higher w could encourage the port to invest more in the wave energy converters, which implies a higher amount of electricity converted from the wave energy (see Equation (2)).

When U and q are greater than D/β, the wave energy might satisfy the port’s demand of the electricity and the port does not need to purchase traditional electricity from the plant. If there is no salvage value of the electricity generated by the wave energy converters, q* is limited within the range of [0, D/β] because the port only needs to generate at most D/β units of electricity. However, in the real world, it is common that this type of surplus electricity can be sold to the market via the electricity plant’s grid. Therefore, we discuss the case wherein the amount of electricity generated by the wave energy converters exceeds D/β. Suppose that the converters generate as much electricity as they can. In this case, we can obtain the amount of electricity generated by the wave energy converters, AG as follows.

$$AG=\{\begin{array}{ll}x& x\le q\\ q& q<x\le U\end{array}$$

(4)

Next, we can obtain the amount of electricity purchased from the plant, AP, as follows.

$$AP=\{\begin{array}{ll}\left(D/\beta -x\right)& x\le D/\beta \\ 0& D/\beta <x\le U\end{array}$$

(5)

The salvage amount, AS, can be obtained as follows.

$$AS=\{\begin{array}{ll}0& x\le D/\beta \\ x-D/\beta & D/\beta <x\le q\\ q-D/\beta & q<x\le U\end{array}$$

(6)

If q ≥ L and L ≤ D/β, we can obtain the port’s expected profit function as Equation (7) shows.

$$\begin{array}{c}{\Pi }_p\left(q|w\right)=pD-c_e\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-\frac{c_r}{\eta }q-w{\displaystyle \underset{L}{\overset{D/\beta }{\int }}\left(\frac{D}{\beta }-x\right)f\left(x\right)dx}\\ +s\left({\displaystyle \underset{D/\beta }{\overset{q}{\int }}\left(x-\frac{D}{\beta }\right)f\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}\left(q-\frac{D}{\beta }\right)f\left(x\right)dx}\right)\end{array}$$

(7)

Because the electricity plant is unlikely to purchase the electricity from the port at a price higher than w, we assume that s ≤ w and the port prefers using the electricity generated by her own wave energy converters (if any) to the traditional electricity purchased from the plant. As a consequence, we can obtain that the port’s optimal q is the same with Proposition 1 when q is limited within the range of [0, D/β]. Next, we discuss the case wherein q is no smaller than D/β.

Proposition 2.

Suppose that the port invests in the wave energy converters and surplus electricity has a salvage value, s. We have

(i)

if s≤ c_e + c_r/η and q≥ D/β, then q* = D/β.

(ii)

if s > c_e + c_r/η and q≥ D/β, and

$$q^{\ast }=\max \left\{\frac{D}{\beta },F^{-1}\left(1-\frac{c_r}{\eta \left(s-c_e\right)}\right)\right\}$$

(8)

Proof.

(i) From Equation (7), we can obtain that dП_p(q|w)/dq = −c_r/η + (s − c_e)(1 − F(q)). If s − c_e ≤ c_r/η, then dП_p(q|w)/dq is always smaller than 0 for any q because (1 − F(q)) is no greater than 1. It means that П_p(q|w) is decreasing with q and the optimal q is equal to D/β when q is limited within the range of [D/β, U].

(ii) Because s > 0, we can obtain $\frac{d^2{\Pi }_p\left(q|w\right)}{d{q}^2}=-\left(s-c_e\right)f\left(q\right)<0$ and П_p(q|w) will achieve the maximum value with q* that satisfies dП_p(q*|w)/dp = 0 when q is greater than 0. In this case, q* = F⁻¹(1 − c_r/η/(s − c_e)) and П_p(q|w) is increasing with q when q is no greater than F⁻¹(1 − c_r/η/(s − c_e)) and s > c_e + c_r. As a consequence, we can find that П_p(q|w) is increasing with q within the range of [0, F⁻¹(1 − c_r/η/(s − c_e))]. Moreover, dП_p(q|w)/dq < 0 when q is greater than F⁻¹(1 − c_r/η/(s − c_e)). It means that П_p(q|w) is decreasing within the range of [F⁻¹(1 − c_r/η/(s − c_e)), U]. Then, q* should be equal to the larger one between D/β and F⁻¹(1 − c_r/η/(s − c_e)) when q is limited within the range of [D/β, U]. It is also easy to show the conclusions in the above two proofs still hold when L > D/β. □

According to Propositions 1 and 2, we can see that q* depends on the relationship among F⁻¹(1 − c_r/η/(w − c_e)), D/β, and F⁻¹(1 − c_r/η/(s − c_e)). Note that F⁻¹(1 − c_r/η/(w − c_e)) ≥ F⁻¹(1 − c_r/(s − c_e)) because w is no smaller than s. As a consequence, we have q* = F⁻¹(1 − c_r/η/(w − c_e)) when F⁻¹(1 − c_r/η/(w − c_e)) ≤ D/β and q* = F⁻¹(1 − c_r/η/(s − c_e)) when F⁻¹(1 − c_r/η/(s − c_e)) ≥ D/β. In particular, q* = D/β when F⁻¹(1 − c_r/η/(w − c_e)) > D/β > F⁻¹(1 − c_r/η/(s − c_e)).

Similar with the overstock cost in inventory management, the port needs to consider the potential loss of overinvestment in the wave energy converters. From Proposition 2, we can see that a higher s implies a higher possibility that q* = F⁻¹(1 − c_r/η/(s − c_e)). In particular, if s is equal to w, then the profit of the port when q > D/β is the same with Equation (3). In this case, the optimal q of the port is equal to F⁻¹(1 − c_r/η/(w − c_e)) when w > c_r/η + c_e. It implies that the upper bound on q* is increasing with s. This finding means that when the salvage value of electricity is higher, the overinvestment loss is lower and the port is more incentivized to invest in the wave energy converters. Hence, the government can encourage the port to invest in wave energy by setting a relatively high lower bound on s.

Table 2. q* under difference cases when w > s > c_e + c_r/η.

Condition	q*
F−1(1 − cr/η/(w − ce)) < D/β	F−1(1 − cr/η/(w − ce))
F−1(1 − cr/η/(s − ce)) > D/β	F−1(1 − cr/η/(s − ce))
F−1(1 − cr/η/(s − ce)) < D/β < F−1(1 − cr/(w − ce))	D/β

summarized q* under difference cases when w ≥ s > c_e + c_r/η.

3.3. The Case Wherein the Electricity Plant Invests in the Wave Energy Converters

Let П_e(q|w) be the profit function of the port. When the electricity plant invests in the wave energy converters and L ≤ q ≤ U, П_e(q|w) can be written as follows.

$$\begin{array}{l}{\Pi }_e\left(q|w\right)\\ =w\frac{D}{\beta }-c_e\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-\frac{c_r}{\eta }q-c_t\left(\frac{D}{\beta }-{\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx-}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)\end{array}$$

(9)

For the deal between the port and the electricity plant, the total revenue of the plant is wD/β. He obtains this revenue by supplying wave-energy electricity and traditional electricity if the former cannot meet the port’s demand. The second and third terms in Equation (9) present the production and construction costs related to wave energy, respectively. When the electricity generated by the wave energy converters is smaller than D/β, (i.e., $\frac{D}{\beta }\ge {\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}$) the port needs to use the traditional electricity to satisfy the port’s demand and the corresponding cost is $c_t\left(\frac{D}{\beta }-{\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx-}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)$. When the electricity generated by the wave energy converters is greater than D/β (i.e., $\frac{D}{\beta }<{\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}$), the exceeding amount of this electricity will be sold to other customers to replace the traditional electricity. In this case, П_e(q|w) can be increased by $c_t\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx-}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx-}\frac{D}{\beta }\right)$. On the basis of the above discussion, we can obtain the fourth term in Equation (9). When q ≤ L, П_e(q|w) = (w − c_t)D/β + (c_t − c_e)q − c_rq/η. Let q^e be the plant’s optimal q to maximize his own profit.

Proposition 3.

Suppose that the electricity plant invests in the wave energy converters.

(i)

if c_t≤ c_e + c_r/η, then q^e = 0.

(ii)

otherwise, q^e satisfies

$$q^e=F^{-1}\left(1-\frac{c_r}{\eta \left(c_t-c_e\right)}\right)$$

(10)

Proof.

(i)

When, L ≤ q ≤ U, Objective Function (9) can be written as

$$\begin{array}{l}{\Pi }_e\left(q|w\right)\\ =\left(w-c_e\right)\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-c_{r}q+\left(w-c_t\right)\left(\frac{D}{\beta }-{\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx-}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)\\ =\left(c_t-c_e\right)\left({\displaystyle \underset{L}{\overset{q}{\int }}xf\left(x\right)dx+}{\displaystyle \underset{q}{\overset{U}{\int }}qf\left(x\right)dx}\right)-c_{r}q+w\frac{D}{\beta }\end{array}$$

(11)

With the methodology used in the proof of Proposition 1, we can obtain that dП_e(q|w)/dq = (c_t − c_e)(1 − F(q)) − c_r/η. Considering that 0 ≤ F(q) ≤ 1 for any a q ∈ [L, U], dП_e(q|w)/dp is always smaller than zero if c_t − c_e ≤ c_r/η. In this case, the profit of the plant is always decreasing with q and then q^e = L. When q ≤ L, П_e(q|w) = (w − c_t)D/β + (c_t − c_e)q − c_rq/η and we can obtain q^e = 0 and П_e(0|w) > П_e(L|w). Hence, we can obtain that q^e = 0 if c_t ≤ c_e + c_r/η.

(ii)

With the same method of the proof of Proposition 1, we can find that q^e should be equal to F⁻¹(1 − c_r/η/(c_t − c_e)). □

Proposition 3 tells that the plant’s optimal q is influenced by the unit cost of traditional electricity. If this unit cost is smaller than c_e + c_r/η, then the plant will not invest in the wave energy converters, i.e., q^e = 0. If c_t/η ≥ c_r + c_e, then the plant may find it profitable to operating his own wave energy converters within a certain range. Moreover, a lower unit cost related to the wave energy, (i.e., c_e and c_r/η) may pull the plant to invest more in it. However, a lower unit cost of traditional electricity could weaken the plant’s motivation for the investment in wave energy converters.

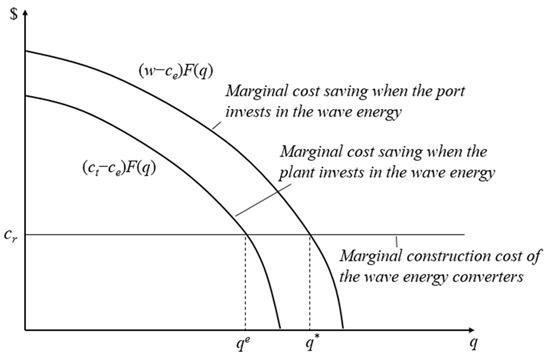

By comparing q^e and q* obtained from Propositions 1 and 3, we can see that in many cases the port is more incentivized than the plant to use the wave energy. For example, q* > q^e when F⁻¹(1 − c_r/η/(w − c_e)) < D/β. The reason could be as follows. When the port invests in the wave energy and q ≤ D/β, her marginal benefit of q is (w − c_e)F(q) − c_r/η. F(q) represents the possibility of obtaining one unit electricity at q. For such a unit, the port needs to invest c_r/η for the construction of the wave energy converters. The expected unit production cost for the electricity is c_eF(q). In addition, every unit’s electricity generated by the wave energy converters can save the port’s cost by w, which is the price that the port pays to the plant for unit electricity. Meanwhile, when the plant invests in the wave energy, his marginal benefit of q is (c_t − c_e)F(q) − c_r/η. The difference between the port and the plant is that the latter’s marginal benefit results in the difference between the unit production cost of the traditional electricity and the overall unit cost of the wave energy. Because w is higher than c_t in the real world, unit electricity from the wave energy can save more cost for the port than the plant. As a consequence, we can see that the port might invest more in the wave energy than the plant when the production amount is uncertain. Figure 2 illustrates the marginal benefits and costs of wave energy converters of the port and the electricity plant.

When q is required to be no smaller than D/β, the expected amount of traditional electricity purchased from the plant is fixed as ${\displaystyle \underset{L}{\overset{\frac{D}{\beta }}{\int }}\left(\frac{D}{\beta }-x\right)f\left(x\right)dx}$. The marginal benefit of q is (s − c_e)F(q) − c_r/η. If s is no greater than c_e, then the port cannot make a profit by selling the surplus electricity to the grid and he will select the minimum investment value, i.e., D/β. Supposing that w > c_t > c_r/η + c_e, it is easy to show that q* > q^e when s > c_t.

Table 3. Comparison between q* and q^e under different cases.

Condition	Relationship between q* and qe
F−1(1 − cr/η/(w − ce)) < D/β	q* > qe
s > ct	q* > qe
F−1(1 − cr/η/(s − ce)) > D/β and s < ct	q* < qe
F−1(1 − cr/η/(s − ce)) < D/β < F−1(1 − cr/η/(w − ce)) and s < ct and F−1(1 − cr/η/(ct − ce)) < D/β	q* > qe
F−1(1 − cr/η/(s − ce)) < D/β<F−1(1 − cr/η/(w − ce)) and s < ct and F−1(1 − cr/η/(ct − ce)) > D/β	q* < qe

summarized the comparison between q* and q^e under different cases, from which we can see the motivation of the port and plant for investing in wave energy converters.

3.4. Extension: Distribution-Free Model

For the seek of simplicity, we assume that s is equal to w in this subsection. We only discuss the case wherein the port invests in the wave energy converters. The discussion of the cases wherein the electricity plant invests in the converters will be similar. According to Propositions 1 and 2, we can obtain that q* = F⁻¹(1 − c_r/(w − c_e)) when s = w. The profit function of the port can be written as

П_p(q|w) = pD + (w − c_e)Emin(q,X) − c_rq/η − wD/β

(12)

Because min(q,X) = X − (X − q)⁺, we can obtain that Emin(q,X) = μ − E(X − q)⁺

П_p(q|w) = pD + (w − c_e)μ + (w − c_e)E(q − X)⁺ − c_rq/η − wD/β

(13)

Based on the findings of Scarf [28] and Gallego and Moon [29], we can obtain Proposition 4 as follows.

Proposition 4.

Given μ and σ, there exists a lower bound of П_p(q|w), and the q that maximizes this lower bound, i.e., q^d, satisfies

(i)

when w − c_e − 2c_r≥ 0,

$$q^d=\mu +\frac{\left(w-c_e-2\frac{c_r}{\eta }\right)\sigma }{2\sqrt{\frac{c_r}{\eta }\left(w-c_e-\frac{c_r}{\eta }\right)}}$$

(14)

(ii)

when w − c_e − 2c_r < 0,

$$q^d=\mu -\frac{\left(w-c_e-2\frac{c_r}{\eta }\right)\sigma }{2\sqrt{\frac{c_r}{\eta }\left(w-c_e-\frac{c_r}{\eta }\right)}}$$

(15)

Proof.

We combine the proofs of (i) and (ii) as follows. According to the findings of Scarf [28] and Gallego and Moon [29], we have

$$E{\left(X-q\right)}^{+}\le \frac{\sqrt{{\sigma }^2+{\left(q-\mu \right)}^2}-\left(q-\mu \right)}{2}$$

(16)

It means that without specifying a distribution of X, we always have

$${\Pi }_p\left(q\right)\ge pD+\left(w-c_e\right)\mu -\left(w-c_e\right)\frac{\sqrt{{\sigma }^2+{\left(q-\mu \right)}^2}-\left(q-\mu \right)}{2}-\frac{c_r}{\eta }q-w\frac{D}{\beta }$$

(17)

Let $G\left(q\right)=pD+\left(w-c_e\right)\mu -\left(w-c_e\right)\frac{\sqrt{{\sigma }^2+{\left(q-\mu \right)}^2}-\left(q-\mu \right)}{2}-\frac{c_r}{\eta }q-w\frac{D}{\beta }$.

In order to maximize G(q), we have

$$\frac{dG\left(q\right)}{dq}=-\frac{\left(w-c_e\right)}{2}\left(\frac{q-\mu }{\sqrt{{\sigma }^2+{\left(q-\mu \right)}^2}}-1\right)-c_r$$

(18)

and

$$\frac{d^{2}G\left(q\right)}{d{q}^2}=\frac{-{\sigma }^2}{\sqrt{{\sigma }^2+{\left(q-\mu \right)}^2}\left({\sigma }^2+{\left(q-\mu \right)}^2\right)}$$

(19)

Because d²G(q)/dq² < 0, the q that satisfies dG(q)/dq = 0 can maximize G(q).

By setting dG(q^d)/dq = 0, we can obtain

$$(w-c_e)\frac{(q^d-\mu )}{\sqrt{{\sigma }^2+{(q^d-\mu )}^2}}=w-c_e-2\frac{c_r}{\eta }$$

(20)

From Equation (20), we can infer that q^d − μ ≥ 0 when w − c_e − 2c_r/η ≥ 0 and q^d – μ < 0 when w − c_e − 2c_r/η < 0. In addition, we have

4c_r(w − c_e − c_r/η)(q^d − μ)² = (w − c_e − 2c_r/η)²σ²

(21)

Therefore, q^d should satisfy Equation (14) when w − c_e − 2c_r/η ≥ 0, and should satisfy Equation (15) when w − c_e − 2c_r/η < 0. □

Proposition 4 shows the q^d that maximizes the lower bound on П_p(q|w) when only μ and σ of X are known. We can see the motivation of distribution-free model as follows. In the practice, it can be used when collecting the full information of X is time consuming or costly. In the real world, assuming a distribution and using the corresponding q* or q^e might result in great loss. In this case, q^d would be an appropriate scenario that can maximize the lower bound on the profit. Moreover, in some cases, even though it is possible to point out the distribution of X, this work could be costly. Then, q^d can be used to evaluate the benefit of this work. Suppose that the port would like to verify whether X follows a uniform distribution. We can obtain q* by assuming that X follows a uniform distribution and the corresponding profit. We can also obtain the profit under q^d and that same uniform distribution. Certainly, the profit under q* is higher than the one under q^d. However, if this profit gap is smaller than the research fee required to verify the distribution, then directly implementing the distribution-free model (i.e., q^d) is more beneficial than verifying the distribution and using q*. This profit gap is also known as the Expected Value of Additional Information [29]. Hence, the distribution-free model can also be used to evaluate the performance of this verification.

4. Numerical Example

We conduct a numerical example to illustrate the optimal decisions of the port and electricity plant, and the impact of parameters. Suppose that a port terminal’s annual cargo throughput is 100 million tons and β = 1000 ton per MWh. Then, the electricity demand, i.e., D/β, is 100 GWh. Assume that s is 500 CNY per MWh, c_r/η is 400 CNY per MWh, c_e is 50 CNY per MWh, and c_t is 500 CNY per MWh. Suppose X in one year follows uniform distribution. Let L = 80,000 MWh and U = 140,000 MWh. In this case, F⁻¹(1 − c_r/η/(s − c_e)) is smaller than D/β. Let ECT(q) be the expected cargo throughput in tons supported by the electricity from wave energy. We have ECT(q) = (Expected AG(q)) × β. From

Table 4. Impact of salvage value of the price of traditional electricity.

w	q*	qe	Expected AG(q*)	Expected AG(qe)	ECT(q*)	ECT(qe)
600	96,364	86,667	94,132	986,929	94,132,000	86,929,000
620	97,895	86,667	95,226	986,929	95,226,000	86,929,000
640	99,322	86,667	96,211	986,929	96,211,000	86,929,000
660	100,000	86,667	96,667	986,929	96,667,000	86,929,000
680	100,000	86,667	96,667	986,929	96,667,000	86,929,000

, we can see that q* is increasing with w when w is within a certain range. For a small w, F⁻¹(1 − c_r/η/(w − c_e)) is smaller than D/β and q* = F⁻¹(1 − c_r/η/(w − c_e). When w reaches a threshold, F⁻¹(1 − c_r/η/(w − c_e) is higher than D/β that will be the value of q* (see Table 3). According to Table 3 and c_t, we can obtain that q* is no smaller than q^e, and the port is more incentivized to invest in wave energy converters than the electricity plant when w is higher than 600 CNY per MWh. According to β = 1000 ton per MWh, we have the amounts of cargo throughput (in ton) supported by the wave-energy electricity, as ECT(q*) and ECT(q^e) show.

When w = 800 CNY per MWh, F⁻¹(1 − c_r/η/(w − c_e)) is still higher than D/β. In this case, F⁻¹(1 − c_r/η/(s − c_e)) is smaller than D/β and q* = D/β when s is small. Hence, q* is equal to 100 when s is no higher than 650 CNY per MWh. When s reaches a threshold, F⁻¹(1 − c_r/η/(s − c_e) is higher than D/β and q* = F⁻¹(1 − c_r/η/(s − c_e)), as Table 3 illustrates. From

Table 5. Impact of salvage value of wave-energy electricity when w = 800 CNY per MWh.

s	q*	qe	Expected AG(q*)	Expected AG(qe)	ECT(q*)	ECT(qe)
600	100,000	92,941	96,667	91,546	96,667,000	91,546,000
650	100,000	92,941	96,667	91,546	96,667,000	91,546,000
700	103,077	92,941	98,639	91,546	98,639,000	91,546,000
750	105,717	92,941	100,206	91,546	100,000,000	91,546,000
800	108,000	92,941	101,467	91,546	100,000,000	91,546,000

, we can see that q* is increasing with s when s is higher than 650 CNY per MWh. Therefore, we can conjecture that the government can encourage the port to invest more in wave energy converters by setting a higher s. On the other hand, however, this policy will not influence the electricity plant’s motivation for wave energy. Table 5 also illustrates ECT(q*) and ECT(q^e) when s is increasing. When s is no lower than 750 CNY per MWh and the port invests in wave energy converters, expected AG(q*) is higher than D/β and all of the workload of the port can be covered by the wave-energy electricity, i.e., ECT(q*) = D/β. The excess wave-energy electricity under q* when s is equal to 750 and 800 CNY per MWh is 206 and 1467 MWh. In these cases, the port can obtain revenue of 154.5 and 1173.6 thousand CNY.

Because c_e and c_r/η have similar impacts on the optimal decisions, we only show the results when c_e varies. As

Table 6. Impact of unit production cost of wave-energy electricity.

ce	q*	qe	Expected AG(q*)	Expected AG(qe)	ECT(q*)	ECT(qe)
10	99,322	91,020	96,211	90,008	96,211,000	90,008,000
20	98,621	90,000	95,731	89,167	95,731,000	89,167,000
30	97,895	88,936	95,226	88,271	95,226,000	88,271,000
40	97,143	87,826	94,694	87,316	94,694,000	87,316,000
50	96,364	86,667	94,133	86,296	94,133,000	86,296,000

shows, when c_e is between 10 and 50 CNY per MWh, q* and q^e are decreasing with c_e.

Table 7. Impact of unit production cost of traditional electricity.

ct	q*	qe	Expected AG(q*)	Expected AG(qe)	ECT(q*)	ECT(qe)
400	96,364	0	95,695	0	95,695,000	0
450	96,364	80,000	95,695	80,000	95,695,000	80,000,000
500	96,364	86,667	95,695	86,556	95,695,000	86,556,000
550	96,364	92,000	95,695	91,640	95,695,000	91,640,000
600	96,364	96,364	95,695	95,695	95,695,000	95,695,000

shows the impact of c_t on q* and q^e. We can see that c_t has no influence on the port’s decision, but has a significant effect on the electricity plant’s motivation. When c_t is lower than c_r + c_e, the plant has no motivation for investing in wave energy. When c_t is high, the cost advantage of the traditional electricity will be lower and the plant would like to invest more in wave energy converters. There also exist cases wherein the plant has the same motivation for the investment with the port. It implies that governments can increase q^e by charging the plant a penalty cost for unit traditional electricity to increase c_t.

In order to see the impact of wave supply condition and how distribution-free model works, we set w = 600 CNY per MWh, s = 500 CNY per MWh, and conducted experiments on different pairs of {a, b}. Because F⁻¹(1 − c_r/η/(s − c_e) is higher than D/β, q* is equal to F⁻¹(1 − c_r/η/(s − c_e) and it is decreasing when the standard deviation of X is decreasing, as

Table 8. Impact of wave supply condition (the same mean value and different standard deviations).

L	U	q*	qe	Expected AG(q*)	Expected AG(qe)	qd	Profit Gap
0	200,000	54,545	22,222	47,107	20,987	70,537	351,638
20,000	180,000	63,636	37,777	57,686	36,789	76,430	281,310
40,000	160,000	72,727	53,333	68,264	52,592	82,322	210,983
60,000	140,000	81,818	68,889	78,843	68,395	88,215	140,655
80,000	120,000	90,909	84,444	89,421	84,197	94,107	70,328

shows. In addition, q^d is more closed to q* with a smaller standard deviation of X, and the profit gap between П_p(q*) and П_p(q^d) is smaller. According to the profit gaps, we can tell whether it is beneficial to spend money to verify the exact probability distribution.

5. Managerial Insights and Policy Suggestions on Encouraging Green Ports

The optimization of construction of wave energy converters and production of wave-energy electricity can be modeled as a newsvendor problem when the wave supply is uncertain. If there is no salvage value of wave-energy electricity generated by the port, then the port has no incentive to invest in wave energy converters to hold a capacity beyond her electricity demand. If F⁻¹(1 − c_r/η/(w − c_e)) is smaller than the demand, then the port’s willingness of investing in the converters is higher when w is increased. Hence, governments can encourage ports to implement wave energy by setting a higher lower bound on the price of the traditional electricity charged by the plant. In addition, the port’s willingness is negatively associated with the construction cost of wave energy converters. It implies that governments can offer some subsidy to reduce the construction cost. However, it should be noted that the above suggested polices are not always efficient. Without a salvage value of surplus wave-energy electricity, the port will not benefit from investing more in wave energy when the wave-energy electricity satisfies the demand.

In order to encourage the port to invest more in wave energy, governments can help the port to sell the surplus wave-energy electricity to the grid. If the salvage value is low, then the port may find a high q not beneficial. Therefore, governments needs to set a high lower bound on s so that the port can get more by selling surplus electricity. For example, the government can offer incentive money to the port for unit wave-energy electricity sent to the grid. Meanwhile, it is not certain that the port’s willingness of investing in wave energy is always positively impacted by s. There exists a lower bound on s to encourage the port to generate more electricity from wave energy than her demand.

On the electricity plant side, because the plant will lose interest in wave-energy electricity when c_t ≤ c_e + c_r/η, governments need to design policies by considering the costs of both wave-energy electricity and traditional electricity. For example, governments can charge the plant a penalty cost for unit traditional electricity to increase c_t. Another potential policy is to give subsidy on unit wave-energy electricity to reduce c_e. Governments can also invest in research and development of new wave energy converter technologies to reduce c_r.

Among existing types of wave energy converters, only some types are appropriate to be entirely embedded in the breakwaters of ports, such as Oscillating Water Column and Over Topping Device [30,31,32]. In this case, the total construction cost of wave energy converters and breakwaters could be lower, and the overall benefit will be increased. If the electricity plant invest in wave energy converters, he may try to find approaches of sharing this cost with the port because the construction waive a part of construction cost of breakwater of the port. Governments may find space to guide the port and plant to share the construction cost of wave energy converters embedded in the breakwater to encourage the investment in wave energy that can also decrease the total construction cost including breakwaters.

6. Conclusions and Future Work

According to the characteristics of wave energy, we developed mathematical models to analyze the optimal decisions of the port and the electricity plant. When the cost of wave-energy electricity is higher than the expenditure of using traditional electricity (i.e., w ≤ c_r/η + c_e), the port will have no interest in implementing wave energy because purchasing traditional electricity from the plant can be more beneficial. When w > c_r + c_e, the port may invest in wave energy converters. In particular, there is an upper bound on q*, (i.e., D/β) if there is no salvage value of surplus electricity. In this case, q* is increasing with w if F⁻¹(1 − c_r/η/(w − c_e)) < D/β. When the port can sell surplus electricity to the grid with a salvage value, q* might be higher than the former case, and it is influenced by the value of s.

When the plant invests in wave-energy electricity, it can sell surplus wave-energy electricity to the grid at a price of w that is usually higher than s. However, it does not mean that the plant is more incentivized to invest in wave energy converters than the port. Because the port’s electricity demand is fixed, the amount of wave-energy electricity influences the cost of the plant rather than the revenue. Hence, it is the costs of wave-energy electricity and traditional electricity affects the willingness of the port for wave energy. We show that a higher c_t makes the plant invest more in wave energy converters. By comparing the port and plant, we can see that there exist cases wherein each side has higher motivation for wave energy than the other. For example, if F⁻¹(1 − c_r/η/(s − c_e)) < D/β < F⁻¹(1 − c_r/η/(w − c_e)), q* = D/β. In this case, q^e will be higher than q* if F⁻¹(1 − c_r/η/(c_t − c_e)) > D/β.

We also extend the port’s model to distribution-free model, in which μ and σ are known. Without specifying a distribution of wave energy supply in one period, we showed that there exists a lower bound of П_p(q|w), and obtained q^d that maximizes this lower bound. By using this q^d, the port can guarantee a lower bound on her profit without knowing the distribution of wave energy supply. The port can also evaluate the benefit of investigating the wave energy supply with the extended model and findings. If it is time consuming or costly to get the distribution information, then the extended model can be used to make decisions to save time or obtain a solution which can maximize the lower bound of the expected profit.

This study can be extended in several directions. First, there exist areas wherein several ports are located, such as Zhejiang province, China [33]. It would be worthwhile to analyze the optimal capacities and layout of wave energy converters among these ports to design an efficient grid of wave-energy electricity. Second, considering that the wave energy supply condition is usually complex and dynamic, simulation models to determine the optimal decisions on the investment under specific wave supply conditions could also be a fruitful direction from the views of both academic and practical. Third, there are a large number of researchers who are developing technologies of wave energy converters. Governments, ports, and electricity plants would benefit from the advanced technologies. Because the research fee would be high and the outcome is uncertain, how to share the research fee and outcome will be essential to encourage those agents to invest in the research and technology. Therefore, it would be interesting to develop a contract to coordinate different agents’ decisions on wave energy utilization. Fourth, it will also be worthwhile extending the model with the environmental cost-benefit analysis [34]. Comprehensive subsidy and pricing schemes of government can be analyzed to improve the environmental benefit of wave energy converters.
