Mathematical Model of the Plane-Parallel Movement of the Self-Propelled Root-Harvesting Machine
Abstract
:1. Introduction
2. Materials and Methods
2.1. Theoretical Research

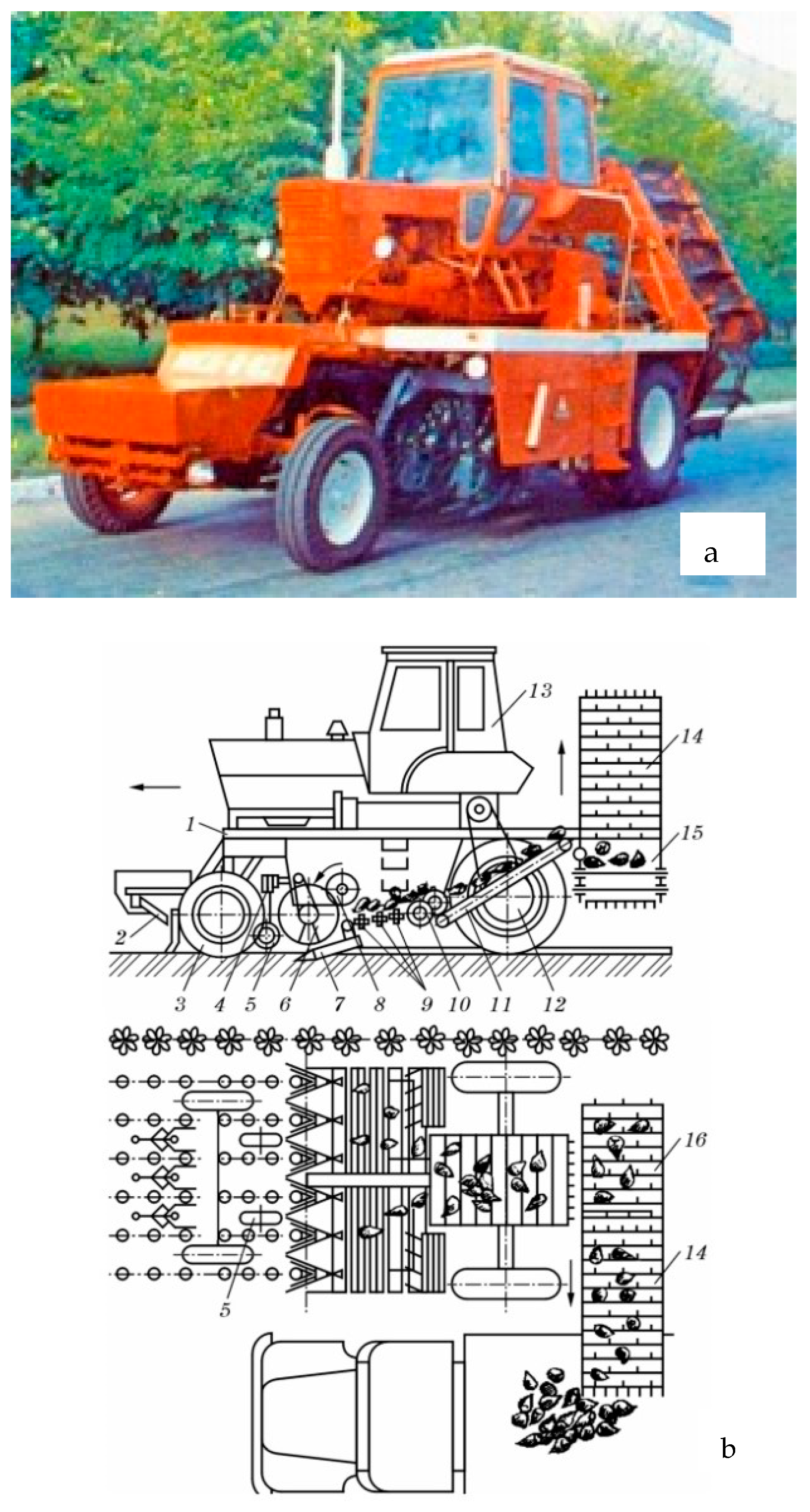

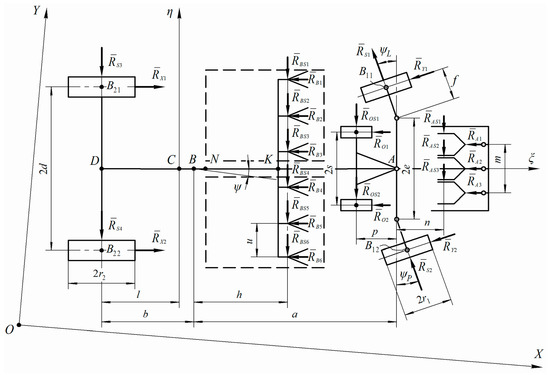

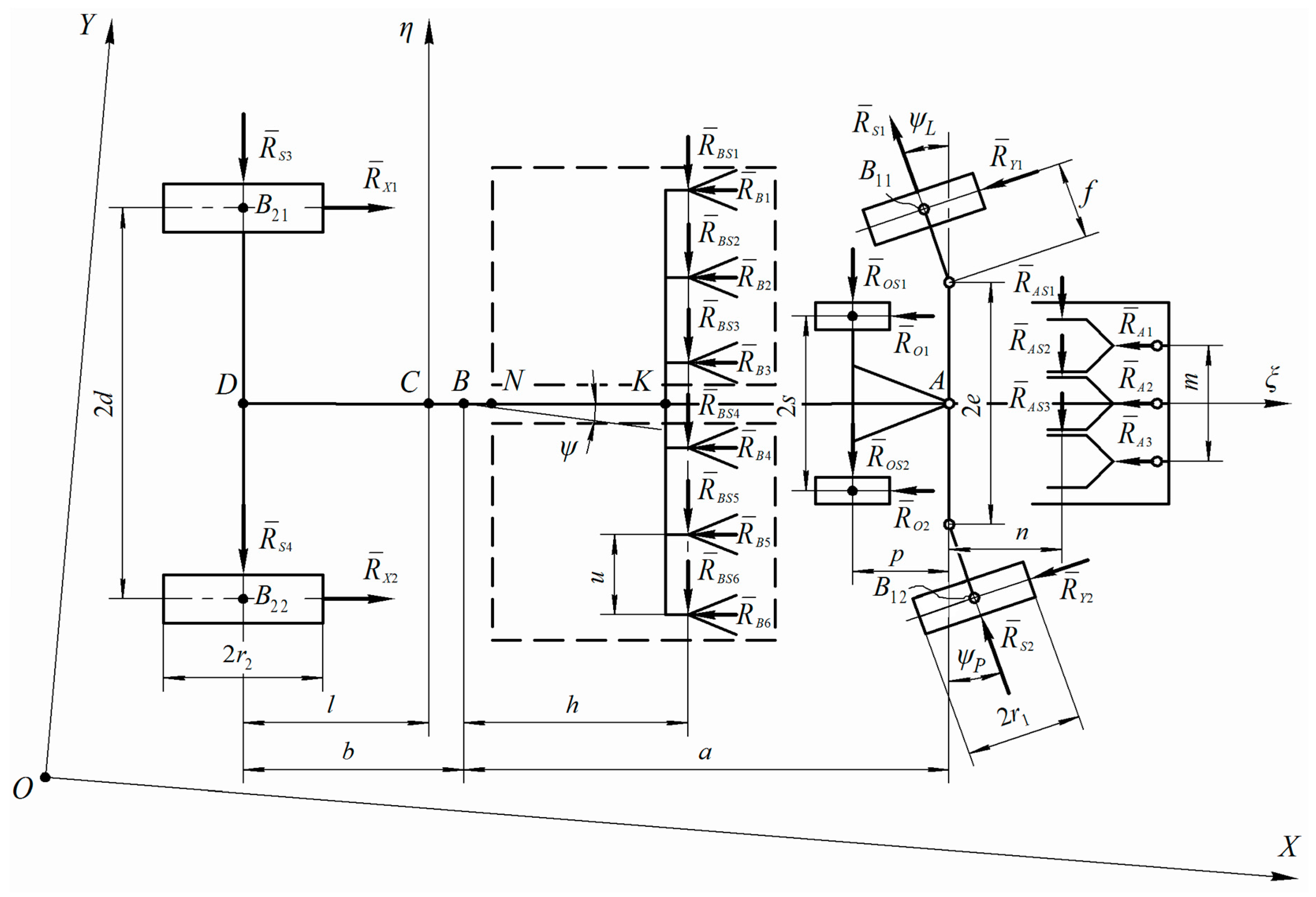

2.1.1. Equivalent Scheme of a Self-Propelled Root Harvesting Machine
2.1.2. Mathematical Model
2.2. Experimental Tests
3. Results and Discussion

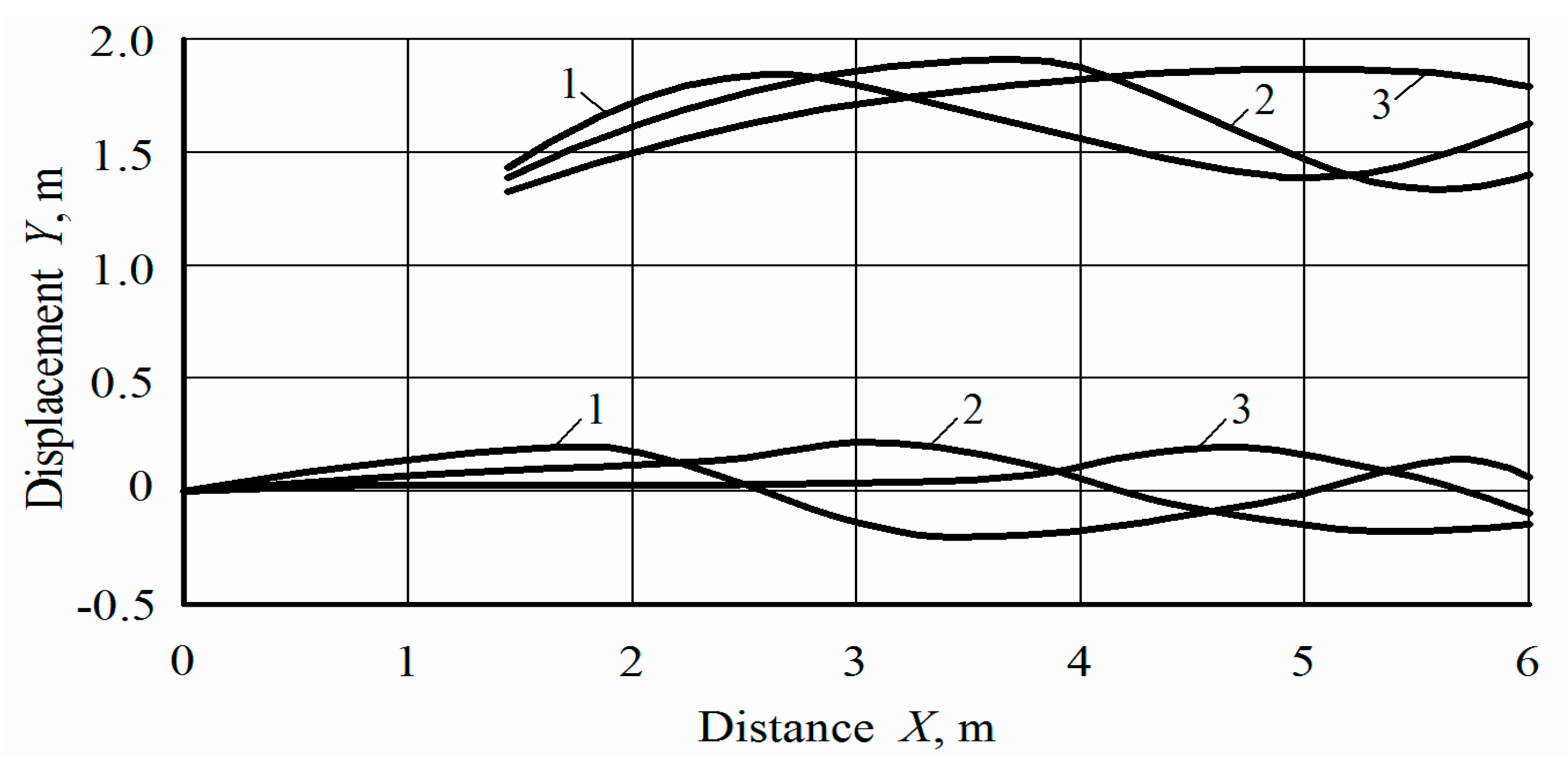

3.1. Numerical Results

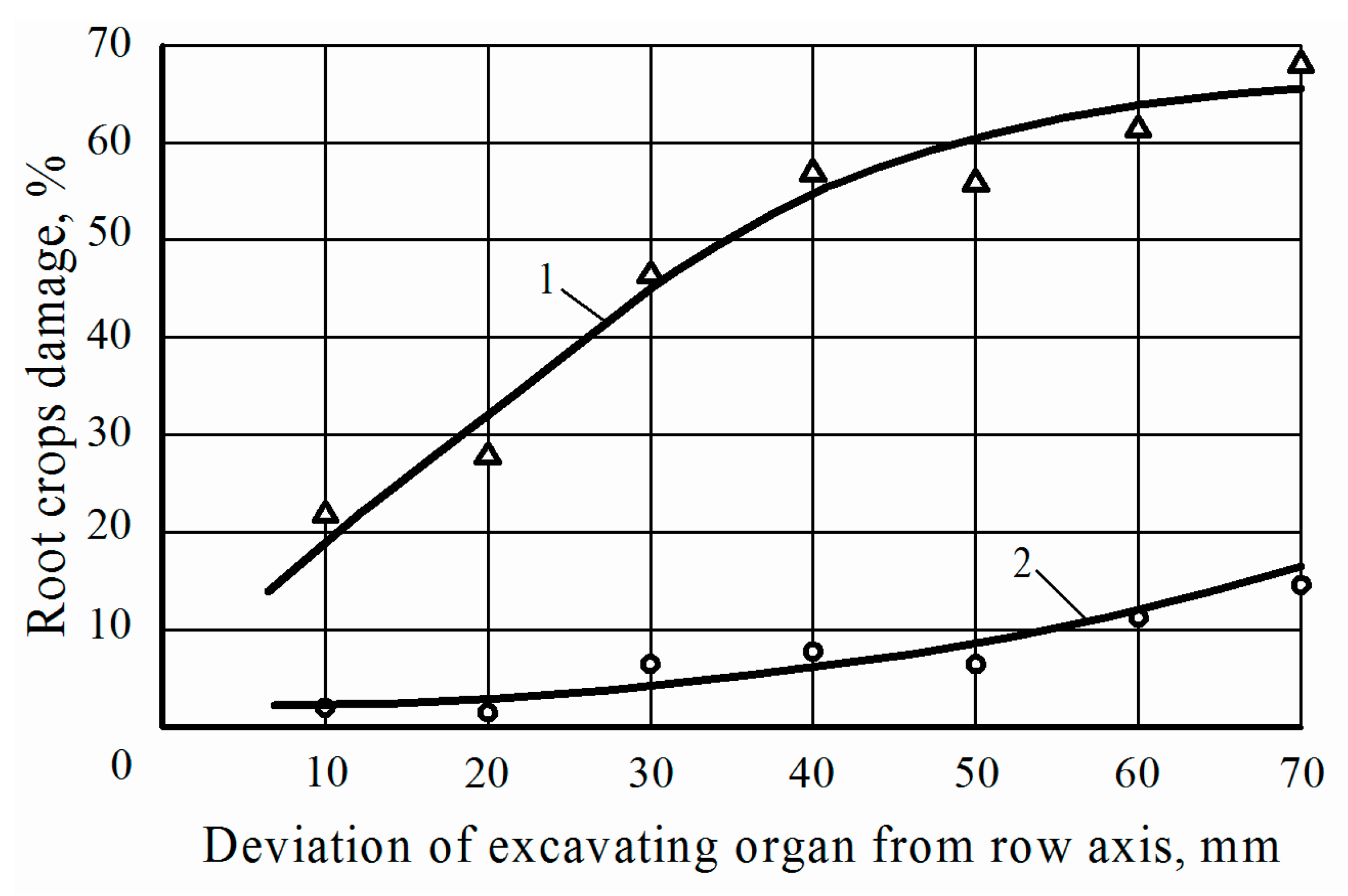

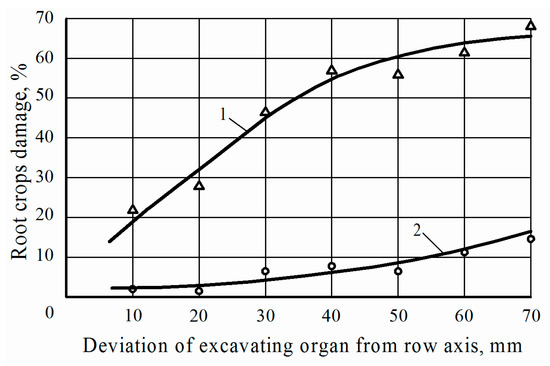

3.2. Experimental Results
4. Conclusions
- It was determined that the dynamic system of the self-propelled harvesting aggregate can be considered as conservative with practically absent dissipative processes.
- Since the self-propelled root harvester is a complex, multi-mass dynamic system, the method of compiling systems of differential equations in the Lagrange form of the second kind is most suitable for investigating the motion of such a system. The resulting system of second-degree differential equations is nonlinear, the solution of which is produced by numerical methods on the PC. The obtained system of differential equations contains constructive parameters of the root-harvesting machine. By changing these parameters, it is possible to achieve such values that will contribute to a more stable movement of the self-propelled root crop machine in the horizontal plane.
- The use of the obtained mathematical model makes it possible to optimize the parameters of the plane-parallel motion and to improve the quality parameters of the technological process.
- Further analytical studies on this model can be focused on other solutions of this mathematical model of the PC, for cases when disturbing effects on the elements of a self-propelled root harvester can be represented in the form of statistical functions. The results obtained in the general form create prerequisites for the theoretical study of other mobile machine aggregates.
Author Contributions
Funding
Conflicts of Interest
Nomenclature
B | center of mass of the root harvesting machine |
C | pole (a fixed point on the machine body located on its longitudinal axis) |
A, D | midpoints of the interaxial distances between the front driven and rear drive wheels, respectively |
B11, B12, B21, B22 | centers of mass points of the front driven and rear drive wheels |
N | intersection point of the suspension axis of the digging sections and the longitudinal axis of the machine |
A | hinge point of the frame of the feeler wheels |
AB = a | distance from the center of mass B to the front axle |
DB = b | distance from the center of mass B to the rear axle |
DC = l | distance from pole C to the rear axle |
BK = h | distance from pole C to the axis of the suspension of the digging sections |
p | distance from the front axle to the axis of the feeler wheels |
n | distance from the front axle to the axis of the feelers |
m | distance between the suspension points of the outside feelers |
2e | distance between the axis of turns of steerable wheels |
u | distance between the axis of symmetry of neighboring excavating working bodies |
f | length of the swivel pin of the steering gear |
2r1 and 2r2 | diameters of the steerable and driving wheels, respectively |
2d and 2s | width of the track of the driving and feeler wheels |
AD = a + b | longitudinal base of root harvesting machine |
JM | moment of inertia of the root harvesting machine relative to the vertical axis Cξ |
M | mass of the root harvesting machine |
Mres.rot. | torque moment of resistance |
Mrot. | moment of forces turning the root harvesting machine through an angle |
qi | generalized coordinates |
Qi | generalized forces |
Ry1, Ry2 | soil reactions acting on the steerable wheels |
Rx1, Rx2 | soil reactions acting on the driving wheels |
RO1, RO2 | soil reactions acting on the feeler wheels |
RA1, RA2, RA3 | soil reactions acting on the feelers |
RB1, RB2, …, RB6 | total resistance reactions during the movement of excavated working organs in the soil |
RS1, RS2, RS3, RS4 | lateral reactions of the soil, acting on the steerable and driving wheels of the root-harvesting machine when moving along the axis Y |
ROS1, ROS2 | lateral reactions of the soil, acting on the feeler wheels of the root-harvesting machine when moving along the axis Y |
RBS1, RBS2, …, RBS6 | lateral reactions of the soil, acting on the digging working organs |
RAS1, RAS2, RAS3 | lateral reactions of the soil, acting on the sensors of the feelers |
T | energy of the system |
T1 and T2 | kinetic energy, respectively, of the translational motion of the root harvesting machine and its rotation around the pole C |
VB | velocity of the center of mass |
heading angle | |
and | angles to determine the orientation of the axes of the left and right steered wheels relative to the body of the machine |
angular speed of rotation of the machine around the pole C | |
δqi | variations of the corresponding generalized coordinates |
