Article

Resiliency of an Interior Ponderosa Pine Forest to Bark Beetle Infestations Following Fuel-Reduction and Forest-Restoration Treatments

1
Pacific Southwest Research Station, USDA Forest Service, 1731 Research Park Drive, Davis, CA 95618, USA
2
Pacific Southwest Research Station, USDA Forest Service, 2480 Carson Road, Placerville, CA 95667, USA
*
Author to whom correspondence should be addressed.
Forests 2014, 5(1), 153-176; https://doi.org/10.3390/f5010153
Submission received: 28 November 2013 / Revised: 9 January 2014 / Accepted: 13 January 2014 / Published: 20 January 2014
(This article belongs to the Special Issue Interactions between Bark Beetles and Forests)

Abstract

:
Mechanical thinning and the application of prescribed fire are commonly used to restore fire-adapted forest ecosystems in the Western United States. During a 10-year period, we monitored the effects of fuel-reduction and forest-restoration treatments on levels of tree mortality in an interior ponderosa pine, Pinus ponderosa Dougl. ex Laws., forest in California. Twelve experimental plots, ranging in size from 77–144 ha, were established to create two distinct forest structural types: mid-seral stage (low structural diversity; LoD) and late-seral stage (high structural diversity; HiD). Following harvesting, half of each plot was treated with prescribed fire (B). A total of 16,473 trees (8.7% of all trees) died during the 10-year period. Mortality was primarily attributed to bark beetles (Coleoptera: Curculionidae, Scolytinae) (10,655 trees), specifically fir engraver, Scolytus ventralis LeConte, mountain pine beetle, Dendroctonus ponderosae Hopkins, western pine beetle, D. brevicomis LeConte, pine engraver, Ips pini (Say), and, to a much lesser extent, Jeffrey pine beetle, D. jeffreyi Hopkins. Trees of all ages and size classes were killed, but mortality was concentrated in the smaller-diameter classes (19–29.2 and 29.3–39.3 cm at 1.37 m in height). Most mortality occurred three to five years following prescribed burns. Higher levels of bark beetle-caused tree mortality were observed on LoD + B (8.7%) than LoD (4.2%). The application of these and other results to the management of interior P. ponderosa forests are discussed, with an emphasis on the maintenance of large trees.

1. Introduction

Currently, >10 million hectares of forests are classified as having moderate- to high-fire hazards in the Western United States [1], and fuel-reduction treatments have been widely promoted to reduce the intensity and severity of future wildfires. Such conditions are most notable at lower elevations where short-interval, low- to moderate-intensity fire regimes predominate [2,3,4,5,6,7,8,9,10]. In general, these forests are characterized by the presence of ponderosa pine, Pinus ponderosa Dougl. ex Laws., an integral component of three forest cover types and a major component of >65% of all forests in the Western United States [11]. Prior to Euro-American settlement, many interior P. ponderosa forests in California, United States were dominated by open and park-like stands of widely-dispersed P. ponderosa and Jeffrey pines, P. jeffreyi Grev. & Balf. Frequent thinning of small-diameter (<19 cm diameter at breast height (dbh), 1.37 m) and fire-intolerant trees by low-intensity surface fires, and competitive exclusion of tree seedlings by understory grasses are believed to have maintained such conditions [12]. Today, many of these forests are denser, have more small trees and fewer large trees, and are dominated by more shade-tolerant and fire-intolerant tree species, such as white fir, Abies concolor (Gord. & Glend.) Lindl. ex Hildebr. This is largely a result of fire exclusion and past harvesting practices [5,12].
When applied under prescription, both prescribed fire and mechanical thinning are generally effective in meeting short-term fuel reduction objectives as treated stands are more resilient to wildfire [13,14]. For example, their effectiveness for reducing the incidence of passive crown fire (i.e., torching of small groups of trees) is well supported by modeling of predicted fire behaviors (e.g., [15]) and by empirical research (e.g., [16]). Ritchie et al. [16] studied the effects of fuel-reduction treatments at Blacks Mountain Experimental Forest, California on observed fire severity at the point of transition between treated (see Section 2) and untreated stands that were later impacted by a wildfire. Tree survival was highest in areas that were both thinned and prescribed burned. Survival in thinned-only areas was significantly greater than untreated areas, but less than areas that had received the combined treatment [16].
Following prescribed fire, tree mortality may be immediate due to consumption of living tissue and heating of critical plant tissues, or can be delayed occurring over the course of several years as a result of fire injuries to the crown, bole, or roots [17]. Levels of delayed tree mortality are difficult to predict, and depend on numerous factors including tree species, tree size, phenology, degree of fire-related injuries, initial and post-fire levels of tree vigor, the post-fire environment, and the frequency and severity of other predisposing, inciting, and contributing factors [13]. In specific, the propensity for bark beetles (Coleoptera: Curculionidae, Scolytinae) to attack fire-injured trees has led to questions regarding how the amount and distribution of bark beetle-caused tree mortality may negatively impact efforts to restore fire-adapted forest ecosystems with prescribed fire [18]. Concerns also exist about the potential for bark beetle populations to increase in fire-injured trees and then colonize apparently-healthy trees in adjacent areas resulting in undesirable levels of tree mortality [13,14,18,19]. These trees may then serve as a source of beetles and attractive semiochemicals (i.e., host volatiles and aggregation pheromones produced by many bark beetle species during host colonization) that attract other beetles into the vicinity resulting in additional levels of tree mortality over time. This is of particular importance in interior P. ponderosa forests, which are well recognized for the diversity of tree-killing bark beetle species inhabiting them, most notably western pine beetle, Dendroctonus brevicomis LeConte, mountain pine beetle, D. ponderosae Hopkins, Jeffrey pine beetle, D. jeffreyi Hopkins, pine engraver, Ips pini (Say), and fir engraver, Scolytus ventralis LeConte; and for which fuel reduction and forest restoration is a top priority [13,20].
Fuel-reduction treatments have functionally different effects on the fuel matrix, and, thus, on the structure and composition of residual forests as well as their resiliency to disturbances, such as bark beetle infestations [13,14,21,22]. For example, fuel-reduction treatments may affect the health and vigor of residual trees; the size, distribution and abundance of preferred hosts; and the physical environment within forests. Tree volatiles released during harvest operations and/or applications of prescribed fire are known to influence the physiology and behavior of bark beetles [23]; to increase bark beetle colonization rates on trees [24,25]; and to increase levels of tree mortality attributed to bark beetles [26] in P. ponderosa forests. Furthermore, associated reductions in tree density cause changes in microclimate that affect beetle fecundity and fitness, phenology and voltinism, as well as that of predators, parasites, and competitors [27]; or that may cause turbulences that disrupt pheromone plumes used for recruiting conspecifics during initial phases of host tree colonization [28], thus, negatively affecting host finding successes. Factors such as stand density, host density, average tree diameter, and average stand age are consistently identified as primary attributes associated with the severity of bark beetle infestations in the Western United States [21]. For example, Hayes et al. [29] showed that levels of D. brevicomis-caused tree mortality in P. ponderosa forests in California can be predicted (Adjusted R2 > 0.90) at large spatial scales by simply measuring stand density, specifically the basal area of all tree species.
In the last decade, numerous studies have examined the effects of fuel-reduction and forest-restoration treatments on the amount, distribution and causes of tree mortality in P. ponderosa (e.g., [24,25,30,31,32,33,34,35,36,37,38,39,40,41]). Most were conducted on small experimental plots for a relatively short period of time. Our work is part of a long-term ecological research project (Blacks Mountain Ecological Research Project) managed by the Pacific Southwest Research Station (USDA Forest Service), and conducted at large spatial scales that represent reasonable management scenarios in interior P. ponderosa. The primary objectives of the Blacks Mountain Ecological Research Project are to enhance understanding of the effects of forest structural complexity on the health and vigor of interior P. ponderosa forests; to quantify resilience to natural and human-caused disturbances; and to determine how these forests can be managed for sustained resource values [12]. In other work, we described the effects of structural diversity and the application of prescribed fire on levels and causes of tree mortality two ([36], sample period 1) and five years ([37], sample period 2) following prescribed burns. The objective of this study was to further our understanding of these relationships during the initial 10 years (sample period 3) following prescribed burns. Our goal is to address the following questions: (1) What are the effects of structural diversity and the application of prescribed fire on levels of tree mortality? (2) What are the primary causes of tree mortality and how might these vary temporally? (3) How do levels of tree mortality attributed to bark beetles vary by bark beetle species, host species, and tree size; (4) What are the potential implications to the management of interior P. ponderosa forests?

2. Experimental Section

This study was conducted at Blacks Mountain Experimental Forest (Blacks Mountain; 40°40′ N, 121°10′ W; 1700–2100 m elevation) located on the Lassen National Forest, California. Blacks Mountain was established in 1934 as a research facility for the study of forest management in interior P. ponderosa, and has produced a rich history of research concerning the effects of silvicultural treatments on forest insects. For example, Salman and Bongberg [42] developed their famous risk-rating system at Blacks Mountain. The climate is characterized by hot, dry summers and cold, moist winters. Mean daily temperatures range from −9 °C to 29 °C. Annual precipitation averages 50.8 cm, with most coming as snow between October and May. Prior to treatment, stands within the study area were dominated by two age cohorts consisting of 300–500 year-old Pinus (P. ponderosa and P. jeffreyi) and incense cedar, Calocedrus decurrens (Torr.) Flori, with a dense understory and mid-story of 50–100 year-old Pinus, A. concolor, and C. decurrens [12]. There were 32.4 ± 1.5 (mean ± SEM) m2/ha of basal area and 871 ± 58 trees/ha [43].
Twelve experimental plots, ranging in size from 77–144 ha (mean = 111 ha), were established to create two distinct forest structural types: mid-seral stage (low structural diversity; LoD) and late-seral stage (high structural diversity; HiD). Each structure was randomly assigned to two plots within each of three blocks. Blocking allowed for allocating variation to differences in tree species composition associated with elevational gradients (as A. concolor and C. decurrens become increasingly abundant with elevation) and year of treatment. LoD was created by removing larger overstory trees and small understory trees leaving only trees of intermediate size, while HiD was attained by thinning smaller trees and retaining larger trees. Following harvesting, half of each plot was treated with prescribed fire in fall (B) (Table 1). For a comprehensive description of treatments and a depiction of their placement on the landscape, see Oliver [12]. Earlier, we described climatic conditions, fuel moistures, and other parameters associated with prescribed burns [36]. In short, burns were implemented using head, backing and spot fires. Hourly fuel moistures averaged from 10.5% for 6–25 mm fuels (Block 1) to 39.2% for duff (<20 mm) (Block 1 and 2). Following treatments, LoD and HiD averaged 10 and 25 m2/ha of basal area and 282 and 513 trees/ha, respectively. Species composition ranged from 49% Pinus and 42% A. concolor (HiD + B) to 61% Pinus and 29% A. concolor (LoD + B) [43].
A 100% cruise (census) was conducted on each plot to locate dead and dying Pinus and Abies by presence of crown fade, an irreversible symptom of tree mortality. While both C. decurrens and western juniper, Juniperus occidentalis Hook., are minor components of Blacks Mountain (i.e., representing <7.7% and <0.1% of trees, respectively) [12,43], these species generally are not attacked and killed by bark beetles and were ignored. Due to the large spatial scale of this study, treatment implementation and our evaluations were staggered across multiple years (Table 1). All recently-killed Pinus and Abies >19 cm dbh were identified, tallied, and causal agent of mortality identified. Tree species, dbh, crown color, colonizing bark beetle species, presence of wood borers (Coleoptera: Cerambycidae, Buprestidae), and ranking of burn severity (1–4, based on external measures of bole char and bark consumption) [36,37] were recorded. A section of bark ~625 cm2 was removed on each recently-killed tree with a hatchet at ~2 m in height on at least two aspects to determine if any bark beetle galleries were present in the phloem or cambium. The shape, distribution and orientation of galleries are commonly used to distinguish among bark beetle species [44]. Bark removal also served as a means of separating mortality tallied during each of three sample periods.
Table 1. Treatment and evaluation dates, Blacks Mountain Experimental Forest, California.
Table 1. Treatment and evaluation dates, Blacks Mountain Experimental Forest, California.
PlotStand Structure 1Prescribed BurnSample Period 1 2Sample Period 2 Sample Period 3 3
UnburnedBurnedAllAll
38HiDOctober 1997September 1998August 1999September 2002June 2008
39LoDOctober 1997September 1998September 1999September 2002June 2008
40LoDOctober 2000August 2002July 2002August 2005May 2012
41HiDOctober 1997August 1998August 1999September 2002June 2008
42HiDNovember 1999September 2001August 2001September 2004October 2009
43LoDOctober 1997August 1998August 1999October 2002June 2008
44LoDNovember 1999July 2001August 2001August 2004August 2009
45LoDNovember 1999October 2001October 2001October 2004October 2009
46LoDOctober 2000June 2002June 200244
47HiDNovember 1999July 2002July 2002August 2004August 2009
48HiDOctober 2000July 2002July 2002August 2005May 2012
49HiDOctober 2000August 2002August 2002October 2005May 2012
1 HiD = high structural diversity, LoD = low structural diversity [12]; 2 Burned-split plots were initially evaluated the second field season following prescribed burns; 3 Plots burned in 1999 were evaluated the tenth field season. Plots burned in 1997 were evaluated in early 2008 prior to bark beetle flight. Plots burned in 2000 were evaluated in 2012 prior to bark beetle flight, but only trees killed in 2010 (based on crown fade) were tallied; 4 Plot damaged by wildfire and excluded from study in 2002.
In September 2002, a wildfire (Cone Fire) ignited adjacent to Blacks Mountain and burned portions of three of the 12 plots with variable intensities [16]. One plot (plot 46) suffered low- to moderate-severity wildfire throughout much of the plot, and therefore was excluded from our study (Table 1). The two other plots were partially burned. Only the burned split was impacted in plot 41 and the affected portion (i.e., as noted by the presence of bole char and/or crown scorch on trees) amounted to 8.7% (of 55.6 ha). About 27% (of 51.6 ha) of the burned split, and 28.2% (of 64.5 ha) of the unburned split, were affected in plot 43 [37]. The affected areas were subtracted from the original area and data were adjusted accordingly.
The primary variables of interest were the mean percentage of trees killed by (1) all causes; (2) all bark beetle species across all tree species; (3) individual bark beetle and host tree species; and (4) individual bark beetle species by host tree species within diameter class (19–29.2, 29.3–39.3, 39.4–49.5, 49.6–59.7, >59.7 cm dbh). In general, the precise role of each bark beetle species in contributing to tree mortality is unknown. Furthermore, fire-injured P. ponderosa are susceptible to colonization by several species of bark beetles at Blacks Mountain. In some cases, trees must have green phloem for successful colonization and brood production to occur. Such is commonly the case for D. brevicomis [45]. In other species, such as I. pini, colonization and successful brood production can occur in dead and dying trees [46]. We attributed tree mortality to D. brevicomis, D. ponderosae, D. jeffreyi, and S. ventralis if evidence of colonization was found despite the potential presence of other bark beetle species. On occasion, we found D. brevicomis and D. ponderosae infesting the same P. ponderosa and in these rare situations we attributed tree mortality to D. brevicomis [36,37]. Tree mortality was attributed to Ips spp. only when evidence of D. brevicomis, D. ponderosae, and D. jeffreyi was absent. Mortality was only attributed to bark beetles when burn severity rankings on individual trees were ≤3 (i.e., we estimated that prescribed fire did not directly kill the tree based on external measures of fire severity; [36,37]).
Data presented here were analyzed cumulatively over the 10-year period. The experimental design was a randomized complete block with split plots with three blocks, two treatments (HiD and LoD), and two replicates per treatment (N = 12) [12]. Blacks Mountain is included in cattle grazing allotments and therefore six of 12 plots were fenced in an attempt to permit analyses of the effects of grazing on several variables of interest to the interdisciplinary team. However, we viewed grazing as having little or no influence on bark beetle responses [36,37], and therefore this variable was ignored. Due to the imbalance in the number of plots as a result of the Cone Fire, the Satterthwaite approximation method was used to estimate the appropriate degrees of freedom. We performed an analysis of variance on each response variable at α = 0.05 (SAS Institute Inc., Cary, NC, USA). If a significant treatment effect was detected, Tukey’s multiple comparison test (Tukey’s HSD) was used for separation of treatment means.

3. Results and Discussion

A total of 188,793 Pinus and Abies were monitored for mortality during the 10-year period. Of these 106,314 were P. ponderosa, 63,636 were A. concolor, and 18,843 were P. jeffreyi. Numbers of trees varied widely among diameter classes and treatments, and therefore statistical analyses are based on percentages. For a comprehensive account of treatment effects on stand structure and composition, see Zhang et al. [43]. Fettig et al. ([36], page 1, Figure 1) provide data on numbers of trees monitored by diameter class and treatment during our study.

3.1. Tree Mortality

A total of 16,473 trees (8.7% of all trees) died during the 10-year period, of which 42.1%, 5.2%, and 52.7% were P. ponderosa, P. jeffreyi, and A. concolor, respectively. This represents mortality from all sources (i.e., prescribed fire, bark beetles, pathogens, mechanical damage, and unidentified sources, and their many interactions), the majority (64.7%) of which was attributed to bark beetles (see Section 3.2). The highest levels of tree mortality were observed during the initial sample period (1–2 years, [36]) followed by the second (3–5 years, [37]) and third (6–10 years) sample periods. This was expected as fire-susceptible trees (e.g., small-diameter A. concolor) are often directly killed by the immediate effects of prescribed fire [13]. Overall, tree mortality was concentrated (10,320 trees) in the smallest-diameter class (24.1 cm), while the 54.7-cm diameter class had the lowest levels of tree mortality (252 trees). Tree size is well known to influence the probability of tree mortality following prescribed fire [47], which in most cases is attributed to variation in bark thickness. For example, Regelbrugge and Conard [48] showed that tree diameter and height were positively correlated with postfire survival of P. ponderosa in the Central Sierra Nevada, California. McHugh and Kolb [32] sampled 1367 trees in P. ponderosa forests impacted by wildfires and prescribed fire in Northern Arizona, United States. They reported mortality ranged from 13.9% (Bridger-Knoll wildfire) to 32.4% (Side wildfire) during the three-year period following fire. Most of the tree mortality (>95% for the prescribed fire) occurred during the first two years. In their study, mortality was greatest for trees with the smallest diameters (<20 cm dbh) and then decreased as diameter increased, as would be expected due to increasing bark thickness. However, mortality increased as diameter increased among the largest trees (>50 cm dbh) [32]. Others have reported similar results described as a “U-shaped” distribution of tree mortality by tree diameter [49], which agrees with our observations at Blacks Mountain.

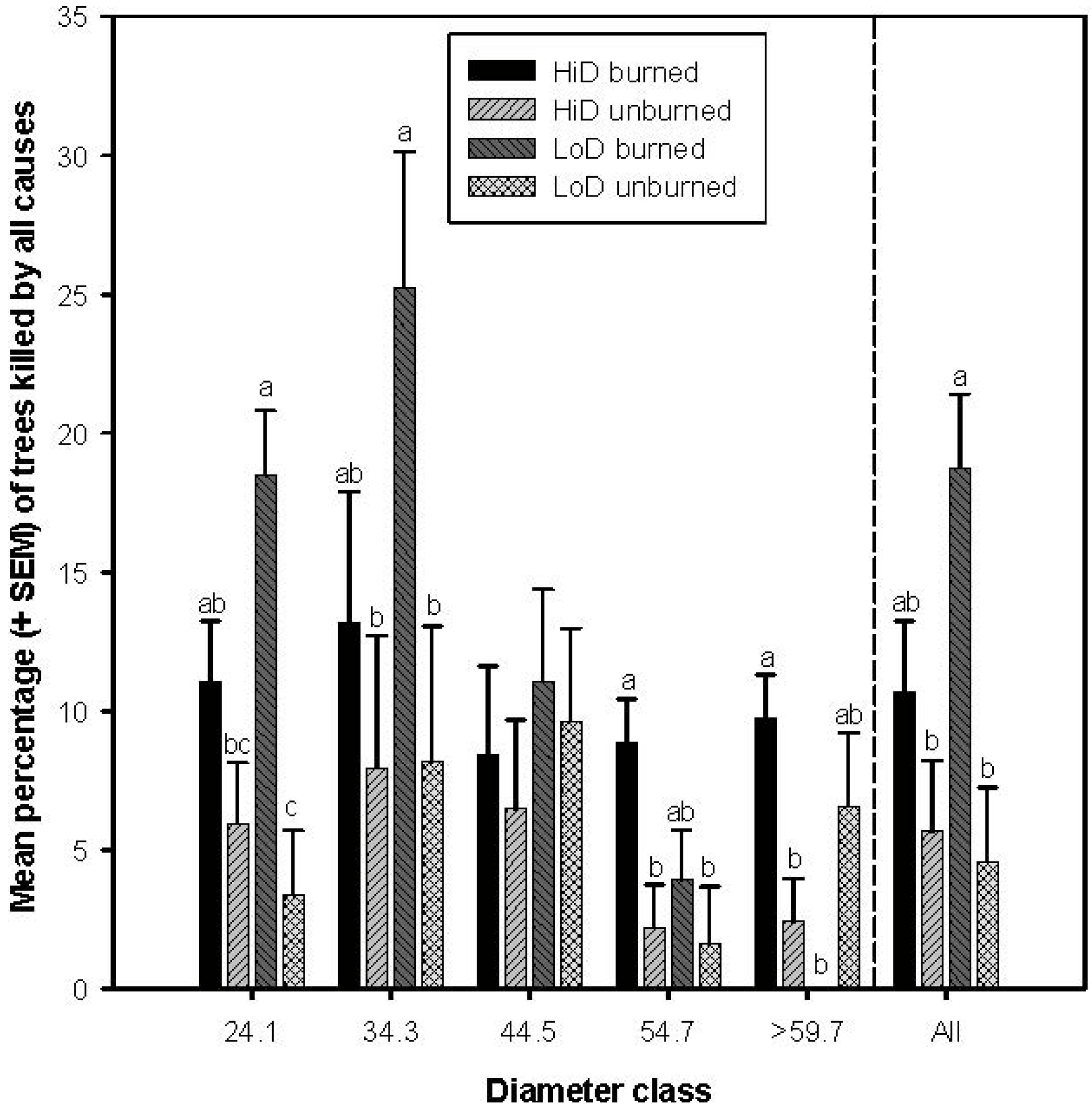

Figure 1. Mean percentage of trees killed by all sources by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05).
Figure 1. Mean percentage of trees killed by all sources by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05).
Forests 05 00153 g001
Kolb et al. [50] suggested that growth of large P. ponderosa can be accelerated by thinning, but warned that prescribed fire may predispose trees to increased levels of delayed mortality, often by bark beetles. In recent work at Blacks Mountain, Ritchie et al. [51] reported tree vigor increased in thinned stands, but that an increase in the mortality of large trees occurred when thinning was followed by prescribed fire. The authors suggested that this is likely a one-time phenomenon occurring shortly after the application of prescribed fire [51]. Higher levels of tree mortality occurred on LoD + B (18.8%) compared to HiD (5.7%) and LoD (4.6%) (p = 0.017; Figure 1, all trees). Higher levels of tree mortality were also observed on LoD + B in the two smallest-diameter classes (p < 0.02, Figure 1, 24.1 and 34.3), but in the two largest-diameter classes higher levels were observed in HiD + B (p < 0.05; Figure 1, 54.7 and >59.7). Presumably the latter is influenced by the few large-diameter trees occurring on LoD plots, as related to mortality attributed to bark beetles, as many species tend to concentrate searching in patches of high preferred host density (see Section 3.2.1) [21]. For example, only 565 trees occurred in the two largest diameter classes on LoD compared to 17,593 on HiD. Of these 1.4% and 3.4% were killed by bark beetles, respectively (Table 2). Interestingly, no significant treatment effect was observed for the 44.5-cm diameter classes (p = 0.90; Figure 1). Fettig et al. [39] examined the effects prescribed fire season (spring, fall, and none) on levels of tree mortality in P. ponderosa and P. jeffreyi forests in the Central Sierra Nevada, and also reported few significant treatment effects in the intermediate-diameter classes. These trees are likely large enough to be resistant to prescribed fire [47], but may be less susceptible to bark beetle colonization due to their size (e.g., from D. brevicomis) [21]. Both LoD and HiD structures contained large numbers of intermediate-sized trees [36,43].
Table 2. Numbers of trees killed by bark beetles, Blacks Mountain Experimental Forest, California.
Table 2. Numbers of trees killed by bark beetles, Blacks Mountain Experimental Forest, California.
TreatmentDbh ClassDendroctonus brevicomis 1Dendroctonus ponderosaeDendroctonus jeffreyiIps spp.Scolytus ventralisTotal
HiD + B24.1190448712913542,128
34.319822711285371,001
44.51025921157321
54.766102227107
>59.7250282114295
All8067722416120893,852
HiD24.11194501210711,643
34.38917510626891
44.5333720200272
54.72710002966
>59.7100130017130
All3686854219433,002
LoD + B24.165221525211511,694
34.386104360549802
44.518131266100
54.70400*4
>59.7**0*00
All169342931417662,600
LoD24.1126846586676
34.3273011381440
44.5113006781
54.71000*1
>59.7020013
All511035710351,201
Total 1394190242484683310,655
* No hosts were present.
The rates of tree mortality observed in our study (i.e., ranging from 4.6% to 18.8% for LoD and LoD + B, respectively) are somewhat higher than reported elsewhere for P. ponderosa forests following fuel-reduction and forest-restoration treatments. For example, Fettig et al. [39] found 14% and 16.7% of trees (>10.2 cm dbh) were killed during a three-year period following spring and fall burns in the Central Sierra Nevada. In the Southern Cascades, 9.2% of trees (>19.5 cm) were killed by bark beetles (total tree mortality was not reported, which would have been higher than the value reported for bark beetles) during a four-year period following prescribed burns [38]. In Northern Arizona, Breece et al. [35] reported 7.6% of trees (>13 cm dbh) died during a three-year period following prescribed burns. In these cases stands were not recently thinned prior to the application of prescribed fire, and therefore higher levels of tree mortality would have been expected compared to our study. For example, Fettig et al. [38] reported that only 3.3% of trees were killed by bark beetles when thinning occurred prior to burning. It is important to note that slash (activity fuels) was removed prior to the application of prescribed fire at Blacks Mountain, and therefore was not a significant factor influencing fire severity. The level of tree mortality observed in LoD + B (18.8%) is surprising given the minimum threshold diameter of trees (>19 cm dbh) monitored in our study (i.e., many small trees were killed that were ignored during our evaluations). However, treatments at Blacks Mountain included a restoration objective of promoting Pinus over A. concolor [12], and much of this mortality occurred in A. concolor and was attributed to S. ventralis (see Section 3.2.5). It is important to stress that our data represent mortality occurring during a 10-year period following fuel-reduction and forest-restoration treatments, and, therefore, do not allow for direct comparisons with most similar studies, which were of shorter duration.

3.2. Tree Mortality Attributed to Bark Beetles

As indicated, the majority of tree mortality was attributed to bark beetles. Dendroctonus brevicomis and D. ponderosae were observed colonizing P. ponderosa; D. jeffreyi was observed colonizing P. jeffreyi; and S. ventralis was observed colonizing A. concolor. We also found I. pini and, to a much lesser extent, emarginate ips, I. emarginatus (LeConte) and I. latidens (=Orthotomicus) (LeConte) colonizing P. ponderosa and P. jeffreyi. Hylastes spp., primarily H. macer LeConte, Hylastes spp., primarily Hy. subcostulatus (Mannerheim), and Pseudohylesinus spp. were occasionally observed, but are not considered important sources of tree mortality [44]. Red turpentine beetle, D. valens LeConte, a common species found throughout much of North America, was found colonizing many Pinus on burned-split plots (e.g., 72.7% of dead Pinus during sample period 1), but their activity was largely limited to the initial sample period. Attacks by D. valens are usually confined to basal portions of stressed, weakened, or dead and dying Pinus [44], and are typically not considered a significant threat to tree health. For a comprehensive account of treatment effects on D. valens, see Fettig et al. [36]. The California fivespined ips, Ips paraconfusus Lanier, a common species along the western slope of the Sierra Nevada, was not observed colonizing Pinus at Blacks Mountain and likely is not indigenous to the area [44].
A total of 10,655 trees (5.6% of all trees) were killed by bark beetles (all bark beetle species combined) during the 10-year period (Table 2). The highest levels of bark beetle-caused tree mortality were observed during the second sample period (4193 trees) followed by the first (2684 trees) and third (3778) sample periods when adjusted for temporal scale (i.e., annualized) (Table 3). Overall, bark beetle-caused tree mortality was concentrated (6141 trees) in the smallest-diameter class (24.1 cm, Table 2), while the 54.7-cm diameter class had the lowest levels (178 trees) (Table 2). Higher levels of bark beetle-caused tree mortality were observed on LoD + B than LoD in the 34.3-cm diameter class (15.4% and 7.3%, respectively) and for all trees (8.7% and 4.2%, respectively) (p < 0.05; Figure 2). HiD + B (6.4%) exhibited higher levels of bark beetle-caused tree mortality than HiD (1.7%) in the 54.7-cm diameter class (p < 0.05; Figure 2). HiD + B (6.6%) also exhibited higher levels of bark beetle-caused tree mortality than LoD + B (0%) in the >59.7-cm diameter class (p = 0.02; Figure 2). No other significant differences were observed. These findings differ from those observed during the first five years following prescribed burns when higher levels of bark beetle-caused tree mortality were observed on LoD + B (5.3%) and HiD + B (4.8%) than LoD (1.1%) [36]. Approximately 60.5% of all bark beetle-caused tree mortality occurred on burned-split plots.
Table 3. Cumulative numbers of trees killed by bark beetles by sample period, Blacks Mountain Experimental Forest, California.
Table 3. Cumulative numbers of trees killed by bark beetles by sample period, Blacks Mountain Experimental Forest, California.
Sample PeriodInterval 1Dendroctonus brevicomisDendroctonus ponderosaeDendroctonus jeffreyiIps spp.Scolytus ventralisTotal
11–244246818456 213002,684
23–5747947171524674,193
36–1020548771330663,778
Total 1394190242484683310,655
1 Years following prescribed burns; 2 Fettig et al. [36] reported this value as 494, which is in error.

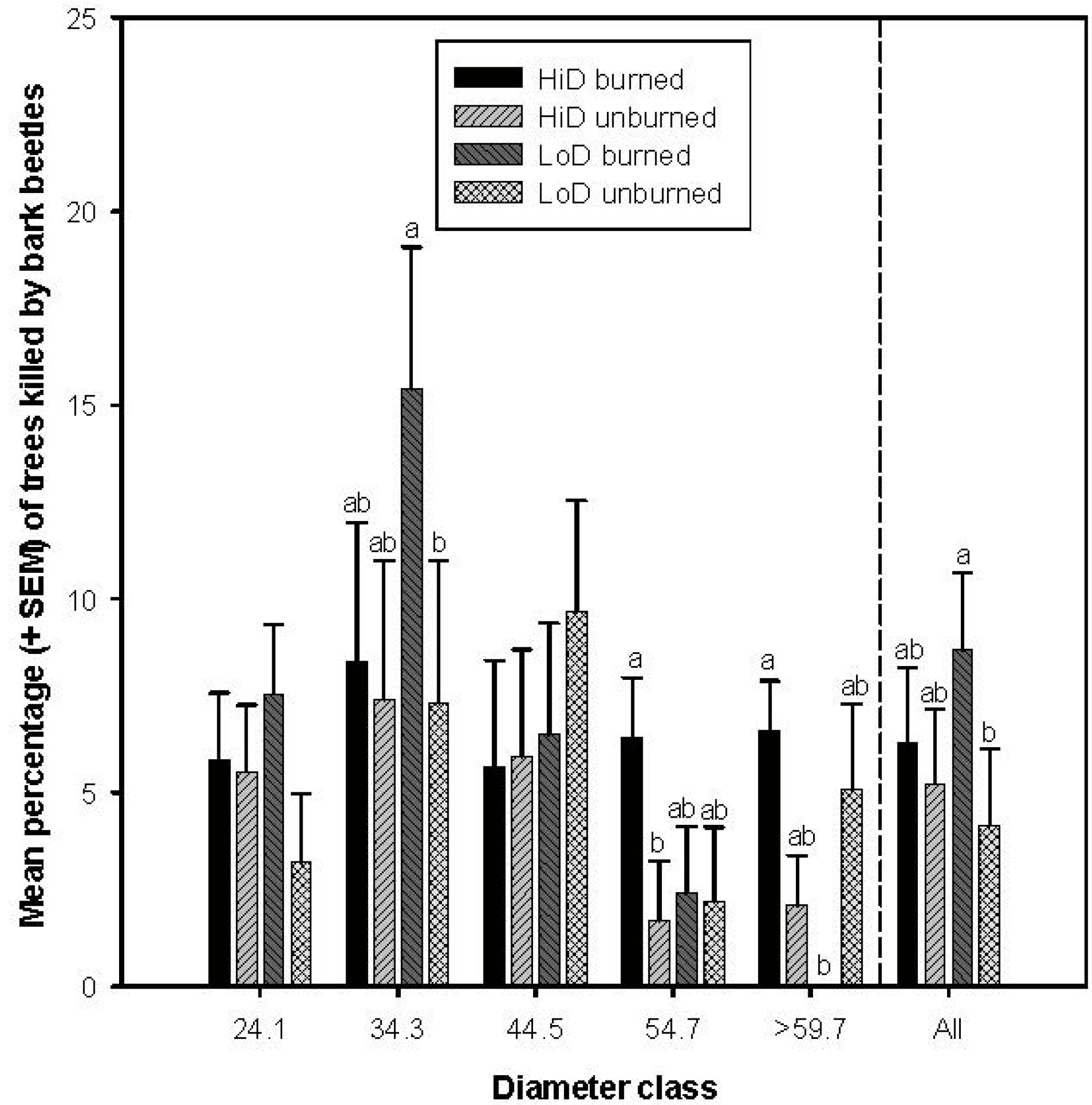

Figure 2. Mean percentage of trees killed by bark beetles (all species) by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05).
Figure 2. Mean percentage of trees killed by bark beetles (all species) by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05).
Forests 05 00153 g002
Some authors have expressed concerns about the potential for bark beetle populations to increase in fire-injured trees and subsequently colonize apparently-healthy trees. Large numbers of stressed trees provide abundant host material and once this resource is exhausted bark beetles may attack and kill trees that might otherwise have survived. However, in their synthesis on the effects of fuel-reduction treatments in the United States, Stephens et al. [13] concluded that while bark beetles often colonize fire-injured trees responses tend to be relatively short-lived and concentrated in the smaller-diameter classes, which generally agrees with our observations at Blacks Mountain. In the longer-term, the additional reduction in stand density achieved as a result of prescribed burns over mechanical thinning alone likely influenced stand susceptibility to bark beetle attack on burned-split plots. Fettig et al. [21] reviewed tree, stand, and landscape factors associated with bark beetle infestations, and analyzed the effectiveness of silvicultural treatments for mitigating undesirable levels of tree mortality attributed to bark beetles. They reported that reductions in stand density impact tree vigor, inter-tree spacing, and pheromone plumes, among other factors, which reduce stand susceptibility to bark beetle infestation [21]. To that end, earlier we reported that the amount of bark beetle-caused tree mortality increased considerably on unburned-split plots compared to burned-split plots three to five years after prescribed burns at Blacks Mountain [37]. For example, a 500% increase in the amount of bark beetle-caused tree mortality was observed on unburned-split plots as compared to a 50% increase on burned-split plots in HiD. This trend continued 6–10 years after prescribed burns, most notably a 251% increase in the amount of bark beetle-caused tree mortality was observed on unburned-split plots compared to a 70% increase on burned-split plots in LoD. Most of this mortality (94.3%) was attributed to S. ventralis (see Section 3.2.5).

3.2.1. Tree Mortality Attributed to Dendroctonus brevicomis

Dendroctonus brevicomis is a major cause of P. ponderosa mortality in much of Western North America. Unlike many other bark beetles, D. brevicomis is unique in that it has a very narrow host range. The only other common host is Coulter pine, P. coulteri D. Don [52], a species primarily indigenous to the mountains of Southern California and Northern Baja California, Mexico [11]. Preferred hosts are larger-diameter trees. For example, an outbreak in Southern California in the early 2000s, that was associated with a severe drought, resulted in the mortality of >73% of P. ponderosa >43.2 cm dbh over an extensive area [53]. However, trees of all ages and size classes may be colonized and killed [52].
A total of 1394 P. ponderosa (0.7% of all trees) were killed D. brevicomis during the 10-year period (Table 2). The highest levels of D. brevicomis-caused tree mortality were observed during the second sample period (747 P. ponderosa) followed by the first (442 P. ponderosa) and third (205 P. ponderosa) sample periods (Table 3). Overall, D. brevicomis-caused tree mortality was concentrated (400 P. ponderosa) in the 34.3-cm diameter class (Table 2), while the 54.7-cm diameter class had the lowest levels of tree mortality (96 P. ponderosa) (Table 2). Higher levels of D. brevicomis-caused tree mortality were observed on HiD + B (3%) compared to HiD (1.1%) and LoD (0.5%) (p = 0.016; Figure 3, all trees). HiD + B (4.5%) exhibited higher levels of tree mortality compared to LoD + B (0%) in the 54.7-cm diameter class (p = 0.013; Figure 3). No other significant differences were observed. There were no P. ponderosa within the >59.7-cm diameter class on LoD + B, and therefore statistical analyses were not conducted for this diameter class. Approximately 70% of all D. brevicomis-caused tree mortality occurred on burned-split plots, specifically on HiD + B (Table 2).

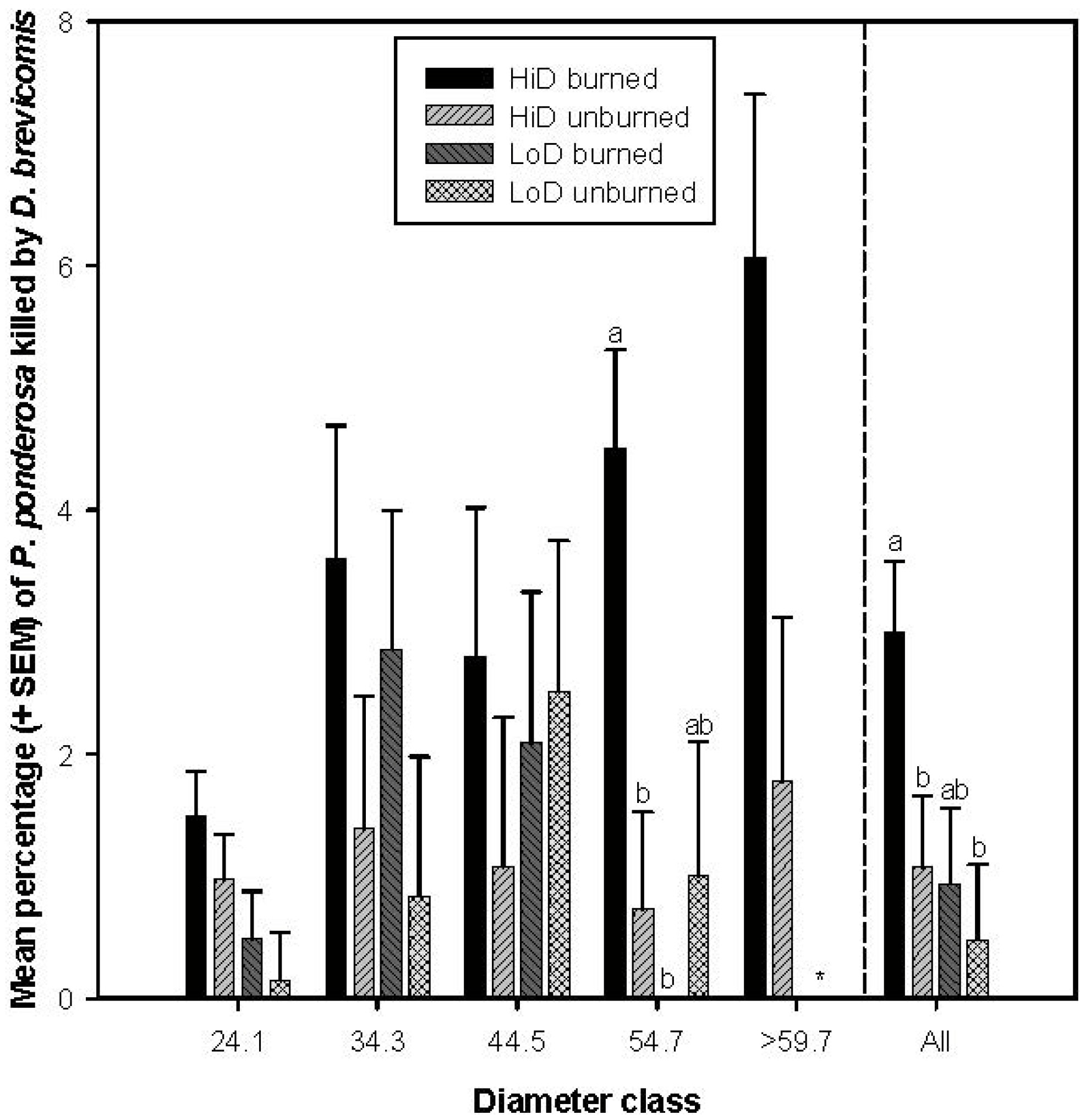

Figure 3. Mean percentage of trees killed by Dendroctonus brevicomis by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Figure 3. Mean percentage of trees killed by Dendroctonus brevicomis by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Forests 05 00153 g003
McHugh et al. [33] reported that D. brevicomis colonized only three of 222 trees following a prescribed fire in Northern Arizona. Similarly, Sánchez-Martínez and Wagner [54] detected no significant difference in the amount of D. brevicomis-caused tree mortality between managed (including prescribed fire) and unmanaged stands in Northern Arizona, but others have established a link between fire-injury and the increased susceptibility of P. ponderosa to D. brevicomis attack [45]. While the overall impact of D. brevicomis seems to be rather limited in fire-injured trees at Blacks Mountain, levels of D. brevicomis-caused tree mortality in the largest-diameter class (>59.7 cm) may be of concern on HiD + B (Table 2). Most of this mortality occurred during the first five years following prescribed burns. During this time, growth (net change in basal area) was positive for all treatments except HiD + B [43]. There are tools available to protect individual P. ponderosa from mortality attributed to D. brevicomis [55,56] that could be considered for protecting large-diameter P. ponderosa (see Section 4).

3.2.2. Tree Mortality Attributed to Dendroctonus ponderosae

Dendroctonus ponderosae is a major disturbance in coniferous forests of western North America where it colonizes several tree species, most notably, lodgepole pine, P. contorta Dougl. ex Loud., P. ponderosa, sugar pine, P. lambertiana Dougl., limber pine, P. flexilis E. James, western white pine, P. monticola Dougl. ex D. Don, and whitebark pine, P. albicaulis Engelm. [57]. Dendroctonus ponderosae was only found colonizing P. ponderosa at Blacks Mountain as other hosts (e.g., P. lambertiana) are rare. The extent of tree mortality resulting from D. ponderosae may be limited to small spatial scales (e.g., small groups of trees) or impact entire landscapes [57].
A total of 1902 trees (1.0% of all trees) were killed D. ponderosae during the 10-year period (Table 2). As with D. brevicomis, the highest levels of D. ponderosae-caused tree mortality were observed during the second sample period (947 P. ponderosa) followed by the first (468 P. ponderosa) and third (487 P. ponderosa) sample periods when adjusted for temporal scale (i.e., annualized) (Table 3). Overall, D. ponderosae-caused tree mortality was concentrated (1187 P. ponderosa) in the smallest-diameter class (24.1 cm, Table 2), while the 54.7-cm diameter class had the lowest levels (24 P. ponderosa) (Table 2). In California, D. ponderosae infestations are typically confined to smaller (<31.8 cm dbh) P. ponderosa with single trees or small groups of trees being killed, and its role is often secondary to that of D. brevicomis in larger-diameter P. ponderosa [44]. This is supported by our results (Table 2).
Overall, no significant treatment effect was observed (p = 0.73; Figure 4, all trees). However, in the 54.7-cm diameter class significantly higher levels of D. ponderosae-caused tree mortality were observed on LoD + B (2.3%) compared to HiD (0.3%) and LoD (0.02%) (p = 0.03, Figure 4). No other significant differences were observed. There were no P. ponderosa within the >59.7-cm diameter class on LoD + B, and, therefore, statistical analyses were not conducted for this diameter class. Approximately 59% of all D. ponderosae-caused tree mortality occurred on burned-split plots, primarily HiD + B. Earlier, we reported that the application of prescribed fire resulted in significant increases in D. ponderosae-caused tree mortality in all but the two largest-diameter classes at Blacks Mountain [36]. During the second sample period, significantly higher levels of D. ponderosae-caused tree mortality occurred on HiD + B (2.1%) and LoD + B (1.8%) compared to LoD (0.5%) [37].
Jenkins et al. [58] recently reviewed, among other factors, the literature concerning D. ponderosae responses to prescribed fire and mixed-severity wildfire. Early research suggested that D. ponderosae contributed little to delayed tree mortality, but some of this work was conducted in P. contorta forests. Davis et al. [25] reported that levels of fire injury in P. ponderosa that were suitable for colonization by D. ponderosae differed from those of P. contorta. Pinus contorta has thinner bark than P. ponderosa, and as a result trees are often more likely to be directly killed by fire. To that end, stressed trees with phloem resources suitable for successful colonization by D. ponderosae are presumably more ephemeral in P. contorta than in P. ponderosa following prescribed burns of similar intensity. Interestingly, Stark et al. [41] examined the effects of prescribed fire and thinning (alone and in combination) on the responses of bark beetles in a mixed-conifer forest in the Central Sierra Nevada, and reported D. ponderosae did not colonize any fire-injured P. ponderosa, but attacks were observed on fire-injured P. lambertiana.

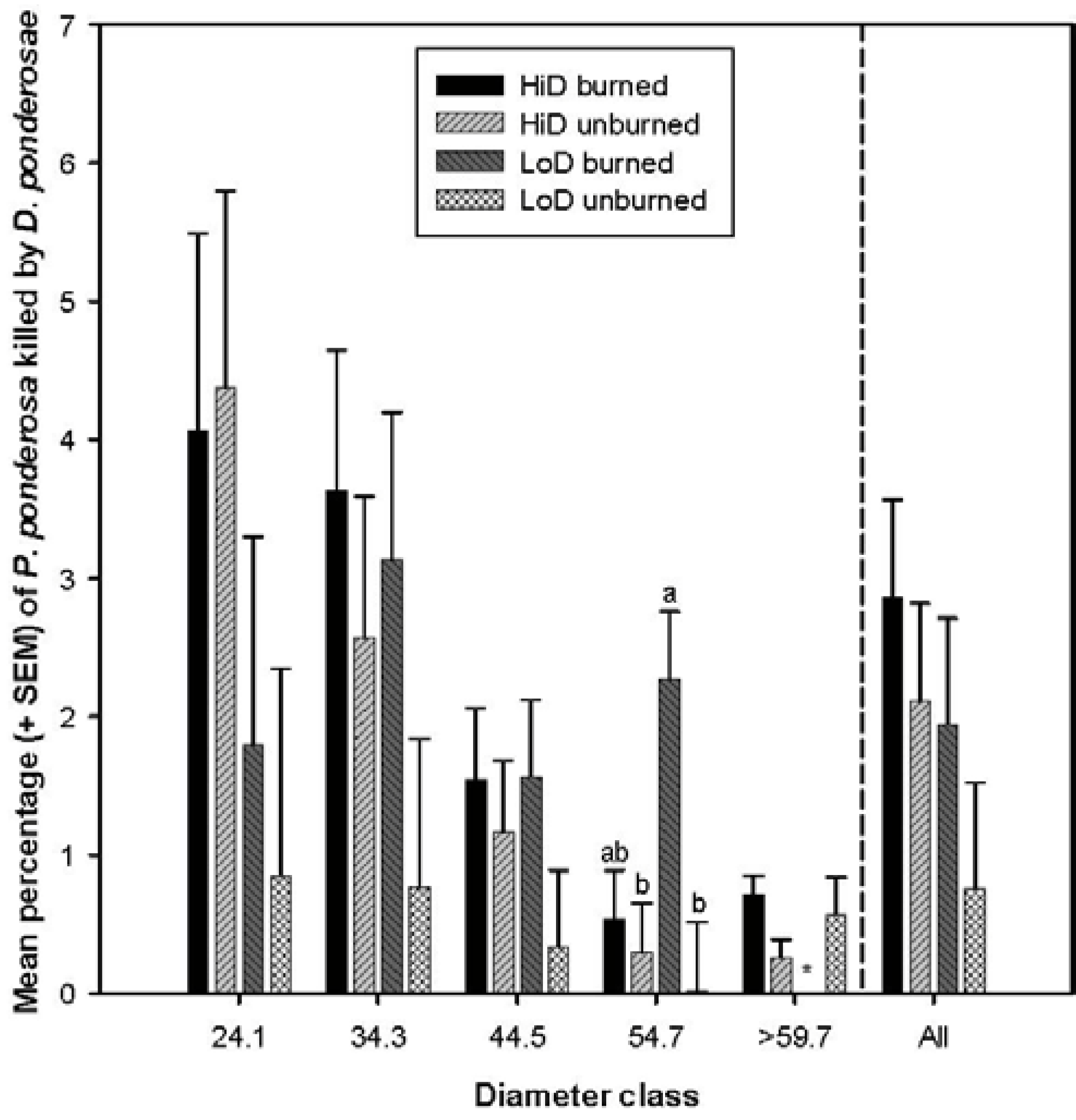

Figure 4. Mean percentage of trees killed by Dendroctonus ponderosae by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Figure 4. Mean percentage of trees killed by Dendroctonus ponderosae by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Forests 05 00153 g004

3.2.3. Tree Mortality Attributed to Dendroctonus jeffreyi

Dendroctonus jeffreyi only colonizes P. jeffreyi a tree species that ranges from the Klamath Mountains in Southwestern Oregon, United States throughout much of the Sierra Nevada to the Transverse and Peninsular Ranges of Southern California, and the Sierra San Pedro Mártir of Baja California, Mexico [11]. Under endemic conditions attacks by D. jeffreyi are usually confined to individual mature trees, however during epidemics group kills of 20–30 trees are common [59]. A total of 42 P. jeffreyi (0.2% of all P. jeffreyi) were killed by D. jeffreyi during the 10-year period (Table 2), and therefore statistical analyses were not conducted. Much of this mortality (38%) was confined to a single split plot (HiD + B). While minimal research has occurred, the response of D. jeffreyi to fire-injured trees appears limited [30,39].

3.2.4. Tree Mortality Attributed to Ips spp.

Ips spp. generally colonize slash, saplings, and weakened trees. Outbreaks are often short-lived, but increase in duration and extent when suitable host material is plentiful and populations grow sufficiently to colonize apparently-healthy trees [46]. A total of 484 Pinus (0.3% of all trees) were killed by Ips spp. during the 10-year period (Table 2), primarily (456 Pinus) during the first sample period (Table 3). Most of this mortality (475 Pinus) occurred on burned-split plots within the two smallest-diameter classes (Table 2). Ips pini most frequently colonizes trees 5–20 cm dbh [46], and attack rates are negatively correlated with tree diameter in P. ponderosa [60]. It is, therefore, likely that our minimum threshold diameter (19 cm dbh) resulted in a conservative estimate of Ips-caused tree mortality. While concerns regarding Ips populations increasing in logging residuals and subsequently colonizing leave trees are important [26], harvest criteria at Blacks Mountain required utilization (i.e., biomass or chips) and removal of slash from the site [12]. In some locations, top killing of Pinus by Ips spp. is a concern [46], but was not common in our study.
Higher levels of Ips-caused tree mortality were observed on LoD + B as compared to LoD and HiD in the 34.3-cm diameter class (1.3%, 0.05% and 0%, respectively) and for all trees (1.3%, 0.05% and 0.01%, respectively) (p < 0.05; Figure 5). No other significant differences were observed. There were no P. ponderosa within the >59.7-cm diameter class on LoD + B, and therefore statistical analyses were not conducted for this diameter class. Fettig et al. [39] reported significantly higher levels of tree mortality were attributed to Ips spp. following late season burns compared to the untreated control in the Central Sierra Nevada. As in our study, most of this mortality occurred in the smallest-diameter class. The response by Ips spp. to fire-injured Pinus at Blacks Mountain appears limited, short-lived and concentrated in smaller-diameter trees, and therefore does not appear to interfere with management objectives.

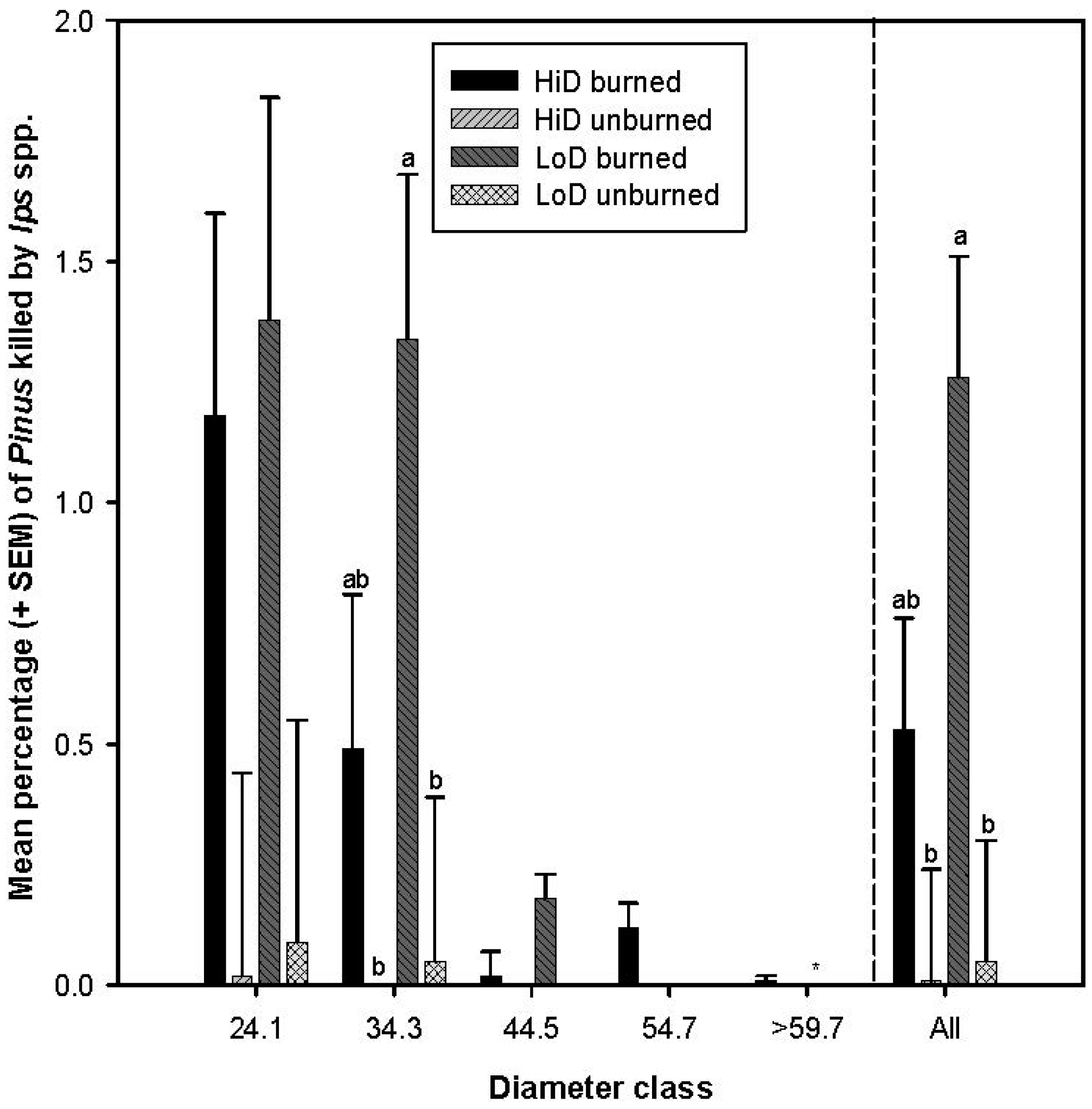

Figure 5. Mean percentage of trees killed by Ips spp. by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Figure 5. Mean percentage of trees killed by Ips spp. by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Forests 05 00153 g005

3.2.5. Tree Mortality Attributed to Scolytus ventralis

Scolytus ventralis colonizes Abies, particularly A. concolor, throughout much of the Western United States. Trees of all ages and size classes may be attacked and killed. Outbreaks are typically associated with drought, defoliation or other factors [44]. A total of 6833 A. concolor (3.6% of all trees) were killed by S. ventralis during the 10-year period (Table 2). Most this mortality occurred during the first five years, however substantial levels were observed during the third sample period (Table 3). This differs from other bark beetles species monitored during this study whose activity declined substantially during the third sample period (Table 3). Overall, S. ventralis-caused tree mortality was concentrated (4162 A. concolor) in the smallest-diameter class (24.1 cm, Table 2), while the largest-diameter class had the lowest levels of tree mortality (32 A. concolor) (>59.7 cm, Table 2). Higher levels of S. ventralis-caused tree mortality were observed on LoD + B (20%) than any other treatment (p = 0.003; Figure 6). A similar effect was observed in the smallest-diameter class (24.1 cm, p = 0.006, Figure 6). No other significant differences were observed. There were no A. concolor within the 54.7-cm diameter class on LoD and LoD + B, and therefore statistical analyses were not conducted for this diameter class. As indicated earlier, treatments at Blacks Mountain included a restoration objective of promoting Pinus over A. concolor [12], and therefore while substantial numbers of A. concolor were killed by S. ventralis this may be of limited concern.

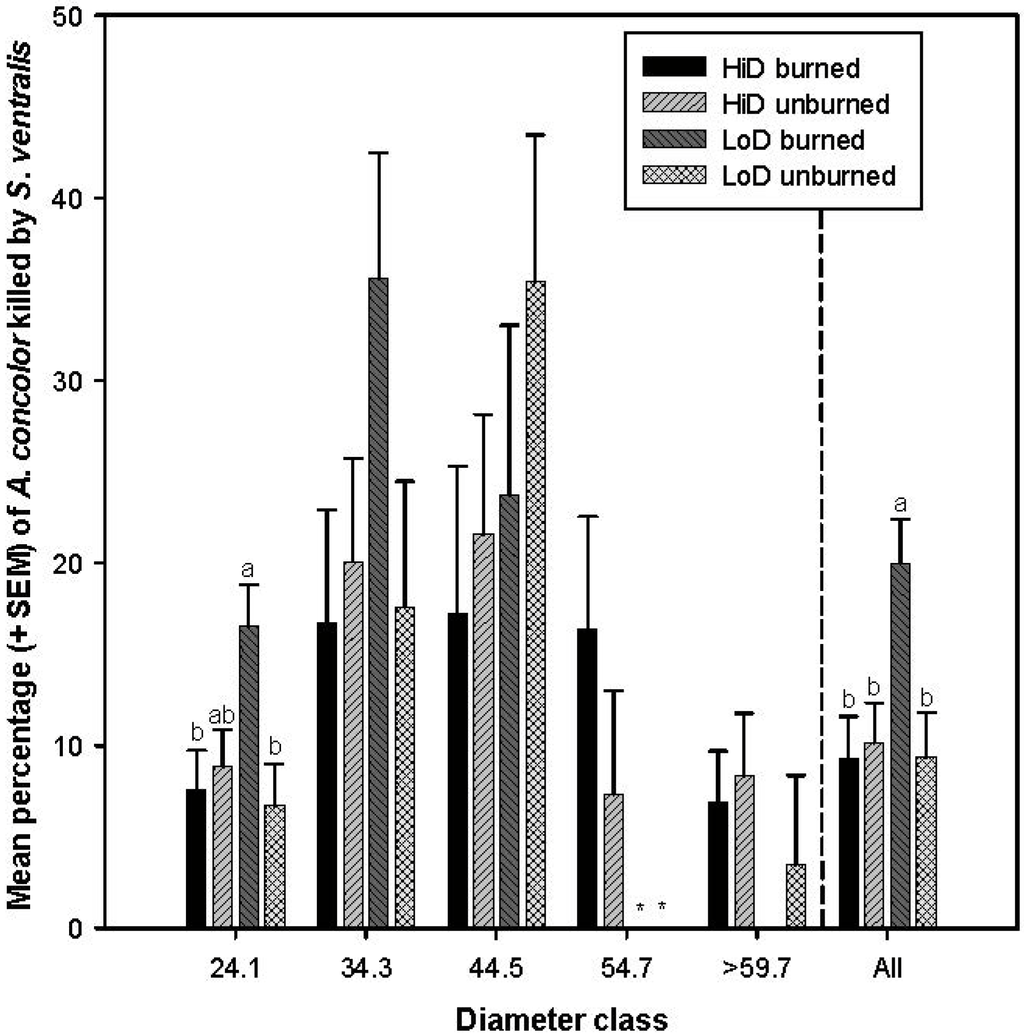

Figure 6. Mean percentage of trees killed by Scolytus ventralis by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Figure 6. Mean percentage of trees killed by Scolytus ventralis by diameter class (mid-point of 10-cm diameter classes) and treatment (LoD, low structural diversity; HiD, high structural diversity) 10 years following prescribed burns, Blacks Mountain Experimental Forest, California. Means (+ SEM, standard error of the mean) followed by the same letter within groups are not significantly different (Tukey’s HSD; p > 0.05). * Denotes analysis was not performed due to absence of host trees in one or more treatments within diameter class.
Forests 05 00153 g006
Few studies have analyzed responses of S. ventralis to fire-injured trees. Schwilk et al. [34] found attacks and associated levels of tree mortality were greater for smaller-diameter Abies following prescribed fire in the Central Sierra Nevada. Fettig et al. [38] reported significantly higher levels of tree mortality were attributed to S. ventralis on plots that were thinned and burned compared to thinned only. Stark et al. [41] found no significant differences in levels of tree mortality attributed to bark beetles among fuel-reduction treatments, except for S. ventralis in small- (11.5–25.2 cm dbh) and medium-sized (25.3–45.5 cm dbh) A. concolor. In their study, significantly higher levels (percentage) of tree mortality were attributed to S. ventralis in treatments including prescribed fire [41].

3.3. Tree Mortality Attributed to Wood Borers

During the first sample period, we reported that it appeared wood borers were directly contributing to tree mortality in fire-injured trees at Blacks Mountain, and that this mortality would likely not have occurred in the absence of such attacks (i.e., these trees were alive the summer following prescribed burns) [36]. Wood borers are attracted to fire-injured trees [18,19,33], but their contribution to tree mortality, while thought to be rare [18], is unclear and difficult to decipher given numerous confounding factors. Several species are regarded as forest pests and known to cause tree mortality in California, particularly during extended periods of drought [44]. If such an effect occurred at Blacks Mountain, it was limited to the first two years following prescribed burns.

3.4. Tree Mortality and Stand Density

Levels of bark beetle-caused tree mortality observed during this study occurred during a period of elevated bark beetle activity in the region, but as previously mentioned there is a strong positive relationship between stand density and susceptibility to bark beetle infestation in P. ponderosa [21]. In our study, stand densities averaged 25.2, 24.2, 9.8, and 9.1 m2/ha of basal area for HiD + B, HiD, LoD + B, and LoD, respectively, immediately following treatments [43]. Fiddler et al. [61] showed that thinning significantly reduced the amount of P. ponderosa mortality attributed to D. ponderosae in a study conducted near Blacks Mountain. No tree mortality occurred in stands of <9 m2/ha of basal area, which agrees with the optimal stocking level of 11 m2/ha described by Oliver [62,63]. Furthermore, Oliver [63] reported maximum stand density index (SDI) for even-aged P. ponderosa stands in northern California was regulated by bark beetle infestations. A SDI value of 230 defined a threshold for a zone of imminent bark beetle-caused tree mortality within which endemic populations kill a few trees but net growth is positive. Maximum SDI was defined at 365. While the SDI relationships described by Oliver [63] are a tenuous fit for HiD, which does not represent an even-aged structure, it is quite appropriate for LoD. LoD plots averaged SDI values of 118 and 124 for the unburned and burned-split plots, respectively [36]. These values are much less than the threshold SDI value of 230 [63]. Higher levels of bark beetle-caused tree mortality should be expected following similar treatments that retain higher residual stand densities, independent of the confounding effects of prescribed fire.

4. Conclusions

A primary objective of the Blacks Mountain Ecological Research Project was to create stand conditions that serve as a model of “resiliency” to allogenic (e.g., wildfire) and autogenic (e.g., bark beetle infestations) disturbances in interior P. ponderosa [12]. While numerous definitions of resiliency exist, here we define resiliency as the capacity of a system to return to its more-or-less pre-disturbance state, focusing on variability in levels of tree mortality. Some have defined ecological resiliency as the amount of disturbance that an ecosystem can withstand while maintaining certain ecological goods and services and without changing functional states [64]. While changes in functional state have been observed as a result of severe bark beetle outbreaks (e.g., conversion from forest to shrub land), examples are very rare and of limited scale.
During the 10-year period, 8.7% of all trees died, most of which was attributed to bark beetles (64.7%), primarily S. ventralis, D. ponderosae, and D. brevicomis (Table 2). Trees of all ages and size classes were killed, but mortality was generally concentrated: (1) on HiD structures (64.3%); (2) on burned-split plots (60.5%); (3) within the two smallest-diameter classes (87%); and (4) during the second sample period (i.e., three to five years after prescribed burns) (Table 2 and Table 3). These observations were consistent for all bark beetle species with few notable exceptions: (1) the response of Ips spp. was limited to the first sample period (one to two years following prescribed burns); and (2) substantial numbers of P. ponderosa were killed by D. brevicomis in the largest-diameter class. Our observation concerning bark beetle-caused tree mortality being concentrated three to five years after prescribed burns differs from many other studies in P. ponderosa that reported mortality was concentrated during the first year or two (e.g., [25,35]). However, many of those studies were of limited duration compared to ours. To that end, it is important to note that the treatment effects observed in our study varied by sample period [36,37], further emphasizing the importance of long-term studies in forest management.
No significant differences were observed between HiD and LoD for any of the variables analyzed within any diameter class (Figure 1, Figure 2,Figure 3,Figure 4,Figure 5 and Figure 6); suggesting that over the 10-year period these structures were of similar resilience to bark beetle infestations and other disturbances. Overall, higher levels of tree mortality occurred on LoD + B (18.8%) compared to HiD (5.7%) and LoD (4.6%) (Figure 1), and higher levels of bark beetle-caused tree mortality occurred on LoD + B (8.7%) compared to LoD (4.2%) (Figure 2). This is presumably due to the increased proportion of smaller-diameter trees on LoD [43], which tend to be of increased susceptibility to injury and mortality following prescribed fire [47,48,50]. To that end, no significant differences were observed between HiD and HiD + B, except for trees in the 54.7-cm diameter class for mortality attributed to all causes (Figure 1), bark beetles (Figure 2), and D. brevicomis (Figure 3).
Concerns about maintaining large-diameter trees, particularly Pinus on HiD + B, have been expressed by members of the interdisciplinary research team at Blacks Mountain and others [37,51]. We found the majority (77.9%) of mortality in the largest-diameter class occurred during the first five years following prescribed burns. During this time, significantly higher levels of tree mortality were observed on HiD + B (8.4%) compared to HiD (1.2%) [36], however, during the second five years, no significant difference was observed between these treatments (1.5% and 1.3%, respectively). During the latter period (6–10 years), most of this tree mortality was attributed to bark beetles (95.3%), while during the first five years only 66.3% was attributed to bark beetles. There are insecticide- and semiochemical-based tools available that could be selectively used to protect individual trees from colonization by bark beetles [55,56]. Insecticides are typically applied with ground-based sprayers at high pressures to the tree bole, and depending on the active ingredient, among other factors, may provide adequate levels of tree protection for up to two years [56]. However, bole sprays require transporting large equipment typically into remote areas, which can be problematic. A semiochemical-based tool for protecting P. ponderosa from D. brevicomis is not yet available, but the recent development of an effective semiochemical blend is promising and commercialization is ongoing [55]. Semiochemical-based tools are available for protecting P. ponderosa from D. ponderosae [65], but efficacy is somewhat limited. No semiochemical-based tool is available for protecting A. concolor from S. ventralis. Semiochemical-based tools are easily carried and applied by hand, but their effectiveness and longevity is less than that of insecticides.
Perrakis et al. [66] suggested, based on research executed in P. ponderosa forests in Oregon, that fuel-reduction treatments should be implemented gradually to improve the vigor of individual trees prior to all but the least intense prescribed burns. Furthermore, methods such as raking of litter and duff a short distance from the base of large-diameter P. ponderosa have been shown effective for reducing fire severity and subsequent levels of tree mortality when applied prior to burning [67]. Such techniques might be considered in the future. Continued monitoring of the effects of structural diversity and the application of prescribed fire on causes and levels of tree mortality at Blacks Mountain will facilitate better management of interior P. ponderosa forests in the future.

Acknowledgments

We thank Robert Borys, Christopher Dabney, L. Maria Patterson and Christopher Stoll (formerly Pacific Southwest Research Station, USDA Forest Service) and Daniel Cluck, Robert Cruz, Valerie DeBlander and Christopher Hayes (Forest Health Protection, USDA Forest Service) for technical assistance. James Baldwin (Pacific Southwest Research Station) aided with statistical analyses. We thank Martin Ritchie (Pacific Southwest Research Station) for his leadership and management of scientific infrastructure at Blacks Mountain. We also thank our colleagues on the Blacks Mountain Experimental Forest Ecological Research Team for their participation in this large-scale study. This research was supported, in part, by ecosystem management research funds received through the Washington Office of the USDA Forest Service, a US President’s Early Career Award for Scientists and Engineers (to Christopher J. Fettig), and the Pacific Southwest Research Station.

Conflicts of Interest

The authors declare no conflict of interest.
