Forests 2012, 3(4), 864-880; doi:10.3390/f3040864

Article
Industrial Round-Wood Damage and Operational Efficiency Losses Associated with the Maintenance of a Single-Grip Harvester Head Model: A Case Study in Russia
Yuri Gerasimov 1,*, Alexander Seliverstov 2 and Vladimir Syunev 2
1
Joensuu Research Unit, Finnish Forest Research Institute, Yliopistokatu 6, Box 68, Joensuu 80101, Finland
2
Forest Engineering Faculty, Petrozavodsk State University, A. Nevskogo av. 58, Petrozavodsk 185030, Russia; Email: alexander@psu.karelia.ru (A.S.); siounev@psu.karelia.ru (V.S.)
*
Author to whom correspondence should be addressed; Email: yuri.gerasimov@metla.fi; Tel.: +358-408-015-162; Fax: +358-102-113-251.
Received: 5 July 2012; in revised form: 26 August 2012 / Accepted: 20 September 2012 /
Published: 27 September 2012

Abstract

: A field-based study was performed to broaden our knowledge of operational efficiency losses associated with the neglect of the proper maintenance of the delimbing and feeding mechanisms of a harvester. The post-harvest assessments of industrial round-wood (IRW) processing damage, fuel consumption and productivity were examined in clearcutting operations. Observations were made of seven combinations of wear levels of feed rollers (A—heavy, B—medium, C and C’—without wear) and sharpening states of delimbing knives (1—incorrect, 2—correct), depending on the degree of feed roller wear and matching of angles of knife blades to the technical requirements. The processing defects of IRW were broken down into unprocessed branches, bark stripping, and damage caused by feed roller spikes. The results were then compared with the effective quality requirements, and the IRW losses in terms of the reject rates (RR) were determined in the context of the technical condition. The most frequent damage was by unprocessed branches. The harvester with correctly sharpened knives produced the minimum RR (4% of pine, 6% of spruce and 6% birch logs). The quality of IRW harvested under B1 and C1 resulted in 6%, 6% and 8%. A1 turned out to be the lowest (12%, 10% and 8%). Improvement in the maintenance of delimbing knives can reduce the RR of IRW by 5%. Timely restoration of worn-out rollers can increase productivity by 2% and reduce fuel consumption by 5%.
Keywords:
cut-to-length; wood damage; fuel consumption; productivity; harvester head

1. Introduction

The fully mechanized cut-to-length (CTL) wood harvesting system based on a single-grip harvester is now widely used by the logging industry in temperate and boreal forests, particularly in the Nordic countries. Today almost 100% of logging in Sweden and Finland is carried out by the harvester-forwarder system [1]. In Russia, particularly its northern European part, there has also been a movement towards mechanized CTL [2]. A remarkable growth in Russian forest machine markets is anticipated in the long term, mainly because of the need for renewal of current wood harvesting machines and because of the huge harvest potential of Russian forests [3]. CTL harvesting was introduced in the Russian regions along the Finnish border in the 1990s, mainly because Finnish entrepreneurs and forest machines from Finland operated in this cross-border area. The CTL method has become even more common in the 2000s, along with an increase in the import of harvesters and forwarders. The proportion of harvesting carried out using CTL systems has increased, especially in Northwest Russia, where more than 50% of harvested wood is already logged with the CTL method [4]. The domestic production of harvesters is quite low in Russia, and most of the machines in use (over 300 harvesters per year) are exported to Russia from Finland, Sweden, Canada and the USA [2].

Over 20 years of experience with the operation of CTL harvesting machines has demonstrated their effectiveness for logging companies in Russia; i.e., better labor conditions in terms of ergonomics and safety, less environmental damage, and reliability in combination with convenient operation and maintenance. The productivity of work and quality of industrial round-wood (IRW) with CTL harvesting can be considered acceptable, even though they could still be improved. Previous field studies conducted at a number of large logging enterprises in Russia showed that the companies often could not achieve high output [4] and quality of IRW [5]. Mixed stands with various natural defects in wood and abnormalities in stem shape dominate in Russia, which needs to be taken into account in the design of harvester heads [6]. When buying a whole harvester or a harvester head for the available base machine (the excavator, for instance), the technical features of the equipment should fit operational conditions to avoid unnecessary impairment of its effectiveness. Many developments have been made towards improvement of fully mechanized CTL in the field of harvester productivity and costs [1,7,8,9,10,11,12], which are dependent upon the silvicultural system, operational phase, ambient temperature, outcome product, stand factors, operator factors and machine factors, terrain and climatic conditions, as well as growing stock per hectare according to a region [13].

The right choice of equipment plays a significant, but not the only, role in achieving effective harvester use. The second factor for success is correct maintenance, which implies the use of oil and technical liquids recommended by the manufacturer and following the sequence and volume of maintenance operations. Special attention should be paid to the maintenance of the saw and delimbing mechanism. In particular, it is necessary to correctly adjust and regulate the delimbing and feeding mechanisms, sharpen delimbing knives, and clean bark and wood remnants from the feed rollers. The overall field-based studies and interviews conducted by Syunev et al. [6] and Seliverstov et al. [14] at 15 logging companies in Northwest Russia exposed the fact that most of the harvesters did not meet the requirements of the manuals for sharpening delimbing knives during maintenance. The delimbing knives were sharpened neither regularly nor correctly. The experience of using harvesters in Russia shows that while harvester operators pay proper attention to the sharpening of saw chains, there is a challenge with the maintenance of delimbing mechanisms. As delimbing is done by feeding the stem through the head at high speed (up to 5 m/s), there are high quality demands on the delimbing knives in terms of their durability and ability to retain the optimal geometry of the cutting edge and sides of the knife. Blunting of the cutting edges and changes in the geometry of their shape reduce the capacity of the machines and lower the quality of IRW. The knives wear out faster during the snow-free time, when the branches carry mineral substances and particles of soil during harvesting. Most of the upper movable knives investigated (Figure 1) demonstrated incorrect sharpening of cutting edges for delimbing of thick stems. The reason was that, due to wear, the geometry of the cutting edge changed and was not corrected during subsequent sharpening. Besides the incorrect maintenance of delimbing knives, some cases of failure to observe operational requirements were registered that resulted in mechanical damage to knives. Quite often, when working with a tree, the upper supporting knife is bumped into the machine frame. Such collisions lead to damage to the knife that has to be repaired (Figure 2). Moreover, the incorrect maintenance and operation of the knives and the poor condition of the feed rollers influence both the operational efficiency and the quality of delimbing. According to our observations (Figure 3), damage to the spikes was the most common form of wear on movable feed rollers.

Forests 03 00864 g001 1024
Figure 1. Upper movable knife: (a) correct angle for cutting branches from thick stems; (b) incorrect angle for cutting branches from thick stems.

Click here to enlarge figure

Figure 1. Upper movable knife: (a) correct angle for cutting branches from thick stems; (b) incorrect angle for cutting branches from thick stems.
Forests 03 00864 g001 1024
Forests 03 00864 g002 1024

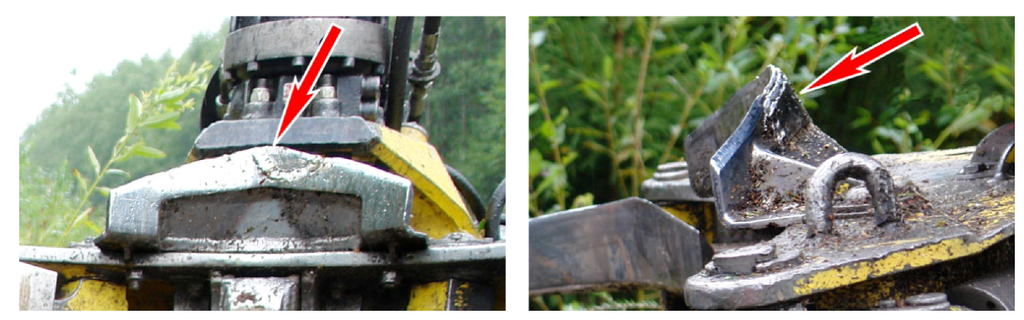

Figure 2. Damaged top of supporting knife.

Click here to enlarge figure

Figure 2. Damaged top of supporting knife.
Forests 03 00864 g002 1024
Forests 03 00864 g003 1024

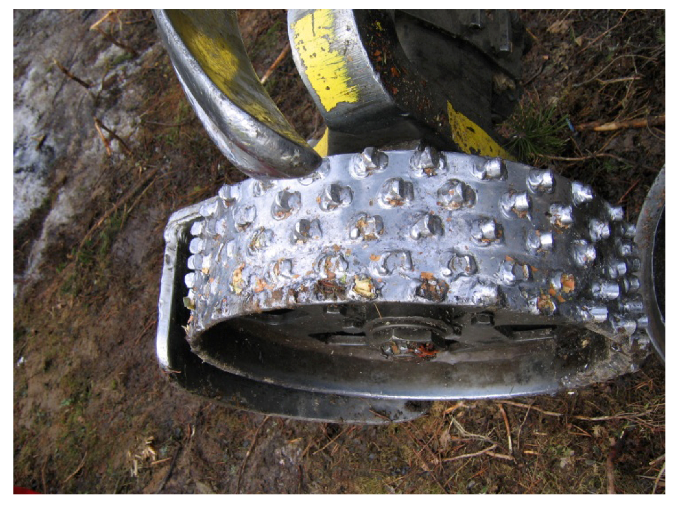

Figure 3. Damaged spikes of the movable feed roller.

Click here to enlarge figure

Figure 3. Damaged spikes of the movable feed roller.
Forests 03 00864 g003 1024

The introduction of the advanced and expensive CTL technology in Russia has shown that serious financial losses can be incurred if the maintenance of a harvester is not done correctly. A survey of John Deere machine failures in the Republic of Karelia in 2003–2006 [15,16] reported that poor operator and technician training systems, inefficient work crew organisation, lack of maintenance support and ubiquitous failure to comply with the operating instructions are problems to solve before CTL can prosper in Russia. According to Salivonik and Shilovsky [16], a harvester head is one of the most weak and critical elements of harvester technical service. Thereby, the necessity to study the effects of the maintenance of the harvester head on its performance is obvious in Russia today. This field-based study was performed to broaden our knowledge of IRW damage and operational efficiency losses associated with the neglect of the proper maintenance of the delimbing and feeding mechanisms of a single-grip harvester.

2. Material and Methods

This study was conducted with the overall objective of describing the effects of feed roller wear and sharpening of delimbing knives on (i) fuel consumption; (ii) productivity; and (iii) wood damage. Stem volume groups and tree species have been taken into account as covariates. Many other confounding factors, such as machines and operators, have been avoided through appropriate planning of the experiments. More specifically, the harvester model, the harvester head model, the number and specifications of the logs were the same for all treatments. The feeding pressures of the harvesting head corresponded to their technical requirements.

The experiments were carried out in typical working conditions near the town of Vedlozero in the Republic of Karelia in the late winter and summer 2009–2010, and Vyshny Volochek in the Tver region in 2010. A midsized-wheeled John Deere 1270D harvester with an engine output power of 160 kW and operating weight of 17 tons was used on all study sites. All the harvesters studied were equipped with the JD 758 HD harvester head. This model has four feed rollers, one bearing and four sidelong movable delimbing knives. The lower and higher clamping pressures (7.5/16.0 MPa for sidelong movable rollers, 6.0/13.0 MPa for upper knives and 3.0/7.5 MPa for lower knives) were checked and corrected if necessary [17]. Field study data in Karelia were obtained from two single-grip harvesters produced in 2006 and 2008. Both harvesters operated in the same logging company and both operators had the same qualifications and experience (five years). The harvester studied in the Tver field study was produced in 2007. The operator had five years of experience with CTL harvesting, including three years with this harvester. Thus, as far as possible, the well-known and sometimes substantial influence of working environment, machine and operator on the work output in wood harvesting was avoided. Harvested forest stands had not been thinned before the final felling. A typical study stand was of mixed tree age and species. The tree species included spruce [Picea abies (L.) Karst.], pine (Pinus sylvestris L.), birch (Betula pubescens), and aspen (Populus tremula). The average stem volumes of the harvesting sites varied between 0.20 m3 and 0.30 m3 u.b. (under bark). The growing stock of harvested stands varied between 200 m3/ha and 325 m3/ha. Typical soils in the test areas were loam, clay loam, and sandy loam. The basis of stem volumes and tree species distribution by experimental harvesting sites is presented in Table 1. The difference between the average stem volumes from forest inventory data and from the harvester in forest block 45 of the Tver region can be explained by the uneven harvest area structure (i.e., a partial area was harvested). The specification of the harvested IRW is shown in Table 2.

The following seven treatments, depending on the degree of wear of feed rollers (A—heavy wear; B—medium wear; C and C’—without wear) and matching of knife blade angles to the technical requirements (1—incorrect and 2—correct sharpening), were each matched to one of the IRW assortments on each harvesting site (Table 3 and Table 4):

A1—the heavily worn-out feed rollers (wear up to 23%) and the incorrect (prior to the experiment) sharpening of knives (deviation from the requirement of up to 10°); A2—the heavily worn-out feed rollers (23%) and correctly sharpened knives immediately after treatment A1; B1—the medium worn-out feed rollers (13%) and the incorrectly sharpened knives (6°); B2—the medium worn-out feed rollers (13%) and correctly sharpened knives immediately after treatment B1; C’2—the renovated (by welding) feed rollers and the correctly sharpened knives after treatments B1–B2; C1—the brand-new feed rollers and the incorrectly sharpened knives (7°); and C2—the brand-new feed rollers and correctly sharpened knives made immediately after treatment C1.

Table 3 and Table 4 show the degree of feed roller wear (the damage to the spikes), and the actual (before sharpening) knife-blade angles for the tested harvester heads, compared to the recommendations of the manufacturer. Not all the harvesters tested met the requirements for sharpening delimbing knives in accordance with the JD H758HD harvester head manual [17]. As a result, even if knives were sharpened regularly, it was not always carried out in line with technical requirements. As can be seen, the actual angles differ from the recommended ones by up to 10°. Besides the failure to follow recommendations on sharpening angles, sometimes the geometry of sharpening was faulty.

Table Table 1. Description of harvesting areas.

Click here to display table

Table 1. Description of harvesting areas.
No.Location*SeasonAverage stem volume* (m3)Stock* (m3/ha)Tree species*TreatmentNumber of observed stems^Average stem volume^ (m3)
PineSpruceBirchAspen
AKarelia, Vedlozero forest district, block No.32Winter0.3032550%—pine 30%—spruce 20%—birch A17511597580.26
A28117880840.3
BKarelia, Vedlozero forest district, block No.8Winter0.2626950%—spruce 30%—pine 10%—birch 10%—aspenB17412084720.34
B282168158860.34
C’Karelia, Vedlozero forest district, block No.46Summer0.2029240%—pine 30%—spruce 20%—birch 10%—aspenC’1N/AN/AN/AN/AN/A
C’21432441131040.22
CTver region, Esenovichskoye forest district, block No.45Summer0.2820060%—birch 20%—aspen 20%—spruceC1N/A3442261700.37
C2N/A3251801340.46

A—the harvester head with the heavy worn-out rollers; B—the medium worn-out rollers; C—the renovated rollers; C’—the brand-new rollers; *—forest inventory data for whole harvesting area; ^—actual data from the harvester.

Table Table 2. Specification of harvested industrial round-wood and quality requirements describing the different types of quality faults.

Click here to display table

Table 2. Specification of harvested industrial round-wood and quality requirements describing the different types of quality faults.
No.IRWNominal length (m)Diameter over bark (m)Quality faults
Min. at the upper endMax. at the lower end (butt)Max. branch length (mm)Bark stripping (%)Damage caused by spikes (mm)
A, B, C’, CSpruce sawlogs6.1 (0, +0.06)0.1700.400101530
A, B, C’Pine sawlogs4.0 (0, +0.06)0.1800.550101530
A, B, C’, CSpruce pulpwood3.6 (±0.15)0.0800.40010-30
A, B, C’Pine pulpwood6.0 (+0.03, +0.05)0.060 (under bark)0.600 (under bark)10-30
A, B, C’, CBirch pulpwood6.0; 4.0 (+0.03, +0.05)0.060 (under bark)0.600 (under bark)10-30
A, B, C’, CAspen pulpwood6.0; 4.0 (−0.05, +0.10)0.0750.80010-30
Table Table 3. Treatments of John Deere H758HD harvester head rollers.

Click here to display table

Table 3. Treatments of John Deere H758HD harvester head rollers.
No.The average height of elliptical spikes (cm)/roller wear (%)Number of missing spikes, (pcs)/(%)
movablefixed on the framemovablefixed on the frame
rightcenterrightcenterrightcenterrightcenter
A1.19/211.16/231.3/131.29/148/629/2103/3
B1.31/131.32/121.39/71.39/74/33/200
C’1.50/01.50/01.39/01.39/00/00/000
C1.42/61.41/61.44/41.45/310/76/400
Table Table 4. Treatments of John Deere H758HD harvester delimbing knives.

Click here to display table

Table 4. Treatments of John Deere H758HD harvester delimbing knives.
No.State of the cutting edgesThe angle of sharpening the cutting edges
upper movablelower movablestationary
abbac
A140°50°45°30°30°
235°40°40°35°30°
B138°45°35°29°35°
235°40°40°35°30°
C’235°40°40°35°30°
C140°47°40°35°37°
235°40°40°35°30°

Note: The angles of knives: 1—incorrect sharpening; 2—after correct sharpening (recommended by manufacturer); a—sector for cutting branches from thin stems; b and c—sectors for cutting branches from thick stems.

2.1. Productivity and Fuel Consumption

The performance of each harvester, such as fuel consumption and productivity, was automatically monitored during a single normal operation shift on a harvesting site for each treatment. Altogether, there were about 3595 measured stems or about 1200 m3 u.b., including 455 pines, 1494 spruces, 938 birches and 708 aspens. The detailed data per treatment are presented in Table 1. A new version of the John Deere machine’s performance and condition monitoring system (TimberLink 2.0) was used for collecting data on cutting productivity and follow-up of cutting conditions (tree sizes and species). Performance data were transferred from the harvester to the office with a USB memory stick. The data collection procedure involved gathering preliminary information, such as date, working time, processing time, movement time, stem volume, tree species and number of trees, process productivity, fuel consumption, and some additional information, such as the contractor, machine type, harvester head type, and location. The harvesting operation of the harvesters studied was split into two distinct time elements, which were recorded with the TimberLink system. Time elements were stem selection and stem processing (i.e., delimbing and cross-cutting). The stem selection stage covers everything from driving the machine onto the stand to operating the boom before sawing the stem.

The stem processing stage includes the felling, cutting, moving, delimbing and cross-cutting of the stem. TimberLink monitors the time required for the different stages of stem processing when processing differently sized stems. The harvester head measurement system was used to measure sectional diameters and lengths of each tree to determine stem volume. Machine productivity was determined in m3 u.b., both per productive machine hour and per stem processing machine hour (SprocMH). Fuel consumption was determined in litres per m3 u.b., for both productive machine hours (FC) and stem processing machine hours (SprocFC). Productive machine hours represent the time during which the machine performs the harvesting operation excluding breakdowns (i.e., mechanical and non-mechanical delays). It is the time spent by a machine performing its primary task and time spent on support tasks. Short delays that cannot be easily separated from production activities are included in productive time. Stem processing machine hours represent the time during which the machine actually performs felling and stem processing operations (tree felling, delimbing, cross-cutting and harvesting head movement). In addition, stem feeding time (FTstem) in seconds per stem and stem processing fuel consumption (FCstem) in litres per stem were determined. Note the difference between feeding time and processing time. FTstem (seconds per stem) and SprocMH (m3 per hour) are measures for time consumption of stem feeding and productivity of stem processing operations respectively. Therefore they are different in significance within the same treatment effect.

2.2. Post-Harvest Assessments of IRW Damage

In order to evaluate the influence of angles of knife sharpening, the quality of IRW was evaluated before and after sharpening of knives on three harvesters working in similar forest stands. The IRW assortments, such as pine saw logs and pulpwood, spruce saw logs and pulpwood, and birch and aspen pulpwood, were collected from three mixed forest stands in Karelia and one in the Tver region (see Table 2). According to the methodology used, the required number of logs to be measured equals 50 for each tree species per treatment; a set of exactly 50 spruces, 50 pines and 50 birches was selected for IRW damage observation during normal harvesting operations within the time gap between harvesters and forwarders. The choice of the number of IRW samples for each treatment was made on the basis of the prior study experiment and by determining the minimum number of measurements to ensure the required accuracy and reliability (p = 0.05 for a 95% confidence interval). The total number of observed logs in all treatments (A–C) was 1300, and the number of observed harvesting sites was four, including two in winter and two in summer (Table 1). All the measurement results were registered on checklists using a data collector. The IRW damage evaluation was based on a number of IRW damage indicators, which are regulated by relevant national standards and forest industry specifications [5]. The forms of processing damage to IRW were broken down into three groups: unprocessed branches (>10 mm), bark stripping, and damage caused by roller spikes. The results were then compared with the effective quality requirements in a given logging company, and the IRW volume loss in terms of the reject rate was determined in the context of the harvesting head’s technical condition.

2.3. Statistical Approach

The data obtained in this study were only on a stem level. The number of recorded stems, calculated using a statistical approach, gave reliable data for analyses of IRW damage. The recorded TimberLink data provided accurate data for analyses of productivity, time and fuel consumptions. Therefore, the study results are reliable within the case study. Collected data were analyzed through multivariate analysis of variance and of covariance (MANCOVA) and Fisher’s Least Significant Difference (LSD) tests at 95% confidence level using the SPSS package version 17 [18]. This rather advanced (at least for forest engineering) procedure is concerned with examining the differences between the groups. Treatment effects were tested using MANCOVA with feed roller wear (Roller_wear) and sharpening of knives (Knives_shap) as fixed factors separately for the productivity (FTstem, SprocMH) and fuel consumption (FCstem) factors. A set of covariates, such as tree species, stem volume groups and season, which might be related to our dependent variables, was used in the analysis. In the multivariate analysis with harvesters as an observational unit for FTstem, FCstem, SprocMH dependent variables, tree species and stem volume groups were added as covariates. The seasonal factor was excluded from further MANCOVA analysis because Baranovsky and Nekrasov [19] and Breyter et al. [20] in Russia reported that the season does not have a significant effect on the productivity of the delimbing and feeding mechanisms. In addition, the study by Kuitto et al. [21] in Finland demonstrated that the season does not have a significant effect on harvester productivity and fuel consumption.

3. Results

Data obtained in this field study are presented in Table 5 and Table 6. Table 5 shows the SprocFC and SprocMH results for the stem volume groups by tree species in the context of treatments. The results for post-harvest assessments of IRW damage, stem processing fuel consumption and feeding time in the context of treatments are shown in Table 6. The results of MANCOVA analysis are shown in Table 7.

Table Table 5. The values of the relationship between SprocFC and SprocMH for the stem volume groups by tree species in the context of treatments.

Click here to display table

Table 5. The values of the relationship between SprocFC and SprocMH for the stem volume groups by tree species in the context of treatments.
No.Tree speciesProductivity (SprocMH) (m3/h)Fuel consumption (SprocFC) (L/m3)
less than 0.15 m30.15–0.30 m30.30–0.50 m30.50–0.80 m3less than 0.15 m30.15–0.30 m30.30–0.50 m30.50–0.80 m3
A1pine24.339.1054.169.10.550.580.350.32
A1spruce15.935.6048.665.30.910.620.430.34
A1birch17.634.8043.251.91.000.710.500.35
A1aspen18.541.5050.270.20.910.580.450.34
A2pine24.737.3055.270.40.450.580.330.32
A2spruce15.634.7047.764.50.910.620.400.34
A2birch17.334.0044.555.11.090.670.480.32
A2aspen18.242.4051.5700.910.530.380.32
B1pine25.437.8056.962.90.600.430.330.27
B1spruce13.734.8048.164.30.650.500.360.28
B1birch1834.904348.70.690.550.420.36
B1aspen19.442.0049.464.30.650.470.360.28
B2pine24.938.5055.173.30.580.480.320.25
B2spruce15.534.2046.364.20.700.510.390.29
B2birch17.833.5045.256.50.720.520.390.34
B2aspen17.540.5056.574.40.670.480.340.26
C’2pine18.934.3048.270.90.680.580.360.25
C’2spruce15.433.4048.5650.650.530.380.30
C’2birch17.234.3046.464.10.810.540.430.29
C’2aspen18.339.4058.677.30.740.480.340.25
C1spruce12.631.3049.167.80.650.590.390.28
C1birch14.128.6041.459.40.940.670.460.34
C1aspen17.237.405775.50.670.520.360.25
C2spruce12.730.9049.677.30.570.520.340.25
C2birch17.130.1042.258.40.850.600.420.31
C2aspen16.241.4065.480.40.600.520.300.23
Table Table 6. The results for post-harvest assessments of industrial round-wood (IRW) damage, stem processing fuel consumption and feeding time.

Click here to display table

Table 6. The results for post-harvest assessments of industrial round-wood (IRW) damage, stem processing fuel consumption and feeding time.
No.Feeding time (FTstem) (s/stem) Stem processing fuel consumption (FCstem) (10−3 L/stem)The reject rate of IRW (%)
<0.15 m30.15–0.30 m30.30–0.50 m30.50–0.80 m3
PineSpruceBirchAspenPineSpruceBirchAspenPineSpruceBirchAspenPineSpruceBirchAspenPineSpruceBirch
A16.56.77.17.29.89.111.19.611.311.615.214.115.513.517.317.281012
60100110100130140160130140170200180210220230220
A26.05.96.16.39.58.211.08.411.111.314.912.613.913.216.017.0466
50100120100130140150120130160190150210220210210
B15.95.66.46.18.79.610.69.111.110.915.012.514.513.320.015.5668
6673767196112124105131142169144173183233183
B25.05.35.45.58.28.49.58.610.711.014.111.513.613.018.515.0466
64777974107115117109128154157135164188221169
C’26.65.87.16.89.89.210.49.211.511.714.511.812.713.017.215.28108
75728981131119122109145150173137163192186160
C1-5.76.36.0-8.510.69.0-10.912.211.1-12.716.314.0-68
-7210374-132151117-157185143-183219164
C2-4.86.55.8-7.910.08.5-10.012.09.5-12.014.512.6-66
-639466-116135116-134169121-165203151
Table Table 7. Results of multivariate analysis of variance MANCOVA for the effects of Roller_wear and Knives_shap on FTstem, FCstem, SprocMH with Tree_spec and Volume_class covariates.

Click here to display table

Table 7. Results of multivariate analysis of variance MANCOVA for the effects of Roller_wear and Knives_shap on FTstem, FCstem, SprocMH with Tree_spec and Volume_class covariates.
SourceDependent VariableType III Sum of SquaresdfMean SquareFSig.
Tree_specFCstem1,059.05411,059.0543.1140.081
FTstem26.554126.55414.1030.000
SprocMH9.19019.1900.2110.647
Volume_classFCstem169,634.9931169,634.993498.7670.000
FTstem1,068.14311,068.143567.3170.000
SprocMH31,880.537131,880.537731.1480.000
Roller_wearFCstem10,026.08233,342.0279.8260.000
FTstem31.605310.5355.5950.001
SprocMH7.51232.5040.0570.982
Knives_shapFCstem1,185.92611,185.9263.4870.065
FTstem11.594111.5946.1580.015
SprocMH44.419144.4191.0190.315
Roller_wear* Knives_shapFCstem533.9712266.9850.7850.459
FTstem0.01220.0060.0030.997
SprocMH17.36228.6810.1990.820

3.1. Fuel Consumption

According to Table 5, SprocFC was strongly dependent on stem volume. In addition, the results of MANCOVA analysis (Table 7) show that there was a statistically significant difference between Volume_class for FCstem (p < 0.0005) and there was no statistically significant difference between Tree_spec for FCstem (p = 0.081). For the smallest stems (<0.15 m3), SprocFC varied from 0.45 to 1.09 L/m3 depending on the treatments and tree species as follows: 0.45–0.68 L/m3 (for pine), 0.57 to 0.91 L/m3 (spruce), 0.69–1.09 L/m3 (birch), 0.60–0.91 L/m3 (aspen). Table 7 reports that there was a statistically significant difference between Roller_wear for FCstem (p < 0.0005) and there was no statistically significant difference between Knives_shap for FCstem (p = 0.065). In addition, there was no statistically significant difference between the Knife_shap*Roller_wear interaction for FCstem (p = 0.459). FCstem of pine and birch deviate from the average FCstem within the same stem volume group, regardless of the knife sharpening with worn-out feed rollers (treatments A and B, winter time). In cases of incorrect knife sharpening (treatments A1, B1), fuel consumptions were below the average FCstem by 5%–35% for pine and over the average FCstem by 5%–21% for birch, depending on treatments.

3.2. Productivity

SprocMH was strongly dependent on stem volume and, to some extent, tree species. In addition, the results of MANCOVA analysis (Table 7) show that there was a statistically significant difference between Volume_class for FTstem and SprocMH and Tree_spec for FTstem (p < 0.0005). There was no statistically significant difference between Tree_spec for SprocMH (p = 0.647).

Table 7 reports that there was a statistically significant difference between Roller_wear for FTstem (p = 0.001) and there was no statistically significant difference between Knives_shap for FTstem (p = 0.015). In addition, there was no statistically significant difference between the Knife_shap and Roller_wear interaction for SprocMH (p = 0.315 and p = 0.982). The degree of feed roller wear had an influence on FTstem regardless of season. When knives were sharpened correctly (treatments A2 and B2), only FTstem of birch increased over 10% compared with the average FCstem of the stem volume group, where the average FTstem for log stems was over 0.3 m3. FTstem for birch exceeded the average FTstem by 19%–26%. FTstem of all other tree species varied within ±10%. In cases of incorrect knife sharpening (treatments A1 and B1), FTstem of spruce and birch varied over ±10% where the average FTstem for log stems was over 0.15 m3. FTstem for birch were over the average FTstem by up to 19% and FTstem for spruce were below the average FTstem up to 15%. FTstem of all other tree species and tree sizes varied within ±10%. In cases of worn-out feed rollers (treatments A and B), poor knife sharpening increased FTstem for the biggest stems (0.5–0.8 m3) by 10% for pine, 8% for birch and 10% for spruce, and 16% for the smallest spruce stems (<0.15 m3). With the use of new feed rollers in summer time (treatments C), poor knife sharpening increased FTstem by about 16% for the smallest spruce stems (<0.15 m3), 10% and 11% for the biggest birch and aspen stems (0.5–0.8 m3), and 8% and 14% for most of the typical spruce and aspen stems (0.15–0.5 m3). In other cases, the sharpening of the knives did not increase FTstem or even decrease slightly; for example, birch log stems in the volume group were less than 0.15 m3 in summer time.

3.3. Industrial Round-Wood Damage

Both the degree of the feed roller wear and the poor sharpening of knives cause IRW damage associated with delimbing (Table 6). Most of the defective IRW were observed for treatment A1, when the combination of the poor delimbing knife sharpening and the most worn-out rollers showed a reject rate of IRW up to 12%, whereas for the rest of the treatments the reject rates were no more than 10%. When the knives were sharpened according to the manufacturer’s recommendations, the quality of the logs improved for all harvester heads and the share of deficiencies dropped (in terms of branch stumps) by 25%–50%. The results show that the correct sharpening of the knives reduced the proportion of defective logs (branch stumps over 10 mm) in the total number of IRW logs for:

  • The most worn-out roller (treatment A1 vs. A2) by 4% for pine, by 4% for spruce and by 6% for birch;

  • The medium worn-out roller (treatment B1 vs. B2) by 2% for pine and by 2% for birch; almost no changes were observed for spruce;

  • The new feed rollers (treatments C’1 and C1 vs. C’2) by 2% for birch; almost no changes were observed for spruce.

The study of delimbing with incorrect sharpened knives shows that often such knives cut into the stem or went off the stem and failed to cut it, leaving unprocessed branches (Figure 4).

Forests 03 00864 g004 1024

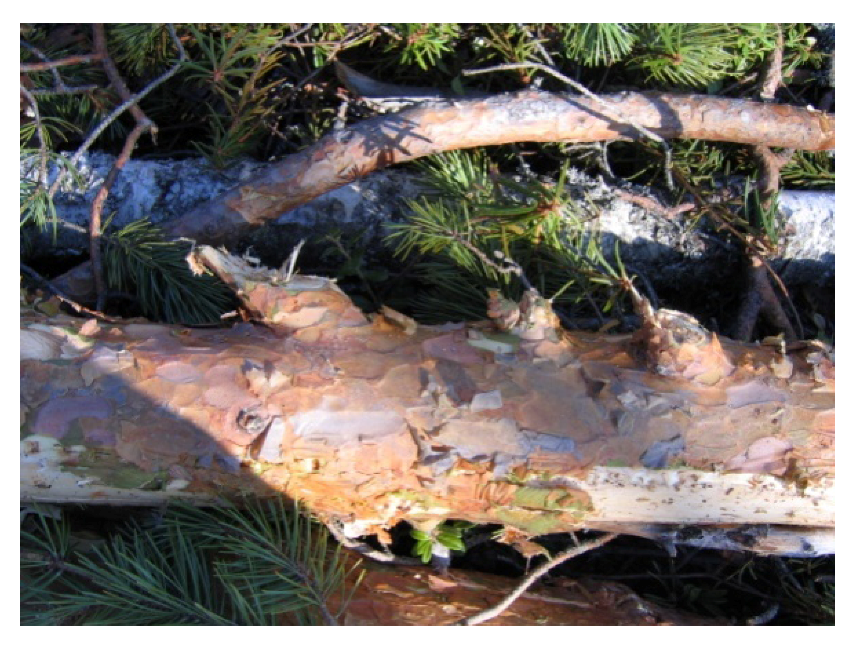

Figure 4. Unprocessed branches.

Click here to enlarge figure

Figure 4. Unprocessed branches.
Forests 03 00864 g004 1024

4. Discussion and Conclusions

Despite the wide use of fully mechanized CTL technology in Russia, the present study is the first to report the operational efficiency losses associated with neglect of the proper maintenance of the delimbing and feeding mechanisms of a single-grip harvester head in clear-cut operations in mixed unmanaged stands. However, similar studies on operational efficiency and delimbing quality of single-grip harvesters have been conducted in Finland, Sweden, Canada and other countries [22,23,24,25,26,27,28,29].

The results of this study show that the operational efficiency of harvesters varies with the neglect of the proper maintenance of the harvester head delimbing and feeding mechanisms. According to the results, the correct maintenance of delimbing knives is the most effective way to keep IRW quality at the proper level. The operational efficiency of the harvester, such as productivity and fuel consumption, is more sensitive to the destruction of traditional rollers with spikes. However, no significant difference was identified for the joint effect of roller wear and knife sharpening. Surprisingly, it was not possible to find differences in time consumption depending on knife sharpening. The differences might be hidden because a big variation in tree size can be found within a stem volume group of trees (for example, 0.3–0.5 m3). For data collection, the TimberLink 2.0 monitoring system was used, and with this tool it might be possible to make a much more detailed analysis comparing pairs of stems, as equal in size as possible, but with different treatments. Then more significant differences between treatments could be found and presented.

During the field study, no serious problems associated with IRW damage caused by spikes and bark stripping were revealed in either winter or summer seasons. The most common IRW damage was associated with unprocessed stump branches with a height over 10 mm, which are rejected as either saw logs or pulpwood. Brunberg et al. [23] show the high level of bark damage in the sap season, but harvesting operations are usually interrupted during this period in Russia due to road closures for the passage of heavy trucks. Improved maintenance of delimbing knives at the logging company studied can reduce the rejected rate of IRW by 5% on average and thus avoid an annual loss in IRW value at the logging company of up to €7,000 per harvester, assuming an annual output of 50,000 m3.

According to Rieppo and Örn [24], the fuel consumption of the single grip harvester in Finland with a stem volume group of more than 0.45 m3 was about 0.69 L/m3, 0.25–0.45 m3 about 0.71 L/m3, 0.1–0.25 m3 about 1.15 L/m3, and for a stem volume group of less than 0.1 about 2.07 L/m3. The results obtained in Russian conditions are not very different from Finnish ones; the differences are within ±15% depending on the stem volume group. The ratio between the highest and lowest fuel consumption per m3 was 3. In our study, the ratio between the highest (stem volume group <0.15 m3) and lowest (0.5–0.8 m3) fuel consumption per m3 of harvester during processing of logs (SprocFC) is about 2.5, depending on treatment and also increasing when processing small stems. The proportion of SprocFC in the total fuel consumption per m3 is about 40%. This means that a 5% decrease in fuel consumption due to improved maintenance of the harvesting head reduces the annual cost of harvesting operations by €1,400 per harvester, with annual fuel consumption of approximately 35,000 L.

Nuutinen et al. [22] noted the significant influence of different feed rollers on effective feeding time. For medium stems, with a volume of 0.35 m3, the effective feeding time of a steel feed roller was about 8–10 s/stem for spruce and birch. For larger stems, with a volume of 0.65 m3, the effective feeding time was about 10–13 s/stem. These effective feeding times are on average 25%–35% less than our results and can be explained by the fact that the feeding speed of Russian harvesters is limited to about 3 m/s for several reasons such as twisted knotty stems of deciduous trees, worn feed rollers and hydraulic systems, incorrect settings, etc. Moreover, harvesters have to buck the top of a tree into several pieces due to existing forestry requirements in Russia and this leads to a reduction of productivity. According to Gerasimov et al. [4], SprocMH of a single grip harvester in the Northern European part of Russia with a stem volume class <0.16 m3 is 14.9 m3/h, 0.16–0.30 m3 about 31.3 m3/h, 0.31–0.50 m3 about 46.1 m3/h, and 0.51–0.8 m3 about 77.1 m3/h. The variation within our results is about ±15%. The results of the study also confirm that the proportion of the total harvester time consumption taken by stem processing is about 27% in the studied regions. This means that a 2% increase in the productivity of the harvester due to improved maintenance of the harvesting head reduces harvesting costs at the logging company studied by up to €5,000 per harvester.

This study shows the importance of improving the maintenance of the harvester’s work elements, such as delimbing and feeding, for the cost efficiency of fully mechanized CTL harvesting operations. It is obvious that replacement of worn-out rollers by brand-new rollers is a rather costly operation, whereas restoration of spikes on the rollers and correct sharpening do not increase costs remarkably. One more parameter to be taken into account during harvesting head maintenance is contact pressure on the stem from feed rollers and knives. At the same time, the benefits of regular check-ups of the pressure of feed rollers and knives and their adjustment are obvious, because badly functioning rollers also damage IRW.

The study results confirm and complement the previous research regarding IRW damage caused by the harvester head and operational efficiency losses associated with the neglect of the proper maintenance of the delimbing and feeding mechanisms of a single-grip harvester in the most intense seasons—winter and summer. Additional and more specific research into operation during the spring season, when the peeling and elasticity of bark vary, and into other types of harvester heads, would be needed in future. Moreover, harvesters of various makes and models perform wood harvesting operations in Russia. To secure a good representation of the results of this study and allow generalization for the whole harvester fleet, satisfactory country coverage should be achieved by examining a randomly selected sample of logging companies on both stem and stand levels in other regions of Russia.

Acknowledgments

The publication was prepared for the projects “Wood Harvesting and Logistics”, financed by the European Union through the Finnish Funding Agency for Technology and Innovation (TEKES), and “Decision support system for the boosting of the rational use of woody biomass”, financed by the Ministry of Education and Science of Russia and within the Strategic development program of Petrozavodsk State University.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Nordfjell, T.; Bjorheden, R.; Thor, M.; Wasterlund, I. Changes in technical performance, mechanical availability and prices of machines used in forest operations in Sweden from 1985 to 2010. Scand. J. For. Res. 2010, 25, 382–389. [Google Scholar] [CrossRef]
  2. Gerasimov, Y.; Karjalainen, T. Estimation of machinery market size for industrial and energy wood harvesting in Leningrad region. Croat. J. For. Eng. 2012, 33, 49–60. [Google Scholar]
  3. Karvinen, S.; Välkky, E.; Gerasimov, Y.; Dobrovolsky, A. Northwest Russian Forest Sector in a Nutshell; Finnish Forest Research Institute (METLA): Helsinki, Finland, 2011. [Google Scholar]
  4. Gerasimov, Y.; Senkin, V.; Väätäinen, K. Productivity of single-grip harvesters in clear-cutting operations in the northern European part of Russia. Eur. J. For. Res. 2012, 131, 647–654. [Google Scholar] [CrossRef]
  5. Gerasimov, Y.; Seliverstov, A. Industrial round-wood losses associated with the harvesting systems in Russia. Croat. J. For. Eng. 2010, 31, 111–126. [Google Scholar]
  6. Syunev, V.; Sokolov, A.; Konovalov, A.; Katarov, V.; Seliverstov, A.; Gerasimov, Y.; Karvinen, S.; Välkky, E. Comparison of Wood Harvesting Methods in the Republic of Karelia; Finnish Forest Research Institute (METLA): Helsinki, Finland, 2009. [Google Scholar]
  7. Adebayo, A.B.; Han, H.S.; Johnson, L. Productivity and cost of cut-to-length and whole-tree harvesting in a mixed-conifer stand. For. Prod. J. 2007, 57, 59–69. [Google Scholar]
  8. Kärhä, K.; Rönkkö, E.; Gumse, S. Productivity and cutting costs of thinning harvesters. J. For. Eng. 2004, 15, 43–56. [Google Scholar]
  9. Jiroušek, R.; Klvač, R.; Skoupy, A. Productivity and costs of the mechanised cut-to-length wood harvesting system in clear-felling operations. J. For. Sci. 2007, 53, 476–482. [Google Scholar]
  10. Sirén, M.; Aaltio, H. Productivity and costs of thinning harvesters and harvester-forwarders. Int. J. For. Eng. 2003, 14, 39–48. [Google Scholar]
  11. Spinelli, R.; Owende, P.M.O.; Ward, S. Productivity and cost of CTL harvesting of Eucalyptus globulus stands using excavator-based harvesters. For. Prod. J. 2002, 52, 67–77. [Google Scholar]
  12. Holzleitner, F.; Stampfer, K.; Visser, R. Utilization rates and cost factors in timber harvesting based on long-term machine data. Croat. J. For. Eng. 2011, 32, 501–508. [Google Scholar]
  13. Gellerstedt, S.; Dahlin, B. Cut-to-length in the next decade. J. For. Eng. 1999, 10, 17–25. [Google Scholar]
  14. Seliverstov, A.; Siounev, V.; Gerasimov, Y.; Sokolov, A. Improving the efficiency of harvesters (in Russian). Syst. Methods Technol. 2010, 4, 133–139. [Google Scholar]
  15. Shilovsky, V.; Salivonik, A.; Goldshtain, G. Ways of increasing effectiveness of foreign timber machinery (in Russian). Proc. Petrozavodsk State Univ. 2008, 3, 104–108. [Google Scholar]
  16. Salivonik, A.; Shilovsky, V. Results of the study of elements of technical service of foreign harvesters (in Russian). In Actual Problems of Forest Industry; Pamfilov, E.A., Ed.; Bryansk State Engineering and Technology Academy: Bryansk, Russia, 2007; Volume 18, pp. 44–47. [Google Scholar]
  17. John Deere. Operation and Maintenance Manual for Harvester Head John Deere 758HD; John Deere: Moline, IL, USA, 2008.
  18. SPSS, SPSS Statistics Base 17.0 User’s Guide, SPSS, Inc. Chicago, IL, USA, 2009.
  19. Baranovsky, V.A.; Nekrasov, R.M. Wood Harvesting Machinery Systems (in Russian); Logging Industry: Moscow, Russia, 1977; p. 44. [Google Scholar]
  20. Breyter, V.S.; Bolshakov, B.M.; Dolgovykh, G.P. An evaluation of the joint impact of natural and production factors on harvesting machines (in Russian). In Advanced Technology and Organization of the Logging Industry; TSNIIME: Khimki, Russia, 1977; pp. 32–40. [Google Scholar]
  21. Kuitto, P.-J.; Keskinen, S.; Lindroos, J.; Oijala, T.; Rajamäki, J.; Räsänen, T.; Terävä, J. Mechanised Cutting and Forest Haulage (in Finnish); Metsäteho Report 410; Metsäteho: Helsinki, Finland, 1994. [Google Scholar]
  22. Nuutinen, Y.; Väätäinen, K.; Asikainen, A.; Prinz, R.; Heinonen, J. Operational efficiency and damage to sawlogs by feed rollers of the harvester head. Silva Fenn. 2010, 44, 121–139. [Google Scholar]
  23. Brunberg, T.; Hofsten, H.; Jonsson, M. Kartlägging och Värdering av Dubbskador (in Swedish); The Forestry Research Institute of Sweden: Uppsala, Sweden, 2006. [Google Scholar]
  24. Rieppo, K.; Örn, J. Metsäkoneiden Polttoaineen Kulutuksen Mittaaminen (in Finnish); Metsätehon Report 148; Metsäteho: Helsinki, Finland, 2003. [Google Scholar]
  25. Puttock, D.; Spinelli, R.; Hartsough, B.R. Operational trials of cut-to-length harvesting of poplar in a mixed wood stand. Int. J. For. Eng. 2005, 16, 39–49. [Google Scholar]
  26. Athanassiadis, D.; Lidestav, G.; Wästerlund, I. Fuel, hydraulic oil and lubricant consumption in Swedish mechanized harvesting operations. J. For. Eng. 1999, 10, 59–66. [Google Scholar]
  27. Kariniemi, A. Kuljettajakeskeinen Hakkuukonetyön Malli—Työn Suorituksen Kognitiivinen Tarkastelu (in Finnish); The Digital Repository of University of Helsinki: Helsinki, Finland, 2006. [Google Scholar]
  28. Väätäinen, K.; Ovaskainen, H.; Ranta, P.; Ala-Fossi, A. Hakkuukoneenkuljettajan Hiljaisen Tiedon Merkitys Hakkuutulokseen Työpistetasolla (in Finnish); Joensuun Tutkimuskeskus: Helsinki, Finland, 2005. [Google Scholar]
  29. Gingras, J.F. Early studies of multi-tree handling in Eastern Canada. Int. J. For. Eng. 2004, 15, 18–22. [Google Scholar]
Forests EISSN 1999-4907 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
