Article

Electrochemical Corrosion Behavior of Ta2N Nanoceramic Coating in Simulated Body Fluid

1
Department of Material Science and Engineering, Nanjing University of Aeronautics and Astronautics, 29 Yudao Street, Nanjing 210016, China
2
School of Mechanical & Electrical Engineering, Wuhan Institute of Technology, 693 Xiongchu Avenue, Wuhan 430073, China
3
Department of Mechanical Engineering, Southeast University, 2 Si Pai Lou, Nanjing 210096, China
*
Author to whom correspondence should be addressed.
Materials 2016, 9(9), 772; https://doi.org/10.3390/ma9090772
Submission received: 2 August 2016 / Revised: 1 September 2016 / Accepted: 3 September 2016 / Published: 10 September 2016

Abstract

:
In order to improve the corrosion and wear resistance of biomedical Ti-6Al-4V implants, a Ta2N nanoceramic coating was synthesized on a Ti-6Al-4V substrate by the double glow discharge plasma process. The Ta2N coating, composed of fine nanocrystals, with an average grain size of 12.8 nm, improved the surface hardness of Ti-6Al-4V and showed good contact damage tolerance and good adhesion strength to the substrate. The corrosion resistance of the Ta2N coating in Ringer’s physiological solution at 37 °C was evaluated by different electrochemical techniques: potentiodynamic polarization, electrochemical impedance spectroscopy (EIS), potentiostatic polarization and capacitance measurements (Mott-Schottky approach). The evolution of the surface composition of the passive films at different applied potentials was determined by X-ray photoelectron spectroscopy (XPS). The results indicated that the Ta2N coating showed higher corrosion resistance than both commercially pure Ta and uncoated Ti-6Al-4V in this solution, because of the formed oxide film on the Ta2N coating having a smaller carrier density (Nd) and diffusivity (Do) of point defects. The composition of the surface passive film formed on the Ta2N coating changed with the applied potential. At low applied potentials, the oxidation of the Ta2N coating led to the formation of tantalum oxynitride (TaOxNy) but, subsequently, the tantalum oxynitride (TaOxNy) could be chemically converted to Ta2O5 at higher applied potentials.

1. Introduction

Due to the increased numbers of elderly people in today’s society as a percentage of the population and the growth of accidents, there is ever-increasing demand for artificial joint replacements to surgically substitute for diseased or lost bones to restore form and function [1]. Metallic materials have been extensively used as hard tissue replacements for artificial bone and joint implants. Compared to more conventional stainless steels and cobalt-based alloys, titanium and its alloys have greater advantages for applications in orthopedic implants, because of their lower modulus, lower density, superior biocompatibility and better corrosion resistance [2]. Among various types of Ti alloys, Ti-6Al-4V is the first, and the most commonly used, implant material, particularly for orthopedic prosthesis applications. When implants are placed in the human body, they are in contact with extracellular body fluids, such as blood and interstitial fluids, which not only contain high concentrations of chloride ions, but also amino acids and proteins. Hence, under such an aggressive environment, the corrosion resistance of the metallic implant becomes important, since the corrosion rate is related to the release of metal ions into the tissue surrounding the implant, which, in turn, significantly influences biocompatibility [3]. Corrosion resistance of Ti-6Al-4V in various environments is attributed to the presence of a highly stable and tenaciously adherent passive film spontaneously formed on its surface. This plays a decisive role in determining its corrosion resistance and biocompatibility. However, clinical experience has shown that Ti-6Al-4V is susceptible to localized corrosion in a biological environment, causing the release of metal ions into the tissue adjacent to the implants. The release of metal ions is found to not only be detrimental to bone attachment and further bone growth on the implant surface [4,5], but also causes long-term health problems, such as peripheral neuropathy, osteomalacia and Alzheimer diseases [5,6]. In addition, for load-bearing metallic orthopaedic implants, wear occasionally occurs in cyclic load bearing areas, leading to the generation of debris and the degradation of the passive oxide film integrity to accelerated corrosion damage. Owing to its low hardness, the poor wear resistance of Ti-6Al-4V promotes aseptic loosening after long-term implantation and these abraded debris particles cause inflammatory reaction in the tissue [7].
As is well known, the material surface exerts an important influence on the response of the biological environment to artificial medical devices. Various surface modification techniques [8] have been explored as a means to improve the corrosion and wear resistance of titanium and its alloys, without sacrificing its excellent bulk attributes, such as relatively low modulus, good fatigue strength, formability and machinability. The most effective way to achieve this is to deposit various ceramic coatings, e.g., transition metal oxides, nitrides, carbides, or silicides [9,10,11]. These can provide a barrier layer between the bioenvironment and the alloy substrate. Recently, due to their high thermal stability, stable electrical resistivity, wear resistance and superior corrosion, tantalum nitrides have received much attention as protective coating materials and have been applied in a range of mechanical and microelectronic industries, including application as hard coatings for cutting tools [12], diffusion barrier layers in integrated circuits [13], and stable thin film resistors [14]. Further, similar to metallic Ta, tantalum nitride based materials (for instance, TaN, Ta2N and TaCxN1−x) have enormous potential in biomedical fields. Leng et al. found that tantalum nitride films showed better blood compatibility than low-temperature isotropic pyrolytic carbon (LTIC), and suggested that they could be a possible alternative for LTIC in artificial heart valves [15]. Nonetheless, data on the electrochemical behavior of tantalum nitride in physiological solutions are still scarce. In the present work, a novel Ta2N nanoceramic coating was prepared on Ti-6Al-4V substrate by a double glow discharge plasma process. The microstructure of the Ta2N nanoceramic coating was characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Hardness and adhesion strength of the coating to the substrate were evaluated using nanoindentation and scratch testing, respectively. To evaluate its potential use in biomedical applications, the electrochemical behavior of the Ta2N coating was examined in Ringer’s solution by various electrochemical methods including potentiodynamic polarization, potentiostatic polarization, EIS and Mott-Schottky analysis. The corrosion resistance of commercially pure Ta and uncoated Ti-6Al-4V was also measured to provide a comparative study.

2. Materials and Methods

2.1. Coating Specimen Preparation

The samples were cut from a medical grade Ti-6Al-4V alloy bar. The Ti-6Al-4V substrates were abraded with 2000-grit SiC paper, polished with 0.5 μm Cr2O3 powder and then cleaned using double-distilled water. The sputtering target is a 99.99% pure Ta disk with a diameter of 100 mm and thickness of 5 mm. The Ta2N coating was fabricated on a Ti-6Al-4V substrate using a double cathode glow discharge apparatus. During the preparation of coating samples, one cathode served as the sputtering target, and the other cathode is the substrate material, as described in detail elsewhere [10]. The base pressure in the chamber was evacuated down to 5 × 10−4 Pa. Prior to deposition, the substrate surface was cleaned by argon ion sputtering for 10 min to remove surface contamination at about 20 Pa and a substrate bias voltage of −600 V. During deposition, the working pressure of 35 Pa is composed of Ar and N2 gas mixture, with N2:Ar flux ratio of 1:20. The sputtering parameters of deposition used here include: the target electrode bias voltage of −900 V, substrate bias voltage of −350 V; substrate temperature of 850 °C, a parallel distance between the target and the substrate of 10 mm and a deposition time of 1.5 h.

2.2. Phase and Microstructural Characterization

The crystal structure of the as-deposited coating was analyzed by a D8 ADVANCE X-ray diffractometer using Cu Kα radiation. The surface and cross-sectional morphology of the as-prepared coating were determined using a S-4800 field emission scanning electron microscopy. TEM observations were performed using a JEOL JEM-2010 transmission electron microscope operating at an accelerating voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) measurements were carried out on a Kratos AXIS Ultra ESCA system using Al Ka (1486.6 eV, pass energy of 20 eV). The deconvolution of the spectra was achieved by fitting the data using the software XPS PEAK4.1. Peak identification was performed with reference to an XPS database.

2.3. Mechanical Properties Measurements

Nanoindentation tests were conducted on the Ta2N coating and Ti-6Al-4V substrate using a nanoindentation tester (Ultra-Micro Indentation System 2000), equipped with a Berkovich diamond tip. The standard analysis procedure proposed by Oliver and Pharr [16] was used to determine the hardness of the samples from the load–displacement curves. The adhesion strength of the Ta2N coating to Ti-6Al-4V substrate was evaluated by a WS-2005 scratch tester equipped with an acoustic emission (AE) detector. During the scratch tests, a 200 μm radius Rockwell C diamond indenter was drawn across the coating surface under a linearly increased normal load from 0 N to 100 N with a constant loading rate of 20 N/min. The contact-damage resistance of the coating was assessed using an applied normal load of 9.80 N with a Vickers indenter. A focused ion beam (FIB) milling system (Nova Nanolab 200, FEI, Hillsboro, OR, USA) was used to obtain subsurface sectioning and imaging of indentation sites.

2.4. Electrochemical Measurements

The electrochemical measurements were conducted using a CHI604D electrochemical workstation (Shanghai ChenHua Instruments Co., Shanghai, China) in a three-electrode configuration. The test specimen, a platinum plate and a saturated calomel electrode (SCE) were used as the working, auxiliary, and reference electrodes, respectively. The work electrolyte was Ringer’s physiological solution, which contains 8.61 g of NaCl, 0.49 g of CaCl2 and 0.30 g of KCl diluted in 1 L of water. Ringer’s solution was naturally aerated and maintained at 37 ± 0.5 °C to simulate the body temperature. Prior to electrochemical experiments, working electrodes were initially reduced potentiostatically at −0.8 V for 10 min to remove air-formed oxides. The polarization curves were recorded potentiodynamically at a scan rate of 20 V/min from −0.5 to 1.5 V. Electrochemical impedance spectroscopy (EIS) measurements were conducted over the frequency from 100 kHz to 10 mHz with a 10 mV amplitude signal at open circuit potential (EOCP). ZSimpWin software was used to fit the appropriate electrical equivalent circuit (EEC) model into the EIS experimental data. In order to characterize the electronic properties of the passive films, steady-state passive films were formed by potentiostatically polarizing the specimens at different film formation potentials (Ef, 0.4 V, 0.6 V, 0.8 V and 1.0 V) for 60 min. The Mott-Schottky analysis were performed by sweeping the potential from Ef in the negative direction with potential steps of 25 mV, at a frequency of 1 kHz with an amplitude signal of 10 mV. Uncoated Ti-6Al-4V and commercially pure Ta (99.99% pure) were used as reference materials for the electrochemical measurements.

3. Results and Discussion

3.1. Microstructure and Phase Analysis

A typical X-ray diffraction pattern recorded from the Ta2N coating is shown in Figure 1. All the diffraction peaks acquired from the as-deposited coating can be indexed to the hexagonal structured Ta2N phase based on data in JCPDS card No. 26-0985. No other characteristic peaks were detected, indicating that the coating consists of single phase Ta2N. In addition, clear diffraction peak broadening with relatively low peak intensity can be observed in the pattern, suggesting that the coating contains very fine grains. Scherrer analysis of the X-ray diffraction pattern give an average crystal size of ~10.5 nm from the (101) plane, after correction for instrumental line broadening. Figure 2a,b show, respectively, representative plan view and cross-sectional SEM images for the Ta2N coated Ti-6Al-4V. As shown in Figure 2a, the Ta2N coating has a relatively smooth and uniform surface. The SEM cross-sectional view (Figure 2b) of the Ta2N coated Ti-6Al-4V reveals that the Ta2N coating, with an average thickness of ~25 μm, is of good quality without any visible defects and tightly adhered to the Ti-6Al-4V substrate.
A bright-field/dark-field pair, Figure 3a,b, show clearly that the microstructure of the coating is composed of uniformly distributed fine nanocrystals with irregular morphologies. The Debye-Scherrer rings in the selected area diffraction (SAD) pattern (Figure 3c) from the inside to outside are assigned to the hexagonal structured Ta2N (100), (101), (102), (110), (103), (112) and (211) planes, respectively, which is in complete agreement with the XRD results. Figure 3d shows the grain size distribution based on the analysis of more than 120 grains (Figure 3d). The results indicate that the majority of the grains have a grain size smaller than 15 nm and the average grain size based on statistical analysis is 12.8 nm. It is worthwhile to note that the average grain size estimated by TEM is slightly larger than the grain size measured by XRD, because the XRD data neglect contributions from structural defects (i.e., stacking faults or low-angle grain boundaries) and microstraining [17]. From the bright-field high-resolution TEM (HRTEM) image shown in Figure 3e, the nanocrystallites have clear lattice fringes and interplanar distance of the crystallites marked with a white frame was calculated to be ~0.235 nm, corresponding to the d-spacing of the {101} planes of hexagonal Ta2N.

3.2. Mechanical Properties

Typical load-displacement curves for the performed nano-indentation tests for both the Ta2N coating and uncoated Ti-6Al-4V are plotted in Figure 4a. The curve for the Ta2N coating is continuous, indicating no occurrence of any abrupt cracking of the coating. Under the same loading conditions, the residual indentation depth and maximum indentation depth for the Ta2N coating are shallower than those for uncoated Ti-6Al-4V, denoting that the Ta2N coating possesses higher resistance to local plastic deformation. The elastic recovery (ER) is defined as ER = (dmax − dres)/dmax, where dmax and dres are the displacement at the maximum load and residual displacement after unloading, respectively. It can be found that the elastic recovery values increase from 28% for uncoated Ti-6Al-4V to 55% for the Ta2N coating, suggesting better elastic resistance for the Ti-6Al-4V substrate coated with Ta2N. As shown in Figure 4b, the hardness and elastic modulus of the Ta2N coating were determined to be 34.1 ± 0.9 GPa and 298.2 ± 6.6 GPa, respectively, which are approximately equivalent to the reported values for a Ta2N coating prepared by radio-frequency (RF) magnetron sputtering [18]. Additionally, the ratio of the maximum indentation depth to the coating thickness is less than 10%, suggesting that the contribution to mechanical properties from the substrate can be negligible.
The contact damage resistance of the Ta2N coating was further evaluated using the Vickers indentation method under various loads. Figure 5a shows optical micrographs of Vickers indentations in the Ta2N coating. Careful observation of the Vickers indentations, obtained at loads ranging from 0.49 to 9.80 N, reveals that indentations obtained at these various loads are nearly ‘perfect’, with no evidence of microcracking at the corners of the indent, where the coating undergoes the highest tensile stress. Similarly, no additional cracking is visible within cross-sections taken from the plastically deformed region below the indent obtained at a load of 9.80 N (Figure 5c). The above results suggest that the Ta2N coating exhibits good contact damage tolerance.
The adhesion strength of a coating on a metallic implant is one of the most important properties for orthopedic applications, since the interfacial adhesive strength of the coating affects the lifetime of a biomaterial [19]. The scratch test is commonly performed to evaluate the adhesion strength of a coating/substrate. Figure 6a shows the acoustic emission signals measured as a function of normal load. As shown in Figure 6a, once the normal load has reached a critical value of ~56 N, continuous acoustic emission peaks were generated. From the scratch track evident in the SEM image (Figure 6b), both the width of the scratch track and the extent of the surface damage increase with increasing normal load, and when the normal load reaches to the critical value, a large area of delamination is evident at the edge of the scratch track. As a general rule, a critical load of above 30 N measured with a Rockwell C diamond tip during scratch testing is believed to be sufficient for most engineering applications [20]. Therefore, the Ta2N coating possesses sufficient adhesion strength to meet long-term use in the human body under load-bearing conditions.

3.3. Open Circuit Potential Measurements

Figure 7 presents the variation of the open circuit potential (EOCP) for the Ta2N coating, commercially pure Ta and uncoated Ti-6Al-4V as a function of immersion time in Ringer’s physiological solution at 37 °C. As can be seen, similar EOCP evolution behavior is observed for all specimens. EOCP shifts quickly towards more positive potentials during the first 10~15 min. After that, EOCP changes more slowly until it reaches a quasi-stationary value. Such EOCP evolution behavior suggests that all specimens undergo spontaneous passivation due to spontaneously formed oxide film passivating the specimen surface in the Ringer’s physiological solution, which is typical of passivated materials. Figure 7 also shows a significant ennoblement in the EOCP of the Ta2N coating compared with that of uncoated Ti-6Al-4V, indicating that the Ta2N coating has higher thermodynamic stable oxide film.

3.4. Potentiodynamic Polarization Tests

Figure 8 shows typical potentiodynamic polarization plots recorded from the Ta2N coating, commercially pure Ta and uncoated Ti-6Al-4V exposed to naturally aerated Ringer’s physiological solution at 37 °C. The corresponding electrochemical parameters derived from the polarization curves are summarized in Table 1. It can be seen from Figure 8 that the shape of the polarization curves is quite similar for the three tested samples. The cathodic Tafel slopes (-βc) of the tested specimens exhibit values in the range from 116.48 to 120.63 mV/decade, which indicates that the reduction of dissolved oxygen and water takes places on the samples’ surfaces, due to fact that the measurements were carried out in the aerated condition [21]. From the inspection of the anodic branch of the polarization plots, all of the tested samples show wide passive region, in where the passive current densities are almost independent of any increase in potential. The larger anodic Tafel slopes (βa) value in comparison with the βc value indicates anodic control in the corrosion process of the three tested samples [22], implying that the existence of the protective oxide films gives rise to a typical passive character of the tested samples with a low corrosion current density. The corrosion potential for the Ta2N coating was found to be nobler than for both commercially pure Ta and uncoated Ti-6Al-4V, signifying that the Ta2N coating possess a higher electrochemical inertness in such an environment. Generally, the corrosion current density (icorr) is an important parameter to evaluate the kinetics of corrosion reactions and corrosion rate is proportional to the corrosion current density measured via polarization [23]. In other words, the lower the icorr, the lower the corrosion rate. For the Ta2N coating, the corrosion current density is very low, of the order of magnitude of about 10−9 A·cm−2, which is two orders of magnitude less than those of the two reference samples. Similarly, the current density within the passive range for a potential of 0.6 V is 4.55 × 10−8 A·cm−2 for the Ta2N coating, which is also two orders of magnitude smaller than for uncoated Ti-6Al-4V and commercially pure Ta, suggesting that the passive film formed on the Ta2N coating has higher electrochemical stability. Furthermore, defects (i.e., pores and/or pinholes) present in coatings are assumed to connect the bulk electrolyte to the substrate surface and may result in severe localized corrosion due to the galvanic effect when the coating is anodic with respect to the substrate. Assuming that the Ta2N coating is electrochemically inert at low anodic overpotentials, the porosity of the coating (P) can be estimated from the polarization resistance, Rp, using Equation (1) [24]:
P = R p s R p c × 10 | E c o r r | / β a
where Rps and Rpc are the measured polarization resistance of substrate and coating, respectively, ∆Ecorr is the difference of the corrosion potential between substrate and coating, βa is the anodic Tafel slope for the substrate. The polarization resistance is obtained from the potentiodynamic polarization curves using Equation (2) [25]:
R p = β a β c 2.303 ( β a +   β c ) i c o r r
where βa and βc are, respectively, the anodic and cathodic Tafel slopes, and icorr is the corrosion current density (A·cm−2). The calculated porosity value of the Ta2N coating is 0.22%, confirming that the number of defects in the coating is low. Low porosity may be related to its thickness, since porosity of a coating is inversely proportional to coating thickness.

3.5. Electrochemical Impedance Spectroscopy (EIS) Measurements

The impedance spectra recorded at the open-circuit potentials (OCPs) for the Ta2N coating, commercially pure Ta and uncoated Ti-6Al-4V in naturally aerated Ringer’s physiological solution at 37 °C are displayed in the form of both Nyquist plots, and Bode amplitude and phase angle plots in Figure 9. The Nyquist plots for the tested samples show similar features, i.e., the response of the Nyquist complex plane are characterized by a unique capacitive loop with a wide incomplete semicircle over the whole range of frequency, typical behavior for passive materials [26]. It is generally accepted that the larger the diameter of the semicircle, the better the corrosion resistance of the sample. It is evident from Figure 9a that the diameter of the capacitive semicircle of the Ta2N coating is markedly larger than those of the two reference samples, indicating a higher corrosion resistance for the coating. In addition, the Zimag/Zre ratio of the Ta2N coating is also greater than those of the two reference samples, indicating an enhanced capacitive behavior for the solid/liquid interface. As shown in Figure 9b, the corresponding Bode-phase plots for the tested specimens are similar in shape with high symmetry. In the high frequency region, the log|Z| is almost frequency-independent with the phase angle falling rapidly towards zero with increasing frequency, indicative of a representative response of the electrolyte resistance. In the intermediate frequency region, a linear relationship between the log |Z| and log f is observed with a slope approaching −1 and a phase angle close to −90°, especially in the case of the Ta2N coating. This is a typical capacitive response, associated with the presence of passive films on the tested samples acting as an efficient barrier to corrosion attack. In the low frequency region, the phase angles for the tested samples shift to the lower values suggesting the decreased capacitive influence in the electrochemical behavior of the samples. Both the impedance modulus at the lowest frequency (|Z|f→0) and the phase angle maximum for the Ta2N coating are bigger than those of the two reference samples, indicating better protective properties of the oxide film formed on the coating.
To gain better insight regarding the corrosion occurring on the samples, EIS spectra were analyzed using equivalent electric circuits shown in Figure 10. As shown in Figure 9, the impedance spectra of the tested samples exhibit only one time constant, indicating that the sample-electrolyte interface could be modeled by a resistance Rp and a constant phase element (CPE, Qp) in parallel, which is connected in series with the solution resistance (Rs). In this circuit, a constant phase element (CPE, Qp), instead of pure capacitance, is used to obtain a satisfactory fit. The physical origin of the CPE behavior has been widely discussed in the literature, and it is generally believed to originate from current and potential heterogeneous distributions due to surface disorder and roughness [27]. The impedance of ZCPE is defined as ZCPE = [Q()n]1, where Q is the CPE constant (Ω1·cm2·sn), ω is the angular frequency (rad·s1), j2 = −1 is an imaginary number, and n is the CPE exponent. Using the proposed equivalent circuits, a good match between the measured and simulated data was achieved for each spectrum. The typical chi-square (χ2) values varied from 5.61 × 10−4 to 9.35 × 10−4, indicating a satisfactory fit. Table 2 compiles numerical values of the circuit elements from the fitting procedure. From Table 2, the resistance value (Rp) of the Ta2N coating is three times greater than that of commercially pure Ta and one order of magnitude higher than that of uncoated Ti-6Al-4V. The resistance (R) values were highly dependent on the solution in which the measurements were made, whereas the capacitance (C) values are independent of the solution used and thus can provide information about the dielectric property of the passive film [28]. The effective capacitance (Cp) can be calculated from the proposed equivalent circuit model with a CPE using the expression developed by Brug et al. [29]
C p = Q p 1 / n ( R s 1 + R p 1 ) ( n 1 ) / n
The Cp values for the Ta2N coating, commercially pure Ta and uncoated Ti-6Al-4V are 3.35, 6.19 and 8.43 μF·cm2, respectively. Higher resistance, combined with lower capacitance, endows the Ta2N coating with higher insulating or dielectric property as compared to commercially pure Ta and uncoated Ti-6Al-4V. This is consistent with the result of the polarization tests. In addition, the n value of the Ta2N coating is greater than those of both commercially pure Ta and uncoated Ti-6Al-4V, reflecting that the passive film formed on the Ta2N coating is more homogeneous and compact than those formed on the two reference samples [30]. The time constant (τ) describing the charge transport process in the passive layer can be expressed as τ = C × R. This parameter can be directly used to evaluate the rate of relevant electrochemical process, including ionic migration within the oxide film and charge transfer [31,32]. According to the results shown in Table 2, τ values of the tested samples increase in the order of uncoated Ti-6Al-4V < commercially pure Ta < the Ta2N coating. About a three times enhancement in time constant is achieved by implementation of a Ta2N coating on the Ti-6Al-4V substrate, indicating that the Ta2N coating can effectively retard the electrochemical corrosion process.

3.6. Potentiostatic Polarization Tests

The compactness is one of the key factors that influence the stability of the passive film and can be assessed by potentiostatic polarization analysis. Assuming the contribution of the double layer charge is negligible, the initial drop in current density should be related to the growth of the passive film on the electrode surface after cathodic reduction [33]. The current decreased with time according to the formula [34]:
i = 10 ( A + k l g t )
where k represents the slope of the double-log plot for potentiostatic polarization, i is the current density, t is time and A is constant. k = −1 usually signifies the formation of a compact, highly protective passive film, while k = −0.5 indicates the formation of a porous film growing from a dissolution and precipitation process. Figure 11 shows the double-log plots of potentiostatic current-time transients recorded at 0.8 V for the Ta2N coating, commercially pure Ta and uncoated Ti-6Al-4V in Ringer’s physiological solution at 37 °C. The values of k for the tested specimens increases in the following sequence: uncoated Ti-6Al-4V < commercially pure Ta < the Ta2N coating, implying the increased compactness of the passive films formed on the tested samples. Hence, the passive film formed on Ta2N coating with higher compactness exhibits a greater protective ability to hinder the penetration of corrosive species into the underlying film, as compared to the two reference samples.

3.7. XPS Analysis of Passive Film Composition

In order to gain insight into the change in the composition and chemical state of the elements of the passive films at different applied potentials, XPS analysis was performed ex situ on the Ta2N coating after potentiostatic polarization at 0.2 V and 0.8 V for 60 min in Ringer’s physiological solution at 37 °C (Figure 12). As shown in Figure 12a, the XPS survey spectra of the two passive films grown on the Ta2N coating exhibit peaks from Ta, O, N and C. The C1s peak possibly arises from a contaminant hydrocarbon layer covering the outermost surface of the specimen. Figure 12b,c show high-resolution XPS spectra for Ta 4f and Ta 4p/N 1s core levels regions obtained from the two passive films formed on the Ta2N coating, respectively. After deconvolution, the Ta 4f spectrum (Figure 12b) recorded from the passive film formed at 0.2 V presents two sets of doublets of Ta 4f7/2 and Ta 4f5/2. One doublet at the low-energy-side with a binding energy of Ta 4f7/2 at 22.3 eV can be assigned to Ta2N [35], while another high-energy-side doublet with a binding energy of Ta 4f7/2 positioned at 25.9 eV can be attributed to TaOxNy [36]. Note that the detection of Ta2N may possibly originate from the Ta2N coating underneath the passive film. In the case of the passive film formed at 0.8 V, the Ta 4f core level shows one doublet with a binding energy of Ta 4f7/2 located at 26.4 eV, which corresponds to the binding energy of Ta in stoichiometric Ta2O5 [37]. In Figure 12c, XPS spectra for the Ta 4p3/2/N 1s region obtained from the passive film formed at 0.2 V can be deconvoluted into four peak components. Two peaks located at binding energies of 404.2 eV and 396.6 eV can be assigned to the Ta 4p3/2 peak and the N 1s peak of TaOxNy [36]. Another N 1s peak at a binding energy of 397.2 eV is characteristic of the Ta-N bond in Ta2N [36]. The component with a binding energy of 400.1 eV corresponds to the N 1s binding energy of N–H in NH4+ [38]. Compared to that for TaOxNy, the Ta 4p3/2 peak recorded from the passive film formed at 0.8 V is shifted to a higher binding energy by 0.8 eV, which is typical of the Ta chemical states in stoichiometric Ta2O5 [37]. The shift in binding energies for Ta 4p3/2 is attributed to the covalency between Ta and O being less than between Ta and N, because nitrogen is less electronegative than oxygen [39]. In addition, the peak at a binding energy of 400.1 eV was also found on the passive film formed at 0.8 V. According to the principal constituent of the passive films formed on the Ta2N coating, two possible hydrolysis reactions can be proposed to describe the chemical interaction of the Ta2N coating with Ringer’s physiological solution at different applied potentials:
Ta 2 N + H 2 O TaO x N y + NH 4 + + OH
TaO x N y + H 2 O Ta 2 O 5 + NH 4 + + OH
Firstly, at a low applied potential of 0.2 V, the oxidation of the Ta2N coating leads to the formation of a tantalum oxynitride (TaOxNy) passive film on the coating surface by Reaction (5), and subsequently the tantalum oxynitride (TaOxNy) can be chemically converted by oxidation (Reaction (6)) into Ta2O5 at a higher applied potential of 0.8 V.

3.8. Mott-Schottky Analysis and Point Defect Model

In general, the protective films formed on passivated materials, regarded as defective oxide layers, are known to exhibit the semiconducting properties, which have been correlated with their electrochemical behavior [40]. Mott-Schottky analysis, through measuring of the electrode capacitance as a function of applied potential, has been proven to be a powerful tool for providing precise information on the electronic properties of the passive films [41]. According to the Mott-Schottky theory [42], under the depletion conditions, the linear relation between the reciprocal of the square of the space charge capacitance (Csc) and the applied potential (E) can be expressed as:
1 C s c 2 = 1 C 2 = 2 ε r ε 0 q N q ( E E f b k T q )
where εr is the dielectric constant of the passive film (~60 [41] for TiO2 and ~25 [43] for Ta2O5), ε0 is the vacuum permittivity (8.854 × 10−14 F·cm−1), q is the elementary charge (+e for electrons and –e for holes), Nq is the density of charge carriers (Nd for donors and Na for acceptors), E is the applied potential, Efb is the flat band potential, k is the Boltzmann constant (1.38 × 10−23 J·K−1), and T is absolute temperature (310 K). The term kT/q can be neglected since it is only ~27 mV at 310 K. The measured interfacial capacitance, C, is obtained from C = −1/ωZ", where ω = 2πf is the angular frequency and Z" is the imaginary part of the impedance. The Mott-Schottky analysis is based on the assumption that the contribution of the Helmholtz double-layer capacitance (CH) can be neglected and the capacitance of the passive films is mainly dominated by the CSC. In our case, this assumption is valid since the measured capacitances on the tested specimens (as shown in Table 2) are far less than the values of CH reported in the literature (about 20~50 μF·cm−2 [44,45]).
Figure 13 shows the reciprocal of the square of the Csc as a function of the applied potential for the passive films formed on the three tested specimens after being polarized at different film formation potentials (Ef) for 60 min in Ringer’s physiological solution at 37 °C. It can be seen that the Mott-Schottky plots can be decomposed into two linear regions over the entire potential range, and the slopes of two linear regions in each plot are always positive, which is characteristics of n-type semiconductors behavior. Such two linear regions located at low and high potentials have also been reported for other metal oxides in different media [46,47,48]. This phenomenon was attributed to a transition of passive film character from semiconducting behavior to dielectric behavior, as discussed in our recent work [49]. Furthermore, it can be seen from Figure 13 that the magnitude of Csc−2 and the slopes of Csc−2 vs. E increase with increasing the Ef, denoting that the donor densities (Nd) decrease with an increase in Ef. These accords with theoretical prediction based on the point defect model (PDM) [50]. Schmidt et al. [51] suggested that the higher Ef was favorable for the formation of a highly ordered and denser passive film, accompanied by a reduction in carrier density. As shown in Figure 13b, it is important to note that at the Ef values of 0.6, 0.8 and 1.0 V, the negative slopes of the straight lines are observed for commercially pure Ta at potentials above 0.3 V, which is attributed to the formation of an inversion layer derived from an increase in hole concentration in the valence band [52].
According to Equation (7), the calculated Nd and Efb values for the passive films formed on the three tested samples at different potentials in Ringer’s physiological solution at 37 °C are summarized in Table 3. As shown in Table 3, with increasing the Ef, the Nd decreases and the Efb moves slightly to more positive potential for all of the tested samples. At a given Ef, values of Nd obtained from the passive film on the Ta2N coating are in the range of 1018–1019 cm−3, which are substantially lower than those for the passive films formed on both uncoated Ti-6Al-4V and commercially pure Ta. It is known that the larger Nd represents the higher conductivity of the passive film, which will result in an increase in the passive current density and reduce the protective effect of the passive film. From the electronic standpoint, lower Nd in the passive film on the Ta2N coating restrains the transfer of the electron and impedes the electrochemical reaction in the passive film. This results account for the different passive current density of the three tested samples shown in Figure 8 [53,54]. Moreover, the presence of aggressive chloride ions (Cl) in Ringer’s physiological solution will exert a detrimental effect on the stability of the passive film. According to the point defect model (PDM) proposed by Macdonald [50], chloride ions can be absorbed into oxygen vacancies at the passive film/solution interface. The absorption of chloride ions into the oxygen vacancies rise the local cation vacancy concentration and then enhances the electromigration-dominated flux of cation vacancies from the barrier layer/solution interface to the metal or coating/barrier layer interface, where they are annihilated by an oxidative injection of cation from the metal or coating into the film. If the annihilation reaction cannot accommodate the enhanced flux of cation vacancies, the excess vacancies will condense to form voids, causing a collapse of the film. Hence, compared with those on the uncoated Ti-6Al-4V and commercially pure Ta, the decreased oxygen vacancies of the passive film on the Ta2N coating can lower the cation vacancy concentration at the metal or coating/barrier layer interface and enhance the stability of the passive film.
The thickness of the space-charge layer (δsc) in a semiconductor is an important parameter that controls the movement of electrons. The space charge layer thickness (δsc) for an n-type semiconductor can be calculated from the following equation [55]:
δ s c = [ 2 ε r ε 0 e N d ( E E f b k T e ) ] 1 / 2
As shown in Table 3, at a given Ef, the Ta2N coating has the largest δsc, while commercially pure Ta has the lowest. Because the space charge layer thickness scales with the thickness of the oxide layer, thicker passive films are less susceptible to breakdown and pitting, and provide higher protection against corrosion [56]. Thereby, it is reasonable to conclude that, under identical passivation conditions, the thickness of the passive film grown on the tested specimens increases in the order of commercially pure Ta < uncoated Ti-6Al-4V < Ta2N coating.
The flux of the point defects is essential to the growth and breakdown of the passive film. The diffusivity (Do) qualitatively describes the transport of the point defects in the passive film from a microscopic perspective based on the PDM. It is reported that the field strength of the passive film can reach a magnitude of approximately 106 V/cm and, under a high field strength condition, the diffusivity (Do) can be calculated by Equation (9) [46,57]:
D o = z α i s s e ω 2 exp ( z α ε ¯ F / R T )
where z is the charge number of the mobile point defects in the passive film (z = 2 is used in this work), α is the half-jump distance of migrating point defects, assuming α = 0.25 nm [57], iss is the steady state passive current density, which can be determined from the polarization curves, e is the charge of an electron (1.6 × 1019 C), ω2 is a unknown constant that can be acquired by exponentially fitting the Nd-Ef plot (shown in Figure 14), ε ¯ is the mean field strength of the passive film (approximately 3.0 × 106 V/cm [58]), F is the Faraday constant (96.485 C/mol), R is the gas constant (8.314 J/K·mol), and T is the temperature in Kelvin (310 K).
In order to obtain the value of ω2, the dependence of Nd on Ef was fitted using a first-order exponential decay function [46,50,57]:
N d = ω 1 e x p ( b E f ) + ω 2
The Nd of the passive films formed on the tested specimens under different Ef and the corresponding exponential fitted results are shown in Figure 14. The values of ω2 for the passive films formed on uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating are 1.08 × 1019 cm3, 9.62 × 1019 cm−3 and 1.50 × 1018 cm−3, respectively. Then, substituting the variables iss, ω2, z, e, ε ¯ , F, R, T, and α into Equation (9) to calculate the diffusivity of the point defects in the passive films, which are listed in Table 3. The calculated Do value for the Ta2N coating (1.94 × 10−16 cm2/s) is comparable to that for commercially pure Ta (1.13 × 10−16 cm2/s), both of which are one order of magnitude less than that for uncoated Ti-6Al-4V (2.73 × 10−15 cm2/s). As a result, it can be concluded that the lower Nd, combined with the lower Do for the Ta2N coating, impedes the electrochemical reaction from occurring on its passive film and improves the stability of the passive film. This enhances the protective ability of the Ta2N coating. Moreover, it can be noted here that during the anodic polarization of the Ta2N coating, the formation of ammonium ions consumes protons that raises the local pH [59], reducing the acidifying effect of metal dissolution. The NH4+ ions may possibly undergo further reaction to the formation of stable NOx species, such as NO2 or NO3, which can further improve resistance to pitting through repelling the adsorption of chloride ions on the film/electrolyte interface. By the way, compared with uncoated Ti-6Al-4V, commercially pure Ta has a higher donor density and thinner passive film, yet it shows a higher corrosion resistance in Ringer’s physiological solution, mainly originating from its lower Do.

4. Conclusions

In this study, a Ta2N nanoceramic coating was fabricated onto Ti-6Al-4V substrate in an Ar and N2 gas mixture using a double glow discharge plasma process. The as-deposited coating consists of fine nanocrystals with an average grain size of 12.8 nm. The coating enhances the surface hardness of Ti-6Al-4V and exhibits good contact damage tolerance and sufficient adhesion strength to meet requirements for long-term use in the human body under load-bearing conditions. The corrosion resistance of the Ta2N coating was investigated by various electrochemical analytical techniques in Ringer’s physiological solution at 37 °C, and was compared to commercially pure Ta and uncoated Ti-6Al-4V. Potentiodynamic polarization showed that the Ta2N coating could be passivated spontaneously in Ringer’s physiological solution and showed a more positive Ecorr and lower icorr than both commercially pure Ta and uncoated Ti-6Al-4V. EIS results indicated that the resistance value (Rp) of the Ta2N coating was three times greater than that of commercially pure Ta, and was one order of magnitude larger than that of uncoated Ti-6Al-4V. The Mott-Schottky analysis indicated that the passive film formed on the Ta2N coating are in the range of 1018–1019 cm−3, which are substantially lower than those for the passive films formed on both commercially pure Ta and uncoated Ti-6Al-4V. In light of its high electrochemical stability combined with good mechanical properties, the Ta2N coating has potential for the surface protection of metallic orthopedic devices.

Acknowledgments

The authors acknowledge the financial support from the General Program of the National Nature Science Foundation of China under Grant No. 51374130 and No. 51675267, and Key Program of the National Natural Science Foundation of China under Grant No. 51635004. This work is also supported by Funding of Jiangsu Innovation Program for Graduate Education, the Fundamental Research Funds for the Central Universities (CXLX13-151). A Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions.

Author Contributions

Jian Cheng and Jiang Xu conceived and designed the experiments; Jian Cheng and Lin Lin Liu performed the experiments; Lin Lin Liu and Jiang Xu analyzed the data; Shuyun Jiang contributed reagents/materials/analysis tools; Jian Cheng and Jiang Xu wrote the paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kurtz, S.; Ong, K.; Lau, E.; Mowat, F.; Halpem, M. Projections of primary and revision hip and knee arthroplasty in the United States from 2005 to 2030. J. Bone Jt. Surg. Am. 2007, 89, 780–785. [Google Scholar] [CrossRef] [PubMed]
  2. Geetha, M.; Singh, A.K.; Asokamani, R.; Gogia, A.K. Ti based biomaterials, the ultimate choice for orthopaedic implants—A review. Prog. Mater. Sci. 2009, 54, 397–425. [Google Scholar] [CrossRef]
  3. Hanawa, T. Metal ion release from metal implants. Mater. Sci. Eng. C 2004, 24, 745–752. [Google Scholar] [CrossRef]
  4. Sun, Z.L.; Wataha, J.C.; Hanks, C.T. Effects of metal ions on osteoblast-like cell metabolism and differentiation. Biomed. J. Mater. Res. 1997, 34, 29–37. [Google Scholar] [CrossRef]
  5. Rao, S.; Ushida, T.; Tateishi, T.; Okazaki, Y.; Asao, S. Effect of Ti, Al and V ions on the relative growth rate of fibroblasts (L929) and osteoblasts (MC3T3-E1) cells. Bio-Med. Mater. Eng. 1996, 6, 79–86. [Google Scholar]
  6. Niinomi, M. Recent research and development in titanium alloys for biomedical applications and healthcare goods. Sci. Technol. Adv. Mater. 2003, 4, 445–454. [Google Scholar] [CrossRef]
  7. Hallab, N.J.; Jacobs, J.J. Orthopedic implant fretting corrosion. Corros. Rev. 2003, 21, 183–213. [Google Scholar] [CrossRef]
  8. Liu, X.; Chu, P.K.; Ding, C. Surface modification of titanium, titanium alloys, and related materials for biomedical applications. Mater. Sci. Eng. R 2004, 47, 49–121. [Google Scholar] [CrossRef]
  9. Ching, H.A.; Choudhury, D.; Nine, M.J.; Osman, N.A.A. Effects of surface coating on reducing friction and wear of orthopaedic implants. Sci. Technol. Adv. Mater. 2014, 15, 014402. [Google Scholar] [CrossRef]
  10. Liu, L.L.; Xu, J.; Munroe, P.; Xu, J.K.; Xie, Z.-H. Electrochemical behavior of (Ti1–xNbx)5Si3 nanocrystalline films in simulated physiological media. Acta Biomater. 2014, 10, 1005–1013. [Google Scholar] [CrossRef] [PubMed]
  11. Xu, J.; Hu, W.; Xu, S.; Munroe, P.; Xie, Z.-H. Electrochemical properties of a novel β-Ta2O5 nanoceramic coating exposed to simulated body solutions. ACS Biomater. Sci. Eng. 2016, 2, 73–89. [Google Scholar] [CrossRef]
  12. Zhang, Q.Y.; Mei, X.X.; Yang, D.Z.; Chen, F.X.; Ma, T.C.; Wang, Y.M.; Teng, F.N. Preparation, structure and properties of TaN and TaC films obtained by ion beam assisted deposition. Nucl. Instrum. Methods Phys. Res. B 1997, 127, 664–668. [Google Scholar] [CrossRef]
  13. Tsai, M.H.; Sun, S.C.; Lee, C.P.; Chiu, H.T.; Tsai, C.E.; Chuang, S.H.; Wu, S.C. Metal-organic chemical vapor deposition of tantalum nitride barrier layers for ULSI applications. Thin Solid Films 1995, 270, 531–536. [Google Scholar] [CrossRef]
  14. Lovejoy, M.L.; Patrizi, G.A.; Roger, D.J.; Barbour, J.C. Thin-film tantalum-nitride resistor technology for phosphide-based optoelectronics. Thin Solid Films 1996, 290, 513–517. [Google Scholar] [CrossRef]
  15. Leng, Y.X.; Sun, H.; Yang, P.; Chen, J.Y.; Wang, J.; Wan, G.J.; Huang, N.; Tian, X.B.; Wang, L.P.; Chu, P.K. Biomedical properties of tantalum nitride films synthesized by reactive magnetron sputtering. Thin Solid Films 2001, 398, 471–475. [Google Scholar] [CrossRef]
  16. Oliver, W.C.; Pharr, G.M. An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. J. Mater. Res. 1992, 7, 1564–1583. [Google Scholar] [CrossRef]
  17. Jiang, H.G.; Rühle, M.; Lavernia, E.J. On the applicability of the X-ray diffraction line profile analysis in extracting grain size and microstrain in nanocrystalline materials. J. Mater. Res. 1999, 14, 549–559. [Google Scholar] [CrossRef]
  18. Moody, N.R.; Medlin, D.; Boehme, D.; Norwood, D.P. Film thickness effects on the fracture of tantalum nitride on aluminum nitride thin film systems. Eng. Fract. Mech. 1998, 61, 107–118. [Google Scholar] [CrossRef]
  19. Nie, X.; Leyland, A.; Matthews, A. Deposition of layered bioceramic hydroxyapatite/TiO2 coatings on titanium alloys using a hybrid technique of micro-arc oxidation and electrophoresis. Surf. Coat. Technol. 2000, 125, 407–414. [Google Scholar] [CrossRef]
  20. Hogmark, S.; Jacobson, S.; Larsson, M. Design and evaluation of tribological coatings. Wear 2000, 246, 20–33. [Google Scholar] [CrossRef]
  21. Munoz, A.I.; Mischler, S. Interactive effects of albumin and phosphate ions on the corrosion of CoCrMo implant alloy. J. Electrochem. Soc. 2007, 154, C562–C570. [Google Scholar] [CrossRef]
  22. Chidambaram, D.; Clayton, C.R.; Dorfman, M.R. Evaluation of the electrochemical behavior of HVOF-sprayed alloy coating. Surf. Coat. Technol. 2004, 176, 307–317. [Google Scholar] [CrossRef]
  23. Starosvetsky, D.; Gotman, I. Corrosion behavior of titanium nitride coated Ni-Ti shape memory surgical alloy. Biomaterials 2001, 22, 1853–1859. [Google Scholar] [CrossRef]
  24. Creus, J.; Mazille, H.; Idrissi, H. Porosity evaluation of protective coatings onto steel, through electrochemical techniques. Surf. Coat. Technol. 2000, 130, 224–232. [Google Scholar] [CrossRef]
  25. Stern, M.; Geary, A.L. Electrochemical polarization I. A theoretical analysis of the shapes of polarization curves. J. Electrochem. Soc. 1957, 104, 56–63. [Google Scholar] [CrossRef]
  26. Pacha-Olivenza, M.A.; Gallardo-Moreno, A.M.; Vadillo-Rodríguez, V.; González-Martín, M.L.; Péres-Giraldo, C.; Galván, J.C. Electrochemical analysis of the UV treated bactericidal Ti6Al4V surfaces. Mater. Sci. Eng. C 2013, 33, 1789–1794. [Google Scholar] [CrossRef] [PubMed]
  27. Córdoba-Torres, P.; Mesquita, T.J.; Devos, O.; Tribollet, B.; Roche, V.; Nogueira, R.P. On the intrinsic coupling between constant-phase element parameters α and Q in electrochemical impedance spectroscopy. Electrochim. Acta 2012, 72, 172–178. [Google Scholar] [CrossRef]
  28. Potucek, R.K., Jr.; Rateick, R.G.; Birss, V.I. Impedance characterization of anodic barrier Al oxide film beneath porous oxide layer. J. Electrochem. Soc. 2006, 153, B304–B310. [Google Scholar] [CrossRef]
  29. Brug, G.J.; van den Eeden, A.L.G.; Sluyters-Rehbach, M.; Sluyters, J.H. The analysis of electrode impedances complicated by the presence of a constant phase element. J. Electroanal. Chem. 1984, 176, 275–295. [Google Scholar] [CrossRef]
  30. Jiang, P.; Lin, L.; Zhang, F.; Dong, X.; Ren, L.; Lin, C. Electrochemical construction of micro-nano spongelike structure on titanium substrate for enhancing corrosion resistance and bioactivity. Electrochim. Acta 2013, 107, 16–25. [Google Scholar] [CrossRef]
  31. Gray, J.J.; Orme, C.A. Electrochemical impedance spectroscopy study of the passive films of alloy 22 in low pH nitrate and chloride environments. Electrochim. Acta 2007, 52, 2370–2375. [Google Scholar] [CrossRef]
  32. Labjar, N.; Lebrini, M.; Bentiss, F.; Chihib, N.-E.; Hajjaji, S.E.; Jama, C. Corrosion inhibition of carbon steel and antibacterial properties of aminotris-(methylenephosphonic) acid. Mater. Chem. Phys. 2010, 119, 330–336. [Google Scholar] [CrossRef]
  33. Macdonald, D.D.; Urquidi-Macdonald, M. Theory of steady-state passive films. J. Electrochem. Soc. 1990, 137, 2395–2402. [Google Scholar] [CrossRef]
  34. Lakatos-Varsányi, M.; Falkenberg, F.; Olefjord, I. The influence of phosphate on repassivation of 304 stainless steel in neutral chloride solution. Electrochim. Acta 1998, 43, 187–197. [Google Scholar] [CrossRef]
  35. Chang, C.-C.; Jeng, J.S.; Chen, J.S. Microstructural and electrical characteristics of reactively sputtered Ta-N thin films. Thin Solid Films 2002, 413, 46–51. [Google Scholar] [CrossRef]
  36. Lamour, P.; Fioux, P.; Ponche, A.; Nardin, M.; Vallat, M.-F.; Dugay, P.; Brun, J.-P.; Moreaud, N.; Pinvidic, J.-M. Direct measurement of the nitrogen content by XPS in self-passivated TaNx thin films. Surf. Interface Anal. 2008, 40, 1430–1437. [Google Scholar] [CrossRef]
  37. Atanassova, E.; Spassov, D. X-ray photoelectron spectroscopy of thermal thin Ta2O5 films on Si. Appl. Surf. Sci. 1998, 135, 71–82. [Google Scholar] [CrossRef]
  38. Olefjord, I.; Wegrelius, L. The fluence of nitrogen on the passivation of stainless steels. Corros. Sci. 1996, 38, 1203–1220. [Google Scholar] [CrossRef]
  39. Chun, W.-J.; Ishikawa, A.; Fujisawa, H.; Takata, T.; Kondo, J.N.; Hara, M.; Kawai, M.; Matsumoto, Y.; Domen, K. Conduction and valence band positions of Ta2O5, TaON, and Ta3N5 by UPS and electrochemical methods. J. Phys. Chem. B 2003, 107, 1798–1803. [Google Scholar] [CrossRef]
  40. Escrivà-Cerdán, C.; Blasco-Tamarit, E.; García-García, D.M.; García-Antón, J.; Guenbour, A. Effect of potential formation on the electrochemical behaviour of a highly alloyed austenitic stainless steel in contaminated phosphoric acid at different temperatures. Electrochim. Acta 2012, 80, 248–256. [Google Scholar] [CrossRef]
  41. Jovic, V.D.; Barsoum, M.W. Corrosion behavior and passive film characteristics formed on Ti, Ti3SiC2, and Ti4AlN3 in H2SO4 and HCl. J. Electrochem. Soc. 2004, 151, B71–B76. [Google Scholar] [CrossRef]
  42. Morrison, S.R. Electrochemistry at Semiconductor and Oxidized Metal Electrodes; Plenum Press: New York, NY, USA, 1980. [Google Scholar]
  43. Kerrec, O.; Devilliers, D.; Groult, H.; Chemla, M. Dielectric properties of anodic films on tantalum. Electrochim. Acta 1995, 40, 719–724. [Google Scholar] [CrossRef]
  44. Milošev, I.; Metikoš-Huković, M.; Strehblow, H.-H. Passive film on orthopaedic TiAlV alloy formed in physiological solution investigated by X-ray photoelectron spectroscopy. Biomaterials 2000, 21, 2103–2113. [Google Scholar] [CrossRef]
  45. Martini, E.M.A.; Muller, I.L. Characterization of the film formed on iron in borate solution by electrochemical impedance spectroscopy. Corros. Sci. 2000, 42, 443–454. [Google Scholar] [CrossRef]
  46. Li, D.G.; Wang, J.D.; Chen, D.R. Influence of potentiostatic aging, temperature and pH on the diffusivity of a point defect in the passive film on Nb in an HCl solution. Electrochim. Acta 2012, 60, 134–146. [Google Scholar] [CrossRef]
  47. Jović, V.D.; Jović, B.M. Properties of ZrO2 passive film formed onto Zr electrode in 1 m NaOH at low voltage. J. Electrochem. Soc. 2008, 155, C183–C188. [Google Scholar] [CrossRef]
  48. Li, D.G. Effect of ultrasonic cavitation on the diffusivity of a point defect in the passive film on formed Nb in 0.5 M HCl solution. Ultrason. Sonochem. 2015, 27, 296–306. [Google Scholar] [CrossRef] [PubMed]
  49. Liu, L.L.; Xu, J.; Lu, X.L.; Munroe, P.; Xie, Z.-H. Electrochemical corrosion behavior of nanocrystalline β-Ta coating for biomedical applications. ACS Biomater. Sci. Eng. 2016, 2, 579–594. [Google Scholar] [CrossRef]
  50. Macdonald, D.D. Passivity–the key to our metals-based civilization. Pure Appl. Chem. 1999, 71, 951–978. [Google Scholar] [CrossRef]
  51. Schmidt, A.M.; Azambuja, D.S.; Martini, E.M.A. Semiconductive properties of titanium anodic oxide films in McIlvaine buffer solution. Corros. Sci. 2006, 48, 2901–2912. [Google Scholar] [CrossRef]
  52. Harrington, S.P.; Devine, T.M. Impedance study of alloy 22 in hydrochloric acid using a semiconductor model. ECS Trans. 2009, 19, 131–148. [Google Scholar]
  53. Katkar, V.A.; Gunasekaran, G.; Rao, A.G.; Koli, P.M. Effect of the reinforced boron carbide particulate content of AA6061 alloy on formation of the passive film in seawater. Corros. Sci. 2011, 53, 2700–2712. [Google Scholar] [CrossRef]
  54. Kang, J.; Yang, Y.; Jiang, X.; Shao, H. Semiconducting properties of passive films formed on electroplated Ni and Ni-Co alloys. Corros. Sci. 2008, 50, 3576–3580. [Google Scholar] [CrossRef]
  55. Metikoš-Huković, M.; Grubač, Z. Characterization of electronic and dielectric properties of anodic oxide films on bismuth by electrochemical impedance spectroscopy. J. Phys. Chem. B 1998, 102, 7406–7412. [Google Scholar] [CrossRef]
  56. Martin, F.J.; Cheek, G.T.; O’Grady, W.E.; Natishan, P.M. Impedance studies of the passive film on aluminium. Corros. Sci. 2005, 47, 3187–3201. [Google Scholar] [CrossRef]
  57. Kong, D.-S.; Lu, W.-H.; Feng, Y.-Y.; Yu, Z.-Y.; Wu, J.-X.; Fan, W.-J.; Liu, H.-Y. Studying on the point-defect-conductive property of the semiconducting anodic oxide films on titanium. J. Electrochem. Soc. 2009, 156, C39–C44. [Google Scholar] [CrossRef]
  58. Macdonald, D.D. The history of the Point Defect Model for the passive state: A brief review of film growth aspects. Electrochim. Acta 2011, 56, 1761–1772. [Google Scholar] [CrossRef]
  59. Jargelius-Pettersson, R.F.A. Electrochemical investigation of the influence of nitrogen alloying on pitting corrosion of austenitic stainless steels. Corros. Sci. 1999, 41, 1639–1664. [Google Scholar] [CrossRef]
Figure 1. Typical X-ray diffraction pattern taken from the as-deposited Ta2N coating.
Figure 1. Typical X-ray diffraction pattern taken from the as-deposited Ta2N coating.
Materials 09 00772 g001
Figure 2. (a) Plan view and (b) cross-sectional SEM morphologies of the Ta2N coating.
Figure 2. (a) Plan view and (b) cross-sectional SEM morphologies of the Ta2N coating.
Materials 09 00772 g002
Figure 3. (a) Bright-field and (b) dark-field plan-view TEM images; (c) corresponding selected area electron diffraction (SAED) pattern; (d) statistical histogram of the Ta2N grain sizes and (e) high resolution TEM image for the as-deposited Ta2N coating.
Figure 3. (a) Bright-field and (b) dark-field plan-view TEM images; (c) corresponding selected area electron diffraction (SAED) pattern; (d) statistical histogram of the Ta2N grain sizes and (e) high resolution TEM image for the as-deposited Ta2N coating.
Materials 09 00772 g003

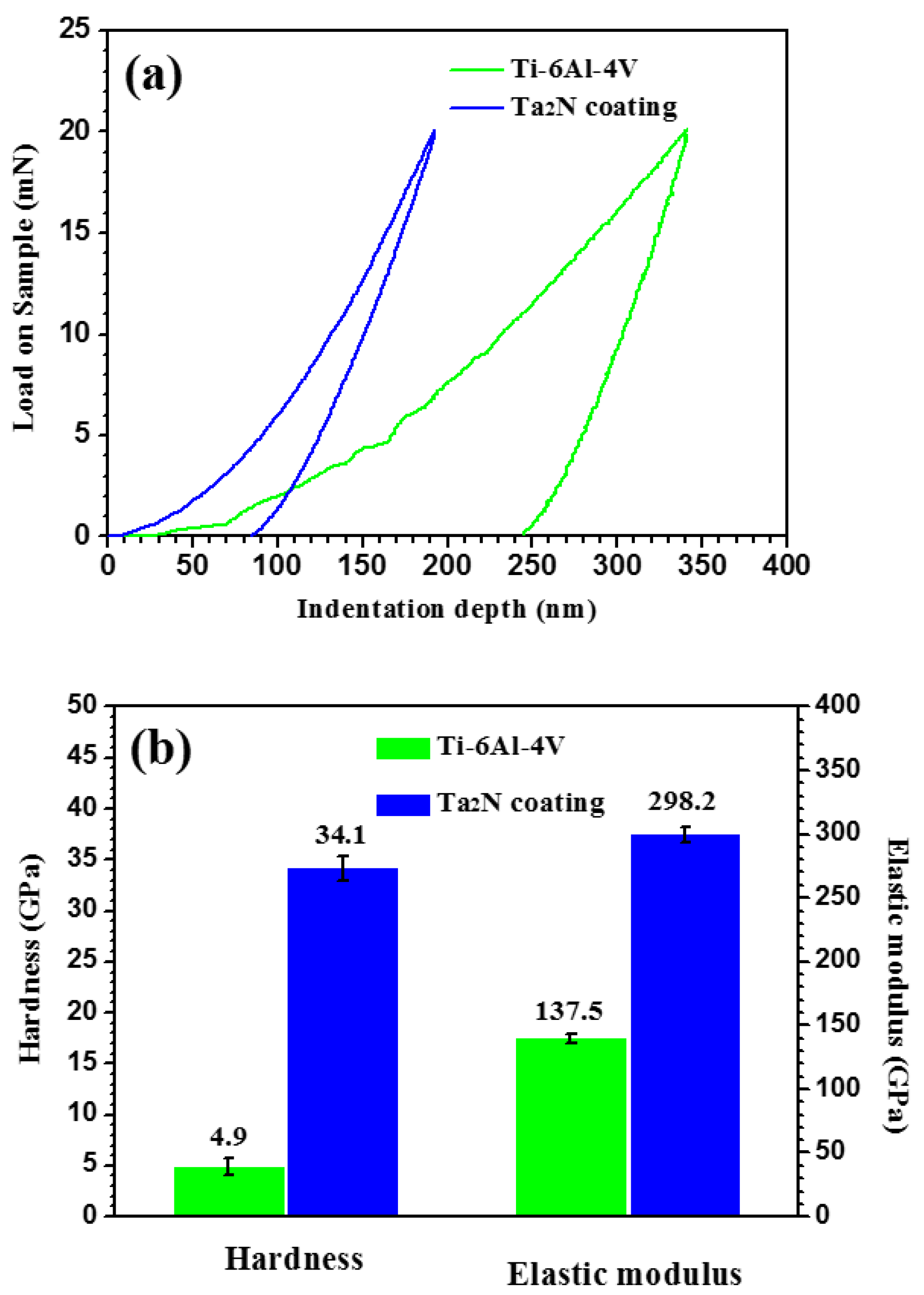

Figure 4. (a) Load-displacement curves and (b) hardness and elastic modulus for the Ta2N coating and uncoated Ti-6Al-4V.
Figure 4. (a) Load-displacement curves and (b) hardness and elastic modulus for the Ta2N coating and uncoated Ti-6Al-4V.
Materials 09 00772 g004
Figure 5. (a) Optical micrographs of Vickers indentations in the Ta2N coating at applied loads ranging from 0.49 to 9.80 N; (b) Plan view and (c) cross-sectional secondary electron FIB images of Vickers indentation under an indentation load of 9.80 N.
Figure 5. (a) Optical micrographs of Vickers indentations in the Ta2N coating at applied loads ranging from 0.49 to 9.80 N; (b) Plan view and (c) cross-sectional secondary electron FIB images of Vickers indentation under an indentation load of 9.80 N.
Materials 09 00772 g005

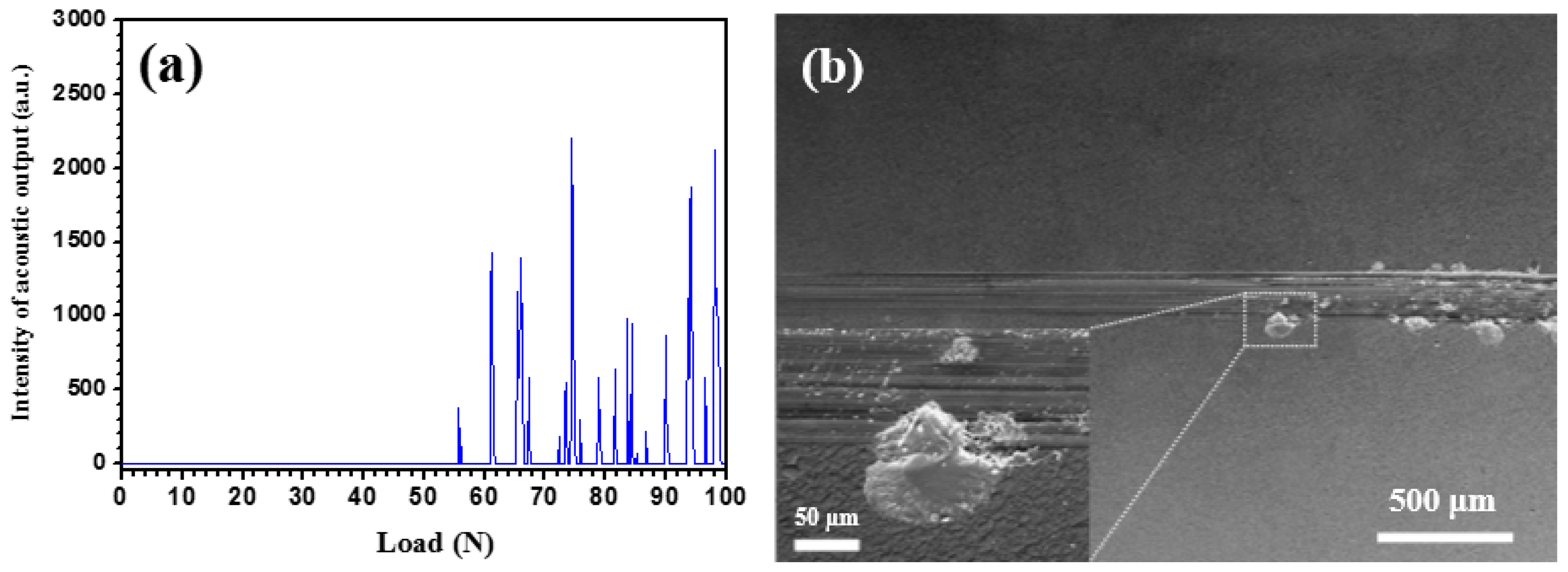

Figure 6. (a) Acoustic emission signal peaks versus normal load curve and (b) SEM image of the scratch track for the Ta2N coating.
Figure 6. (a) Acoustic emission signal peaks versus normal load curve and (b) SEM image of the scratch track for the Ta2N coating.
Materials 09 00772 g006

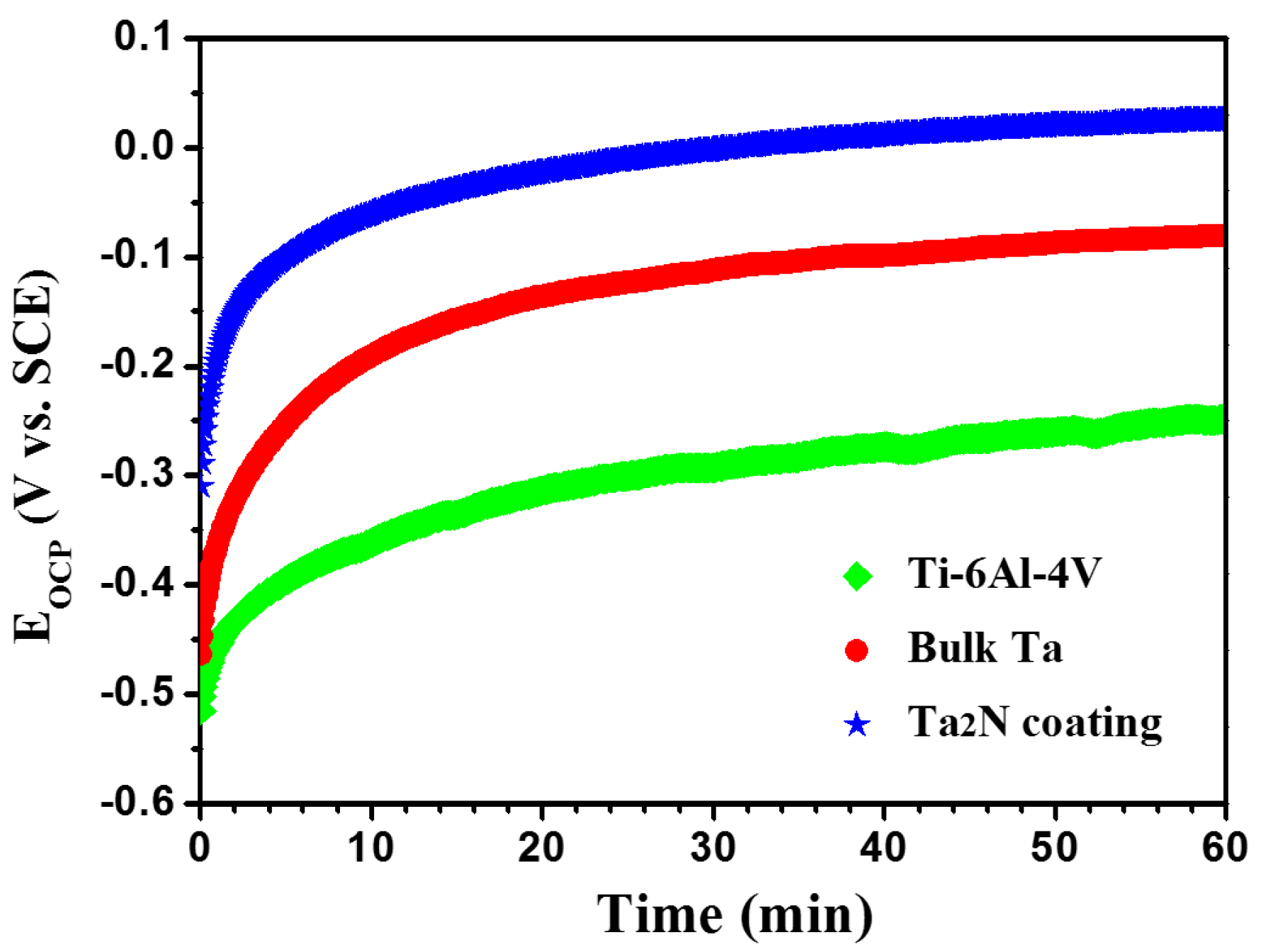

Figure 7. Variation of open circuit potential with time for uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating in Ringer’s physiological solution at 37 °C.
Figure 7. Variation of open circuit potential with time for uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating in Ringer’s physiological solution at 37 °C.
Materials 09 00772 g007
Figure 8. Potentiodynamic polarization curves of uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating in Ringer’s physiological solution at 37 °C.
Figure 8. Potentiodynamic polarization curves of uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating in Ringer’s physiological solution at 37 °C.
Materials 09 00772 g008

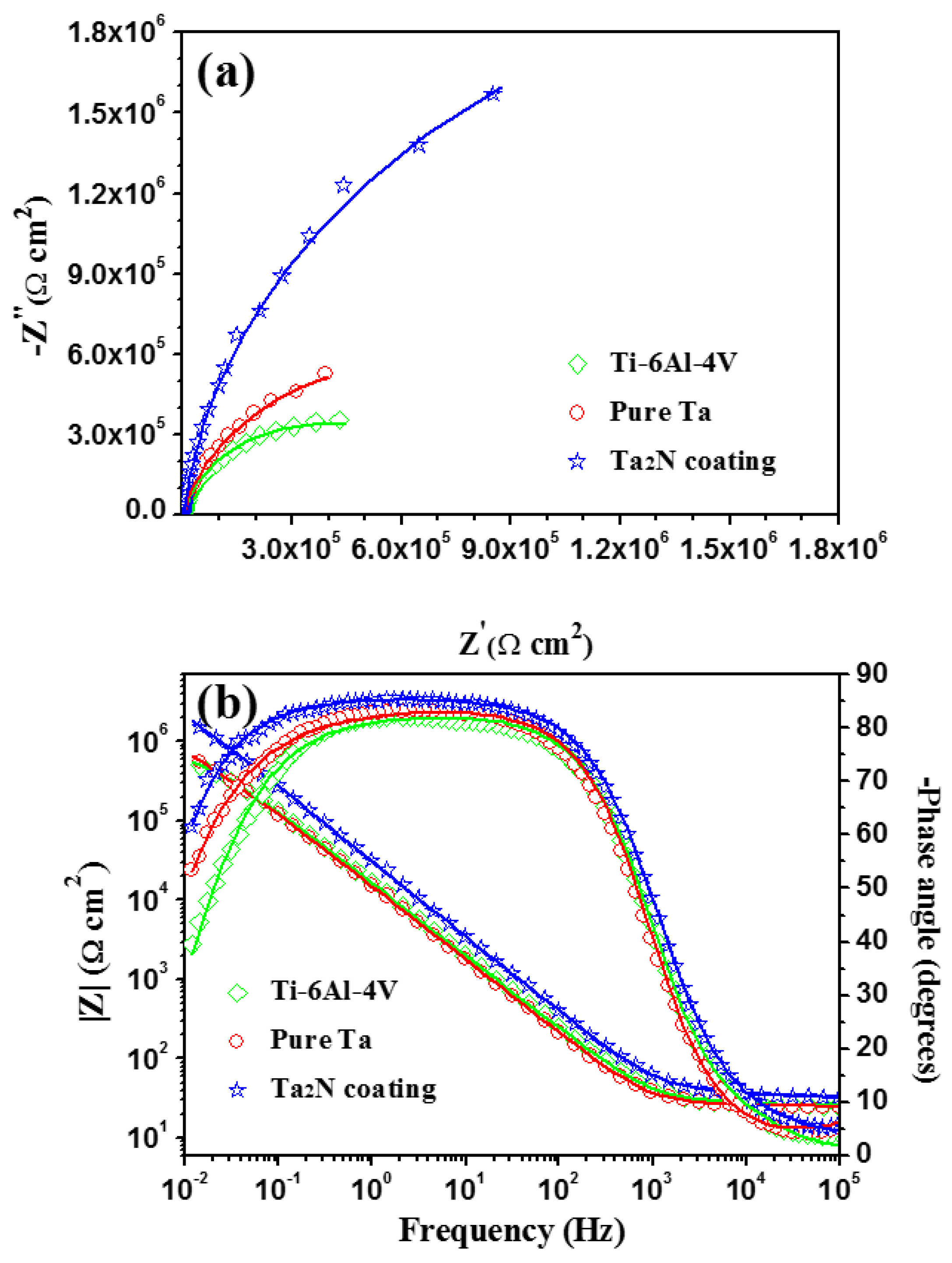

Figure 9. (a) Nyquist and (b) Bode plots of uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating at respective open circuit potentials in Ringer’s physiological solution at 37 °C. Symbols are experimental data and solid lines are fitted results.
Figure 9. (a) Nyquist and (b) Bode plots of uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating at respective open circuit potentials in Ringer’s physiological solution at 37 °C. Symbols are experimental data and solid lines are fitted results.
Materials 09 00772 g009

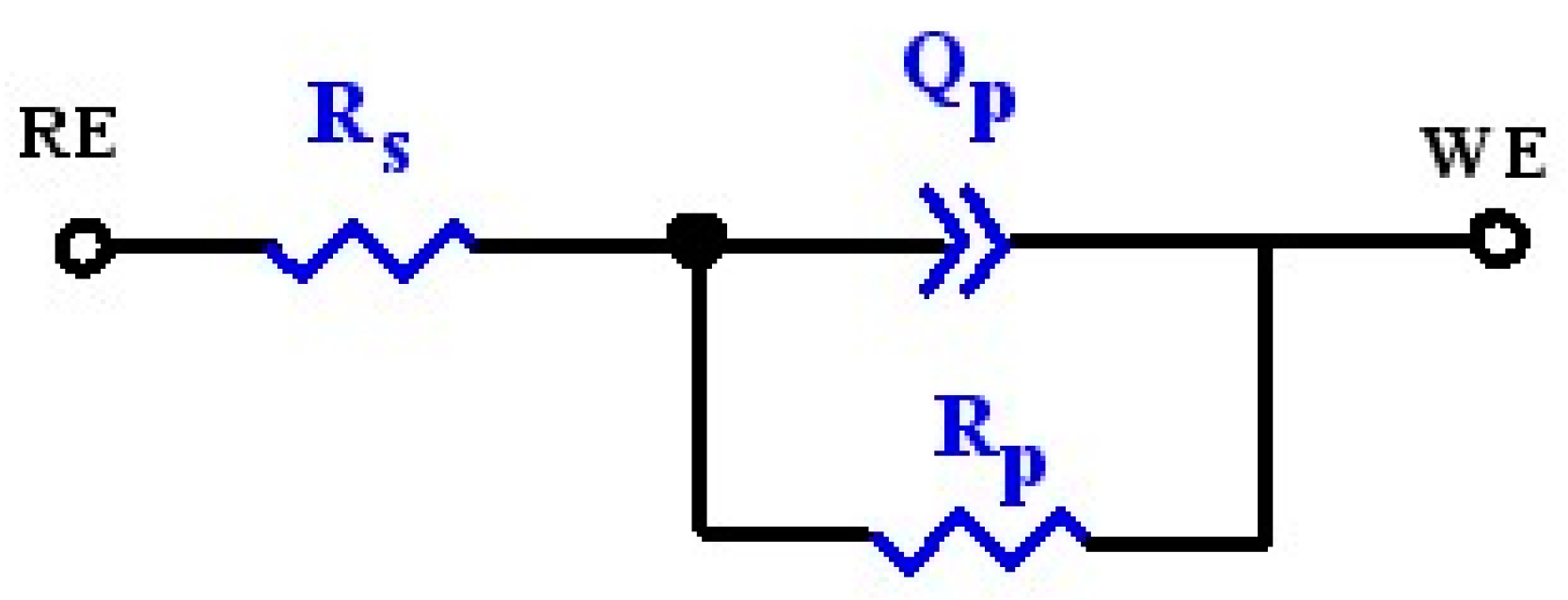

Figure 10. Electronic equivalent circuit (EEC) used in the fitting procedure of the EIS experimental data.
Figure 10. Electronic equivalent circuit (EEC) used in the fitting procedure of the EIS experimental data.
Materials 09 00772 g010

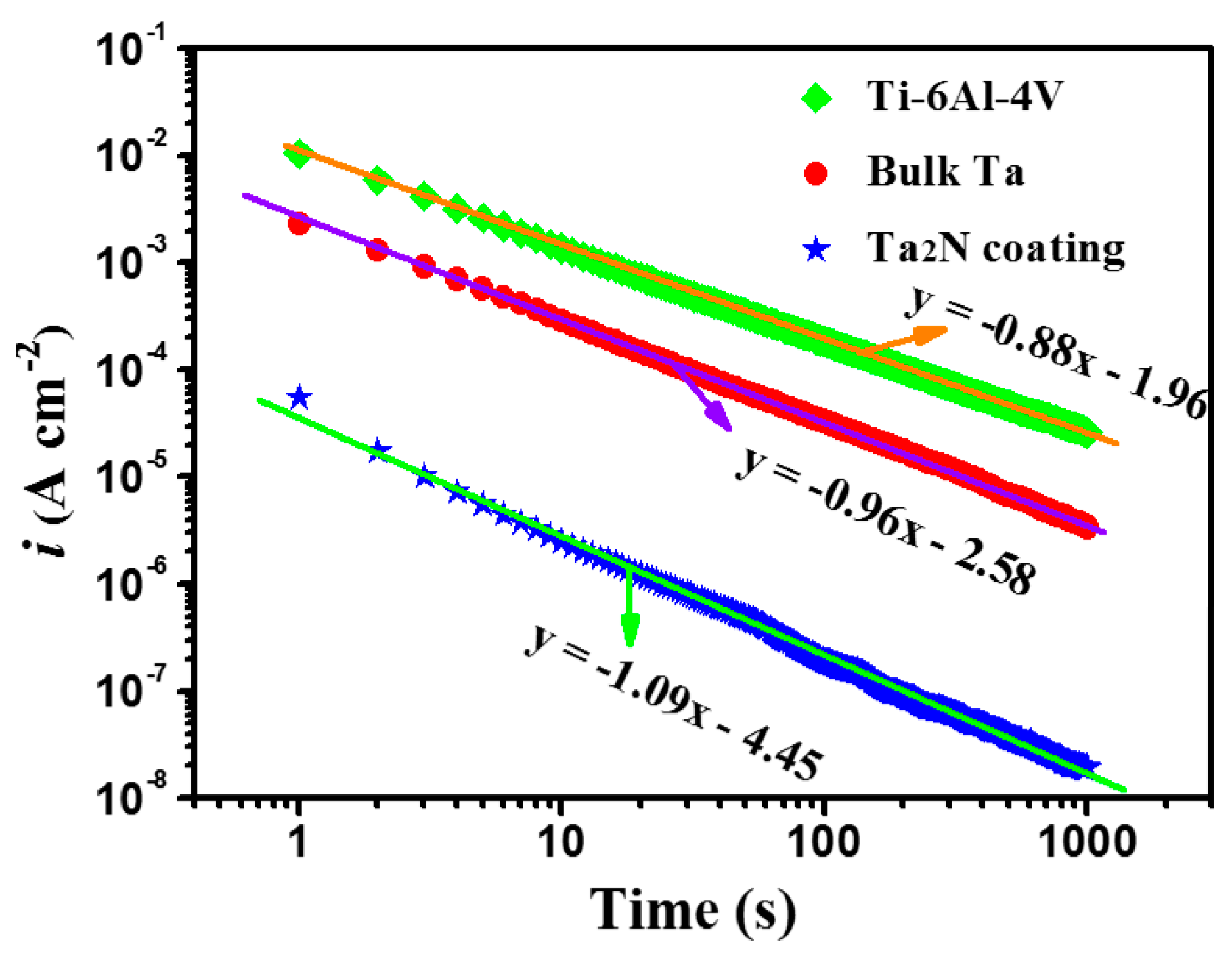

Figure 11. Double-log plots of current-time for uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating potentiostatically polarizated at 0.8 V in Ringer’s physiological solution.
Figure 11. Double-log plots of current-time for uncoated Ti-6Al-4V, commercially pure Ta and the Ta2N coating potentiostatically polarizated at 0.8 V in Ringer’s physiological solution.
Materials 09 00772 g011

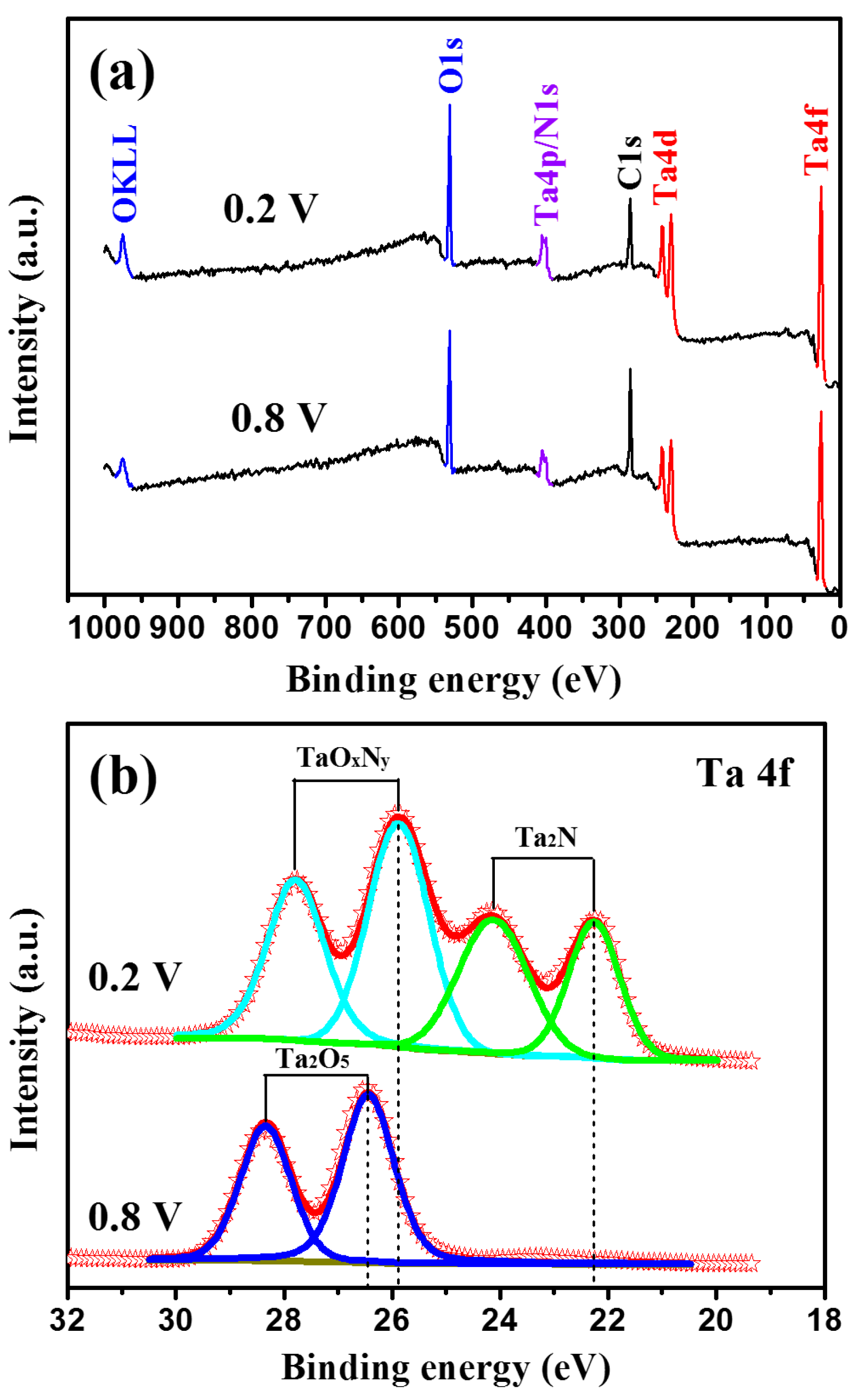

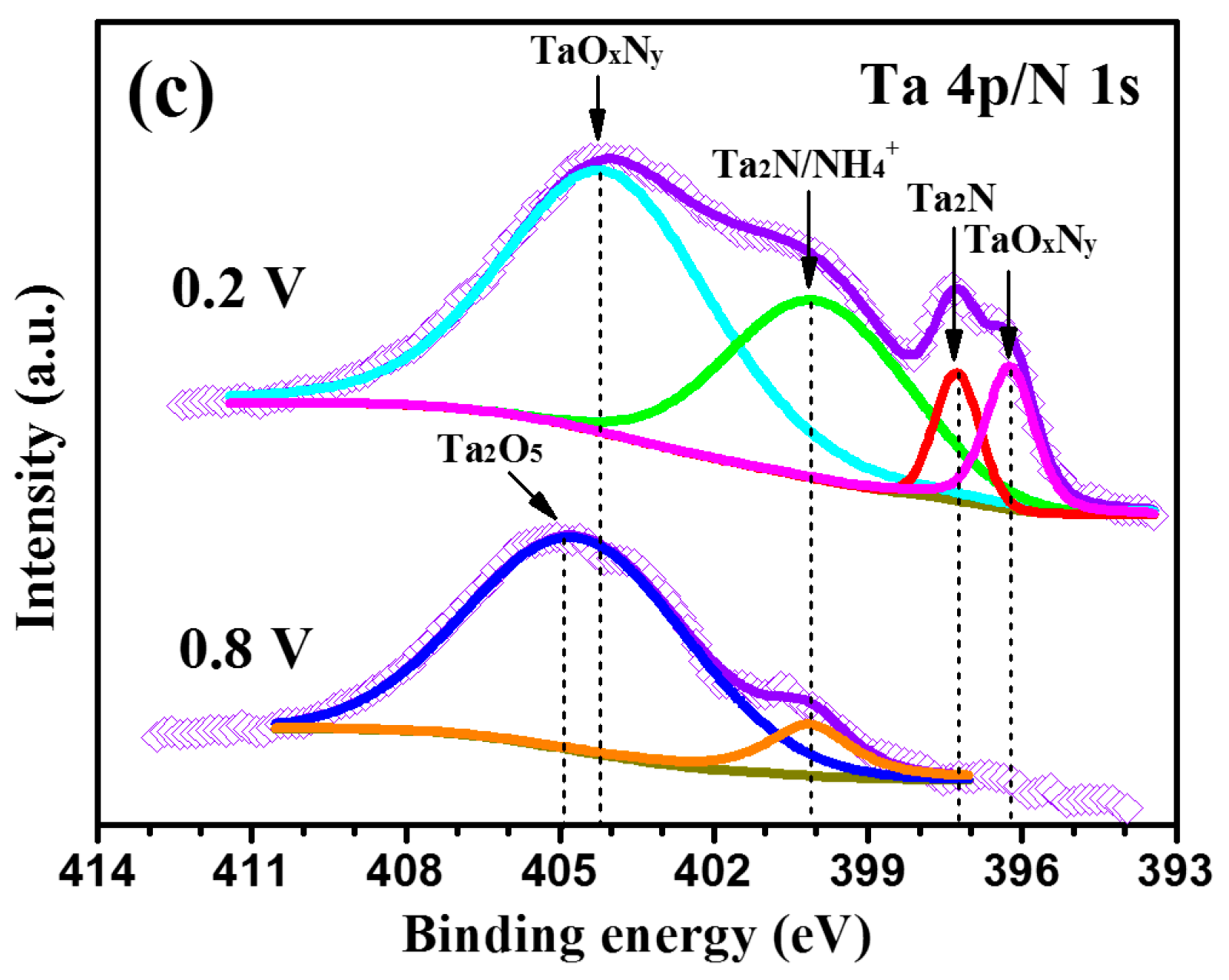

Figure 12. (a) XPS survey spectra and (b,c) high-resolution XPS spectra for Ta 4f and Ta 4p/N 1s for the passive films formed on the Ta2N coating after potentiostatic polarization at 0.2 V and 0.8 V for 60 min in Ringer’s physiological solution.
Figure 12. (a) XPS survey spectra and (b,c) high-resolution XPS spectra for Ta 4f and Ta 4p/N 1s for the passive films formed on the Ta2N coating after potentiostatic polarization at 0.2 V and 0.8 V for 60 min in Ringer’s physiological solution.
Materials 09 00772 g012aMaterials 09 00772 g012b

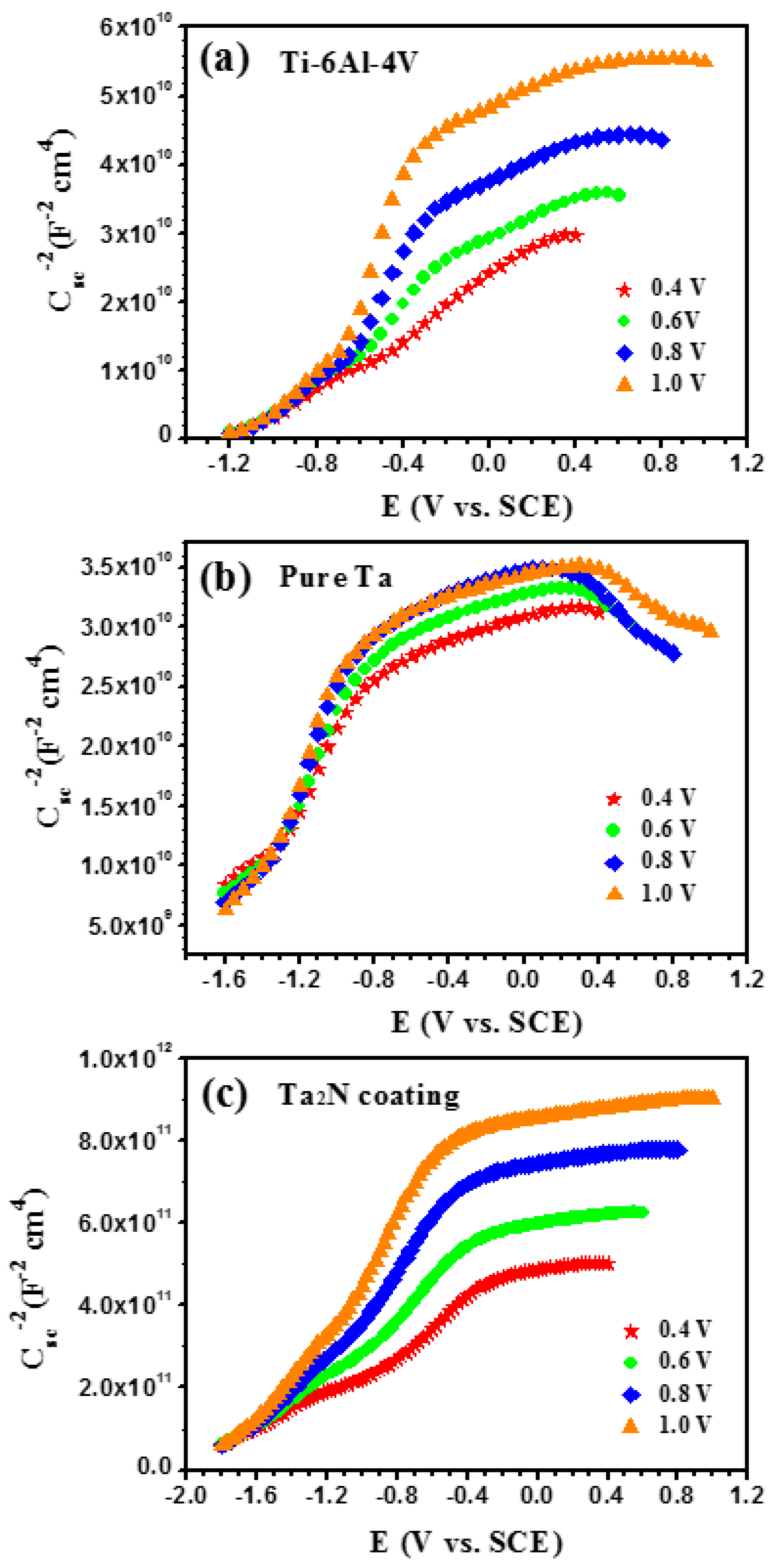

Figure 13. Mott-Schottky plots of the passive films formed at different potentials (0.4, 0.6, 0.8, 1.0 V) on (a) uncoated Ti-6Al-4V; (b) commercially pure Ta and (c) the Ta2N coating in Ringer’s physiological solution.
Figure 13. Mott-Schottky plots of the passive films formed at different potentials (0.4, 0.6, 0.8, 1.0 V) on (a) uncoated Ti-6Al-4V; (b) commercially pure Ta and (c) the Ta2N coating in Ringer’s physiological solution.
Materials 09 00772 g013

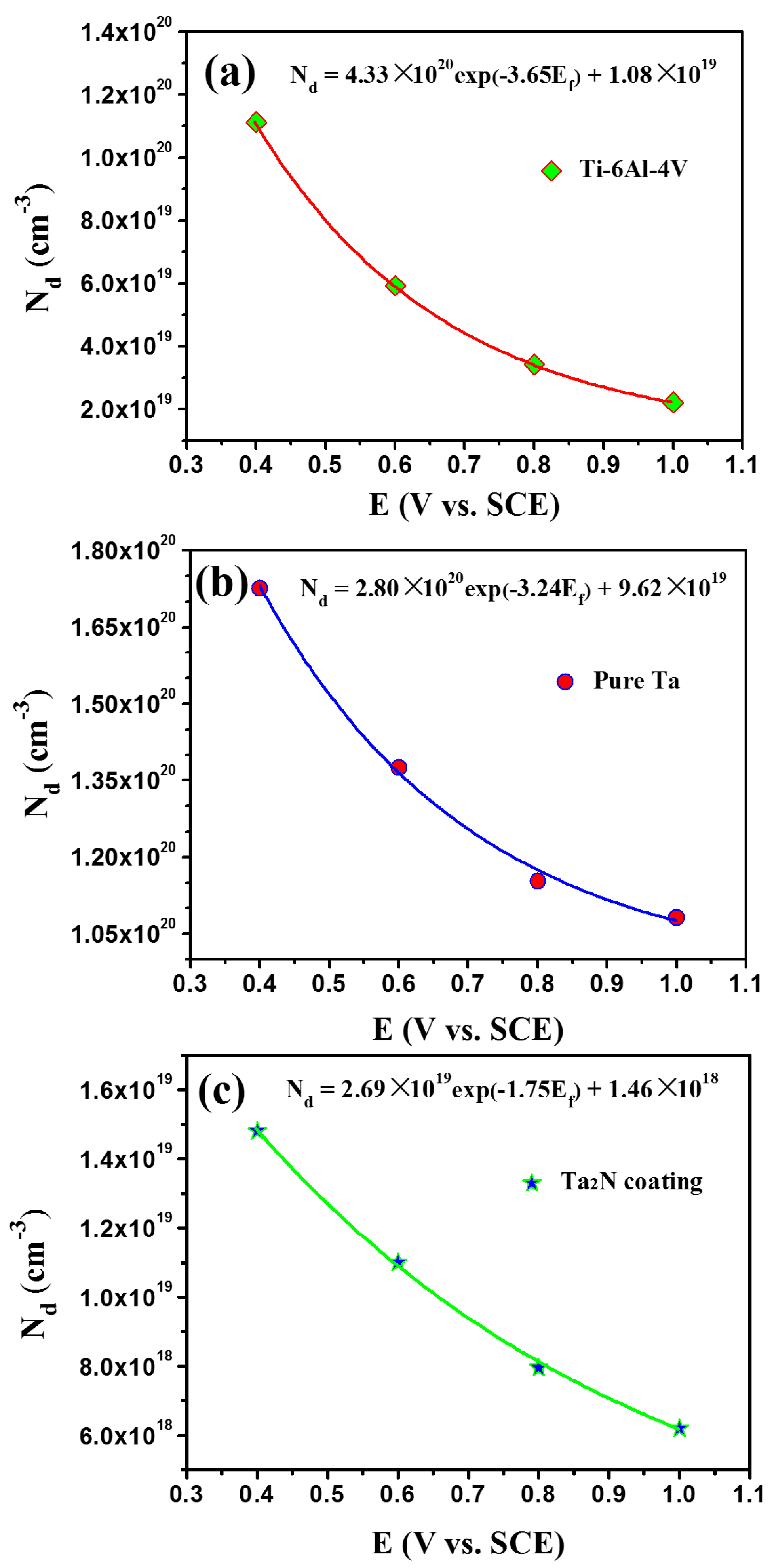

Figure 14. Donor density (Nd) in the passive films formed on (a) uncoated Ti-6Al-4V; (b) commercially pure Ta and (c) the Ta2N coating in Ringer’s physiological solution as a function of film formation potential (Ef). The solid lines are the exponential fit of Nd on Ef.
Figure 14. Donor density (Nd) in the passive films formed on (a) uncoated Ti-6Al-4V; (b) commercially pure Ta and (c) the Ta2N coating in Ringer’s physiological solution as a function of film formation potential (Ef). The solid lines are the exponential fit of Nd on Ef.
Materials 09 00772 g014
Table 1. Electrochemical parameters extracted from potentiodynamic curves of investigated specimens in Ringer’s physiological solution at 37 °C.
Table 1. Electrochemical parameters extracted from potentiodynamic curves of investigated specimens in Ringer’s physiological solution at 37 °C.
SamplesTi-6Al-4VPure TaTa2N Coating
Ecorr (V vs. SCE)−0.24−0.21−0.12
βa (mV/decade)158.08249.25305.16
-βc (mV/decade)116.48118.04120.63
icorr (A·cm−2)4.20 × 10−72.99 × 10−76.76 × 10−9
ipass 1 (A·cm−2)9.86 × 10−63.63 × 10−64.55 × 10−8
Rp (Ω·cm2)6.93 × 1041.16 × 1055.55 × 106
p (%)0.22
1 The passive current densities were derived at 0.6 V vs. SCE.
Table 2. Electrochemical parameters derived from impedance fitting for investigated specimens at their respective open circuit potentials in Ringer’s physiological solution at 37 °C.
Table 2. Electrochemical parameters derived from impedance fitting for investigated specimens at their respective open circuit potentials in Ringer’s physiological solution at 37 °C.
SamplesTi-6Al-4VPure TaTa2N Coating
Rs (Ω·cm2)26.25 ± 0.1725.21 ± 0.2034.74 ± 0.35
Qp−1·cm−2·sn)(1.15 ± 0.01) × 105(1.26 ± 0.01) × 105(5.72 ± 0.05) × 106
n0.911 ± 0.0010.919 ± 0.0010.941 ± 0.002
Rp (Ω·cm2)(5.75 ± 0.15) × 105(1.21 ± 0.04) × 106(4.70 ± 0.31) × 106
Cp (μF·cm−2)8.436.193.35
τ (s)4.857.4915.75
χ29.35 × 10−45.61 × 10−46.33 × 10−4
Table 3. Summary of parameters derived from capacitance measurements and PDM analysis for the passive films formed on the investigated specimens in Ringer’s physiological solution.
Table 3. Summary of parameters derived from capacitance measurements and PDM analysis for the passive films formed on the investigated specimens in Ringer’s physiological solution.
SamplesTi-6Al-4VPure TaTa2N Coating
0.4 VNd (×1019 cm−3)11.1317.261.48
Efb (V)−1.15−1.66−1.50
δsc (nm)9.615.7418.85
0.6 VNd (×1019 cm−3)5.9213.751.10
Efb (V)−0.90−1.57−1.49
δsc (nm)12.966.6022.93
0.8 VNd (×1019 cm−3)3.4211.530.80
Efb (V)−0.80−1.53−1.47
δsc (nm)17.617.4728.02
1.0 VNd (×1019 cm−3)2.2010.810.62
Efb (V)−0.78−1.52−1.48
δsc (nm)23.168.0233.27
ω2 (×1019 cm−3)1.089.620.15
iss (×10−6A·cm−2)9.503.490.10
Do (×10−16 cm2/s)27.331.131.94

Share and Cite

MDPI and ACS Style

Cheng, J.; Xu, J.; Liu, L.L.; Jiang, S. Electrochemical Corrosion Behavior of Ta2N Nanoceramic Coating in Simulated Body Fluid. Materials 2016, 9, 772. https://doi.org/10.3390/ma9090772

AMA Style

Cheng J, Xu J, Liu LL, Jiang S. Electrochemical Corrosion Behavior of Ta2N Nanoceramic Coating in Simulated Body Fluid. Materials. 2016; 9(9):772. https://doi.org/10.3390/ma9090772

Chicago/Turabian Style

Cheng, Jian, Jiang Xu, Lin Lin Liu, and Shuyun Jiang. 2016. "Electrochemical Corrosion Behavior of Ta2N Nanoceramic Coating in Simulated Body Fluid" Materials 9, no. 9: 772. https://doi.org/10.3390/ma9090772

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
