Open AccessArticle
Materials 2015, 8(3), 966-976; doi:10.3390/ma8030966

Film Growth Rates and Activation Energies for Core-Shell Nanoparticles Derived from a CVD Based Aerosol Process

1
Institute for Mechanical Process Engineering and Applied Mechanics, Karlsruhe Institute of Technology (KIT), Strasse am Forum 8, 76131 Karlsruhe, Germany
2
Institute of Chemical Process Engineering, University of Stuttgart, Böblinger Strasse 78, 70199 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: A. Schmidt-Ott
Received: 1 December 2014 / Revised: 17 February 2015 / Accepted: 26 February 2015 / Published: 6 March 2015
(This article belongs to the Special Issue Inorganic Core-Shell Structures)
View Full-Text   |   Download PDF [1417 KB, uploaded 6 March 2015]   |

Abstract

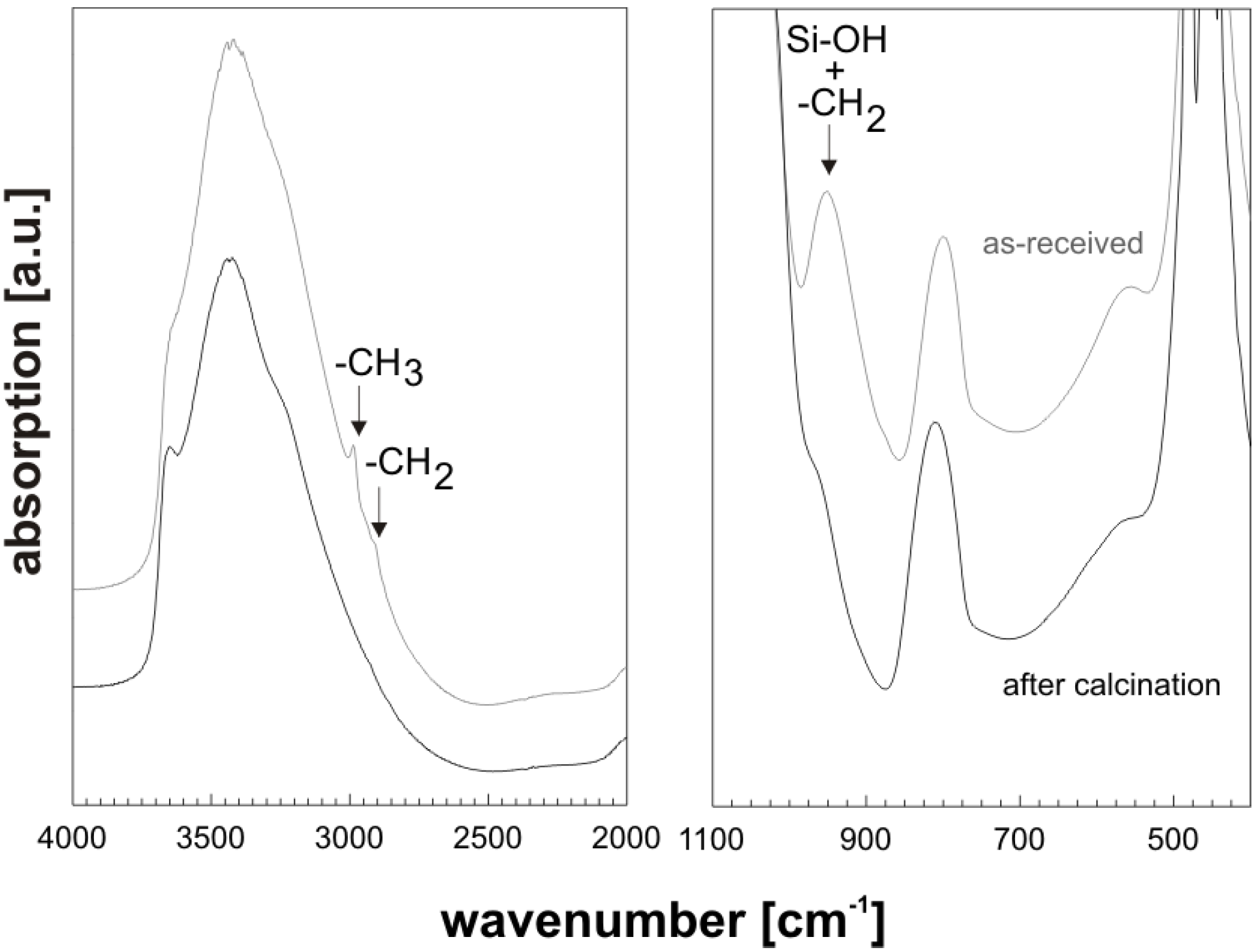

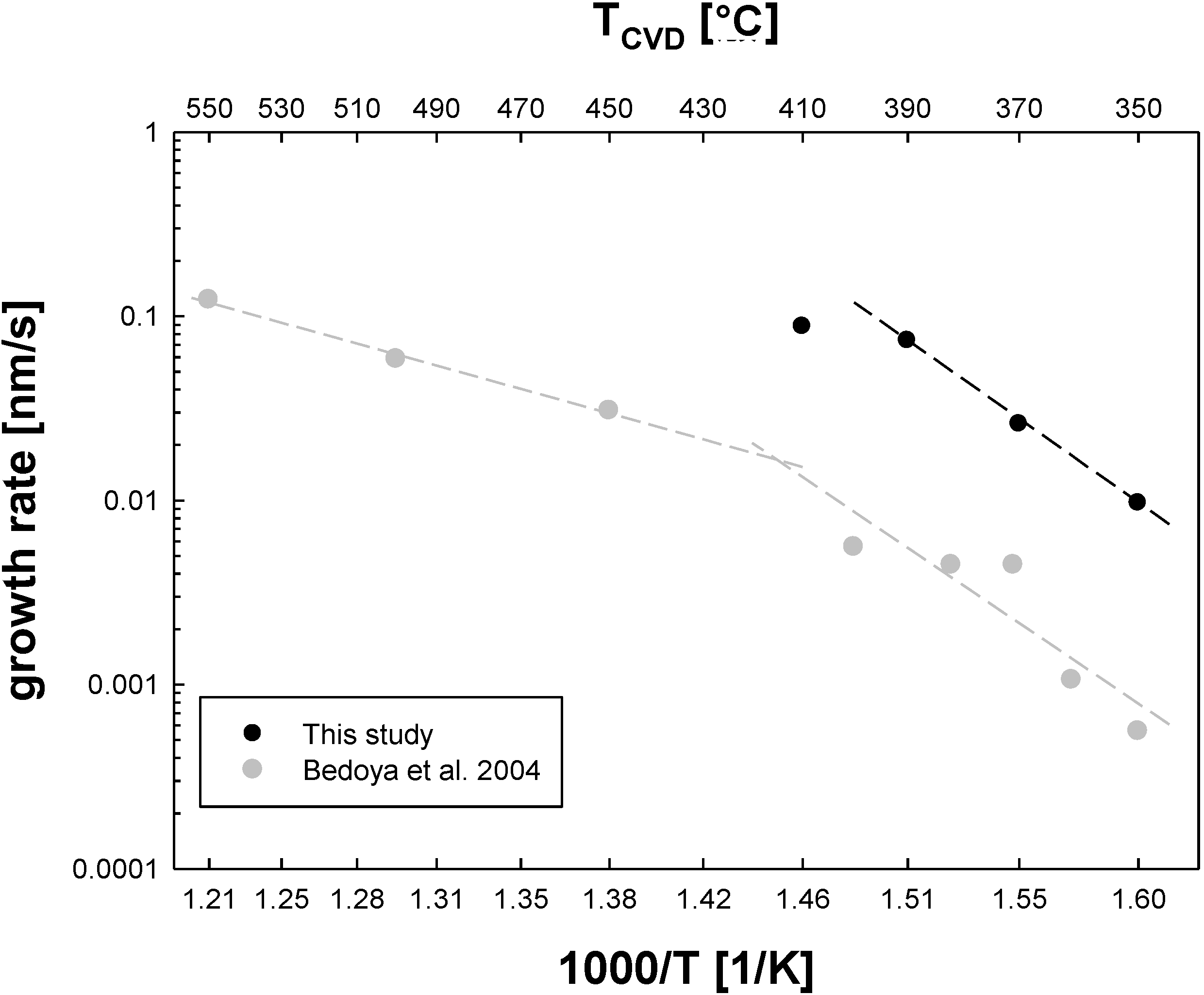

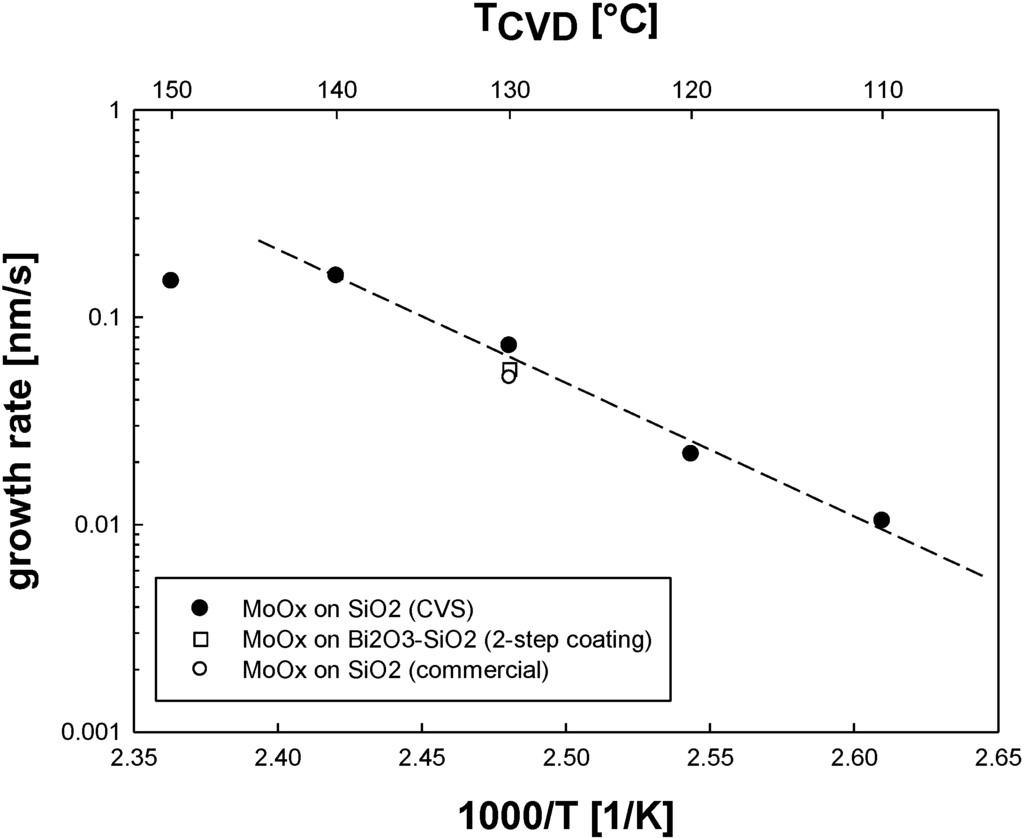

Silica core-shell nanoparticles of about 60–120 nm with a closed outer layer of bismuth or molybdenum oxide of 1–10 nm were synthesized by an integrated chemical vapor synthesis/chemical vapor deposition process at atmospheric pressure. Film growth rates and activation energies were derived from transmission electron microscopy (TEM) images for a deposition process based on molybdenum hexacarbonyl and triphenyl bismuth as respective coating precursors. Respective activation energies of 123 ± 10 and 155 ± 10 kJ/mol are in good agreement with the literature and support a deposition mechanism based on surface-induced removal of the precursor ligands. Clean substrate surfaces are thus prerequisite for conformal coatings. Integrated aerosol processes are solvent-free and intrinsically clean. In contrast, commercial silica substrate particles were found to suffer from organic residues which hinder shell formation, and require an additional calcination step to clean the surface prior to coating. Dual layer core-shell structures with molybdenum oxide on bismuth oxide were synthesized with two coating reactors in series and showed similar film growth rates. View Full-Text
Keywords: core-shell; chemical vapor deposition (CVD); nanoparticles; coating; molybdenum oxide; bismuth oxide; activation energy; aerosol core-shell; chemical vapor deposition (CVD); nanoparticles; coating; molybdenum oxide; bismuth oxide; activation energy; aerosol
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Weis, F.; Seipenbusch, M.; Kasper, G. Film Growth Rates and Activation Energies for Core-Shell Nanoparticles Derived from a CVD Based Aerosol Process. Materials 2015, 8, 966-976.
