Pre-Saturation Technique of the Recycled Aggregates: Solution to the Water Absorption Drawback in the Recycled Concrete Manufacture †
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
Standard | Test and result | Limit value [4] |
---|---|---|

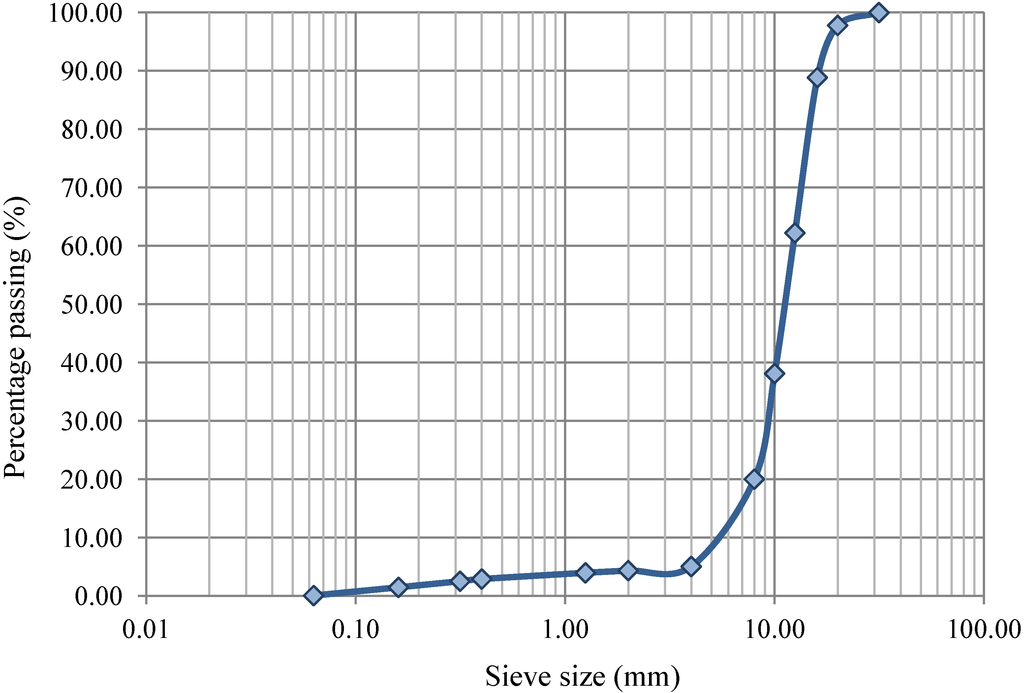

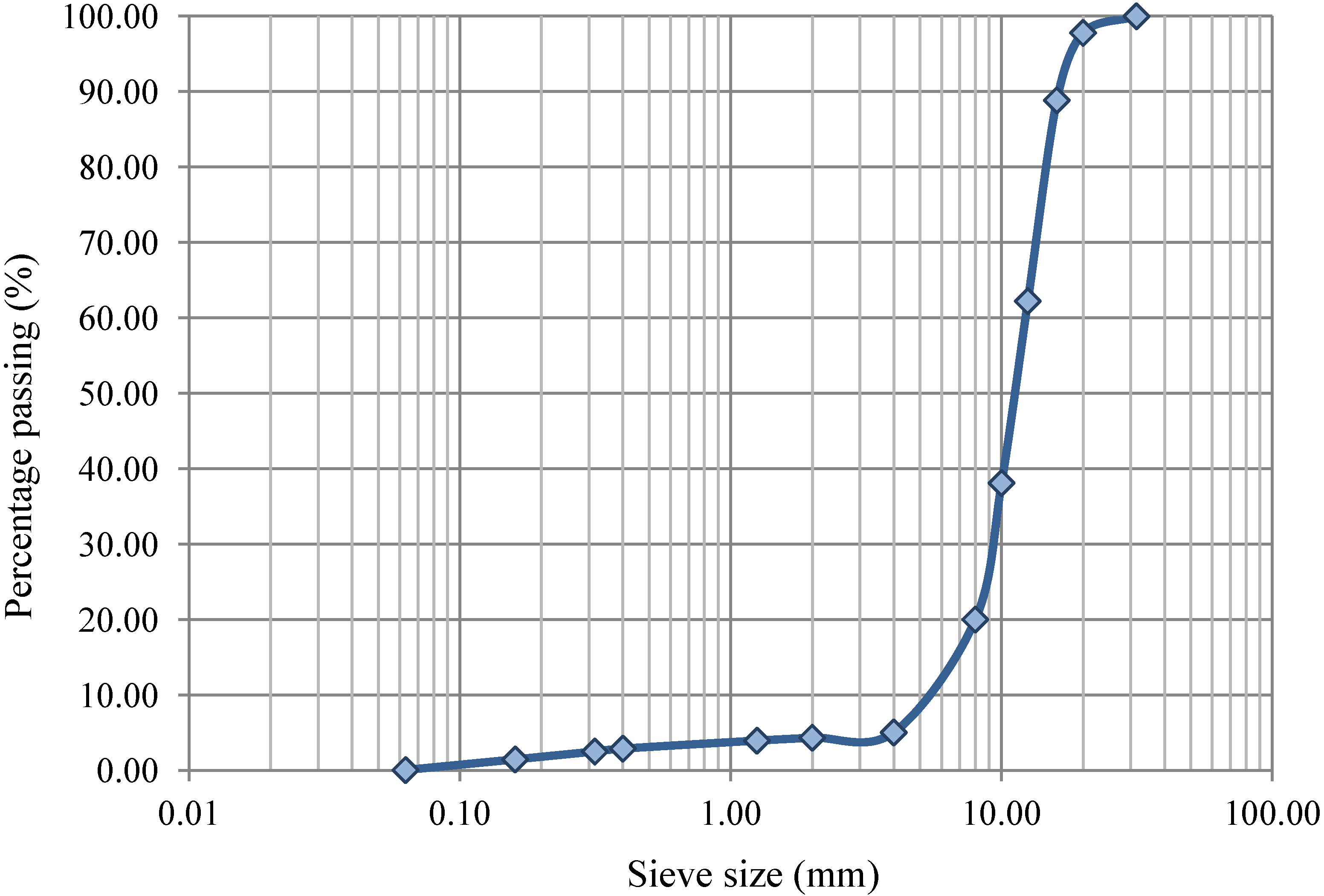

UNE-EN 933-1:2012 [32] | Particle size analysis D/d ratio: 4 | ≥1.4 |
UNE-EN 933-2:1996+1M:1999 [33] | Fines content: 0.04% | ≤1.5% |
UNE-EN 1097-6:2001+A1:2006 [34] | Apparent density (ρa): 2.53 Mg/m3 | - |
After oven-drying density (ρrd): 2.08 Mg/m3 | - | |
Saturate surface density (ρssd): 2.26 Mg/m3 | - | |
Water absorption: 8.53% | ≤7% | |
UNE-EN 1097-2:2010 [35] | Los Angeles coefficient: 40.99% | ≤40% |
UNE-EN 933-3:2012 [36] | Flakiness index: 14.75% | ≤35% |
2.2. Concrete Mixtures
Mixes | Percentage of NA | Percentage of RA |
---|---|---|
Mix 0 | 100% | 0% |
Mix 1 | 80% | 20% |
Mix 2 | 50% | 50% |
Mix 3 | 0% | 100% |
Components (kg/m3) | Percentage of RA | |||
---|---|---|---|---|
0% | 20% | 50% | 100% | |
Water | 215 | 215 | 215 | 215 |
Water/cement ratio | 0.55 | 0.55 | 0.55 | 0.55 |
Cement | 390.9 | 390.9 | 390.9 | 390.9 |
Sand | 667.1 | 669.2 | 744.1 | 811.0 |
Gravel | 1060.9 | 790.0 | 442.6 | 0.0 |
Recycled aggregate | 0.0 | 197.5 | 442.6 | 732.3 |
- Air Drying(S).
- Immersedin waterfor a certain “X” period(P-X) (Figure 2).
2.3. Pre-Saturation Period
2.4. Consistency
2.5. Compressive Strength
3. Results and Discussion

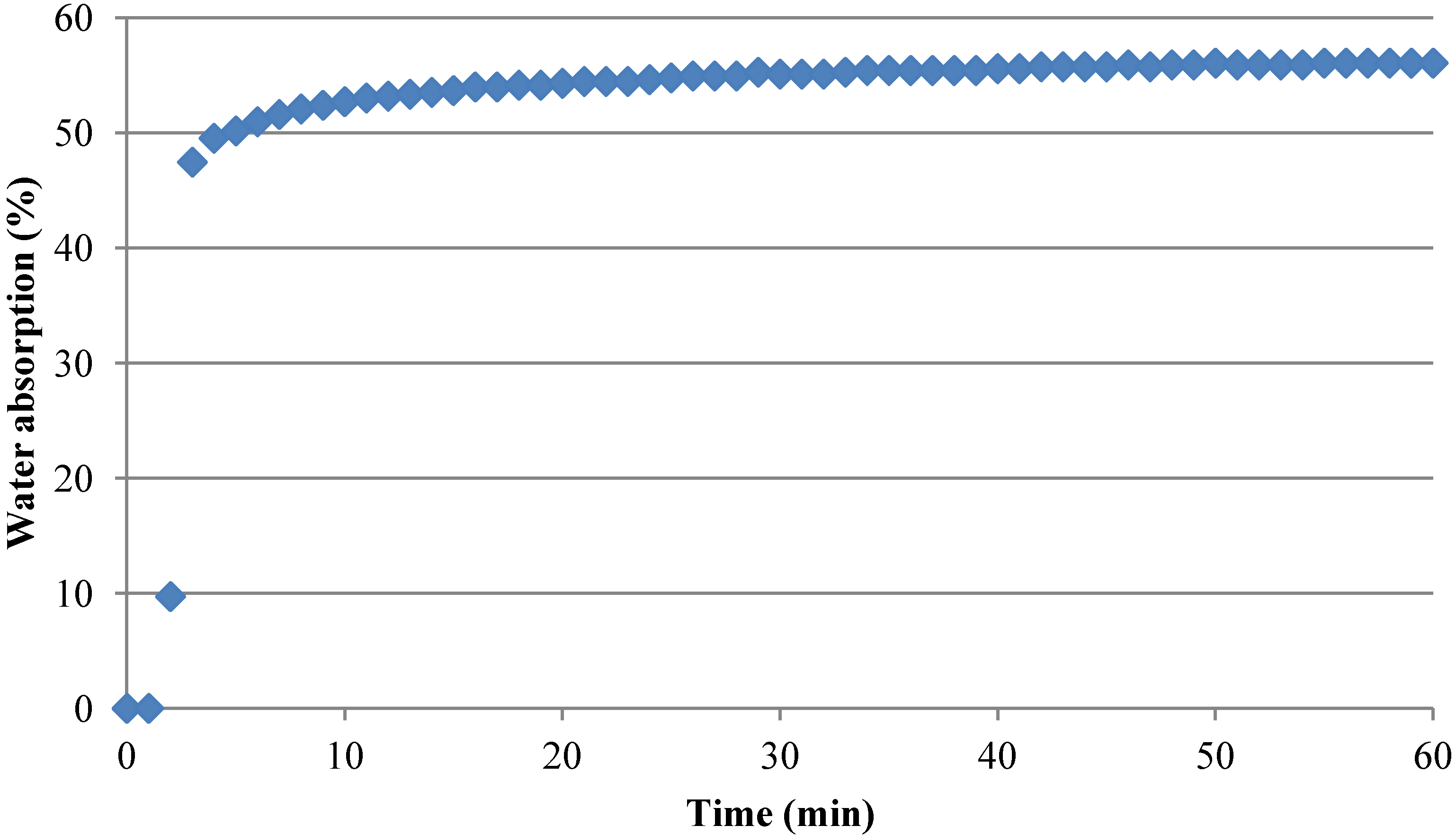

3.1. Pre-Saturation Period
Time (min) | Absorption (%) |
---|---|
0 | 0.0 |
3 | 47.5 |
5 | 50.2 |
60 | 56.1 |

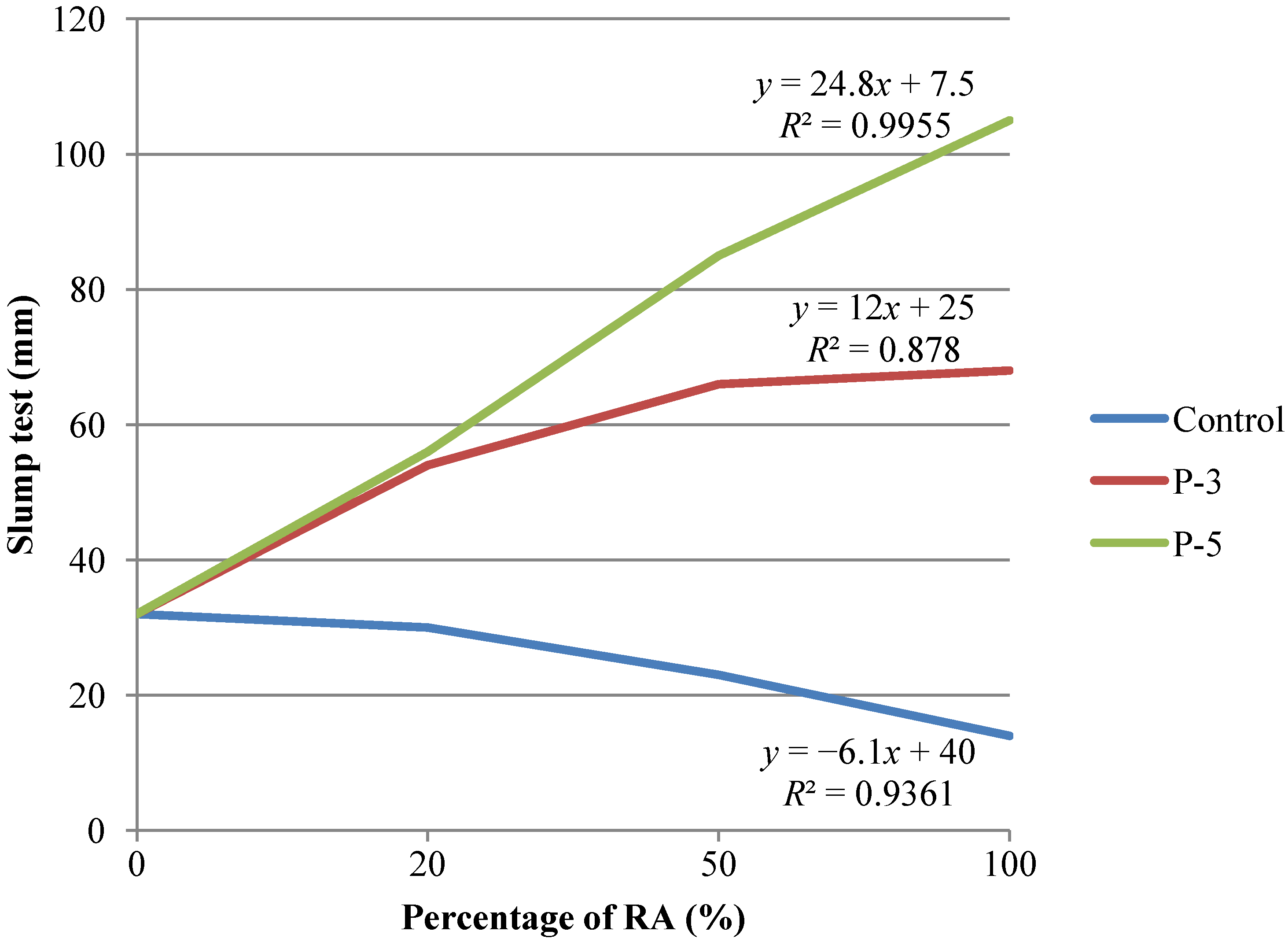

3.2. Slump Test

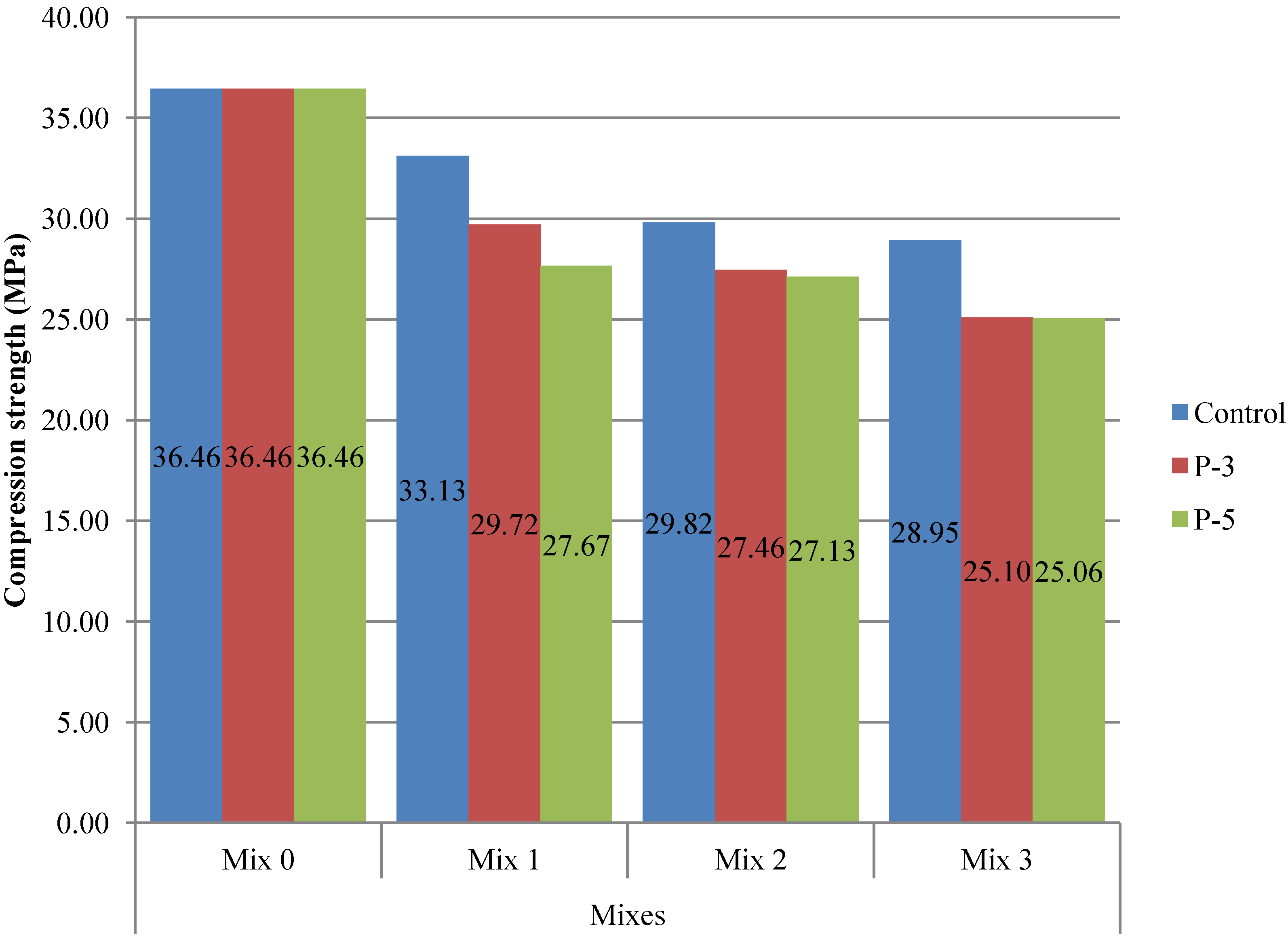

3.3. Compressive Strength Test
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Yeheyis, M.; Hewage, K.; Alam, M.S.; Eskicioglu, C.; Sadiq, R. An overview of construction and demolition waste management in Canada: A lifecycle analysis approach to sustainability. Clean Technol. Environ. Policy 2013, 15, 81–91. [Google Scholar] [CrossRef]
- Wu, Z.; Yu, A.T.W.; Shen, L.; Liu, G. Quantifying construction and demolition waste: An analytical review. Waste Manag. 2014, 34, 1683–1692. [Google Scholar] [CrossRef]
- Coelho, A.; de Brito, J. Influence of construction and demolition waste management on the environmental impact of buildings. Waste Manag. 2012, 32, 532–541. [Google Scholar] [CrossRef]
- Code on Structural Concrete, EHE-08, Permanent Commission of the Concrete; Spanish Ministry of Public Works: Madrid, Spain, 2008.
- Complementary British standard to BS EN 206-1, Specification for Constituent Materials and Concrete; BS 8500-2:2006+A1:2012; British Standards Institution: London, UK, 2006.
- Works Bureau. Technical Circular 12/2002, Specifications Facilitating the Use of Recycled Aggregates; Development Bureau: Hong Kong, China, 2002.
- DIN 4226-100:2002. Aggregates for Mortar and Concrete—Part 100: Recycled Aggregates, Sai Global: Sydney, Australia, 2002.
- Dutch Supplement to NEN-EN 12620+A1 “Aggregates for Concrete”, NEN 5905:2010; The Netherlands Standardization Institute: Delft, The Netherlands, 2008.
- Figueiredo, F. Integrated Management of Construction and Demolition Waste; Faculty of Engineering, University of Porto (FEUP): Porto, Portugal, 2005. [Google Scholar]
- Etxeberria, M. Experimental Study on Microstructure and Structural Behaviour of Recycled Aggregate Concrete. Ph.D. Thesis, Polytechnic University of Catalonia, Barcelona, Spain, 2004. [Google Scholar]
- Rahal, K. Mechanical properties of concrete with recycled coarse aggregate. Build. Environ. 2007, 42, 407–415. [Google Scholar] [CrossRef]
- Huda, S.B.; Alam, M.S. Mechanical behavior of three generations of 100% repeated recycled coarse aggregate concrete. Constr. Build. Mater. 2014, 65, 574–582. [Google Scholar] [CrossRef]
- Sánchez, M.; Alaejos, P. Study on the influence of attached mortar content on the properties of recycled concrete aggregate. Constr. Build. Mater. 2009, 23, 872–877. [Google Scholar] [CrossRef]
- Tam, V.W.Y.; Tam, C.M.; Le, K.N. Removal of cement mortar remains from recycled aggregate using pre-soaking approaches. Resour. Conserv. Recycl. 2007, 50, 82–101. [Google Scholar] [CrossRef]
- Djerbia, A. Determining the water absorption of recycled aggregates utilizing hydrostatic weighing approach. Constr. Build. Mater. 2012, 27, 112–116. [Google Scholar] [CrossRef]
- Di Maio, A.; Traversa, L.P. Evaluación de hormigones reciclados mediante ensayos no destructivos. Mater. Const. 2003, 53, 37–46. [Google Scholar] [CrossRef]
- Poon, C.S.; Kou, S.C.; Lam, L. Influence of recycled aggregate on slump and bleeding of fresh concrete. Mater. Struct. 2007, 40, 981–988. [Google Scholar] [CrossRef]
- Yang, J.; Du, Q.; Bao, Y. Concrete with recycled concrete aggregate and crushed clay bricks. Constr. Build. Mater. 2011, 25, 1935–1945. [Google Scholar] [CrossRef]
- Rao Hunchate, S.; Valikala, G.; Ghorpade, V.G. Influence of water absorption of the ceramic aggregate on strength properties of ceramic aggregate concrete. Int. J. Innov. Res. Sci. Eng. Technol. 2013, 2, 6329–6335. [Google Scholar]
- Fernández-Cánovas, M. Hormigón; Colegio de Ingenieros de Caminos, Canales y Puertos: Madrid, Spain, 2007. (In Spainsh) [Google Scholar]
- Li, L.; Aubertin, M.A. A general relationship between porosity and uniaxial strength of engineering materials. Can. J. Civ. Eng. 2003, 30, 644–658. [Google Scholar]
- Angulo, S.C.; Carrijo, P.M.; Figueiredo, A.D.; Chaves, A.P.; John, V.M. On the classification of mixed construction and demolition waste aggregate by porosity and its impact on the mechanical performance of concrete. Mater. Struct. 2010, 43, 519–528. [Google Scholar] [CrossRef]
- Poon, C.S.; Shui, Z.H.; Lam, L.; Fok, H.; Kou, S.C. Influence of moisture states of natural and recycled aggregates on the slump and compressive strength of concrete. Cem. Concr. Res. 2004, 34, 31–36. [Google Scholar] [CrossRef]
- Barbudo, A.; de Brito, J.; Evangelista, L.; Bravo, M.; Agrela, F. Influence of water-reducing admixtures on the mechanical performance of recycled concrete. J. Clean. Prod. 2013, 59, 93–98. [Google Scholar] [CrossRef]
- Matias, D.; de Brito, J.; Rosa, A.; Pedro, D. Mechanical properties of concrete produced with recycled coarse aggregates—Influence of the use of superplasticizers. Constr. Build. Mater. 2013, 44, 101–109. [Google Scholar] [CrossRef]
- Rodrigues, F.; Carvalho, M.T.; Evangelista, L.; de Brito, J. Physical-chemical and mineralogical characterization of fine aggregates from construction and demolition waste recycling plants. J. Clean. Prod. 2013, 52, 438–445. [Google Scholar] [CrossRef]
- Wattanasiriwech, A.; Saiton, A.; Wattanasiriwech, S. Paving blocks from ceramic tile production waste. J. Clean. Prod. 2009, 17, 1663–1668. [Google Scholar] [CrossRef]
- Hanset, T.C. Recycling of Demolished Concrete and Masonry (Rilem Report, No 6); E&FN Spon: Bodmin, UK, 1992. [Google Scholar]
- Sagoe-Crentsil, K.K.; Brown, T.; Taylor, A.H. Performance of concrete made with commercially produced coarse recycled concrete aggregate. Cem. Concr. Res. 2001, 31, 707–712. [Google Scholar] [CrossRef]
- García, J.; Rodríguez, D.; Juan, A.; Morán, J.M.; Guerra, M.I. Influence of moisture states of recycled coarse aggregates on the slump test. Adv. Mater. Res. 2013, 742, 379–383. [Google Scholar]
- UNE-EN 12620:2003+A1:2009. Aggregates for Concrete, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2009.
- UNE-EN 933-1:2012. Tests for Geometrical Properties of Aggregates—Part 1: Determination of Particle Size Distribution—Sieving Method, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2012.
- UNE-EN 933-2:1996+1M:1999. Test for Geometrical Properties of Aggregates—Part 2: Determination of Particle Size Distribution—Test Sieves, Nominal Size of Apertures, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 1999.
- NE-EN 1097-6:2001+A1:2006. Tests for Mechanical and Physical Properties of Aggregates—Part 6: Determination of Particle Density and Water Absorption, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2006.
- UNE-EN 1097-2:2010. Tests for Mechanical and Physical Properties of Aggregates—Part 2: Methods for the Determination of Resistance to Fragmentation, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2010.
- UNE-EN 933-3:2012. Tests for Geometrical Properties of Aggregates—Part 3: Determination of Particle Shape—Flakiness Index; Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2012.
- UNE-EN 12350-2:2009. Testing Fresh Concrete—Part 2: Slump-Test, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2009.
- UNE-EN 12390-3:2009. Testing Hardened Concrete—Part 3: Compressive Strength of Test Specimens, Asociación Española de Normalización y Certificación (AENOR): Madrid, Spain, 2009.
- Mefteh, H.; Kebaïli, O.; Oucief, H.; Berredjem, L.; Arabi, N. Influence of moisture conditioning of recycled aggregates on the properties of fresh and hardened concrete. J. Clean. Prod. 2013, 54, 282–288. [Google Scholar] [CrossRef]
- Etxeberria, M.; Vázquez, E.; Marí, A.; Barra, M. Influence of amount of recycled coarse aggregates and production process on properties of recycled aggregate concrete. Cem. Concr. Res. 2007, 37, 735–742. [Google Scholar] [CrossRef]
- Brito, J.; Pereira, A.; Correia, J. Mechanical behaviour of non-structural concrete made with recycled ceramic aggregates. Cem. Concr. Compos. 2005, 27, 429–433. [Google Scholar] [CrossRef]
- Khatib, J.M. Properties of concrete incorporating fine recycled aggregate. Cem. Concr. Res. 2005, 35, 763–769. [Google Scholar] [CrossRef]
- Pacheco-Torgal, F.; Jalali, S. Compressive strength and durability properties of ceramic wastes based concrete. Mater. Struct. 2011, 44, 155–167. [Google Scholar] [CrossRef] [Green Version]
- Guerra, I.; Vivar, I.; Llamas, B.; Juan, A.; Morán, J. Ecoefficient concretes: The effects of using recycled ceramic material from sanitary installations on the mechanical properties of concrete. Waste Manag. 2009, 29, 643–646. [Google Scholar] [CrossRef]
- López, V.; Llamas, B.; Juan, A.; Morán, J.; Guerra, I. Ecoefficient concretes: impact of the use of white ceramic powder on the mechanical properties of concrete. Biosyst. Eng. 2007, 96, 559–564. [Google Scholar] [CrossRef]
