Next Article in Journal
Materials Best Paper Award 2014
Next Article in Special Issue
Assessment of the Pozzolanic Activity of a Spent Catalyst by Conductivity Measurement of Aqueous Suspensions with Calcium Hydroxide
Previous Article in Journal
The Effects of Annealing Temperatures on Composition and Strain in SixGe1−x Obtained by Melting Growth of Electrodeposited Ge on Si (100)
Previous Article in Special Issue
Corrosion Resistance of Calcium Aluminate Cement Concrete Exposed to a Chloride Environment
Materials 2014, 7(2), 1422-1440; doi:10.3390/ma7021422
Article

Influence of Rapid Freeze-Thaw Cycling on the Mechanical Properties of Sustainable Strain-Hardening Cement Composite (2SHCC)

1
, 2
, 3,*  and 1,*
Received: 27 November 2013; in revised form: 11 February 2014 / Accepted: 14 February 2014 / Published: 24 February 2014
(This article belongs to the Special Issue Construction Materials)
View Full-Text   |   Download PDF [748 KB, uploaded 24 February 2014]   |   Browse Figures

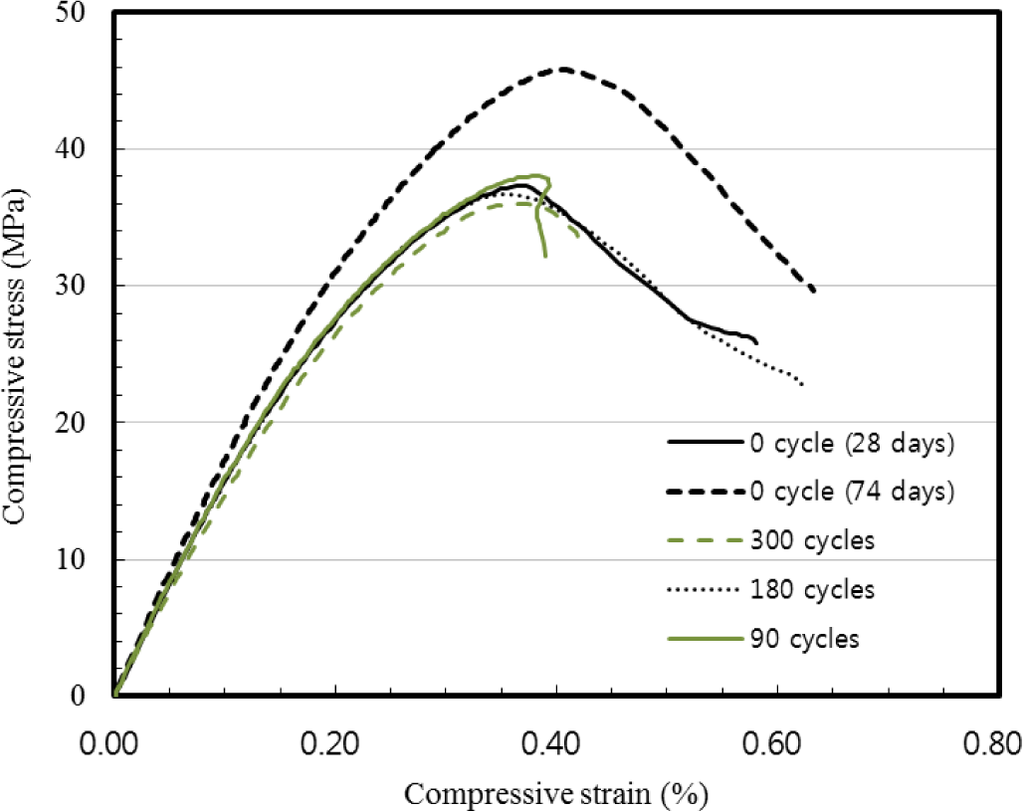

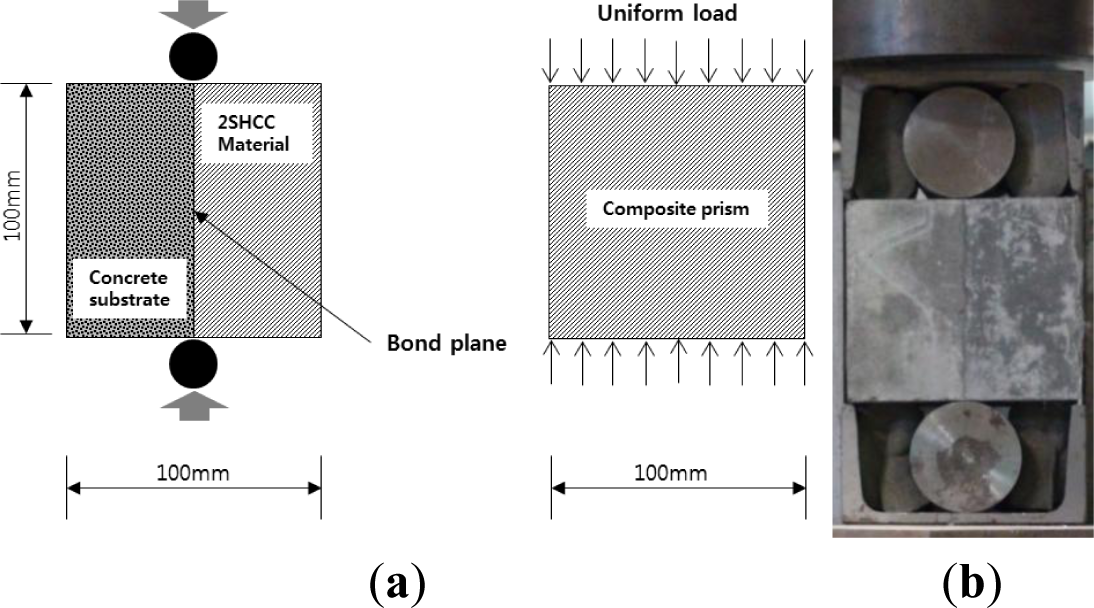

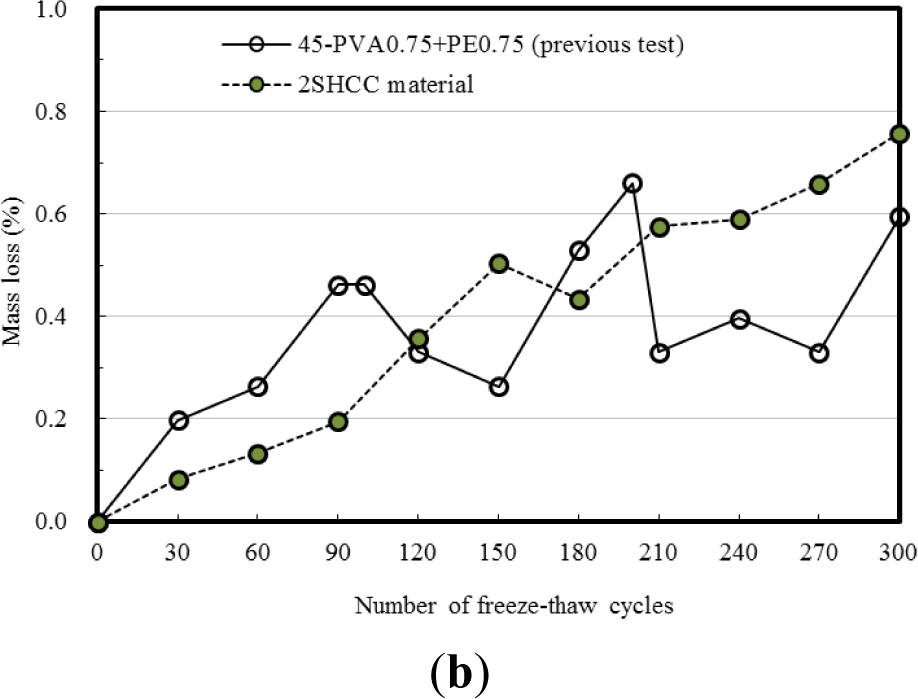

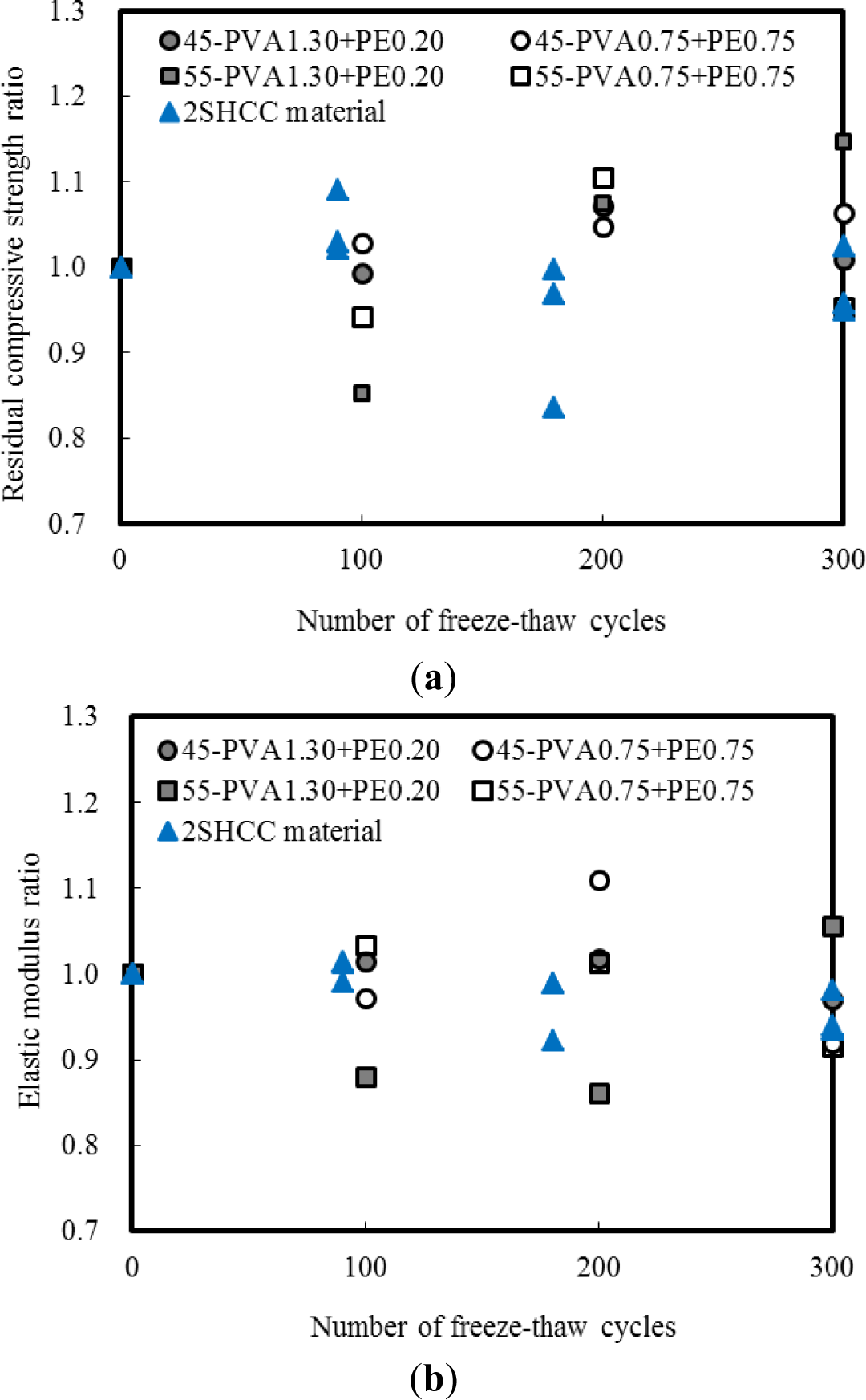

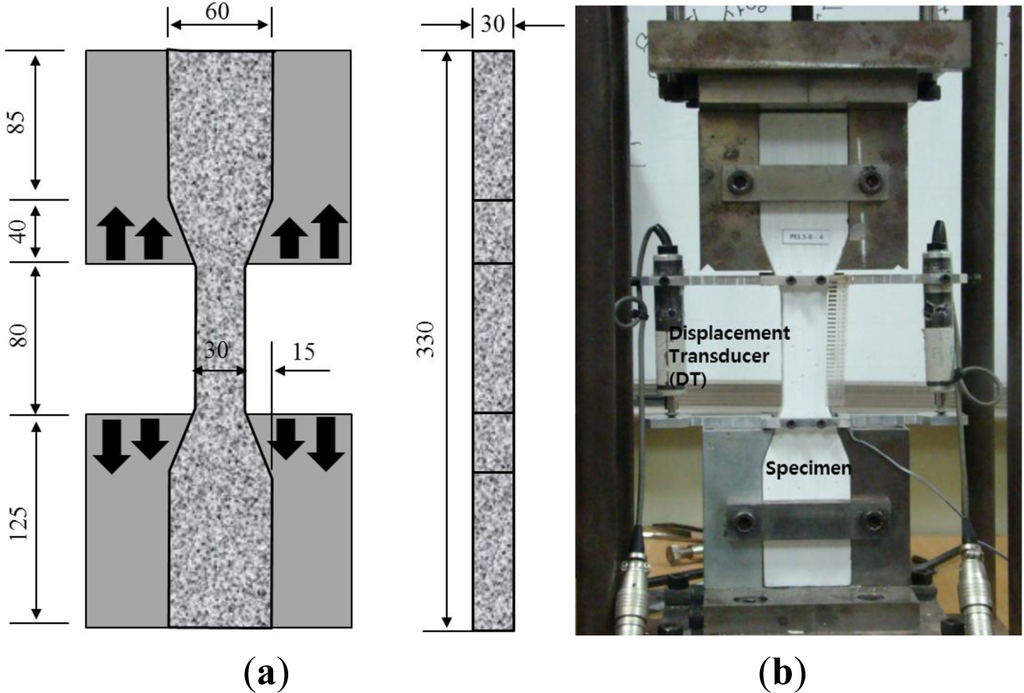

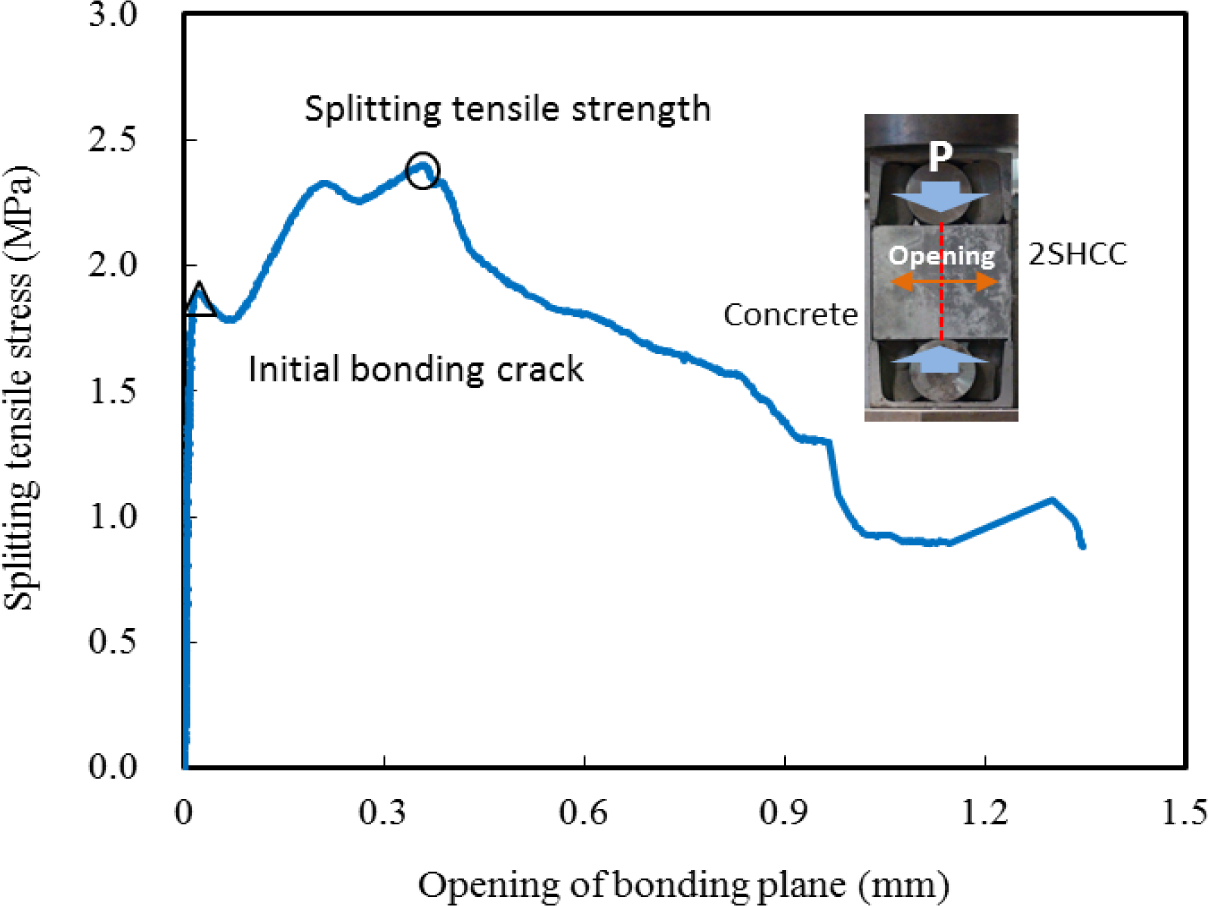

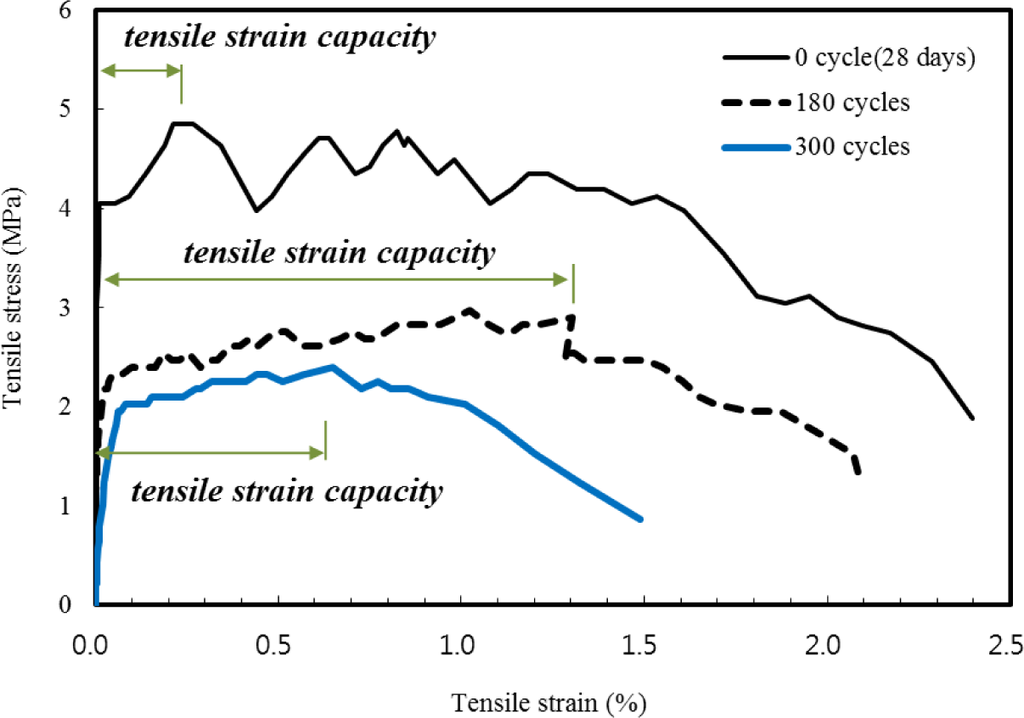

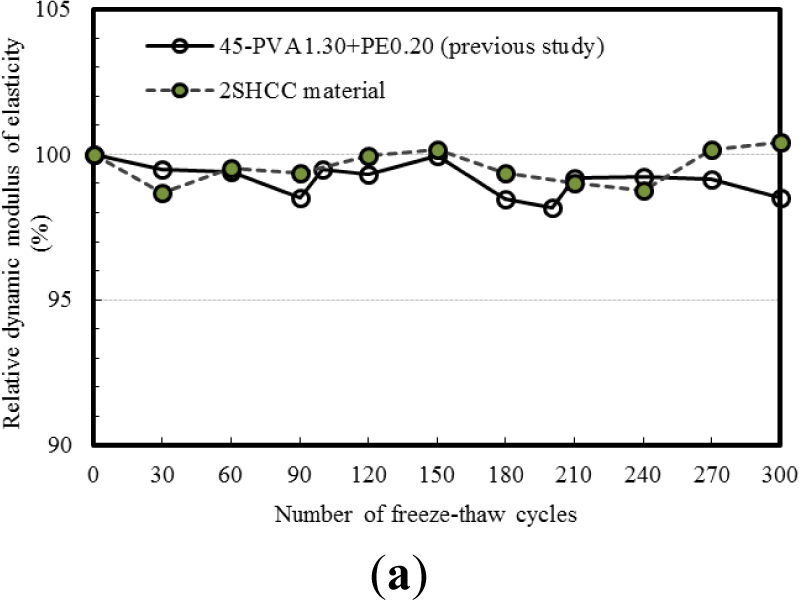

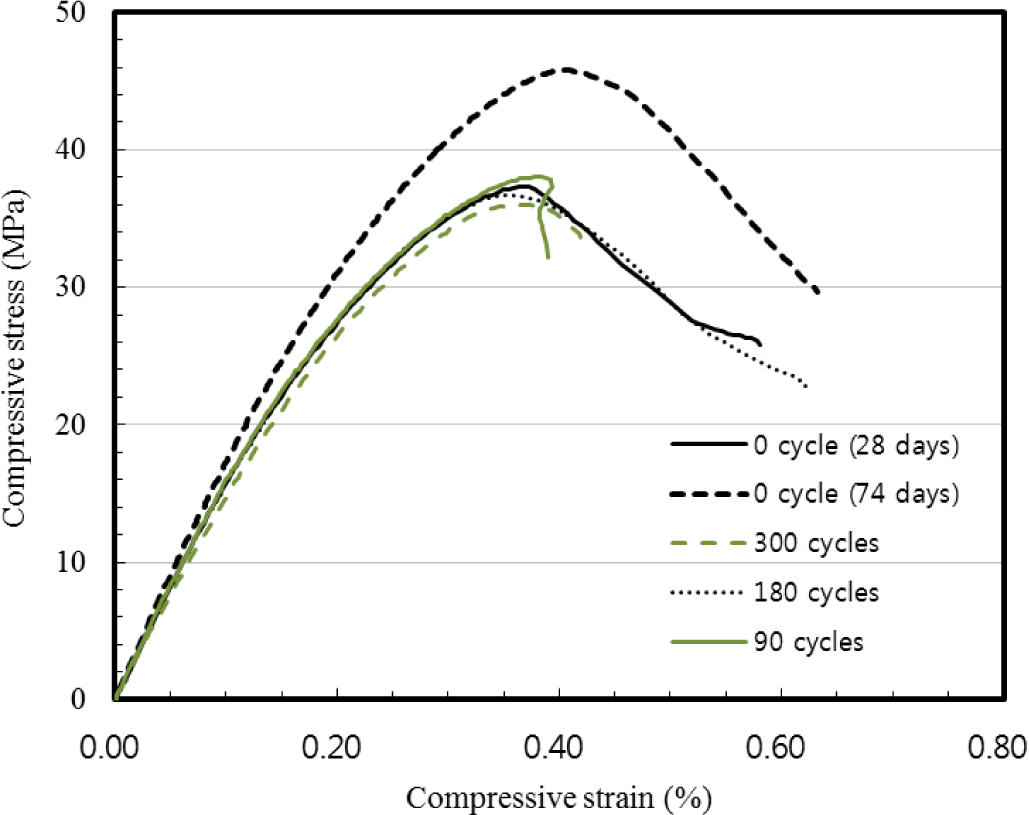

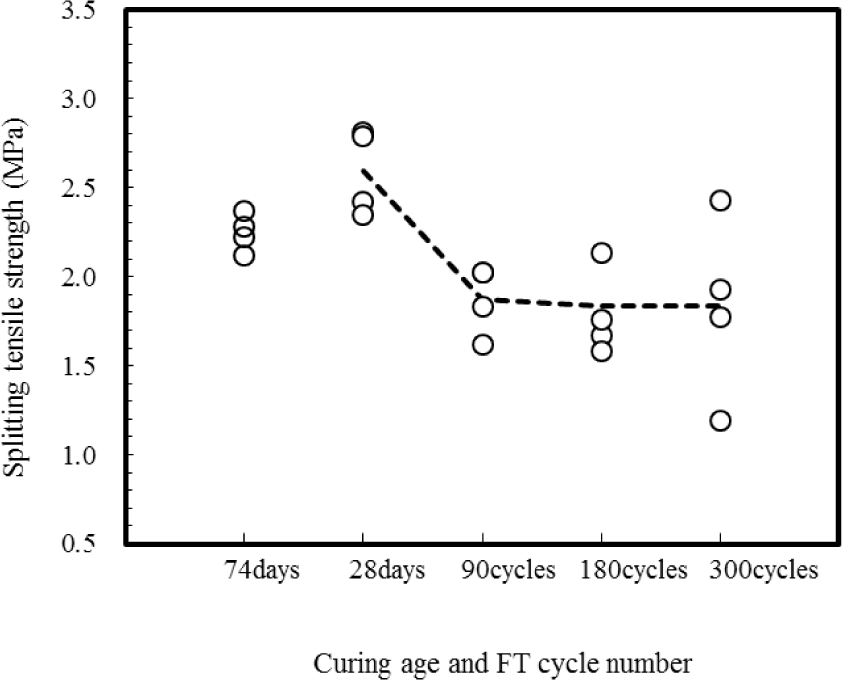

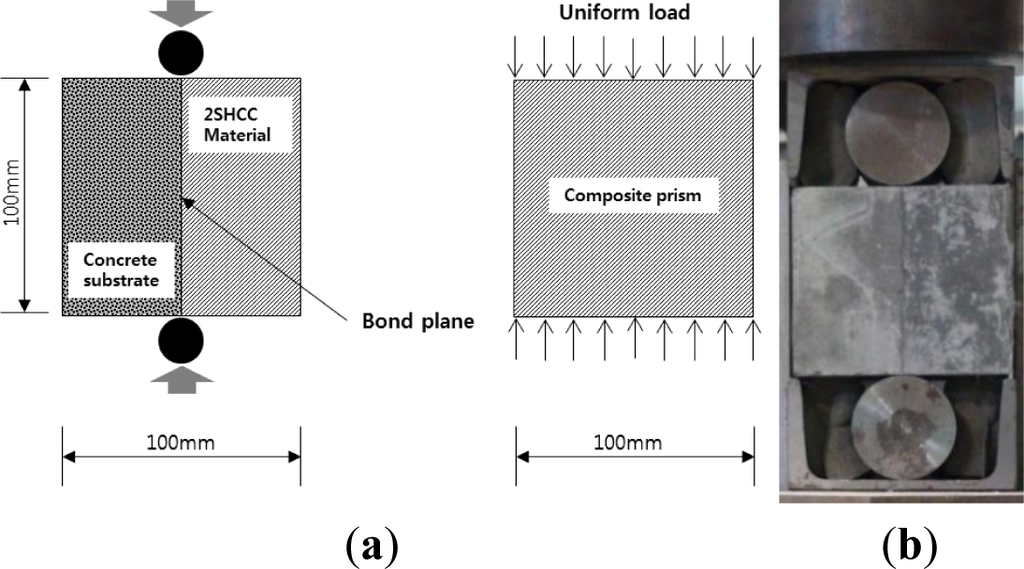

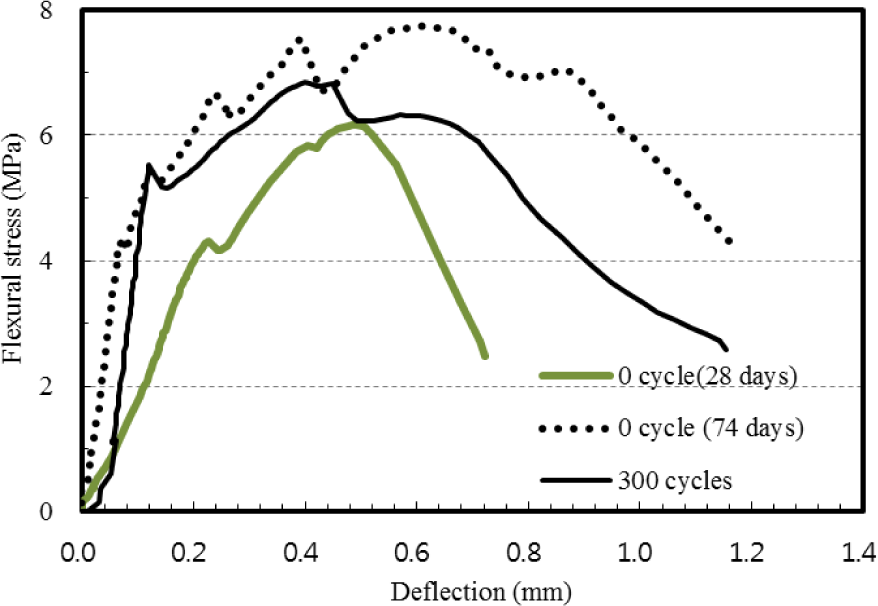

Abstract: This paper provides experimental results to investigate the mechanical properties of sustainable strain-hardening cement composite (2SHCC) for infrastructures after freeze-thaw actions. To improve the sustainability of SHCC materials in this study, high energy-consumptive components—silica sand, cement, and polyvinyl alcohol (PVA) fibers—in the conventional SHCC materials are partially replaced with recycled materials such as recycled sand, fly ash, and polyethylene terephthalate (PET) fibers, respectively. To investigate the mechanical properties of green SHCC that contains recycled materials, the cement, PVA fiber and silica sand were replaced with 10% fly ash, 25% PET fiber, and 10% recycled aggregate based on preliminary experimental results for the development of 2SHCC material, respectively. The dynamic modulus of elasticity and weight for 2SHCC material were measured at every 30 cycles of freeze-thaw. The effects of freeze-thaw cycles on the mechanical properties of sustainable SHCC are evaluated by conducting compressive tests, four-point flexural tests, direct tensile tests and prism splitting tests after 90, 180, and 300 cycles of rapid freeze-thaw. Freeze-thaw testing was conducted according to ASTM C 666 Procedure A. Test results show that after 300 cycles of freezing and thawing actions, the dynamic modulus of elasticity and mass loss of damaged 2SHCC were similar to those of virgin 2SHCC, while the freeze-thaw cycles influence mechanical properties of the 2SHCC material except for compressive behavior.
Keywords: strain-hardening cement composite (SHCC); freeze-thaw; sustainable material; compressive behavior; flexural behavior; direct tensile behavior; splitting tensile strength strain-hardening cement composite (SHCC); freeze-thaw; sustainable material; compressive behavior; flexural behavior; direct tensile behavior; splitting tensile strength
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Jang, S.-J.; Rokugo, K.; Park, W.-S.; Yun, H.-D. Influence of Rapid Freeze-Thaw Cycling on the Mechanical Properties of Sustainable Strain-Hardening Cement Composite (2SHCC). Materials 2014, 7, 1422-1440.

AMA Style

Jang S-J, Rokugo K, Park W-S, Yun H-D. Influence of Rapid Freeze-Thaw Cycling on the Mechanical Properties of Sustainable Strain-Hardening Cement Composite (2SHCC). Materials. 2014; 7(2):1422-1440.

Chicago/Turabian Style

Jang, Seok-Joon; Rokugo, Keitetsu; Park, Wan-Shin; Yun, Hyun-Do. 2014. "Influence of Rapid Freeze-Thaw Cycling on the Mechanical Properties of Sustainable Strain-Hardening Cement Composite (2SHCC)." Materials 7, no. 2: 1422-1440.


Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
