Next Article in Journal
The Fire Resistance Performance of Recycled Aggregate Concrete Columns with Different Concrete Compressive Strengths
Next Article in Special Issue
Preparation and Tribological Study of Biodegradable Lubrication Films on Si Substrate
Previous Article in Journal
On the Utilization of Pozzolanic Wastes as an Alternative Resource of Cement
Previous Article in Special Issue
Engineering Properties and Correlation Analysis of Fiber Cementitious Materials
Article Menu

Export Article

Open AccessArticle
Materials 2014, 7(12), 7828-7842; doi:10.3390/ma7127828

Combustion Synthesis and Photoluminescence Properties of Red-Emitting CaAlSiN3:Eu2+ Phosphor for White-LEDs

1
Department of Chemical Engineering, National Cheng Kung University, Tainan 70101, Taiwan
2
Advanced Optoelectronic Technology Center, National Cheng Kung University, Tainan 70101, Taiwan
*
Author to whom correspondence should be addressed.
Received: 18 October 2014 / Revised: 19 November 2014 / Accepted: 27 November 2014 / Published: 5 December 2014
(This article belongs to the Special Issue Selected Papers from ICETI2014)
View Full-Text   |   Download PDF [1174 KB, uploaded 5 December 2014]   |

Abstract

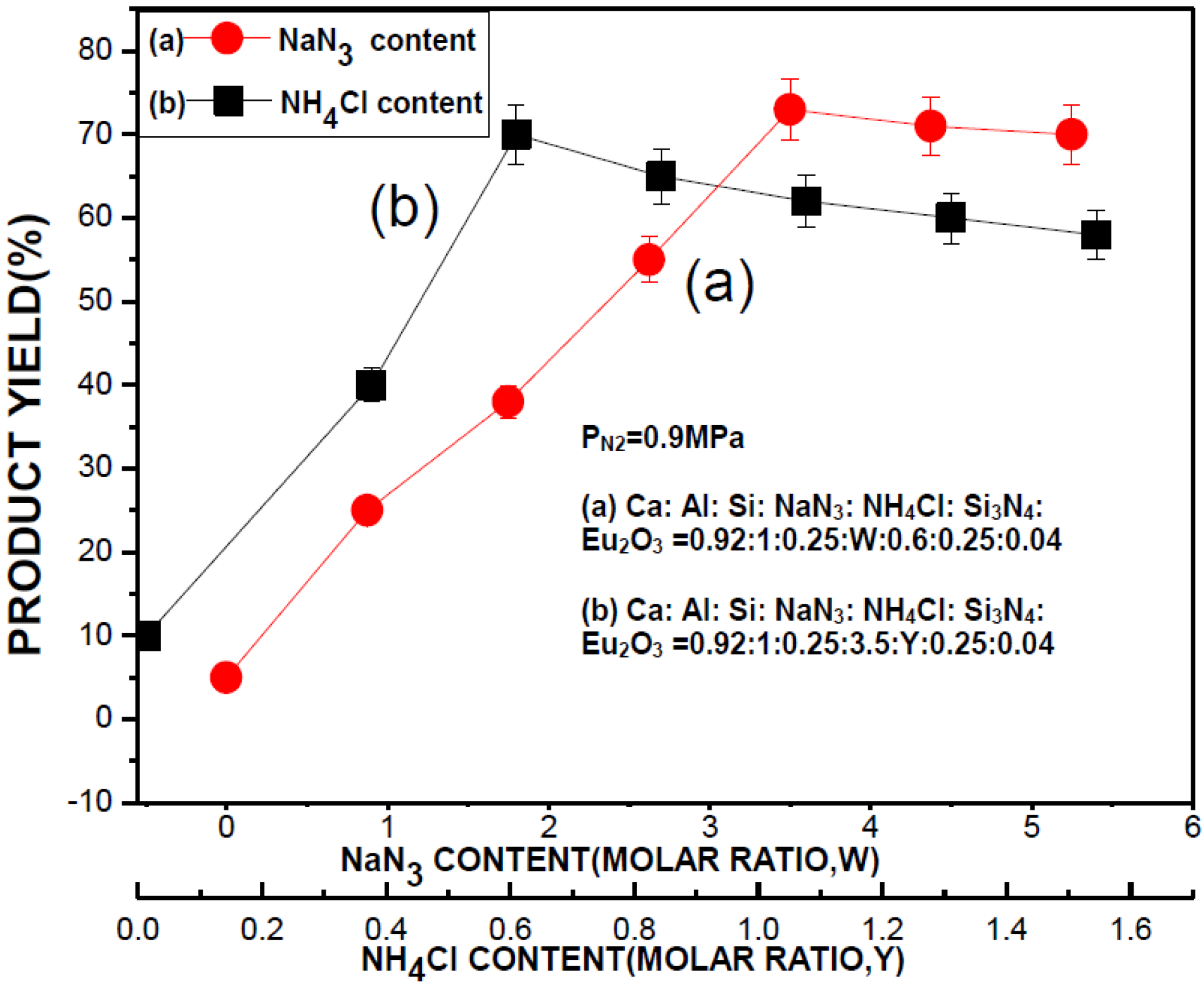

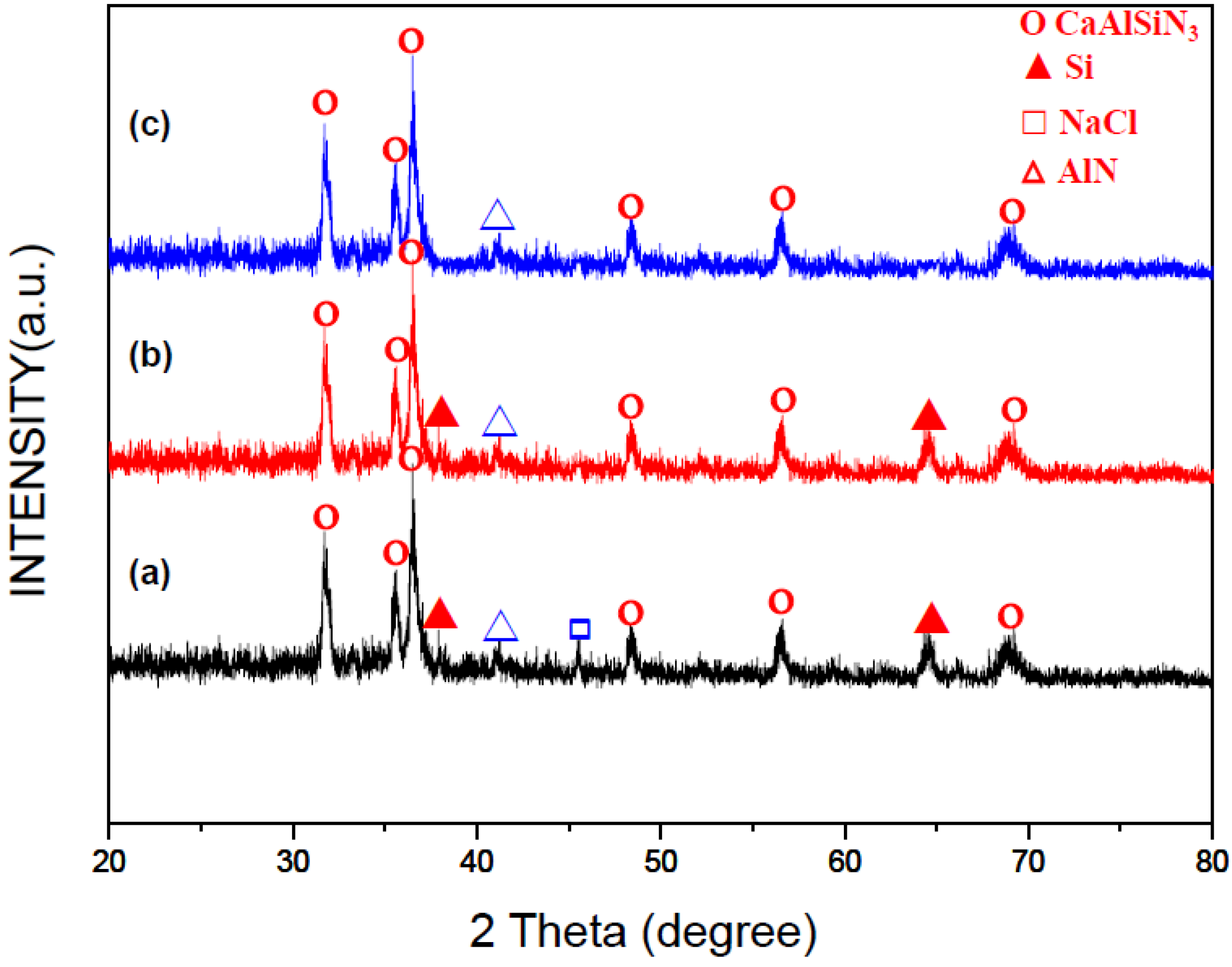

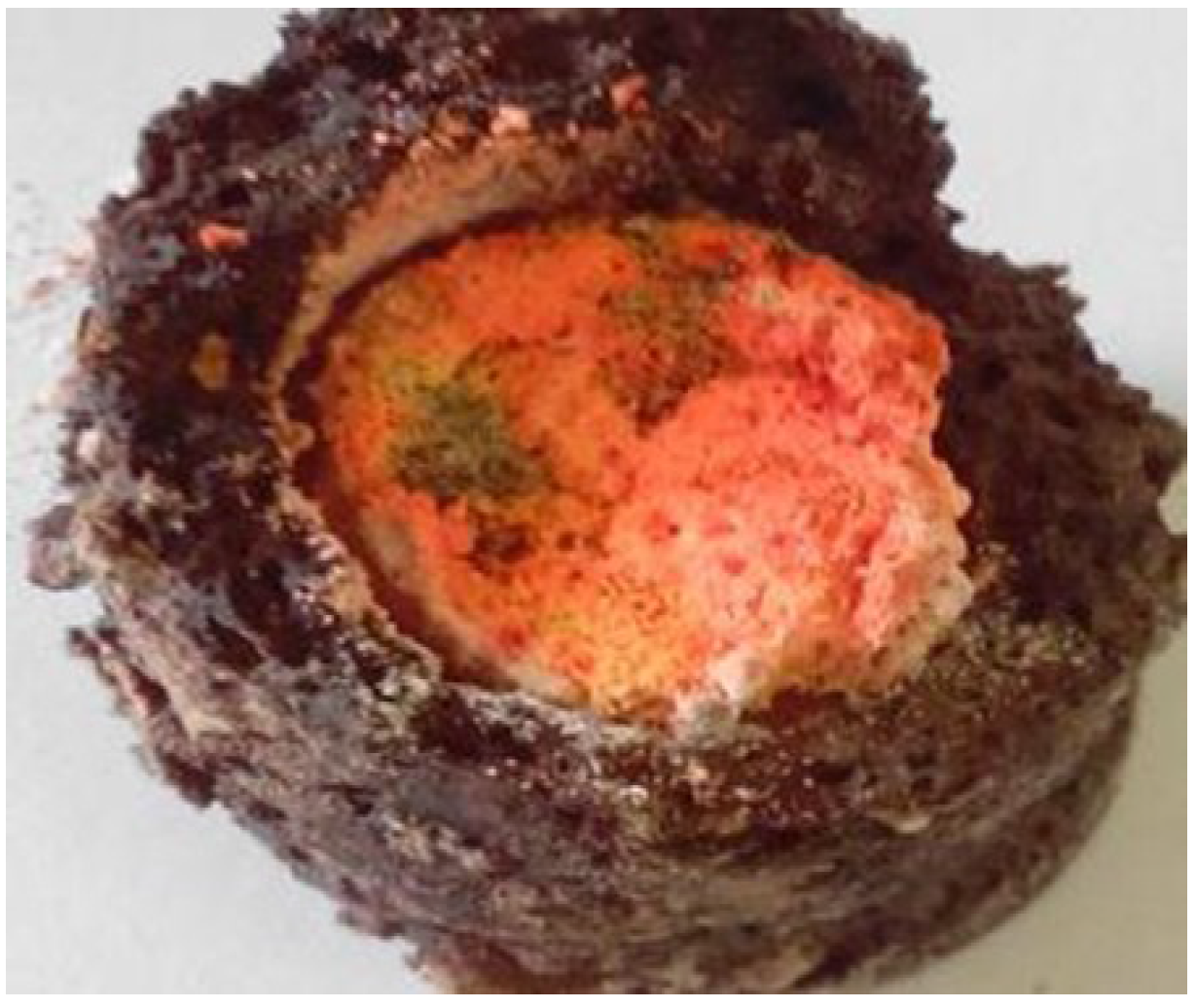

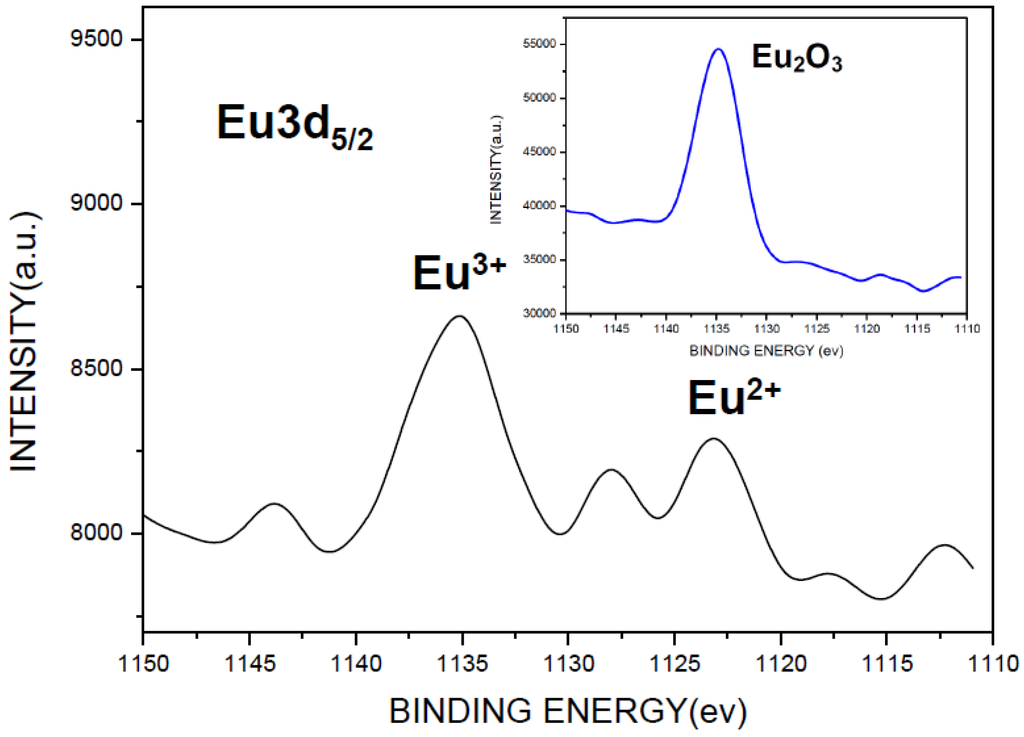

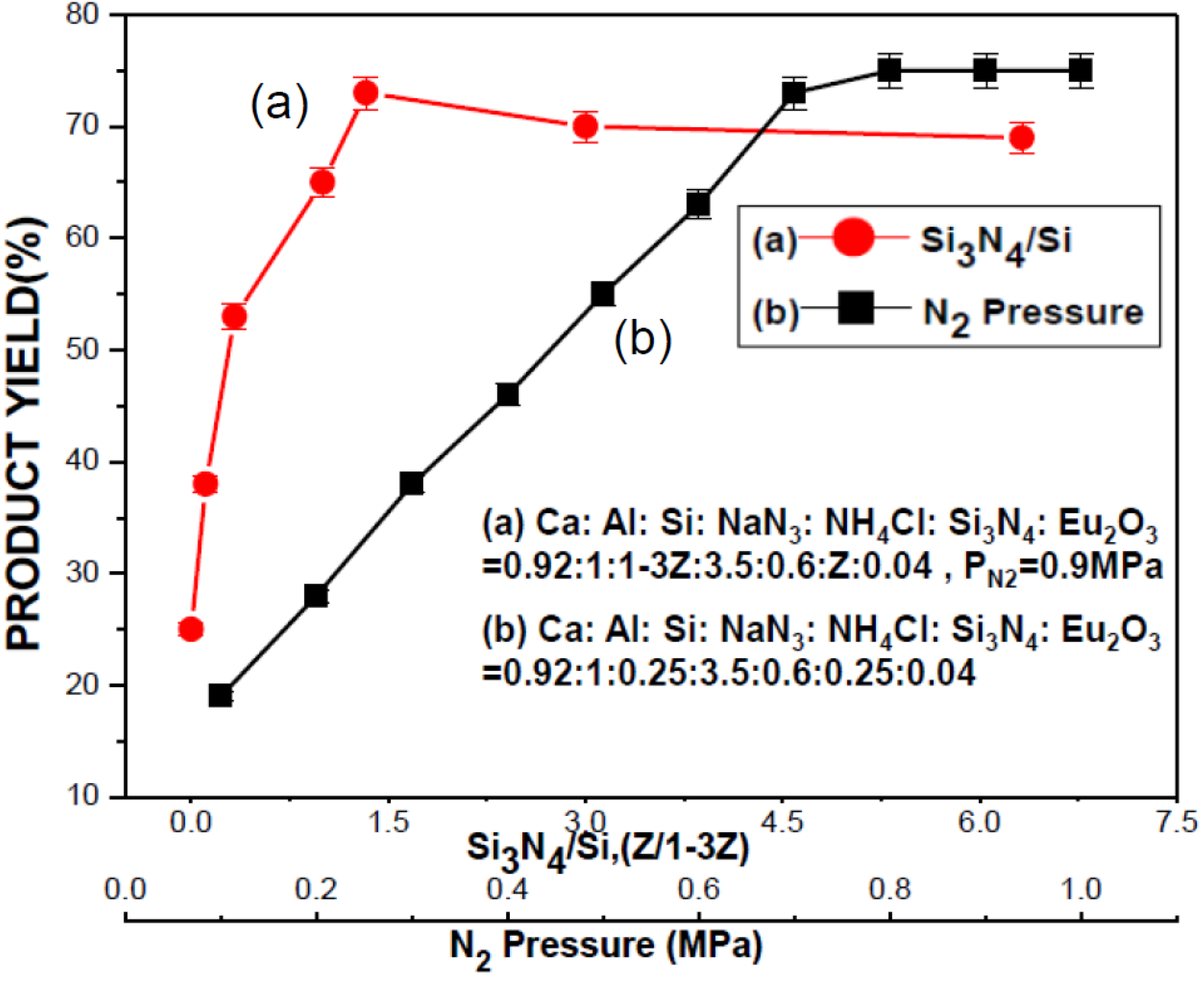

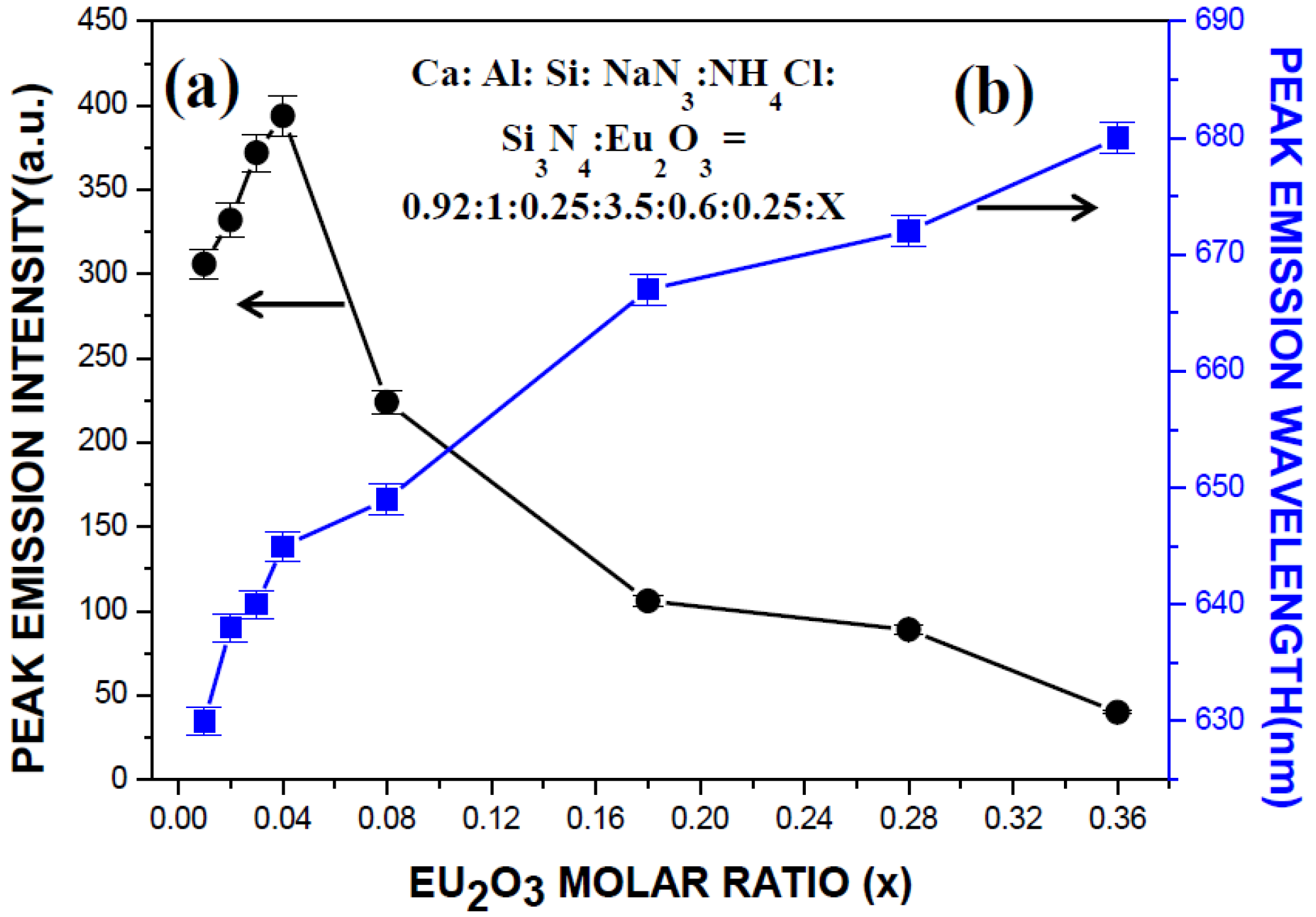

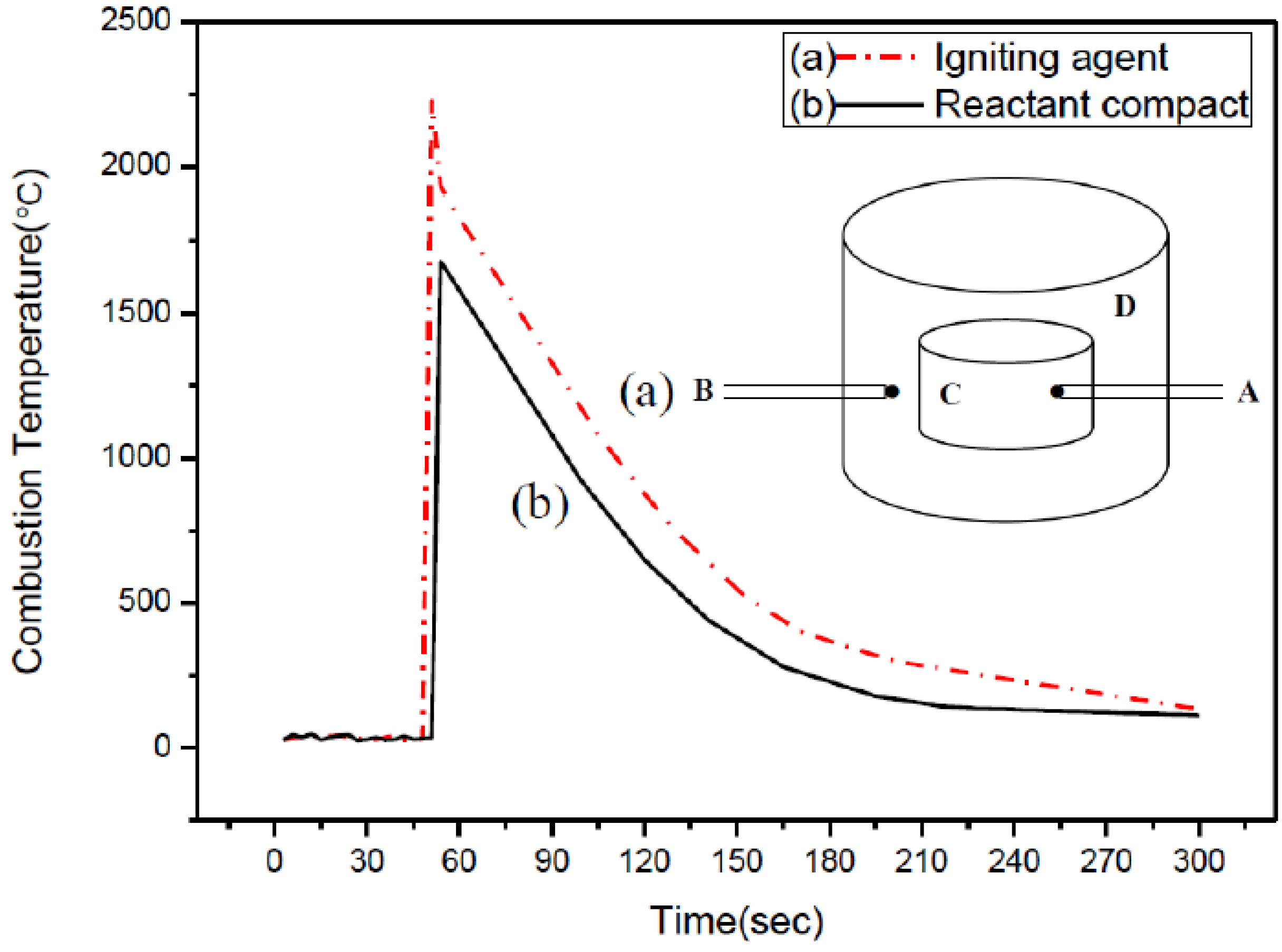

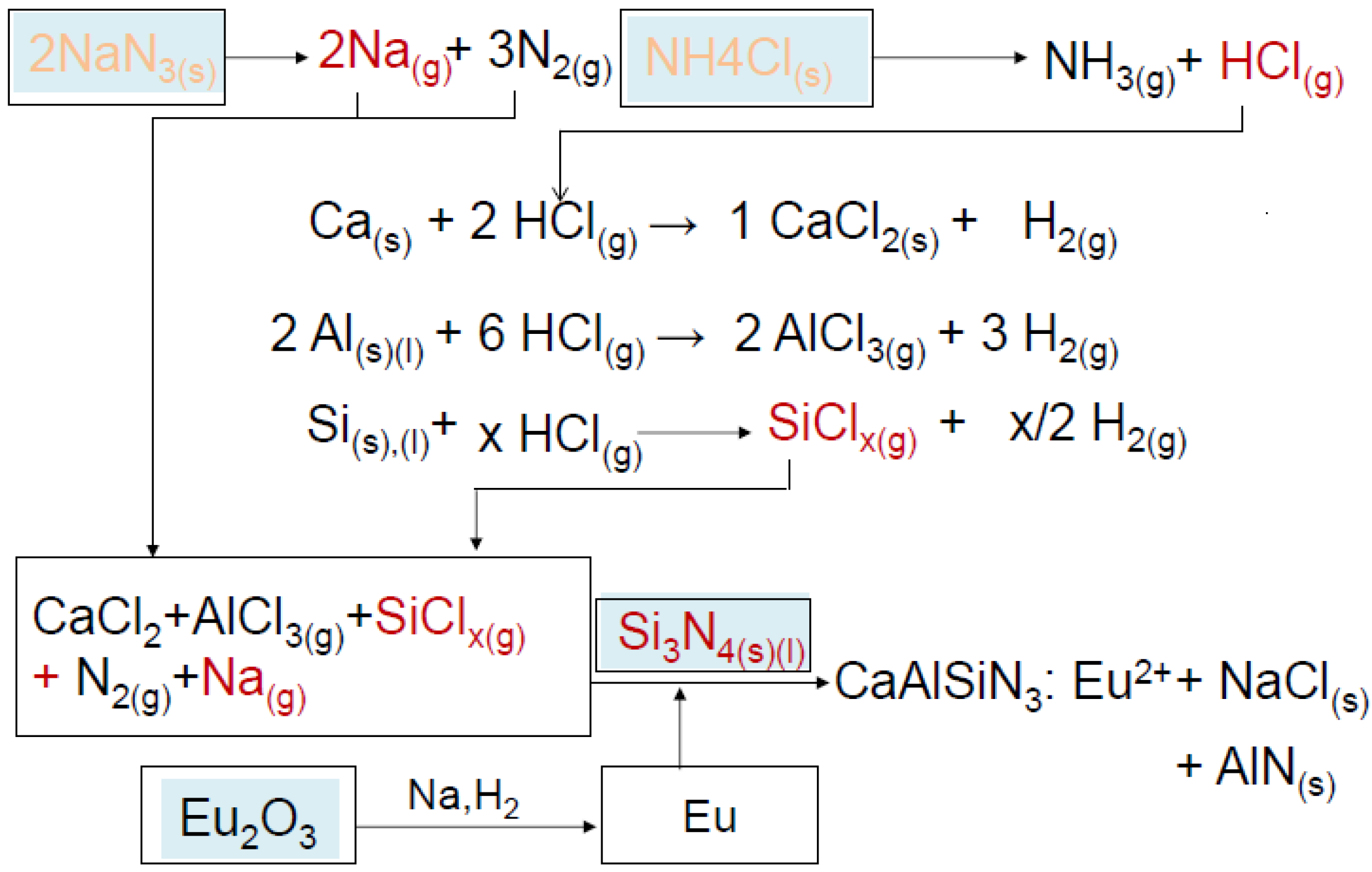

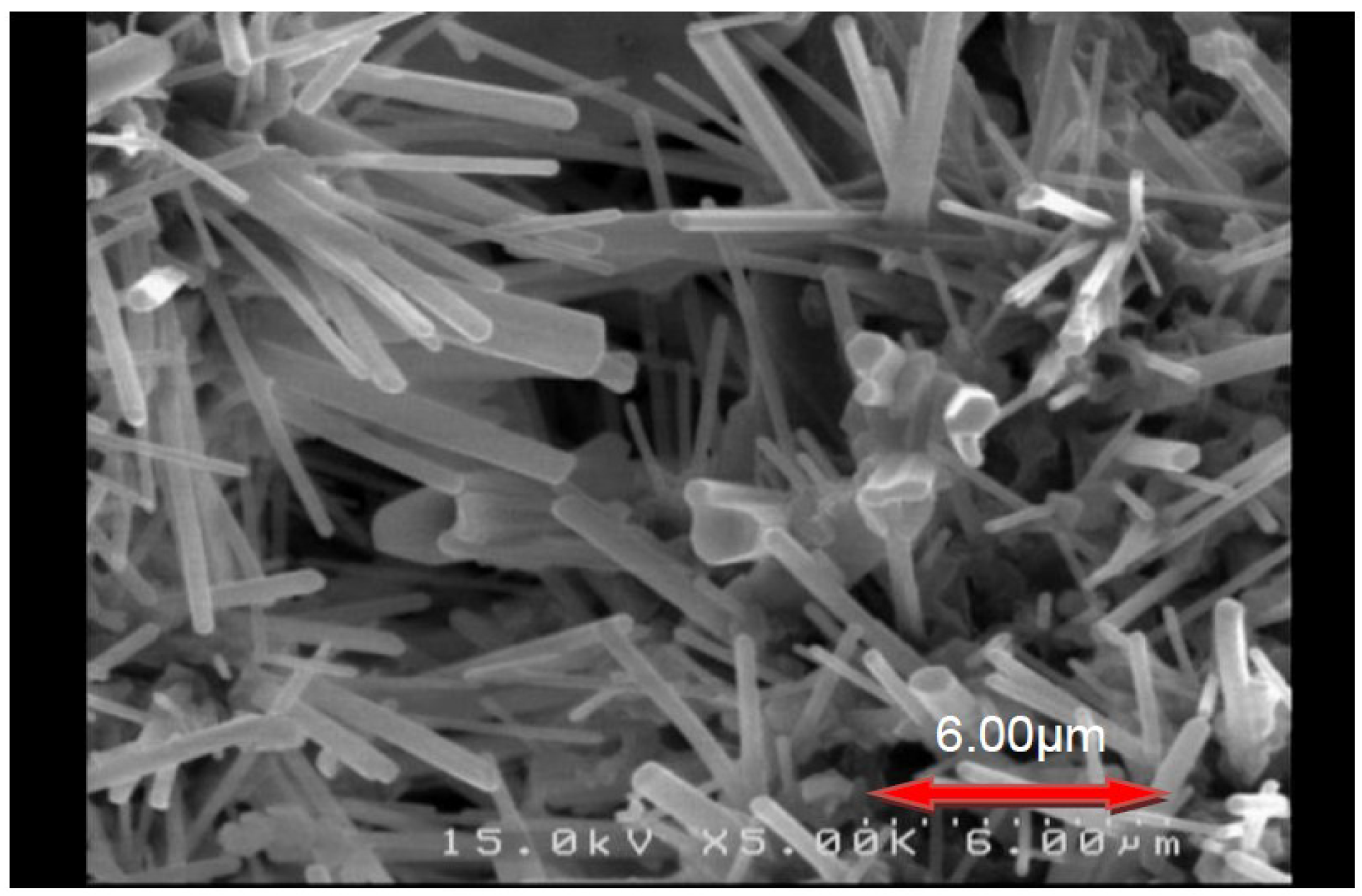

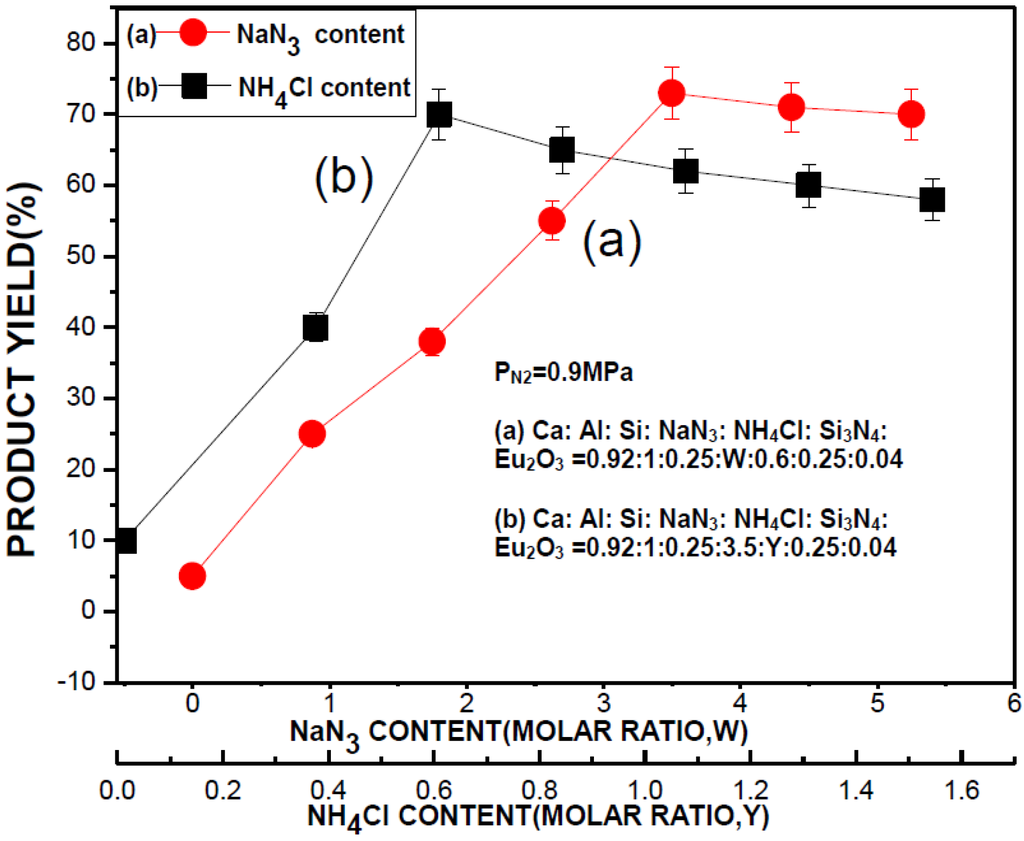

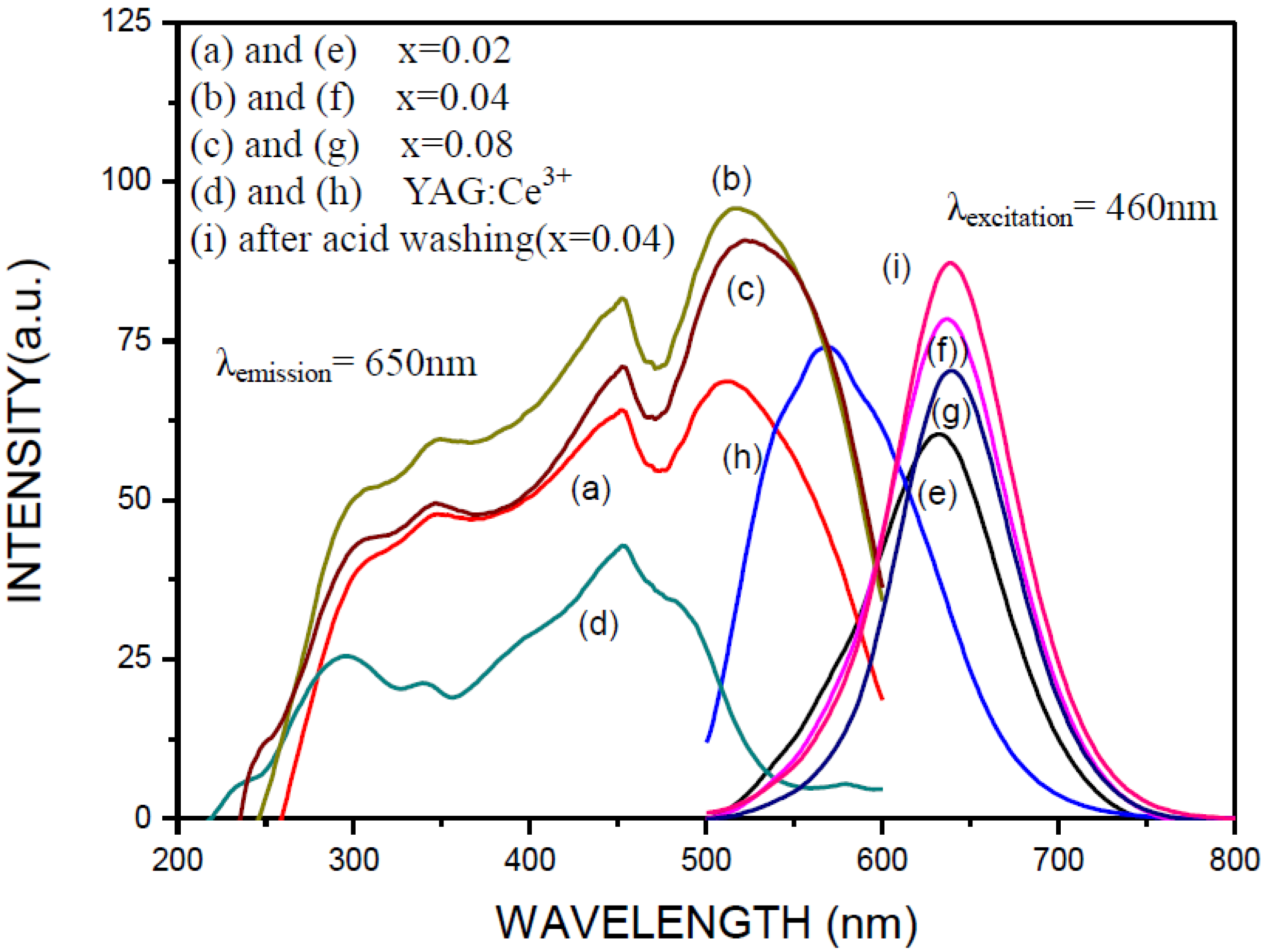

A combustion synthesis method has been developed for synthesis of Eu2+ doped CaAlSiN3 phosphor and its photoluminescence properties were investigated. Ca, Al, Si, and Eu2O3 powders were used as the Ca, Al, Si and Eu sources. The addition of NaN3, NH4Cl and Si3N4 powders was found to increase significantly the product yield. These powders were mixed and pressed into a compact, which was then wrapped up with an igniting agent (i.e., Mg+Fe3O4). The compact was ignited by electrical heating under a N2 pressure of ≤1.0 MPa. Effects of these experimental parameters on the product yield were investigated and a reaction mechanism was proposed. The synthesized CaAlSiN3:Eu2+ phosphor absorbs light in the region of 200–600 nm and shows a broad band emission in the region of 500–800 nm due to the 4f65d1 → 4f7 transition of Eu2+. The sample doped with Eu2+ at the optimized molar ratio of 0.04 is efficiently excited by the blue light (460 nm) and generates emission peaking at ~650 nm with peak emission intensity ~106% of a commercially available phosphor, YAG:Ce3+(P46-Y3).The internal quantum efficiency of the synthesized phosphor was measured to be 71%, compared to 69% of the YAG:Ce3+ (P46-Y3). View Full-Text
Keywords: CaAlSiN3:Eu2+; nitridosilicate phosphor; LED lighting; combustion synthesis CaAlSiN3:Eu2+; nitridosilicate phosphor; LED lighting; combustion synthesis
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chung, S.-L.; Huang, S.-C. Combustion Synthesis and Photoluminescence Properties of Red-Emitting CaAlSiN3:Eu2+ Phosphor for White-LEDs. Materials 2014, 7, 7828-7842.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
