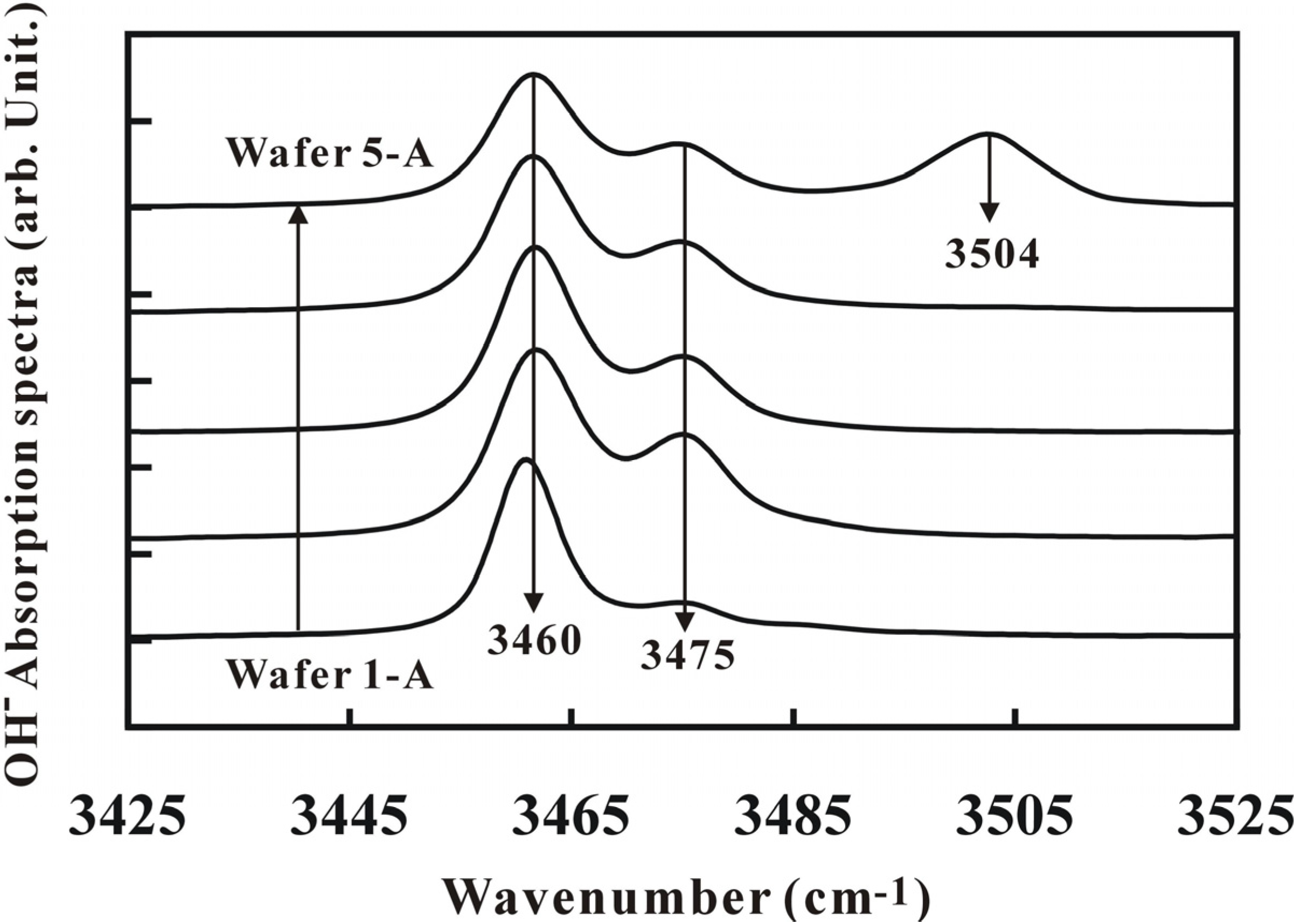

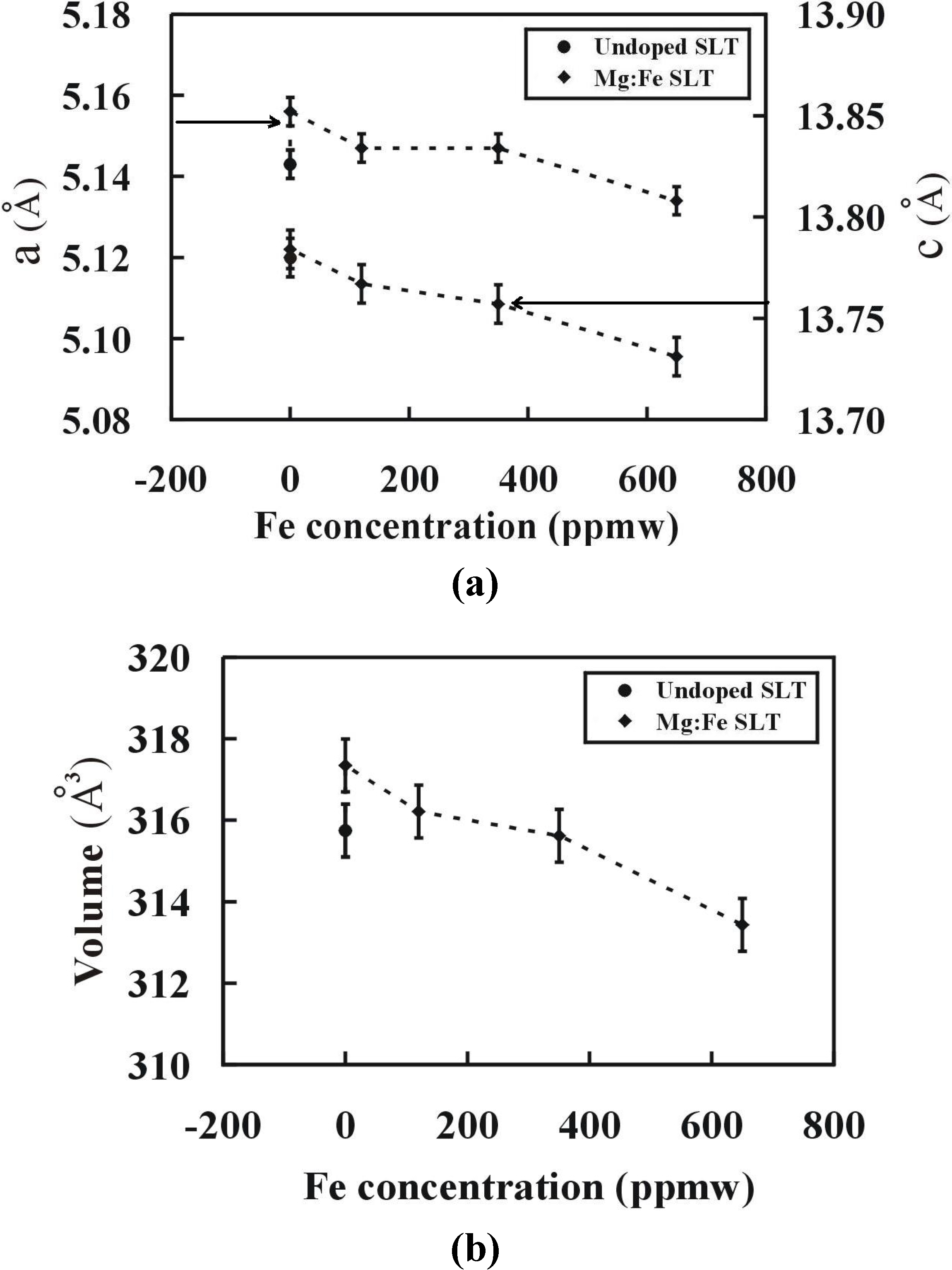

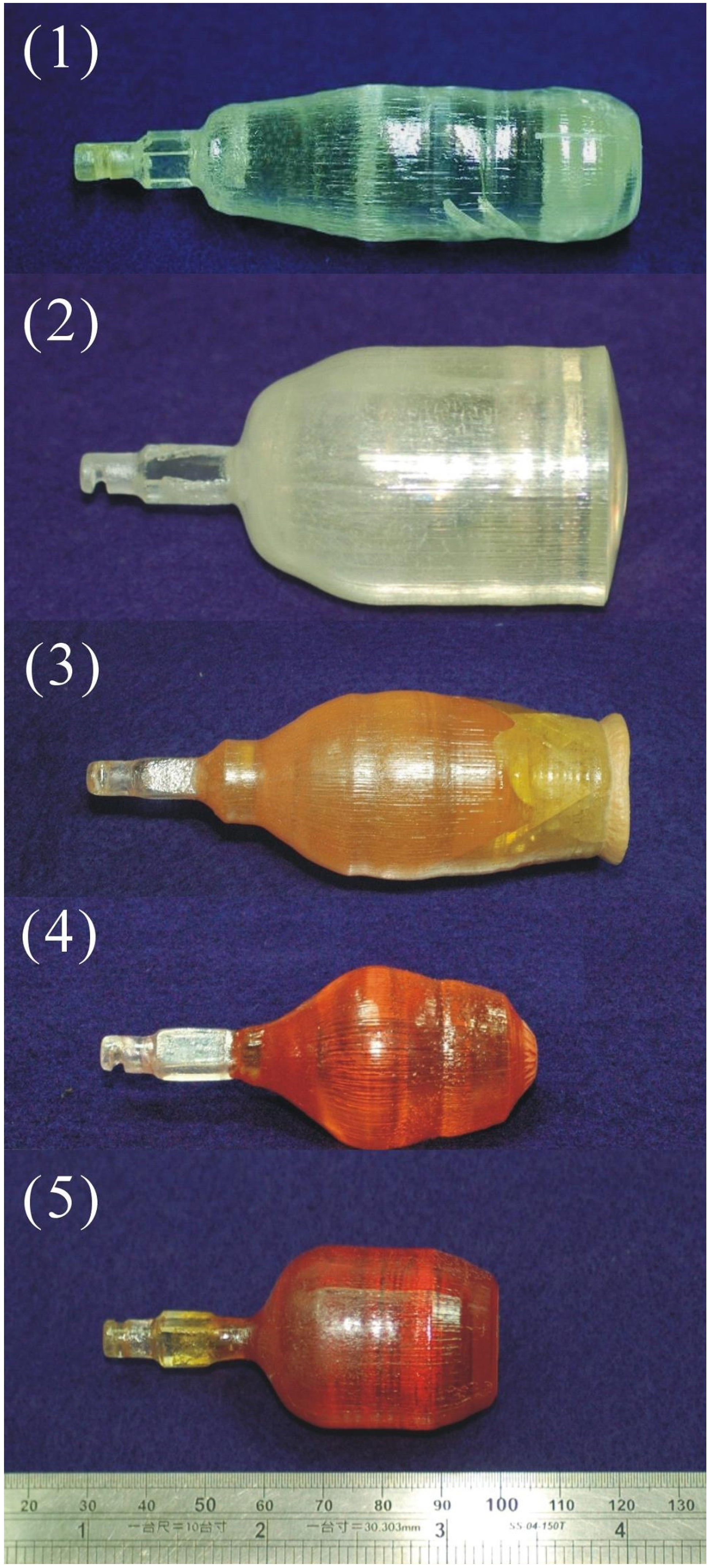

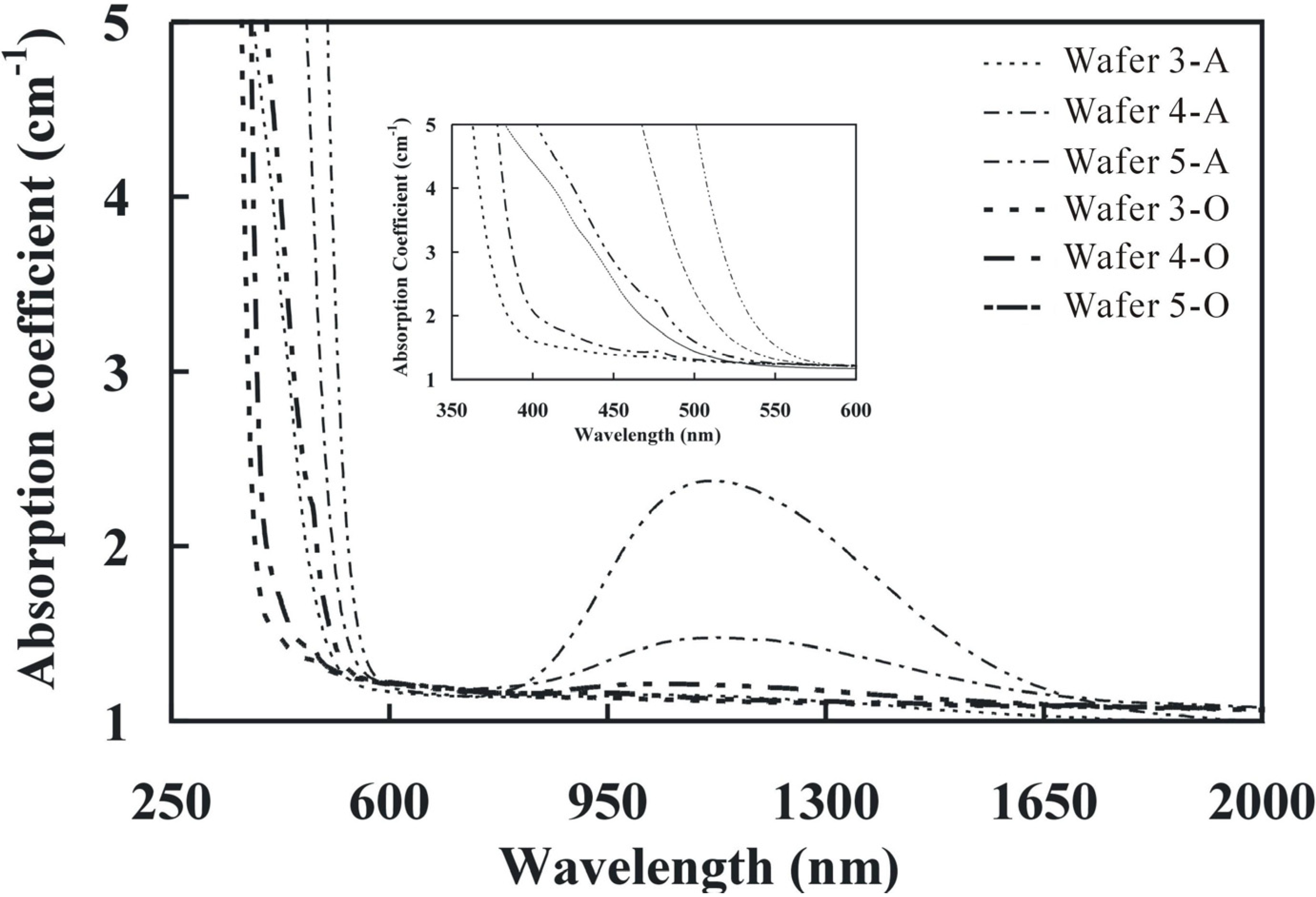

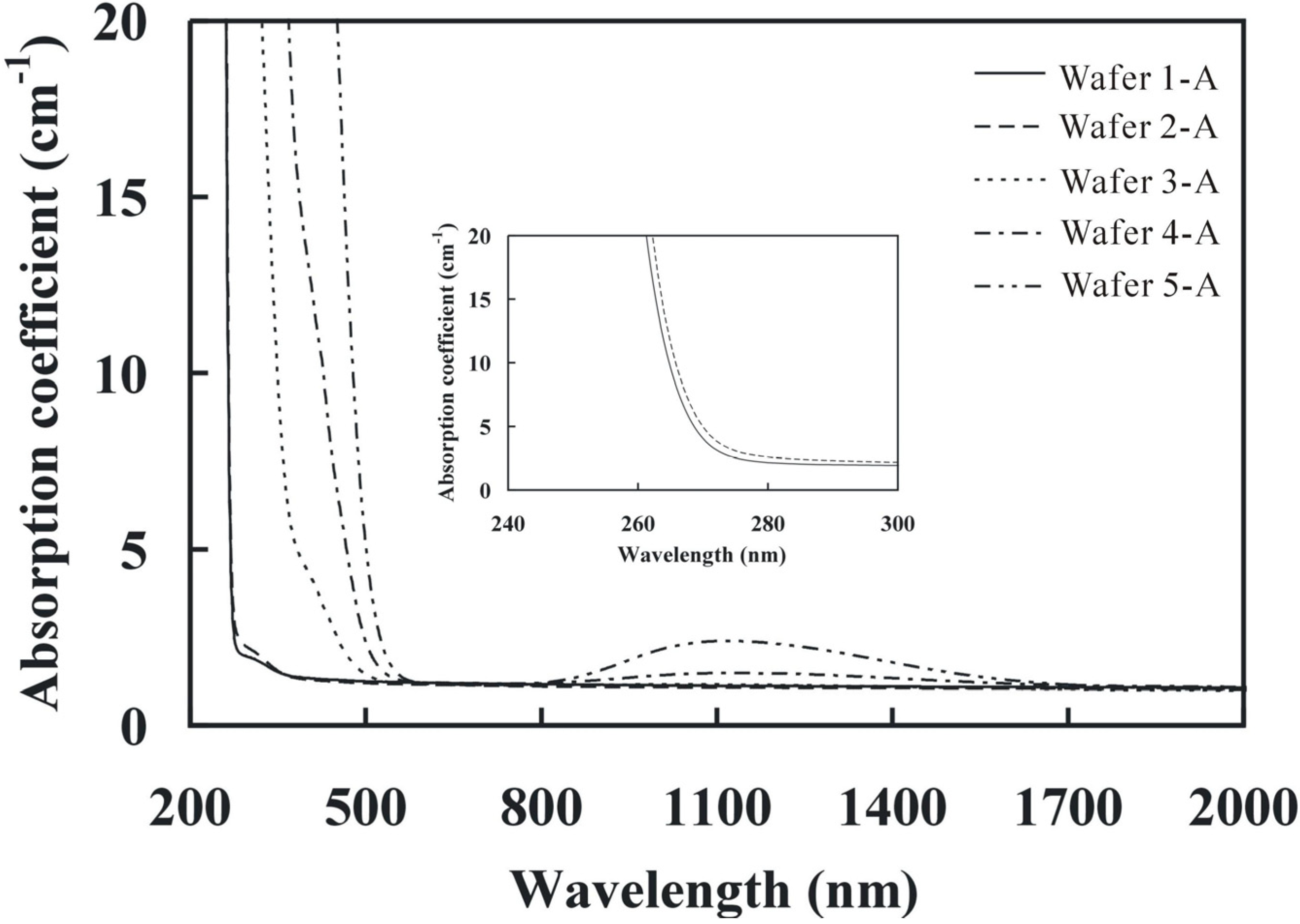

Abstract: Mg, Fe co-doped near-stoichiometric lithium tantalite (SLT) single crystals were grown by employing the zone-leveling Czochralski (ZLCz) technique. The optical properties, holographic parameters, as well as the composition of the grown crystals were measured. It was found that the Li/Ta ratio decreased with the doping of Mg and Fe ions. A red shift was observed in absorption spectrum for the Mg, Fe co-doped crystals compared to the undoped and Mg-doped ones. The effect of the iron ions (Fe2+ and Fe3+) was further discussed based on the specified absorption bands. Moreover, the occupation mechanism for the defects was discussed by using the IR absorption spectrum, which was attributed to the FeTa3− defects in the highly Fe-doped crystal. In addition, the holographic parameters were also found to be improved with a higher Fe/Ta ratio in the crystals.
Keywords: LiTaO3 crystals; X-ray diffraction; single crystal growth; holographic properties
Export to BibTeX
MDPI and ACS Style
Hsu, W.T.; Chen, Z.B.; Wu, C.C.; Choubey, R.K.; Lan, C.W. Optical Properties of Mg, Fe, Co-Doped Near-Stoichiometric LiTaO3 Single Crystals. Materials 2012, 5, 227-238.
Hsu WT, Chen ZB, Wu CC, Choubey RK, Lan CW. Optical Properties of Mg, Fe, Co-Doped Near-Stoichiometric LiTaO3 Single Crystals. Materials. 2012; 5(2):227-238.
Hsu, Wei Tse; Chen, Zhi Bin; Wu, Chien Cheng; Choubey, Ravi Kant; Lan, Chung Wen. 2012. "Optical Properties of Mg, Fe, Co-Doped Near-Stoichiometric LiTaO3 Single Crystals." Materials 5, no. 2: 227-238.
