Materials 2012, 5(11), 2423-2438; doi:10.3390/ma5112423
Article

Photocatalytic Water Splitting for Hydrogen Production with Novel Y2MSbO7 (M = Ga, In, Gd) under Visible Light Irradiation

* email and email
Received: 3 September 2012; in revised form: 14 November 2012 / Accepted: 20 November 2012 / Published: 21 November 2012
(This article belongs to the Special Issue Advanced Materials for Water-Splitting)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

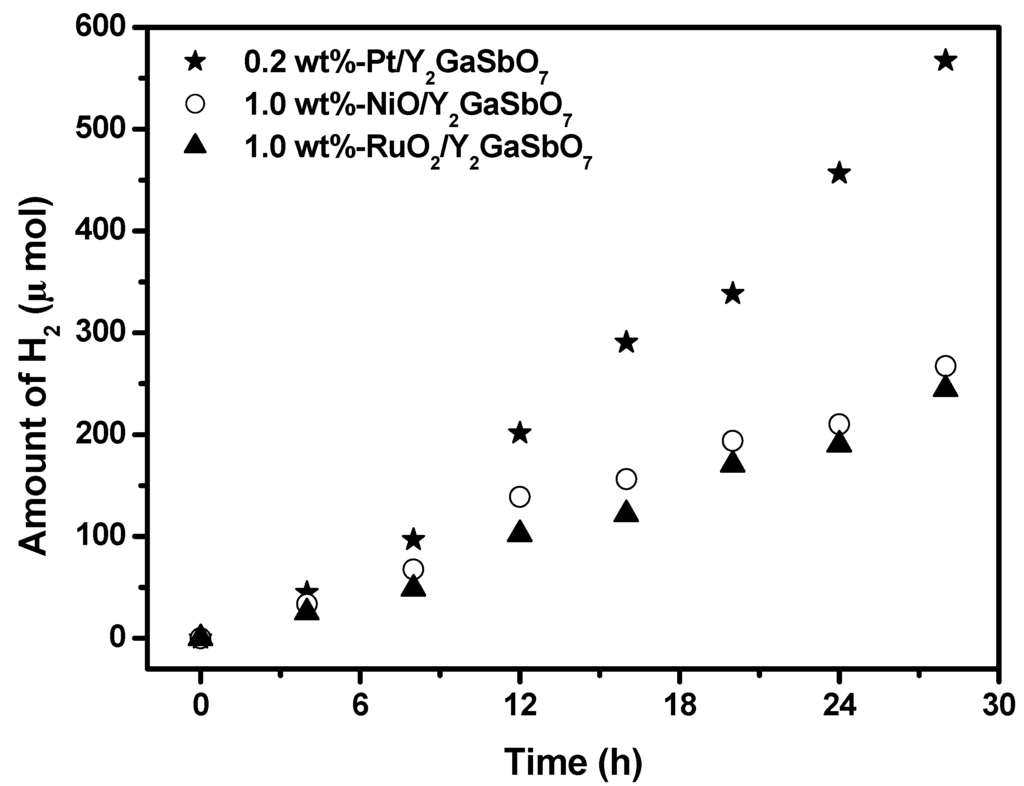

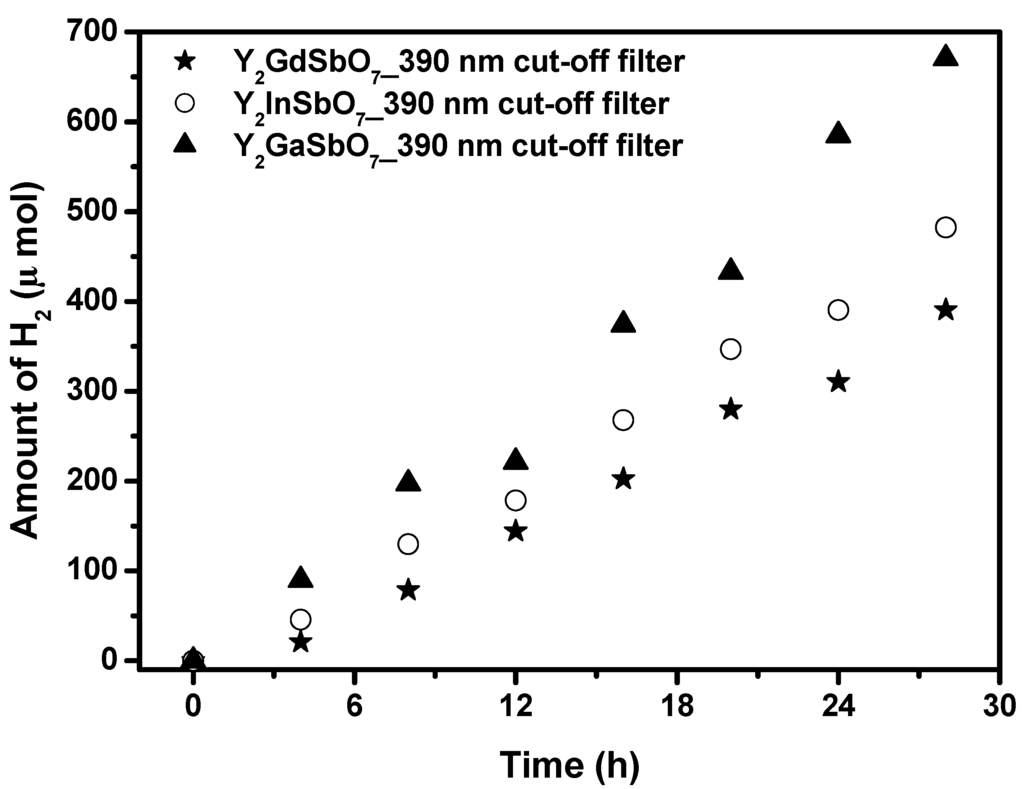

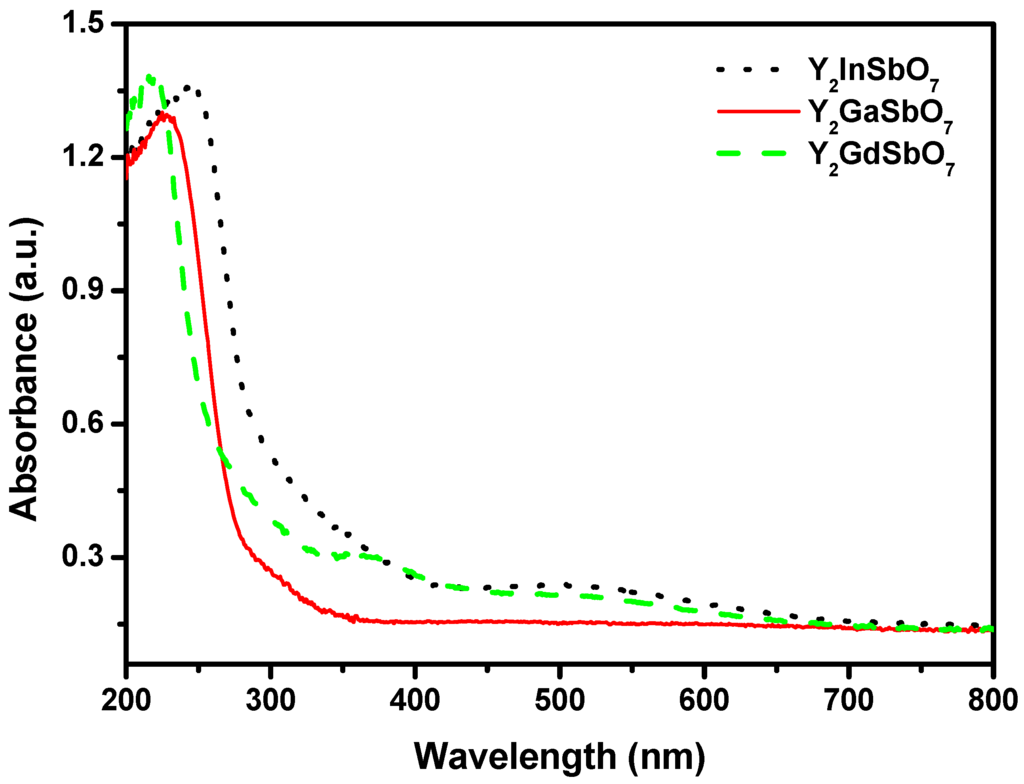

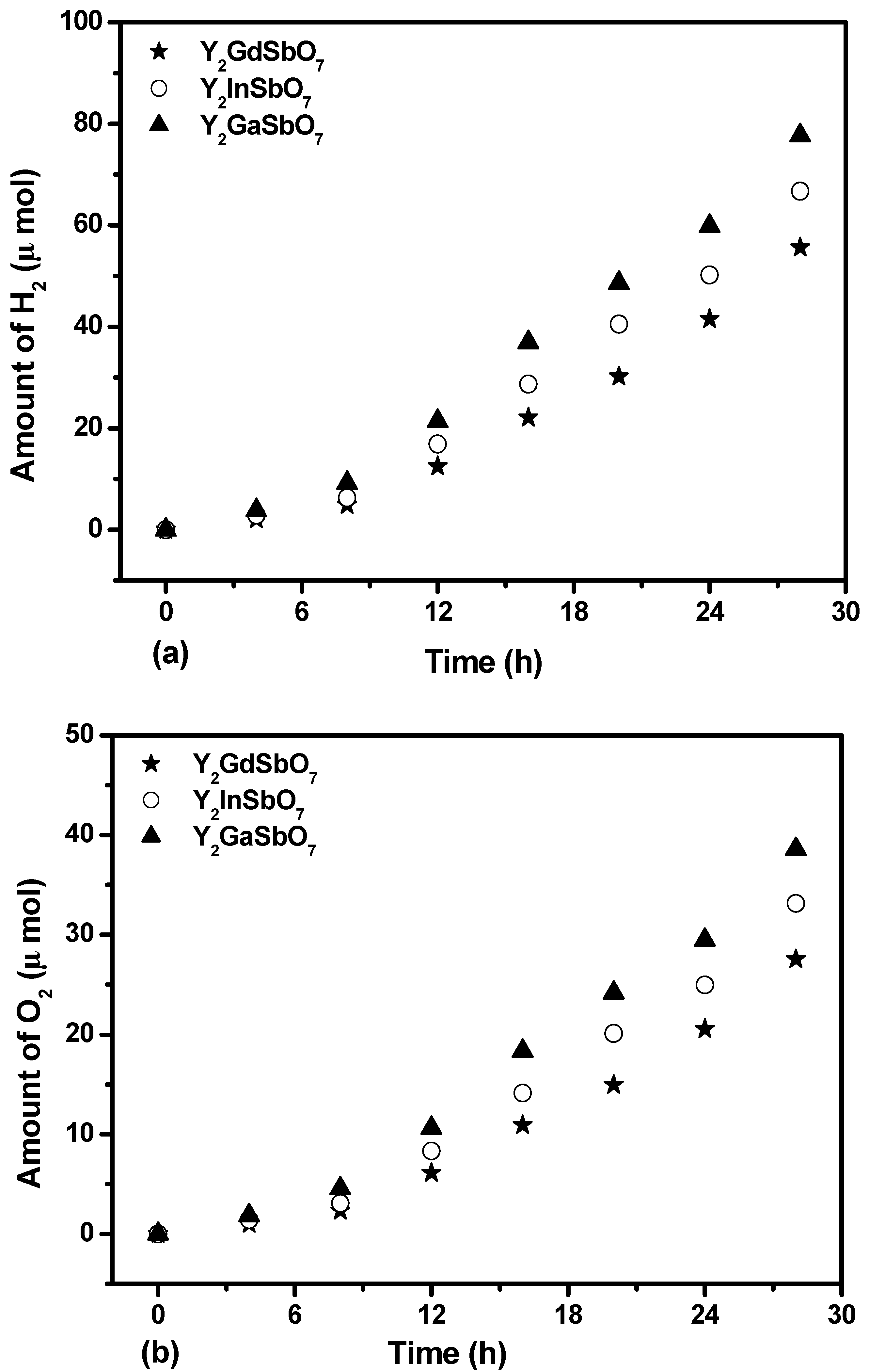

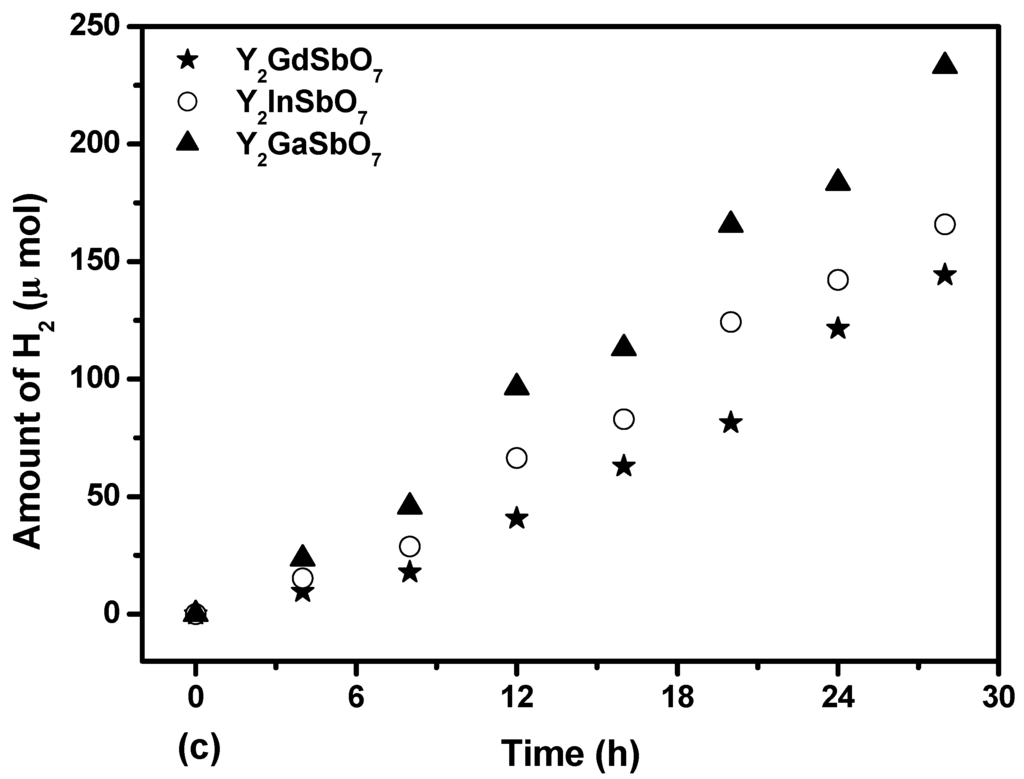

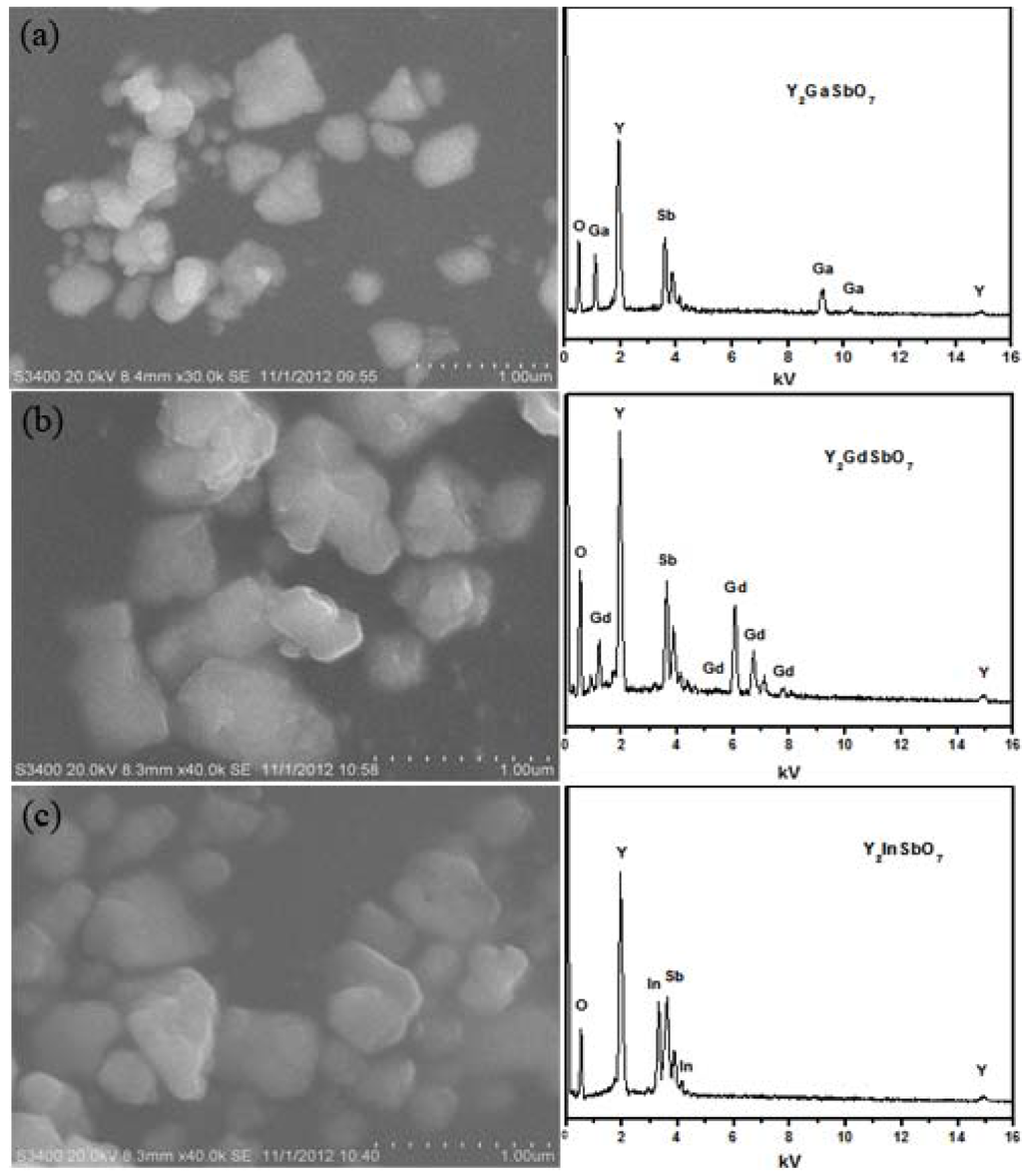

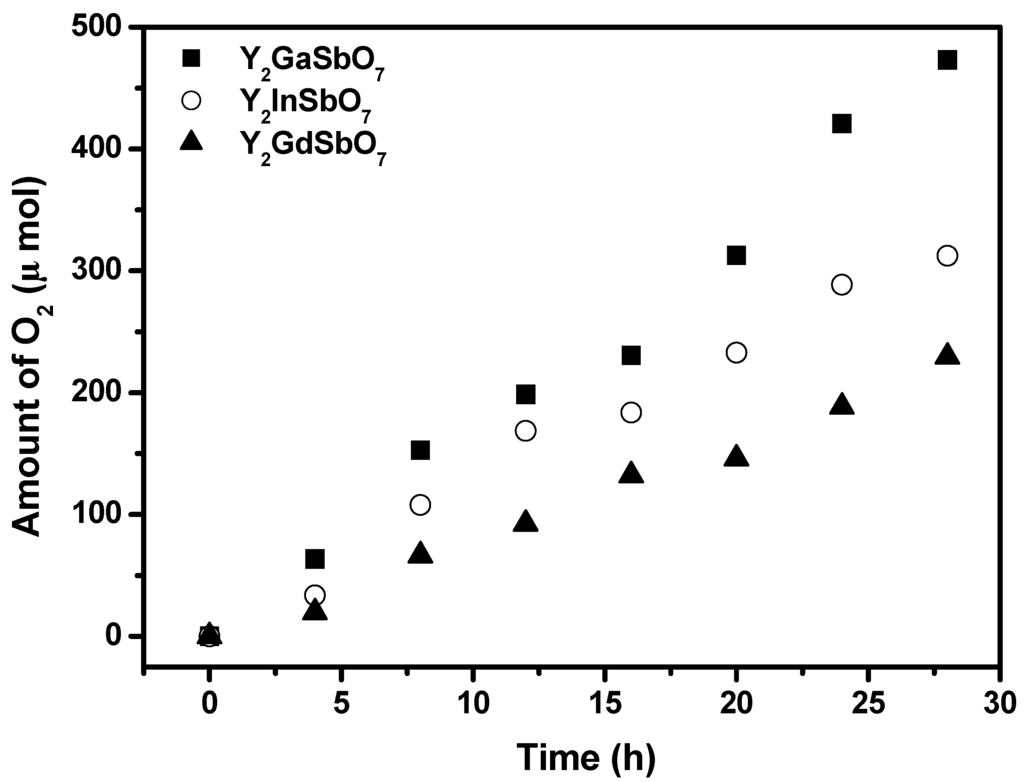

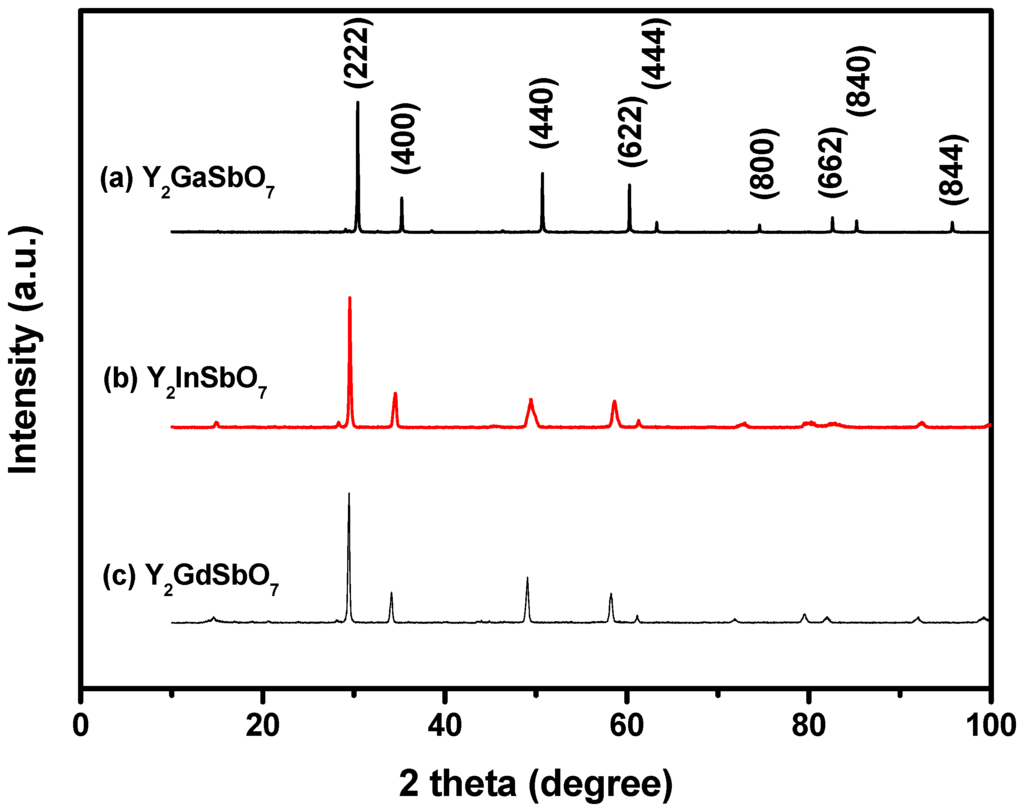

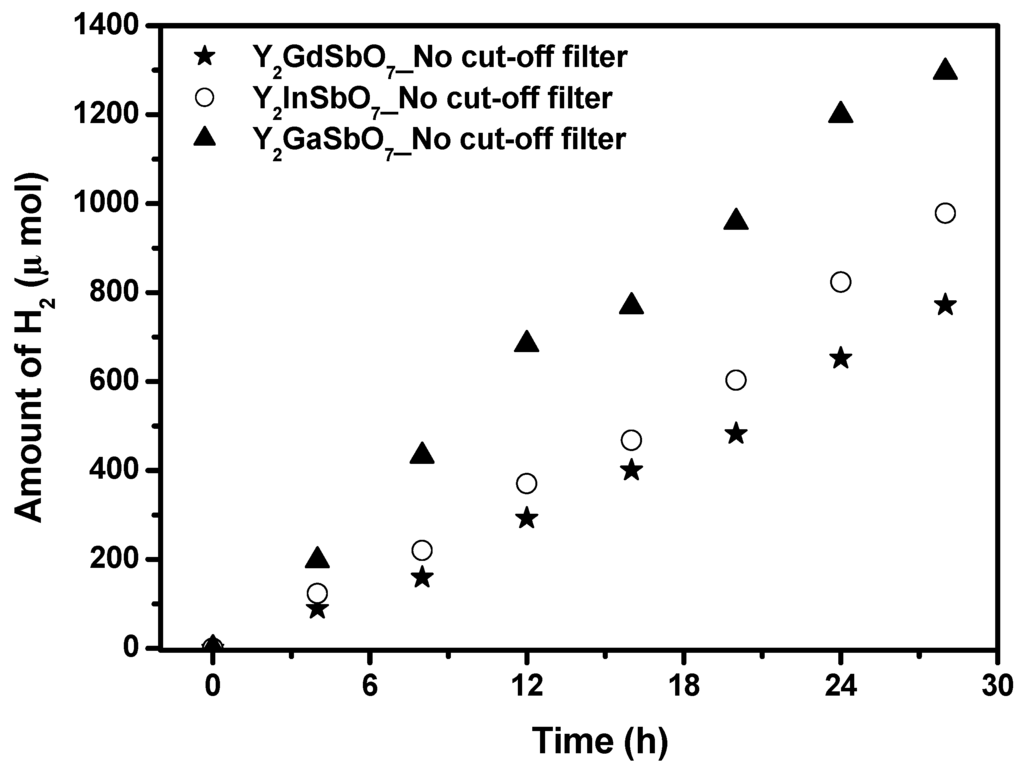

Abstract: Novel photocatalysts Y2MSbO7 (M = Ga, In, Gd) were synthesized by the solid state reaction method for the first time. A comparative study on the structural and photocatalytic properties of Y2MSbO7 (M = Ga, In, Gd) was reported. The results showed that Y2GaSbO7, Y2InSbO7 and Y2GdSbO7 crystallized with the pyrochlore-type structure, cubic crystal system, and space group Fd3m. The lattice parameter for Y2GaSbO7 was 10.17981 Å. The lattice parameter for Y2InSbO7 was 10.43213 Å. The lattice parameter for Y2GdSbO7 was 10.50704 Å. The band gap of Y2GaSbO7 was estimated to be 2.245 eV. The band gap of Y2InSbO7 was 2.618 eV. The band gap of Y2GdSbO7 was 2.437 eV. For the photocatalytic water-splitting reaction, H2 or O2 evolution was observed from pure water with Y2GaSbO7, Y2InSbO7 or Y2GdSbO7 as catalyst under visible light irradiation. (Wavelength > 420 nm). Furthermore, H2 and O2 were also evolved by using Y2GaSbO7, Y2InSbO7 or Y2GdSbO7 as a catalyst from CH3OH/H2O and AgNO3/H2O solutions, respectively, under visible light irradiation (λ > 420 nm). Y2GaSbO7 showed the highest activity compared with Y2InSbO7 or Y2GdSbO7. At the same time, Y2InSbO7 showed higher activity compared with Y2GdSbO7. The photocatalytic activities were further improved under visible light irradiation with Y2GaSbO7, Y2InSbO7 or Y2GdSbO7 being loaded by Pt, NiO or RuO2. The effect of Pt was better than that of NiO or RuO2 for improving the photocatalytic activity of Y2GaSbO7, Y2InSbO7 or Y2GdSbO7.
Keywords: Y2MSbO7 (M = Ga; In; Gd); photocatalytic water splitting; visible light irradiation; photocatalytic property
PDF Full-text Download PDF Full-Text [248 KB, uploaded 21 November 2012 12:01 CET]

Export to BibTeX |
EndNote


MDPI and ACS Style

Luan, J.; Chen, J. Photocatalytic Water Splitting for Hydrogen Production with Novel Y2MSbO7 (M = Ga, In, Gd) under Visible Light Irradiation. Materials 2012, 5, 2423-2438.

AMA Style

Luan J, Chen J. Photocatalytic Water Splitting for Hydrogen Production with Novel Y2MSbO7 (M = Ga, In, Gd) under Visible Light Irradiation. Materials. 2012; 5(11):2423-2438.

Chicago/Turabian Style

Luan, Jingfei; Chen, Jianhui. 2012. "Photocatalytic Water Splitting for Hydrogen Production with Novel Y2MSbO7 (M = Ga, In, Gd) under Visible Light Irradiation." Materials 5, no. 11: 2423-2438.

Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
