Open AccessArticle
Materials 2009, 2(1), 146-168; doi:10.3390/ma2010146

Preparation of Novel Banana-Shaped Triple Helical Liquid Crystals by Metal Coordination

School of Chemistry, The University of Birmingham, Birmingham, Edgbaston, B15 2TT, UK
Department of Chemistry, University of Warwick, Coventry, CV4 7AL, UK
Author to whom correspondence should be addressed.
Received: 2 February 2009 / Revised: 25 February 2009 / Accepted: 11 March 2009 / Published: 13 March 2009
View Full-Text   |   Download PDF [197 KB, uploaded 13 March 2009]   |

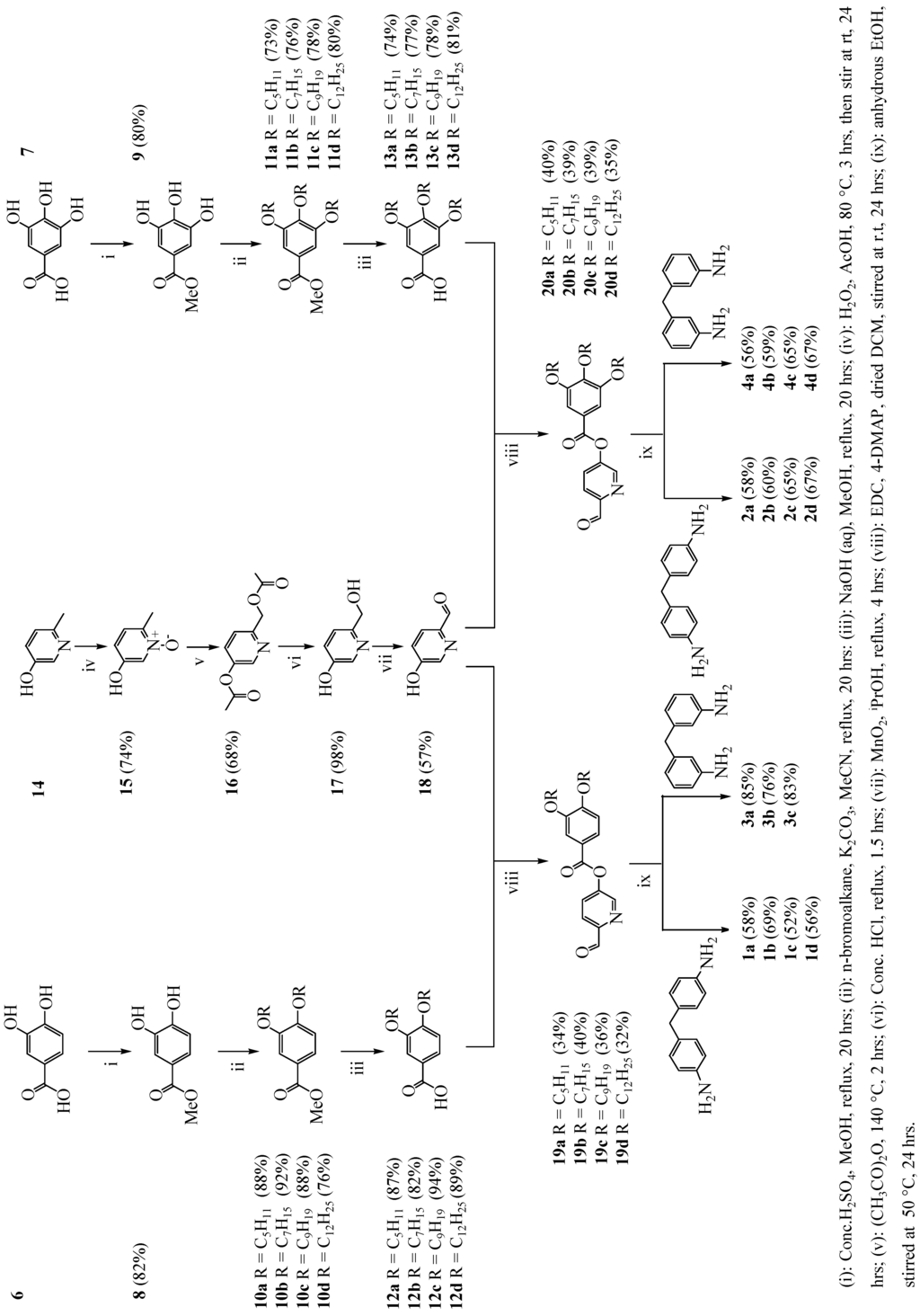

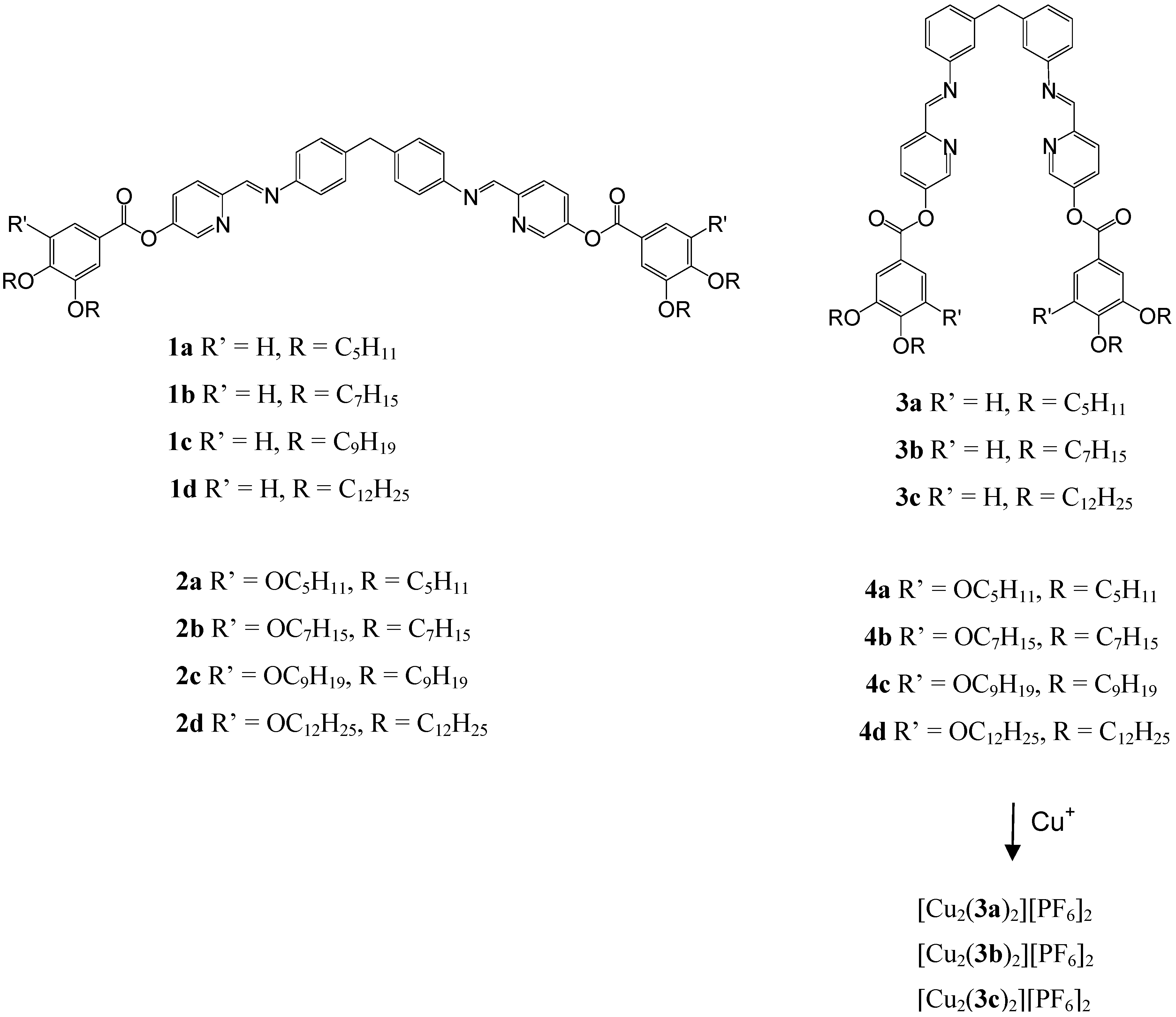

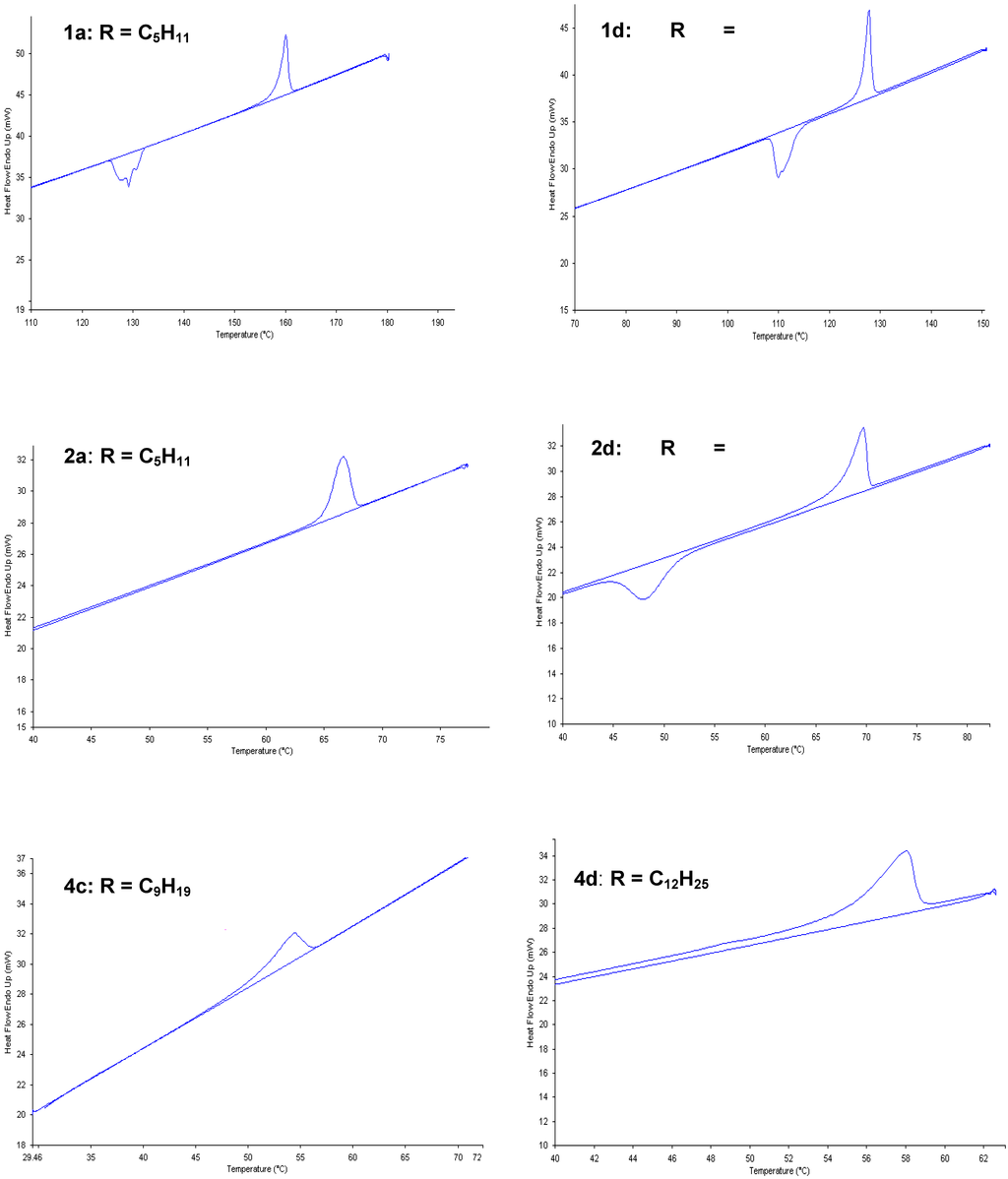

The synthesis of a series of banana-shaped structures has been carried out, in which the bend unit is formed by a 4,4’-methylenedianiline or 3,3’-methylenedianiline core bearing two symmetric pyridylimine linkages to di- and tri- alkoxyphenylester moieties on the side arms. The molecules, in addition to providing an elongated aromatic central core associated with liquid crystal (LC) molecules, also provide binding sites for metals. The methylenedianiline spacer incorporates phenylene groups that sterically prevent the two binding sites from co-ordinating to a single metal centre and the central methylene unit introduces enhanced flexibility into the ligand backbone. Furthermore, complexes have been formed by the co-ordination between 3, 3’-methylenedianiline containing ligands and Cu (I) ions [Cu2(3a-c)2][PF6]2. Electrospray Mass Spectrometry (ESMS) and Fast Atom Bombardment Mass Spectrometry (FABMS) showed the formation of dimeric species; [Cu (L)2][PF6]2. Finally,thermal analysis of the ligands (1a-d, 2a-d, 3a-c and 4a-d) andCu complexes [Cu2(3a-c)2][PF6]2 has been carried out in order to investigate the phase properties of these materials. None of the banana-shaped ligands and the metal complexes [Cu2(3a-c)2][PF6]2 showed any mesophases.
Keywords: metallomesogens; banana; liquid crystals; triple helical; mesogenic metallomesogens; banana; liquid crystals; triple helical; mesogenic

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Iqbal, P.; Mayanditheuar, M.; Childs, L.J.; Hannon, M.J.; Spencer, N.; Ashton, P.R.; Preece, J.A. Preparation of Novel Banana-Shaped Triple Helical Liquid Crystals by Metal Coordination. Materials 2009, 2, 146-168.
