Comparative Evaluation of Surface Roughness and Hardness of 3D Printed Resins
Abstract
:1. Introduction

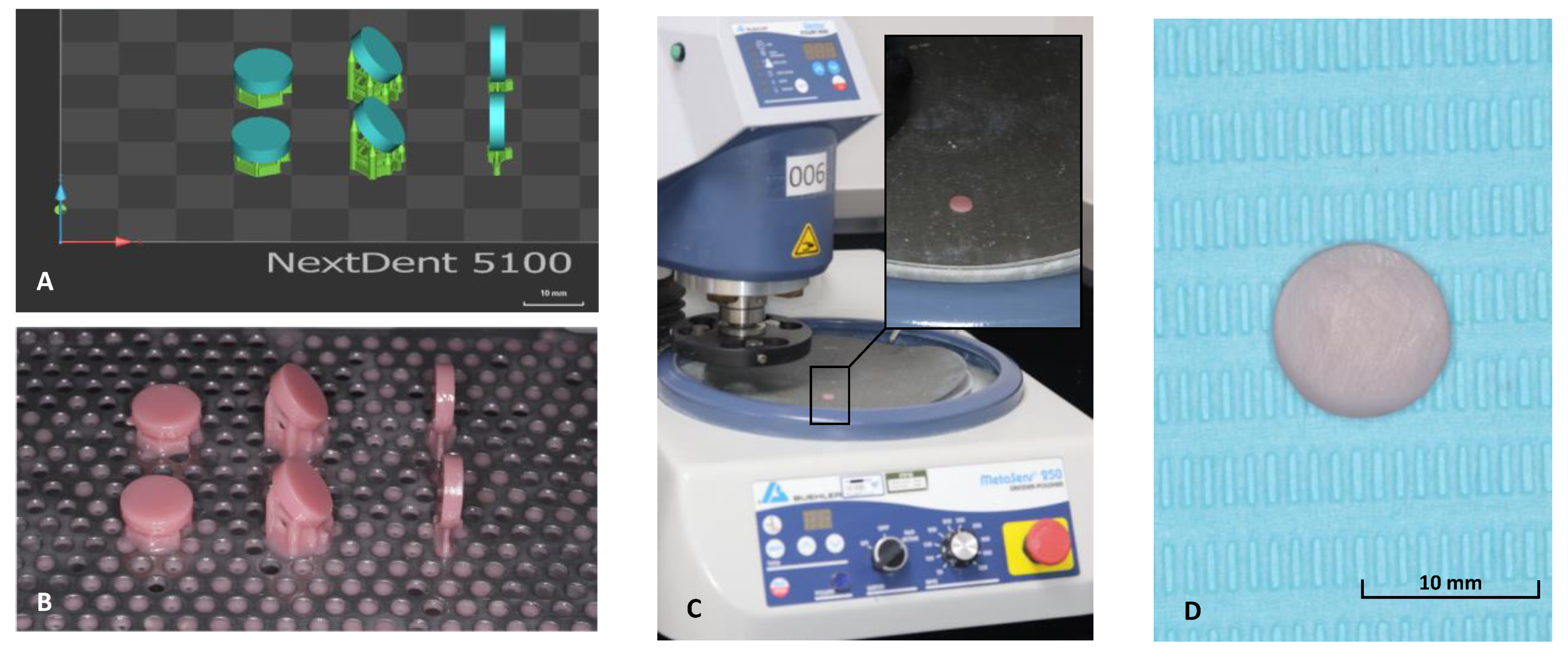

2. Materials and Methods
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
3D | Three-dimensional |
ANOVA | Analysis of variance |
AS | ASIGA |
CAD-CAM | Computer-aided design-Computer-aided manufacturing |
DBRs | Denture base resins |
DLP | Digital light processing |
HP | Heat polymerized |
LED | Light-emitting diode |
µm | Micrometer |
ND | NextDent |
PMMA | Poly methyl methacrylate |
Ra | Surface roughness average |
SD | Standard deviation |
SLA | Stereolithography |
STL | Standard tessellation language |
VH | Vickers hardness |
VHN | Vickers hardness number |
References
- Gautam, R.; Singh, R.D.; Sharma, V.P.; Siddhartha, R.; Chand, P.; Kumar, R. Biocompatibility of polymethylmethacrylate resins used in dentistry. J. Biomed. Mater. Res. Part B Appl. Biomater. 2012, 100, 1444–1450. [Google Scholar] [CrossRef] [PubMed]
- Paulino, M.R.; Alves, L.R.; Gurgel, B.C.; Calderon, P.S. Simplified versus traditional techniques for complete denture fabrication: A systematic review. J. Prosthet. Dent. 2015, 113, 12–16. [Google Scholar] [CrossRef] [PubMed]
- Gad, M.M.; Fouda, S.M.; Abualsaud, R.; Alshahrani, F.A.; Al-Thobity, A.M.; Khan, S.Q.; Akhtar, S.; Msc, I.S.A.; Helal, M.A.; Al-Harbi, F.A.; et al. Strength and Surface Properties of a 3D-Printed Denture Base Polymer. J. Prosthodont. 2021, 31, 412–418. [Google Scholar] [CrossRef] [PubMed]
- McCord, J.F. Contemporary Techniques for Denture Fabrication. J. Prosthodont. 2009, 18, 106–111. [Google Scholar] [CrossRef] [PubMed]
- Aati, S.; Akram, Z.; Shrestha, B.; Patel, J.; Shih, B.; Shearston, K.; Ngo, H.; Fawzy, A. Effect of post-curing light exposure time on the physico–mechanical properties and cytotoxicity of 3D-printed denture base material. Dent. Mater. 2021, 38, 57–67. [Google Scholar] [CrossRef]
- Baba, N.Z.; Goodacre, B.J.; Goodacre, C.J.; Müller, F.; Wagner, S. CAD/CAM Complete Denture Systems and Physical Properties: A Review of the Literature. J. Prosthodont. 2020, 30, 113–124. [Google Scholar] [CrossRef]
- Dawood, A.; Marti, B.M.; Sauret-Jackson, V.; Darwood, A. 3D printing in dentistry. Br. Dent. J. 2015, 219, 521–529. [Google Scholar] [CrossRef]
- Kraemer Fernandez, P.; Unkovskiy, A.; Benkendorff, V.; Klink, A.; Spintzyk, S. Surface Characteristics of Milled and 3D Printed Denture Base Materials Following Polishing and Coating: An In-Vitro Study. Materials 2020, 13, 3305. [Google Scholar] [CrossRef]
- Reymus, M.; Fabritius, R.; Keßler, A.; Hickel, R.; Edelhoff, D.; Stawarczyk, B. Fracture load of 3D-printed fixed dental prostheses compared with milled and conventionally fabricated ones: The impact of resin material, build direction, post-curing, and artificial aging—An in vitro study. Clin. Oral Investig. 2019, 24, 701–710. [Google Scholar] [CrossRef]
- Bilgin, M.S.; Baytaroğlu, E.N.; Erdem, A.; Dilber, E. A review of computer-aided design/computer-aided manufacture techniques for removable denture fabrication. Eur. J. Dent. 2016, 10, 286–291. [Google Scholar] [CrossRef] [Green Version]
- Iwaki, M.; Kanazawa, M.; Arakida, T.; Minakuchi, S. Mechanical properties of a polymethyl methacrylate block for CAD/CAM dentures. J. Oral Sci. 2020, 62, 420–422. [Google Scholar] [CrossRef] [PubMed]
- Puebla, K.; Arcaute, K.; Quintana, R.; Wicker, R.B. Effects of environmental conditions, aging, and build orientations on the mechanical properties of ASTM type I specimens manufactured via stereolithography. Rapid Prototyp. J. 2012, 18, 374–388. [Google Scholar] [CrossRef]
- Coon, C.; Pretzel, B.; Lomax, T.; Strlič, M. Preserving rapid prototypes: A review. Herit. Sci. 2016, 4, 40. [Google Scholar] [CrossRef] [Green Version]
- Ţălu, Ş. Micro and Nanoscale Characterization of Three-Dimensional Surfaces; Basics and applications; Napoca Star Publishing House: Cluj-Napoca, Romania, 2015. [Google Scholar]
- Tian, Y.; Chen, C.; Xu, X.; Wang, J.; Hou, X.; Li, K.; Lu, X.; Shi, H.; Lee, E.-S.; Jiang, H.B. A Review of 3D Printing in Dentistry: Technologies, Affecting Factors, and Applications. Scanning 2021, 2021, 9950131. [Google Scholar] [CrossRef] [PubMed]
- Alharbi, N.; Wismeijer, D.; Osman, R.B. Additive Manufacturing Techniques in Prosthodontics: Where Do We Currently Stand? A Critical Review. Int. J. Prosthodont. 2017, 30, 474–484. [Google Scholar] [CrossRef] [PubMed]
- Pagac, M.; Hajnys, J.; Ma, Q.-P.; Jancar, L.; Jansa, J.; Stefek, P.; Mesicek, J. A Review of Vat Photopolymerization Technology: Materials, Applications, Challenges, and Future Trends of 3D Printing. Polymers 2021, 13, 598. [Google Scholar] [CrossRef]
- Hata, K.; Ikeda, H.; Nagamatsu, Y.; Masaki, C.; Hosokawa, R.; Shimizu, H. Development of Dental Poly(methyl methacrylate)-Based Resin for Stereolithography Additive Manufacturing. Polymers 2021, 13, 4435. [Google Scholar] [CrossRef]
- Baumgartner, S.; Gmeiner, R.; Schonherr, J.A.; Stampfl, J. Stereolithography-based additive manufacturing of lithium disilicateglass ceramic for dental applications. Mater. Sci. Eng. C Mater. Biol. Appl. 2020, 116, 111180. [Google Scholar] [CrossRef]
- Keßler, A.; Hickel, R.; Ilie, N. In vitro investigation of the influence of printing direction on the flexural strength, flexural modulus and fractographic analysis of 3D-printed temporary materials. Dent. Mater. J. 2021, 40, 641–649. [Google Scholar] [CrossRef]
- Unkovskiy, A.; Schmidt, F.; Beuer, F.; Li, P.; Spintzyk, S.; Fernandez, P.K. Stereolithography vs. Direct Light Processing for Rapid Manufacturing of Complete Denture Bases: An In Vitro Accuracy Analysis. J. Clin. Med. 2021, 10, 1070. [Google Scholar] [CrossRef]
- Letcher, T.; Waytashek, M. Material Property Testing of 3D-Printed Specimen in PLA on an Entry-Level 3D Printer. In Proceedings of the ASME 2014 International Mechanical Engineering Congress and Exposition, Montreal, QC, Canada, 14–20 November 2014. [Google Scholar]
- Tymrak, B.M.; Kreiger, M.; Pearce, J.M. Mechanical properties of components fabricated with open-source 3-D printers under realistic environmental conditions. Mater. Des. 2014, 58, 242–246. [Google Scholar] [CrossRef] [Green Version]
- Unkovskiy, A.; Bui, P.H.-B.; Schille, C.; Geis-Gerstorfer, J.; Huettig, F.; Spintzyk, S. Objects build orientation, positioning, and curing influence dimensional accuracy and flexural properties of stereolithographically printed resin. Dent. Mater. 2018, 34, e324–e333. [Google Scholar] [CrossRef] [PubMed]
- Shim, J.S.; Kim, J.-E.; Jeong, S.H.; Choi, Y.J.; Ryu, J.J. Printing accuracy, mechanical properties, surface characteristics, and microbial adhesion of 3D-printed resins with various printing orientations. J. Prosthet. Dent. 2019, 124, 468–475. [Google Scholar] [CrossRef] [PubMed]
- Kim, D.; Shim, J.-S.; Lee, D.; Shin, S.-H.; Nam, N.-E.; Park, K.-H.; Shim, J.-S.; Kim, J.-E. Effects of Post-Curing Time on the Mechanical and Color Properties of Three-Dimensional Printed Crown and Bridge Materials. Polymers 2020, 12, 2762. [Google Scholar] [CrossRef]
- Reymus, M.; Lümkemann, N.; Stawarczyk, B. 3D-printed material for temporary restorations: Impact of print layer thickness and post-curing method on degree of conversion. Int. J. Comput. Dent. 2019, 22, 231–237. [Google Scholar]
- Li, P.; Lambart, A.-L.; Stawarczyk, B.; Reymus, M.; Spintzyk, S. Postpolymerization of a 3D-printed denture base polymer: Impact of post-curing methods on surface characteristics, flexural strength, and cytotoxicity. J. Dent. 2021, 115, 103856. [Google Scholar] [CrossRef]
- Gad, M.M.; Fouda, S.M.; ArRejaie, A.S.; Al-Thobity, A.M. Comparative Effect of Different Polymerization Techniques on the Flexural and Surface Properties of Acrylic Denture Bases. J. Prosthodont. 2017, 28, 458–465. [Google Scholar] [CrossRef]
- Al-Dulaijan, Y.A.; Alsulaimi, L.; Alotaibi, R.; Alboainain, A.; Akhtar, S.; Khan, S.Q.; Al-Ghamdi, M.; Gad, M.M. Effect of printing orientation and post-curing time on the flexural strength of 3D-printed resins. J. Prosthodont. 2022, 1–8. [Google Scholar] [CrossRef]
- Kwon, J.-S.; Kim, J.-Y.; Mangal, U.; Seo, J.-Y.; Lee, M.-J.; Jin, J.; Yu, J.-H.; Choi, S.-H. Durable Oral Biofilm Resistance of 3D-Printed Dental Base Polymers Containing Zwitterionic Materials. Int. J. Mol. Sci. 2021, 22, 417. [Google Scholar] [CrossRef]
- Alghamdi, W.S.; Labban, N.; Maawadh, A.; Alsayed, H.D.; Alshehri, H.; Alrahlah, A.; Alnafaiy, S.M. Influence of Acidic Environment on the Hardness, Surface Roughness and Wear Ability of CAD/CAM Resin-Matrix Ceramics. Materials 2022, 15, 6146. [Google Scholar] [CrossRef]
- Gale, M.S.; Darvell, B.W. Thermal cycling procedures for laboratory testing of dental restorations. J. Dent. 1999, 27, 89–99. [Google Scholar] [CrossRef]
- Gad, M.M.; Fouda, S.M. Current perspectives and the future of Candida albicans-associated denture stomatitis treatment. Dent. Med. Probl. 2020, 57, 95–102. [Google Scholar] [CrossRef] [PubMed]
- Jamshidinia, M.; Kovacevic, R. The influence of heat accumulation on the surface roughness in powder-bed additive manufacturing. Surf. Topogr. Metrol. Prop. 2015, 3, 014003. [Google Scholar] [CrossRef]
- Solakoğlu, E.U.; Gürgen, S.; Kuşhan, M.C. Surface topography of nickel-based superalloy manufactured with direct metal laser sintering (DMLS) method. Surf. Topogr. Metrol. Prop. 2019, 7, 015012. [Google Scholar] [CrossRef]
- Read, N.; Wang, W.; Essa, K.; Attallah, M.M. Selective laser melting of AlSi10Mg alloy: Process optimisation and mechanical properties development. Mater. Des. (1980–2015) 2015, 65, 417–424. [Google Scholar] [CrossRef] [Green Version]
- Gogolewski, D.; Bartkowiak, T.; Kozior, T.; Zmarzły, P. Multiscale Analysis of Surface Texture Quality of Models Manufactured by Laser Powder-Bed Fusion Technology and Machining from 316L Steel. Materials 2021, 14, 2794. [Google Scholar] [CrossRef]
- Gogolewski, D.; Kozior, T.; Zmarzły, P.; Mathia, T.G. Morphology of Models Manufactured by SLM Technology and the Ti6Al4V Titanium Alloy Designed for Medical Applications. Materials 2021, 14, 6249. [Google Scholar] [CrossRef] [PubMed]
- Lee, E.-H.; Ahn, J.-S.; Lim, Y.-J.; Kwon, H.-B.; Kim, M.-J. Effect of post-curing time on the color stability and related properties of a tooth-colored 3D-printed resin material. J. Mech. Behav. Biomed. Mater. 2021, 126, 104993. [Google Scholar] [CrossRef]
- Prpić, V.; Schauperl, Z.; Ćatić, A.; Dulčić, N.; Čimić, S. Comparison of mechanical ´properties of 3D-printed, CAD/CAM, and conventional denture base materials. J. Prosthodont. 2020, 29, 524–528. [Google Scholar] [CrossRef]
- Aromaa, M.K.; Vallittu, P.K. Delayed post-curing stage and oxygen inhibition of free-radical polymerization of dimethacrylate resin. Dent. Mater. 2018, 34, 1247–1252. [Google Scholar] [CrossRef]
- Gad, M.M.; Al-Harbi, F.A.; Akhtar, S.; Fouda, S.M.; Bds, M.M.M.G.; Bds, M.F.A.A.-H.; Msc, S.A. 3D-Printable Denture Base Resin Containing SiO 2 Nanoparticles: An In Vitro Analysis of Mechanical and Surface Properties. J. Prosthodont. 2022. [Google Scholar] [CrossRef] [PubMed]
- Al-Qarni, F.D.; Gad, M.M. Printing Accuracy and Flexural Properties of Different 3D-Printed Denture Base Resins. Materials 2022, 15, 2410. [Google Scholar] [CrossRef] [PubMed]

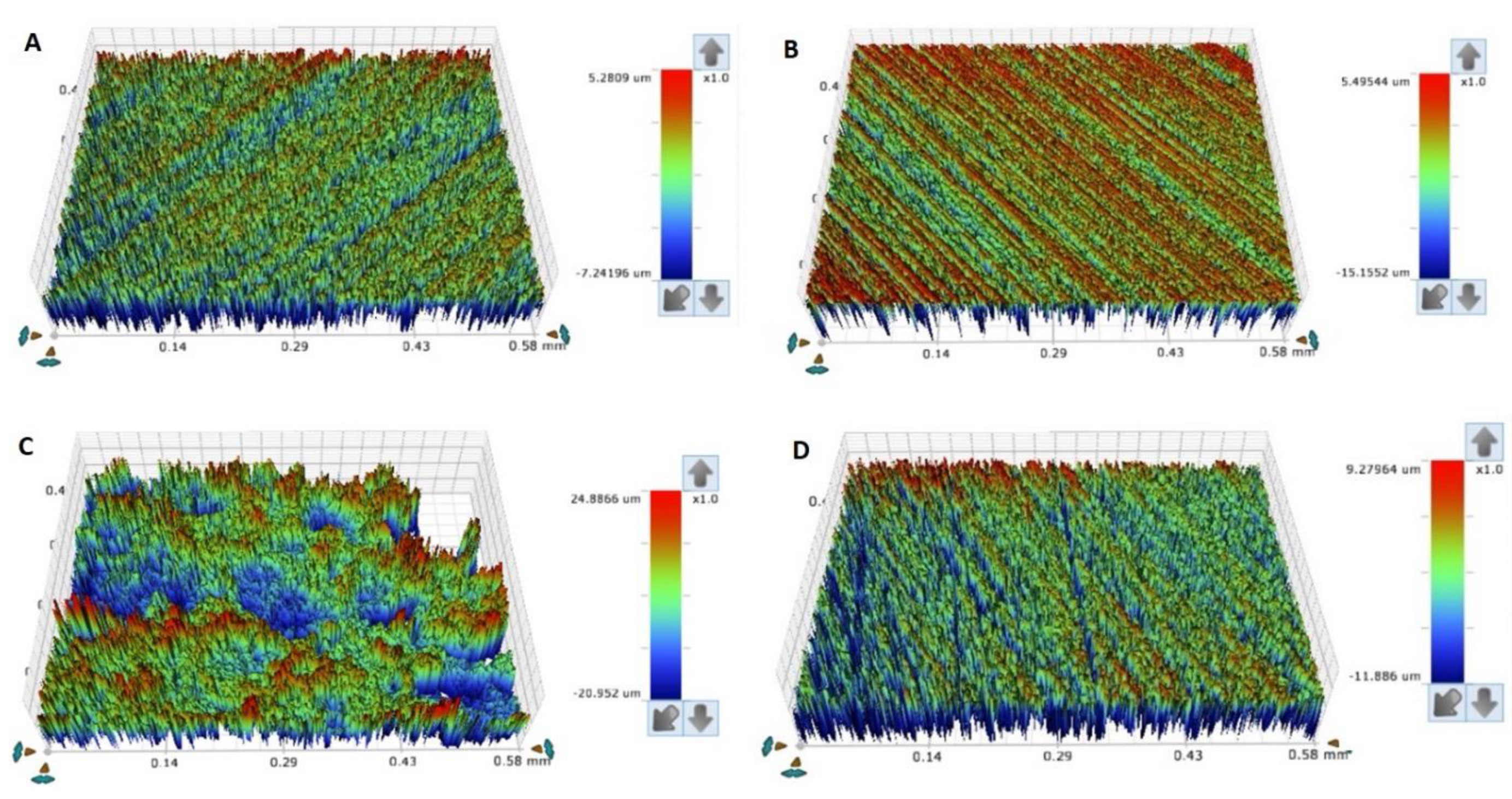

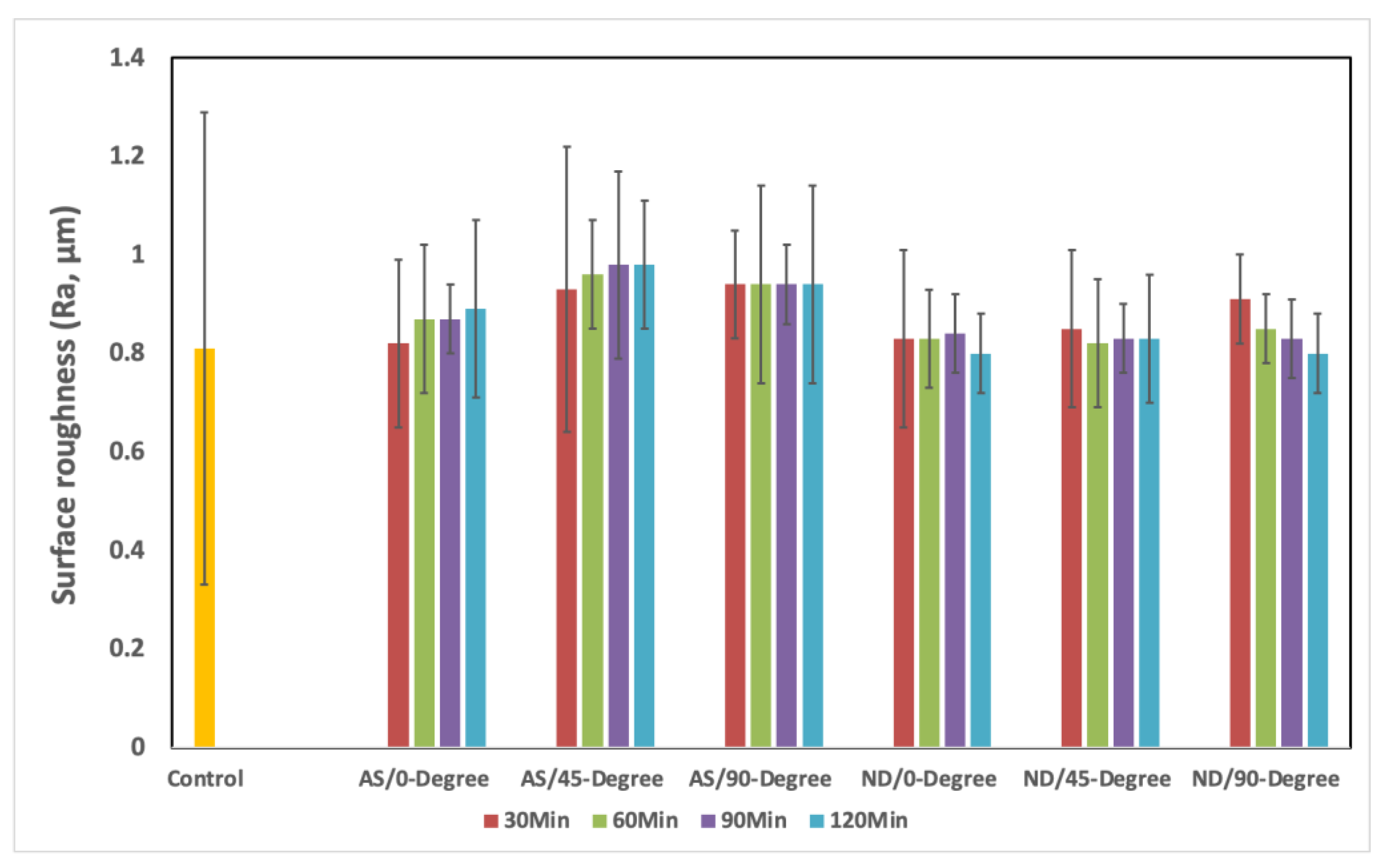

Materials | Orientation | Post-Curing Time | HP | p-Value | |||
---|---|---|---|---|---|---|---|
30 min | 60 min | 90 min | 120 min | ||||
HP | 0.81 ± 0.048 | 0.81 ± 0.04 | 0.81 ± 0.048 a | 0.81 ± 0.048 a | |||
ASIGA | 0 | 0.82 ± 0.17 | 0.87 ± 0.15 | 0.87 ± 0.07 | 0.89 ± 0.18 | 0.81 ± 0.048 | 0.603 |
45 | 0.93 ± 0.29 | 0.96 ± 0.11 | 0.98 ± 0.19 a | 0.98 ± 0.13 a | 0.81 ± 0.048 | 0.929 | |
90 | 0.94 ± 0.11 | 0.94 ± 0.20 | 0.94 ± 0.08 | 0.94 ± 0.20 | 0.81 ± 0.048 | 0.56 | |
p-value | 0.117 | 0.061 | 0.013 | 0.028 | |||
HP | 0.81 ± 0.048 | 0.81 ± 0.048 | 0.81 ± 0.048 | 0.81 ± 0.048 | |||
NextDent | 0 | 0.83 ± 0.18 | 0.83 ± 0.10 | 0.84 ± 0.08 | 0.80 ± 0.08 | 0.81 ± 0.048 | 0.184 |
45 | 0.85 ± 0.16 | 0.82 ± 0.13 | 0.83 ± 0.07 | 0.83 ± 0.13 | 0.81 ± 0.048 | 0.082 | |
90 | 0.91 ± 0.09 A | 0.85 ± 0.07 | 0.83 ± 0.08 | 0.80 ± 0.08 | 0.81 ± 0.048 A | 0.032 * | |
p-value | 0.447 | 0.103 | 0.350 | 0.331 |
Materials | Source | Type III Sum of Squares | df | Mean Square | F-Value | p-Value |
---|---|---|---|---|---|---|
ASIGA | Post-curing time | 0.010 | 3 | 0.003 | 0.124 | 0.946 |
Orientation | 0.375 | 2 | 0.187 | 7.011 | 0.001 * | |
Post-curing time * orientation | 0.089 | 6 | 0.015 | 0.552 | 0.768 | |
Error | 3.128 | 117 | 0.027 | |||
Total | 111.792 | 130 | ||||
Corrected Total | 3.720 | 129 | ||||
NextDent | Post-curing time | 0.128 | 3 | 0.043 | 3.667 | 0.014 * |
Prientation | 0.102 | 2 | 0.051 | 4.381 | 0.015 * | |
Post-curing time * orientation | 0.128 | 6 | 0.021 | 1.842 | 0.097 | |
Error | 1.360 | 117 | 0.012 | |||
Total | 87.108 | 130 | ||||
Corrected Total | 1.718 | 129 |

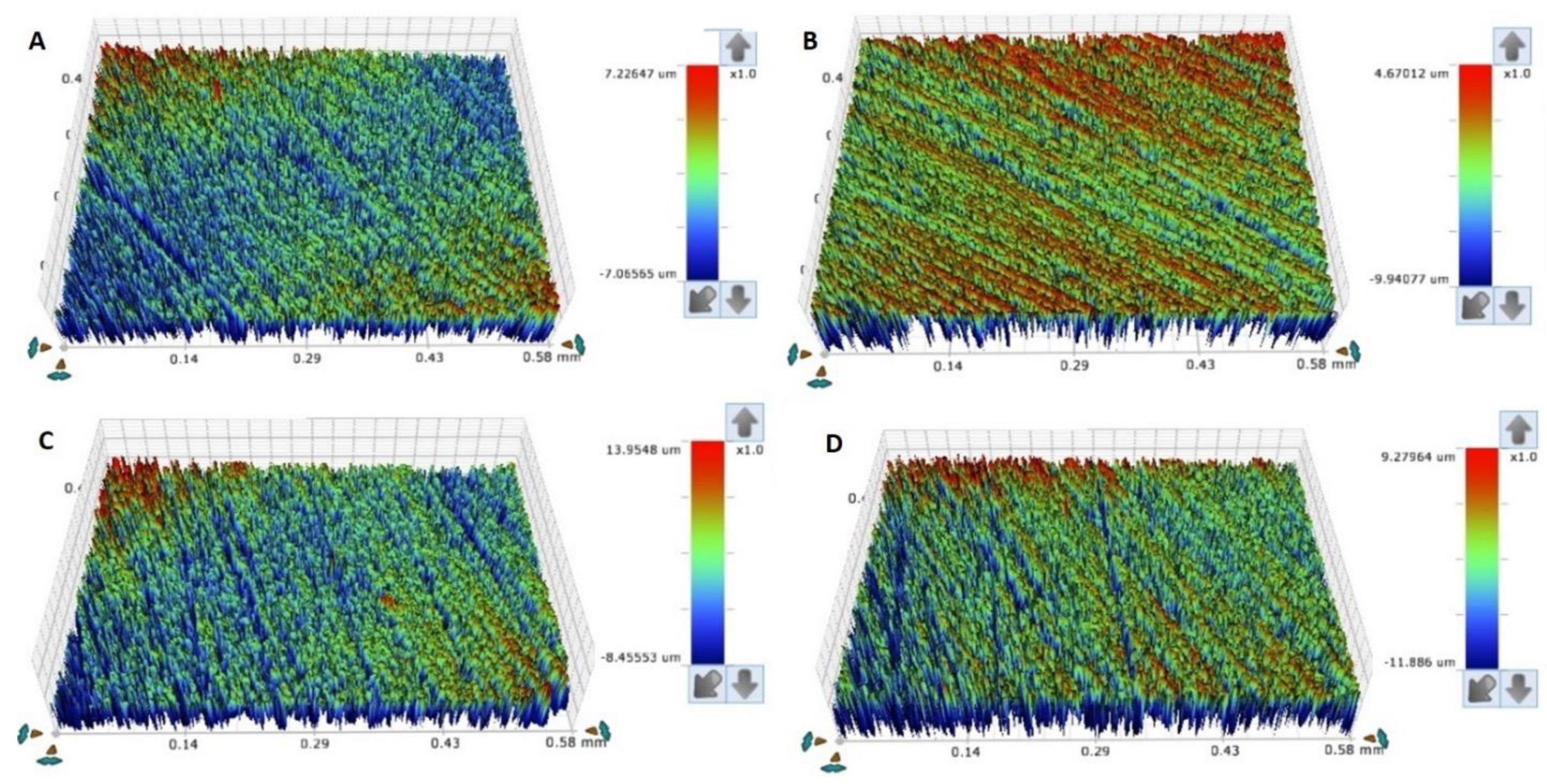

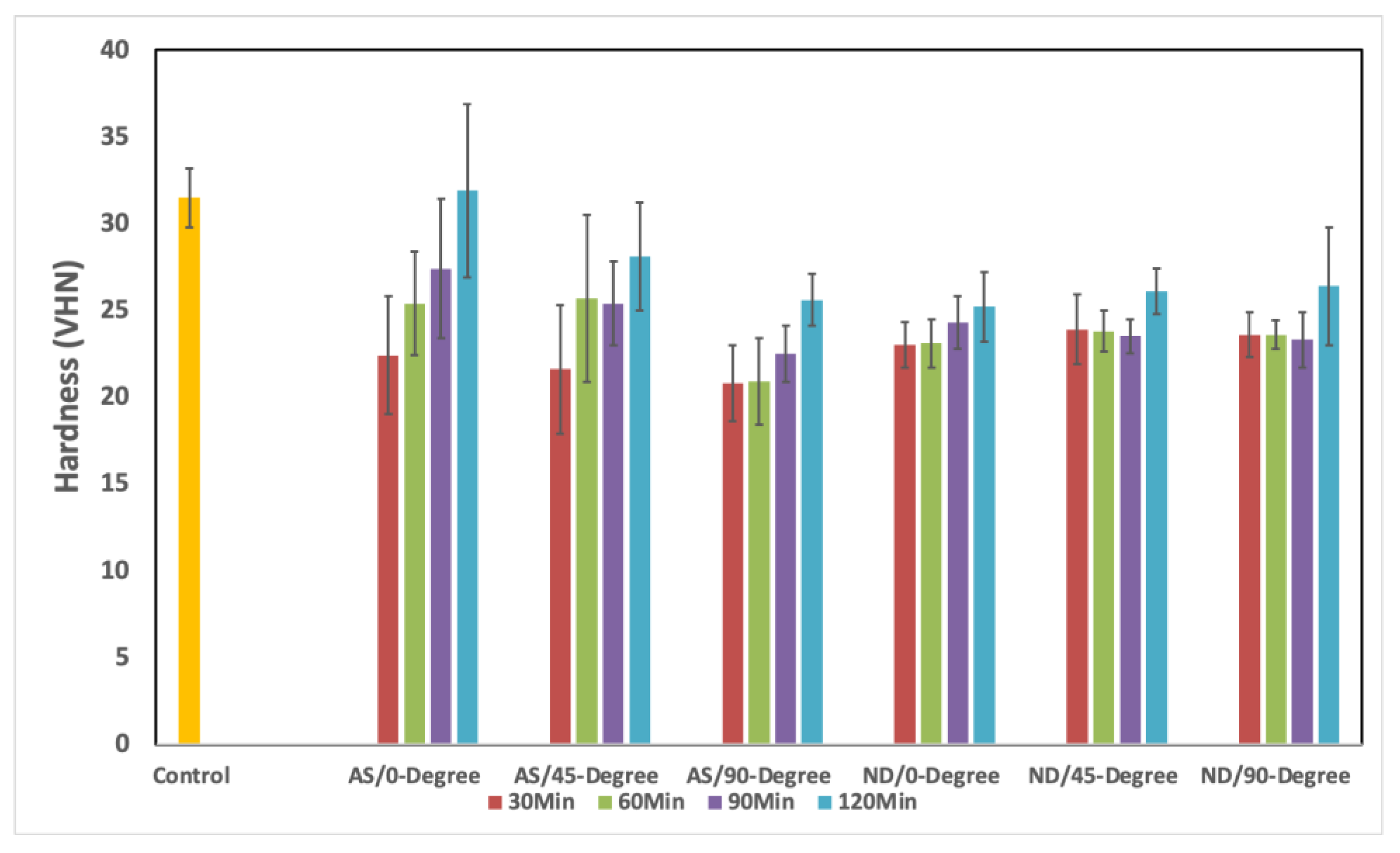

Materials | Orientation | Post-Curing Time | HP | p-Value | |||
---|---|---|---|---|---|---|---|
30 min | 60 min | 90 min | 120 min | ||||
HP | 31.48 ± 1.7 | 31.48 ± 1.7 | 31.48 ± 1.7 | 31.48 ± 1.7 | |||
ASIGA | 0 | 26.4 ± 3.4 C,D | 25.3 ± 3.0 a,C,E | 27.4 ± 4.0 a,A,D,E | 31.9 ± 5.0 a,B | 31.48 ± 1.7 A,B | 0.002 * |
45 | 21.6 ± 3.7 a,B,C | 25.7 ± 4.8 a,B,D,E | 25.4 ± 2.4a,b,C,D,F | 28.1 ± 3.1 a,b,A,E,F | 31.48 ± 1.7 A | 0.003 * | |
90 | 20.8 ± 2.2 a,A,B | 20.9 ± 2.5 A,C | 22.5 ± 1.6 b,B,C | 25.6 ± 1.5 b | 31.48 ± 1.7 | 0.000 * | |
p-value | 0.001 * | 0.009 * | 0.003 * | 0.002 * | |||
HP | 31.48 ± 1.7 | 31.48 ± 1.7 | 31.48 ± 1.7 | 31.48 ± 1.7 | |||
NextDent | 0 | 23.0 ± 1.3 A | 23.1 ± 1.4 A | 24.3 ± 1.5 a,B | 25.2 ± 2.0 a,B | 31.48 ± 1.7 | 0.000 * |
45 | 23.9 ± 2.0 a,A,B,C | 23.8 ± 1.2 a,A,D,E | 23.5 ± 1.0 a,b,B,D,F | 26.1 ± 1.3 a,b,C,E,F | 31.48 ± 1.7 | 0.086 | |
90 | 23.6 ± 1.3 a,A,B | 23.6 ± 0.8 a,A,C | 23.3 ± 1.6 a,b,B,C | 26.4 ± 3.4 b | 31.48 ± 1.7 | 0.006 * | |
p-value | 0.000 * | 0.000 * | 0.946 | 0.415 |
Materials | Source | Type III Sum of Squares | df | Mean Square | F-Value | p-Value |
---|---|---|---|---|---|---|
ASIGA | Post-curing time | 532.896 | 3 | 177.632 | 17.472 | 0.000 * |
Orientation | 617.057 | 3 | 205.686 | 20.231 | 0.000 * | |
Post-curing time * orientation | 85.198 | 6 | 14.200 | 1.397 | 0.222 | |
Error | 1189.494 | 117 | 10.167 | |||
Total | 88,005.939 | 130 | ||||
Corrected Total | 2732.322 | 129 | ||||
NextDent | Post-curing time | 167.209 | 3 | 55.736 | 19.356 | 0.000 * |
Orientation | 345.612 | 3 | 115.204 | 40.007 | 0.000 * | |
Post-curing time * orientation | 66.674 | 6 | 11.112 | 3.859 | 0.002 * | |
Error | 336.910 | 117 | 2.880 | |||
Total | 77,150.437 | 130 | ||||
Corrected Total | 1230.048 | 129 |
