Materials 2018, 11(7), 1188; https://doi.org/10.3390/ma11071188

Ceramic Piezoelectric Transformer in Vacuum for Acceleration of Electrons and Production of X-Rays

1
International Scientific and Educational Laboratory of Radiation Physics, Belgorod State National Research University, Belgorod 308015, Russia
2
National Science Center Kharkov Institute of Physics and Technology, Kharkov 61108, Ukraine
3
P.N. Lebedev Physical Institute RAS, Moscow 119991, Russia
*
Author to whom correspondence should be addressed.
Received: 28 May 2018 / Revised: 4 July 2018 / Accepted: 4 July 2018 / Published: 11 July 2018
(This article belongs to the Special Issue Piezoelectric Materials and Devices)
View Full-Text   |   Download PDF [1807 KB, uploaded 11 July 2018]   |

Abstract

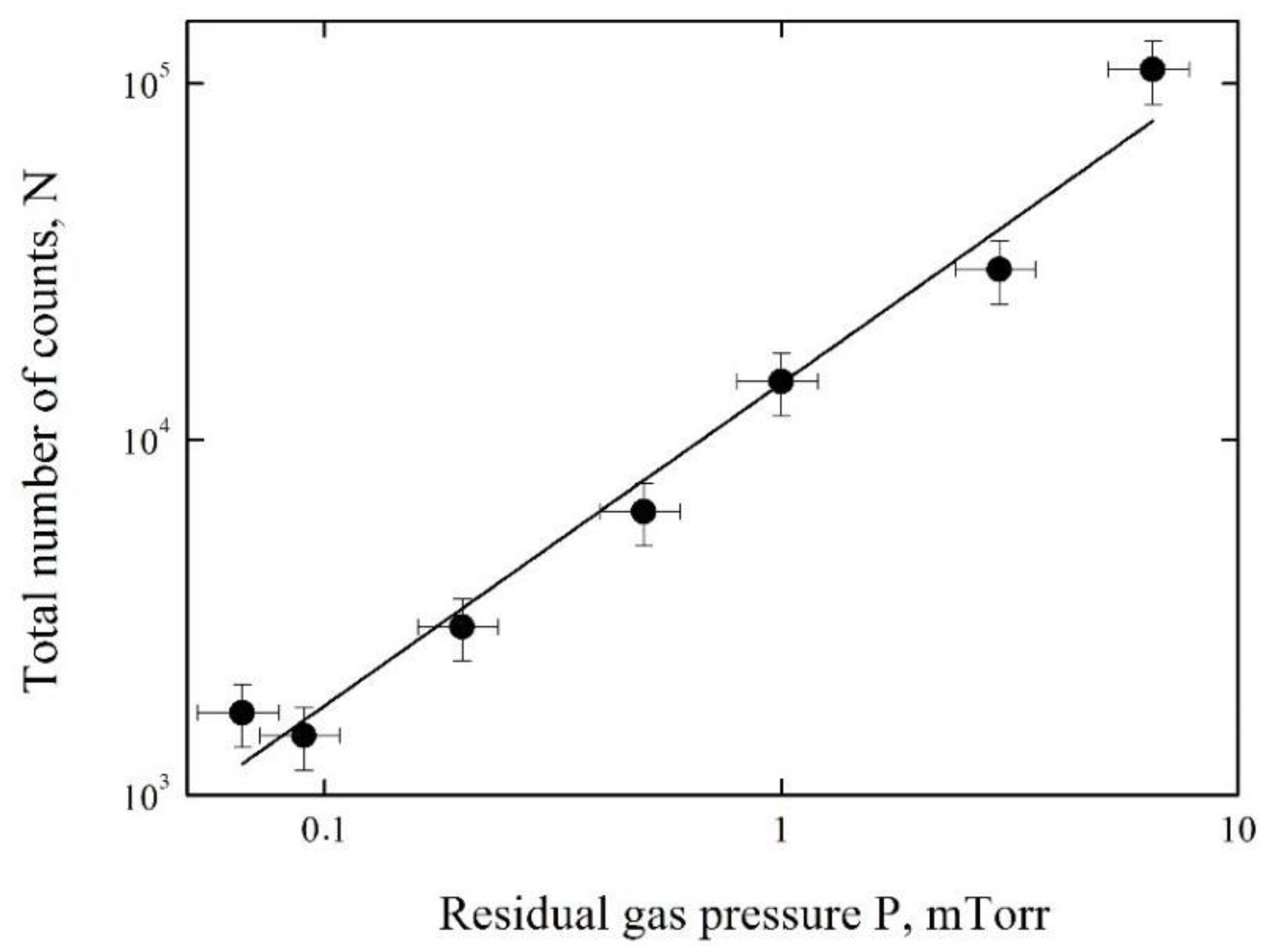

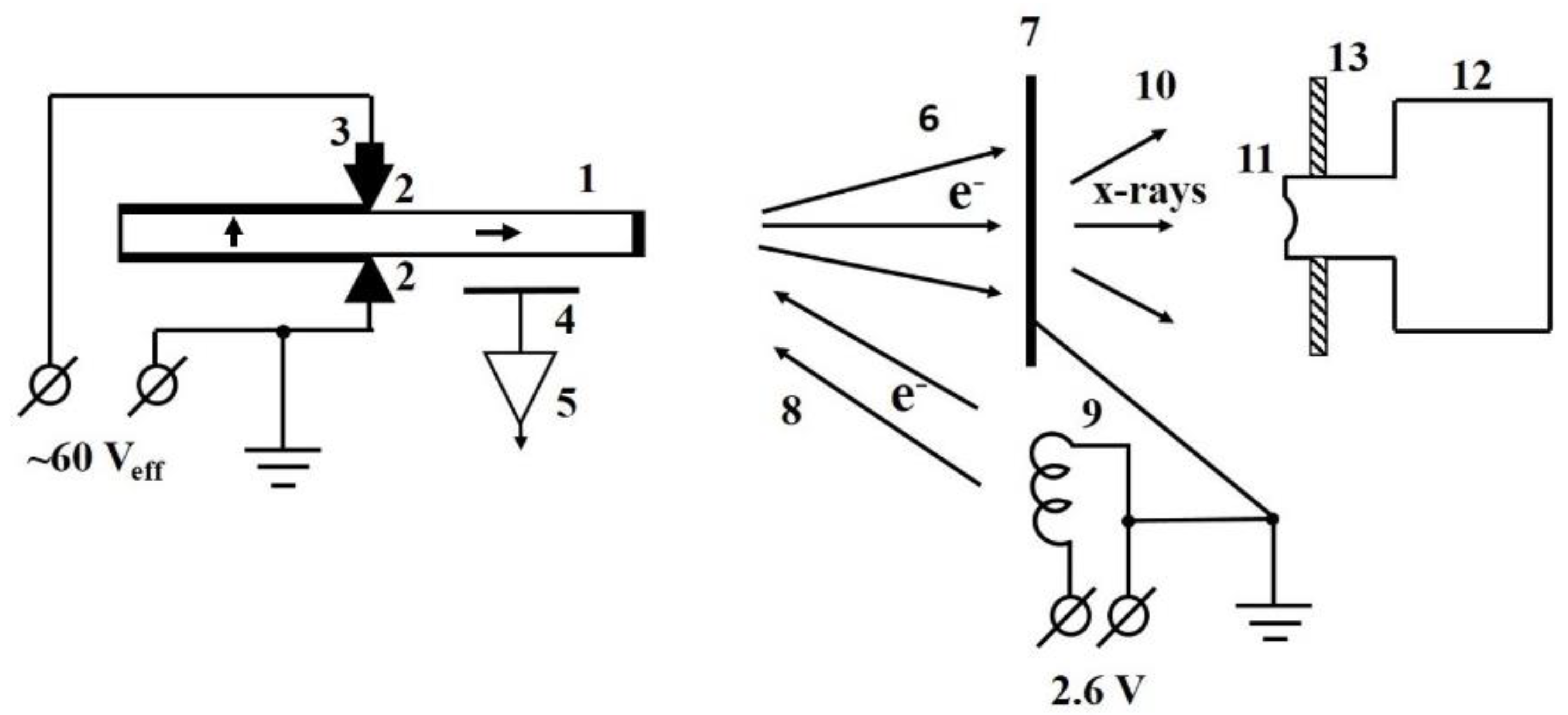

Experiments on acceleration of electrons and production of X-ray radiation with use of ceramic piezoelectric transformers installed in vacuum are described and analyzed. The piezoelectric transformer operates at resonance frequency. Electrons are accelerated from the high-voltage electrode of the ceramic piezoelectric transformer toward the grounded target, where they emit bremsstrahlung and characteristic X-ray radiation in the target material. The returning of the charge to the high-voltage electrode is provided due to electrons emitted from a filament installed in the vicinity of the target. It was found that the X-ray yield increases linearly at increasing of the pressure of the residual gas in the chamber within two orders of magnitude up to about 10 mTorr, when the gas discharge around of the piezoelectric transformer arises. Possibilities for application of piezoelectric transformers for production of accelerating voltage in small-size accelerators are discussed. View Full-Text
Keywords: ceramic piezoelectric transformer; vacuum; accelerator; X-ray radiation ceramic piezoelectric transformer; vacuum; accelerator; X-ray radiation
Figures

Figure 1
