Open AccessArticle
Materials 2017, 10(7), 839; https://doi.org/10.3390/ma10070839

The Microstructural Characterization of Multiferroic LaFeO3-YMnO3 Multilayers Grown on (001)- and (111)-SrTiO3 Substrates by Transmission Electron Microscopy

1
National Laboratory of Solid State Microstructures & Department of Materials Science and Engineering, Nanjing University, Nanjing 210093, China
2
Shanghai Nanoport, Thermo Fisher Scientific Inc., Shanghai 201210, China
3
National Laboratory of Solid State Microstructures & Department of Physics, Nanjing University, Nanjing 210093, China
*
Author to whom correspondence should be addressed.
Academic Editor: Melvin M. Vopson
Received: 31 May 2017 / Revised: 15 July 2017 / Accepted: 17 July 2017 / Published: 21 July 2017
View Full-Text   |   Download PDF [21827 KB, uploaded 23 July 2017]   |

Abstract

The microstructure of multiferroic LaFeO3-YMnO3 (LFO-YMO) multilayers grown on (001)- and (111)-SrTiO3 substrates is characterized by the transmission electron microscopy (TEM). Detailed TEM characterization reveals that LFO-YMO multilayers grown on both substrates have clear layer-by-layer morphology and distinct chemical-composition layered structure. The most notable feature is that LFO-YMO multilayers grown on (001)-SrTiO3 substrate have three types of domains, while those on (111)-SrTiO3 have only one. The multi-/twin- domain structure can be qualitatively explained by the lattice mismatch in this system. The details of the domain structure of LFO-YMO multilayers are crucial to understanding their magnetic properties. View Full-Text
Keywords: multiferroic; multilayers; transmission electron microscopy; domain structure multiferroic; multilayers; transmission electron microscopy; domain structure
Figures

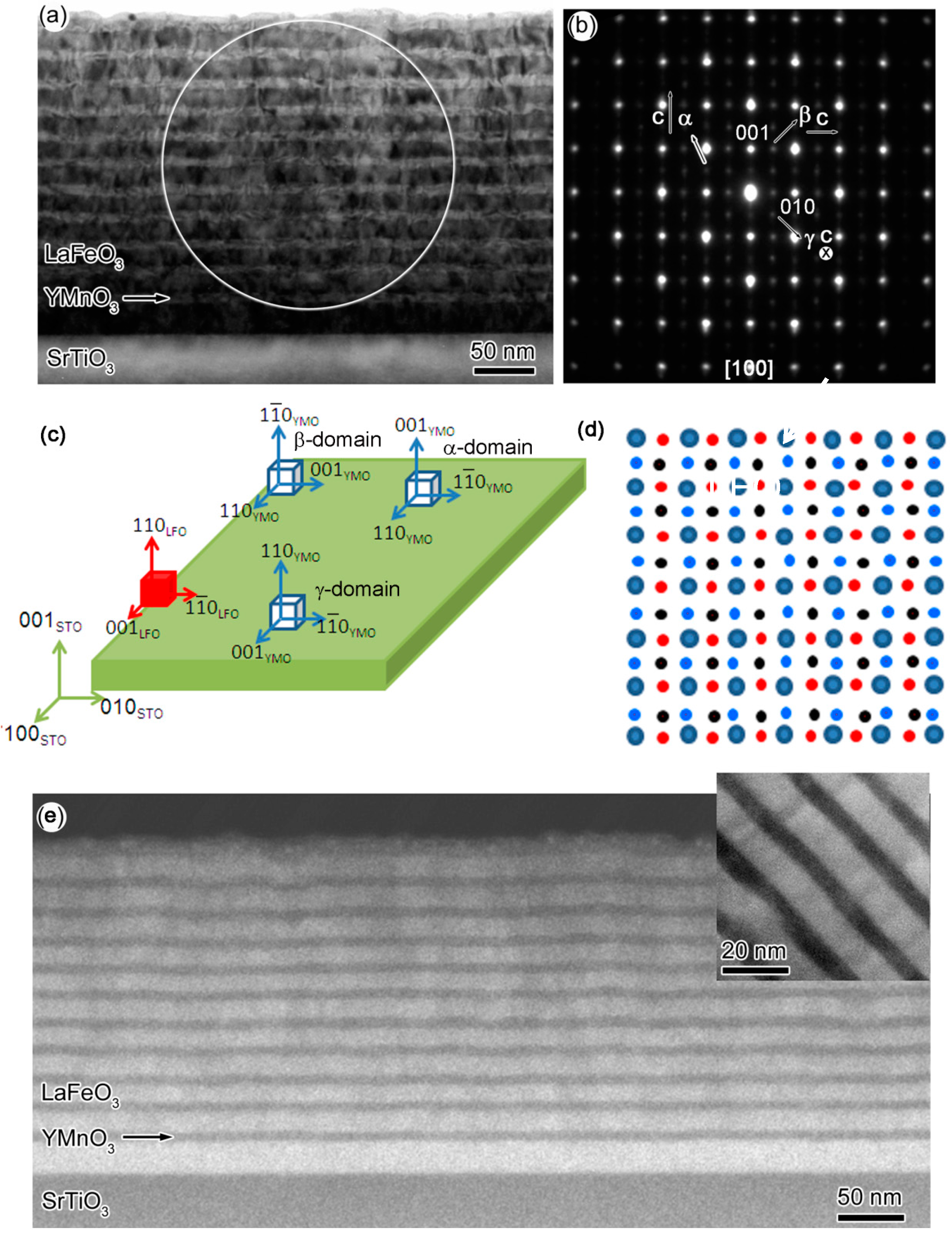

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Pang, B.; Sun, L.; Shen, X.; Lv, Y.-Y.; Li, X.; Wu, F.-X.; Yao, S.-H.; Zhou, J.; Zhang, S.-T.; Chen, Y. The Microstructural Characterization of Multiferroic LaFeO3-YMnO3 Multilayers Grown on (001)- and (111)-SrTiO3 Substrates by Transmission Electron Microscopy. Materials 2017, 10, 839.
