Review

Recent Developments in Organophosphorus Flame Retardants Containing P-C Bond and Their Applications

Additives and Chemistry Group, Advanced Fibers, Empa, Swiss Federal Laboratories for Materials Science and Technology, Lerchenfeldstrasse 5, 9014 St. Gallen, Switzerland
*
Authors to whom correspondence should be addressed.
These two authors contributed equally to this work.
Materials 2017, 10(7), 784; https://doi.org/10.3390/ma10070784
Submission received: 13 May 2017 / Revised: 17 June 2017 / Accepted: 4 July 2017 / Published: 11 July 2017
(This article belongs to the Special Issue Flame Retardant Polymeric Materials)

Abstract

:
Organophosphorus compounds containing P-C bonds are increasingly developed as flame retardant additives due to their excellent thermal and hydrolytic stability and ease of synthesis. The latest development (since 2010) in organophosphorus flame retardants containing P-C bonds summarized in this review. In this review, we have broadly classified such phosphorus compounds based on the carbon unit linked to the phosphorus atom i.e., could be a part of either an aliphatic or an aromatic unit. We have only considered those published literature where a P-C bond was created as a part of synthetic strategy to make either an intermediate or a final organophosphorus compound with an aim to use it as a flame retardant. General synthetic strategies to create P-C bonds are briefly discussed. Most popular synthetic strategies used for developing P-C containing phosphorus based flame retardants include Michael addition, Michaelis–Arbuzov, Friedels–Crafts and Grignard reactions. In general, most flame retardant derivatives discussed in this review have been prepared via a one- to two-step synthetic strategy with relatively high yields greater than 80%. Specific examples of P-C containing flame retardants synthesized via suitable synthetic strategy and their applications on various polymer systems are described in detail. Aliphatic phosphorus compounds being liquids or low melting solids are generally applied in polymers via coatings (cellulose) or are incorporated in the bulk of the polymers (epoxy, polyurethanes) during their polymerization as reactive or non-reactive additives. Substituents on the P atoms and the chemistry of the polymer matrix greatly influence the flame retardant behavior of these compounds (condensed phase vs. the gas phase). Recently, aromatic DOPO based phosphinate flame retardants have been developed with relatively higher thermal stabilities (>250 °C). Such compounds have potential as flame retardants for high temperature processable polymers such as polyesters and polyamides. A vast variety of P-C bond containing efficient flame retardants are being developed; however, further work in terms of their economical synthetic methods, detailed impact on mechanical properties and processability, long term durability and their toxicity and environmental impact is much needed for their potential commercial exploitations.

1. Introduction

P-C containing organophosphorus compounds find application as metal complex catalysts [1], reagents in organic chemistry [2,3], pesticides, insecticides, herbicides, medicine and biological systems [4], additives for polymers [5], surfactants, lubricants [6], surface treatments on metals [7], etc. In the past few decades, many review articles and book chapters regarding the creation of P-C bond and their potential applications have been published [6,8,9,10,11,12,13]. Organophosphorus compounds with P-C bonds are increasingly investigated as flame retardants due their high thermal and hydrolytic stability (P-C bond), ease of synthesis and suitability of processing at high temperature. One should pay attention to other properties like miscibility in the polymer matrix, reactivity with polymer or monomer, moisture absorption, tendency for blooming, toxicological properties, etc., which are very important and need to be considered before any commercial exploitation of these compounds can be realized. Unfortunately most published literature are academic and limited to aspects like synthesis, processability, flame retardancy and thermal properties of these compounds, thus it becomes very difficult to judge if any of these compounds discussed in this review can have any real commercial impact. The intention of this review is to summarize the work done in development flame retardants containing P-C bond without being critical of the shortcomings of the published literature.
P-C bonds are thermally quite stable and exhibit typical bond energies of ~272 kJ/mol [14]. Though the bond energies are lower than P-O (360 kJ/mol) and P-N (290 kJ/mol), the carbon substituents are not good leaving groups and thus resistant to possible nucleophilic attacks, which becomes relevant in high temperature polymer processing [15]. However, hydrolysis of P-C bonds can help in their biodegradation and reduce their possible harmful impact to the environment. Recent studies have provided insights into possible enzymatic hydrolysis of suitable P-C bonds [16,17,18]. Organophosphorus-based flame retardants are quite versatile in their flame retardant action and often exhibit both condensed and gas phase activity Depending on the substrate and phosphorus chemistry, there could be chemical interactions in the condensed phase at elevated temperatures, which lead to changes in the decomposition pathway of the polymer and possible formation of carbonaceous char residues on the surface of decomposing polymer, hence preventing its further oxidation. The char thus formed acts as a protective thermal barrier. In other instances, the phosphorus compounds and some of their decomposed products preferably volatilize from the polymer substrate when heated. These phosphorus species further decompose to release reactive phosphorus species, which then interact with the combustion intermediates in the gas phase as flame inhibitors [19,20]. In most cases, such interactions lead to recombination of the H and OH radicals and prevent their oxidation P-C bond containing phosphorus compounds like any organophosphorus flame retardants can exhibit either condensed phase or gas phase flame inhibition and is very specific to a polymer/flame retardant combination. For polymers (cellulose, wool), with relatively high concentration of hydroxyl or amino groups the phosphorus compounds primarily work in the condensed phase. In case of synthetic polymers containing oxygen and nitrogen atoms, catalytic hydrolysis of the ester or amide groups by phosphorus acids promotes an enhanced melt dripping and fast shrinkage from the flame. As far as olefin-based polymers are considered, the phosphorus compounds mainly act in the gas phase by recombining the key fuel species such as H and OH radicals and preventing their oxidation. Some minor physical effects due to volatilization of phosphorus compounds and dilution of the fuel can also occur [21].
In the following section, several analytical methods and techniques used by researchers to evaluate the thermal and fire properties of the new materials developed are mentioned. The choice of specific analytical technique depends mostly on the intended end use of the materials. TGA is generally employed to determine the thermal stability of new flame retardants and materials made from them. The degradation temperature of the flame retardant gives possible indication of its processing temperature. Higher char residue formed for the flame retardant polymer/formulation compared to the basis polymer indicates its possible condensed phase action. Similarly, higher char formation observed in other techniques such as PCFC and Cone calorimeter also indicate possible condensed based flame retardant action. Cone calorimeter and PCFC instrument is generally used to measure heat release of materials. Flame retardant action in condensed and gas phase leads in normally reduction in heat release rates. In cone calorimeter, one can also measure smoke and its composition. Flame retardants working in condensed phase usually leads to reduction in smoke toxicity. The ratio of CO/CO2 ratio as measured in the cone calorimeter indicates the activity of flame retardant in gas phase. Higher ratio for flame retardant materials indicates possible gas phase flame inhibition [22]. LOI is a common technique, which was used for evaluating the flame retardancy of textile materials and films. Materials exhibiting LOI values of 25% and greater are considered to self-extinguishing. Usually, inherently flame retardant materials exhibit LOI values greater than 30%.
Several small case fire tests like UL 94 and vertical burning tests are also commonly used to evaluate the flame retardancy of materials. In these tests, the reaction of materials to small fire either in vertical and horizontal orientation measured.

2. General Principles of P-C Bond Formation

The P-C bond formation has been reviewed in the past by various researchers [6,8,9,10,12,13,23,24,25,26,27,28,29,30]. Conventional synthetic strategies like Michael addition, Arbuzov rearrangement reactions, Friedel–Crafts reactions, radical addition reactions, Pudovik reactions are the most common strategy for P-C bond creation. In the last decade, there has been an increased focus on development of new synthetic methodologies for P-C bond formation. As a result, new novel and green methodologies [24,28] in the organic synthesis gave impetus to replace toxic and harmful phosphorus starting materials with more benign alternatives [31].
Due to the electronic nature of the phosphorus atom, the organophosphorus compounds can be classified into different chemical classes based on the coordination number and the oxidation state of the phosphorus atom [23,32]. Accordingly, the chemical reactivity of the organophosphorus compounds can be influenced by their structural geometry and valency of the phosphorus atom. For example, H-phosphonates with P(O)H bonds are commonly used as starting materials for P-C bond formation and thus their chemical reactions have been investigated in detail [6,9,12,24,25,29,30,31,33,34]. It is reported that presence of the P=O bond is the driving force for their reactions [23]. In general, the phosphorus center of the H-phosphonates is electrophilic and can be modified to be nucleophilic [35]. Moreover, the P-H bond of H-Phosphonates is considered acidic and can go through acid base reactions [36]. On the other hand, the H-phosphonates are quinquevalent, tetra-coordinated phosphorus compounds, which exist in equilibrium in solution with their corresponding tervalent, tri-coordinated species (phosphite ester). The phosphite esters have a lone electron pair on the phosphorus center and thus can react with various electrophiles [23]. When these phosphite esters are protonated or bear electron withdrawing groups, they react with nucleophiles. Based on the chemical reactivity of the organophosphorus compounds, diverse synthesis approaches of P-C bond formation have been explored and can be categorized as illustrated in Table 1, Table 2 and Table 3.
As seen in the table, there are numerous ways P-C bonds can be created and its potential academic research or industrial exploitations needs careful consideration. Flame retardant development is an applied research with a great potential for commercial exploitation and thus attention must be paid to the synthetic strategies for upscaling. In most cases, commercial availability of the starting chemicals and their cost determine their potential commercial exploitation. However, many other likely challenges can be encountered in industry, which hinders their industrial upscaling and utilities such as:
(1)
Expensive synthesis approaches,
(2)
Toxicity of the starting materials,
(3)
Non-desirable wastes or by-product,
(4)
Multiple purification steps,
(5)
Difficulty handling of the chemical materials.
Currently only a few chemical reactions listed in Table 1, Table 2 and Table 3 are industrially exploited to manufacture flame retardants.

3. Flame Retardants with P-Caliphatic Bonds

In the following sections, we have summarized examples of P-Caliphatic bond containing organophosphorus compounds, which are classified based on the synthetic strategy for creation of P-C bond. For clarity, the specific P-C bonds that were created in the structure have been marked in bold.

3.1. Substitution Reactions

Substitution reactions are one of the most commonly used reactions used in organic chemistry and can be suitably exploited to create new bonds and eventually final products. Such reactions are commonly exploited commercially [53] and in research to create P-C bond containing useful flame retardants. In this section, we summarize development of organophosphorus compounds obtained by substitution reactions other than Grignard type reaction. The Grignard type reaction is described in detail later in the section.

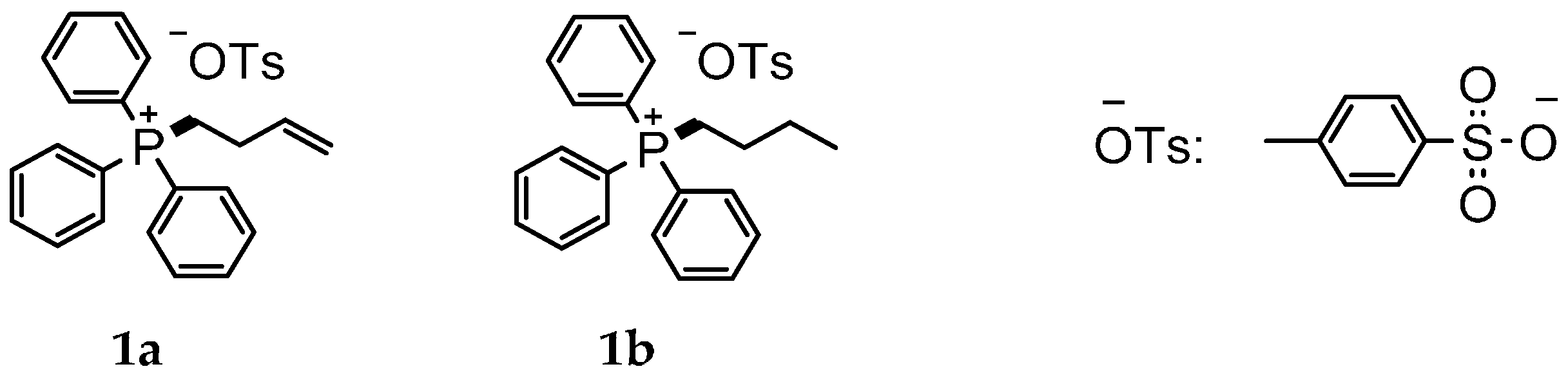

The reaction of but-3-1-yl 4-methylbenzenesulfonate and butyl 4-methylbenzenesulfonate with triphenylphosphine afforded the phosphonium salts 1a and 1b respectively (Figure 1) [54]. The phosphonium salts 1a and 1b were obtained by precipitation in petroleum ether in 73% and 86% yield, respectively. Their thermal properties were studied using thermogravimetric analysis (TGA) under N2 atmosphere and the temperatures for 5% weight loss (Td5%) of 335.8 °C and 208.9 °C were observed for compounds 1a and 1b, respectively. They were then incorporated in polycarbonate (PC) composites at a concentration of 5% together with an anti-dripping agent. TGA was used to study the thermal stability of these composites. Cone calorimeter, UL94 and limiting oxygen index (LOI) tests were used to evaluate the flame retardant performance of the composites. It was found that the composite containing flame retardant with the alkene group (1a) exhibited a significant increase of LOI value (32.8%) compared to composite with compound 1b (30.8%) and a lower peak heat release rate (PHRR). The LOI value of the neat PC is 25%. The char yield at 700 °C was found to be higher for both compounds (17 wt % and 15.6 wt % for compounds 1a and 1b, respectively) than for the virgin PC (13.9 wt %), which means that the two compounds improved the flame retardancy of the PC and act in the condensed phase. It was also noted for both compounds that 5% in the composite was enough to obtain UL 94 V-0 rating.

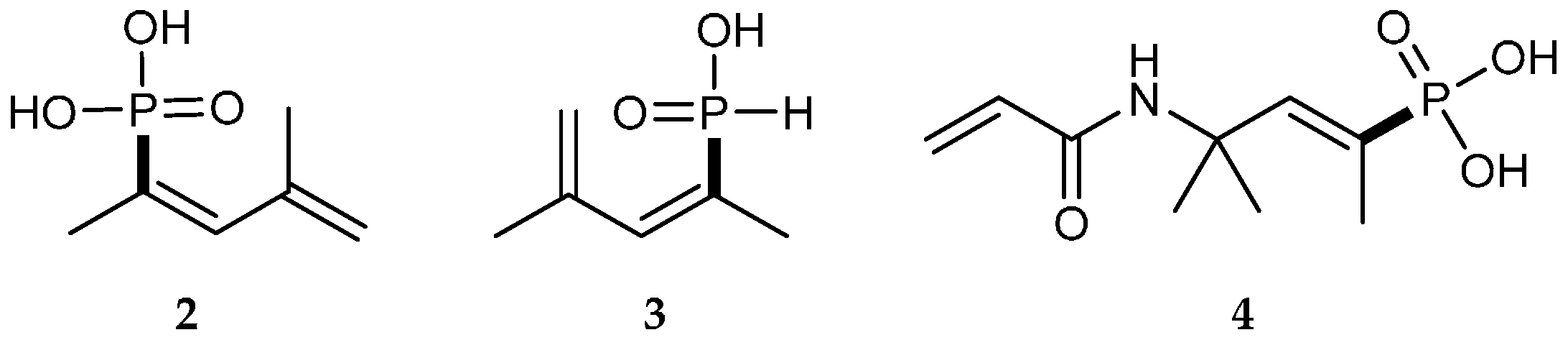

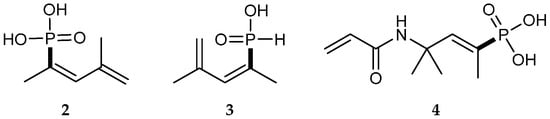

The conjugated dienes 2 and 3 (Figure 2) were synthesized by reaction of mesityl oxide with phosphorus acid and hypophosphorus acid, respectively [55,56]. It was described in the patent that these compounds can be used as flame retardants, potentially in the plastic industry or in textile coatings. The same researchers have also studied the synthesis of acrylamide derivative (Compound 4, Figure 2) from phosphorus acid, mesityl oxide, acetic acid, acetic anhydride and phenothiazine and no additional fire performance of these compounds were reported [57].

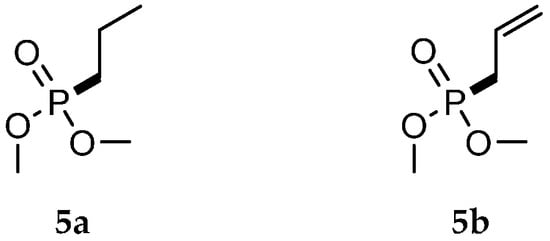

Dimethylpropyl phosphonate (5a, Figure 3) and dimethylallyl phosphonate (5b, Figure 3) were synthesized by the reaction of dimethyl phosphite in presence of inorganic base with propylbromide and allylbromide, respectively. They were obtained as liquids in 92% (Compound 5a) and 93% (Compound 5b) yield. Both compounds were characterized using their boiling point: 105 °C at 23 mbar for 5a and 104 °C at 24 mbar for 5b [14]. They were incorporated in flexible polyurethane (PU) foams at concentrations of 1, 2, 5 and 10 wt % based on polyol content and their flame retardant performance were evaluated. The thermal stability and flame retardancy were investigated by TGA and PCFC, which showed that the flame retardant additives act predominantly in the gas phase. The flammability of PU foams were further investigated by LOI, UL 94 HB and BKZ-VB Swiss standard fire test. It was found at a 10 wt % (based on weight of polyol) flame retardant loading, all flame retarded PU passed the BKZ-VB compared to the virgin PU foam. Moreover, the flame retarded PU with compound 5a showed a HF2 rating in the UL 94 HB test while the treated PU with compound 5b showed HF1 rating. LOI values of the PU foams increased with increasing the flame retardant concentrations. The LOI values of treated PU foams with the flame retardant additives 5a and 5b were 22.8% and 23.9%, respectively. PCFC measurements of the flame retarded PU foams did not show a char residue which confirms their gas phase mode of action.
Compounds 5a and 5b (Figure 3) were also compared to a commonly used flame retardant tris(1-chloro-2-propyl) phosphate (TCPP) [58]. It was concluded from both studies that compounds with an allyl group are more efficient flame retardants for PU foams than compounds with alkyl groups.

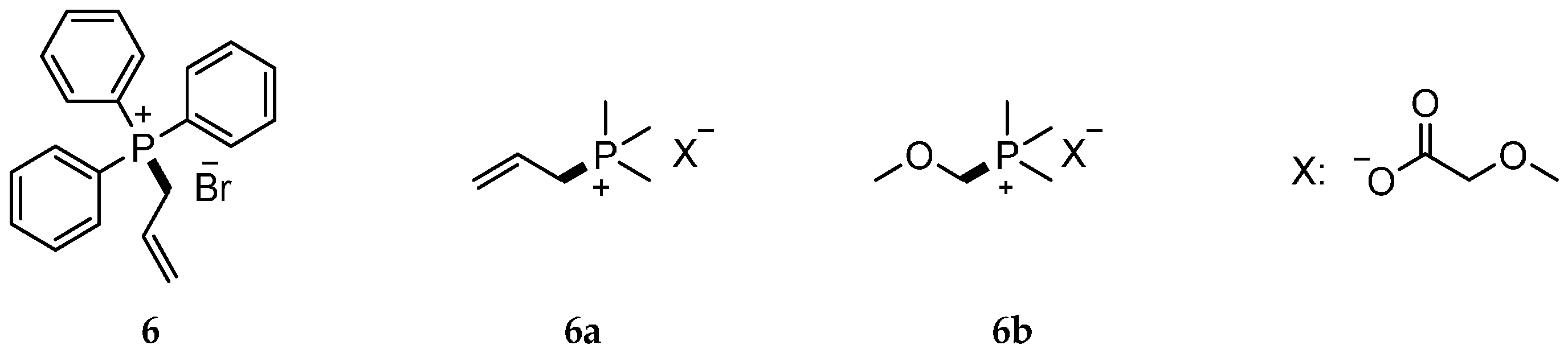

Allyltriphenylphosphonium bromide (Compound 6, Figure 4) was synthesized from the reaction of triphenylphosphine and allyl bromide in dry toluene [59]. Subsequently, bentonite clay was modified with this phosphonium salt [60]. The surface modified bentonite clay was then used as a flame retardant additive (1, 2 and 3 wt %) for possible improvement in flame resistance and mechanical properties of polyester acrylate base UV-curable coatings. Tensile properties of films were evaluated from the stress–strain curve. The Young’s modulus, tensile strength and elongation at break of the films were determined. It was found that the addition of the modified clay increased the Young’s modulus but decreased the tensile strength. The elongation at break at first decreased but then increased with the increasing clay content. The coating became more brittle with addition of modified clay. The thermal properties and flammability properties were then investigated using TGA and LOI. The Td10% of the neat coating was 373 °C while addition of clay first increased this value (the formulation with 1% modified clay showed a Td10% of 387 °C), but then decreased to 361 °C for the formulation with modified clay content of 3 wt %. The char yield increased significantly from no char for the neat coating to 12% for the 3 wt % modified clay/coatings. The same trend was observed in the LOI measurements 17% and 22% for unmodified and 3 wt % clay/coatings. It was concluded from these results that the addition of flame retardant additive 6 to the clay had a significant impact on the mechanical as well as the flame retardancy of the polyester acrylate base UV-curable coatings acting dominantly in the condensed phase. All results were attributed to the crosslinking density of the allyl modified clay containing UV-cured coating.
Ionic liquids are known to be nonflammable and have recently generated a lot of attention as environment friendly reagents. Compounds 6a and 6b (Figure 4) are ionic liquids and were synthesized from trimethylphosphine, methoxyacetic acid and allyl chloride (6a) or chloromethyl methyl ether (6b) [61]. Associated with methoxyacetate as counter anion, these compounds are described as the optimal ionic liquids for the dissolution of cellulose; however, no real application data was presented in the paper.
Recently, synthesis and application of different phosphinic acid derivatives has been reported [7]. Dibenzylphosphinic acid (7a, Figure 5) was synthesized from reaction of H2PO2NH4 with benzyl bromide; diallylphosphinic acid (7b, Figure 5) was synthesized from reaction of H2PO2NH4 with allyl bromide. These compounds were developed for application in epoxy resins for flame retardant and mechanical properties improvement. They were then treated with aluminium hydroxide to give aluminium–organophosphorus hybrids (AOPH) as follows: compound 7a gave AOPH-NR and compound 7b gave AOPH-C2. AOPH derivatives were then applied in epoxy resins to produce composites. LOI and TGA were performed for these composites and the analytical results showed that the AOPH-NR exhibits the best flame retardant properties: LOI for AOPH-NR was 28% and 23.6% for AOPH-C2. Moreover, the TGA analysis show that only AOPH-NR had an impact on the decomposition of the epoxy composites: the 5% and 50% decomposition temperatures decreased for AOPH-NR, whereas the other AOPH composites showed no real difference in thermal performance compared to the neat resin. TGA data indicated a slight increase in the char residue at 500 °C for both composites compared to the neat epoxy resin, showing a flame retardant mode of action in the condensed phase.

3.2. Addition Reactions

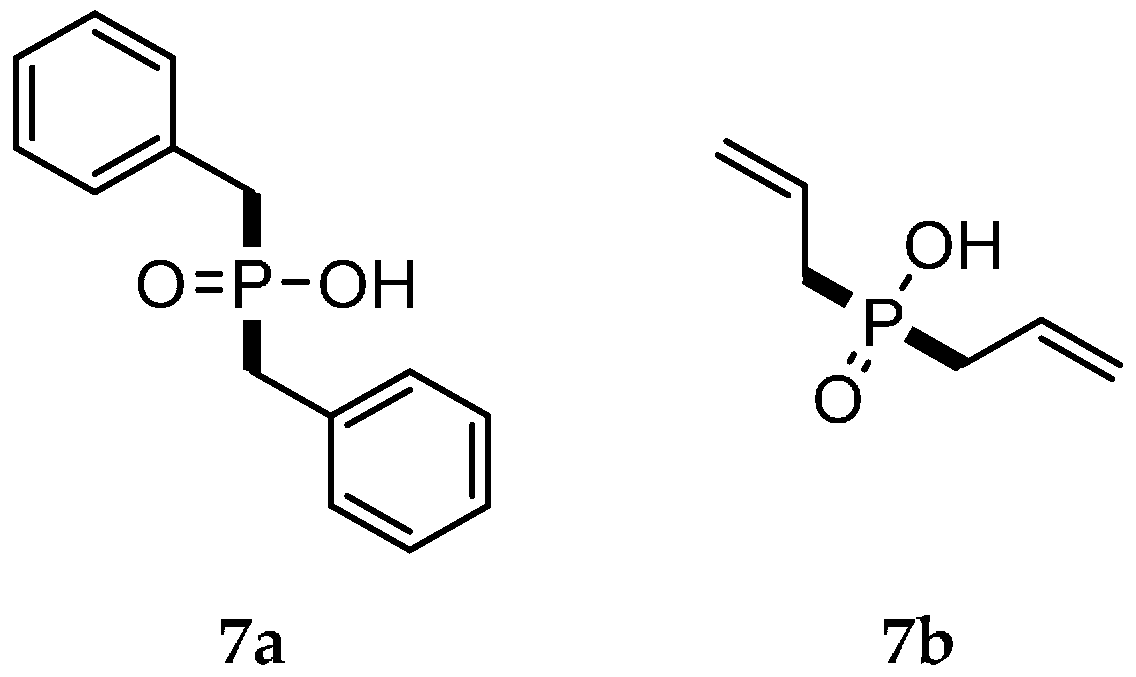

Addition reactions are also commonly used to create P-C bond containing flame retardants. The following section summarizes organophosphorus compounds obtained via addition reactions other than Michaelis–Arbuzov type reaction, which will be described in detail in the subsequent section.

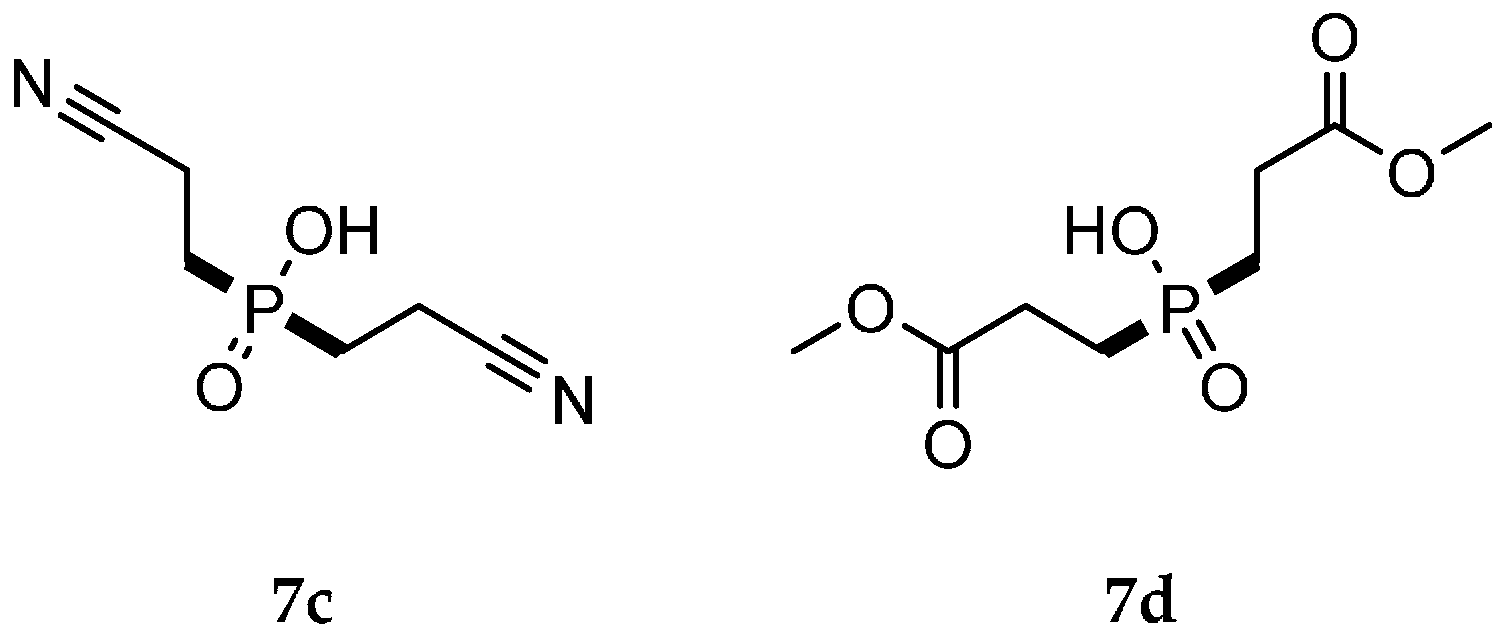

Phosphinic acid derivatives bis(2-cyanoethyl)phosphinic acid (7c, Figure 6) was synthesized from reaction of H2PO2NH4 with allyl cyanide; and bis(3-methoxy-3-oxopropyl)phosphinic acid (7d, Figure 6) was synthesized from reaction of H2PO2NH4 with methyl acrylate [7]. These products were subsequently treated with aluminium hydroxide to give aluminium–organophosphorous hybrids (AOPH). The produced AOPH derivatives were also applied in epoxy resins.

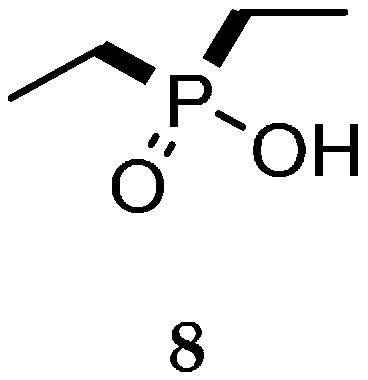

Diethylphosphinic acid (8, Figure 7) was obtained from a gas-liquid free-radical addition of sodium hypophosphite monohydrate and ethylene in acetic acid using benzoyl peroxide as initiator [62]. The thermal stability of compound 8 was investigated by TGA and the results showed two degradation peaks at 396 °C (small) and 424 °C (large), corresponding to the P-C bond breakage and combustion gas release, respectively. This compound was reported as a potential flame retardant; however, no further fire performance of this compound was reported.

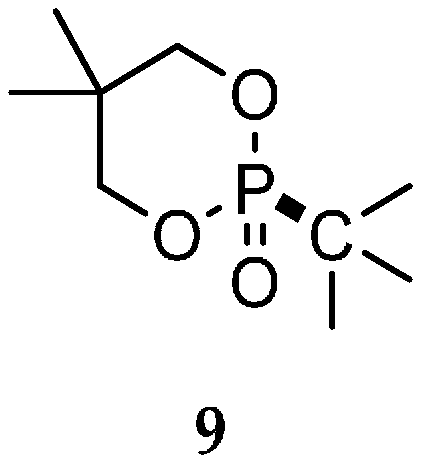

The synthesis of a cyclic tert-butyl phosphonate (Compound 9, Figure 8) is patented. Compound 9 was obtained by reaction of tert-butyl phosphonic dichloride and neopenthyl glycol [63]. This compound was claimed as a flame retardant due to the presence of phosphorus atom and can be used as an additive for polymer resin like polyphenylene ether. The Izod impact strength as well as the melt viscosity index at 200 °C were measured for a formulation with a composition of 85 wt % aromatic vinyl resin, 15 wt % polyphenylene ether resin and 20 wt % compound 9 of the final resin. The results showed 8.8 kgf.cm/cm Izod impact strength and a melt viscosity index of 7.9. In addition, this formulation also exhibited UL 94 V-0 rating.

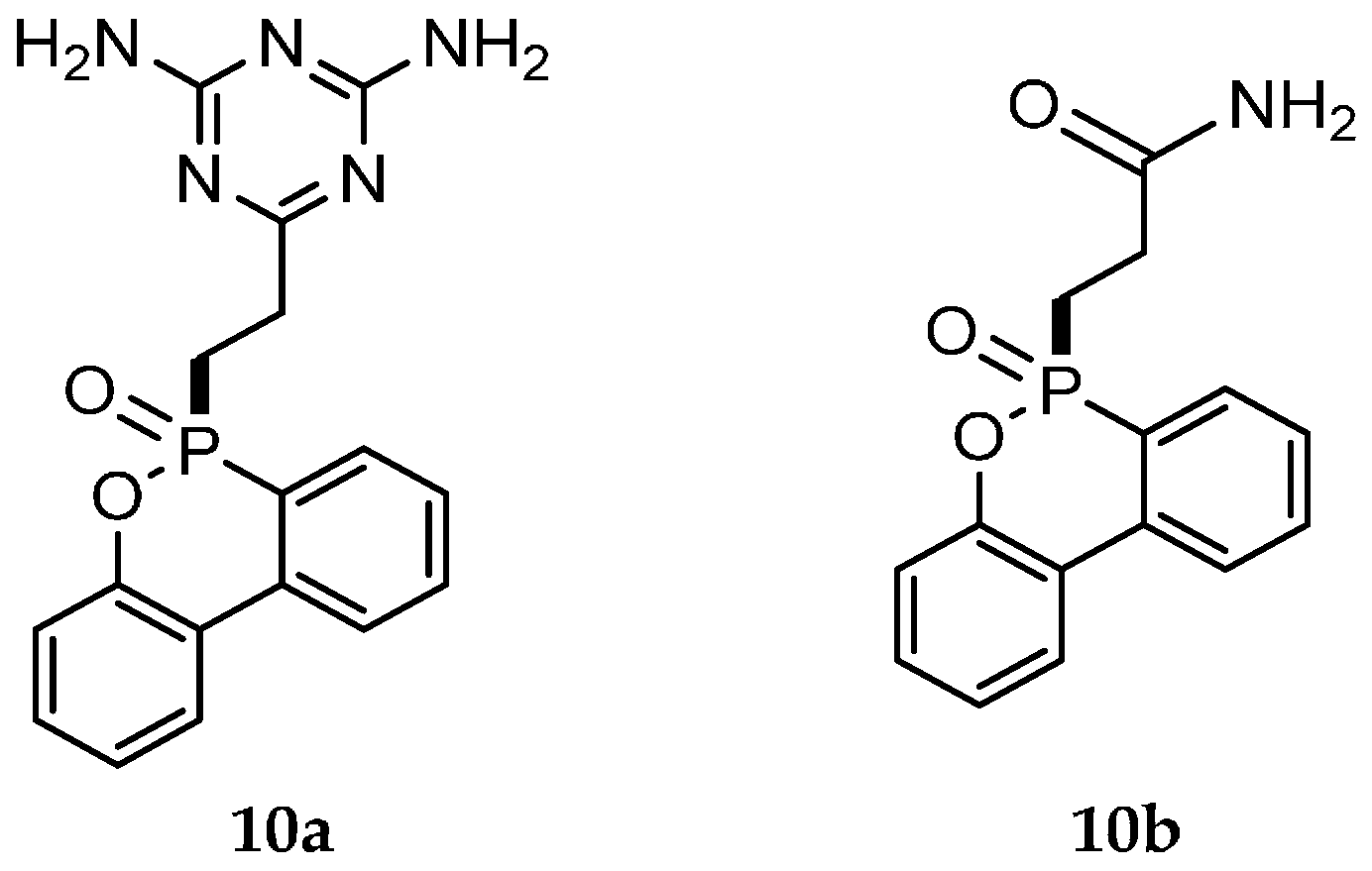

The triazine-based DOPO compound (10a, Figure 9) was synthesized using Michael addition reaction of DOPO with 2-vinyl-4,6-diamino-1,3,5-triazine using DBU as a catalyst [15]. The product was collected as a white solid power in 93% yield with a m.p. of ~257 °C. It was dried overnight and then used as a PA6 additive in co-extrusion. Its impact on flammability, thermal, mechanical and rheological properties for PA6 were studied and compared to a commercially available flame retardant Exolit® OP 1230. PA6 formulations containing 17.1 wt % of compound 10a and 16.8 wt % of Exolit® OP 1230 were prepared. Detailed thermal, mechanical and morphological characterizations using TGA, DSC, Scanning Electron Microscope (SEM), tensile tests, hardness and Charpy impact strength measurements were performed for these formulations. Flammability measurements and mechanistic studies were performed using PCFC, UL 94, vertical burning test and direct insertion probe mass spectroscopy (DIP-MS). It was found that in N2 environment, neat PA6 showed a Td5% of 388 °C and exhibited a one-step degradation process. In case of PA6 formulations, the Td5% of the formulation decreased to 386 °C and 372 °C for Exolit® OP 1230 and compound 10a respectively. In air, the decomposition took place in three steps for all formulations and the Td5% followed the same trend as in N2 environment. Thus, the addition of both flame retardants lowered the thermal stability of the PA6 polymer. Mechanical tests showed that the incorporation of compound 10a in the PA6 formulation resulted in a more rigid and brittle material (higher Young’s modulus but an impact strength of 4.53 kJ/m2). Neat PA6 did not break in the Charpy test. PCFC measurements registered a PHRR of 738 W/g for PA6/10a formulation, followed by PA6 (590 W/g) and PA6/Exolit® OP 1230 formulation (538 W/g). This high PHRR for PA6/10a formulation may be attributed to a catalytic decomposition of PA6 formed from the decomposition of the DOPO-derivative at high temperature. However, based on the THR, compound 10a showed a similar behavior compared to Exolit® OP 1230 (~27 kJ/g for both) and decreased the THR of the PA6 (28.5 kJ/g). The best UL 94 results were obtained for PA6 containing compound 10a with a V-0 rating and afterflame times t1/t2 (time the flame stays after the first/the second flame) of 0 s/0 s respectively (2 s/3 s for Exolit® OP 1230 and 2 s/0 s for the neat PA6). The char yield under N2 at 700 °C was found significantly higher for the PA6/10a formulation (2.4 wt %) compared to the PA6/Exolit® OP 1230 formulation (0.9 wt %) and the neat PA6 (0.28 wt %). Based on all analytical data, it was concluded that compound 10a exhibit both gas and condensed phase active flame retardancy for PA6, and can be considered as a suitable alternative to halogen and halogen free flame retardants commercially available for PA6 application.
The same group also synthesized DOPO-derivative 10b (Figure 9) and compared its thermal and fire performances with compound 10a [64]. Like in case of 10a, 10b was obtained using the synthetic procedure i.e., Michael addition of DOPO with acrylamide using 1,8-diazabicyclo(5.4.0)undec-7-ene (DBU) as a catalyst. It was obtained in a 75% yield and with m.p. ~ 170 °C. Both flame retardants were incorporated in rigid polyurethane foams (RPUF) with 1 wt % and 2 wt % phosphorus content and analyzed using UL 94 HB test, LOI, cone calorimetry, PCFC, TGA, DSC, SEM and Pyrolysis-Gas Chromatography Mass Spectroscopy (Py-GC-MS). Results showed that both flame retardants had HF-1 UL 94 HB rating while neat RPUF had a HBF rate. LOI values increased from 19.3% for the neat foam to 20.5% for PU foams containing compound 10b and 20.9% for compound 10a. Such increase in LOI are considered rather low compared to self-extinguishing systems which usually exhibit LOI > 25%. The cone calorimetry tests showed a significant decrease of the THR with the addition of flame retardant 10a (23.1 MJ/m2) and compound 10b (19.3 MJ/m2) compared to the neat PU foam (24.9 MJ/m2). TGA showed a slight decrease of the Td10% for RPUF containing flame retardants 10a and 10b (300 °C for neat RPUF, 298 °C and 296 °C for RPUF with 10a and 10b, respectively). Evolved gas analysis, cone calorimetry and TGA experiments proved that DOPO derivatives-containing RPUF exhibit lower smoke and toxicant production and increased char residue, indicating the condensed phase mode of action.

3.3. Michaelis–Arbuzov Type Reactions and Rearrangement

Michaelis–Arbuzov reactions are one of the most common reactions used for the creation of phosphonate compounds. For example, Michaelis–Arbuzov reaction of 2-methoxy-5,5-dimethyl-1,3,2-dioxaphosphinane (11, Scheme 1) with allyl bromide produced 2-oxo-2-allyl-5,5-dimethyl-1,3,2-dioxaphosphinane (11a, Scheme 1). Epoxidation reaction of the later compound using m-CBPA, afforded the epoxy containing cyclic phosphonate 11b [65]. Compound 11b was reported as a white solid with 80% yield and a m.p. ~ 57–59 °C. It was then mixed with polyurethane (PU) at a 10 molar % in two different methods. The Blend method involved incorporation of the flame retardant as additive after the polymerization of the PU whereas the Prep method involved copolymerizing compound 11b with PU. Pyrolysis combustion flow calorimetry (PCFC) test was used to evaluate the THR of the PU samples. It was found that the neat and the Prep PU had nearly the same THR (~22 kJ/g), which was lower than that for the Blend method (~25 kJ/g). The PCFC results confirmed that PU manufactured by both methods had no effect on THR of the PU. A possible explanation for this observation was attributed to the loss of compound 11b during the final washing step in PU Prep method as well as to its weak incorporation in PU in the Blend method.

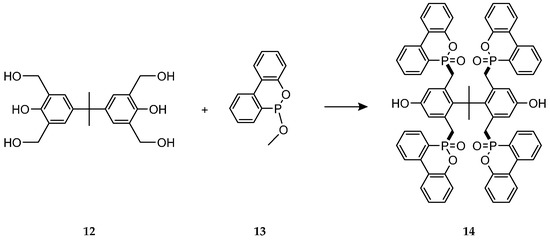

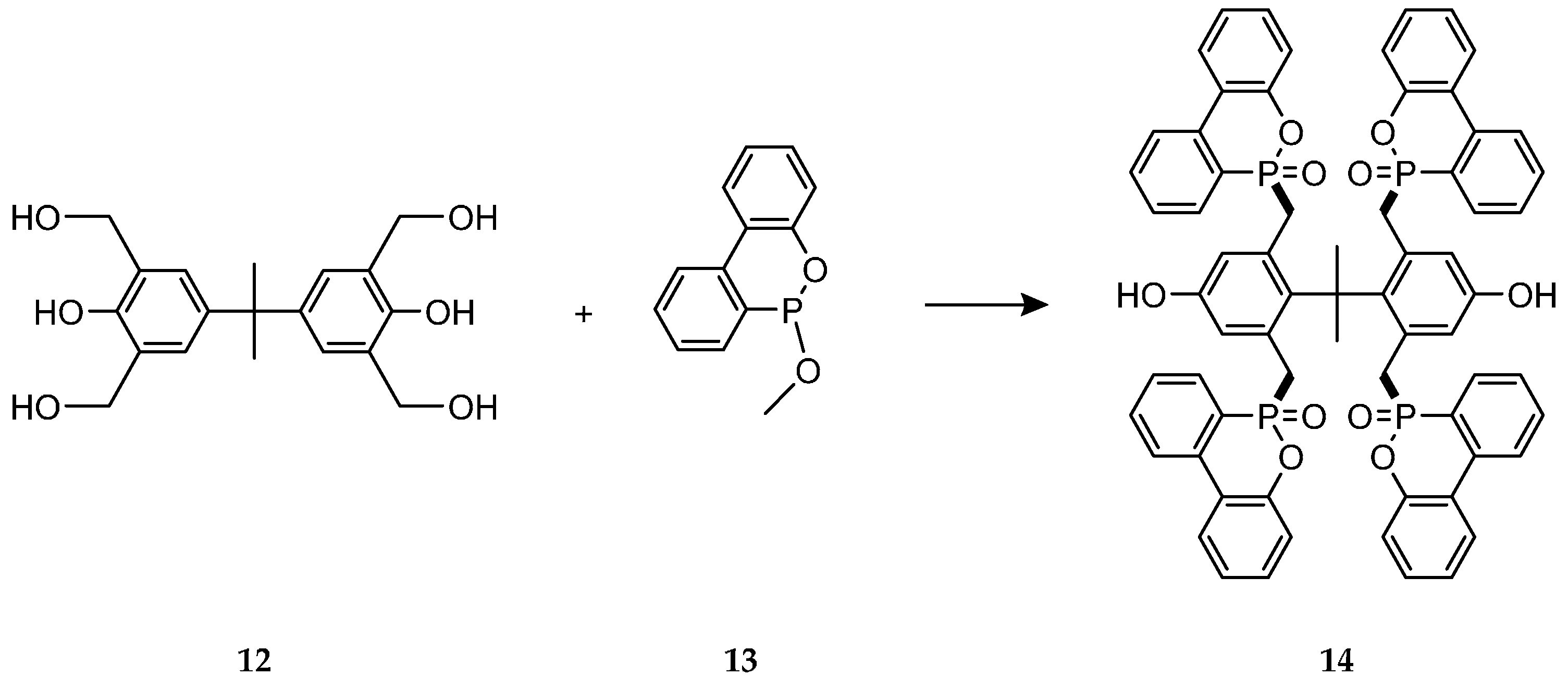

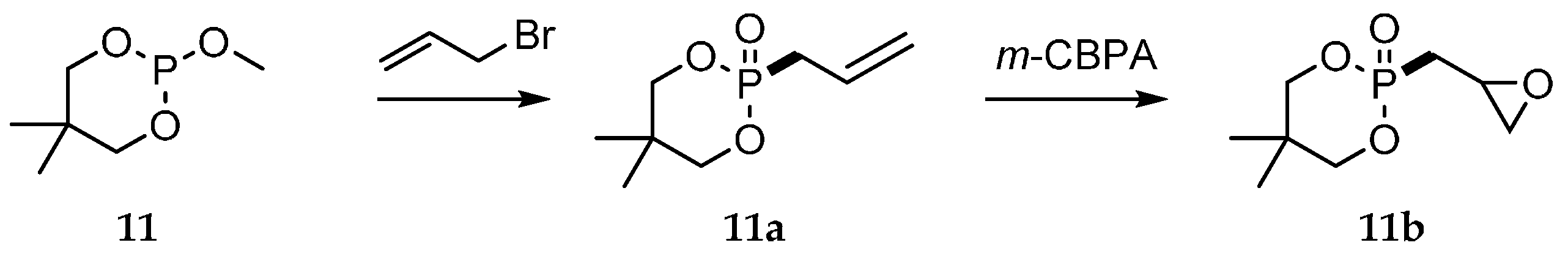

Compound 14 (Scheme 2) was synthesized from reaction of compound 12 (Scheme 2) with DOPO derivative 13 (Scheme 2), via Michaelis–Arbuzov rearrangement [66]. The synthesized phosphorous compounds were then used as flame retardants additives in epoxy resins.

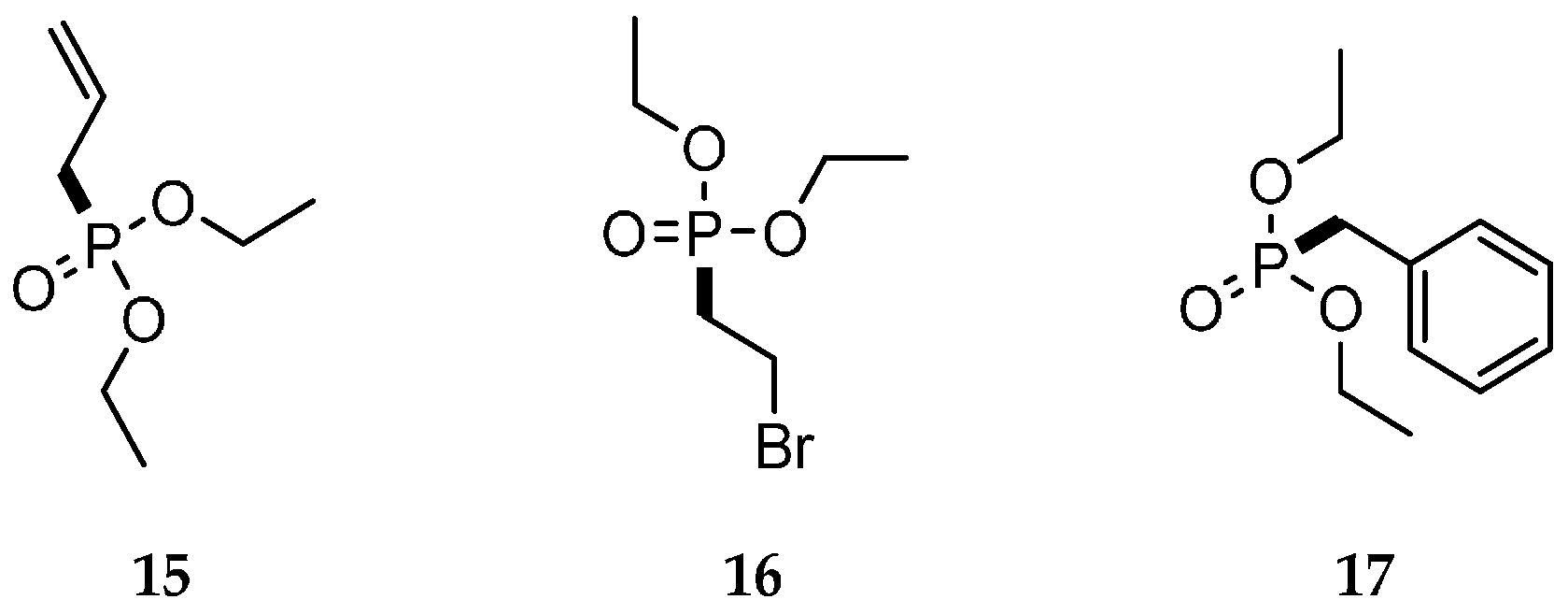

Diethyl allylphosphonate (15, Figure 10) has been synthesized from triethyl phosphite and allyl bromide and used in free radical precipitation polymerization in aqueous phase to produce poly(urethane-co-ester) (PMMD) copolymers [67].
The PMMD copolymers were synthesized from poly(ethylene glycol), methacrylate, methyl methacrylate and monomer 15 in different molar ratios 1:6:2 (PMMD-162) and 1:6:3 (PMMD-163). BMMD copolymers were blended with ABS to improve its flame retardancy. Improvements in flame retardancy have been observed using LOI and UL 94 tests. LOI values were 20.8% for 20 wt % PMMD-162 and 20.3% for 20 wt % PMMD-163, while neat ABS showed an LOI value of 17.8%. UL 94 tests also showed better fire results with increased amount of FR.
Diethyl bromoethylphosphonate (16, Figure 10) has been synthesized from 1,2-dibromoethane and triethyl phosphite to improve flame resistance of several polymers [68]. Compound 16 was used to synthesize other monomers for ROMP homopolymerization. Dimethyl benzylphosphonate (17) was synthesized from trimethyl phosphite and benzyl bromide and was applied in PU foam to improve the flame retardancy of PU foams. The structural influence of the organophosphorous compounds on its flame retardancy was also studied [14]. It was reported that applying compound 17 in PU foams improves the flame retardancy of PU foams as confirmed by LOI, BKZ-VB and UL 94 HB tests. The concentrations of compound 17 used in these experiments were 1, 2, 5 and 10%. LOI values for the formulations ranged from 21.2% for the lowest to 22.5% for the highest concentrate respectively. Burning velocity decreased from 5.9 mm/s for the least concentration of additive to 4.1 mm/s for the highest concentration. UL 94 HB tests confirmed HBF rating for the PU foam with 1% to 5% concentration of the flame retardant additive 17 and it improved to an HF2 rating for 10% concentration.

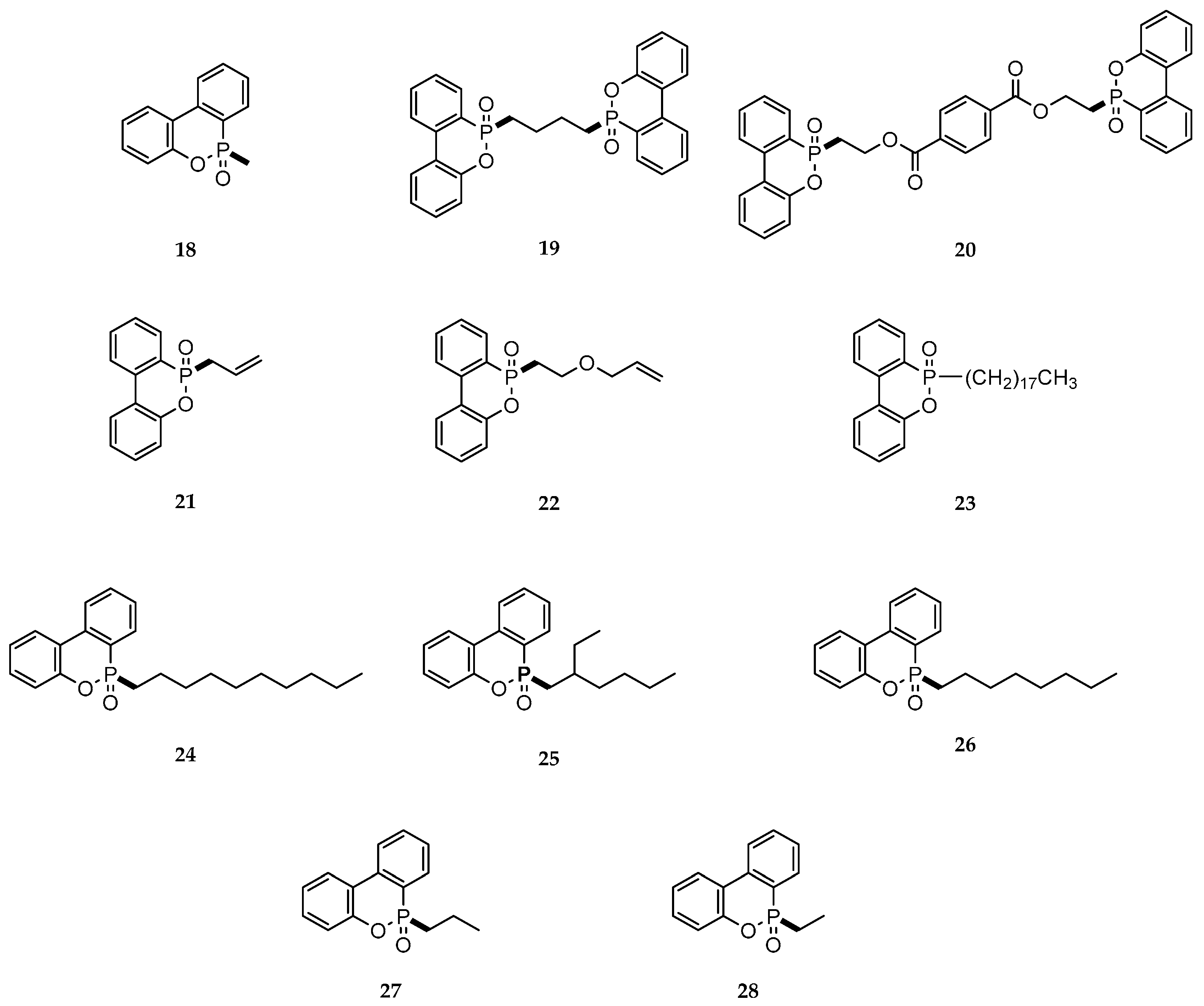

Different DOPO-based derivatives (Figure 11) have been synthesized using the Michaelis–Arbuzov reaction with the aim of studying their flame retardant mechanism in PU foams [69]. For example, methyl-DOPO (18) was synthesized in 97% yield and incorporated in polyol to obtain the PU foam. Three different concentrations were tested: 5, 7.5 and 10 phpp (parts per hundred parts polyol). Burning test FMVSS 302 has been performed on the produced foams. With increase in the concentration of 18, the total heat release (THR) of the foam as measured in cone calorimeter decreased, but the total smoke release (TSR) increased, indicating a strong gas flame inhibiting effect of compound 18.
Methyl-DOPO (3.18) and compounds 19 to 28 (Figure 11) can also be synthesized using Michaelis–Arbuzov rearrangement [70]. For example, a new synthetic route involves using the transesterification of phosphonous acid diesters with the corresponding aliphatic alcohols and subsequent catalyzed Michaelis–Arbuzov rearrangement reaction, which leads to the formation of DOPO derivatives 19 to 28. These structures were developed as halogen-free flame retardant alternatives for application in various polymers. The melting points were measured for compounds 18 (131 °C), 21 (106 °C), 23 (59–61 °C), 27 (108 °C) and 28 (105 °C). No further analytical studies were performed on these compounds. Such compounds can find potential applications in polymers with processing temperature below 200 °C. The synthesis of DOPO derivatives 18 and 28 were also investigated in other studies [71].

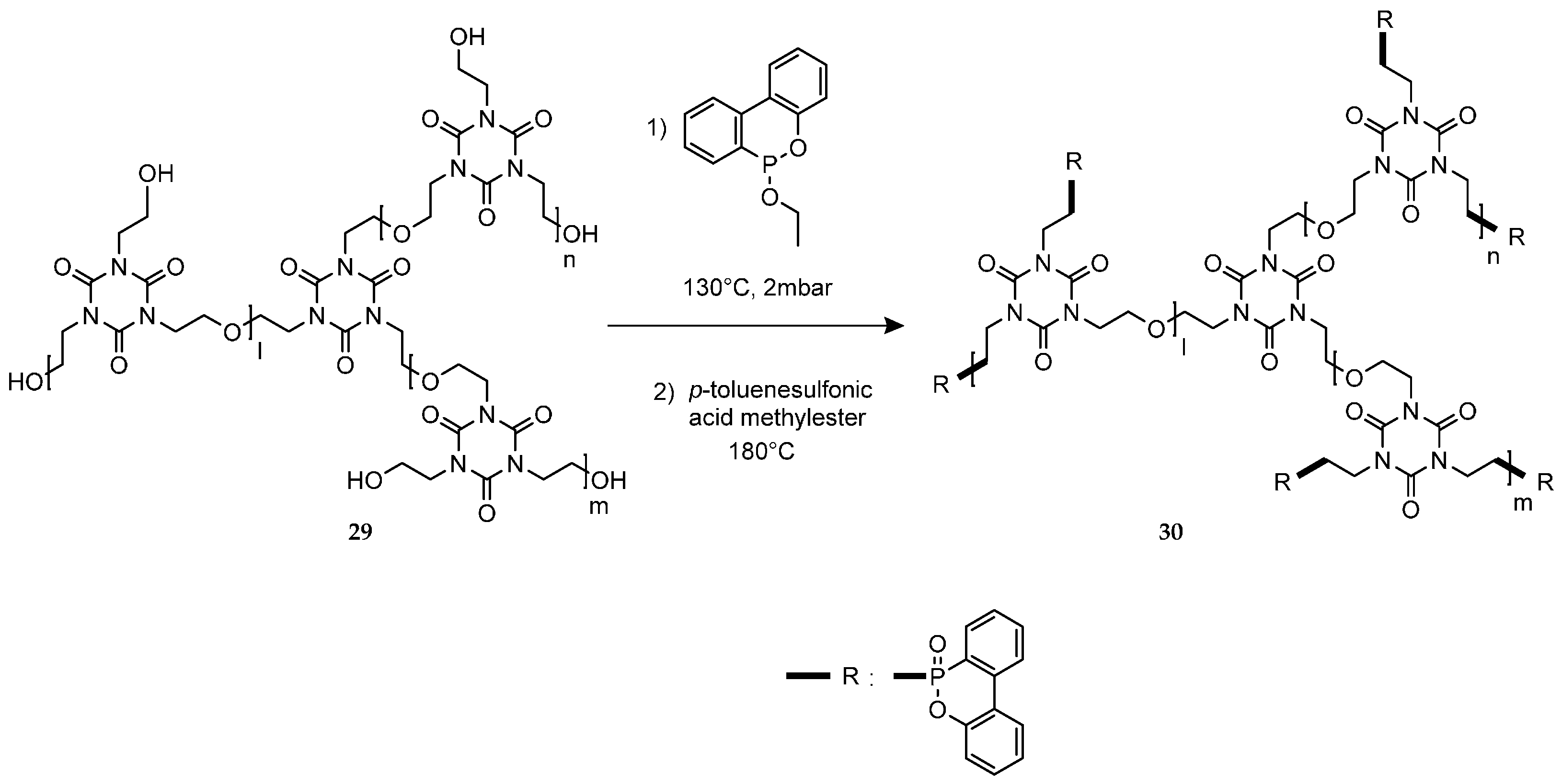

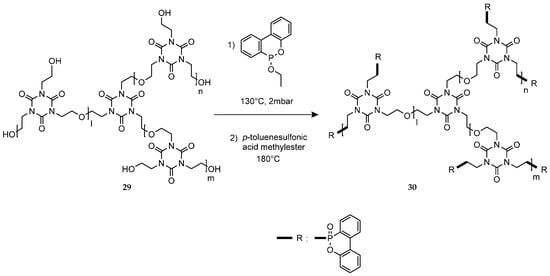

Compound 30 (Scheme 3) was synthesized via Michaelis–Arbuzov rearrangement reaction with a yield of 82% and applied as flame retardant additive in epoxy resin [72]. TGA and UL 94 test were performed on the resin samples. It was observed in TGA measurements that there was only a slight difference in Td5% between the neat epoxy resin (320 °C) and resin with the compound 30 (340 °C), which indicates a possible gas phase action for this flame retardant. V-0 rating was obtained for epoxy formulation containing compound 30. It was inferred in this work that the lower the oxidation state of the phosphorus compound, the better is its flame retardancy.
The spiro-cyclic phosphorus-containing flame retardant 32b was synthesized from reaction of 5-hydroxymethyl-5-methyl-2-phenyl-1,3,2-dioxaphosphorinane-2-oxide with compound 32a (Scheme 4), in 70% yield [73]. P-C bond in compound 32a was formed via Michaelis–Arbuzov reaction using the starting material 31 followed by chlorination reaction using thionyl chloride. The final product 32b was then blended with ABS in 20 wt % and 30 wt % loading and the thermal decomposition and flammability of the formulations were investigated using TGA and UL 94 tests. A 20 wt % loading of 32b in ABS didn’t show any improvement in flame retardancy. However, for a higher concentration of 32b (30 wt %), the temperature of 10% weight loss (Td10%) was 402 °C and 384 °C under N2 and air, respectively. For the neat ABS, a Td10% of 326 °C and 306 °C in N2 and air were observed, respectively. For the 30 wt % 32b formulation, a PHRR of 268.4 W/g and a THR of 26.9 kJ/g (the neat ABS having showed a PHRR of 505 W/g and a THR of 32.7 kJ/g) was observed. It was suggested that this flame retardant acts in a condensed phase when incorporated in PC and in a gas phase when incorporated in ABS.
For a formulation of 30 wt % of compound 32b in ABS resin, one could achieve a V-0 rating. V-0 classification is the highest classification in terms of fire safety in UL 94 test. However, for the PC blend, a UL 94 V-0 rating was obtained with a much lower concentration (4 wt %) of compound 32b.

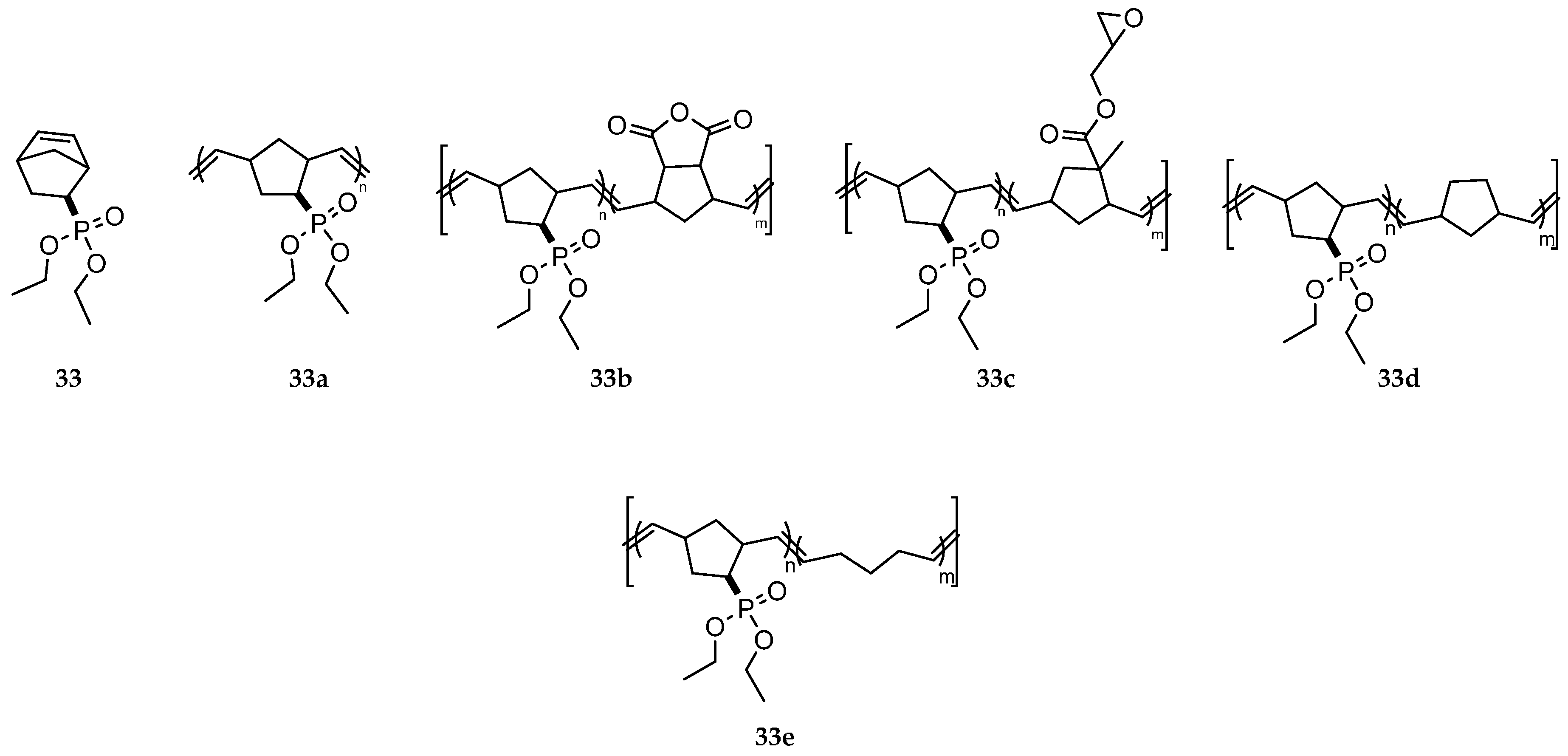

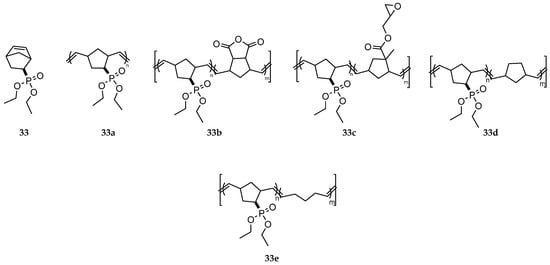

The norbornene-based phosphorus containing compound 33a33e (Figure 12) were synthesized using ring opening metathesis (ROMP) and investigated as flame retardants [68]. However, the main block monomer 33 has been synthesized in multistep reactions including Michaelis–Arbuzov rearrangement in 68% yield. The polymers 33a33e were then applied by coating to folded printed paper and subsequent burning tests were performed. The TGA results of these polymers showed that most of them (33a, 33b, 33d, 33e) work in condensed phase: the residual weights were 31 wt %, 34 wt %, 27 wt %, 38 wt %, respectively, whereas, for 33c, a residual weight of 21 wt % was observed. These polymers were also subjected to photolithography using “thiol-ene click” chemistry, which allowed the phosphonated polymer to get a promising negative photoresist. TGA was performed on the polymer samples and homopolymer of 33a exhibited a two-step thermal decomposition. A Td10% of 331 °C was observed, which was 50 °C lower than for other polymers studied. However, the obtained coating from compound 33a showed high flame resistance. This was attributed to higher residual weight (37 wt %) for the treated paper as observed in the TGA experiments. LOI value of the blank paper was 21% with a flame speed of 1 cm/s. With 40 wt % of 33a homopolymer coating on paper, the LOI value was increased to 25% with a burning speed <0.1 cm/s. At a oxygen concentration 35%, the homopolymer 33a coated paper showed a burning speed <0.5 cm/s, which was half of that obtained for the blank paper. The norbornene derived phosphonated polymer was tested for the first time as flame retardant and the study confirmed its self-extinguishing ability when applied on paper.

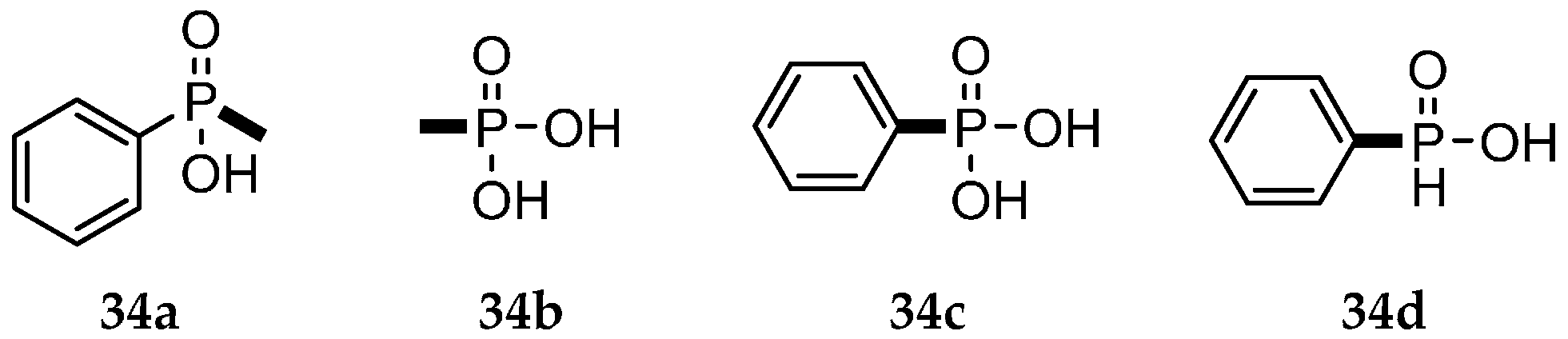

Methylphenylphosphinic acid (34a, Figure 13) was obtained from hydrolysis of methyl methylphenylphosphinate (MMPP) in hydrochloric acid in 90% yield. MMPP was synthesized in a two-step synthetic strategy. It involved reactions of dichlorophenylphosphine with methanol to form dimethyl phenylphosphonite and subsequent rearrangement reaction with methyl iodide to yield MMPP [74], in 65% overall yield. It was observed that the thermal decomposition of compound 34a occurred in one step compared to other structurally analogues flame retardants studied (34b, 34c and 34d, Figure 13). In addition, the compound 34a showed a Td10% < 300 °C in the TGA experiment. The flame retardant additives were also copolymerized with acrylonitrile-butadiene-styrene (ABS) and ethylene-vinyl acetate (EVA) separately with a 20 wt % loading (~4 wt % phosphorus). Based on the residue obtained in TGA, it was reported that all these flame retardants act in the gas phase in EVA formulation, compounds 34a and 34b act in gas phase in ABS formulations and compounds 34c and 34d act in both gas and condensed phases in ABS formulations. A UL 94 V-0 rating for formulation containing 20 wt % of compound 3.34a in ABS was observed. Compounds 34a, 34b, 34c and 34d were compared for their flame retardant performance. It was observed that compound 34b exhibited the best flame resistance; however, it was considered not suitable as real flame retardant because of its high solubility in water. Compound 34a exhibited the second best result in the UL 94 test, was also the most volatile, and followed by 34c and 34d. A general conclusion on the influence of the structure on the flame retardancy was made i.e., flame retardant having a methyl group attached directly to the phosphorus atom showed greater flame retardancy compared to compounds having a phenyl, hydrogen or a hydroxyl group.

3.4. Grignard Type Reaction

Grignard reactions can also be used for the creation of new P-C bonds [75]. Hexaallyltriphosphazene (HAPP) (35, Figure 14) was prepared from the reaction of allylmagnesium bromide with hexachlorocyclotriphosphazene (in 94% yield) for application in epoxy system to improve its flame retardancy. HAPP was further reacted in two steps to give hexa(3-triglycidyloxysilylpropyl)triphosphazene (36) in 92% yield, which was then used in epoxy formulations. LOI tests were performed for the epoxy system with and without flame retardant additive 36. The results showed that compound 36 played a major role in improving flame retardancy. For example, the LOI value of the neat resin was 22.5%, whereas, with 15 wt % of 36, the LOI value increased to 32.1%. Moreover, the TGA data revealed that the higher the concentration of compound 36 in the epoxy system, the higher the Td5% and Td50% temperatures. The TGA results also showed that, for the most concentrated resin (15 wt % of compound 36), the char residue under was 10.2%. Therefore, it was reported that this flame retardant acts predominantly in the gas phase.

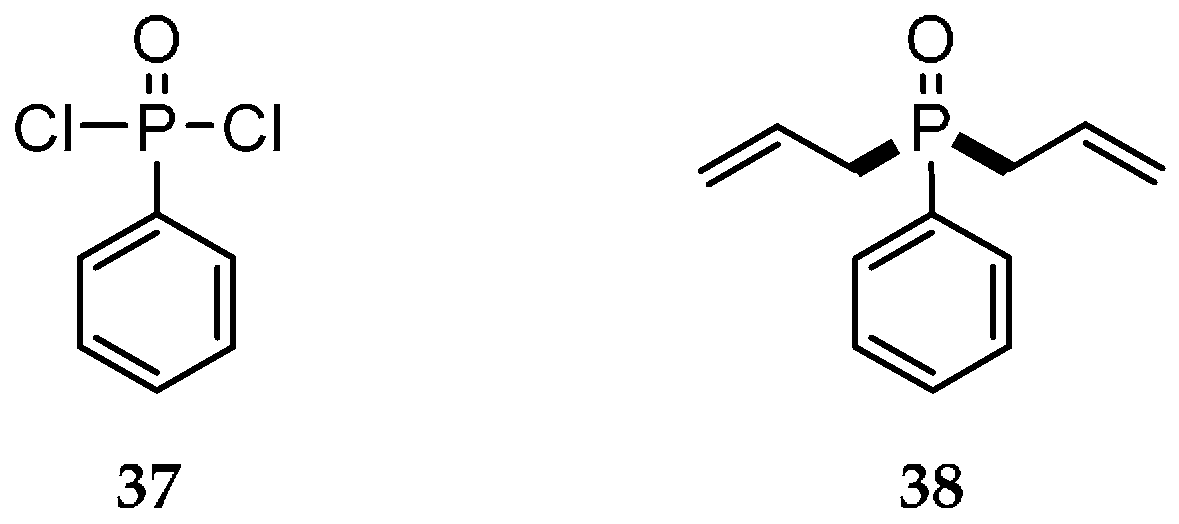

Diallylphenylphosphine oxide (38, Figure 15) was prepared from reaction of allylmagnesium bromide with phenylphosphonic dichloride (37, Figure 15), in about 55% yield [76]. The light yellow product obtained was applied in UV-cured organic–inorganic hybrid coatings on corona treated Plexiglass® panels. The formulations contained tetraethyl orthosilicate (TEOS), diallylphenylphosphine oxide (5 to 20 wt %), an aliphatic urethane diacrylate resin and a silane-coupling agent. Free films on Teflon™ wells were also prepared and cured with UV-light. Mechanical tests were performed on the cured samples with and without addition of compound 38 and evaluated for tensile properties like the Young’s modulus and the elongation at break, the contact angle, the pendulum hardness and the cross-cut adhesion. It was found that the addition of diallylphenylphosphine oxide increased the Young’s modulus but decreased both the tensile strength and the elongation at break compared to the formulation without the compound 38. The contact angle also decreased with the addition of compound 38 to the formulation due to its high polarity. The pendulum hardness increased with addition of the flame retardant due to a higher cross-linking density and the cross-cut adhesion (which ranged from 0 for the best and 5 the poorest adhesion) showed a result of 0 for a 15 wt % and 20 wt % flame retardant content. The thermal stability of the samples was also investigated by TGA and it was found that addition of 20 wt % of compound 38 lowered the Td5% by 40 °C compared to the sample without the flame retardant. The char content as measured in TGA for the most concentrated resin (20 wt % of 38) is lesser for lower (10% of 38) concentration formulation. Normally for a flame retardant working in the condensed phase, the char content in TGA analysis increases with increase in its concentration in the polymer. Thus, one can infer from the TGA data that flame retardant 38 work mostly in the gas phase. The photo-DSC test was also performed, and it was concluded that the enthalpy of polymerization increased with the increase in concentration of compound 38.

4. Flame Retardants with P-Caromatic Bonds

In the following sections, we have summarized specific examples of P-Caromatic bond containing organophosphorus compounds, which are classified based on the synthetic strategy for creation of P-C bond. For clarity, the specific P-C bonds that were created in the structure have been marked in bold.

4.1. Friedel–Crafts Type Reactions

One of the main routes to phosphorus-aromatic carbon bonds formation is a modified Friedel–Crafts reaction usually involving phosphorus trichloride and a Lewis acid. DOP-Cl (Compound 39, Figure 16) has reportedly been synthesized starting from o-phenylphenol using phosphorus trichloride in presence of zinc chloride catalyst in 95% yield [66,77]. DOP-Cl is an important precursor for DOPO derivatives due to its high chemical reactivity towards nucleophiles [5]. As an example, it is shown in the literature that DOP-OMe reacts with hydroxymethyl substituted phenols via a Michaelis–Arbuzov type rearrangement to give compound 14 (Scheme 2) in 32% yield. Compound 14 has a glass transition temperature of 108.5 °C. In the published patent, it was claimed that this family of compounds can be used as flame retardant for a wide range of polymers such as PU, epoxy and other thermosetting resins or thermoplastics in general. It is further claimed that these compounds are particularly adapted to protective coating formulations, electrical laminates and molded thermoplastic products [77].
The same reagents as described earlier were also used in another patent to prepare compound 39 (Figure 16) and was subsequently oxidized [78]. Next, esterification with phenols or polyhydroxybenzenes was performed to develop several flame retardants and one such example is compound 40 (Figure 17) (obtained from bisphenol A). No further information on characterization, flame retardancy or applications were provided.

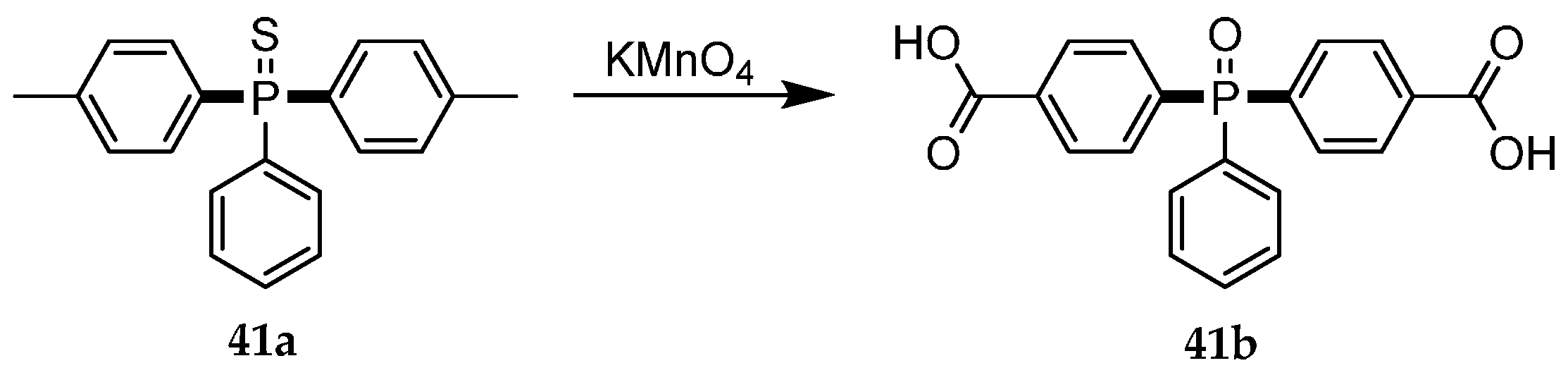

Friedel–Crafts reactions can also be performed using aluminum chloride as Lewis acid. It was reported that dichlorophenylphosphine sulfide reacts with two equivalents of toluene in the presence of AlCl3 catalyst to give 41a (Scheme 5, 84% yield) [79]. The compound was further oxidized to give BCPPO (41b, Scheme 5). Several polycondensations of this flame-retardant monomer and terephthalic acid (TPA) with bisphenol A were performed using different TPA/41b ratios, yielding six different polyarylates. Films were prepared from these phosphorus-containing polyarylates for further characterization. Mechanical properties of the polymers were evaluated, and it was found that tensile strength and elongation at break decreased with introduction of 41b in the polyarylate. Crystallinity was lost when 41b was incorporated in the polymer. Glass transition temperature, Td5% temperature and char yield followed the same positive trend when phosphorus content was increased, showing tangible evidence that 41b introduction can improve the thermal stability of the resulting polymer. To confirm improved flame retardancy of the new materials, LOI value was measured and was shown to increase from 30.7% to 34.5% with increasing phosphorus content. Further study of the thermal decomposition behavior of the polymers concluded that increasing the proportion of compound 41b in the polymer increased the char formation, indicating that compound 41b acts in both the gas and condensed phase. Finally, an additional goal of this work was to study the solubility of the synthesized polyarylenes. Good solubility was achieved in a wide selection of organic solvents for formulations with 20% or more of compound 41b. This was attributed to the increase of free volume induced by the introduction of bulky pendant phenyl units in the chain. It was thus concluded in this work that introduction of compound 41b enhanced the thermal stability while improving the polyarylates’ processability.

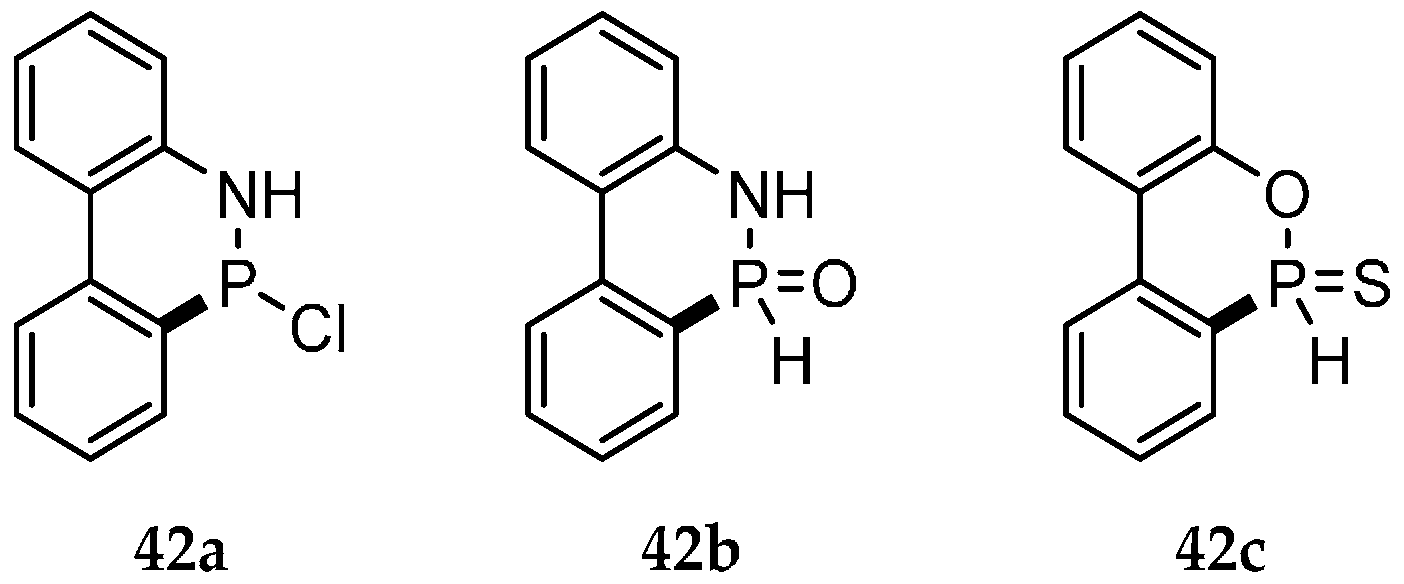

DAP-Cl (compound 42a, Figure 18), a precursor to the nitrogen-containing DAPO (compound 42b, Figure 18), was synthesized in 95% yield using 2-aminobiphenyl, PCl3 and AlCl3 as catalyst [80,81]. It was reported that DAPO exists in the solution in a tautomeric equilibrium with its corresponding phosphonamidic acid [82]. Another DOPO derivative, DOPS ( compound 42c, Figure 18), was synthesized by reacting DOP-Cl with hydrogen sulfide at room temperature (89% yield) [83]. Epoxy phenol novolac resins were functionalized with DAPO and DOPS, followed by a curing step. Phosphorus content in these formulations ranged from 0.6 to 1.6 wt %. DSC measurements showed that DAPO-modified resins had higher Tg compared to the reference DOPO-modified resins. This was attributed to the presence of an amine group that can also act as a cross-linking reagent, resulting in a more rigid network. On the contrary, DOPS-modification induced a sharp decrease of Tg, which can result in lower crosslinking density due to the bulky sulfur atom. Flame retardancy of these modified resins was investigated and compared to DOPO-modified resins. At 1.6 wt % P loading, DOPS- and DAPO-modified resins achieved UL 94 V0 rating. Char yield in TGA experiments reached 35% for DAPO and 32% for DOPS based resins. Nitrogen-phosphorus synergistic effect was considered to be the reason behind increased char yield, and was also presented as a possible explanation for their slower decomposition rate. Sulfur-phosphorus synergy hasn’t yet been extensively studied so no conclusion could be drawn. Increased char yield indicate a high probability that DOPS and DAPO may work in condensed and gas phase, whereas DOPO acts mainly in gas phase.

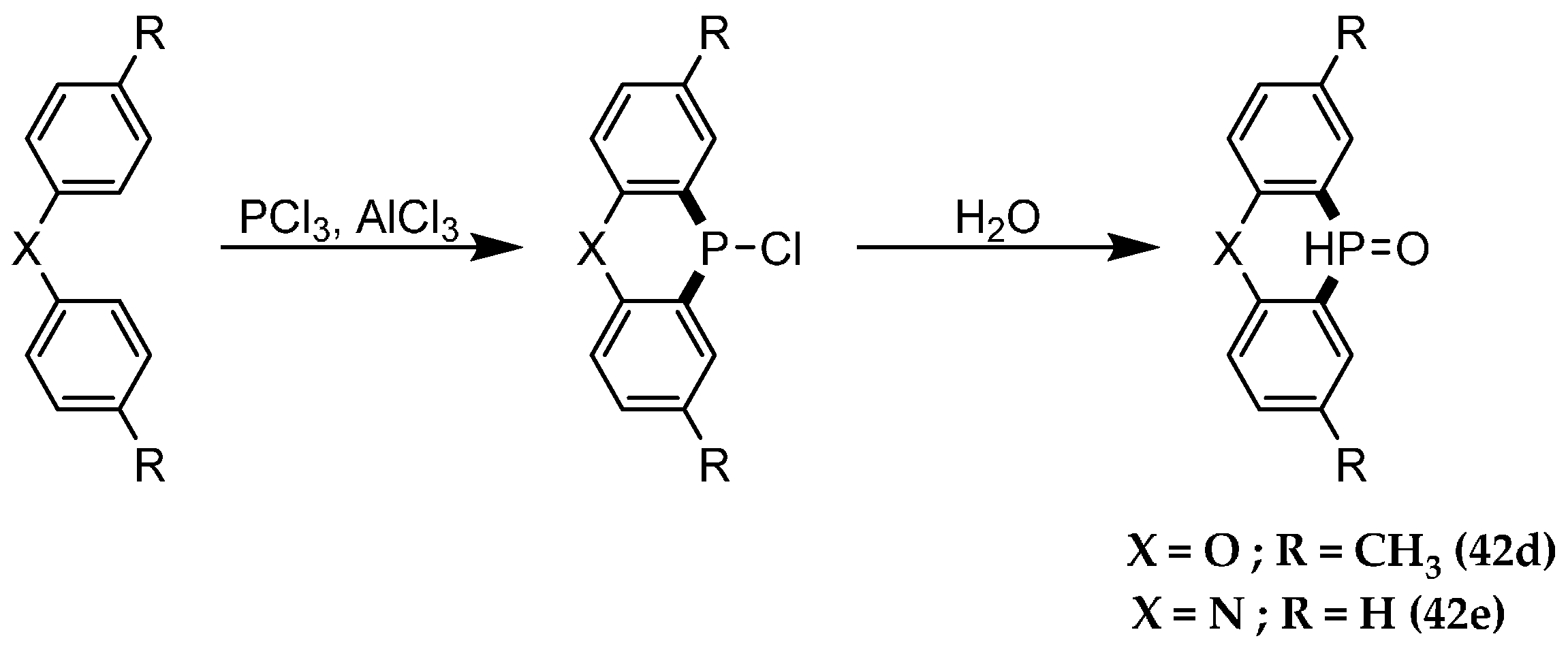

Two similar compounds were prepared using aluminum chloride and phosphorus trichloride reagents and di-p-tolylether [84] or diphenylamine [85], affording DPPO (compound 42d, 91% yield) and DPPA (compound 42e, 61% yield), respectively (Scheme 6). Compound 42d was then oxidized with hydrogen peroxide or reacted with formaldehyde, affording DPPO-OH and DPPO-CH2OH, respectively. These two intermediates along with unmodified 42d were then used to functionalize epoxy novolac resin DEN 438 by their reaction with the epoxy groups, resulting in DPPO-OH-DEN, DPPO-CH2OH-DEN and DPPO-DEN. The same procedure was applied to DOPO, affording DOPO-OH, DOPO-CH2OH-DEN and DOPO-DEN. Each flame-retardant prepolymer was prepared with phosphorus content ranging between 0.5% and 2.0%. 4,4′-Diaminodiphenylmethane (DDM) was used as hardener during the curing step.
Compound 42e was directly reacted to epoxy groups of DGEBA resin (via the phosphorus and nitrogen atoms) to obtain DPPA-DEN prepolymers [85]. The phosphorus content of the formulations varied from 0 to 3.20 wt %. Curing was then performed using DDM or 3,5-diethyltoluene-2,6-diamine (DETDA) as hardeners. High level flame retardant properties were achieved for all the DOPO- and DPPO-based epoxy resins. At a 0.81 wt % phosphorus content, all of them acehieved UL 94 V-0 rating. For this same phosphorus content, DOPO-based resins exhibited LOI value between 31% and 31.5%, whereas, for DPPO-based resins, LOI values ranged between 27.4% and 28.3%, both considered really good values for flame retardants. In case of compound 42d, PO radicals were shown to form in the gaseous phase, indicating the gas phase mode of action [84]. DPPA-DEN resins exhibited lower flame retardant performance, needing a phosphorus content of 3.20% to attain UL 94 V-0 rating as well achieving LOI values 28.5% (DDM-cured) and 29.3% (DETDA-cured). Thus, it was concluded that DPPO-, DPPA- and DOPO-functionalization proved to be beneficial in improving flame retardants in epoxy resins.

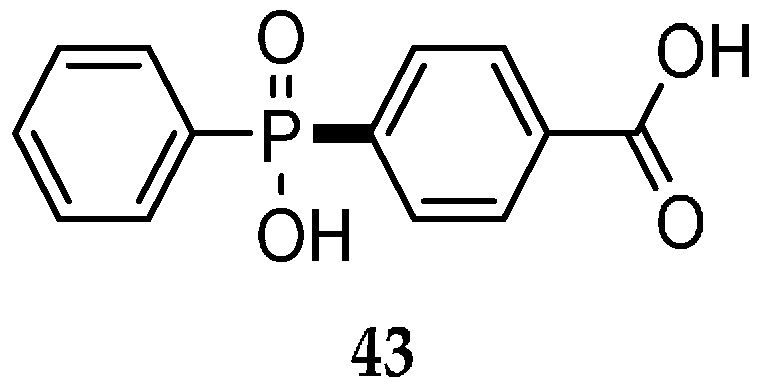

4-carboxyphenylphenylphosphinic acid (43, Figure 19) was prepared by addition of toluene to dichlorophenylphosphine and anhydrous aluminum chloride followed by hydrolysis and the oxidation reaction [86], achieving a yield of 33.1%. Its solubility in water was investigated from 26.70 °C to 94.52 °C and experimental data was correlated using a second-order polynomial with an absolute average deviation of 2.1%. These solubility measurements were considered of interest because of the important role of water in the industrial production and purification of compound 43. Being a reactive phosphorus-containing monomer, compound 43 can be used as a co-monomer for manufacturing functional polyesters.

4.2. General Substitution Reactions

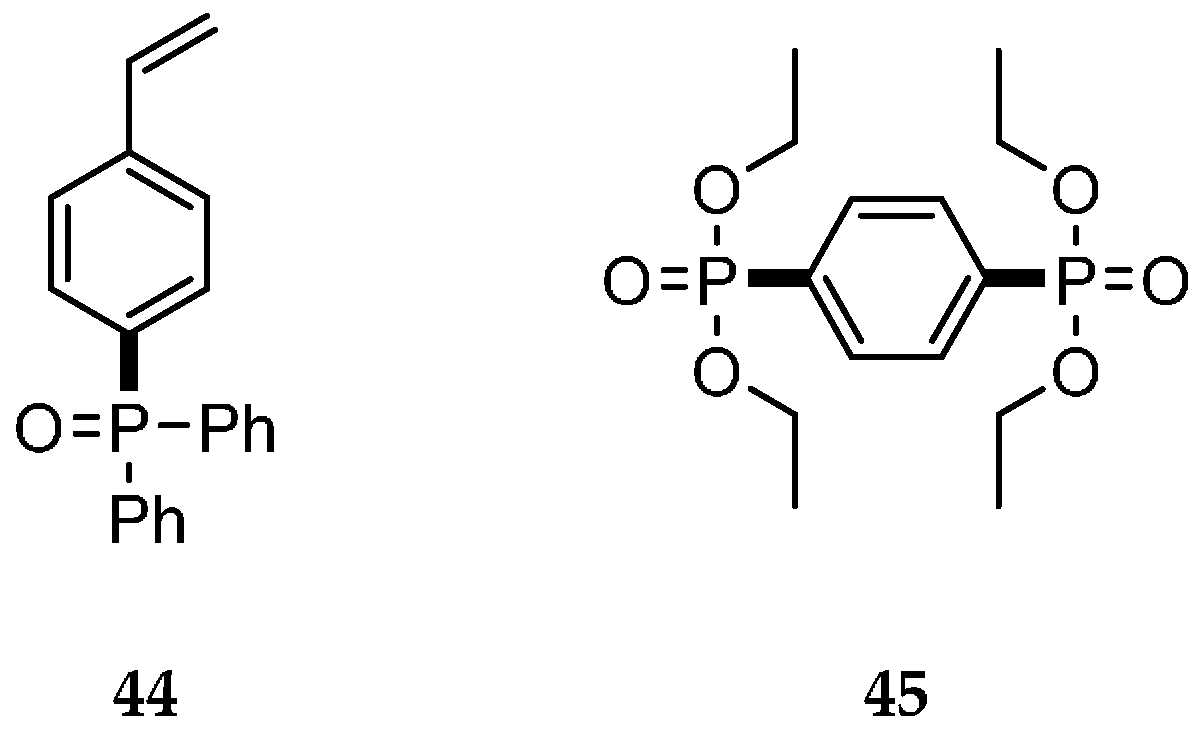

Compound 44 (Figure 20) was reported to be synthesized by adding chlorodiphenylphosphine to a mixture of p-bromostyrene and butyllithium, followed by an oxidation step, resulting in 65% yield [87]. Cationic copolymerization was investigated with soybean oil for different ratios of styrene to substance 44, using divinylbenzene as crosslinker. Due to a problem of heterogeneity before and after the polymerization reaction, an alternative phosphorus-containing styrene substance was investigated. This alternative compound underwent cross-metathesis with a vegetable-oil derivative and was copolymerized, affording homogeneous thermoset polymers. Thermal-oxidative degradation was investigated by TGA, showing that 1 wt % phosphorus incorporation improved the thermal stability of the thermoset slightly. Condensed phase action was inferred from the increased char formation observed in the TGA. Phosphorus-free reference polymer achieved 19.2% LOI value, and phosphorus-containing polymer was reported to achieve a maximum LOI value of 24%.
1,4-bis(diethylphosphoro)benzene (45, Figure 20) was synthesized from the reaction of 1,4-dibromobenzene with triethyl phosphite [88]. Compound 45 was used in battery electrolytes compositions to enhance flame retardancy properties and to reduce impact of possible thermal runaway.
Phosphorus-carbon bonds formation were reported with good yields for substitution reactions involving triethyl phosphite and cyanuric chloride. These compounds are considered very efficient as charring agents due the presence of nitrogen in the triazine ring and thus expected to exhibit P-N synergism.

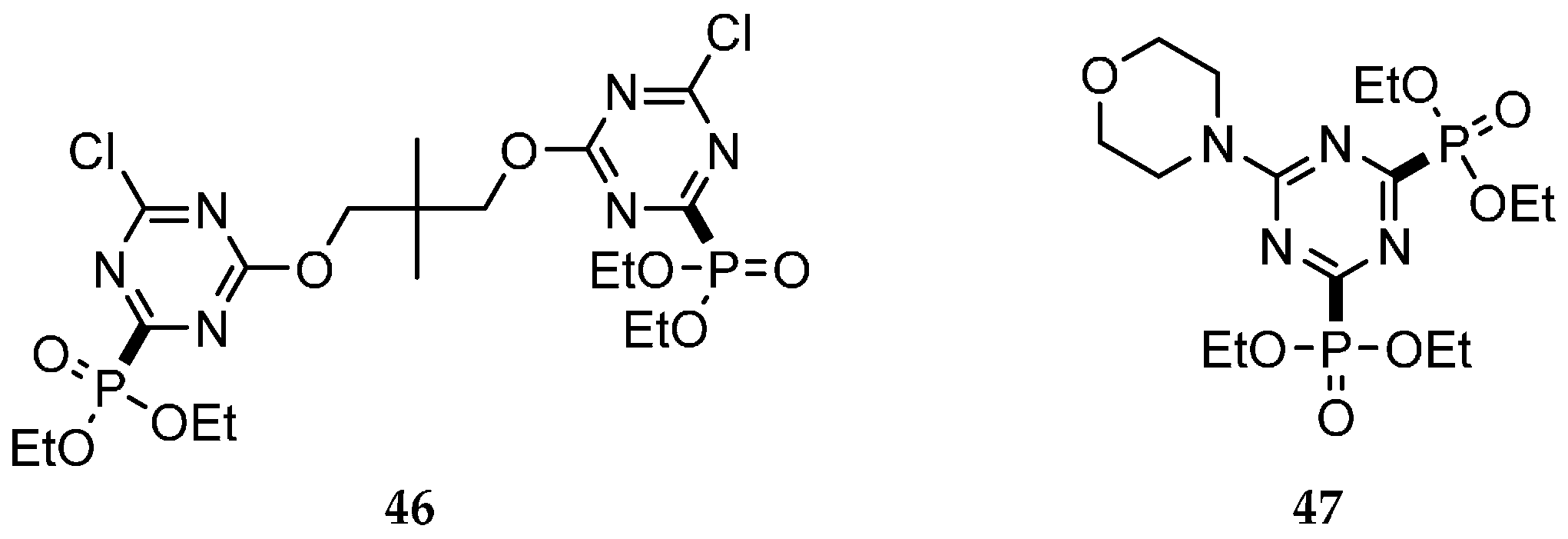

In a recent work [89], diethyl phosphite-functionalized cyanuric chloride (86.1% yield) was dimerized using neopentyl glycol as a bridging agent, yielding compound 46 (Figure 21, 92.5% yield). The target flame retardant can bind covalently to cotton fabrics by reaction of the cellulose hydroxyl groups via a substitution reaction. The best curing method was established from several trials and was applied to treat cotton fabric samples with 10 to 30 wt % of the flame retardant. TGA analysis showed an improvement of thermal stability and increase of the char yield above 30% for all treated samples, indicating the condensed phase mode of action of the flame retardant. During vertical flammability testing, char length became shorter with increasing flame retardant content, and a B-1 rating was achieved for samples treated with more than 20 wt % flame retardant. Improved flame retardancy was confirmed from LOI tests, which showed a LOI value of 30.3% and 18% for 30 wt % of flame retardant treated fabric and untreated fabric, respectively. Washing with water of treated cotton showed a rapid decrease in LOI values. Initial LOI of 28.4% dropped to 22% after 10 times washing indicating not all flame retardants reacted with the cellulose. Such flame retardants primarily act in the condensed phase in cellulose based materials.
A reaction of three equivalents of triethyl phosphite with cyanuric chloride resulted in 2,4,6-trisubstituted 1,3,5-triazine (86.1% yield). One of the diethyl phosphate groups on the triazine ring was then substituted by morpholine, producing another substituted triazine-based compound 47 (Figure 21, 92.5% yield) [90]. An oligomer was synthesized by transesterification reaction of compound 47 with pentaerythritol in 93.6% yield. It was then incorporated in polypropylene at 10 and 30 wt %, which respectively achieved UL 94 V-2 and V-0 ratings, while LOI values of 23.4% and 28.9% were observed for the same formulations, respectively. A polymer formulation was further prepared with 30 wt % ammonium polyphosphate/pentaerythritol/47 (ratio 3:1:2), which achieved a higher LOI of 29.4% and UL 94 V-0 rating. This improvement in flame retardancy was attributed to the possible synergistic effect between the three additives.

4.3. Addition Reactions

Recently in the literature, a large amount of research work can be found on addition reactions of DOPO derivatives on α,β-unsaturated ketones. This is mainly due to the versatility and high yields allowed by this type of reaction. DOPO addition on 1,4-benzoquinone is one of the most common uses of this addition reaction. DOPO-BQ (compound 48a, Scheme 7) was synthesized following a previously reported method in 93% yield [91] as an intermediate leading to six flame retardant additives for lithium ion batteries. They were then characterized for their thermal properties using TGA and DSC [92]. From these six compounds, the compound 48b (Scheme 7) that achieved a Td5% of 210 °C was selected for further flame retardant evaluation. It was mixed with conventional Li-ion electrolytes, with weight fractions ranging from 2.5 to 25 wt %. Self-extinguishing time (SET) measurements were performed, showing a sharp decrease in SET, whereas ionic conductivity underwent a 50% decrease when increasing the weight fraction of the additive from 2.5 wt % to 25 wt %. The flame retardant efficiency of the electrolyte formulations was confirmed, but lower battery performances are to be expected due to lower ionic conductivity results. Char formation indicated a condensed phase action. Studies on actual battery performances along with electrochemical properties are underway.

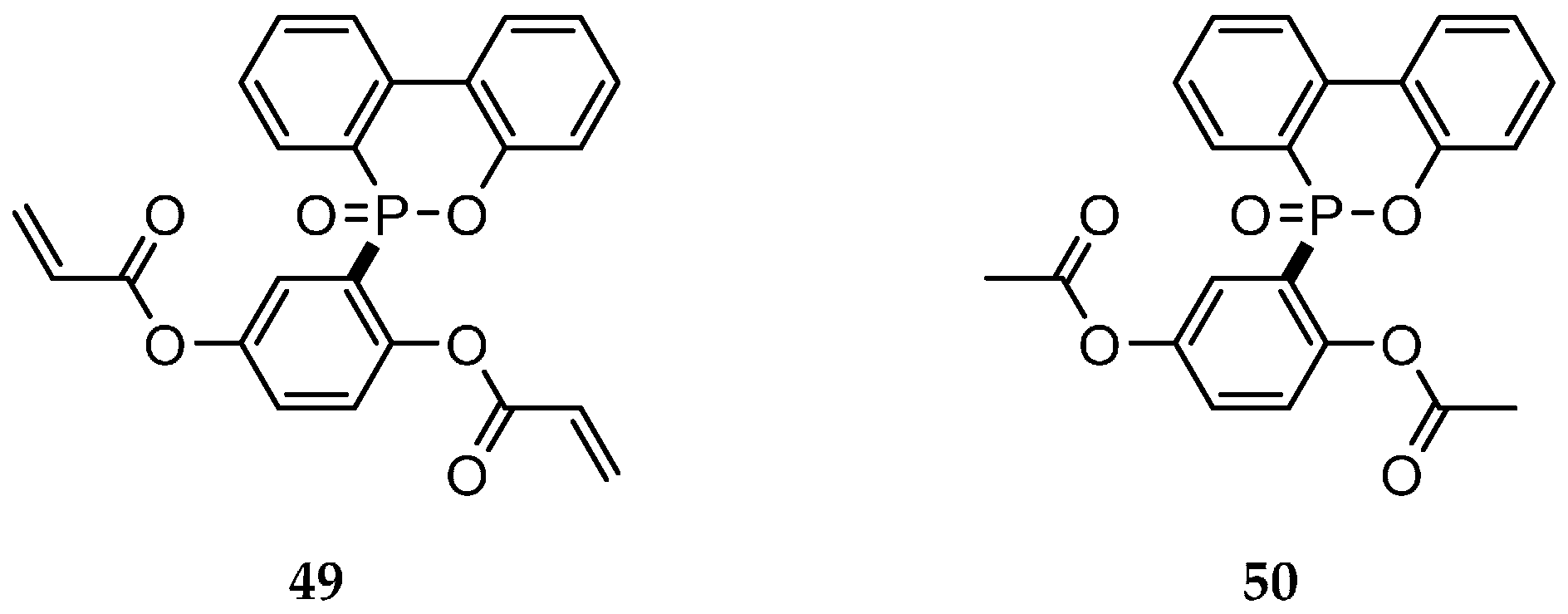

Compound 48a was reacted with acryloyl chloride to obtain a phosphorus-containing acrylate monomer (compound 49, Figure 22) [93]. Various concentrations (0 to 20 wt %) of this compound were introduced into the formulation of unsaturated polyester resins synthesized by radical copolymerization. A high LOI value of 24% was achieved for formulations containing ≥5 wt % phosphorus-containing monomer. Td5% peaked at 260 °C in air, at 300 °C in nitrogen, for the highest flame retardant-containing formulation, and its peak heat release rate (PHRR) was reduced to 288.7 W/g. Its flame retardant properties were confirmed both in condensed and gas phase, due to charring and flame inhibition phenomena, respectively.
Substance 48a was also reacted with acetic anhydride, affording 50 (Figure 22, 75% yield) [94]. Substance 50 was then copolymerized with p-acetoxybenzoic acid, terephthalic acid and the condensation product of terephthalic acid with 1,8-octanediamine, producing a new flame retarded thermotropic liquid crystal polymer. DSC experiment showed lower Tg and Tm for it compared to usual liquid crystal polymers, namely, 127 °C and 147 °C. It adopted nematic liquid crystalline behavior in the temperature range 180–330 °C. Thermal stability of the polymers was investigated by TGA and Td5% was estimated at 385 °C, showing satisfying thermal stability and char yield, allowing for very good flame resistance.
Diglycidyl ether of bisphenol-A epoxy resin (DGEBA) was modified by compound 48a, affording the phosphorus-containing epoxy resin 51 (Figure 23) [95]. Four cured epoxy resin/polyhedral oligomeric silsesquioxane (POSS) hybrids were synthesized, and all samples contained 2 wt % phosphorus but with varying silicon content (from 0 to 4 wt %). The thermal-oxidative stability of the polymers was evaluated by TGA. With increasing the silicon content, TGA analysis showed a decrease of Td5% and an increase of Td50% and char yield, which was attributed to the phosphorus-silicon synergism. Further flame retardant properties were estimated by PCFC, giving evidence that PHRR decreased and occurred at higher temperatures with increasing silicon content. Tg of the polymer was shown to increase with increase in phosphorus and silicon content. SEM and XPS were used to analyze char residues and results obtained reinforce hypotheses on phosphorus-silicon synergistic impact on epoxy resins flame retardancy.

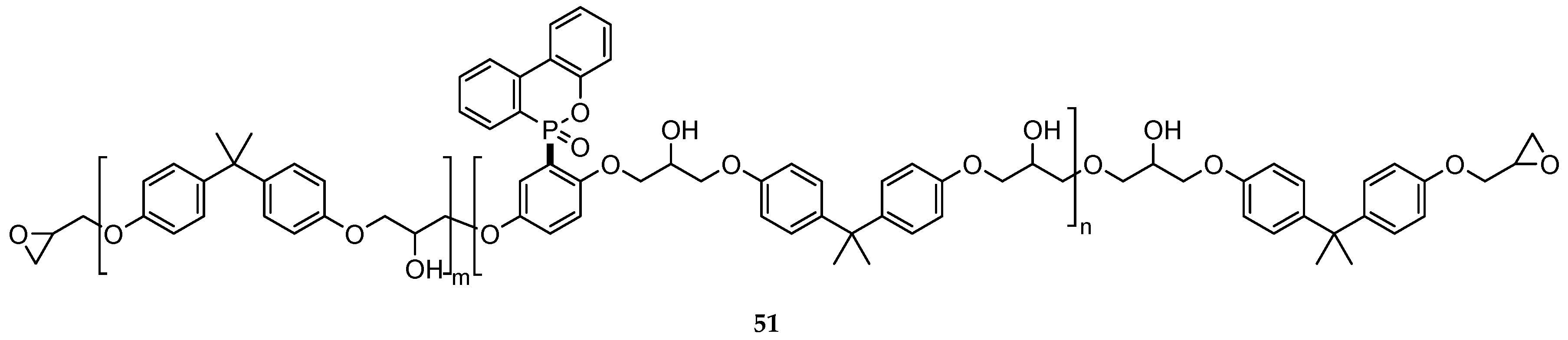

Similar to the previous study, different epoxy resin 51 were synthesized from reaction of DGEBA and compound 48a in different molar ratios [96] and several dicyanate esters were used as curing agents. TGA data under nitrogen showed evidence that degradation temperature and char yield for the resin increased with the increasing phosphorus content, showing a condensed phase mode of action. UL 94 V-0 rating was attained for formulations containing around 2 wt % phosphorus, when UL 94 V-1 rating was achieved for the resins containing around 1 wt % phosphorus, the curing dicyanate ester having no major influence. Potential applications as flame retardant laminates or protective coatings were suggested for these resins.

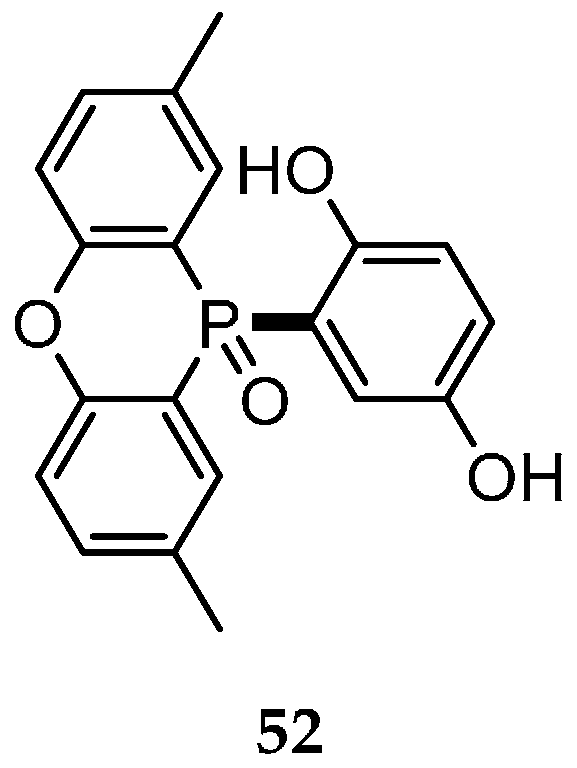

Previously synthesized compound 48a [91] and DPPO-HQ, (compound 52, Figure 24) (obtained by reacting compound 42d (Scheme 6) with p-benzoquinone) [84,97] were used as diols to form aromatic polysulfones (PSU) by nucleophilic aromatic substitution polycondensation with 4,4′-difluorodiphenylsulfone (DFDPS) [98]. Two polysulfones were thus obtained, having around 5 wt % phosphorus content. Both exhibited significantly higher Tg than phosphorus-free, bisphenol A-based PSU (reference), and a two-step decomposition was observed instead of one-step for the reference polymer in TGA. TGA and Py/GC-MS data were used to formulate a hypothesis concerning the thermal degradation process of these formulations. It was also concluded that DOPO-based PSU combined gaseous and solid-state flame-retarding mechanisms, whereas DPPO-based PSU favored solid-state action. Thus, DOPO-based PSU was considered as a slightly better in terms of flame retardancy.
Following the same reaction principle as described earlier, DOPO can also react with 1,4-naphthoquinone to give DOPO-NQ (compound 53a, Scheme 8, 70% yield) [99], which was then functionalized by trimellitic anhydride chloride and 4-aminophenol to give a bisphenol derivative (compound 53b, Scheme 8, 71.8% yield) [100]. Several liquid crystalline co-poly(ester imide)s were prepared by polycondensation of an aromatic diacid chloride with various ratios of the compound 53b and aliphatic diols. Thermal analysis of the polymers was studied by TGA, and it was observed that all polymers followed a two-step decomposition process. The least stable polymer exhibited a Td5% of 340 °C, whereas the most stable showed a Td5% of 395 °C. The thermal degradation behavior of the polymers was investigated by FTIR-TGA and SEM-TGA analysis. Phosphorus-nitrogen synergy is expected to contribute to flame retardancy, suggesting gas and condensed phase activity for the phosphorus compounds. Solubility in various solvents was investigated. Liquid crystalline properties were confirmed by XRD and DSC analysis.

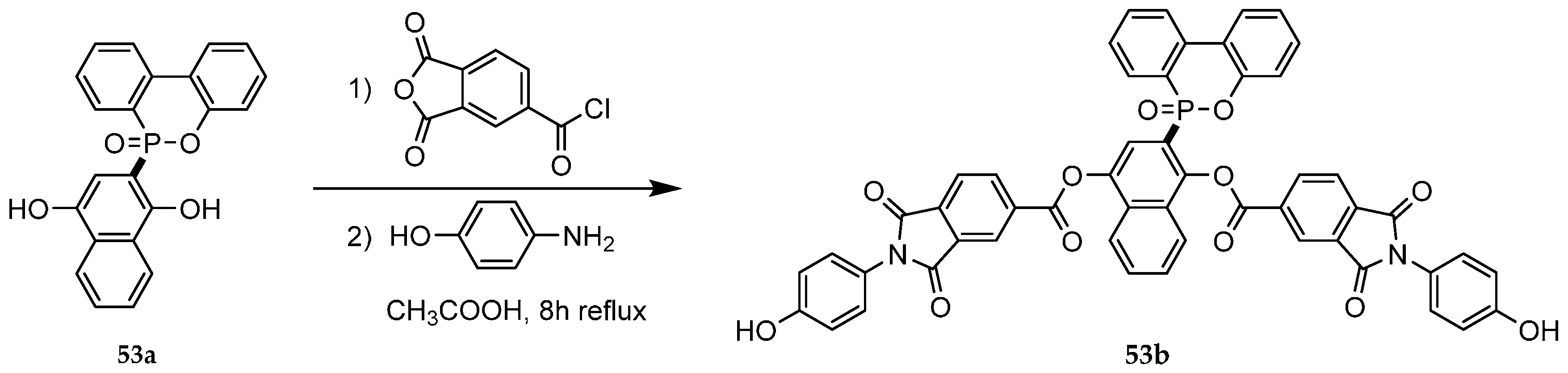

In a second paper [101], the same group synthesized three different poly(ester imide)s by solution polycondensation of equimolar compound 53b (Scheme 8) and aromatic diacids (either terephthalic acid, isophthalic acid or 4,4′-dicarboxydiphenylether) yielding PEI-1, PEI-2 and PEI-3, respectively. TGA experiments were run and concluded that these polymers exhibited 55% char and were stable up to 375 °C. Their Tg were respectively measured at 226 °C, 200 °C and 190 °C, making them good candidates for thermoforming. Energy-dispersive X-ray spectroscopy (EDX) confirmed the presence of phosphorus in the char, proving condensed phase action. Liquid crystalline properties were confirmed by WAXD, optical properties and DSC studies.

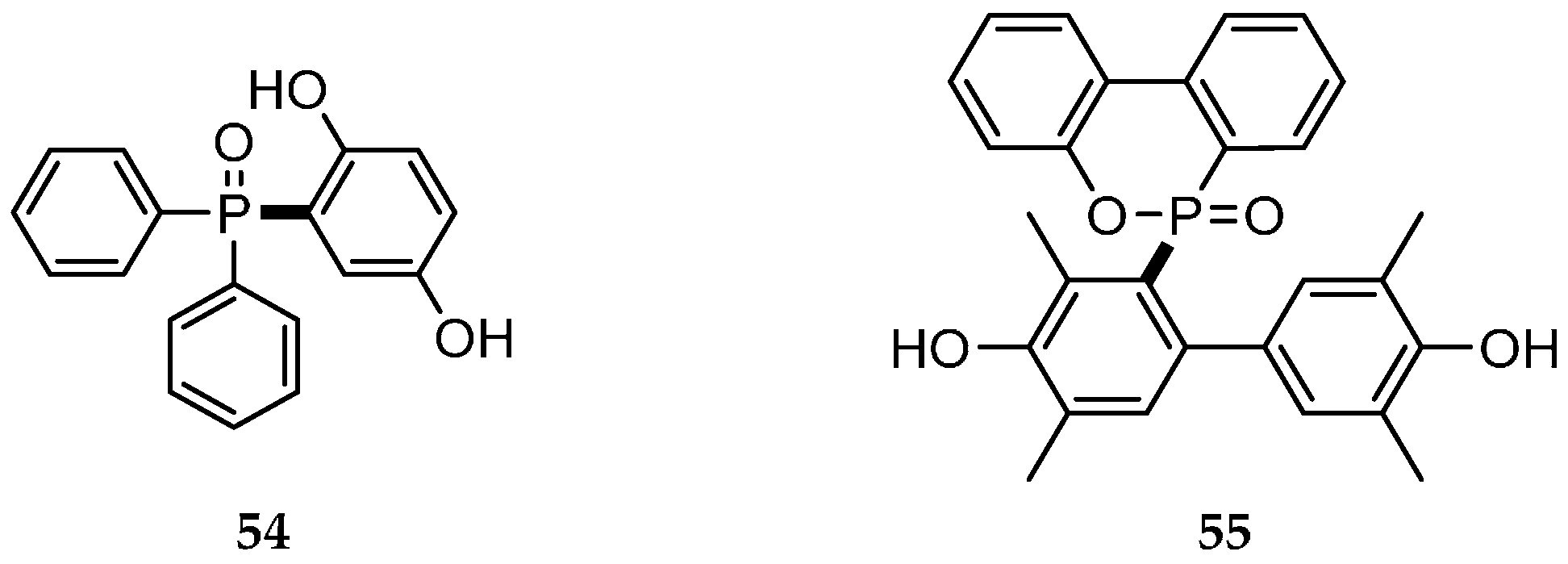

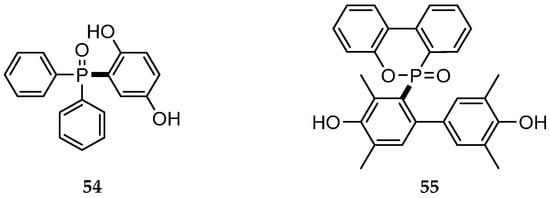

Diphenylphosphine oxide was reported to react with benzoquinone to give compound 54 (DPO-BQ, Figure 25, 78% yield) [102]. Its thermal stability was shown to be slightly better than the reference compound 48a, having a Td5% of 315 °C and a slower decomposition in air. The compound 54 was then reacted to epoxy resin, followed by curing with 4,4′-diaminodiphenylsulfone to achieve thermoset resins having 1 and 2 wt % phosphorus. TGA investigations showed few differences between the two formulations containing various concentrations of compound 54, Td5%, being around 391 °C in nitrogen and 384 °C in air. Polymer formulation with 2 wt % phosphorus achieved a UL 94 V-0 rating and LOI of 32.4%, whereas the one containing only 1 wt % phosphorus reached a V-1 rating and a LOI value of 29.2%. Good flame retardance was achieved at low phosphorus loadings, although TGA results showed little improvements compared to phosphorus-free epoxy resins, except for higher char yields, indicating a condensed phase mode of action.
A recent patent reported that DOPO addition on 3,3′,5,5′-tetramethyldiphenoquinone gave a yellow compound 55 (Figure 25) in 73% yield [103]. The aim of this work was to synthesize phosphorus-containing compounds with low steric hindrance for application in flame retardant epoxy resins.

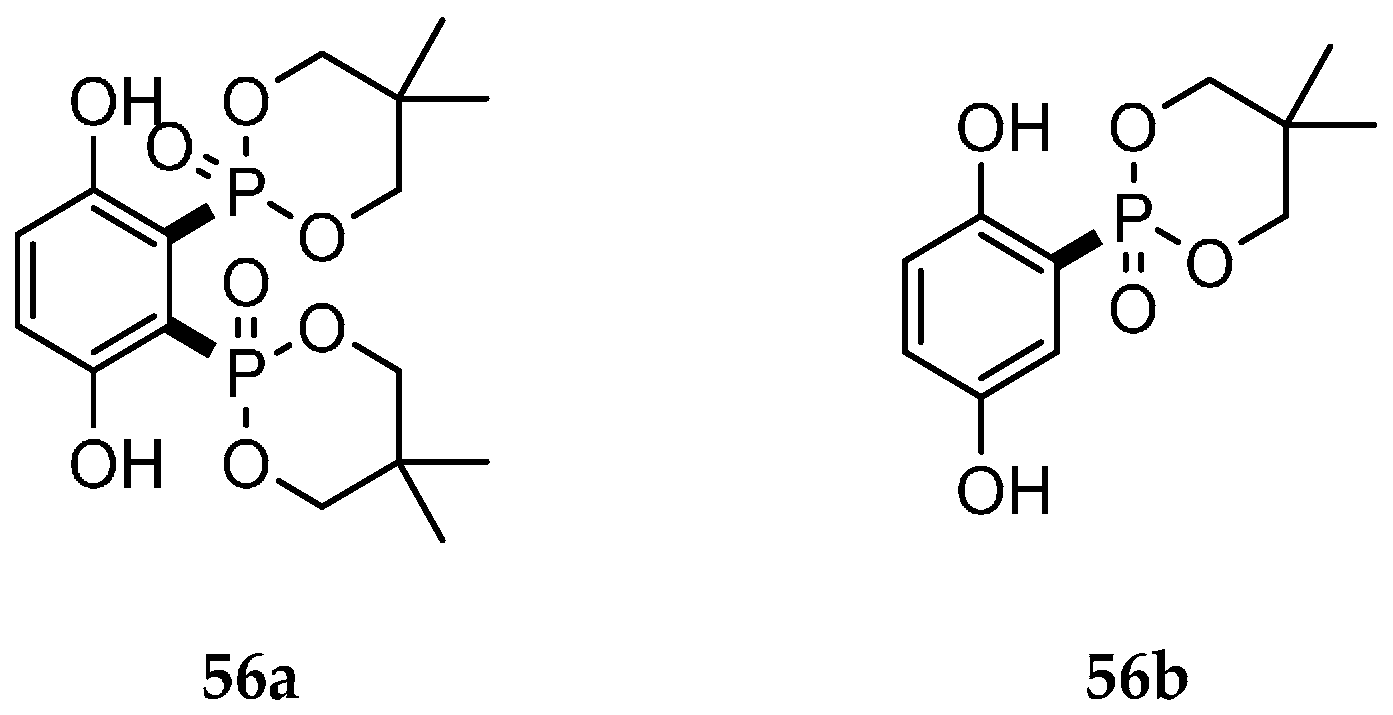

According to previous studies, a disubstituted phosphorus compound 56a and a monosubstituted phosphorus compound 56b (Figure 26) were obtained as a mixture using modified separation and purification steps. Melting points for these compounds were 258–260 °C and 184–187 °C, respectively [104]. Further characterizations were performed and were compared with other phosphorus compounds described later in the text.

4.4. Michaelis–Arbuzov Rearrangement

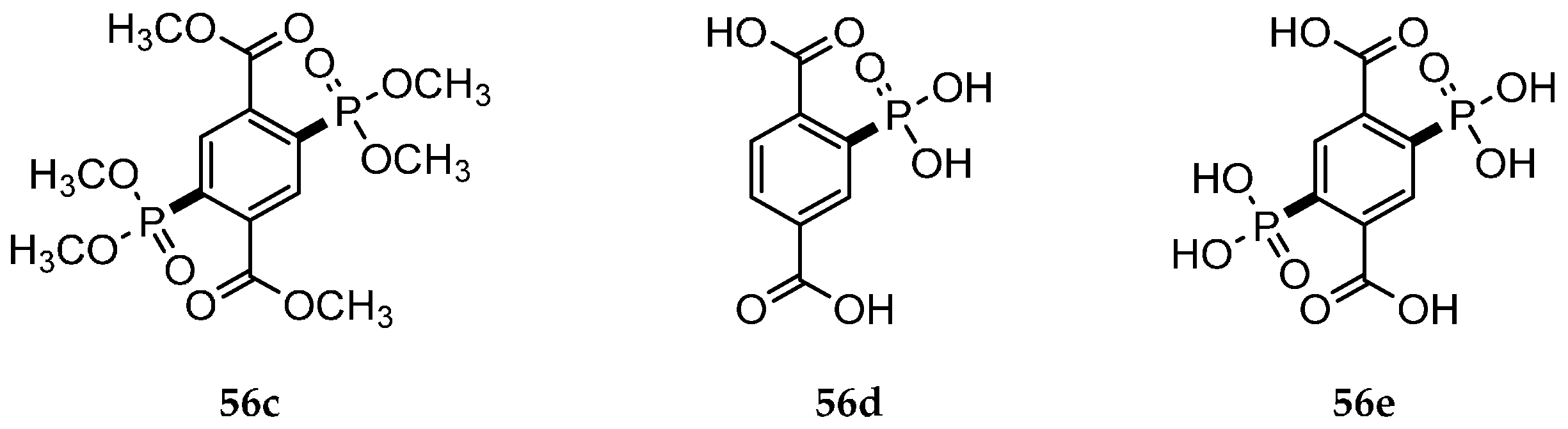

In the same work [104], phosphonoterephthalic acid derivative 56c (Figure 27) was synthesized using a Michaelis–Arbuzov rearrangement from a previously published synthesis protocol [105]. Compounds 56d and 56e (Figure 27) syntheses were also based on a previous study from the same group (exhibiting m.p. of 296–298 °C and 310 °C, respectively). The syntheses involved iodoester reagents with palladium catalyst in a yield of around 80%. PU foams were prepared with compounds 56a to 56e according to two different processing methods: Preps (reactive flame retardant copolymerized during PU foam formation) and Blends (10 wt % of flame retardant additive used with already prepared PU). These foams were analyzed for thermal and flame retardant behavior using TGA and PCFC, respectively. It was found that compound 56e did decrease the heat release and inhibited melting and flowing of the PU in the Blend form. In the Prep form, the addition of this compound did not affect the heat release. The resulting PU formulation also had a two-step thermal degradation and increased char yield at 800 °C (neat PU around 9% and PU with 10 wt % flame retardant around 29%). For compound 56d, the Prep form didn’t affect either the heat release, but, in the Blend form, it induced a significant decrease of the THR. One possible explanation of this phenomenon was the incomplete incorporation of the flame retardant in the PU foam. Compound 56c showed the same flame retardant behavior as 56e for PU prepared by Blend as well as in Prep forms. The previously mentioned phosphonoterephthalic acid derivatives 56a and 56b have shown similar efficiency in decreasing the total heat release in both processing methods. It was also found that they didn’t inhibit melting and flowing of the PU. In conclusion, compounds 56c and 56e showed the best flame retardancy properties of all the investigated structures.

4.5. [1,3]-Sigmatropic Rearrangement

Two polyphenols were transformed into corresponding phosphates using diethyl phosphite following Atherton–Todd reaction [106]. Further treatment with lithium diisopropylamine allowed breakage of a P-O bond and migration of the phosphorus to create a new P-C bond. This process known as [1,3]-sigmatropic rearrangement yielded two different compounds, 57a (62% yield, m.p. 169–171 °C) and 57b (65% yield, m.p. 216–217 °C), and both were obtained as white crystals. Their structures are shown in Figure 28. Although no flame retardant tests were performed, it was concluded that these phosphorus-containing polyphenols could be introduced as flame retardant monomers in high-performance polymers including PEEK, PEES, PEK, PES or PC.

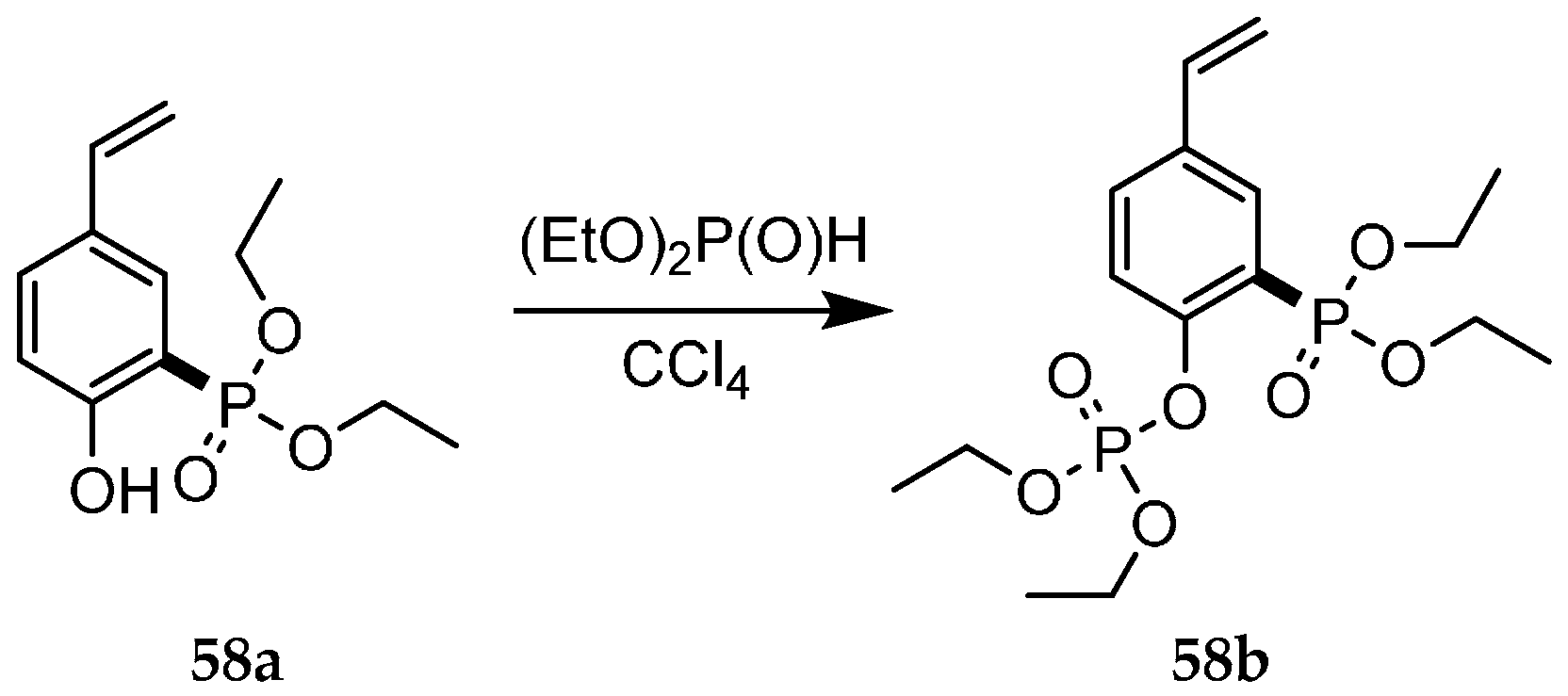

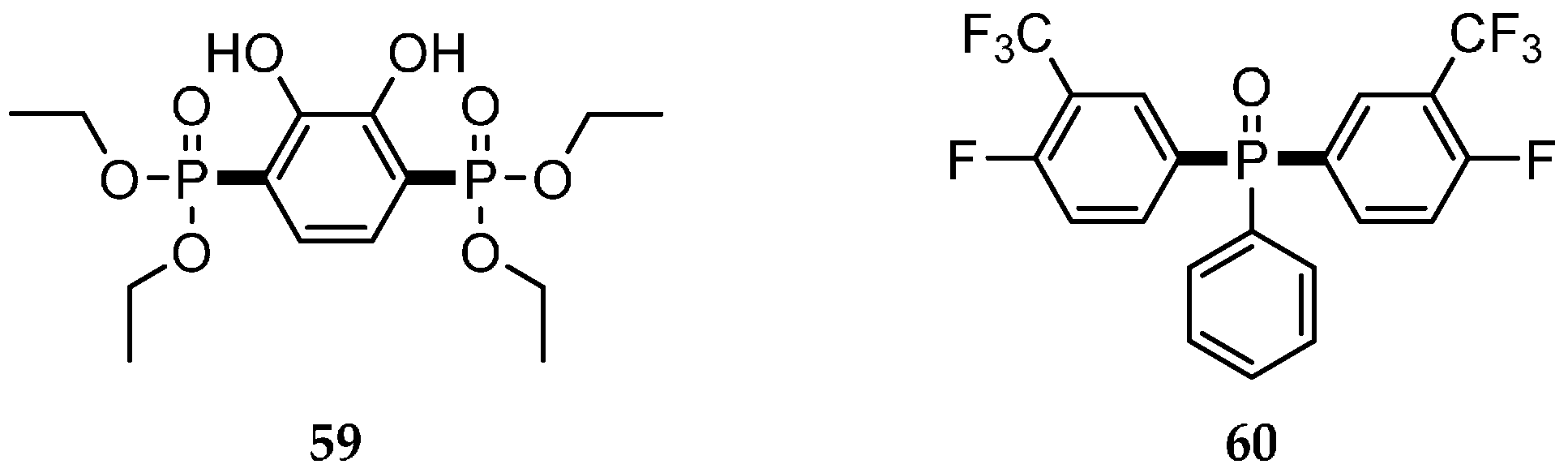

According to the same mechanism, the phosphonate product (diethyl-[2-hydroxy-5-vinylphenyl) phosphonate (compound 58a, Scheme 9) was synthesized starting from diethyl-(4-vinylphenyl)phosphate and obtained in a yield of 82% [107]. Diethyl phosphite was then used to react with the hydroxyl group using Atherton–Todd reaction, yielding compound 58b (Scheme 9, 85.7% yield). Compound 58b was copolymerized with styrene using three different compositions (5, 10 and 20 wt % of monomer 58b) yielding copolymers that Tg decreases from 101 to 95 °C when flame-retardant monomer mass fraction is increased in the polymer formulation. TGA showed a two-step degradation behavior explained by the presence of diethyl phosphate and diethyl phosphonate, allowing the main degradation step to happen at a temperature at least 60 °C higher than the neat polystyrene. Copolymer incorporation lowered the temperature of the first decomposition step but increased the temperature of the second degradation stage. The char yield increased from 1.1% to 7.3% with increasing the phosphorus-containing monomer, showing evidence of a condensed phase mechanism. PCFC measurements followed a similar trend, the total heat release decreasing from 40.1 to 38.2 kJ/g with increasing phosphorus content. As a conclusion, efficient flame retardant vinyl polymers were obtained by copolymerizing phosphorus-functionalized styrene with styrene units.

4.6. Phospho-Fries Rearrangement

A phosphorus version of the Fries rearrangement was reported by treating tetraethyl-1,2-phenylene bis(phosphate) with a mixture of butyllithium and lithium diisopropylamide to produce diphosphonate compounds 59 (Figure 29, 67% yield) [108]. This procedure was a modified version of a synthesis reported in a previous publication [109] explaining that phosphate esters in presence of an organolithium compound form anions that undergo phosphorus migration from oxygen to carbon. Compound 59 was an intermediate to four lithium salts: three boron-centered anions and one phosphorus-centered. Pyrolysis combustion flow calorimetry (PCFC) results showed evidence that lithium boron phosphorus complexes reached high char yield (up to 49.60%), which lowers the peak heat release rate temperature below 312 °C. These high char yield values indicate condensed phase activity, and could even indicate phosphorus-boron synergism. TGA analysis completed this study by proving these new lithium salts were stable up to 200 °C. It was concluded these new compounds should be effective flame retardants for lithium ion batteries thanks to their reduced flammability, either as electrolyte additives or as possible alternative to existing lithium salts.

4.7. Grignard Type Reactions

Grignard reagents represent an additional method of P-C bonds synthesis in which the nucleophilic carbon can react as a base. 5-bromo-2-fluorobenzotrifluoride was added to magnesium turnings, forming the associated organomagnesium compound. Phenylphosphonic dichloride was then added to yield compound 60 (Figure 29) as a pale yellow solid (80% yield) [110]. Polymerization reactions were carried out using an equimolar ratio of compound 60 and different diphenol derivatives. Six novel poly(arylene ether phosphine oxide)s were obtained, with Tg in the range of 173–252 °C, and Td5% values being between 457 °C and 490 °C. PCFC investigation showed great influence of the diphenol structure, and the peak heat release rate varied from 184 to 67 W/g. Films were prepared, resulting in transparent, brittle or flexible films depending on the diphenol monomer used. The mechanical properties of the flexible films were evaluated, tensile stress reaching up to 54 MPa, Young’s modulus up to 0.97 GPa and elongation at break up to 47%. This study brought to light compounds with interesting thermal stabilities, and choosing the right diphenol monomer can allow to finely tune the poly(arylene ether phosphine oxide) properties.
In a similar approach, diphenylphosphinic chloride was reacted with 4-(trifluoromethyl)phenylmagnesium bromide to yield compound 61a (Scheme 10) [111] having a melting point of around 90.5–91.2 °C. This product underwent nitration followed by hydrogenation to give the amino derivative 61b (Scheme 10). This phosphorus-containing diamino compound can be used to prepare polyimides, polyamides that exhibit very good fire retardancy, thermal stability, mechanical properties, adhesion as well as low dielectric constant. Possible applications would be adhesives for metals, semiconductor packaging or optical materials.

5. Conclusions

P-C bond creation and its use in synthetic chemistry offer a wide range of possibility of design and development of exciting organophosphorus flame retardants. Conventional synthetic methodologies Michael addition, Michaelis–Arbuzov, Friedels–Crafts and Grignard reactions are the most commonly used in academics for development of P-C bonded flame retardants. Use of green reagents, catalytic reactions, microwave technology, photo initiated reactions, etc. are increasingly used by researchers to synthesize P-C containing organophosphorus compounds; however, these techniques are seldom utilized in development of flame retardant compounds. Though economics for these new routes for synthesis is important for future industrial exploitation, concerns for the environment and new regulations will help their acceptance in industrial exploitation. In our opinion, some synthetic strategies like Michael addition, Friedel–Crafts reaction and Michaelis–Arbuzov reaction can be industrially exploited in industry, taking in their advantages like higher yields, selectivity and simplicity of reaction. However, other reactions discussed in this review are also commercially feasible if the properties of the flame retardant significantly outweigh its cost of production.
One can find a vast amount of literature in development of P-C containing flame retardants with detailed investigations of their flame retardant properties and potential applications in various polymers. In most cases, such flame retardants exhibit satisfactory to excellent fire performance in the polymers, and questions regarding their impact on their processability, mechanical performance, and long-term serviceability of the final products need more attention. As organophosphorus compounds are also toxic (used as pesticides, herbicides, insecticides, nerve gasses), one has to pay attention while developing new structures. Toxicity screening of the new compounds should be carried out early in their development to prevent accidents and potential issues relate to toxicity. Research on ways to hydrolyze P-C bonds will help reduce their potential environmental impact and biocompatibility.

Author Contributions

Sophie Wendels, Thiebault Chavez, Martin Bonnet, Khalifah A. Salmeia and Sabyasachi Gaan contributed to the writing of the review manuscript. Khalifah A. Salmeia and Sabyasachi Gaan led and structured the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ABSAcrylonitril butadiene styrene
AOPHAluminium–organophosphorus hybrids
BKZ-VBSwiss standart fire test (vertical specimen)
CPPPA4-Carboxyphenylphenylphosphinic acid
DBU1,8-Diazabicyclo(5.4.0)undec-7-ene
DDMDiaminodiphenylmethane
DETDADiethyldiamino toluene
DFDPS4,4-Difluorodiphenylsulfone
DGEBADiglycidyl ether of bisphenol-A epoxy resin
DIP-MSDirect insertion probe mass spectroscopy
DOPO10-Dihydro-9-oxa-10-phosphaphenanthrene 10-oxide
DPPO2,8-Dimethyl-phenoxaphosphine-10-oxide
DSCDifferential scanning calorimetry
EDXEnergy-dispersive X-ray spectroscopy
EVAEthylene-vinyl acetate
FPUFFlexible polyurethane foams
FRFlame retardant
FTIRFourier Transform Infrared Spectroscopy
HAPPHexaallyltriphosphazene
KMnO4Potassium permanganate
LOILimiting oxygen index
MCCMicroscale Combustion Calorimetry
m-CPBAmeta-Chloroperoxybenzoic acid
MMPPMethyl methylphenylphosphinate
m.p.Melting point
N2Nitrogen
PA6Polyamide 6
PCPolycarbonate
PCFCPyrolysis-combustion flow calorimetry
PEEKPolyether ether ketone
PEKPolyether ketones
PESPoly(ethersulfone)
PHRRLower peak heat release rate
PMMDPoly(ethylene glycol) methacrylate/methyl methacrylate/diethyl allylphosphonate
PN-TLCPThermotropic liquid crystal polymer
POSSPolyhedral oligomeric silsesquioxane
PSUPolysulfones
PUPolyurethane
Py-GC-MSPyrolysis-gas chromatography mass spectroscopy
ROMPRing opening metathesis polymerisation
RPUFRigid polyurethane foams
SEMScanning electron microscope
SETSelf-extinguishing time
TCPPTris(1-chloro-2-propyl) phosphate
Tdx%Temperature for x% weight loss
TEOSTetraethyl orthosilicate
TGAThermogravimetric analysis
THRTotal heat release
TPATerephthalic acid
TSRTotal smoke release
UL94 HBStandard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances (horizontal specimen)
UL94 VA or UL94 VBStandard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances (vertical specimen)
UVUltraviolet
WAXDWide-angle X-ray scattering
XPSX-ray photoelectron spectroscopy

References

  1. Demchuk, O.M.; Jasinski, R. Organophosphorus ligands: Recent developments in design, synthesis, and application in environmentally benign catalysis. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 245–253. [Google Scholar] [CrossRef]
  2. Majoral, J.-P. Topics in Current Chemistry; Springer: Berlin, Germany, 2002; p. 244. [Google Scholar]
  3. Majoral, J.-P. Topics in Current Chemistry; Springer: Berlin, Germany, 2003; p. 263. [Google Scholar]
  4. Demkowicz, S.; Rachon, J.; Dasko, M.; Kozak, W. Selected organophosphorus compounds with biological activity. Applications in medicine. RSC Adv. 2016, 6, 7101–7112. [Google Scholar] [CrossRef]
  5. Salmeia, K.A.; Gaan, S. An overview of some recent advances in dopo-derivatives: Chemistry and flame retardant applications. Polym. Degrad. Stab. 2015, 113, 119–134. [Google Scholar] [CrossRef]
  6. Michal Sobkowski, A.K.; Stawinski, J. Recent advances in h-phosphonate chemistry. Part 2. Synthesis of c-phosphonate derivatives. In Topics in Current Chemistry; Montchamp, J.-L., Ed.; Springer: Berlin, Germany, 2015; Volume 361, pp. 179–216. [Google Scholar]
  7. Ma, J.; Yang, J.; Huang, Y.; Ke, C. Aluminum-organophosphorus hybrid nanorods for simultaneously enhancing the flame retardancy and mechanical properties of epoxy resin. J. Mater. Chem. 2012, 22, 2007–2017. [Google Scholar]
  8. Montchamp, J.-L. Carbon-hydrogen to carbon-phosphorus transformations. In Topics in Current Chemistry; Montchamp, J.-L., Ed.; Springer: Berlin, Germany, 2015; Volume 361, pp. 217–252. [Google Scholar]
  9. Menigaux, D.; Belmont, P.; Brachet, E. Light on unsaturated hydrocarbons—“Gotta heterofunctionalize them all”. Eur. J. Org. Chem. 2017, 2017, 2008–2055. [Google Scholar] [CrossRef]
  10. Pan, X.-Q.; Zou, J.-P.; Yi, W.-B.; Zhang, W. Recent advances in sulfur- and phosphorous-centered radical reactions for the formation of s–c and p–c bonds. Tetrahedron 2015, 71, 7481–7529. [Google Scholar] [CrossRef]
  11. Wauters, I.; Debrouwer, W.; Stevens, C.V. Preparation of phosphines through c–p bond formation. Beilstein J. Org. Chem. 2014, 10, 1064–1096. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, T.; Zhang, J.-S.; Han, L.-B. Dehydrogenative coupling involving p(o)-h bonds: A powerful way for the preparation of phosphoryl compounds. Dalton Trans. 2016, 45, 1843–1849. [Google Scholar] [CrossRef] [PubMed]
  13. Pullarkat, S.A. Recent progress in palladium-catalyzed asymmetric hydrophosphination. Synthesis 2016, 48, 493–503. [Google Scholar] [CrossRef]
  14. Liang, S.; Neisius, M.; Mispreuve, H.; Naescher, R.; Gaan, S. Flame retardancy and thermal decomposition of flexible polyurethane foams: Structural influence of organophosphorus compounds. Polym. Degrad. Stab. 2012, 97, 2428–2440. [Google Scholar] [CrossRef]
  15. Butnaru, I.; Fernandez-Ronco, M.P.; Czech-Polak, J.; Heneczkowski, M.; Bruma, M.; Gaan, S. Effect of meltable triazine-dopo additive on rheological, mechanical, and flammability properties of pa6. Polymer 2015, 7, 1541–1563. [Google Scholar] [CrossRef]
  16. Agarwal, V.; Borisova, S.A.; Metcalf, W.W.; van der Donk, W.A.; Nair, S.K. Structural and mechanistic insights into c-p bond hydrolysis by phosphonoacetate hydrolase. Chem. Biol. 2011, 18, 1230–1240. [Google Scholar] [CrossRef] [PubMed]
  17. Kamat, S.S.; Williams, H.J.; Raushel, F.M. Intermediates in the transformation of phosphonates to phosphate by bacteria. Nature 2011, 480, 570–573. [Google Scholar] [CrossRef] [PubMed]
  18. Ternan, N.G.; Hamilton, J.T.; Quinn, J.P. Initial in vitro characterisation of phosphonopyruvate hydrolase, a novel phosphate starvation-independent, carbon-phosphorus bond cleavage enzyme in burkholderia cepacia pal6. Arch. Microbiol. 2000, 173, 35–41. [Google Scholar] [CrossRef] [PubMed]
  19. Liang, S.; Hemberger, P.; Levalois-Grützmacher, J.; Grützmacher, H.; Gaan, S. Probing phosphorus nitride (p≡n) and other elusive species formed upon pyrolysis of dimethyl phosphoramidate. Chemistry 2017, 23, 5595–5601. [Google Scholar] [CrossRef] [PubMed]
  20. Liang, S.; Hemberger, P.; Neisius, N.M.; Bodi, A.; Grützmacher, H.; Levalois-Grützmacher, J.; Gaan, S. Elucidating the thermal decomposition of dimethyl methylphosphonate by vacuum ultraviolet (vuv) photoionization: Pathways to the po radical, a key species in flame-retardant mechanisms. Chemistry 2015, 21, 1073–1080. [Google Scholar] [CrossRef] [PubMed]
  21. Salmeia, K.; Gaan, S.; Malucelli, G. Recent advances for flame retardancy of textiles based on phosphorus chemistry. Polymers 2016, 8, 319. [Google Scholar] [CrossRef]
  22. Salmeia, K.; Fage, J.; Liang, S.; Gaan, S. An overview of mode of action and analytical methods for evaluation of gas phase activities of flame retardants. Polymers 2015, 7, 504–526. [Google Scholar] [CrossRef]
  23. Stawinski, J.; Kraszewski, A. How to get the most out of two phosphorus chemistries. Studies on h-phosphonates. Acc. Chem. Res. 2002, 35, 952–960. [Google Scholar] [CrossRef] [PubMed]
  24. Keglevich, G.; Grun, A.; Balint, E.; Kiss, N.Z.; Bagi, P.; Toke, L. Green chemical syntheses and applications within organophosphorus chemistry. Struct. Chem. 2017, 28, 431–443. [Google Scholar] [CrossRef]
  25. Luo, K.; Yang, W.-C.; Wu, L. Photoredox catalysis in organophosphorus chemistry. Asian J. Org. Chem. 2017, 6, 350–367. [Google Scholar] [CrossRef]
  26. Sharova, E.V.; Artyushin, O.I.; Odinets, I.L. Synthetic routes to carbamoylmethylphosphoryl compounds—Extractants for the processing of spent nuclear fuels. Russ. Chem. Rev. 2014, 83, 95–119. [Google Scholar] [CrossRef]
  27. Haegele, G. Michaelis-arbuzov reactions of perhalogenated cyclobutenes with trialkyl phosphites. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 2094–2109. [Google Scholar] [CrossRef]
  28. Keglevich, G.; Kiss, N.Z.; Balint, E.; Bagi, P.; Grun, A.; Kovacs, T.; Henyecz, R.; Abranyi-Balogh, P. Milestones in microwave-assisted organophosphorus chemistry. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 1416–1420. [Google Scholar] [CrossRef]
  29. Enders, D.; Saint-Dizier, A.; Lannou, M.-I.; Lenzen, A. The phospha-michael addition in organic synthesis. Eur. J. Org. Chem. 2005, 2006, 29–49. [Google Scholar] [CrossRef]
  30. Herrera, R.P. Organocatalytic hydrophosphonylation reaction of carbonyl groups. Chem. Rec. 2017. [Google Scholar] [CrossRef] [PubMed]
  31. Montchamp, J.-L. Phosphinate chemistry in the 21st century: A viable alternative to the use of phosphorus trichloride in organophosphorus synthesis. Acc. Chem. Res. 2014, 47, 77–87. [Google Scholar] [CrossRef] [PubMed]
  32. Troev, K.D. Structure and spectral characteristics of h-phosphonates. In Chemistry and Application of H-Phosphonates; Elsevier Science Ltd.: Amsterdam, The Netherlands, 2006; pp. 11–22. [Google Scholar]
  33. Yu, X.; Ge, B.; Zhang, Y.; Wang, X.; Wang, D. Silver-mediated phosphonylation of c(sp2)−h bonds with p−h bonds: Direct c−h functionalization of ferrocenyl anilides and dialkyl phosphites under palladium- and copper-free conditions. Asian J. Org. Chem. 2016, 5, 1253–1259. [Google Scholar] [CrossRef]
  34. Renaud, J.-L.; Gaillard, S. Iron-catalyzed carbon-nitrogen, carbon-phosphorus, and carbon-sulfur bond formation and cyclization reactions. In Iron Catalysis ii; Bauer, E., Ed.; Springer: Cham, Switzerland, 2015; pp. 83–144. [Google Scholar]
  35. Guin, J.; Wang, Q.; van Gemmeren, M.; List, B. The catalytic asymmetric abramov reaction. Angew. Chem. Int. Ed. 2015, 54, 355–358. [Google Scholar] [CrossRef] [PubMed]
  36. Troev, K.D. Methods for preparation and physical properties of h-phosphonates. In Chemistry and Application of H-Phosphonates; Elsevier Science Ltd.: Amsterdam, The Netherlands, 2006; pp. 1–9. [Google Scholar]
  37. Balint, E.; Tajti, A.; Adam, A.; Csontos, I.; Czugler, M.; Keglevich, G.; Karaghiosoff, K.; Abranyi-Balogh, P. The synthesis of α-aryl-α-aminophosphonates and α-aryl-α-aminophosphine oxides by the microwave-assisted pudovik reaction. Beilstein J. Org. Chem. 2017, 13, 76–86. [Google Scholar] [CrossRef] [PubMed]
  38. Subramanyam, C.; Thaslim Basha, S.; Madhava, G.; Nayab Rasool, S.; Adam, S.; Durga Srinivasa Murthy, S.; Naga Raju, C. Synthesis, spectral characterization and bioactivity evaluation of novel α-aminophosphonates. Phosphorus Sulfur Silicon Relat. Elem. 2017, 192, 267–270. [Google Scholar] [CrossRef]
  39. Kamath, P.; Rajan, R.; Deshpande, S.H.; Montgomery, M.; Lal, M. An efficient synthesis of 3-phosphorylated benzoxaboroles via the pudovik reaction. Synthesis 2017. [Google Scholar] [CrossRef]
  40. Yang, J.; Xiao, J.; Chen, T.; Han, L.-B. Nickel-catalyzed phosphorylation of phenol derivatives via c–o/p–h cross-coupling. J. Org. Chem. 2016, 81, 3911–3916. [Google Scholar] [CrossRef] [PubMed]
  41. Yang, J.; Chen, T.; Zhou, Y.; Yin, S.-F.; Han, L.-B. Mechanistic studies on the palladium-catalyzed cross dehydrogenative coupling of p(o)–h compounds with terminal alkynes: Stereochemistry and reactive intermediates. Organometallics 2015, 34, 5095–5098. [Google Scholar] [CrossRef]
  42. Wang, L.; Wu, Y.; Liu, Y.; Yang, H.; Liu, X.; Wang, J.; Li, X.; Jiang, J. Copper-catalyzed p–h insertions of α-imino carbenes for the preparation of 3-phosphinoylindoles. Org. Lett. 2017, 19, 782–785. [Google Scholar] [CrossRef] [PubMed]
  43. Peng, P.; Lu, Q.; Peng, L.; Liu, C.; Wang, G.; Lei, A. Dioxygen-induced oxidative activation of a p-h bond: Radical oxyphosphorylation of alkenes and alkynes toward β-oxy phosphonates. Chem. Commun. 2016, 52, 12338–12341. [Google Scholar] [CrossRef] [PubMed]
  44. Guo, H.; Yoshimura, A.; Chen, T.; Saga, Y.; Han, L.-B. Air-induced double addition of p(o)-h bonds to alkynes: A clean and practical method for the preparation of 1,2-bisphosphorylethanes. Green Chem. 2017, 19, 1502–1506. [Google Scholar] [CrossRef]
  45. Rafikov, S.R.; Chelnokova, G.N.; Dzhilkibaeva, G.M. Michaelis-arbuzov reaction kinetics and the use of this reaction for polymer synthesis. Tr. Inst. Khim. Nauk Akad. Nauk Kaz. SSR 1969, 23, 80–97. [Google Scholar]
  46. Shaikh, R.S.; Düsel, S.J.S.; König, B. Visible-light photo-arbuzov reaction of aryl bromides and trialkyl phosphites yielding aryl phosphonates. ACS Catal. 2016, 6, 8410–8414. [Google Scholar] [CrossRef]
  47. Wang, S.; Qiu, D.; Mo, F.; Zhang, Y.; Wang, J. Metal-free aromatic carbon–phosphorus bond formation via a sandmeyer-type reaction. J. Org. Chem. 2016, 81, 11603–11611. [Google Scholar] [CrossRef] [PubMed]
  48. Peng, H.; Cai, R.; Xu, C.; Chen, H.; Shi, X. Nucleophile promoted gold redox catalysis with diazonium salts: C-br, c-s and c-p bond formation through catalytic sandmeyer coupling. Chem. Sci. 2016, 7, 6190–6196. [Google Scholar] [CrossRef]
  49. Yu, R.; Chen, X.; Martin, S.F.; Wang, Z. Differentially substituted phosphines via decarbonylation of acylphosphines. Org. Lett. 2017, 19, 1808–1811. [Google Scholar] [CrossRef] [PubMed]
  50. Nakanishi, K.; Kotani, S.; Sugiura, M.; Nakajima, M. First asymmetric abramov-type phosphonylation of aldehydes with trialkyl phosphites catalyzed by chiral lewis bases. Tetrahedron 2008, 64, 6415–6419. [Google Scholar] [CrossRef]
  51. Zhang, P.; Fan, H.; Tian, S.; Chen, Y.; Yan, J. Synergistic effect of phosphorus-nitrogen and silicon-containing chain extenders on the mechanical properties, flame retardancy and thermal degradation behavior of waterborne polyurethane. RSC Adv. 2016, 6, 72409–72422. [Google Scholar] [CrossRef]
  52. Bisaro, F.; Gouverneur, V. Desymmetrization by direct cross-metathesis producing hitherto unreachable p-stereogenic phosphine oxides. Tetrahedron 2005, 61, 2395–2400. [Google Scholar] [CrossRef]
  53. Horrocks, A.R.; Zhang, S. Enhancing polymer flame retardancy by reaction with phosphorylated polyols. Part 2. Cellulose treated with a phosphonium salt urea condensate (proban cc) flame retardant. Fire Mater. 2002, 26, 173–182. [Google Scholar] [CrossRef]
  54. Hou, S.; Zhang, Y.J.; Jiang, P. Phosphonium sulfonates as flame retardants for polycarbonate. Polym. Degrad. Stab. 2016, 130, 165–172. [Google Scholar] [CrossRef]
  55. Panmand, D.S.; Tiwari, A.D.; Panda, S.S.; Monbaliu, J.-C.M.; Beagle, L.K.; Asiri, A.M.; Stevens, C.V.; Steel, P.J.; Hall, C.D.; Katritzky, A.R. New benzotriazole-based reagents for the phosphonylation of various n-, o-, and s-nucleophiles. Tetrahedron Lett. 2014, 55, 5898–5901. [Google Scholar] [CrossRef]
  56. Liu, Z.; De Campo, F. Conjugated Diene Phosphinate Compounds, Preparation Method and Use Thereof. U.S. Patent 20120208975 A1, 2014. [Google Scholar]
  57. Liu, Z.; De Campo, F. N-Substituted Acrylamides, Preparation Method and Use Thereof. Patent WO2011050534A1, 2011. [Google Scholar]
  58. Neisius, N.M.; Liang, S.; Gaan, S.; Mispreuve, H.; Nascher, R.; Rentsch, D. Flame retardants for flexible polyurethane foams: Structure-property-relationship studies. In Proceedings of the 243rd ACS National Meeting & Exposition, San Diego, CA, USA, 2012. [Google Scholar]
  59. Çakmakçı, E.; Mülazim, Y.; Kahraman, M.V.; Apohan, N.K. Flame retardant thiol-ene photocured coatings. React. Funct. Polym. 2011, 71, 36–41. [Google Scholar] [CrossRef]
  60. Zeytuncu, B.; Çakmakçı, E.; Kahraman, M.V. Allyl phosphonium salt-modified clay for photocured coatings: Influence on the properties of polyester acrylate-based coatings. Polym. Compos. 2015, 36, 946–954. [Google Scholar] [CrossRef]
  61. Mai, N.L.; Koo, Y.-M. Computer-aided design of ionic liquids for high cellulose dissolution. ACS Sustain. Chem. Eng. 2016, 4, 541–547. [Google Scholar] [CrossRef]
  62. Yang, L.; Han, X.Y.; Li, L.L.; Bi, C.L.; Tang, X.J.; Zhang, B.G. Synthesis of aluminium diethylphosphinate by gas-liquid free radical addition reaction under atmospheric pressure. Adv. Mater. Res. 2011, 194–196, 2237–2240. [Google Scholar] [CrossRef]
  63. Lee, M.S.; Ju, B.J.; Lee, B.G.; Hong, S.H. Non-Halogen Flameproof Resin Composition. U.S. Patent 20100152345, 2008. [Google Scholar]
  64. Liu, X.; Salmeia, K.A.; Rentsch, D.; Hao, J.; Gaan, S. Thermal decomposition and flammability of rigid pu foams containing some dopo derivatives and other phosphorus compounds. J. Anal. Appl. Pyrolysis 2017, 124, 219–229. [Google Scholar] [CrossRef]
  65. Benin, V.; Cui, X.; Morgan, A.B.; Seiwert, K. Synthesis and flammability testing of epoxy functionalized phosphorous-based flame retardants. J. Appl. Polym. Sci. 2015, 132. [Google Scholar] [CrossRef]
  66. Worku, A.Z.; Mullins, M.J. Phosphorus-Containing Compounds Useful for Making Halogen-Free, Ignition-Resistant Polymers. Patent WO2012161926, 2012. [Google Scholar]
  67. Li, S.; Wang, J.; Li, Y.; Wu, G.; Wang, Y.; Wang, W.; Guo, J. Preparation and applications of the tertiary copolymer poly(ethylene glycol) methacrylate/methyl methacrylate/diethyl allylphosphonate. J. Appl. Polym. Sci. 2016, 133. [Google Scholar] [CrossRef]
  68. Zhang, X.; Zhang, Q.; Xie, C.; Gao, A.; Chang, Z.; Kwon Oh, J.; Yang, P.; Li, P. Phosphonated homopolymers and copolymers via ring opening metathesis polymerization: Tg tuning, flame resistance, and photolithography. J. Polym. Sci. Part A 2016, 54, 1396–1408. [Google Scholar] [CrossRef]
  69. König, A.; Kroke, E. Flame retardancy working mechanism of methyl-dopo and mppp in flexible polyurethane foam. Fire Mater. 2012, 36, 1–15. [Google Scholar] [CrossRef]
  70. Artner, J.; Ciesielski, M.; Ahlmann, M.; Walter, O.; Döring, M.; Perez, R.M.; Altstädt, V.; Sandler, J.K.W.; Schartel, B. A novel and effective synthetic approach to 9,10-dihydro-9-oxa-10-phosphaphenanthrene-10-oxide (dopo) derivatives. Phosphorus Sulfur Silicon Relat. Elem. 2007, 182, 2131–2148. [Google Scholar] [CrossRef]
  71. Dittrich, U.; Just, B.; Doring, M.; Ciesielski, M. Process for the Preparation of 9, 10-Dihydro-9-oxa-10-organylphosphaphenanthrene-10-oxide and Derivatives of the Same Substituted on the Phenyl Groups. U.S. Patent 20050038279, 2005. [Google Scholar]
  72. Zang, L.; Wagner, S.; Ciesielski, M.; Müller, P.; Döring, M. Novel star-shaped and hyperbranched phosphorus-containing flame retardants in epoxy resins. Polym. Adv. Technol. 2011, 22, 1182–1191. [Google Scholar] [CrossRef]
  73. Hoang, D.; Kim, J. Flame-retarding behaviors of novel spirocyclic organo-phosphorus compounds based on pentaerythritol. Macromol. Res. 2015, 23, 579–591. [Google Scholar] [CrossRef]
  74. Nguyen, C.; Lee, M.; Kim, J. Relationship between structures of phosphorus compounds and flame retardancies of the mixtures with acrylonitrile-butadiene-styrene and ethylene-vinyl acetate copolymer. Polym. Adv. Technol. 2011, 22, 512–519. [Google Scholar] [CrossRef]
  75. Kang, N.; Du, Z.; Li, H.; Zhang, C. Synthesis and characterization of p/si flame retardant and its application in epoxy systems. Polym. Adv. Technol. 2012, 23, 1329–1334. [Google Scholar] [CrossRef]
  76. Karataş, S.; Hoşgör, Z.; Kayaman-Apohan, N.; Güngör, A. Preparation and characterization of phosphine oxide containing organosilica hybrid coatings by photopolymerization and sol–gel process. Prog. Org. Coat. 2009, 65, 49–55. [Google Scholar] [CrossRef]
  77. Worku, A.Z.; Mullins, M.J. Phosphorus-Containing Compounds Useful for Making Halogen-Free, Ignition-Resistant Polymers. U.S. Patent 20160319107 A1, 2016. [Google Scholar]
  78. Su, W.C.; Sheng, C.S. Method for Preparing a Biphenylphosphonate Compound. U.S. Patent 20050101793, 2005. [Google Scholar]
  79. Tian, C.; Liu, P.; Ye, G.; Xu, J. Soluble polyarylates containing phosphorus in main chains with thermal stability. J. Appl. Polym. Sci. 2013, 130, 3521–3529. [Google Scholar] [CrossRef]
  80. Campbell, I.G.M.; Way, J.K. Synthesis and stereochemistry of heterocyclic phosphorus compounds. Part I. Preparation of (+)- and (-)-10-p-dimethylaminophenyl-9,10-dihydro-9-aza-10-phosphaphenanthrene. J. Chem. Soc. 1960, 5034–5041. [Google Scholar] [CrossRef]
  81. Dewar, M.J.S.; Kubba, V.P. New heteroaromatic compounds. Part vi. Novel heterocyclic compounds of phosphorus. J. Am. Chem. Soc. 1960, 82, 5685–5688. [Google Scholar] [CrossRef]
  82. Rakotomalala, M.; Ciesielski, M.; Zevaco, T.; Doering, M. New phosphacyclic molecules and their application as flame retardants for epoxy resins. Phosphorus Sulfur Silicon Relat. Elem. 2011, 186, 989–996. [Google Scholar] [CrossRef]
  83. Rakotomalala, M.; Wagner, S.; Zevaco, T.; Ciesielski, M.; Walter, O.; Doring, M. Synthesis and reactivity of 6h-dibenzo[c,e][1,2]oxaphosphinine 6-sulfide, a novel thiophosphacyclic molecule. Heterocycles 2011, 83, 743–753. [Google Scholar]
  84. Schäfer, A.; Seibold, S.; Lohstroh, W.; Walter, O.; Döring, M. Synthesis and properties of flame-retardant epoxy resins based on dopo and one of its analog dppo. J. Appl. Polym. Sci. 2007, 105, 685–696. [Google Scholar] [CrossRef]
  85. Schäfer, A.; Seibold, S.; Walter, O.; Döring, M. Novel high tg flame retardancy approach for epoxy resins. Polym. Degrad. Stab. 2008, 93, 557–560. [Google Scholar] [CrossRef]
  86. Wang, Z.-W.; Sun, Q.-X.; Wu, J.-S.; Wang, L.-S. Solubilities of 2-carboxyethylphenylphosphinic acid and 4-carboxyphenylphenylphosphinic acid in water. J. Chem. Eng. Data 2003, 48, 1073–1075. [Google Scholar] [CrossRef]
  87. Sacristán, M.; Ronda, J.C.; Galià, M.; Cádiz, V. Phosphorus-containing soybean-oil copolymers: Cross-metathesis of fatty acid derivatives as an alternative to phosphorus-containing reactive flame retardants. J. Appl. Polym. Sci. 2011, 122, 1649–1658. [Google Scholar] [CrossRef]
  88. Mandal, B.; Filler, R. Thermal Runaway Inhibitors. U.S. Patent 20030003358 A1, 2003. [Google Scholar]
  89. Li, X.; Chen, H.; Wang, W.; Liu, Y.; Zhao, P. Synthesis of a formaldehyde-free phosphorus-nitrogen flame retardant with multiple reactive groups and its application in cotton fabrics. Polym. Degrad. Stab. 2015, 120, 193–202. [Google Scholar] [CrossRef]
  90. Zuo, J.-D.; Liu, S.-M.; Sheng, Q. Synthesis and application in polypropylene of a novel of phosphorus-containing intumescent flame retardant. Molecules 2010, 15, 7593–7602. [Google Scholar] [CrossRef] [PubMed]
  91. Chun Shan, W.; Ching Hsuan, L. Synthesis and properties of phosphorus containing polyarylates derived from 2-(6-oxido-6h-dibenzoxaphosphorin-6-yl)-1,4-dihydroxy phenylene. Polymer 1999, 40, 4387–4398. [Google Scholar] [CrossRef]
  92. Zheng, J.; Yu, Y.; Zhang, L.; Zhen, X.; Zhao, Y. Synthesis of flame-retardant phosphaphenanthrene derivatives with high phosphorus contents. Aust. J. Chem. 2014, 67, 1688–1692. [Google Scholar] [CrossRef]
  93. Bai, Z.; Song, L.; Hu, Y.; Yuen, R.K.K. Preparation, flame retardancy, and thermal degradation of unsaturated polyester resin modified with a novel phosphorus containing acrylate. Ind. Eng. Chem. Res. 2013, 52, 12855–12864. [Google Scholar] [CrossRef]
  94. Xia, Y.; Ge, X.; Hou, C.; Wang, C.; Ma, W. Synthesis and characterization of a new kind of flame-retardant thermotropic liquid crystal containing 1,8-octanediamine softsegment. Polym.-Plast. Technol. Eng. 2013, 52, 1–6. [Google Scholar] [CrossRef]
  95. Wang, X.; Hu, Y.; Song, L.; Xing, W.; Lu, H. Thermal degradation behaviors of epoxy resin/poss hybrids and phosphorus-silicon synergism of flame retardancy. J. Polym. Sci. Part B 2010, 48, 693–705. [Google Scholar] [CrossRef]
  96. Ho, T.-H.; Hwang, H.-J.; Shieh, J.-Y.; Chung, M.-C. Thermal, physical and flame-retardant properties of phosphorus-containing epoxy cured with cyanate ester. React. Funct. Polym. 2009, 69, 176–182. [Google Scholar] [CrossRef]
  97. Seibold, S.; Schäfer, A.; Lohstroh, W.; Walter, O.; Döring, M. Phosphorus-containing terephthaldialdehyde adducts—Structure determination and their application as flame retardants in epoxy resins. J. Appl. Polym. Sci. 2008, 108, 264–271. [Google Scholar] [CrossRef]
  98. Hoffmann, T.; Pospiech, D.; Häußler, L.; Sahre, K.; Komber, H.; Harnisch, C.; Auf Der Landwehr, M.; Schäfer, A.; Döring, M. Phosphorus-containing polysulfones—A comparative study. High Perform. Polym. 2010, 22, 715–741. [Google Scholar] [CrossRef]
  99. Sun, Y.-M.; Wang, C.-S. Synthesis and luminescent characteristics of novel phosphorus containing light-emitting polymers. Polymer 2001, 42, 1035–1045. [Google Scholar] [CrossRef]
  100. Serbezeanu, D.; Vlad-Bubulac, T.; Hamciuc, C.; Aflori, M. Synthesis and properties of novel phosphorus-containing thermotropic liquid crystalline copoly(ester imide)s. J. Polym. Sci. Part A 2010, 48, 5391–5403. [Google Scholar] [CrossRef]
  101. Serbezeanu, D.; Vlad-Bubulac, T.; Hamciuc, C.; Doroftei, F. Synthesis and characterization of new phosphorus-containing poly(ester imide)s. High Perform. Polym. 2010, 22, 916–929. [Google Scholar] [CrossRef]
  102. Tian, X.; Wang, Z.; Yu, Q.; Wu, Q.; Gao, J. Synthesis and property of flame retardant epoxy resins modified with 2-(diphenylphosphinyl)-1,4-benzenediol. Chem. Res. Chin. Univ. 2014, 30, 868–873. [Google Scholar] [CrossRef]
  103. Chen, G.-C.H.; Huang, C.J.; Tu, A.P.; Hwang, K.Y. Phosphorus-Containing Compound and Method for Preparing the Same. US20100105939, 2009. [Google Scholar]
  104. Benin, V.; Gardelle, B.; Morgan, A.B. Heat release of polyurethanes containing potential flame retardants based on boron and phosphorus chemistries. Polym. Degrad. Stab. 2014, 106, 108–121. [Google Scholar] [CrossRef]
  105. Ivan, N.; Benin, V.; Morgan, A.B. Preparation of phosphonoterephthalic acids via palladium-catalyzed coupling of aromatic iodoesters. Synth. Commun. 2013, 43, 1831–1836. [Google Scholar] [CrossRef]
  106. Finocchiaro, P.; Consiglio, G.A.; Imbrogiano, A.; Failla, S. Synthesis and characterization of new organic phosphonates monomers as flame retardant additives for polymers. Phosphorus Sulfur Silicon Relat. Elem. 2007, 182, 1689–1701. [Google Scholar] [CrossRef]
  107. Dumitrascu, A.; Howell, B.A. Flame-retarding vinyl polymers using phosphorus-functionalized styrene monomers. Polym. Degrad. Stab. 2011, 96, 342–349. [Google Scholar] [CrossRef]
  108. Rectenwald, M.F.; Gaffen, J.R.; Rheingold, A.L.; Morgan, A.B.; Protasiewicz, J.D. Phosphoryl-rich flame-retardant ions (frions): Towards safer lithium-ion batteries. Angew. Chem. Int. Ed. 2014, 53, 4173–4176. [Google Scholar] [CrossRef] [PubMed]
  109. Dhawan, B.; Redmore, D. O-hydroxyaryl diphosphonic acids. J. Org. Chem. 1984, 49, 4018–4021. [Google Scholar] [CrossRef]
  110. Ghosh, A.; Bera, D.; Wang, D.-Y.; Komber, H.; Mohanty, A.K.; Banerjee, S.; Voit, B. Synthesis, characterization and properties of new semifluorinated poly(arylene ether phosphine oxide)s. Macromol. Mater. Eng. 2012, 297, 145–154. [Google Scholar] [CrossRef]
  111. Yoon, T.H.; Jeong, K.; Jo, Y.J. Triarylphosphine Oxide Derivatives Containing Fluorine Substituent and Preparing Method Thereof. U.S. Patent 20020095057 A1, 2002. [Google Scholar]
Figure 1. Chemical structures of 1a and 1b and their counter ion OTs.
Figure 1. Chemical structures of 1a and 1b and their counter ion OTs.
Materials 10 00784 g001
Figure 2. Chemical structures of 2, 3 and 4.
Figure 2. Chemical structures of 2, 3 and 4.
Materials 10 00784 g002
Figure 3. Chemical structures aliphatic phosphonates 5a and 5b.
Figure 3. Chemical structures aliphatic phosphonates 5a and 5b.
Materials 10 00784 g003
Figure 4. Chemical structures of phosphonium derivatives: 6, 6a and 6b.
Figure 4. Chemical structures of phosphonium derivatives: 6, 6a and 6b.
Materials 10 00784 g004
Figure 5. Chemical structure of 7a and 7b.
Figure 5. Chemical structure of 7a and 7b.
Materials 10 00784 g005
Figure 6. Phosphinic acid derivatives 7c and 7d.
Figure 6. Phosphinic acid derivatives 7c and 7d.
Materials 10 00784 g006
Figure 7. Chemical structure of 8.
Figure 7. Chemical structure of 8.
Materials 10 00784 g007
Figure 8. Cyclic tert-butyl phosphonate 9.
Figure 8. Cyclic tert-butyl phosphonate 9.
Materials 10 00784 g008
Figure 9. DOPO derivatives of 10a and 10b structures.
Figure 9. DOPO derivatives of 10a and 10b structures.
Materials 10 00784 g009
Scheme 1. Chemical synthesis of compound 11b.
Scheme 1. Chemical synthesis of compound 11b.
Materials 10 00784 sch001
Scheme 2. Synthetic route of compound 14.
Scheme 2. Synthetic route of compound 14.
Materials 10 00784 sch002
Figure 10. Flame retardant compounds 15, 16 and 17.
Figure 10. Flame retardant compounds 15, 16 and 17.
Materials 10 00784 g010
Figure 11. Various DOPO derivatives.
Figure 11. Various DOPO derivatives.
Materials 10 00784 g011
Scheme 3. Synthetic route for oligomer 30.
Scheme 3. Synthetic route for oligomer 30.
Materials 10 00784 sch003
Scheme 4. Schematic route for compound 32b synthesis.
Scheme 4. Schematic route for compound 32b synthesis.
Materials 10 00784 sch004
Figure 12. Monomer 33 and its corresponding polymers.
Figure 12. Monomer 33 and its corresponding polymers.
Materials 10 00784 g012
Figure 13. Flame retardant 34a34d structures.
Figure 13. Flame retardant 34a34d structures.
Materials 10 00784 g013

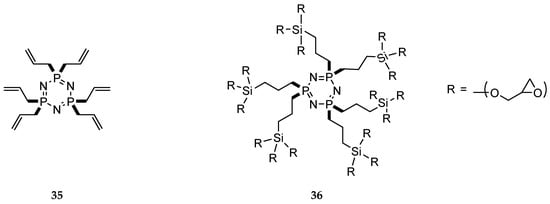

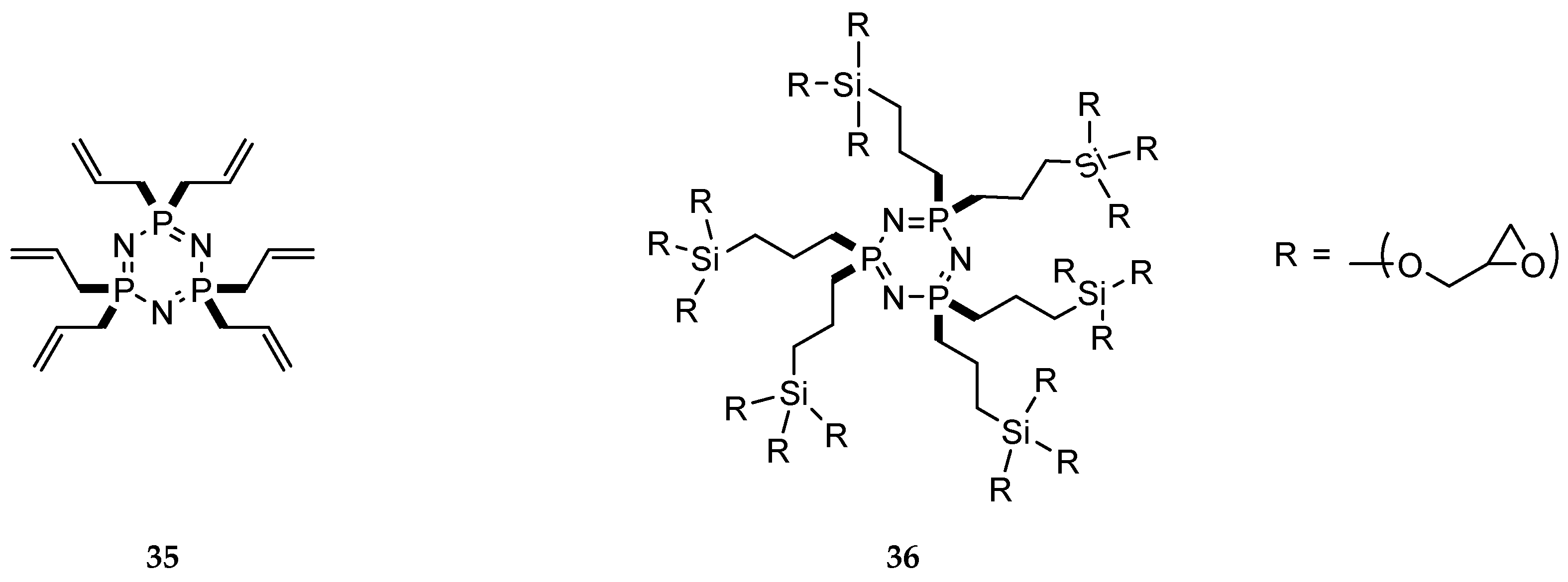

Figure 14. Chemical structures of 35 and 36.
Figure 14. Chemical structures of 35 and 36.
Materials 10 00784 g014
Figure 15. Phosphine oxide derivative 38 and its precursor 37.
Figure 15. Phosphine oxide derivative 38 and its precursor 37.
Materials 10 00784 g015

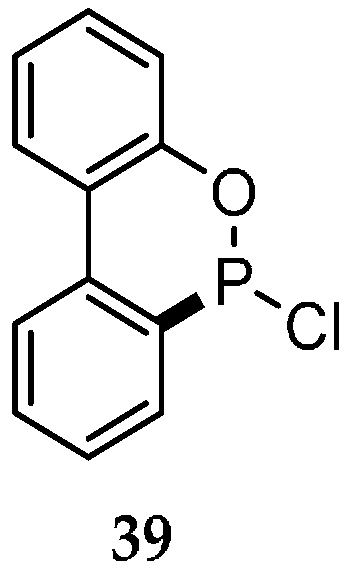

Figure 16. Structure of DOP-Cl 39.
Figure 16. Structure of DOP-Cl 39.
Materials 10 00784 g016

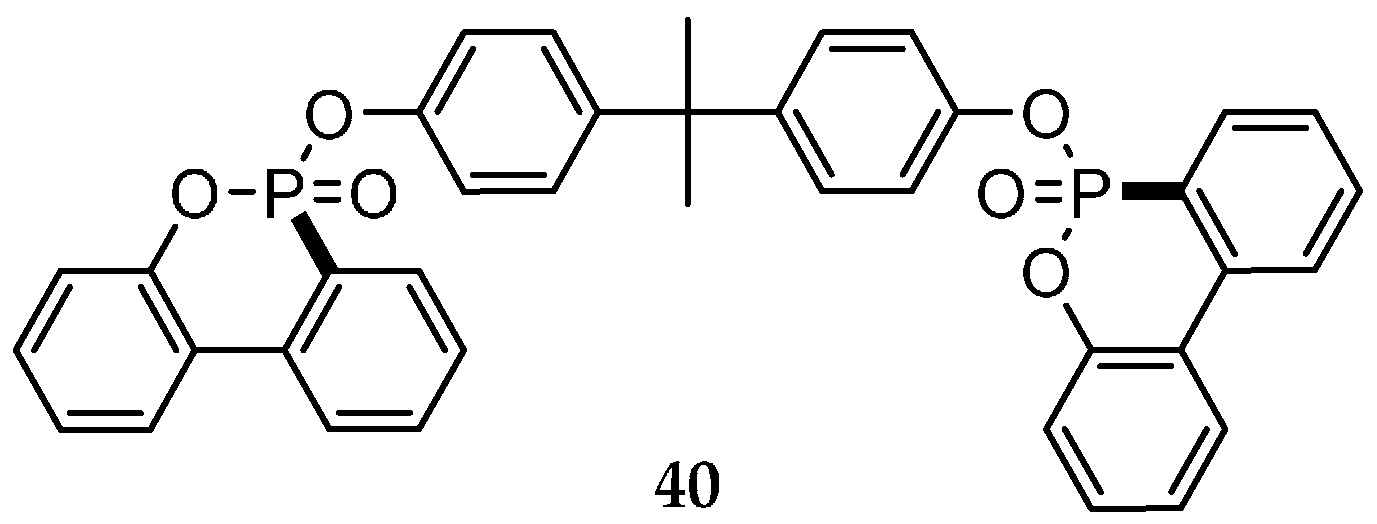

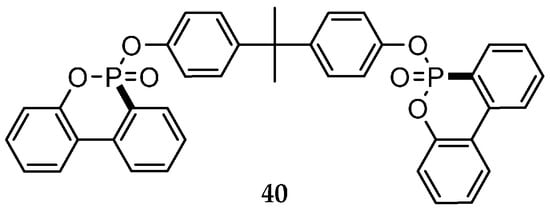

Figure 17. Chemical structure of bisphosphonate 40.
Figure 17. Chemical structure of bisphosphonate 40.
Materials 10 00784 g017
Scheme 5. Oxidation of 41a to 41b.
Scheme 5. Oxidation of 41a to 41b.
Materials 10 00784 sch005
Figure 18. DOPO analogues.
Figure 18. DOPO analogues.
Materials 10 00784 g018
Scheme 6. Synthetic route for phosphine oxides DPPO (42d) and DPPA (42e).
Scheme 6. Synthetic route for phosphine oxides DPPO (42d) and DPPA (42e).
Materials 10 00784 sch006
Figure 19. Chemical structure of compound 43.
Figure 19. Chemical structure of compound 43.
Materials 10 00784 g019
Figure 20. Phosphine oxide derivative 44 and phosphonate derivative 45.
Figure 20. Phosphine oxide derivative 44 and phosphonate derivative 45.
Materials 10 00784 g020
Figure 21. Triazine derivatives 46 and 47.
Figure 21. Triazine derivatives 46 and 47.
Materials 10 00784 g021

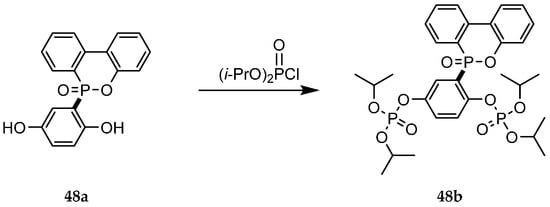

Scheme 7. Synthesis of DOPO based phosphinate derivative 48b from 48a.
Scheme 7. Synthesis of DOPO based phosphinate derivative 48b from 48a.
Materials 10 00784 sch007
Figure 22. DOPO based phosphinate derivatives 49 and 50.
Figure 22. DOPO based phosphinate derivatives 49 and 50.
Materials 10 00784 g022
Figure 23. DOPO-BQ (48a) functionalized DGEBA resin 51.
Figure 23. DOPO-BQ (48a) functionalized DGEBA resin 51.
Materials 10 00784 g023
Figure 24. Phosphine oxide derivative 52.
Figure 24. Phosphine oxide derivative 52.
Materials 10 00784 g024
Scheme 8. Synthetic route for DOPO based phosphinate 53b.
Scheme 8. Synthetic route for DOPO based phosphinate 53b.
Materials 10 00784 sch008
Figure 25. Chemical structures of compounds 54 and 55.
Figure 25. Chemical structures of compounds 54 and 55.
Materials 10 00784 g025
Figure 26. Phosphonate derivatives 56a and 56b.
Figure 26. Phosphonate derivatives 56a and 56b.
Materials 10 00784 g026
Figure 27. Chemical structures of compounds 56c to 56e.
Figure 27. Chemical structures of compounds 56c to 56e.
Materials 10 00784 g027

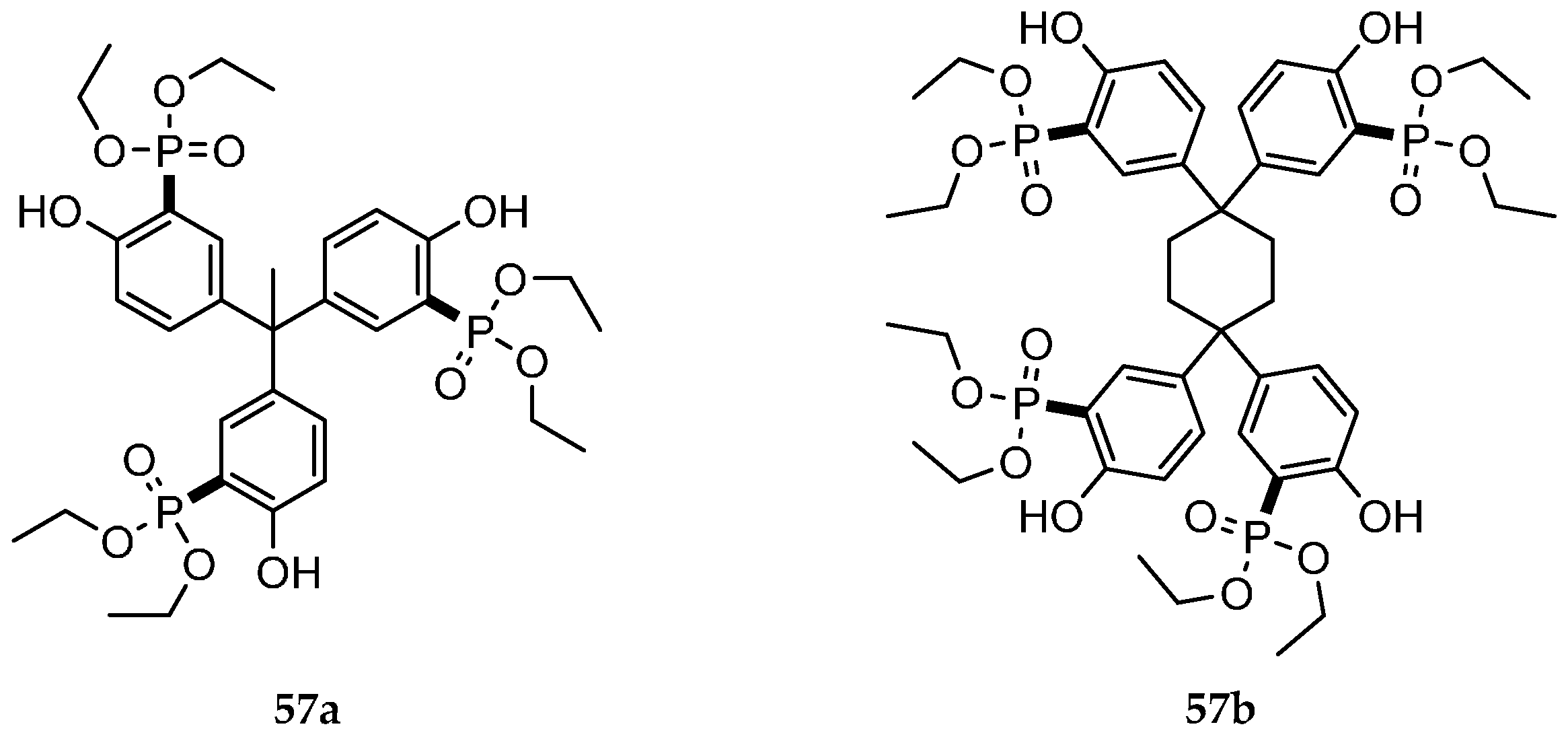

Figure 28. Phosphonate derivatives of polyphenols 57a and 57b.
Figure 28. Phosphonate derivatives of polyphenols 57a and 57b.
Materials 10 00784 g028
Scheme 9. Synthesis of the phosphorus-containing vinyl monomer 58b from 58a.
Scheme 9. Synthesis of the phosphorus-containing vinyl monomer 58b from 58a.
Materials 10 00784 sch009
Figure 29. Chemical structure of compounds 59 and 60.
Figure 29. Chemical structure of compounds 59 and 60.
Materials 10 00784 g029

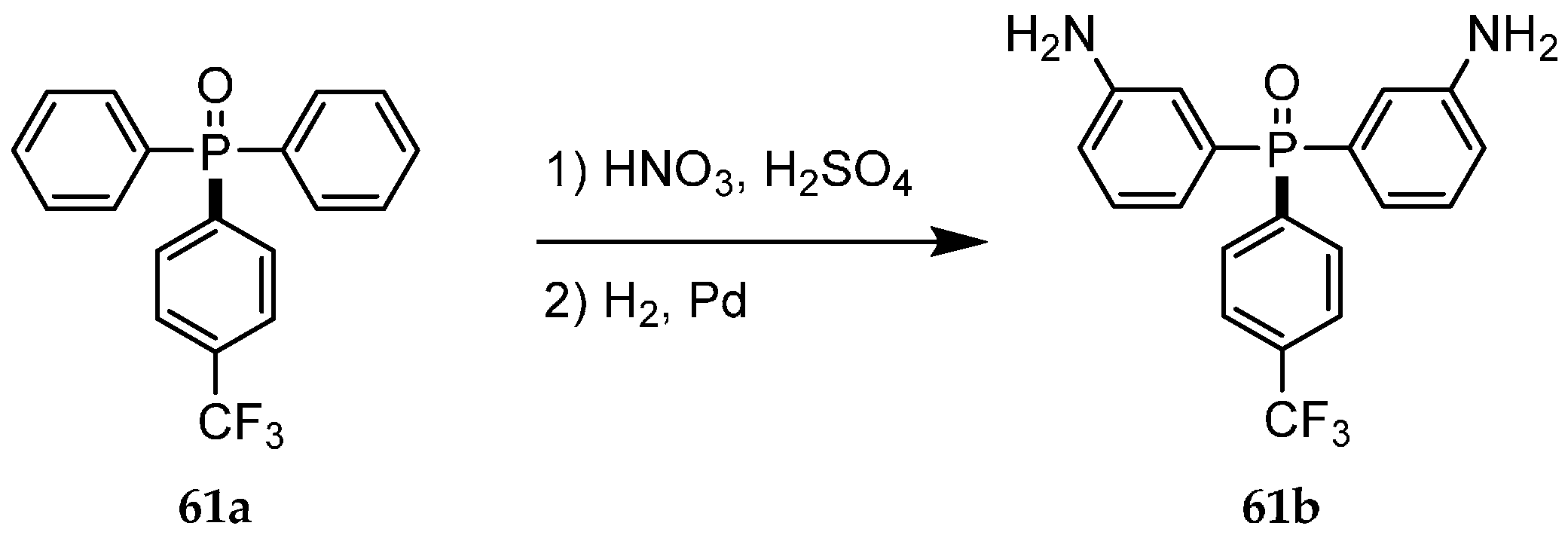

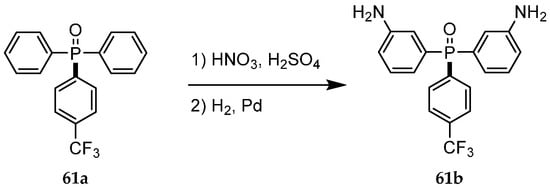

Scheme 10. Two-step amination of 61a to yield 61b.
Scheme 10. Two-step amination of 61a to yield 61b.
Materials 10 00784 sch010
Table 1. P-H transformation into P-C bond.
Table 1. P-H transformation into P-C bond.
Reaction TypeGeneral ExamplesSelected Ref.
Pudovik reaction Materials 10 00784 i001[6,30,37,38,39]
Kabachnik–Fields reaction Materials 10 00784 i002[6,30]
Michaelis–Becker reaction Materials 10 00784 i003[26]
Nucleophilic ring opening of epoxides Materials 10 00784 i004[6]
C-O/P-H cross coupling reaction Materials 10 00784 i005[40]
Dehydrogenative coupling with terminal alkynes Materials 10 00784 i006[6,12,41]
P-H insertion of α-Imino-carbenes Materials 10 00784 i007[42]
O2-induced radical oxyphosphorylation reaction Materials 10 00784 i008[43]
Materials 10 00784 i009[44]
Phospha–Michael addition reaction Materials 10 00784 i010[5,15,29]
Table 2. Rearrangement/transformation Reactions.
Table 2. Rearrangement/transformation Reactions.
Reaction TypeGeneral ExamplesSelected Ref.
Michaelis–Arbuzov reaction Materials 10 00784 i011[5,27,28,45,46]
Sandmeyer-type reaction Materials 10 00784 i012[47,48]
Decarbonylation of Acylphosphines Materials 10 00784 i013[49]
Abramov reaction Materials 10 00784 i014[30,35,50]
Table 3. C-H to C-P transformation.
Table 3. C-H to C-P transformation.
Reaction TypeGeneral ExamplesSelected Ref.
Friedel–Crafts reaction Materials 10 00784 i015[5,8]
Via Aryne formation Materials 10 00784 i016[51]
Nucleophilic substitution Materials 10 00784 i017[8,52]

Share and Cite

MDPI and ACS Style

Wendels, S.; Chavez, T.; Bonnet, M.; Salmeia, K.A.; Gaan, S. Recent Developments in Organophosphorus Flame Retardants Containing P-C Bond and Their Applications. Materials 2017, 10, 784. https://doi.org/10.3390/ma10070784

AMA Style

Wendels S, Chavez T, Bonnet M, Salmeia KA, Gaan S. Recent Developments in Organophosphorus Flame Retardants Containing P-C Bond and Their Applications. Materials. 2017; 10(7):784. https://doi.org/10.3390/ma10070784

Chicago/Turabian Style

Wendels, Sophie, Thiebault Chavez, Martin Bonnet, Khalifah A. Salmeia, and Sabyasachi Gaan. 2017. "Recent Developments in Organophosphorus Flame Retardants Containing P-C Bond and Their Applications" Materials 10, no. 7: 784. https://doi.org/10.3390/ma10070784

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
