Open AccessArticle
Materials 2017, 10(6), 663; doi:10.3390/ma10060663

Ultra High Strain Rate Nanoindentation Testing

1
International Advanced Research Centre for Powder Metallurgy and New Materials (ARCI), Balapur PO, Hyderabad, Telangana 500005, India
2
Nanomechanics Inc., 105 Meco Ln, Oak Ridge, TN 37830, USA
*
Author to whom correspondence should be addressed.
Received: 20 May 2017 / Revised: 13 June 2017 / Accepted: 14 June 2017 / Published: 17 June 2017
(This article belongs to the Special Issue Advanced Nanoindentation in Materials)
View Full-Text   |   Download PDF [4005 KB, uploaded 17 June 2017]   |

Abstract

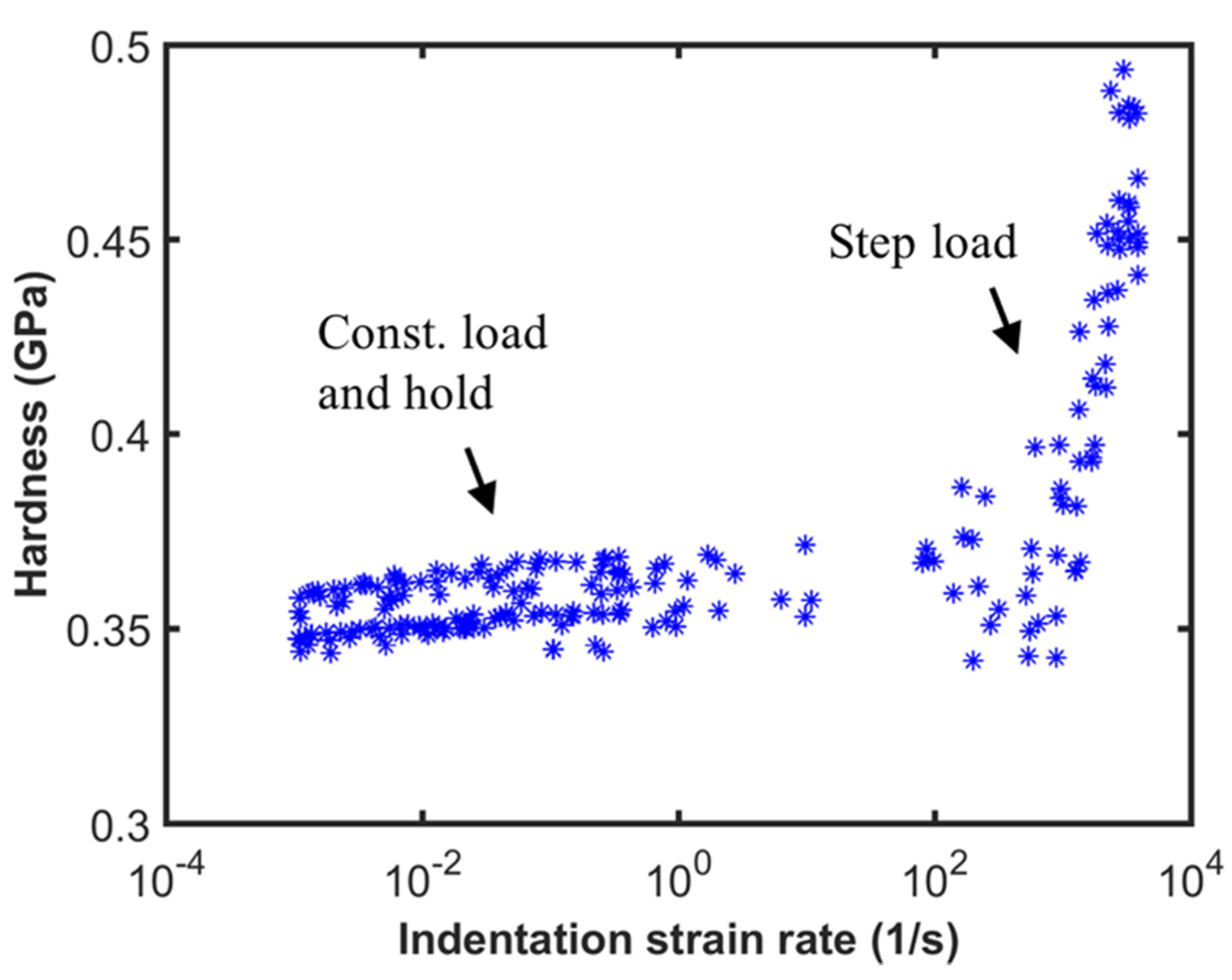

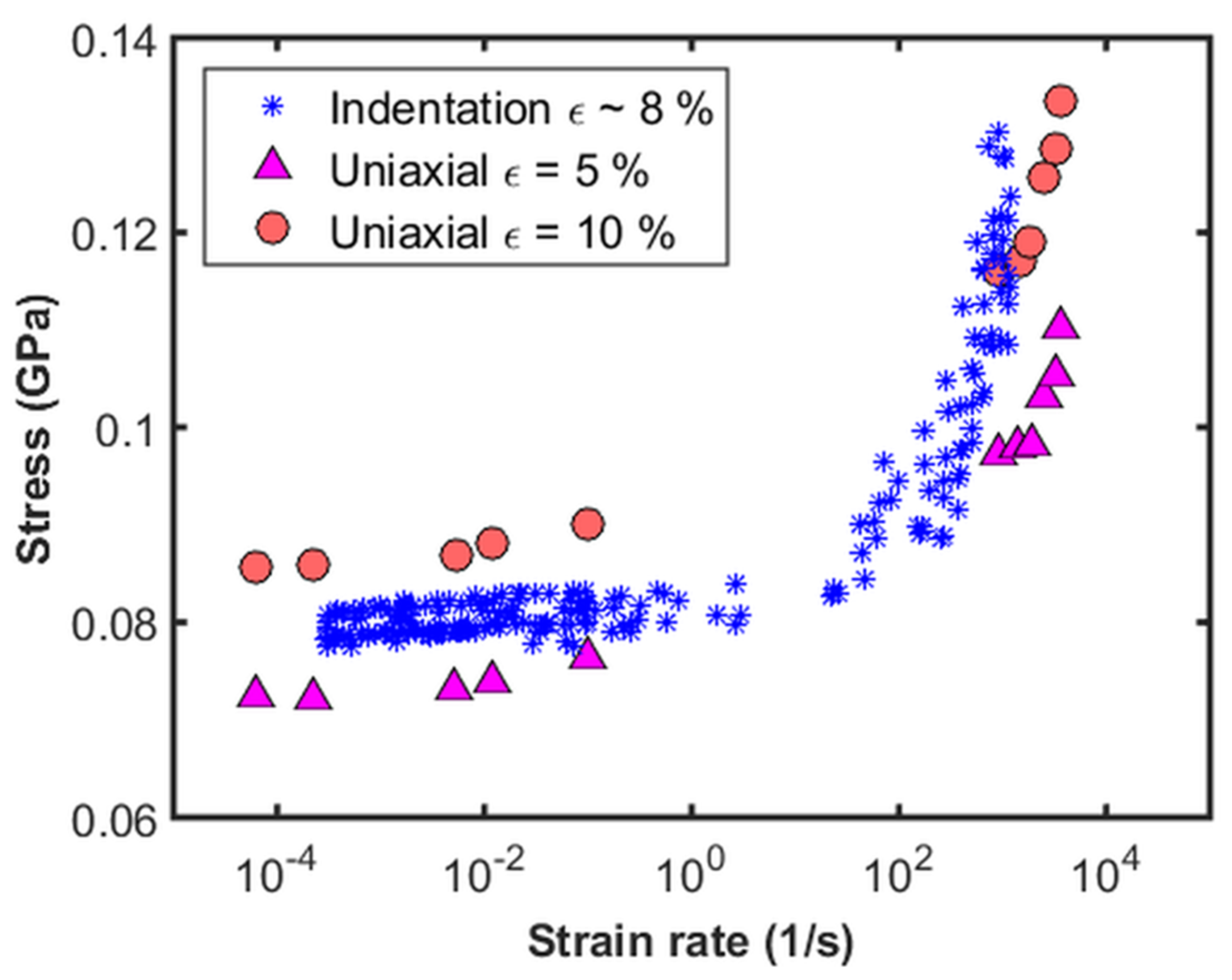

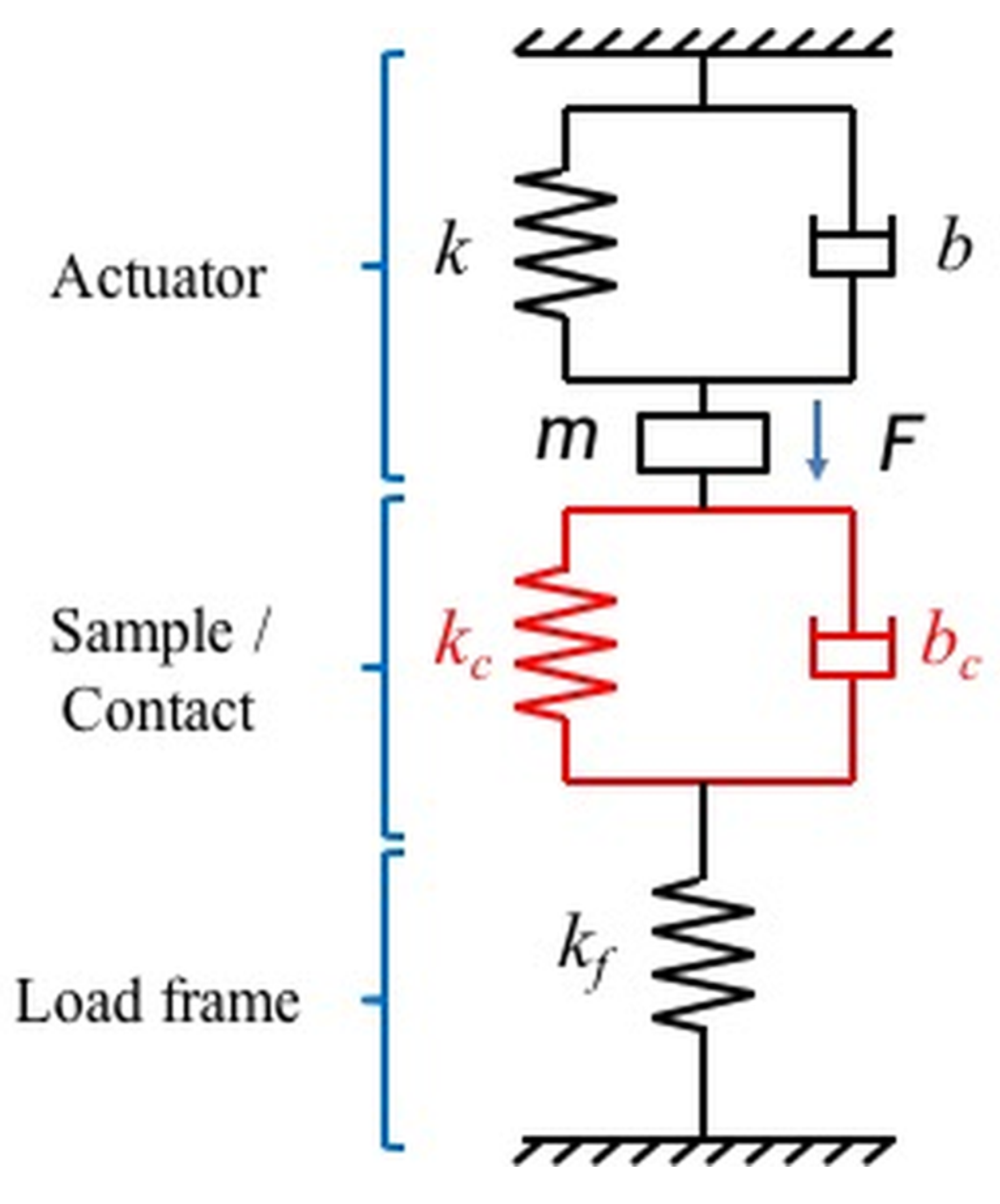

Strain rate dependence of indentation hardness has been widely used to study time-dependent plasticity. However, the currently available techniques limit the range of strain rates that can be achieved during indentation testing. Recent advances in electronics have enabled nanomechanical measurements with very low noise levels (sub nanometer) at fast time constants (20 µs) and high data acquisition rates (100 KHz). These capabilities open the doors for a wide range of ultra-fast nanomechanical testing, for instance, indentation testing at very high strain rates. With an accurate dynamic model and an instrument with fast time constants, step load tests can be performed which enable access to indentation strain rates approaching ballistic levels (i.e., 4000 1/s). A novel indentation based testing technique involving a combination of step load and constant load and hold tests that enables measurement of strain rate dependence of hardness spanning over seven orders of magnitude in strain rate is presented. A simple analysis is used to calculate the equivalent uniaxial response from indentation data and compared to the conventional uniaxial data for commercial purity aluminum. Excellent agreement is found between the indentation and uniaxial data over several orders of magnitude of strain rate. View Full-Text
Keywords: high strain rate; nanoindentation; aluminum alloy; dynamics high strain rate; nanoindentation; aluminum alloy; dynamics
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Sudharshan Phani, P.; Oliver, W.C. Ultra High Strain Rate Nanoindentation Testing. Materials 2017, 10, 663.
