Open AccessArticle
Materials 2017, 10(6), 608; doi:10.3390/ma10060608

Co3O4@CoS Core-Shell Nanosheets on Carbon Cloth for High Performance Supercapacitor Electrodes

1
Key Laboratory for Ultrafine Materials of Ministry of Education, School of Materials Science and Engineering, East China University of Science and Technology, Shanghai 200237, China
2
Centre of Polymer Systems, Tomas Bata University in Zlin, nam. T. G. Masaryka 5555, Zlin 760 01, Czech Republic
*
Authors to whom correspondence should be addressed.
Academic Editor: Federico Bella
Received: 20 April 2017 / Revised: 26 May 2017 / Accepted: 27 May 2017 / Published: 1 June 2017
(This article belongs to the Section Energy Materials)
View Full-Text   |   Download PDF [4317 KB, uploaded 2 June 2017]   |

Abstract

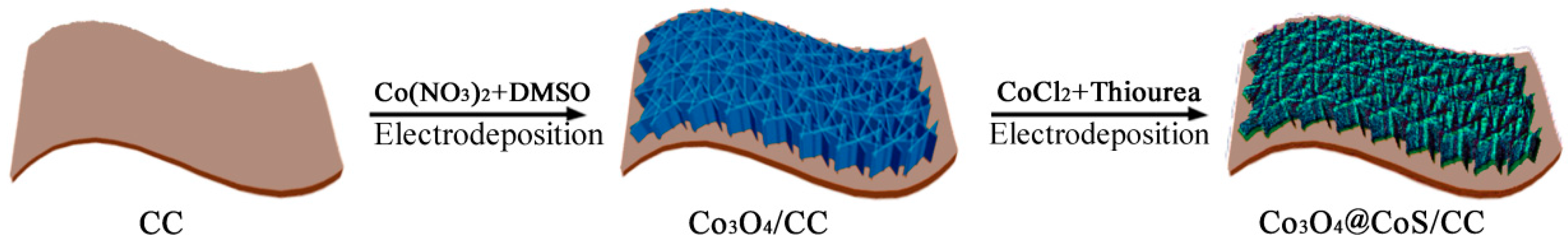

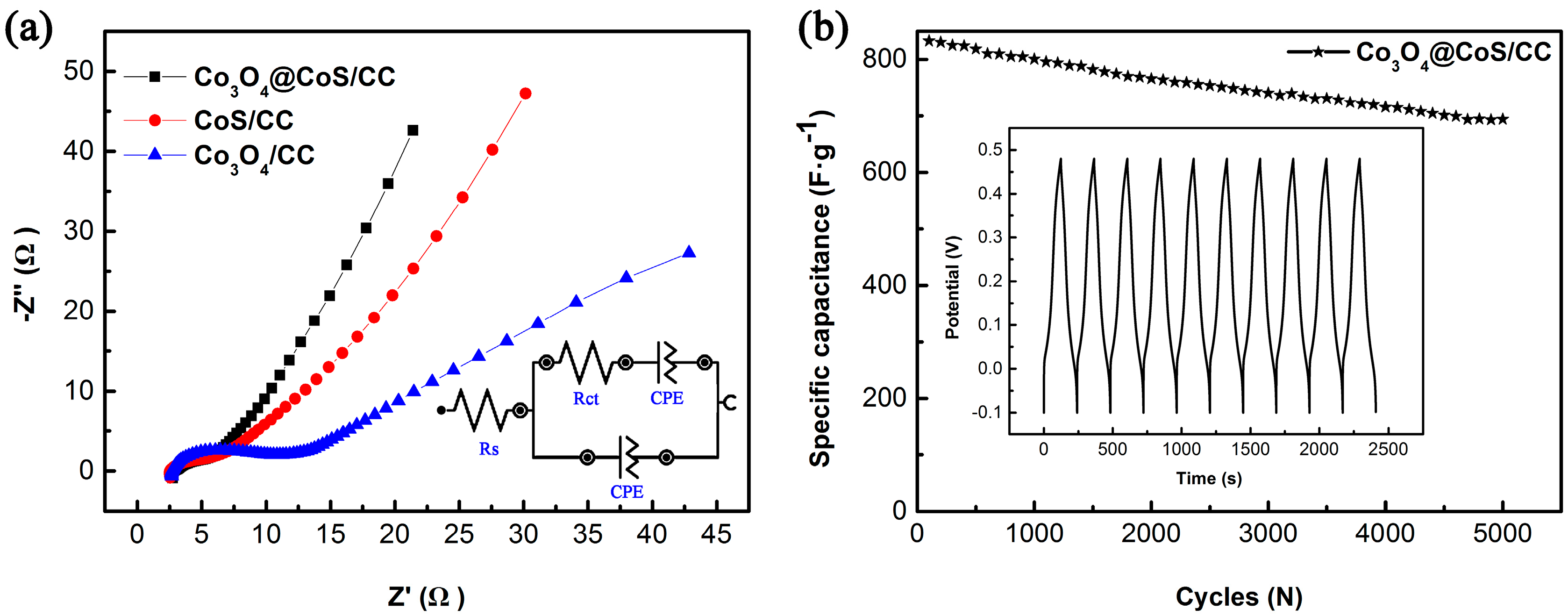

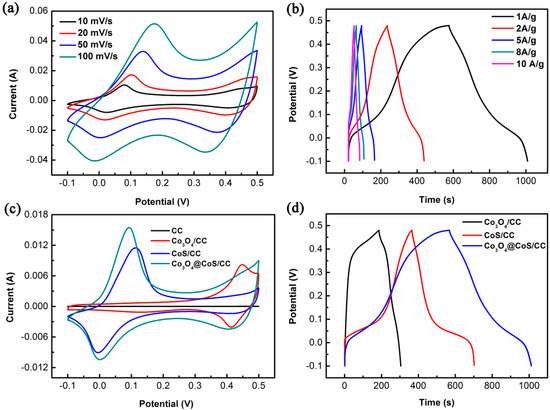

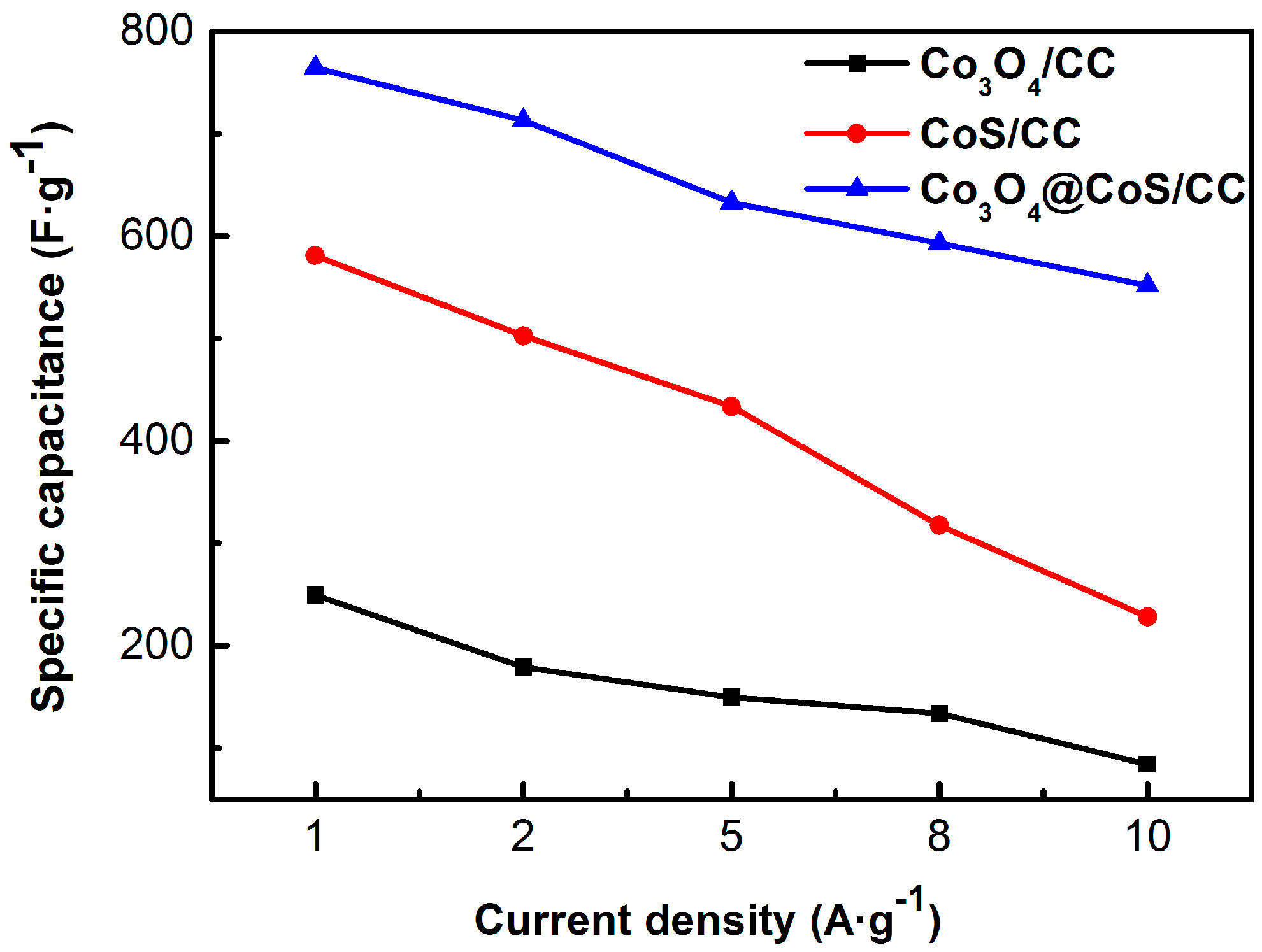

In this work, a two-step electrodeposition strategy is developed for the synthesis of core-shell Co3O4@CoS nanosheet arrays on carbon cloth (CC) for supercapacitor applications. Porous Co3O4 nanosheet arrays are first directly grown on CC by electrodeposition, followed by the coating of a thin layer of CoS on the surface of Co3O4 nanosheets via the secondary electrodeposition. The morphology control of the ternary composites can be easily achieved by altering the number of cyclic voltammetry (CV) cycles of CoS deposition. Electrochemical performance of the composite electrodes was evaluated by cyclic voltammetry, galvanostatic charge–discharge and electrochemical impedance spectroscopy techniques. The results demonstrate that the Co3O4@CoS/CC with 4 CV cycles of CoS deposition possesses the largest specific capacitance 887.5 F·g−1 at a scan rate of 10 mV·s−1 (764.2 F·g−1 at a current density of 1.0 A·g−1), and excellent cycling stability (78.1% capacitance retention) at high current density of 5.0 A·g−1 after 5000 cycles. The porous nanostructures on CC not only provide large accessible surface area for fast ions diffusion, electron transport and efficient utilization of active CoS and Co3O4, but also reduce the internal resistance of electrodes, which leads to superior electrochemical performance of Co3O4@CoS/CC composite at 4 cycles of CoS deposition. View Full-Text
Keywords: Co3O4; CoS; carbon cloth; supercapacitor; nanostructured arrays Co3O4; CoS; carbon cloth; supercapacitor; nanostructured arrays
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Ning, J.; Zhang, T.; He, Y.; Jia, C.; Saha, P.; Cheng, Q. Co3O4@CoS Core-Shell Nanosheets on Carbon Cloth for High Performance Supercapacitor Electrodes. Materials 2017, 10, 608.
