Development of AlN and TiB2 Composites with Nb2O5, Y2O3 and ZrO2 as Sintering Aids

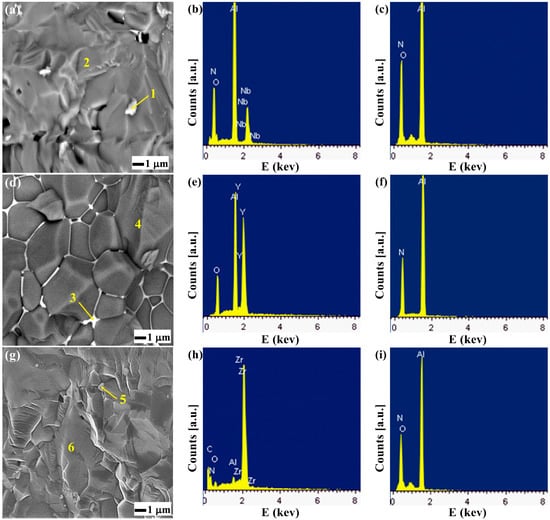

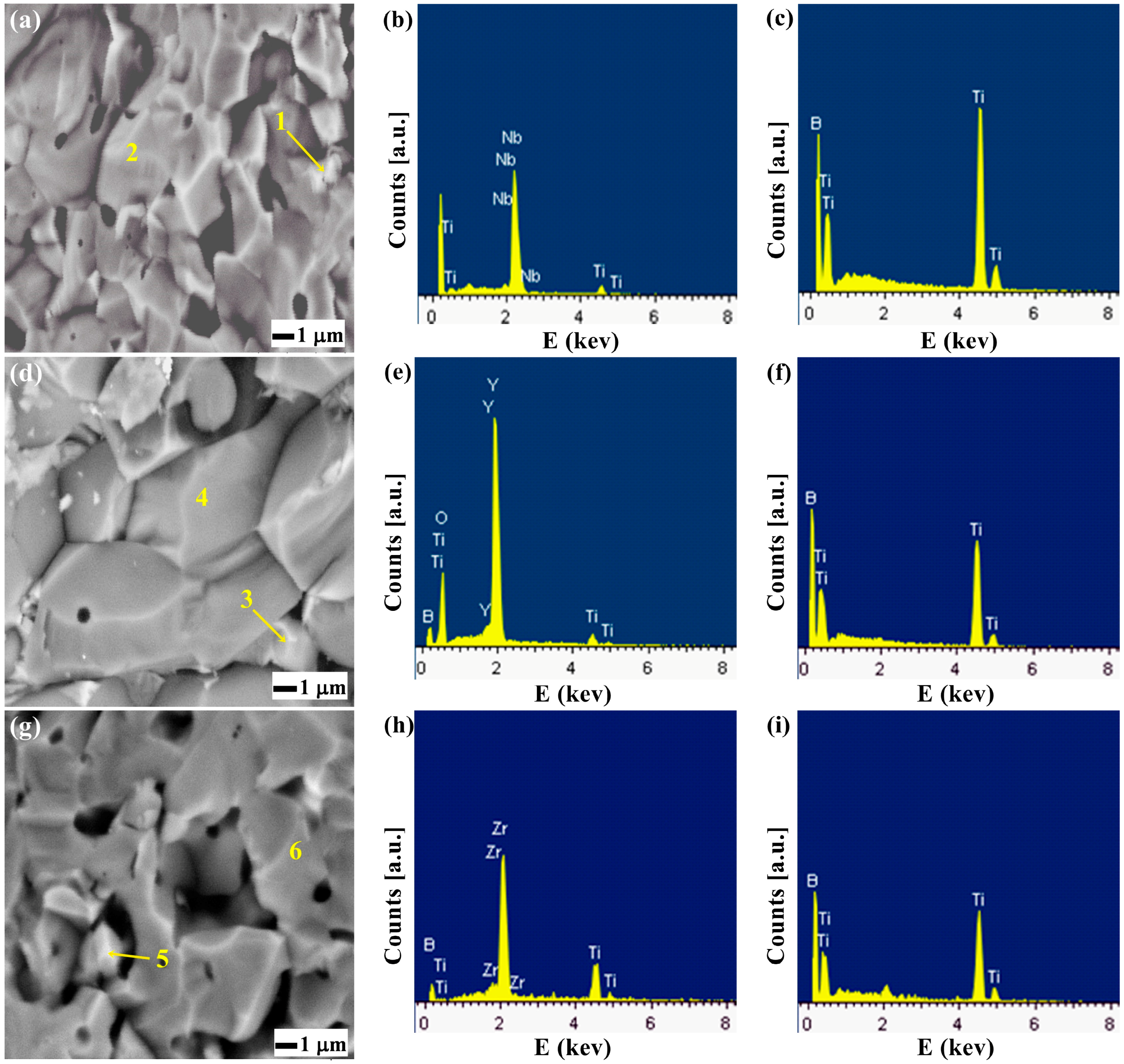

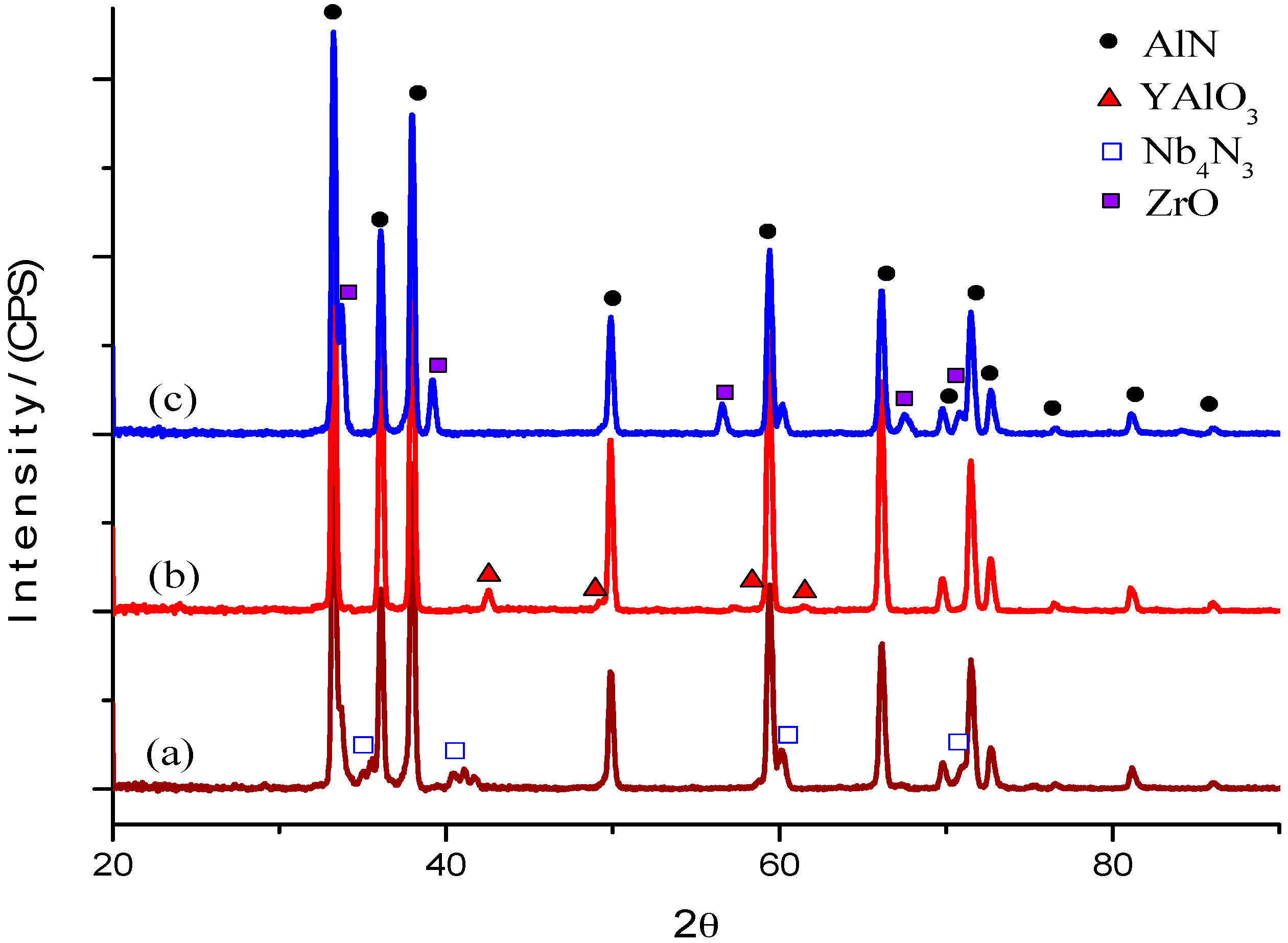

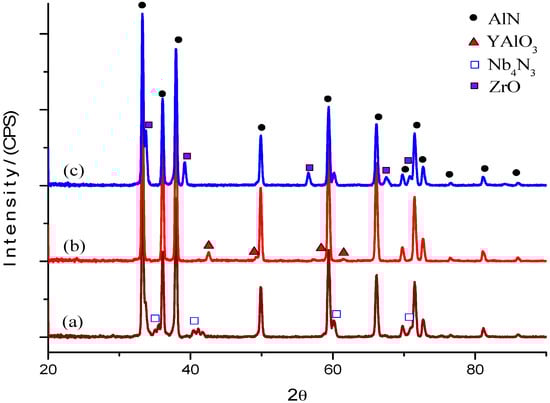

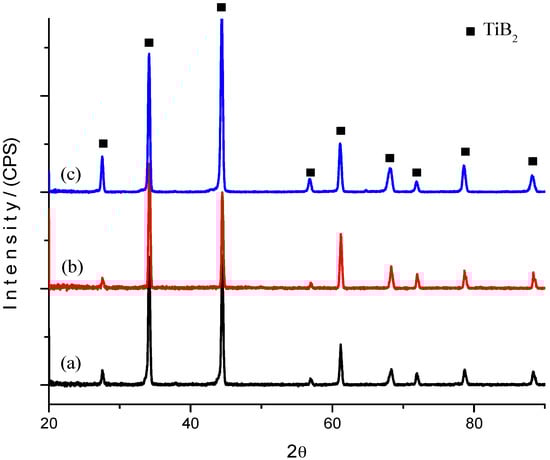

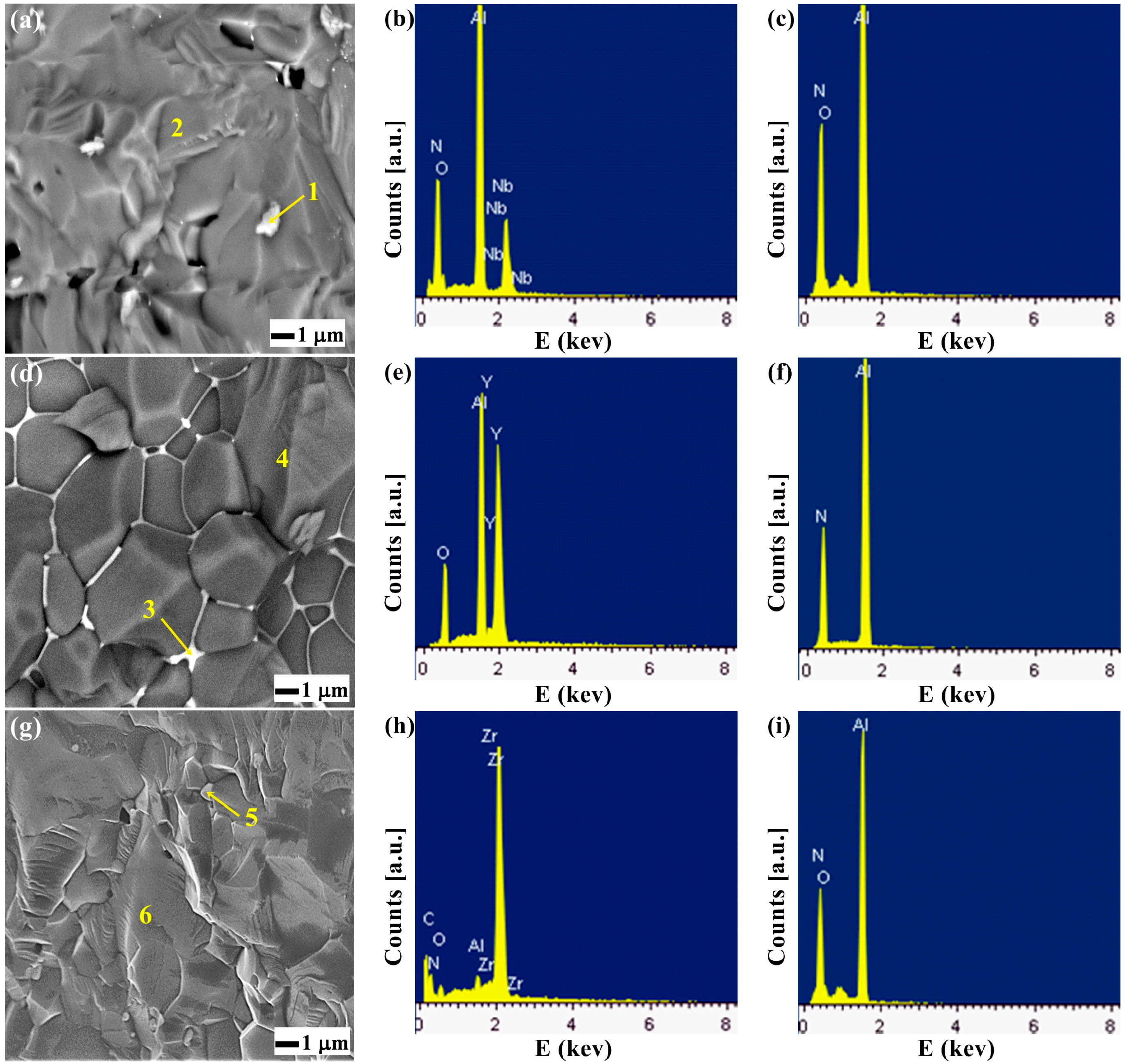

AbstractThe synthesis of AlN and TiB2 by spark plasma sintering (SPS) and the effect of Nb2O5, Y2O3 and ZrO2 additions on the mechanical properties and densification of the produced composites is reported and discussed. After the SPS process, dense AlN and TiB2 composites with Nb2O5, Y2O3 and ZrO2 were successfully prepared. X-ray diffraction analysis showed that in the AlN composites, the addition of Nb2O5 gives rise to Nb4N3 during sintering. The compound Y3Al5O12 (YAG) was observed as precipitate in the sample with Y2O3. X-ray diffraction analysis of the TiB2 composites showed TiB2 as a single phase in these materials. The maximum Vickers and toughness values were 14.19 ± 1.43 GPa and 27.52 ± 1.75 GPa for the AlN and TiB2 composites, respectively. View Full-Text
Share & Cite This Article
González, J.C.; Rodríguez, M.Á.; Figueroa, I.A.; Villafuerte-Castrejón, M.-E.; Díaz, G.C. Development of AlN and TiB2 Composites with Nb2O5, Y2O3 and ZrO2 as Sintering Aids. Materials 2017, 10, 324.
González JC, Rodríguez MÁ, Figueroa IA, Villafuerte-Castrejón M-E, Díaz GC. Development of AlN and TiB2 Composites with Nb2O5, Y2O3 and ZrO2 as Sintering Aids. Materials. 2017; 10(3):324.Chicago/Turabian Style
González, José C.; Rodríguez, Miguel Á.; Figueroa, Ignacio A.; Villafuerte-Castrejón, María-Elena; Díaz, Gerardo C. 2017. "Development of AlN and TiB2 Composites with Nb2O5, Y2O3 and ZrO2 as Sintering Aids." Materials 10, no. 3: 324.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
