Energies 2016, 9(9), 720; doi:10.3390/en9090720

A Comparative Study Based on the Least Square Parameter Identification Method for State of Charge Estimation of a LiFePO4 Battery Pack Using Three Model-Based Algorithms for Electric Vehicles

1,2,3
and
1,2,3,*
1
Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
2
Shenzhen College of Advanced Technology, University of Chinese Academy of Sciences, Shenzhen 518055, China
3
Jining Institute of Advanced Technology, Chinese Academy of Sciences, Jining 272000, China
*
Author to whom correspondence should be addressed.
Academic Editor: Izumi Taniguchi
Received: 13 June 2016 / Revised: 21 August 2016 / Accepted: 26 August 2016 / Published: 8 September 2016
View Full-Text   |   Download PDF [3352 KB, uploaded 8 September 2016]   |

Abstract

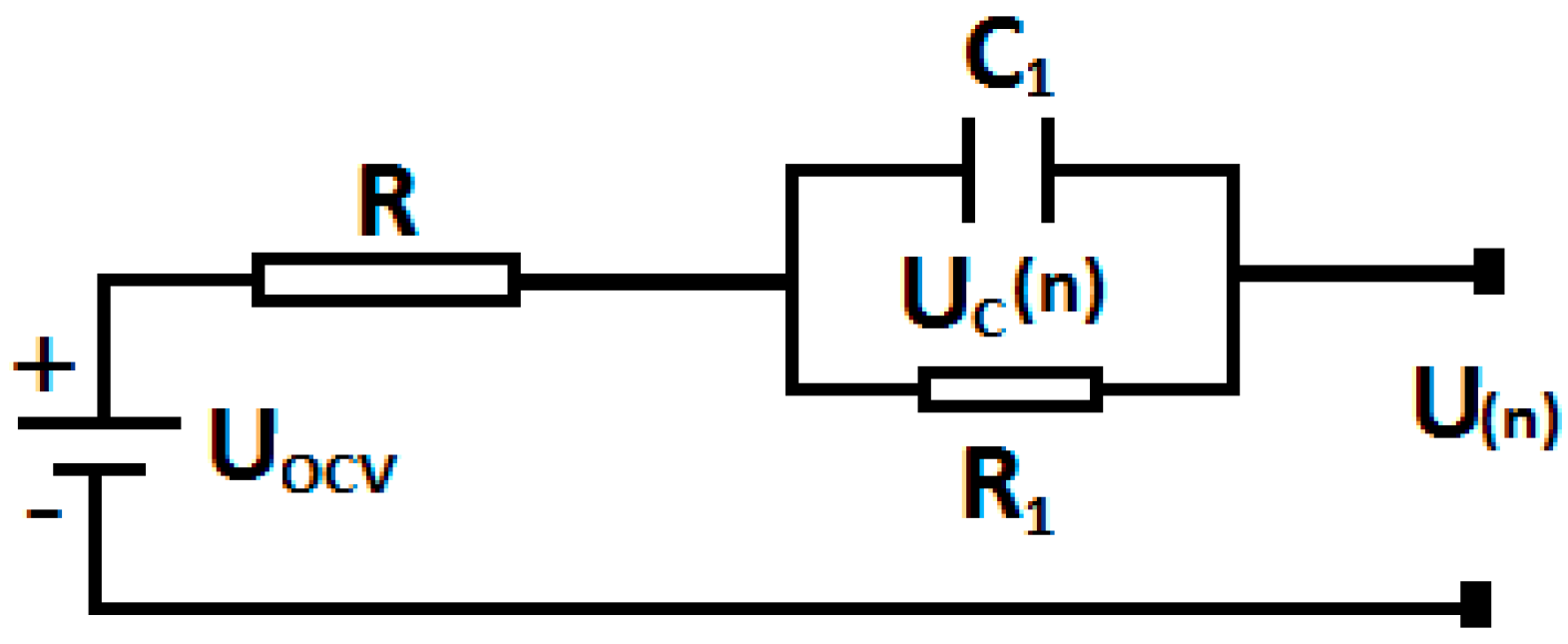

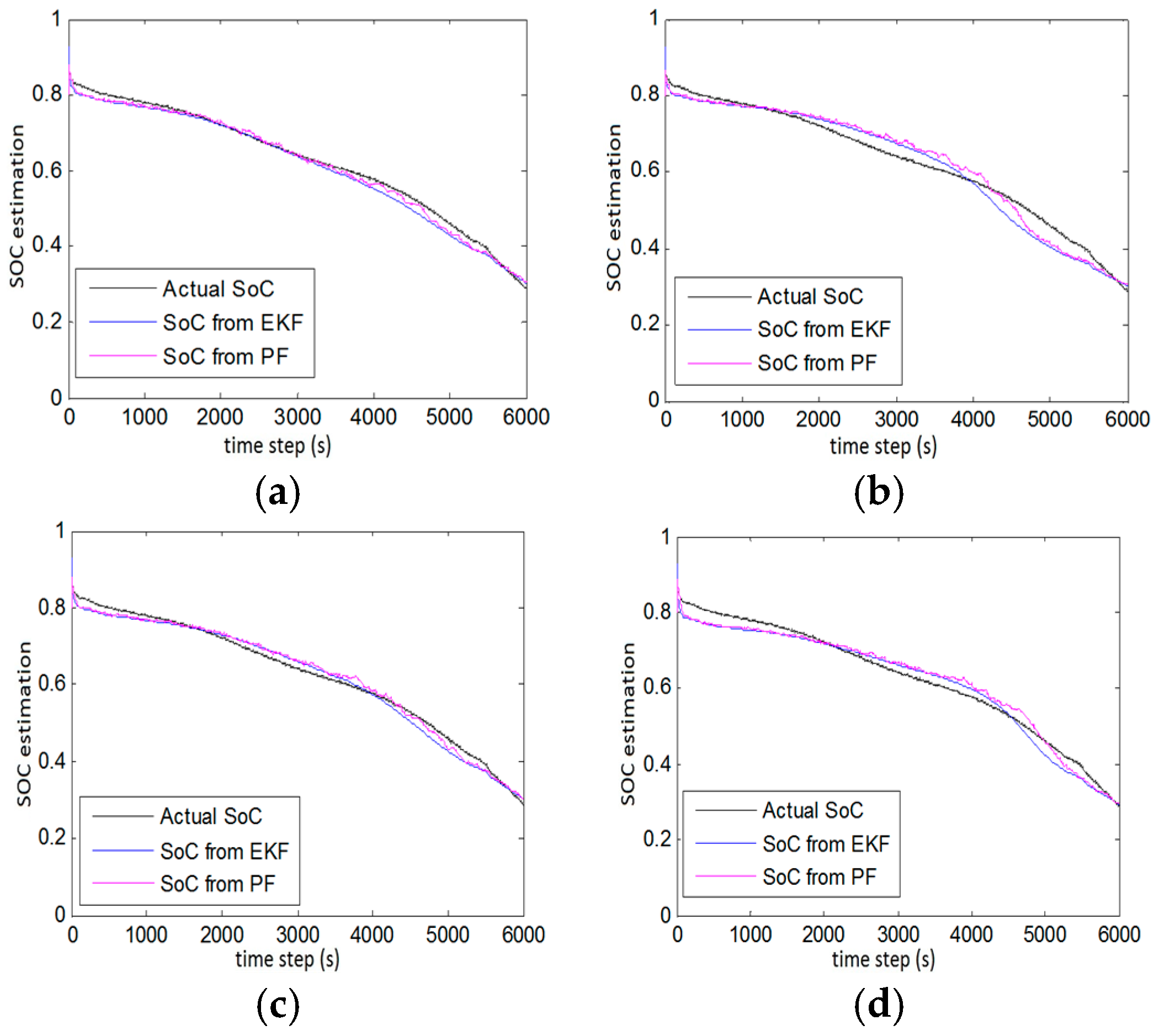

Battery energy storage management for electric vehicles (EV) and hybrid EV is the most critical and enabling technology since the dawn of electric vehicle commercialization. A battery system is a complex electrochemical phenomenon whose performance degrades with age and the existence of varying material design. Moreover, it is very tedious and computationally very complex to monitor and control the internal state of a battery’s electrochemical systems. For Thevenin battery model we established a state-space model which had the advantage of simplicity and could be easily implemented and then applied the least square method to identify the battery model parameters. However, accurate state of charge (SoC) estimation of a battery, which depends not only on the battery model but also on highly accurate and efficient algorithms, is considered one of the most vital and critical issue for the energy management and power distribution control of EV. In this paper three different estimation methods, i.e., extended Kalman filter (EKF), particle filter (PF) and unscented Kalman Filter (UKF), are presented to estimate the SoC of LiFePO4 batteries for an electric vehicle. Battery’s experimental data, current and voltage, are analyzed to identify the Thevenin equivalent model parameters. Using different open circuit voltages the SoC is estimated and compared with respect to the estimation accuracy and initialization error recovery. The experimental results showed that these online SoC estimation methods in combination with different open circuit voltage-state of charge (OCV-SoC) curves can effectively limit the error, thus guaranteeing the accuracy and robustness. View Full-Text
Keywords: battery management system; lithium ion batteries; state of charge (SoC) estimation; extended Kalman filter (EKF); unscented Kalman filter (UKF); particle filter (PF) battery management system; lithium ion batteries; state of charge (SoC) estimation; extended Kalman filter (EKF); unscented Kalman filter (UKF); particle filter (PF)
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
