Laminar Flame Characteristics of C1–C5 Primary Alcohol-Isooctane Blends at Elevated Temperature

Abstract

The laminar combustion characteristics of blends of isooctane and C1–C5 primary alcohols (i.e., methanol, ethanol, n-propanol, n-butanol and n-pentanol) were investigated using the spherical expanding flame methodology in a constant volume chamber at various equivalence ratios and volume fractions of alcohol. The stretch effect was removed using the nonlinear methodology. The results indicate that the laminar flame speeds of alcohol-isooctane blends increase monotonously with the increasing volume fraction of alcohol. Among the five alcohols, the addition of methanol is identified to be the most effective in enhancing laminar flame speed. The addition of ethanol results in an approximately equivalent laminar flame speed enhancement rate as those of n-propanol, n-butanol and n-pentanol at ratios of 0.8 and 1.5, and a higher rate at 1.0 and 1.2. An empirical correlation is provided to describe the laminar flame speed variation with the volume fraction of alcohol. Meanwhile, the laminar flame speed increases with the mass content of oxygen in the fuel blends. At the equivalence ratio of 0.8 and fixed oxygen content, similar laminar flame speeds are observed with different alcohols blended into isooctane. Nevertheless, with the increase of equivalence ratio, heavier alcohol-isooctane blends tend to exhibit higher values. Markstein lengths of alcohol-isooctane blends decrease with the addition of alcohol into isooctane at 0.8, 1.0 and 1.2, however they increase at 1.5. This is consistent with the behavior deduced from the Schlieren images.

1. Introduction

Driven by energy shortages and environmental issues, there has been great interest in the development of alternative fuels in recent years. Alcohols, considered a renewable resource, are being extensively investigated in all fields. Unlike traditional fuels, alcohols contain oxygen, which is beneficial for complete combustion and the reduction of toxic emissions [1,2,3,4,5,6,7,8]. Specifically, light alcohols, e.g., methanol and ethanol, have been successfully utilized as octane boosters for traditional fuels. Heavy alcohols have high energy contents and blend well with traditional fuels. Isooctane is identified as the representative branched paraffin and, hence an important constituent in the surrogates of traditional fuels [9,10,11], therefore, investigating alcohol-isooctane blends can provide valuable information for understanding the potential of alcohols as alternative fuels.

Laminar flame characteristics, namely laminar flame speed and flame instability properties, are the fundamental physico-chemical information in evaluating the flame propagation process and turbulent flame research. In addition, laminar flame speed is widely adopted to validate chemical kinetics models. The laminar combustion characteristics of pure isooctane flames have been extensively investigated under various initial conditions in the past years [12,13,14,15,16,17,18]. Recently, studies on the laminar flames of alcohols have received increasing attention. Saeed and Stone [19] and Zhang et al. [20] studied the laminar flames of methanol in a constant volume chamber with laminar flame speeds at different determined initial temperatures and pressures. Togbé et al. [21] presented a set of laminar flame speeds of n-pentanol at 0.1 MPa, 423 K to evaluate the accuracy of the n-pentanol model. Veloo et al. [22,23] measured the laminar flame speeds of methanol, ethanol, n-propanol and n-butanol flames in a counterflow configuration. Their results showed that methanol presents similar flame speeds as the other alcohols for lean mixtures, but yields significantly higher values for rich mixtures. This result was consistent with the conclusions of Beeckmann et al. [24] in a subsequent study on C1–C4 primary alcohols at elevated pressure. Sarathy et al. [25] reviewed the recent developments in alcohol combustion studies, and laminar flame speeds of different alcohols found in the literature were provided [25]. In addition, a comprehensive model covering C1–C5 alcohols was developed and adopted to simulate the laminar flame speeds at 353 K. The simulation results indicated that methanol exhibits the highest laminar flame speed, followed by ethanol and C3–C5 primary alcohols. Zhang et al. [26,27] determined the laminar flame speeds and Markstein lengths of n-butanol-isooctane blends at elevated temperatures with a spherical propagating flame. They also investigated the cellular instability characteristics by analyzing the critical Peclect numbers calculated from the Schlieren pictures and stability theory. Broustail et al. [28,29] experimentally evaluated the laminar flame speeds and Markstein lengths of n-butanol-isooctane and ethanol-isooctane blends at different initial temperatures and pressures in a constant volume chamber. An empirical formula was given to relate the laminar flame speed and the volume fraction of alcohol. Gulder et al. [30] studied the laminar flame speeds of methanol-isooctane blends at different determined blending ratios. Their results indicated that the laminar flame speed decreased with the addition of methanol to isooctane. Since there is no accurate model for methanol-isooctane blend combustion, it was speculated that the reason was that the methanol product formaldehyde may consume the intermediate radicals and suppress the oxidation reactivity. Subsequently, Gülder et al. [31] studied the effects of blending ethanol into isooctane on the laminar flame speed, and found the isooctane combustion was strongly promoted by the addition of ethanol. In general, experimental research on alcohol-isooctane blends is still scarce and no comprehensive comparative study on the blending of different alcohols into isooctane has been performed.

As mentioned above, alcohols are different from traditional fuels due to the presence of oxygen in alcohols. Engine tests suggest that oxygen content in the alcohol fuel is relevant to the knocking resistance and the harmful emissions of NO_x, soot and carbonyl [2,3,32]. Gautam et al. [2,3] investigated the combustion and emission characteristics of a single-cylinder engine fueled with C1–C5 alcohol-gasoline blends. It was concluded that with the increase of oxygen content in the fuel blends, knocking resistance is enhanced, but NO_x emissions are increased significantly at high compression ratios. Sathiyagnanam et al. [33] studied the emission characteristics of hexanol-ethanol-diesel blends in a diesel engine. The results indicated that soot emissions decrease significantly with increasing oxygen content. Farkade and Pathre [34] compared the effects of blending methanol, ethanol and n-butanol into gasoline on engine performance. Their results showed that CO and HC emissions decreased with the increase in oxygen content and the better engine performance is achieved with oxygen contents in the blends equaling 5%. However, limited fundamental investigation has been carried out on the effect of oxygen content on laminar combustion characteristics.

In this study, the laminar flame speeds and Markstein lengths of C1–C5 primary alcohol-isooctane blends were acquired via a spherical propagating flame in a constant volume chamber. The data were determined at an initial temperature of 363 K, initial pressure of 0.1 MPa, four equivalence ratios (0.8, 1.0, 1.2, 1.5) and different volume fractions of alcohol (0%, 20%, 40%, 60%, 80%, 100%). Based on the data, the dependencies of the laminar flame speed and Markstein length on the volume fraction of alcohol were interpreted, and a correlation describing the dependence of the laminar flame speed on volume fraction of alcohol was provided. In addition, the effect of oxygen content on the variation of laminar flame speed was illustrated.

2. Experimental Apparatus and Data Derivation

The experimental apparatus utilized to determine the laminar flame speed is composed of five parts: a cylinder chamber with an inner diameter of 180 mm and a length of 210 mm, an ignition system, a high speed camera (Phantom V611, Vision Research Inc., Wayne, NJ, USA), the control system and the optical system. Two quartz windows mounted on the two sides of the chamber provide the optical path. The high temperature of 363 K was accomplished by heating the chamber with a 1500 W heating tape surrounding the chamber. The pressure and temperature were respectively monitored by a pressure transducer and a thermocouple arranged on the chamber. At the beginning of each experiment, the chamber was heated up to the target temperature and evacuated. The liquid fuel was injected into the chamber with a microliter syringe. At least 5 min was allowed to elapse to ensure the full evaporation of the liquid fuel. Then dry air composed of 21% O₂ (>99.95%) and 79% N₂ (>99.95%) was introduced into the chamber. After waiting for at least 6 min to achieve uniform mixing, ignition was performed using the spark electrodes located in the center of the chamber. Meanwhile, the high speed camera was initiated to track the flame propagation. More details of the experimental setup and procedures can be found in previous studies [35,36,37]. The liquid fuels (C1–C5 primary alcohols and isooctane) involved in present study had purities over 99% and the specifications listed in

Table 1. Specifications of the fuels involved in this study [2,3,38].

Property	Isooctane	Methanol	Ethanol	n-Propanol	n-Butanol	n-Pentanol
Chemical formula	C8H18	CH4O	C2H6O	C3H8O	C4H10O	C5H12O
Molecular weight (g·mol−1)	114.23	32.04	46.07	60.1	74.12	88.15
Oxygen content (wt%)	0	49.93	34.73	26.62	21.59	18.15
Density (g·cm−3)	691.9	792	789	804	810	811
Boiling point (°C)	99.3	64.7	78.37	97	117.7	137–139
Vapor pressure at 20 °C (kPa)	5.5	13.02	5.95	1.99	0.82	0.2
Flash point (°C)	−12	11	13	22	35	49
Lower heating value (MJ·kg−1)	44.4	19.58	26.83	30.63	33.09	34.65
Solubility in water	Insoluble	Soluble	Soluble	Soluble	Slight soluble	Slight soluble

. It is seen that the heating values of alcohols are lower than that of isooctane and heavier alcohols have higher heating values. Among the five alcohols, the oxygen content decreases monotonously with increasing length of the carbon chain.

The flame radius, r_f, can be directly acquired from the Schlieren pictures of flame propagation. The stretched flame propagation speed is therefore determined by:

$$S_{\mathrm{b}}=\frac{\mathrm{d}{r}_{\mathrm{f}}(t)}{\mathrm{d}t}$$

(1)

Both linear and nonlinear methodologies were developed to describe the relationship between the stretched flame propagation speed and the stretched rate. Here a nonlinear expression [39,40] was adopted and is expressed as:

$$S_{\mathrm{b}}=S_{\mathrm{b}}^0-S_{\mathrm{b}}^0{L}_{\mathrm{b}}\cdot 2/r_{\mathrm{f}}$$

(2)

where $S_{\mathrm{b}}^0$ and L_b represents the unstretched flame speed and Markstein length, respectively, and 2/r_f is linked to the stretch rate through the equation κ = (2/r_f)·S_b. Finally, the laminar flame speed is deduced on the basis of mass conservation by the expression:

$$S_{\mathrm{u}}^0={\rho }_{\mathrm{b}}{S}_{\mathrm{b}}^0/{\rho }_{\mathrm{u}}$$

(3)

where ρ_b and ρ_u are the densities of the burned and unburned gas, respectively.

The spark ignition and the chamber confinement are recognized to affect the accuracy of laminar flame speed measurements, therefore a flame radius of 8–22 mm was utilized to do the data processing. The total experimental uncertainty was evaluated according to the theory of Moffat et al. [41] which has been widely adopted in previous studies [42,43,44]. It can be described as:

$${\mathsf{\delta }}_{S_{\mathrm{u}}^0}=\sqrt{{(B_{S_{\mathrm{u}}^0})}^2+{(t_{1-\alpha /2}(\nu ){\mathsf{\sigma }}_{S_{\mathrm{u}}^0})}^2}$$

(4)

where t_1–α/2(ν) is the Student’s t value at 95% confidence interval and the freedom degree of ν; ${\mathsf{\sigma }}_{S_{\mathrm{u}}^0}$ represents the standard deviation of $S_{\mathrm{u}}^0$. $B_{S_{\mathrm{u}}^0}$ is the total bias uncertainty of the determination methodology and can be obtained from the following equation:

$$B_{S_{\mathrm{u}}^0}=\sqrt{{\displaystyle \sum _{i=1}^n{(\frac{\partial S_{\mathrm{u}}^0(x_i)}{\partial x_i}{u}_i)}^2}}$$

(5)

where x_i represents the factor influencing the measurement accuracy and u_i is the deviation of x_i. Present total bias uncertainty was estimated to be 1.3–2 cm·s⁻¹ with the detailed analysis given in [44,45]. The standard deviation (${\mathsf{\sigma }}_{{\mathrm{S}}_{\mathrm{u}}^0}$) arising from data processing was 0.3–2 cm·s⁻¹. At each condition, 40–80 pictures were utilized to do the data processing, thus the values of ν were 40–80. The total experimental uncertainty was finally determined with Equation (4) to be approximately ±2–4 cm·s⁻¹.

3. Results and Discussion

3.1. Laminar Flame Speed

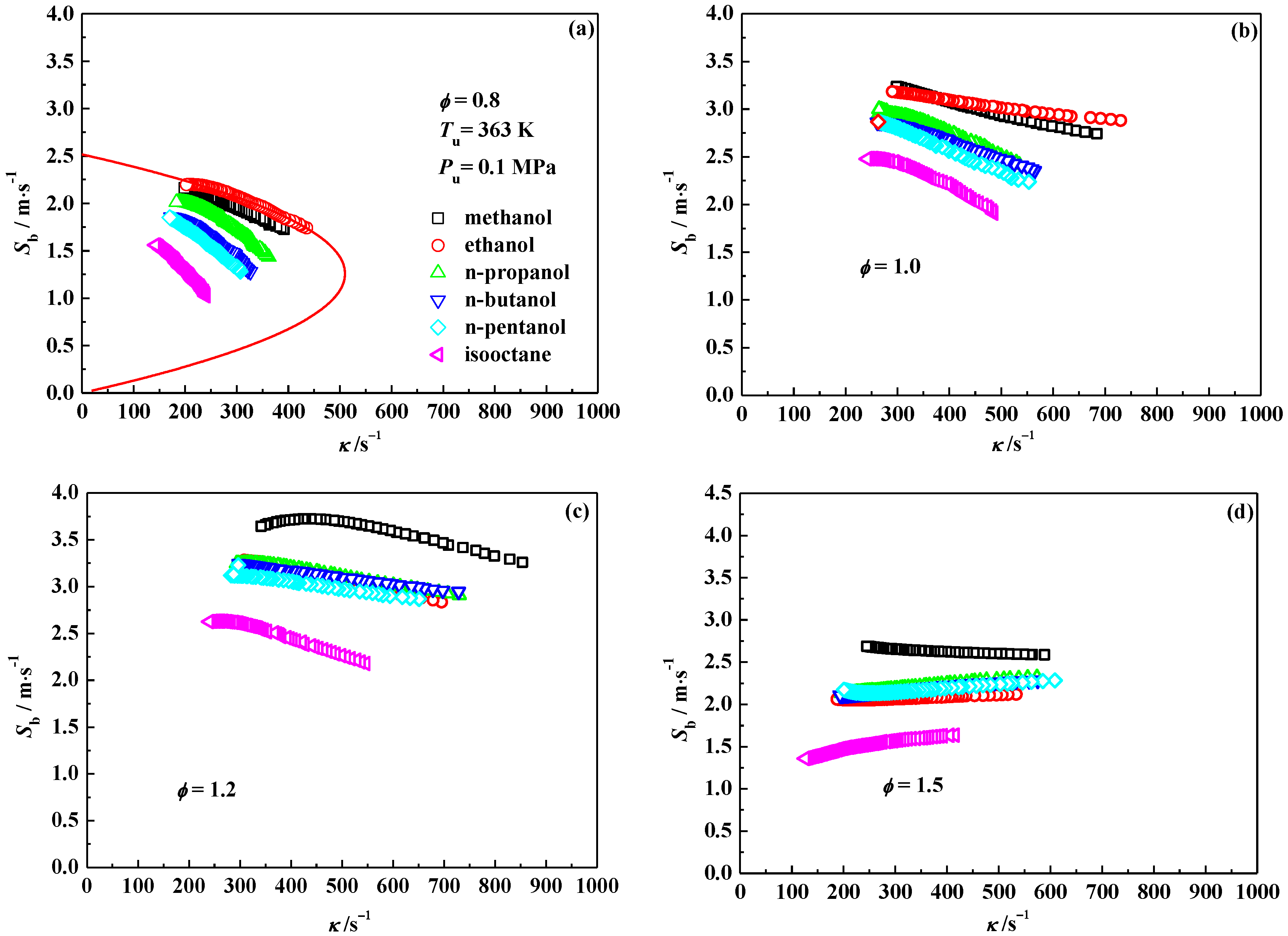

Figure 1 shows the stretched flame propagation speed (S_b) of pure isooctane and alcohol flames versus stretch rate at 0.1 MPa, 363 K and four different equivalence ratios. It is observed that isooctane flames always present the lowest S_b among all fuel flames, demonstrating that isooctane flames propagates the slowest. The difference between the alcohol flames changes with the variation of equivalence ratio. At φ = 0.8 and 1.0, the methanol flame exhibits approximately the same S_b as the ethanol flame, and higher S_b values than those of the C3–C5 primary alcohol flames.

At φ = 1.2 and 1.5, S_b of methanol flame remains the fastest, while the S_b of the ethanol flame exhibits a similar value as the C3–C5 primary alcohols. At the four equivalence ratios, no significant difference is observed for the flame propagation speeds of the C3–C5 primary alcohols, although the n-propanol flame presents slightly higher values than that of n-butanol and n-pentanol at 0.8.

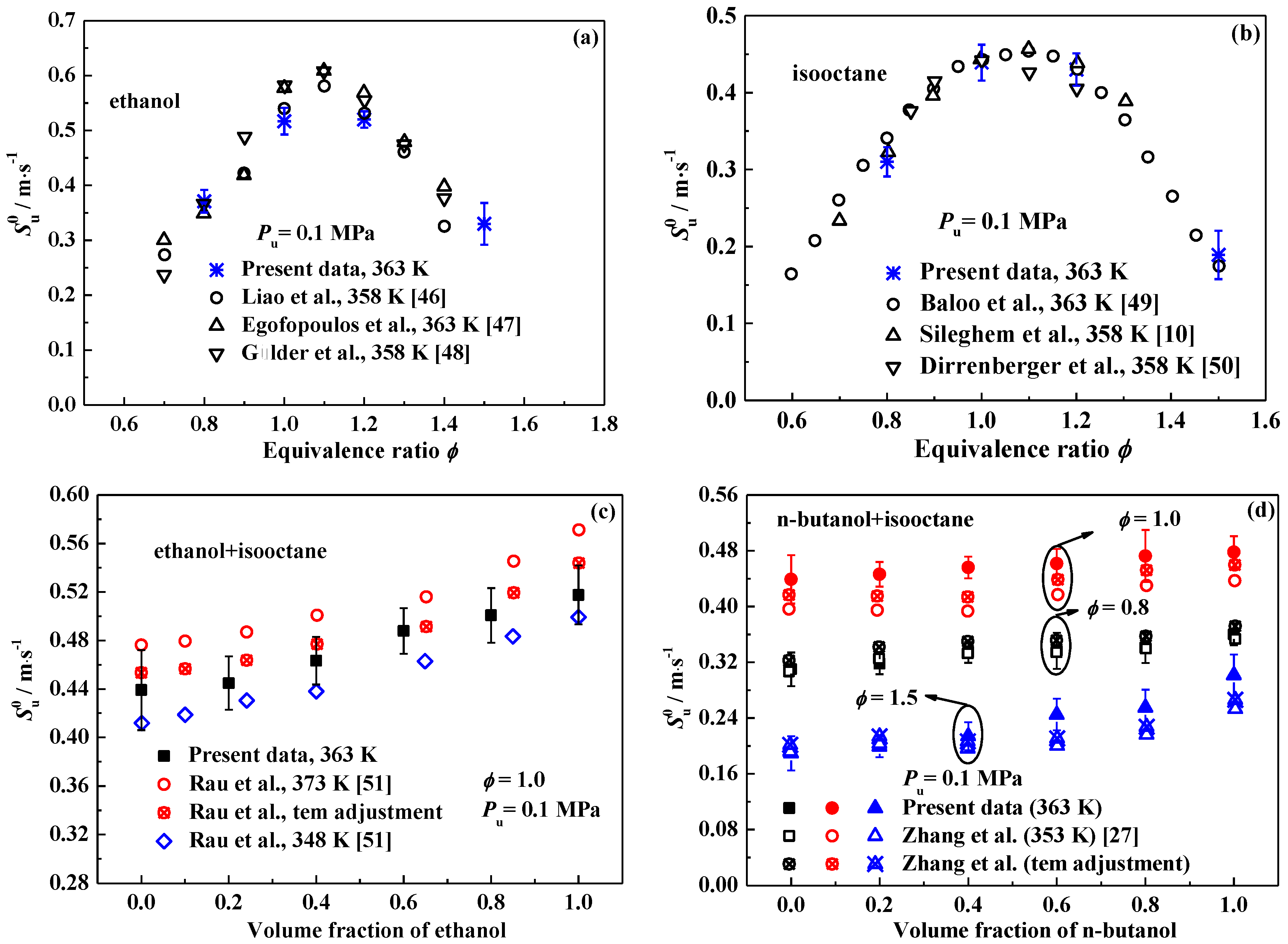

In Figure 2, laminar flame speeds measured in this study are compared with the data acquired from the literature to evaluate the performance of the experimental apparatus. Error bars are marked to indicate the experimental measurement uncertainty. Figure 2a,b gives the laminar flame speeds of pure ethanol and isooctane flames at 0.1 MPa, respectively. It is seen the present data are in good agreement with the data from literatures [10,46,47,48,49,50]. Figure 2c gives the laminar flame speeds of ethanol-isooctane blend-air mixtures versus volume fraction of ethanol at 0.1 MPa. It is seen the present data at 363 K is located between the two sets of data at 348 K and 373 K measured by Rau et al. [51]. This result is reasonable because of the fundamental effect of the initial temperature. To allow a direct comparison between the present data and the data of Rau et al. [51], an empirical relationship $S_{\mathrm{u}}^0 \propto T_{\mathrm{u}}^{1.8}$ [52] was introduced to account for the effect of the 10 K temperature difference on the laminar flame speed. It is found that the 10 K difference results in a 1–2 cm/s decrease in the laminar flame speed. The temperature adjusted data agree well with the present data. Figure 2d shows the laminar flame speeds of n-butanol-isooctane blends at different equivalence ratios. The experiment conducted by Zhang et al. [27] was at 353 K which is 10 K lower than the present temperature, thus the data of Zhang et al. [27] were adjusted to match those at 363 K. It is seen that the present data agree well with the data of Zhang et al. [27] at 0.8 equivalence ratio after temperature adjustment. At 1.0 and 1.5, the data slightly deviate from the temperature-adjusted data but the deviations are within the experimental uncertainty.

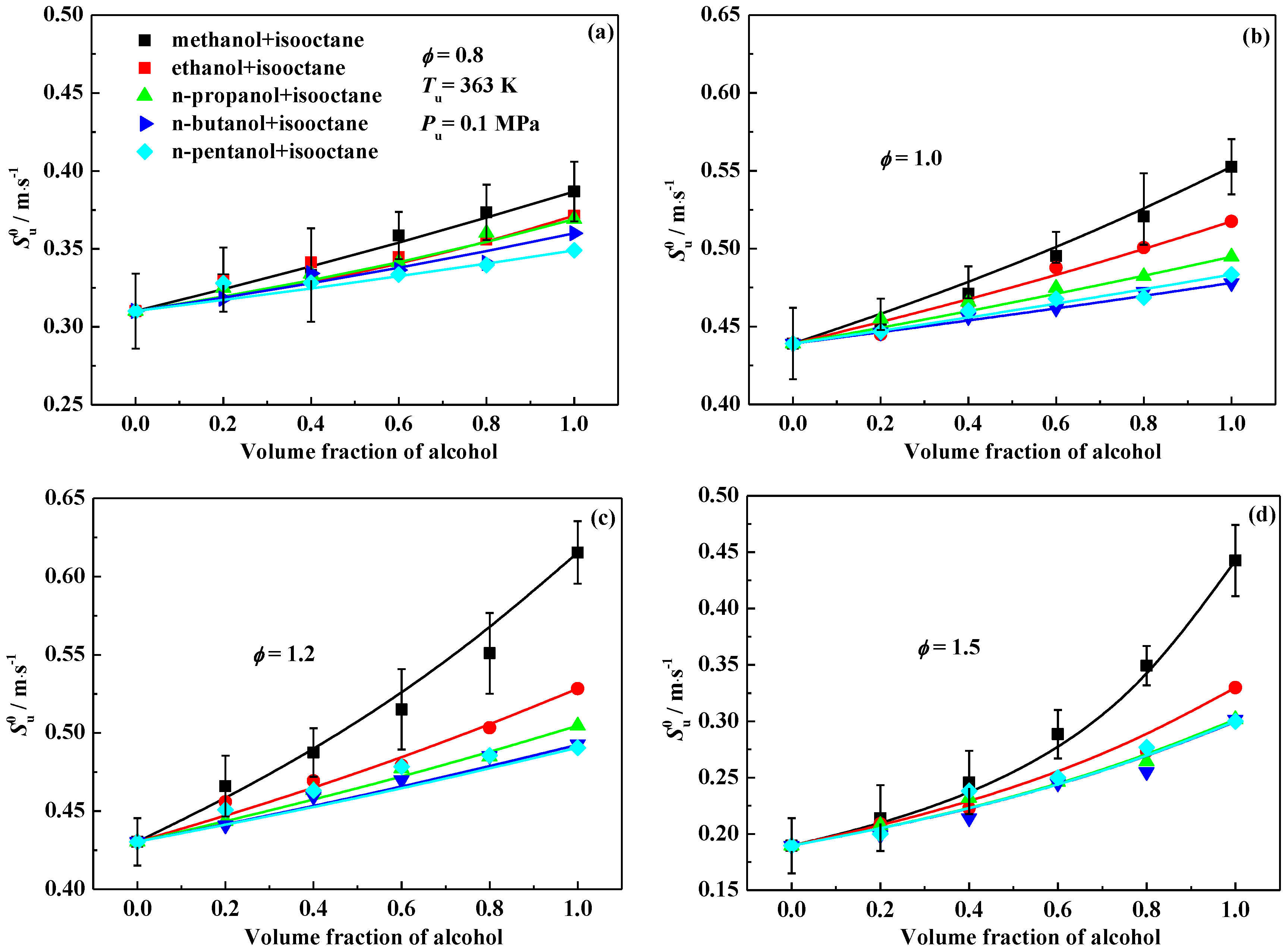

Figure 3 plots the laminar flame speeds of C1–C5 primary alcohol-isooctane blends at 363 K, 0.1 MPa and different equivalence ratios. Error bars are just indicated for methanol-isooctane blends for clarity. The laminar flame speeds exhibit a nonlinear increase with the addition of alcohol to isooctane. The increase rate depends on the kind of alcohol considered. This is consistent with the results obtained by Zhang et al. [27] and Broustail et al. [28,29]. It also provides support for the conclusions derived on engine tests that the combustion duration was decreased with the alcohols blended into gasoline. The methanol addition into isooctane is identified to be the most effective at promoting the flame propagation at different equivalence ratios. Therefore, a pure methanol flame gives the fastest flame speed among the different alcohol flames. The difference between methanol and the remaining alcohols is within 3 cm/s at the equivalence ratio of 0.8, but much greater at 1.0, 1.2 and 1.5. This result is consistent with the results obtained by Veloo et al. [22,23] and Beeckmann et al. [24] under rich mixture conditions. Under lean conditions, Veloo et al. [22] and Beeckmann et al. [24] found that methanol flame exhibits similar laminar flame speeds to ethanol, n-propanol and n-butanol flames, which is slightly different from the present result. In the present study, the addition of ethanol results in a similar laminar flame speed enhancement as those of n-propanol, n-butanol and n-pentanol at the equivalence ratios of 0.8 and 1.5, and a higher enhancement rate at 1.0 and 1.2. This result agrees well with the conclusions obtained by Broustail et al. [28,29] for ethanol-isooctane and n-butanol-isooctane blends.

3.2. Interpretation on the Variation of Laminar Flame Speeds

Laminar flame speed is closely linked to the properties of thermal, diffusive and chemical kinetics, which can be described as [53,54]:

$${\rho }_{\mathrm{u}}{S}_{\mathrm{u}}^0\propto (\lambda /C_{\mathrm{p}})Le[\exp (-E_{\mathrm{a}}/R_0{T}_{\text{ad}})]$$

(6)

where Le, Ea and T_ad denotes the Lewis number, the activation energy and adiabatic temperature, respectively; and λ/C_p is the density-compensated thermal diffusivity. T_ad is calculated based on thermal equilibrium. Lewis number (Le) is defined as the ratio of thermal and mass diffusivity and derived by:

$$Le=\frac{\mathsf{\lambda }}{{\rho }_{\mathrm{u}}{C}_{\mathrm{p}}{D}_{\mathrm{m}}}$$

(7)

in which λ is the thermal conductivity of the mixture, C_p is the specific heat of the mixture and D_m is the mass diffusivity of the deficient species. The Lennard-Jones potential data of the blends involved in the determination of D_m were calculated based on the mass average of the pure fuels. The terms of T_ad and (λ/C_p)Le represent the effects of the thermal and diffusive properties, respectively. Figure 4 shows T_ad of alcohol-isooctane blends at the equivalence ratio of 1.2, 363 K and 0.1 MPa. It is observed that T_ad decreases monotonously with the addition of alcohols, which is caused by the smaller heating values of C1–C5 alcohols compared to isooctane. Lower alcohols have smaller heating values referring to Table 1, thus leading to lower T_ad of their blends with isooctane for a fixed volume fraction of alcohol.

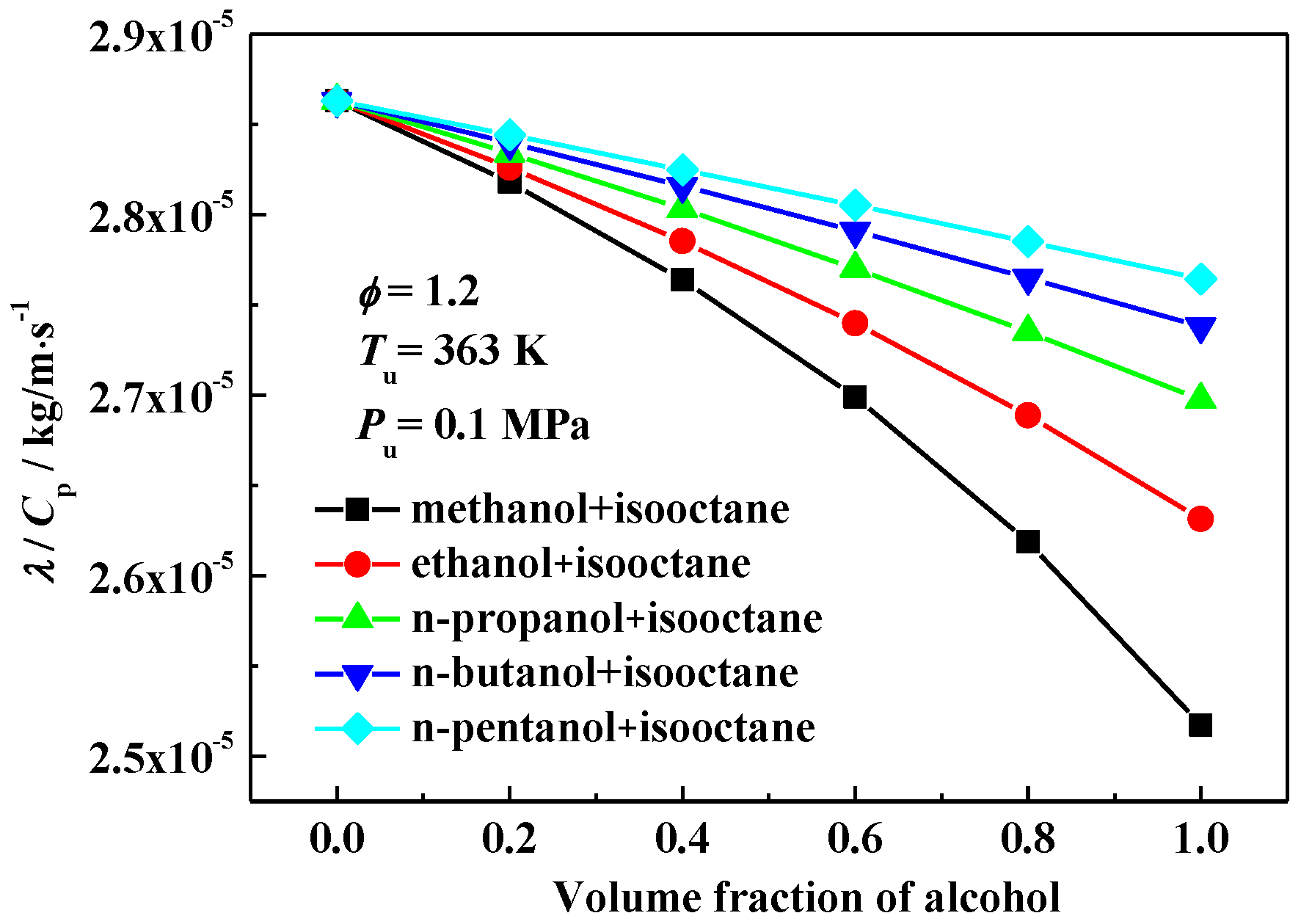

Figure 5 and Figure 6 show the density compensated thermal diffusivity (λ/C_p) and Lewis number (Le) of five alcohol-isooctane blends at 363 K, 0.1 MPa, respectively. λ/C_p and Le decrease with the increasing blending ratio of alcohol, and the values decrease more for lower alcohols. Therefore, methanol-isooctane blends have the lowest values of λ/C_p and Le for a fixed volume fraction of alcohol. This demonstrates that methanol is more diffusive than the other primary alcohols and isooctane. Combining with the result of T_ad, it is concluded that both thermal and diffusive factors exert negative effects on laminar flame speed with the increasing volume fraction of alcohol. Moreover, such a negative effect is identified to be the strongest for the methanol-isooctane blends which, however, have the highest laminar flame speed. Therefore, it is speculated that the chemical kinetic effect is primarily responsible for the laminar flame speed variation with the addition of alcohols.

The laminar flame speed differences between the five alcohol-isooctane blends are inherently caused by the distinct combustion chemistries of the pure fuels. Therefore, the chemical kinetics of pure alcohols and isooctane were comparatively investigated. Figure 7 shows the simulations of C1–C5 primary alcohols and isooctane versus equivalence ratio at 363 K and 0.1 MPa. The simulations were carried out with the PREMIX code [55] coupling with CHEMKIN package [55,56,57,58]. In the simulations, the Soret effect as well as the mixture-averaged transport were used. Here we adopted the mechanism of C1–C5 alcohol combustion developed by Sarathy et al. [25] to simulate the alcohols’ flames and the PRF mechanism proposed by Chaos et al. [59] to simulate the isooctane flames. It is seen that under lean conditions, the methanol simulation curves are slightly lower than those of ethanol, similar to those of the C3–C5 primary alcohols and higher than those of isooctane. Under rich conditions, the simulated methanol curves are the highest, followed by ethanol, n-propanol, n-butanol and n-pentanol, and isooctane flame gives the lowest values. This result accurately captures the differences between the pure fuels observed in the experimental data.

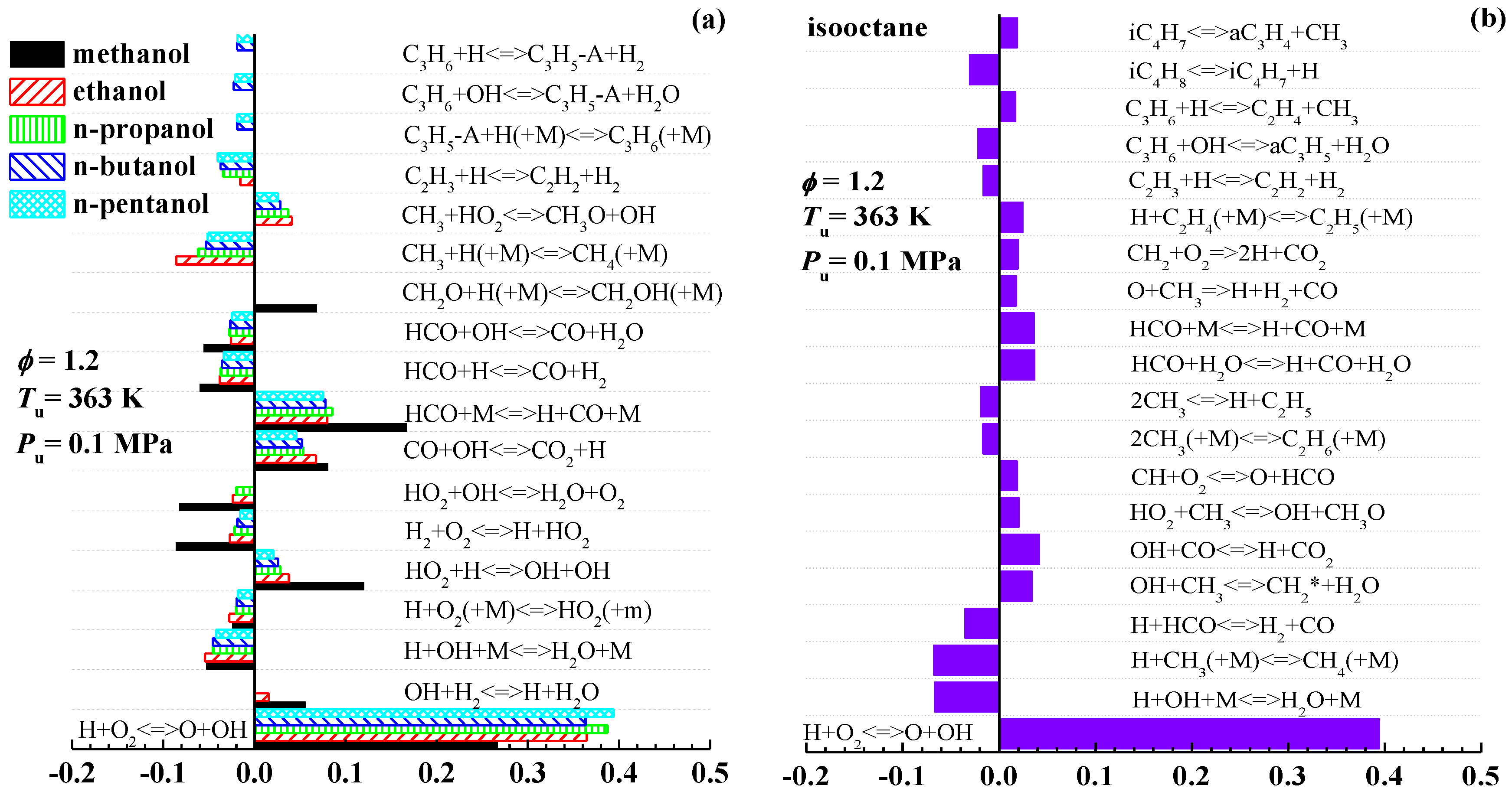

Sensitivity analysis was performed to identify the key species and reactions highly sensitive to the laminar flame speed variation. The sensitivity coefficient, SF_i, is evaluated by the expression $S{F}_i=\frac{k_i}{S_{\mathrm{u}}^0}\frac{\partial S_{\mathrm{u}}^0}{\partial k_i}$, where k_i represents the rate constant of reaction i. Figure 8 depicts the sensitivity coefficients of the laminar flame speeds of the pure alcohols and isooctane at 363 K, 0.1 MPa and the equivalence ratio of 1.2. It is seen that the laminar flame speeds of different fuels are primarily sensitive to the kinetics of H₂ and small hydrocarbons. Fuel-specific reactions are not included, suggesting they are not the rate-limiting reactions. This result is consistent with the observations on many other hydrocarbons [14,45,52]. Nevertheless, it is noted that the laminar flame speeds of heavier hydrocarbons (the heavier alcohols and isooctane) are more sensitive to the kinetics of stable species like C₂H₂, C₃H₆ and iC₄H₈. This indicates that the effects of the distributions of stable species on laminar flame speed are fairly significant for heavy alcohols and isooctane. The distributions of these key species revealed in the sensitivity analyses will change as different alcohols are blended into isooctane, and finally result in the variation of laminar flame speed.

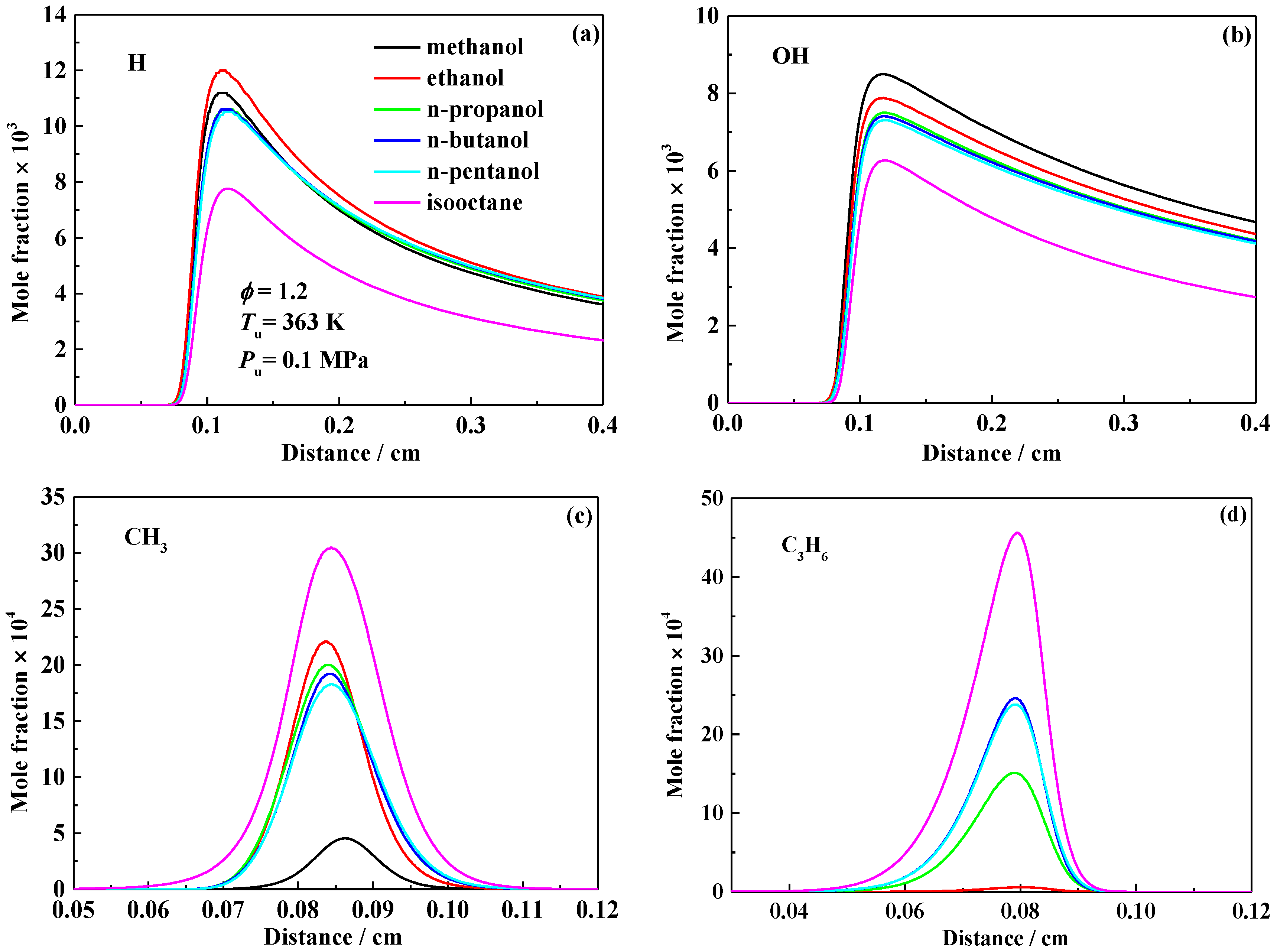

Figure 9 plots the mole fractions of key species in different fuel flames at 363 K, 0.1 MPa and the equivalence ratio of 1.2. The concentrations of H and OH are positively relevant to the laminar flame speed. Obviously, the mole fractions of H, OH in alcohol flames are significantly higher than those in isooctane flame, which explains why alcohols exhibit higher laminar flame speeds than isooctane. With the addition of alcohols into isooctane, the mole fractions of O and OH are increased, promoting the overall reactivity and enhancing the flame propagation. The mole fractions of H and OH in C3–C5 primary alcohol flames are similar, and lower than those in methanol and ethanol flames, which is consistent with the laminar flame speed conclusion. Figure 9c shows the mole fractions of CH₃ in different fuel flames. It is observed that isooctane flame has the highest CH₃ concentration, followed by C2–C5 primary alcohols and methanol flames. CH₃ can be mainly consumed through two terminating reactions, CH₃ + H (+ M) <=> CH₄ (+ M) and CH₃ + CH₃ <=> C₂H₆. Therefore, a high concentration of CH₃ will reduce the H and CH₃ concentrations and inhibit the flame propagation. There is a much higher concentration of CH₃ in ethanol flames than in methanol flames, contributing to the lower flame speed of ethanol than methanol. Figure 9d shows the mole fractions of C₃H₆. The concentration of C₃H₆ increases as the alcohol becomes heavier, and isooctane flame has the highest C₃H₆ concentration. C₃H₆ are primarily consumed by C₃H₆ + H <=> C₃H₅ − A + H₂ and C₃H₆ + OH <=> C₃H₅ − A + H₂O, as noted in Figure 8. Thus a high concentration of C₃H₆ retards the overall reaction and the flame propagation. In summary, the species retarding the overall reactivity tends to exhibit higher concentrations in the flames of heavier alcohols and much higher in isooctane flames. With the additions of various alcohols into isooctane, the concentrations of the species are changed in different extent, finally causing the laminar flame speed distinctions. The kinetic analyses above provide strong support for our chemical kinetics considerations.

3.3. The Effect of Oxygen Content

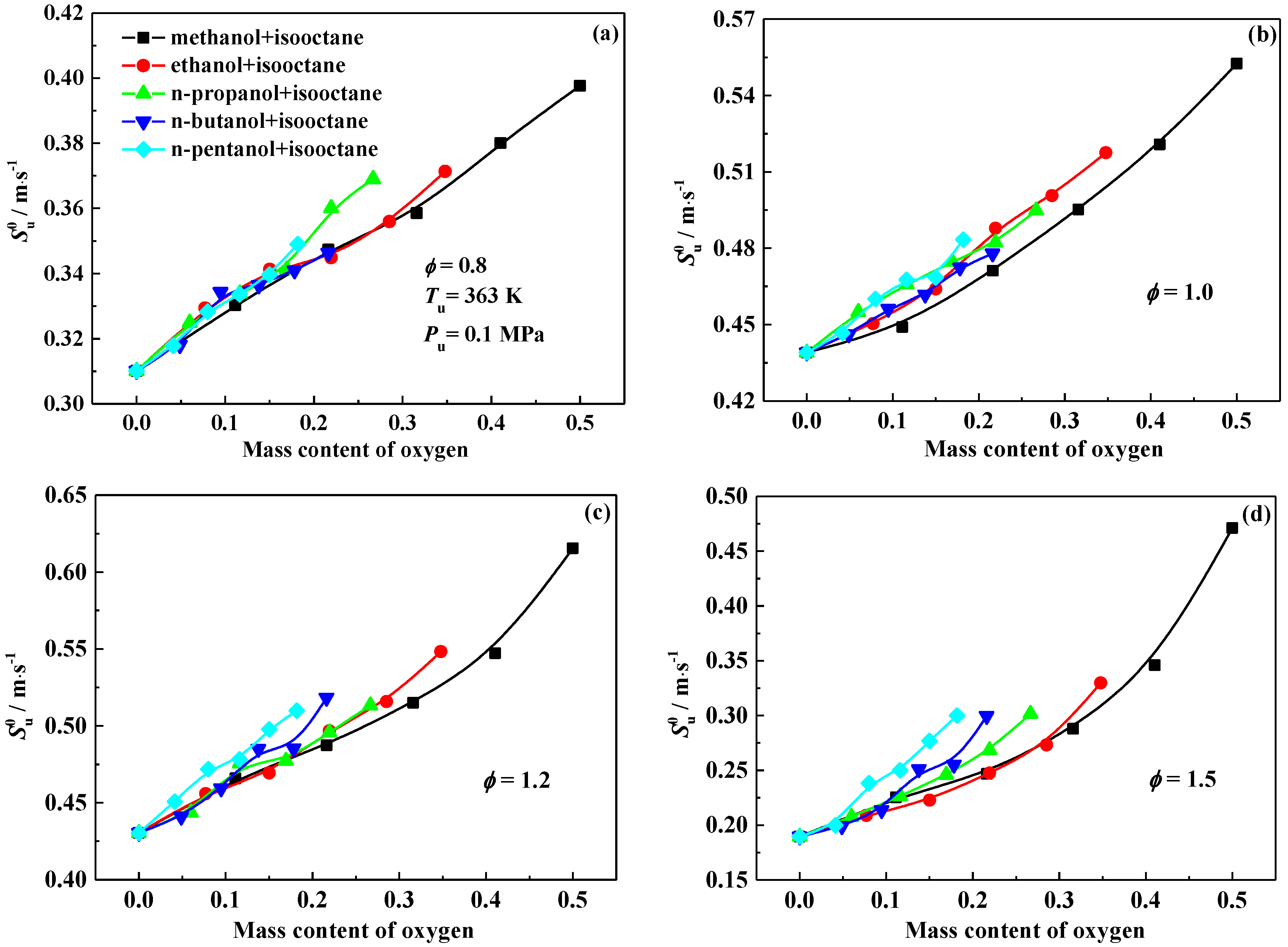

To learn the effect of oxygen content on the laminar flame characteristics, the laminar flame speeds of the alcohol-isooctane blends were plotted in Figure 10 as a function of the mass content of oxygen in the blends at 363 K, 0.1 MPa and four different equivalence ratios. At all equivalence ratios, with different alcohols added into isooctane, laminar flame speeds increase significantly with the increasing oxygen content. It confirms the conclusion reported by Gautam and Martin [2] that the combustion interval decreases with the increasing oxygen content in the fuel. At φ = 0.8 and fixed oxygen content, laminar flame speeds are similar for the blends of isooctane and different alcohols. With the increase of equivalence ratio, deviations appear between different blends and tend to be greater. At a fixed oxygen content, the blends of isooctane and heavier alcohols exhibit faster flame speed, namely, methanol-isooctane blends have the slowest flame speed.

3.4. Markstein Length and Flame Instability

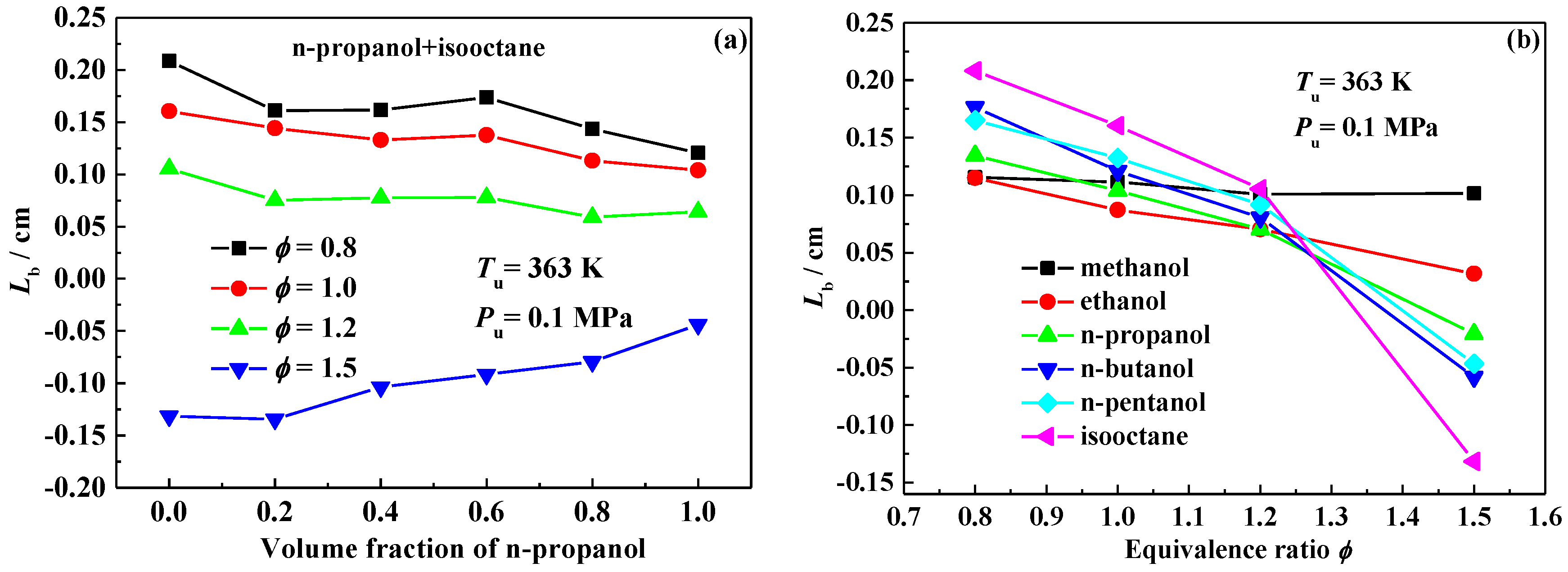

Markstein length, L_b, extracted along with the unstretched flame propagation speed, characterizes the thermal-diffusive instability properties of the flame front and reflects the response of laminar flame speed to the stretch effect [54]. Positive values indicate a stable flame front while negative values indicate an unstable flame front. Figure 11a shows the Markstein length of n-propanol-isooctane blends versus volume fraction of n-propanol with the data listed in Table S1 in the Supplementary Materials. It is observed that L_b shows a decreasing trend at φ = 0.8, 1.0 and 1.2 with the addition of n-propanol into isooctane, demonstrating the thermal-diffusive instability is enhanced. At φ = 1.5, L_b increases significantly, and the thermal-diffusive instability is suppressed. Similar behavior is also observed for the other alcohol-isooctane blends with the data provided in Tables S2–S5 in the Supplementary Materials. Figure 11b plots L_b as the function of equivalence ratio for pure isooctane and C1–C5 primary alcohol flames at 363 K and 0.1 MPa and the data can be found in Tables S1–S5 in the Supplementary Materials. Isooctane flame exhibits higher L_b than the alcohol flames under lean conditions while it yields lower values at extremely rich conditions. Therefore, crosses exist between the L_b–φ curve of isooctane and those of alcohols at the critical equivalence ratios (φ*). Specifically, at the equivalence ratio less than φ*, L_b increases with the addition of alcohol into isooctane, and the thermal-diffusive instability is suppressed. At the equivalence ratio greater than φ*, L_b decreases with the addition of alcohol, and the thermal-diffusive instability is enhanced. This behavior confirms the result reported by Zhang et al. [27] in their research of n-butanol-isooctane blends with the value of φ* identified to be 1.3. From Figure 11b, the values of φ* for the blends of isooctane and different alcohols are estimated to be 1.2–1.3 which are close to the result of Zhang et al. [27].

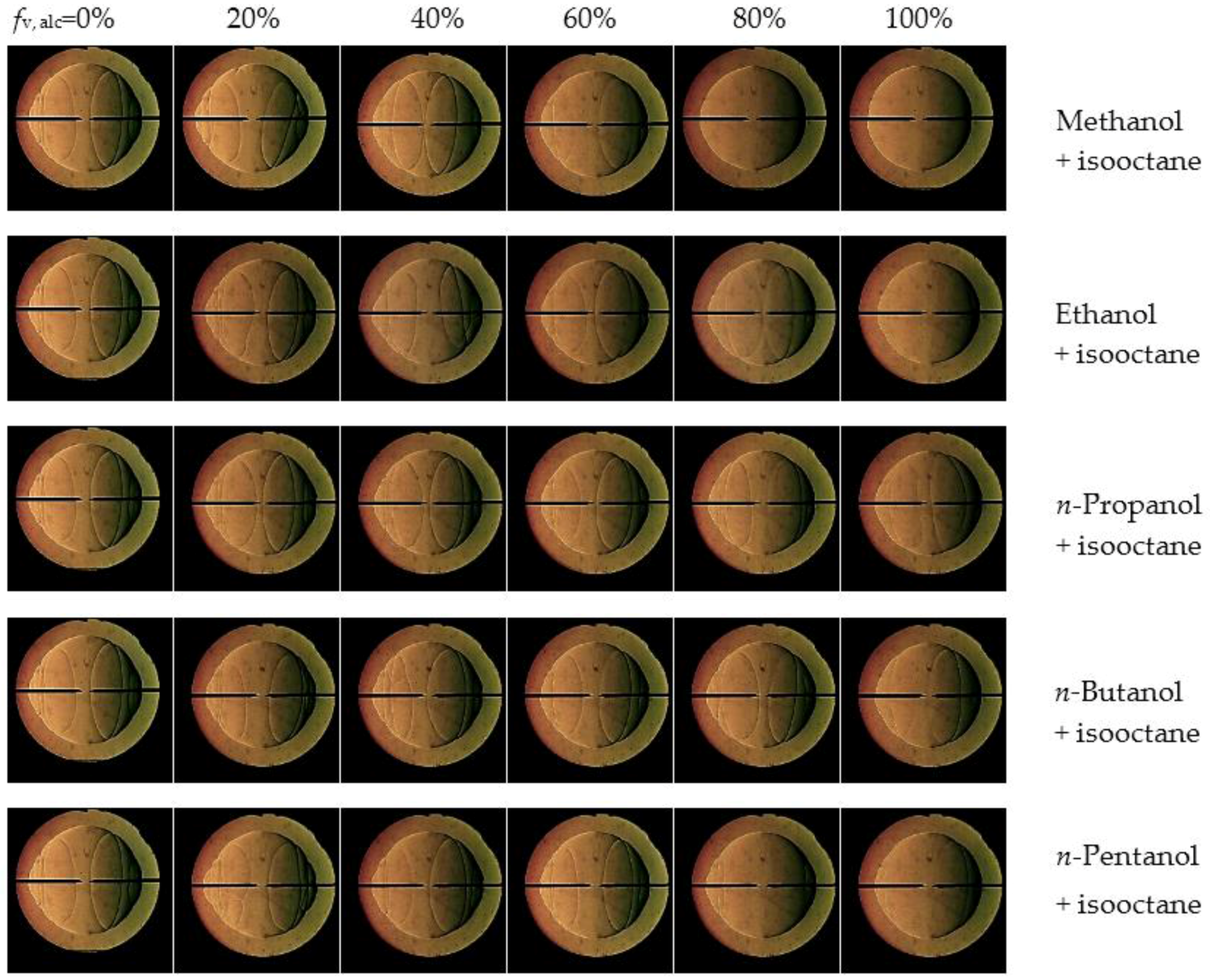

To better recognize the flame instability properties, the Schlieren images for the alcohol-isooctane blends at different blending ratios (f_v,acl) and the equivalence ratio of 1.5 are shown in Figure 12. For pure isooctane, cracks clearly appear on the flame front. With the increasing alcohol blending ratio, the number of cracks on the flame front displays a decreasing tendency. This demonstrates that the flame instability on the flame front is suppressed with the addition of alcohol. In particular, pure methanol and ethanol flames even present smooth flame fronts. Moreover, slight differences can be seen in that the methanol-isooctane blend with 80% methanol presents a smooth flame front, while there are cracks on the flame front of the ethanol-isooctane blend with 80% ethanol. Therefore, the addition of methanol is the most effective in suppressing the flame instability. This result is consistent with the Markstein length behavior observed in Figure 11.

3.5. Laminar Flame Speed Correlation

In fuel blending research, an equation giving accurate estimation on the laminar flame speeds of the blends is indispensable. As mentioned above, the laminar flame speeds of alcohol-isooctane blends exhibit nonlinear variation with the volume fraction of alcohol. An empirical correlation describing the dependence of laminar flame speed on the volume fraction of alcohol is given as:

$$S_{\mathrm{u},f_{va}}^0=\frac{1}{\frac{1-f_{\text{v,alc}}}{S_{{\text{u,C}}_8{\mathrm{H}}_{18}}^0}+\frac{f_{\text{v,alc}}}{S_{{\text{u,C}}_x{\mathrm{H}}_y\mathrm{O}}^0}}$$

(8)

where f_v,alc represents the blending ratio of alcohol in liquid volume, $S_{\mathrm{u},{\mathrm{C}}_8{\mathrm{H}}_{18}}^0$ and $S_{\mathrm{u},{\mathrm{C}}_x{\mathrm{H}}_y\mathrm{O}}^0$ indicate the laminar flame speeds of pure isooctane and alcohol flames under the same conditions (initial temperature, initial pressure and equivalence ratio), respectively. Such a correlation is derived based on the formula given by Di Sarli and Benedetto [60] with the mole fraction replaced by the volume fraction. The calculations with Equation (8) have been plotted in Figure 3. Good agreement is observed at different conditions for all alcohol-isooctane blends with deviations of less than 1.7 cm/s.

Broustail et al. [29] proposed an empirical Equation to describe the laminar flame speed variation of the alcohol-isooctane blends with volume fraction of alcohol (f_v,alc), which is expressed as:

$$S_{\mathrm{u},f_{va}}^0=S_{{\text{u,C}}_8{\mathrm{H}}_{18}}^0(\frac{S_{{\text{u,C}}_x{\mathrm{H}}_y\mathrm{O}}^0}{S_{{\text{u,C}}_8{\mathrm{H}}_{18}}^0}{)}^{f_{\text{v, alc}}}$$

(9)

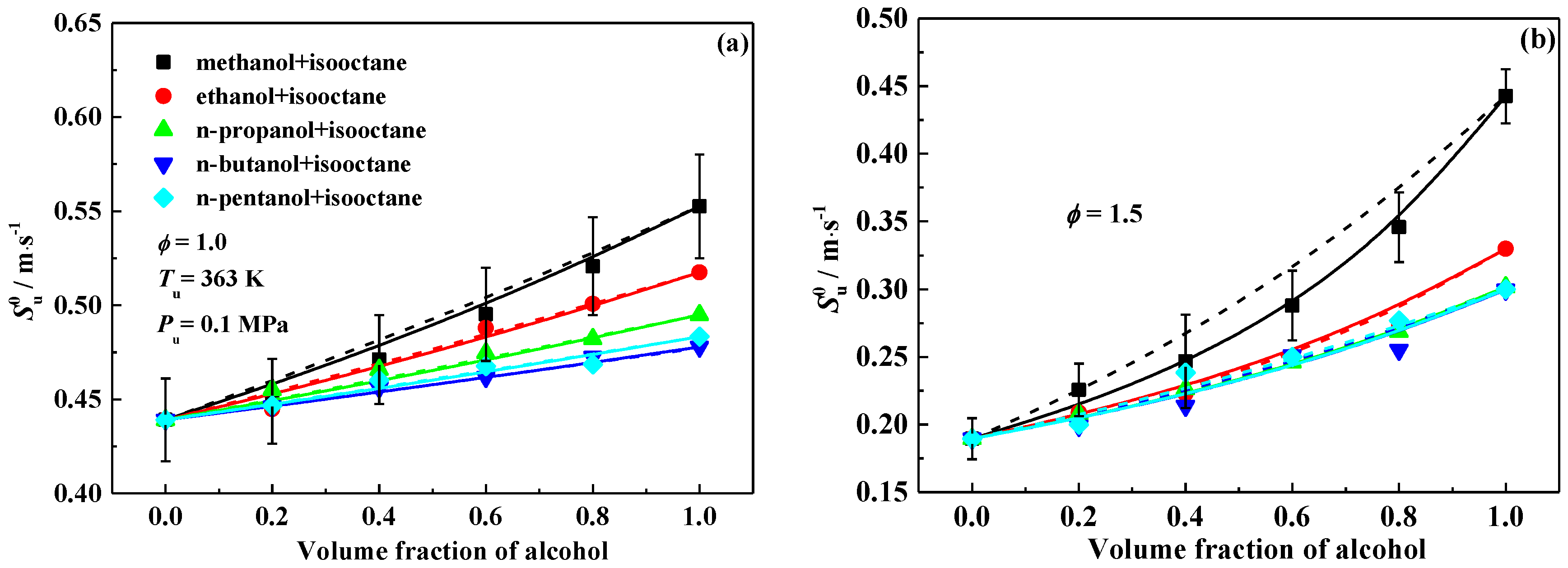

The calculations of Equations (8) and (9) were plotted in Figure 13 to allow comparisons with the experimental data at the equivalence ratios of 1.0 and 1.5. It is found that the two equations give similar estimations and satisfactory agreement with the experimental data for the blends of isooctane and C2–C5 primary alcohols. However, Equation (8) gives more accurate estimations than Equation (9) does for methanol-isooctane blends.

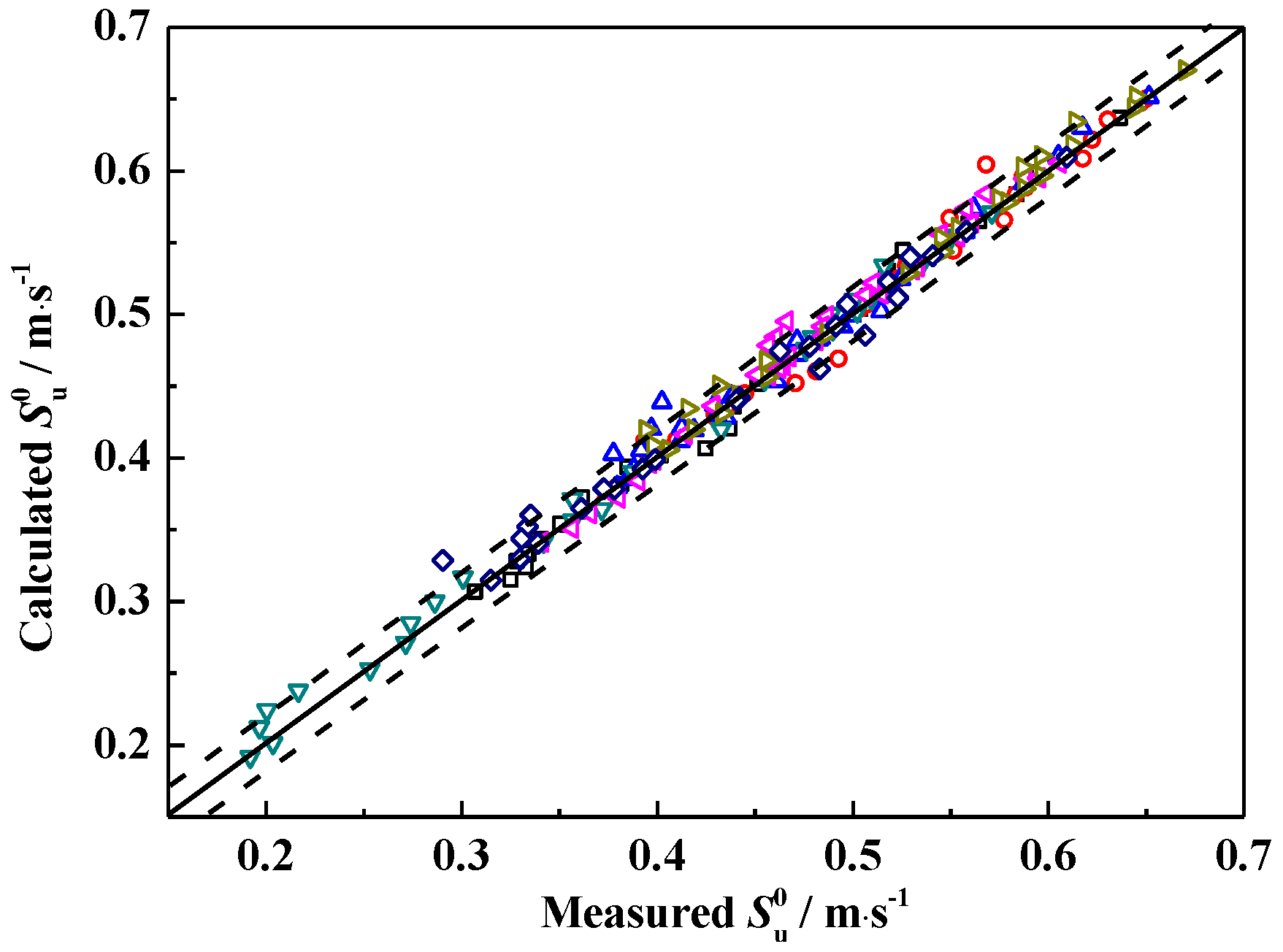

More data of alcohols-isooctane blends in literatures [27,28,29,51] at various initial conditions were acquired to examine the feasibility of Equation (8). The measured laminar flame speeds [27,28,29,51] as well as the calculations of Equation (8) were plotted in Figure 14. The deviations between the measured data and the calculations are mainly within ±2 cm/s, demonstrating good performance of the equation.

4. Conclusions

Laminar flame speeds of the blends of isooctane and C1–C5 primary alcohols were determined by the spherical propagating flame method at 363 K, 0.1MPa, four equivalence ratios (0.8, 1.0, 1.2 and 1.5) and various blending ratios of alcohols (0%–100%). The effects of blending different alcohols into isooctane on the laminar flame speed as well as the flame instability characteristics were comparatively illustrated. Finally, an empirical correlation was given based on the experimental data. The main conclusions are as follows:

(1)

The laminar flame speeds of alcohol-isooctane blends increase monotonously with the addition of alcohol into isooctane. At a fixed alcohol blending ratio, methanol-isooctane blends present the highest values due to the chemical kinetic effect. Ethanol addition yields a comparable laminar flame speed enhancement as the additions of n-propanol, n-butanol and n-pentanol do at 0.8 and 1.5, but stronger enhancement at 1.0 and 1.2.

(2)

The laminar flame speeds of the alcohol-isooctane blends increase significantly with the increasing oxygen content in the blends. At the fixed oxygen content and equivalence ratio of 0.8, the alcohol-isooctane blends exhibit similar values. At higher equivalence ratios, the addition of heavier alcohol tends to exhibit higher laminar flame speeds.

(3)

Markstein length displays a decreasing tendency with the addition of alcohol into isooctane at the equivalence ratios of 0.8, 1.0 and 1.2, however, it increases at 1.5. Therefore, the L_b–φ curve of the isooctane flame crosses with those of the pure C1–C5 primary alcohol flames. The equivalence ratios corresponding to the crosses are approximately 1.2–1.3.

(4)

An empirical correlation was provided between the laminar flame speed and the volume fraction of alcohol based on the experimental data.
