Open AccessArticle
Energies 2016, 9(6), 433; doi:10.3390/en9060433

Controlled Al3+ Incorporation in the ZnO Lattice at 188 °C by Soft Reactive Co-Sputtering for Transparent Conductive Oxides

Department of Mathematical and Computational Sciences, Physics and Earth Sciences, University of Messina, V. le F. Stagno d’Alcontres 31, Messina 98166, Italy
National Research Council-Institute for Microelectronics and Microsystems (CNR-IMM), Zona industriale Strada VIII n°5, Catania 95121, Italy
Authors to whom correspondence should be addressed.
Academic Editor: Claudia Barolo
Received: 31 March 2016 / Revised: 25 May 2016 / Accepted: 27 May 2016 / Published: 3 June 2016
(This article belongs to the Special Issue Dye Sensitized Solar Cells)
View Full-Text   |   Download PDF [4641 KB, uploaded 3 June 2016]   |

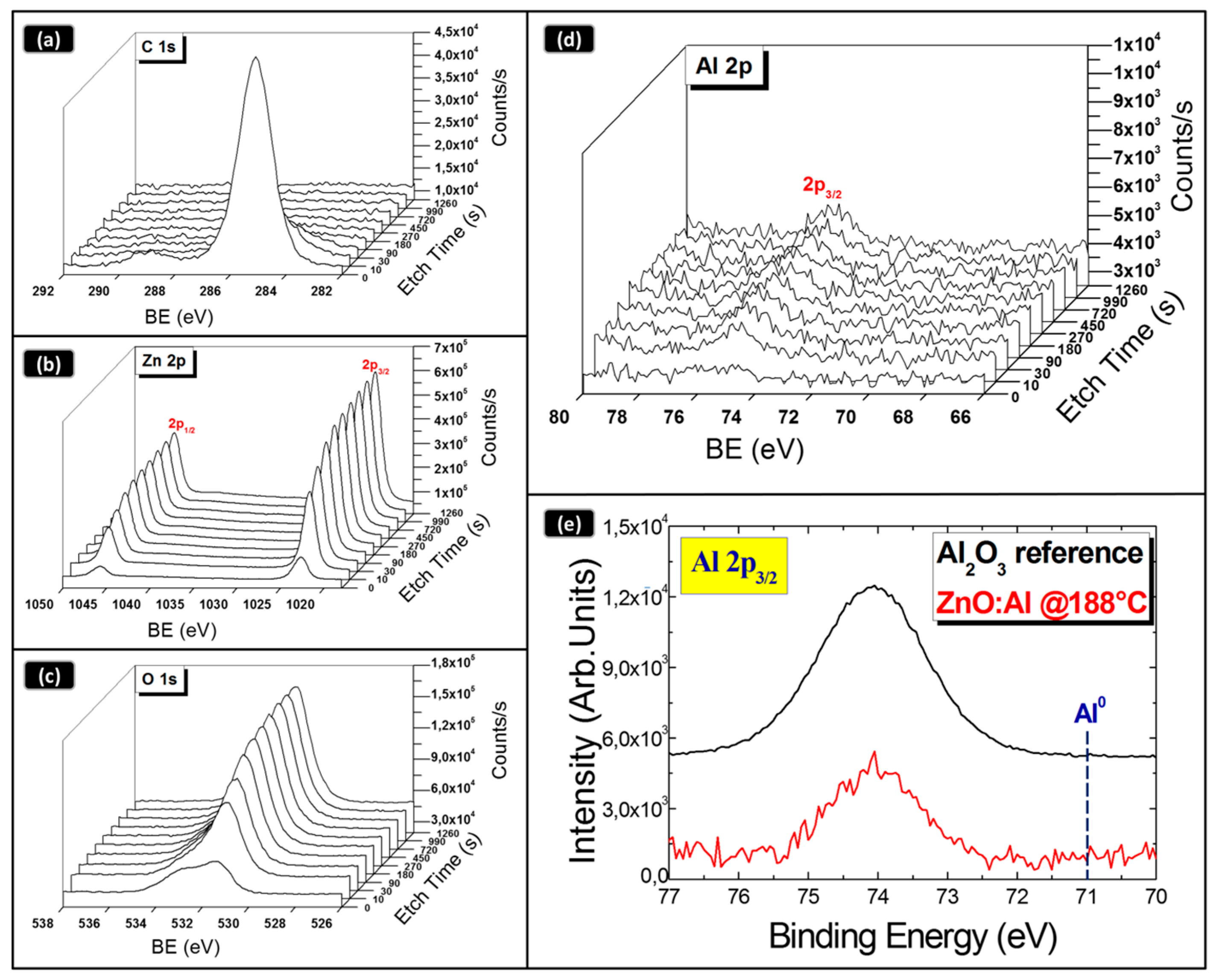

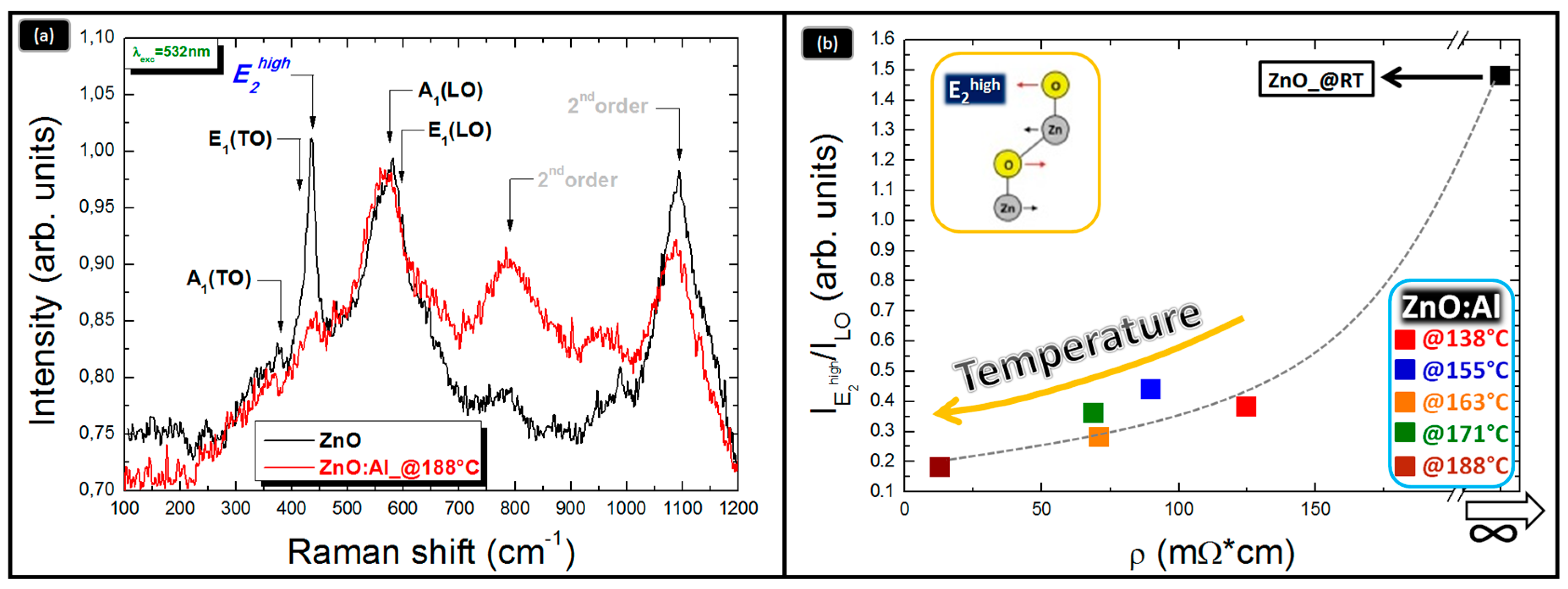

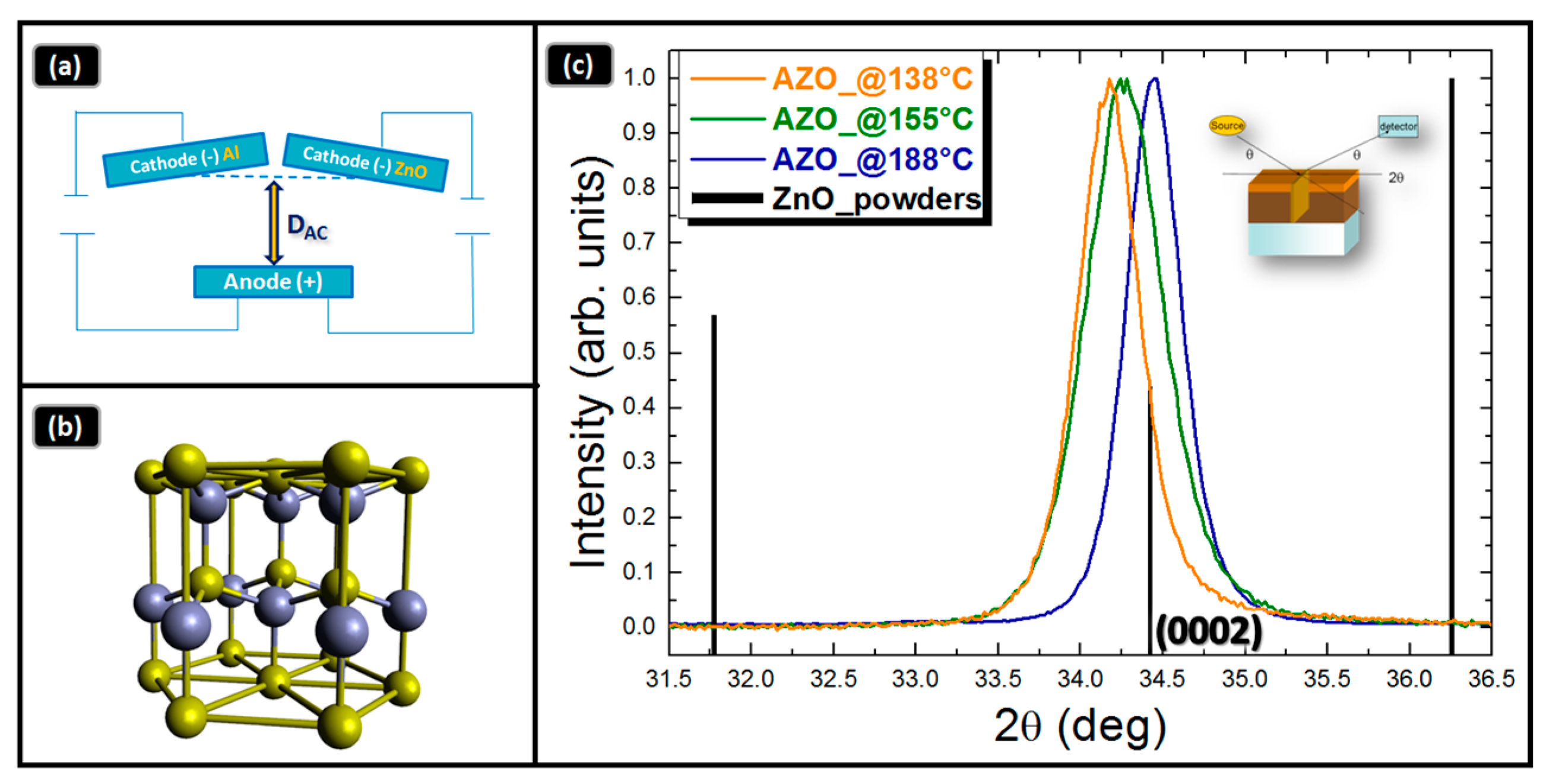

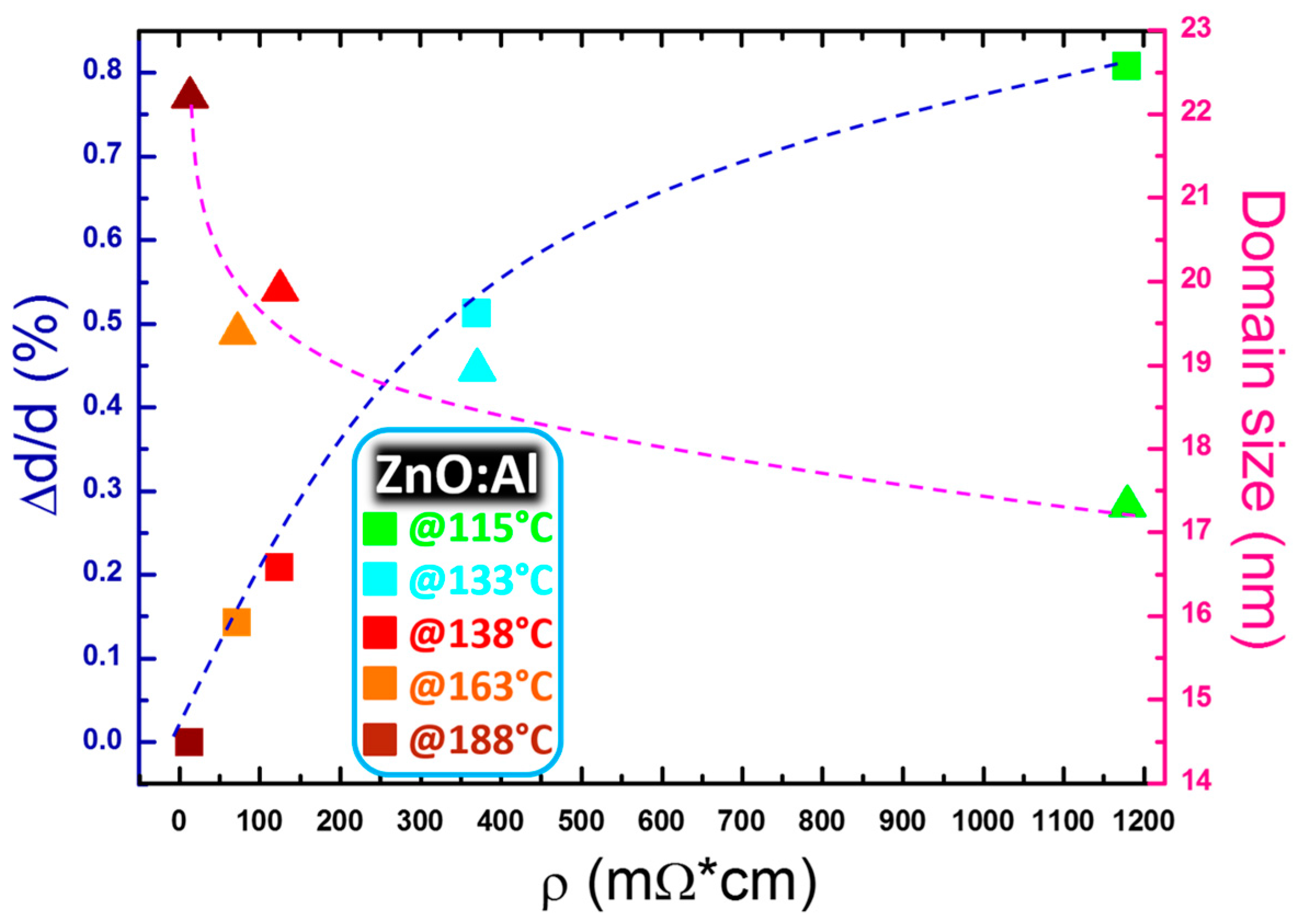

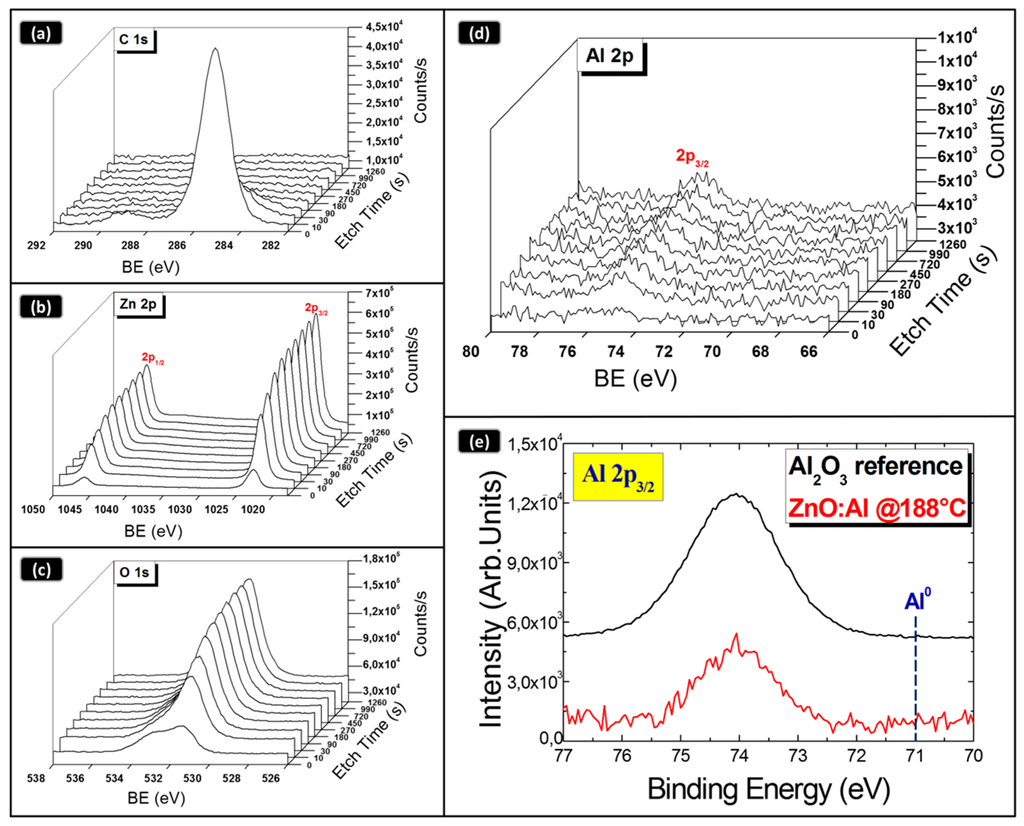

Transparent conductive oxide (TCO) layers, to be implemented in photo-anodes for dye-sensitized solar cells (DSCs), were prepared by co-deposition of ZnO and Al using pulsed-direct current (DC)-magnetron reactive sputtering processes. The films were deposited at low deposition temperatures (RT-188 °C) and at fixed working pressure (1.4 Pa) using soft power loading conditions to avoid intrinsic extra-heating. To compensate the layer stoichiometry, O2 was selectively injected close to the sample in a small percentage (Ar:O2 = 69 sccm:2 sccm). We expressly applied the deposition temperature as a controlling parameter to tune the incorporation of the Al3+ species in the targeted position inside the ZnO lattice. With this method, Aluminum-doped Zinc Oxide films (ZnO:Al) were grown following the typical wurtzite structure, as demonstrated by X-ray Diffraction analyses. A combination of micro-Raman, X-ray photoelectron spectroscopy (XPS) and spectroscopic ellipsometry (SE) analyses has shown that the incorporated host-atoms are Al3+ species in Zn2+ substitutional position; their amount increases following a direct monotonic trend with the deposition temperature. Correspondently, the c-axis strain into the layer decreases due to the progressive ordering of the lattice structure and reducing clustering phenomena. The maximum average Al content inside the film was ~2%, as measured by energy dispersive X-ray (EDX) spectroscopy, with a uniform distribution of the dopant species along the layer thickness traced by depth-profile XPS analyses. The optimised ZnO:Al layer, deposited at a rate of ~7 nm/min, exhibits high transmittance in the visible range (~85%) and low resistivity values (~13 mΩ × cm). The material therefore fulfils all the requirements to be candidate as TCO for low-cost DSCs on flexible substrates for large area technologies. View Full-Text
Keywords: transparent conductive oxide (TCO); dye-sensitized solar cells (DSCs); Al doped ZnO (AZO); co-sputtering; doping; low temperature transparent conductive oxide (TCO); dye-sensitized solar cells (DSCs); Al doped ZnO (AZO); co-sputtering; doping; low temperature

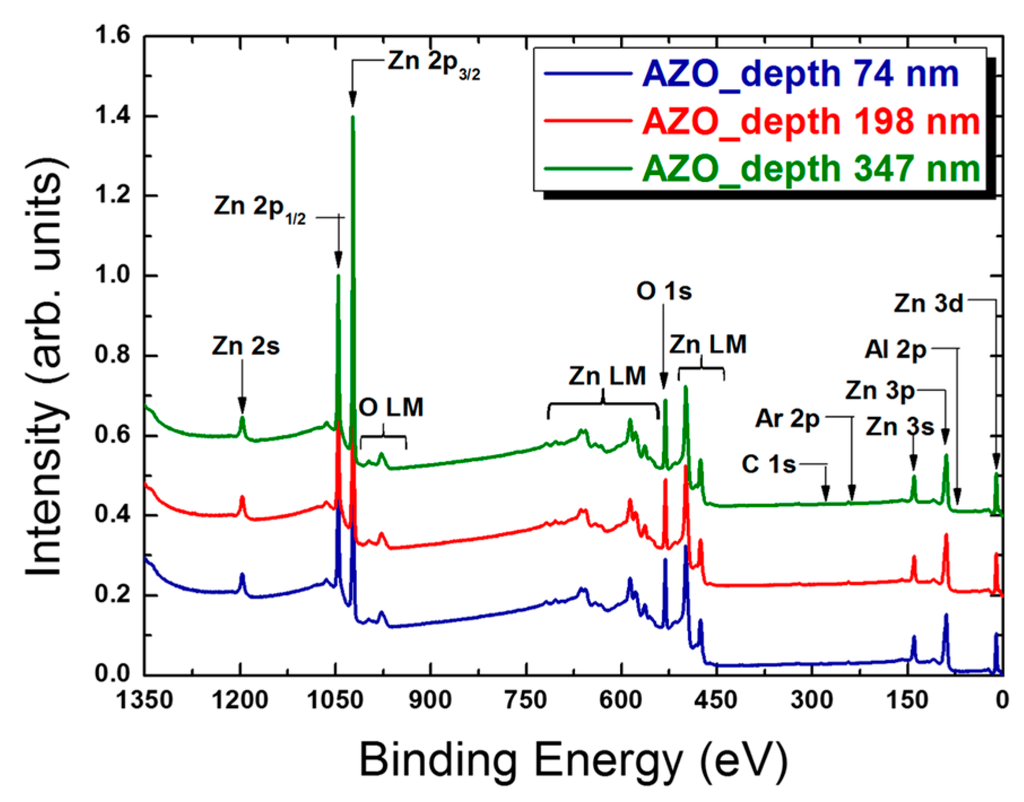

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Sanzaro, S.; La Magna, A.; Smecca, E.; Mannino, G.; Pellegrino, G.; Fazio, E.; Neri, F.; Alberti, A. Controlled Al3+ Incorporation in the ZnO Lattice at 188 °C by Soft Reactive Co-Sputtering for Transparent Conductive Oxides. Energies 2016, 9, 433.
