Energies 2016, 9(2), 102; doi:10.3390/en9020102

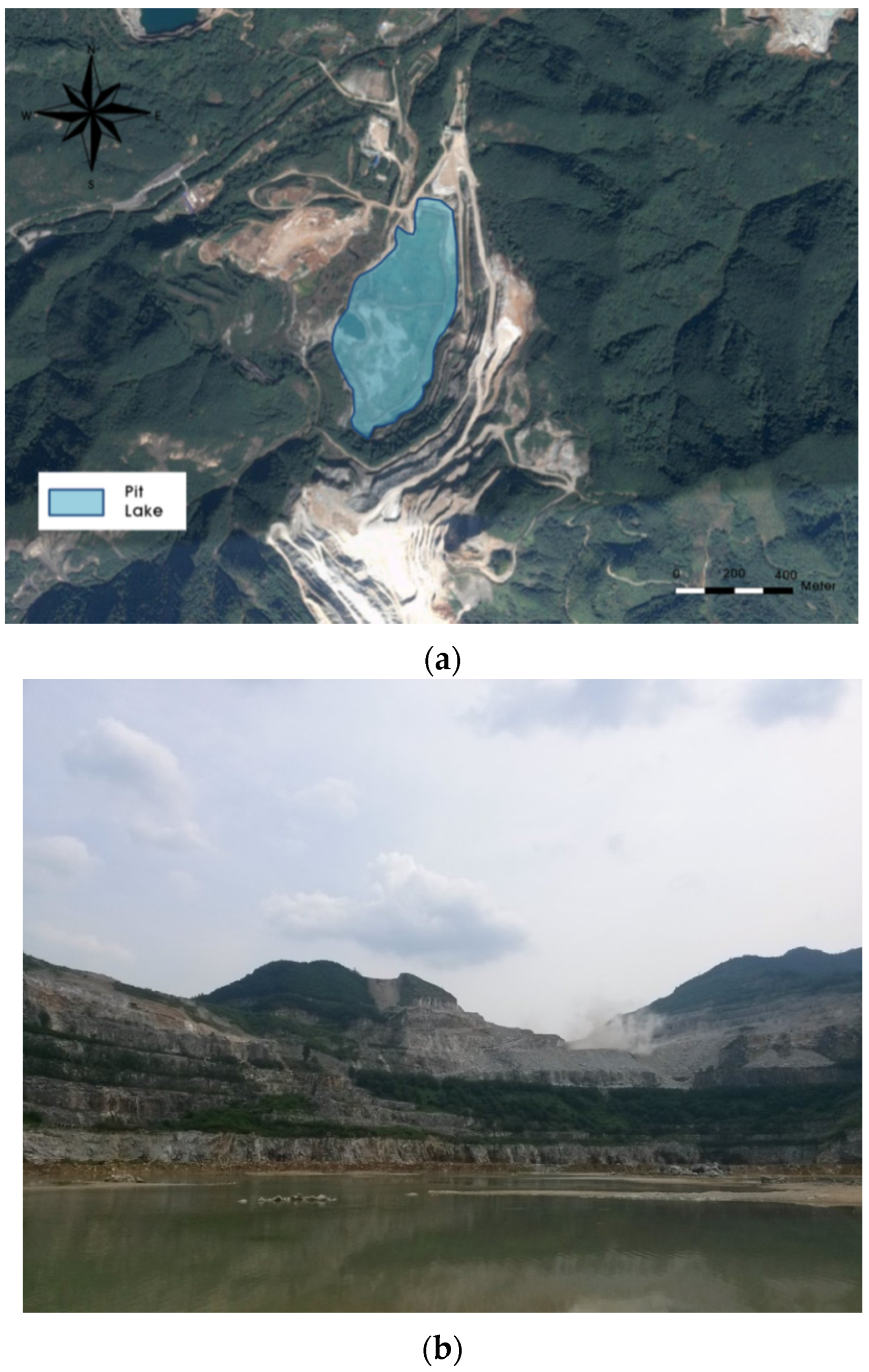

Analysis of the Potential for Use of Floating Photovoltaic Systems on Mine Pit Lakes: Case Study at the Ssangyong Open-Pit Limestone Mine in Korea

Department of Energy Resources Engineering, Pukyong National University, Busan 608-737, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Jang-Ho Lee
Received: 25 December 2015 / Revised: 28 January 2016 / Accepted: 3 February 2016 / Published: 10 February 2016
(This article belongs to the Special Issue Selected Papers from 5th Asia-Pacific Forum on Renewable Energy)
View Full-Text   |   Download PDF [4677 KB, uploaded 10 February 2016]   |

Abstract

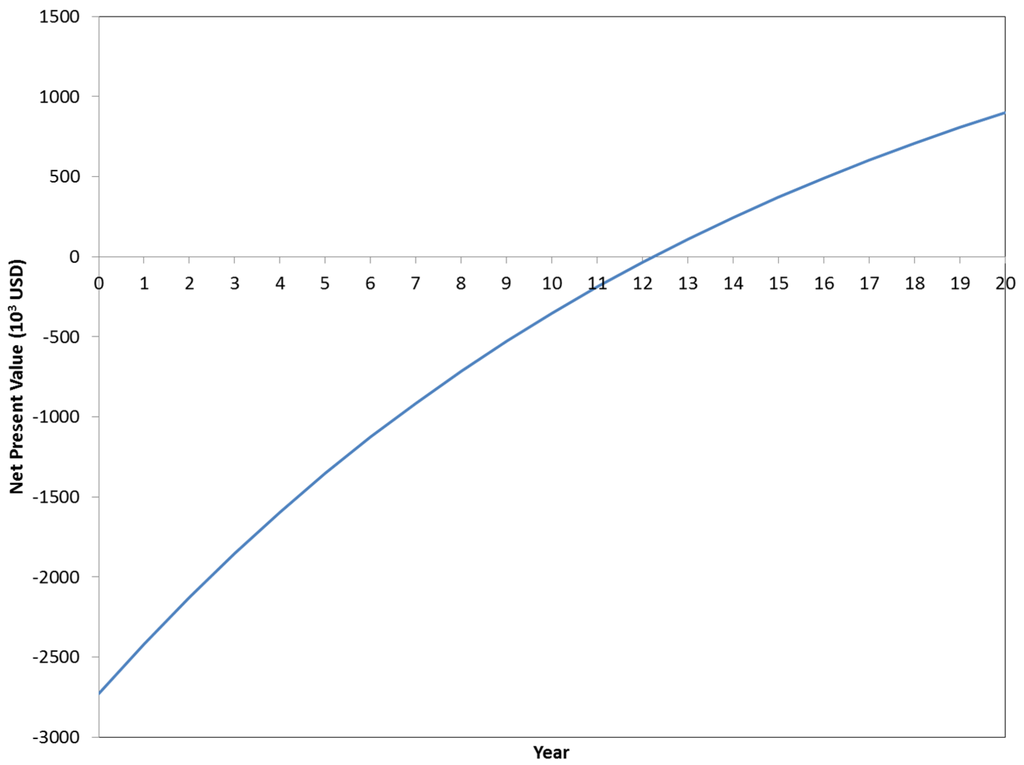

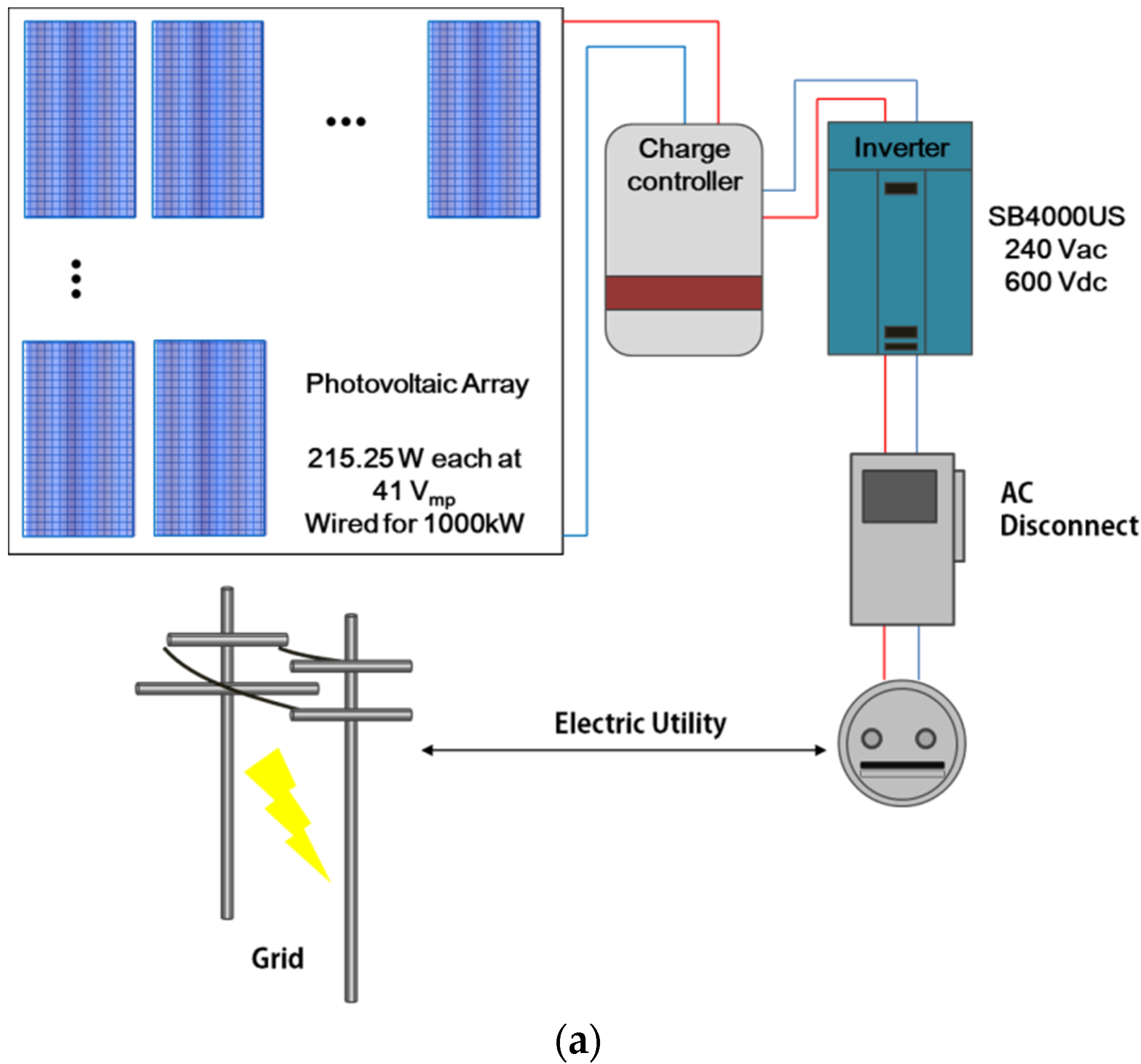

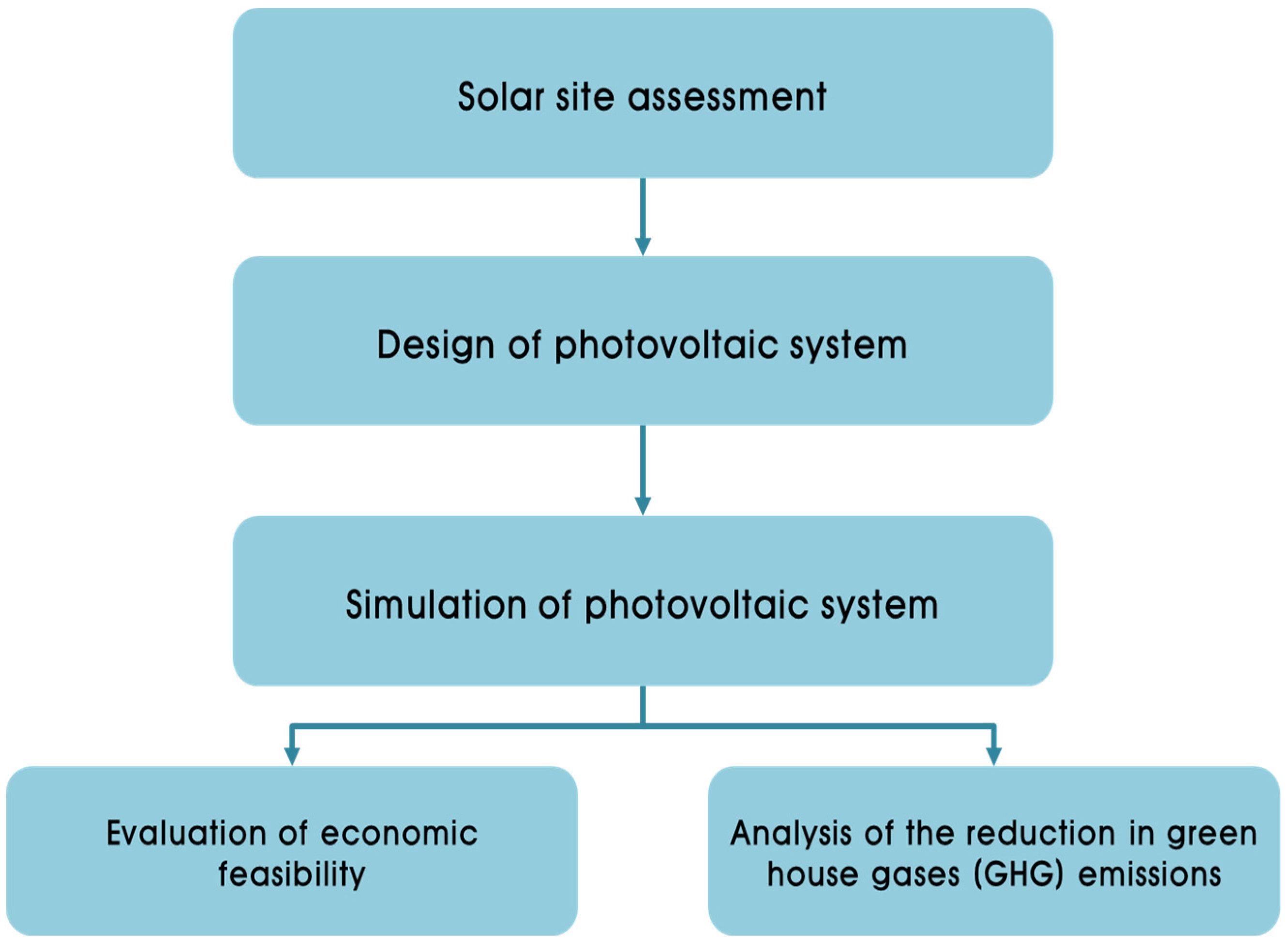

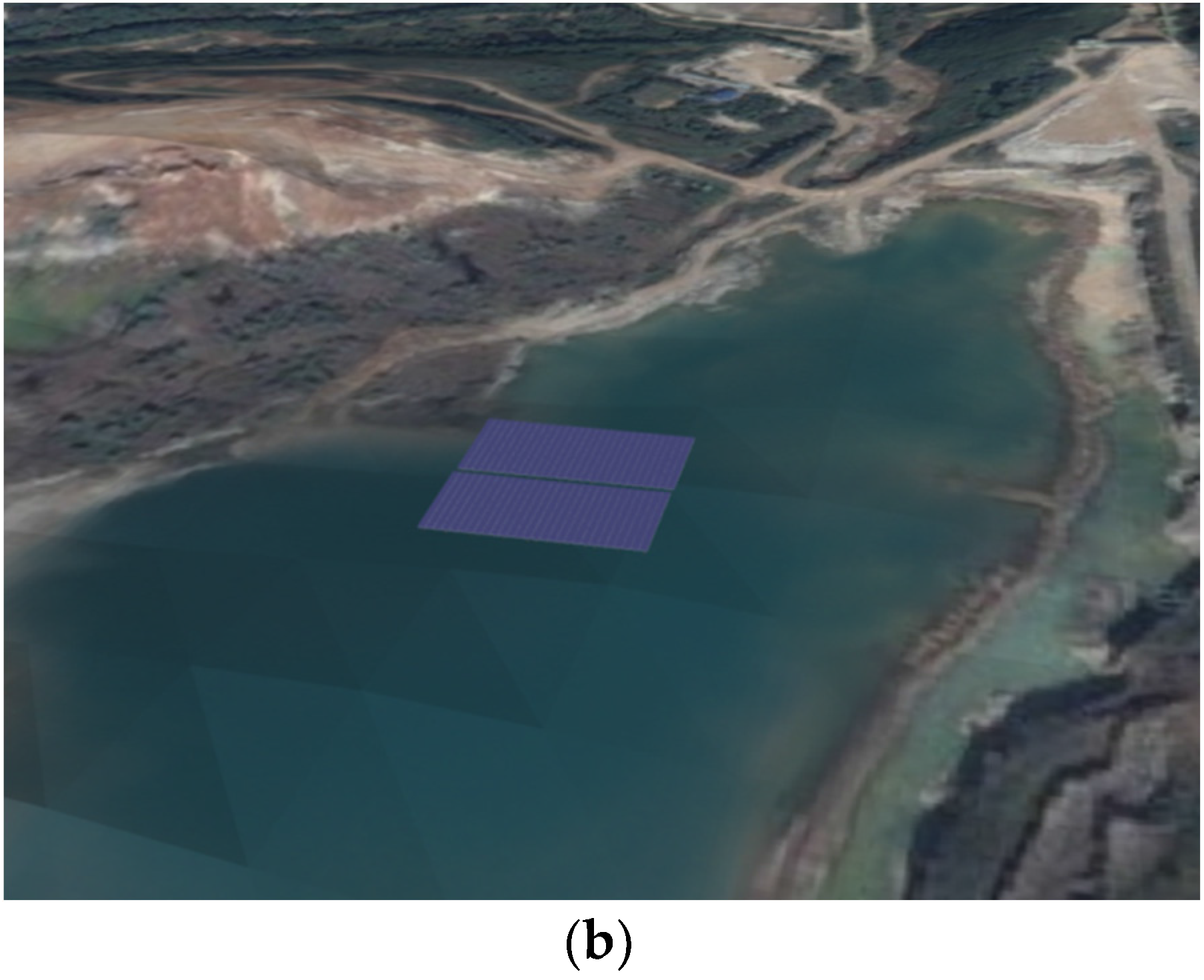

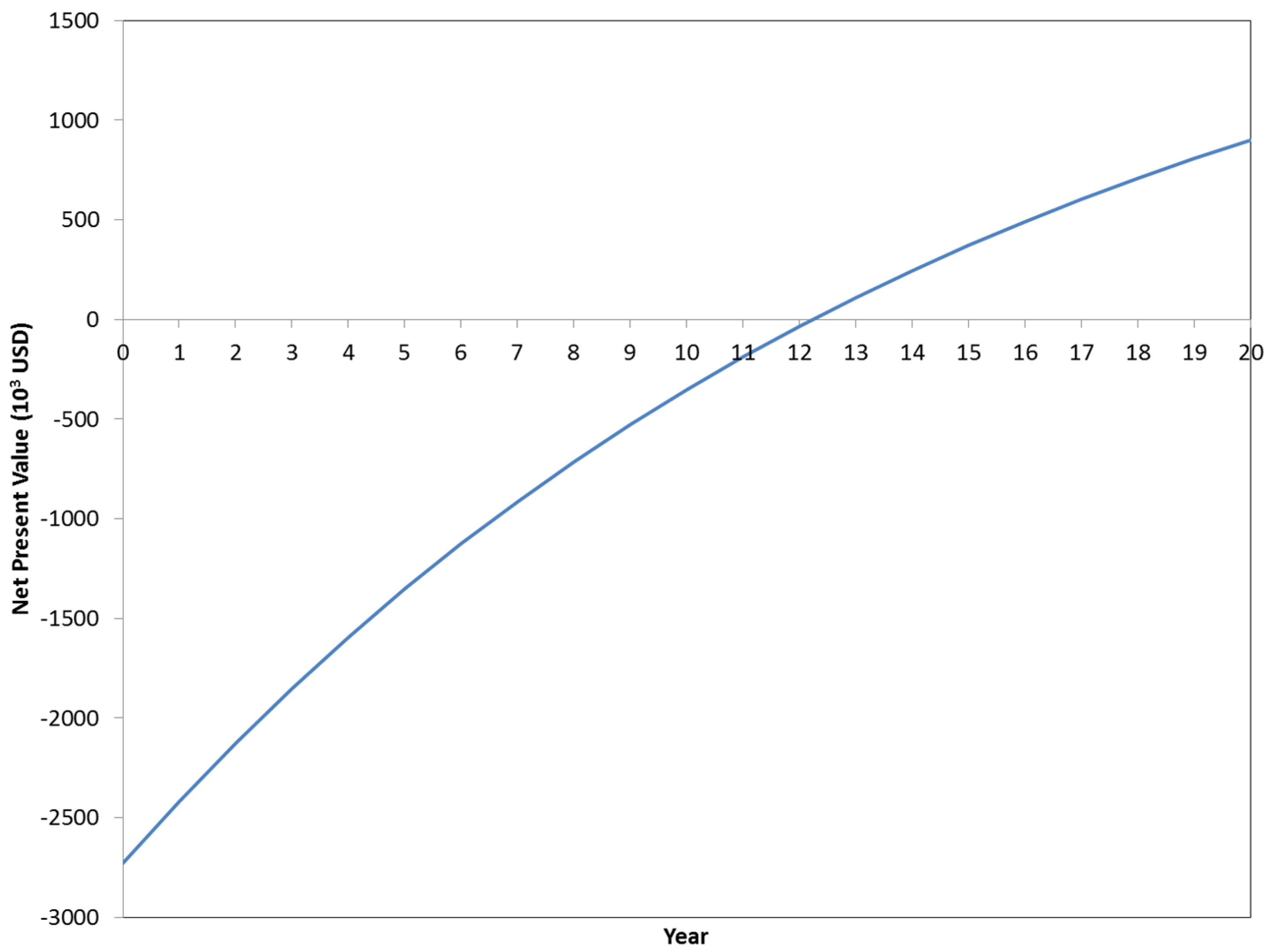

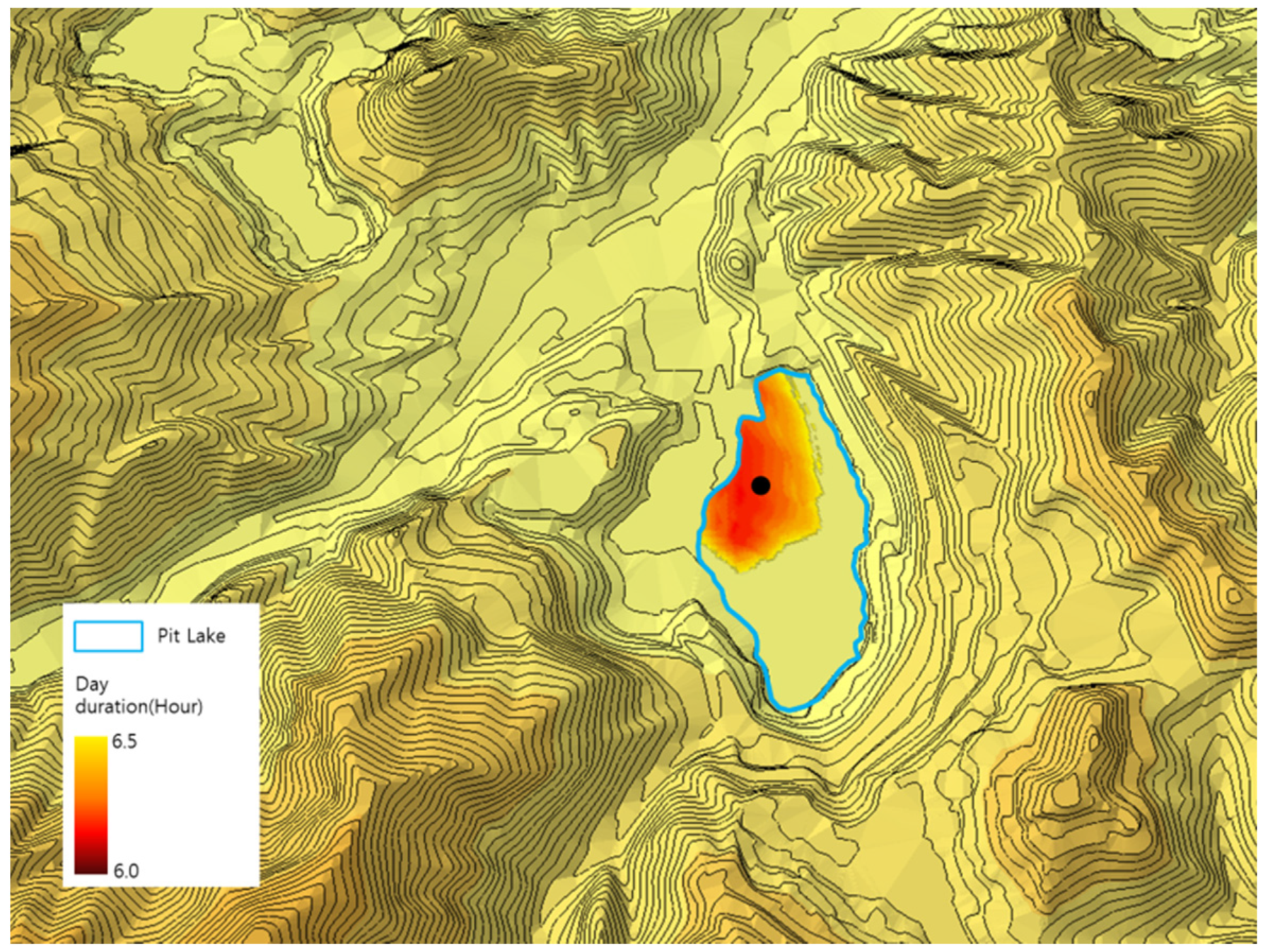

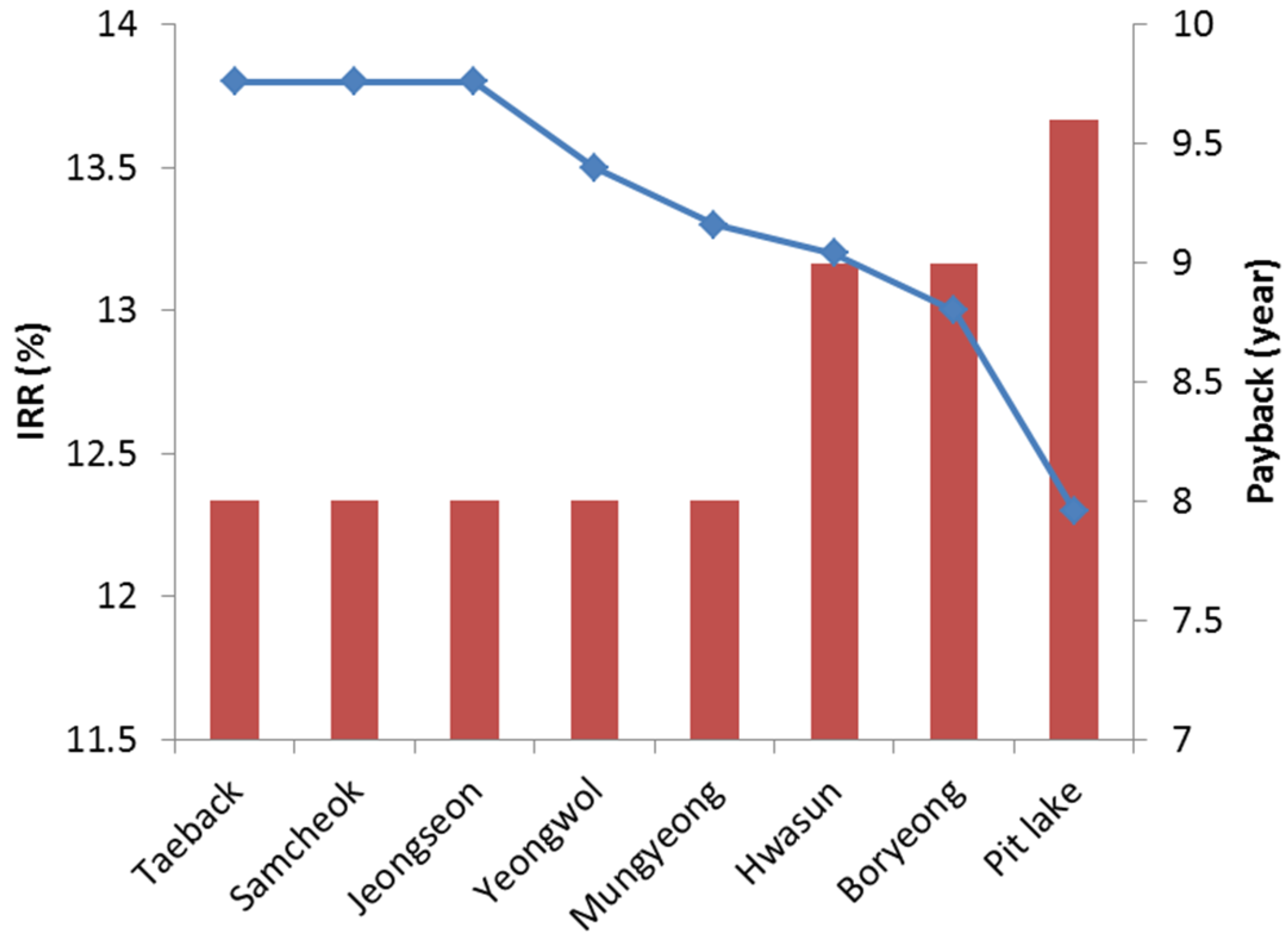

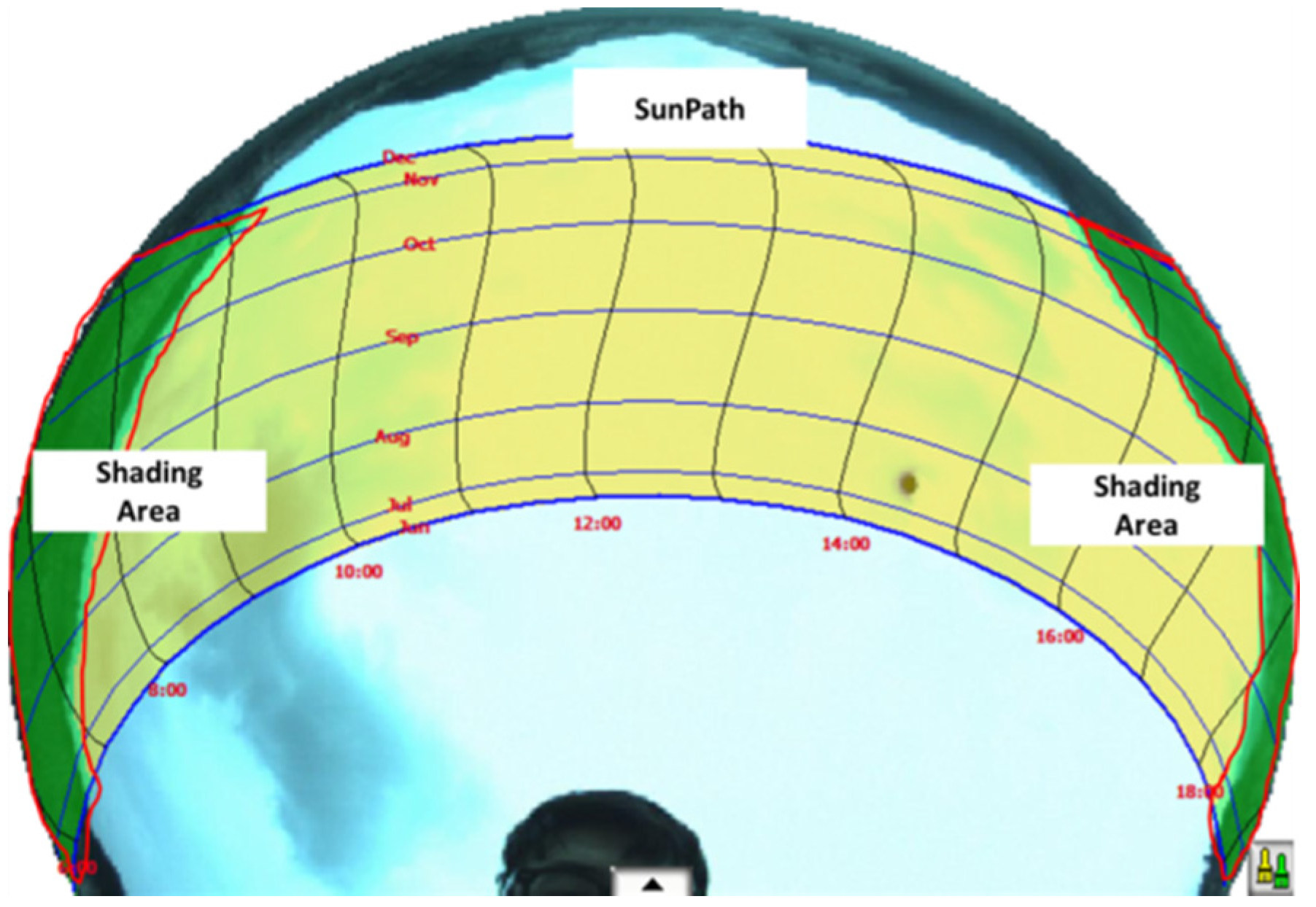

Recently, the mining industry has introduced renewable energy technologies to resolve power supply problems at mines operating in polar regions or other remote areas, and to foster substitute industries, able to benefit from abandoned sites of exhausted mines. However, little attention has been paid to the potential placement of floating photovoltaic (PV) systems operated on mine pit lakes because it was assumed that the topographic characteristics of open-pit mines are unsuitable for installing any type of PV systems. This study analyzed the potential of floating PV systems on a mine pit lake in Korea to break this misconception. Using a fish-eye lens camera and digital elevation models, a shading analysis was performed to identify the area suitable for installing a floating PV system. The layout of the floating PV system was designed in consideration of the optimal tilt angle and array spacing of the PV panels. The System Advisor Model (SAM) by National Renewable Energy Laboratory, USA, was used to conduct energy simulations based on weather data and the system design. The results indicated that the proposed PV system could generate 971.57 MWh/year. The economic analysis (accounting for discount rate and a 20-year operational lifetime) showed that the net present value would be $897,000 USD, and a payback period of about 12.3 years. Therefore, we could know that the economic effect of the floating PV system on the mine pit lake is relatively higher than that of PV systems in the other abandoned mines in Korea. The annual reduction of greenhouse gas emissions was analyzed and found to be 471.21 tCO2/year, which is twice the reduction effect achieved by forest restoration of an abandoned mine site. The economic feasibility of a floating PV system on a pit lake of an abandoned mine was thus established, and may be considered an efficient reuse option for abandoned mines. View Full-Text
Keywords: pit lake; floating photovoltaic system; economic analysis pit lake; floating photovoltaic system; economic analysis
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
