Open AccessArticle
Energies 2016, 9(12), 1022; doi:10.3390/en9121022

A Comparison of Impedance-Based Fault Location Methods for Power Underground Distribution Systems

Department of Electronic Technology, University of Seville, 41011 Seville, Spain
Author to whom correspondence should be addressed.
Academic Editor: Gianfranco Chicco
Received: 14 October 2016 / Revised: 22 November 2016 / Accepted: 25 November 2016 / Published: 7 December 2016
(This article belongs to the Special Issue Advances in Power System Operations and Planning)
View Full-Text   |   Download PDF [2255 KB, uploaded 7 December 2016]   |

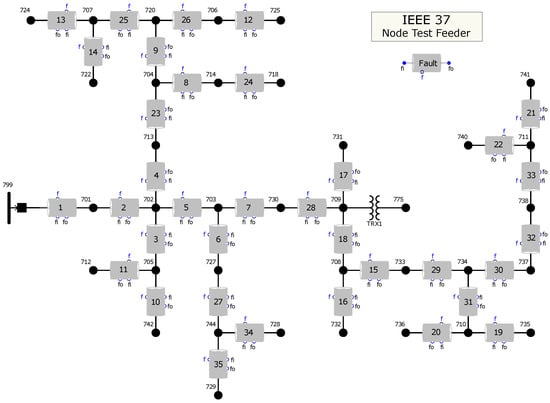

In the last few decades, the Smart Grid paradigm presence has increased within power systems. These new kinds of networks demand new Operations and Planning approaches, following improvements in the quality of service. In this sense, the role of the Distribution Management System, through its Outage Management System, is essential to guarantee the network reliability. This system is responsible for minimizing the consequences arising from a fault event (or network failure). Obviously, knowing where the fault appears is critical for a good reaction of this system. Therefore, several fault location techniques have been proposed. However, most of them provide individual results, associated with specific testbeds, which make the comparison between them difficult. Due to this, a review of fault location methods has been done in this paper, analyzing them for their use on underground distribution lines. Specifically, this study is focused on an impedance-based method because their requirements are in line with the typical instrumentation deployed in distribution networks. This work is completed with an exhaustive analysis of these methods over a PSCADTM X4 implementation of the standard IEEE Node Test Feeder, which truly allows us to consistently compare the results of these location methods and to determine the advantages and drawbacks of each of them. View Full-Text
Keywords: power distribution network; power delivery; underground distribution system; fault location power distribution network; power delivery; underground distribution system; fault location

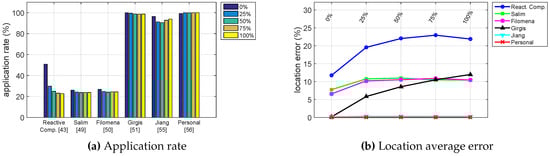

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
