Energies 2016, 9(11), 865; doi:10.3390/en9110865

Modeling of a Pouch Lithium Ion Battery Using a Distributed Parameter Equivalent Circuit for Internal Non-Uniformity Analysis

1
National Active Distribution Network Technology Research Center, Beijing Jiaotong University, No. 3 Shang Yuan Cun, Haidian District, Beijing 100044, China
2
Collaborative Innovation Center of Electric Vehicles in Beijing, Beijing Jiaotong University, No. 3 Shang Yuan Cun, Haidian District, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Academic Editor: Rui Xiong
Received: 18 August 2016 / Revised: 9 October 2016 / Accepted: 10 October 2016 / Published: 25 October 2016
(This article belongs to the Special Issue Advanced Energy Storage Technologies and Their Applications (AESA))
View Full-Text   |   Download PDF [1359 KB, uploaded 25 October 2016]   |

Abstract

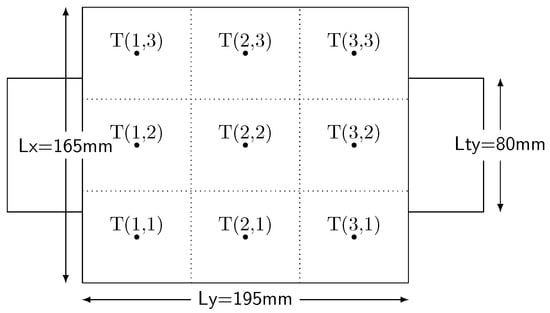

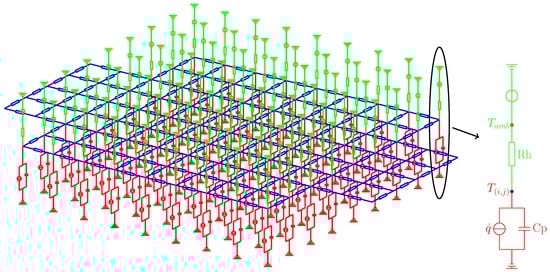

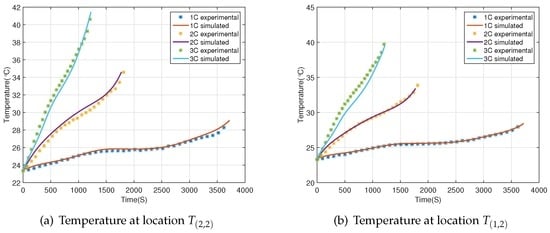

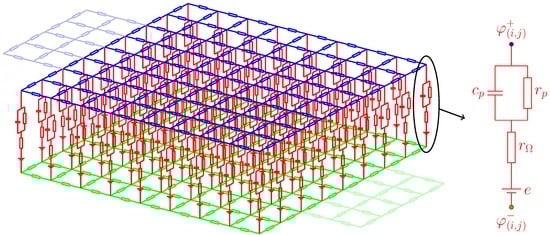

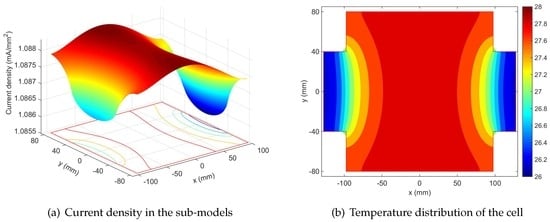

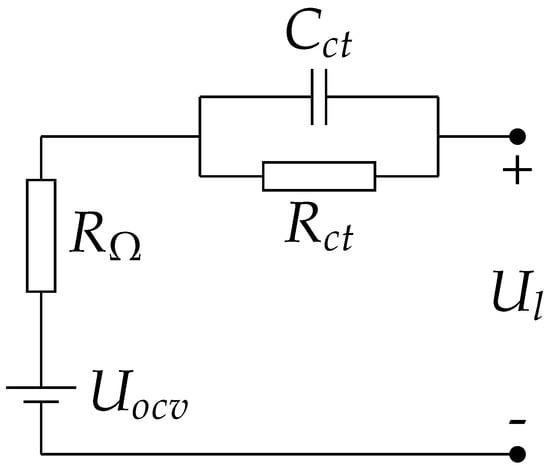

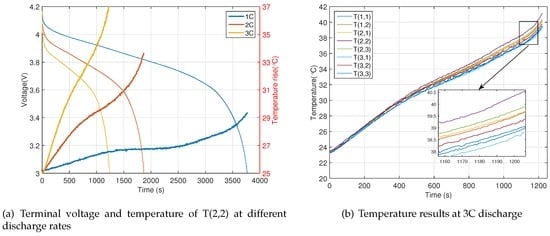

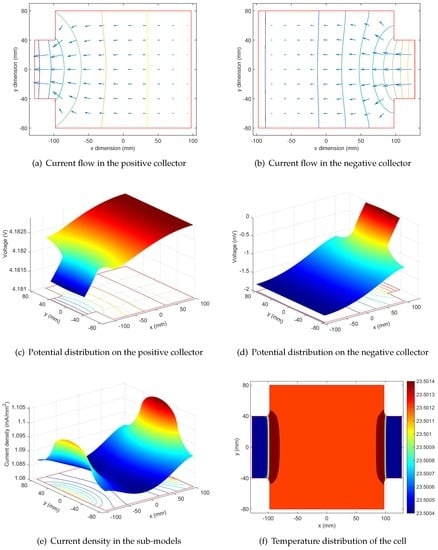

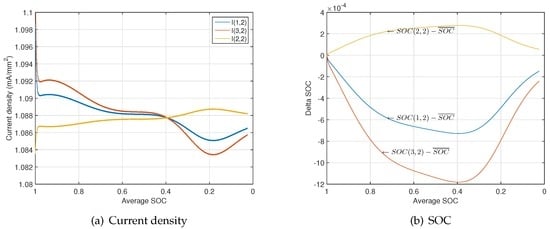

A battery model that has the capability of analyzing the internal non-uniformity of local state variables, including the state of charge (SOC), temperature and current density, is proposed in this paper. The model is built using a set of distributed parameter equivalent circuits. In order to validate the accuracy of the model, a customized battery with embedded T-type thermocouple sensors inside the battery is tested. The simulated temperature conforms well with the measured temperature at each test point, and the maximum difference is less than 1 °C. Then, the model is applied to analyze the evolution processes of local state variables’ distribution inside the battery during the discharge process. The simulation results demonstrate drastic distribution changes of the local state variables inside the battery during the discharge process. The internal non-uniformity is originally caused by the resistance of positive and negative foils, while also influenced by the change rate of open circuit voltage and the total resistance of the battery. Hence, the factors that affect the distribution of the local state variables are addressed. View Full-Text
Keywords: lithium ion battery; distributed parameter equivalent circuit model; internal non-uniformity lithium ion battery; distributed parameter equivalent circuit model; internal non-uniformity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
