Design and Field Tests of an Inverted Based Remote MicroGrid on a Korean Island

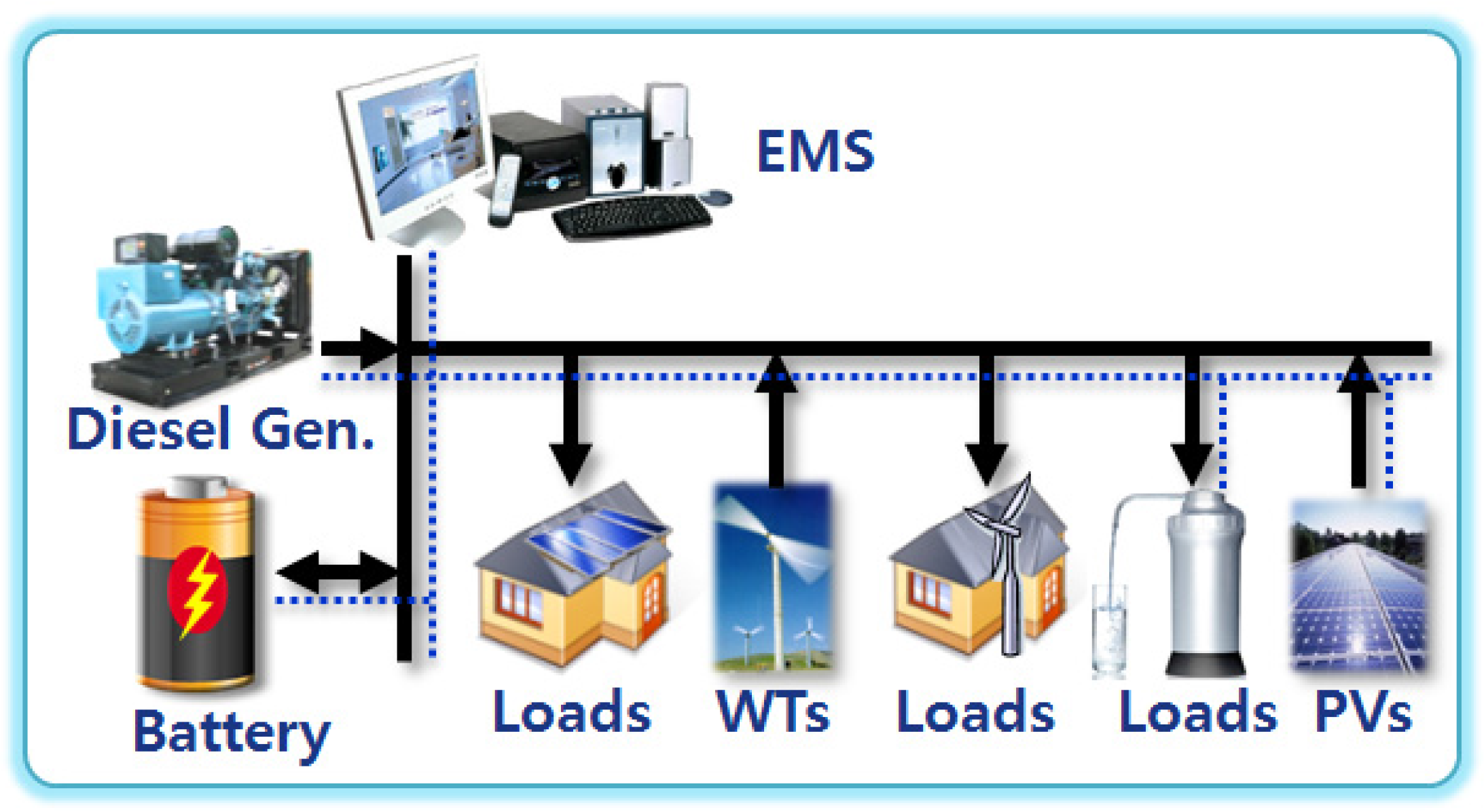

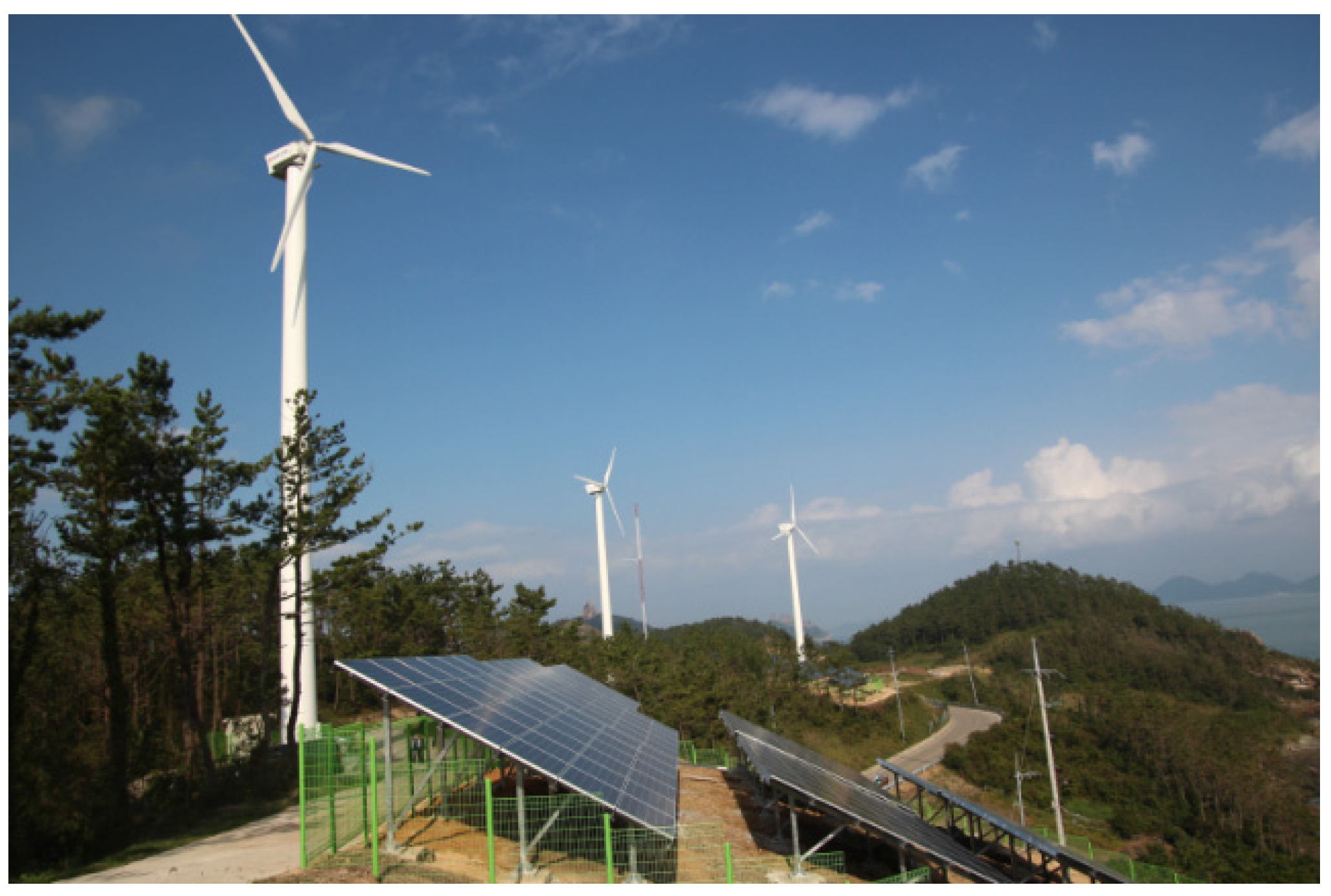

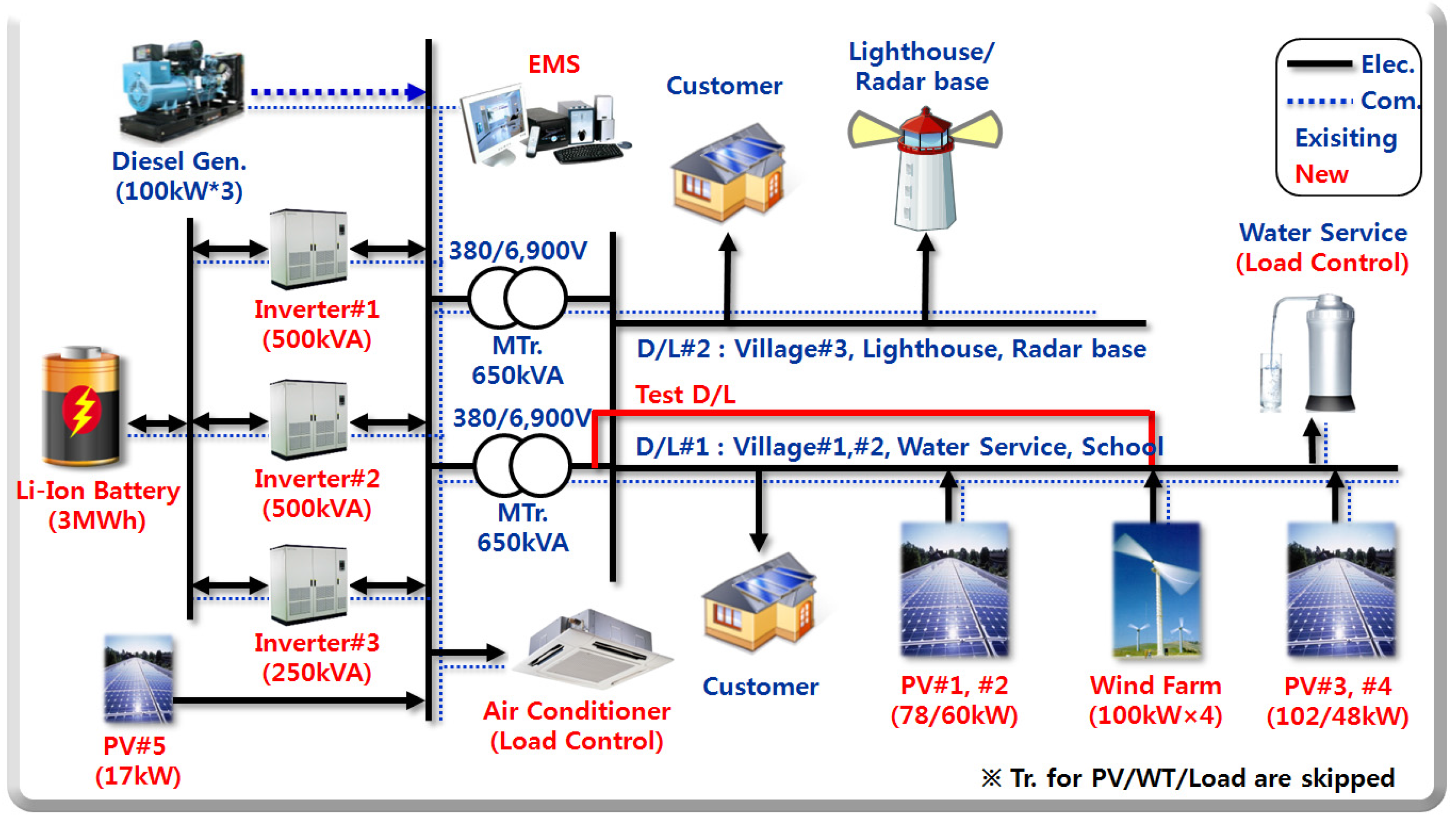

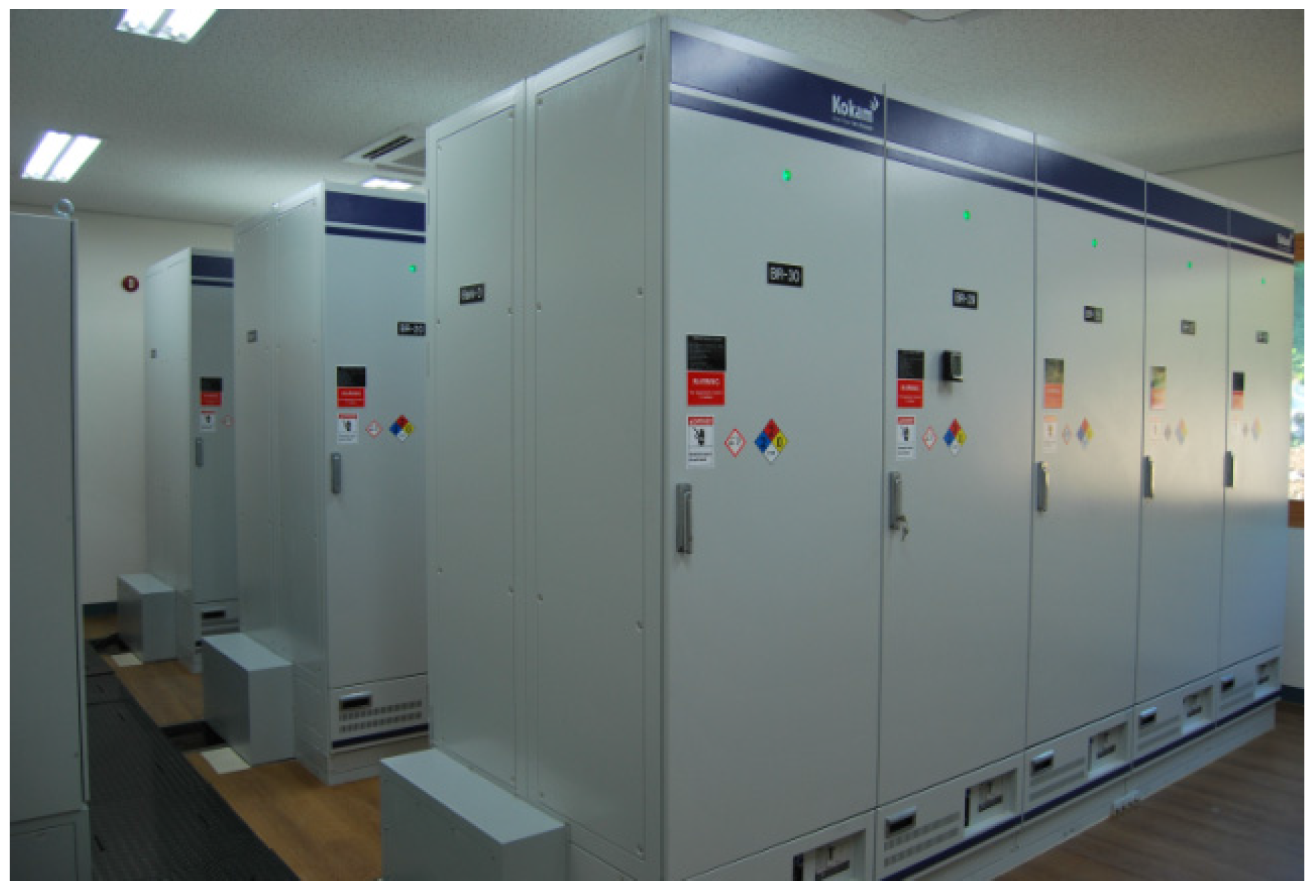

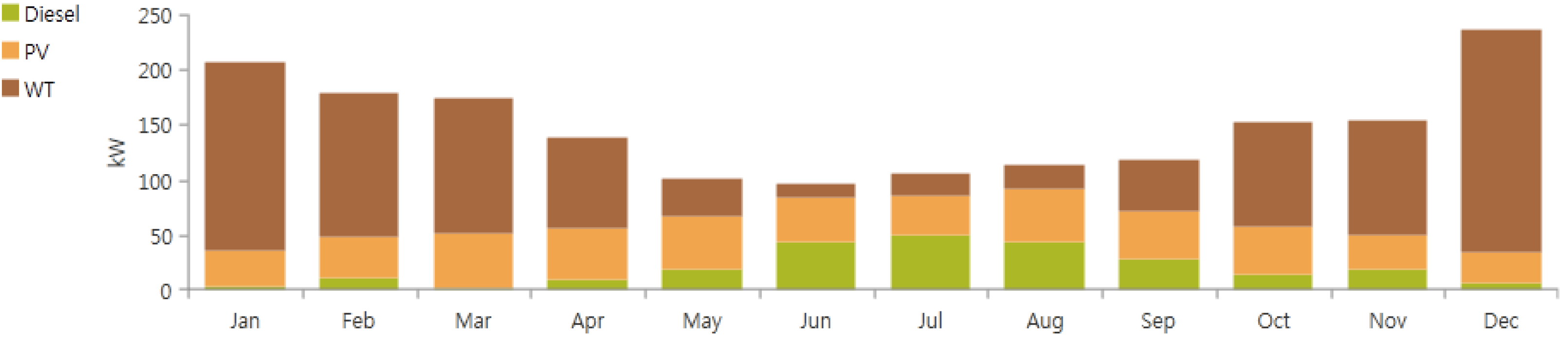

AbstractIn this paper, we present the results of an economic feasibility study and propose a system structure to test and maintain electrical stability. In addition, we present real operation results after constructing a remote microgrid on an island in South Korea. To perform the economic feasibility study, a commercial tool called HOMER was used. The developed remote microgrid consists of a 400 kW wind turbine (WT) generator, 314 kW photovoltaic (PV) generator, 500 kVA × 2 grid forming inverter, 3 MWh lithium ion battery, and an energy management system (EMS). The predicted renewable energy fraction was 91% and real operation result was 82%. The frequency maintaining rate of the diesel power plants was 57% but the remote microgrid was 100%. To improve the operating efficiency of the remote microgrid, we investigated the output range of a diesel generator. View Full-Text
Share & Cite This Article
Chae, W.-K.; Lee, H.-J.; Won, J.-N.; Park, J.-S.; Kim, J.-E. Design and Field Tests of an Inverted Based Remote MicroGrid on a Korean Island. Energies 2015, 8, 8193-8210.
Chae W-K, Lee H-J, Won J-N, Park J-S, Kim J-E. Design and Field Tests of an Inverted Based Remote MicroGrid on a Korean Island. Energies. 2015; 8(8):8193-8210.Chicago/Turabian Style
Chae, Woo-Kyu; Lee, Hak-Ju; Won, Jong-Nam; Park, Jung-Sung; Kim, Jae-Eon. 2015. "Design and Field Tests of an Inverted Based Remote MicroGrid on a Korean Island." Energies 8, no. 8: 8193-8210.
