Energies 2014, 7(2), 736-750; doi:10.3390/en7020736
Article

Effects of Organic Loading Rate on the Performance of a Pressurized Anaerobic Filter in Two-Phase Anaerobic Digestion

1 State Institute of Agricultural Engineering and Bioenergy, University of Hohenheim, Garbenstraße 9, D-70599 Stuttgart, Germany 2 DVGW—Research Center at the Engler-Bunte-Institut, Karlsruhe Institute of Technology (KIT), Engler-Bunte-Ring 1, D-76131 Karlsruhe, Germany
* Author to whom correspondence should be addressed.
Received: 16 December 2013; in revised form: 30 January 2014 / Accepted: 7 February 2014 / Published: 13 February 2014
(This article belongs to the Special Issue Biomass and Biofuels 2013)
PDF Full-text Download PDF Full-Text [434 KB, uploaded 13 February 2014 09:47 CET]

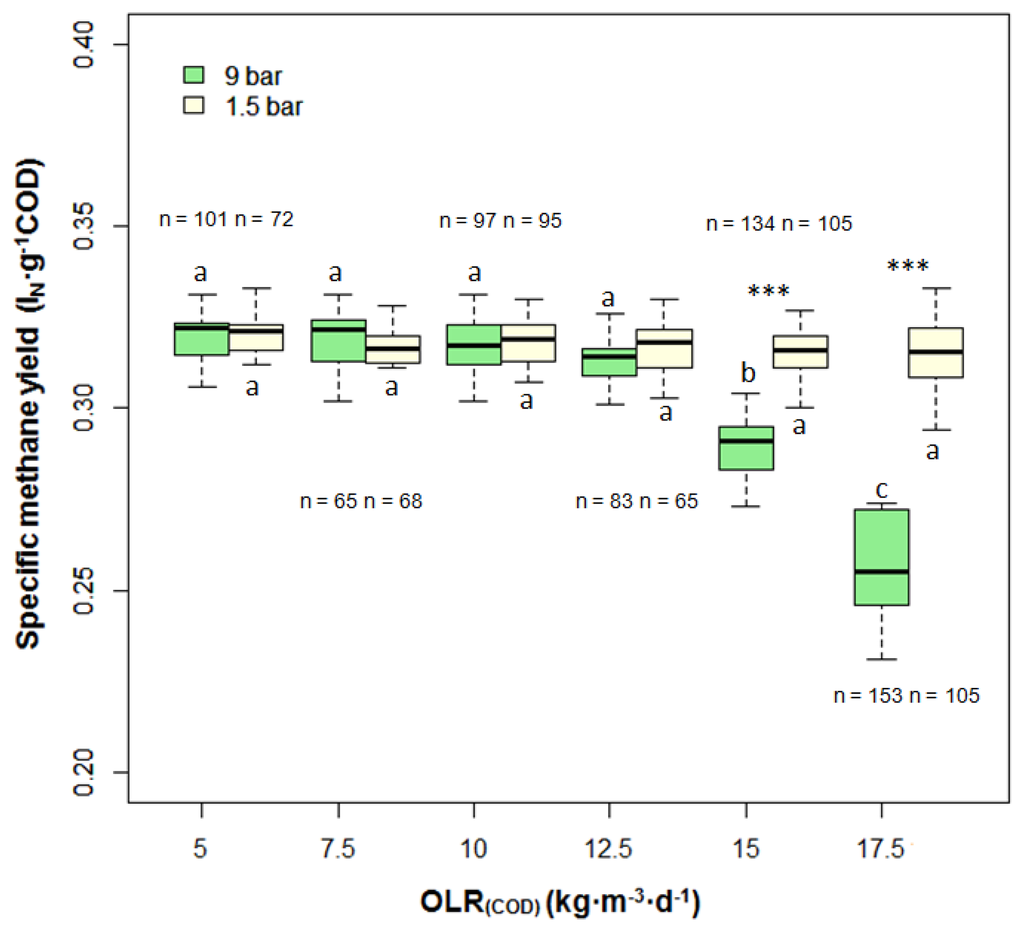

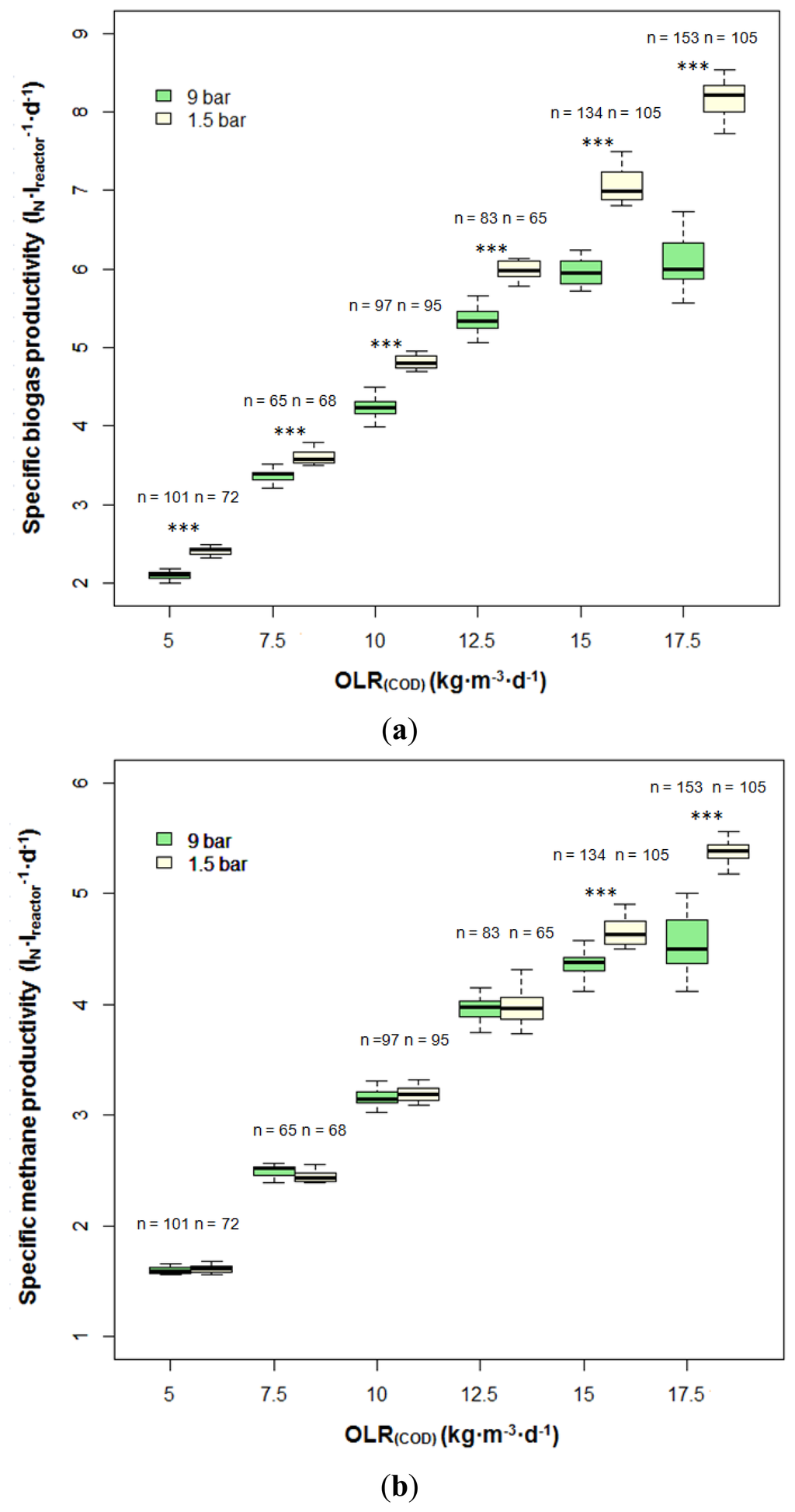

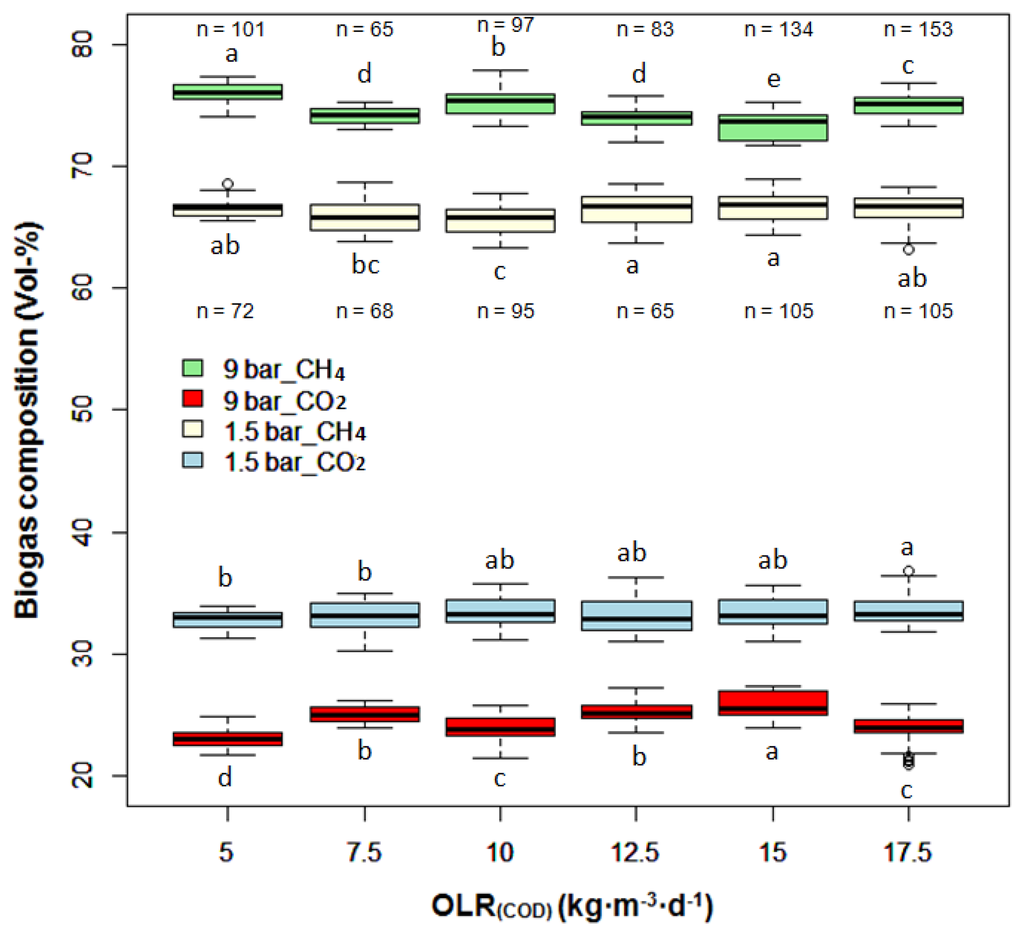

Abstract: The effect of organic loading rate (OLR) on a pressurized anaerobic filter was studied in a laboratory two-phase anaerobic digestion system. The anaerobic filter was operated successively at two working pressures (9 bar and 1.5 bar). The OLR(COD) for each pressure was increased from 5 to 17.5 kg·m−3·day−1. The best performance of the reactor at 9 bar was observed at OLR(COD) of 12.5 kg·m−3·day−1 and hydraulic retention time (HRT) of 1.8 day, with specific biogas productivity (SBP) of 5.3 L·L−1·day−1 and COD degradation grade of 90.6%. At higher OLRs and shorter HRTs, the process became unstable. In contrast, there was no indication of digester failure during the experiments at 1.5 bar. The SBP peaked at OLR(COD) of 17.5 kg·m−3·day−1 with 8.2 L·L−1·day−1, where COD degradation grade was 90.4%. The biogas collected from the reactor at 9 bar and 1.5 bar contained approximately 74.5% CH4 and 66.2% CH4, respectively, regardless of OLR variation. At OLR(COD) of 5–12.5 kg·m−3·day−1, the reactor at 9 bar had the same specific methane yield as at 1.5 bar, which was in the range of 0.31–0.32 LN·g−1COD. Raising the working pressure in the reactor resulted in an increase of methane content of the produced biogas. However, the low pH value (approximately 6.5) inside the reactor, induced by high CO2 partial pressure seemed to limit the reactor performance at high OLRs and short HRT.
Keywords: two-phase anaerobic digestion; high-pressure fermentation; anaerobic filter; biogas purification; biogas upgrading; anaerobic digestion

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Chen, Y.; Rößler, B.; Zielonka, S.; Wonneberger, A.-M.; Lemmer, A. Effects of Organic Loading Rate on the Performance of a Pressurized Anaerobic Filter in Two-Phase Anaerobic Digestion. Energies 2014, 7, 736-750.

AMA Style

Chen Y, Rößler B, Zielonka S, Wonneberger A-M, Lemmer A. Effects of Organic Loading Rate on the Performance of a Pressurized Anaerobic Filter in Two-Phase Anaerobic Digestion. Energies. 2014; 7(2):736-750.

Chicago/Turabian Style

Chen, Yuling; Rößler, Benjamin; Zielonka, Simon; Wonneberger, Anna-Maria; Lemmer, Andreas. 2014. "Effects of Organic Loading Rate on the Performance of a Pressurized Anaerobic Filter in Two-Phase Anaerobic Digestion." Energies 7, no. 2: 736-750.
