Energies 2012, 5(8), 3137-3148; doi:10.3390/en5083137

Article
A Complementary Biodiesel Blend from Soapnut Oil and Free Fatty Acids
1
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, Taipei 106, Taiwan
2
Graduate Institute of Environmental Engineering, National Taiwan University, Taipei 106, Taiwan
3
Department of Environmental Engineering, National I-Lan University, I-Lan 260, Taiwan
4
Institut für Funktionelle Grenzflächen, Karlsruher Institut für Technologie, Karlsruhe 76344, Germany
5
Department of Energy Engineering, National United University, Miaoli 360, Taiwan
*
Author to whom correspondence should be addressed.
Received: 29 June 2012; in revised form: 24 July 2012 / Accepted: 16 August 2012 / Published: 17 August 2012

Abstract

:
Blends of biodiesels produced from soapnut oil and high-oleic free fatty acids (FFAs), which are potential non-edible oil feedstocks, were investigated with respect to their fuel properties. The soapnut oil methyl esters (SNME) had satisfactory fuel properties with the exception of its high cold filter plugging point. In contrast, the biodiesel from the FFAs had favorable fuel properties such as a low cold filter plugging point of −6 °C; however, it exhibits poor oxidation stability with an induction period (IP) of 0.2 h. The complementary blend of the SNME and the FFA-based biodiesel at various weight ratios was studied to improve the fuel properties. As a result, the biodiesel blend at a weight ratio of 70:30 can successfully meet all the biodiesel specifications, except the marginal oxidation stability. Furthermore, the effectiveness of N,N’-di-sec-butyl-p-phenylenediamine at the concentration between 100 and 500 ppm on the improvement in the oxidation stability of the biodiesel blend was examined. The relationship between the IP values associated with the consumption of antioxidants in the biodiesel blends was described by first-order reaction rate kinetics. In addition, the natural logarithm of IP (ln IP) at various concentrations of antioxidant presented a linear relation with the test temperature. The IP at ambient temperature can be predicted based on the extrapolation of the temperature dependence relation.
Keywords:
soapnut oil; free fatty acids; cold filter plugging point; oxidation stability; antioxidant; kinetics

1. Introduction

Recently, biodiesel has attracted a great deal of attention because of its nontoxic character and biodegradability [1]. Furthermore, biodiesel is considered carbon neutral and renewable. The utilization of biodiesel can contribute to the reduction of the carbon dioxide emissions. However, the use of edible oils for biodiesel production may be contrary to current social movements and energy policies. Non-edible vegetable oils, which are mostly produced by seed-bearing trees and shrubs, could be an alternative oil source.
Biodiesel generally has a higher cold filter plugging point (CFPP) and an inferior oxidation stability compared with petroleum diesel (a mixture of paraffinic, naphthenic, and aromatic hydrocarbons) [2]. The fuel can form solids of sufficient size to result in the filter plugging at the CFPP. Thus biodiesel with poor low-temperature flow properties could cause the clogging of the fuel lines and filters in the fuel system that limits the application of biodiesel in cold-weather climates [3]. In addition, the long term storage of biodiesel is related to its oxidation stability, which presently causes high concern of the major technical issues in the use of biodiesel. Oxidative stability is one of the major technical concerns with biodiesel [4].
Soapnut (Sapindus spp.) trees are generally found at altitudes ranging from 200 to 1500 m in tropical and sub-tropical climate areas including Asia, the Americas, and Europe [5]. Soapnut tree plantations have great potential to massively produce soapnut seeds and the oil content in the kernel of the soapnut seeds is approximately 42.7 wt.% [6,7]. The high content of monounsaturated fatty acids including oleic (9Z-octadecenoic, C18:1) and eicosenoic (11Z-eicosenoic, C20:1) acids in the soapnut oil is distinct compared with the fatty acid profiles of common vegetable oils [8]. According to the previous study [9], the soapnut oil methyl esters (SNME) exhibit superior oxidation stability. On the other hand, the CFPP of the SNME is 6 °C, which exceeds the limits of the current biodiesel standards.
In addition to the transesterification of vegetable oils (triacylglycerols), biodiesel composed of fatty acid methyl esters is also obtained by the esterification of free fatty acids (FFAs) with low-molecular-weight alcohols. In some cases, FFAs are byproducts of the food-processing industry, such as the edible palm oil-based oleochemical industry, which releases 4%–8% of the total fatty acids as FFAs in crude palm oil during the physical refining process [10,11]. By converting the FFAs into biodiesel, a profitable system could be established to provide economic opportunities and benefit the environment without competing with the edible-oil market [12]. The FFA-based biodiesel has a low CFPP of −6 °C and presents poor oxidation stability of an induction period (IP) of 0.2 h which can be attributed to the lack of natural antioxidants in the FFA-based biodiesel [13].
The auto-oxidation of fatty acid methyl esters (FAMEs) is a chain reaction involving three basic steps: initiation, propagation, and termination [14]. The time from the initial period to the stage with the maximum increase rate of conductivity has been defined as the IP. In general, the IP is experimentally determined by the Rancimat instrument based on EN 14,112, which is a standard method published by the European Committee in 2008 to evaluate the storage time of biodiesel. EN 14,214 standard requires that biodiesel must reach a minimum IP of 6 h at 110 °C. ASTM D6751-07, a standard specification for biodiesel in America, includes an oxidation stability requirement of a minimum IP of 3 h. Furthermore, a modified European method EN 15,751 for biodiesel and diesel blends has been published in 2009 where a number of parameters, including a larger amount of fuel sample, an elongated reaction vessel, and a higher amount of distilled water, were changed compared with EN 14,112. The modifications are mainly due to higher volatility of diesel compared with biodiesel that may lead to higher sample evaporation [15]. To improve the oxidation stability of biodiesel, the addition of antioxidants is a promising approach to suppress auto-oxidation. If the antioxidant is active and its concentration is high enough, the transfer of hydrogen atom from the antioxidant to oxidative intermediates such as peroxyl radicals can break the chain propagation of the autoxidation process [16].
The first objective of this study was to study an optimum blending ratio of the SNME and high-oleic FFA-based biodiesel according to their complementary properties. Meanwhile, EN 14,214 and EN 15,751 tests were performed for comparison with respect of the measurement of oxidation stability at different test temperatures. As a result, the biodiesel blend can meet the biodiesel specifications except for the marginal oxidation stability. Thus N,N′-di-sec-butyl-p-phenylenediamine (PDA), which is an aminic antioxidant, was used to improve the oxidation stability of the biodiesel blend. Furthermore, the consumption of the PDA in the biodiesel blend was described by first-order reaction rate kinetics. In addition, a linear relation between the natural logarithm of IP (ln IP) and the test temperature (T, °C) for the biodiesel blend stabilized with PDA was proposed. Based on the temperature dependence relation, the storage life of the biodiesel blend at an ambient temperature can be predicted by using an extrapolation method.

2. Materials and Methods

2.1. Materials

The soapnut oils were extracted from the seeds of soapnut trees (Sapindus mukorossi) planted in Fujian, China. The acid value of the soapnut oil was 13.4 mg KOH/g, indicating the need for acid-catalyzed esterification pretreatment. The high-oleic FFAs purchased from KLK Oleo Co., Ltd. (Rawang, Selangor Darul Ehsan, Malaysia) have the fatty acid composition shown in Table 1. The ACS-certified methanol was obtained from Mallinckrodt Chemicals (Phillipsburg, NJ, USA). The H2SO4 (96.7% purity) and KOH pellets (85% purity) were purchased from Sigma-Aldrich (St. Louis, MO, USA) and Riedel-deHaën (St. Gallen, Switzerland), respectively. Anhydrous magnesium sulfate was obtained from Showa (Tokyo, Japan). The PDA with a purity of 98% was purchase from TCI (Tokyo, Japan).
Table 1. Fatty acid composition of high-oleic FFAs as well as SNME and FFA-based biodiesel blend a.
Table 1. Fatty acid composition of high-oleic FFAs as well as SNME and FFA-based biodiesel blend a.
Fatty acidHigh-oleic FFAs [13]SNME and FFA-based biodiesel blend
Palmitic acid (C16:0)1.393.0
Stearic acid (C18:0)4.302.6
Oleic acid (C18:1)81.765.2
Linoleic acid (C18:2)11.29.4
Linolenic acid (C18:3)0.191.6
Arachidic acid (C20:0)0.83.5
Eicosenoic acid (C20:1)0.314.5
Lignoceric acid (C24:0)0.10.0
Saturated fatty acids6.599.1
Unsaturated fatty acids93.3990.7
a Values are in the unit of wt.%.

2.2. Experimental Procedures

For the esterification pretreatment of the soapnut oil, 439 g methanol and 11 g H2SO4 was added to 2751 g soapnut oil under vigorous mixing at 60 °C for reaction time of 1 h to obtain an acid value of 0.01 mg KOH/g. Then the methanolysis of the esterified soapnut oil was performed for another 1 h in the experimental conditions including a molar ratio of methanol to soapnut oil of 6:1, reaction temperature of 60 °C, and KOH catalyst dosage based on the oil weight of 1% w/w. KOH was chosen as the catalyst because of its low cost though alkoxides such as sodium methoxide may be work better for base-catalyzed transesterification. Subsequently, the ester phase was washed twice with a saturated sodium chloride solution (three times the volume of the ester phase) to remove any residual methanol, KOH, or glycerol that may have been present. Finally, the trace amounts of water in the biodiesels were removed by adding anhydrous magnesium sulfate, followed by filtration [17].
The FFA-based biodiesel was prepared by the esterification reaction of the FFAs in the experimental conditions including a molar ratio of methanol to FFAs of 12:1, a reaction temperature of 55 °C, a H2SO4 catalyst dosage of 5% w/w based on the FFAs weight, and a reaction time of 2 h. Then the ester phase was neutralized with KOH solution and washed twice with a saturated sodium chloride solution, followed by the drying.

2.3. Analysis of Fuel Properties

Acid value, cetane number, CFPP, density, flash point, iodine value, and kinematic viscosity were determined according to EN 14,104, ASTM D613, EN 116, EN ISO 3675, ASTM D93, EN 14,111, and EN ISO 3104, respectively. In addition, the ester content and FAME composition were analyzed according to EN 14,103. The IPs of the biodiesel were determined by using the Rancimat equipment model 873 (Metrohm, Herisau, Switzerland). The IP was determined by the measurement of a rapid increase in the conductivity upon the formation of volatile acids [18]. All determinations of the IP were performed in duplicate and the mean values were reported to two decimal places. In addition, the effectiveness of the antioxidant on the oxidation stability of the FFA-based biodiesel is expressed by the stabilization factor [4,18,19,20,21]:
Stabilization factor = IP/IPORIG
where IPORIG means the IP for biodiesel without the addition of any antioxidant.

2.4. Reaction Rate Kinetics for Consumption of Antioxidant

The consumption rate of the antioxidant can be described by the first-order reaction rate kinetics as:
dC dt = k f C
where kf is the reaction rate constant of the antioxidant consumption. The concentration of the antioxidant (C) decreases with the oxidation time (t) and becomes Ccr at t = IP – IPORIG [22]. The Ccr refers to the critical concentration of the antioxidant below which the antioxidant has no noticeable effect on retarding the oxidation of biodiesel. Integration of Equation (1) within the concentration range from the initial concentration of the antioxidant (C0) to Ccr and the time limits from t = 0 to t = IP – IPORIG reveals how C varies with t, as shown in Equation (2):
 C 0  C cr dC C =  0  IP-IP ORIG k f dt
As a result, a linear relation between the ln C0 and IP − IPORIG can be obtained as shown in Equation (3):
ln C 0 = k f ( IP IP ORIG ) + ln C cr
The slope and intercept of the straight line represent the values of kf and ln Ccr, respectively. The low value of kf represented the superior performance of the antioxidant for oxidation stability, while the Ccr presented a threshold dose required to show a significant increase in the IP.

3. Results and Discussion

3.1. Properties of SNME and FFA-based Biodiesel Blends

The variations of CFPP and IP with the weight percentage of the FFA-based biodiesel (wt.%) for the SNME and FFA-based biodiesel blends are shown in Figure 1. The CFPP of the blend continuously decreased with the increase of the weight percentage of the FFA-based biodiesel. When the FFA-based biodiesel increased to 30 wt.%, the CFPP of the biodiesel blends decreased to 0 °C which satisfied the requirement of Grade A to B in EN 14,214 in Europe or CNS 15,072 in Taiwan. However, the IP of the biodiesel blend would significantly decrease with the increasing weight percentage of the FFA-based biodiesel. When the weight percentage of the FFA-based biodiesel was 30 wt.% or higher, the IP of the blend was below the lower value of 6 h at 110 °C as specified in EN 14,214 and CNS 15,072. One may address that the oxidation stability of the biodiesel blend was still greater than 3 h as specified in ASTM D6751 until the FFA-based biodiesel reached to 60 wt.% in the blends. Obviously, the SNME and FFA-based biodiesel blends showed the complementary characteristics in respect of CFPP and oxidation stability.

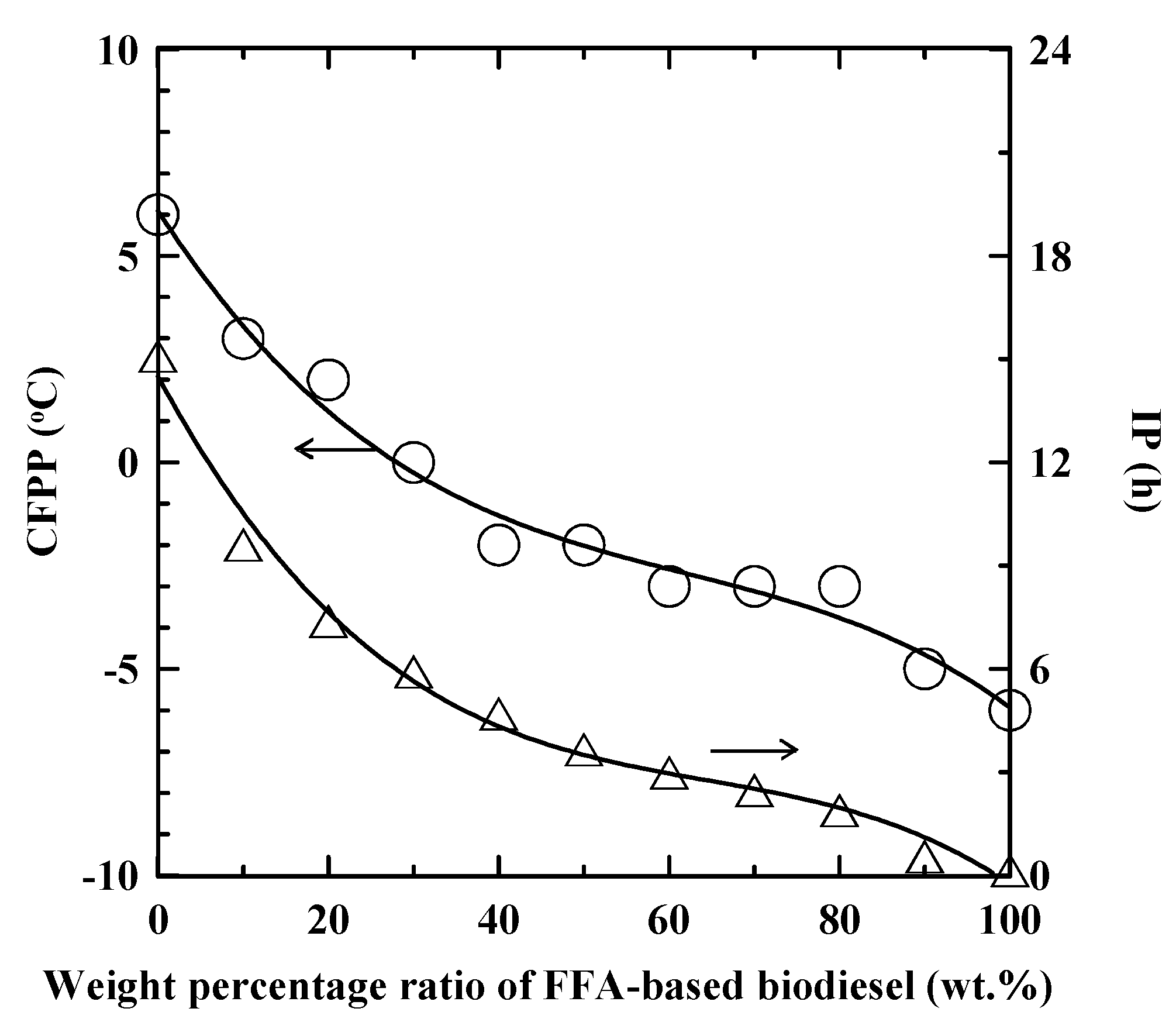

Figure 1. The variations of CFPP and IP with the weight percentage of FFA-based biodiesel (wt.%) for SNME and FFA-based biodiesel blends. ○ and Δ: CFPP and IP, respectively.
Figure 1. The variations of CFPP and IP with the weight percentage of FFA-based biodiesel (wt.%) for SNME and FFA-based biodiesel blends. ○ and Δ: CFPP and IP, respectively.
Energies 05 03137 g001
According to the property variations, the blending ratio of SNME and FFA-based biodiesel at 70:30 wt.% gave a CFPP of 0 °C and oxidation stability of 5.9 h. The biodiesel blend can satisfy the specifications except for marginal oxidation stability as specified in EN 14,214 and CNS 15,072. Therefore, this study further examined the addition of PDA for the improvement of the oxidation stability of the biodiesel blend. The SNME and FFA-based biodiesel blend at 60:40 wt.% was chosen as the model case for the following investigation and had the fatty acid composition as shown in Table 1. The properties of the biodiesel blend are given in Table 2 and further compared with various biodiesel specifications including ASTM D6751 in the United States, CNS 15,072 in Taiwan, and EN 14,214 in Europe.
Table 2. Properties of SNME and FFA-based biodiesel blend compared with ASTM D6751, CNS 15,072, and EN 14,214 specifications.
Table 2. Properties of SNME and FFA-based biodiesel blend compared with ASTM D6751, CNS 15,072, and EN 14,214 specifications.
PropertyUnitSNME and FFA-based biodiesel blendASTM D6751CNS 15072EN 14214
Acid valuemg KOH/g0.180.5 max0.5 max0.5 max
Cetane number-5847 min51 min51 min
CFPP°C−2a0 maxa
Density at 15 °Ckg/m3878b860–900860–900
Ester content% (m/m)98.6b96.5 min96.5 min
Flash point°C169
Iodine valueg I2/100 g95.7b120 max120 max
Kinematic viscosity at 40 °Cmm2/s4.821.9–6.03.50–5.03.50–5.0
Oxidation stability, 110 °Ch4.73.0 min6 min6 min
a Not specified; depends upon the location and time of year; b Not specified.

3.2. Temperature Dependence of IP and Enhanced with Addition of PDA

The IP of the biodiesel blend was clearly a function of the T and the PDA concentration (C0) over the experimental range, as illustrated in Figure 2. Apparently, a lower T or a higher C0 clearly caused a longer IP. In addition, the IP determined by EN 15,751 was slightly higher than that determined by EN 14,112 that may be caused from slower consumption of PDA by EN 15,751. At the C0 of 50 ppm, it showed negligible enhancement on the IP for all T. Furthermore, the IP started to remarkably increase with higher C0 where it appeared to be nonlinear curves, which was also observed in the previous studies [4,18,20,21,23]. Furthermore, the effectiveness of PDA at 500 ppm on the IP was evaluated by the stabilization factor (Table 3). The PDA presented the similar effectiveness at different T with an average stabilization factor of about 3.78 although the IPORIG of the biodiesel blend was remarkably great at a low T. As a result, the addition of PDA at 100 ppm was able to prolong the IP of the biodiesel blend greater than 6 h at 110 °C to satisfy the requirement of oxidation stability.

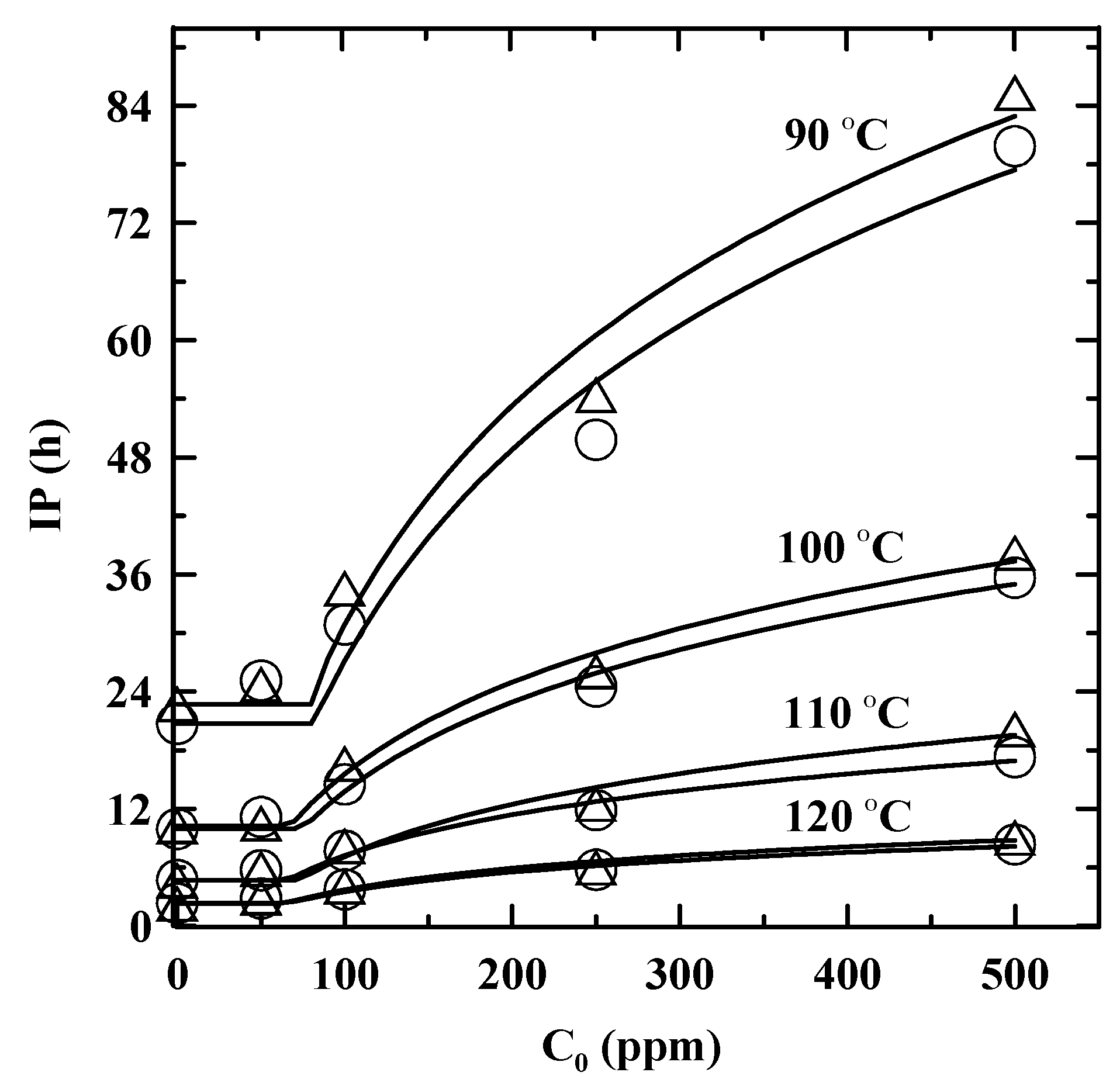

Figure 2. The variations of IP with C0 for the SNME and FFA-based biodiesel blend at 90 °C, 100 °C, 110 °C, and 120 °C, as determined by Rancimat method with the addition of PDA. Symbol, line: experimental data, prediction. ○ and Δ: EN 14,112 and EN 15,751, respectively.
Figure 2. The variations of IP with C0 for the SNME and FFA-based biodiesel blend at 90 °C, 100 °C, 110 °C, and 120 °C, as determined by Rancimat method with the addition of PDA. Symbol, line: experimental data, prediction. ○ and Δ: EN 14,112 and EN 15,751, respectively.
Energies 05 03137 g002
Table 3. The IPORIG and stabilization factor, kf, and CCr for consumption of PDA in the biodiesel blend at various temperature according to EN1411 and EN15,751.
Table 3. The IPORIG and stabilization factor, kf, and CCr for consumption of PDA in the biodiesel blend at various temperature according to EN1411 and EN15,751.
T(°C )MethodIPORIG (h)Stabilization factor akf (h−1)Ccr (ppm)R2
90EN 14,11220.703.860.032081.40.977
EN 15,75122.743.750.030977.80.958
100EN 14,1129.943.590.082763.80.976
EN 15,75110.253.730.076862.60.944
110EN 14,1124.703.600.16666.90.970
EN 15,7514.704.200.12674.10.967
120EN 14,1122.333.580.34666.30.977
EN 15,7512.303.930.31663.80.958
a Determined with the C0 at 500 ppm.

3.3. Reaction Rate Kinetics for Consumption of PDA

The experimental data in Figure 2 was further employed to study the reaction rate kinetics for the consumption of PDA in the biodiesel blend. As shown in Table 1, the values of kf and Ccr were determined by the slope and intercept of the straight line based on Equation (3), respectively, with high coefficient of determination (R2). The prediction of the IP based on the obtained reaction rate kinetics showed the satisfactory agreement with the experimental data, as illustrated in Figure 2. It was obvious that the kf significantly increased as T increased while the Ccr comparatively remained constant with an average value of 70 ppm at different T. Moreover, the kf and Ccr at 110 °C were determined as 0.166 h–1 and 66.9 ppm, respectively, based on EN 14,112. In contrast, the kf and Ccr values based on EN 15,751 were found lower (0.126 h–1) and similar (74.1 ppm), respectively, that evidenced slower consumption rate of PDA.
Figure 3 shows ln kf vs. T−1 based on the Arrhenius equation, kf = A exp–Ea/(RT), where A, Ea, and R are the pre-exponential factor, the activation energy, and the ideal gas law constant of 8.314 J/(mol·K), respectively. The values of A and Ea for the consumption of PDA were determined as 8.29 × 1011 h−1 and 93.07 kJ/mol, respectively, for EN 14,112. On the other hand, A and Ea were 1.97 × 1011 h−1 and 88.90 kJ/mol, respectively, for EN 15,751. Note that the higher A value for EN 14,112, indicating higher frequency of molecules collision of PDA and oxygen, mainly responded to higher consumption rate of PDA. In addition, the Ea value was between those obtained for the consumption of Ethanox 4760E (85.68 kJ/mol) and propyl gallate (97.02 kJ/mol) [22], indicating the similar mechanism of the antioxidant consumption.

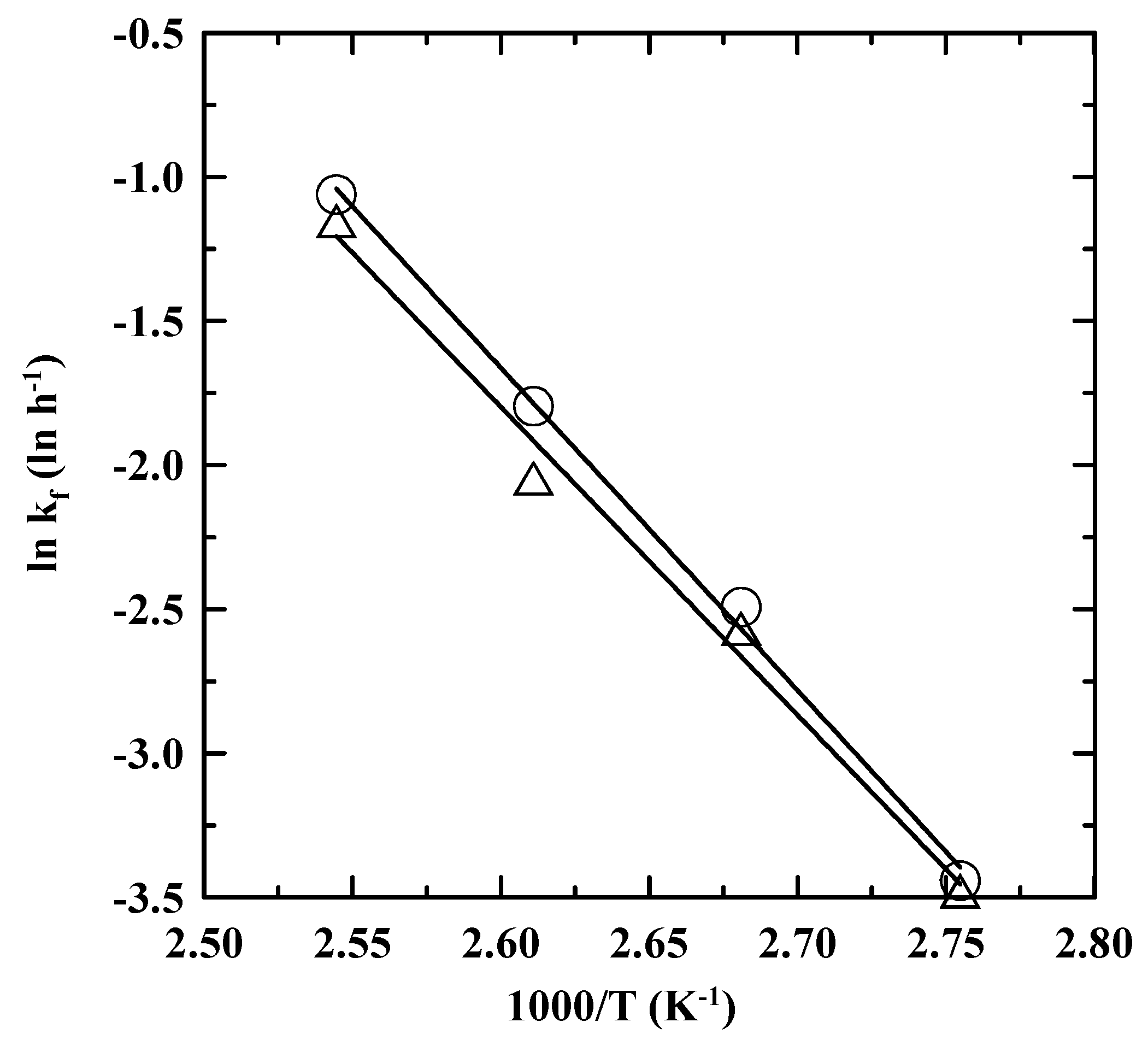

Figure 3. Temperature dependence of the ln kf for the consumption of PDA in the SNME and FFA-based biodiesel blend. ○ and Δ: EN 14,112 (ln kf = −11194.57/T (K−1) + 27.4, R2 = 0.997) and EN 15,751 (ln kf = −10693.11/T (K−1) + 26.0, R2 = 0.990) , respectively.
Figure 3. Temperature dependence of the ln kf for the consumption of PDA in the SNME and FFA-based biodiesel blend. ○ and Δ: EN 14,112 (ln kf = −11194.57/T (K−1) + 27.4, R2 = 0.997) and EN 15,751 (ln kf = −10693.11/T (K−1) + 26.0, R2 = 0.990) , respectively.
Energies 05 03137 g003

3.4. IP at Ambient Temperature as Obtained by an Extrapolation Method

Figure 4a illustrates a linear relationship between the ln IP and T for the biodiesel blend with C0 at 0, 100, 250, 500 ppm. It was consistent with the findings of Xin et al. [22] who presented a linear relation between the ln IP and T of safflower biodiesel stabilized with propyl gallate. On the other hand, the linear relationship between the ln IP and 1/T (K−1) was proposed according to Equation (3) and the Arrhenius equation which has been shown in Figure 4b. The temperature-dependent correlations of ln IP for the SNME and FFA-based biodiesel blend stabilized with various C0 of PDA using EN 14,112 and EN 15,751 are highly linear as shown in Table 4. Then the storage time of biodiesel at ambient temperatures could be predicted by extrapolating the temperature-dependent correlations.
Figure 4. The relationship between ln IP and T for the SNME and FFA-based biodiesel blend stabilized with various C0 of PDA. ○ and Δ: EN 14,112 and EN 15,751, respectively. (a) Linear relationship between ln IP and T (°C); (b) linear relationship between ln IP and 1/T (K−1).
Figure 4. The relationship between ln IP and T for the SNME and FFA-based biodiesel blend stabilized with various C0 of PDA. ○ and Δ: EN 14,112 and EN 15,751, respectively. (a) Linear relationship between ln IP and T (°C); (b) linear relationship between ln IP and 1/T (K−1).
Energies 05 03137 g004
Table 4. The temperature-dependent correlations of ln IP for the SNME and FFA-based biodiesel blend stabilized with various C0 of PDA using EN 14,112 and EN 15,751.
Table 4. The temperature-dependent correlations of ln IP for the SNME and FFA-based biodiesel blend stabilized with various C0 of PDA using EN 14,112 and EN 15,751.
C0 (ppm)EN 14,112EN 15,751
0ln IP = −0.0728 T + 9.58, R2 = 0.999ln IP = −0.0763 T + 9.98, R2 = 1
ln IP = 10391.35/T − 25.568, R2 = 0.999ln IP = 10896.89/T − 26.9, R2 = 1
100ln IP = −0.0708 T + 9.84, R2 = 0.999ln IP = −0.0717 T + 10.0, R2 = 0.999
ln IP = 10139/T − 24.5, R2 = 0.998ln IP = 10381/T − 25.1, R2 = 0.995
250ln IP = −0.072 T + 10.4, R2 = 1ln IP= −0.0734 T + 10.6, R2 = 1
ln IP = 10270/T − 24.3, R2 = 0.999ln IP = 10477/T − 24.8, R2 = 0.999
500ln IP = −0.075 T + 11.1, R2 = 0.999ln IP = −0.0737 T + 11.1, R2 = 0.998
ln IP = 10706/T − 25.1, R2 = 0.999ln IP = 10520/T − 24.5, R2 = 0.998
Figure 5 compared the differences of the predicted IP at 25 °C with C0. Apparently, the storage time predicted based on the reaction rate kinetics was about 4.51–4.96 times longer than that predicted by the linear relationship between ln IP and T. Furthermore, the predicted IP based on EN 15,751 was slightly higher than that based on EN 14,112 especially for the region of low C0. According to the prediction of reaction rate kinetics, the biodiesel blend can be stored more 449 days. However, approximately 200 ppm and 150 ppm of PDA was required to guarantee a half year of storage, which is the current recommendation for biodiesel shelf life [24,25], based on EN 14,112 and EN 15,751, respectively. It was obvious that the further study is required to verify the validity of the two prediction models for biodiesel shelf life.

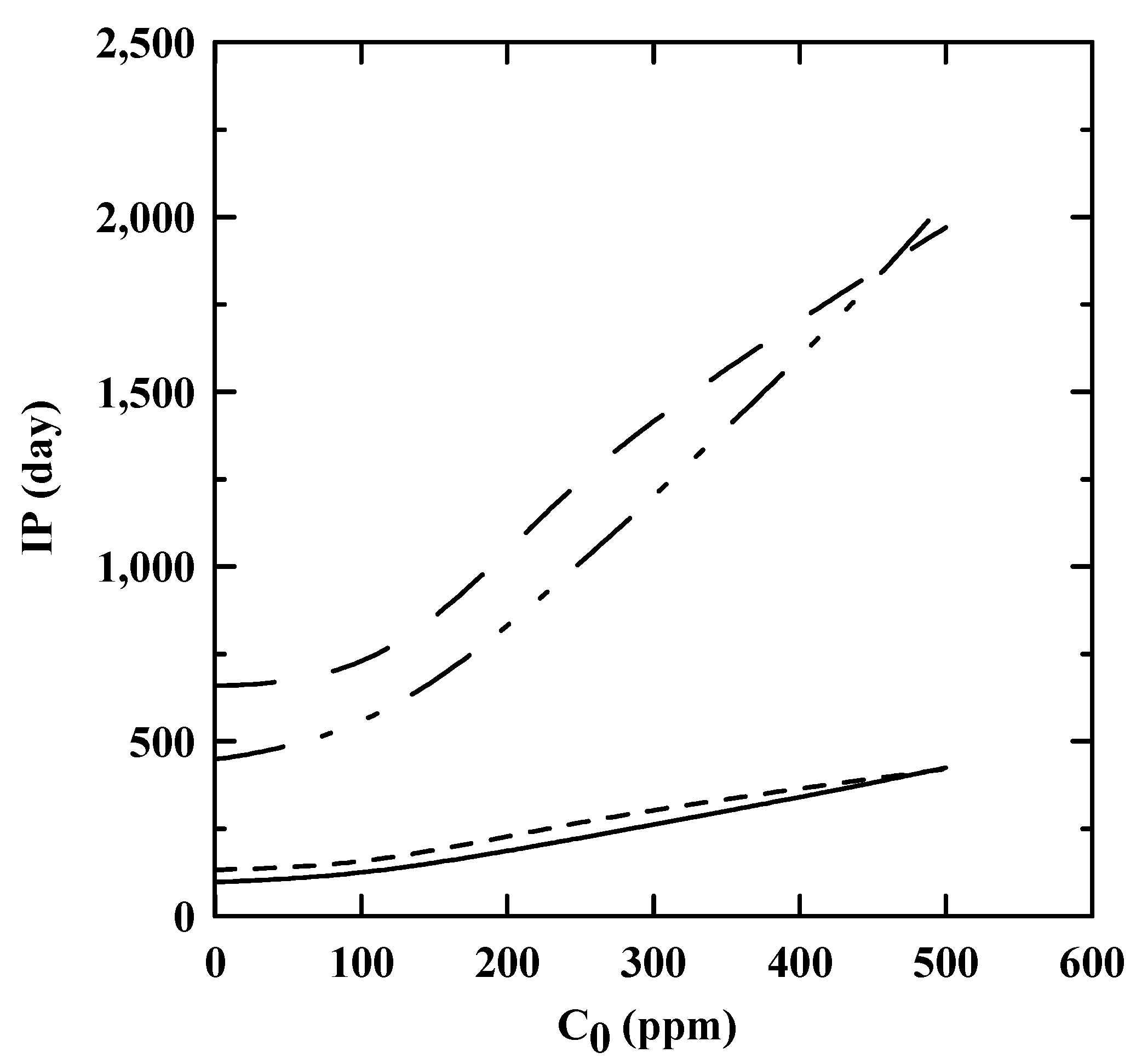

Figure 5. The predicted IP of the SNME and FFA-based biodiesel blend at 25 °C with C0. — and ------: EN 14,112 and EN 15,751, respectively, as predicted by the linear relationship between ln IP and T. – · · – and Energies 05 03137 i001: EN 14,112 and EN 15,751, respectively, as predicted by the reaction rate kinetics.
Figure 5. The predicted IP of the SNME and FFA-based biodiesel blend at 25 °C with C0. — and ------: EN 14,112 and EN 15,751, respectively, as predicted by the linear relationship between ln IP and T. – · · – and Energies 05 03137 i001: EN 14,112 and EN 15,751, respectively, as predicted by the reaction rate kinetics.
Energies 05 03137 g005

4. Conclusions

The soapnut oil methyl esters (SNME) and high-oleic free fatty acids (FFA)-based biodiesel showed complementary properties. The SNME and FFA-based biodiesel at 70:30 wt.% can satisfy the biodiesel specifications, except the marginal oxidation stability. The addition of N,N′-di-sec-butyl-p-phenylenediamine (PDA) at 100 ppm was recommended for the improvement of the oxidation stability. In addition, the consumption rate of the PDA in the biodiesel blend can be described by the first-order reaction rate kinetics. The biodiesel shelf life predicted by the reaction rate kinetics is significantly higher than that by the linear relationship between the natural logarithm of induction period and temperature.

Acknowledgement

This study was supported by the National Science Council of Taiwan.

References

  1. Meher, L.C.; Sagar, D.V.; Naik, S.N. Technical aspects of biodiesel production by transesterification—A review. Renew. Sustain. Energy Rev. 2006, 10, 248–268. [Google Scholar] [CrossRef]
  2. Moser, B.R.; Knothe, G.; Cermak, S.C. Biodiesel from meadowfoam (Limnanthes alba L.) seed oil: Oxidative stability and unusual fatty acid composition. Energy Environ. Sci. 2010, 3, 318–327. [Google Scholar] [CrossRef]
  3. Park, J.Y.; Kim, D.K.; Lee, J.P.; Park, S.C.; Kim, Y.J.; Lee, J.S. Blending effects of biodiesels on oxidation stability and low temperature flow properties. Bioresour. Technol. 2008, 99, 1196–1203. [Google Scholar] [CrossRef] [PubMed]
  4. Schober, S.; Mittellbach, M. The impact of antioxidants on biodiesel oxidation stability. Eur. J. Lipid Sci. Technol. 2004, 106, 382–389. [Google Scholar] [CrossRef]
  5. Haryana-online.com. Ritha. 2007. Available online: http://www.haryana-online.com/Flora/ritha.htm (accessed on 17 August 2012).
  6. Chhetri, A.B.; Tango, M.S.; Budge, S.M.; Watts, K.C.; Islam, M.R. Non-edible plant oils as new sources for biodiesel production. Int. J. Mol. Sci. 2008, 9, 169–180. [Google Scholar] [CrossRef] [PubMed]
  7. Huang, S.; Wang, J.; Du, M.; Zhang, J.; Jiang, J. Fatty acid composition analysis of Sapindus mukorossi Gaerth seed oil (in Chinese). China Oils Fats 2009, 34, 74–76. [Google Scholar]
  8. Misra, R.D.; Murthy, M.S. Performance, emission and combustion evaluation of soapnut oil-diesel blends in a compression ignition engine. Fuel 2011, 90, 2514–2518. [Google Scholar] [CrossRef]
  9. Chen, Y.H.; Chiang, T.H.; Chen, J.H. An optimum biodiesel combination: Jatropha and soapnut oil biodiesel blends. Fuel 2011, 92, 377–380. [Google Scholar] [CrossRef]
  10. Ng, W.K.; Lim, P.K.; Boey, P.L. Dietary lipid and palm oil source affects growth, fatty acid composition and muscle α-tocopherol concentration of African catfish, Clarias gariepinus. Aquaculture 2003, 215, 229–243. [Google Scholar] [CrossRef]
  11. Aranda, D.A.G.; Santos, R.T.P.; Tapanes, N.C.O.; Ramos, A.L.D.; Antunes, O.A.C. Acid-catalyzed homogeneous esterification reaction for biodiesel production from palm fatty acids. Catal. Lett. 2008, 122, 20–25. [Google Scholar] [CrossRef]
  12. Ooi, Y.S.; Zakaria, R.; Mohamed, A.R.; Bhatia, S. Catalytic conversion of palm oil-based fatty acid mixture to liquid fuel. Biomass Bioenergy 2004, 27, 477–484. [Google Scholar] [CrossRef]
  13. Chen, Y.H.; Luo, Y.M. Oxidation stability of biodiesel derived from free fatty acids associated with kinetics of antioxidants. Fuel Process. Technol. 2011, 92, 1387–1393. [Google Scholar] [CrossRef]
  14. Waynick, J.A. Characterization of Biodiesel Oxidation and Oxidation Products; National Renewable Energy Laboratory: Lakewood, CO, USA, 2005; pp. 3–5. [Google Scholar]
  15. Karavalakis, G.; Stournas, S.; Karonis, D. Evaluation of the oxidation stability of diesel/biodiesel blends. Fuel 2010, 89, 2483–2489. [Google Scholar] [CrossRef]
  16. Dunn, R.O. Effect of antioxidants on the oxidation stability of methyl soyate (biodiesel). Fuel Process. Technol. 2005, 86, 1071–1085. [Google Scholar] [CrossRef]
  17. Moser, B.R. Influence of blending canola, palm, soybean, and sunflower oil methyl esters on fuel properties of biodiesel. Energy Fuels 2008, 22, 4301–4306. [Google Scholar] [CrossRef]
  18. Araújo, S.V.; Luna, F.M.T.; Rola, E.M., Jr.; Azevedo, D.C.S.; Cavalcante, C.L., Jr. A rapid method for evaluation of the oxidation stability of castor oil FAME: Influence of antioxidant type and concentration. Fuel Process. Technol. 2009, 90, 1272–1277. [Google Scholar] [CrossRef]
  19. Denisov, E.T.; Khudyakov, I.V. Mechanisms of action and reactivities of the free radicals of inhibitors. Chem. Rev. 1987, 87, 1313–1357. [Google Scholar] [CrossRef]
  20. Domingos, A.K.; Saad, E.B.; Vechiatto, W.W.D.; Wilhelm, H.M.; Ramos, L.P. The influence of BHA, BHT and TBHQ on the oxidation stability of soybean oil ethyl esters (biodiesel). J. Braz. Chem. Soc. 2007, 18, 416–423. [Google Scholar] [CrossRef]
  21. Guzman, R.D.; Tang, H.; Salley, S.; Ng, K.Y.S. Synergistic effects of antioxidants on the oxidation stability of soybean oil- and poultry fat-based biodiesel. J. Am. Oil Chem. Soc. 2009, 86, 459–467. [Google Scholar] [CrossRef]
  22. Xin, J.; Imahara, H.; Saka, S. Kinetics on the oxidation of biodiesel stabilized with antioxidant. Fuel 2009, 88, 282–286. [Google Scholar] [CrossRef]
  23. Chen, Y.H.; Chen, J.H.; Luo, Y.M.; Shang, N.C.; Chang, C.H.; Chang, C.Y.; Chiang, P.C.; Shie, J.L. Property modification of jatropha oil biodiesel by blending with other biodiesels or adding antioxidants. Energy 2011, 36, 4415–4421. [Google Scholar] [CrossRef]
  24. Tang, H.; Guzman, R.D.; Salley, S.O.; Ng, K.Y.S. The oxidation stability of biodiesel: Effects of FAME composition and antioxidant. Lipid Technol. 2008, 20, 249–252. [Google Scholar] [CrossRef]
  25. Bondioli, P.; Gasparoli, A.; Bella, L.; Tagliabue, S.; Toso, G. Biodiesel stability under commercial storage conditions over one year. Eur. J. Lipid Sci. Technol. 2003, 105, 735–741. [Google Scholar] [CrossRef]
