Energies 2011, 4(6), 878-893; doi:10.3390/en4060878
Article

Impact of Turbulence Intensity and Equivalence Ratio on the Burning Rate of Premixed Methane–Air Flames

Laboratory of Fluid Dynamics and Technical Flows, Institute of Fluid Dynamics and Thermodynamics, University of Magdeburg, Universitätsplatz 2, D-39106 Magdeburg, Germany
* Author to whom correspondence should be addressed.
Received: 29 March 2011; in revised form: 6 May 2011 / Accepted: 18 May 2011 / Published: 27 May 2011
(This article belongs to the Special Issue Advancement in Combustion Sciences and Technology)
PDF Full-text Download PDF Full-Text [1046 KB, uploaded 27 May 2011 09:54 CEST]

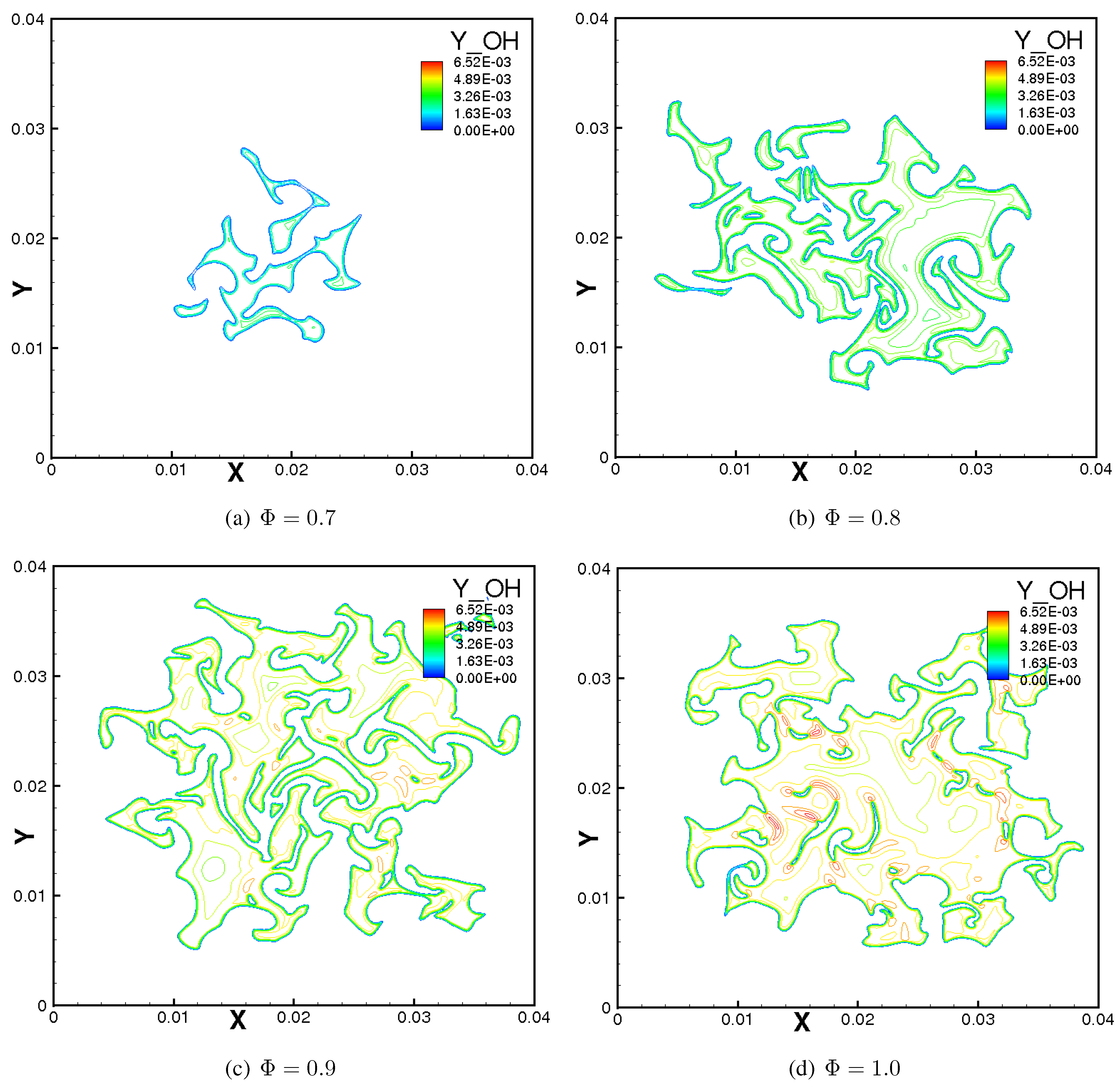

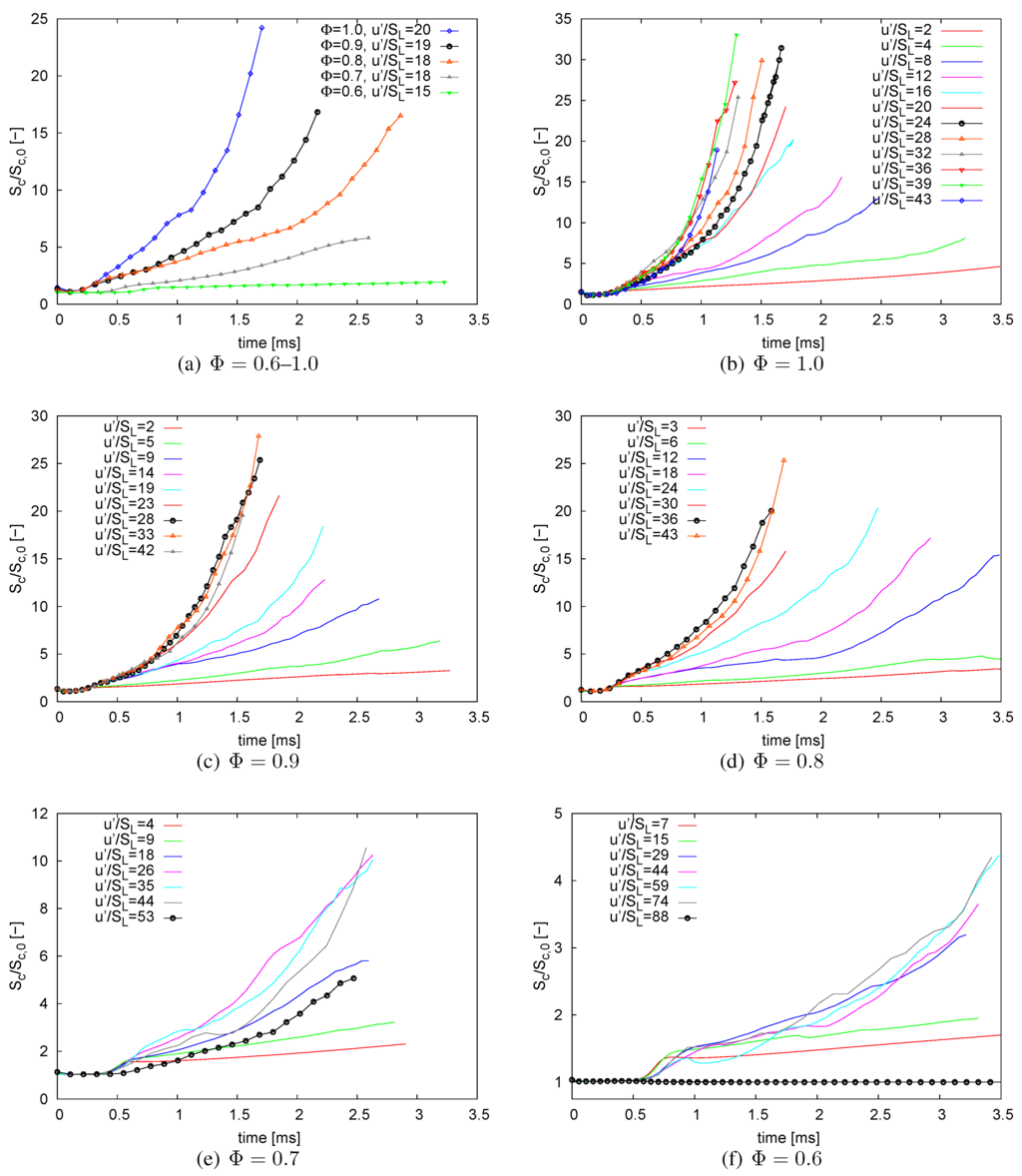

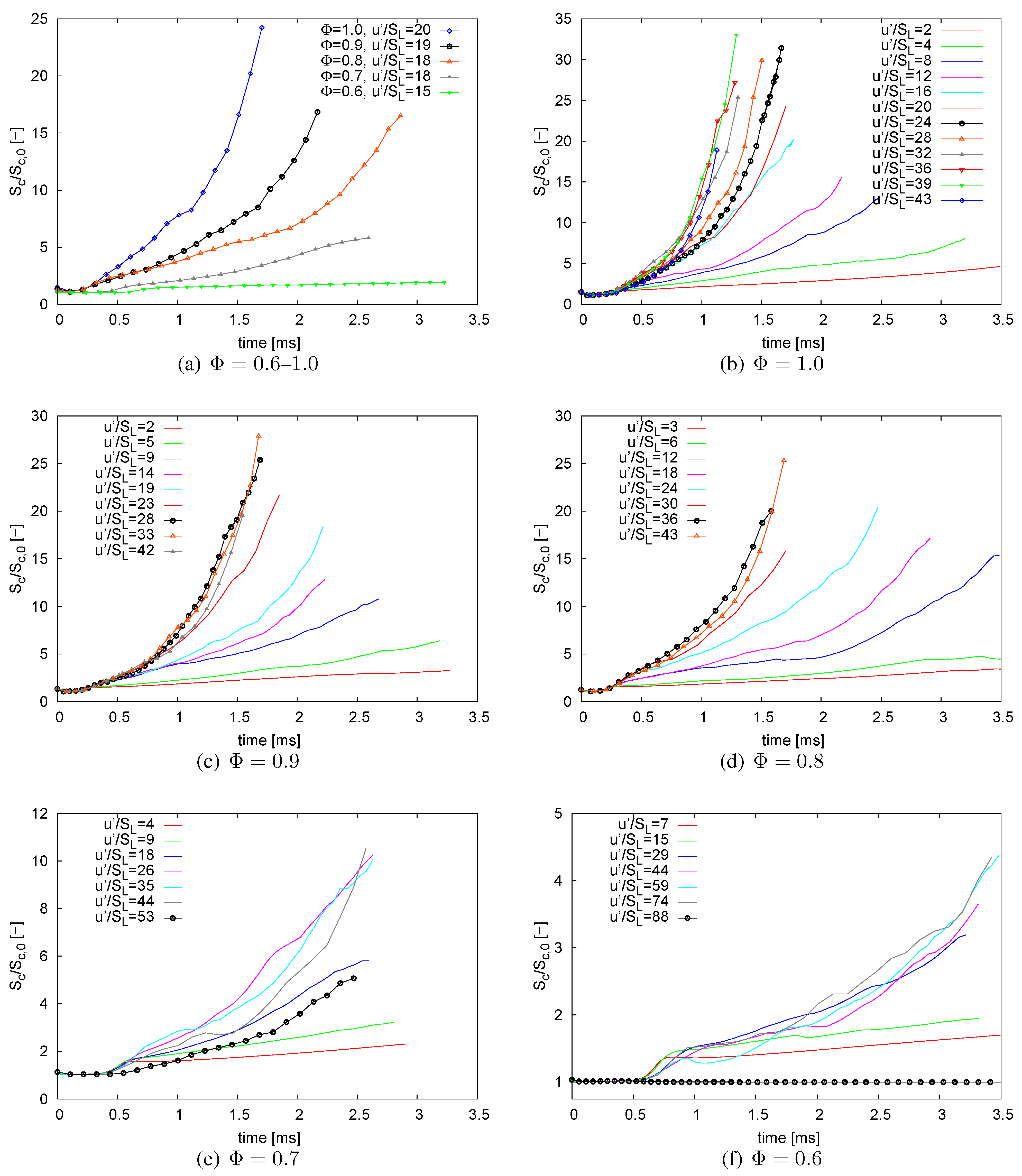

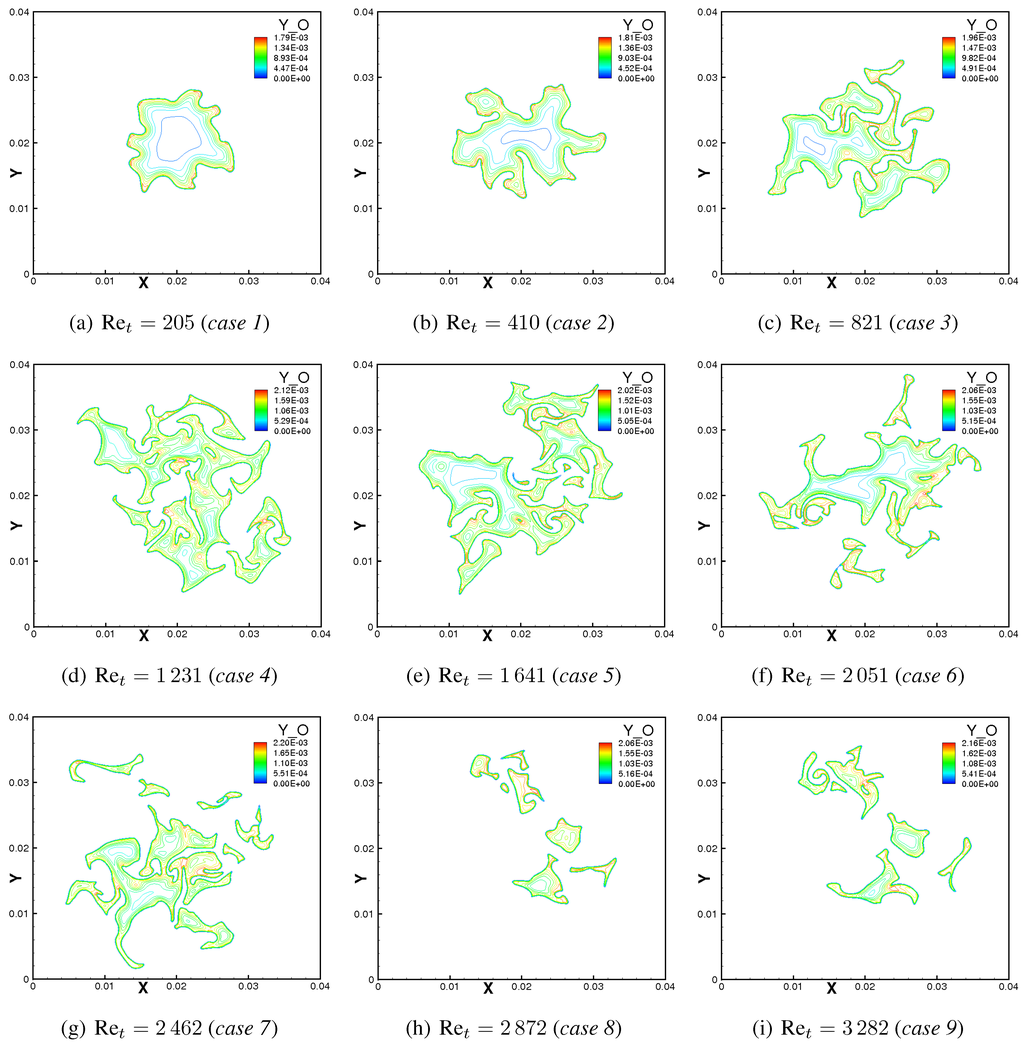

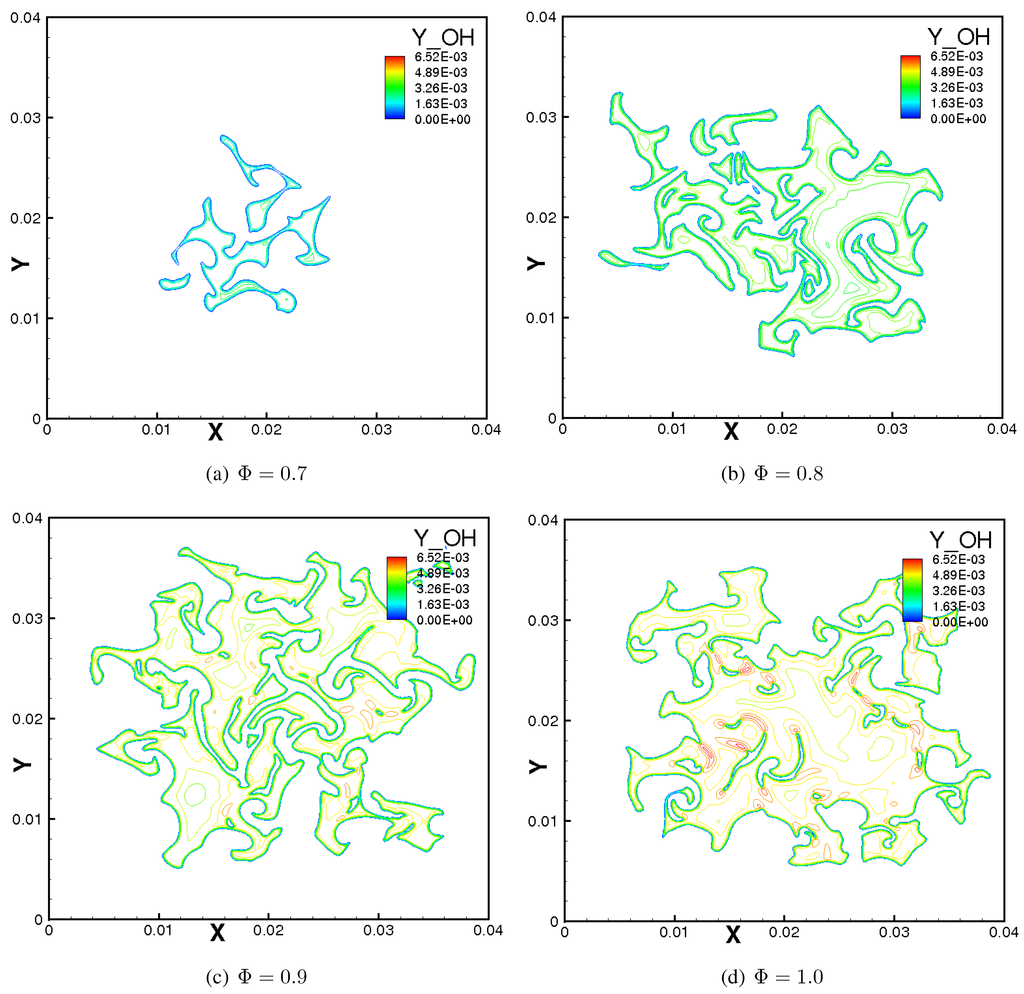

Abstract: Direct Numerical Simulations (DNS) have been conducted to study the response of initially laminar spherical premixed methane–air flame kernels to successively higher turbulence intensities at five different equivalence ratios. The numerical experiments include a 16-species/25-step skeletal mechanism for methane oxidation and a multicomponent molecular transport model. Highly turbulent conditions (with integral Reynolds numbers up to 4513) have been accessed. The effect of turbulence on the physical properties of the flame, in particular its consumption speed Sc, which is an interesting measure of the turbulent flame speed ST has been investigated. Local quenching events are increasingly observed for highly turbulent conditions, particularly for lean mixtures. The obtained results qualitatively confirm the expected trend regarding correlations between u′/SL and the consumption speed: Sc first increases, roughly linearly, with u′/SL (low turbulence zone), then levels off (bending zone) before decreasing again (quenching limit) for too intense turbulence. For a fixed value of u′/SL, Sc/SL varies with the mixture equivalence ratio, showing that additional parameters should probably enter phenomenological expressions relating these two quantities.
Keywords: premixed turbulent combustion; turbulent burning speed; fuel consumption rate; equivalence ratio; Direct Numerical Simulations; intense turbulence
