Water Velocity Measurements on a Vertical Barrier Screen at the Bonneville Dam Second Powerhouse
Abstract
:1. Introduction

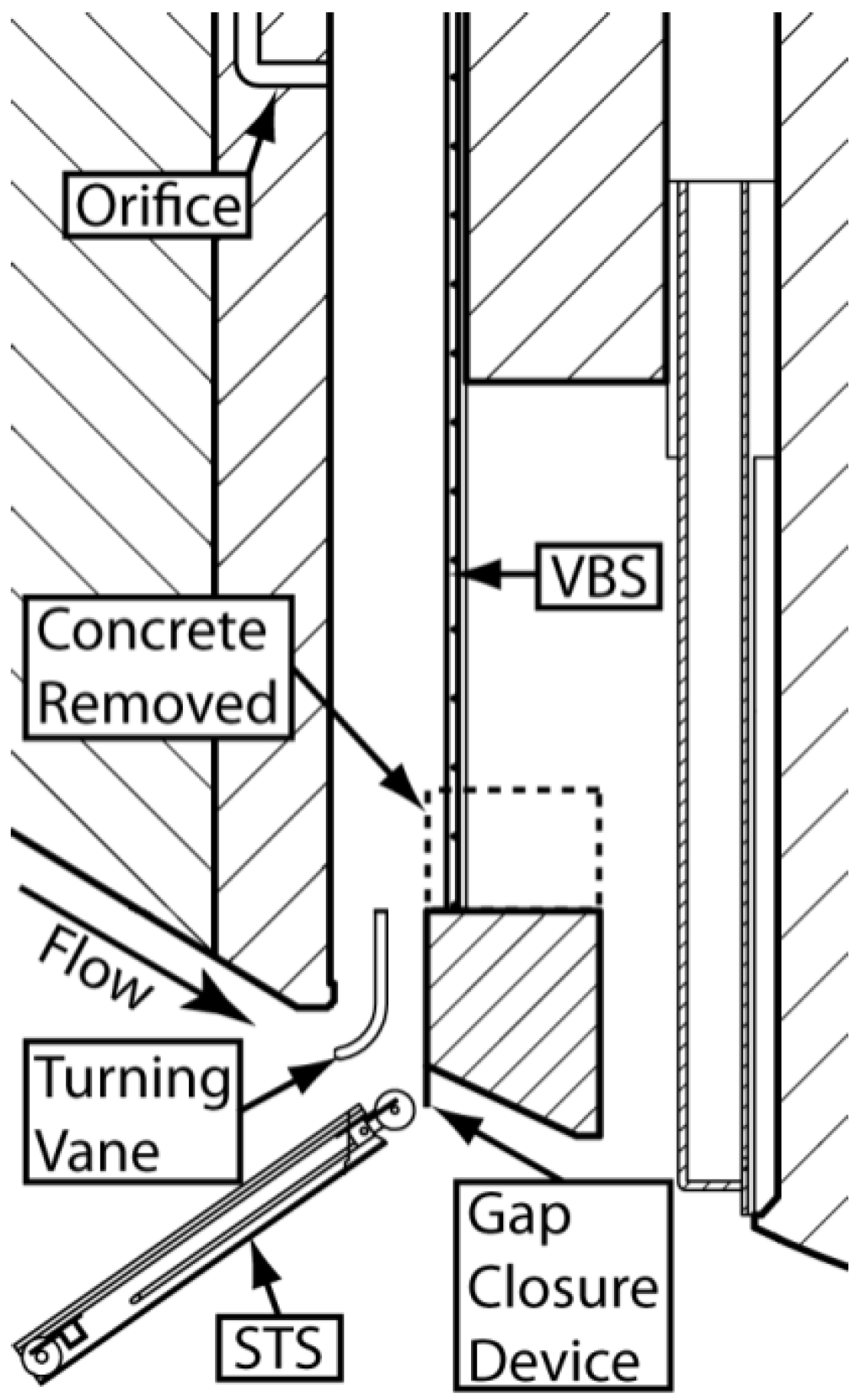

2. Site Description
3. Methods

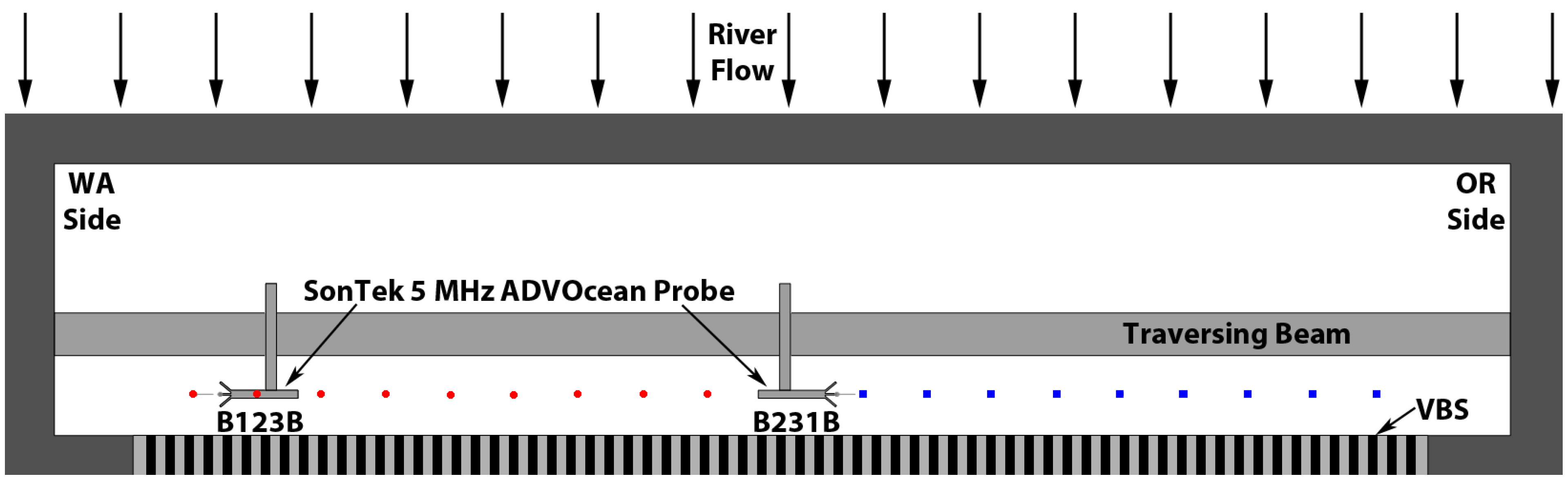

3.1. Experimental Setup and Data Collection
3.2. Data Analysis
4. Results

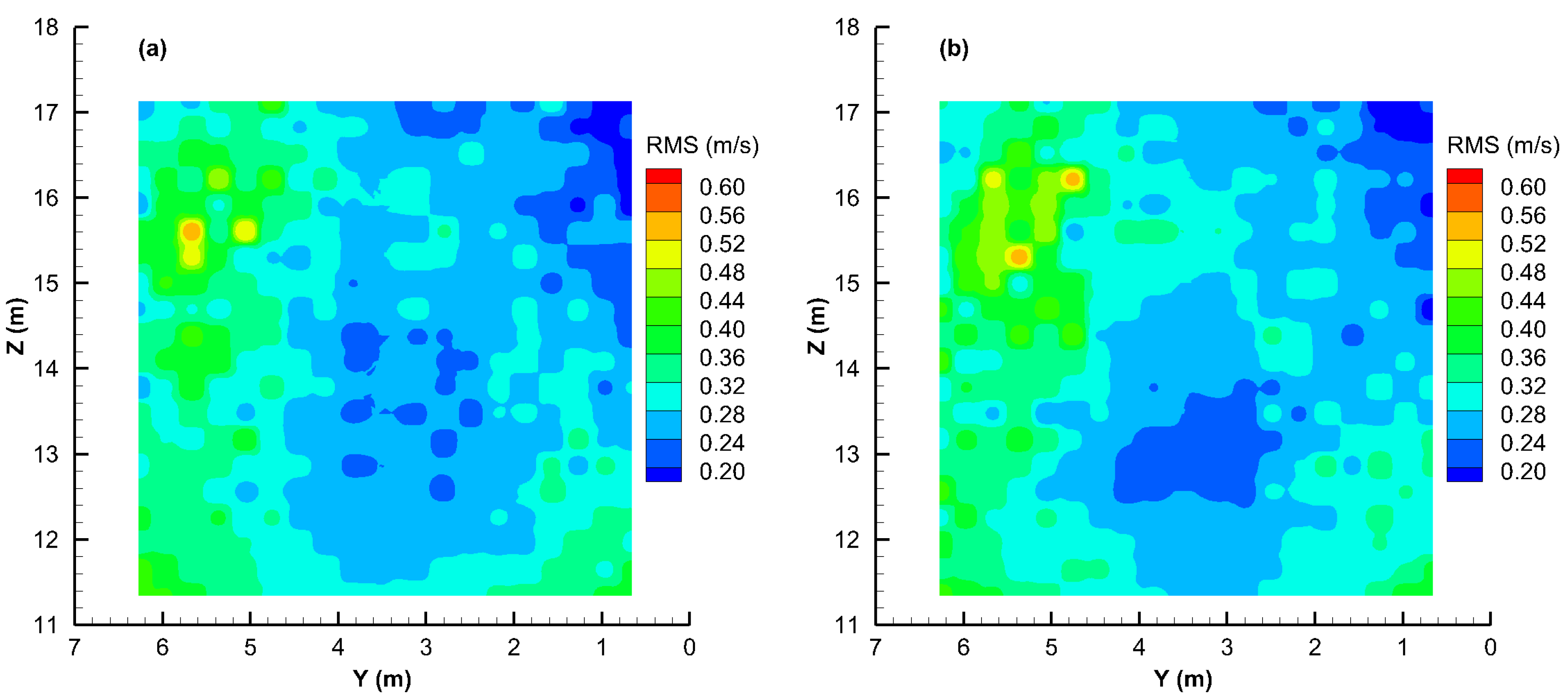

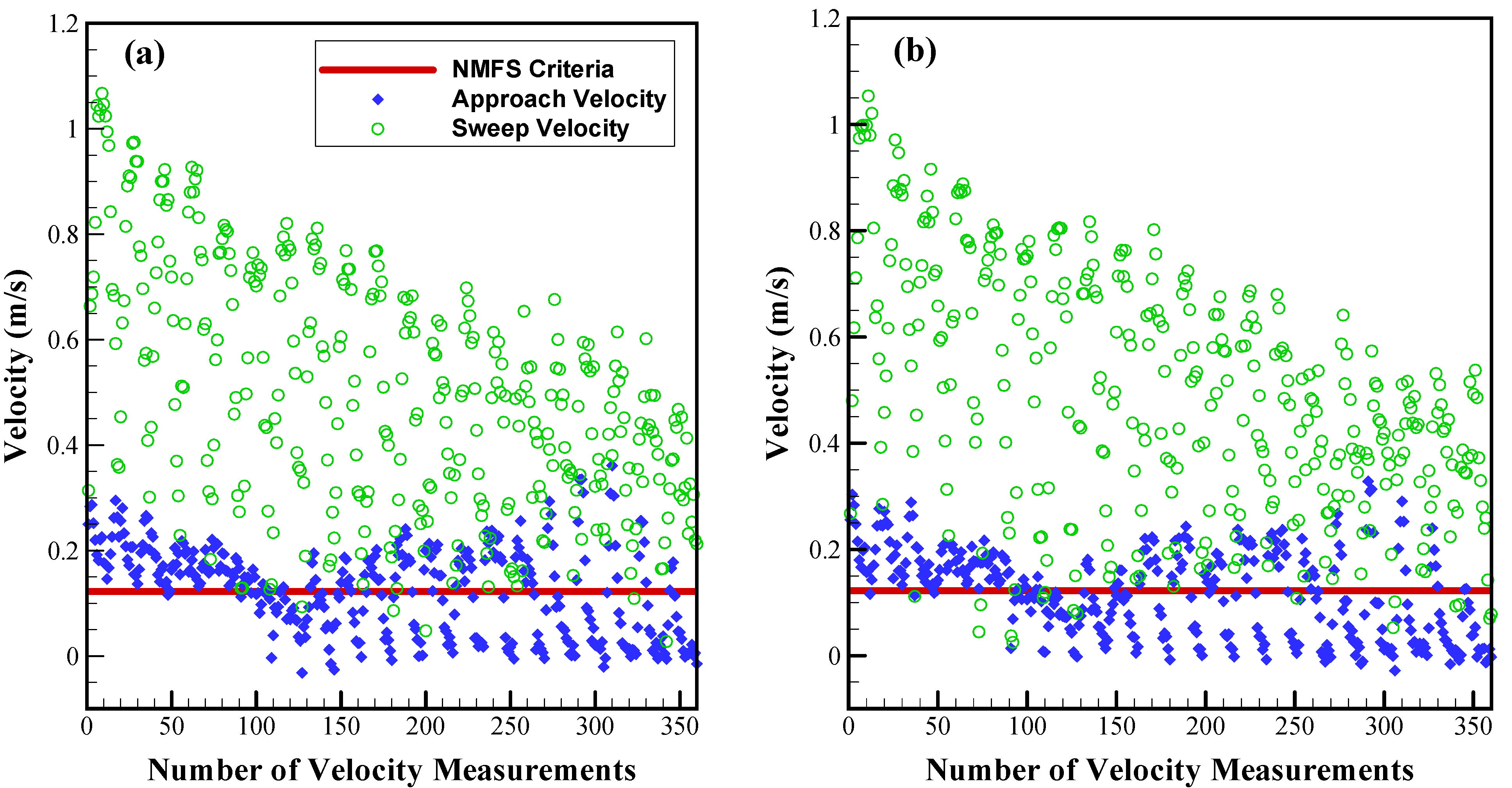

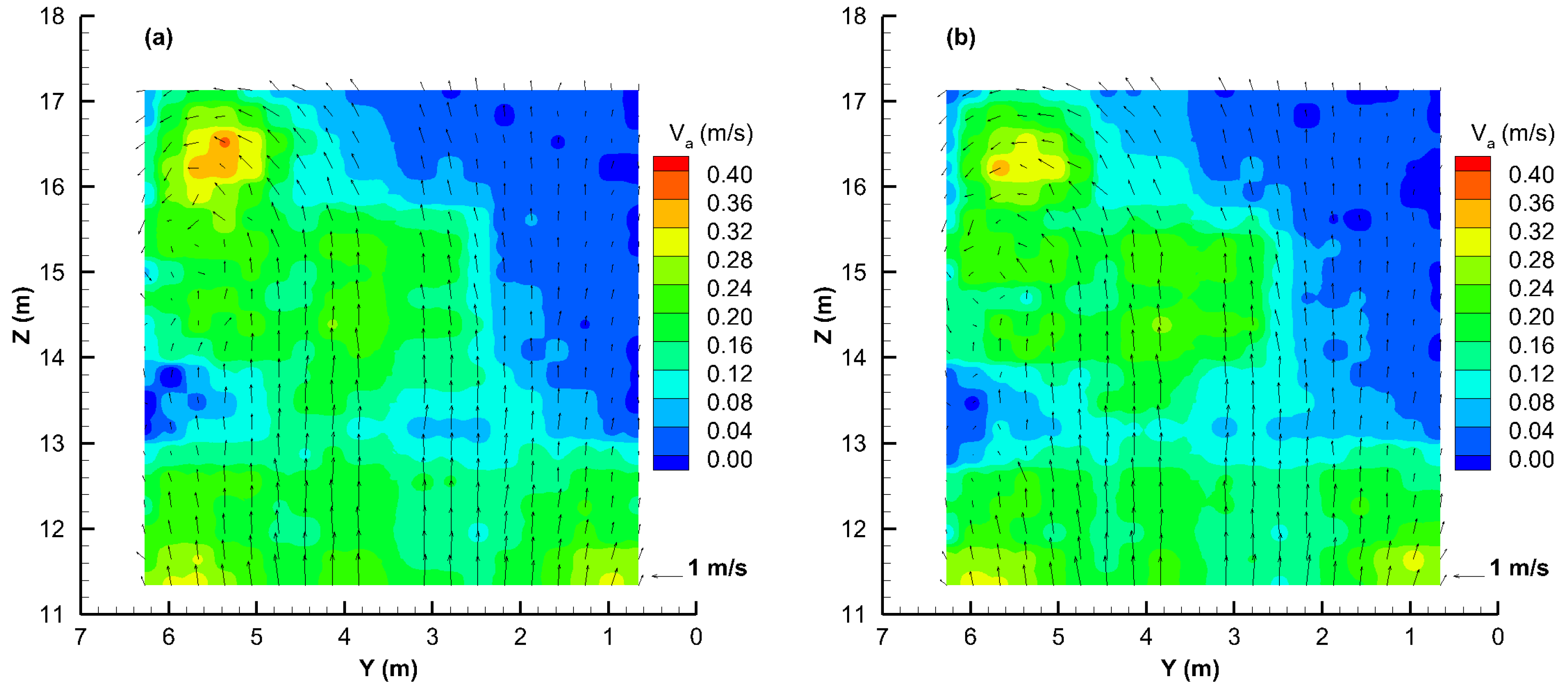

Unit | B2CC Status | Discharge Rate (m3/s) | Va (m/s) | % of Va < 0.12 m/s | Vs (m/s) | RMS (m/s) | Vs/Va |
---|---|---|---|---|---|---|---|
14A | Open | 340 | 0.126 | 44.72 | 0.500 | 0.292 | 4.866 |
Open | 416 | 0.154 | 36.39 | 0.604 | 0.363 | 4.707 | |
Open | 447 | 0.162 | 35.28 | 0.627 | 0.396 | 4.663 | |
Closed | 340 | 0.120 | 48.89 | 0.491 | 0.296 | 5.051 | |
Closed | 416 | 0.152 | 36.94 | 0.610 | 0.376 | 4.482 | |
Closed | 447 | 0.166 | 33.61 | 0.664 | 0.401 | 4.265 | |
12A | Open | 447 | 0.157 | 39.72 | 0.579 | 0.371 | 4.466 |
Closed | 447 | 0.183 | 25.00 | 0.668 | 0.379 | 3.938 |
5. Discussion
6. Conclusions
Acknowledgments
References
- Clay, C.H. Design of Fishways and Other Fish Facilities; Lewis Publishers: Boca Raton, FL, USA, 1995. [Google Scholar]
- Allen, M.E.; Cherian, M.P.; Weber, L.J. Flow through barrier screens—numerical model. In Proceedings of the North American Water and Environment Congress & Destructive Water; American Society of Civil Engineers: New York, NY, USA, 1996; pp. 1111–1116. [Google Scholar]
- Marmulla, G. Dams, Fish, and Fisheries: Opportunities, Challenges and Conflict Resolution; Technical Paper T419; Food and Agriculture Organization of the United Nations: Rome, Italy, 2001. [Google Scholar]
- McMichael, G.A.; Vucelick, J.A.; Abernethy, C.S.; Neitzel, D. Comparing fish screen performance to physical design criteria. Fisheries 2004, 7, 10–16. [Google Scholar] [CrossRef]
- Swanson, C.; Young, P.S.; Cech, J.J., Jr. Close encounters with a fish screen: integrating physiological and behavioral results to protect endangered species in exploited systems. Trans. Am. Fish. Soc. 2005, 134, 1111–1123. [Google Scholar] [CrossRef]
- Rajaratnam, N.; Sadeque, M.A.F.; Katopodis, C. A simple method to predict flow distribution at vertical angled screens in open channels. Can. J. Civil Eng. 2006, 33, 982–988. [Google Scholar] [CrossRef]
- ENSR International. Determine the Backing Plate Porosities and Configuration That Minimizes Velocity Components Normal to the Screen Face for the New VBS Design; ENSR International: Westford, MA, USA, 2004. [Google Scholar]
- SonTek/YSI. SonTek/YSI ADVField/Hydra: Operation Manual; SonTek/YSI: San Diego, CA, USA, 2002. [Google Scholar]
- Nikora, V.I.; Goring, D.G. ADV measurements of turbulence: Can we improve their interpretation? J. Hydraul. Eng. 1998, 124, 630–634. [Google Scholar] [CrossRef]
- Song, T.; Chiew, Y.M. Turbulence measurement in nonuniform open-channel flow using acoustic Doppler velocimeter (ADV). J. Eng. Mech. 2001, 127, 219–232. [Google Scholar] [CrossRef]
- García, C.M.; Cantero, M.I.; Niňo, Y.; Garcia, M.H. Turbulence measurements with acoustic Doppler velocimeters. J. Hydraul. Eng. 2005, 131, 1062–1073. [Google Scholar] [CrossRef]
- Richmond, M.C.; Deng, Z.; Guensch, G.R.; Tritico, H.; Pearson, W.H. Mean flow and turbulence characteristics of a full-scale spiral corrugated culvert with implications for fish passage. Ecol. Eng. 2007, 30, 333–340. [Google Scholar] [CrossRef]
- Deng, Z.; Mueller, R.P.; Richmond, M.C.; Johnson, G.E. Injury and mortality of juvenile salmon entrained in a submerged jet entering still water. North Am. J. Fish. Manag. 2010, 30, 623–628. [Google Scholar] [CrossRef]
- Buffin-Bélanger, T.; Roy, A. 1 min in the life of a river: selecting the optimal record length for the measurement of turbulence in fluvial boundary layers. Geomorphology 2004, 68, 77–94. [Google Scholar] [CrossRef]
- Cea, L.; Puertas, J.; Pena, L. Velocity measurements on highly turbulent free surface flow using ADV. Exp. Fluids 2007, 42, 333–348. [Google Scholar] [CrossRef]
- Donoho, D.L.; Johnstone, I.M. Ideal spatial adaptation by wavelet shrinkage. Biometrika 1994, 81, 425–455. [Google Scholar] [CrossRef]
- Goring, D.G.; Nikora, V.I. Despiking acoustic Doppler velocimeter records. ASCE J. Hydraul. Eng. 2002, 128, 117–126. [Google Scholar] [CrossRef]
- National Marine Fisheries Service (NMFS). Juvenile Fish Screen Criteria; NMFS Environmental & Technical Services Division: Portland, OR, USA, 1996. [Google Scholar]
- Washington Department of Fish and Wildlife (WDFW). Fish Passage Barrier and Surface Water Diversion Screening Assessment and Prioritization Manual; WDFW: Olympia, WA, USA, 2009. [Google Scholar]
