Enhanced Oil Recovery (EOR) by Miscible CO2 and Water Flooding of Asphaltenic and Non-Asphaltenic Oils
Previous Article in Journal
Addendum: Tanabe, K. A Review of Ultrahigh Efficiency III-V Semiconductor Compound Solar Cells: Multijunction Tandem, Lower Dimensional, Photonic Up/Down Conversion and Plasmonic Nanometallic Structures. Energies, 2009, 2, 504-530.
Energies 2009, 2(3), 697-713; doi:10.3390/en20300697

Investigation of the Performance of a Heat Pump Using Waste Water as a Heat Source

1,*  and 2
1 Technical Education Faculty, Mechanical Education Department, Selçuk University, 42003, Konya, Turkey 2 Technical Science Vocational High School, Selçuk University, 42003, Konya, Turkey
* Author to whom correspondence should be addressed.
Received: 5 August 2009 / Accepted: 24 August 2009 / Published: 28 August 2009
Download PDF [996 KB, uploaded 17 March 2015]

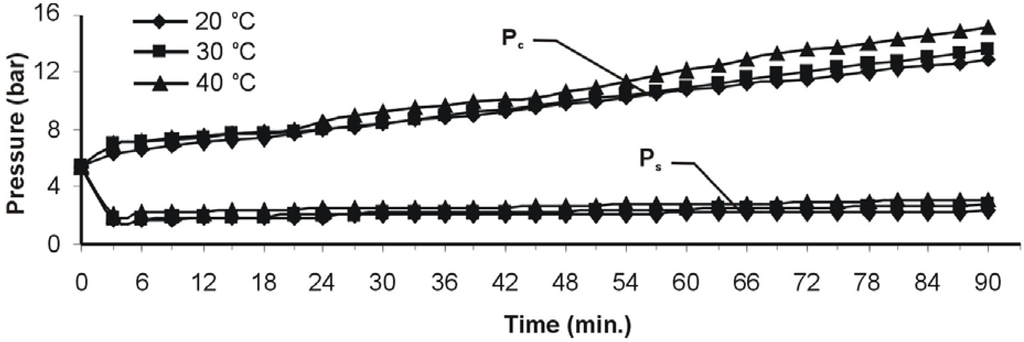

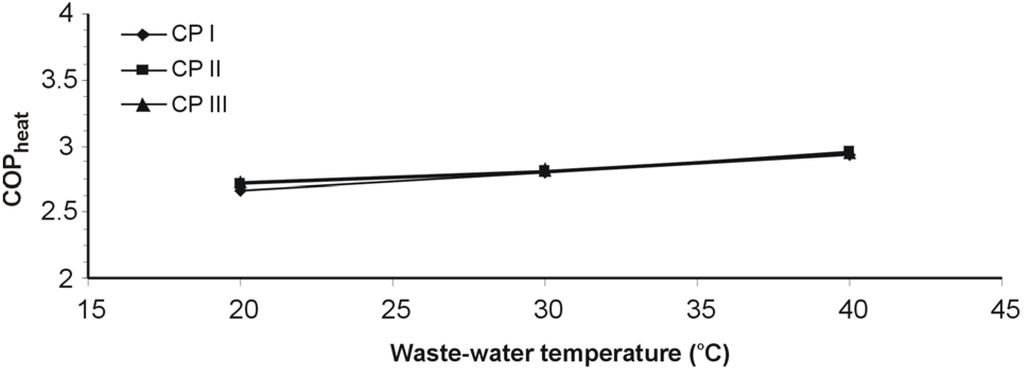

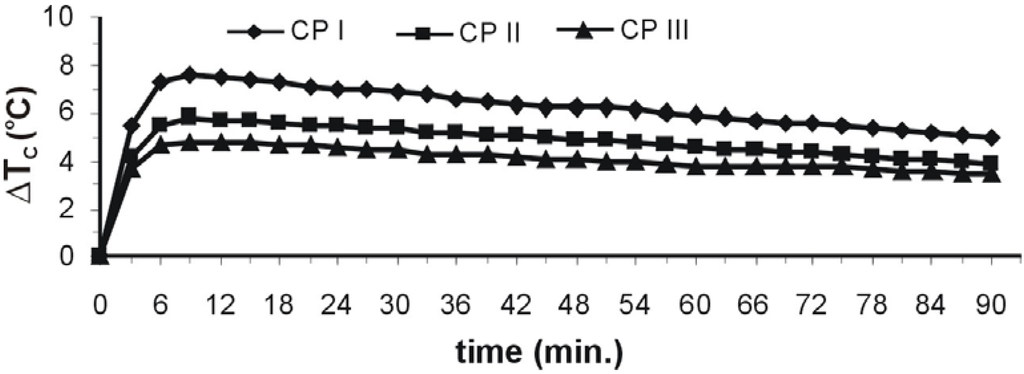

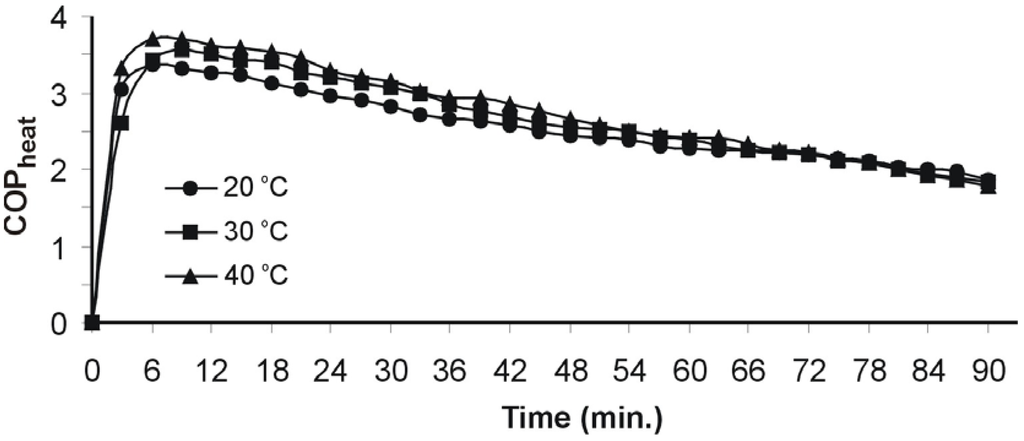

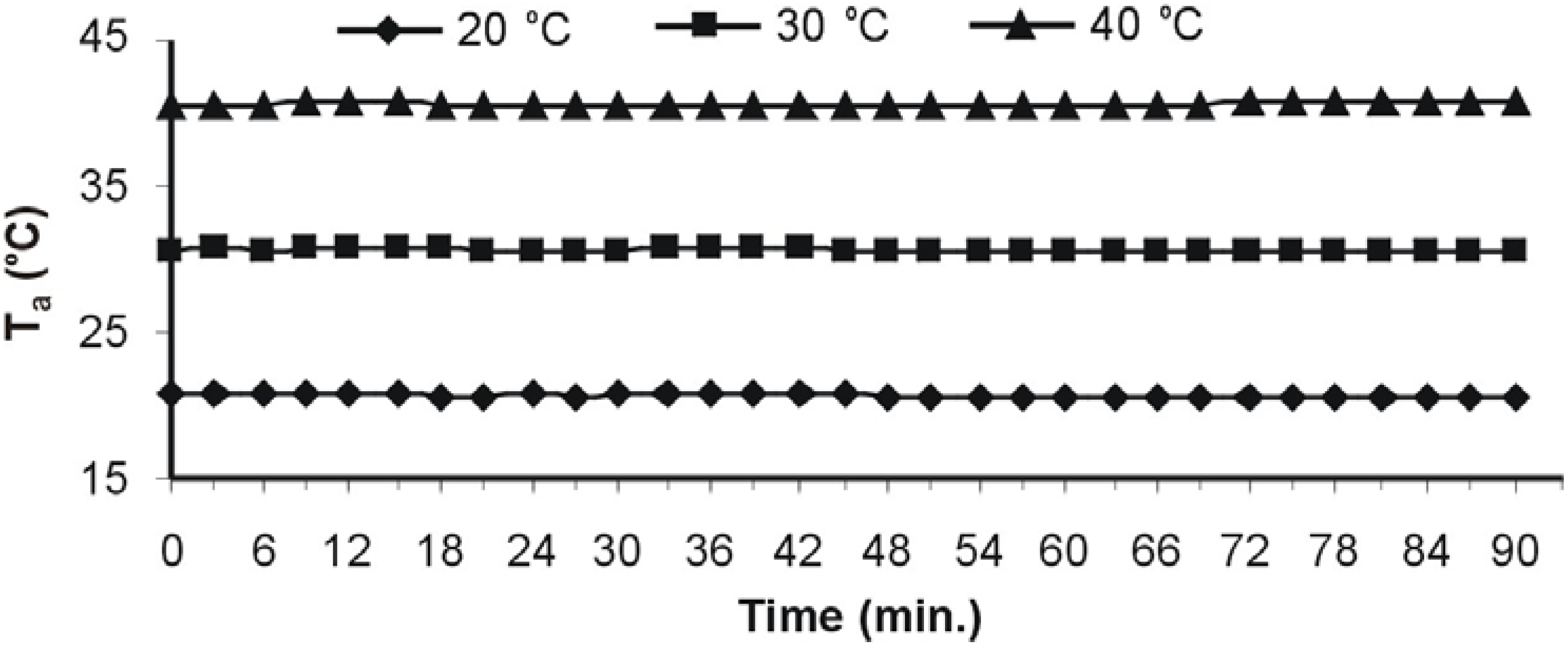

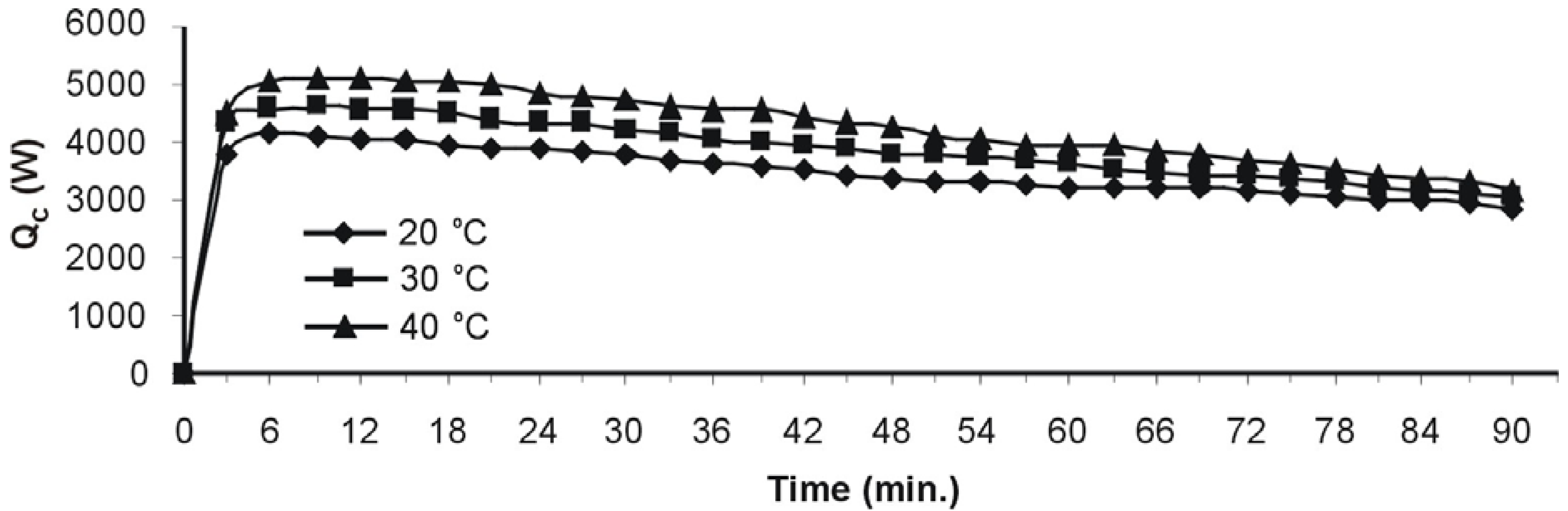

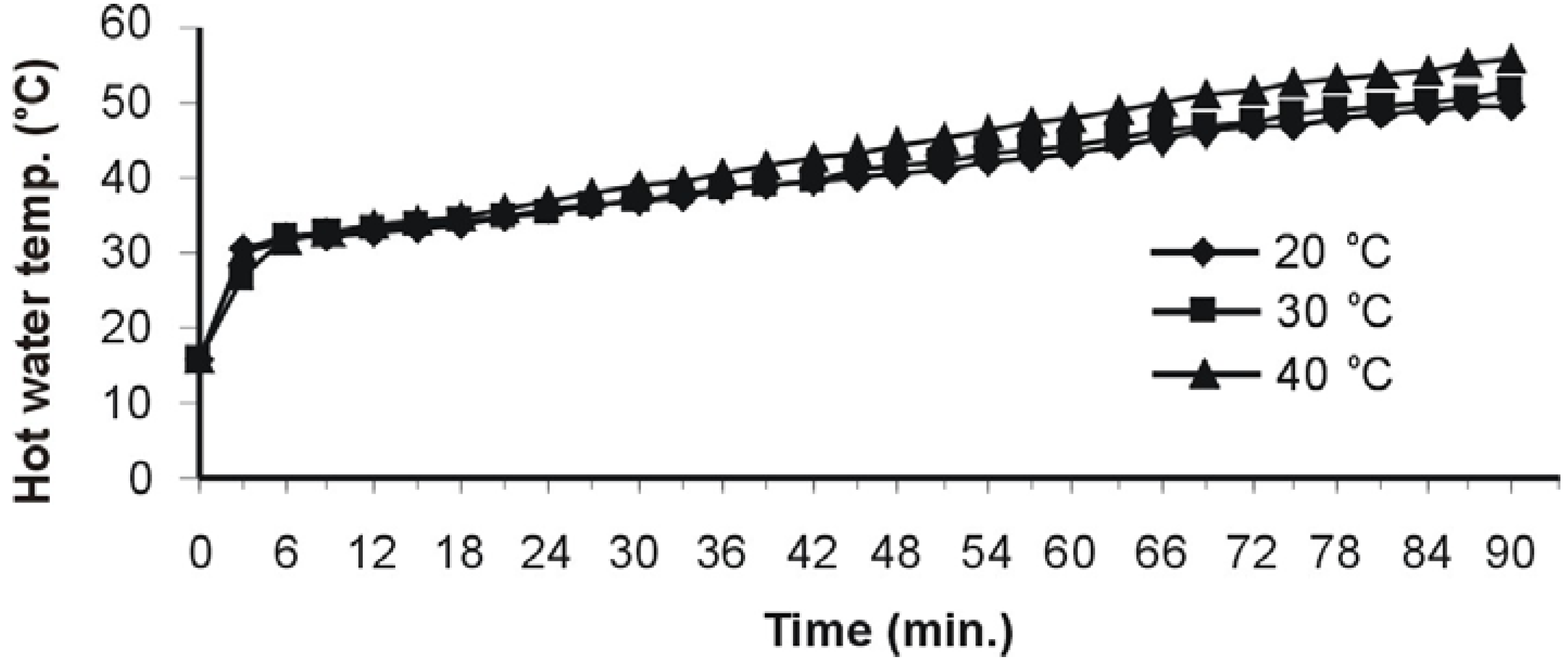

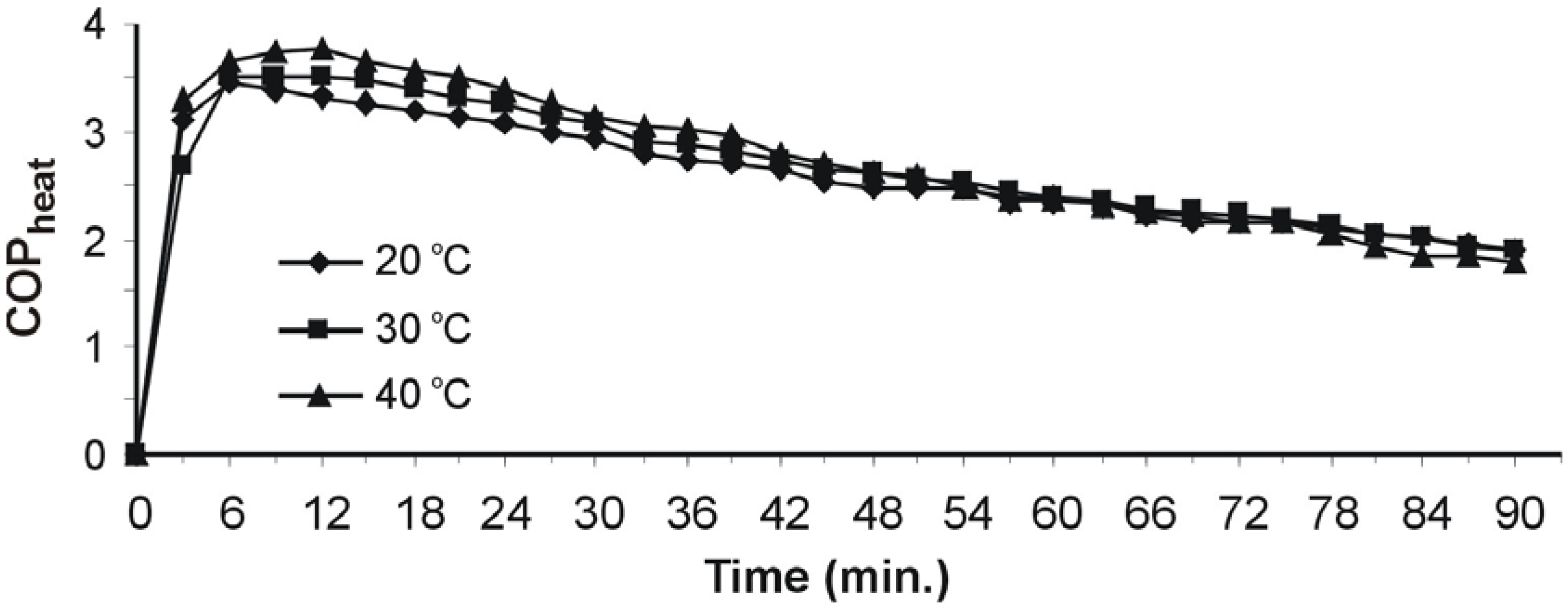

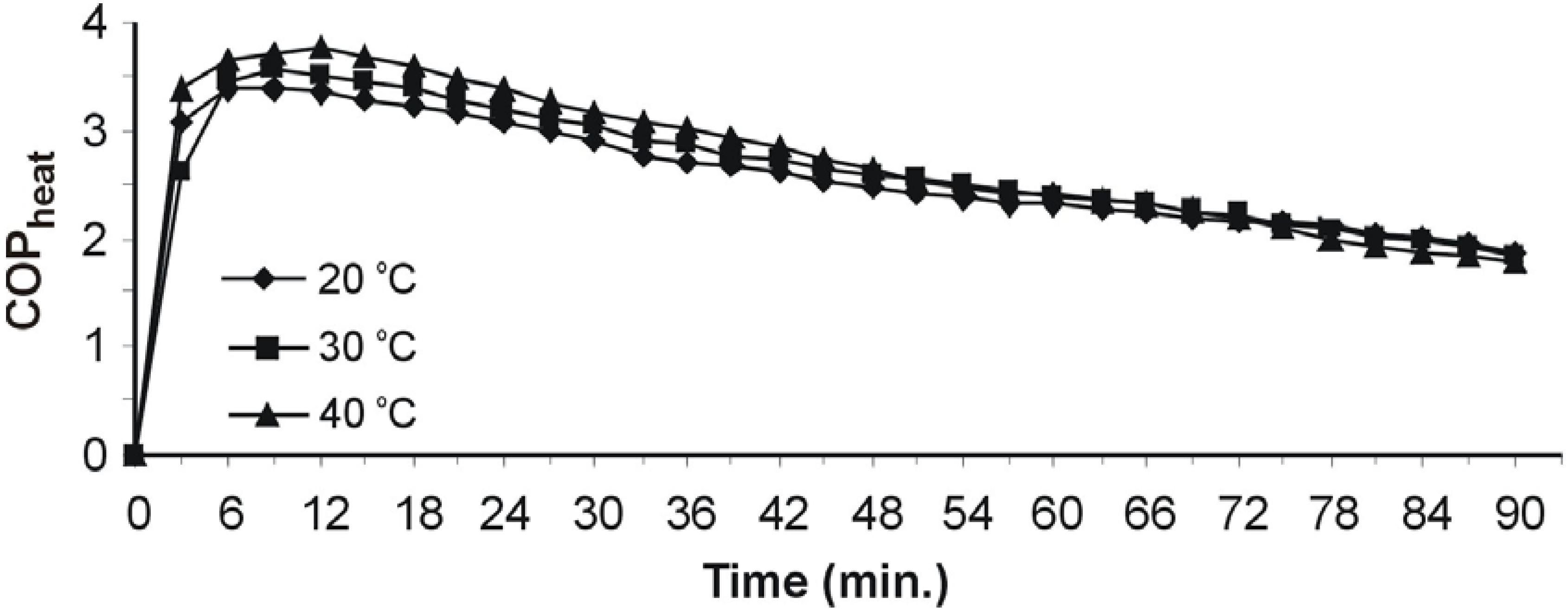

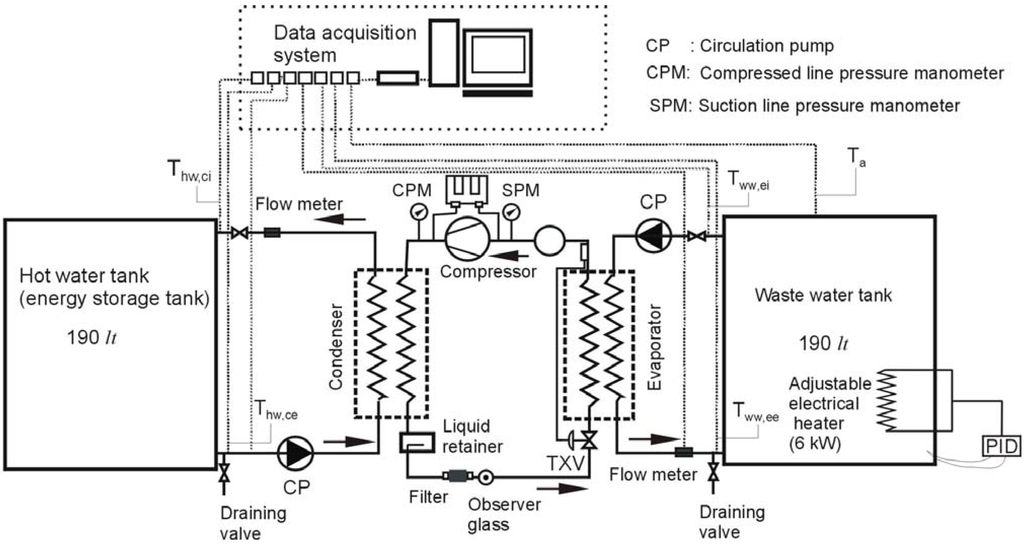

In this research, a water-water heat pump system using waste water as a heat source, a type that is not often used in Turkey and the World, was experimentally modeled. The experiments were performed under the conditions of simulated waste water temperature values of 20 °C, 30 °C and 40 °C. Inlet and outlet water temperatures of the evaporator and condenser, water flow rates in the evaporator and condenser circuits, pressures at the compressor inlet and outlet and power consumption of the system were measured. The heating coefficients of performance were calculated based on the measurements. It was found that the maximum temperature in the energy storage tank was about 50.6 °C. For the heat source temperatures of 20 °C, 30 °C and 40 °C, the heating coefficients of the performance of the system became 3.36, 3.43 and 3.69, respectively, 6 min. after the start time of the experiments and then they were decreased to 1.87, 1.83 and 1.77 with increasing water temperature in the condenser tank. The mean uncertainty value of the measurement parameters was found to be about ±2.47%. Finally, for the purpose of meeting hot water need as well as floor heating system requirements, it is seen that energy quality level of a waste low grade temperature heat source can be increased by using a heat pump system.
Keywords: waste heat; water-water heat pump; COP(heat); energy enhancement waste heat; water-water heat pump; COP(heat); energy enhancement
