Investigation of the Effect of Climate Change on Energy Produced by Hydroelectric Power Plants (HEPPs) by Trend Analysis Method: A Case Study for Dogancay I–II HEPPs

by
Gokmen Ceribasi
1,
Ahmet Iyad Ceyhunlu
1,
Andrzej Wałęga
2,* and
Dariusz Młyński
2
1
Faculty of Technology, Department of Civil Engineering, Sakarya University of Applied Sciences, Sakarya 54187, Turkey
2
Department of Sanitary Engineering and Water Management, University of Agriculture in Krakow, 31-120 Krakow, Poland
*
Author to whom correspondence should be addressed.
Energies 2022, 15(7), 2474; https://doi.org/10.3390/en15072474
Submission received: 24 February 2022 / Revised: 23 March 2022 / Accepted: 24 March 2022 / Published: 28 March 2022
(This article belongs to the Special Issue Role of Hydropower for Sustainable Future Energy System: Synergies, Challenges and Development)
Browse Figures
Versions Notes

Abstract

:
One of the most important measures taken in reducing the impact of climate change resulting from global warming is the production of energy from clean and renewable resources. Hydroelectric power plants are leading renewable energy sources. In this study, the effects of climate change on hydroelectric power plants, a renewable energy source, have been investigated. Dogancay I and II Hydroelectric Power Plants, which are built on the Sakarya River located in the Sakarya basin of Turkey, was selected as a study area. Moreover, the monthly average energy, runoff, and efficiency parameters of hydroelectric power plants and the monthly average precipitation, temperature, and humidity physical parameters of the Sakarya province, which is a working area, were considered. The length of time-series data is 48 months (2015–2018). Analysis of the data was performed with the innovative polygon trend analysis (IPTA) method, which is one of the newest trend analysis methods. When the studies in the literature are examined, the IPTA method is applied to hydroelectric energy data for the first time thanks to this study. Therefore, it is thought that this study will contribute a great deal to the literature. As a result of this study, a generally decreasing trend was observed in IPTA graphs of energy, flow, and efficiency parameters. In terms of the physical parameters of rainfall, temperature, and humidity, there was a decreasing trend in rainfall and humidity graphs and no trend in temperatures was observed.

1. Introduction

The effects of climate change resulting from global warming can be measured according to physical parameters. Severe and unstable weather events can be evaluated as the melting of glaciers or rising sea levels, causing great changes in the frequency or amount of heavy rain events on a global scale. Changes in the physical climate parameters affect clean energy production sources directly and indirectly. For example, imbalances in precipitation frequency and amounts can affect river flows. Moreover, changes in land cover can strongly influence the hydrological regime. The lack of stable and balanced precipitation can cause decreasing river flows, which generate less energy for hydroelectric power plant (HEPP) capacities [1,2].
The effects of climate change are observed all over the world. In particular, risks associated with increases in drought frequency and magnitude in Middle Eastern countries (Southern Europe, North Africa and Near East) and southern Africa are projected to be significantly greater. The investigation of the effects of climate change in Turkey, which is a Middle Eastern country, plays a crucial role for future water management in terms of hydroelectric power plant function.
While investigating the effects of climate change, physical parameters (hydro-meteorological data) can be in a linear or non-linear relationship over time. Methods for trend analysis are generally used a prediction tool. Trend analysis methods can be used to define, systematically determine, and estimate the quantitative properties of data, regardless of whether such data are linear or stochastic (non-linear) over time. Among the most widely used trend analysis tests, the Mann–Kendall test, Mann–Kendall rank correlation test, Spearman Rho test, and innovative trend analysis are used [3,4,5,6]. However, current trend analysis methods show weaknesses in this area, as data do not provide information about changes over time and do not form an approach in seasonal transitions. In this context, other methods were elaborated, such as innovative polygon trend analysis (IPTA). This method provides an approximation of the passage of data between days, weeks, or months. Therefore, the IPTA method appears to be suitable for use in engineering fields, such as hydroelectric power generation, agricultural activities, irrigation, and water supply [7].
In general, there are many studies investigated trend analysis [8,9,10,11,12,13,14,15,16,17,18,19,20]. However, these studies concern numerical methods. Graphical approaches, such as innovative polygon trend analysis (IPTA), represent an alternative to existing numerical methods. Achite et al. [21] applied the IPTA method to investigate precipitation data for seven stations, located in the Wadi Sly basin of Algeria. Ceribasi et al. [22] evaluated the IPTA method to investigate temperature data for six stations in the Susurluk basin of Turkey. They also applied the trend polygon star concept. Naveed et al. [23] applied the IPTA method to the trend analysis for monthly streamflow data, obtained from 34 measurement stations in the Hindukush-Karakoram-Himalaya (HKH) region of Pakistan. Akçay et al. [24] applied the IPTA method to trend analysis for monthly streamflow data, which included 14 stations in Eastern Black Sea Basin of Turkey. Hırca et al. [25] applied the IPTA and Mann–Kendall methods to trend analysis of precipitation data for eight stations located in Eastern Black Sea Basin of Turkey.
In general, climate change has a direct and indirect impact on the HEPPs efficiency. There are many studies describing potential climate changes all over the world. Li et al. [26] have studied meteorological and hydrological droughts in the Mekong River Basin and surrounding areas under climate change. They have stated that, although the total precipitation is expected to increase in the future, the droughts will not disappear. What’s more, such droughts may even increase in some regions, because of the uneven spatial and temporal distribution of precipitation. In the work of Etheram et al. [27], the authors investigated reservoir operation under climate change. They have clearly indicated that climate change is one of the major reasons for several real water scarcity occurrences around the world. In the work Jin et al. [28], the authors have indicated the variance in the runoff variation under climate change and human activities. Based on results, they concluded that, except for climate change, the changes in land use and land cover are significant in runoff variation shaping. Hence, the individual contribution of the specific factors affected for retention may help policy-makers to devise targeted water resource management plans.
Therefore, in this study, the effects of climate change, resulting from global warming, on hydroelectric power plants were investigated. The studies have been conducted for Dogancay I and II Hydroelectric Power Plants, which were built on the Sakarya River, located in the Sakarya Basin of Turkey. Moreover, in the work, the monthly average energy, runoff, and efficiency parameters of hydroelectric power plants and monthly average precipitation, temperature, and humidity physical parameters of Sakarya province were investigated. According to the authors’ knowledge, the IPTA method has not been used to detect trends in parameters influencing hydroelectric power plants.

2. Materials and Methods

2.1. Study Area

One of Turkey’s most important basins is the Sakarya Basin. The basin contains 7% of water required for the whole country. The total basin area is 58,160 km2. The main tributaries of the Sakarya River are the Porsuk Stream, Karasu Stream, Ankara Stream, Goksu Stream, Cark Stream, and Mudurnu Stream. The region of Sakarya Basin includes the provinces of Sakarya, Bilecik, Kutahya, Eskisehir, and Ankara. Sakarya Basin receives an annual rainfall of 33,184 million m3 [29].
Sakarya province is among the main metropolitan cities of Turkey. Its population is approximately 1 million. Therefore, studies on renewable energy sources for this metropolitan city will provide a great benefit in energy planning, especially for Turkey and then for Sakarya province. Hydroelectric power plants are at the forefront of renewable energy sources. Turkey has great water resources due to its location. Obtaining energy by using these water resources will make a great contribution to the country’s economy.
On the other hand, climate change has a great impact on existing water resources. In order to reduce this effect, it is extremely important to protect existing water resources. Because of these water resources, energy is produced in hydroelectric power stations. Therefore, forward-looking analysis of these hydroelectric power plants in Sakarya is of great importance in energy planning. Therefore, these HEPPs were selected in the study.
The location of Sakarya province and Dogancay HEPPs selected for this study is given in Figure 1. General characteristics of Dogancay I and II HEPPs are given in Table 1.
Data course line graphs of energy, flow, and efficiency parameters of Dogancay I and II HEPPs are given in Figure 2. Physical parameters of the precipitation, temperature, and humidity of Sakarya province are given in Figure 3.

2.2. Trend Analysis by IPTA Method

In the presented work, the analysis was carried out for the following factors: monthly average energy, runoff, and efficiency parameters of hydroelectric power plants and monthly average precipitation, temperature, and humidity. The study was conducted using the IPTA method, elaborated by Şen [30,31]. The length of data in the database of the electricity generation joint stock company is 48 months (2015–2018). Energy parameters data used in study were obtained from General Directorate of State Hydraulic Works. Physical parameter data of Sakarya province were obtained from General Directorate of Meteorology. When the data set is analyzed with this method, the steps are as follows.
  • In this method, the time scale of the data can be daily, weekly, monthly, or annual.
  • In this study, since the time scale of the data is selected monthly, the processing steps of the IPTA method are explained according to this time scale.
  • The length of the existing data set in the analysis of the data set is divided into two equal parts with the IPTA method (e.g., if the length of the data set is 30 years, it is divided into two equal parts, the first data set for 15 years and the second data set for 15 years).
  • Since the time scale of the data is monthly, arithmetic means and standard deviations are calculated for each month (for both data sets).
  • These calculated data are placed on the cartesian coordinate axis.
  • The first data set is placed on the x-axis of the coordinate axis and the second data set is placed on the y-axis.
  • The endpoint of the polygon created for each month is created as in Figure 4.
  • The 45-degree (1:1) line shown in Figure 4 is the non-trend region.
  • The upper region of the 45-degree line is increasing trend region.
  • The lower region of the 45-degree line is decreasing trend region.
  • The origin of the coordinate axis can be different from zero. For arithmetic mean or standard deviation values, the smallest initial value can also be selected.
Evaluating the hypothetical generate IPTA graph in Figure 4, the following results are observed.
  • The polygon finish lines created for each month are combined with each other.
  • This finish line constitutes trend information.
  • The polygon formed by the distribution of these finish lines may vary depending on the effects of hydro-meteorological events.
  • If a single polygon is formed in the IPTA graph, it is concluded that its data changes systematically.
  • The longer the line between the two months, the more significant the trend that exists between these two months.
  • January, February, March, May, and June are in the increasing trend region in Figure 4.
  • July, August, September, October, and November are in the decreasing trend region.
  • April–December is in non-trend region.
  • The longest line showing the transition between the two months is between August and September.
  • Since the data have a homogeneous structure, a single polygon is formed.
  • If the data have a complex structure, multiple polygons will appear on the IPTA graph.

3. Results

In this study, the IPTA method has been applied to trend assessment in mean monthly energy, flow, and efficiency parameter data of Dogancay I and II HEPPs, which are located on the Sakarya River. The results of analysis are presented in Figure 5. Figure 6 presents the results of trend analysis, conducted by the IPTA method for the following meteorological factors: mean monthly precipitation, temperature, and humidity for the analyzed catchment.
Based on results presented above, it can be concluded that not a single polygon is observed in any graph, as shown in Figure 5 and Figure 6. Since there is not a single polygon in any graph, the data have a complex structure. For IPTA graphs of Dogancay I-II HEPPs, the longest trend line for energy and runoff data is between December and January, and the longest trend line for efficiency data is between November and December. For IPTA graphs of Sakarya Province, the longest trend line for precipitation data is between June and July, and the longest trend line for temperature data is between September and October, and for humidity data it is between April and May. It has been observed that there is a heterogeneous relationship between the data. A general evaluation of mean analysis results in Figure 5 and Figure 6 is given in Table 2.
The results presented in Table 2 show that when energy and runoff data of Dogancay I HEPP are analyzed, it can be seen that less energy and runoff is observed in 10 months compared to the first series. While more energy and runoff were observed in January, compared to the first series, equal amounts of energy and runoff were observed in both series in August and December. For efficiency data results of Dogancay I HEPP, it is seen that less efficiency is observed in seven months compared to the first series. While more efficiency was observed in four months compared to the first series, equal amounts of efficiency were observed in both series in May. When energy and runoff data of Dogancay II HEPP are analyzed, it is seen that less energy and runoff is observed in 10 months compared to first series. While more energy and runoff were observed in January and August compared to the first series, equal amounts of energy and runoff were observed in both series in December. In efficiency data results of Dogancay II HEPP, it is seen that less efficiency is observed in six months compared to the first series. More efficiency was observed in six months. As a result of the analysis of precipitation data of Sakarya province, a decreasing trend was observed in seven months and an increasing trend was observed in five months.
As a result of the analysis of temperature data of Sakarya province, a decreasing trend was observed in February and an increasing trend was observed in December and in other months. Hence, there is no trend. As a result of the analysis of humidity data of Sakarya province, a decreasing trend was observed in October and December, while an increasing trend was observed in five months, and in other months there is no trend.
The IPTA method has also been applied to standard deviation evaluation for monthly energy, flow, and efficiency parameter data. The results of analysis are given in Figure 7. The IPTA method was also applied to trend analysis for the standard deviation of monthly precipitation, temperature, and humidity physical parameter data in the analyzed region. The results are presented in Figure 8.

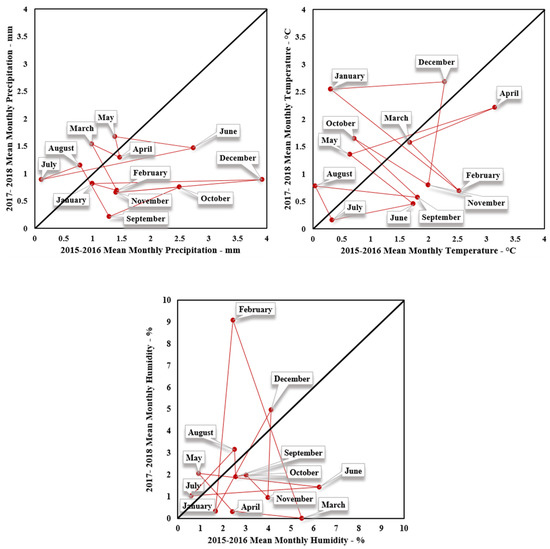

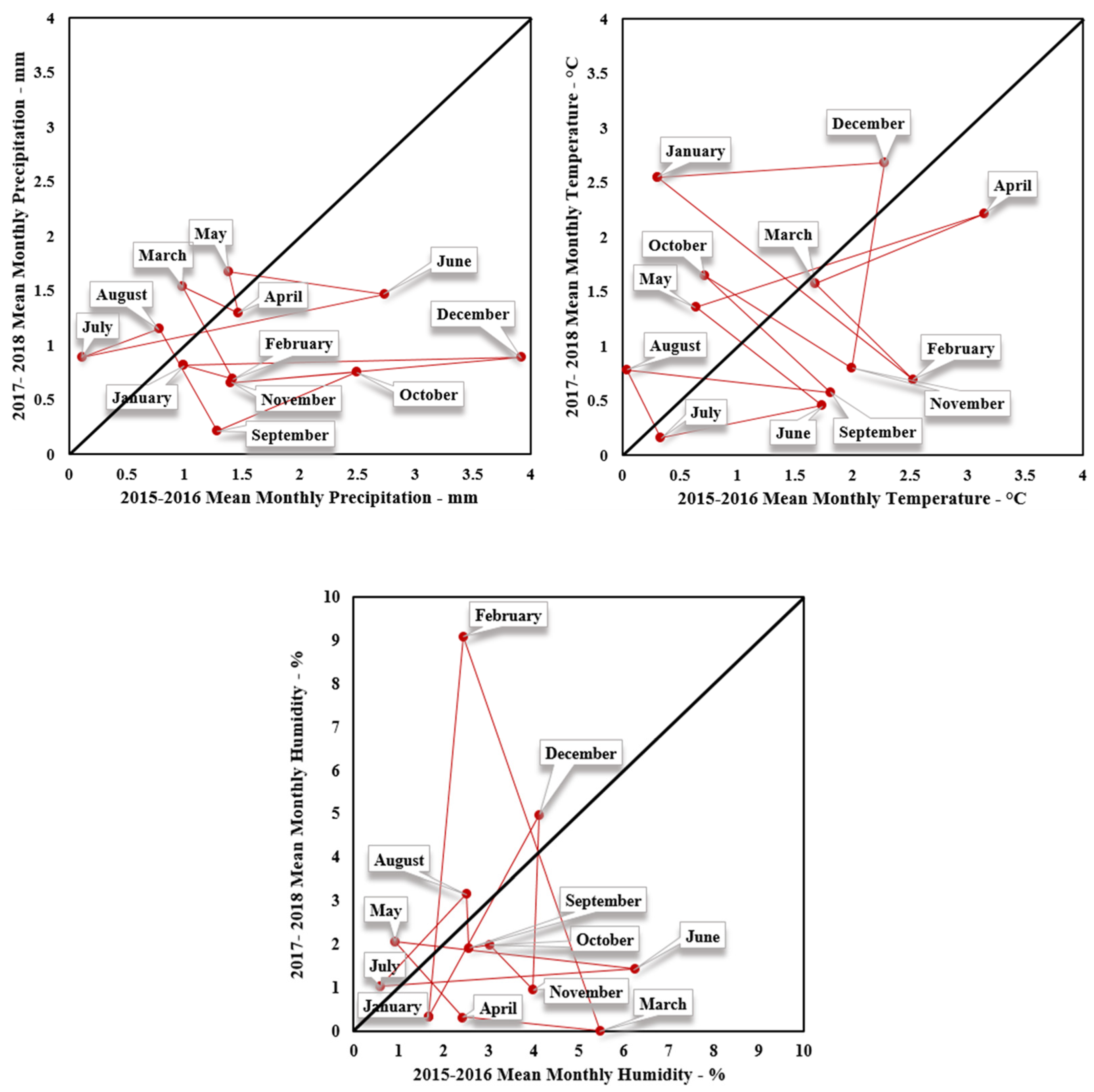

The results presented in Figure 7 and Figure 8 show that not a single polygon is observed in all graphs of Figure 7 and Figure 8. Since there is not a single polygon in all graphs, the data have a complex structure. In IPTA graphs of Dogancay I-II HEPPs, the longest trend line for energy and runoff data is between August and September and the longest trend line for efficiency data is between October and November. In IPTA graphs of Sakarya Province, the longest trend line for precipitation data is between December and January, and the longest trend line for temperature data is between January and February, and for humidity data it is between February and March. It has been observed that there is a heterogeneous relationship between the data. A general evaluation of standard deviation analysis results in Figure 7 and Figure 8 is given in Table 3.
The results presented in Table 3 have shown that when energy and runoff data of Dogancay I HEPP are analyzed, it is seen that less energy and runoff is observed in five months compared to and first series. While more energy and runoff were observed in five months, compared to and first series, equal amounts of energy and runoff were observed in both series in January and September. In efficiency data results of Dogancay I HEPP, it is seen that less efficiency is observed in four months compared to first series. Meanwhile, more efficiency was observed in eight months compared to and first series. When energy and runoff data of Dogancay II HEPP are analyzed, it is seen that less energy and runoff is observed in four months compared to and first series. Meanwhile, more energy and runoff were observed in five months compared to first series, and equal amounts of energy and runoff were observed in both series in three months. In efficiency data results of Dogancay II HEPP, it is seen that less efficiency is observed in six months compared to the first series. Meanwhile, more efficiency was observed in six months compared to and first series. As a result of the analysis of precipitation data of Sakarya province, a decreasing trend was observed in eight months and an increasing trend was observed in four months. As a result of the analysis of temperature data of Sakarya province, a decreasing trend was observed in six months and an increasing trend was observed in five months. There is no trend in March. As a result of the analysis of humidity data of Sakarya province, a decreasing trend was observed in seven months, and an increasing trend was observed in five months. Table 4 and Table 5 presents statistical values of mean and standard deviation for energy, runoff, and efficiency in Dogancay I and Dogancay II HEPPs. Table 6 presents statistical values of mean and standard deviation for precipitation, temperature, and humidity in Sakarya Province.
The results presented in Table 4 for Dogancay I HEPP show that the longest trend lines of energy were 132.94 Mw and 143.451 Mw, respectively. The longest trend slopes were −492.186 and 8.275, respectively, and runoff were 1250.88 m3/s and 1349.74 m3/s, respectively. In regard to slopes, the longest trends were −492.19 and 8.27, respectively. In the case of efficiency, the longest trend lines were 6.11% and 4.34%, respectively, and slopes were 14,649 and 61,516, respectively. The results presented in Table 5 for Dogancay II HEPP show that the longest trend lines of: energy 136.851 Mw and 154.686 Mw, respectively, and slopes 6.693 and 25.048, respectively. The longest trend lines of runoff were 1310.586 m3/s and 1481.38 m3/s, respectively, slopes 6.693 and 25.048, respectively, and efficiency 6.163% and 3.963%, respectively. The longest trend slopes were 11.065 and 28.055, respectively. Based on results presented in Table 6 for Sakarya Province it was concluded that the longest trend lines of precipitation were 3.8 mm and 2.9 mm, respectively. The longest trend slopes were 3.525 and −4.776, respectively. The longest trend lines of temperature were 8.1 °C and 2.9 °C, respectively, slopes −3.996 and 6.670, respectively, and humidity 9.975% and 9.583%, respectively. The longest trend slopes were 10.680 and 29.103, respectively.

4. Discussion

The main aim of this study was the trend analysis of selected hydro-meteorological data and energy production for hydroelectric power plants located in the Sakarya Basin. The analysis has been conducted using the IPTA method. In general, different statistical methods are used for the trend detection in the hydro-meteorological time-series. The methods are classified as parametric and nonparametric numerical approaches [32]. The parametric tests are characterized as more powerful but require the independent and normal distribution of random variables. For the nonparametric tests, the data must be independent, but outliers’ values are better tolerated [33]. The most common numerical non-parametric approach for trend detection in hydro-meteorological data is the Mann–Kendall test [34,35,36]. The biggest disadvantage are of the Mann–Kendall test is that it is not suited for time-series with autocorrelation (periodicities). In order for the test to be effective, it is recommended to remove all know autocorrelation effects, which further complicates the calculations [37,38,39]. The parametric tests have other limitations, linked with the null hypothesis [40], which assumes a serial correlation of data [41,42]. Taking into consideration the limitation of numerical tests, the graphical approaches represent an alternative. In the study conducted Mohorji et al. [43], annual and monthly selected meteorological factors were discussed from an innovate template point of view, which provides meaningful information concerning different classical numerical methodologies. They have stated that graphical tests help not only to identify possible trends in low, medium, and high time series separately, but also support trend identification and determination over a succession of multi-duration. The IPTA method which represents the graphical approaches has some advantages. Firstly, is non-parametric approach and free from the time-series dependency. The method provides not only trends, but also their transformation, from increasing to decreasing and vice-versa in the particular months and seasons. The trend slopes and lengths can be determined between particular periods. The IPTA method provides good linguistic and numerical interpretation trend deduction in the form of the polygons. If more than one polygon is formed, then it indicates the complexity and dynamics in the hydro-meteorological phenomena. In should be emphasized by way of general conclusion that trends in hydro-meteorological time-series are usually comparable. Rathnayake [44] compared the Mann–Kendall test and IPTA methods in rainfall trend analysis. He concluded that, in general, both techniques provide comparable results. Moreover, based on studies, it was concluded that the IPTA method is easy to conduct. On the other hand, Serinalidi et al. [45] detected some limitations of the graphical methods. They concluded with diagrams of methods equivalent to well-known two-sample quantile-quantile plots. They indicated that, when applied to finite-size samples, diagrams do not enable the type of trend analysis that they are supposed to do. Further, they highlighted that the expression of confidence intervals quantifying the uncertainty of diagrams, is mathematically incorrect. Moreover, they concluded that the formulation of the formal tests is also incorrect, and their correct version is equivalent to a standard parametric test for the difference between two means. In general, they stated that the graphical methodology is affected by sample size, distribution shape, and serial correlation as any parametric technique devised for trend analysis.
The results obtained from studies have shown the trends in the hydro-meteorological factors that may affect hydropower generation. This means the analyzed random variables did not come from the same general population. Hence, it was concluded that significant factors affecting one of the analyzed variables appeared in the analyzed period [46]. Sojka [47] concluded that, from the perspective of HEPPs efficiency, the changes in hydrological and meteorological factors may be unfavorable and result in a reduction in the efficiency of run-of-river hydropower plants. What is more important, local factors play a dominant role in the changing of HEPPs’ efficiency. The monthly changing parameters in a hydroelectric power plant are mainly the energy produced, flow rate, and efficiency. When other parameters are examined, there are parameters such as net head, turbine type, and penstock included. However, these parameters are fixed; they do no change monthly. Therefore, only energy, flow, and efficiency were selected in the study. Precipitation, temperature, and Humidity data were selected for Sakarya province. These parameters are of great importance to energy production. These parameters also have an influence on sensitivity of the HEPPs work. The studies conducted by Hamududu and Killingtveit [48] have shown that the consequences of climate change in individual countries and regions can be significant, both positive and negative, in terms of hydropower generation view. The research of Dallision et al. [49] has demonstrated a clear impact of future water resources changes for the work of hydropower plants. Their results demonstrate the need for action now, especially in terms of the planning and design of installations. The schemes and turbines must be designated with future streamflow patterns. The research conducted by Gaudard et al. [50] indicated that the hydropower potential is expected to decrease for most European countries. Moreover, all the changes in the work of HEPPs due to changes in hydro-meteorological factors should guarantee adequate environmental flow below investment [51,52,53]. In general, future HEPP projects contribute to tackling climate changes. However, their negative effects, such as reducing total outflow left to river, changing the seasonal of natural flow regime, and modifying the ground water level, are severely dangerous for water ecosystems [54,55,56]. The studies conducted by Sahu et al. [57] have shown that the long-term impacts of climate changes for HEPPs work is a serious threat to the river hydrology and biodiversity. Future research should answer the relevant question concerning how the effects of climate change will impact HEPPs efficiency, directly affecting the river regime and quality of biodiversity. The results of a study described by Hasan and Wyseure [58] supported our conclusion, describing that climate change could alter the seasonal flow regime for particular basins and the hydropower potential could change due to the changing climate in the future. According to Qin et al. [59], climate change is expected to alter regional hydrological regimes, affecting the operation and performance of reservoirs and hydropower facilities. They have emphasized that as precipitation in basins is expected to increase, the projected mean annual inflow and hydropower generation will increase. These increases are mostly seasonally concentrated. Savelsberg et al. [60] have investigated the impact of climate change on Swiss hydropower, concluding that the electricity prices and overall system costs increase under dry conditions and decrease under average or wet conditions. The studies conducted by Afram and Kwadwo [61] have indicated that the relationship between hydropower production and climate variability and change affects sustainable development. They indicated that rainfall variability may have accounted for even more than 20% of the inter-annual fluctuations in power generation. Our work confirmed the examples of studies considering how changes of meteorology factors, such as temperature and precipitation, can influence the efficiency of HEPPs. During the ongoing warming of the climate, the use of renewable energy will be increased and thus HEPPs should have more efficiency. Trends of hydroclimatic parameters, mainly in autumn, show that this can be a problem with water resources and in the future HEPPs can help to resolve the situation concerning the energy demand.

5. Conclusions

In this study, the effects of climate change on hydroelectric power plants, a renewable energy source, have been investigated. Dogancay I and II hydroelectric power plants, built on the Sakarya River located in the Sakarya basin of Turkey, was selected as the study area. Moreover, monthly average energy, current, and efficiency parameters of hydroelectric power plants and the monthly average precipitation, temperature, and humidity physical parameters of Sakarya province, which is a working area, were used to perform the analysis in this study. The length of these data is 48 months (2015–2018) and analysis of the data was performed with the innovative polygon trend analysis (IPTA) method, which is one of the newest trend analysis methods. When the studies in the literature are examined, the IPTA method is applied to hydroelectric energy data for the first time thanks to this study. Therefore, it is thought that this study will contribute a great deal to the literature. As a result of the analyses made, there is no homogeneity in all the data used in the study, since a single polygon is not seen in IPTA graphs for Dogancay I–II HEPPs and Sakarya Province. Especially in terms of precipitation, temperature, and humidity parameters analyzed for Sakarya province, this inhomogeneity emerges as an effect of climate change. Therefore, this effect will greatly affect the energy produced in Dogancay I-II HEPPs. Moreover, a change in the hydrological regime of the river below the hydroelectric power plants or a change due to climate variability will also affect habitat conditions. Although it is not possible to completely eliminate the effects of climate change, important steps must be taken to minimize them. A few of them are mentioned below:
  • One of the biggest causes of climate change is the use of fossil fuels. The public should be informed to reduce the use of this fuel.
  • Conservation of existing water resources is of great importance for climate change. Therefore, the public should be informed about water consumption.
  • Controlling the carbon emission values of industrial factories is of great importance for climate change.
  • Increasing the use of renewable energy sources is also extremely important for climate change.
On the other hand, the data of two hydroelectric power plants located in Sakarya province of Turkey were used in the study. These are the limitations to this study. It will be of great importance in terms of energy planning to obtain the data and analyses of other hydroelectric power plants in Sakarya province and to make forward-looking estimates of the rivers in Sakarya province.

Author Contributions

Conceptualization, G.C. and A.I.C.; methodology, G.C. and A.I.C.; software, G.C. and A.I.C.; validation, G.C. and A.I.C.; formal analysis, G.C. and A.I.C.; investigation, G.C., A.I.C., A.W. and D.M.; resources, G.C. and A.I.C.; data curation, G.C. and A.I.C.; writing—original draft preparation, G.C., A.I.C., A.W. and D.M.; writing—review and editing, A.W.; visualization, D.M.; supervision, A.W.; project administration, G.C. and A.I.C.; funding acquisition, G.C. and A.I.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data used in this publication are taken from General Directorate of State Hydraulic Works in Turkey.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yapraklı, S.; Bayramoğlu, T. Energy Use and Climate Change in Turkey: A Descriptive Application for The Period 1990–2030. Gazi Univ. J. Fac. Econ. Adm. Sci. 2017, 19, 430–453. [Google Scholar]
  2. Ceribasi, G.; Caliskan, M. Short-and Long-Term Prediction of Energy to be Produced in Hydroelectric Energy Plants of Sakarya Basin in Turkey. Energy Sources Part A-Recovery Util. Environ. Eff. 2019, 1–16. [Google Scholar] [CrossRef]
  3. Mann, H. Mann Nonparametric Test Against Trend. Econometrica 1945, 13, 245–259. [Google Scholar] [CrossRef]
  4. Sen, P.K. Estimates of The Regression Coefficient Based on Kendall’s Tau. J. Am. Stat. Assoc. 1968, 63, 1379–1389. [Google Scholar] [CrossRef]
  5. Kendall, M.G. Rank Correlation Methods; Charles Griffin: London, UK, 1975. [Google Scholar]
  6. Şen, Z. Innovative Trend Analysis Methodology. J. Hydrol. Eng. 2012, 17, 1042–1046. [Google Scholar] [CrossRef]
  7. Şen, Z.; Şişman, E.; Dabanli, I. Innovative Polygon Trend Analysis (IPTA) and Applications. J. Hydrol. 2019, 575, 202–210. [Google Scholar] [CrossRef]
  8. Jones, J.R.; Schwartz, J.S.; Ellis, K.N.; Hathaway, J.M.; Jawdy, C.M. Temporal Variability of Precipitation in The Upper Tennessee Valley. J. Hydrol. Reg. Stud. 2015, 3, 125–138. [Google Scholar] [CrossRef] [Green Version]
  9. Zhang, A.; Zheng, C.; Wang, S.; Yao, Y. Analysis of Streamflow Variations in The Heihe River Basin, Northwest China: Trends, Abrupt Changes, Driving Factors and Ecological Influences. J. Hydrol. Reg. Stud. 2015, 3, 106–124. [Google Scholar] [CrossRef] [Green Version]
  10. Dabanlı, İ.; Şen, Z.; Yeleğen, M.Ö.; Şişman, E.; Selek, B.; Güçlü, Y.S. Trend Assessment by The Innovative–Şen Method. Water Resour. Manag. 2016, 30, 5193–5203. [Google Scholar] [CrossRef]
  11. Tabari, H.; Taye, M.T.; Onyutha, C.; Willems, P. Decadal Analysis of River Flow Extremes Using Quantile-Based Approaches. Water Resour. Manag. 2017, 31, 3371–3387. [Google Scholar] [CrossRef]
  12. Ceribasi, G. Analysis of Meteorological and Hydrological Data of Iznik Lake Basin by Using Innovative Sen Method. J. Environ. Prot. Ecol. 2018, 19, 15–24. [Google Scholar]
  13. Dabanlı, İ.; Şen, Z. Classical and Innovative-Şen Trend Assessment under Climate Change Perspective. Int. J. Glob. Warm. 2018, 15, 19–37. [Google Scholar] [CrossRef] [Green Version]
  14. Almazroui, M.; Şen, Z.; Mohorji, A.M.; Islam, M.N. Impacts of Climate Change on Water Engineering Structures in Arid Regions: Case Studies in Turkey and Saudi Arabia. Earth Syst. Environ. 2019, 3, 43–57. [Google Scholar] [CrossRef]
  15. Ceribasi, G. Analyzing Rainfall Datas’ of Eastern Black Sea Basin by Using Sen Method and Trend Methods. J. Inst. Sci. Technol. 2019, 9, 254–264. [Google Scholar] [CrossRef]
  16. Ceribasi, G.; Aytulun, U. Investigation of The Effect of Climate Change on Precipitation and Temperature Data of Susurluk Basin and Van Lake Closed Basin. Int. J. Glob. Warm. 2020, 22, 54–71. [Google Scholar] [CrossRef]
  17. Han, J.; Singh, V.P. Forecasting of Droughts and Tree Mortality under Global Warming: A Review of Causative Mechanisms and Modeling Methods. J. Water Clim. Chang. 2020, 11, 600–632. [Google Scholar] [CrossRef] [Green Version]
  18. Li, T.; Zhou, Z.; Fu, Q.; Liu, D.; Li, M.; Hou, R.; Li, L. Analysis of Precipitation Changes and Its Possible Reasons in Songhua River Basin of China. J. Water Clim. Chang. 2020, 11, 839–864. [Google Scholar] [CrossRef] [Green Version]
  19. Nikakhtar, M.; Rahmati, S.H.; Bavani, A.R.M. Impact of Climate Change on The Future Quality of Surface Waters: Case Study of The Ardak River, Northeast of Iran. J. Water Clim. Chang. 2020, 11, 685–702. [Google Scholar] [CrossRef] [Green Version]
  20. Ceribasi, G.; Ceyhunlu, A.I. Analysis of Total Monthly Precipitation of Susurluk Basin in Turkey Using Innovative Polygon Trend Analysis Method. J. Water Clim. Chang. 2021, 12, 1532–1543. [Google Scholar] [CrossRef]
  21. Achite, M.; Ceribasi, G.; Ceyhunlu, A.I.; Wałęga, A.; Caloiero, T. The Innovative Polygon Trend Analysis (IPTA) As A Simple Qualitative Method to Detect Changes in Environment–Example Detecting Trends of The Total Monthly Precipitation in Semiarid Area. Sustainability 2021, 13, 12674. [Google Scholar] [CrossRef]
  22. Ceribasi, G.; Ceyhunlu, A.I.; Ahmed, N. Analysis of Temperature Data by Using Innovative Polygon Trend Analysis and Trend Polygon Star Concept Methods: A Case Study for Susurluk Basin, Turkey. Acta Geophys. 2021, 69, 1949–1961. [Google Scholar] [CrossRef]
  23. Ahmed, N.; Wang, G.; Booij, M.J.; Ceribasi, G.; Bhat, M.D.; Ceyhunlu, A.I.; Ahmed, A. Changes in monthly streamflow in the Hindukush–Karakoram–Himalaya Region of Pakistan using innovative polygon trend analysis. Stoch. Environ. Res. Risk. Assess. 2022, 36, 811–830. [Google Scholar] [CrossRef]
  24. Akçay, F.; Kankal, M.; Şan, M. Innovative Approaches to The Trend Assessment of Streamflows in The Eastern Black Sea Basin, Turkey. Hydrol. Sci. J. 2022; in press. [Google Scholar]
  25. Hırca, T.; Eryılmaz Türkkan, G.; Niazkar, M. Applications of Innovative Polygonal Trend Analyses to Precipitation Series of Eastern Black Sea Basin, Turkey. Theor. Appl. Climatol. 2022, 147, 651–667. [Google Scholar] [CrossRef]
  26. Li, Y.S.; Lu, H.; Yang, K.; Wang, W.; Tang, Q.; Khem, S.; Yang, F.; Huang, Y. Meteorological and hydrological droughts in Mekong River Basin and surrounding areas under climate change. J. Hydrol. Reg. Stud. 2021, 36, 100873. [Google Scholar] [CrossRef]
  27. Ehteram, M.; Mousavi, S.F.; Karami, H.; Farzin, S.; Singh, V.P.; Chau, K.; El-Shafie, A. Reservoir operation based on evolutionary algorithms and multi-criteria decision-making under climate change and uncertainty. J. Hydroinform. 2018, 20, 332–355. [Google Scholar] [CrossRef]
  28. Jin, S.; Zheng, Z.; Ning, L. Separating variance in the runoff in Beijing’s river system under climate change and human activities. Phys. Chem. Earth 2021, 123, 103044. [Google Scholar] [CrossRef]
  29. Yaykiran, S.; Cuceloglu, G.; Ekdal, A. Estimation of Water Budget Components of the Sakarya River Basin by Using the WEAP-PGM Model. Water 2019, 11, 271. [Google Scholar] [CrossRef] [Green Version]
  30. Şen, Z. Trend Identification Simulation and Application. J. Hydrol. Eng. 2014, 19, 635–642. [Google Scholar] [CrossRef]
  31. Şen, Z. Innovative Trend Significance Test and Applications. Theor. Appl. Climatol. 2017, 127, 939–947. [Google Scholar] [CrossRef]
  32. Bougara, H.; Hamed, K.B.; Borgemeister, C.; Tischbein, B.; Kumar, N. Analyzing Trend and Variability of Rainfall in The Tafna Basin (Northwestern Algeria). Atmosphere 2020, 11, 347. [Google Scholar] [CrossRef] [Green Version]
  33. Ahmad, I.; Tang, D.; Wang, T.F.; Wang, M.; Wagan, B. Precipitation Trends over Time Using Mann-Kendall and Spearman’s rho Tests in Swat River Basin, Pakistan. Adv. Meteorol. 2015, 2015, 431860. [Google Scholar] [CrossRef] [Green Version]
  34. Chen, Y.; Guan, Y.; Shao, G.; Zhang, D. Investigating Trends in Streamflow and Precipitation in Huangfuchuan Basin with Wavelet Analysis and the Mann-Kendall Test. Water 2016, 8, 77. [Google Scholar] [CrossRef] [Green Version]
  35. Kamal, N.; Pachauri, S. Mann-Kendall Test—A Novel Approach for Statistical Trend Analysis. Int. J. Comput. Trends Technol. 2018, 63, 18–21. [Google Scholar] [CrossRef]
  36. Wang, F.; Shao, W.; Yu, H.; Kan, G.; He, X.; Zhang, D.; Ren, M.; Wang, G. Re-evaluation of the Power of the Mann-Kendall Test for Detecting Monotonic Trends in Hydrometeorological Time Series. Front. Earth Sci. 2020, 8, 14. [Google Scholar] [CrossRef]
  37. Młyński, D.; Wałęga, A.; Bugajski, P.; Operacz, A.; Kurek, K. Verfication of empirical formuals for calculating mean low flow in reflect to affecting on disposable water resources. Acta Sci. Pol. Form. Circumiectus 2019, 18, 83–92. [Google Scholar] [CrossRef]
  38. Młyński, D.; Wałęga, A.; Książek, L.; Florek, J.; Petroselli, A. Possibility of Using Selected Rainfall-Runoff Models for Determining the Design Hydrograph in Mountainous Catchments: A Case Study in Poland. Water 2020, 12, 1450. [Google Scholar] [CrossRef]
  39. Młyński, D.; Wałęga, A.; Kuriqi, A. Influence of meteorological drought on environmental flows in mountain catchments. Ecol. Indic. 2021, 133, 108460. [Google Scholar] [CrossRef]
  40. Blain, G.C. The Mann-Kendall test the need to consider the interaction between serial correlation and trend. Acta Sci. Agron. 2013, 36, 393–402. [Google Scholar]
  41. Yue, S.; Wang, C.Y. The Mann-Kendall test modified by effective sample size to detect trend in serially correlated hydrological series. Water Resour. Manag. 2004, 18, 201–218. [Google Scholar] [CrossRef]
  42. Serinaldi, F.; Kilsby, C.G.; Lombardo, F. Untenable nonstationarity: An assessment of the fitness for purpose of trend tests in hydrology. Adv. Water Resour. 2018, 111, 132–155. [Google Scholar] [CrossRef]
  43. Mohorji, A.M.; Şen, Z.; Almazroui, M. Trend Analyses Revision and Global Monthly Temperature Innovative Multi-Duration Analysis. Earth Syst. Environ. 2017, 1, 9. [Google Scholar] [CrossRef] [Green Version]
  44. Rathnayake, U. Comparison of Statistical Methods to Graphical Methods in Rainfall Trend Analysis: Case Studies from Tropical Catchments. Adv. Meteorol. 2019, 2019, 8603586. [Google Scholar] [CrossRef] [Green Version]
  45. Serinaldi, F.; Chebana, F.; Kilsby, C.G. Dissecting innovative trend analysis. Stoch. Environ. Res. Risk Assess. 2020, 34, 733–754. [Google Scholar] [CrossRef]
  46. Wałęga, A.; Młyński, D.; Bogdał, A.; Kowalik, T. Analysis of the Course and Frequency of High Water Stages in Selected Catchments of the Upper Vistula Basin in the South of Poland. Water 2016, 8, 394. [Google Scholar] [CrossRef]
  47. Sojka, M. Directions and Extent of Flows Changes in Warta River Basin (Poland) in the Context of the Efficiency of Run-of-River Hydropower Plants and the Perspectives for Their Future Development. Energies 2022, 15, 439. [Google Scholar] [CrossRef]
  48. Hamududu, B.; Killingtveit, A. Assessing climate change impacts on global hydropower. Energies 2012, 5, 305–322. [Google Scholar] [CrossRef] [Green Version]
  49. Dallison, R.H.J.; Patil, S.D.; Williams, A.P. Impacts of climate change on future water availability for hydropower and public water supply in Wales, UK. J. Hydrol. Reg. Stud. 2021, 36, 100866. [Google Scholar] [CrossRef]
  50. Gaudard, L.; Romerio, F.; Dalla Valle, F.; Gorret, R.; Maran, S.; Ravazzani, G.; Stoffel, M.; Volonterio, M. Climate change impacts on hydropower in the Swiss and Italian Alps. Sci. Total Environ. 2014, 493, 1211–1221. [Google Scholar] [CrossRef]
  51. Kuriqi, A.; Pinheiro, A.N.; Sordo-Ward, A.; Garrote, L. Influence of hydrologically based environmental flow methods on flow alteration and energy production in a run-of-river hydropower plant. J. Clean. Prod. 2019, 232, 1028–1042. [Google Scholar] [CrossRef]
  52. Operacz, A.; Wałęga, A.; Cupak, A.; Tomaszewska, B. The comparison of environmental flow assessment—The barrier for investment in Poland or river protection? J. Clean. Prod. 2018, 193, 575–592. [Google Scholar] [CrossRef]
  53. Młyński, D.; Operacz, A.; Wałęga, A. Sensitivity of methods for calculating environmental flows based on hydrological characteristics of watercourses regarding the hydropower potential of rivers. J. Clean. Prod. 2020, 250, 119527. [Google Scholar] [CrossRef]
  54. Ali, R.; Kuriqi, A.; Abubaker, S.; Kisi, O. Long-Term Trends and Seasonality Detection of the Observed Flow in Yangtze River Using Mann-Kendall and Sen’s Innovative Trend Method. Water 2019, 11, 1855. [Google Scholar] [CrossRef] [Green Version]
  55. Huang, X.; Suwal, N.; Fan, J.; Pandey, K.P.; Jia, Y. Hydrological Alteration Assessment by Histogram Comparison Approach: A Case Study of Erdu River Basin, China. J. Coast. Res. 2019, 93, 139–145. [Google Scholar] [CrossRef]
  56. Suwal, N.; Kuriqi, A.; Huang, X.; Delgado, J.; Młyński, D.; Walega, A. Environmental Flows Assessment in Nepal: The Case of Kaligandaki River. Sustainability 2020, 12, 8766. [Google Scholar] [CrossRef]
  57. Sahu, N.; Sayama, T.; Saini, A.; Panda, A.; Takara, K. Understanding the Hydropower and Potential Climate Change Impact on the Himalayan River Regimes—A Study of Local Perceptions and Responses from Himachal Pradesh, India. Water 2020, 12, 2739. [Google Scholar] [CrossRef]
  58. Mehedi Hasana, M.; Wyseure, G. Impact of climate change on hydropower generation in Rio Jubones Basin, Ecuador. Water Sci. Eng. 2018, 11, 157–166. [Google Scholar] [CrossRef]
  59. Qin, P.; Hongmei, X.; Min, L.; Liangmin, D.; Chan, X.; Lüliu, L.; Brian, T. Climate change impacts on Three Gorges Reservoir impoundment and hydropower generation. J. Hydrol. 2018, 580, 123922. [Google Scholar] [CrossRef]
  60. Savelsberg, J.; Schillinger, M.; Schlecht, I.; Weigt, H. The Impact of Climate Change on Swiss Hydropower. Sustainability 2018, 10, 2541. [Google Scholar] [CrossRef] [Green Version]
  61. Afram, S.B.; Kwadwo, O. Impact of climate change and variability on hydropower in Ghana. Afr. Geogr. Rev. 2019, 38, 19–31. [Google Scholar]
Energies 15 02474 g001 550

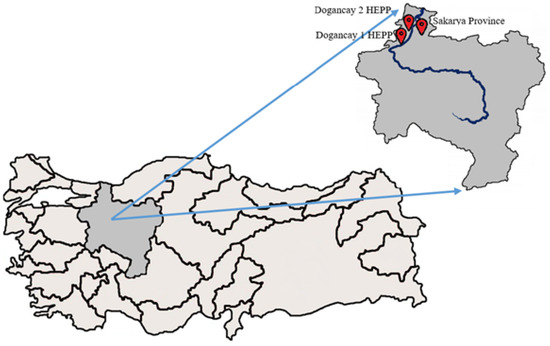

Figure 1. Location of Sakarya Province and Dogancay HEPPs on Turkey Basins Map.
Figure 1. Location of Sakarya Province and Dogancay HEPPs on Turkey Basins Map.
Energies 15 02474 g001
Energies 15 02474 g002 550

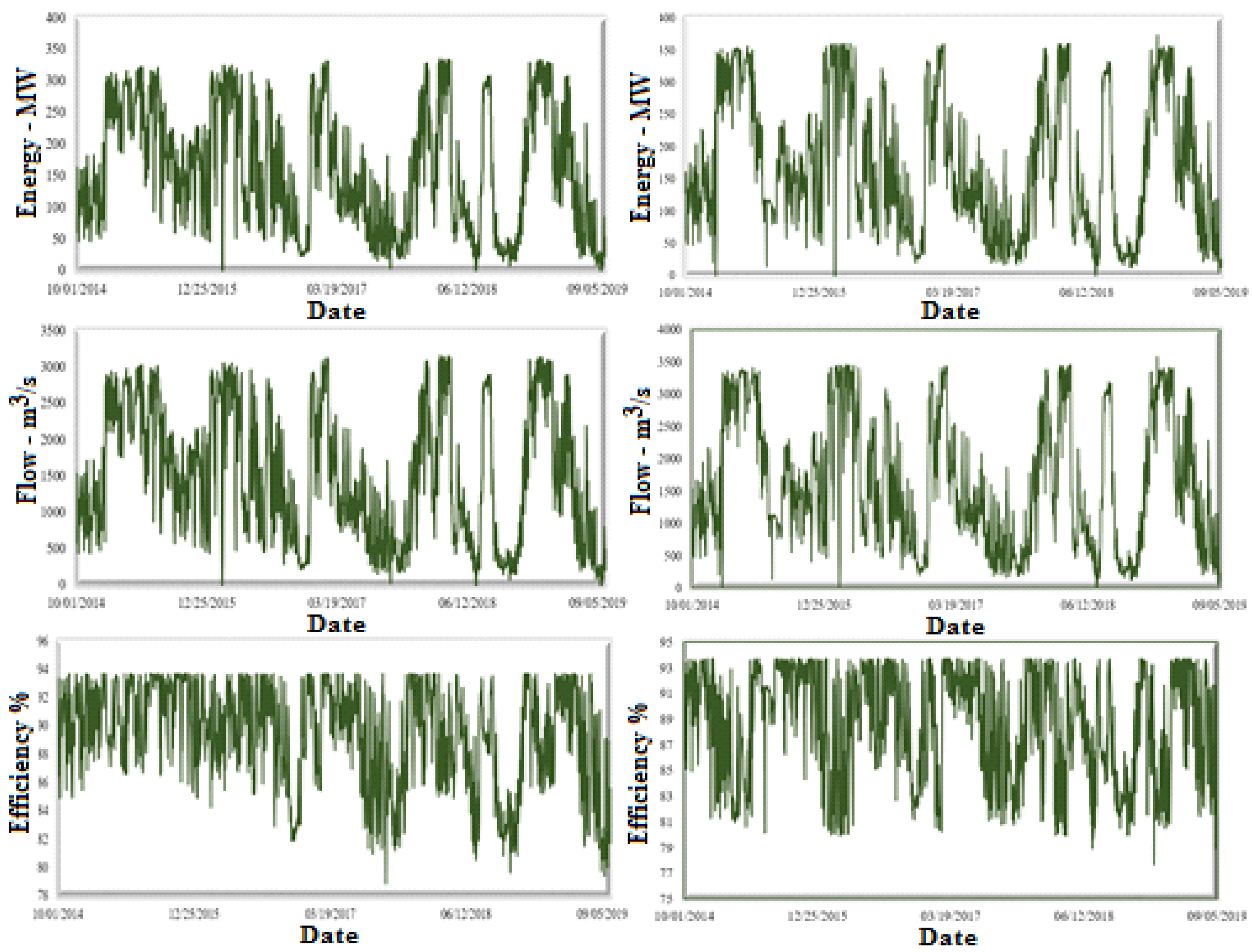

Figure 2. Data Course Line Graphs of Energy, Flow and Efficiency Parameters of Dogancay I and II HEPPs.
Figure 2. Data Course Line Graphs of Energy, Flow and Efficiency Parameters of Dogancay I and II HEPPs.
Energies 15 02474 g002
Energies 15 02474 g003 550

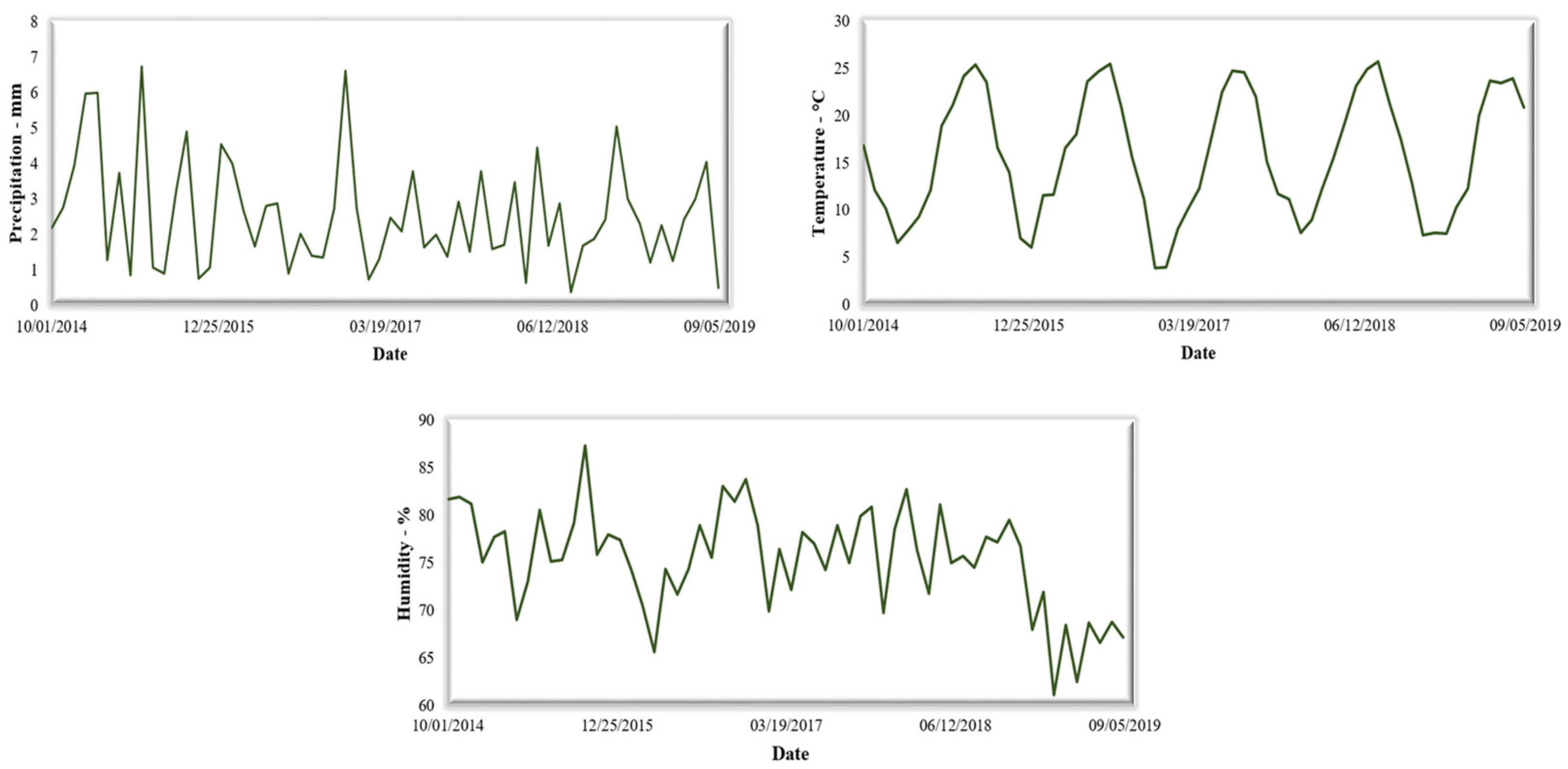

Figure 3. Physical Parameters of precipitation, Temperature and Humidity of Sakarya Province.
Figure 3. Physical Parameters of precipitation, Temperature and Humidity of Sakarya Province.
Energies 15 02474 g003
Energies 15 02474 g004 550

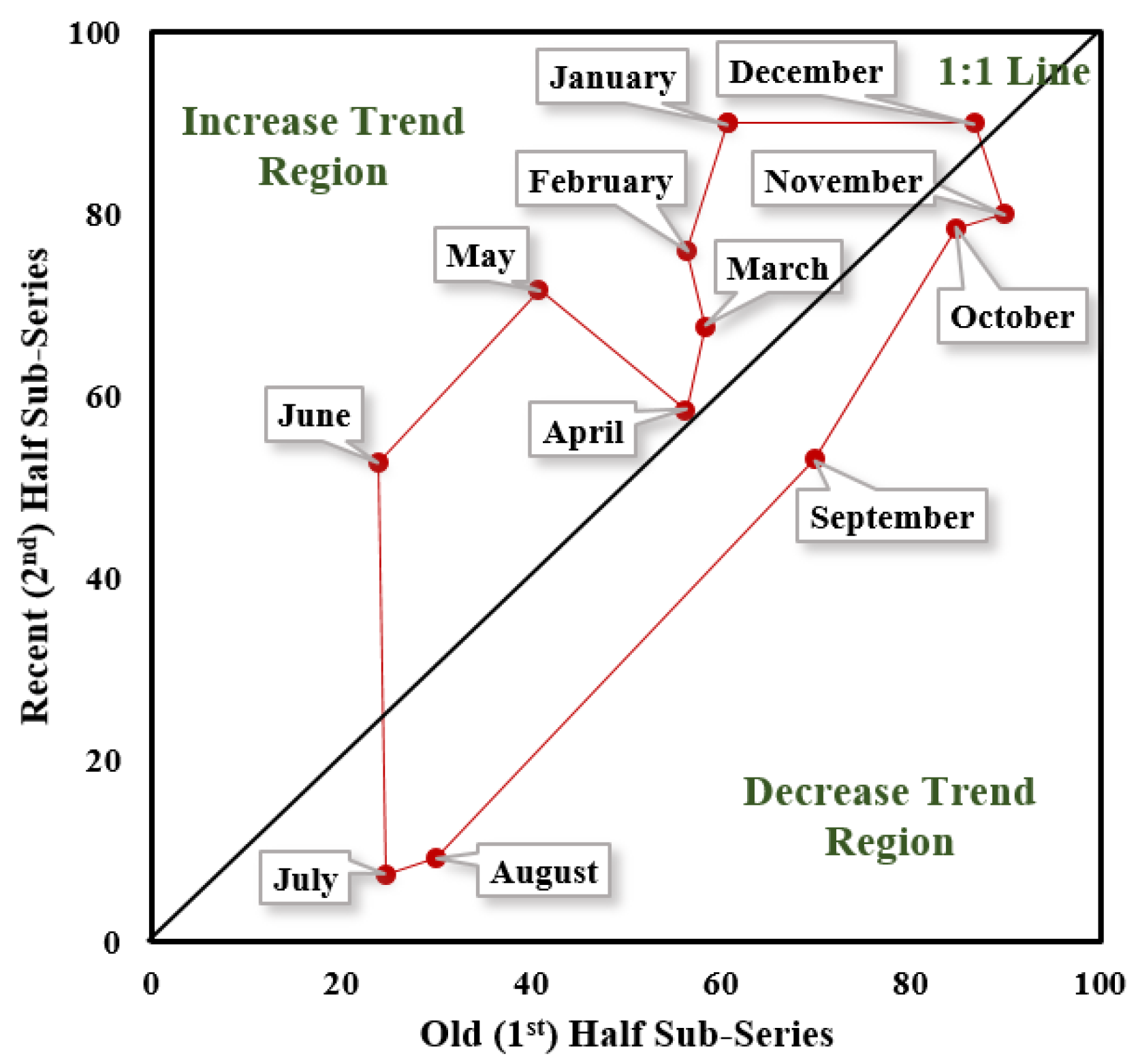

Figure 4. Hypothetical IPTA Graph for Monthly Records.
Figure 4. Hypothetical IPTA Graph for Monthly Records.
Energies 15 02474 g004
Energies 15 02474 g005 550

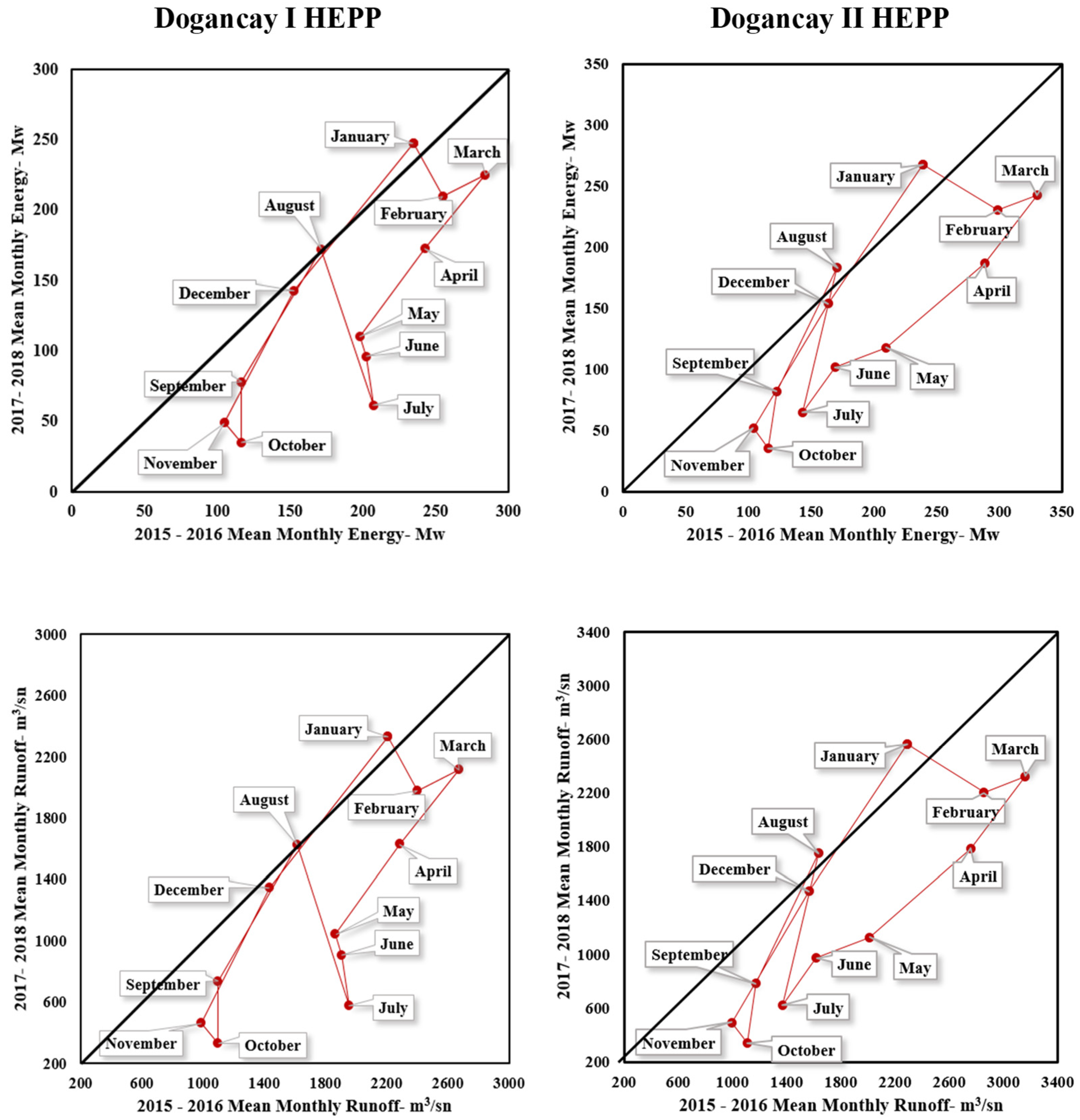

Figure 5. IPTA Method Graphs of Arithmetic Mean Analysis Results of Dogancay I and II HEPPs.
Figure 5. IPTA Method Graphs of Arithmetic Mean Analysis Results of Dogancay I and II HEPPs.
Energies 15 02474 g005
Energies 15 02474 g006 550

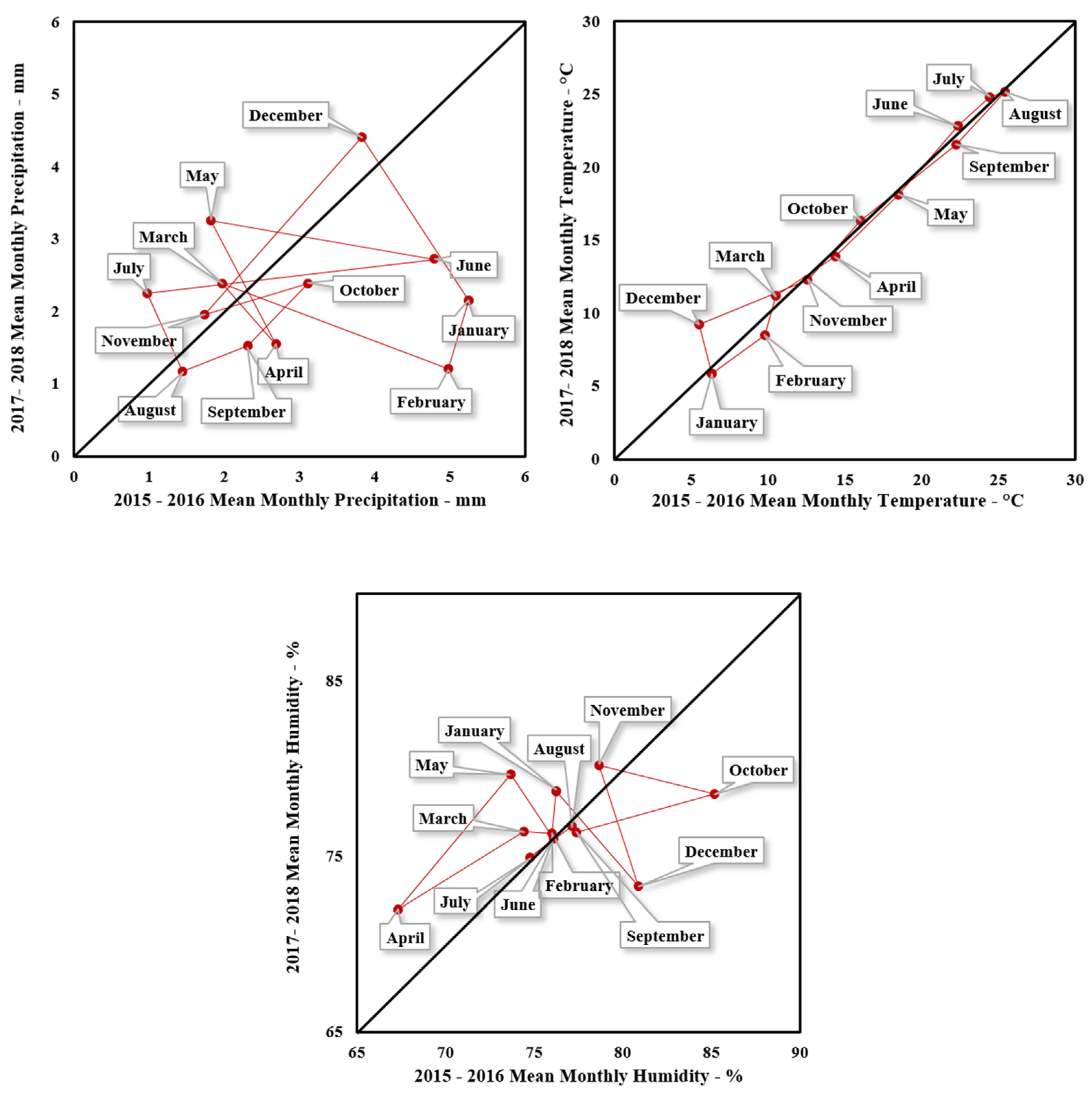

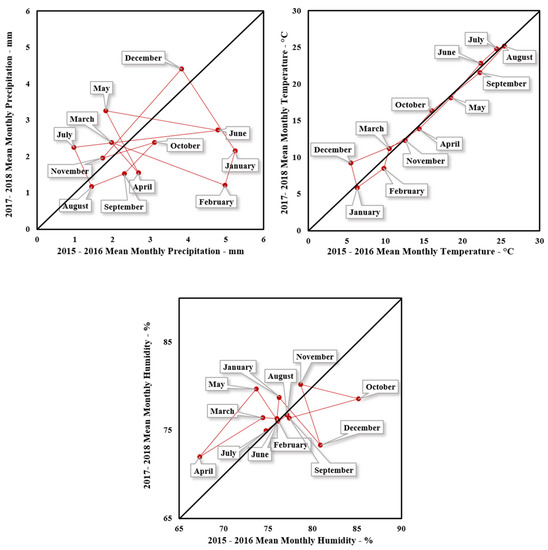

Figure 6. IPTA Method Graphs of Arithmetic Mean Analysis Results of Sakarya Province.
Figure 6. IPTA Method Graphs of Arithmetic Mean Analysis Results of Sakarya Province.
Energies 15 02474 g006
Energies 15 02474 g007 550

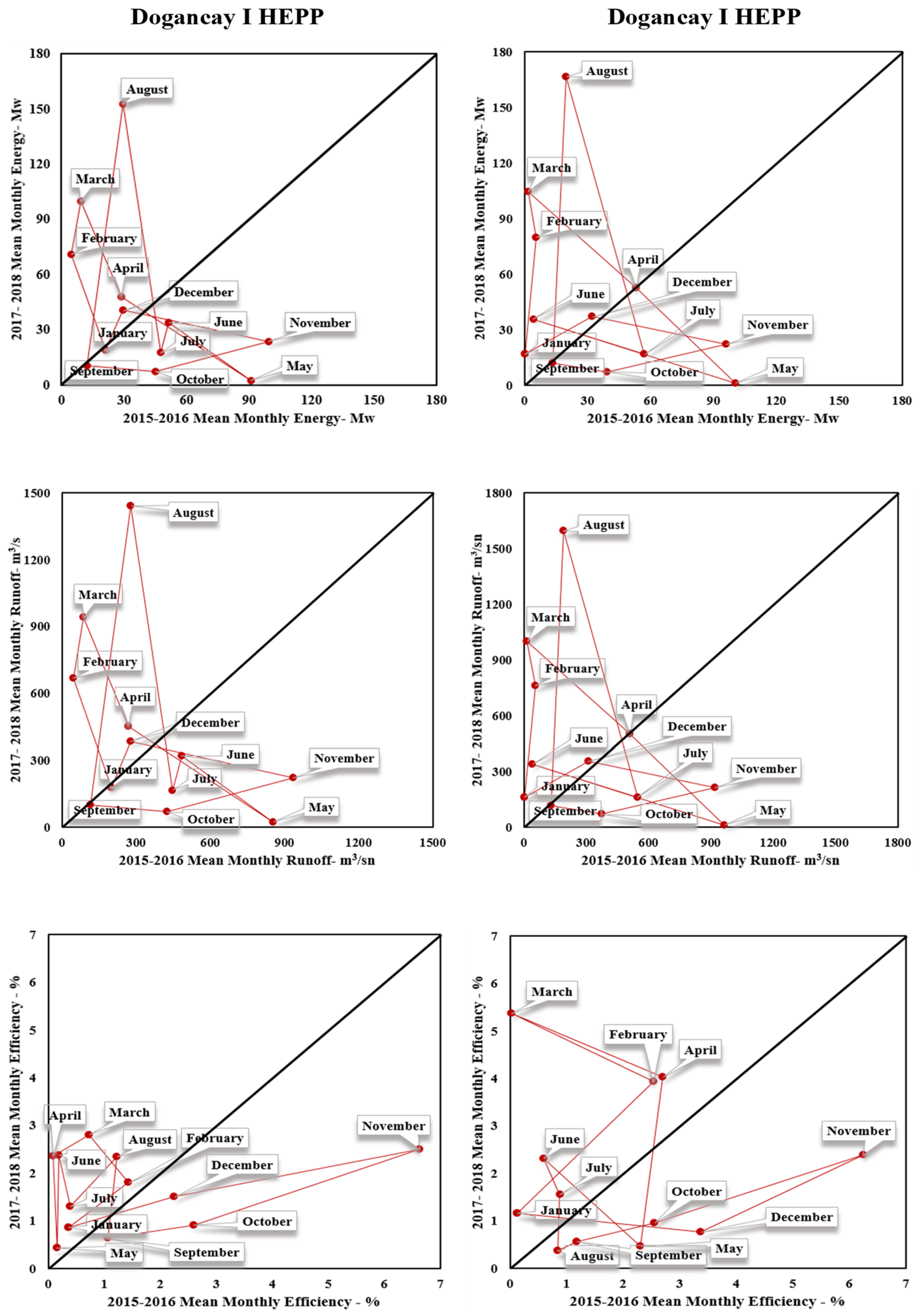

Figure 7. IPTA Method Graphs of Standard Deviation Analysis Results of Dogancay I and II HEPPs.
Figure 7. IPTA Method Graphs of Standard Deviation Analysis Results of Dogancay I and II HEPPs.
Energies 15 02474 g007
Energies 15 02474 g008 550
Figure 8. IPTA Method Graphs of Standard Deviation Analysis Results of Sakarya Province.
Figure 8. IPTA Method Graphs of Standard Deviation Analysis Results of Sakarya Province.
Energies 15 02474 g008
Table
Table 1. General Features of Dogancay HEPPs.
Table 1. General Features of Dogancay HEPPs.
ParameterDogancay
I HEPP		Dogancay
sII HEPP
Installed Power15.942 Mw15.663 Mw
Installed Power Ratio%0.0372%0.0372
Production Capacity171.63 GWh/year171.63 GWh/year
LocationSakarya, GeyveSakarya, Geyve
License NumberEU/1188-4/856EU/1188-4/856
Operating CompanyAkfen EnergyAkfen Energy
Coordinates40.57982, 30.3360340.63992, 30.34117
Table
Table 2. General Evaluation of Arithmetic Mean Analysis Results for Each Parameter.
Table 2. General Evaluation of Arithmetic Mean Analysis Results for Each Parameter.
ParameterJanuaryFebruaryMarchAprilMayJuneJulyAugustSeptemberOctoberNovemberDecember
Dogancay I (Energy)
Dogancay I (Runoff)
Dogancay I (Efficiency)
Dogancay II (Energy)
Dogancay II (Runoff)
Dogancay II (Efficiency)
Sakarya (Precipitation)
Sakarya (Temperature)
Sakarya (Humidity)
Increasing Trend Decreasing Trend Non-Trend
Table
Table 3. General Evaluation of Standard Deviation Analysis Results for Each Parameter.
Table 3. General Evaluation of Standard Deviation Analysis Results for Each Parameter.
ParameterJanuaryFebruaryMarchAprilMayJuneJulyAugustSeptemberOctoberNovemberDecember
Dogancay I (Energy)
Dogancay I (Runoff)
Dogancay I (Efficiency)
Dogancay II (Energy)
Dogancay II (Runoff)
Dogancay II (Efficiency)
Sakarya (Precipitation)
Sakarya (Temperature)
Sakarya (Humidity)
Increasing Trend Decreasing Trend No Trend
Table
Table 4. Statistical Values of Arithmetic Mean and Standard Deviation of Dogancay I HEPP.
Table 4. Statistical Values of Arithmetic Mean and Standard Deviation of Dogancay I HEPP.
Dogancay I HEPP—EnergyJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (Mw)42.39032.57366.15076.84015.12635.189116.742109.15643.05818.375105.289132.94
Trend Slope−1.8670.5041.2501.390−3.216−6.927−3.1081.715−492.186−1.1791.9591.270
Standard
Deviation		Trend Length (Mw)54.47729.45655.49877.21050.66116.900136.635143.45133.03556.58771.83123.342
Trend Slope−3.1976.497−2.676−0.737−0.8064.348−7.4758.275−0.1010.299−0.2462.535
Dogancay I HEPP—RunoffJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (m3/s)398.85306.48622.41722.99142.32331.091098.441027.06405.13172.89990.681250.88
Trend Slope−1.870.501.251.39−3.22−6.93−3.111.71−492.19−1.181.961.27
Standard
Deviation		Trend Length (m3/s)512.58277.16522.18726.47476.68159.011285.611349.74310.83532.44675.87219.63
Trend Slope−3.206.50−2.68−0.74−0.814.35−7.478.27−0.100.30−0.252.53
Dogancay I HEPP—EfficiencyJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (%)0.2700.8101.4620.7661.4773.1132.8712.1343.7672.6806.1061.023
Trend Slope−4.9250.671−0.344−1.248−1.5302.5730.7520.49314.649−0.6264.9660.308
Standard
Deviation		Trend Length (%)1.4251.2220.7811.9261.9341.0911.3371.7171.5614.3384.5001.994
Trend Slope0.881−1.4420.698−27.96861.516−5.1551.25510.0700.1780.3930.2270.339
Table
Table 5. Statistical Values of Arithmetic Mean and Standard Deviation of Dogancay II HEPP.
Table 5. Statistical Values of Arithmetic Mean and Standard Deviation of Dogancay II HEPP.
Dogancay II HEPP—EnergyJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (Mw)70.32134.01369.878104.39443.84544.906121.479111.97547.16020.079118.192136.851
Trend Slope−0.6360.3941.3390.8780.3931.4274.3042.1026.693−1.3821.7141.508
Standard
Deviation		Trend Length (Mw)63.07425.32573.36769.942102.42256.059154.284154.68626.08058.58565.37038.052
Trend Slope11.309−6.199−1.009−1.084−0.358−0.356−4.00825.048−0.1810.263−0.2340.633
Dogancay II HEPP—RunoffJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (m3/s)673.441325.732669.197999.751419.889430.0491163.371072.35451.642192.2921131.8931310.586
Trend Slope−0.6360.3941.3390.8780.3931.4274.3042.1026.693−1.3821.7141.508
Standard
Deviation		Trend Length (m3/s)604.045242.529702.617669.817980.864536.8571477.531481.38249.760561.048626.034364.414
Trend Slope11.309−6.199−1.009−1.084−0.358−0.356−4.00825.048−0.1810.263−0.2340.633
Dogancay II HEPP—EfficiencyJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (%)2.4881.7432.8553.6032.6393.9572.5471.4914.0573.2556.1632.110
Trend Slope−0.0920.3050.0650.641−0.5551.5290.134−0.42011.065−0.6196.4652.316
Standard
Deviation		Trend Length (%)3.6662.8892.9973.5862.5240.8131.1800.3921.4333.9633.3023.269
Trend Slope1.154−0.571−0.4989.040−1.082−2.70728.0550.5800.2820.3900.567−0.121
Table
Table 6. Statistical Values of Arithmetic Mean and Standard Deviation of Sakarya Province.
Table 6. Statistical Values of Arithmetic Mean and Standard Deviation of Sakarya Province.
Sakarya Province—PrecipitationJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (mm)0.9823.2301.1051.9113.0193.8471.1720.9281.1811.4393.2172.661
Trend Slope3.525−0.393−1.172−1.973−0.1780.124−2.2890.4061.0710.3111.168−1.596
Standard
Deviation		Trend Length (mm)0.4410.9510.5400.3861.3652.6860.7171.0631.3341.0972.5292.930
Trend Slope−0.308−1.943−0.499−4.776−0.1510.2220.389−1.8760.4480.0890.0910.023
Sakarya Province—TemperatureJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (°C)4.3322.7934.6955.9506.0602.8801.0754.8098.1095.3107.7143.521
Trend Slope0.7753.7890.6921.0291.2150.9720.3341.1220.8471.1650.429−3.996
Standard
Deviation		Trend Length (°C)2.8941.2251.6012.6501.4191.4350.6841.7781.5311.5351.9051.975
Trend Slope−0.836−1.0380.4360.344−0.8170.210−2.117−0.115−0.984−0.6656.6700.067
Sakarya Province—HumidityJanuary–FebruaryFebruary–MarchMarch–AprilApril–MayMay–JuneJune–JulyJuly–AugustAugust–SeptemberSeptember–OctoberOctober–NovemberNovember–DecemberDecember–January
Arithmetic
Mean		Trend Length (%)2.4301.5948.3549.9754.3841.6972.9430.4398.1226.7477.2587.153
Trend Slope10.680−0.0600.6251.211−1.5220.7810.738−1.4630.281−0.251−3.094−1.173
Standard
Deviation		Trend Length (%)8.8099.5833.0672.3145.3765.6702.8781.2580.4581.4154.0275.266
Trend Slope11.273−2.987−0.101−1.157−0.1190.0711.111−27.1860.151−1.06729.1031.883
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ceribasi, G.; Ceyhunlu, A.I.; Wałęga, A.; Młyński, D. Investigation of the Effect of Climate Change on Energy Produced by Hydroelectric Power Plants (HEPPs) by Trend Analysis Method: A Case Study for Dogancay I–II HEPPs. Energies 2022, 15, 2474. https://doi.org/10.3390/en15072474

AMA Style

Ceribasi G, Ceyhunlu AI, Wałęga A, Młyński D. Investigation of the Effect of Climate Change on Energy Produced by Hydroelectric Power Plants (HEPPs) by Trend Analysis Method: A Case Study for Dogancay I–II HEPPs. Energies. 2022; 15(7):2474. https://doi.org/10.3390/en15072474

Chicago/Turabian Style

Ceribasi, Gokmen, Ahmet Iyad Ceyhunlu, Andrzej Wałęga, and Dariusz Młyński. 2022. "Investigation of the Effect of Climate Change on Energy Produced by Hydroelectric Power Plants (HEPPs) by Trend Analysis Method: A Case Study for Dogancay I–II HEPPs" Energies 15, no. 7: 2474. https://doi.org/10.3390/en15072474

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
