Modeling and Analysis of Low-Frequency Oscillation for Electrified Railway under Mixed Operation of Passenger and Freight Trains

Abstract

Addressing the shortcomings of existing low-frequency oscillation research on electrified railways, which has mainly focused on single-type trains and lacks the accurate modeling of traction inverter systems, in this paper we modeled and analyzed low-frequency oscillations in an electrified railway passenger and freight mixed-operation vehicle–grid system. First, an equivalent model of the DC side of the traction inverter was established, with the inverter system being equivalent to the parallel connection of the load resistance and the current source, and the specific mathematical expression was determined and verified by impedance measurement. Secondly, based on the equivalent model of the DC side of the traction inverter, a small signal model of the vehicle–grid system under the mixed operating conditions of CRH5 and HXD_2B considering the inverter system was established. The generalized Nyqusit criterion was used to study the low-frequency oscillation characteristics under mixed transportation conditions. The accuracy of the established model and the correctness of the theoretical analysis were verified based on Matlab/Simulink. Finally, using the dominant pole theory to analyze the low-frequency stability conditions, the relationship between the number of mixed trains and the minimum short-circuit ratio was obtained, and the simulation verification was carried out.

1. Introduction

At present, the EMUs put into operation in China generally adopt the AC–DC–AC traction drive mode. With the promotion of electrified railways under the support of national policies, more and more electric locomotives have been put into use. This also means that more power electronics devices with nonlinear characteristics are connected to the TN, which leads to frequent LFO and harmonic instability problems in the “multi-vehicle–grid-connected” system, which brings a great threat to the VGS [1,2]. The trains currently in operation are mainly passenger trains represented by CRH and freight locomotives represented by HXD. Although these two types of trains represent AC–DC–AC loads, their grid-side converters mainly adopt two different control strategies, namely DQDC and TDCC. Studies have shown that when two trains with different control structures are put into operation at the same time, their control parameters affect not only their impedance characteristics but also the stability of other vehicles. Therefore, the LFO mechanism of the VGS under different mixed running conditions is more complicated [3].

Generally speaking, research on LFO has mainly been carried out from two perspectives: mechanism analysis and measures for suppressing LFO. In the study of the LFO problem, the frequency domain impedance method is widely adopted, that is, the VGS is regarded as the cascade of the TN subsystem and the train subsystem [4,5]; the impedance models of the two subsystems are established separately; and the impedance ratio matrix is further obtained to analyze the system stability [6,7,8]. Since LFO usually occurs in low-power conditions when multiple trains are hoisted at the same location, the single-phase grid-side converter is mainly considered when establishing the train impedance model [9]. The research shows that the LFO phenomenon is mainly caused by the mismatch between the parameters of the TN system and the controller parameters of the EMUs [10]. In [10], the impedance model was used to draw a Nyquist curve and a Bode diagram, which better reflected the dynamic interaction influence at the common connection points of the VGS and clearly reflected the frequency band of the unstable region. However, this paper only analyzed the current control of the locomotive and lacked an analysis of the entire locomotive control system. The dq decoupling small-signal impedance model of CRH5 EMUs was established in [11,12], and the influence of the number of single CRH5 EMUs and the load and control parameters on the LFO of the VGS was analyzed. The authors of [13] established the locomotive harmonic state space (HSS) model and analyzed the harmonic stability of the VGS. Since the HSS model contains multiple cross-coupled dynamics and harmonic components of electricity, the derived model can accurately evaluate the LFO problem of the VGS. In [14], the difference and applicability of the harmonic linearization method and the HSS method were explained according to the harmonic characteristics of the DC converter. The authors of [15,16] took the CRH3 as an example and analyzed the influence of the number of trains and the control parameters on the low-frequency stability, but the conclusions lacked a mechanism explanation. The authors of [17] proposed an analysis method to judge the stability according to the open-loop pole, but compared with the generalized Nyquist criterion [10], these methods have greater limitations in analyzing the stability of the system. The authors of [5,6] established a small-signal impedance model of a single rectifier based on the impedance analysis method and combined the generalized Nyquist criterion and the dominant pole to analyze the influence of the proportional parameters of the voltage and current loop on the stability of the VGS. The authors of [18] established a single-phase dq decoupling small-signal impedance model for CRH5 EMUs and used the dominant pole to analyze the influence of the external parameters of the VGS and the internal control parameters on the LFO.

Most studies on LFO in the above-mentioned literature were carried out under the operating conditions of a single-control-type train, and the mechanism of the occurrence of LFO was considered in terms of impedance. Few authors have considered the LFO phenomenon of the VGS when different types of trains are mixed. In [19,20], different kinds of locomotives were simulated under mixed running conditions, and the grid-side current and voltage harmonics before and after mixed running were analyzed. However, the mechanism of the influence of various parameters on the low-frequency stability was not analyzed. In addition, the existing literature has not considered the structure of the inverter and traction motor when modeling the vehicle-side impedance, and the inverter and the traction motor have been replaced by the load resistance. To address the above problems, in this paper we studied the LFO of the passenger and freight mixed-operation VGS of electrified railways. The main aims and innovations were as follows.

(1)

In this paper, a DC-side equivalent model of the traction inverter was first established, with the inverter system being equivalent to the parallel connection of the load resistance and the current source, and the specific mathematical expression was determined and verified by impedance measurement.

(2)

Based on the DC-side equivalent model of the traction inverter, a small-signal model of the VGS under the mixed operating conditions of CRH5 and HXD_2B considering the inverter system was established. The generalized Nyqusit criterion was used to study the LFO characteristics of the VGS under mixed transportation conditions, and the validity of the established model and the correctness of the theoretical analysis were verified through a time-domain simulation using Matlab/Simulink.

(3)

Using the dominant pole theory to analyze the low-frequency stability conditions of the VGS, the relationship between the number of mixed trains and the minimum short-circuit ratio of the system was obtained, and the simulation verification was carried out.

2. Impedance Model of VGS under Mixed Operation of Passenger and Freight Locomotives

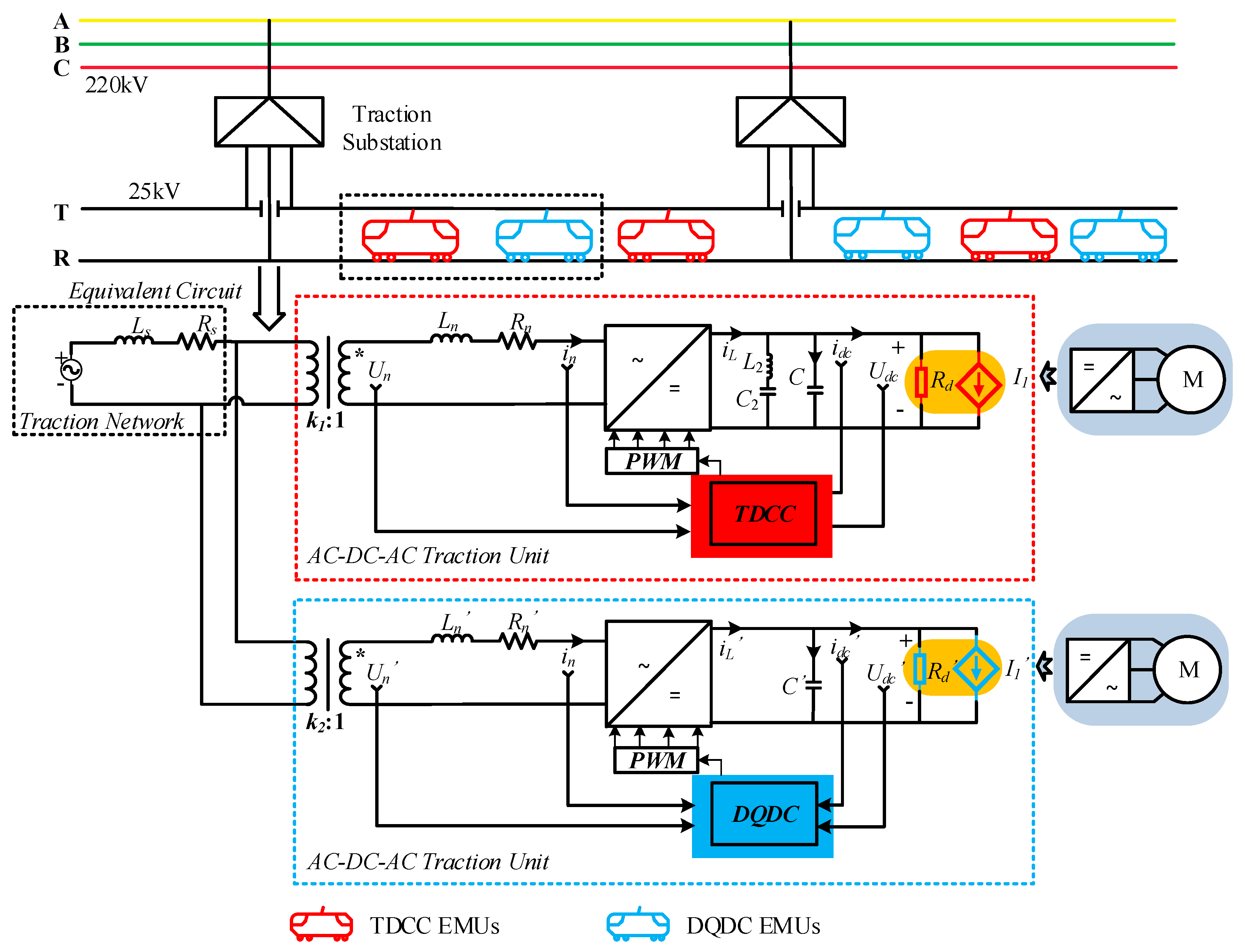

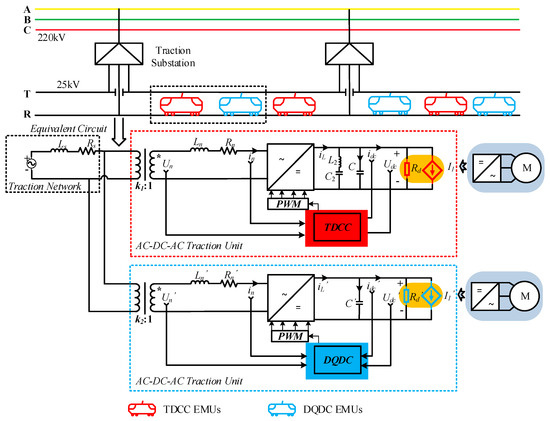

This paper takes the CRH5 EMUs and the HXD_2B locomotive as the study object to investigate mixed operation. The CRH5 rectifier adopts the DQDC method, and the HXD_2B rectifier adopts the TDCC control method. A schematic diagram of the mixed operation is shown in Figure 1. A corresponding control block diagram is shown in Figure 2. The control strategy of DQDC takes the detected single-phase AC voltage and current as the α system and constructs the β system component through the SOGI. After the PLL locks the phase of the grid voltage, the voltage and current under the αβ system are converted to the dq system by the Park transformation, which is controlled by the controller. The control structure of an outer voltage loop and inner current loop is adopted. Finally, the obtained control signal under the dq system is subjected to inverse Park transformation, and the control signal under the α system is taken to send out PWM waves to control the main circuit. The control strategy of TDCC is to orthogonalize the detected single-phase AC voltage through the SOGI-PLL. The introduction of feedforward in the DC voltage control loop improves the dynamic response of the PI controller. The reference current amplitude obtained by the DC voltage loop and the grid voltage phase locked by PLL are input into the current control loop to realize the phase synchronization of the current. The reference modulation signal is obtained from the current loop to control the main circuit. As shown in Figure 2, the SOGI-PLL takes the input voltage and inductor current e_n and i_n as α-system components and obtains imaginary β-system components under the action of SOGI. The semaphore under the αβ system is decomposed into the dq system through Park transformation. The voltage and current under the dq system are used as control variables to control the system under the action of the controller. The phase angle required for the coordinate transformation is provided by the PLL.

When studying the LFO problem, the distributed capacitance of the TN can be ignored. The TN is equivalent to a series circuit containing resistance and inductance. The train consists of several traction drive units in parallel. The traction drive unit contains on-board transformers, grid-side rectifiers, intermediate DC links, traction inverters, and traction AC motors. In this section, the inverter and traction motor are modeled as resistors and current sources in parallel. Then, a unified impedance model considering the inverter for these two types of models is established in the dq coordinate system, which provides a basis for the subsequent theoretical analysis of stability. This paper will study a HXD_2B electric locomotive with a TDCC grid-side converter and a CRH5 train with a DQDC grid-side converter. The main circuit and control parameters are shown in

Table 1. Parameters of VGS.

Parameter	CRH5	HXD2B	Parameter	CRH5	HXD2B
Ed	1770 V	2100 V	KiSOGI	1	1
f1	50 Hz	50 Hz	KPpll	0.7	0.7
fp	[1, 125] Hz	[1, 125] Hz	KIpll	25	25
Rn	0.145 Ω	0.15 Ω	KPi	2	0.2
Ln	5.4 mH	4 mH	KIi	50	0
Cd	9 mF	9 mF	KPu	0.5	0.3
Udc	3600 V	3750 V	KIu	5	15
KuSOGI	1	1	fs	250 Hz	800 Hz

[12,21].

2.1. Equivalent Model of TN

In the low-frequency range, the distributed capacitance of the TN is negligible. Therefore, this paper simplifies the TN as the series connection of resistance and inductance, and its dq small-signal impedance model is shown in (1).

$$Z_{\mathbf{o}}=\left[\begin{array}{cc}{R}_s+s{L}_s& -{\omega }_1{L}_s\\ {\omega }_1{L}_s& R_s+s{L}_s\end{array}\right]$$

(1)

where R_s and L_s represent the grid-side equivalent resistance and equivalent inductance of the traction power supply system, respectively, and ω₁ is the fundamental angular frequency.

2.2. Equivalent Model of Traction Inverter System

At present, the electric locomotives running on electrified railways are generally AC–DC–AC traction drive systems, which are mainly composed of onboard transformers, four-quadrant rectifiers, intermediate DC links, inverters, and traction motors [22,23]. In the AC–DC–AC variable-frequency speed regulation system, the AC side of the PWM inverter can always be equivalent to the three-phase AC electromotive force and the resistance–inductance series circuit [24]. LFO usually occurs in low-power conditions when multiple trains are hoisted and prepared at the same location. At this time, the rectifier and inverter are energized and start to work, and the motor also begins to be energized, but it does not yet rotate. This state can be regarded as a motor stall or short-circuit state, and the induced electromotive force of the motor can be ignored. Therefore, the motor can be equivalent to the form of a resistance–inductance series circuit. The equivalent circuit model of the two-level traction inverter is shown in Figure 3. In this figure, u_dc represents the DC-side voltage; i_dc represents the DC-side current; u_k (k = 1, 2, 3) represents the instantaneous value of the inverter’s three-phase voltage; R_e represents the total equivalent resistance of each phase of the traction motor; and L_e represents the total equivalent inductance of each phase of the traction motor.

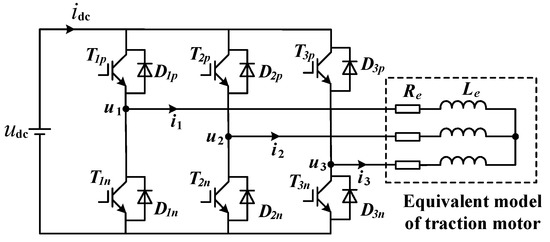

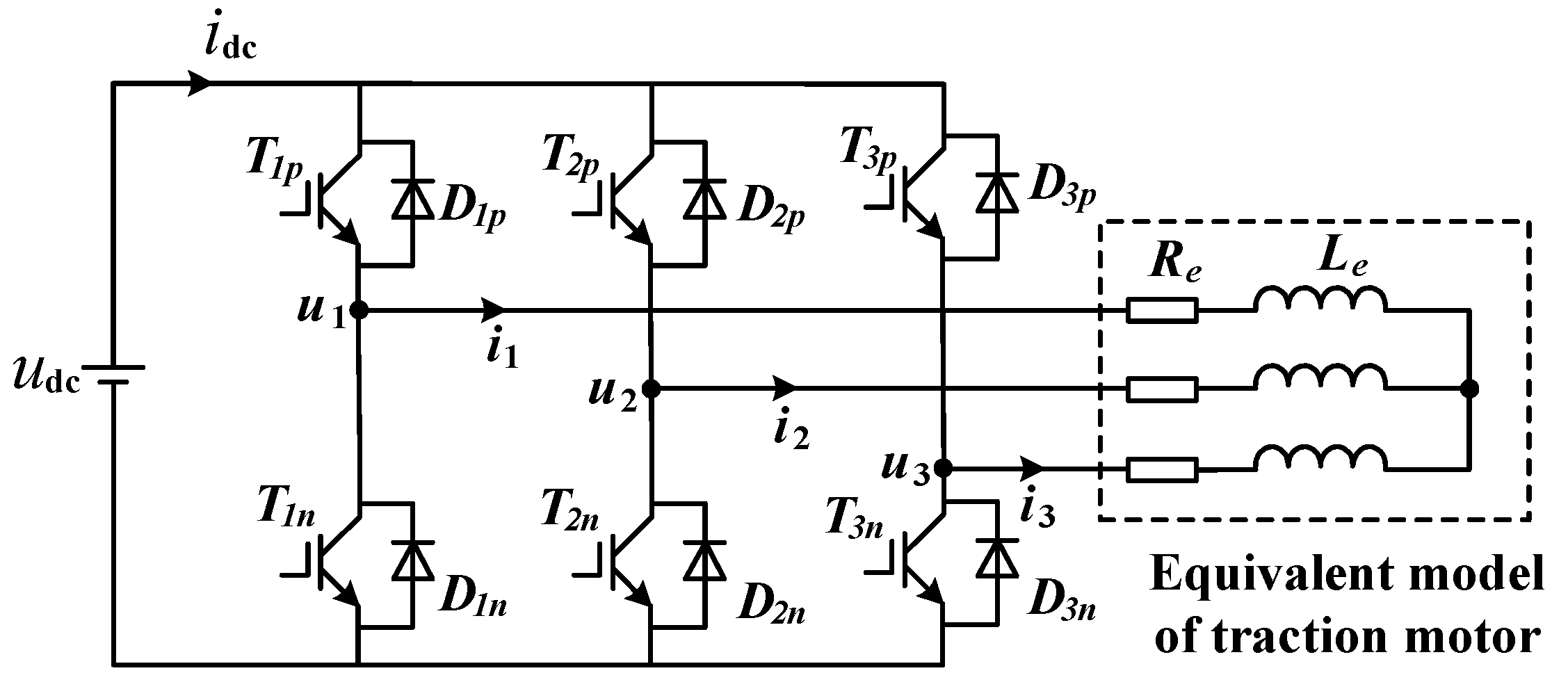

According to Figure 3, the state space average model of the three-phase inverter circuit can be obtained as shown in (2) [24].

$$\left[\begin{array}{l}{L}_{\mathrm{e}}\frac{\mathrm{d}{i}_1}{\mathrm{d}t}\\ L_{\mathrm{e}}\frac{\mathrm{d}{i}_2}{\mathrm{d}t}\\ L_{\mathrm{e}}\frac{\mathrm{d}{i}_3}{\mathrm{d}t}\end{array}\right]=\left[\begin{array}{ccc}-R_{\mathrm{e}}& 0& 0\\ 0& -R_{\mathrm{e}}& 0\\ 0& 0& -R_{\mathrm{e}}\end{array}\right]\left[\begin{array}{l}{i}_1\\ i_2\\ i_3\end{array}\right]-\left[\begin{array}{l}(d_{\mathrm{M}}-d_1)u_{\mathrm{dc}}\\ (d_{\mathrm{M}}-d_2)u_{\mathrm{dc}}\\ (d_{\mathrm{M}}-d_3)u_{\mathrm{dc}}\end{array}\right]$$

(2)

In (2), i_k (k = 1, 2, 3) represents the instantaneous value of the three-phase current; d₁, d₂, and d₃ are the duty cycles of the switches on the upper arms of the three-phase half-bridge; and d_M is the average value of the three-phase duty cycles.

Expanding and recombining the matrix in (2), (3) can be obtained.

$$L_{\mathrm{e}} \stackrel{•}{i_k}+i_k{R}_{\mathrm{e}}=\left(d_k-d_{\mathrm{M}}\right)u_{\mathrm{dc}}$$

(3)

where

$$d_{\mathrm{M}}=\frac{1}{3}{\displaystyle \sum _{k=1}^3{d}_k}=\frac{1}{2}$$

(4)

In order to obtain the equivalent model of the DC side of the inverter, we solved Formula (3), assuming

$$d_k=\frac{1}{2}+\frac{m}{2}\sin \left[{\omega }_{\mathrm{e}}t-\left(k-1\right){120}^{\circ }\right]$$

(5)

where m is the modulation coefficient of the PWM inverter, and ω_e is the three-phase current frequency of the motor stator. Let ${\alpha }_k={\omega }_{\mathrm{e}}t-\left(k-1\right){120}^{\circ }$, then (3) could be rewritten as (6):

$$L_{\mathrm{e}} \stackrel{•}{i_k}+i_k{R}_{\mathrm{e}}=\frac{m{u}_{\mathrm{dc}}}{2}\sin {\alpha }_k$$

(6)

Let

$$\{\begin{array}{c}{u}_k=\frac{m{u}_{\mathrm{dc}}}{2}\sin {\alpha }_k\\ U_k=\frac{m{u}_{\mathrm{dc}}}{2}\left(k=1,2,3\right)\end{array}$$

(7)

where U_k represents the three-phase voltage amplitude of the inverter.

Let the steady-state solution of Equation (6) be

$$i_{kp}=I\sin ({\alpha }_k-\gamma )$$

(8)

where I is the amplitude of the three-phase current, and γ is the angle to be solved.

Substituting (8) into (6), the steady-state equation of (6) could be obtained as follows:

$${\omega }_{\mathrm{e}}{L}_{\mathrm{e}}I\cos \left({\alpha }_{\mathrm{k}}-\gamma \right)+{IR}_{\mathrm{e}}\sin \left({\alpha }_{\mathrm{k}}-\gamma \right)=U_{\mathrm{k}}\sin {\alpha }_{\mathrm{k}}$$

(9)

By making further adjustments, we obtained

$$({\omega }_{\mathrm{e}}{L}_{\mathrm{e}}I\cos \gamma -{IR}_{\mathrm{e}}\sin \gamma )\cos {\alpha }_k+({IR}_{\mathrm{e}}\cos \gamma +{\omega }_{\mathrm{e}}{L}_{\mathrm{e}}I\sin \gamma )\sin {\alpha }_k=U_k\sin {\alpha }_k$$

(10)

From (10), we determined:

$$\{\begin{array}{c}{\omega }_{\mathrm{e}}{L}_{\mathrm{e}}I\cos \gamma -IR\sin \gamma =0\\ {\omega }_{\mathrm{e}}{L}_{\mathrm{e}}I\sin \gamma +IR\cos \gamma =U_k\end{array}$$

(11)

Therefore, (12) could be obtained.

$$\{\begin{array}{l}I=\sqrt{\frac{U_k^2}{R_{\mathrm{e}}^2+{\left({\omega }_{\mathrm{e}}{L}_{\mathrm{e}}\right)}^2}}\\ \gamma =\arctan \left(\frac{{\omega }_{\mathrm{e}}{L}_{\mathrm{e}}}{R_{\mathrm{e}}}\right)\end{array}$$

(12)

Let the full solution to Equation (6) be

$$i_k=A_k{e}^{-t/\tau }+I\sin \left({\alpha }_k-\gamma \right)$$

(13)

where A_k is the undetermined coefficient, τ is the time constant, and τ = L_e/R_e.

Substituting i_k(0) = 0 into Equation (13), the expression of A_k could be obtained as follows:

$$A_k=I\sin \left[\gamma +\left(k-1\right){120}^{\circ }\right]$$

(14)

The DC current and the three-phase stator current satisfy the relationship shown in (15).

$$i_{\mathrm{dc}}={\displaystyle \sum _{k=1}^3{d}_{{}_{\mathrm{k}}}{i}_{{}_{\mathrm{k}}}}$$

(15)

Substituting (13) and (14) into (15), the expression of i_dc could be obtained as follows:

$$i_{\mathrm{dc}}=\frac{3m}{4}I\left[\cos \gamma -\cos ({\omega }_{\mathrm{e}}t+\gamma )e^{-t/\tau }\right]$$

(16)

Since the value of the time constant τ is generally small, after ignoring the transient process, the inverter circuit and the motor could be regarded as equivalent to a parallel connection of a load resistor R_d and a current source I₁, as shown in Figure 4.

Considering that the active power consumed by the three resistors in Figure 3 was equal to the active power consumed by the resistor R_d in Figure 4, the power balance relationship shown in Equation (17) could be obtained.

$$3{\left(\frac{I}{\sqrt{2}}\right)}^2{R}_e=\frac{u_{\mathrm{dc}}^2}{R_{\mathrm{d}}}$$

(17)

Thus, the expression of the equivalent resistance R_d could be obtained as follows:

$$R_{\mathrm{d}}=\frac{8\left[R_{\mathrm{e}}^2+{({\omega }_{\mathrm{e}}{L}_{\mathrm{e}})}^2\right]}{3m^2{R}_{\mathrm{e}}}$$

(18)

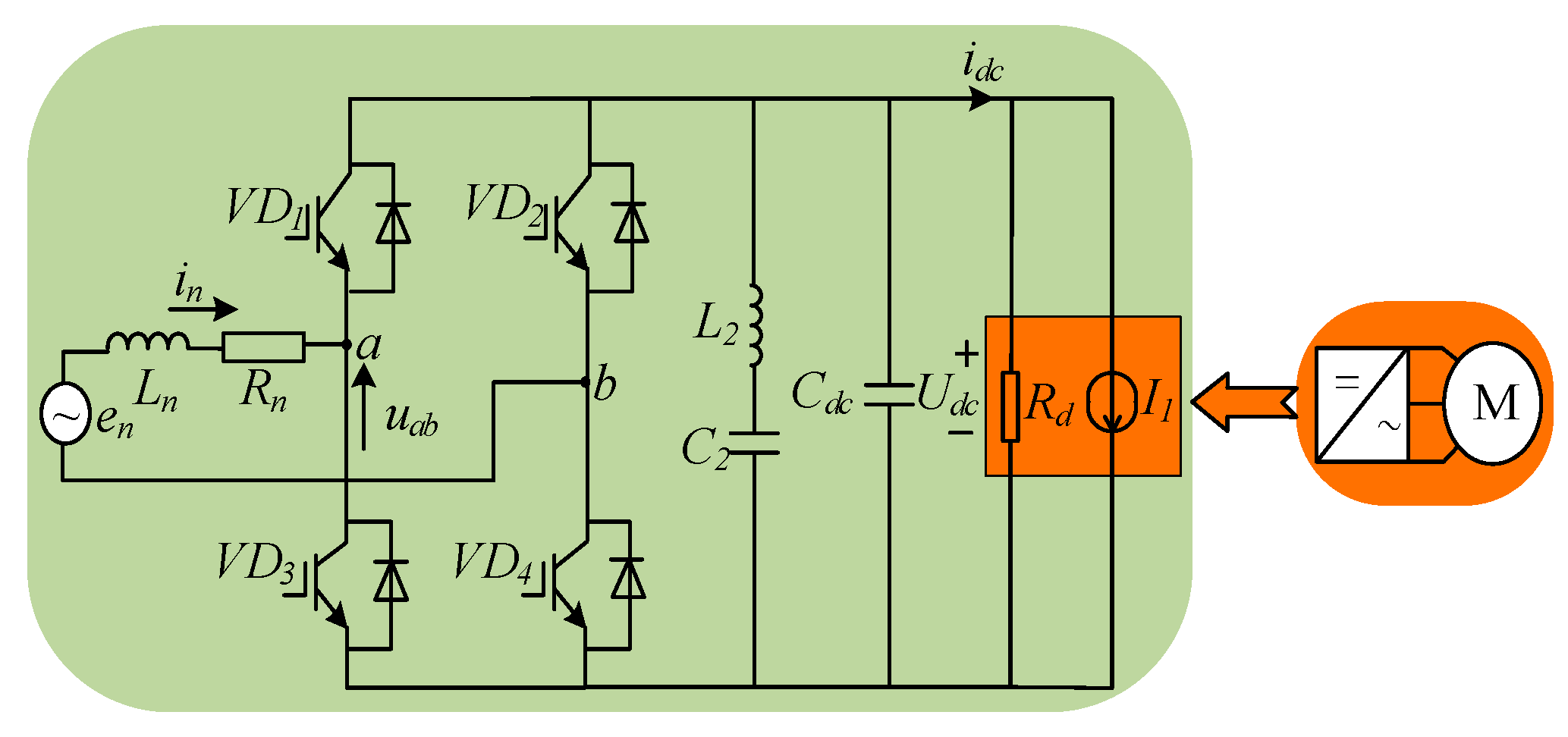

According to the current relationship in Figure 4, ignoring the transient process of i_dc, the expression of the equivalent current source I₁ could be obtained as follows:

$$\begin{array}{l}{I}_1=i_{\mathrm{dc}}-\frac{u_{\mathrm{dc}}}{R_{\mathrm{d}}}=\frac{3}{4}mI\cos \gamma -\frac{u_{\mathrm{dc}}}{R_{\mathrm{d}}}\\ =\frac{3}{8}{m}^2{u}_{\mathrm{dc}}\left[\sqrt{\frac{1}{R_{\mathrm{e}}^2+{({\omega }_{\mathrm{e}}{L}_{\mathrm{e}})}^2}}\cos \left[\arctan \left(\frac{{\omega }_{\mathrm{e}}{L}_{\mathrm{e}}}{R_{\mathrm{e}}}\right)\right]-\frac{R_e}{R_{\mathrm{e}}^2+{({\omega }_{\mathrm{e}}{L}_{\mathrm{e}})}^2}\right]\end{array}$$

(19)

2.3. Dq Impedance Modeling of Locomotives Considering Traction Inverter and Motor

This section establishes the dq impedance model of CRH5 and HXD_2B considering the inverter model and based on the rectifier model of the VGS [3,11,12]. As for the two types of vehicles, the main circuit structure of the traction drive units is the same, as shown in Figure 4, and the main circuit state equation of the converter could be written as:

$$\{\begin{array}{l}{L}_{\mathrm{n}}\frac{\mathrm{d}{i}_{\mathrm{n}}}{\mathrm{d}t}=e_{\mathrm{n}}-i_{\mathrm{n}}{R}_{\mathrm{n}}-d_n{u}_{\mathrm{dc}}\\ C_{\mathrm{d}}\frac{\mathrm{d}{u}_{\mathrm{dc}}}{\mathrm{d}t}=d_n{i}_{\mathrm{n}}-(\frac{u_{\mathrm{dc}}}{R_{\mathrm{d}}}+I_1)\end{array}$$

(20)

In the above expression, when VD1 and VD4 are on while VD2 and VD3 are off, d_n is 1; when VD2 and VD3 are on while VD1 and VD4 are off, d_n is 0. To construct the dq impedance model, the state variable x needed to be decomposed into the dq axis through the inverse Park transformation. The relationship is shown in (21).

$$x_{\alpha }=x_d\cos \omega t-x_q\sin \omega t$$

(21)

Based on the conversion relationship of (21), ignoring the secondary power frequency ripple on the DC side, the state equation of the main circuit under the dq system was written as follows:

$$\{\begin{array}{l}{L}_{\mathrm{n}}\frac{\mathrm{d}{i}_d}{\mathrm{d}t}=e_d-R_{\mathrm{n}}{i}_d+{\omega }_1{L}_{\mathrm{n}}{i}_q-d_d{u}_{\mathrm{dc}}\\ L_{\mathrm{n}}\frac{\mathrm{d}{i}_q}{\mathrm{d}t}=e_q-R_{\mathrm{n}}{i}_q-{\omega }_1{L}_{\mathrm{n}}{i}_d-d_q{u}_{\mathrm{dc}}\\ C_{\mathrm{d}}\frac{\mathrm{d}{u}_{\mathrm{dc}}}{\mathrm{d}t}=\frac{1}{2}\left(d_d{i}_d+d_q{i}_q\right)-(\frac{u_{\mathrm{dc}}}{R_{\mathrm{d}}}+I_1)\end{array}$$

(22)

By solving and analyzing the static operating point of the average model under the dq system, the values of the duty cycle, state variables, and output variables under steady-state conditions could be obtained. When the circuit is stable, the phase locked by the PLL is the same as the network voltage phase. At this time, the power factor is 1. Therefore, E_q and I_q are 0, and the steady-state values of the other variables are shown in (23).

$$\{\begin{array}{l}{I}_d=\frac{E_d-\sqrt{E_d^2-8R_{\mathrm{n}}{U}_{\mathrm{dc}}(\frac{U_{\mathrm{dc}}}{R_d}+I_1)}}{2R_{\mathrm{n}}}\\ D_d=\frac{E_d+\sqrt{E_d^2-8R_{\mathrm{n}}{U}_{\mathrm{dc}}(\frac{U_{\mathrm{dc}}}{R_d}+I_1)}}{2U_{\mathrm{dc}}}\\ D_q=\frac{-{\omega }_1{L}_{\mathrm{n}}{E}_d+{\omega }_1{L}_{\mathrm{n}}\sqrt{E_d^2-8R_{\mathrm{n}}{U}_{\mathrm{dc}}(\frac{U_{\mathrm{dc}}}{R_d}+I_1)}}{2R_{\mathrm{n}}{U}_{\mathrm{dc}}}\end{array}$$

(23)

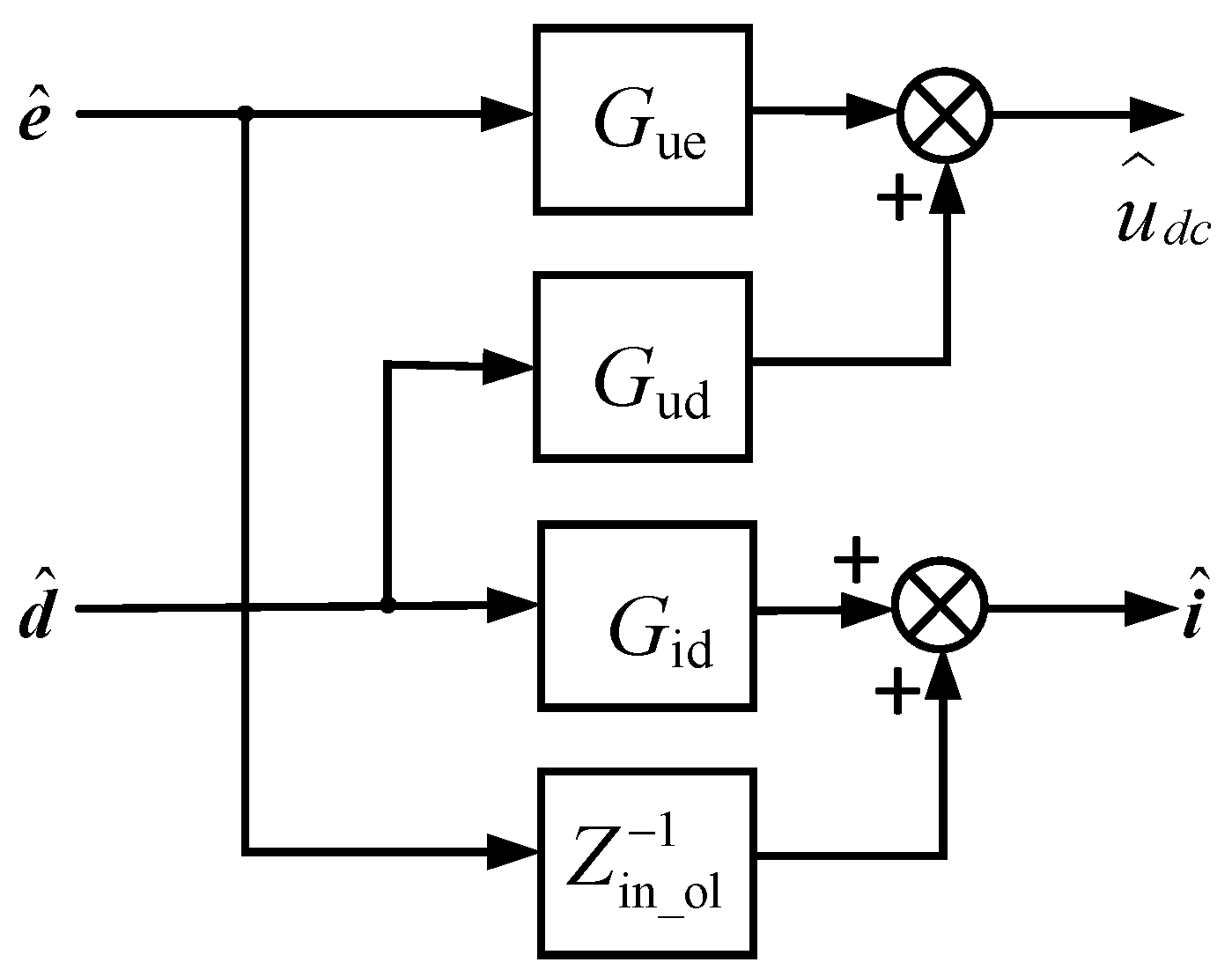

Equation (22) was expanded with a steady-state value and small signal at the static operating point [25]. Ignoring the steady-state component, we found that there are product terms for small signals, namely ${\widehat{d}}_d{\widehat{u}}_{dc}$, ${\widehat{d}}_q{\widehat{u}}_{dc}$, ${\widehat{d}}_q{\widehat{i}}_d$, and ${\widehat{d}}_q{\widehat{i}}_q$. The presence of these terms reflects the nonlinearity of the rectifier system. By ignoring these small-signal product terms, the system could be linearized to obtain the small-signal model of the system, as shown in Figure 5. The disturbance of the input voltage vector and the duty cycle vector were set to zero to derive the corresponding transfer function matrix. That is, the mathematical model of impedance under the dq system of the main circuit topology of CRH5 and HXD_2B was obtained as shown in (24).

$$\{\begin{array}{l}{Z}_{RL}=\left[\begin{array}{cc}{R}_{\mathrm{n}}+s{L}_{\mathrm{n}}& -{\omega }_1{L}_{\mathrm{n}}\\ {\omega }_1{L}_{\mathrm{n}}& R_{\mathrm{n}}+s{L}_{\mathrm{n}}\end{array}\right]Z_{RC}=\frac{R_{\mathrm{d}}}{s{R}_{\mathrm{d}}{C}_{\mathrm{d}}+1}\\ Z_{\mathrm{in}\_\mathrm{ol}}=Z_{RL}+\frac{Z_{RC}}{2}\left[\begin{array}{cc}{D}_d^{s2}& D_d^s{D}_q^s\\ D_d^s{D}_q^s& D_q^{s2}\end{array}\right]\\ G_{id}=-Z_{\mathrm{in}\_\mathrm{ol}}^{-1}\left(\frac{Z_{RC}}{2}\left[\begin{array}{c}{D}_d^s\\ D_q^s\end{array}\right]\left[\begin{array}{cc}{I}_d^s& I_q^s\end{array}\right]+\left[\begin{array}{cc}{U}_{\mathrm{dc}}& 0\\ 0& U_{\mathrm{dc}}\end{array}\right]\right)\\ G_{ue}=\frac{Z_{RC}}{2}\left[\begin{array}{cc}{D}_d^s& D_q^s\end{array}\right]Z_{\mathrm{in}\_\mathrm{ol}}^{-1}\\ G_{ud}=\frac{Z_{RC}}{2}\left[\begin{array}{cc}{D}_d^s& D_q^s\end{array}\right]G_{\mathrm{i}d}\end{array}$$

(24)

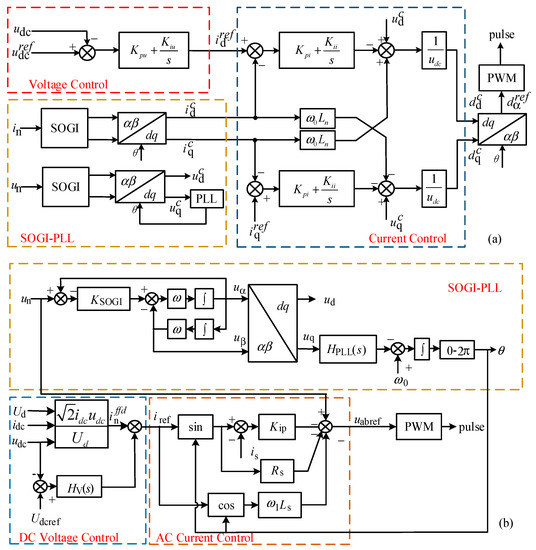

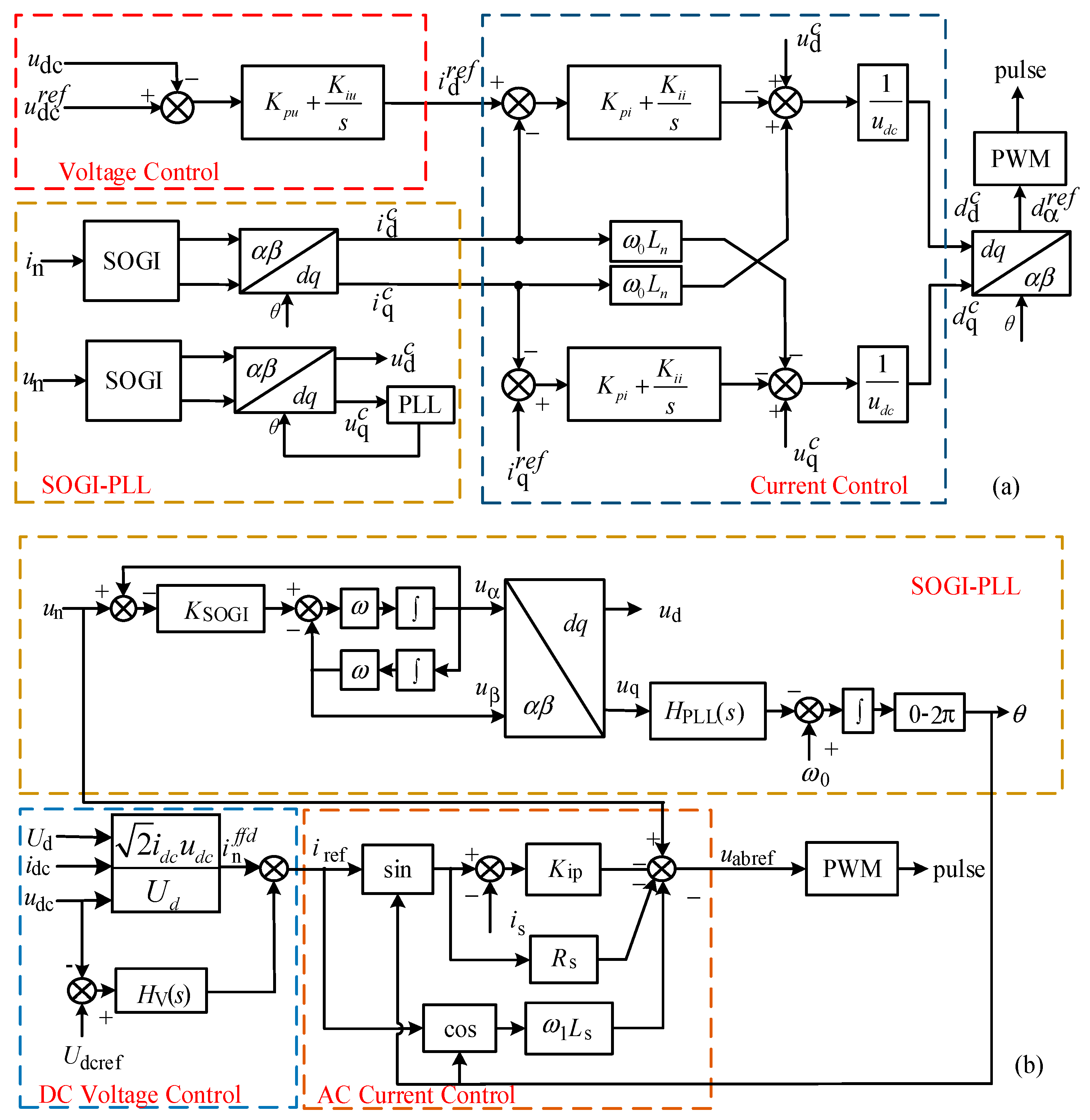

As for HXD_2B, shown in Figure 2, since its control system introduces a feedforward amount $i_{\mathrm{n}}^{ffd}=(\sqrt{2}{i}_{dc}{u}_{dc})/U_d$ to improve the dynamic response of the PI controller, when modeling considering the inverter, the steady-state value was written as $I_d^{ref}=\frac{\sqrt{2}{U}_{{}_{dc}}^2}{U_d{R}_d}+\frac{\sqrt{2}{U}_{dc}{I}_1}{U_d}$. Under the conditions of unity power factor, the voltage loop has the following relationship:

$$\{\begin{array}{l}{i}_d^{ref}=i_n^{ref}=(K_{pvc}+\frac{K_{ivc}}{s})(u_{dc}^{ref}-u_{dc})+\frac{\sqrt{2}{i}_{dc}{u}_{dc}}{U_d}\\ i_q^{ref}=0\end{array}$$

(25)

By expanding (25) for small signals, (26) was obtained. The specific derivative process is shown in Appendix A.

$$\left[\begin{array}{l}\Delta i_d^{ref}\\ \Delta i_q^{ref}\end{array}\right]=\left[\begin{array}{cc}-(K_{pvc}+\frac{K_{ivc}}{s})+\frac{2\sqrt{2}{U}_{dc}}{U_d{R}_d}+\frac{\sqrt{2}{I}_1}{U_d}& 0\\ 0& 0\end{array}\right]\left[\begin{array}{l}\Delta u_{dc}\\ 0\end{array}\right]$$

(26)

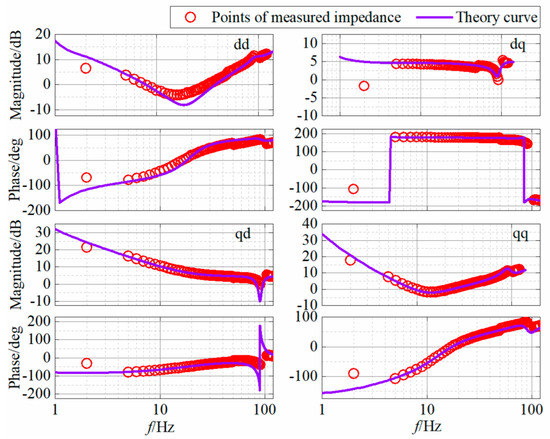

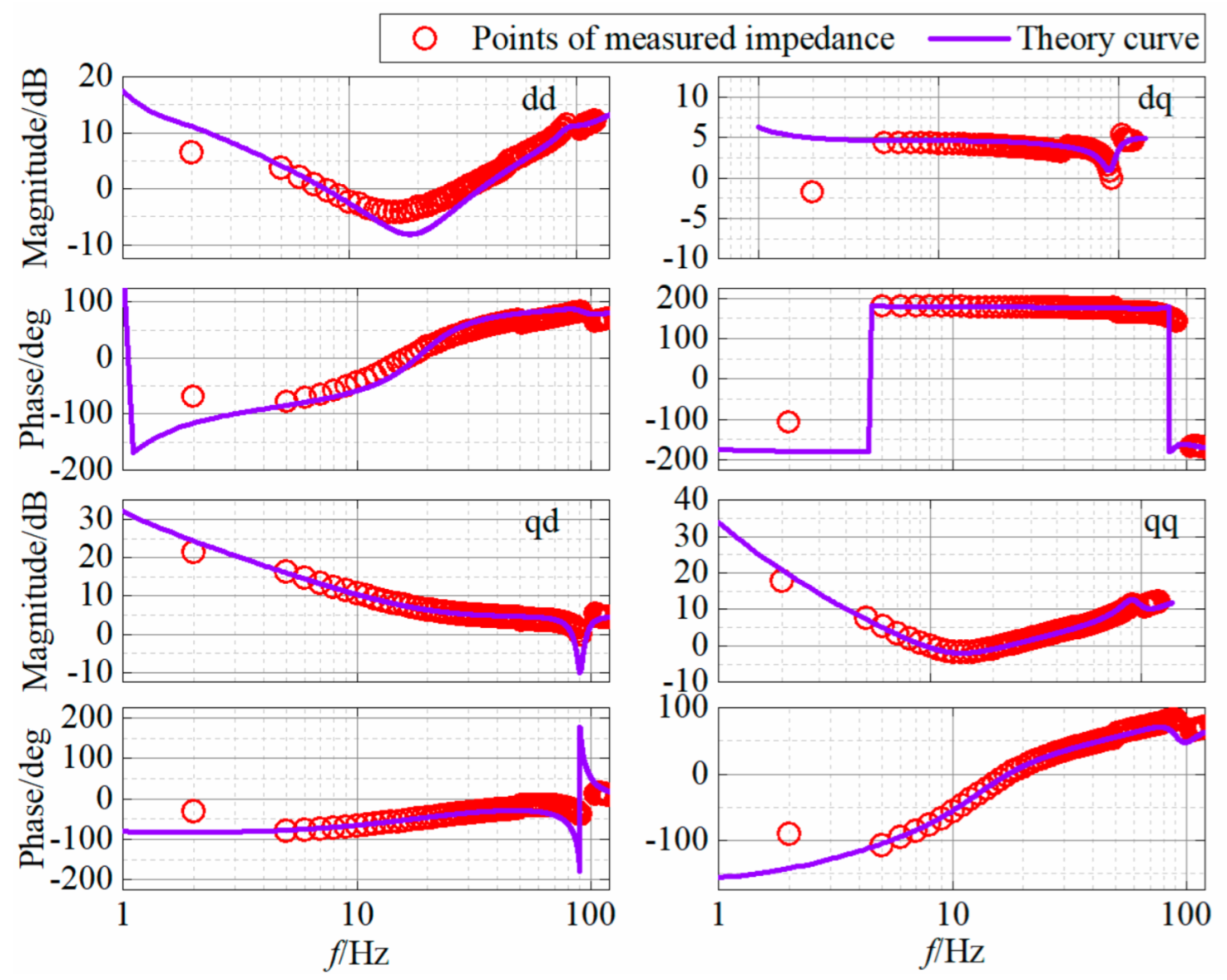

In order to verify the accuracy of the model, a train time-domain simulation model was built using the Matlab/Simulink platform, and the dq frequency sweep method based on Hilbert transformation was adopted to measure the impedance. Taking CRH5 as an example, the Bode curve of the impedance model considering the inverter was compared with the impedance measurement values, and the results are shown in Figure 6. The model impedance curve established in this paper was highly consistent with the impedance measurement points obtained by the time-domain simulation scan. This showed the effectiveness of the built model.

For a single train, several same-grid-side converters can be connected in parallel. For a CRH5 EMU, one power unit is a double rectifier, and there are five power units in total. Assuming that the onboard transformer of the EMUs works in the linear region, the impedance of the whole CRH5 EMUs could be converted to the model of the primary side:

$$Z_{\mathbf{inCRH}\mathbf{5}}=\frac{1}{5}\frac{Z_{\mathbf{i}}{|}_{0.5C_{\mathrm{dc}}, 2R_{\mathrm{L}}}}{2k_{\mathrm{CRH}5}^2}$$

(27)

where k_CRH5 is the transformation ratio of the onboard transformer of the CRH5 EMUs, and k_CRH5 = 1770/25,000.

The HXD_2B electric locomotive has six single rectifiers in parallel. Assuming the onboard transformer works in the linear region, the model for converting the impedance of the HXD_2B to the primary side is as follows:

$$Z_{\mathbf{inHXD}\mathbf{2}\mathbf{B}}=\frac{1}{6}\frac{Z_{\mathbf{i}}}{k_{\mathrm{HXD}2\mathrm{B}}^2}$$

(28)

where k_HXD2B is the transformation ratio of the onboard transformer of the HXD_2B electric locomotive, and k_HXD2B = 2100/25,000.

2.4. Dq System Impedance Model of Mixed Passenger and Freight System

The passenger vehicle (CRH5) and the freight vehicle (HXD_2B) run together in a mixed operation on the same arm, as shown in Figure 1. Although the two trains may be on the up and down lines, respectively, from the point of view of the electrical relationship, the impedances of the two are regarded as equivalent parallel connections [25]. If the number of CRH5 vehicles is a and the number of HXD_2B vehicles is b, the schematic diagram of the equivalent impedances of the whole VGS is shown in Figure 7.

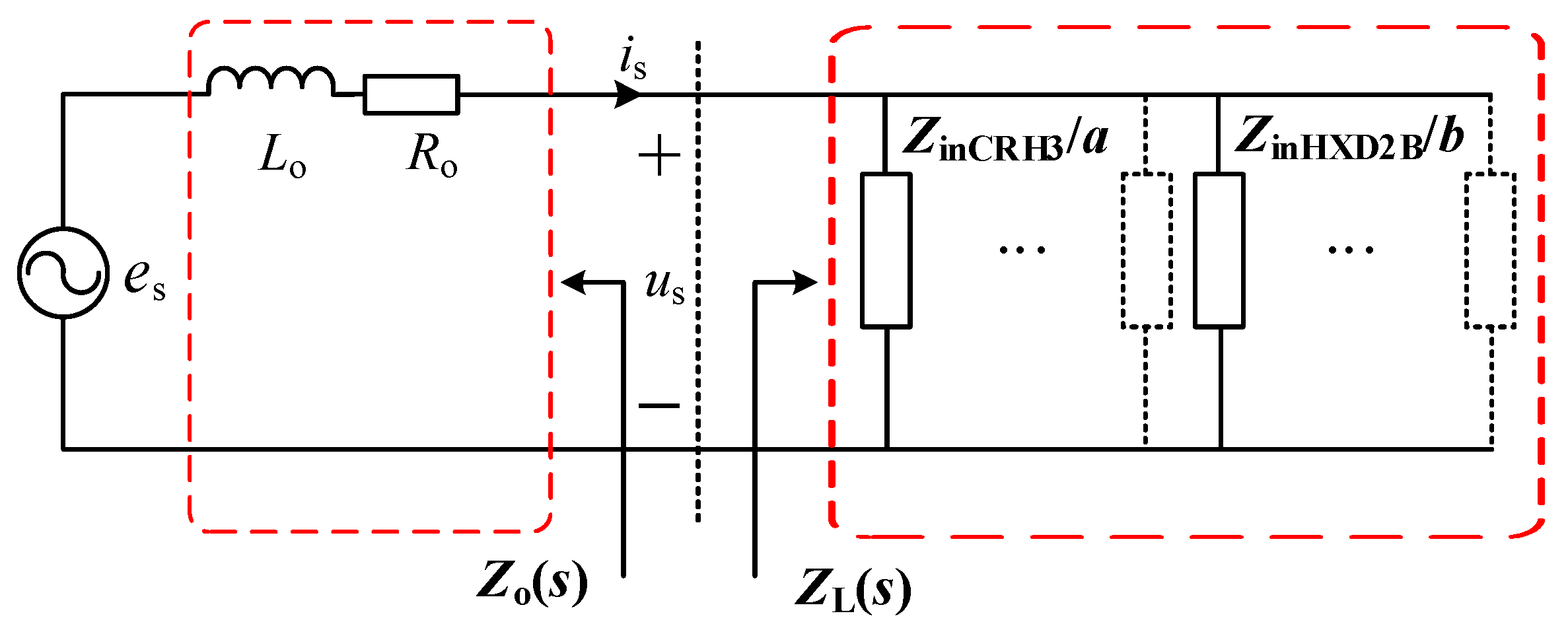

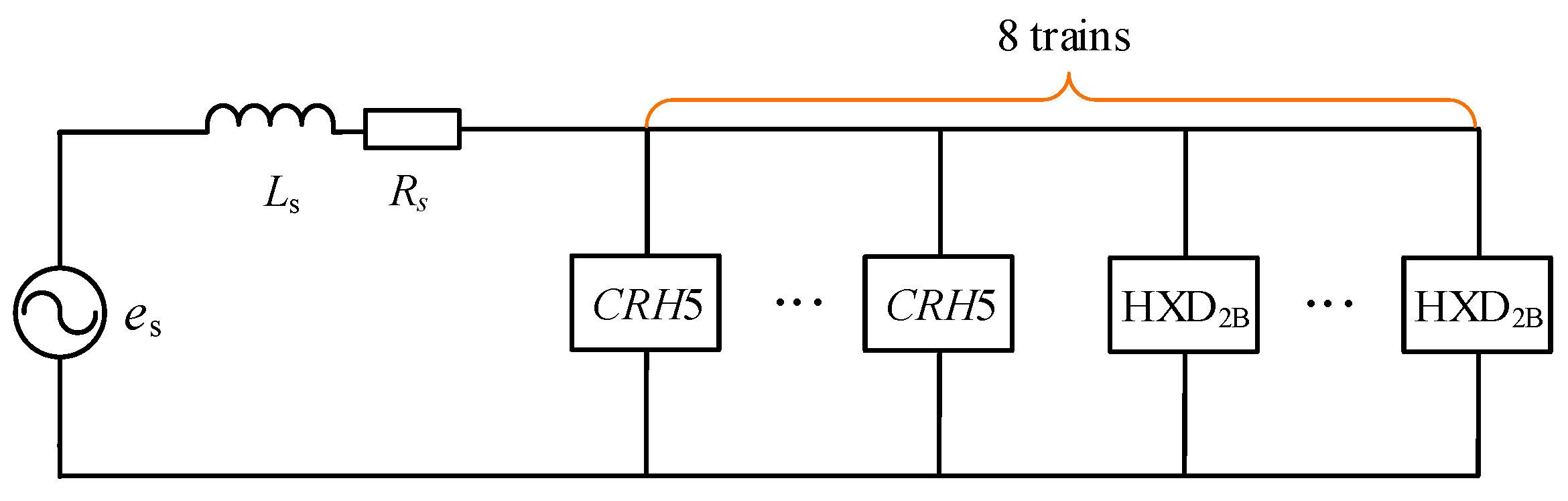

It can be seen from Figure 7 that when two vehicles are connected in parallel, the overall impedance Z_L of the load side in the VGS can be expressed as:

$$Z_{\mathbf{L}}={(a{(Z_{\mathbf{inCRH}\mathbf{5}})}^{-1}+b{(Z_{\mathbf{inHDX}\mathbf{2}\mathbf{B}})}^{-1})}^{-1}$$

(29)

3. Low-Frequency Oscillation Analysis of VGS with Mixed Passenger and Freight Locomotives

It can be seen from Figure 7 that if the equivalent impedance of the TN is defined as Z_o(s), and the train-side impedance with the two types of vehicles connected in parallel is defined as Z_L(s), the equivalent control diagram of the cascade system based on the impedance is as shown in Figure 5. Therefore, the system impedance return ratio matrix L_dq(s) is as follows (30) [12]:

$$L_{\mathrm{dq}}(s)=Z_{\mathbf{o}}(s)Z_{\mathbf{L}}{(s)}^{-1}$$

(30)

It is evident from (30) that the system impedance return ratio matrix L_dq(s) is a transfer function matrix of $2\times 2$, with two eigenvalues (λ₁(s) and λ₂(s)). It can be seen from the generalized Nyquist criterion that, on the premise that the source and load impedances are both stable (that is, neither Z_o(s) nor Z_L(s) has a right-half-plane pole), the closed-loop system is stable if and only if the two eigenvalues λ₁(s) and λ₂(s) of L_dq(s) do not enclose the (−1, j0) point.

We used eight different CRH5 and HXD_2B vehicles as simulation objects and built a simulation model in MATLAB/Simulink. The schematic diagram of the simulation structure is shown in Figure 8.

3.1. Analysis of the Influence of Different Proportions of Passenger and Freight Locomotives

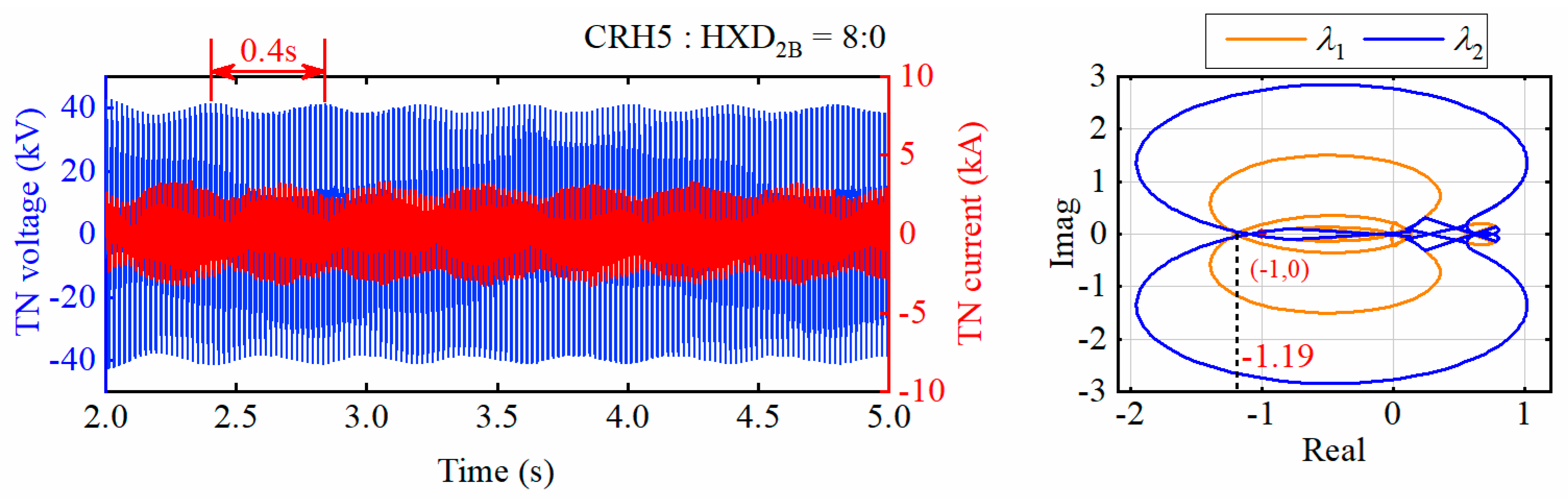

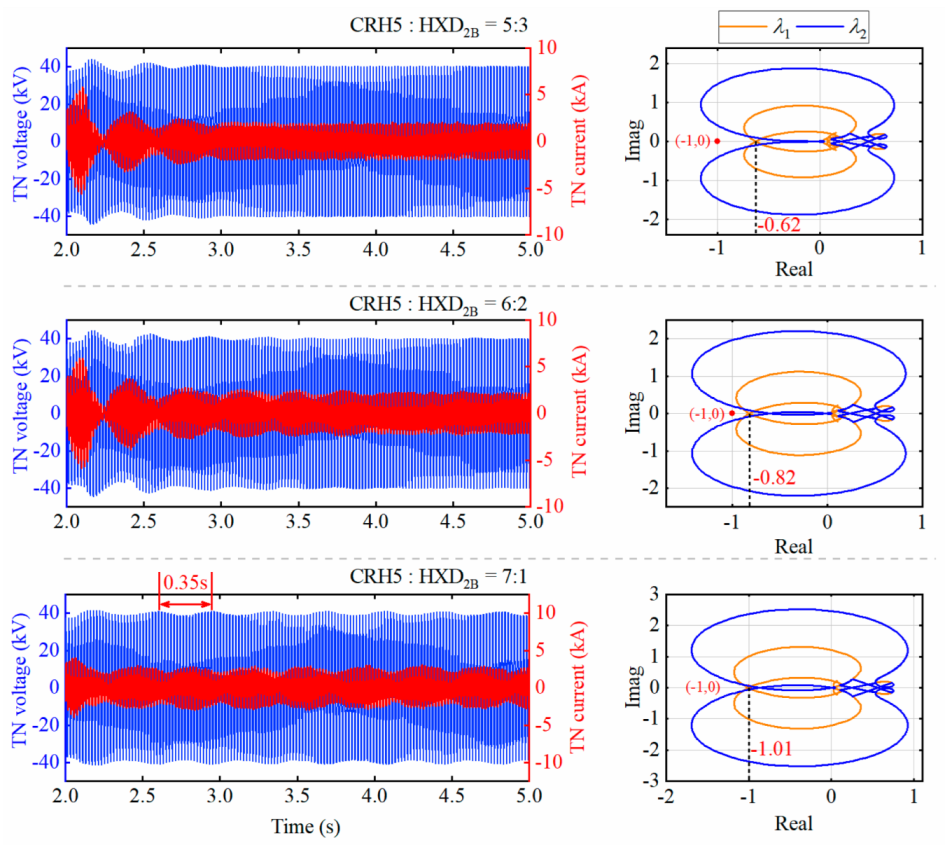

The electrical stability analysis detailed in this section was mainly based on the mixed operation diagram shown in Figure 1. In order to visually show the influence of different train numbers on the system stability under mixed operation conditions, the trend of system stability changes was observed by altering the ratio of CRH5 trains and HXD_2B trains. In this section, mixed-operation configurations with a total of eight CRH5 and HXD_2B vehicles were analyzed, with the ratio of the two kinds of trains being changed. The generalized Nyquist curve and simulation of the system under three different passenger and freight mixed-operation ratios are shown in Figure 9. When other parameters in the system were unchanged, the intersection points of the Nyquist curve and the X-axis were −0.62, −0.82, and −1.01, respectively, when the ratio of CRH5 to HXD_2B was 5:3, 6:2, and 7:1. That is, as the proportion of CRH5 vehicles increased, the Nyquist curve gradually approached and surrounded (−1, j0). When the mixing ratio was 7:1, a 2.8 H_Z oscillation occurred. The simulation results of eight CRH5 vehicles from reference [11,12] are shown in Figure 10. It can be seen that the system had an LFO of 2.5 Hz. The intersection point of the Nyquist curve and the X-axis was −1.91, which was greater than that in Figure 9. This indicates that the low-frequency stability of the system worsened.

Therefore, we concluded that the greater the number of HXD_2B vehicles in the mixed VGS, the greater the stability margin of the whole system. Thus, avoiding a single train type will improve the stability of the system.

3.2. Analysis of the Influence of Different Control Parameters

Adjusting the train control parameters changes the impedance characteristics of the train and affects the system stability, so the LFO can be suppressed by adjusting these parameters [18].

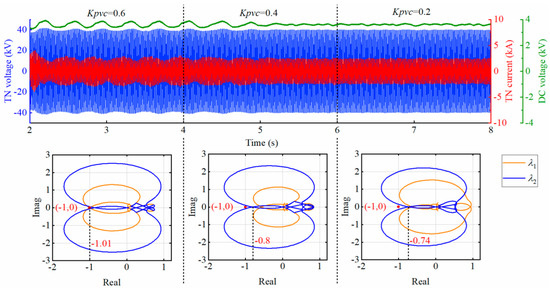

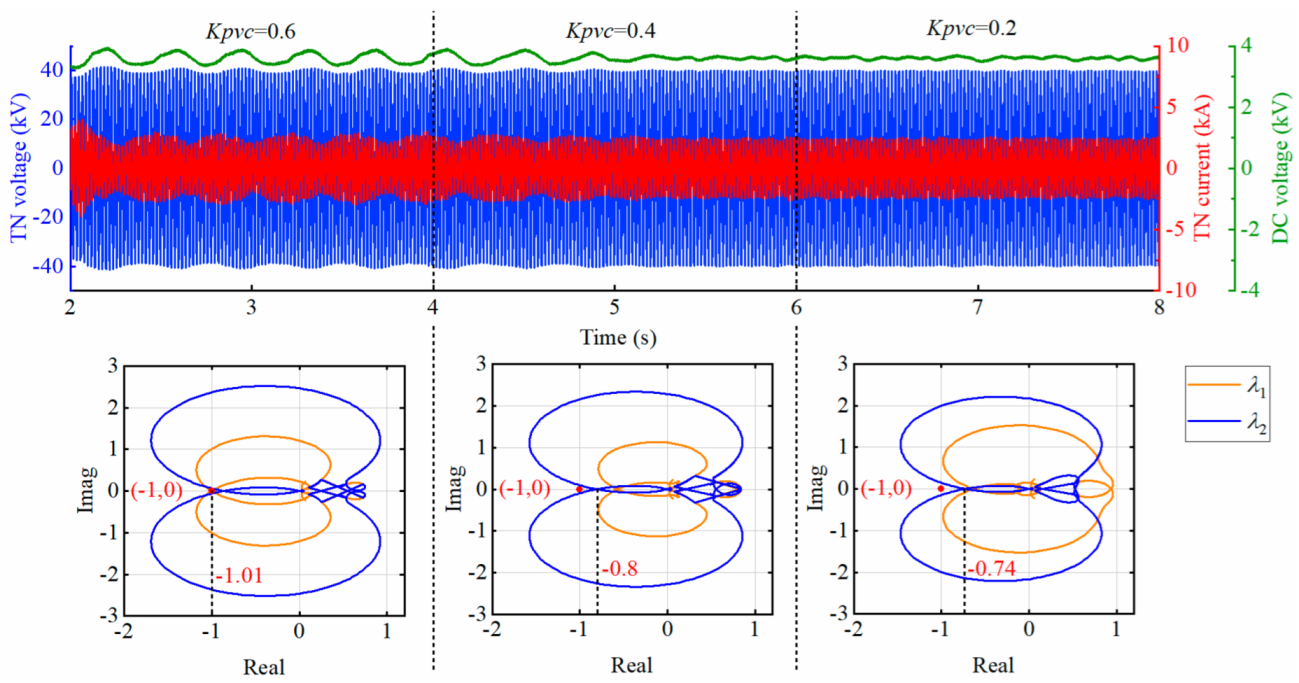

When one HXD_2B and seven CRH5 were put into use, the proportional parameter Kpvc of the voltage loop of the CRH5 was reduced from 0.6 to 0.4. The intersection of the Nyquist curve and the X-axis changed from −1.01 to −0.8, and the system tended to be stable from the original 2.8 Hz oscillation. When the Kpvc was further reduced to 0.2, the intersection of the Nyquist curve and the X-axis became −0.74, and the system stability was further improved. The corresponding simulation results are shown in Figure 11, and the waveform tended to be stable. The simulation results were consistent with the theoretical analysis results, indicating that reducing the proportional gain of the voltage loop PI effectively improved the low-frequency stability of the VGS with mixed passenger and freight operation.

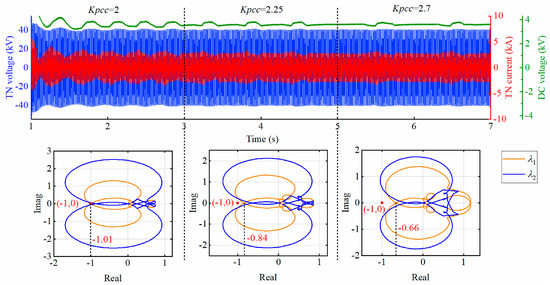

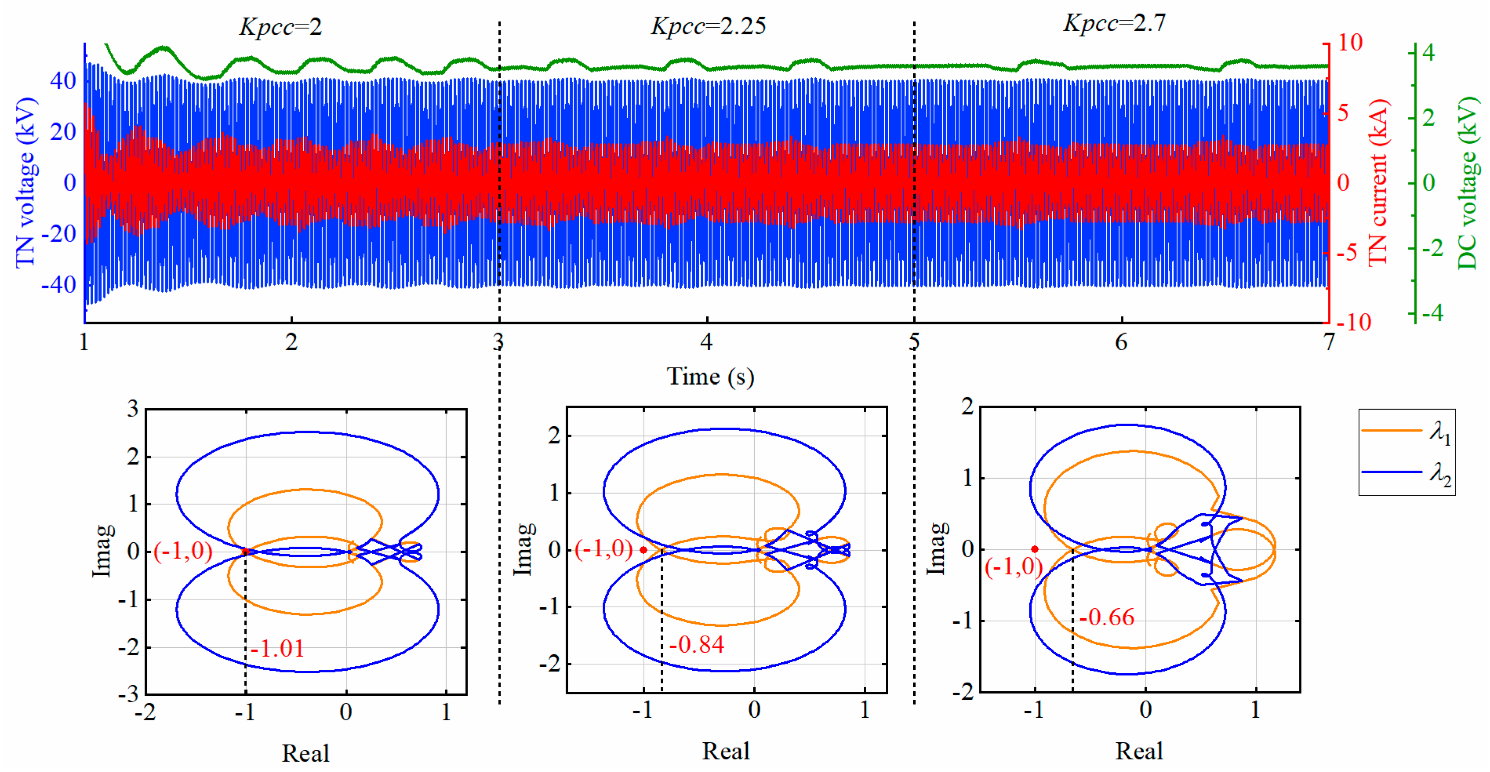

Similarly, the CRH5 train current loop proportional parameter Kpcc increased from 2 to 2.25. The intersection of the Nyquist curve and the X-axis changed from −1.01 to −0.84, and the system changed from experiencing 2.8 Hz oscillation to becoming stable. Further increasing the Kpcc to 2.7, the intersection of the Nyquist curve and the X-axis became −0.66, and the system stability was further improved. The corresponding simulation results are shown in Figure 12, and the waveform tended to be stable. The simulation results were consistent with the theoretical analysis results, indicating that increasing the proportional gain of the current loop PI effectively improved the low-frequency stability of the VGS with mixed passenger and freight operation.

4. Low-Frequency Stability Conditions Analysis of VGS Based on Dominant Pole Theory

4.1. Frequency Analysis of VGS Based on Dominant Pole Theory

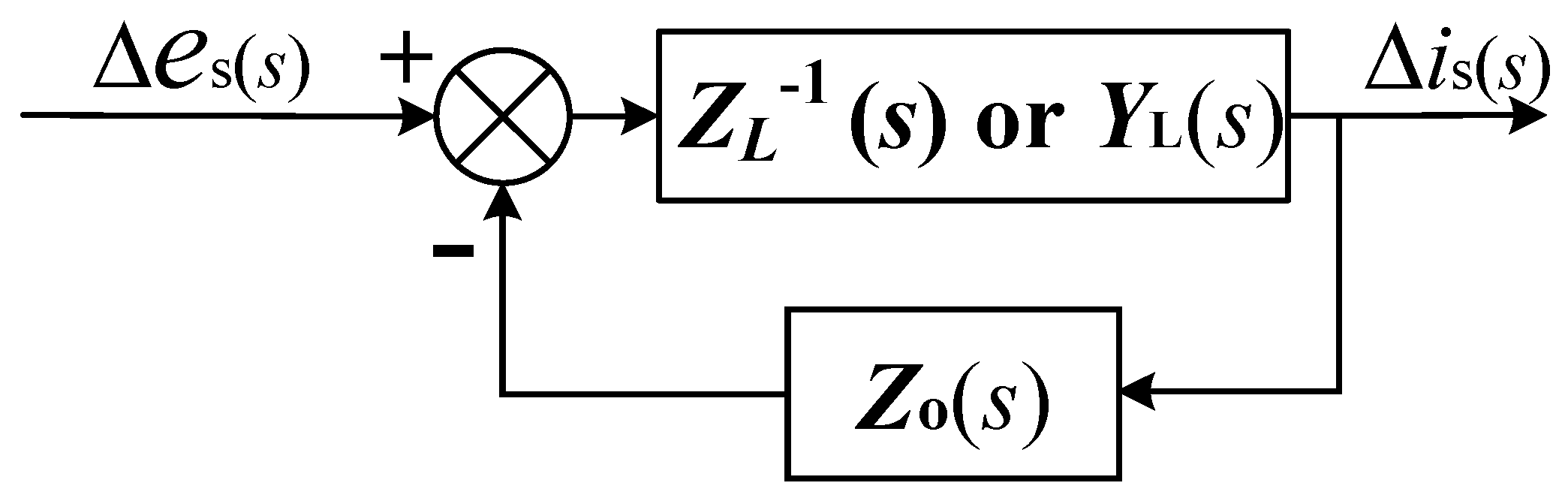

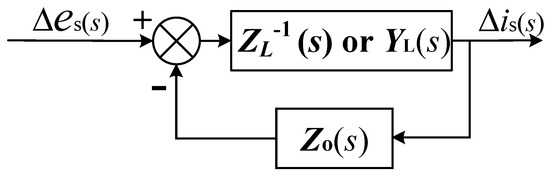

A block diagram of the VGS is shown in Figure 13. The VGS is actually a small-signal multi-variable closed-loop feedback system. The input signal is the voltage Δe_s(s) on the high-voltage side of the on-board transformer, the output is the train’s input current Δi_s(s), and Y_L(s) is the train’s small-signal admittance model. Suppose there are trains of the same kind running on the line, and the small-signal admittance model is expressed as Y_in(s). Then, Y_L(s) can be expressed as nY_in(s). For example, when the trains are all CRH5 EMUs, Y_L(s) can be expressed as nY_inCRH5(s). Similarly, when the trains are all HXD_2B electric locomotives, Y_L(s) is expressed as nY_inHXD2B(s). Therefore, the closed-loop transfer function matrix of the VGS in Figure 13 can also be expressed as follows:

$${\mathit{H}}_{\mathbf{ei}}\left(s\right)=\frac{\Delta i_{\mathrm{s}}\left(s\right)}{\Delta e_{\mathrm{s}}\left(s\right)}=\frac{n{\mathit{Y}}_{\mathbf{in}}(s)}{\mathit{I}+n{\mathit{Y}}_{\mathbf{in}}(s)\cdot Z_{\mathbf{o}}(s)}$$

(31)

For an MIMO system with a transfer function H_ei(s), the poles and zeros can be obtained by solving the roots of the pole polynomial p(s) and zero polynomial z(s) equal to 0, respectively [18]. For the $2\times 2$ square matrix analyzed in this paper, the zero-pole polynomial could be directly obtained as follows:

$$\frac{z\left(s\right)}{p\left(s\right)}=\det \left({\mathit{H}}_{\mathbf{ei}}\right)$$

(32)

To make the MIMO system stable, the following theorem can be referred to [18]:

H_ei(s) is stable if and only if H_ei(s) has no right-half-plane (RHP) poles.

When the above theorem is applied to the VGS, the stability conditions are as follows.

There is no RHP zero point in the switch transfer function matrix G = I + nY_in(s) Z_o(s) of the VGS.

If the dominant pole is used to analyze the VGS, the pole of the CLTF must be calculated first. The CLTF poles are closest to the imaginary axis in the complex plane, and the pole whose distance is more than 10 times smaller than those of the other poles is the most likely to enter the right half plane and cause system instability. Therefore, the pair of poles that can easily cause system instability is called the dominant pole, since the zeros of the open-loop transfer function matrix correspond to the poles of the CLTF. Thus, in the VGS, in order to simplify the calculation process, the pole calculation can be converted into the zero calculation.

This pair of dominant poles can be expressed in the form of the damping ratio ζ and the natural oscillation angular frequency ω_n. In order to facilitate analysis together with the unit Hz of the oscillation frequency in the previous sections, the calculated dominant pole was reduced (divided by 2π), and the dominant pole was expressed as the damping ratio ζ and the expression of the natural oscillation frequency f_n in Hz, as shown in (33). In the following analysis, the dominant pole defined by the following formula was used to analyze the low-frequency stability of the VGS:

$$\begin{array}{ll}{r}_{1,2}& =-\xi f_{\mathrm{n}}\pm f_{\mathrm{n}}\sqrt{{\xi }^2-1}\\ & =-\xi f_{\mathrm{n}}\pm j{f}_{\mathrm{n}}\sqrt{1-{\xi }^2}\end{array}$$

(33)

4.2. Low-Frequency Stability Conditions of VGS

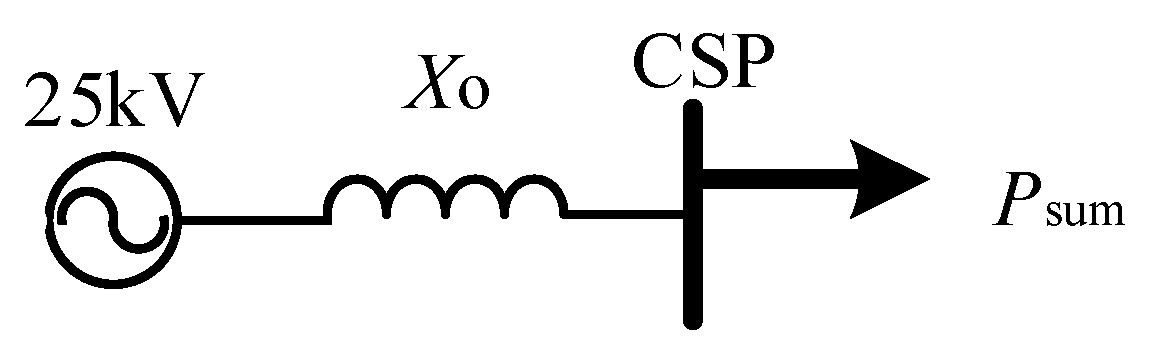

In order to simplify the process of the low-frequency stability analysis in this section, we analyzed the traction power supply system of the CZ Railway from the perspective of power. First, it was assumed that only the reactance parameter X_O existed in the equivalent impedance of the grid side. All trains running on the line were thus equivalent to one load. Then, a schematic diagram of the simplified VGS, as shown in Figure 14, could be obtained.

The SCR in the power system was defined as the reciprocal of the power reactance X_O per unit value. In the vehicle–grid cascade system, the per-unit voltage reference value (U) was 25 kV. The power reference value took the rated capacity (S) of two single-phase traction stations as 60 MVA, and the SCR could be expressed as follows:

$$\mathrm{SCR}=\frac{1}{X_O/X}=\frac{1}{X_O/\left(\frac{U^2}{S}\right)}=\frac{U^2}{S{X}_O}=\frac{{25}^2}{60\times 2X_{\mathrm{O}}}$$

(34)

The authors of [18] mentioned that when the damping ratio corresponding to the dominant pole is in the 10⁻³ order of magnitude, the system has the possibility of entering a critically stable or even unstable state. In the following analysis, the standard of the damping ratio corresponding to the dominant pole was greater than 0.01, and it was determined that the VGS could ensure the low-frequency stable state. Therefore, in the following work, for different ratios of CRH5 EMUs and HXD_2B electric locomotives, we adjusted the power supply reactance X_O, so that the damping ratio corresponding to the dominant pole was only greater than 0.01 when the two types of trains were running alone. Then, this was substituted into (34) to calculate the minimum stable SCR when the VGS remained stable.

According to the above theory of dominant poles and SCR, the relationship between the number of trains and the minimum SCR was obtained as shown in Figure 15.

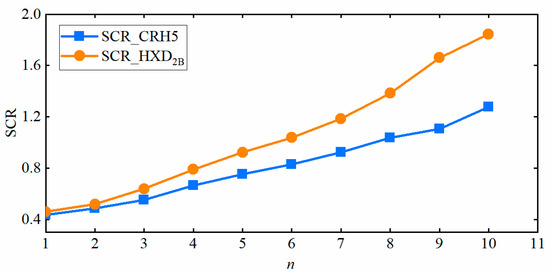

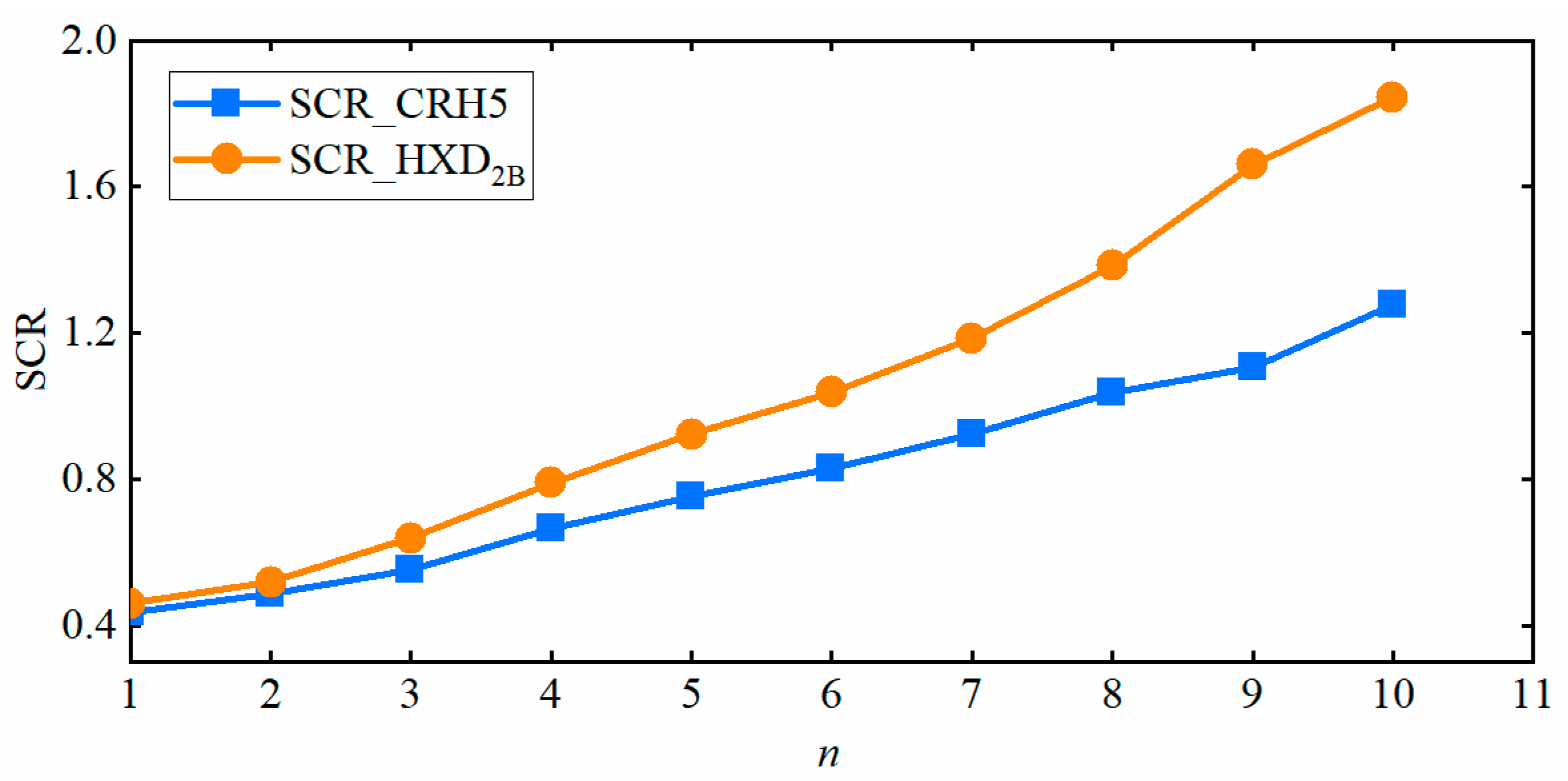

It can be seen from Figure 15 that there was a linear relationship between the minimum stable SCR and the number of vehicles of the two types of trains. The fitting results for the relationship are shown in (35).

$$\{\begin{array}{c}\mathrm{SCR}\_\mathrm{CRH}5=0.0582n+0.3784 (n\ge 1)\\ \mathrm{SCR}\_{\mathrm{HXD}}_{2\mathrm{B}}=0.1712n+0.2896 (n\ge 1)\end{array}$$

(35)

When the SCR had a value in the area above the straight line, the VGS remained stable. If the SCR was converted into the short-circuit capacity S_SC, and the number of running trains n was converted into the sum P_sum of the rated power of all trains, the linear proportional coefficient μ of the two could be defined as shown in (36). (The rated power of the CRH5 vehicles is 5.5 MW, and the rated power of the HXD_2B vehicles is 9.6 MW).

$$\{\begin{array}{c}{\mu }_{\mathrm{CRH}5}=\frac{\Delta S_{\mathrm{SC}}}{\Delta P_{\mathrm{sum}}}=\frac{S}{P_{CRH5}}\frac{\Delta \mathrm{SCR}\_\mathrm{CRH}5}{\Delta n}=\frac{120}{5.5}\frac{\Delta \mathrm{SCR}\_\mathrm{CRH}5}{\Delta n}\\ {\mu }_{{\mathrm{HXD}}_{2\mathrm{B}}}=\frac{\Delta S_{\mathrm{SC}}}{\Delta P_{\mathrm{sum}}}=\frac{S}{P_{\mathrm{HXD}2\mathrm{B}}}\frac{\Delta \mathrm{SCR}\_\mathrm{CRH}5}{\Delta n}=\frac{120}{9.6}\frac{\Delta {\mathrm{SCR}\_\mathrm{HXD}}_{2\mathrm{B}}}{\Delta n}\end{array}$$

(36)

In Figure 15, the slope of the straight line representing the CRH5 EMU was converted to a ratio of ΔS_SC to ΔP_sum equal to 1.27, while the slope of the straight line representing the HXD_2B was 2.14. For the VGS composed of CRH5 EMUs and the TN, when μ_CRH5 ≥ 1.27, the VGS was in a stable state, and there was no low-frequency oscillation. When μ_CRH5 < 1.27, the VGS may have experienced LFO or even lost stability. For the VGS composed of HXD_2B, when μ_HXD2B ≥ 2.14, the VGS was in a stable state, and there was no low-frequency oscillation. When μ_HXD2B < 2.14, the VGS may have experienced LFO or even lost stability. From the above analysis, the following conclusions could be drawn: for any kind of running train, there is always a critical μ₀, and when μ ≥ μ₀, the vehicle–grid cascade system can ensure its low-frequency stability. For the passenger and freight mixed-car network system formed by the CRH5 EMUs and the HXD_2B electric locomotives studied in this paper, when μ ≥ 2.14, the vehicle-network cascade system can maintain low-frequency stability.

4.3. Simulation Verification

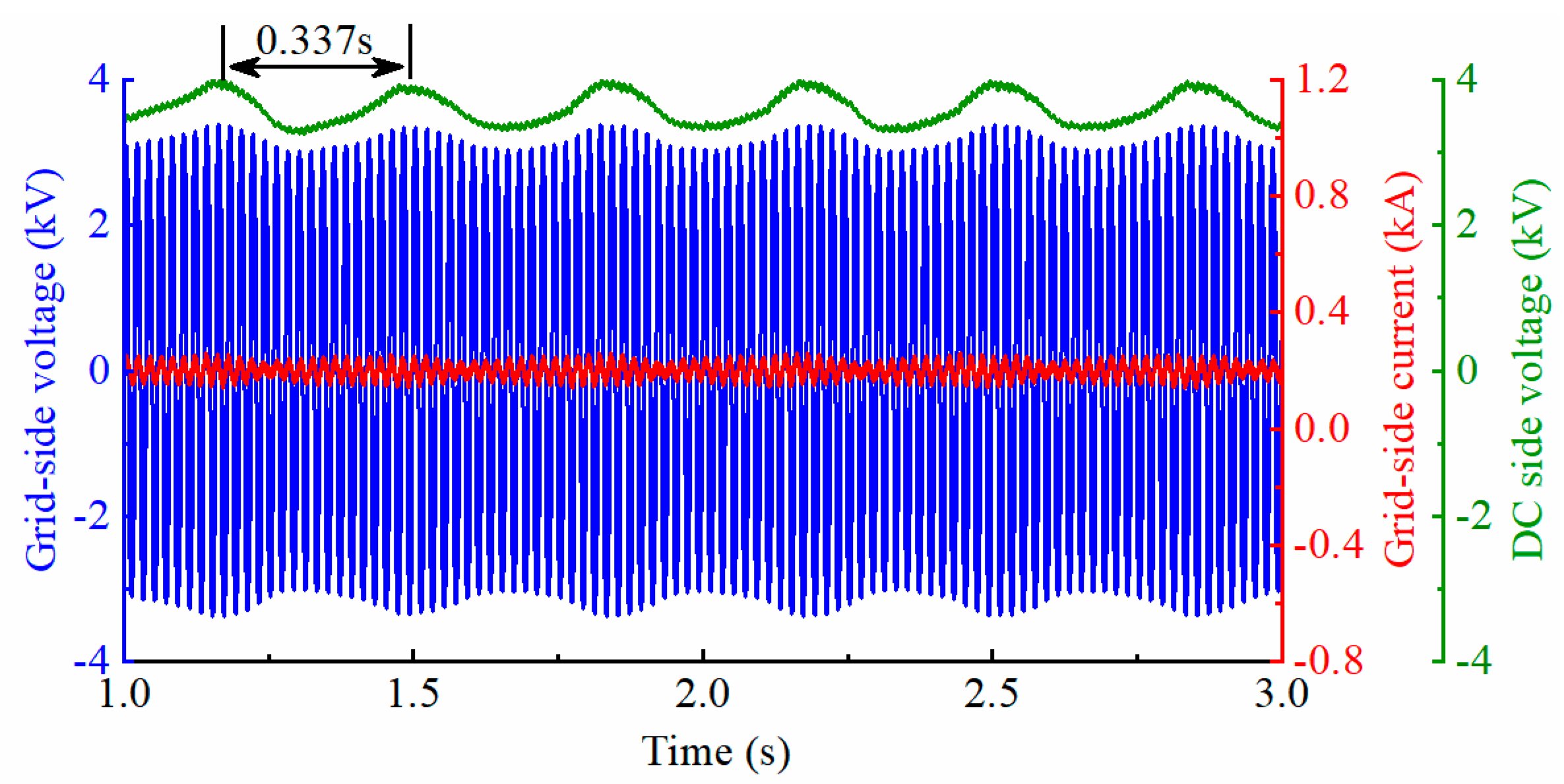

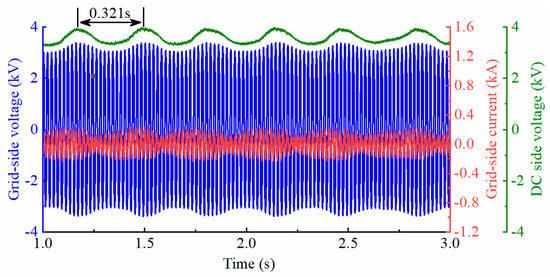

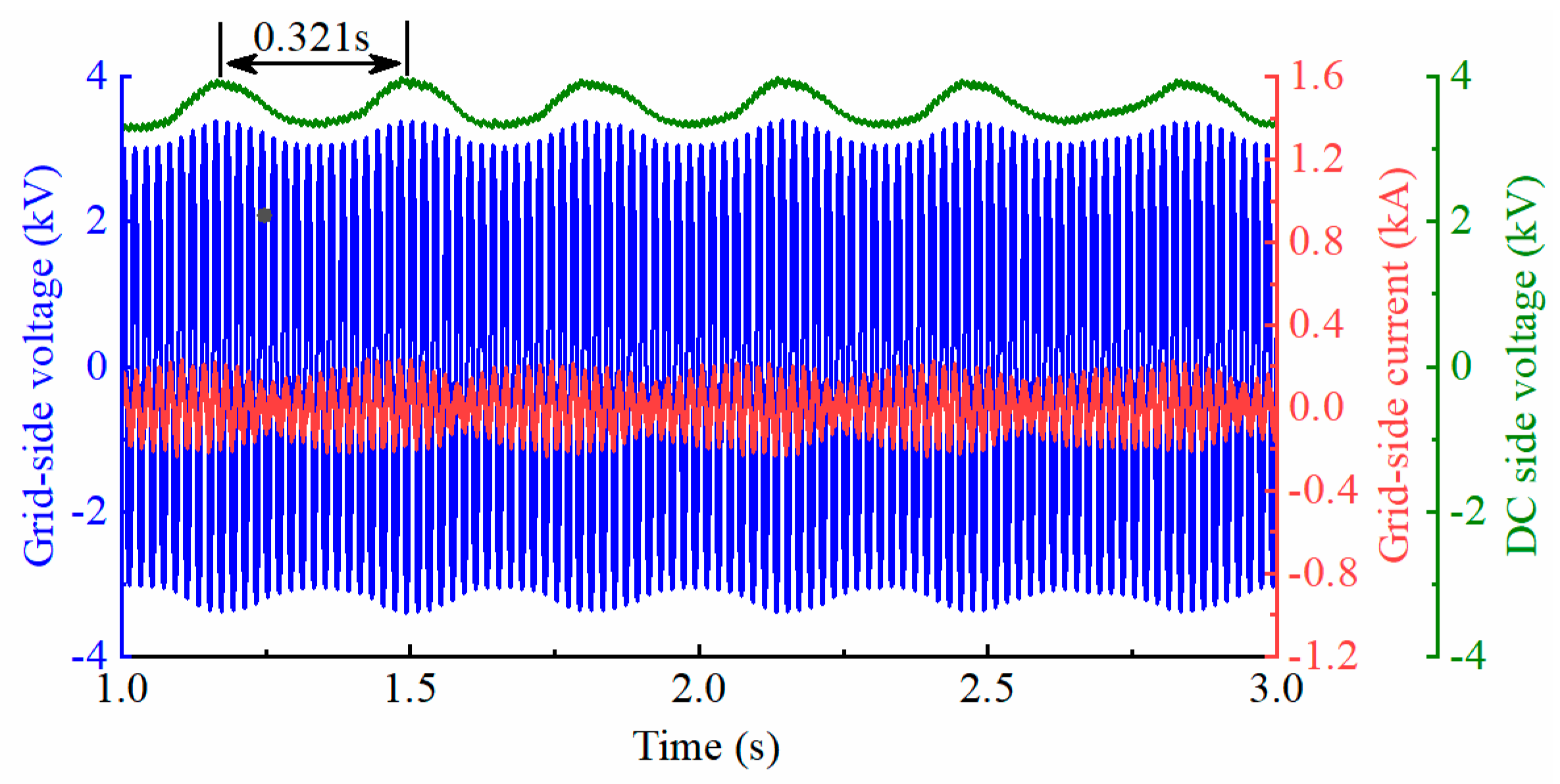

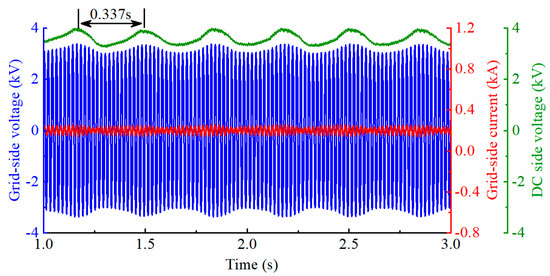

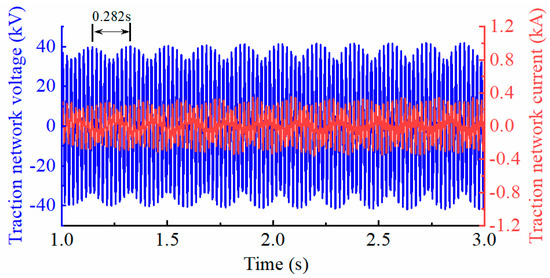

In order to verify the accuracy of the two curves obtained in Figure 15, a simulation model was built using the MATLAB/Simulink platform, and simulation analysis was carried out for n = 1 and 5. When only one CRH5 EMU was connected, according to the relationship curve between the number of CRH5 vehicles and the minimum stable SCR in Figure 15, the minimum stable SCR of the vehicle network system was 0.437, the X_O was 11.93 Ω, and the maximum value of the grid-side inductance L_O was 38 mH. Therefore, in the simulation, when R_O was set to 3.6 Ω and L_O was set to 40 mH, the grid-side current and voltage waveforms were obtained as shown in Figure 16. A low-frequency oscillation of 3 Hz occurred in the VGS at this time.

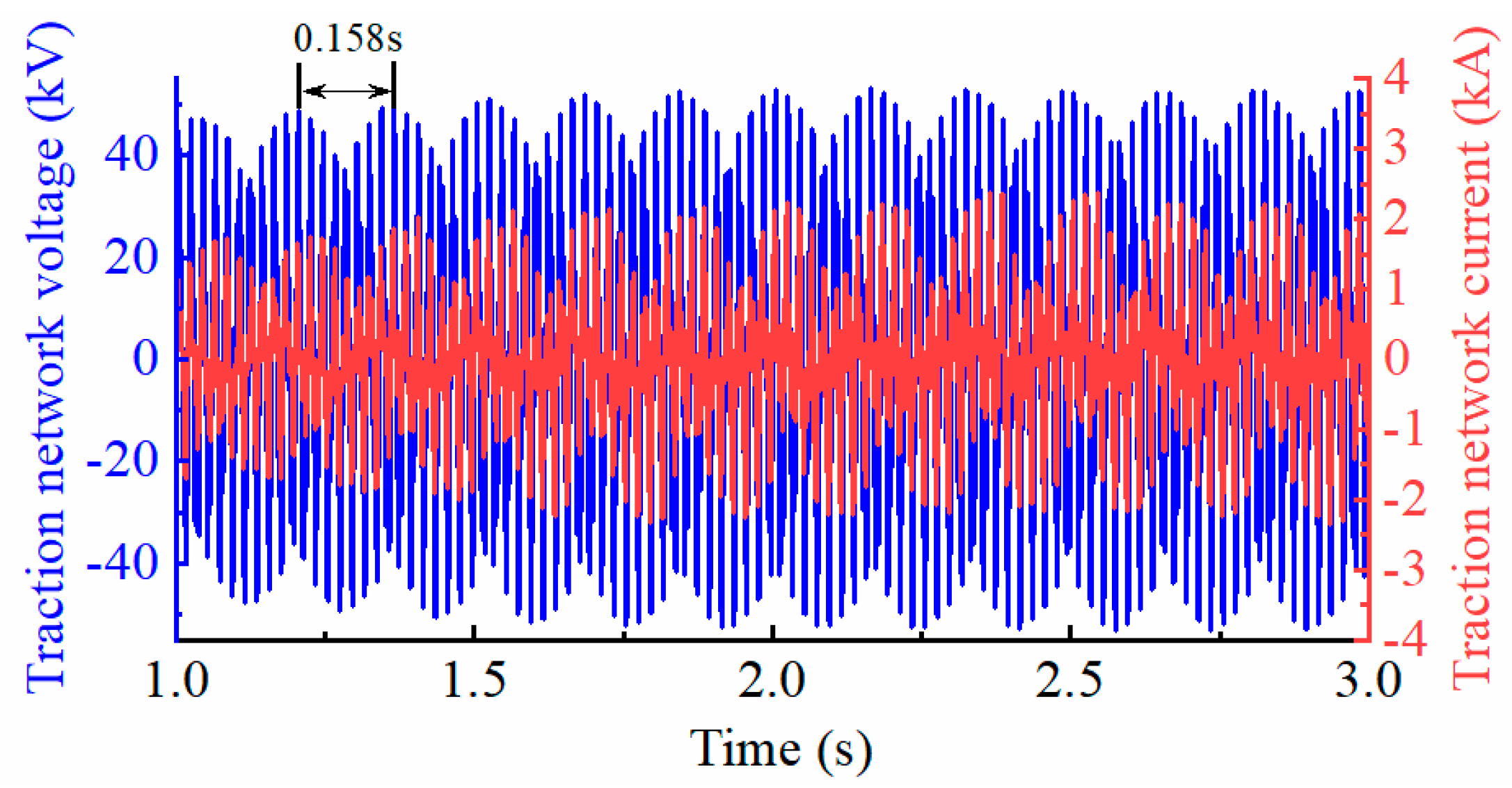

In the same way, when only one HXD_2B electric locomotive was connected, according to the relationship curve between the number of HXD_2B vehicles and the minimum stable SCR in Figure 15, the minimum stable SCR value was 0.461, the X_O was 11.3 Ω, and the maximum value of the grid-side reactance L_O was 36 mH. Therefore, in the simulation, when R_O was set to 3.6 Ω and L_O was set to 37 mH, the grid-side current and voltage waveforms were obtained as shown in Figure 17. A low-frequency oscillation of 3.5 Hz occurred in the VGS at this time.

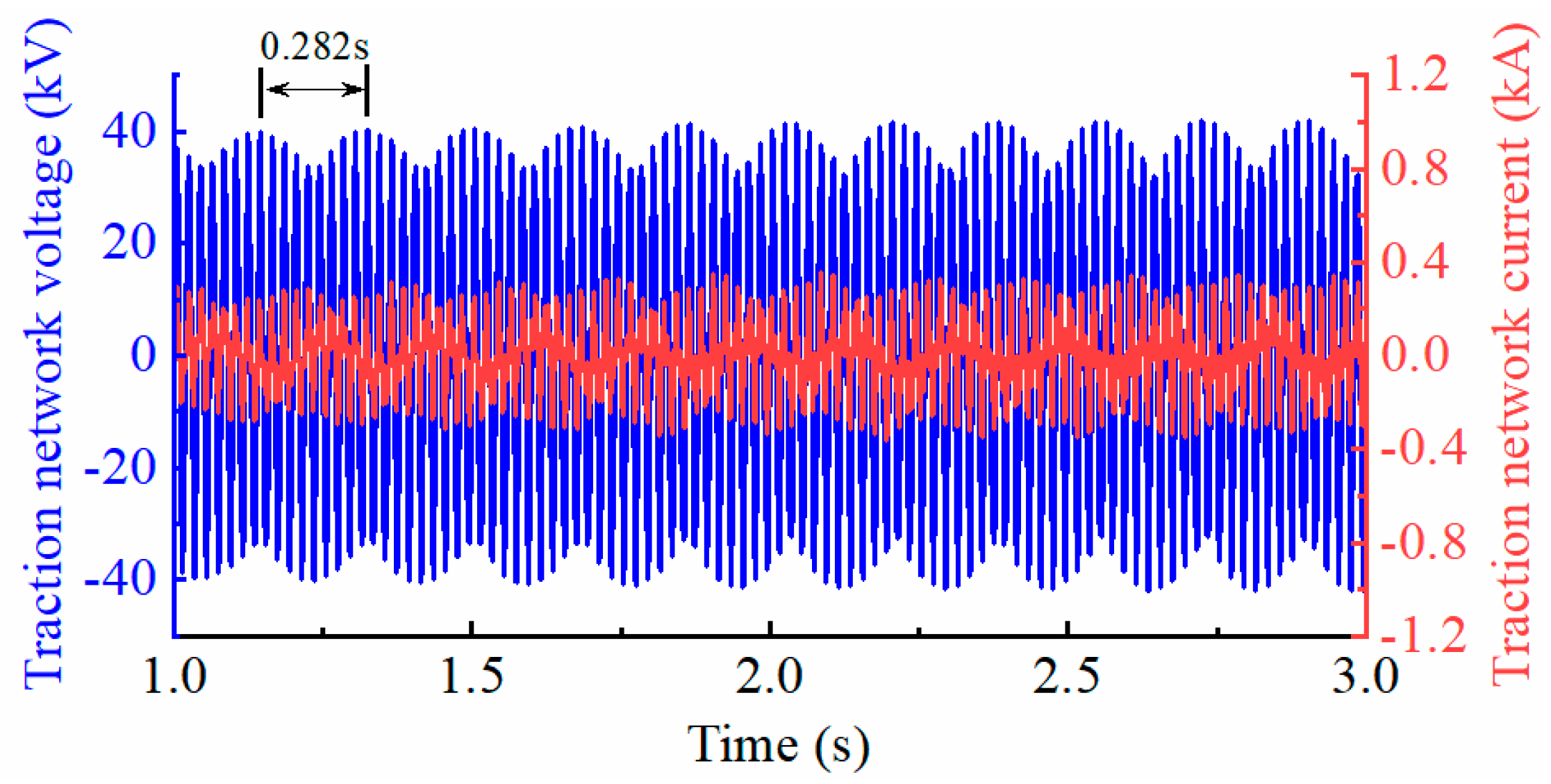

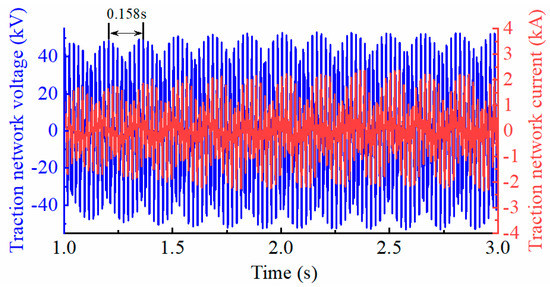

When five CRH5 EMUs were connected at the same time, according to the relationship curve in Figure 15, the minimum stable SCR value was 0.754, the X_O was 6.9 Ω, and the maximum value of the grid-side reactance L_O was 22 mH. Therefore, in the simulation, when R_O was set to 2.2 Ω and L_O was set to 25 mH, the grid-side current and voltage waveforms were as shown in Figure 18. A low-frequency oscillation of 3 Hz occurred in the VGS at this time.

When five HXD_2B EMUs were connected at the same time, according to the relationship curve in Figure 15, the minimum stable SCR value was 0.922, the X_O was 5.65 Ω, and the maximum value of the grid-side reactance L_O was 18 mH. Therefore, in the simulation, when R_O was set to 2.2 Ω and L_O was set to 19 mH, the grid-side current and voltage waveforms were obtained as shown in Figure 19. A low-frequency oscillation of 6.3 Hz occurred in the VGS at this time.

Due to the performance of the simulation equipment, only the simulation waveforms for the connection of a single train and five trains (Figure 16, Figure 17, Figure 18 and Figure 19) are provided, which verify the validity of the curve obtained in Figure 15. Therefore, in order to keep the VGS stable, the impedance of the TN and the train scheduling method must be designed according to the curve requirements provided in Figure 15.

The above steps can also be followed for other types of trains running on the railway., The dominant pole of the CLTF matrix of the VGS is obtained according to the type and number of locomotives, followed by the value of the maximum power source reactance X_O under critical conditions. Then, the minimum stable SCR value is calculated by Equation (34), the relevant curve is obtained, and the TN is designed to reduce the possibility of LFO.

5. Conclusions

In this paper, a small-signal impedance model of a multi-vehicle mixed-operation VGS considering the traction inverter system was established. The influence of different passenger/cargo locomotive ratios and different locomotive control parameters on the LFO was analyzed. In addition, using the dominant pole theory to analyze the low-frequency stability conditions of the VGS, the relationship between the number of mixed trains and the minimum short-circuit ratio of the system was obtained. Finally, the accuracy of the model built by the simulation experiment and the correctness of the theoretical analysis were verified, and the following conclusions were drawn.

(1)

The measurement results of Figure 6 show the correctness of our established equivalent model of the traction inverter system. Therefore, it provides a theoretical basis for the selection of the DC-side load of the rectifier.

(2)

The low-frequency oscillation analysis results of the VGS under the mixed operation of passenger and freight trains showed that an increase in the number of HXD_2B vehicles reduces the low-frequency oscillations. Therefore, compared with the operating conditions of a single locomotive, the mixed operation system with multiple types of locomotives is more stable.

(3)

According to the analysis results of the LFO under the dominant pole theory, in order to keep the system stable, it is necessary to design the train scheduling according to the relationship between the SCR and the number of locomotives based on (35).
