Open AccessArticle
Energies 2018, 11(9), 2339; https://doi.org/10.3390/en11092339

Dynamic Simulations of Adaptive Design Approaches to Control the Speed of an Induction Machine Considering Parameter Uncertainties and External Perturbations

1
School of Electrical Engineering, Pusan National University, San 30, ChangJeon 2 Dong, Pusandaehak-ro 63 beon-gil 2, Geumjeong-gu, Busan 46241, Korea
2
School of Electrical Engineering and Computer Science, National University of Sciences and Technology, Islamabad 44000, Pakistan
3
Department of Electrical and Computer Engineering, Air University Islamabad 44000, Pakistan
4
Department of Electrical Engineering University of Management and Technology, Sialkot 51040, Pakistan
5
Department of Electrical Engineering, Selçuk University Konya 42100, Turkey
6
Department of Engineering, Federal University of Santa Catarina Blumenau, Rua João Pessoa 2750-89036-256, Brazil
*
Author to whom correspondence should be addressed.
Received: 3 August 2018 / Revised: 26 August 2018 / Accepted: 3 September 2018 / Published: 5 September 2018
(This article belongs to the Special Issue Electrical Machine Design)
Full-Text   |   PDF [5278 KB, uploaded 5 September 2018]   |

Abstract

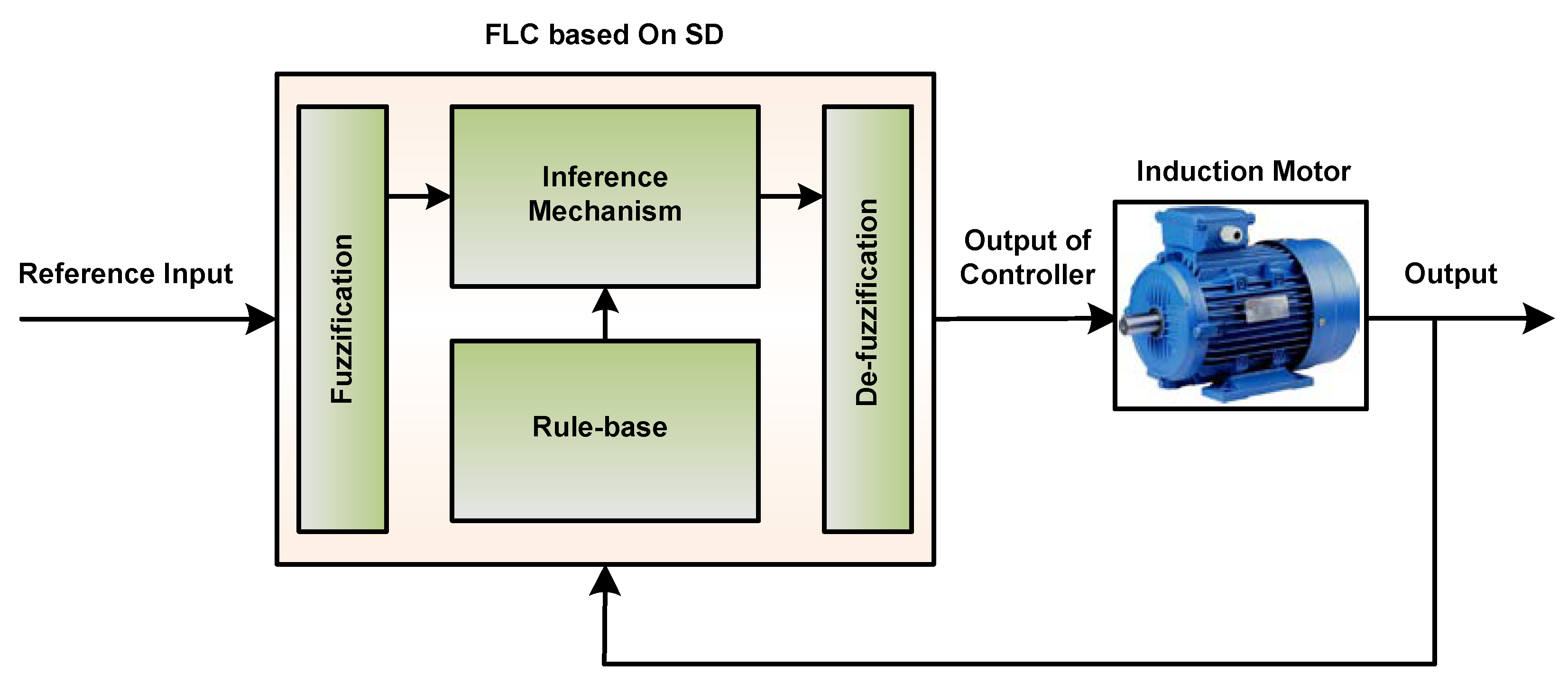

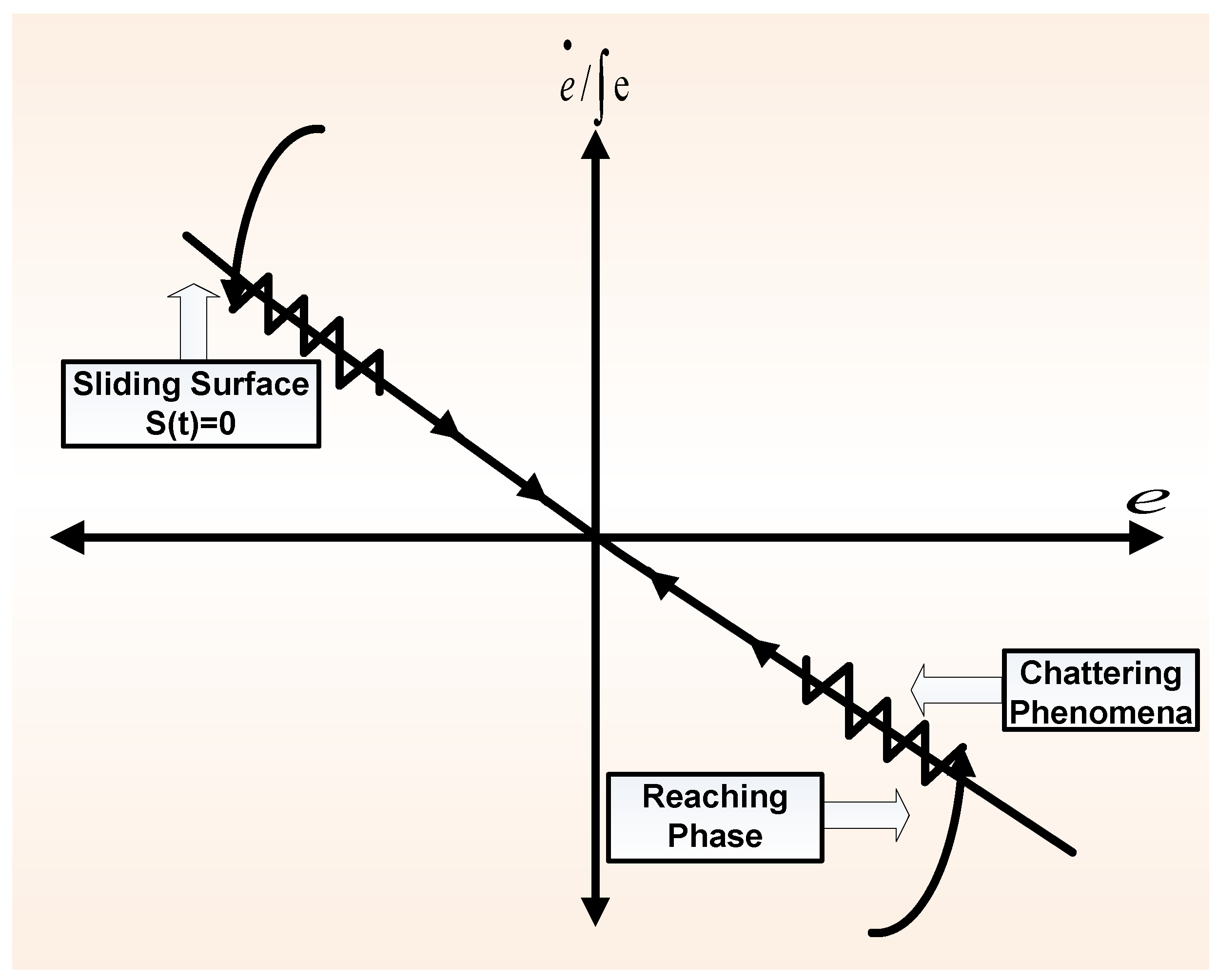

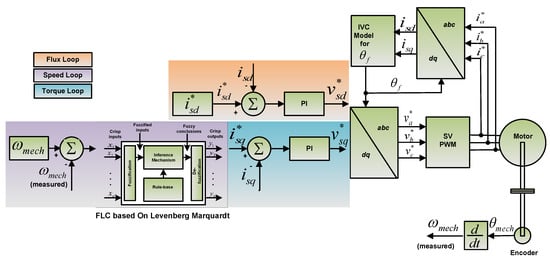

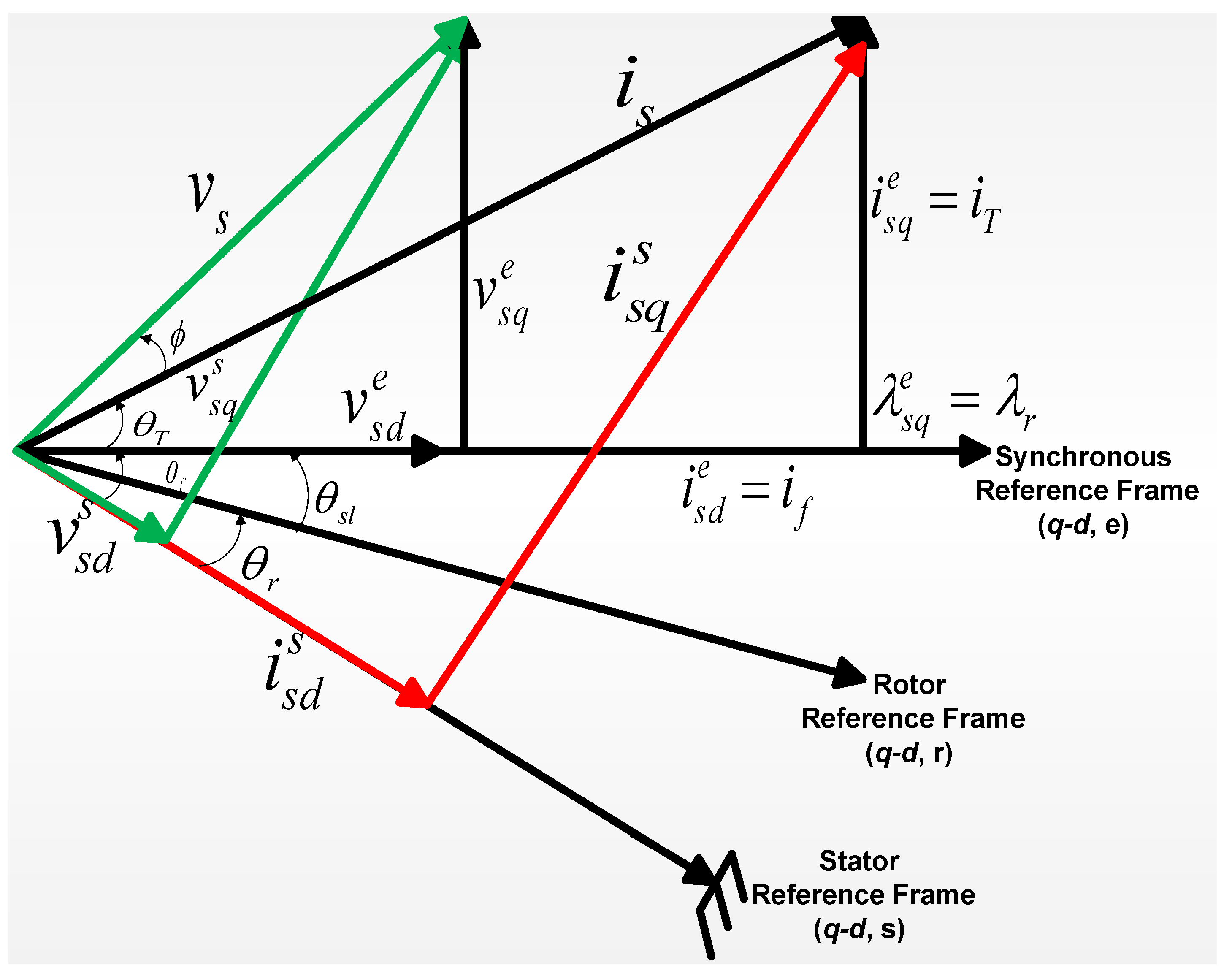

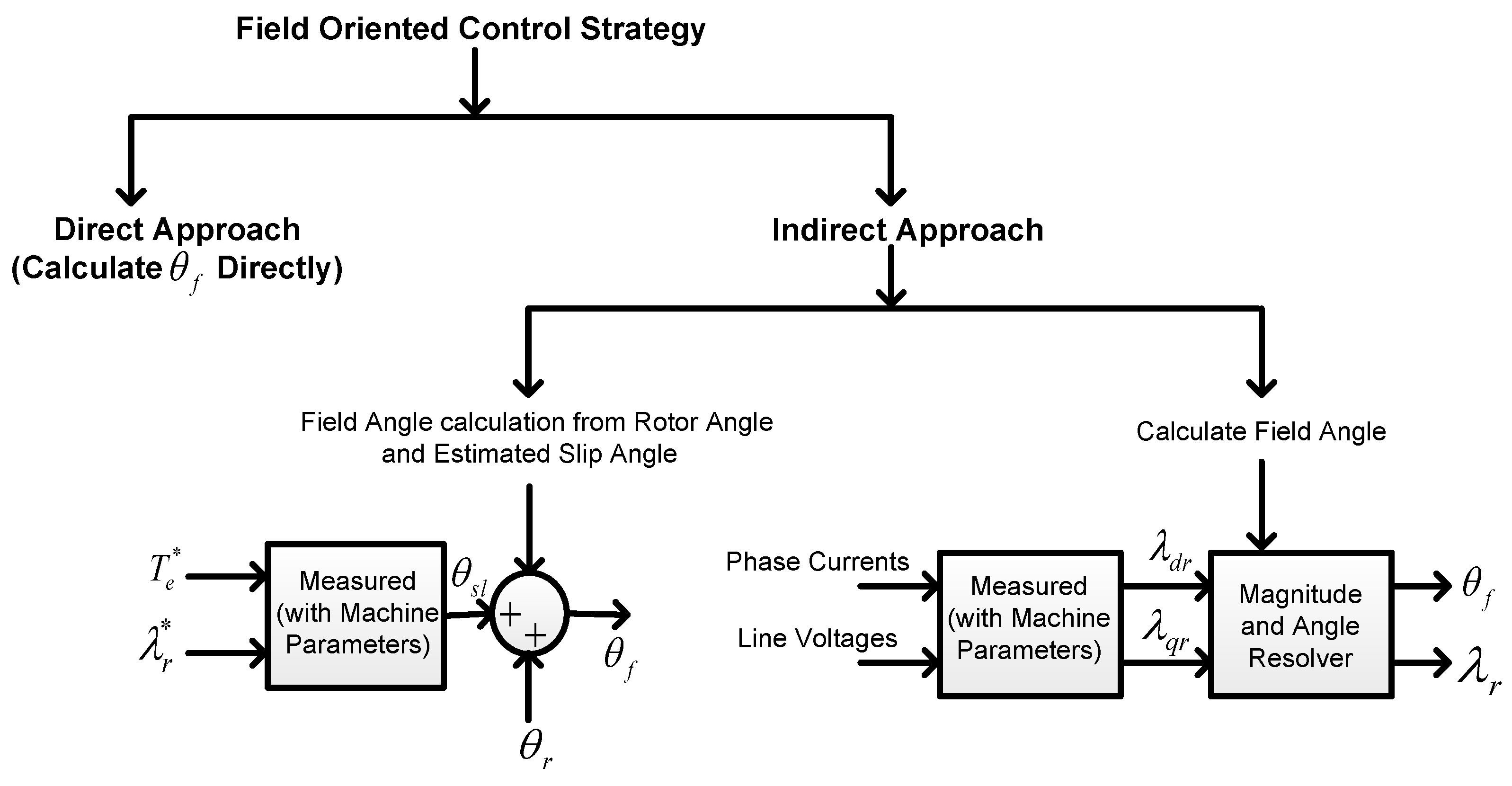

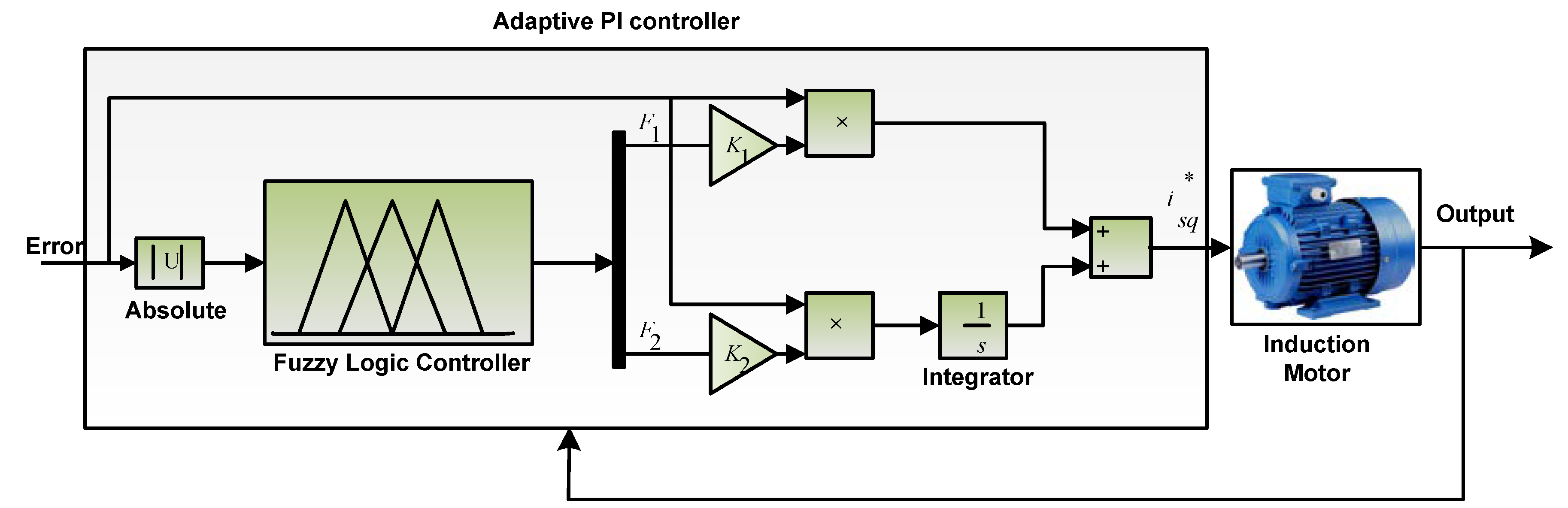

Recently, the Indirect Field Oriented Control (IFOC) scheme for Induction Motors (IM) has gained wide acceptance in high performance applications. The IFOC has remarkable characteristics of decoupling torque and flux along with an easy hardware implementation. However, the detuning limits the performance of drives due to uncertainties of parameters. Conventionally, the use of a Proportional Integral Differential (PID) controller has been very frequent in variable speed drive applications. However, it does not allow for the operation of an IM in a wide range of speeds. In order to tackle these problems, optimal, robust, and adaptive control algorithms are mostly in use. The work presented in this paper is based on new optimal, robust, and adaptive control strategies, including an Adaptive Proportional Integral (PI) controller, sliding mode control, Fuzzy Logic (FL) control based on Steepest Descent (SD), Levenberg-Marquardt (LM) algorithms, and Hybrid Control (HC) or adaptive sliding mode controller to overcome the deficiency of conventional control strategies. The main theme is to design a robust control scheme having faster dynamic response, reliable operation for parameter uncertainties and speed variation, and maximized torque and efficiency of the IM. The test bench of the IM control has three main parts: IM model, Inverter Model, and control structure. The IM is modelled in synchronous frame using d q modelling while the Space Vector Pulse Width Modulation (SVPWM) technique is used for modulation of the inverter. Our proposed controllers are critically analyzed and compared with the PI controller considering different conditions: parameter uncertainties, speed variation, load disturbances, and under electrical faults. In addition, the results validate the effectiveness of the designed controllers and are then related to former works. View Full-Text
Keywords: induction motor; indirect field oriented control; PI controller; adaptive PI controller; fuzzy logic controller; sliding mode controller; adaptive sliding mode controller; space vector pulse width modulation induction motor; indirect field oriented control; PI controller; adaptive PI controller; fuzzy logic controller; sliding mode controller; adaptive sliding mode controller; space vector pulse width modulation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
