Ash and Flue Gas from Oil Shale Oxy-Fuel Circulating Fluidized Bed Combustion

Department of Energy Technology, Tallinn University of Technology, 19086 Tallinn, Estonia
*
Author to whom correspondence should be addressed.
Energies 2018, 11(5), 1218; https://doi.org/10.3390/en11051218
Submission received: 13 April 2018 / Revised: 30 April 2018 / Accepted: 9 May 2018 / Published: 10 May 2018
(This article belongs to the Section F: Electrical Engineering)

Abstract

:
Carbon dioxide emissions are considered a major environmental threat. To enable power production from carbon-containing fuels, carbon capture is required. Oxy-fuel combustion technology facilitates carbon capture by increasing the carbon dioxide concentration in flue gas. This study reports the results of calcium rich oil shale combustion in a 60 kWth circulating fluidized bed (CFB) combustor. The focus was on the composition of the formed flue gas and ash during air and oxy-fuel combustion. The fuel was typical Estonian oil shale characterized by high volatile and ash contents. No additional bed material was used in the CFB; the formed ash was enough for the purpose. Two modes of oxy-fuel combustion were investigated and compared with combustion in air. When N2 in the oxidizer was replaced with CO2, the CFB temperatures decreased by up to 100 °C. When oil shale was fired in the CFB with increased O2 content in CO2, the temperatures in the furnace were similar to combustion in air. In air mode, the emissions of SO2 and NOx were low (<14 and 141 mg/Nm3 @ 6% O2, respectively). Pollutant concentrations in the flue gas during oxy-fuel operations remained low (for OXY30 SO2 < 14 and NOx 130 mg/Nm3 @ 6% O2 and for OXY21 SO2 23 and NOx 156 mg/Nm3 @ 6% O2). Analyses of the collected ash samples showed a decreased extent of carbonate minerals decomposition during both oxy-fuel experiments. This results in decreased carbon dioxide emissions. The outcomes show that oxy-fuel CFB combustion of the oil shale ensures sulfur binding and decreases CO2 production.

1. Introduction

Carbon dioxide emissions continue to be a major environmental concern of solid fuel combustion. Carbon capture and storage is required in order to meet future targets for greenhouse gas emissions. The typical technologies related to CO2 capture are pre-combustion, post-combustion and oxy-fuel combustion [1]. Oxy-fuel combustion is considered as one of the most promising carbon dioxide capture approaches [2,3,4]. It involves combustion of fuel in a mixture of nearly pure oxygen and recycled flue gas to control the combustion temperature. There is a number of ongoing oxy-fuel combustion commercialization and demonstration projects, most of them are utilizing pulverized combustion (PC) technology [5,6]. Circulating fluidized bed (CFB) combustion technology is proven and has advantages such as fuel flexibility and environmental performance. When applying oxy-fuel combustion with a CFB, the circulating solid matter offers another temperature control method. Due to this, less circulated flue gas is required for temperature control. Regardless of the exact solution, the main purpose of applying an oxy-fuel approach is to enable power production without carbon dioxide emissions by producing an enriched carbon dioxide flow at the combustion unit’s outlet to simplify its utilization or sequestration.
The fuel used in this study was typical Estonian oil shale. Oil shale is a low-grade fossil fuel that has extremely high ash and volatile contents. The worldwide oil shale reserves have enormous energy potential, but it is industrially used only in Estonia, Brazil and China [7]. Oil shale can be utilized for energy production via gasification, pyrolysis or combustion. Estonian oil shale based power production relies on PC and CFB combustion technologies [8,9]. Industrial experience has shown that, due to a high process efficiency, low emissions, and no requirements for SOx or NOx emission control systems, CFB combustion of oil shale is the best available technology [10,11,12,13]. Industrial trials [12,14] have shown that CFB combustion technology is suitable for oil shale co-firing with biomass, pyrolysis gas and peat, thereby enabling fuel flexibility.
Substituting N2 with CO2 has an influence on combustion, pollutant formation, mineral matter behavior and temperature in the combustor. Previous research has shown that, when the oxidizer contains a similar amount of O2, then, in CO2, the combustion is delayed [15,16,17]. Delayed combustion and increased specific heat of the gas mix leads to up to a 100 °C temperature decrease in the furnace [3,18]. To overcome this obstacle, O2 concentration is increased. Generally, a mixture containing 30% O2 and 70% CO2 allows obtaining similar temperatures in furnace as in a regular air-fired CFB.
Sulfur oxides are one of the main pollutants from combustion, causing acid rains and disturbing CO2 compression when applying oxy-fuel combustion. The SO2 concentration in flue gas can be reduced by injecting sorbents, such as limestone or dolomite, into a CFB. Estonian oil shale has a high content of carbonate minerals (mostly calcite and dolomite). Due to this, no additional bed material is needed. The sulfur capture process depends on calcination, which depends on CO2 partial pressure and temperature. If the CO2 partial pressure is lower than the equilibrium pressure [19], limestone decomposes and forms CaO and CO2,
CaCO 3 ( s ) CaO ( s ) + CO 2 ( g ) .
The CaO then reacts with SO2,
CaO ( s ) + SO 2 ( g ) + 0.5 O 2 CaSO 4 ( s ) .
This process is called indirect sulfation. If the calcination process does not take place, then SO2 may react directly with CaCO3,
CaCO 3 ( s ) + SO 2 ( g ) + 0.5 O 2 CaSO 4 ( s ) + CO 2 ( g ) .
In air-fired atmospheric units, sulfur capture occurs via relatively rapid calcination (Equation (1)) and much slower sulfation reactions (Equation (2)). In oxy-fuel CFB combustors, sulfation can occur directly without the calcination step (Equation (3)). Theoretical calculations [20,21,22] and a previous study in a lab-scale fluidized bed batch reactor [23] revealed that carbonate minerals do not fully decompose under oxy-fuel combustion environment and the sulfur binding rate decreases, similar to the experiments of Li et al. [24]. On the contrary, some other experiments [18,25,26] showed a decrease in sulfur emissions or increased sulfur capture efficiency when applying oxy-combustion. This means that, it is still unclear if sulfur binding rate is sufficient.
Other important pollutants from combustion are nitrogen oxides (NOx) [27,28]. Nitrogen content in the Estonian oil shale is low, below 0.1% in dry fuel. Due to this and the low temperatures in CFB combustors, no problems with excess nitrogen oxide formation were recorded from the utility boilers [10]. One advantage of oxy-fuel technology is its potentially lower NOx production. Results from different experimental facilities are rather diverse [18,29,30,31,32,33]. Overall, the results indicate that nitrogen behavior in the oxy-fuel mode is similar to combustion in air and no drastic changes are expected in fuel nitrogen conversion to oxides.
Changes in the gas composition in a combustor may alter the transformation of minerals and cause fouling or particles agglomeration in the bed. Estonian oil shale has a high ash and carbonates content. When PC was applied to Estonian oil shale combustion, major difficulties due to sediments formation on heating surfaces occurred [34]. Applying CFB technology resolved such problems, because it was possible to decrease temperatures in furnace below 850 °C [10]. From previous experience, we know that decreased decomposition of carbonate minerals results in up to 13% smaller carbon dioxide production [20]; at the same time, it increases total ash production from combustion.
Mapping waste is important for finding solutions to turn ash, or at least a part of it, into products [35,36]. Wang et al. [37] found no major differences in oxy-fuel residues when compared to regular ash. Our previous experiments at laboratory scale fluidized bed reactor showed a considerable decrease of carbonaceous minerals decomposition in oxy-fuel environment [23]. This means that CO2 emissions decrease, but the production of ash increases. [36]. More than 90% of oil shale ash is currently landfilled [38]. In landfills, it cements and binds approximately 8% of the total emitted carbon dioxide [39]. Experiments with oxy-fuel CFB ash showed that the ash can still fix a similar amount of CO2 [40]. The natural CO2 sequestration uses only a part of the ash’s total potential, because only the surface of the particles is available for the reaction. The calcium rich ash could be employed for improved CO2 sequestration [41]. For example, Zevenhoven et al. [42] proposed precipitated calcium carbonate production from calcium-containing industrial wastes. The concept could be applied with oil shale ash; as a result, a large amount of CO2 would be fixed, and waste ash would be used and a valuable product would be produced.
Higher CO2 concentration in flue gas eases utilization or gas transportation to geological storage sites. The nearest option for CO2 storing from a possible oxy-fuel power plant in Estonia would be in the South Kandava sandstone in Latvia (500 km from the oil shale mines). The formation has been evaluated to be suitable for CO2 geological storage [43,44].
The experience shows that substituting nitrogen with carbon dioxide as diluent is not trivial and generates important differences. To investigate possible changes in the flue gas and produced ash when applying oxy-fuel combustion on Estonian oil shale, combustion experiments in a 60 kWth CFB combustor were performed using air and mixed gases to simulate possible oxy-fuel combustion environments. Flue gas and produced ash samples were collected and analyzed.

2. Experimental Section

2.1. The Oil Shale

The experiments were carried out with typical Estonian oil shale from the Ojamaa underground mine. The fuel was dried, crushed and sieved to under 3 mm. The ultimate and proximate analysis of the oil shale is listed in Table 1. The oil shale contained a considerable amount of sulfur, but had a low nitrogen content. The laboratory ash composition is shown in Table 2. The Ca/S molar ratio in the oil shale was 8.0. The values were typical for oil shale used in the Estonian oil shale industry. The only major difference was the fuel moisture content. The oil shale used in the experiments was room dry. Normally, the oil shale used in the industry has a moisture content slightly over 10% [11,45].

2.2. The Circulating Fluidized Bed Combustion Test Facility

The experiments were conducted using a 60 kWth CFB combustor, which was designed and constructed for fuels with high, up to 60 wt %, ash content. The main components of the test facility are shown in Figure 1. The height of the furnace was 4.90 m and its inner diameter was 0.12 m. The combustion chamber was isolated with ceramics and high temperature thermal isolation material. To minimize leaks, the combustor was enclosed in a stainless steel shell. The fuel was fed with a screw conveyer at the height of 0.49 m, and the recirculated solids were fed back at a height of 0.86 m with secondary air.
The solid particles were separated from flue gas in a cyclone (cut-point 10 μm) and returned to the bottom bed through a return leg and an external heat exchanger (EHE) where solids were cooled in order to control the temperature of the bed. After the cyclone, the flue gas was cooled with a two-stage cooling system, consisting of two shell-and-tube heat exchangers in series. The heat transfer surfaces of these heat exchangers were composed of longitudinally-streamlined tubes. The fly ash was removed from flue gas with a fabric filter. The cleaned flue gas was led out of the system by means of an induced high pressure fan through the stack.
The combustion air was supplied with a compressor. The simulation of recycle flue gas was performed using bottled CO2 and O2. All gas lines, for O2, CO2 and compressed air, were equipped with mass flow controllers for exact control of the mass flow rates and the ratio of O2/CO2. The combustion air tubes were equipped with electrical heaters to maintain the necessary gas temperature. Extra bed material was not needed since oil shale contains more than enough ash.
The test facility was equipped with two independent fuel/bed material feed silos and a gas burner. The control and data acquisition of the test facility was fully automated and operated by a LabVIEW system. The flue gas composition was simultaneously analyzed with a FTIR spectrometer and was presented as dry gases at 6% O2. Ash samples were collected from five points: bottom ash (BA), cyclone ash (CA), cooler 1 ash (C1), cooler 2 ash (C2) and fabric filter ash (FA). The collected samples were pulverized. The chemical composition of the produced ashes and the fuel were measured with Rigaku ZSX Primus II wavelength dispersive X-ray fluorescence spectrometer and elemental analyzer Vario Macro CHNS Cube. Mineral CO2 amount was measured in the samples with the elemental analyzer using the total inorganic carbon module applying diluted HCl to decompose the carbonate minerals.
The combustor can operate both in a conventional air mode regime as well as in oxy-fuel regime. During the experiments the test facility was started in air-fired mode. After achieving the steady state regime, the gradual switch to oxy-fuel mode was started. The results presented in this paper were obtained at steady-state CFB combustion mode. The experiments were conducted using three different gas mixtures: air, OXY21 (21% oxygen and 79% carbon dioxide) and OXY30 (30% oxygen and 70% carbon dioxide). The air was used to create a base case scenario. In OXY21 mixture, nitrogen was replaced with CO2, thus showing the effect of replacing the carrier gas. Since previous experiments have shown temperature drops when using similar oxygen concertation in the oxy-fuel mode, OXY30 was chosen to try to obtain a similar temperature field in the furnace as in conventional CFB.

2.3. Description of the Experiments

For the startup, a small amount (3 kg) of oil shale ash was inserted into the return leg. The typical startup began with preheating the riser, with electrically-heated air, up to 300 °C. Then the first small amount of oil shale was fed into the riser. The fuel ignited and the furnace was gradually warmed up to a working temperature.
CFB combustor main working parameters are shown in Table 3. During the experiments, the thermal load of the combustor was 24 ± 3 kW. The OXY30 experiment was conducted at a lower thermal load due to fuel feeder problems. The primary and secondary air ratio was 4/6, because the fuel had a high volatile content. Although the thermal load varied due to fuel feeding problems, the data in Table 3 show that temperatures during all the experiments in the CFB combustor were similar.
Temperature profiles in the riser during stable operation in air and oxy-fuel modes are shown in Figure 2. The temperatures in the riser during air operation were similar to the values used in oil shale industrial CFB boilers (800 °C) [10]. During OXY21 operation, the temperature in the riser dropped by up to 100 °C. Similar temperature drops in the furnace, when substituting N2 with CO2, have been noticed before when oxy-firing coals [3,18]. At the same time, the temperature in the cyclone exit remained similar. Slight drop of primary air temperature from 284 to 250 °C was noticed. This might be the reason for decreased temperatures in the riser, together with decreased fuel reactivity and increased heat capacity of the CO2 atmosphere [15]. During the experiment with an increased O2 concentration (OXY30), the temperature distribution was similar to air mode. Specific heat and oxygen diffusivity were similar to air and most retrofit experiments suggest such a mixture for oxy-fuel operations [46].

3. Results and Discussion

3.1. Sulfur Oxides Emissions

The average emission values during stable operation are shown in Table 4 and Figure 3. In spite of decreased temperatures in the riser during oxy-fuel operations (Figure 2), the SO2 concentration in the flue gas remained similar. Higher CO2 partial pressure and lower temperature in the system inhibited decomposition of CaCO3, but the Ca/S molar ratio in the oil shale was as high as 8.0. It means that there was a lot of excess calcium in the system and even if the sulfur binding rate was inhibited as noted in reference [23], it was still enough to bind more than 99% of the sulfur. The oxy-fuel ashes contained a considerable amount of carbonates ((CO2)mineral) (see Figure 4) indicating decreased decomposition of carbonate minerals. During oxy-fuel combustion, sulfation was likely direct (see Equation (3)); the calcite reacted directly with sulfur oxide. When the oil shale was fired in air, the sulfation likely occurred via indirect reaction, because low carbonate concentration in ash indicated free lime availability for indirect sulfation (Equation (2)). Our results suggest that the elevated CO2 levels and the inhibited carbonate decomposition extent do not have a noticeable effect on the SO2 binding (see Table 5).
To compare the influence of circulating solid matter, circulation was stopped (the airflow to EHE was stopped). The temperatures in the riser were unstable (see Figure 3). The combustion efficiency decreased (the CO level increased over the measuring range) and SO2 concentration in flue gas increased notably (from 50 to 1500 mg/Nm3). The ash concentration in the furnace decreased and there was not enough material to bind all the sulfur. This implies that despite the high calcium concentration in the fuel, working in a bubbling bed mode, did not ensure sufficient sulfur binding. The CFB combustion mode ensured sufficient conditions for sulfur binding, even in oxy-fuel mode.

3.2. Nitrogen Oxides Emissions

NOx emissions remained below 200 mg/Nm3 during all experiments (Table 4). Our experiments showed that switching to oxy-fuel combustion did not alter the NOx emissions. The nitrogen conversion ratio to NOx was up to 24%, similar to results from Jankowska et al. [32] with bituminous coal (20–25%). However, Pikkarainen et al. [33] measured higher nitrogen conversion ratios (28–50%). Oil shale nitrogen content remained below 0.1%. Accordingly, a high nitrogen conversion ratio to NOx was expected (>25%) [47]. The nitrogen conversion ratio to NOx was found to be 20–24% and the emissions were rather low.

3.3. Ashes

During the experiments, ash samples were collected from all ash flows (Figure 1). The results of chemical analysis of the ashes are displayed in Table 5. Typically for oil shale, the most abundant oxide was calcium, followed by silica, magnesium and alumina. Except for CO2 content, chemical compositions of the ashes formed during different experiments were almost identical.
The unburnt carbon content fly ashes (0.3–4.7%) was considerably higher than in hotter ash-flows from CFB (<0.7%) (Figure 4). Together with the high CO concentration in the flue gas, it indicated re-condensation of volatiles after the coolers. Since high content of unburnt carbon in the fly ash was noticed during all the experiments, this showed that the hot zone was too short for a complete combustion of volatiles.
Mineral CO2 content of the oxy-fuel ashes was considerably higher than in the ashes obtained in air mode (Figure 4). The difference was especially large for BA and CA. The composition and share of ash flows is different in every boiler. For oil shale CFB combustion, the share of bottom and filter ash is the largest. The BA obtained contained the most calcium and thus the effect on total CO2 emission was considerable. Of the total carbon in the fuel, 20% was inorganic (see Table 1). It is theoretically possible to reduce the extent of decomposition of carbonate minerals to 28% in an oxy-CFB combustor firing Estonian oil shale [20]. The minimum is defined by the dolomite and sulfur content in the fuel. Limited decomposition of the carbonate minerals decreases CO2 emissions from oil shale combustion, but increases ash production.
Oxy-fuel CFB combustion of fuels containing carbonate minerals [48,49,50,51] resulted in smaller CO2 production due to decreased decomposition of carbonate minerals. The extent of carbonate decomposition was calculated based on the content of CaO, MgO and CO2 in the ashes; the methodology is described more thoroughly by Arro et al. [52]. Based on the data obtained during experiments and expecting similar ash splits, such as in a utility CFB boiler [11], the average extent of carbonate minerals decomposition during regular air fired CFB experiments was 0.84, for OXY21 0.56 and OXY30 0.46. The value for utility CFB firing Estonian oil shale was 0.69 [53]. During operation in air mode, the ash calcination was more extensive than in the utility boiler, but with the oxy-fuel operation, the calcination was only partial. Figure 4 depicts that oxy-fuel ashes behaved similarly; both BA and CA contained large amounts of carbonates. The average extent of carbonate mineral decomposition of OXY30 was smaller than that of OXY21, likely because of the different thermal loads of the combustor. The measured values show that decomposition of carbonate minerals was partial, but the theoretical minimum value was not reached.

3.4. Comparison with Utility Scale

A 60 kWth CFB is a relatively small device; the fuel flow rate is over 4000 times smaller than in the 250 MWth utility boilers used for power production in Estonia. Nevertheless, the produced ash and flue gas are rather similar to the values obtained from industrial devices [11,53]. Pollutant emissions during experiments were also comparable to the values recorded from utility boilers (see Table 6). Emissions of nitrogen oxides were slightly higher than in utility boilers, probably due to the non-optimized secondary air inlet location. During stable CFB combustion, the sulfur oxides level in the flue gas was low. When the ash circulation was stopped (see Figure 3), the sulfur concentration in the flue gas increased to a level above typical oil shale PC boilers [45].

4. Conclusions

Estonian oil shale was fired in a 60 kWth CFB combustor to investigate the formed flue gas and ash during air and oxy-fuel operations. The fuel was characterized by extremely high Ca-rich ash and volatiles contents. Experiments were conducted in the regular air fired CFB mode and in two different oxy-fuel modes: 21/79 O2/CO2 and 30/70 O2/CO2. The average temperature in the riser was ~740 °C; however, the temperature was 50 °C lower during the OXY21 experiment. When oxygen concentration was increased to 30%, similar temperatures as in air fired CFB were acquired. The thermal load was around 20 kW.
Produced flue gas and ash were analyzed. In air mode, the flue gas emissions for SO2 and NOx were <14 and 141 mg/Nm3 @ 6% O2, respectively; during the oxy-fuel operations, the values remained at similar levels. The chemical compositions of the oxy-fuel ashes were similar to the ashes produced in the air mode. Analysis of the collected ashes showed a decreased extent of carbonate minerals decomposition in oxy-combustion ashes. Despite decreased calcination and an apparent change in the sulfation route, there were no problems with sulfur binding. The results show that firing oil shale in an oxy-fuel circulating fluidized bed boiler could decrease CO2 production while pollutant concentrations in the flue gas remained at a similar level compared to conventional CFB combustion. This reduces the cost of flue gas compression and further transportation and storage/utilization.

Author Contributions

L.L. is the primary author of this manuscript; the other authors participated in the experimental work, discussion and development of the ideas, and to some extent in the writing and editing of the manuscript.

Acknowledgments

This work was supported by the EU Regional Development Fund grant AR12003. The oil shale was provided by AS Viru Keemia Grupp.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zheng, B.; Xu, J. Carbon Capture and Storage Development Trends from a Techno-Paradigm Perspective. Energies 2014, 7, 5221–5250. [Google Scholar] [CrossRef]
  2. Mathekga, H.I.; Oboirien, B.O.; North, B.C. A review of oxy-fuel combustion in fluidized bed reactors. Int. J. Energy Res. 2016, 40, 878–902. [Google Scholar] [CrossRef]
  3. Stanger, R.; Wall, T.; Spörl, R.; Paneru, M.; Grathwohl, S.; Weidmann, M.; Scheffknecht, G.; McDonald, D.; Myöhänen, K.; Ritvanen, J.; Rahiala, S.; Hyppänen, T.; Mletzko, J.; et al. Oxyfuel combustion for CO2 capture in power plants. Int. J. Greenh. Gas Control 2015, 40, 55–125. [Google Scholar] [CrossRef]
  4. Anthony, E.J. Oxyfuel CFBC: Status and anticipated development. Greenh. Gas Sci. Technol. 2013, 3, 116–123. [Google Scholar] [CrossRef]
  5. Scheffknecht, G.; Al-Makhadmeh, L.; Schnell, U.; Maier, J. Oxy-fuel coal combustion—A review of the current state-of-the-art. Int. J. Greenh. Gas Control 2011, 5, S16–S35. [Google Scholar] [CrossRef]
  6. Neshumayev, D.; Rummel, L.; Konist, A.; Ots, A.; Parve, T. Power plant fuel consumption rate during load cycling. Appl. Energy 2018, 224, 124–135. [Google Scholar] [CrossRef]
  7. Altun, N.E.; Hiçyilmaz, C.; Hwang, J.-Y.; Suat BaǦci, A.; Kök, M.V. Oil Shales in the World and Turkey; Reserves, Current Situation and Future Prospects: A Review. Oil Shale 2006, 23, 211–227. [Google Scholar]
  8. Roos, I.; Soosaar, S.; Volkova, A.; Streimikene, D. Greenhouse gas emission reduction perspectives in the Baltic States in frames of EU energy and climate policy. Renew. Sustain. Energy Rev. 2012, 16, 2133–2146. [Google Scholar] [CrossRef]
  9. Siirde, A. Oil Shale—Global Solution or Part of the Problem? Oil Shale 2008, 25, 201–202. [Google Scholar] [CrossRef]
  10. Hotta, A.; Parkkonen, R.; Hiltunen, M.; Arro, H.; Loosaar, J.; Parve, T.; Pihu, T.; Prikk, A.; Tiikma, T. Experience of Estonian oil shale combustion based on CFB technology at Narva Power Plants. Oil Shale 2005, 22, 381–397. [Google Scholar]
  11. Plamus, K.; Soosaar, S.; Ots, A.; Neshumayev, D. Firing Estonian Oil Shale of Higher Quality in CFB Boilers—Environmental and Economic Impact. Oil Shale 2011, 28, 113. [Google Scholar] [CrossRef]
  12. Konist, A.; Pihu, T.; Neshumayev, D.; Külaots, I. Low Grade Fuel Oil Shale and Biomass Co-Combustion in CFB Boiler. Oil Shale 2013, 30, 294–304. [Google Scholar] [CrossRef]
  13. Parve, T.; Loosaar, J.; Mahhov, M.; Konist, A. Emission of Fine Particulates from Oil Shale Fired Large Boilers. Oil Shale 2011, 28, 152–161. [Google Scholar] [CrossRef]
  14. Pihu, T.; Konist, A.; Neshumayev, D.; Loo, L.; Molodtsov, A.; Valtsev, A. Full-scale tests on co-firing peat in a oil shale fired circulating fluidized bed boiler. Oil Shale 2017, 34, 250–262. [Google Scholar] [CrossRef]
  15. Loo, L.; Maaten, B.; Siirde, A.; Pihu, T.; Konist, A. Experimental analysis of the combustion characteristics of Estonian oil shale in air and oxy-fuel atmospheres. Fuel Process. Technol. 2015, 134, 317–324. [Google Scholar] [CrossRef]
  16. Yörük, C.; Meriste, T.; Trikkel, A.; Kuusik, R. Thermo-oxidation characteristics of oil shale and oil shale char under oxy-fuel combustion conditions. J. Therm. Anal. Calorim. 2015, 121, 509–516. [Google Scholar] [CrossRef]
  17. Lei, K.; Ye, B.; Cao, J.; Zhang, R.; Liu, D. Combustion Characteristics of Single Particles from Bituminous Coal and Pine Sawdust in O2/N2, O2/CO2, and O2/H2O Atmospheres. Energies 2017, 10, 1695. [Google Scholar] [CrossRef]
  18. Duan, L.; Sun, H.; Zhao, C.; Zhou, W.; Chen, X. Coal combustion characteristics on an oxy-fuel circulating fluidized bed combustor with warm flue gas recycle. Fuel 2014, 127, 47–51. [Google Scholar] [CrossRef]
  19. Hu, G.; Dam-Johansen, K.; Wedel, S.; Peter Hansen, J. Review of the direct sulfation reaction of limestone. Prog. Energy Combust. Sci. 2006, 32, 386–407. [Google Scholar] [CrossRef]
  20. Konist, A.; Loo, L.; Valtsev, A.; Maaten, B.; Siirde, A.; Neshumayev, D.; Pihu, T. Calculation of the Amount of Estonian Oil Shale Products from Combustion in Regular and Oxy-Fuel Mode in a CFB Boiler. Oil Shale 2014, 31, 211–224. [Google Scholar] [CrossRef]
  21. Leckner, B.; Gómez-Barea, A. Oxy-fuel combustion in circulating fluidized bed boilers. Appl. Energy 2014, 125, 308–318. [Google Scholar] [CrossRef]
  22. Rahiala, S.; Myöhänen, K.; Hyppänen, T. Modeling the behavior of limestone particles in oxy-fuel CFB processes. Fuel 2014, 127, 141–150. [Google Scholar] [CrossRef]
  23. Konist, A.; Valtsev, A.; Loo, L.; Pihu, T.; Liira, M.; Kirsimäe, K. Influence of oxy-fuel combustion of Ca-rich oil shale fuel on carbonate stability and ash composition. Fuel 2015, 139, 671–677. [Google Scholar] [CrossRef]
  24. Li, H.; Li, S.; Ren, Q.; Li, W.; Xu, M.; Liu, J. zhang; Lu, Q. Experimental Results for Oxy-fuel Combustion with High Oxygen Concentration in a 1MWth Pilot-scale Circulating Fluidized Bed. Energy Procedia 2014, 63, 362–371. [Google Scholar] [CrossRef]
  25. Gómez, M.; Fernández, A.; Llavona, I.; Kuivalainen, R. Experiences in sulphur capture in a 30 MWth Circulating Fluidized Bed boiler under oxy-combustion conditions. Appl. Therm. Eng. 2014, 65, 617–622. [Google Scholar] [CrossRef]
  26. Li, W.; Xu, M.; Li, S. Calcium sulfation characteristics at high oxygen concentration in a 1MWth pilot scale oxy-fuel circulating fluidized bed. Fuel Process. Technol. 2018, 171, 192–197. [Google Scholar] [CrossRef]
  27. Glarborg, P.; Jensen, A.D.; Johnsson, J.E. Fuel nitrogen conversion in solid fuel fired systems. Prog. Energy Combust. Sci. 2003, 29, 89–113. [Google Scholar] [CrossRef]
  28. Zhang, J.; Yang, Y.; Hu, X.; Dong, C.; Lu, Q.; Qin, W. Experimental Research on Heterogeneous N2O Decomposition with Ash and Biomass Gasification Gas. Energies 2011, 4, 2027–2037. [Google Scholar] [CrossRef]
  29. Mingxin, X.; Shiyuan, L.; Wei, L.; Qinggang, L. Effects of Gas Staging on the NO Emission during O2/CO2 Combustion with High Oxygen Concentration in Circulating Fluidized Bed. Energy Fuels 2015, 29, 3302–3311. [Google Scholar] [CrossRef]
  30. Hofbauer, G.; Beisheim, T.; Dieter, H.; Scheffknecht, G. Experiences from Oxy-fuel Combustion of Bituminous Coal in a 150 kWth Circulating Fluidized Bed Pilot Facility. Energy Procedia 2014, 51, 24–30. [Google Scholar] [CrossRef]
  31. Duan, L.; Zhao, C.; Zhou, W.; Qu, C.; Chen, X. Effects of operation parameters on NO emission in an oxy-fired CFB combustor. Fuel Process. Technol. 2011, 92, 379–384. [Google Scholar] [CrossRef]
  32. Jankowska, S.; Czakiert, T.; Krawczyk, G.; Borecki, P.; Jesionowski, Ł.; Nowak, W. The Effect of Oxygen Staging on Nitrogen Conversion in Oxy-Fuel CFB Environment. Chem. Process Eng. 2014, 35, 489–496. [Google Scholar] [CrossRef]
  33. Pikkarainen, T.; Saastamoinen, J.; Saastamoinen, H.; Leino, T.; Tourunen, A. Development of 2nd Generation Oxyfuel CFB Technology—Small Scale Combustion Experiments and Model Development Under High Oxygen Concentrations. Energy Procedia 2014, 63, 372–385. [Google Scholar] [CrossRef]
  34. Arro, H.; Prikk, A.; Pihu, T. Change of operation conditions of boilers heating surfaces at transition from pulverized firing of oil shale to fluidized bed technology. In Proceedings of the XXXII Kraftwerkstechnisches colloq. Nutzung Schwieriger Brennstoffe in Kraftwerken, Dresden, Germany, 24–25 October 2000. [Google Scholar]
  35. James, A.K.; Thring, R.W.; Helle, S.; Ghuman, H.S. Ash Management Review—Applications of Biomass Bottom Ash. Energies 2012, 5, 3856–3873. [Google Scholar] [CrossRef]
  36. Blissett, R.S.; Rowson, N.A. A review of the multi-component utilisation of coal fly ash. Fuel 2012, 97, 1–23. [Google Scholar] [CrossRef]
  37. Wang, H.; Zheng, Z.-M.; Yang, L.; Liu, X.-L.; Guo, S.; Wu, S.-H. Experimental investigation on ash deposition of a bituminous coal during oxy-fuel combustion in a bench-scale fluidized bed. Fuel Process. Technol. 2015, 132, 24–30. [Google Scholar] [CrossRef]
  38. Pihu, T.; Arro, H.; Prikk, A.; Rootamm, R.; Konist, A.; Kirsimäe, K.; Liira, M.; Mõtlep, R. Oil shale CFBC ash cementation properties in ash fields. Fuel 2012, 93, 172–180. [Google Scholar] [CrossRef]
  39. Konist, A.; Maaten, B.; Loo, L.; Neshumayev, D.; Pihu, T. Mineral sequestration of CO2 by carbonation of Ca-rich oil shale ash in natural conditions. Oil Shale 2016, 33, 248–259. [Google Scholar] [CrossRef]
  40. Loo, L.; Maaten, B.; Konist, A.; Siirde, A.; Neshumayev, D.; Pihu, T. Carbon dioxide emission factors for oxy-fuel CFBC and aqueous carbonation of the Ca-rich oil shale ash. Energy Procedia 2017, 128, 144–149. [Google Scholar] [CrossRef]
  41. Markewitz, P.; Kuckshinrichs, W.; Leitner, W.; Linssen, J.; Zapp, P.; Bongartz, R.; Schreiber, A.; E. Müller, T. Worldwide innovations in the development of carbon capture technologies and the utilization of CO2. Energy Environ. Sci. 2012, 5, 7281–7305. [Google Scholar] [CrossRef] [Green Version]
  42. Mattila, H.-P.; Zevenhoven, R. Production of Precipitated Calcium Carbonate from Steel Converter Slag and Other Calcium-Containing Industrial Wastes and Residues. Adv. Inorg. Chem. 2014, 66, 347–384. [Google Scholar]
  43. Shogenov, K.; Shogenova, A.; Vizika-Kavvadias, O.; Nauroy, J.-F. Reservoir quality and petrophysical properties of Cambrian sandstones and their changes during the experimental modelling of CO2 storage in the Baltic Basin. Estonian J. Earth Sci. 2015, 64, 199–217. [Google Scholar] [CrossRef]
  44. Shogenova, A.; Shogenov, K.; Vaher, R.; Ivask, J.; Sliaupa, S.; Vangkilde-Pedersen, T.; Uibu, M.; Kuusik, R. CO2 geological storage capacity analysis in Estonia and neighbouring regions. Energy Procedia 2011, 4, 2785–2792. [Google Scholar] [CrossRef]
  45. Konist, A.; Pihu, T.; Neshumayev, D.; Siirde, A. Oil Shale Pulverized Firing: Boiler Efficiency, Ash Balance and Flue Gas Composition. Oil Shale 2013, 30, 6–18. [Google Scholar] [CrossRef]
  46. Wall, T.F. Combustion processes for carbon capture. Proc. Combust. Inst. 2007, 31, 31–47. [Google Scholar] [CrossRef]
  47. Wartha, C.; Reisinger, K.; Winter, F.; Gogolek, P.; Hofbauer, H. The importance of NO Formation Characteristics for the Prediction of NO—Emissions from Grade and Fluidized Bed Combustors. In Proceedings of the 4th International Conference on Technologies and Combustion for a Clean Environment, Lisbon, Portugal, 7–10 July 1997. [Google Scholar]
  48. Kolovos, N.; Georgakopoulos, A.; Filippidis, A.; Kavouridis, C. Utilization of Lignite Reserves and Simultaneous Improvement of Dust Emissions and Operation Efficiency of a Power Plant by Controlling the Calcium (Total and Free) Content of the Fed Lignite. Application on the Agios Dimitrios Power Plant, Ptolemais, Greece. Energy Fuels 2002, 16, 1516–1522. [Google Scholar] [CrossRef]
  49. Fernandez-Turiel, J.-L.; Georgakopoulos, A.; Gimeno, D.; Papastergios, G.; Kolovos, N. Ash Deposition in a Pulverized Coal-Fired Power Plant after High-Calcium Lignite Combustion. Energy Fuels 2004, 18, 1512–1518. [Google Scholar] [CrossRef] [Green Version]
  50. Gorewoda, J.; Scherer, V. Influence of Carbonate Decomposition on Normal Spectral Radiative Emittance in the Context of Oxyfuel Combustion. Energy Fuels 2016, 30, 9752–9760. [Google Scholar] [CrossRef]
  51. Dai, B.-Q.; Wu, X.; De Girolamo, A.; Zhang, L. Inhibition of lignite ash slagging and fouling upon the use of a silica-based additive in an industrial pulverised coal-fired boiler. Part 1. Changes on the properties of ash deposits along the furnace. Fuel 2015, 139, 720–732. [Google Scholar] [CrossRef]
  52. Arro, H.; Prikk, A.; Pihu, T. Calculation of CO2 Emission from CFB Boilers of Oil Shale Power Plants. Oil Shale 2006, 23, 356–365. [Google Scholar]
  53. Plamus, K.; Ots, A.; Pihu, T.; Neshumayev, D. Firing Estonian Oil Shale in CFB Boilers—Ash Balance and Behaviour of Carbonate Minerals. Oil Shale 2011, 28, 58–67. [Google Scholar] [CrossRef]

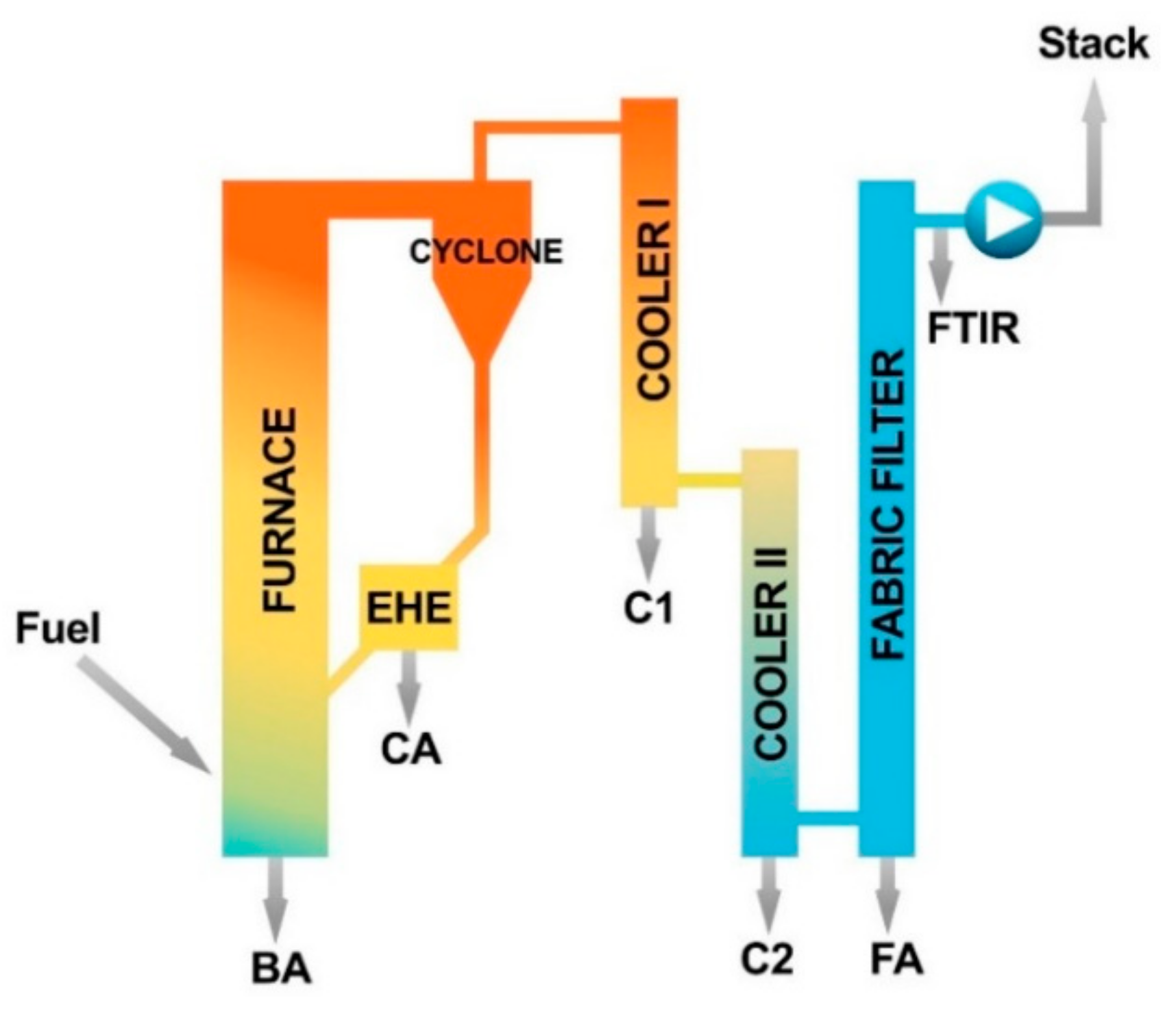

Figure 1. The 60 kWth circulating fluidized bed combustion test facility.
Figure 1. The 60 kWth circulating fluidized bed combustion test facility.
Energies 11 01218 g001

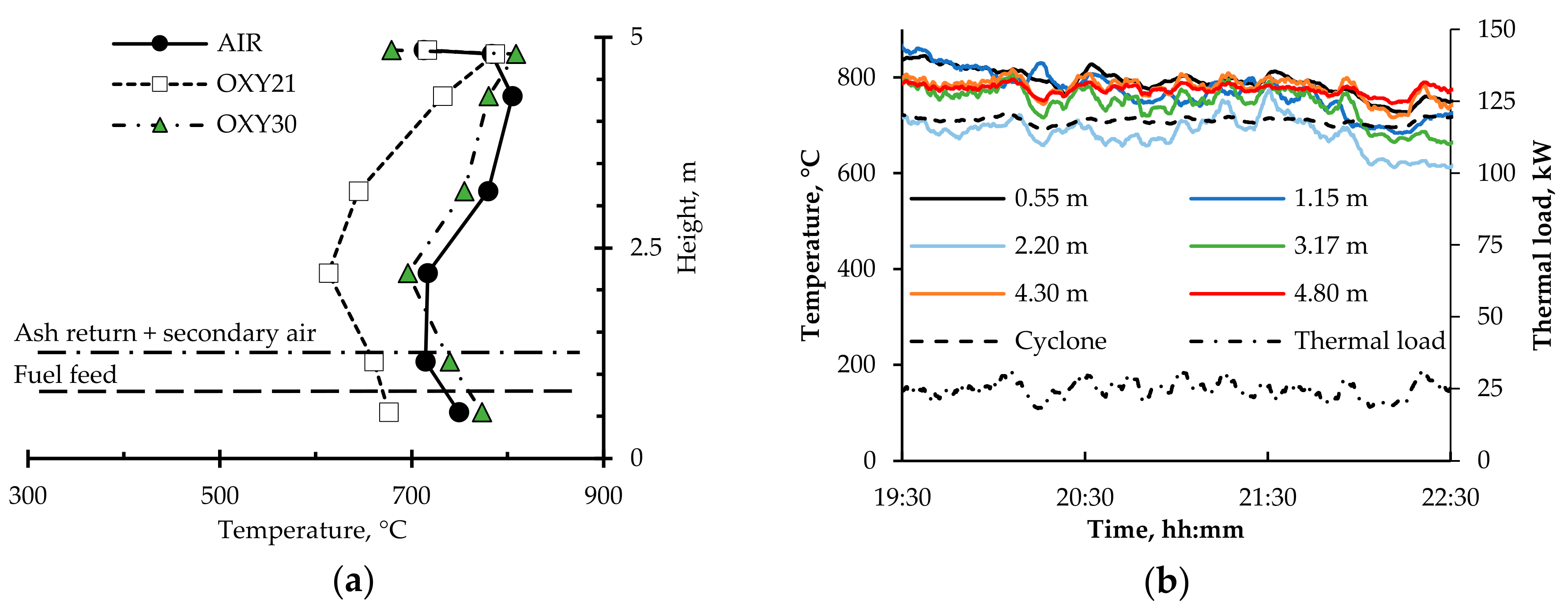

Figure 2. (a) Temperature distribution along the circulating fluidized bed (CFB) combustor riser and in the cyclone; (b) temperatures in the CFB cyclone exit and furnace at different heights. The temperatures deviance, due to fuel feeder, was up to 5%.
Figure 2. (a) Temperature distribution along the circulating fluidized bed (CFB) combustor riser and in the cyclone; (b) temperatures in the CFB cyclone exit and furnace at different heights. The temperatures deviance, due to fuel feeder, was up to 5%.
Energies 11 01218 g002

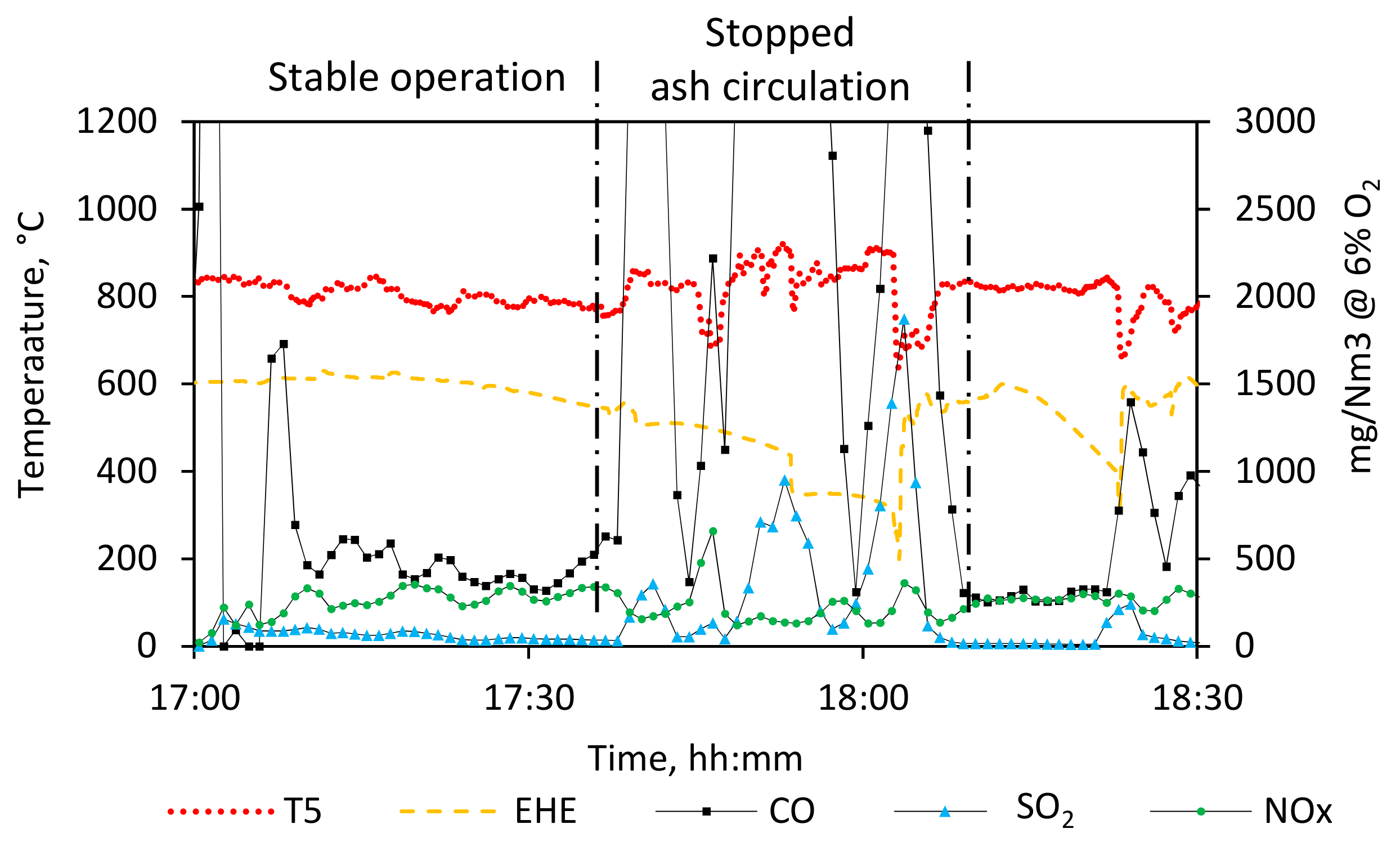

Figure 3. Pollutant emissions during oil shale CFB and fluidized bed combustion.
Figure 3. Pollutant emissions during oil shale CFB and fluidized bed combustion.
Energies 11 01218 g003

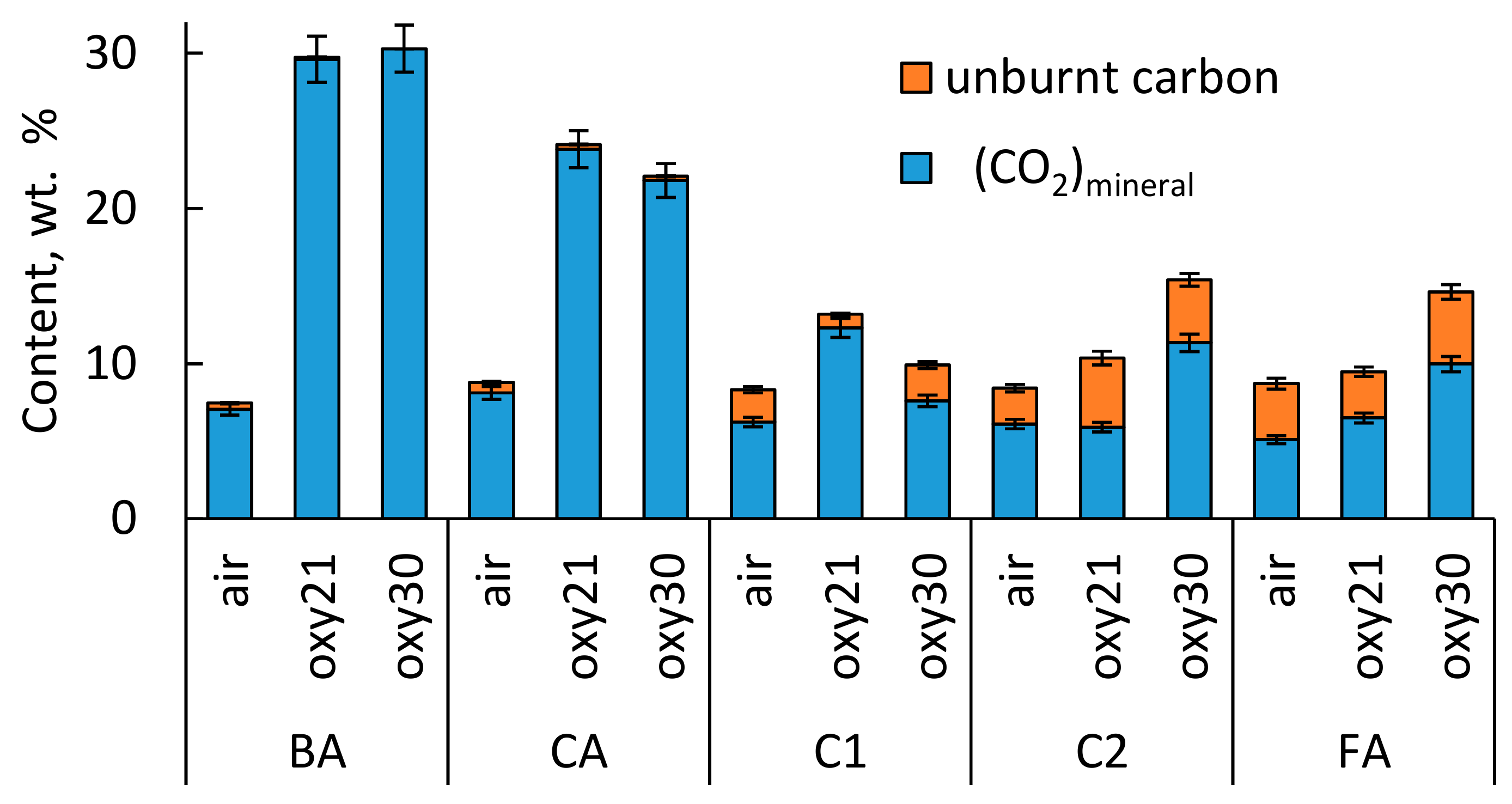

Figure 4. Mineral CO2 ((CO2)mineral) and unburnt carbon content in the CFB combustion ashes.
