Optimal Integration of Multi Distributed Generation Sources in Radial Distribution Networks Using a Hybrid Algorithm

Abstract

Distributed generation (DG) can be integrated into any radial distribution network (RDN) to meet the increasing demand for electric power. Instead of integrating a single large size DG, two or more than two small DGs (multi DGs) are usually placed. These DGs must be placed in appropriate buses/nodes with suitable size to ensure better performance of the system. The purpose of this paper is to implement an established hybrid optimization algorithm to place multi DGs with suitable size at each site. The proposed hybrid ABC-CS optimization algorithm combines the behaviour of the artificial bee colony (ABC) and cuckoo search (CS) algorithms. The multi DGs are optimally placed by considering objectives like power loss, penalty function (PE) and voltage profile (VP). The outcomes of two different types of radial distribution networks obtained by the suggested method for placement of multi DGs have been correlated to that obtained by using genetic algorithm (GA), particle swarm optimization (PSO) and GA-PSO. The proposed method has also been correlated with the other published methods to indicate its strength.

1. Introduction

Society today is totally dependent on electric power for day to day life and the expected electrical power must be available [1]. Complex power distribution systems provide the required electricity to the customers [2]. These highly complex distribution systems require suitable design of new effective and reliable devices in the deregulated electric power industry for flexible power flow control and also uninterrupted power supply [3]. Since the restructuring concept has already been introduced into existing power systems, Distributed generations (DGs) have attracted attention for their potential usage. DG is defined as small generators supplying the electric power required by customers and these are scattered in a power system [4,5]. The DG technologies are developed from the distribution systems where conventional as well as non-conventional energy sources are used for generating power. Hence DGs are gaining popular momentum as an alternative option in the planning of distribution systems [6].

In earlier days the designed distribution system used to convey power from the (high voltage) transmission networks and most of the electrical generation sources was connected to the customers [7]. Electricity generation constraints such as centralized power plants deliver the electricity to the end-user via transmission systems [8]. In distribution system, the voltage levels are low, but current levels are high compared to the transmission system. Therefore, the losses in the distribution system are greater than in transmission systems [9]. There is increasing interest in studies of renewable sources of energy, which are solar, wind, hydro, biomass, geothermal and ocean energy, etc. Hence integration of distributed resources to the grid have been rapidly increasing [10]. Any DG is composed of distributed resources, which serves as an electric power generation within distribution networks or on the customer site of the network [11]. When a DG is being installed at a customer site, it increases utility. DG sources are obtained from conventional and non-conventional energy sources [12].

Recently the cost of DG has been reduced drastically due to the advanced technology available [13]. Optimization techniques can be used for deregulation of the power industry, by using the best allotment of multiple DG units [14]. The advancement in technology and the demand of the customers for cheap and reliable electric power has led to an increasing interest in DG [15], however, issues related to reliability and maintenance have impeded the penetration of DG resources in distribution grids [16]. DG placement critically impacts the operation of the distribution network.

If the DG is being placed optimally, it will improve the system’s voltage profile and reduce system losses [17]. Researchers have paid a lot of attention to DG placement in the last fifteen years [18].

The rest of the paper is organized as follows—some recent research work related to the optimal DG placement in distribution networks is presented in Section 2. The problem formation for the proposed method is described in Section 3. The proposed hybrid ABC-CS (artificial bee colony and cuckoo search)-based multi DGs placement with an innovative objective function is described in Section 4. Implementation results and performance analysis are shown in Section 5. Subsequently the conclusions of the research work and are shown in Section 6.

2. Related Work

Some of the recently published works related to the optimal DG placement for power quality improvement are listed beneath.

Li et al. [19] used game theory to optimize the multi-objective function to get the exact location and sizing of DG. They discussed the advantages of game theory for optimization i.e., “game optimization theory”. They tested the proposed method on an 8-bus network.

Hung and Mithulananthan [20] proposed a method for multiple DG placement using an improved analytical method for loss reduction in distributed systems. They used the loss of the system as the objective function. They compared the optimal size of four different types of DG. They showed the effectiveness of improved analytical (IA) method compared to loss sensitivity factor (LSF) and effective load-flow methods using 16-node, 33-node and 69-node RDNs.

Ameli et al. [21] presented a multi-objective particle swarm optimization (PSO) algorithm to optimize sizing, and siting of DGs, as well as the contract price of their generated power. The proposed method improved the voltage profile and stability, reduced power losses, and enhanced the supply reliability. They had used a 33-node radial distribution network (RDN).

Devi and Geethanjali [22] used a modified bacterial foraging optimization algorithm (BFOA) for loss reduction as well as improvement of the voltage profile integrating multiple DGs in 12-node, 34-node, and 69-node RDNs.

Kaur et al. [23] presented a mixed integer non-linear programming (MINLP) -based technique to place multiple DG units (a maximum of three) in RDNs using two examples. They compared their method with an improved analytical and PSO-based methods to prove its superiority.

Kabalci [24] evolved a system with a view to perceive how the distribution system affected the parameters averse to drops, failures and utilization instantaneously. The recommended programming logic controller (PLC) framework eradicated concerns such as unreliability, intervention, shading as well as fading of wireless systems.

Cataliotti et al. [25] devised a contemporary arrangement for remote supervision and regulation of DG’s and energy storage systems associated with low voltage distribution networks by virtue of interface protection systems. The assembly was tested in an island to point out its outstanding communication strategies as well as restraints.

Kansal et al. [26] proposed a hybrid approach, which is a combination of and analytical method and a heuristic approach, to place optimally multiple DGs. They computed the size of each DG by and analytical search and the optimal locations were found by the PSO technique. They used 33-node and 69-node RDNs and the performances obtained by the proposed method were also compared with the PSO and the method proposed in [20]. In their method, loss reduction obtained by PSO was better than that obtained by their proposed hybrid method for one DG, two DG and three DG in both examples for Type-I DG, but their proposed hybrid method failed to give better loss reduction for one DG, two DG and three DG than that of [20] for a 69-node RDN.

Vita [27] described an established and an accurate arrangement based on decision making algorithms for better placement as well as sizing of DG and used an extended Newton-Raphson load flow method. The proposed method was tested on a 33 node RDN with a single DG system.

3. Problem Formulation

Appropriate placement of DG reduces the losses of any distribution grid and hence reduces the operating cost. The real power loss of any system is expressed by Equation (1):

$$P_L={\displaystyle \sum _{k=1}^N{\displaystyle \sum _{l=1}^N\left[{\alpha }_{kl}\left(P_k{P}_l+Q_k{Q}_l\right)+{\beta }_{kl}\left(Q_k{P}_l+P_k{Q}_l\right)\right]}}$$

(1)

where ${\alpha }_{kl}=\frac{r_{kl}}{V_k{V}_l}\cos \left({\delta }_k-{\delta }_l\right),{\beta }_{kl}=\frac{r_{kl}}{V_k{V}_l}\sin \left({\delta }_k-{\delta }_l\right)$.

The appropriate placement of DG with rated size not only reduces the net real power loss, but also enhances the node voltage. The following two functions represented by Equations (2) and (3) are integrated in Equation (19) to get fitness function:

$$f_1=\min \left[P_L+PE\right]$$

(2)

$$f_2=\max \left[VP\right]=\max \left[\frac{\left|V_f-V_i\right|}{\left|V_i\right|}\right],i=1,2,3,4\dots ..N$$

(3)

PE can be computed from Equation (4):

$$PE=h\left(V\right)+h\left(S\right)+h\left(IC\right)+h\left(IPCC\right)$$

(4)

where:

$$h\left(V\right)={\displaystyle \sum _{i=1}^{N}h\left(V_i\right)}=\{\begin{array}{l}{K}_V\times {\left(V_i^{\min }-V_i\right)}^2;V_i<V_i^{\min }\\ 0;V_i^{\min }\le V_i\le V_i^{\max }\\ K_V\times {\left(V_i-V_i^{\max }\right)}^2;V_i>V_i^{\max }\end{array}$$

(5)

$$h\left(S\right)={\displaystyle \sum _{i=1}^{N_L}h\left(S_i\right)}=\{\begin{array}{l}0;S_i\le S_i^{\max }\\ K_S\times {\left(S_i-S_i^{\max }\right)}^2;S_i>S_i^{\max }\end{array}$$

(6)

$$h\left(IC\right)={\displaystyle \sum _{i=1}^{N}h\left(I{C}_i\right)}=\{\begin{array}{l}0;I{C}_i\le I{C}_i^{\max }\\ K_{IC}\times {\left(I{C}_i-I{C}_i^{\max }\right)}^2;I{C}_i>I{C}_i^{\max }\end{array}$$

(7)

where:

$$IC=\frac{I_{SC,DG}}{I_{SC,Rated}}\times 100$$

(8)

$$h\left(IPCC\right)={\displaystyle \sum _{i=1}^{N}h\left(IPC{C}_i\right)}=\{\begin{array}{l}0;IPC{C}_i\le IPC{C}_i^{\max }\\ K_{IPCC}\times {\left(IPC{C}_i-IPC{C}_i^{\max }\right)}^2;IPC{C}_i>IPC{C}_i^{\max }\end{array}$$

(9)

where:

$$IPCC=\frac{\left(I_{SC,DG}-I_{SC,noDG}\right)}{I_{SC,noDG}}\times 100$$

(10)

provided the following constraints are satisfied:

$$P_{Gk}-P_{Dk}-{\displaystyle \sum _{k=1}^N{V}_k{V}_l{Y}_{kl}\cos \left({\theta }_{kl}-{\delta }_k+{\delta }_l\right)=0}$$

(11)

$$Q_{Gk}-Q_{Dk}-{\displaystyle \sum _{k=1}^N{V}_k{V}_l{Y}_{kl}sin\left({\theta }_{kl}-{\delta }_k+{\delta }_l\right)=0}$$

(12)

where $j=2,\dots ,N$.

$$P_{G_k}^{\min }\le P_{G_k}\le P_{G_k}^{\max };{\forall }_k\in N_G$$

(13)

$$Q_{G_k}^{\min }\le Q_{G_k}\le Q_{G_k}^{\max };{\forall }_k\in N_G$$

(14)

$$P_{D{G}_k}^{\min }\le P_{D{G}_k}\le P_{D{G}_k}^{\max };{\forall }_k\in N_{DG}$$

(15)

$$Q_{D{G}_k}^{\min }\le Q_{D{G}_k}\le Q_{D{G}_k}^{\max };{\forall }_k\in N_{DG}$$

(16)

$$V_k^{\min }\le V_k\le V_k^{\max };{\forall }_k\in N$$

(17)

$$S_k^{\min }\le S_k^{\max };{\forall }_k\in N_L$$

(18)

4. Proposed Multi DGs Placement and Sizing Using Hybrid ABC-CS

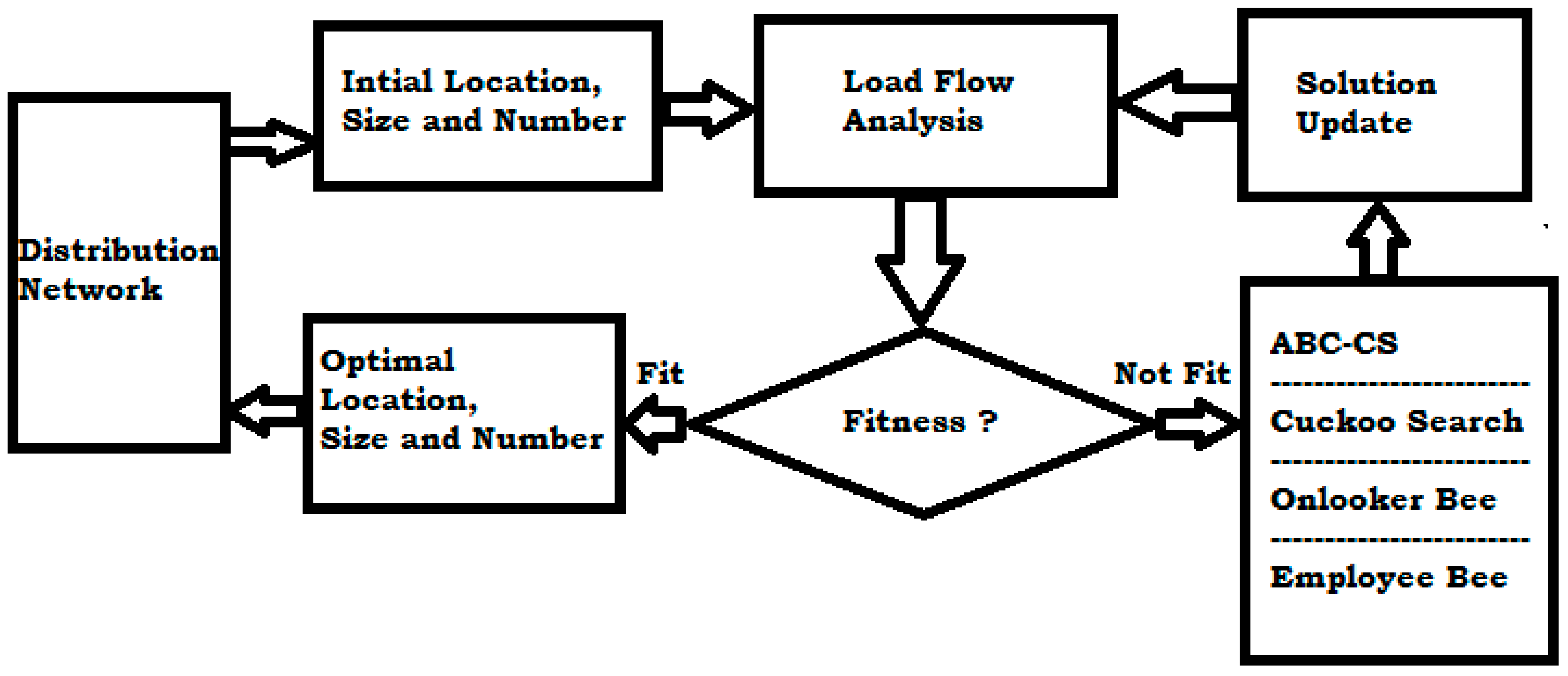

In this paper a structure has been suggested for placement of multi DGs and their sizing based on multi-objective criteria so that the system’s performance is increased. The suggested structure utilizes a hybrid artificial bee colony and cuckoo search (ABC-CS) algorithm. The objectives considered in this proposed framework are to maximize voltage profile and minimize power loss. Based on the multi objective function the ABC-CS algorithm is employed for optimal location of multi DG with suitable size. The architecture of the suggested structure is shown in Figure 1.

In the suggested structure, an artificial intelligence-based technique is applied for the placement of multi DGs to enhance the functioning of any distribution grid. The hybrid ABC-CS algorithm is utilized in the proposed work. The detail description of the proposed technique is as follows.

4.1. Initialization

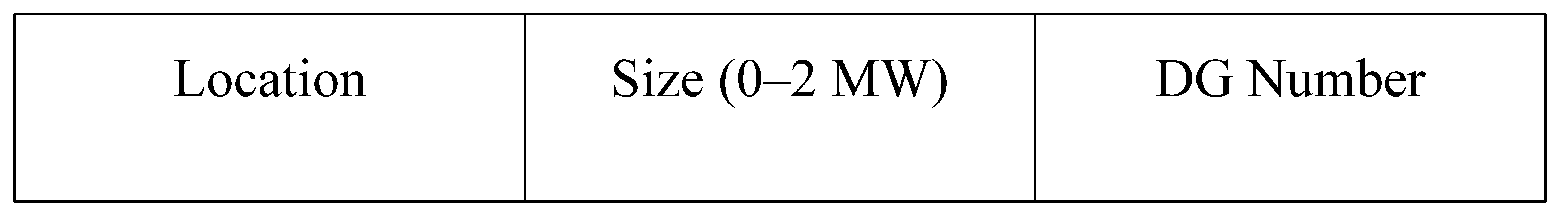

In this phase the random initialization of distribution grids’ bus data (food sources) is done. The random initial data contain the location, size and number of DGs. The format of initial data is shown in Figure 2. The initial location is randomly initialized as $1-B_{num}$ for ‘$B_{num}$’ bus system, size of each DG is randomly initialized in the range of 0–2 MW, and DG number is randomly initialized between $1-d_{num}$ for placing ‘$d_{num}$’ of DG (s).

4.2. Worker Bee Phase

In this phase for the corresponding initial data (arbitrary food sources) fitness value is computed and the formula to compute the fitness is shown in Equation (19). The fitness function ‘F’ is formed by combining Equations (2) and (3):

$$F=\min \left[\raisebox{1ex}{$f_1$}\!\left/ \!\raisebox{-1ex}{$f_2$}\right.\right]$$

(19)

After finding the fitness of the initial data, the iteration count is established as 1.

4.3. Onlooker Bee Phase

This phase is to select the best food origins of the obliged optimal location of DG and increases the food origins. The onlooker bee step comes under the optimal solution of the suitable location at low power loss and high voltage profile, which enhances the velocity of the populations as expressed in Equation (20):

$$V_{m_o}=X_{m_o}+{\mathsf{\Phi }}_{m_o}(X_{m_o}-X_{n_o})$$

(20)

where X_nb is the candidate solution (m ≠ n) that has been selected randomly, ${\mathsf{\Phi }}_{m_o}$ represents a random number in the range [–1, 1]. A greedy selection is used only after the generation of new candidate solution (V_m).

4.4. Selection

The optimal fitness of the modified solution can be realized with the help of selection in addition to determine this chance. The probability function is expressed in Equation (21):

$$Probability=\frac{fi{t}_i}{{\displaystyle \sum _{i=1}^{n}fi{t}_i}}$$

(21)

4.5. CS-Based Scout Bee Phase

When the onlooker bee step does not provide better options, the algorithm departs from the particular options and creates a random number of scout bee solutions while using the cuckoo search optimization.

4.5.1. Initialization

At first the CS parameters are set. These parameters consist of the “number of nests ($n$)”, “the step size parameter ($\alpha$)”, “discovering probability ($P_a$)” and the termination criteria, which is the maximum number of generations.

4.5.2. Generate Initial Nests or Eggs of Host Birds

The initial positions of the nests are specified by the set of random values allocated to each variable presented by Equation (22):

$$D_{m,n}^{(0)}=Round\left(x_{n,\min }+rand\left(x_{n,\max }-x_{n,\min }\right)\right)$$

(22)

where ‘$D_{m,n}^{(0)}$’ is the beginning value of the n-th variable for the m-th nest; $x_{n,\min }$ and $x_{n,\max }$ are the lower and the upper permitted values for the n-th variable; ‘$rand$’ is “a random number in the interval [0, 1]”. Since the problem has discrete nature, the round function is achieved.

4.5.3. Step Size Evaluation

In this step, the step sizes for individual parent weights obtained in step 3 are evaluated. The following expressions presented in Equation (23) are used to find out the step size:

$$S_z=\alpha S\left(D^t-D_{best}^t\right)r$$

(23)

where ‘$S_z$’ is the step size, ‘$\alpha$’ is step size parameter ($\alpha =0.01$), ‘$D^t$’ is the current parent weight, ‘$D_{best}^t$’ is the foremost result so far, ‘r’ is a “random number from a standard normal distribution [0, 1]” and ‘S’ is step. The step ‘S’ is found out by using Mantegna’s algorithm, shown in Equation (24):

$$S=\frac{u}{{\left|v\right|}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\beta $}\right.}}$$

(24)

In Equation (24) ‘$\beta$’ is a parameter arising in the interval [1, 2], which is taken as 1.5 and ‘u’ and ‘v’ are normal distributions, which are estimated as Equations (25) and (26):

$$u~N(0,{\sigma }_u^2),v~N(0,{\sigma }_v^2)$$

(25)

$${\sigma }_u={\left\{\frac{\Gamma (1+\beta )\sin \left(\raisebox{1ex}{$\pi \beta $}\!\left/ \!\raisebox{-1ex}{$2$}\right.\right)}{\Gamma \left[\raisebox{1ex}{$(1+\beta )$}\!\left/ \!\raisebox{-1ex}{$2$}\right.\right]\beta \cdot 2^{(\beta -1)/2}}\right\}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\beta $}\right.},{\sigma }_v=1$$

(26)

4.5.4. Generation of a New Solution

In this step the new optimized solutions or weights are generated for the corresponding parent weights based on the CS algorithm (Levy Flight). The new weights are generated by using the step size values obtained in Step 3. The new weights are generated by using the expression given in Equation (27):

$$D^{(t+1)}=D^t+S_z$$

(27)

where ‘$D^{(t+1)}$’ is the new weight, ‘S_z’ is step size and ‘$D^t$’ is the current parent weight. From this step another set of optimized weights are obtained.

4.5.5. Ending of CS Process

The termination criteria is tested in this phase. If the process meets the termination criterion, it is terminated or else, Step 3 is started for the next iteration.

4.6. Termination Criteria

The process is repeated till the maximum number of iterations is attained. If the iteration number is maximum, the process is stopped and the current best solution is retained. Then the DG is placed at that appropriate location. The process flow of the suggested technique is shown in Figure 3.

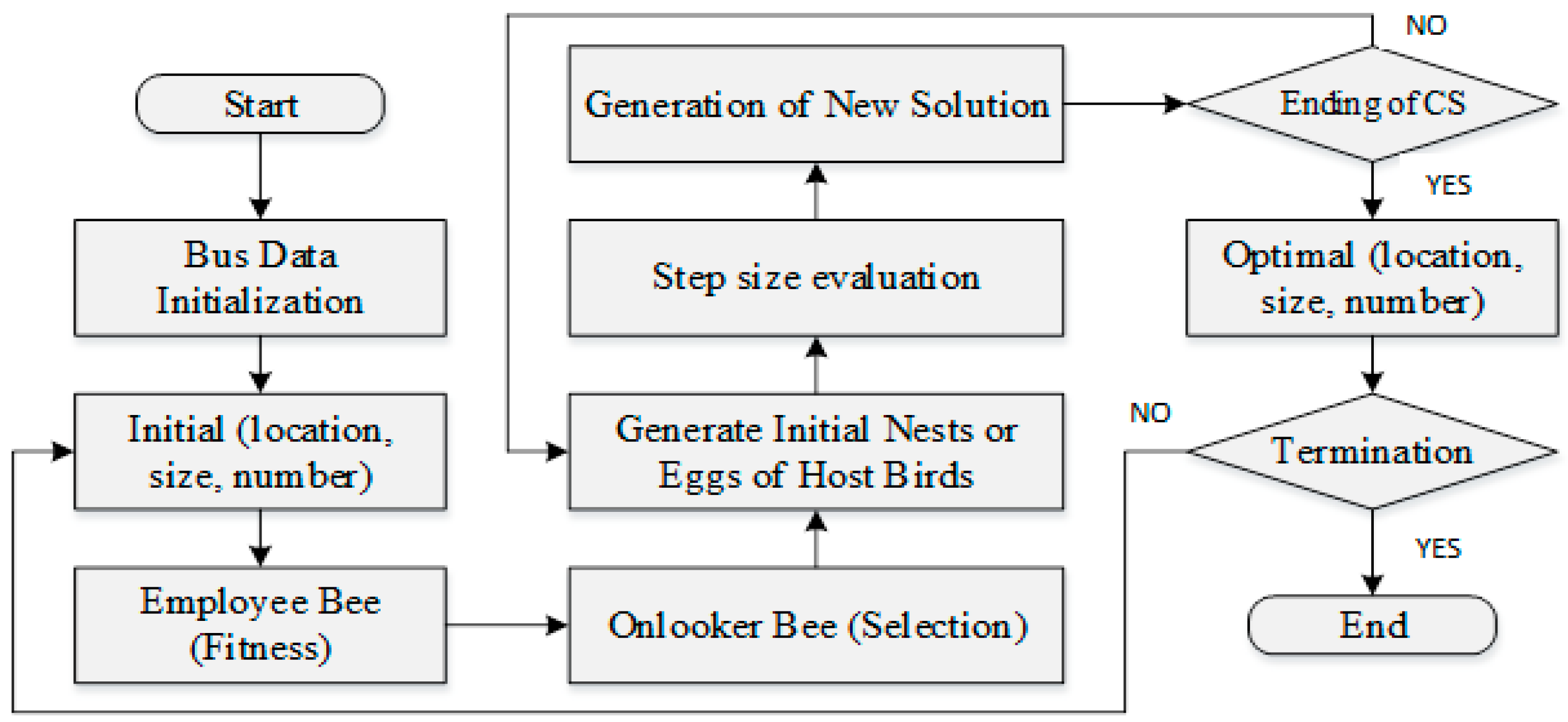

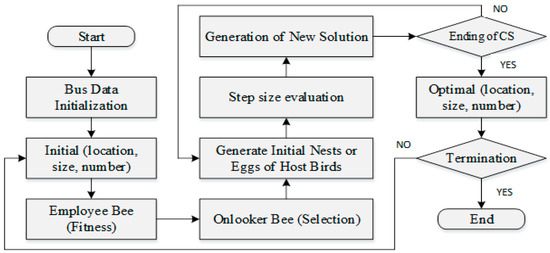

The proposed scheme for the optimal placement of multiple DGs in RDNs using ABC-CS is described so far and the process flow diagram is presented in Figure 3. Initially the bus data or the distribution grid data are initialized, then the random DG location, DG size and DG number are initialized for the ABC-CS. The fitness value for the corresponding initial value is computed in the worker bee phase and based on this some solutions for further processing are selected. Then the scout bee phase based on CS is processed to get the optimal DG location, DG size and DG number. The colony size and food number are taken as 20 and 10, respectively. The implementation and performance validation is done in the next section. The details of ABC and CS algorithms are available in [28,29], respectively. The details of GA and PSO are available in [30].

5. Implementation of Results and Discussion

The suggested technique for the optimal multi-DGs placement using ABC-CS is implemented in the MATLAB platform (MathWords, Natick, MA, USA). The proposed technique is tested in the standard two different types of radial distribution networks (30-node and 141-node RDNs). The formulae of the cost of energy loss per annum and DG cost are available in [31]. The load-flow proposed by Bhullar and Ghosh [32] is used in this present work.

5.1. 30-Node RDN

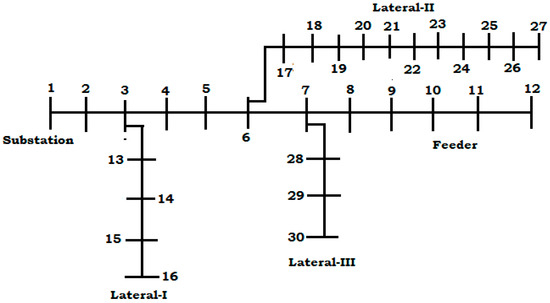

The first distribution network is a 30-node RDN shown in Figure 4 and its system data are available in [33] having 100 MVA and 11 kV as base values. The net load on the system is 8.70 + j 5.37 MVA. The voltage stability index “VSI” formula available in [33] has been used to detect the most sensitive node. The node having the minimum value of VSI is called the most sensitive node.

Before placing DG, the values of minimum voltage and total real power loss were 0.8830 p.u. at node 27 and 0.874 MW, respectively. The energy cost ($) was 459,374.4. The minimum value of VSI is 0.6071. The stability of the system has been enhanced when the number of DGs is five.

In

Table 1. Performance obtained by proposed technique for 30-node RDN.

No. of DG	Location (s)	Total DG Size (MW)	Min. Voltage Magnitude (p.u.)	VSI	Power Loss (MW)	% Loss Reduction	Energy Cost ($)
1	30	1.8	0.8954	0.6213	0.6813	22.04	358,091.28
2	19, 21	2.1	0.9387	0.6718	0.4902	43.91	257,649.12
3	7, 15, 17	2.4	0.9415	0.6825	0.3256	62.74	171,135.36
4	8, 10, 14, 28	2.7	0.9786	0.7013	0.1975	77.40	103,806.00
5	3, 11, 15, 19, 28	2.96	0.9802	0.7217	0.0926	89.40	48,670.56

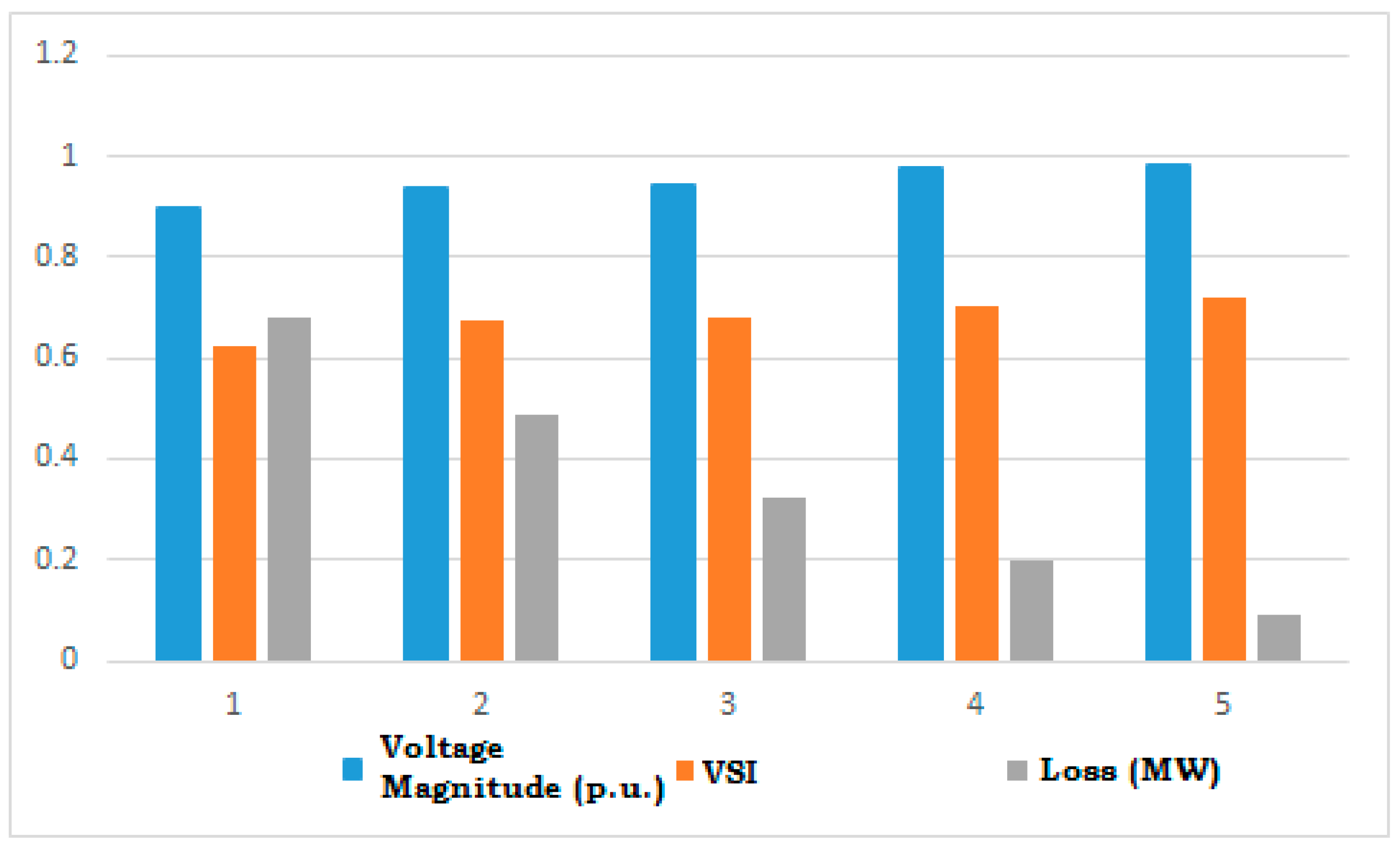

the performance measures obtained by the proposed ABC-CS technique for the placement of various numbers of DG have been shown. The minimum voltage has been improved and power loss has been reduced for placing multiple DGs as compared to single DG placement. The energy cost has been reduced. Moreover, the loss reduction percentage is also high due to the placement of multiple DGs. Therefore, the multiple DGs placement enhances the performance of this system. Figure 5 shows the outcomes in terms of voltage magnitude (p.u.), VSI and loss of the system (MW) for five cases. Table 1 and Figure 5 show that the placement of DG not only increases the voltage profile and VSI but also reduces the loss of the system.

Table 2. Performance obtained by game optimization theory for 30-node RDN.

No. of DG	Location	Total DG Size (MW)	Min. Voltage (p.u.)	VSI	Power Loss (MW)
1	29	2.20	0.8891	0.6117	0.7013
2	17, 20	2.62	0.9213	0.6521	0.5328
3	6, 8, 13	3.00	0.9316	0.6682	0.3576
4	6, 9, 11, 17	3.43	0.9568	0.6826	0.2143
5	4, 10, 13, 16, 23	3.78	0.9694	0.7012	0.1087

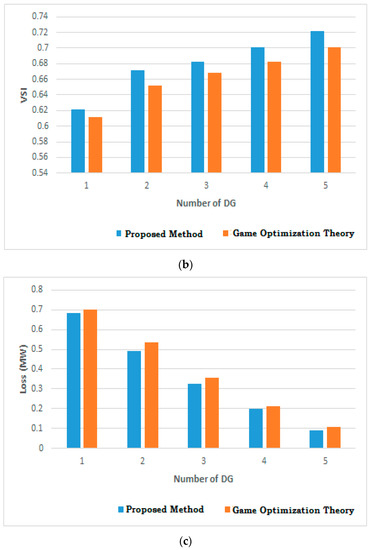

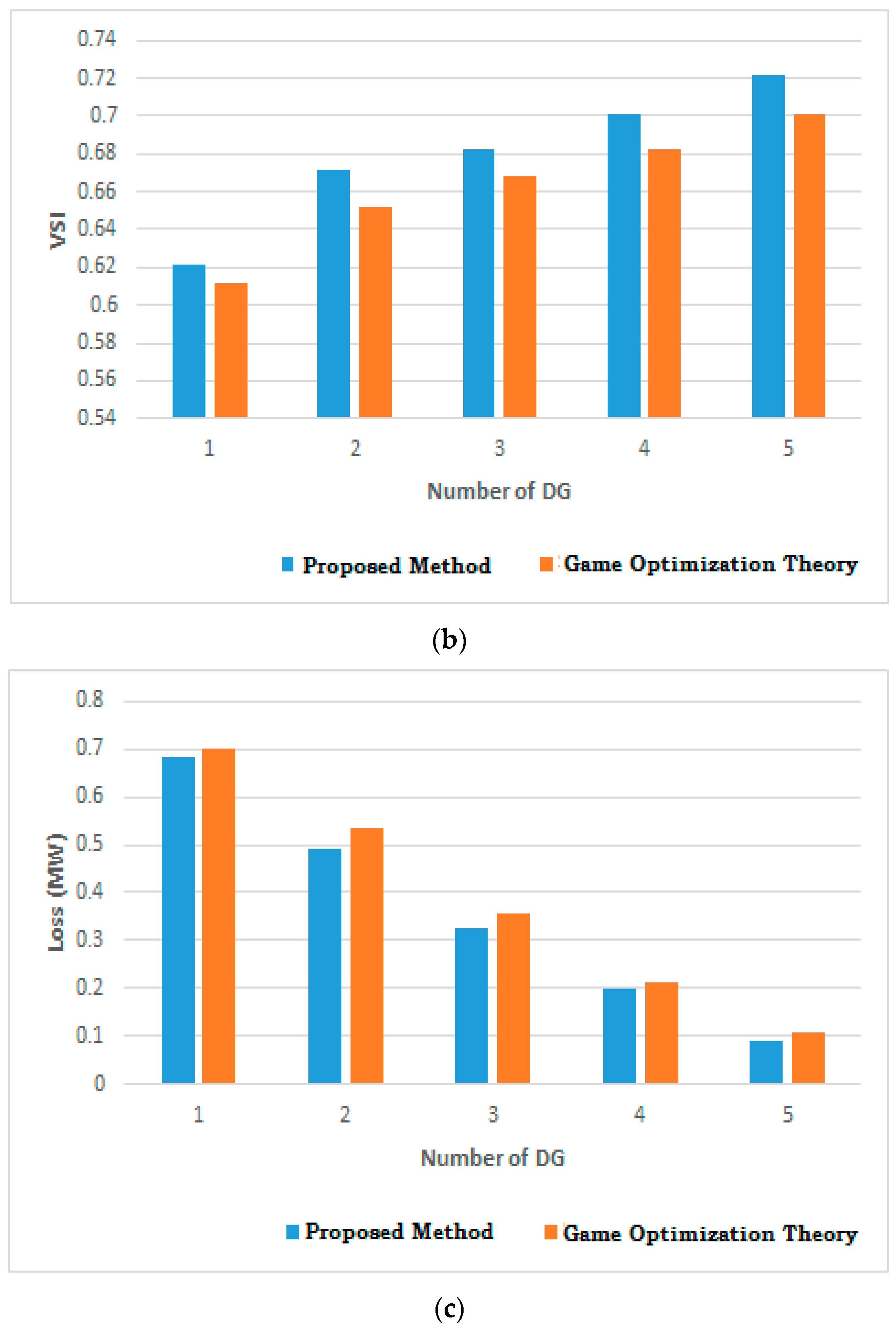

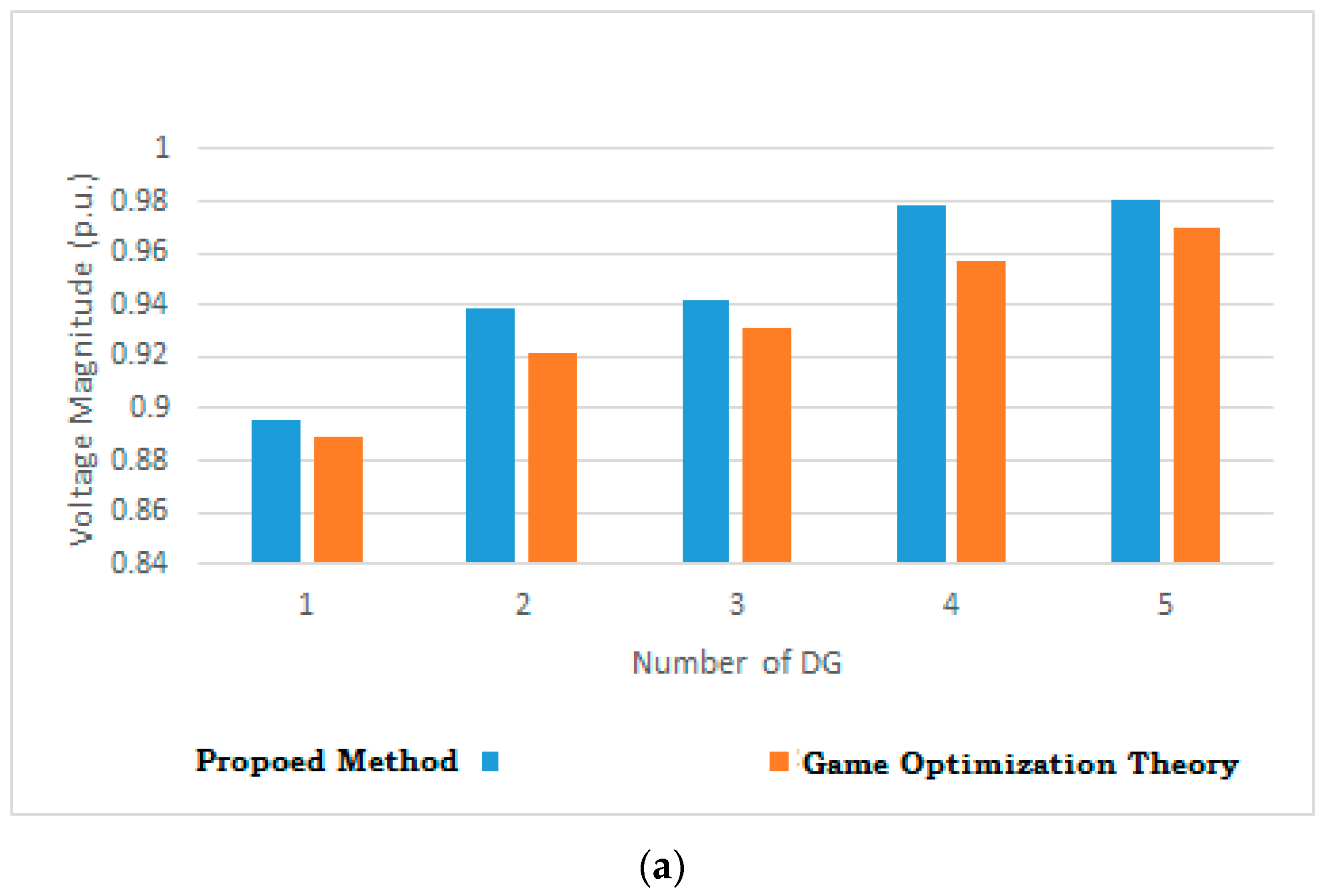

shows the outcomes obtained by the game optimization theory using the proposed objective function. Figure 6 shows a comparison of voltage magnitude (p.u.), VSI and loss of the system (MW) for five cases obtained by the proposed method with that obtained by game optimization theory. The proposed method gives better results compared to that obtained by game optimization theory. Therefore, the appropriate placement and proper optimal sizing of DG can only ensure better loss reduction and improvement of voltage profile and VSI.

5.2. 141-Node RDN

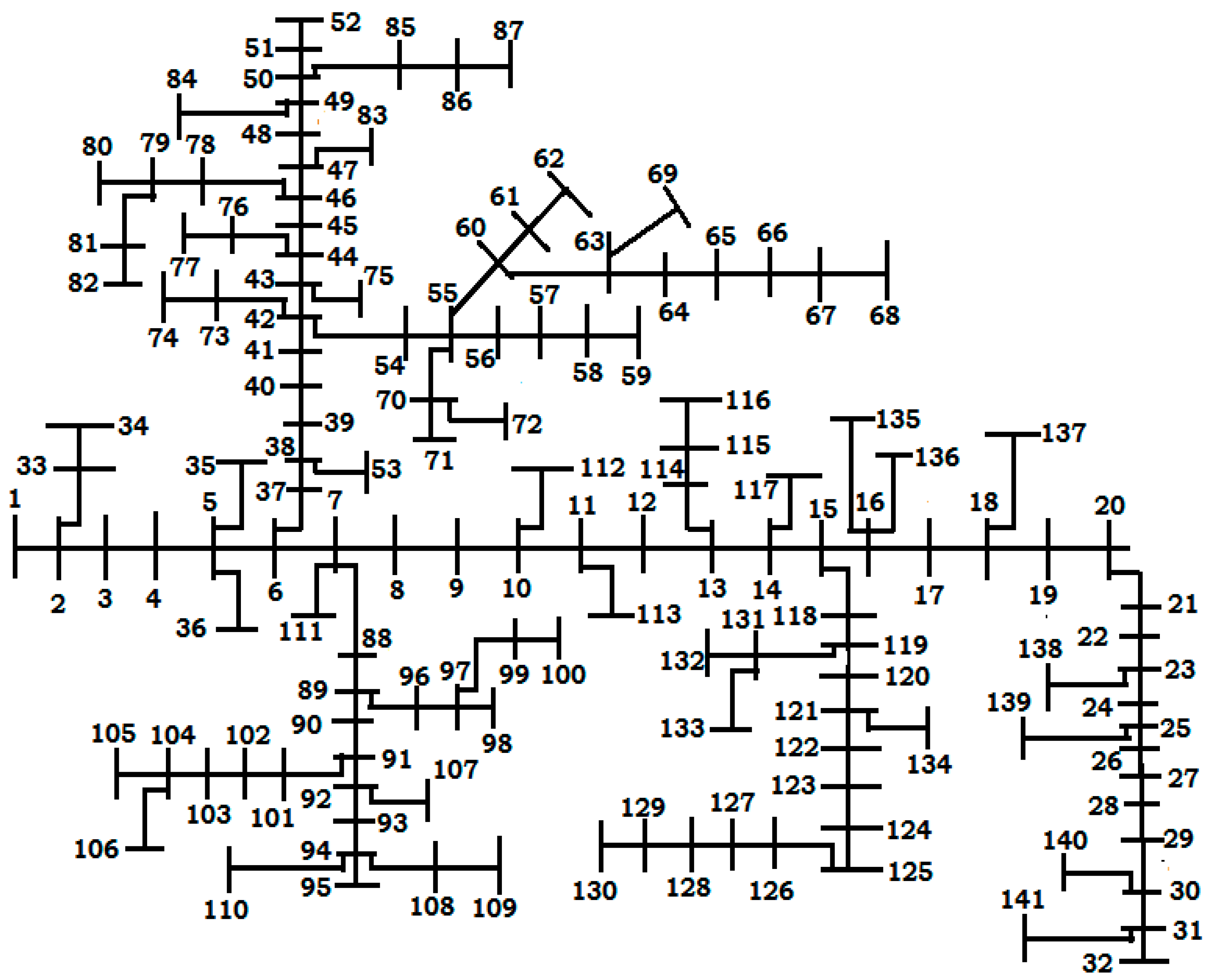

The second distribution network is a 141-node RDN as shown in Figure 7 and its system data are available in [34]. The base kV is 12.47 and base MVA is 100 MVA. The net load of the system is (12.19 + j∙6.289) MVA.

Before placing DG, the values of minimum voltage and total real power loss were 0.7752 p.u. at node 124 and 0.116 MW respectively. The energy cost ($) was 60,969.6. In

Table 3. Performance obtained by proposed technique for 141-node RDN.

No. of DG	Location	Total DG Size (MW)	Min. Voltage (p.u.)	Power Loss (MW)	% Loss Reduction	Energy Cost ($)
1	65	1.97	0.9143	0.0754	35.00	39,630.24
2	48, 82	2.6	0.9278	0.0626	46.03	32,902.56
3	25, 78, 94	3.35	0.9658	0.0380	67.24	19,972.80
4	16, 24, 28, 60	4.25	0.9711	0.0278	76.03	14,611.68
5	16, 24, 60, 89, 94	4.75	0.9786	0.02204	81.00	11,584.224

the performance measures obtained by the proposed ABC-CS technique for the placement of various numbers of DG have been shown. The minimum voltage has been improved and power loss has been reduced for placing multiple DGs as compared to single DG placement. The energy cost has been reduced. Moreover, the loss reduction percentage is high due to placement of multiple DGs. Therefore, the placement of the multiple DGs enhances the performance of this distribution grid.

5.3. Performance Comparison

The performance measures of the proposed method are juxtaposed with the existing GA-PSO, PSO and GA for the placement of three DG as shown in

Table 4. Performance comparison of the proposed method with GA, PSO and GA-PSO for three DG placements.

Networks →	30-Node RDN				141-Node RDN
Parameters ↓	Proposed	GA-PSO	GA	PSO	Proposed	GA-PSO	PSO	GA
Location	7, 15, 17	8, 12, 21	13, 15, 20	8, 15, 25	25, 78, 94	25, 98, 132	37, 98, 121	25, 69, 99
Total DG Size (MW)	2.40	2.52	2.65	2.57	3.35	3.5	3.6	3.7
Minimum Voltage (p.u.)	0.9415	0.9376	0.9324	0.9358	0.9658	0.9513	0.9487	0.9410
Power Loss (MW)	0.3256	0.3572	0.3987	0.3734	0.038	0.0435	0.0464	0.0489
% Loss reduction	62.74	59.13	54.32	57.27	67.24	62.5	60.00	57.84
DG Cost ($/h)	48.25	50.65	53.25	51.65	67.25	70.25	72.25	74.25
Energy Cost ($)	171,135.3	187,744.3	209,556.7	196,364.1	19,972.8	22,863.6	24,387.84	37,212.48

for the above two distribution grids using the same objective function. The overall performance of PSO is comparatively better than that of GA-based placement of DGs. The overall performance of GA-PSO is comparatively better than that of PSO-based placement of DGs, but the performance of the suggested method is better than the GA-PSO. Hence the proposed ABC-CS method to place DGs is better than these three techniques.

The real power loss reduction by the suggested method is higher than that obtained by GA-PSO, PSO and GA for the examples considered. The minimum voltage for each case have been improved by the suggested method as compared to GA-PSO, PSO and GA. The DG cost and energy cost achieved by the suggested method are lower than that achieved by GA-PSO, PSO and GA. The performance analysis clearly shows that the proposed method (ABC-CS) has better performance in all aspects of the placement of single or multiple DGs placement in RDNs.

5.4. Performance on Different Loads

In order to check the performance of the suggested method practical voltage dependent load models, i.e., residential, industrial, and commercial, have been considered [35]. The exponent values of the real power (α) and reactive power (β) for industrial, residential, and commercial loads are 0.18 and 6, 0.92 and 4.04, and 1.51 and 3.4, respectively.

Here a 30-node RDN is considered for load modelling. The size and location of DG for this 30-node RDN are shown in

Table 5. Results of 30-node RDN under different types of load.

Parameters	Load Type
	Industrial Load		Residential Load		Commercial
	Excluding DG	Including DG	Excluding DG	Including DG	Excluding DG	Including DG
DG Location	-	8, 15, 25	-	8, 17, 20	-	7, 17, 21
Total DG Size (MW)	-	1.80	-	2.04	-	2.43
Minimum Voltage (p.u.)	0.8953 (27)	0.9489 (24)	0.9100 (27)	0.9578 (26)	0.8969 (27)	0.9512 (25)
Power Loss (MW)	0.681	0.289	0.580	0.245	0.663	0.259
DG Cost ($/h)	-	36.25	-	41.05	-	48.85
Energy Cost ($)	357,933.6	151,898.4	304,848	128,772	348,472.8	136,130.4

.

5.5. Comparison with Other Methods

The outcomes of 30-node RDN obtained by the suggested method have been correlated with the other existing methods [20,23,26] in terms of loss reduction, DG size, DG cost and energy cost as shown in

Table 6. Comparison of proposed method with other methods for a 30-node RDN.

Methods	Real Power Loss (MW)	DG Locations	Total DG Size (MW)	DG Cost ($/h)	Energy Cost ($)
Proposed Method	0.3256	7, 15, 17	2.40	48.25	171,135.36
[20]	0.3285	5, 9, 28	2.54	51.05	172,659.60
[23]	0.3325	6, 14, 18	2.83	56.85	174,762.00
[26]	0.3310	8, 14, 20	2.77	55.65	173,973.60

. The proposed method gives lesser losses and less DG size compared to the methods described in [20,23,26].

6. Conclusions

Placement of multiple DGs is encouraged in RDNs to reduce power losses and improve voltage magnitude. Interconnecting a single large size DG in any RDN cannot give the expected loss reduction. Hence, multiple small sized DGs are placed in the distribution system to achieve the maximum loss reduction. In this work, a hybrid optimization technique is used based on the ABC and CS algorithms to place multiple DGs in distribution grids. The suggested method provides better performance in all aspects than that obtained by using GA-PSO, PSO and GA in terms of minimum voltage, power loss, percentage loss reduction, DG cost and energy cost. The suggested method also reduces the loss to a minimum level when placing five DGs. The suggested method has been juxtaposed with other available methods [20,23,26] to show its effectiveness for a 30-node RDN. The DG placement in future can be done with the help of fuzzy based hybrid algorithm.
