1. Introduction
The ultra-sparse matrix converter (USMC) evolved from the conventional matrix converter (CMC) and inherited many merits from CMC including compact structure without intermediate storage, sinusoidal input and output current, adjustable input power factor, etc. Meanwhile, USMC possesses superiorities over CMC, such as simpler commutation technology, a decrease in number of switches, etc. Currently, USMC is considered as a promising type of matrix converter [
1,
2,
3,
4].
As an AC–AC power converter, the primary task of USMC is to obtain a sinusoidal output waveform with high quality. However, due to the characteristics of the power device and the modulation methods, the output voltages of USMC inevitably contain harmonic components, thus negatively impacting the practical application. Therefore, it is very important to analyze the harmonic components in the output waveform of USMC, which not only lays the foundation for the suppression of the harmonics but also improves the theory concerning matrix converter harmonic analysis.
Up to now, there are some studies on the harmonic analysis of power electronics converters. Among them, fast Fourier transform (FFT) analysis is the most commonly used one [
5,
6,
7,
8]. It is simple and easy to implement. However, FFT involves sampling and window etc. in the processing, which will incur spectrum leakage, aliasing, and other issues. Therefore, when the frequencies of input, output and carrier signals are special, the results of FFT analysis are not accurate. Another commonly used method is calculating the analytical formula with Fourier series. In 1975, S. Bayes and B.M. Bird first applied the double Fourier analysis method to power electronic converters which were originally used in the communication system [
9]. Since then, the studies on harmonic analytic solution have mostly concentrated on the double Fourier analysis. For example, the harmonic analytical formulas of output voltage of two-level inverter are derived in [
10] by using double Fourier analysis and then a comparison about the high-frequency harmonics is carried out when using saw-tooth carrier and triangular carrier in modulation process. In [
11], Jacobi matrix is used to find the closed solution of the double Fourier series; and the characteristics of output voltage of the inverter under different space vector pulse width modulation (SVPWM) are compared. In [
12] the output voltage harmonics of inverters with different topologies under various modulation methods are analyzed in detail by double Fourier analysis.
Like CMC, the output voltage of USMC is related to the frequencies of input, output and carrier signals, which are independent of each other. If using double Fourier series analysis, only two of these frequencies are considered at most, resulting in inaccurate spectral analytic results. In view of this problem, some scholars have tried to use triple Fourier series to analyze the harmonic of output waveform for CMC under “AV method” [
13,
14]. However, due to some differences in the topology and control performance between USMC and CMC, a mature harmonic analysis theory for USMC has yet to emerge. Compared with “AV method”, SVPWM not only increases the maximum voltage transmission ratio from 0.5 to 0.866, but also achieves digitization easily. As a result, SVPWM is currently widely applied [
15,
16,
17]. Therefore, for USMC, the harmonic analysis of output voltage under SVPWM is of important significance.
In this paper, based on the characteristics of SVPWM and triple Fourier series, an output voltage harmonic calculation method for USMC is proposed, which can obtain an accurate harmonic spectrum and identify the relations between the frequencies of harmonic components and the frequencies of input, output and carrier signals. In addition, the harmonic distribution pattern and the main harmonic components of output voltage of USMC are analyzed and summarized according to the analytical results.
2. Triple Fourier Series
It is assumed that the three-variable function
g(
x,
y,
z) is periodic in
x,
y, and
z directions with the period of 2π,
x,
y and
z being independent of each other. The triple Fourier series expression of
g(
x,
y,
z) can be defined by the following:
where
k,
p,
q are indices on the carrier frequency, output frequency and input frequency respectively;
Fkpq is the triple Fourier coefficient and its expression is
Let x = 2πfct, y = 2πfoutt + φ0, z = 2πfint + φi then Equation (1) can be regarded as the output voltage expression of any phase of USMC.; fc, fout and fin are respectively carrier frequency, output voltage frequency and input voltage frequency of USMC; φi is the input power factor angle; φ0 is the output voltage initial phase. In most applications, USMC is required to operate with unit power factor, so φi = 0. When φo is not zero, the integration limits of Equation (2) should be adjusted. Since the integrand g(x, y, z) is periodic in x, y, and z directions with the period of 2π, the integration results would not be affected by the specific values of the integral limits as long as the periodic variation of x, y and z over 2π intervals. Therefore, whether φ0 is zero does not have any effects on the calculation results. To simplify calculation, it is assumed that φ0 = 0.
Expending Equation (1) and it can be expressed in the following form:
In Equation (3) harmonic components are divided into four parts: the first part is the DC component (k = 0, p = 0, q = 0); the second part is the fundamental voltage (k = 0, p = 1, q = 0) and harmonic components only associated with the carrier frequency (when k = 1, 2, 3, …, p = 0, q = 0), the input frequency (when k = 0, p = 0, q = 1, 2, 3, …) or the output frequency (k = 0, p = 2, 3 …, q = 0) respectively; the third part is the harmonic components related to any two of the three frequencies(input, output, and carrier frequencies), and their frequencies are the sum of the integral multiple of the two frequencies; the fourth part is the harmonic components relevant to the three frequencies, and their frequencies are sums of the integral multiples of the three frequencies.
According to the Fourier analysis theory, the frequency of any harmonic is
kfc ±
pfout ±
qfin and the harmonic amplitude
Ukpq satisfies the following relationship with
Fkpq:
3. Harmonic Calculation of Output Voltage of USMC Under SVPWM Strategy
3.1. SVPWM

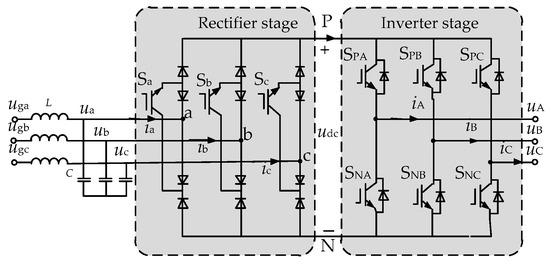

The topology of USMC is shown in
Figure 1, which is divided into two stages, the rectifier stage and the inverter stage. There are three phases in rectifier stage, each of which consists of one unidirectional IGBT and four diodes. The inverter stage has the same structure as the traditional two-level voltage source inverter.

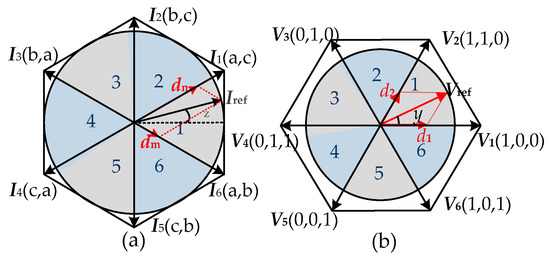

The SVPWM strategy of rectifier stage is shown in
Figure 2a, in which the six effective vectors
I1–
I6 divide the space into six sectors. Taking
I1(a, c) as an example, “a” represents that S
a and S
c are on-state, while S
b is off-state. In each sector, there is always one phase remaining the maximum current amplitude in the rectifier stage. In order to obtain the maximum voltage utilization, the switching device corresponding to maximum current amplitude is kept open, and the other two switches are switched on alternately. The duty cycles of the two adjacent effective vectors required to synthesize the reference input current vector
Iref can be obtained by the following equation:
where
kin is the sector number of the reference input current vector.
When
Iref is in the first sector, the expression of average DC voltage
udc in a carrier cycle is as follows:
where
uab and
uac are input line voltage,
uab =
Uimcos(z + π/6),
uac =
Uimcos(z − π/6);
Uim is the amplitude of input phase voltage.
Similarly, when
Iref is in other sectors, the values of
udc and the duty cycles
da,
db and
dc of the switches S
a, S
b and S
c can be obtained as shown in
Table 1.
Figure 2b shows the SVPWM strategy of inverter stage, in which the six effective vectors
V1–
V6 divide the space vector into six sectors. Taking
V1(1, 0, 0) as an example, “1” means that S
pA is on-state in the upper bridge arm of phase A; and the second and third bits “0” represent that S
NB and S
NC are turned on in the lower bridge arm of phase B and phase C respectively. The duty cycles of the two adjacent effective vectors and zero vectors required to synthesize the reference output voltage vector
Vref can be obtained by the following equation:
where
kout is the sector number of the reference output voltage vector,
Uref is the amplitude of output phase voltage.
The duty cycles of S
Pμ (
μ = A, B, C) are defined as
dPμ. When
Vref is located in different sectors, the values of
dPμ are shown in
Table 2. Since the conducting state of upper and lower bridge arm switches in the same phase of A, B and C are complementary, the duty cycles of S
Pμ and S
Nμ satisfy the following relationship:
dNμ = 1 −
dPμ.
3.2. Harmonic Calculation of Output Voltage
Since the three-phase output voltages of USMC are symmetrical, the following calculation and analysis take Phase A as an example. It can be seen from Equation (4) that the amplitude corresponding to each harmonic can be determined by the value of Fourier coefficients. Considering the SVPWM process, the integration limit can be redefined without altering the analytical solution, requiring only cyclic variation of
x,
y and
z over 2π intervals. So the expression of
FA_kpq in Equation (2) can be defined as follows:
In the operation process of USMC, uA is actually a pulse wave. Therefore, to solve Equation (8), it is necessary to determine the trip point of the output voltage pulse and the value of uA. The following is the process to solve various trip points of output voltage pulse based on the analysis of SVPWM of USMC.
When both the reference input current vector
Iref and output voltage vector

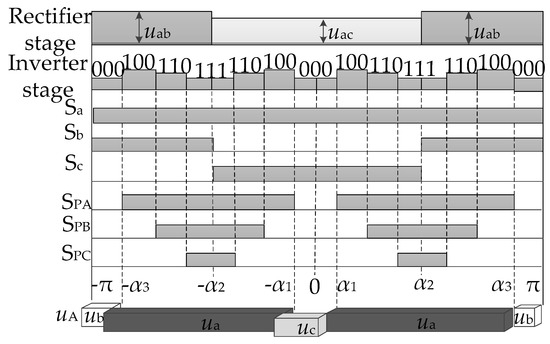

Vref are in the first sector, the conduction state of each switch in one carrier period and instantaneous value of A-phase output voltage can be determined based on the switching sequence of the rectification stage and the inverter stage, as shown in
Figure 3.
It should be noted that this paper is aimed at symmetrical regularly sampled SVPWM. The carrier function
c(
x) used in this paper can be expressed as:
Combine the duty cycle of each switch with Equation (9), and
α1,
α2 and
α3 in
Figure 3 can be determined as follows:
When the reference vectors of input current and output voltage are located in other sectors, the values of α1, α2 and α3 can be analyzed in a similar way. It is found that the expressions of α1, α2 and α3 are the same when Iref and Vref are in different sectors, except that the specific values of dPA, dm and dn are changed with kin or kout.
Based on the above analysis, Equation (8) can be further simplified as follows:
where
where
The integration limits
zr and
zf in Equations (12) and (13), and the values of
uAλ (
λ = 1–7) in Equations (14) and (15) are related to the sector number of reference input current as shown in
Table 3.;
yr and
yf in Equations (12) and (13) are related to the sector number of reference output voltage, as shown in
Table 4.
Based on Equations (11) and (15), the analytical solution of FA_kpq can be obtained by further calculation in MATLAB; then the amplitude of each harmonic can be got.
4. Spectrum Analysis of Harmonic Characteristics of Output Voltage of USMC
When the voltage transmission ratio
m is 0.5 (
m is the ratio of
Uref/
Uim), the input frequency
fin is 50 Hz, the output frequency
fout is 70 Hz and the carrier frequency

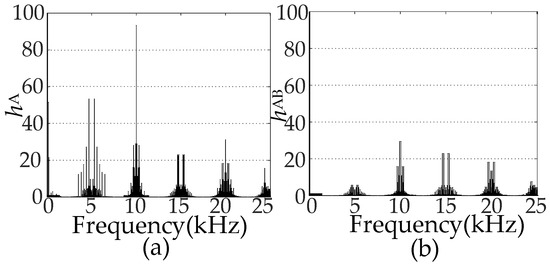

fc is 5 kHz, the analytical spectrums of output phase voltage
uA and line voltage
uAB can be obtained by the calculation formula in
Section 3. The spectrums are shown in
Figure 4, where
hA and
hAB are normalized values based on the fundamental amplitude of phase voltage and line voltage respectively. It can be seen that the main harmonics are concentrated around the fundamental (
k = 0) and 1 to 4 times of carrier frequency. Enlarge part of

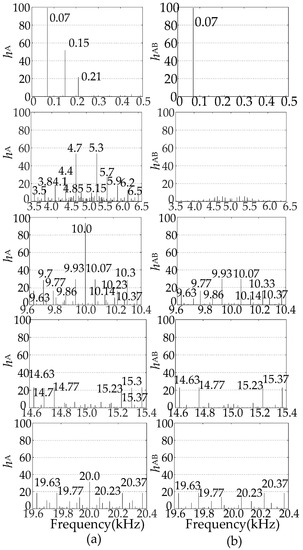

Figure 4 and mark the main harmonic frequency, as shown in
Figure 5.
From
Figure 5, it can be seen that the main components of low-frequency harmonics in output phase voltage are 3
fin and 3
fout. The amplitude of 3
fin is higher, which is up to 0.51 when
m = 0.5. These two components belong to the common-mode voltage, so they are not contained in line voltage spectrum.
With respect to high-frequency harmonics, they cluster around an integer multiple of the carrier frequency and are symmetrical about the carrier frequency. Harmonics with high amplitudes in
Figure 5 are listed in
Table 5. The frequency expression of each harmonic in the table shows the relation between the frequency of main harmonics and the frequencies of input, output and carrier signals. Comparing the spectrum of phase voltage with line voltage, it is found that except the harmonics of 3
fin and 3
fout, there are other harmonic components which also belong to the common mode voltage, as marked gray in
Table 5. The amplitude of 2
fc is the highest among all the harmonic components, up to 0.93 under the condition of
m = 0.5, followed by the component of
fc ± 6
fin with the amplitude of 0.53. According to literature [
18,
19,
20], high-frequency common-mode voltages are the main cause of bearing damage, winding fault, electromagnetic interference. The above analysis can accurately describe the amplitude of these common mode voltages, thus providing reference for the suppression of common mode voltage.
According to Equations (11) to (15), the amplitude of each harmonic is related to the voltage transmission ratio
m. When
m increases from 0.1 to 0.8, the relationship between amplitudes of main harmonics and

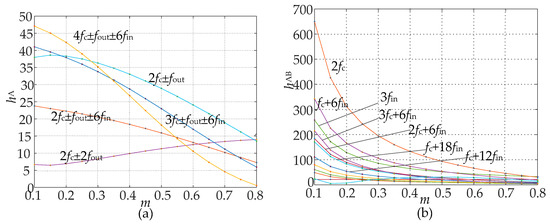

m can be obtained, as shown in
Figure 6. The harmonics in
Figure 6a are components except for the common mode voltage in the output phase voltage. It can be seen that except the harmonic of 2
fc ± 2
fout most harmonics’ amplitudes decrease when
m increase. The harmonics in
Figure 6b are common mode components. When
m ≤ 0.5, the amplitudes of 2
fc,
fc ± 6
fin, 3
fin and 3
fc ± 6
fin, are much higher than those of other harmonics. Besides, their amplitudes decrease rapidly with the increase of
m. When
m > 0.5, the amplitudes of harmonics in
Figure 6b are gradually approaching, but still decrease with the increase of
m.
From the above analysis, it can be seen that the amplitudes of high-frequency common mode components are much higher than those of other harmonics, especially when m is low. Besides, the harmonics’ amplitudes are affected by the value of m. Most harmonics’ amplitudes decrease gradually with the increase of m, but a few increase.
5. Comparative Analysis with FFT
The spectrums of the experimental waveforms cannot be obtained based on the triple Fourier series by the existing measurement techniques and analysis tools. FFT is usually used to deal with the experimental waveforms. Since it is very sensitive to the periodicity and frequency resolution of the waveforms, when the frequencies of input, output and carrier signals are all integers, and the time interval over which FFT is conducted as an integer multiple of the period of these three signals, the results obtained by the FFT analysis are accurate. However, when the values of these three frequencies are special (for example, the multiplicities of the three frequencies’ reciprocals are large or the three frequencies include non-integer), it is difficult to ensure that the time is an integer multiple of the carrier cycle, input and output voltage cycle. Under this condition, the harmonic spectrums obtained by FFT are not accurate. The following are the examples.
The spectrums obtained by FFT on the experimental waveforms of output voltage are compared with those analytical results based on the method proposed in this paper.

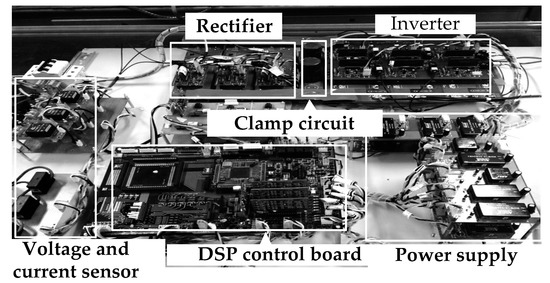

Figure 7 shows the USMC experimental system. When the amplitude of input phase voltage is 42 V and the voltage transmission ratio
m is 0.5,
fin = 50 Hz,
fout = 70 Hz,

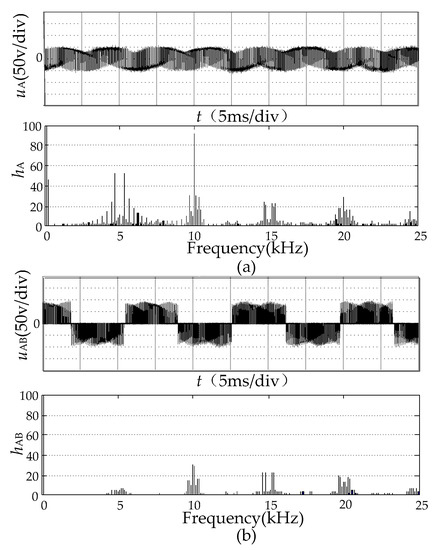

fc = 5 kHz. The time domain waveforms of output voltage and their FFT results are shown in
Figure 8, where
Figure 8a denotes the waveform of phase voltage
uA and its FFT results and
Figure 8b denotes the waveform of line voltage
uAB and its FFT results. The amplitudes of all the harmonic components in
Figure 8 are the nominal value based on the fundamental amplitude. The FFT results in
Figure 8 cuts out a section of the output voltage waveform for seven output voltage periods with a frequency resolution of 10 Hz. From the magnitudes of
fin,
fout, and
fc, the time corresponding to seven output voltage periods is an integer multiple of the carrier, input and output period so the FFT results are accurate. The main harmonic components in
Figure 8 are listed in
Table 6 and compared with the results obtained from the analytical calculation. It can be seen that the frequencies of primary harmonics in
Figure 8 are consistent with the analytical results but the amplitudes of them are slightly different. This is due to the existence of the switching dead-time, the conduction voltage drop of the switching device and the ripple of the input voltage at line side. The largest error between the measured spectrum and the theoretical results is only 3.06%.
When
fin = 50 Hz,
fout = 70.5 Hz,
fc = 5 kHz,

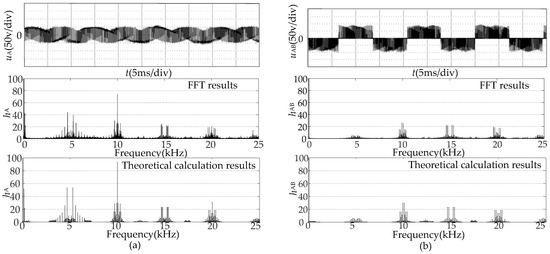

m = 0.5, the output voltage harmonic spectrums are shown in
Figure 9. Under this condition, at least 141 periods of output waveform has to be intercepted to ensure the accuracy of FFT results. But the amount of data corresponding to 141 output periods is too large to be processed. The FFT results in
Figure 9 intercepted a section of the output voltage waveform for seven output voltage periods with the frequency resolution of 10.07 Hz, it can be seen that there exist large errors between the FFT analysis and the analytical results. However, the analytic calculation method based on triple Fourier series in this paper is not affected by the magnitude of input, output and carrier frequencies. The analytical results can accurately determine the amplitudes and frequency of each harmonic component regardless of the magnitude of the three frequencies. In practical applications, the carrier frequency and the output frequency of USMC usually vary according to application requirements. Therefore, the method proposed in this paper has a wider scope of application than FFT.
6. Conclusions
In this paper, a theoretical calculation method based on three Fourier series is proposed for USMC under SVPWM. Taking input, output, and carrier frequencies into account, amplitudes and frequencies of harmonic components of output voltage are determined precisely for the first time. Including both the low-frequency harmonics and the high-frequency harmonic components, the relation between the frequencies of harmonic components and the frequencies of input, output and carrier signals can be determined. Through spectrum analysis in this paper, the following conclusions can be drawn:
The frequencies of low-frequency harmonics are triple that of the input or output frequencies. The high-frequency harmonics are organized in sidebands and symmetrical about integer multiples of carrier frequency.
The high-frequency common-mode components are kfc + 6fin, kfc, etc., whose amplitudes are high. This feature is obvious, especially when the voltage transmission m is low.
The harmonic amplitudes are affected by the value of m, and most of which decrease gradually with the increase of m, while a few decrease.
