Energies 2018, 11(2), 317; https://doi.org/10.3390/en11020317

Design and Optimization of a Brushless Wound-Rotor Vernier Machine

Department of Electronic Systems Engineering, Hanyang University, Ansan 15588, Korea
*
Author to whom correspondence should be addressed.
Received: 3 January 2018 / Revised: 24 January 2018 / Accepted: 29 January 2018 / Published: 2 February 2018
(This article belongs to the Section Energy Fundamentals and Conversion)
Full-Text   |   PDF [5632 KB, uploaded 2 February 2018]   |

Abstract

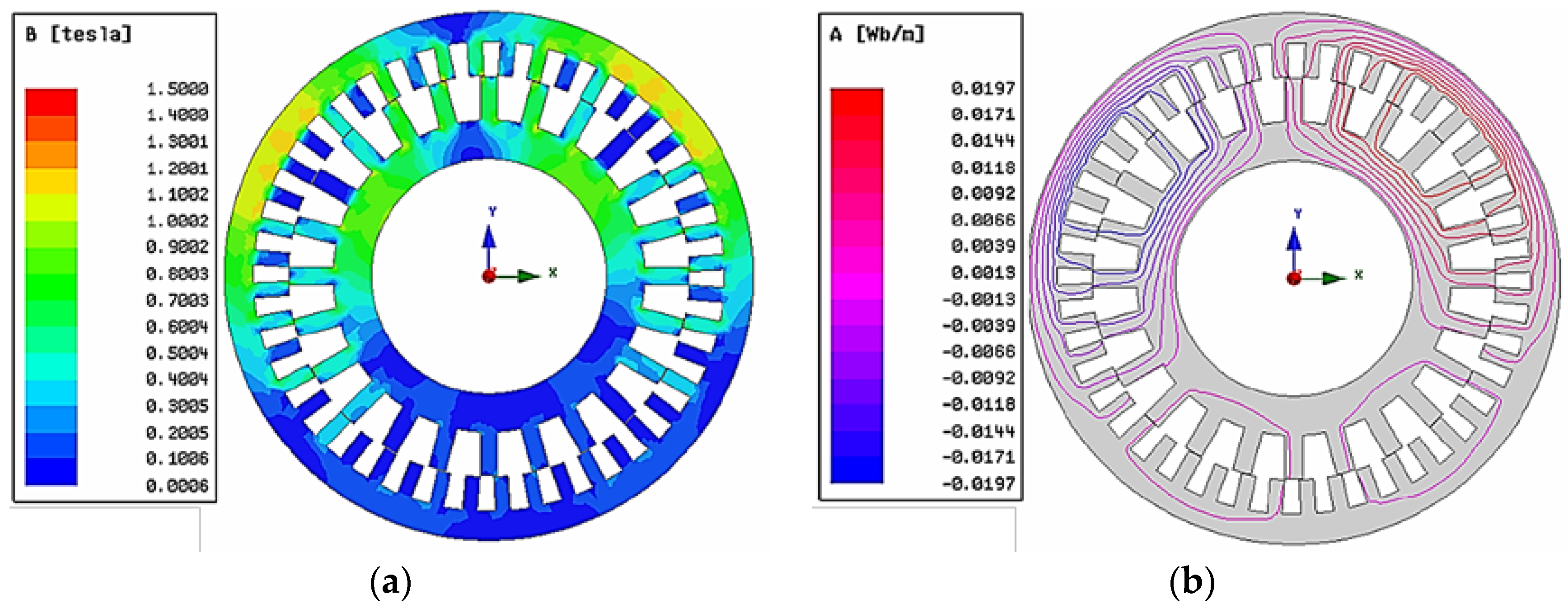

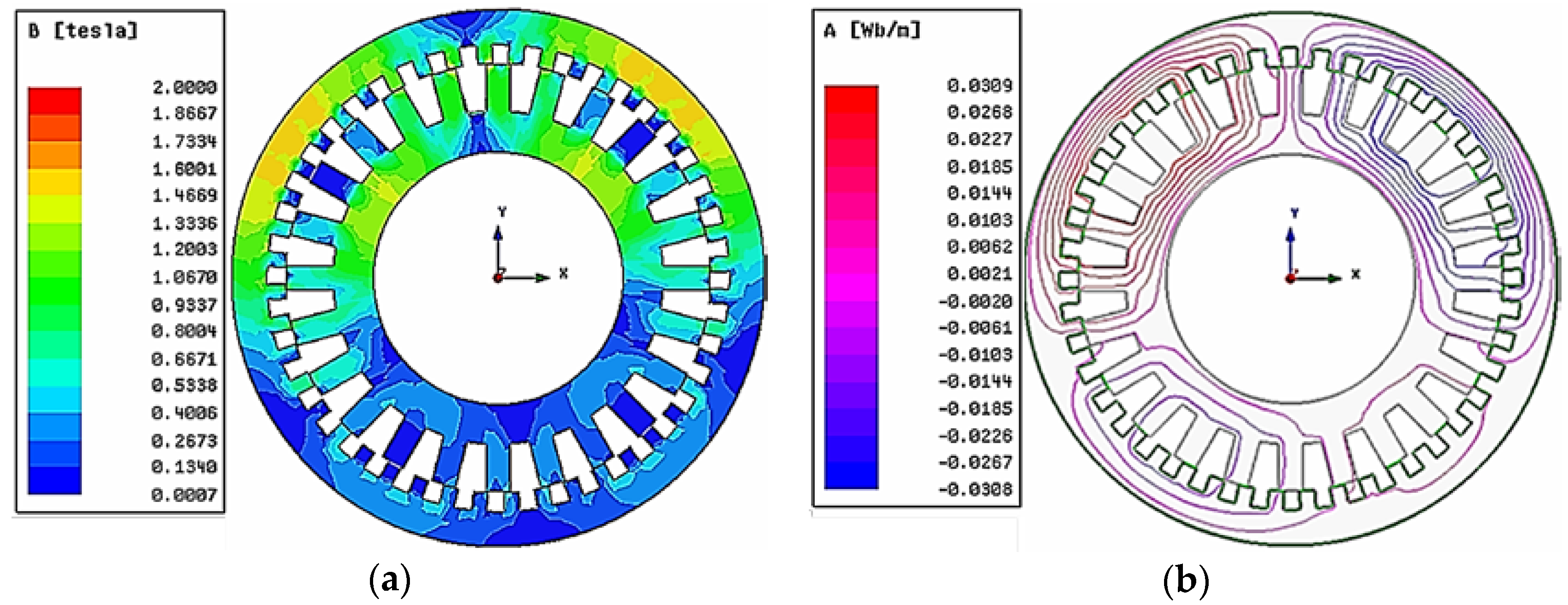

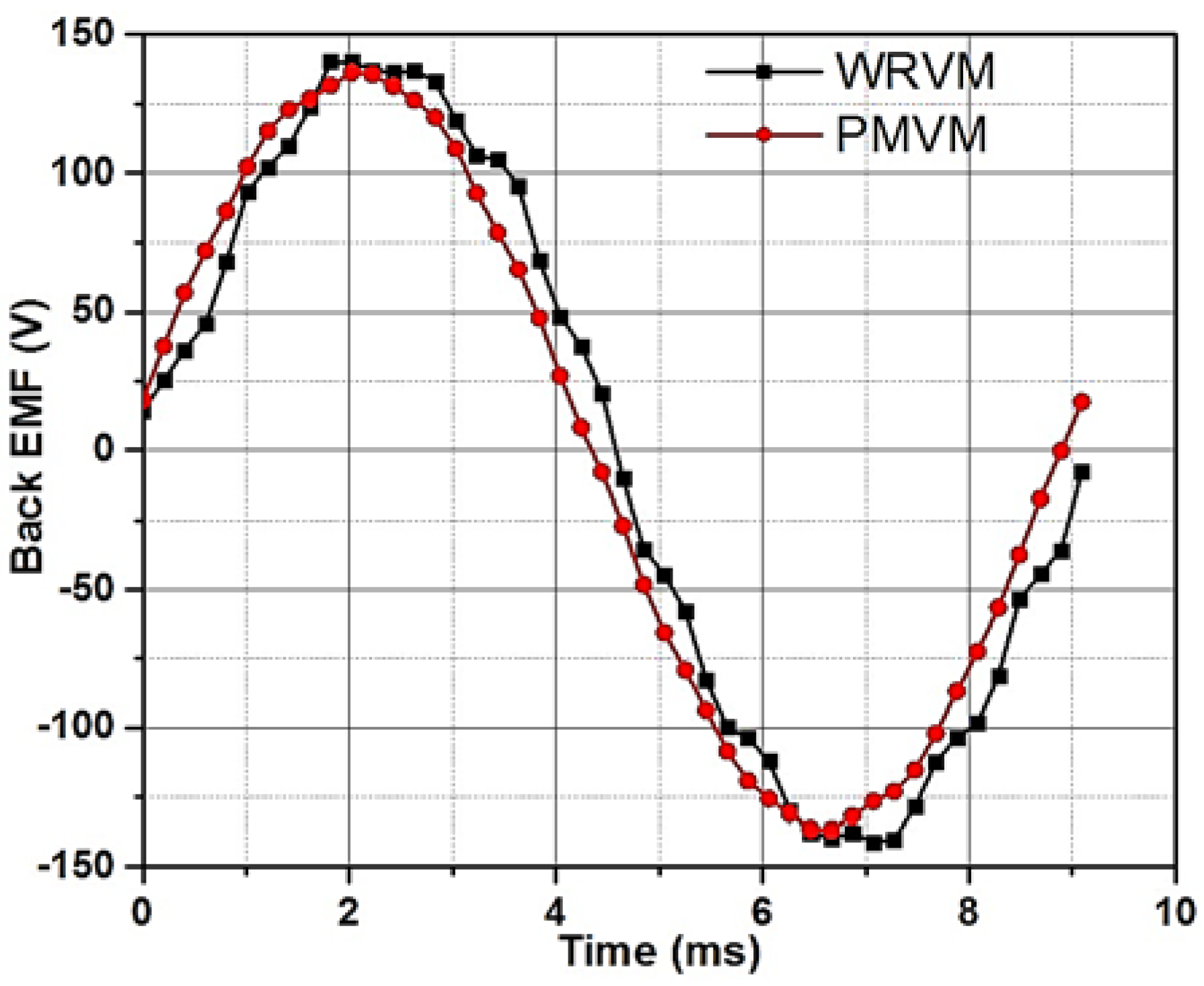

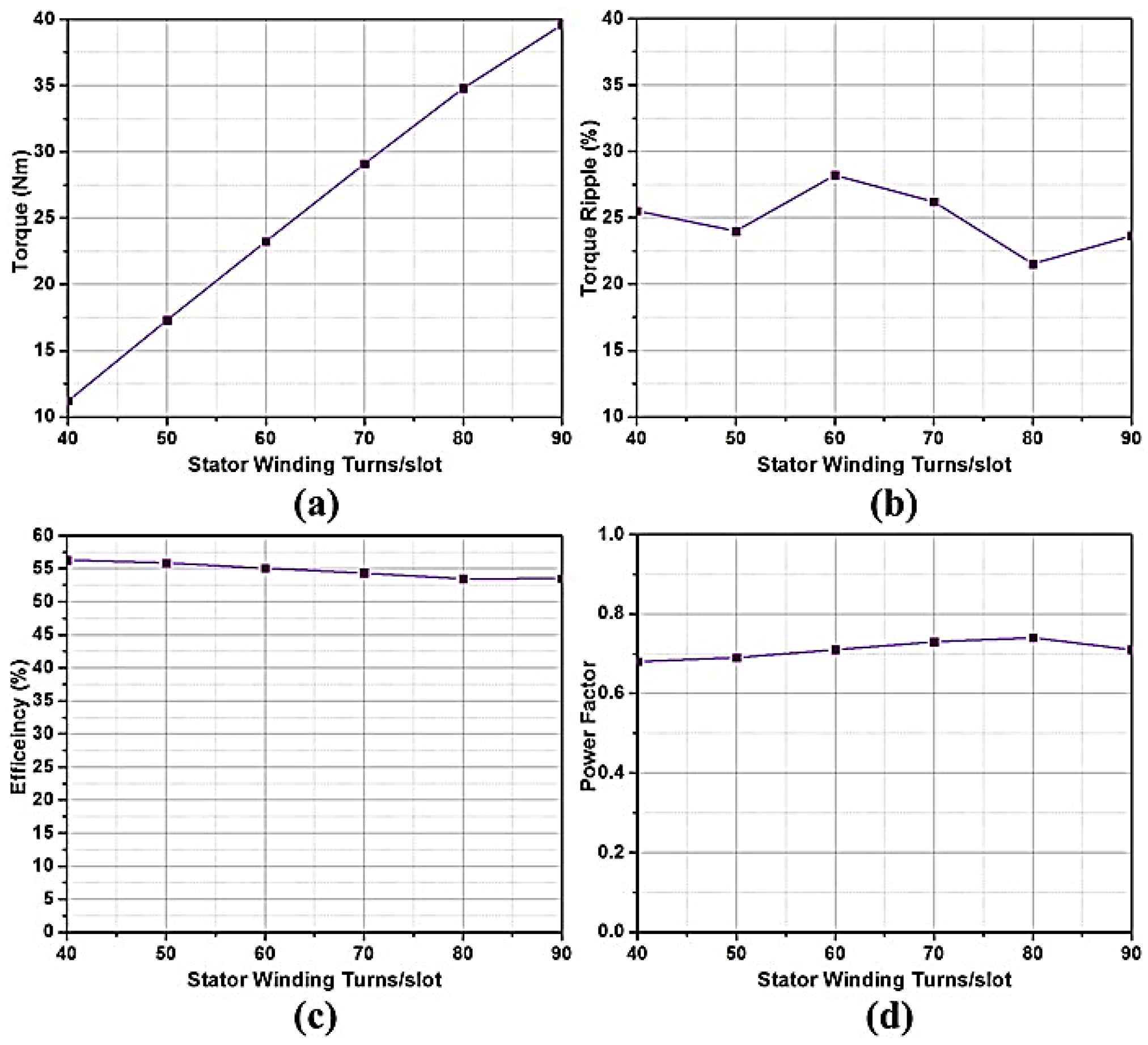

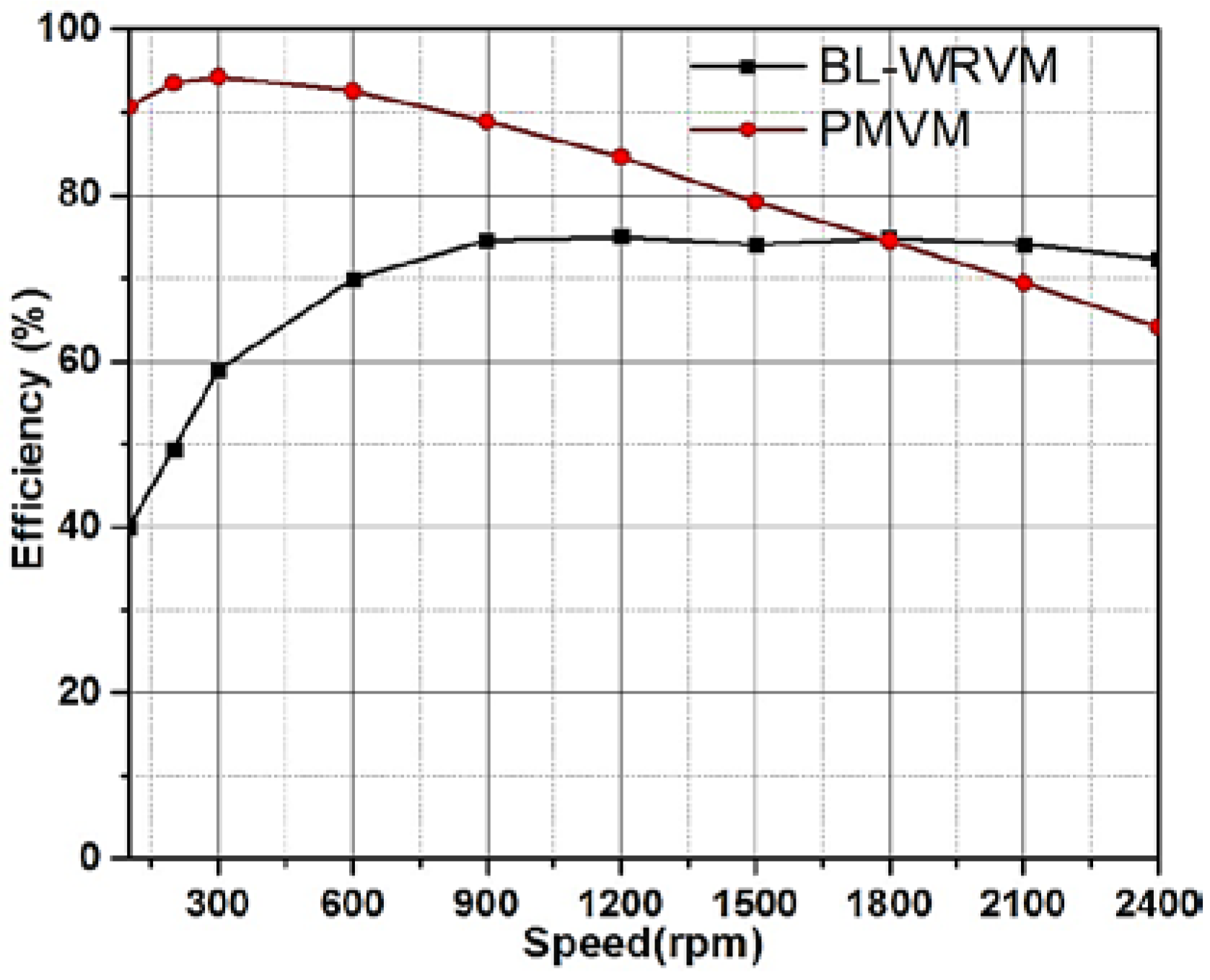

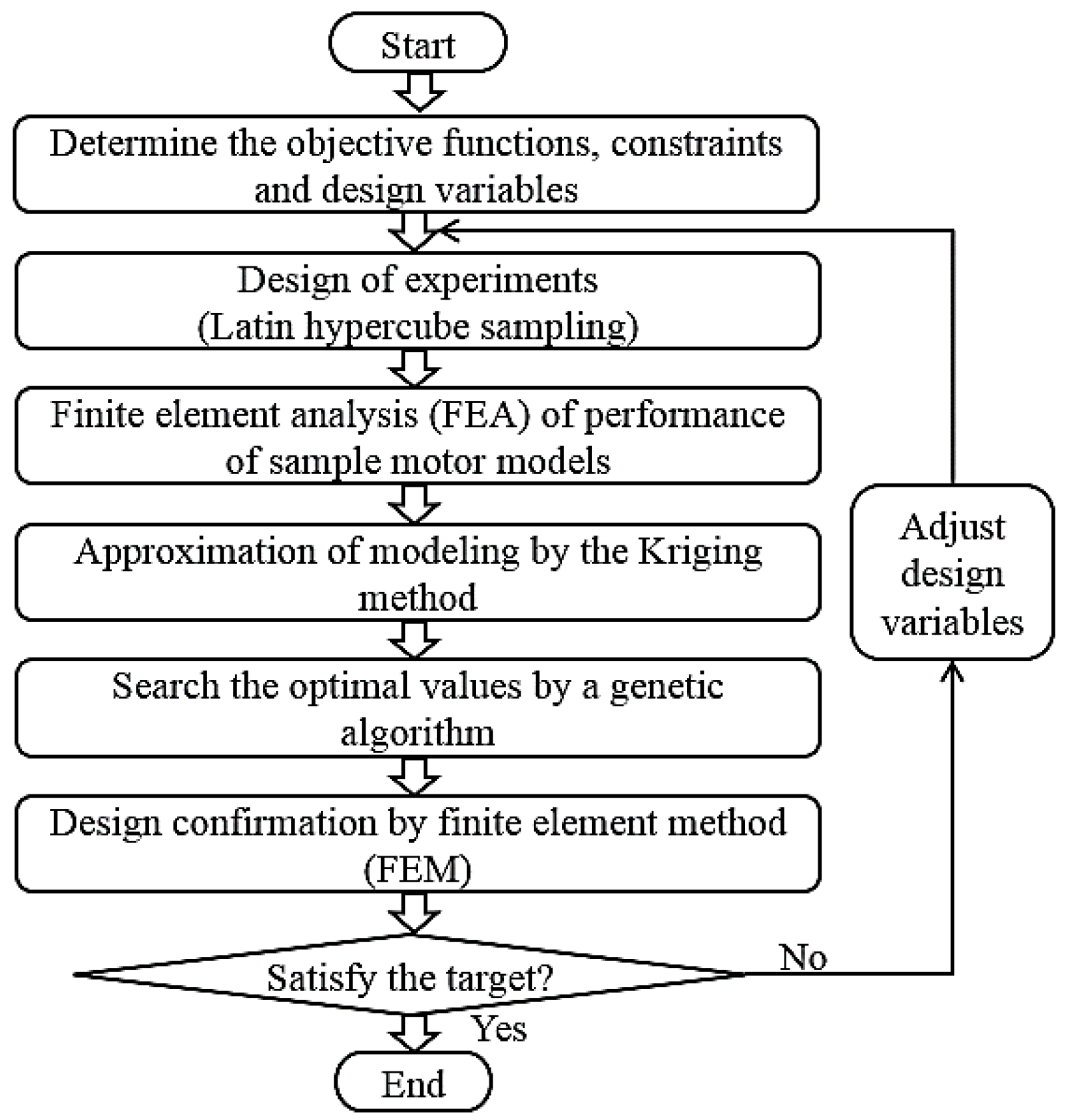

In this paper, a permanent magnet (PM)-less, brushless, wound-rotor vernier machine (BL-WRVM) is proposed for variable speed applications such as electric vehicles and washing machines. The wound rotor is excited through an already existing brushless topology, which requires a dual inverter configuration to generate an additional subharmonic component in the stator magnetomotive force (MMF). Different from permanent magnet vernier machines (PMVMs), the proposed BL-WRVM provides easy regulation of the rotor flux for variable speed operation. A 24-slot, 4-pole stator, and 44-pole outer rotor were designed, and 2D finite element analysis (FEA) was carried out to determine the performance of the proposed machine. To improve the performance of the proposed machine, optimization of the rotor and stator winding turns was done. The optimized model was further analyzed for wide-speed operation, and its performance was then compared with that of an equivalent permanent magnet vernier machine (PMVM). The proposed machine has the advantage of low cost due to its PM-less structure and is suitable for variable speed applications. View Full-Text
Keywords: wound-rotor vernier machines; brushless topologies; variable speed operation; finite element analysis wound-rotor vernier machines; brushless topologies; variable speed operation; finite element analysis
Figures
