Energies 2017, 10(8), 1232; doi:10.3390/en10081232

Numerical and Experimental Investigation of Equivalence Ratio (ER) and Feedstock Particle Size on Birchwood Gasification

Department of Engineering and Sciences, University of Agder, Grimstad 4879, Norway
*
Author to whom correspondence should be addressed.
Received: 13 July 2017 / Revised: 11 August 2017 / Accepted: 15 August 2017 / Published: 19 August 2017
(This article belongs to the Special Issue Engineering Fluid Dynamics)
View Full-Text   |   Download PDF [5903 KB, uploaded 19 August 2017]   |

Abstract

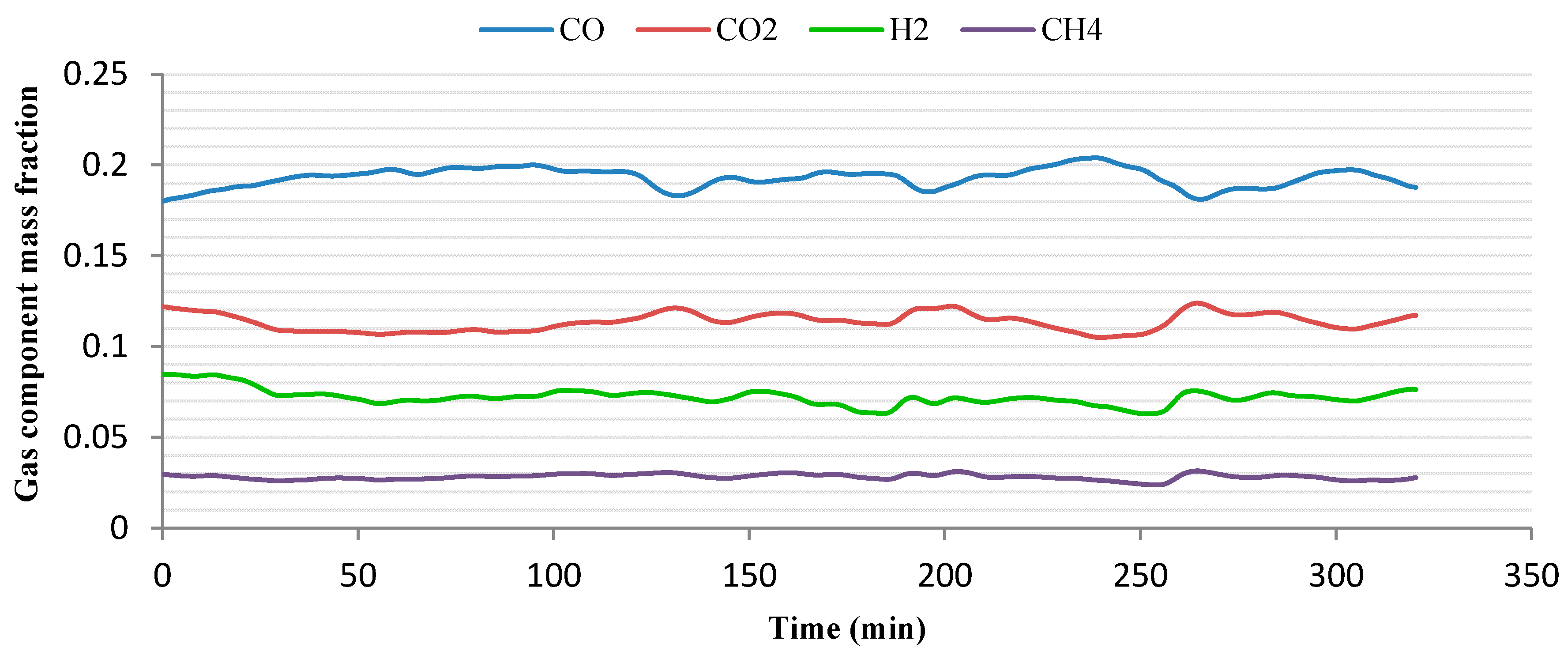

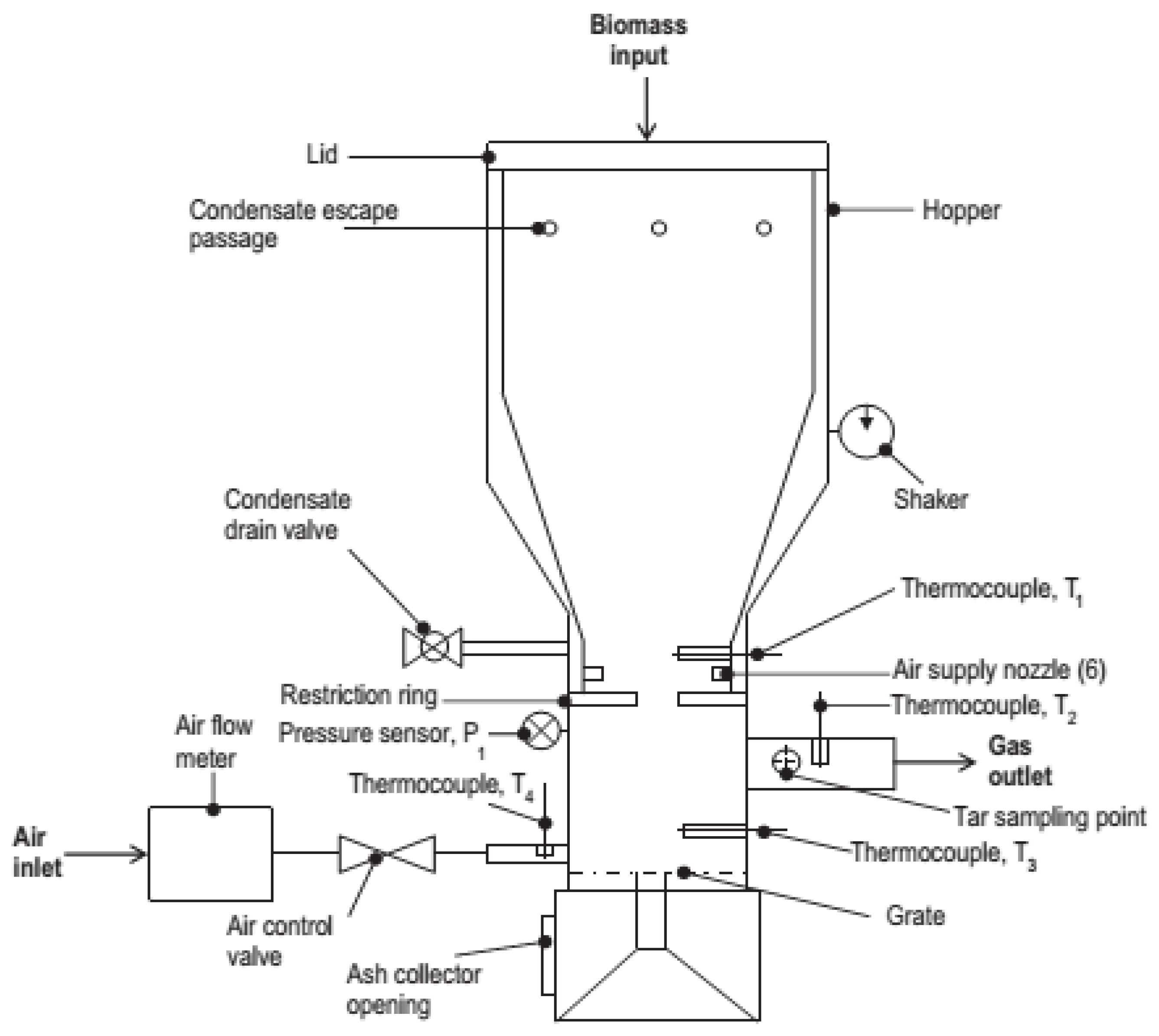

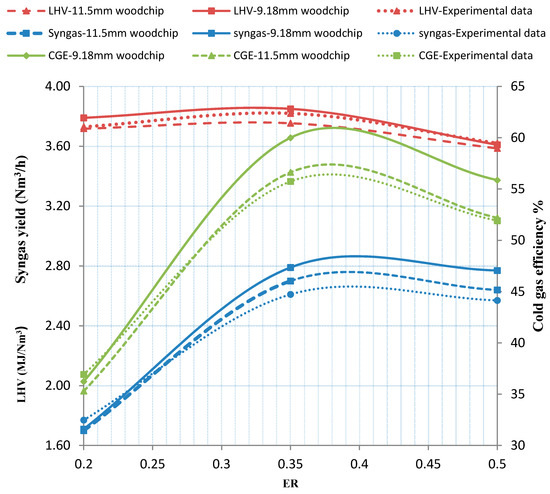

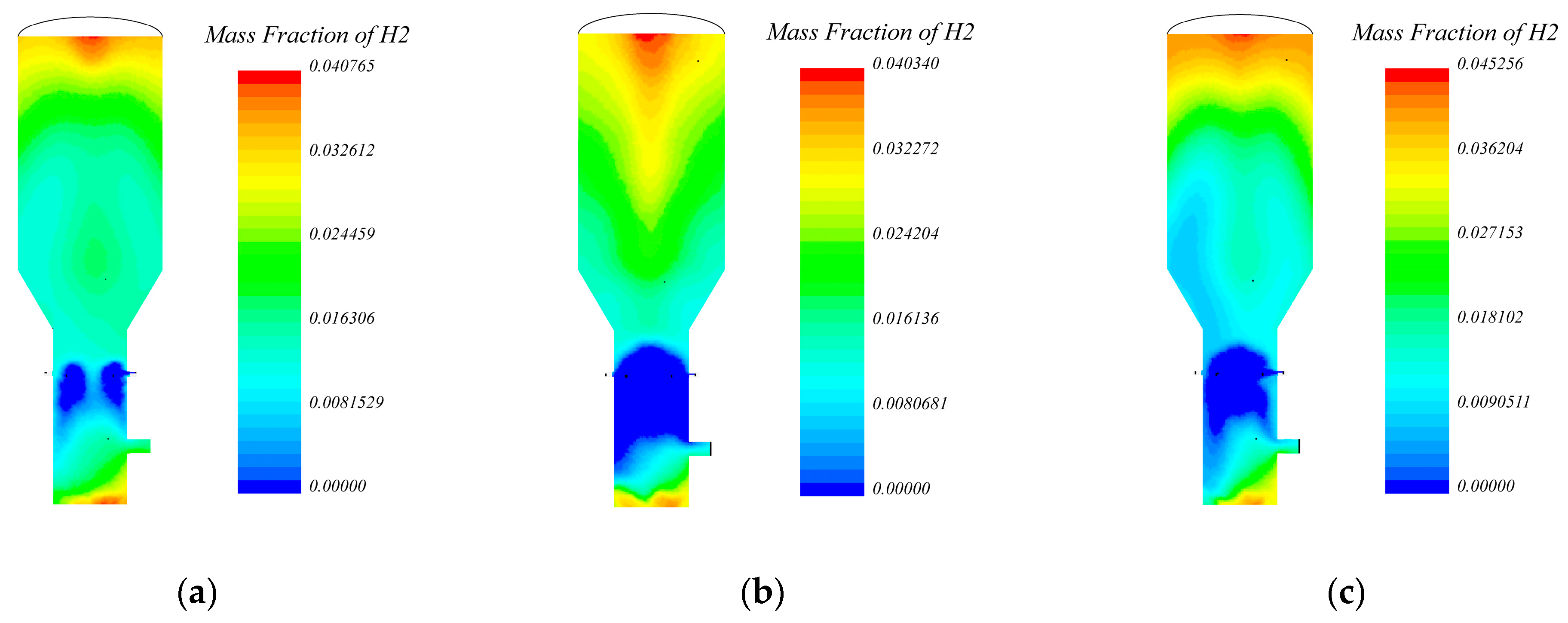

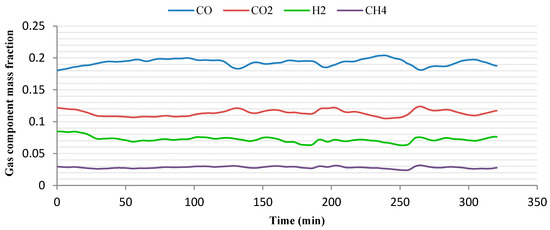

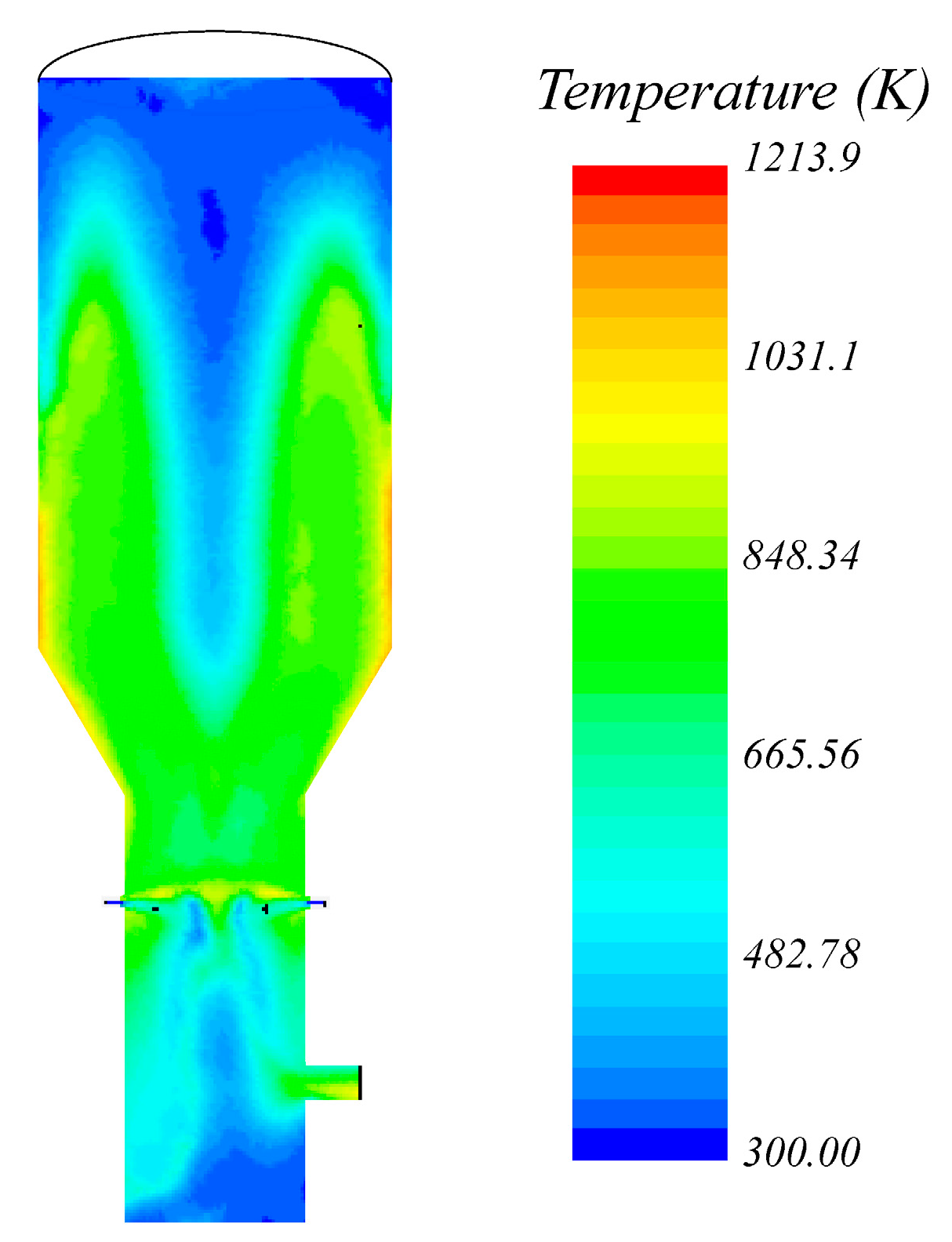

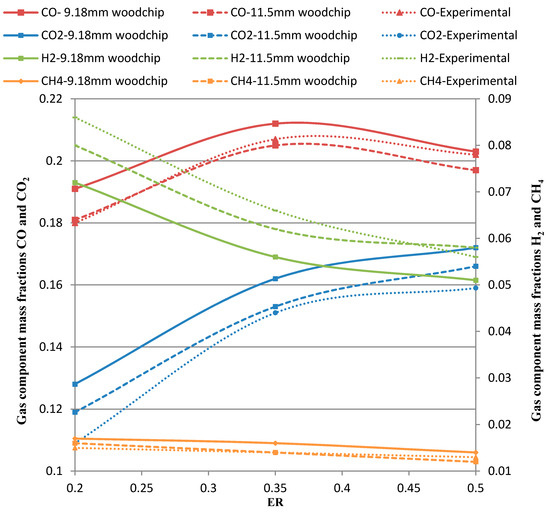

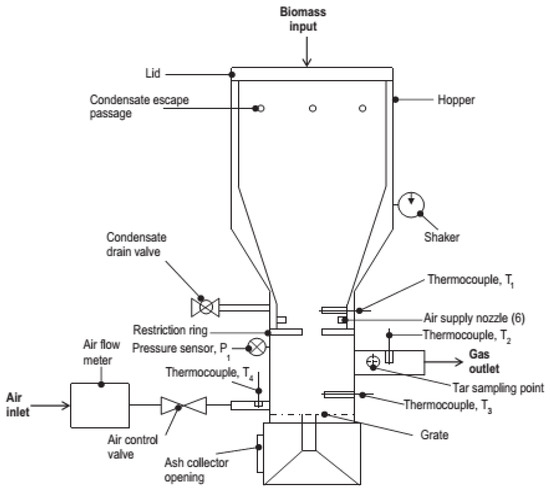

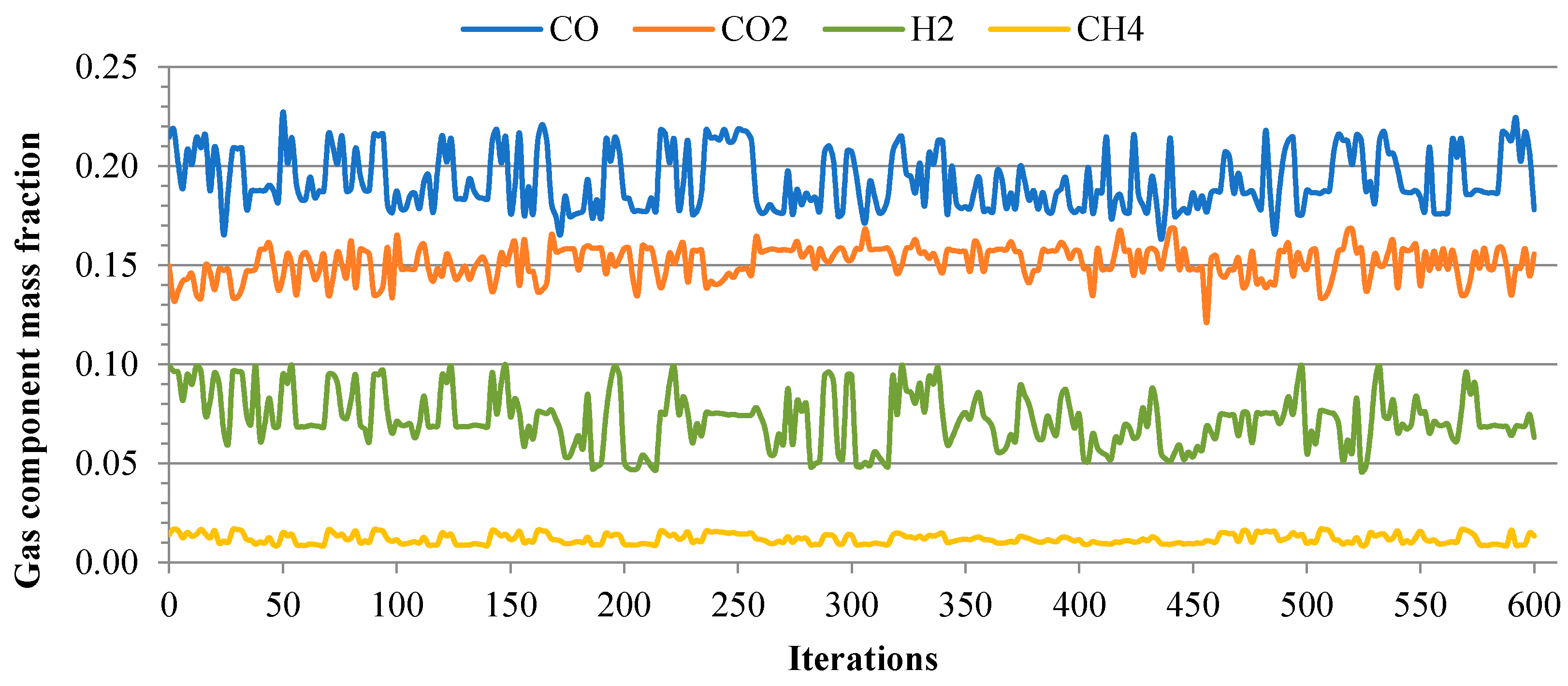

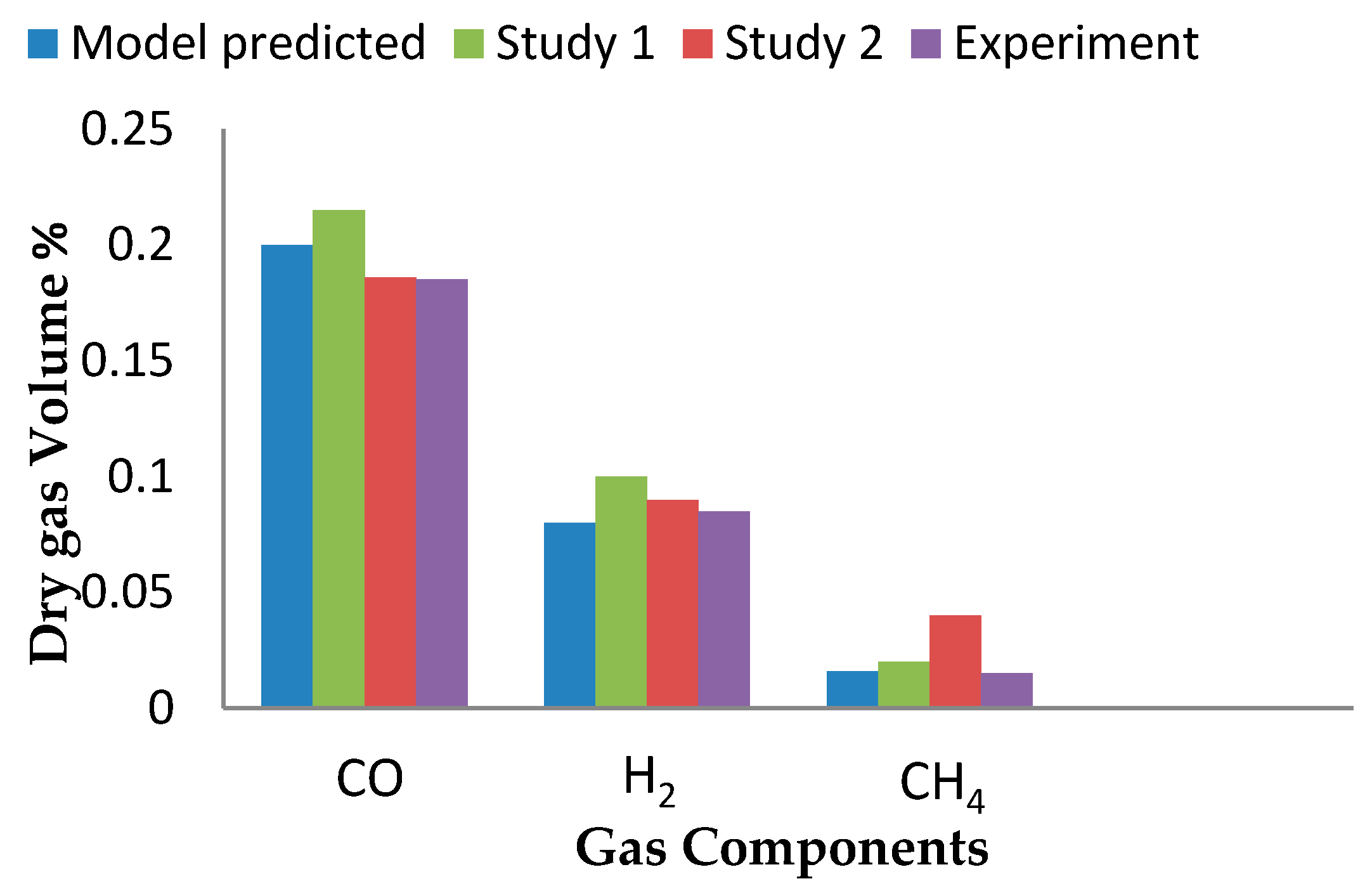

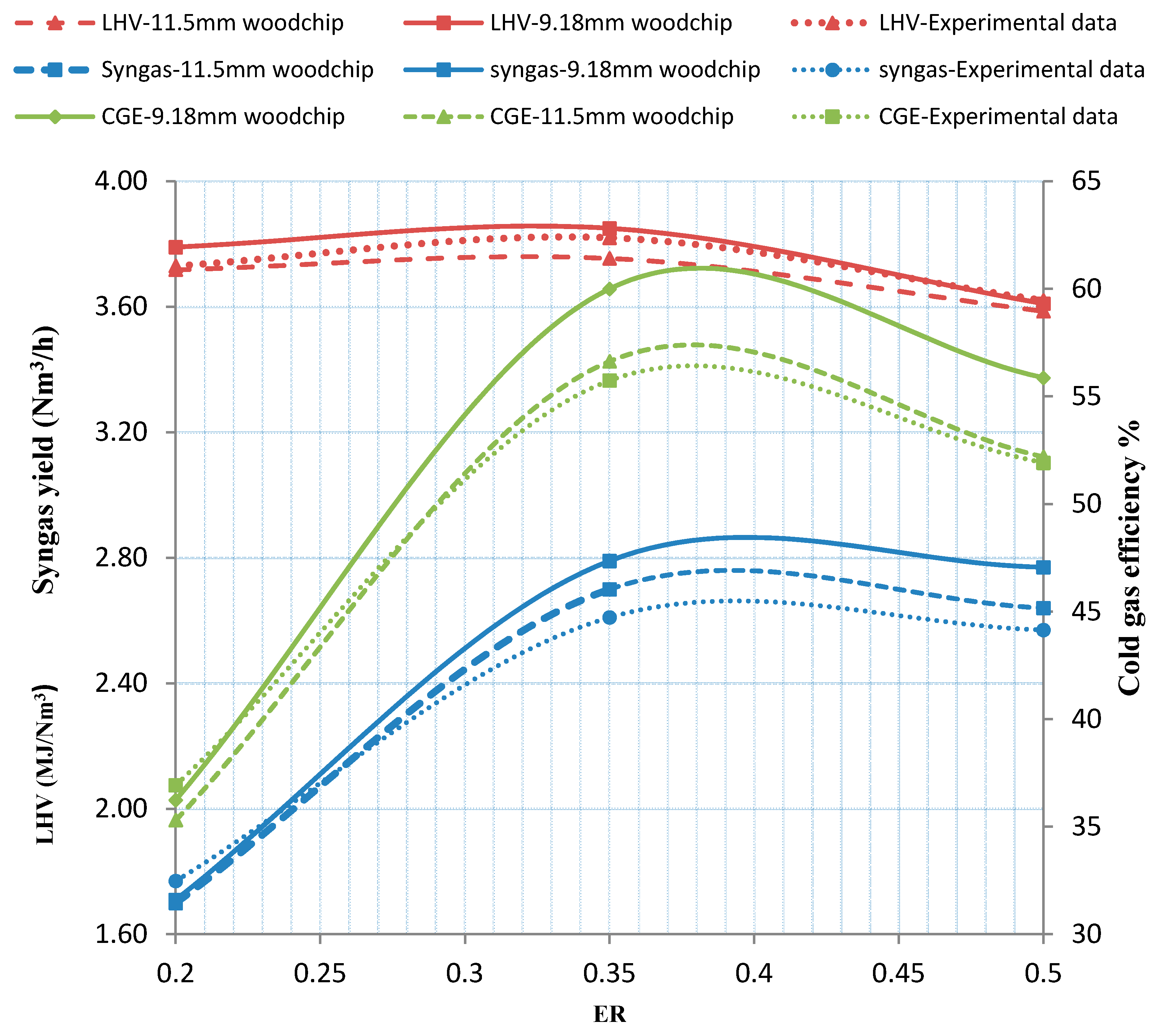

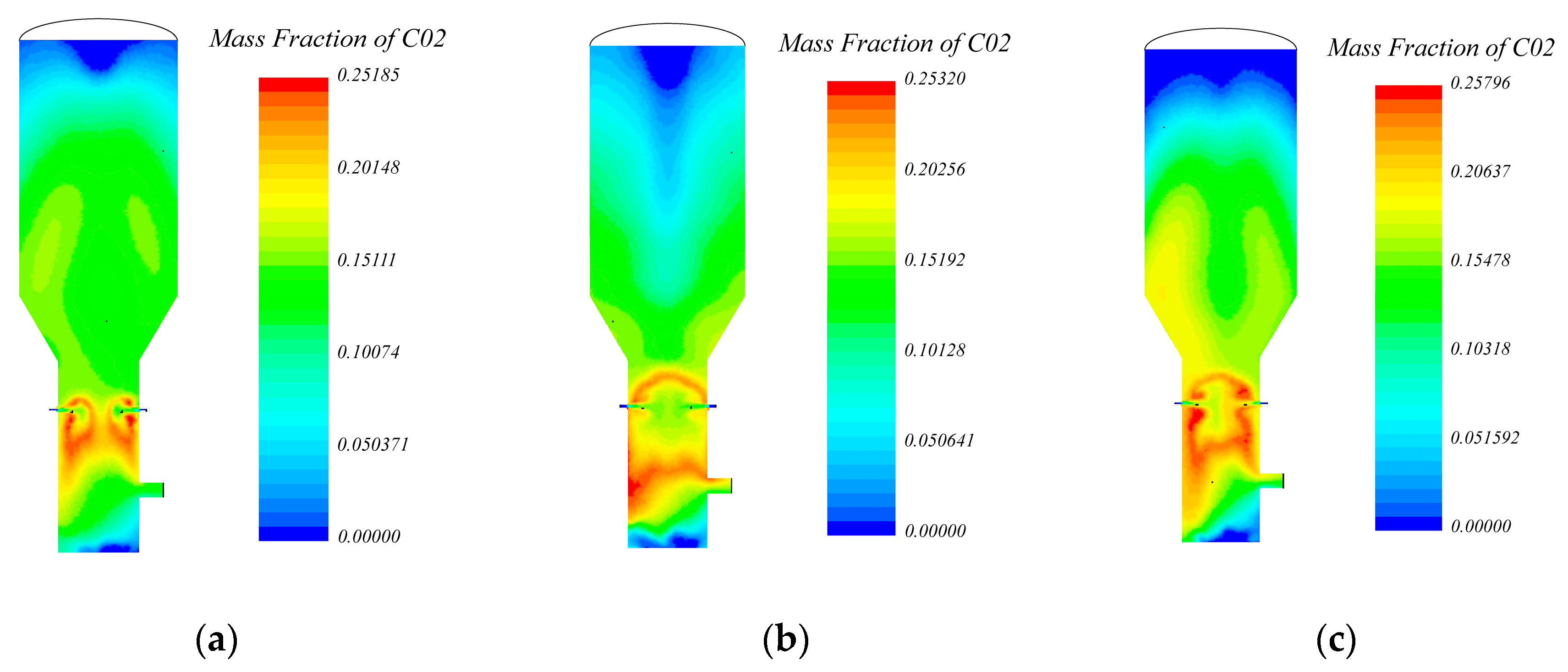

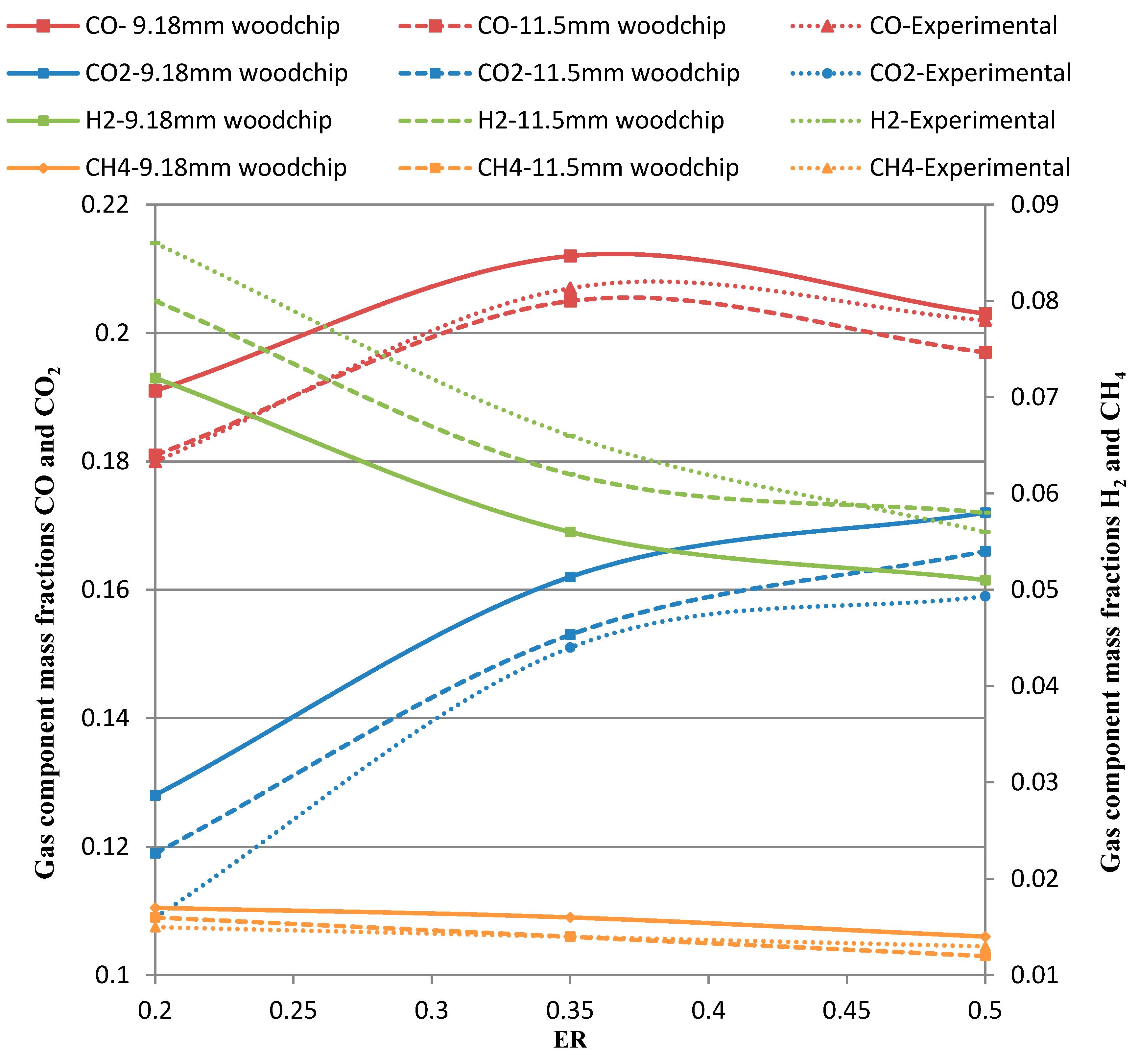

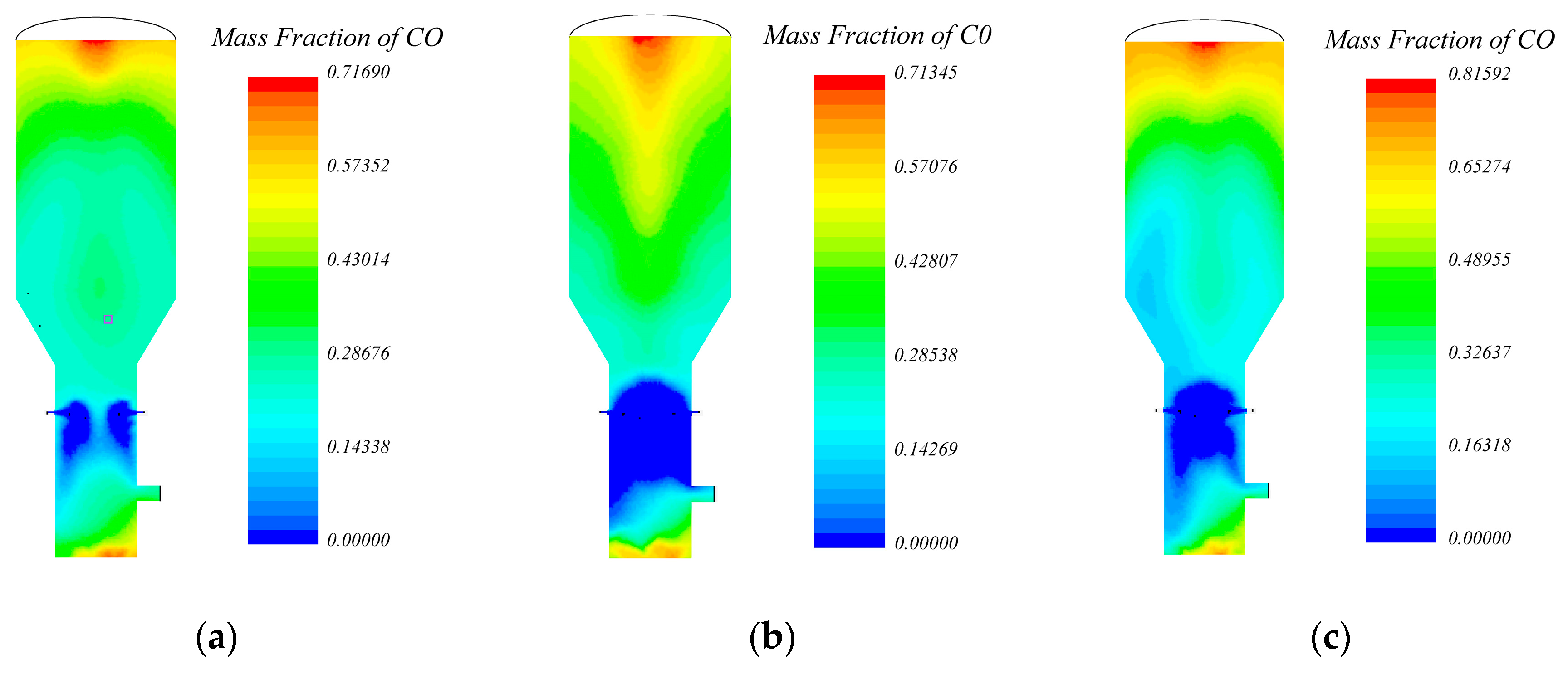

This paper discusses the characteristics of Birchwood gasification using the simulated results of a Computational Fluid Dynamics (CFD) model. The CFD model is developed and validated with the experimental results obtained with the fixed bed downdraft gasifier available at the University of Agder (UIA), Norway. In this work, several parameters are examined and given importance, such as producer gas yield, syngas composition, lower heating value (LHV), and cold gas efficiency (CGE) of the syngas. The behavior of the parameters mentioned above is examined by varying the biomass particle size. The diameters of the two biomass particles are 11.5 mm and 9.18 mm. All the parameters investigate within the Equivalences Ratio (ER) range from 0.2 to 0.5. In the simulations, a variable air inflow rate is used to achieve different ER values. For the different biomass particle sizes, CO, CO2, CH4, and H2 mass fractions of the syngas are analyzed along with syngas yield, LHV, and CGE. At an ER value of 0.35, 9.18 mm diameter particle shows average maximum values of 60% of CGE and 2.79 Nm3/h of syngas yield, in turn showing 3.4% and 0.09 Nm3/h improvement in the respective parameters over the 11.5 mm diameter biomass particle. View Full-Text
Keywords: Birchwood gasification; computational fluid dynamics; equivalence ratio; cold gas efficiency; syngas Birchwood gasification; computational fluid dynamics; equivalence ratio; cold gas efficiency; syngas
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jayathilake, R.; Rudra, S. Numerical and Experimental Investigation of Equivalence Ratio (ER) and Feedstock Particle Size on Birchwood Gasification. Energies 2017, 10, 1232.
