Energies 2017, 10(4), 575;

Aerodynamic Analysis of a Helical Vertical Axis Wind Turbine

School of Mechanical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
School of Mechanical Engineering, Pusan National University, Busan 609-735, Korea
Author to whom correspondence should be addressed.
Academic Editor: Frede Blaabjerg
Received: 20 February 2017 / Revised: 4 April 2017 / Accepted: 16 April 2017 / Published: 22 April 2017
(This article belongs to the Special Issue Wind Turbine 2017)
Full-Text   |   PDF [10079 KB, uploaded 24 April 2017]   |

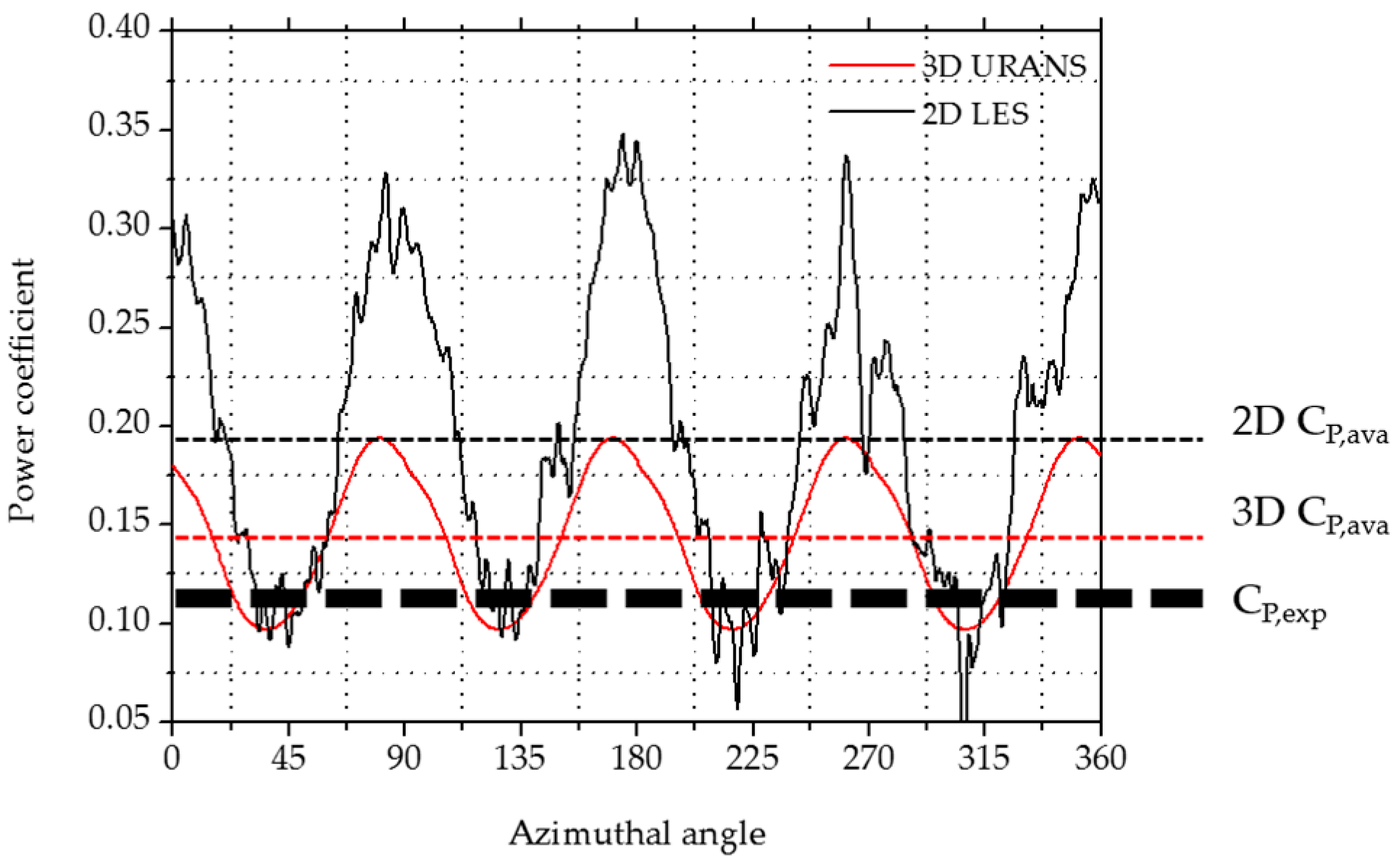

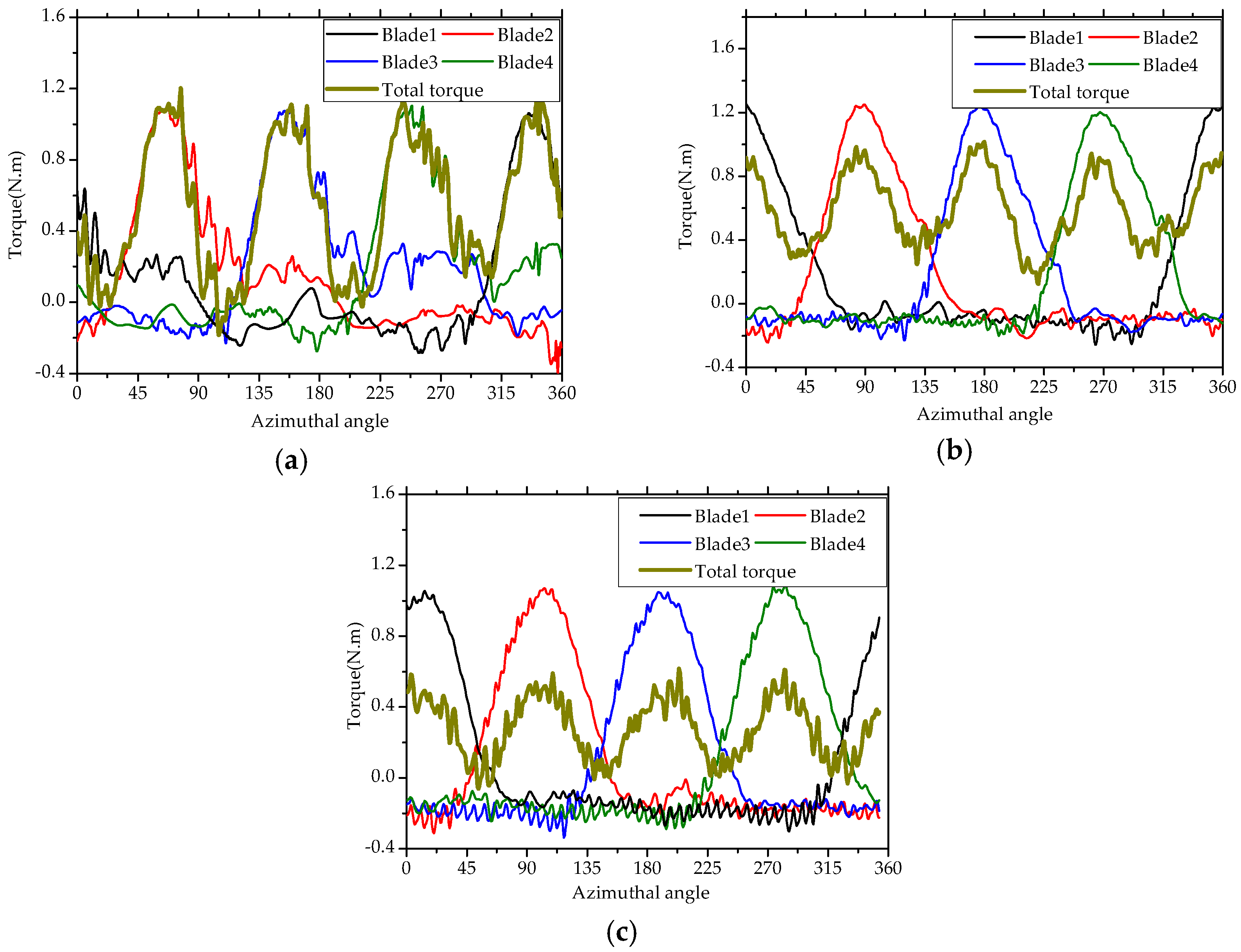

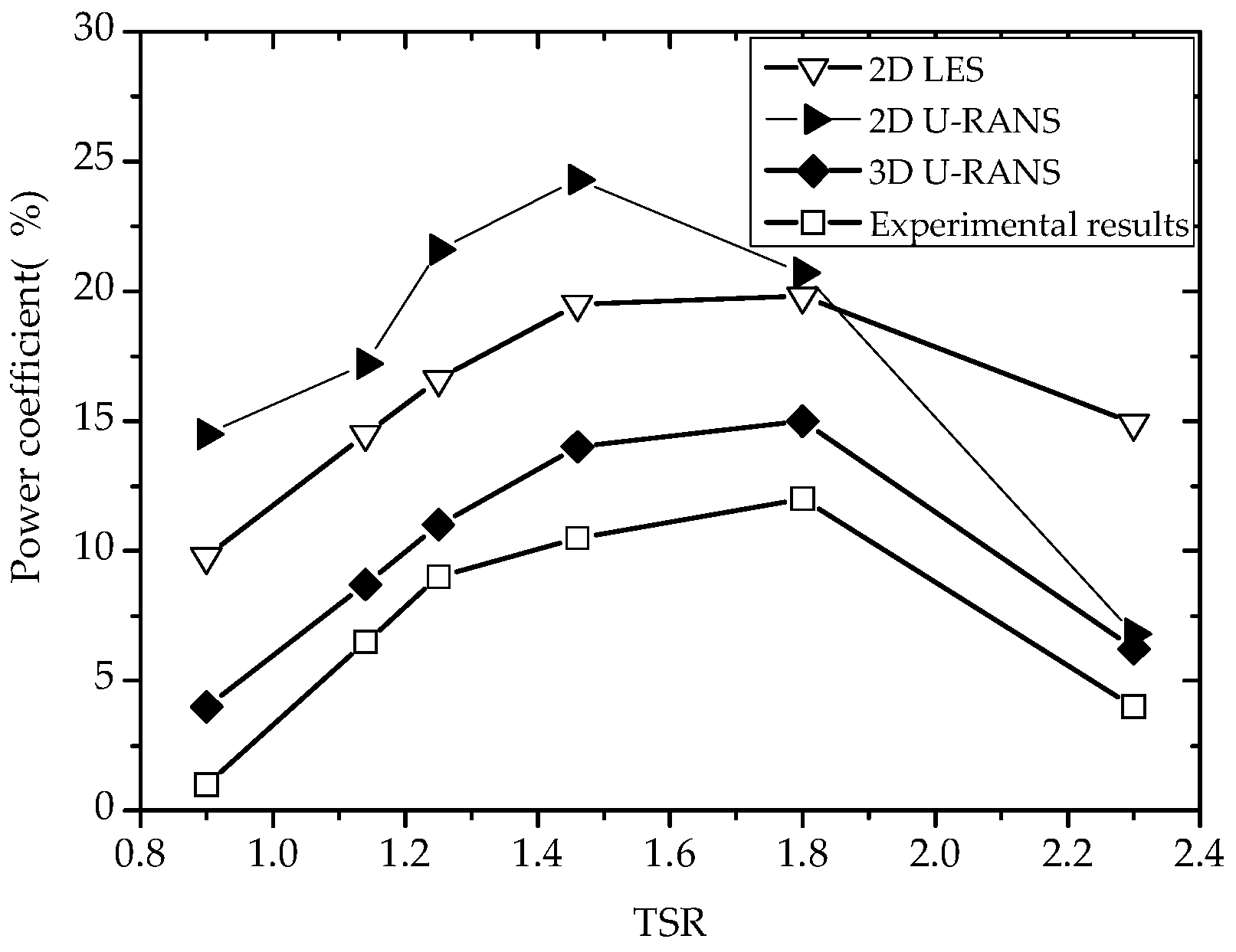

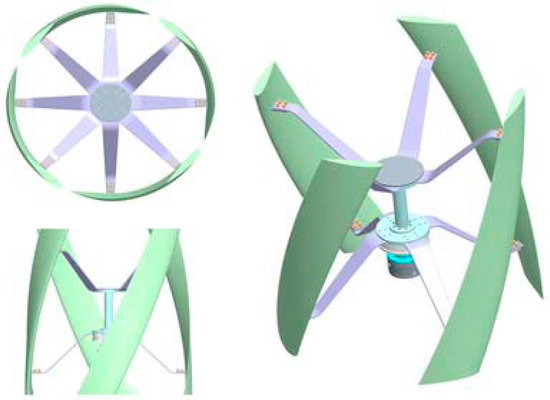

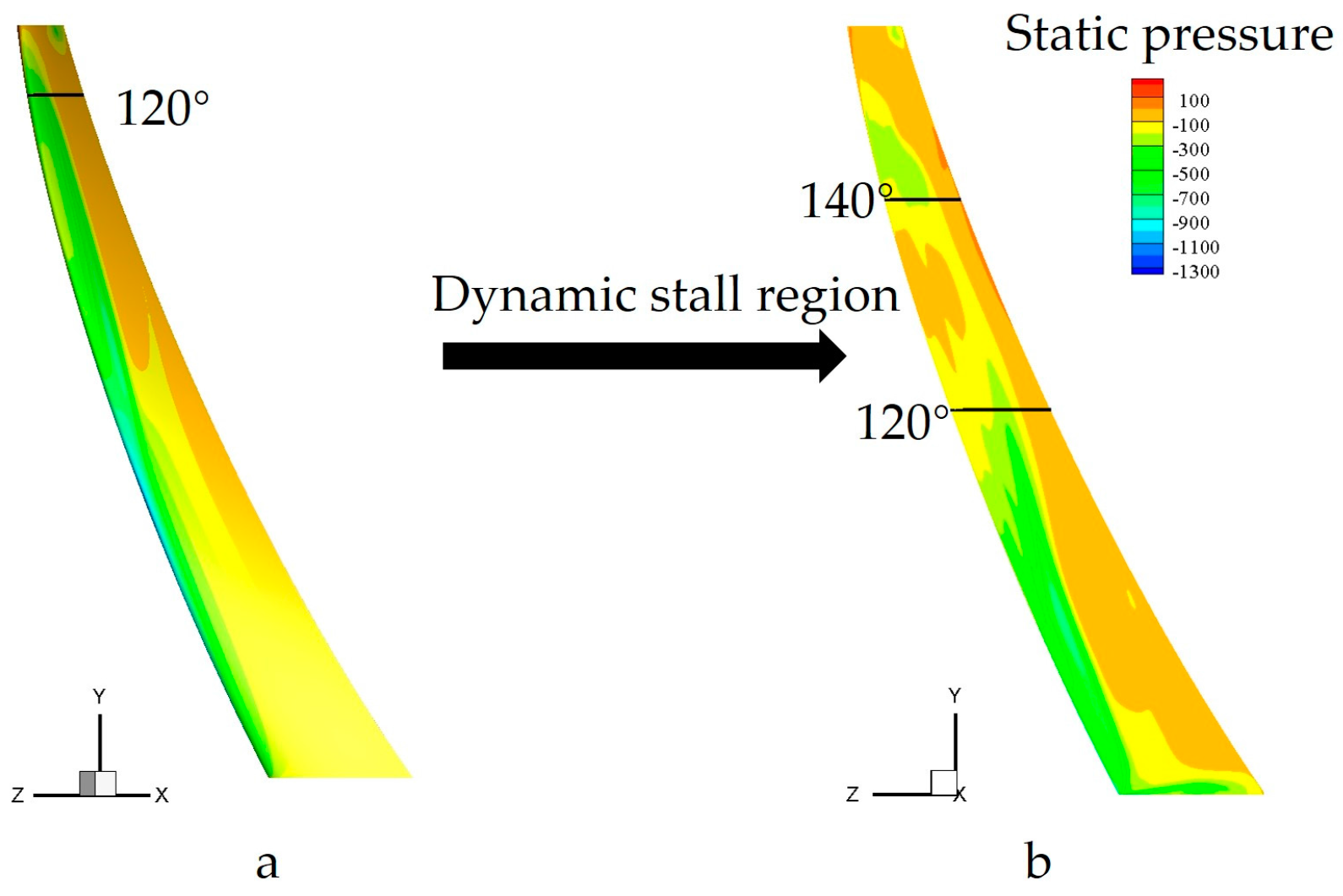

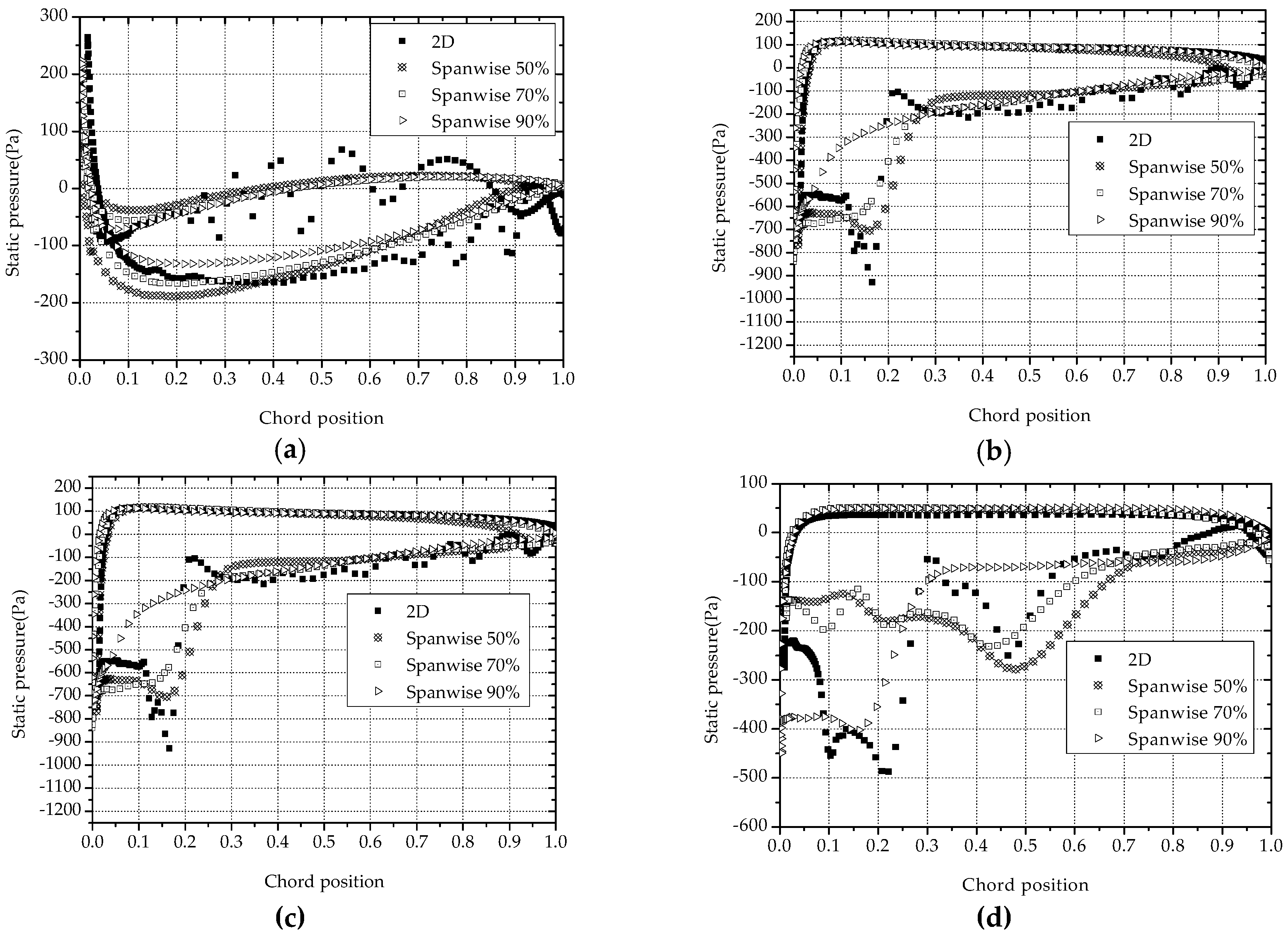

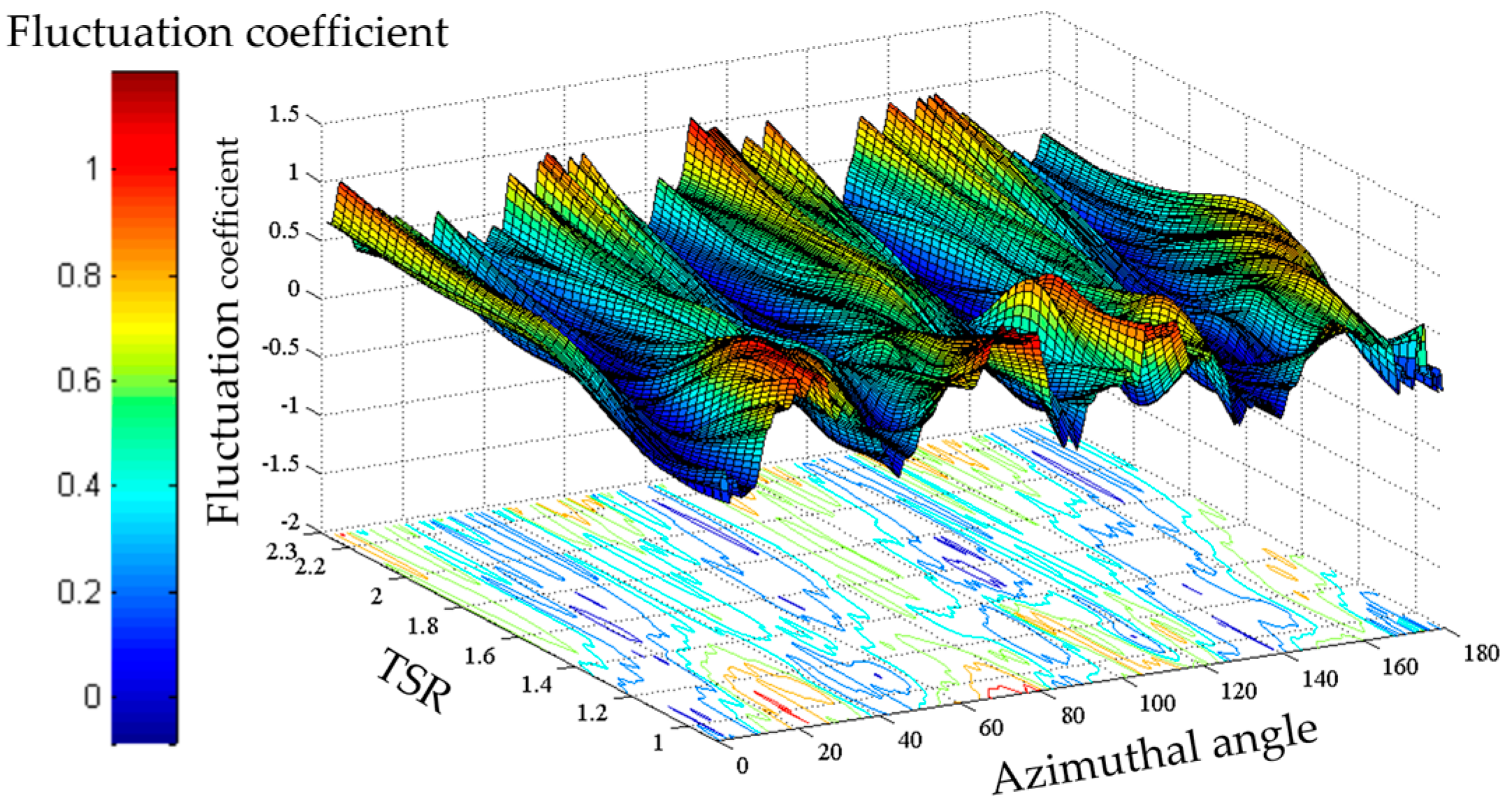

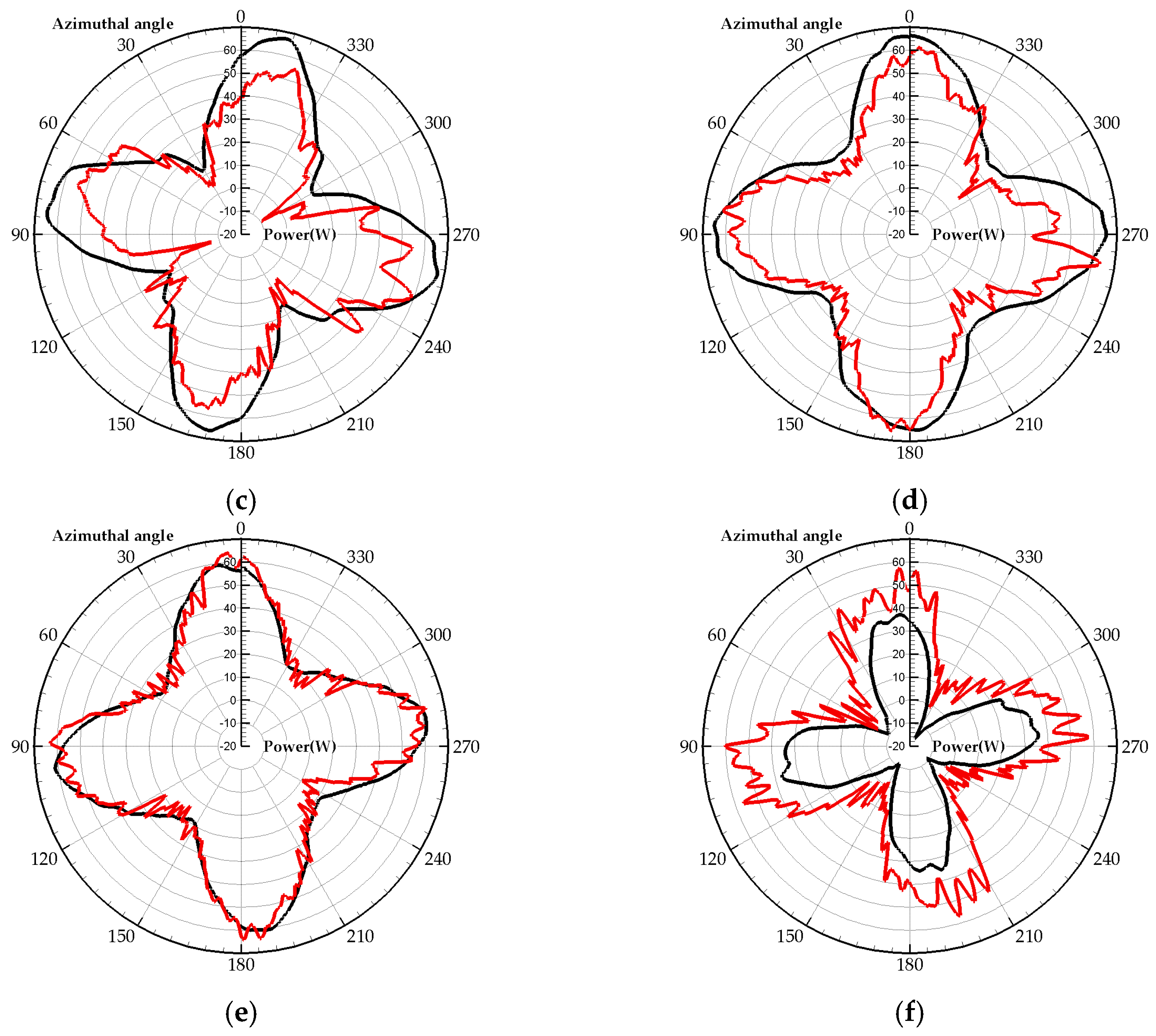

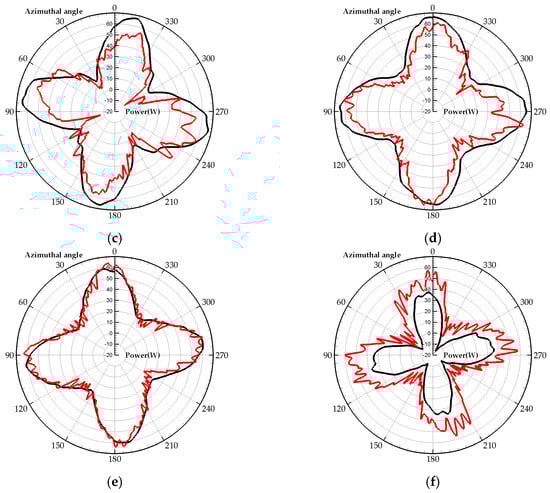

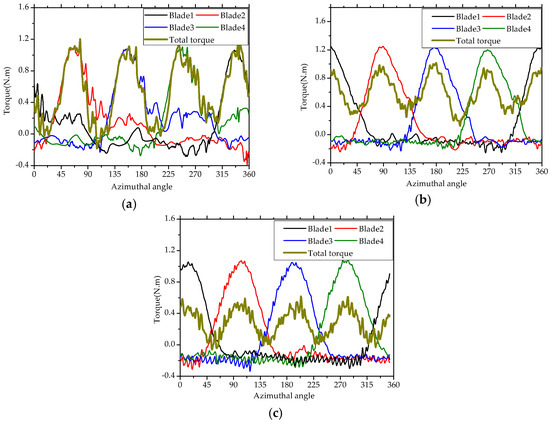

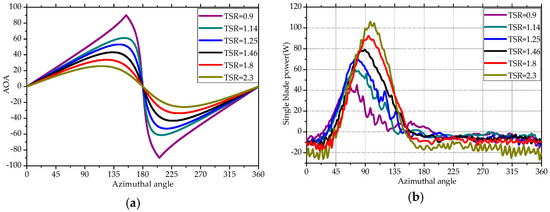

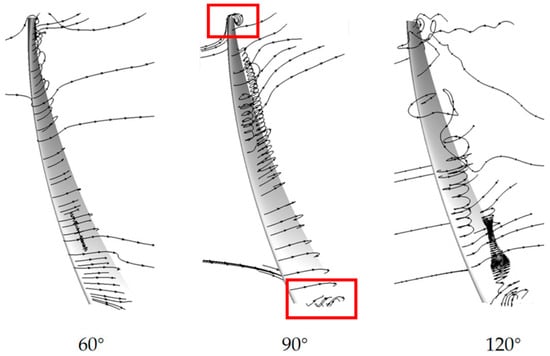

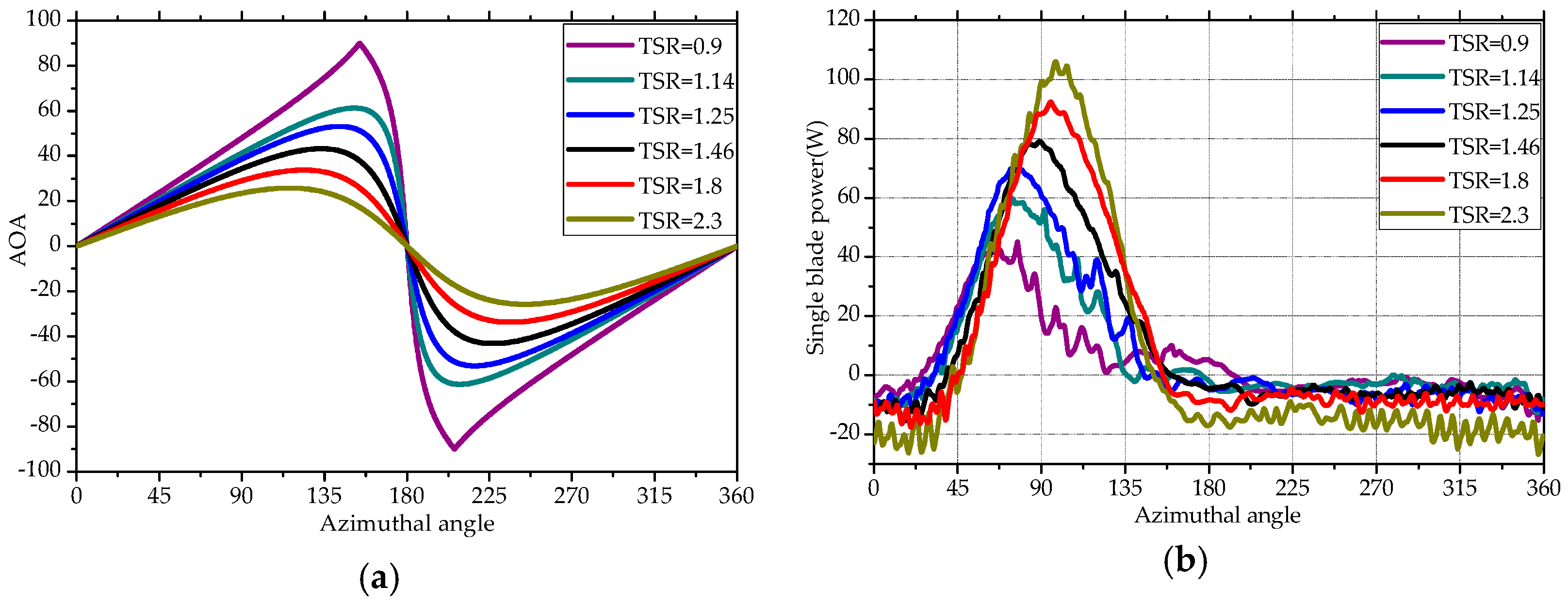

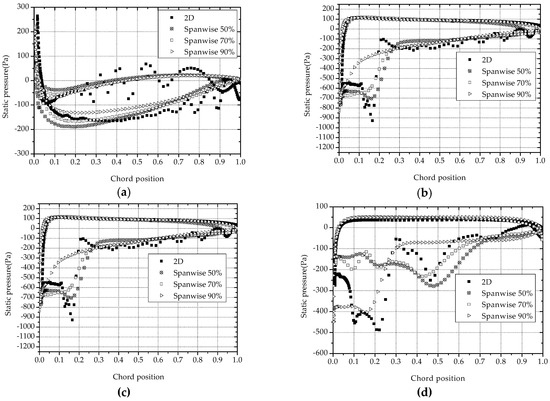

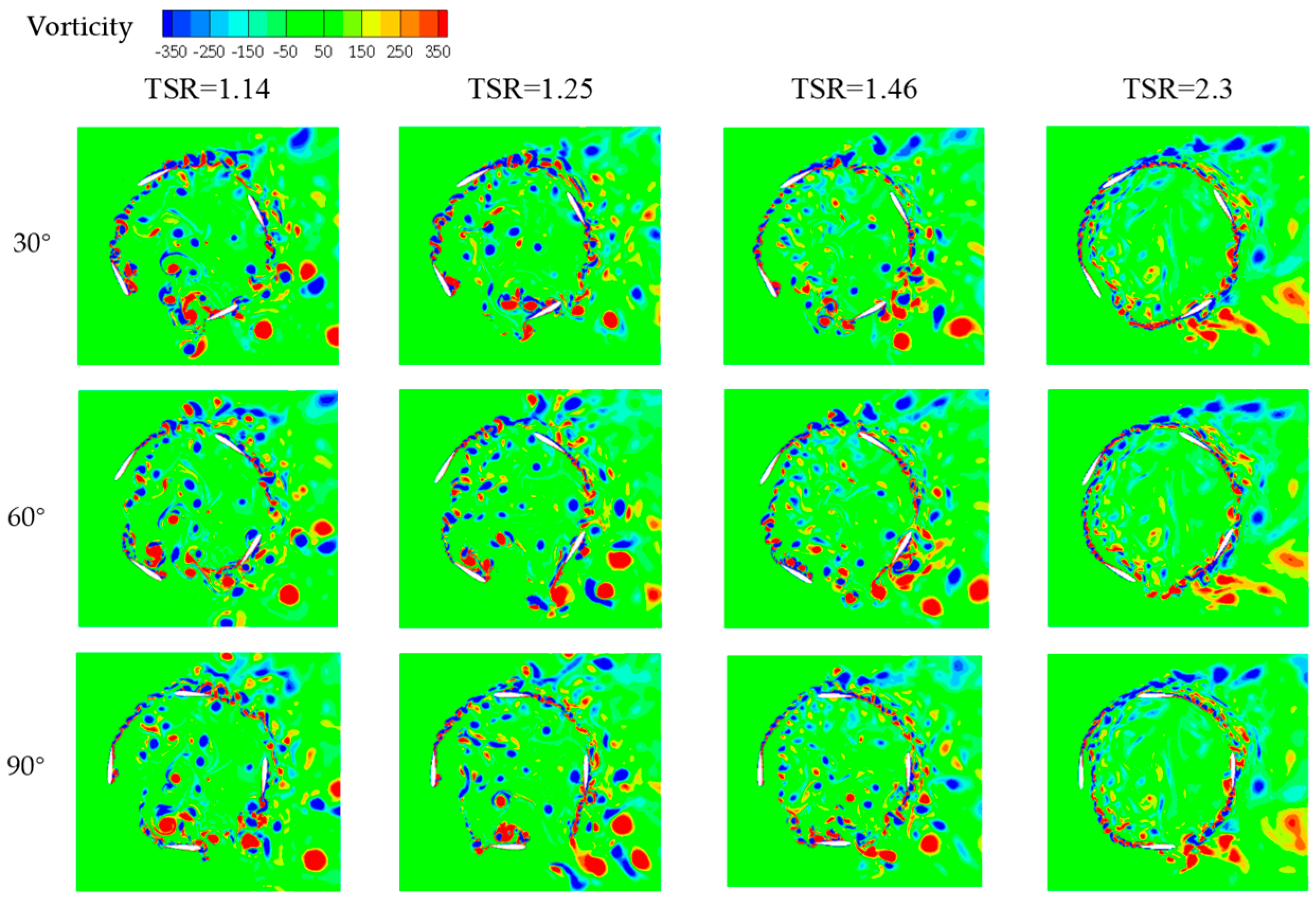

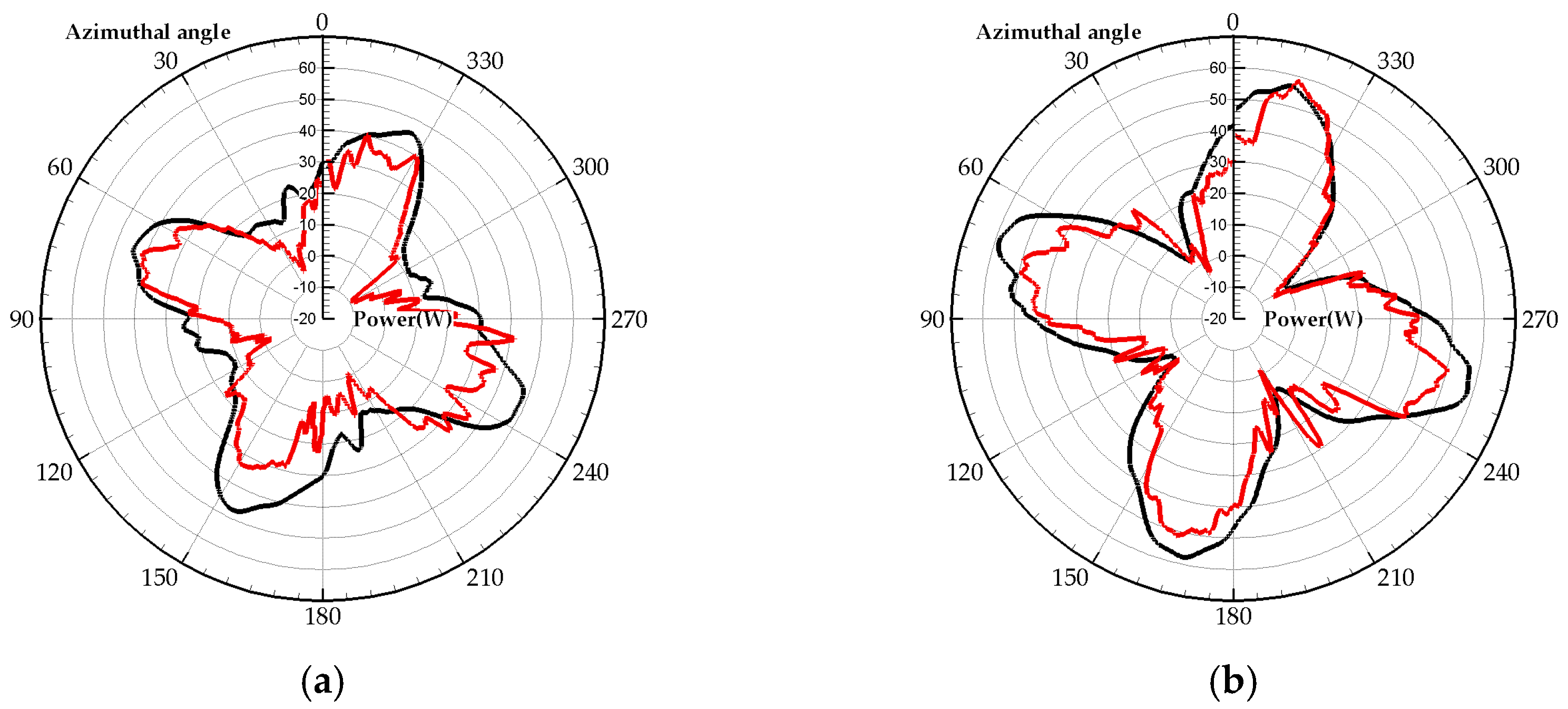

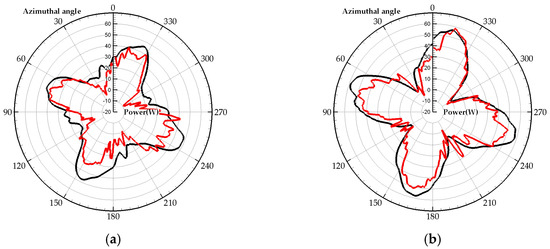

Vertical axis wind turbines (VAWTs) are gradually receiving more and more interest due to their lower sensitivity to the yawed wind direction. Compared with straight blades VAWT, blades with a certain helicity show a better aerodynamic performance and less noise emission. Nowadays computational fluid dynamics technology is frequently applied to VAWTs and gives results that can reflect real flow phenomena. In this paper, a 2D flow field simulation of a helical vertical axis wind turbine (HVAWT) with four blades has been carried out by means of a large eddy simulation (LES). The power output and fluctuation at each azimuthal position are studied with different tip speed ratio (TSR). The result shows that the variation of angle of attack (AOA) and blade-wake interaction under different TSR conditions are the two main reasons for the effects of TSR on power output. Furthermore, in order to understand the characteristics of the HVAWT along the spanwise direction, the 3D full size flow field has also been studied by the means of unsteady Reynold Averaged Navier-Stokes (U-RANS) and 3D effects on the turbine performance can be observed by the spanwise pressure distribution. It shows that tip vortex near blade tips and second flow in the spanwise direction also play a major role on the performance of VAWTs. View Full-Text
Keywords: helical vertical axis wind turbine (HVAWT); power fluctuation; blade-wake interaction; three dimensional effects helical vertical axis wind turbine (HVAWT); power fluctuation; blade-wake interaction; three dimensional effects

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Cheng, Q.; Liu, X.; Ji, H.S.; Kim, K.C.; Yang, B. Aerodynamic Analysis of a Helical Vertical Axis Wind Turbine. Energies 2017, 10, 575.
