Energies 2017, 10(2), 204; doi:10.3390/en10020204

A Proportional Resonant Control Strategy for Efficiency Improvement in Extended Range Electric Vehicles

1
Institute of Electrical Engineering & Automation, Tianjin University, No. 92 Weijin Road, Tianjin 300072, China
2
College of Engineering and Technology, Tianjin Agricultural University, Tianjin 300384, China
*
Authors to whom correspondence should be addressed.
Received: 14 November 2016 / Accepted: 22 January 2017 / Published: 10 February 2017
View Full-Text   |   Download PDF [8391 KB, uploaded 13 February 2017]   |

Abstract

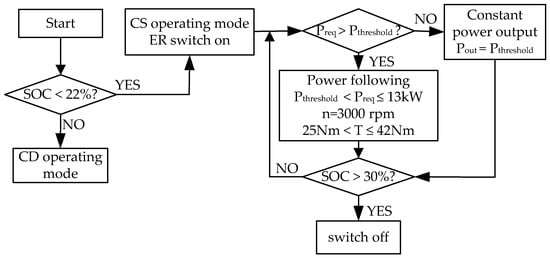

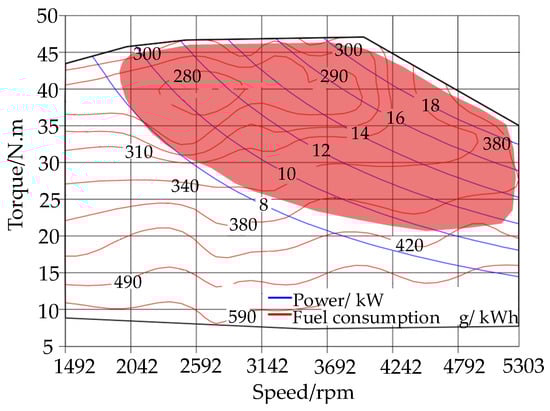

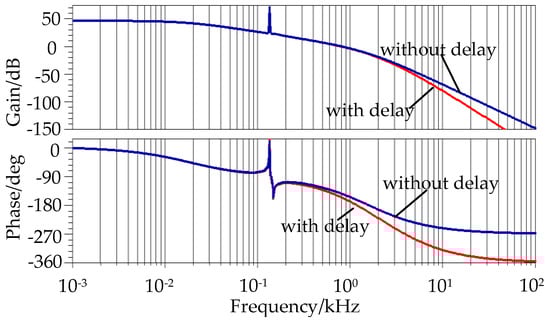

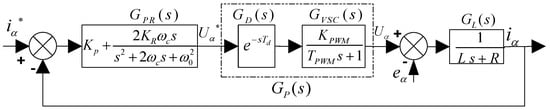

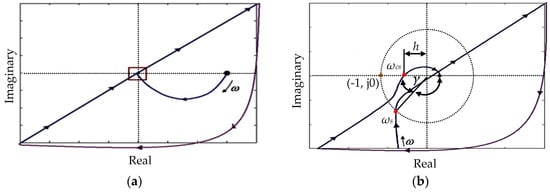

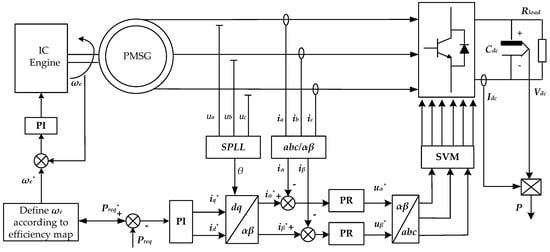

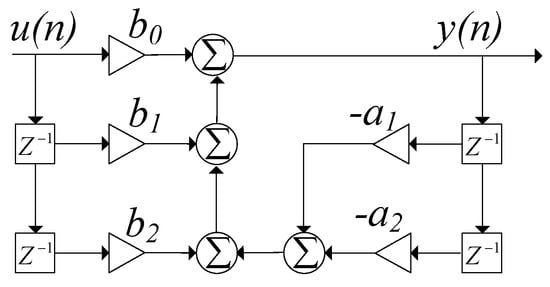

The key to control the range extender generation system is to improve the efficiency and reduce the emissions of the electric vehicle (EV). In this paper, based on the purpose of efficiency optimization, both engine and generator are matched to get a public high efficiency region, and a partial power following control strategy was presented. The engine speed is constant in the defined power range, so the output power regulation of the range extender is only realized by the adjustment of the torque of the generator. Engine speed and generator torque were decoupled. An improved proportional resonant (PR) controller is adopted to achieve fast output power regulation. In order to ensure the response characteristics of the control system and to improve the robustness, the impacts on system’s characteristics and stability caused by PR controller and parameters in the inner-current loop were analyzed via frequency response characteristics. A pre-Tustin with deviation compensation is proposed for PR controller’s discretization. A stable and robust power following control method is obtained for the range extender control system. Finally, simulation and experiment of the proposed control strategy illustrated its feasibility and correctness. View Full-Text
Keywords: electric vehicle; range extender; efficiency improvement; pulse width modulation (PWM) voltage source converter; proportional resonant controller; stability electric vehicle; range extender; efficiency improvement; pulse width modulation (PWM) voltage source converter; proportional resonant controller; stability
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Wang, X.; Lv, H.; Sun, Q.; Mi, Y.; Gao, P. A Proportional Resonant Control Strategy for Efficiency Improvement in Extended Range Electric Vehicles. Energies 2017, 10, 204.
