Open AccessArticle
Energies 2017, 10(11), 1839; https://doi.org/10.3390/en10111839

Wind Turbine Loads Induced by Terrain and Wakes: An Experimental Study through Vibration Analysis and Computational Fluid Dynamics

1
Department of Engineering, University of Perugia, Via G. Duranti 93, 06125 Perugia, Italy
2
Department of Engineering, University of Ferrara, Via G. Saragat 1, 44122 Ferrara, Italy
3
Renvico s.r.l., Via San Gregorio 34, 20124 Milano, Italy
This paper is an extended version of our paper published in The Science of Making Torque fromWind (TORQUE 2016), Munich, Germany, 5–7 October 2016.
*
Author to whom correspondence should be addressed.
Received: 30 September 2017 / Revised: 6 November 2017 / Accepted: 8 November 2017 / Published: 10 November 2017
(This article belongs to the Special Issue Wind Turbine Loads and Wind Plant Performance)
View Full-Text   |   Download PDF [8161 KB, uploaded 14 November 2017]   |

Abstract

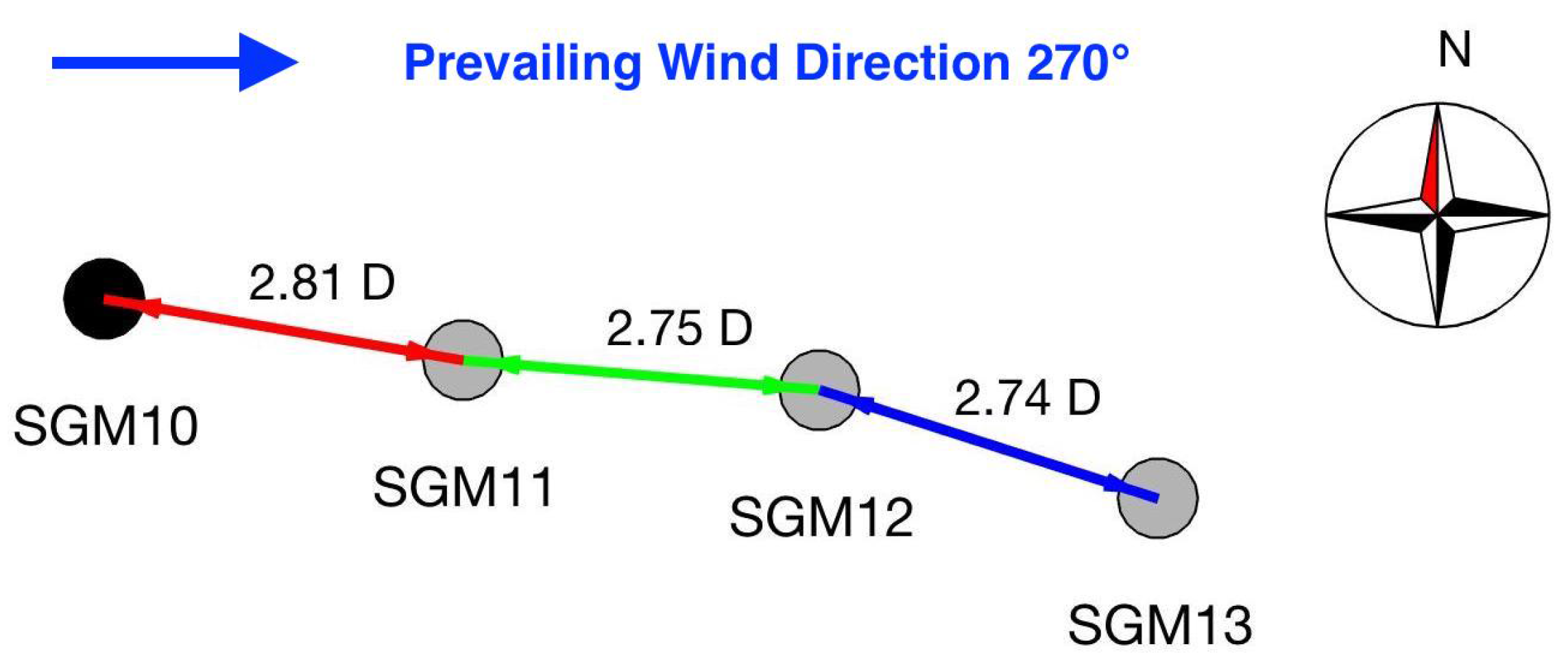

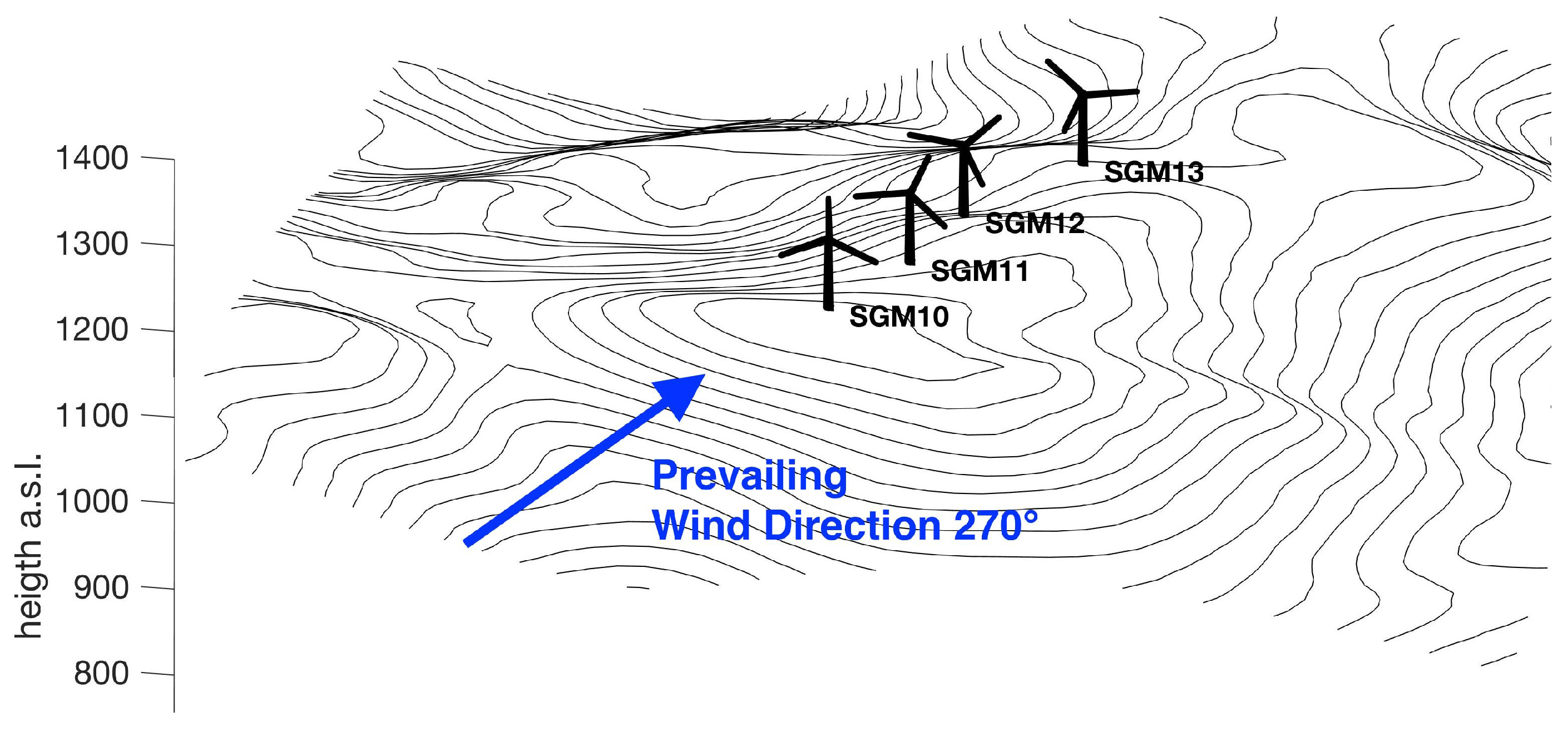

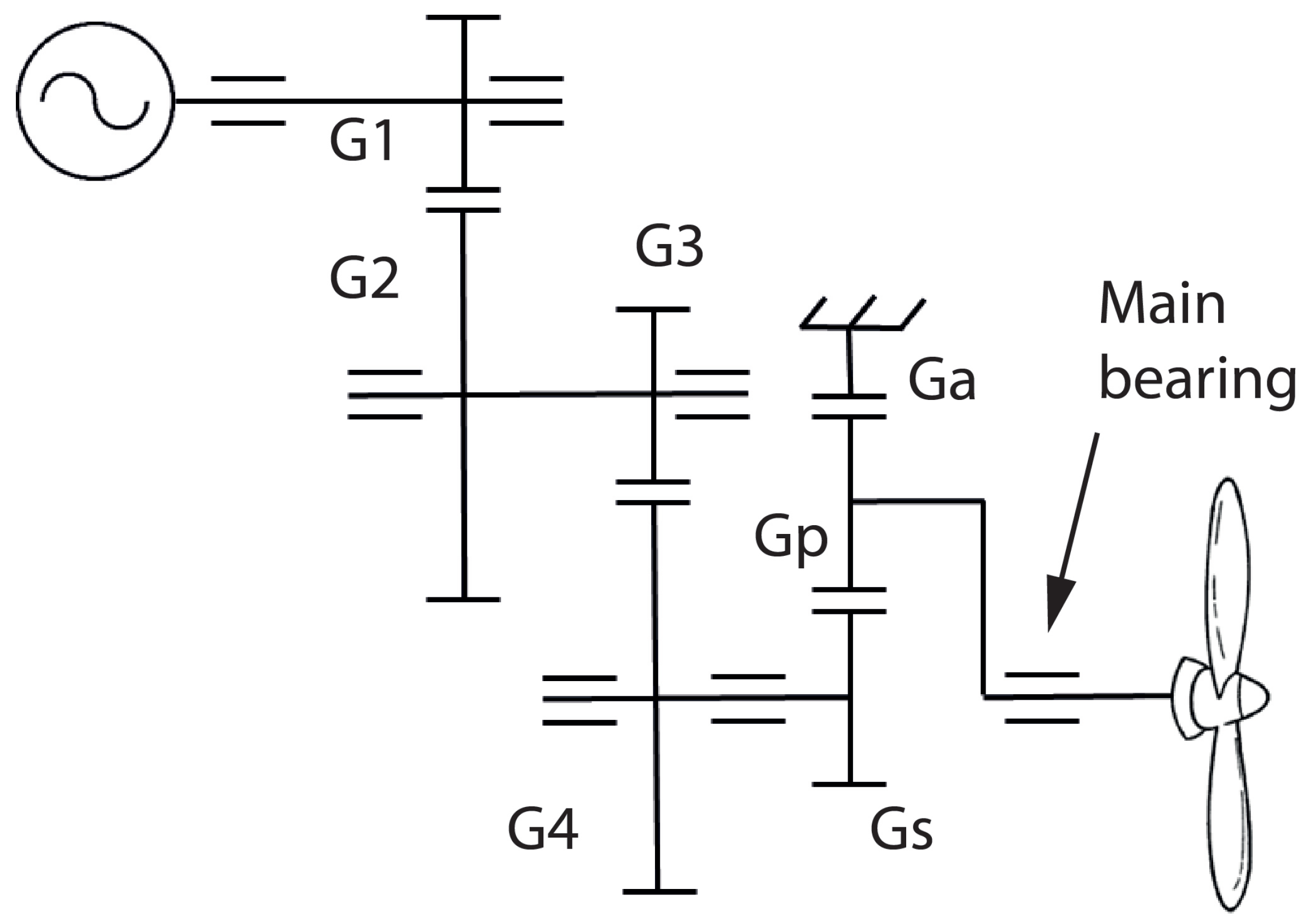

A wind turbine is a very well-known archetype of energy conversion system working at non-stationary regimes. Despite this, a deep mechanical comprehension of wind turbines operating in complicated conditions is still challenging, especially as regards the analysis of experimental data. In particular, wind turbines in complex terrain represent a very valuable testing ground because of the possible combination of wake effects among nearby turbines and flow accelerations caused by the terrain morphology. For these reasons, in this work, a cluster of four full-scale wind turbines from a very complex site is studied. The object of investigation is vibrations, at the level of the structure (tower) and drive-train. Data collected by the on-board condition monitoring system are analyzed and interpreted in light of the knowledge of wind conditions and operating parameters collected by the Supervisory Control And Data Acquisition (SCADA). A free flow Computational Fluid Dynamics (CFD) simulation is also performed, and it allows one to better interpret the vibration analysis. The main outcome is the interpretation of how wakes and flow turbulences appear in the vibration signals, both at the structural level and at the drive-train level. Therefore, this wind to gear approach builds a connection between flow phenomena and mechanical phenomena in the form of vibrations, representing a precious tool for assessing loads in different working conditions. View Full-Text
Keywords: wind energy; wind turbine; wakes; vibration analysis; supervisory control and data acquisition; condition monitoring wind energy; wind turbine; wakes; vibration analysis; supervisory control and data acquisition; condition monitoring
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
