Open AccessArticle
Energies 2017, 10(1), 56; doi:10.3390/en10010056

Coordinated Control of Superconducting Fault Current Limiter and Superconducting Magnetic Energy Storage for Transient Performance Enhancement of Grid-Connected Photovoltaic Generation System

1
School of Electrical Engineering, Wuhan University, Wuhan 430072, China
2
Hubei Energy Group Co., Ltd., Wuhan 430077, China
3
State Grid Shandong Electric Power Research Institute, Jinan 250000, China
4
State Key Laboratory of Advanced Electromagnetic Engineering and Technology, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Academic Editor: Jayanta Deb Mondol
Received: 23 September 2016 / Revised: 13 December 2016 / Accepted: 26 December 2016 / Published: 5 January 2017
(This article belongs to the Special Issue Grid-Connected Photovoltaic Systems)

Abstract

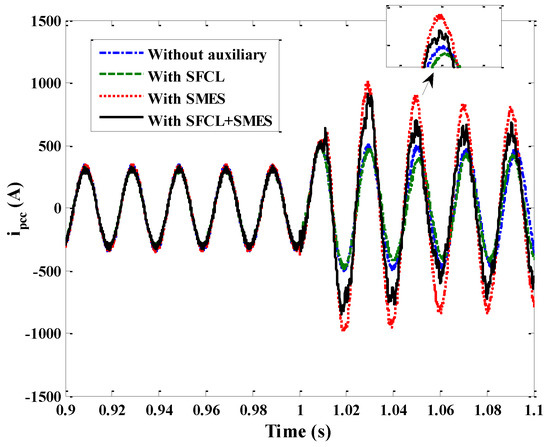

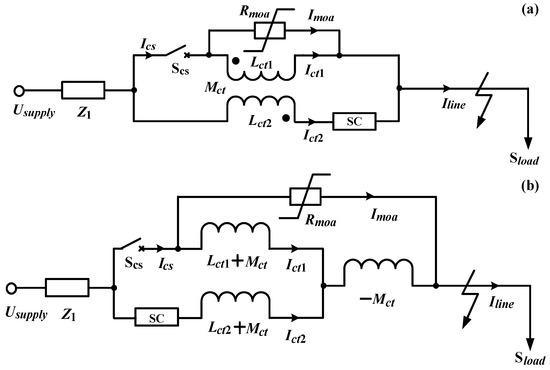

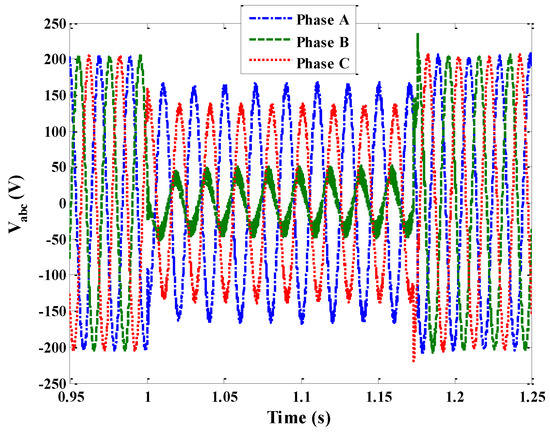

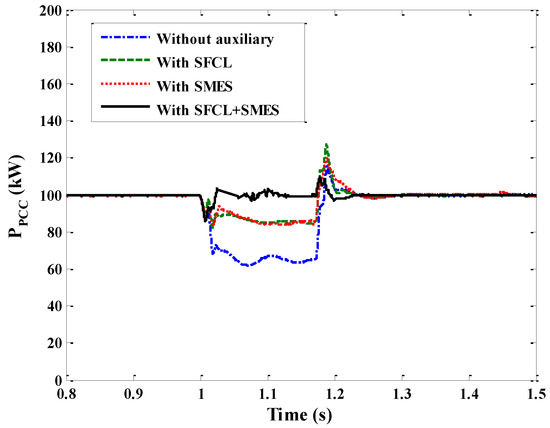

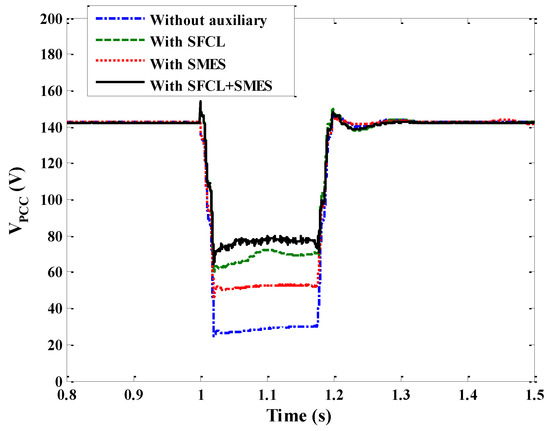

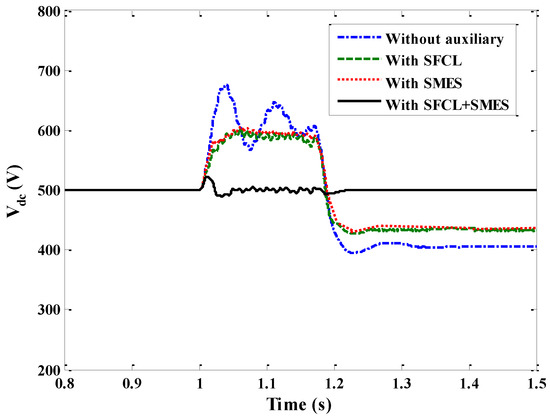

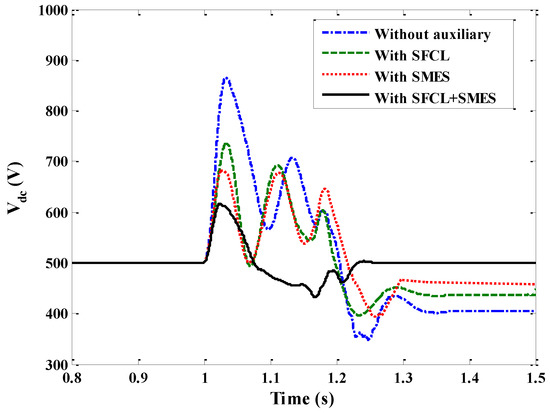

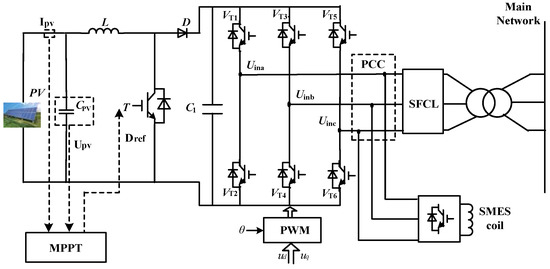

In regard to the rapid development of renewable energy sources, more and more photovoltaic (PV) generation systems have been connected to main power networks, and it is critical to enhance their transient performance under short-circuit faults conditions. This paper proposes and studies the coordinated control of a flux-coupling-type superconducting fault current limiter (SFCL) and a superconducting magnetic energy storage (SMES), to improve the fault ride through (FRT) capability and smooth the power fluctuation of a grid-connected PV generation system. Theoretical analyses of the device structure, operating principle and control strategy are conducted, and a detailed simulation model of 100 kW class PV generation system is built in MATLAB/SIMULINK. During the simulations of the symmetrical and asymmetrical faults, the maximum power point tracking (MPPT) control is disabled, and four different cases including without auxiliary, with SFCL, with SMES, and with SFCL-SMES, are compared. From the demonstrated results, the combination of without MPPT and with SFCL-SMES can more efficiently improve the point of common coupling (PCC) voltage sag, inhibit the DC-link overvoltage and alleviate the power fluctuation. Finally, a preliminary parameter optimization method is suggested for the SFCL and the SMES, and it is helpful to promote their future application in the real PV projects. View Full-Text
Keywords: coordinated control; fault ride through (FRT); photovoltaic (PV) generation; superconducting fault current limiter (SFCL); superconducting magnetic energy storage (SMES) coordinated control; fault ride through (FRT); photovoltaic (PV) generation; superconducting fault current limiter (SFCL); superconducting magnetic energy storage (SMES)
