Int. J. Environ. Res. Public Health 2012, 9(4), 1182-1200; doi:10.3390/ijerph9041182

Article
Evaluation of Changes in Effluent Quality from Industrial Complexes on the Korean Nationwide Scale Using a Self-Organizing Map
Mi-Jung Bae , Jun-Su Kim and Young-Seuk Park *
Department of Biology, Kyung Hee University, Dongdaemun, Seoul 130-701, Korea; Email: mjbae@khu.ac.kr (M.-J.B.); no01knight@nate.com (J.-S.K.)
*
Author to whom correspondence should be addressed; Email: parkys@khu.ac.kr; Tel.: +82-961-0946; Fax: +82-961-0244.
Received: 6 March 2012; in revised form: 26 March 2012 / Accepted: 30 March 2012 /
Published: 11 April 2012

Abstract

: One of the major issues related to the environment in the 21st century is sustainable development. The innovative economic growth policy has supported relatively successful economic development, but poor environmental conservation efforts, have consequently resulted in serious water quality pollution issues. Hence, assessments of water quality and health are fundamental processes towards conserving and restoring aquatic ecosystems. In this study, we characterized spatial and temporal changes in water quality (specifically physico-chemical variables plus priority and non-priority pollutants) of discharges from industrial complexes on a national scale in Korea. The data were provided by the Water Quality Monitoring Program operated by the Ministry of Environment, Korea and were measured from 1989 to 2008 on a monthly basis at 61 effluent monitoring sites located at industrial complexes. Analysis of monthly and annual changes in water quality, using the seasonal Mann-Kendall test, indicated an improvement in water quality, which was inferred from a continuous increase in dissolved oxygen and decrease in other water quality factors. A Self-Organizing Map, which is an unsupervised artificial neural network, also indicated an improvement of effluent water quality, by showing spatial and temporal differences in the effluent water quality as well as in the occurrence of priority pollutants. Finally, our results suggested that continued long-term monitoring is necessary to establish plans and policies for wastewater management and health assessment.
Keywords:
water quality; industrial waste; heavy metals; spatial and temporal variation; seasonal Mann-Kendall test; Self-Organizing Map

1. Introduction

Water is one of the most essential natural resources, in both quantity and quality, for living organisms, including human beings. Furthermore, water resources are important for the operation of machines and facilities in industries. This natural resource is also important in our economic and social development process [1]. However, rapid industrial development, economic growth, and population growth have intensified the requirements for a vast number of materials and products, leading to an increase in the number of factories in various places across the World. Consequently, available water resources have been reduced, while the environmental pollution of open water systems has increased. However, recently, social concerns and the requirement for environmental conservation have increased across the World, with rising economic standards, which has led to the establishment of wastewater treatment facilities near the industrial complexes for the efficient control of wastewater.

In addition, to improve environmental conditions and ecological integrity, many countries have developed and modified various laws and regulations. For instance, in the United States, the Federal Water Pollution Act, or Clean Water Act (CWA), was established in 1972 to control the nation's surface waters. In 1972, the CWA set the goal of “restoring and maintaining the chemical, physical, and biological integrity of nation's waters” in the United States [2]. Initially, the CWA aimed to eliminate pollutant discharge into navigable waters by 1985 and to obtain “fishable and swimmable” waters by 1983. Furthermore, in 1977, the National Pollutant Discharge Elimination System was established to limit the discharge of various water pollutants according to effluent standard. The final major amendment to the law was the Water Quality Act (WQA) in 1987 [3]. The WQA emphasized the importance of not violating the environmental standard for water quality in each state (e.g., the Total Maximum Daily Load [TMDL]). In addition, the Storm Water Permit was established to prevent the discharge of large quantities of pollutants from industries or city sewage during rainfall. A similar goal of attaining good ecological status was established by the Water Framework Directive (WFD) in the European Union (EU) from 1973 onwards [4]. On the basis of Kallis and Butler’s study [5], the EU water policy is divided into three periods. In the first period (1973–1986), two water-related directives were implemented: water use directives (e.g., standards for drinking [6], bathing [7], and fish and shellfish harvesting [8,9]) and water pollutant directives (e.g., the standard for the discharge of particular pollutants). The second period (1978–1992), which was marked by the Maastricht Treaty, broadly focused on pollution from urban wastewater [10] and nitrate pollution from agricultural run-off. In addition, certain industrial sectors were regulated by the Urban Wastewater Treatment Directive. Finally, the third period (1993–2000) was represented by the development of the WFD. The goal of the WFD is to achieve a “good surface water status” and “good groundwater status,” as well as to prevent the deterioration in the quality of the already “good” water by 2015 [11].

In Korea, the industrial structure has been reorganized across time, with a diverse range of pollutants being emitted from industrial complexes. Consequently, there have been various attempts to improve the efficient management of industrial wastes, such as strengthening emission standards and the types of emissions under regulation. For example, the regulation of effluent quality standard for industrial waste management was first established under the Environmental Pollution Prevention Act in 1963 [12]. Then, the constitution was revised under various directives, such as the Environmental Protection Law (1978), the Law for the Prevention of Water Quality (1991), and the Water Quality and Ecosystem Conservation Act (2007).

Furthermore, to comprehensively survey the water quality status of streams and lakes at a national scale, water quality has been monitored through the Water Quality Monitoring Networks (WQMN) by the Ministry of Environment in Korea since 1978 (http://water.nier.go.kr). Even though the WQMN has recently expanded to assess Total Pollutant Load Management and Integrated Watershed Management [13], existing research on water quality using the WQMN database is primarily focused on specific regions or specific types of industry [12,14].

Understanding how effluent quality of industrial complexes has changed over extended timeframes is fundamental for the effective management of water quality and aquatic ecosystems. Although many studies on the changes of water quality in open water systems exist, research about the changing trends in effluent quality of industrial areas at a national scale are lacking. Hence, the current study aims to: (1) evaluate trends in effluent quality emitted to open water systems from industrial complexes and (2) characterize spatial and temporal differences in wastewater quality on a national scale. We believe that our results will provide the necessary baseline information to set standards for ecological health, water quality conservation, and wastewater management of industrial complexes in Korea.

2. Materials and Methods

2.1. Water Quality Data

Effluent quality data of industrial complexes were obtained from the WQMN database operated by the Ministry of Environment, Korea (http://water.nier.go.kr). From the database, we selected the dataset of 61 monitoring sites based on the survey duration and the data continuity (e.g., monitoring sites including at least 5-year sampling data; Figure 1, Table 1). In the selected dataset, maximum survey periods were for 20 years from 1989 to 2008 (21 of 61 sampling sites). Among 33 water quality factors in the database, we selected 20 factors based on the survey period and measuring frequency: eight physico-chemical factors, including pH, dissolved oxygen (DO), biological oxygen demand (BOD), chemical oxygen demand (COD), total suspended solid (TSS), total nitrogen (TN), total phosphate (TP), and total coliform (TC); nine priority pollutants, including cadmium (Cd), cyan (Cy), lead (Pb), chromium (VI) (Cr6+), arsenic (As), mercury (Hg), copper (Cu), zinc (Zn), and phenol; and three non-priority pollutants, including manganese (Mn), iron (Fe), and n-hexane (Table 2). All water quality factors were measured based on the standard analytical method [15]. Water samples were typically collected monthly or bimonthly. pH and DO were measured in situ using the appropriate sensors (e.g., pH: 632-pH meter, and DO: TOA DO-149). Other variables were analyzed in the laboratory. Water samples must be preserved and analyzed within the recommended time limit in order to avoid deterioration. BOD measures the amount of oxygen consumed by microorganisms during 5-days incubation in the dark condition at 20 °C. COD was determined from oxidized organic matter in sulfuric acid medium by K2Cr2O7. TSS was determined by the weight difference between before and after filtration through a glass fiber filter, drying at 105–110 °C for two hours. TN and TP were measured by absorptiometry analysis. TC were analyzed by the total coliform fermentation technique or total coliform membrane filter procedure. Cd, Pb, Cr6+, As, Hg, Cu and Zn were determined by atomic absorption spectroscopy. Cy and phenol were analyzed based on absorptiometric analysis. Details about the sample measuring protocol are presented in the Korean Ministry of Environment publication [15].

Ijerph 09 01182 g001 1024
Figure 1. Location of 61 monitoring sites for effluents of the industrial complexes in Korea. Numbers 1–61 represent the monitoring sites listed in Table 1.

Click here to enlarge figure

Figure 1. Location of 61 monitoring sites for effluents of the industrial complexes in Korea. Numbers 1–61 represent the monitoring sites listed in Table 1.
Ijerph 09 01182 g001 1024

2.2. Modeling Changes in Water Quality

A seasonal Mann-Kendall’s test (SMK) [16] was used to evaluate the trend in water quality variables. SMK is regularly used for water quality studies (e.g., [17,18,19,20]), and is a non-parametric and robust procedure that calculates the Mann-Kendall statistic for each user-defined season. Hence, no comparisons are made across season boundaries. In this study, each month represented a “season,” and was evaluated separately; for example, January data are compared only with January, February only with February, etc. The R-package Kendall was used for SMK, and is available at http://cran.r-project.org.

Table Table 1. Survey periods at the 61 monitoring sites.

Click here to display table

Table 1. Survey periods at the 61 monitoring sites.
WatershedSite numberIndustrial complexSurvey period (year.month)WatershedSite numberIndustrial complexSurvey period (year.month)
Han River1Gangneung1992.03–2008.12Nakdong River33Gumi1992.03-2008.12
2Seoul Digital1992.03–2008.1234Gimcheon1994.01–2008.12
3Banwol11989.02–2008.1235Dalseong1990.01–2008.12
4Banwol21989.02–2008.1236Daegu 3rd1989.01–2008.12
5Banwol31989.02–2008.1237Daegu Geomdan1990.01–2008.12
6Banwol41992.03–2008.1238Masan1989.01–2008.12
7Banwol Plating1994.01–2008.1239Petrochemical11989.02–2008.12
8Seonam Wastewater treatment1992.03–2008.1240Petrochemical21990.01–2008.12
9Songtan1994.01–2008.1241Petrochemical31998.02–2008.12
10Sihaw1995.01–2008.1242Yangsan1989.01–2008.12
11Anseong1992.03–2008.1243Onsan11989.01–2008.12
12Yeongdeungpo Mechanical1992.03–2008.1244Onsan21989.02–2008.12
13Wonju1989.01–2008.1245Waewan2001.02–2008.12
14Incheon 5, 61992.03–2008.1246Yonggang1994.01–2008.12
15Incheon2002.01–2008.1247Ulsan11989.01–2008.12
16Incheon Namdong1992.03–2008.1248Ulsan21998.02–2008.12
17Incheon local1992.03–2008.1249Ulsan31998.02–2008.12
18Cheonheung1995.01–2008.1250Jinju1989.01–2008.12
19Chuncheon1989.01–2008.1251Jinhae Macheon1994.01–2008.12
20Chungju1998.02–2008.1252Changwon1989.01–2008.12
21Hyangnam Pharmaceutical1992.03–2008.1253Pohang1989.01–2008.12
Geum River22Gunsan2003.01–2008.12Yeongsan River/Seumjin River54Gwangyang1990.01–2008.12
23Daejeon1989.01–2008.1255Gwangju12003.01–2008.12
24Daejeon1989.01–2008.1256Gwangju22003.01–2008.12
25Daejeon1994.01–2008.1257Gwangju32003.01–2008.12
26Daepung1998.02–2008.1258Daebul2002.01–2008.12
27Iri1989.01–2008.1259Yeocheon11999.01–2008.12
28Jeonju1989.01–2008.1260Yeocheon21989.01–2008.12
29Jeongeup1990.01–2008.1261Ocheon1990.01–2008.12
30Cheongju11989.07–2008.12
31Cheongju21992.01–2008.12
32Hyungdo1995.01–2008.12
Table Table 2. Characteristics of water quality variables in the study areas.

Click here to display table

Table 2. Characteristics of water quality variables in the study areas.
VariablesSurvey periodSamples/yearMeanSE *Valid N **
Physico-chemical variables
DO (mg/L)1989–2008245.110.07959
BOD (mg/L)1989–20082440.771.81959
COD (mg/L)1989–20082436.981.18959
TSS (mg/L)1989–20082432.591.12959
TC *** × 105 (mg/L)1989–20081247.016.3959
TN (mg/L)1994–20081221.720.75776
TP (mg/L)1994–2008121.510.07777
Priority pollutants
Cd (μg/L)1989–2008123.420.36959
Cy (μg/L)1989–20081228.565.68959
Pb (μg/L)1989–20081217.442.23959
Cr6+ (μg/L)1989–2008121.510.31959
As (μg/L)1989–2008121.770.19959
Hg (μg/L)1989–2008120.030.01959
Cu (μg/L)1989–200812170.2135.06959
Zn (μg/L)1989–200812352.4243.28941
Phenol (μg/L)1989–20081250.737.43941
Non-priority pollutants
Mn (μg/L)1989–200812294.515.19941
Fe (μg/L)1989–200812683.1733.12941
n-Hexane (μg/L)1989–2008121,325.4560.01941

* SE: standard error; ** Valid N: valid number of monitoring samples; *** TC: total coliform.

To characterize water quality factors in terms of spatial and temporal differences, we applied a Self-Organizing Map (SOM) [21,22]. SOM is an unsupervised artificial neural network learning algorithm that approximates the probability density function of the input data [22]. SOM consists of input and output layers that are connected with computational weights (connection intensities). The array of input neurons (computational units) operates as a flow-through layer for the input vectors, whereas the output layer consists of a two-dimensional network of neurons arranged in a hexagonal lattice.

In the SOM learning process, the input data (i.e., nine priority pollutants in this study) were initially subjected to the network. The number of output neurons was set to 150 (= 10 × 15) in a 2D hexagonal lattice, which was based on experience and a preliminary study. Subsequently, the weights of the network were trained for a given dataset. Each node of the output layer computes the summed distance between weight vector and input vector. The output nodes are considered as virtual units that represent typical patterns of the input dataset assigned to their units after the learning process [23]. Among all virtual units, the best matching unit (BMU), which has a minimum distance between weight and input vectors, is the winner. For the BMU and its neighborhood units, the new weight vectors are updated by the SOM learning rule. This results in the network being trained to classify the input vectors by the weight vectors to which they are closest. For the training SOM, we used the functions provided in the SOM toolbox [24] of Matlab for Windows ver. 6.1 [25].

We used two different methods to cluster the trained SOM units into several groups. First, the unified distance matrix algorithm (U-matrix; [26]) was applied. The U-matrix calculates distances between neighboring map units, with these distances being visualized to represent clusters using a grey scale display on the map. A hierarchical cluster analysis using Ward's linkage method based on the Euclidean distance measure [27] was applied to the weights of the SOM output units [23,28]. After defining the clusters in the SOM analysis, Multi-Response Permutation Procedures (MRPP) were conducted to test whether there is a significant difference among clusters by using the PC-ORD for Windows ver. 4.25 [29].

In this study, nine priority pollutants (including Cd, Cy, Pb, Cr6+, As, Hg, Cu, Zn, and phenol) were selected as input variables in the SOM analysis, based on measuring pollutant continuity. Priority pollutants that had an effect on bioaccumulation, persistency, and carcinogens (even at low concentrations) comprise a set of chemical pollutants that are regulated by the EPA [30].

The Kruskal-Wallis (K-W) [31] test was conducted to evaluate differences in environmental factors for different clusters defined in SOM, and Dunn’s multiple comparison tests were carried out if significant differences in the K-W test (p < 0.05) were detected, using statistical software STATISTICA for Windows ver. 7 [32].

3. Results

3.1. Changes in Water Quality

We considered annual changes in number of factories discharging wastewater and the amount of wastewater effluent per factory. We found that the amount of effluent per factory tended to decrease, despite an increase in the number of the operational factories for most types of industry (Figure 2). The amount of effluent from the charcoal, petroleum, and uranium mining industries (MCPUI) sharply decreased during the 2000s (i.e., 1,177.4 m3/factory in the 1990s and 164.7 m3/factory in the 2000s). The electric and electronic manufacture industries (MEEI) produced high amounts of effluent during the survey periods, with a major increase in the number of factories after 1995 (i.e., 495 factories). Despite there being a large number of factories in the repair and maintenance industry (range 3,771–17,752 factories), the amount of effluent per factory was relatively low (range 2.2–6.6 m3/factory). However, the amount of effluent per factory continuously increased, despite low effluent levels. In addition, despite a continuous decline in the amount of effluent per factory, the tobacco, pulp, paper, and wood products manufacture industries (MTPPWPI), the refined petroleum products manufacture industry (MRPPI), the clothing manufacture industry (CMI) and the water treatment industry (WTI) represented relatively high levels of annual effluents (MTPPWPI: 697.3–1,465.9, MRPPI: 248.4–1,497.9, CMI: 199.0–520.9, and WTI: 169.9–442.2 m3/factory).

Second, we considered annual changes in water quality variables (i.e., physico-chemical variables, as well as priority and non-priority pollutants) from 1989 to 2008. Most physico-chemical variables were generally improved (Figure 3). For example, annual average values of DO tended to increase, while those of BOD, COD, TSS, TC, TN, and TP continuously decreased. Even though the annual average values of priority and non-priority pollutant variables showed high variation compared to physico-chemical variables, there was a general improvement (Figure 4).

Ijerph 09 01182 g002 1024

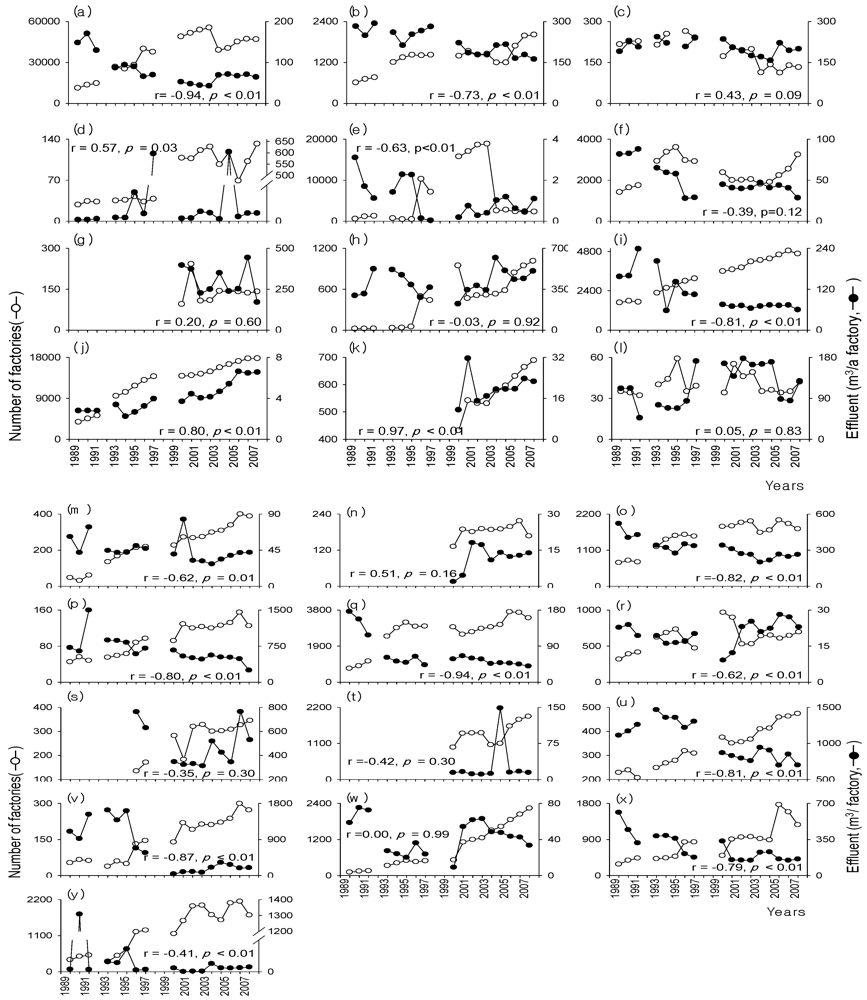

Figure 2. Annual changes both in the number of wastewater discharge factories and in the amount of effluent per factory. (a) total; (b) chemicals and chemical products; (c) leather and allied products; (d) wastewater treatment, waste discharge, and cleaning-related services; (e) printing and related support activities; (f) primary metal manufacture; (g) water purification plant; (h) electric and electronic manufacture; (i) food and drink manufactures; (j) repair and maintenance services; (k) research and development in the physical, engineering, and life sciences; (l) seafood product preparation and packaging; (m) dry cleaning and laundry services; (n) condensation of cleaning facilities of waste gas; (o) clothing manufacture; (p) refined petroleum products; (q) non-metallic mineral products; (r) hospital facility; (s) water supply and irrigation systems; (t) plate work and fabricated structural products; (u) tobacco, pulp, paper, and wood products; (v) charcoal, petroleum, and uranium mining; (w) rubber and plastic products; (x) metal production and processing; and (y) others.

Click here to enlarge figure

Figure 2. Annual changes both in the number of wastewater discharge factories and in the amount of effluent per factory. (a) total; (b) chemicals and chemical products; (c) leather and allied products; (d) wastewater treatment, waste discharge, and cleaning-related services; (e) printing and related support activities; (f) primary metal manufacture; (g) water purification plant; (h) electric and electronic manufacture; (i) food and drink manufactures; (j) repair and maintenance services; (k) research and development in the physical, engineering, and life sciences; (l) seafood product preparation and packaging; (m) dry cleaning and laundry services; (n) condensation of cleaning facilities of waste gas; (o) clothing manufacture; (p) refined petroleum products; (q) non-metallic mineral products; (r) hospital facility; (s) water supply and irrigation systems; (t) plate work and fabricated structural products; (u) tobacco, pulp, paper, and wood products; (v) charcoal, petroleum, and uranium mining; (w) rubber and plastic products; (x) metal production and processing; and (y) others.
Ijerph 09 01182 g002 1024
Ijerph 09 01182 g003 1024

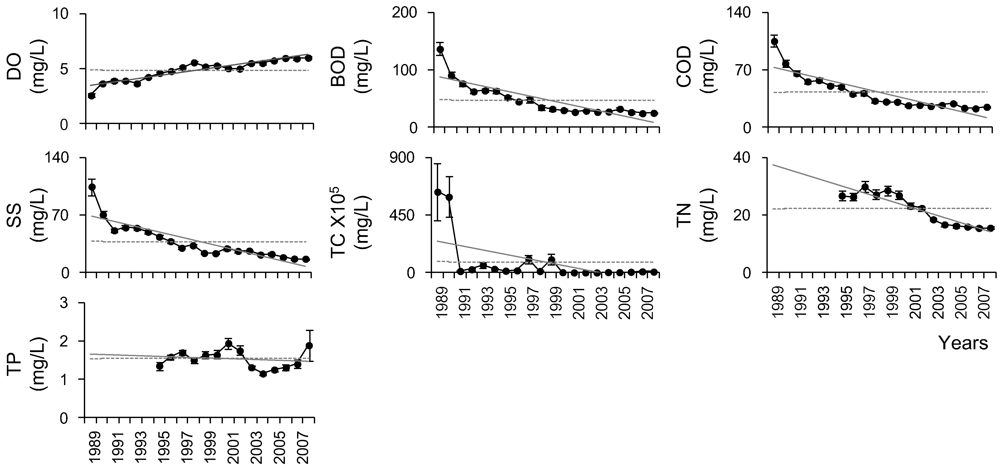

Figure 3. Annual changes in physico-chemical variables from 1989 to 2008. (•: annual mean, Ⅰ: standard error, —: trend line, --: total mean during the survey periods).

Click here to enlarge figure

Figure 3. Annual changes in physico-chemical variables from 1989 to 2008. (•: annual mean, Ⅰ: standard error, —: trend line, --: total mean during the survey periods).
Ijerph 09 01182 g003 1024
Ijerph 09 01182 g004 1024
Figure 4. Annual changes in (a) priority and (b) non-priority pollutants from 1989 to 2008. (•: annual mean, Ⅰ: standard error, —: trend line, --: total mean during the survey periods).

Click here to enlarge figure

Figure 4. Annual changes in (a) priority and (b) non-priority pollutants from 1989 to 2008. (•: annual mean, Ⅰ: standard error, —: trend line, --: total mean during the survey periods).
Ijerph 09 01182 g004 1024

SMK test results based on monthly data also showed that the water quality of most effluents improved (Figure 5). For example, upward trends in DO (indicating improving water quality) were found at 36 out of 61 sites, while downward trends were observed for other physico-chemical factors, including BOD (47 sites), COD (45 sites), TSS (45 sites), TN (33 sites), TP (25 sites), and TC (58 sites).

Ijerph 09 01182 g005 1024
Figure 5. Trends in water quality variables at the 61 monitoring sites of the industrial complexes based on seasonal Mann-Kendall’s test (p < 0.05).

Click here to enlarge figure

Figure 5. Trends in water quality variables at the 61 monitoring sites of the industrial complexes based on seasonal Mann-Kendall’s test (p < 0.05).
Ijerph 09 01182 g005 1024

Out of the nine priority pollutants, decreasing trends were recorded for Cd (23 sites), Cu (27 sites), Zn (37 sites), and phenol (26 sites). In comparison, no significant increasing or decreasing trends were recorded for Cy (46 sites), Pb (50 sites), Cr6+ (59 sites), As (43 sites), and Hg (61 sites). All of the non-priority pollutants, such as Mn (40 sites), Fe (41 sites), and n-hexane (35 sites) tended to decrease at most of the sites.

3.2. Pattern of Water Quality Changes

Differences in water quality at 61 monitoring sites across a 20-year period were characterized using nine priority pollutants on the basis of their similarities in SOM (Figure 6). The SOM output units were further classified into eight clusters (1–8) based on the U-matrix, as well as a hierarchical cluster analysis using Ward’s linkage method with Euclidean distance measures. MRPP showed significant differences in the quantity of the nine priority pollutants among eight clusters (A = 0.17, p < 0.001). The clusters showed differences in the nine priority pollutants among survey sites and years. In general, the relative ratio of samples measured during 1990s was higher in clusters 7 and 8, while the ratio of samples from the 2000s was higher in cluster 1. In addition, most of the sampling sites, including Daepung and Onsan industrial complexes, in which the effluents of nine priority pollutants were relatively low were located in cluster 1. In comparison, monitoring sites, such as Banwol and Nakdong national and Daegu Dying industrial complexes were in cluster 8, with high effluent levels of the nine priority pollutants.

Ijerph 09 01182 g006 1024

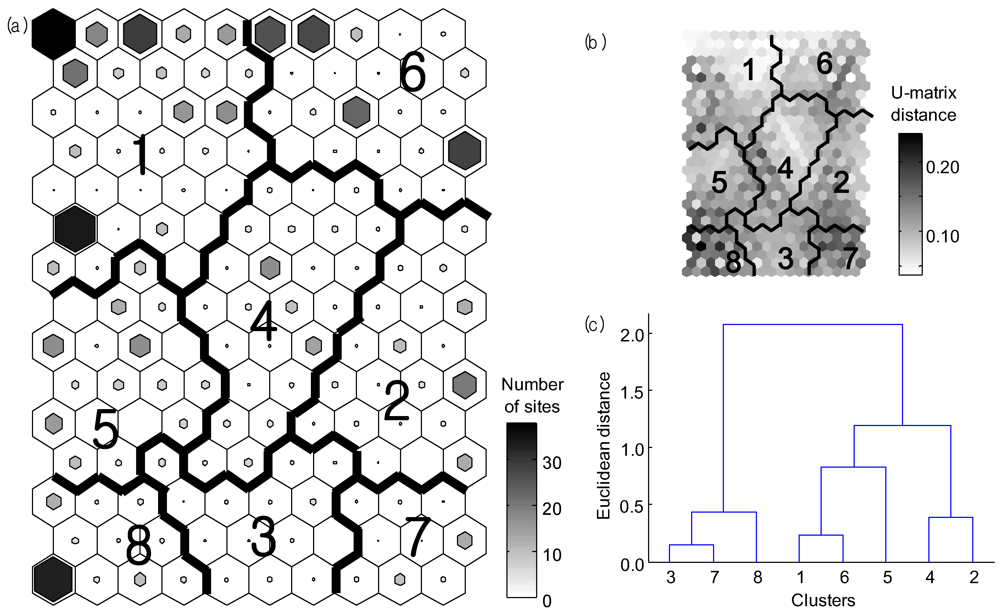

Figure 6. Patterning spatial and temporal changes of effluent quality based on nine priority pollutants at the 61 monitoring sites of the industrial areas in Korea from 1989 to 2008. (a) Classification of the trained samples in the SOM with nine priority pollutants; (b) U-matrix, and (c) Dendrogram of a hierarchical cluster analysis of the SOM units using Ward’s linkage method based on Euclidean distance.

Click here to enlarge figure

Figure 6. Patterning spatial and temporal changes of effluent quality based on nine priority pollutants at the 61 monitoring sites of the industrial areas in Korea from 1989 to 2008. (a) Classification of the trained samples in the SOM with nine priority pollutants; (b) U-matrix, and (c) Dendrogram of a hierarchical cluster analysis of the SOM units using Ward’s linkage method based on Euclidean distance.
Ijerph 09 01182 g006 1024

Other clusters (2 to 6 clusters) included samples mainly surveyed from the mid 1990s and 2000s. In particular, samples from Dalseuong, Daegu 3rd, and Pohang steel industrial complexes, which were surveyed during this period, were included in cluster 6.

3.3. Differences in Water Quality among SOM Clusters

When considering the differences in water quality factors among the eight clusters, water quality primarily declined from clusters 1 to 8 (Table 3). For example, DO was higher in cluster 1, while other physico-chemical factors (including BOD, COD, TSS, TN, and TP) were higher in cluster 8. In contrast, TC was higher in cluster 6. Among the nine priority pollutants, Cy, Pb, Cr6+, As, Hg, Zn, and phenol were higher in clusters 7 and 8, which was similar to the physico-chemical variables. Cd was higher in clusters 2 and 8, while Cu was higher in clusters 3 and 8. All non-priority pollutants showed relatively high values in clusters 7 and 8.

Annual changes in effluent quality were calculated, and presented in the SOM map (Figure 7). For example, the monitoring sites in the Seoul Digital complex, Banwol Plating industrial complex and the Yeongdeungpo mechanical industrial complex moved from cluster 8 to cluster 1, indicating the recovery process of the nine priority pollutants.

Table Table 3. The mean value and standard error of water quality variables in each cluster defined in SOM. Different alphabet letters indicate significant differences among the clusters based on Dunn’s multiple comparison tests (p < 0.05).

Click here to display table

Table 3. The mean value and standard error of water quality variables in each cluster defined in SOM. Different alphabet letters indicate significant differences among the clusters based on Dunn’s multiple comparison tests (p < 0.05).
VariablesCluster
12345678
Physico-chemical variables
DO (mg/L)6.22 (0.12)a5.54 (0.22)ab4.92 (0.39)bc5.18 (0.2)b4.99 (0.18)b4.99 (0.18)b5.13 (0.4)b3.34 (0.28)c
BOD (mg/L)18.41 (2.43)d22.21 (4.61)cd37.08 (8.25)b36.74 (4.29)bc34.74 (3.79)c32.08 (3.69)c43.31 (8.43)ab105.74 (5.78)a
COD (mg/L)20.24 (1.39)d26.15 (2.64)c34.24 (4.74)b28.86 (2.46)bc31.23 (2.17)b30.75 (2.12)b41.91 (4.84)b88.07 (3.31)a
TSS (mg/L)18.42 (1.32)d18.63 (2.5)cd28.77 (4.49)b30.48 (2.33)b28.54 (2.06)b26.39 (2.01)bc28.44 (4.58)b62.06 (3.14)a
TC × 105(mg/L)12.4 (11.2)c2.7 (21.3)b12.5 (38.2)b14.6 (19.8)b10.3 (17.5)b48.8 (17.1)b12.9 (39.0)ab37.8 (26.7)a
TN (mg/L)13.87 (1.1)c22.33 (2.09)b25.03 (3.73)ab22.74 (1.94)b18.48 (1.71)b24.74 (1.67)b39.56 (3.82)a54.49 (2.61)a
TP (mg/L)1.25 (0.11)b1.08 (0.21)b2.1 (0.38)ab1.33 (0.2)b1.87 (0.18)b1.56 (0.17)b1.8 (0.39)b2.65 (0.27)a
Priority pollutant variables
Cd (μg/L)0.13 (0.43)f11.74 (0.83)a1.59 (1.48)bc0.53 (0.77)de0.41 (0.68)ef2.3 (0.66)cd29.07 (1.51)a0.83 (1.04)b
Cy (μg/L)1.19 (9.22)e1.66 (17.52)de9.98 (31.39)b0.96 (16.3)d15.81 (14.4)bc10.67 (14.04)cd119.1 (32.06)b258.56 (21.97)a
Pb (μg/L)0.44 (2.39)b27.53 (4.53)a21.62 (8.12)a14.58 (4.22)a1.48 (3.73)b0.22 (3.63)b38.49 (8.29)a57.39 (5.68)a
Cr6+ (μg/L)0.37 (0.46)c0.01 (0.88)c0.28 (1.57)abc0.35 (0.81)c0.05 (0.72)c0.35 (0.7)c5.22 (1.6)ab8.59 (1.1)a
As (μg/L)2.01 (0.21)c1.21 (0.41)c1.29 (0.73)bc0.36 (0.38)cd0.85 (0.33)c0.07 (0.33)d3.17 (0.75)ab5.47 (0.51)a
Hg (μg/L)0.01 (0.01)b0.06 (0.01)b0.02 (0.02)b0.00 (0.01)b0.02 (0.01)b0.00 (0.01)b0.08 (0.02)ab0.10 (0.02)a
Cu (μg/L)11.8 (28.9)f35.6 (55.0)cd462.7 (98.5)bc45.2 (51.2)de31.3 (45.2)e49.6 (44.1)c176.1 (100.6)ab958.4 (68.9)a
Zn (μg/L)78.9 (75.8)e236.9 (144.1)bc708.4 (258.0)ab172.2 (134.0)cd130.3 (118.4)d239.1 (115.4)b999.8 (263.5)a2,054.9 (180.6)a
Phenol (μg/L)1.5 (12.0)b0.6 (22.8)b29.6 (40.8)a2.4 (21.2)b62.0 (18.7)a0.6 (18.2)b22.7 (41.6)a443.4 (28.5)a
Non-priority pollutant variables
Mn (μg/L)128.7 (25.1)c418.3 (47.8)b293.4 (85.5)ab200.1 (44.4)b196.2 (39.2)b384.1 (38.3)b1045.4 (87.4)a491.1 (59.9)a
Fe (μg/L)251.0 (40.5)d454.1 (76.9)b544.6 (137.8)b497.3 (71.5)c413.9 (63.2)c568.4 (61.6)bc587.1 (140.7)ab1,903.2 (96.4)a
n-hexane (μg/L)648.4 (92.9)c520.3 (176.6)b1,504.9 (316.2)b1,426.8 (164.2)b1,215.4 (145.1)b1,014.9 (141.4)b1,871.1 (323.0)b3,536.7 (221.3)a
Ijerph 09 01182 g007 1024

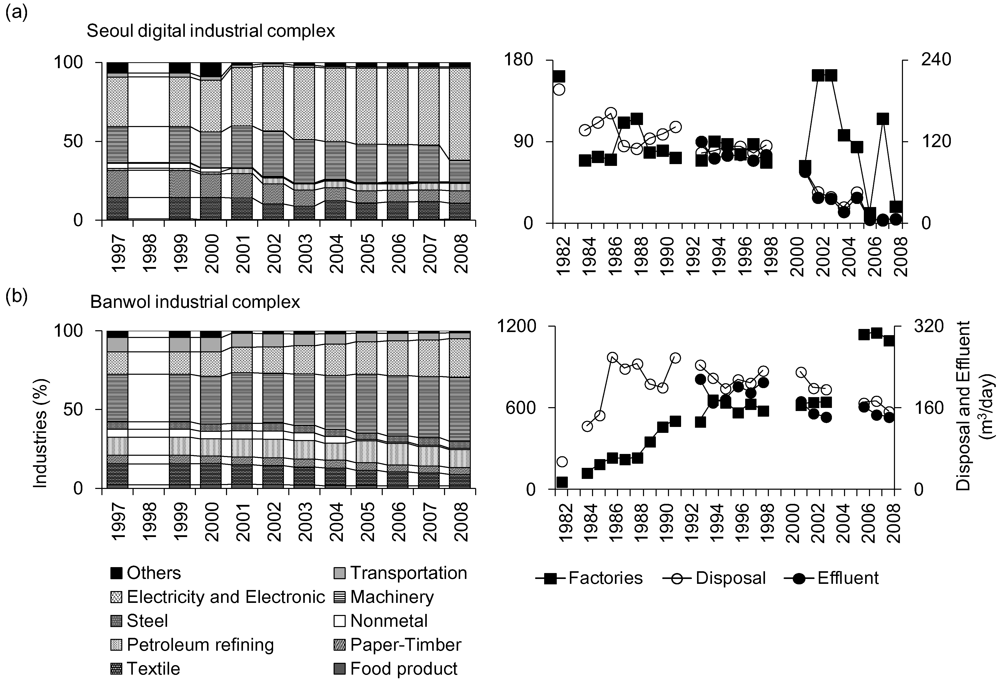

Figure 7. Annual changes in industry types from 1999 to 2008 and temporal changes in wastewater effluent at (a) the Seoul Digital industrial complex and (b) the Banwol industrial complex.

Click here to enlarge figure

Figure 7. Annual changes in industry types from 1999 to 2008 and temporal changes in wastewater effluent at (a) the Seoul Digital industrial complex and (b) the Banwol industrial complex.
Ijerph 09 01182 g007 1024

In the Seoul Digital industrial complex, which showed an increase in the electronics and electrical industry with a decrease in the annual changes of discharge and effluent (Figure 7a), all samples were located in cluster 8 during the early period (1992–1995), representing relatively high values for priority pollutant variables (Figure 8a). However, these sites moved from cluster 8 to clusters 1 and 4, indicating relatively cleaner states as time progressed. At the Banwol industrial complex, sampling sites were mainly located in cluster 8, and sometimes crossed over to cluster 7 (Figure 8b). The Banwol industrial complex was represented by a high ratio of machinery industry and electric and electronic industries, with a slight decrease in annual discharges and effluent after 1985. Of note, the last two monitoring sites were placed in cluster 5. In contrast, most samples obtained from the Cheonheung industrial complex were located in cluster 1 (Figure 8c).

4. Discussion

Since industrial complexes were first built in the 1960s in Korea, industries have mainly focused on economic growth, with limited attention to environmental protection. Industrial complexes that have intensive production activities in a limited space are likely to cause a high occurrence of environmental pollution and issues [33]. However, increasing social concerns and the requirement for the environmental conservation has resulted in the development of stringent environmental standards and legislation being applied to industrial complexes to achieve cleaner production, and a reduction of all types of pollution [33,34,35]. Hence, to effectively manage effluents, it is important to obtain baseline information about the changes in water quality at industrial areas over time. Therefore, in this study, we used SMK and SOM analyses to evaluate changes in water quality at 61 monitoring sites that were located near industrial complexes across Korea (i.e., at a national scale) over a 20-year period spanning 1989–2008.

Ijerph 09 01182 g008 1024

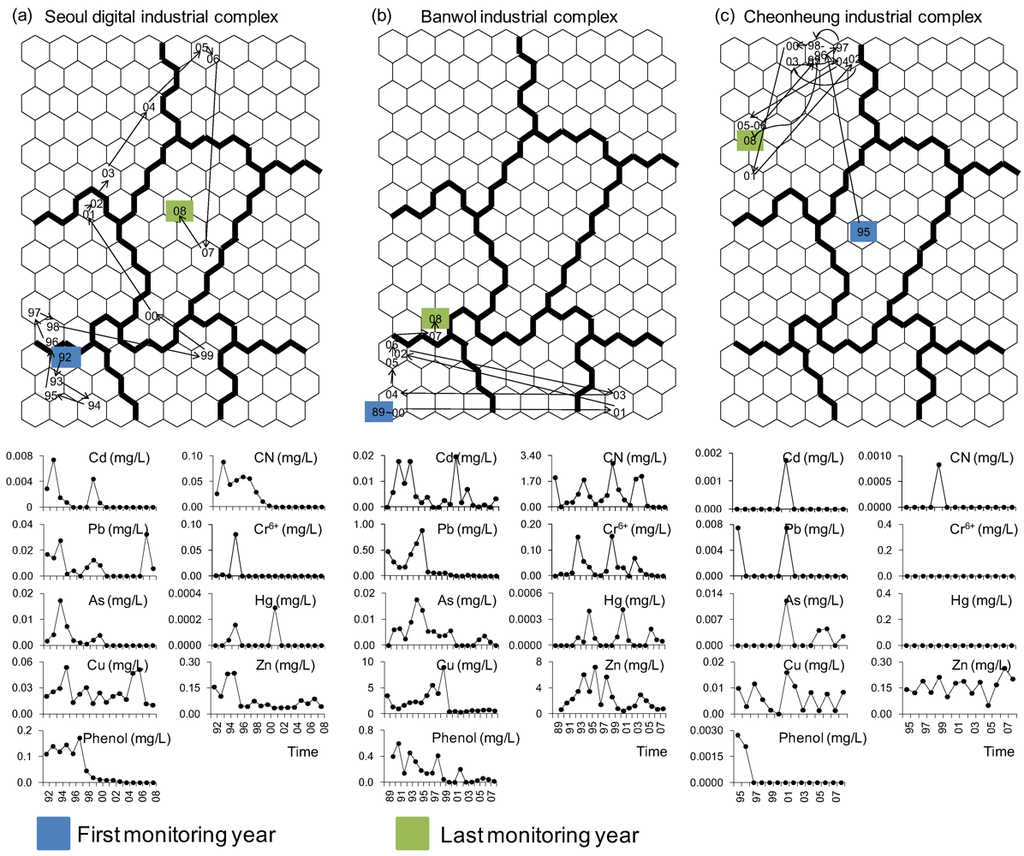

Figure 8. Temporal changes of effluent quality in the SOM ordination and annual changes of nine priority pollutants at (a) the Seoul digital industrial complex; (b) the Banwol industrial complex; and (c) the Cheonheung industrial complex.

Click here to enlarge figure

Figure 8. Temporal changes of effluent quality in the SOM ordination and annual changes of nine priority pollutants at (a) the Seoul digital industrial complex; (b) the Banwol industrial complex; and (c) the Cheonheung industrial complex.
Ijerph 09 01182 g008 1024

Because key industrial types have changed over time, the amount of effluent according to the industrial types has also changed. In the 1960s, industries were primarily low-skilled, labor intensive, and light, such as the textile and wig industries. This was followed in the 1970s with capital intensive, heavy, and chemical industries, such as steel, machinery, and petrochemical industries. In the 1980s, assembly processing industries, such as consumer-electronics, shipping, and the automotive industry, were dominant. Finally, since the 1990s, the information technology industry, such as the semiconductor industry, computer industry, and telecommunications equipment industry, has been the primary focus of Korean industries. Our results showed that the amount of effluents in MEEI (1990s key industry) was relatively high, with small annual variation. In contrast, the amount of effluent in most other industrial types showed a continuous decline, including the clothing manufacturing industry (1960s key industry), MRPPI (1970s key industry), and metal production and processing industry (1980s key industry).

Based on annual and monthly changes in water quality, there was a general improvement in effluent quality at most of the 61 monitoring sites. For example, DO gradually increased, while other factors (including BOD, COD, TN, and TP) continuously decreased (Figure 3 and Figure 4). This improvement in water quality might be explained by several legislative efforts in Korea. For instance, water quality standards have strengthened through legal amendments. Since the Environmental Pollution Prevention Act was enacted in 1963, the constitution was amended to the Environment Conservation Act (1978) and Water Quality Conservation Act (1991). However, the water quality control activities were not efficient, because the government mostly focused on industrial and economic development, with limited attention on environmental protection. As economic levels and social development increased, present day social concern and the requirement for the environmental protection strengthened, which led to the development of the Water Quality and Ecosystem Conservation Act (2008). This act has been subject to several amendments that have resulted in the strengthening and refining of the water quality standards, which in turn have contributed to the continuous improvement in water quality. At present, 32 variables are used as parameters to assess water quality. In addition, TMDLs, which differently stipulate the maximum amount of pollutants according to the regions (e.g., watershed, city, or province), have been implemented since August 2004. If the criteria are not met, the local government has the authority to regulate the budget or development work of the industries [36]. The first phase (2004–2010) of TMDL was performed in the Nakdong River basin (from 2004), the Yeongsan River basin (from 2005), and the Seomjin River basin (from 2005). BOD was selected as a criterion for TMDL during the first phase, with the addition of TP during the second phase (2011–2015) [15].

With improvements in the quality of life, recognition and concerns about environmental pollution have changed, along with the policies regarding environmental issues. One of the most representative examples reflecting the power of environmental non-governmental organizations (NGOs) and public response is the Nakdong River phenol emissions. In 1991, citizens in Daegu, which is the third largest city in Korea, identified a foul smell in the tap water [37]. Water supply authorities found that the smell was caused by phenol leakage into the Nakdong River from a large electronics company (more than 30 tons of phenol liquid was released). Hence, the environmental NGOs and citizens organized a phenol investigation team, and boycotted all products from the company at a national scale. Through this incident, public awareness concerning water pollution rapidly increased, and later, an act on special measures for the control of environmental offences was introduced [34].

In addition, as environmental pollution has become a major issue at an international scale, the world community has implemented many comprehensive approaches, including treaties and establishing international organizations to achieve sustainable development. For example, the World Summit on Sustainable Development (WSSD), which took place in Johannesburg, South Africa, in 2002, discussed the issues of Water, Energy, Health, Agriculture, and Biodiversity (WEHAB), along with potential counterstrategies that the international community might take. Such counterstrategies included the increased use of renewable energy, the establishment of a 10-year plan for sustainable production and consumption, and a reduction in the quantity of discharged waste [35]. Furthermore, the World Water Forum is held every three years, and it raises awareness about water-related issues (e.g., water supply and water pollution). At the Rio Earth Summit in 1992, the UN also established World Water Day, which is held on 22 March every year, to focus public attention on critical water issues of our era.

In 2003, the Eco-Industrial Parks (EIP) was established in Korea, which is a national initiative to protect the environment [38]. The objective of the EIP is to minimize the impact of environmental pollution by participating industries and enhance economic outputs. Within the EIP plan, there are three steps to promote 27 EIP for 15 years. Hence, the EIP aims towards developing “green” industry, cleaner production, pollution control, and an increase in energy efficiency, as well as cooperation among companies. Standard industrial complexes only consider raw materials and products, whereas EIP also consider by-product and wastes. Currently, pilot EIP projects are in progress at the Pohang, Yeosu, Ulsan, Banwol, Sihwa, and Cheongju industrial complexes. In 2009, EIP had economic effects of around 340 thousand U.S. dollars, and reduced CO2 emissions by about 184,000 tons [35].

The SOM analysis provided a good representation of the observed trends in water quality in this study. Water quality declined from cluster 1, which mainly comprised the 2000s data, to cluster 8, which mainly comprised 1990s data. In addition, the ordination location of each sampling site in the SOM ordination map changed according to the sampling time, reflecting temporal changes in the numbers and types of industrial complexes. For example, the Seoul Digital industrial complex, which moved from cluster 8 to cluster 1 as time progressed, is one of the representative industrial complexes that reflects Korean industrial type changes. During the 1960s, the Seoul Digital industrial complex was mainly focused on export industries (e.g., the textile industry), whereas it has recently been increasingly focused on high-tech industry, information-knowledge based industry, and major company and venture businesses [39]. The venture center was initially constructed by the Korea Industrial Complex Corporation in 2000, with the Seoul Digital industrial complex rapidly shifting into an advanced urban industrial complex. In comparison, at Banwol industrial complex, which was mainly ordinated in cluster 8 for most of the survey period, most priority pollutants tended to decrease along with other physico-chemical variables that also represent an improvement in water quality, despite these variables being relatively higher compared to other industrial complexes. Based on 2008 data, the amount of wastewater discharge (168,845 mg/L, 6.8%) and effluent (156,931 mg/L, 7.5%), as well as the amount of organic loading discharge and effluent, was the highest at this site compared to all other industrial complexes [40]. Even though the ratio of the machinery industry is relatively high, based on Korean standard industrial classification, all types of manufacturing industries are heavily aggregated with small to medium-sized factories, causing difficulty in the efficient management of wastewater. Hence, intensive management, as well as controlling the occurrence of pollution sources, is necessary at the Banwol industrial complex.

5. Conclusions

We have evaluated changes in the spatial and temporal trends of water quality in Korea from 1989 to 2008 using WQMN datasets collected by the Ministry of Environment. When considering annual changes in water quality and SMK, physico-chemical factors, as well as priority and non-priority pollutants, indicated an improvement at monitoring sites for effluents of the industrial complexes. Furthermore, the SOM results also indicated an improvement in water quality, as well as decrease in the amount of effluent from priority pollutants produced by industrial complexes. However, even though water quality showed an improvement, continued long-term monitoring is necessary to establish plans and policies for wastewater management and health assessment in the future.

Acknowledgments

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MEST) (No. 2010-0027360).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. de Zwart, D. Monitoring Water Quality in the Future. In Biomonitoring; National Institute of Public Health and Environmental Protection (RIVM): Bilthoven, The Netherlands, 1995; Volume 3. [Google Scholar]
  2. Copeland, C. Water Quality: Implementing the Clean Water Act; CRS Report for Congress; US Congress: Washington, DC, USA, 2006. Available online: http://ncseonline.org/NLE/CRSreports/07Jan/RL33466.pdf (accessed on 3 October 2007).
  3. Copeland, C. Water Quality Issues in the 111th Congress: Oversight and Implementation; Congressional Research Service Reports; US Congress: Washington, DC, USA, 2009. [Google Scholar]
  4. DIRECTIVE 2000/60/EC of the European Parliament and of the Council Establishing a Framework for Community Action in the Field of Water Policy; European Union Law; EUR-Lex Home: Brussels, Belgium, 2000.
  5. Kallis, G.; Butler, D. The EU water framework directive: Measures and implications. Water Policy 2001, 3, 125–142. [Google Scholar]
  6. Council of the European Communities (CEC). Directive concerning the quality of surface waters intended for the abstraction of drinking water (75/440/EEC). Off. J. 1975, L194, 26.
  7. Council of the European Communities (CEC). Directive concerning the quality of bathing waters (76/160/EEC). Off. J. 1976, L31, 1.
  8. Council of the European Communities (CEC). Directive concerning the quality of fish waters (78/659/EEC). Off. J. 1978, L222, 1.
  9. Council of the European Communities (CEC). Directive concerning the quality of shellfish waters (79/923/EEC). Off. J. 1979, L281, 47.
  10. Council of the European Communities (CEC). Directive concerning urban waste water treatment (91/271/EEC). Off.J. 1991, L135, 40–52.
  11. Benedetti, L. Probabilistic Design and Upgrade of Wastewater Treatment Plants in the EU Water Framework Directive Context. Ph.D. Thesis, Ghent University, Ghent, Belgium, 2006. [Google Scholar]
  12. Kim, S.Y. Management status of industrial complex and policies. Environ. Inf. 2006, 28, 14–18. [Google Scholar]
  13. Korean Ministry of Environment. The Management and Improvement Plan of Industrial Wastewater; Ministry of Environment: Seoul, Korea, 2008.
  14. Shim, J.D.; Kang, H.K.; Lim, J.S.; Lee, C.M.; Han, J.E.; Seo, S.N.; Choe, C.S.; Kim, Y.H. A study on the water quality of effluent from Namdong industry complex. Rep. Incheon Inst. Heal. Environ. 2010, 12, 264–292. [Google Scholar]
  15. Korean Ministry of Environment. The Operating Plan of the Water Quality Monitoring Networks; Ministry of Environment: Seoul, Korea, 2011.
  16. Hirsch, R.M.; Slack, J.R.; Smith, R.A. Techniques of trend analysis for monthly water-quality data. Water Resour. Res. 1982, 18, 107–121. [Google Scholar] [CrossRef]
  17. Lettenmaier, D.P.; Hooper, E.R.; Wagoner, C.; Faris, K.B. Trends in stream quality in the continental United States, 1978–1987. Water Resour. Res. 1991, 27, 327–339. [Google Scholar] [CrossRef]
  18. Yu, Y.-S.; Zou, S.; Whittenmore, D. Non-parametric trend analysis of water quality data of rivers in Kansas. J. Hydrol. 1993, 150, 61–80. [Google Scholar] [CrossRef]
  19. Zipper, C.E.; Holtzman, G.I.; Darken, P.F.; Gildea, J.J.; Stewart, R.E. Virginia USA water quality, 1978 to 1995: Regional interpretation. J. Am. Water Resour. Assoc. 2002, 38, 789–802. [Google Scholar] [CrossRef]
  20. Chang, H.J. Spatial and temporal variations of water quality in the Han River and its tributaries, Seoul, Korea, 1993–2002. Water Air Soil Pollut. 2008, 161, 267–284. [Google Scholar]
  21. Kohonen, T. Self-organized formation of topologically correct feature maps. Biol. Cybern. 1982, 42, 59–69. [Google Scholar] [CrossRef]
  22. Kohonen, T. Self-Organizing Maps, 3rd ed.; Springer: Berlin, Germany, 2001. [Google Scholar]
  23. Park, Y.S.; Chang, J.; Lek, S.; Cao, W.; Brosse, S. Conservation strategies for endemic fish species threatened by the Three Gorges Dam. Conserv. Biol. 2003, 17, 1748–1785. [Google Scholar] [CrossRef]
  24. Alhoniemi, E.; Himberg, J.; Parhankangas, J.; Vesanto, J. SOM Toolbox; Laboratory of Information and Computer Science, Helsinki University of Technology, 2000. Available online: http://www.cis.hut.fi/projects/somtoolbox/ (accessed on 31 March 2012).
  25. The Mathworks, Inc. MATLAB Version 6.1, The Mathworks, Inc. Natick, MA, USA, 2001.
  26. Ultsch, A. Self-Organizing Neural Networks for Visualization and Classification. In Information and Classification; Opitz, O., Lausen, B., Klar, R., Eds.; Springer-Verlag: Berlin, Germany, 1993; pp. 307–313. [Google Scholar]
  27. Ward, J.H. Hierarchical grouping to optimize an objective function. J. Am. Stat. Assoc. 1963, 58, 236–244. [Google Scholar]
  28. Jain, A.K.; Dubes, R.C. Algorithms for Clustering Data; Prentice Hall: Englewood Cliffs, NJ, USA, 1988. [Google Scholar]
  29. McCune, B.; Mefford, M.M. PC-ORD-Multivariate Analysis of Ecological Data, Version 4.25, MjM Software, Glenden Beach, OR, USA, 1999.
  30. Crathorne, B.; Dobbs, A.J. Chemical Pollution of the Aquatic Environment by Priority Pollutants and its Control. In Pollution: Causes, Effects and Control; Harrison, R.M., Ed.; The Royal Society of Chemistry: Cambridge, UK, 1990; pp. 1–18. [Google Scholar]
  31. Zar, J.H. Biostatistical Analysis; Prentice Hall: Upper Saddle River, NJ, USA, 1999. [Google Scholar]
  32. StatSoft Inc. STATISTICA (Data Analysis Software System), Version 7, 2004. Available online: http://www.statsoft.com (accessed on 31 March 2012).
  33. Cho, H.Y. Issue of environmental pollution in industrial complex and the challenges of eco-industrial complex. Ind. Land Inf. 2006, 21, 2–7. [Google Scholar]
  34. Moon, C.I.; Lim, S.H. Weaving through paradoxes: Democratization, globalization, and environment politics in South Korea. East Asian Rev. 2003, 15, 43–70. [Google Scholar]
  35. Ku, M.J. The Current State and Prospects of Korea’s Eco-Industrial Parks. Ph.D. Thesis, Pusan National University, Pusan, Korea, 2010. [Google Scholar]
  36. Park, J.H.; Rhew, D.H.; Jung, D.I. Water quality status of the unit watersheds in the Yeongsan/Seomjin River Basin since the management of total maximum daily loads. J. Korean Soc. Water Qual. 2011, 27, 719–728. [Google Scholar]
  37. Lee, S.H. The discursive politics of water: Interurban struggles in the Nakdong River Catchment in South Korea. Urban Policy Res. 2002, 20, 281–298. [Google Scholar]
  38. Park, H.S.; Rene, E.R.; Choi, S.M.; Chiu, A.S.F. Strategies for sustainable development of industrial park in Ulsan, South Korea-from spontaneous evolution to systematic expansion of industrial symbiosis. J. Environ. Manag. 2008, 87, 1–13. [Google Scholar] [CrossRef]
  39. Lee, I.M. Restructuring and Managerial Improvement of Industrial Complexes: The Case of Seoul Digital Complex. Ph.D. Thesis, Dankook University, Gyeonggi-do, Korea, 2008. [Google Scholar]
  40. National Institute of Environmental Research. Generation and Process of Industrial Wastewater:The Result of the Factories Emitted Environmental Pollution Materials; Ministry of Environment: Seoul, Korea, 2010. (based on December 2008)..
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
