Comparative Survival and the Cold-Induced Gene Expression of Pathogenic and Nonpathogenic Vibrio Parahaemolyticus from Tropical Eastern Oysters during Cold Storage

Abstract

Expression of the regulatory stress rpoS gene controls the transcription of cspA genes, which are involved in survival and adaptation to low temperatures. The purpose of this study was to assess the growth kinetics of naturally occurring V. parahaemolyticus in shellstock oysters and in vitro and the cold-shock-induced expression of the rpoS and cspA gene response in vitro during postharvest refrigeration. Naturally contaminated eastern oysters (Crassostrea virginica) and pathogenic (Vp-tdh) and nonpathogenic (Vp-tlh) isolates were stored at 7 ± 1 °C for 168 h and 216 h, respectively. The regulatory stress (rpos) and cold-shock (cspA) gene expressions were determined by reverse transcription PCR. At 24 h, the (Vp-tdh) strain grew faster (p < 0.05) than the (Vp-tlh) strain in oysters (λ = 0.33, 0.39, respectively) and in vitro (λ = 0.89, 37.65, respectively), indicating a better adaptation to cold shock for the (Vp-tdh) strain in live oysters and in vitro. At 24 h, the (Vp-tdh) strain rpoS and cspA gene expressions were upregulated by 1.9 and 2.3-fold, respectively, but the (Vp-tlh) strain rpoS and cspA gene expressions were repressed and upregulated by −0.024 and 1.9-fold, respectively. The V. parahaemolyticus strains that were isolated from tropical oysters have adaptive expression changes to survive and grow at 7 °C, according to their virulence.

1. Introduction

Vibrio parahaemolyticus is a gram-negative halophilic bacterium that commonly inhabits marine and estuarine waters worldwide. Infections caused by V. parahaemolyticus have increased in different parts of the world in recent years [1]. This pathogen is the leading cause of gastroenteritis associated with the consumption of raw, undercooked, or poorly marinated seafood, including fish, crustaceans, and, particularly, oysters [2]. Thermolabile hemolysin (TLH), encoded by the tlh gene, is used to identify both clinical and environmental strains of V. parahaemolyticus [3]. The main factors of V. parahaemolyticus virulence are thermostable direct hemolysin (TDH), encoded by the tdh gene, and thermostable-related hemolysin (TRH), encoded by the trh gene. However, the complete mechanism of pathogenesis remains unclear. These genes have typically been reported in low percentages (1% to 2%) of nonclinical isolates and about 10% of clinical strains do not contain tdh and/or trh [4]. However, we have reported a significantly higher frequency of the tlh+/tdh+ gene during winter (15.4%) in V. parahaemolyticus isolates from eastern oysters (Crassotrea virginica) harvested in the Mandinga Lagoon System (MLS) [5]. Another study in the state of Sinaloa, Mexico found that 71.7% of environmental strains of V. parahaemolyticus had the tdh gene [6]. Environmental isolates lacking tdh and/or trh are also highly cytotoxic to human gastrointestinal cells. Even in the absence of these hemolysins, V. parahaemolyticus remains pathogenic, indicating that other virulence factors exist [4]. The more infectious pandemic serotype O3:K6 contains the orf8 gene, a filamentous phage that is associated with pandemic strains of V. parahaemolyticus. The orf8 gene is believed to encode an adherence protein that increases the ability of V. parahaemolyticus to adhere to host intestinal cells or to the surfaces of marine plankton. The occurrence of orf8 genes in foodborne V. parahaemolyticus strains has been reported and considered as an additional virulence factor [7]. In México, between 2004 and 2010, recurrent cases of gastroenteritis were reported in both South and North areas of the state of Sinaloa in Northwest Mexico, causing >79% of reported cases due to pandemic O3:K6 strains of V. parahaemolyticus [6]. In the state of Veracruz, 27 cases of V. parahaemolyticus-induced diarrhea were recorded in 2014, of which two were in the Port of Veracruz. In 2015, 27.70% of the state’s cases were reported in the metropolitan zone of Port of Veracruz-Boca del Río [8].

Refrigeration has been the most commonly used method for short-term storage to preserve quality and extend the shelf life of shellfish. Maintaining the cold chain from harvest through to consumption is critical for preserving freshness and quality as well as for ensuring the safety of shellfish products [9]. Nevertheless, the safety of oysters may be compromised because V. parahaemolyticus strains vary in their ability to survive and grow at low temperatures. It has been reported that the concentration of pathogenic V. parahaemolyticus (trh+) decreased (p < 0.05) faster than that of nonpathogenic (tlh+) in broth and oyster slurry at 10 °C [10]. In contrast, the density of V. parahaemolyticus nonpathogenic (tlh+) and pathogenic (tdh+, trh+, tdh+/trh+, and tdh+/orf8+) strains increased significantly by day 3 in eastern oysters (C. virginica) stored at 7 °C for 9 days [11]. It has been reported that during cold storage (3 °C), V. parahaemolyticus undergoes physiological stress [12]. This stress response involves changes in the gene expression and drastically alters the physical and biological parameters of a living cell [13]. To adapt to cold shock, the expression of rpoS, a regulatory gene, controls the transcription of specific genes, such as cspA [14]. It has been observed that the cspA gene, which encodes cold shock protein (CSP), showed a 30-fold upregulation of the transcriptional level at 10 °C, but below this temperature, bacterial growth was arrested; this outcome suggests that CspA could be the major cold shock protein in V. parahaemolyticus during low-temperature growth [15].

In Mexico, oysters are harvested extensively within the oyster-producing areas found along the Mexican Gulf Coast. The state of Veracruz is the primary oyster producer, with 42% (23,119 tons) of the annual average oyster harvest [16]. The Mandinga Lagoon System (MLS), located in the central region of the state of Veracruz, is one of the most important shellfish-producing estuarine lagoon systems along Mexico’s Gulf coast. The climate in this region is tropical [17]. The eastern oyster (C. virginica) is one of the most popular bivalve mollusks and is widely consumed in large quantities. Approximately 52,526 tons of oysters are consumed annually, with an annual per capita of 0.43 kg [16], and 85.9% of consumers eat them raw [18]. Oysters are sold live in the whole shell, fresh or refrigerated in sacks, shucked in the fresh form, or packaged and refrigerated in polyethylene bags. Oysters are sent packaged to nearby local markets, retail stores, restaurants, oyster bars, and purchased by street vendors mostly in the Metropolitan Area of Veracruz, which includes the municipalities of Veracruz, Boca del Río, and Alvarado [19].

According to the Mexican Norm NOM-242-SSA1-2009 [20], which provides guidelines for the sanitary control and commerce of shellfish in Mexico, shellstock oysters should be kept alive and adequately refrigerated at 7 °C for a maximum of 7 days to ensure safe consumption. Because of the importance of raw oysters in gastronomy and economics, their microbial safety is of major interest. Our previous studies have indicated that V. parahaemolyticus is capable of surviving during refrigeration [11]. This capability may be associated with the molecular mechanisms related to the expression of stress (rpoS) and cold-shock (cspA) genes. Despite its impact on public health and the oyster industry, the cold response of V. parahaemolyticus strains in tropical eastern oysters during low temperature storage has been scarcely studied. To better understand the V. parahaemolyticus response to refrigeration temperatures, the aim of our study was to assess the survival kinetics of nonpathogenic and pathogenic V. parahaemolyticus strains in live shellstock oysters, the in vitro survival kinetics of nonpathogenic and pathogenic V. parahaemolyticus strains isolated from the tropical eastern oyster (C. virginica), and the in vitro expression levels of the rpoS and cspA genes that are induced by cold shock at the shellstock temperature refrigeration storage conditions recommended under the Mexican Regulations.

2. Materials and Methods

2.1. Area of Study and Sample Collection

A total of 600 live oysters of medium legal size (7 to 8 cm long) (NMX-FF-001-SCFI-2011) [21] (SE, 2011) were harvested manually by divers from the banks of the Canal de Mandinga during the windy season and were immediately transported in coolers at 4 °C to the laboratory following the Mexican Norm of the Mexican Ministry of Health [20]. Dead or empty oysters were discarded (30–50 oysters) and the remaining oysters were scrubbed and rinsed under cold running tap water to remove debris and attached algae. Experiments on live animals were approved by the Bioethics and Animal Welfare Committee of Veterinary Faculty, confirming compliance with all requirements of Mexico (approval code 090116).

2.2. Survival under Cold Shock Conditions in Live Shellstock Oysters

After cleaning, 500 (250 oysters per replicate) naturally contaminated shellstock oysters were immediately stored in hermetic plastic boxes in the same laboratory chamber at the same time at 7 ± 1 °C for up to 7 days (168 h) to study the effect of temperature downshift (cold shock) on V. parahaemolyticus strains growth, imitating the time-of-harvest and time-of-refrigeration conditions in accordance with those currently mandated by the Mexican Minister of Health NOM-242-SSA1-2009 [20]. To identify and quantify the total and pathogenic density of V. parahaemolyticus strains, 40 oysters were shucked under aseptic conditions to attain 200 g of oyster sample (150 g of meat and 50 g of intravalvular fluid) and were analyzed at 0, 24, 72, 120, and 168 h in duplicate, following the MPN-PCR (Most Probable Number-Polymerase Chain Reaction) procedure described previously [5]. These time points were selected according to the storage period registered in the restaurants and cocktail bars surveyed [17]. This experiment was conducted three times during the season.

2.3. Isolation and Purification of V. Parahaemolyticus Strains from Oysters for an In Vitro Study

V. parahaemolyticus strains were isolated from the natural contaminated shellstock oyster samples during the former in live assay at 0 h. The isolation and purification of V. parahaemolyticus strains were carried out following the MPN-PCR (Most Probable Number-Polymerase Chain Reaction) procedure described previously [5]. First, 200 g of oyster sample (150 g of meat and 50 g of intravalvular fluid) were mixed with 200 mL phosphate-buffered saline (PBS) and blended for 120 s to make a 1:1 dilution. The shellfish homogenate was added to alkaline peptone water in a three-tube MPN dilution series prepared up to 1:10⁴ dilution according to the standard three-tube MPN procedure. The tubes were incubated at 35 °C for 24 h. After a 24 h incubation, one loopful from each positive broth tube was streaked onto plates containing CHROMagar™ Vibrio (CHROMagar Microbiology, Paris, France) and were incubated at 35 °C for 24 h. At least 20 well-grown mauve colonies of the presumptive V. parahaemolyticus from each inoculated CHROMagar plate were selected and inoculated in T1N8 agar and were incubated at 35 °C for 18 h for purification.

V. parahaemolyticus presumptive isolates were identified by biochemical characteristics using Kligler iron agar slants (KIA), lysine iron agar (LIA), motility-indole-ornithine medium (MIO), Moeller decarboxylase broth media, and arginine dihydrolase tests; pure control cultures (CAIM www.ciad.mx/caim) were subcultured onto nutrient agar (with 2% NaCl) and were tested as well. All agar media were BD Bioxon (Becton Dickinson de México S.A. de C.V., México). Afterwards, the oxidase test (p-aminodimethylaniline) (Becton Dickinson, NJ, USA) was performed on growth from presumptively positive isolates, which were confirmed by PCR analysis as described by us previously [5]. The 16S ribosomal rRNA gene of V. parahaemolyticus isolates were amplified by PCR and were sequenced at the Biotechnology Institute of the National Autonomous University of México (UNAM) [22,23]. The sequences obtained were analyzed and compared with sequences from GenBank using BLASTn by NCBI (http://blast.ncbi.nlm.nih.gov). Among the V. parahaemolyticus, 20 that were confirmed positive were attained from live oyster assay at time 0 h, then 10/20 were identified as tlh+ of which 3/10 were identified as tdh+. The 16S ribosomal RNA sequencing of the purified strains indicated a high genetic similarity (99.5%) with the reference sequence of Vibrio parahaemolyticus strain TJA114 partial sequence (GenBank accession no. MK796103.1). Analysis with the Serial cloner 2.6 software identified the cspAI gene. The strains that were scored as positive were maintained and routinely grown on Trypticase soy agar (TSA) (BIOXON Becton Dickinson S.A de C.V., Mexico) at 35 °C until the in vitro study. The commercially available O3-Group and K6-Group antiserum kit (Hardy Diagnostics, CA, USA) was used for serological O3:K6 (pandemic clone) tying of the V. parahaemolyticus tdh+ strains following the manufacturer’s instructions. The isolated positive pathogenic (Vp-tdh) strains were not O3:K6 (pandemic clone). Hence, the V. parahaemolyticus tlh+ and tdh+ positive strains isolated from live oyster assay at time 0 h were used for the in vitro study as no trh+, tdh/trh+, and orf8+ strains were isolated.

2.4. Survival under Cold Shock Conditions In Vitro

In order to understand the effect of temperature downshift on the growth kinetics of V. parahaemolyticus after cold shock and the cold-induced expression of the regulatory stress (rpos) and cold shock (cspA) genes, five tlh+ and the three tdh+ purified strains were studied in vitro during refrigerated storage by mimicking the refrigeration conditions of 7 °C for up to 216 h (9 days), two more days than the 7 days currently recommended by the NOM-242-SSA1-2009. For the in vitro assay, one loopful of each of the pathogenic and nonpathogenic strains were inoculated separately in 25 mL of tryptone soy broth (TSB) (BBL/Difco Laboratories, Sparks, MD, USA) supplemented with 3% NaCl at 35 °C for 24 h. After incubation, the diluted cultures reached a population of 10^2 to 10^3 log CFU/mL. Then, 50 µL of broth cultures were inoculated in 50 mL tryptone soy broth supplemented with 3% NaCl in 500 mL Erlenmeyer flasks and were incubated at 35 °C for 2 h. After the incubation period, the cultures were transferred to 7 ± 1 °C (cold shock) for 216 h (9 days). At various time intervals from initial growth to 216 h (0, 24, 72, 120, 168, and 216 h), the viable count was monitored by surface plating 1 mL of each bacterial suspension according to the serial dilution procedure following the Mexican Norm NOM-242-SSA1-2009 approved method [20]. After serial dilutions, the viable count was made on triplicate CHROMagar™ Vibrio plates inoculated and incubated at 35 °C for 24 h. To detect any injured V. parahaemolyticus cells after cold shock, 1 mL of each bacterial suspension of the appropriate dilution was plated onto nutrient agar (BIOXON Becton Dickinson) in triplicate and incubated at 30 °C for 48 h. As a control, a sample of cells in tryptone soy broth was used. The total number of colony forming units in cells suspensions were enumerated; however, no injured cells were detected. Simultaneously, 12 mL of each broth culture was centrifuged at 19,500 xg for 15 min at 4 °C to obtain a pellet. The pellet was subjected to the RNA extraction protocol and DNA complementary synthesis (cDNA) to amplify the regulatory stress (rpos) and cold-shock (cspA) genes by reverse transcription PCR (RT-PCR) as described below. All strains were analyzed in triplicate.

2.5. In Vitro Gene Expression

To determine the expression of the cold shock cspA and stress response rpoS genes, the RNA was halted and extracted from V. parahaemolyticus cells using TRIzol® Reagent (Invitrogen, Carlsbad, CA, USA) by mechanical disruption and purified following the procedure previously described [24]. The absence of DNAg contamination in the RNA samples was verified by PCR. The PCR primers that were used target the expressed rpoS and cspA genes (

Table 1. Primers used for molecular analysis of nonpathogenic and pathogenic genes and specific primers used for qPCR amplification of housekeeping genes of Vibrio parahaemolyticus.

Gene (ID)		Sequence (5′-3′)	Tm (°C)	References
tlh (VPA0226)	tl-f	AAA GCG GAT TAT GCA GAA GCA CTG	58 a	[3]
	tl-r	GCT ACT TTC TAG CAT TTT CTC TGC
tdh (GU971653) *	L-tdh	GTA AAG GTC TCT GAC TTT TGG AC	58 a	[3]
	R-tdh	TGG AAT AGA ACC TTC ATC TTC ACC
trh (GU971654) *	trh-f	TTG GCT TCG ATA TTT TCA GTA TCT	58 a	[3]
	trh-r	CAT AAC AAA CAT ATG CCC ATT TCC G
orf8 (AP00581) *	F-O3MM824	AGG ACG CAG TTA CGC TTG ATG	60 b	[26]
	R-O3MM1192	CTA ACG CAT TGT CCC TTT GTA G
16S rRNA	F-10-30:	GAGTTTGATCMTGGCTCAG	F	[22,23]
	R-1492:	GGTTACCTTGTTACGACTT
rpoS (VP2553)	Fw-	GACAATGCGTCAGAGACG	F	[27]
	Rv-	GAGGTGAGAAGCCAATTTC
cspA (VPA1289)	F-	TATCGTTGCTGACGGTTTCA	F	[28]
	R-	TCAGTCGCTTGAGGACCTTT
pvuA VPA1656)	156F-1	CAAACTCACTCAGACTCCA	F	[29]
	56R-	CGAACCGATTCAACACG

Positive strains: * Accession number; ^a CAIM 1772; ^b CAIM 1400.

). Agarose gel electrophoresis of the PCR products confirmed that no DNAg contamination was observed. The RNA concentrations were measured in triplicate at 260 nm by using a NanoDrop ND 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). Purity of the RNA extracted was determined as the A₂₆₀/A₂₈₀ ratio. Isolated RNA quality was verified by an average A₂₆₀/A₂₈₀ ratio of 1.90 and 1.89 for the RNA extracted from the nonpathogenic (Vp-tlh) and the pathogenic (Vp-tdh) strains, respectively. An A₂₆₀/A₂₈₀ ratio > 1.8 is usually considered an acceptable indicator of good RNA [25]. The RNA integrity was evaluated through an agarose gel and visualized with UV light after electrophoresis. The gene expression was tested by reverse transcription PCR (RT-PCR) amplification. The cDNA was generated using 4 μg of total RNA for each strain with the GoScript™ Reverse Transcription System Kit (Promega, Madison, WI, USA) according to the manufacturer’s instructions. RT-PCR reactions were carried out with a StepOne Real-Time PCR system (Applied Biosystems, Waltham, MA, USA) using 100 ng of cDNA for each reaction. Each reaction system consisted of 10 μL of IQ SYBR green SuperMix (Bio-Rad Laboratories, Inc., Hercules, CA, USA), 0.3 μL each of 300 μM forward and reverse primers, 8.4 μL of RNase-free water, and 1.0 μL of cDNA template. The RT-PCR in 20 μL reaction volume was performed as follows: 95 °C for 3 min, 95 °C for 15 s, and 60 °C for 60 s for 40 cycles. The melting curve analysis was performed after each RT-PCR reaction to confirm that only RT-PCR products were detected. PCR amplification was performed with 2 μL of the synthesized cDNA that was amplified from the RT reaction as a template and products were run on 1.5% agarose gel. The expression level of the housekeeping pvuA gene was used as a constitutive expression control. Primers targeting the housekeeping, cold shock, and stress response genes were used for PCR for all strains. Each PCR was conducted in triplicate. The primers that were used for the identification of V. parahaemolyticus and the regulatory, cold-shock, housekeeping, and 16S rRNA genes in V parahaemolyticus are described in Table 1.

2.6. Data Analysis

The expression data were obtained for the reference gene of the threshold cycle (Ct) values. The 2^−ΔΔCt method was used to calculate differences in the expression of rpoS and cspA genes during storage period, and the gene expression was normalized to the endogenous reference gene pvuA. The amplification efficiencies were calculated using the relative quantification software provided by StepOne™ Real Time PCR (Applied Biosystems). The data were log₂ transformed and the fold change in gene expression was obtained for each gene using the reference expression level at 0 h [30]. Genes with an adjusted p-value ≤ 0.05 and a logarithmic fold change ≥1.5 were considered to be differentially induced, while genes with a logarithmic fold change ≤ −1.5 were considered to be downregulated. To evaluate the relative quantification of the normalized gene expression data of the stress regulatory gene (rpoS), the cold shock gene (cspA), and the log₁₀ CFU/mL of the pathogenic and nonpathogenic genes of V. parahaemolyticus during the time of refrigerated storage, the data were evaluated using analysis of variance and Tukey’s test to detect differences based on storage time. The statistical analyses were performed using the statistical software XLSTAT 2019 software (Addinsoft™, New York, USA) with a significance level of p < 0.05.

A modified Gompertz model was fit to the experimental pathogenic and nonpathogenic V. parahaemolyticus (log₁₀ CFU/mL) data obtained at 7 °C using Statistica 7.0 software (Statsoft, Palo Alto, CA, USA) to determine the lag time and specific growth rate. This model has been used to describe V. parahaemolyticus growth [10]:

$$Y_t= N_{0 }+ A \times exp \left[-exp \left(2.718 \times \frac{{\mathsf{\mu }}_{\max }}{A}\right) \times \left(\lambda -t\right) + 1\right]$$

(1)

where $Y_t$ is the log counts (CFU g⁻¹) at time t; $N_0$ is the initial level of bacteria (log CFU g⁻¹); A = log₁₀ (N_max/N₀), where N_max represents growth from the inoculum to stationary phase; and the parameters exp, µ_max, and λ represent e constant, maximum specific growth rate (h⁻¹), and the lag time of the strain growth (h), respectively.

The effect of temperature on Vp growth was calculated with Equation (2):

G = ln2/µ_max

(2)

where G is the generation time (h) at 7 °C and µ_max is the maximum specific growth rate (h⁻¹).

The goodness of fit of the modified model was evaluated using the coefficient of determination (R²) and the standard deviation of the residuals (Syx), which were calculated using Statistica software.

3. Results and Discussion

3.1. Effect of Cold Shock on Growth Kinetics of Nonpathogenic (Vp-tlh) and Pathogenic (Vp-tdh) V. Parahaemolyticus in Live Oysters

The average V. parahaemolyticus tlh+ and tdh+ numbers in natural contaminated oysters at 0 h were 2.84 and 0.56 log MPN/g, respectively. No trh+, tdh/trh+, and orf8+ levels were detected (0.15 log MPN/g) at 0 h or throughout the storage. Only (Vp-tlh) and (Vp-tdh) levels were detected throughout the storage period. Thus, the growth curves of (Vp-tlh) and (Vp-tdh) were fit from the experimental data and are presented in Figure 1a,b, respectively. The initial loads of (Vp-tlh) and (Vp-tdh) at time zero increased (p > 0.05) at 24 h but decreased (p > 0.05) at 168 h. The values for the kinetic growth parameters and performance statistics of the modified Gompertz model at 7 °C are shown in

Table 2. Parameter values using the modified Gompertz model for V. parahaemolyticus (tlh+ and tlh+/tdh+) growth at 7 °C during 168 h in vivo (oyster) and 216 h in vitro.

V. parahaemolyticus	μmax (h−1)	λ (h)	A	G (h)	R2	Syx
In vivo (oyster)
tlh	8.68	0.39 (23.4 min)	0.18	0.08 (4.8 min)	0.8300	0.0001
tdh	28.63	0.33 (19.8 min)	0.62	0.02 (1.2 min)	0.8100	0.0001
In vitro
tlh	2.32	37.65 (2,259.0 min)	2.78	0.30 (18.0 min)	0.9990	0.0422
tdh	5.29	0.89 (53.4 min)	2.50	0.13 (7.8 min)	0.9244	0.2664

μ_max = maximum specific growth rate; λ = lag time; A = observed maximum growth index of population density to stationary phase; G = generation time.

. The average R² values of the model for the growth curves in live oysters were 0.8300 and 0.8100 for the (Vp-tlh) and the (Vp-tdh) strains, respectively. The predicted lag time value (λ) of the (Vp-tlh) strain was close to that of the (Vp-tdh) strain, indicating similar growth and adaptation of both strains to cold shock. The maximum specific growth rate (μ_max) predicted for the (Vp-tdh) strain was higher (p < 0.05) than that for the (Vp-tlh) strain; the generation time (G) for the (Vp-tdh) strain was shorter (p < 0.05) than that for the (Vp-tlh) strain.

There are few predictive models for viability in live oysters. Reports show that V. parahaemolyticus pathogenic strains have longer lag times than the lag times of nonpathogenic strains. An average R² value of 0.85 for the Baranyi model was fitted to four kinetic growth profiles of V. parahaemolyticus that were inoculated in live Pacific oysters (C. gigas). The inactivation rates were −0.006 and −0.004 log CFU/h at 3.6 and 6.2 °C, respectively [31]. In our study, the average R² (0.8300 and 0.8100) and G values for the (Vp-tlh) and (Vp-tdh) strains (0.03 and 0.02 h, respectively) were based on naturally contaminated live oysters. These different growth rate values may be due to the growth of V. parahaemolyticus inoculated in live oysters, which may differ from the growth of naturally occurring V. parahaemolyticus in live oysters. Thus, inoculation might affect the distribution of V. parahaemolyticus in oyster tissues. In live oysters, V. parahaemolyticus appears to accumulate at higher densities in the digestive glands, gills, visceral mass, and adductor muscle. Moreover, in addition to temperature effects, V. parahaemolyticus growth may be influenced by other factors, such as types and levels of competitive flora present among different oyster-growing regions, host defense systems, and the probable release of antimicrobial peptides [32]. Likewise, another developed fitted model had an R² of 0.77 and a growth rate of −0.0012; the lag phase and μ_max were not determined as V. parahaemolyticus decreased to >10 CFU/g in oysters stored at 5 and 10 °C, suggesting that temperatures at or below 10 °C are effective for preventing its growth in shellstock oysters [33]. However, the minimum growth temperature of V. parahaemolyticus in oysters has been reported to be 3°C [12]. Similarly, no increase in (Vp-tlh) counts in eastern oysters (C. virginica) that were harvested from Chesapeake Bay, Maryland for 10 days of storage at 5 and 10 °C was reported [34]. However, our previous study on eastern oysters (C. virginica) stored at 7 °C showed that the density of nonpathogenic (Vp-tlh) increased (p < 0.05) from 1.134 (0 h) to 2.764 log NMP/g at 72 h, while the densities of pathogenic strain (Vp-tdh) increased (p < 0.05) from −0.824 to 0.519 log NMP/g. Nevertheless, no pathogenic strains were detected (−0.824 log₁₀ NMP/g) at 144 h [11]. In this context, although there are few predictive models for the survival of V. parahaemolyticus in oysters, the FDA has denoted the lack of information on the postharvest survival at low temperatures.

3.2. Effect of Cold Shock on Growth Kinetics of Nonpathogenic (Vp-tlh) and Pathogenic (Vp-tdh) V. Parahaemolyticus In Vitro

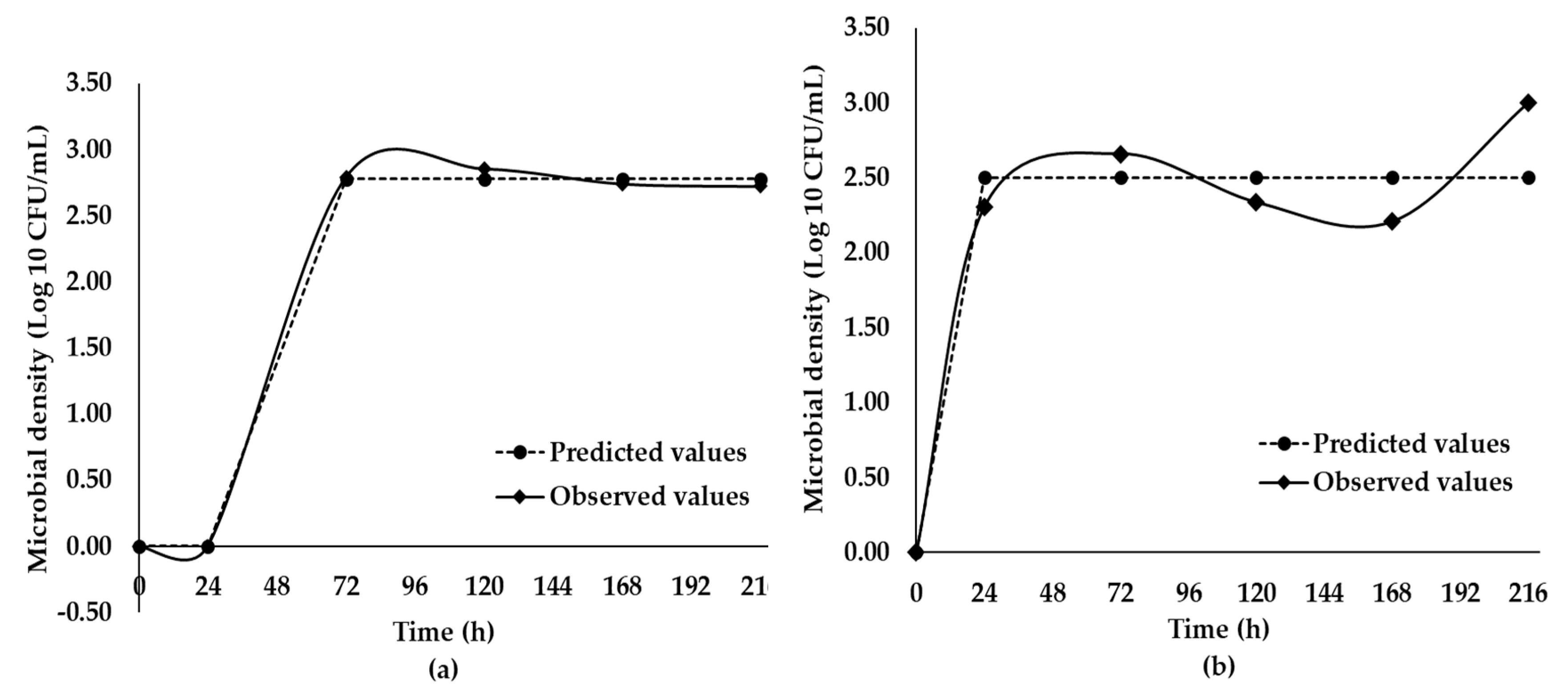

The growth curves of (Vp-tlh) and (Vp-tdh) V. parahaemolyticus levels were fit to the experimental data and are presented in Figure 2a,b, respectively. These figures show the fit of Equation (1) to the observed data. The initial viable levels of (Vp-tlh) and (Vp-tdh) V. parahaemolyticu were equal (3.00 log₁₀ CFU/mL). After 24 h, no increase in the (Vp-tlh) levels was observed, but the (Vp-tdh) levels increased (p < 0.05) by 2 log units. The (Vp-tdh) levels increased significantly (p < 0.05) at 168 at 216 h of storage. However, at 216 h, no significant differences (p > 0.05) were observed between the log counts of the (Vp-tlh) and (Vp-tdh) strains.

The values for the kinetic growth parameters and the performance statistics of the modified Gompertz model at 7 °C are shown in Table 2. The average R² value of the model for the growth curves in broth was 0.9990 for the (Vp-tlh) strains and 0.9244 for the (Vp-tdh) strains and fit the V. parahaemolyticus growth; this outcome indicates that the model accurately described V. parahaemlyticus growth. Predicted lag time values (λ) of the (Vp-tdh) and the (Vp-tlh) strains indicated the faster growth and better adaptation of the (Vp-tdh) strains to the tested temperature. The maximum specific growth rate (μ_max) predicted for the (Vp-tdh) strains was two times faster (p < 0.05) than that for the (Vp-tlh) strains, and the generation time (G) for the (Vp-tdh) strain was shorter (p < 0.05) than for the (Vp-tlh) strains.

This effect was not expected since metabolism is affected, especially at cold temperatures, and reduced virulence was predictable. However, these results could be explained from those of Tang et al. [35] who observed that the most up-regulated proteins in V. parahaemolyticus F8-4 strain, isolated from the American Pacific oyster Concha Ostreae and subjected to cold stress at 4 °C for 18 h, were functionally categorized as nucleotide transport and metabolism, transcription, and defense mechanism, indicating that these proteins may play an important role under cold stress. In contrast, another study showed that the nonpathogenic (Vp-tlh) strain grew faster than the (Vp-trh) strain isolated from raw Korean oysters, regardless of the model medium (in broth and in oyster slurry) at 10 °C; this outcome occurred because the lag phases of the nonpathogenic (tlh+) (24.6 h) and pathogenic (trh+) (38.7 h) strains were different (p < 0.05). In addition, neither the pathogenic nor the nonpathogenic V. parahaemolyticus grew at 5 °C, and the concentration of the pathogenic (trh+) strain decreased faster than that of the nonpathogenic (tlh+) strain [10]. Similarly, it has been reported that pathogenic (tdh+) loads decreased by 2.880 and 1.490 log CFU/mL in TSB during storage at 5 °C and 8 °C, respectively, for 10 days [36].

In our study, the differences in V. parahaemolyticus growth (Table 2) can be attributed to the intrinsic characteristics of the strains, inoculum cell concentration, and/or to the variation in strain susceptibility to isolation media [37]. These findings indicate that growth of both V. parahaemolyticus strains was affected after cold shock and by refrigerated storage. However, the pathogenic and nonpathogenic V. parahaemolyticus strains grew at 7 °C, although these strains were isolated from oysters harvested from tropical waters during the winter season. The predicted generation time and lag time values of the (Vp-tdh) strains in live oysters and in vitro suggest that the growth characteristics of V. parahaemolyticus might vary by strain and storage conditions, such as food matrix and nutrient concentrations, and the opportunity for the cells to repair the damage. As previously mentioned, proliferation and interaction with certain bacterial groups and the oyster defense system may contribute to fluctuations in V. parahaemolyticus growth in live oysters [12].

The predicted lag time (λ) values of the (Vp-tdh) strains in oyster samples harvested during the winter season may suggest that the upregulation of a virulence mechanism at a cooler temperature may imply a temperature-dependent regulation of virulence gene expression and the utilization of these physiological responses to survive, as previously suggested [38]. The differences in the regulated genes between the strains may be due to a physiological response against environmental stressors. Environmental triggers can disrupt a variety of cell processes and can promote the development of more stress-resistant cells, modulating the fitness and virulence of bacterial pathogens. In this regard, our results confirm our previous findings, where the tdh gene was found across the winter with a mean pathogenic (Vp-tdh) density in oysters (C. virginica) at 1.33 log MPN/g [5]. The behavior of the (Vp-tdh) strains at a low storage temperature suggests adaptation to cold stress, which originates from physicochemical changes in the cell structure that favor acclimatization [39]. Several biochemical changes take place during the lag period, such as an increase in the fluidity of the cell membrane due to fatty acid desaturation and the arrest of nucleic acid synthesis [40]. Under these adaptive changes, V. parahaemolyticus may express genes that regulate the induction of virulence genes and those involved in other processes, such as the stress response rpoS gene and the cold shock cspA gene. These changes in the genetic structure of V. parahaemolyticus favor adaptation and survival at low temperatures, representing a health hazard [41].

3.3. Effect of Cold Shock on Gene Expression of Nonpathogenic (Vp-tlh) and Pathogenic (Vp-tdh) V. Parahaemolyticus In Vitro

To eliminate the natural Vibrio vulnificus cells that were present, Limthammahisorn et al. [42] depurated oysters with autoclaved seawater at 25 °C prior to the inoculation of clinical and environmental V. vulnificus strains to determine the response to cold shock. Their results indicated that the V. vulnificus response to suboptimal temperatures in oysters was similar to that under in vitro conditions. Considering this finding, we used purified nonpathogenic (Vp-tlh) and pathogenic (Vp-tdh) strains isolated from the live shellstock oysters for RT-PCR amplification in vitro due to the high endogenous bacterial loads found in live shellstock oysters harvested from Veracruz lagoons. We have previously reported that the fecal coliform, E. coli, and V. cholerae non-O1/nonO139 levels do not decrease to zero in live shellstock oysters (C. virginica), even with artificial seawater or ozonated seawater depuration [43]. Therefore, to determine the relationship of the expression of the rpos and cspA genes on the survival of purified (Vp-tlh) and (Vp-tdh) strains, the expression of both genes was monitored in vitro during the storage period at 7 °C.

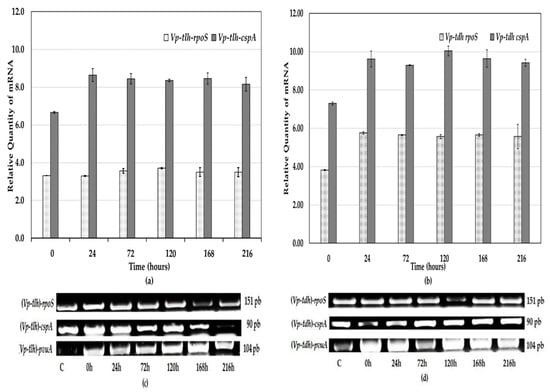

Figure 3a,b show the average expression of the rpos and cspA genes from the V. parahaemolyticus strains for 216 h of storage at 7 °C. Figure 3a shows that the average relative expression of the rpoS gene of the (Vp-tlh) strains on day 0 decreased (p > 0.05) after 24 h. However, the rpoS gene transcript levels at 0 h were not significantly different (p > 0.05) from those observed at 72, 120, 168, and 216 h. rpoS gene expression was repressed by −0.024-fold after 24 h. Meanwhile, the relative cspA gene expression at 0 h increased significantly (p < 0.05) after 24 h, remaining relatively constant (p > 0.05) during the storage period. cspA gene expression was upregulated by 1.9-fold at 24 h. rpoS gene expression correlated with the nonpathogenic (Vp-tlh) strain levels (r = 0.689, p = 0.013). However, there was no correlation between the (Vp-tlh) strain growth and the cspA gene expression (r = 0.481, p = 0.114) and between the cspA and rpoS gene expression levels of the (Vp-tlh) strain (r = 0.294, p = 0.353). These results may reflect an increase in the expression of genes that were poorly expressed prior to cold shock, the occurrence of a mixed population of cells in several physiological stages, or a combination of these effects. Figure 3b shows that the expression fold change of the (Vp-tdh) rpoS gene at 0 h increased (p < 0.05) at 24 h and remained relatively constant throughout the storage period (stat phase) (p > 0.05).

This increase in the expression levels shows that the rpoS gene was upregulated by 1.9-fold when the (Vp-tdh) strain was exposed to a low temperature (7 °C) for 24 h. At the same time, the results showed that the low temperature significantly increased (p < 0.05) the expression level of the cspA gene at 24 h, which remained relatively constant (p > 0.05) until 216 h. mRNA synthesis was induced and after 24 h of cold shock, the cspA gene was upregulated by 2.3-fold compared to the 0 h expression level. This (Vp-tdh) strain grew faster, showing a shorter lag phase (0.89 h) than the lag phase of the (Vp-tlh) strain (37.65 h).

These results contrast with those of Tang et al. [35], who observed that the expression level of cspA decreased and the quantity of CspA was 0.12-fold compared with the control in the V. parahaemolyticus F8-4 strain that was subjected to cold stress at 4 °C for 18 h. Studies have reported a lag period of approximately 4 h before cell growth is resumed when an exponentially growing culture of E. coli is cooled from 37 to 10 °C. The downshift in temperature causes a transient inhibition of most protein synthesis, resulting in a growth lag called the acclimation phase. Cold shock proteins are induced during this lag period, which are essential for the cells to resume growth [44]. The cspA gene, a class I csp gene, decodes the cold shock protein CspA, which is considered an RNA chaperone that accumulates during growth at low temperatures and modulates both the transcription and translation of the target genes required for low-temperature bacterial survival [45]. In our in vitro assay, we observed that the (Vp-tdh) strain growth strongly correlated with the expression of the rpoS gene (0.97, p = 0.00) and the expression of the cspA gene (r = 0.88, p = 0.00). The expression of the rpoS and the cspA genes correlated (r = 0.94, p = 0.00) as well. It has been suggested that the rpoS gene, a general stress regulator, is the most crucial sigma factor for survival under various stress conditions including the stationary phase [46]. The rpoS gene contributes to the management of common factors during bacterial adaptation, including adhesion factors and the excretion of extracellular enzymes, such as lipases and proteases, when the bacterium is dealing with extreme conditions in the surrounding environment. The regulation of gene expression is a common adaptive phenomenon that is observed in bacteria following exposure to environmental stress [46]. It has been shown that the expression ratio of rpoS (VP2553) of V. parahaemolyticus in the stat phase compared with that in the lag phase was a fold change of 1.65- log₂ (adjusted p < 0.05). Furthermore, the rpoS gene can mediate virulence either directly by controlling the expression of virulence factors or indirectly by stimulating a quick adaptation response to improve V. parahaemolyticus survival [29].

A cold-adaptation response was observed as both V. parahaemolyticus strains adapted and were able to increase their numbers at 7 °C in both live oysters and in vitro assays. However, the relative expression of the rpoS and cspA genes in the (Vp-tlh) strain in vitro were less upregulated compared with the relative gene expressions in the (Vp-tdh) strain. As shown in Figure 3c,d, the mRNA transcripts of the rpoS, cspA, and pvuA genes were detected and the levels remained relatively constant despite cold shock. The expression levels of these genes were detected and differentially expressed at all time points as abundance and intensity variations of the transcripts were observed between the (Vp-tdh) and (Vp-tlh) strains, with the transcripts of the (Vp-tdh) rpoS genes being more highly expressed than those of the (Vp-tlh) strain. Furthermore, the gene expression fold differences between the pathogenic and nonpathogenic strains were observed, e.g., the change in transcription between the (Vp-tdh) and (Vp-tlh) strains for rpoS and cspA was 3.2 and 1.2, respectively. The rpoS gene provides protection against extreme environments and reinforces the strain’s ability to adapt by linking to the expression of other genes; this protection and adaptation promote survival and a faster growth rate after acclimation to low temperatures, depending on the pathogenicity [46].

A few previous studies have reported the expression of V. parahaemolyticus virulence genes under cold stress. The cold-shock responding gene cpsA and the global regulator rpoS of a clinical strain V. parahaemolyticus RIMD2210633 O3:K6 positive showed significant upregulation (4.06 and 3.5-fold change, respectively) at 4 °C, although the expression of tdh was activated (2.1-fold change) (p < 0.05) at 15 °C [47]. In contrast, the transcription levels of tdh in the clinical strain V. parahaemolyticus ATCC33847 were upregulated (p < 0.05) in shrimp samples and in seawater samples at 9 °C. Additionally, low temperature had a positive effect (p < 0.05) on gene expression, including trh in the clinical strain ATCC17802 cultured in shrimp and seawater samples and the clinical strain VP2 in seawater samples. However, tdh from the clinical strain VP1 that was cultured in shrimp samples demonstrated a lower expression level at 9°C, indicating that the gene expression at a low temperature was irregular among different strains and matrices [48]. Bacterial Csps are vastly conserved small multifunctional nucleic acid-binding proteins that mediate a wide range of physiological functions, including regulation of growth under both normal and cold conditions, stress resistance, and virulence-associated responses, by modulating transcription, translation, and mRNA stability [49]. Csps have been identified as major determinants of pathogenicity in several foodborne disease-causing bacteria, such as Listeria monocytogenes [49], Staphylococcus aureus [50], and Brucella melitensis [51]. Our study showed the V. parahemolyticus growth upon cold shock and the induction of cspA gene, which suggest, respectively, cellular adaptive mechanisms and an altered metabolic recovery. The (Vp-tdh) strain exhibited a shorter lag phase in live oysters (0.33 h) than that in vitro (0.89 h) and the (Vp-tdh) strain cspA gene was upregulated (2.3-fold) after the cold shock in vitro as well. Thus, it appears that the expression of the cspA gene became involved in cold shock response in vitro and it may be implicated in the cold shock response in vivo. There is evidence that V. vulnificus survival and tolerance at cold temperature could be due to the expression of cold adaptive genes as the csp genes, encoding for putative cold shock proteins, which were differentially expressed in response to in vivo cold shock. Furthermore, in that study the V. vulnificus response to cold shock (15 to 4 °C) in oysters was similar to the response in vitro conditions [42].

The current guidelines of the Guide for the Control of Molluscan Shellfish [52] consider testing isolates for the tdh gene with a limit of less than 5 tdh+ cell-forming units (CFU/g) from shellfish. The guidelines for storing and shipping shellfish that are intended for raw consumption indicate that shellfish need to be brought down to 15.5 °C or less to slow the bacterial growth. In accordance with Mexican Norm NOM-242-SSA1-2009, shellstock oysters should be kept alive and adequately refrigerated at 7 °C for no more than 7 days with a limit of less than 10⁴ MPN/g. However, according to our results, the V. parahaemolyticus (Vp-tdh) strain had a shorter lag phase and faster growth rate after acclimation to low temperature (7 °C) in live oysters and in vitro. In the context of health risk, further research is needed to better understand the mechanism of V. parahaemolyticus survival at low temperatures and its response to cold stress.

4. Conclusions

In the present study, the modified Gompertz model (Equation (1)) produced a good fit to the data for growth of V. parahaemolyticus tlh+ and tlh+/tdh+ on oysters (R² = 0.8300, 0.8100, respectively) and in broth (R² = 0.9990, 0.9244, respectively) when stored at 7 °C. The predicted lag time (λ), the maximum specific growth rate (μ_max), and the generation time (G) values indicated a faster growth rate for both strains in live oysters than the growth rate in vitro. The in vitro growth kinetics of the pathogenic (Vp-tdh) strain was found to be faster than that of the nonpathogenic (Vp-tlh) strain. The in vitro lag phase of the pathogenic strain was shorter than that of the nonpathogenic strain, and its levels increased significantly at 216 h of storage. When V. parahaemolyticus (Vp-tlh) and (Vp-tdh) strains were exposed to the downshift in temperature from 35 °C to 7 °C, they underwent cold stress, which prompted cold shock responses. Our findings suggest that the V. parahaemolyticus (Vp-tlh) cspA cold shock gene and the (Vp-tdh) cspA and stress rpoS genes were inducible in vitro, and an upregulation that was induced by cold shock was observed over the storage time at 7 °C. No induction levels were detected in the V. parahaemolyticus (Vp-tlh) rpoS gene, which seemed to be slightly repressed. The change in the transcription of rpoS and cspA genes was higher in the V. parahaemolyticus (Vp-tdh) strain than that in the nonpathogenic (Vp-tlh) strain.

Considering these findings, our results indicate that the V. parahaemolyticus strains from live tropical shellstock oysters have adaptive tolerance responses to survive and grow at low temperatures and have temperature-dependent expression changes, according to their virulence. Therefore, more research for assessing the growth behavior of V. parahaemolyticus at 7 °C in oysters and other seafoods is needed. These phenomena may be of significant importance regarding food safety since cooling regimes do exist in the food industry, which could potentially induce a cold shock phenomenon. Therefore, the authors suggest that storage and transportation temperatures of oysters intended for raw consumption should be at 3 °C instead of 7 °C to control V. parahaemolyticus growth. This should be considered in HACCP plans used by the oyster industry to control the risk of V. parahaemolyticus to human health. Further research should be undertaken to understand how the molecular mechanisms of the cold shock response may promote the survival and gene expression changes in pathogenic V. parahaemolyticus, which naturally contaminates live oysters, to identify the best food preservation process under low temperatures to improve seafood safety.
