Landscape Characteristics Affecting Spatial Patterns of Water Quality Variation in a Highly Disturbed Region

by
Xinqi Hu
1,
Hongqi Wang
1,
Yi Zhu
1,*,
Gang Xie
2 and
Huijian Shi
2
1
Beijing Key Laboratory of Urban Hydrological Cycle and Sponge City Technology, College of Water Sciences, Beijing Normal University, Beijing 100875, China
2
Shandong Academy of Environmental Planning, Jinan 250101, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2019, 16(12), 2149; https://doi.org/10.3390/ijerph16122149
Submission received: 28 April 2019 / Revised: 14 June 2019 / Accepted: 14 June 2019 / Published: 18 June 2019
Browse Figures
Versions Notes

Abstract

:
Spatial patterns of water quality trends for 45 stations in control units of the Shandong Province, China during 2009–2017 were examined by a non-parametric seasonal Mann-Kendall’s test (SMK) for dissolved oxygen (DO), biochemical oxygen demand (BOD), chemical oxygen demand (COD), permanganate index (CODMn), total phosphorus (TP) and ammonia nitrogen (NH3-N). The DO concentration showed significant upward trends at approximately half of the stations, while other parameters showed significant downward trends at more than 40% of stations. The stations with downward trends presented significant spatial autocorrelation, and were mainly concentrated in the northwest and southwest regions. The relationship between the landscape characteristics and water quality was explored using stepwise multiple regression models, which indicated the water quality was better explained using landscape pattern metrics compared to the percentage of land use types. Decreased mean patch area and connectedness of farmland will promote the control of BOD, COD and CODMn, whereas the increased landscape percentage of urban areas were not conducive to the water quality improvement, which suggested the sprawling of farmland and urban land was not beneficial to pollution control. Increasing the grassland area was conducive to the reduction of pollutants, while the effect of grassland fragmentation was reversed.

1. Introduction

The increasing economic growth, rapid urbanization and higher population concentrated in cities of developing countries had led to deterioration of its water bodies [1]. This water quality deterioration resulted due to point sources and non-point sources pollutants entering the water bodies, i.e., lakes, rivers and streams. Due to the dynamic changes in pollution source emissions and the spatial heterogeneity of the underlying surface, surface water quality presents dynamic and regional differences in time and space [2,3,4]. In a long period of time, the evolution of regional water quality will show a certain trend under the influence of regional pollution source structure, land use characteristics and water environmental protection measures. The trend of water quality change in a long time series can reflect the effect of regional water pollution control and water environmental protection, which is of great significance for the formulation of subsequent water environmental protection plans. The evolution trend of water quality data in long time series can be detected by using appropriate trend analysis method [5,6]. Non-parametric tests have been widely used to detect temporal trends in environmental and hydrological data, including surface water quality concentrations [7,8,9,10]. The seasonal Mann–Kendall method is an widely accepted approach to detect the temporal trend of water quality [11,12]. Previous studies on water quality evaluation and evolution trend mostly focused on river basin and urban level, but few studies were conducted at the provincial level, especially those on Shandong province in China. Shandong province is China’s largest province in terms of population and economy, ranking third in China’s GDP. The course of water environmental pollution and control in Shandong province is the epitome of water environmental protection in China. Since the reform and opening up in 1978, with the rapid development of Shandong’s economy, especially the rise of township enterprises, the water quality in Shandong has been rapidly degraded, and the average chemical oxygen demand concentration reached 260 mg/L in 1989. Subsequently, the state and the Shandong province began to pay attention to and intensify efforts to control water pollution, but the water quality was not effectively improved from 1990 to 2002. After that, Shandong continued to take water environment protection as the key point of development and adopted a series of control measures. Against this background, it is of great significance to study the changes of water quality in Shandong province in recent years. This paper adopted the seasonal Mann–Kendall method to analyze the monthly water quality data of 45 monitoring stations in Shandong province in recent 10 years, and revealed the temporal trend of river water quality and the effect of water environment protection in Shandong province in recent 10 years.
Land use plays an important role in the process of pollutant generation, migration and transformation and is an important factor affecting water quality [13,14,15,16]. Against the background of rapid urbanization in China and Shandong province, land use has been seriously disturbed. With the change of land use, various urbanization and agricultural activities, such as the increase of impermeable surface, the intensification of landscape fragmentation, sewage pipe network discharge, the use of pesticides and fertilizers, etc., have a great impact on water quality [17,18]. Identification of quantitative relationships between land use and water quality is beneficial for local managers to optimize land use and development and protect water ecosystem [19]. Modeling the correlations between land use and water quality needs to choose suitable explanatory variables [20,21]. Previous study have shown landscape pattern metrics could reflect the configuration of land use types and have been widely used as important predictors of water quality [22,23,24]. Most studies have just analyzed the percentage of land use types or the landscape pattern metrics at the landscape level with water quality, while landscape pattern metrics at the class level was paid little attention, which reflected the specific landscape configurations of each land use and could provide more targeted guidance for land use planning [25,26].
In addition, scale effect plays an important role in studying the relationship between water quality and land use. Buffer and sub-basin scale are commonly used for such analyses; however, the former have limitations in large scale application and the latter is a natural basin range, which was not convenient for practical managed [27]. The control unit is a water environment management scale with Chinese characteristics, which has been promoted and applied to local water quality protection by the ministry of ecological and environmental protection of China since 2010 [28,29]. The control units were delineated by overlaying sub-basins and administrative boundaries, with defining the administrative area responsible for each unit and national monitoring stations setting at the exit of each unit [30]. According to the water quality condition of each station, management activities such as pollution source tracing and investigation will be conducted by the corresponding administrative region to ensure that the water quality of its section reaches the standard. The downstream control unit shall only implement pollution control responsibilities within its unit, without involving the upstream unit. A total of 1784 control units were divided at the national level to help to promote the refined management. This study could fill up the blank space in understanding the relationship between landscape characteristics and water quality at the scale of control units [31].
Based on these concerns, this study applied a multiple spatiotemporal statistical approach to explore the relationship between landscape characteristics and water quality at the scale of control units in highly disturbed region. And the specific goals of this study were to: (1) identify how has the water quality changed in Shandong province in the past 10 years and its spatial variation; (2) figure out what is the relationship between river water quality and land use characteristics at the control unit scale; (3) the significant landscape factors affecting the water quality variation at the control units scale; and (4) provide effective information and references for policy makers to conduct effective water pollution control and management at the control units in China.

2. Material and Methods

2.1. Research Region

The Shandong province (34°22.9′ N–38°24.01′ N, 114°47.5′ E–122°42.3′ E) is a major province in China in terms of both population and economy that is located on the eastern coast and covers an area of 15.71 × 104 km2 (Figure 1). Abundant water systems are widely distributed in the province, with the major ones including the Hai River in the northwest, the Xiaoqing River in the middle and the Nansi Lake in the southwest [32]. The Nansi Lake, the largest freshwater lake in north China, is located within the Huai water system in the southwest portion of the province [33]. The 45 national control units in Shandong province were studied (http://www.mee.gov.cn/gkml/hbb/bgth/201602/t20160229_330936.htm), for which there were continuous water quality monitoring data during 2009–2017. As shown in Figure 1, the 45 control units were widely distributed in the province. The covered areas of control units ranged from 82.85 km2 to 7079.23 km2. Only 12 of the 45 control units likely to be affected by the upstream were concentrated in the northern and western regions, which belong to the north China plain and have relatively weak upstream and downstream influences. In addition, the Shandong province is a highly disturbed region with a dense population and an urbanization rate of 61.18%. Compared with the influence of upstream inflow, the artificial influences such as water intake, reclaimed water replenishment and sewage discharge have a greater influence on the water quality. Due to the water scarcity, the phenomenon of channel interruption often occurs. With the objective of understanding the relationship between land use and water quality on the scale of control units through statistical methods, the hydrologic and water quality simulation was not involved. Therefore, the hydrological linkage between the upstream and downstream was excluded in our research. The topography of the Shandong province is characterized by central mountainous bulges, low and flat areas in the southwest and northwest and undulating areas in the east, with elevations ranging from 2 m to 1533 m. Additionally, the province has a warm temperate zone monsoon climate, with a mean annual air temperature of 12.5 °C. The average annual rainfall is between 550 and 950 mm, with 60%–70% of the annual precipitation being concentrated from June to September. The land cover consists of 64.78% farmland, 6.24% forest, 8.39% grassland, 4.24% water systems and 15.1% urban land (Figure 2). Farmland and urban land are the principal land cover types in Shandong, indicating that the province has been highly disturbed by anthropogenic activity associated with rapid urbanization and economic development.

2.2. Data Description

Six water quality parameters, dissolved oxygen (DO), biochemical oxygen demand (BOD), chemical oxygen demand (COD), permanganate index (CODMn), total phosphorus (TP) and ammonia nitrogen (NH3-N), representing physical and chemical characteristics, were selected for water quality analysis. They were the basic item for routine water quality monitoring stipulated in China’s environmental quality standards for surface water [34]. DO can reflect the pollution degree and self-purification ability of a body of water, which is essential for a healthy aquatic ecosystem. BOD, COD and CODMn were selected to represent organic matter of oxygen consumption. NH3N and TP were the representative variable for nutrient pollutants. The water quality data of monitoring stations at the exit of 45 control units between 2009 and 2017 were obtained from the Department of Ecology and Environment of Shandong Province. The 45 monitoring stations are the national control station and distributed in all major rivers of the province. The water quality data were reported on a monthly time scale from 2009–2017. The monthly water sample collection was conducted in strict accordance with the Regulations for Water Environmental Monitoring [35]. Laboratory analyses for the six water quality parameters were conducted in accordance with the national standard analytical methods [34]. To identify seasonal patterns of water quality data, the datasets were divided into a wet season (June–September) and a dry season (October to the following May) [21].
A raster digital elevation map (DEM) with a spatial resolution of 30 × 30 m was obtained from the Geospatial Data Cloud site (http://www. gscloud.cn) [36,37]. The DEM was used for delineation of spatial scale, and each water quality monitoring station was set to be the outlet of the delineated spatial scale [38]. The 2010, 2015 and 2018 land use data of 1 km resolutions, as well as the vector data of the water system and administrative boundary were supplied by the Resource and Environment Data Cloud Platform, Chinese Academy of Sciences (RESDC http://www.resdc.cn/) [39,40]. The land cover data were used to determine the percentage of different land cover types for each year and the percentage change of each type between 2010 and 2018. Land cover types were reclassified into six categories, farmland, forestland, grassland, water, urban land and unused land.

2.3. Extraction of Landscape Variables

Spatial data, including topography and land use data, were prepared for analysis. The variables describing the landscape characteristics of each control unit were extracted to identify potential factors impacting water quality parameters [41]. Metrics describing landscape composition and pattern at the class level were calculated based on land use data. Landscape composition metrics included the percentage of farmland (FA), forests (FO), grassland (GR), water (WA) and urban land (UR). A brief description of the 12 landscape pattern metrics at the class level, which have commonly been used in previous studies to explain the influence of landscape patterns on water quality, was given in Table 1 [21,42]. The land use composition of each control unit was calculated in ArcGIS 10.2 (Esri, Redlands, CA, USA) by using overlay functions based on watershed boundary and land use data layers. The landscape metrics were calculated by the FRAGSTATS 4.2 software (University of Massachusetts, Amherst, MA, USA) through land use raster data.

2.4. Statistical Analysis

The seasonal Mann-Kendall’s test (SMK test) is a robust, non-parametric test that can also be used when the dataset has some missing values and does not comply with any particular distribution [43,44]. To identify the temporal trends in water quality variation at each monitoring station during 2009–2017, SMK test was used with monthly water quality data to detect upward, downward, or no significant trends in DO, BOD, COD, CODMn, NH3-N and TP [5,45].
The temporal trend values reflected by SMK’s tau had the spatial autocorrelation among stations, which could be characterized by two spatial autocorrelation indicators. Global Moran’s I was used to calculate the significance of spatial autocorrelation [46,47] and Local Moran’s I was employed to explore the spatial clusters of stations with significant high and low temporal trends, as well as stations with trends that differed significantly from surrounding stations [48]. Analyses were conducted using the weighted inverse distance and the Euclidean distance method in ArcGIS version 10.2. The Global Moran’s I and Local Moran’s Ii were calculated as follows:
I = n ∑ i = 1 n ( X i − X ) 2 ∑ i = 1 n ∑ j = 1 n W i j ( X i − X ) ( X j − X ) ∑ i = 1 n ∑ j = 1 n W i j
I i = n ∑ j = 1 n W i j ∑ j = 1 n W i j ( X i − X ) ( X j − X ) ∑ j = 1 n ( X j − X )
The spatial autocorrelation indices (I) were used to compute the standard normal variate Z as follows:
Z = I − E ( I ) V a r ( I )
where n is the number of stations, Xi and Xj refer to water quality parameters in stations i and j, respectively, X is the mean value of water quality parameters and Wij is a distance weight for the interaction between stations i and j. E(I)and Var(I) are the mean and variance of spatial autocorrelation indices. The Moran’s I value ranges from −1 and 1, which represents perfect negative and positive autocorrelation, respectively, while 0 indicates no autocorrelation. The local spatial patterns were classified as HH, LL, LH or HL [49]. The HH or LL patterns indicate that the particular location has significantly high or low values, respectively, while the LH and HL patterns represent the outliers surrounded by high or low values, respectively.
Pearson’s correlation analysis was conducted to explore the relationship between water quality and land use types. To quantitatively examine the linkage between water quality parameters and landscape metrics, stepwise multiple regression of water quality parameters and landscape composition and pattern metrics during dry and wet season were conducted. All regressions were performed in SPSS version (IBM, Armonk, NY, USA) at the 95% confidence interval. The significance of estimated coefficients and regression models was analyzed by t-tests and F-tests (Fsig), respectively. The goodness of fit of the regression models was provided based on the adjusted coefficient of determination (R2). The multi-collinearity between independent variables was estimated using the maximum variance inflation factor (VIFmax), and the model exhibited multi-collinearity at VIFmax > 10 [50,51].

3. Results

3.1. Temporal Trends of Water Quality Parameters

The temporal trends of monthly water quality parameters from 2009 to 2017 were detected by the SMK test at 45 monitoring stations and revealed that the spatial patterns of water quality trends varied among these parameters (Figure 3). DO showed a significant upward trend in approximately 50% of stations during 2009–2017, while 8.9% and 42.2% of stations showed a significant downward trend and no significant trend, respectively. Except for DO, the other water quality parameters showed a significant downward trend in more than 40% of stations, while less than 18% of stations showed a significant upward trend. Especially for COD and NH3-N, the proportion of stations with a downward trend was close to 60%. Additionally, nearly 53% of stations showed decreasing trend for TP. Moreover, 30%–40% of the stations showed no significant trend for each water quality parameter. These findings indicated that the overall water quality situation in Shandong Province improved significantly during 2009–2017.
Based on the spatial patterns of the water quality trends, the stations showing downward trends in water quality parameters (except for TP) were mainly concentrated in the northwest and southwest of Shandong province, and especially concentrated around Nansi Lake. For TP, the stations with downward trends were not concentrated in any specific areas. For all water quality parameters except DO, the stations with an upward trend were mainly distributed in the east and south portions of the province. The stations showing increasing DO were mainly located in the northwest region. Overall, water quality improvement was greater in the northwest and southwest. In addition to TP, the water quality trends for other parameters presented a certain spatial clustering, which was further verified by spatial autocorrelation analysis.
Most of the SMK’s tau values showed significant positive spatial autocorrelation (Table 2), with all of the Moran’s index values being greater than 0 and the Z values higher than 1.96 (except for TP), suggesting that the tau values of water quality trends were positively correlated with spatial aggregation degree. Only TP trend did not show any significant spatial autocorrelation, as indicated by the nearly even distribution of stations with significant upward and downward trends throughout the province. The Local Moran’s I analysis also revealed a clear spatial separation of trends in water quality parameters with the spatial patterns of trends in water quality parameters except for DO and TP showed consistency with the high-high clusters in the northwest and east regions and the low-low clusters around the Nunsi Lake (Figure 4).

3.2. Spatial Variations in Current Status of Water Quality

The spatial distribution patterns of water quality current status varied with parameters and seasons [52]. Figure 5 shows the spatial and seasonal variation of the six water quality parameters in the monitoring stations of 45 control units between the wet and dry seasons during 2015–2017. The DO concentration at most stations was greater than 5 mg/L, which meets the three-level guideline of the national environmental quality standards for surface waters in China (GB3838-2002; Table 3) [53]. Water quality parameters other than DO exceeding the three-level standard indicated that the water was contaminated, while DO exceeding three-level standards indicated no pollution.
For NH3-N and TP, more than 60% of the control unit stations met the water quality three-level standard and the pollution levels were low. The average NH3-N concentration in dry season was 0.78 mg/L and higher than 0.71 mg/L in wet season. The opposite was observed for TP, which had an average concentration of 0.22 mg/L in the wet season and higher than 0.19 mg/L in the dry season. The average concentrations of BOD, COD and CODMn during 2015–2017 all exceeded the third-level standards in both wet and dry seasons, showing higher pollution levels than NH3-N and TP. More than 50% and 40% of the stations showed COD and BOD concentrations exceeding third-level standards respectively in the dry and wet seasons. For CODMn, 37.8% and 42.2% stations had exceeded the standard in the dry and wet seasons, respectively. The average concentrations of BOD, COD and CODMn in wet season were 4.66, 23.81 and 6.55 mg/L, respectively, which were greater than 4.35, 23.72 and 6.02 mg/L in dry season. There were 20 sites with the best water quality status, and there were no water quality parameters exceeding the standard. Among these 20 sites, 12 were located at the exit of the control unit located around Nansi Lake. The analysis showed that the water quality of Nansi Lake was better than that of other areas in the province.

3.3. Linkage between Landscape Characteristics and Water Quality

3.3.1. Characteristics of Land Use Types

The land cover types of 45 control units during 2010–2018 were extracted and analyzed to reveal the landscape composition and internal structural variations in land cover. The proportion of agricultural land and urban land in the control units was about 67% and 15%, respectively, while forestland, grassland and waters accounted for only about 6%, 8% and 3% of the total area. Agricultural and urban land were the main land cover types of the control units with the largest land percentage, indicating that the control units were highly disturbed by anthropogenic activities, such as agriculture, industry and urban living. Furthermore, the land cover percentage changed obviously during that period, with the proportion of urban land increasing and the proportion of forestland and grassland decreasing. The proportion of urban land expanded from 15.3% to 19.4% with a growth rate of 27.2%, while the reduction rates of forestland and grassland were 5.8% and 35.4%, respectively. These findings suggested that, with the acceleration of urbanization in the control units of Shandong Province, urbanized land cover increases, while ecological land decreases. For agricultural land, the proportion decreased by 1.7% and the proportion of waters increased by 16.1%. Overall, these findings suggested that the influence of landscape composition and patterns on water quality parameters at the scale of control units needs to be further investigated.

3.3.2. Landscape Composition and Water Quality

To reveal the influences of landscape composition on water quality at the scale of control units, correlations between different land use types of the control units and water quality parameters of the national stations in dry and wet seasons were analyzed (Table 4). The percentage of farmland was significantly positively associated with BOD and COD in the dry and wet seasons, and positively associated with CODMn in the dry season. Forestland percentage was not significantly correlated with any other water quality parameters. Grassland was significantly negatively associated with CODMn, BOD and COD in both wet and dry seasons, while it was positively associated with DO in wet season. For waters, it had a negative influence on BOD and a positive influence on DO. Urban land was significantly negatively correlated with DO and positively correlated with NH3-N.
Stepwise regression was conducted to identify key landscape composition metrics affecting water quality at the scale of control units (Table 5). During both dry and wet season, grasslands were found to be negatively correlated with CODMn and COD, indicating that with the increase of grassland, the concentration of these water quality parameters decreased and contamination was alleviated. The BOD was negatively correlated with both grassland and waters percentage, indicating that increases in grassland and waters will decrease the BOD concentration. DO and NH3-N were influenced by urban land during both dry and wet seasons, and the increasing of urban land percentage was positively correlated with NH3-N and negatively correlated with DO. The TP was not significantly affected by any land use types. Overall, R2 values calculated for all pairs of regressions were relatively small, suggesting that water quality parameters were portrayed inadequately by the landscape composition at the scale of control units and that landscape pattern metrics for each land cover type should be further investigated [51].

3.3.3. Landscape Pattern and Water Quality

Landscape pattern metrics were further selected to evaluate the relationship of landscape characteristics and water quality at the scale of control units with consideration of the influence of landscape configuration and spatial heterogeneity on water quality. The results of regression results between configuration of land use patterns and water quality parameters are shown in Table 6. The overall R2 values were generally higher than the regression R2 values between land use percentages and water quality, indicating that the water quality parameters in both dry and wet seasons can be better predicted by landscape patterns than landscape composition at the scale of control units. The R2 values calculated for these metrics are shown in descending order in Table 7.
The largest R2 was observed for BOD in dry season, which was positively correlated with the mean area of water, mean Euclidean nearest-neighbor (ENN) of grassland, SHAPE of forestland and mean area of farmland, while it was negatively correlated with the Largest Patch Index (LPI) of forestland. The BOD in wet season was explained by different metrics with R2 0.605. For the second largest R2, the CODMn in dry season was positively correlated with the mean area of waters and farmland and negatively correlated with the mean ENN and PD of forestland. For DO during wet season, the significant negative impacts originated from PLAND of urban land and SHAPE of forestland, while the positive impacts originated from CA of forestland with a R2 of 0.583. The other two parameters with R2 values bigger than 0.5 were NH3-N in dry season and COD in dry season, for which significant impacts originated from the mean area of urban land and forestland, COHE and ED of farmland, LSI of waters and IJI of grassland. The regression R2 of water quality, except for DO in dry season, was higher than in wet season. TP during dry and wet season could not be explained by the landscape composition and pattern metrics.

4. Discussion

4.1. Temporal-Spatial Variations in Water Quality

The stations showing downward trend of BOD, COD, CODMn and NH3-N were mainly concentrated in the northwest and southeast, especially the area surrounding the Nansi Lake, which may be attributed to the continuous and effective water pollution control actions implemented by the national and local government since 2000, including the 10th, 11th and 12th Five-Year Major Science and Technology Program for Water Pollution Control and Treatment Plan from 2001 to 2015, which were aimed at improving the water environment of several major basins in China, including the Hai River Basin and the Nansi Lake located in the northwest and southwest of the Shandong province [51,54]. The construction of new wastewater treatment plants in major urban areas and restoration projects for main water systems in the Shandong province over the past decade has resulted in significant decreases in point source pollutants discharge and improved water quality [12]. However, the water quality of control units still need improvements as indicated by the BOD, COD and CODMn concentrations at many stations exceeding the third-three level of the national surface water standard. Most of the 20 stations with no parameters exceeding the standard were distributed around the Nansi Lake, which was an important storage reservoir and water transfer channel located on the east route of the South-to-North Water Transfer Project. The good water quality of stations around the Nansi Lake was related to the many water protection activities that have been conducted in this area during the past ten years to improve and ensure the quality of transfer water [55].
The seasonal variation of water quality was mainly influenced by natural processes, such as rainfall, surface runoff and by anthropogenic activities. In this study, TP, BOD, COD and CODMn presents higher concentration in the wet season probably ascribed to the more pollutants being washed from the surface to the receiving waters by rainfall along with runoff. DO and NH3N in the wet season were lower than in the dry season, which may be due to increased consumption of microorganism [56].

4.2. Relationships between Landscape Characteristics and Water Quality

A correlation analysis between percentage of land use types and water quality showed that urban land has a negative impact on NH3-N and DO and farmland has a negative impact on BOD and COD, while grassland has a positive impact on these factors during both dry and wet season. These findings were consistent with the results of numerous previous studies that showed agricultural and urban land uses make negative contributions to water quality in watersheds [57,58,59], while the proportion of vegetated areas is positively correlated with water quality [60,61,62,63], which suggests the absorption and fixation effects of grassland for water pollutants [64,65]. Regression analysis revealed that increasing urban land percentage was not conductive to the reduction of NH3-N and DO pollution, and the increased grassland percentage was beneficial to the control of CODMn, BOD and COD pollution [66,67]. The relatively small R2 indicated that the relationship between water quality and land use types at the scale of control units was complicated, and may need to induce the landscape metrics as well as other factors to carry out the further explanation [21].
Different from previous similar studies on sub-basin and buffer scales [68], as shown in Table S1, we found out landscape pattern metrics dominate higher relevance to water quality parameters than percentage of land use types as indicated by the generally higher R2 values, which was the unique conclusion we got about the relationship between landscape features and water quality at the control unit scale in Shandong province. Increasing AREA_MN of farmland will lead to increased CODMn and BOD, which may be related to the increased usage of organic fertilizer such as livestock and poultry manure and the irrigation water from production and domestic sewage [42,57]. The COHESION of farmland was positively correlated with BOD in wet season and COD and NH3-N in dry season. The COHESION index at the class level measures the physical connectedness of the corresponding patch type. Moreover, the ED values of farmland were negatively related to BOD in wet season and COD in both wet and dry season. Edge density (ED) represent edge length on a per unit area basis that facilitates comparisons among landscapes of varying sizes. The above results suggested that the smaller area, higher edge density and poor connectivity of farmland patches are conducive to pollutants reduction. The PLAND of urban land was negatively associated with DO in both dry and wet season, while the PLAND and AREA_MN of urban land were positively associated with NH3-N, indicating the adverse effects of urban land sprawl on DO and NH3-N [69,70,71]. Therefore, one possible approach to control the pollutants could be slow down the aggregation and sprawl of farmland and urban land and prevent it from developing in patches [72,73]. Though the landscape composition analysis suggested the positive impact of grassland percentage on water quality, the landscape pattern metrics of ENN_MN and IJI of grassland, which are the simple indicator of patch context and has been used extensively to quantify patch isolation [74], were positively correlated with BOD and COD. This finding shows that the fragmentation of grassland is not conducive to pollutant reduction.
Landscape characteristics have a greater impact in the dry season for COD, CODMn and NH3N, which can be seen from their higher regression R2 with landscape composition and landscape pattern metrics in the dry season. No landscape metrics could predict the TP concentration, which may be because in addition to landscape pattern metrics, there are other more dominant factors affecting TP, such as topography, soil properties and pollution discharges.

4.3. Methodology and Suggested Management

The model analysis revealed the relationship between the landscape characteristics metrics and water quality parameters, and offered a useful framework for the landscape metrics utilization to protect water environment of the control units. This study also incorporated limitations. The predictive ability of the regression models for some water quality parameters and landscape metrics was relatively low with small R2. This study was mainly focused on the correlation between water quality and landscape metrics, however, some factors such as streamflow, topography, soil, population density and point source pollution discharge may also affect water quality. These relativity could be taken into account in future studies to improve the prediction accuracy if the water quality prediction will be researched further [11,75].
This study demonstrated that water quality parameters was significantly influenced by landscape pattern metrics at the scale of control units and its influence on water quality was greater than landscape composition metrics. Model evaluation indicated that the control of BOD, COD and CODMn has a strong positive relationship with the mean area and connectedness of farmland and negative relationship with the edge density of farmland. In addition, the increased PLAND values of urban land had adverse effects on DO and NH3-N. Base on this, local management plans should take into account the configuration of land use types, such as prevent sprawling and aggregate development of farmland and urban land. The negative correlation between the grassland and water pollutants suggested that the grassland percentage may act as “sink” landscapes and should be increased appropriately, which can reduce the risk of pollution migration to water bodies [42]. Moreover, the configuration of grassland pattern can produce different effect of pollutants reduction, especially the aggregation metrics, and the fragmentation of grassland should be avoided for its positive impact on BOD and COD. Therefore, the obtained regression models can help managers to develop land use control plans that are more conducive to aquatic environments. Furthermore, the significant downward trend of water pollutants at most national stations during 2009–2017 indicated the obvious effect of pollution control measures, mainly aimed at the point sources control, taken by the nation and local government. Our study demonstrated that the point sources control should be further strengthened at the control units to improve the water quality status of national station with pollutants exceeding the third-three level of the national surface water standard. In addition to the construction of sewage treatment plants and other measures to reduce pollutant emissions, the configuration of landscape patterns conducive to water environmental protection should also be considered.

5. Conclusions

The SMK test for water quality parameters at 45 stations of national control units in the Shandong province from 2009–2017 suggested a significant improvement of water quality condition had occurred, with nearly 50% of stations showing significant upward trend of DO and more than 40% of stations showing a significant downward trend of the other parameters. For water quality parameters other than TP, the stations that showed downward trends were mainly concentrated in the northwest and southwest region of Shandong province, especially the area surrounding the Nansi Lake. Moreover, these stations presented significant spatial autocorrelation, demonstrating the good effects of water environmental protection in these areas in the past ten years. However, more improvements were still needed as the BOD, COD and CODMn concentrations exceeded the third-three level of the national surface water standard at more than 40% of stations. Regression and correlation analysis between land use types and water quality suggested that urban land has a negative impact on NH3-N and DO, while farmland has a negative impact on BOD, COD and CODMn, with a significant positive impact from grassland during both dry and wet seasons, suggesting that grassland plays a role in reducing pollutants and constructing a grassland buffers of at least 20–30 m wide adjacent to the streams and lakes may be an effective measure to reduce pollutants entering rivers. Landscape pattern metrics dominated higher relevance to water quality concentration than the percentage of land use types as indicated by the generally higher regression R2 values. The decreased AREA_MN and COHESION of farmland and increased ED of farmland will promote the control of BOD, COD and CODMn. Increased PLAND of urban land had adverse effects on DO and NH3-N. The increased grassland percentage produce positive impact on the pollutants reduction, while the fragmentation of grassland goes against the effect of pollutants reduction as indicated by the positive impact of ENN_MN and IJI of grassland on BOD and COD concentration. The suggestion of land use plan was concluded that the sprawling and aggregate development of farmland and urban land should be restricted and grassland act as sinks for pollutants should account for larger percentage and its fragmentation development should be avoided.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/16/12/2149/s1, Table S1: Summary of previous studies on the relationship between land use and water quality.

Author Contributions

Data curation, G.X. and H.S.; Supervision, H.W.; Writing—original draft, X.H.; Writing—review & editing, Y.Z.

Funding

This research was funded by the National Key Research and Development Program of China (Grant No. 2016YFC0401308) and the Chinese National Special Science and Technology Program of Water Pollution Control and Treatment (No. 2017ZX07302-004).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aubert, A.H.; Gascuel-Odoux, C.; Merot, P. Annual hysteresis of water quality: A method to analyse the effect of intra- and inter-annual climatic conditions. J. Hydrol. 2013, 478, 29–39. [Google Scholar] [CrossRef]
  2. Ahearn, D.S.; Sheibley, R.W.; Dahlgren, R.A.; Keller, K.E. Temporal dynamics of stream water chemistry in the last free-flowing river draining the western Sierra Nevada, California. J. Hydrol. 2004, 295, 47–63. [Google Scholar] [CrossRef] [Green Version]
  3. Arheimer, B.; Lidén, R. Nitrogen and phosphorus concentrations from agricultural catchments—Influence of spatial and temporal variables. J. Hydrol. 2000, 227, 140–159. [Google Scholar] [CrossRef]
  4. Hongmei, B.; Xiang, T.; Siyue, L.; Quanfa, Z. Temporal and spatial variations of water quality in the Jinshui River of the South Qinling Mts. China. Ecotoxicol. Environ. Saf. 2010, 73, 907–913. [Google Scholar]
  5. Duan, W.; He, B.; Chen, Y.; Zou, S.; Wang, Y.; Nover, D.; Chen, W.; Yang, G. Identification of long-term trends and seasonality in high-frequency water quality data from the Yangtze River basin, China. PLoS ONE 2018, 13, e0188889. [Google Scholar] [CrossRef] [PubMed]
  6. Lintern, A.; Webb, J.A.; Ryu, D.; Liu, S.; Western, A.W. Key factors influencing differences in stream water quality across space. Wiley Interdiscip. Rev. Water 2018, 5, e1260. [Google Scholar] [CrossRef]
  7. Libiseller, C.; Grimvall, A. Performance of partial Mann–Kendall tests for trend detection in the presence of covariates. Environmetrics 2010, 13, 71–84. [Google Scholar] [CrossRef]
  8. Kisi, O.; Ay, M. Comparison of Mann-Kendall and innovative trend method for water quality parameters of the Kizilirmak River, Turkey. J. Hydrol. 2014, 513, 362–375. [Google Scholar] [CrossRef]
  9. Shiliang, S.; Dan, L.; Qi, Z.; Rui, X.; Fang, H.; Jiaping, W. Temporal trend and source apportionment of water pollution in different functional zones of Qiantang River, China. Water Res. 2011, 45, 1781–1795. [Google Scholar]
  10. Yu, Y.S.; Zou, S.; Whittemore, D. Non-parametric trend analysis of water quality data of rivers in Kansas. J. Hydrol. 1993, 150, 61–80. [Google Scholar] [CrossRef]
  11. Chang, H. Spatial analysis of water quality trends in the Han River basin, South Korea. Water Res. 2008, 42, 3285–3304. [Google Scholar] [CrossRef] [PubMed]
  12. Zhai, X.; Xia, J.; Zhang, Y. Water quality variation in the highly disturbed Huai River Basin, China from 1994 to 2005 by multi-statistical analyses. Sci. Total Environ. 2014, 496, 594–606. [Google Scholar] [CrossRef] [PubMed]
  13. Afed Ullah, K.; Jiang, J.; Wang, P. Land use impacts on surface water quality by statistical approaches. Glob. J. Environ. Sci. Manag. 2018, 4, 231–250. [Google Scholar]
  14. Liu, J.; Shen, Z.; Chen, L. Assessing how spatial variations of land use pattern affect water quality across a typical urbanized watershed in Beijing, China. Landsc. Urban Plan. 2018, 176, 51–63. [Google Scholar] [CrossRef]
  15. Wang, G.; Yang, H.; Wang, L.; Xu, Z.; Xue, B. Using the SWAT model to assess impacts of land use changes on runoff generation in headwaters. Hydrol. Process. 2014, 28, 1032–1042. [Google Scholar] [CrossRef]
  16. Wang, G.; Yinglan, A.; Xu, Z.; Zhang, S. The influence of land use patterns on water quality at multiple spatial scales in a river system. Hydrol. Process. 2015, 28, 5259–5272. [Google Scholar] [CrossRef]
  17. Bahar, M.M.; Ohmori, H.; Yamamuro, M. Relationship between river water quality and land use in a small river basin running through the urbanizing area of Central Japan. Limnology 2008, 9, 19–26. [Google Scholar] [CrossRef]
  18. Han, Y.; Jia, H. Simulating the spatial dynamics of urban growth with an integrated modeling approach: A case study of Foshan, China. Ecol. Model. 2017, 353, 107–116. [Google Scholar] [CrossRef]
  19. Ahearn, D.S.; Sheibley, R.W.; Dahlgren, R.A.; Anderson, M.; Johnson, J.; Tate, K.W. Land use and land cover influence on water quality in the last free-flowing river draining the western Sierra Nevada, California. J. Hydrol. 2005, 313, 234–247. [Google Scholar] [CrossRef]
  20. Bu, H.; Zhang, Y.; Meng, W.; Song, X. Effects of land-use patterns on in-stream nitrogen in a highly-polluted river basin in Northeast China. Sci. Total Environ. 2016, 553, 232–242. [Google Scholar] [CrossRef]
  21. Zhang, W.; Chen, D.; Li, H. Spatio-temporal dynamics of water quality and their linkages with the watershed landscape in highly disturbed headwater watersheds in China. Environ. Sci. Pollut. Res. 2018, 25, 35287–35300. [Google Scholar] [CrossRef] [PubMed]
  22. Rajaei, F.; Sari, A.E.; Salmanmahiny, A.; Delavar, M.; Bavani, A.R.M.; Srinivasan, R. Surface drainage nitrate loading estimate from agriculture fields and its relationship with landscape metrics in Tajan watershed. Paddy Water Environ. 2016, 15, 1–12. [Google Scholar] [CrossRef]
  23. Shen, Z.; Hou, X.; Li, W.; Aini, G. Relating landscape characteristics to non-point source pollution in a typical urbanized watershed in the municipality of Beijing. Landsc. Urban Plan. 2014, 123, 96–107. [Google Scholar] [CrossRef]
  24. Glavan, M.; White, S.M.; Holman, I.P. Water quality targets and maintenance of valued landscape character—Experience in the Axe catchment, UK. J. Environ. Manag. 2012, 103, 142–153. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, J.; Zhang, X.; Xia, J.; Wu, S.; She, D.; Zou, L. Characterizing and explaining spatio-temporal variation of water quality in a highly disturbed river by multi-statistical techniques. Springerplus 2016, 5, 1171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Mainali, J.; Chang, H. Landscape and Anthropogenic Factors Affecting Spatial Patterns of Water Quality Trends in a Large River basin, South Korea. J. Hydrol. 2018, 564, 26–40. [Google Scholar] [CrossRef]
  27. Cunningham, M.A.; Menking, K.; Gillikin, D.; Smith, K.; Freimuth, C.; Belli, S.; Marshallpregnall, A.; Schlessman, M.; Batur, P. Influence of Open Space on Water Quality in an Urban Stream. Phys. Geogr. 2010, 31, 336–356. [Google Scholar] [CrossRef] [Green Version]
  28. Wei, M.; Wang, H.Y. The Study on Technique of Basin Water-Quality Target Management IV: The Control-Unit-Based Effluent Permit Limits and Pollutant Reduction Technology Assessment. Res. Environ. Sci. 2008, 21, 1–9. [Google Scholar]
  29. Wei, M.; Nan, Z.; Yuan, Z.; Hui, Z.B. The Study on Technique of Basin Water Quality Target Management I: Pollutant Total Amount Control Technique in Control Unit. Res. Environ. Sci. 2007, 20, 1–8. [Google Scholar]
  30. Lei, K.; Wei, M.; Fei, Q.; Guo, F.; Su, B. Study and application of the technology on water quality target management for control unit. Eng. Sci. 2013, 15, 62–69. [Google Scholar]
  31. Yao, J.; Wang, G.; Xue, W.; Yao, Z.; Xue, B. Assessing the Adaptability of Water Resources System in Shandong Province, China, Using a Novel Comprehensive Co-evolution Model. Water Resour. Manag. 2018, 33, 657–675. [Google Scholar] [CrossRef]
  32. Yi, L.; Zhang, Z. Analysis on the relationship between economic development and water environment pollution in Shandong province. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2018; p. 012229. [Google Scholar]
  33. Yang, L.Y.; Shen, J.; Zhang, Z.L.; Zhu, Y.X.; Sun, Q.Y. A 40-year element geochemical record and its environment implication in Lake Nansihu, Shandong Province. Geochimica 2003, 32, 453–460. [Google Scholar]
  34. MEP. Environmental Quality Standards for Surface Water (GB 3838-2002); China Environmental Science Press: Beijing, China, 2002. [Google Scholar]
  35. MEP. Regulation for Water Environmental Monitoring (SL219-98); Ministry of Water Resources: Beijing, China, 1998.
  36. Fang, Q.; Wang, G.; Liu, T.; Xue, B.-L.; Yinglan, A. Controls of carbon flux in a semi-arid grassland ecosystem experiencing wetland loss: Vegetation patterns and environmental variables. Agric. For. Meteorol. 2018, 259, 196–210. [Google Scholar] [CrossRef]
  37. Fang, Q.; Wang, G.; Xue, B.; Liu, T.; Kiem, A. How and to what extent does precipitation on multi-temporal scales and soil moisture at different depths determine carbon flux responses in a water-limited grassland ecosystem? Sci. Total Environ. 2018, 635, 1255–1266. [Google Scholar] [CrossRef] [PubMed]
  38. Sun, W.; Fan, J.; Wang, G.; Ishidaira, H.; Bastola, S.; Yu, J.; Fu, Y.H.; Kiem, A.S.; Zuo, D.; Xu, Z. Calibrating a hydrological model in a regional river of the Qinghai–Tibet plateau using river water width determined from high spatial resolution satellite images. Remote Sens. Environ. 2018, 214, 100–114. [Google Scholar] [CrossRef]
  39. Han, D.; Wang, G.; Liu, T.; Xue, B.-L.; Kuczera, G.; Xu, X. Hydroclimatic response of evapotranspiration partitioning to prolonged droughts in semiarid grassland. J. Hydrol. 2018, 563, 766–777. [Google Scholar] [CrossRef]
  40. Wang, G.; Liu, S.; Liu, T.; Fu, Z.; Yu, J.; Xue, B. Modelling above-ground biomass based on vegetation indexes: A modified approach for biomass estimation in semi-arid grasslands. Int. J. Remote Sens. 2018, 40, 3835–3854. [Google Scholar] [CrossRef]
  41. Sun, W.; Wang, Y.; Fu, Y.H.; Xue, B.; Wang, G.; Yu, J.; Zuo, D.; Xu, Z. Spatial heterogeneity of changes in vegetation growth and their driving forces based on satellite observations of the Yarlung Zangbo River Basin in the Tibetan Plateau. J. Hydrol. 2019, 574, 324–332. [Google Scholar] [CrossRef]
  42. Xiao, R.; Wang, G.; Zhang, Q.; Zhang, Z. Multi-scale analysis of relationship between landscape pattern and urban river water quality in different seasons. Sci. Rep. 2016, 6, 25250. [Google Scholar] [CrossRef] [Green Version]
  43. Hirsch, R.M.; Slack, J.R. Non-Parametric Trend Test for Seasonal Data with Serial Dependence. Water Resour. Res. 1984, 20, 727–732. [Google Scholar] [CrossRef]
  44. Hirsch, R.M.; Slack, J.R.; Smith, R.A. Techniques of Trend Analysis for Monthly Water Quality Data. Water Resour. Res. 1982, 18, 107–121. [Google Scholar] [CrossRef]
  45. Helsel, D.R.; Frans, L.M. Regional Kendall test for trend. Environ. Sci. Technol. 2006, 40, 4066–4073. [Google Scholar] [CrossRef] [PubMed]
  46. Moran, P. Notes on continuous stochastic phenomena. Biometrika 1950, 37, 17–23. [Google Scholar] [CrossRef] [PubMed]
  47. Cliff, A.D.; Ord, K. Spatial Autocorrelation: A Review of Existing and New Measures with Applications. Econ. Geogr. 1970, 46 (Suppl. 1), 24. [Google Scholar] [CrossRef]
  48. Anselin, L. Local indicators of spatial association—LISA. Geogr. Anal. 1995, 27, 93–115. [Google Scholar] [CrossRef]
  49. Anselin, L.; Fischer, M.; Scholten, H.J. Spatial Analytical Perspective on GIS in Environmental and Socio-Economic Sciences; Taylor and Francis: London, UK, 1996; pp. 111–125. [Google Scholar]
  50. O’Brien, R.M. A Caution Regarding Rules of Thumb for Variance Inflation Factors. Qual. Quant. 2007, 41, 673–690. [Google Scholar] [CrossRef]
  51. Shi, W.; Xia, J.; Zhang, X. Influences of anthropogenic activities and topography on water quality in the highly regulated Huai River basin, China. Environ. Sci. Pollut. Res. 2016, 23, 1–15. [Google Scholar] [CrossRef]
  52. Yinglan, A.; Wang, G.; Liu, T.; Xue, B.; Kuczera, G. Spatial variation of correlations between vertical soil water and evapotranspiration and their controlling factors in a semi-arid region. J. Hydrol. 2019, 574, 53–63. [Google Scholar]
  53. Zhou, Y.; Xu, J.F.; Yin, W.; Ai, L.; Fang, N.F.; Tan, W.F.; Yan, F.L.; Shi, Z.H. Hydrological and environmental controls of the stream nitrate concentration and flux in a small agricultural watershed. J. Hydrol. 2017, 545, 355–366. [Google Scholar] [CrossRef]
  54. Li, W.; Li, X.; Su, J.; Zhao, H. Sources and mass fluxes of the main contaminants in a heavily polluted and modified river of the North China Plain. Environ. Sci. Pollut. Res. Int. 2014, 21, 5678. [Google Scholar] [CrossRef]
  55. Zhang, W.; Yang, L. Water quality evaluation for the main inflow rivers of nansihu lake. Trans. Oceanol. Limnol. 2011, 31, 316–323. [Google Scholar]
  56. Tsegaye, T.; Sheppard, D.; Islam, K.R.; Tadesse, W.; Atalay, A.; Marzen, L. Development of Chemical Index as a Measure of In-Stream Water Quality in Response to Land-Use and Land Cover Changes. Water Air Soil Pollut. 2006, 174, 161–179. [Google Scholar] [CrossRef]
  57. Baker, A. Land Use and Water Quality. Hydrol. Process. 2003, 17, 2499–2501. [Google Scholar] [CrossRef]
  58. Lee, S.W.; Hwang, S.J.; Lee, S.B.; Hwang, H.S.; Sung, H.C. Landscape ecological approach to the relationships of land use patterns in watersheds to water quality characteristics. Landsc. Urban Plan. 2009, 92, 80–89. [Google Scholar] [CrossRef]
  59. White, M.D.; Greer, K.A. The effects of watershed urbanization on the stream hydrology and riparian vegetation of Los Peñasquitos Creek, California. Landsc. Urban Plan. 2006, 74, 125–138. [Google Scholar] [CrossRef]
  60. Li, S.; Gu, S.; Tan, X.; Zhang, Q. Water quality in the upper Han River basin, China: The impacts of land use/land cover in riparian buffer zone. J. Hazard. Mater. 2009, 165, 317–324. [Google Scholar] [CrossRef]
  61. Tong, S.T.Y.; Chen, W. Modeling the relationship between land use and surface water quality. J. Environ. Manag. 2002, 66, 377–393. [Google Scholar] [CrossRef]
  62. Wang, G.; Sun, W.; Xue, B.; Kiem, A. Stratification response of soil water content during rainfall events under different rainfall patterns. Hydrol. Process. 2018, 32, 3128–3139. [Google Scholar]
  63. Luo, P.; Zhou, M.; Deng, H.; Lyu, J.; Cao, W.; Takara, K.; Nover, D.; Geoffrey, S.S. Impact of forest maintenance on water shortages: Hydrologic modeling and effects of climate change. Sci. Total Environ. 2018, 615, 1355–1363. [Google Scholar] [CrossRef]
  64. Nakagawa, Y.; Iwatsubo, G. Water chemistry in a number of mountainous streams of East Asia. J. Hydrol. 2000, 240, 118–130. [Google Scholar] [CrossRef]
  65. Piatek, K.B.; Christopher, S.F.; Mitchell, M.J. Spatial and temporal dynamics of stream chemistry in a forested watershed. Hydrol. Earth Syst. Sci. Discuss. 2009, 5, 423–439. [Google Scholar] [CrossRef]
  66. Schoonover, J.E.; Lockaby, B.G. Land cover impacts on stream nutrients and fecal coliform in the lower Piedmont of West Georgia. J. Hydrol. 2006, 331, 371–382. [Google Scholar] [CrossRef]
  67. Wang, G.; Li, J.; Sun, W.; Xue, B.; A, Y.; Liu, T. Non-point source pollution risks in a drinking water protection zone based on remote sensing data embedded within a nutrient budget model. Water Res. 2019, 157, 238–246. [Google Scholar] [CrossRef] [PubMed]
  68. Gu, Q.; Hu, H.; Ma, L.; Sheng, L.; Yang, S.; Zhang, X.; Zhang, M.; Zheng, K.; Chen, L. Characterizing the spatial variations of the relationship between land use and surface water quality using self-organizing map approach. Ecol. Indic. 2019, 102, 633–643. [Google Scholar] [CrossRef]
  69. Liu, W.; Zhang, Q.; Liu, G. Influences of watershed landscape composition and configuration on lake-water quality in the Yangtze River basin of China. Hydrol. Process. 2012, 26, 570–578. [Google Scholar] [CrossRef]
  70. Moreno-Mateos, D.; Mander, U.; Comín, F.A.; Pedrocchi, C.; Uuemaa, E. Relationships between landscape pattern, wetland characteristics, and water quality in agricultural catchments. J. Environ. Qual. 2008, 37, 2170–2180. [Google Scholar] [CrossRef] [PubMed]
  71. Luo, P.; Mu, D.; Xue, H.; Ngo-Duc, T.; Dang-Dinh, K.; Takara, K.; Nover, D.; Schladow, G. Flood inundation assessment for the Hanoi Central Area, Vietnam under historical and extreme rainfall conditions. Sci. Rep. 2018, 8, 12623. [Google Scholar] [CrossRef] [PubMed]
  72. Uuemaa, E.; Roosaare, J.; Mander, Ü. Scale dependence of landscape metrics and their indicatory value for nutrient and organic matter losses from catchments. Ecol. Indic. 2005, 5, 350–369. [Google Scholar] [CrossRef]
  73. Xiao, H.; Ji, W. Relating landscape characteristics to non-point source pollution in mine waste-located watersheds using geospatial techniques. J. Environ. Manag. 2007, 82, 111–119. [Google Scholar] [CrossRef]
  74. Marks, B.J. FRAGSTATS: Spatial pattern analysis program for quantifying landscape structure. Gen. Tech. Rep. PNW 1995, 351. [Google Scholar] [CrossRef]
  75. Diamantini, E.; Lutz, S.R.; Mallucci, S.; Majone, B.; Merz, R.; Bellin, A. Driver detection of water quality trends in three large European river basins. Sci. Total Environ. 2018, 612, 49–62. [Google Scholar] [CrossRef] [PubMed]
Ijerph 16 02149 g001 550

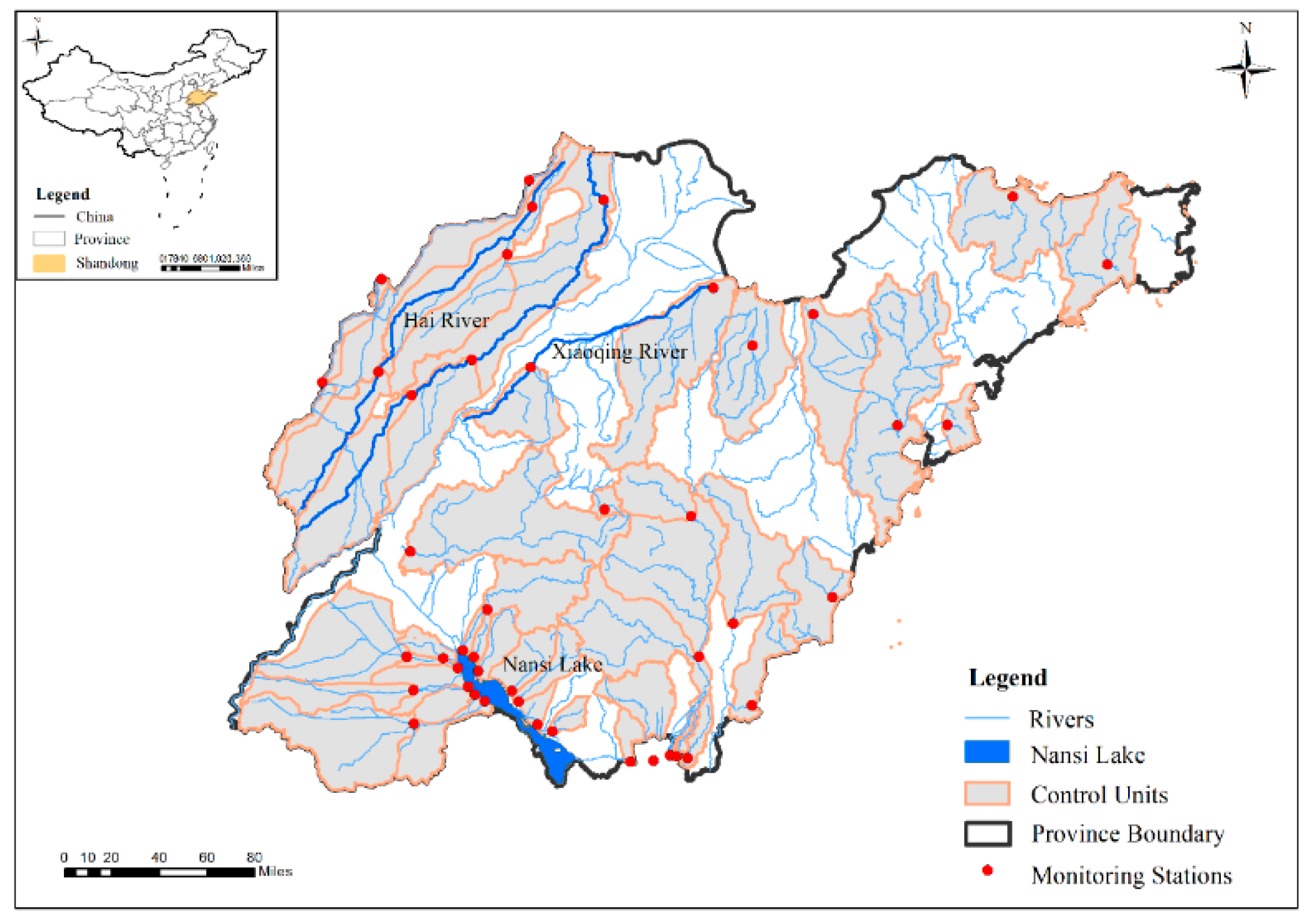

Figure 1. Location of water quality monitoring stations and control units.
Figure 1. Location of water quality monitoring stations and control units.
Ijerph 16 02149 g001
Ijerph 16 02149 g002 550

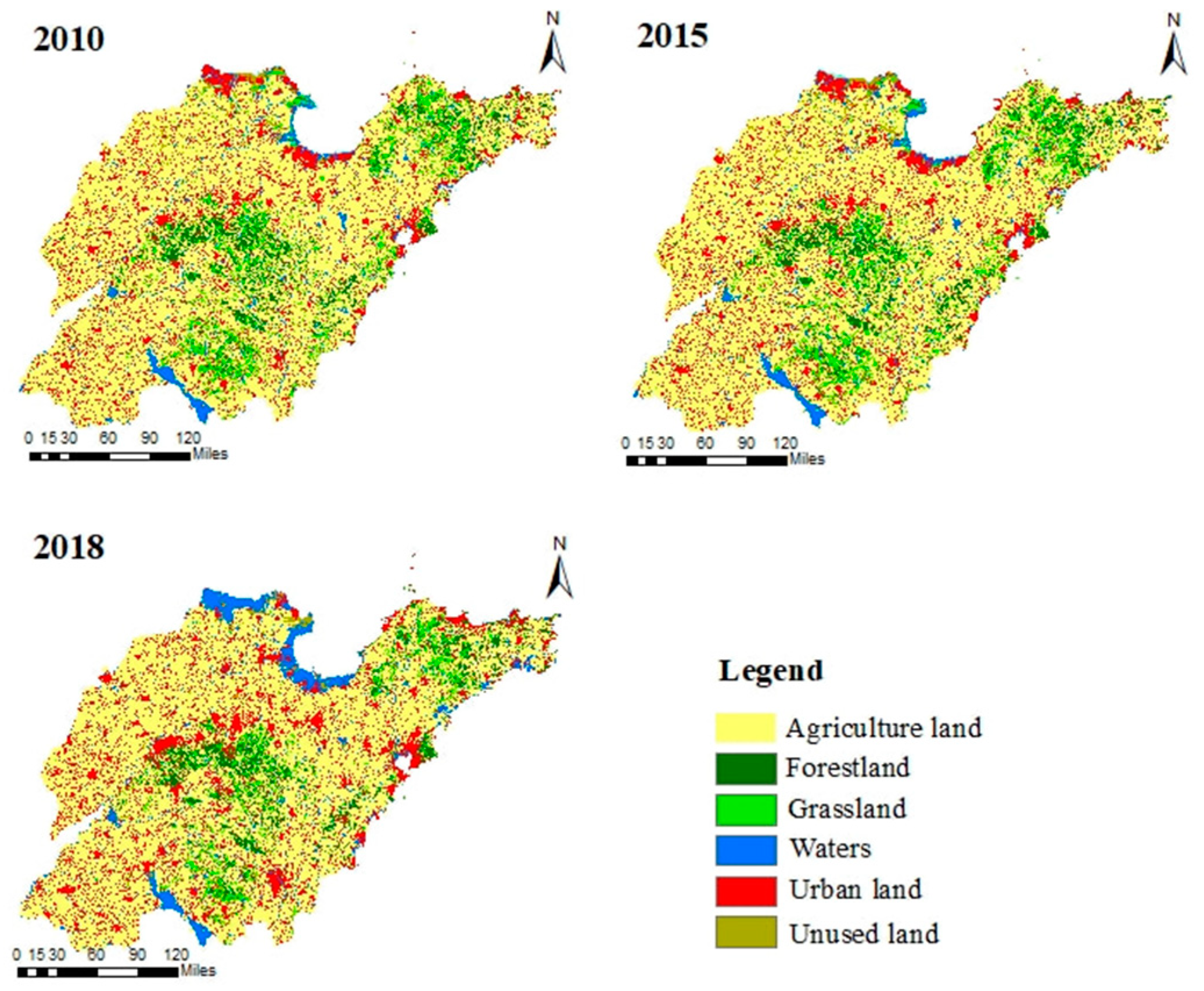

Figure 2. Land use classification of the Shandong province in 2010, 2015, 2018.
Figure 2. Land use classification of the Shandong province in 2010, 2015, 2018.
Ijerph 16 02149 g002
Ijerph 16 02149 g003 550

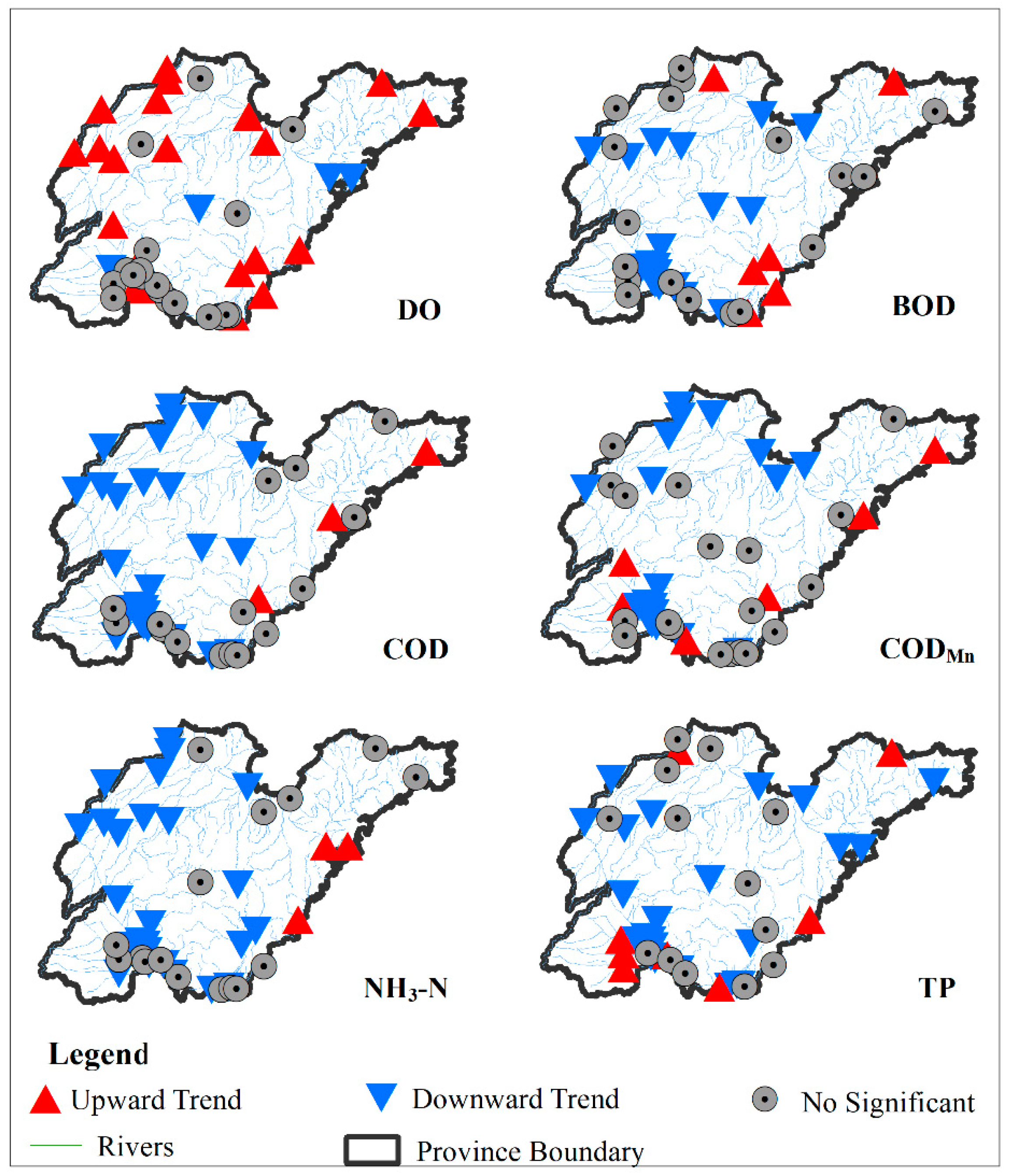

Figure 3. Temporal trends observed upon seasonal Mann-Kendall’s (SMK) testing for water quality parameters at 45 monitoring stations during 2009–2017.
Figure 3. Temporal trends observed upon seasonal Mann-Kendall’s (SMK) testing for water quality parameters at 45 monitoring stations during 2009–2017.
Ijerph 16 02149 g003
Ijerph 16 02149 g004 550

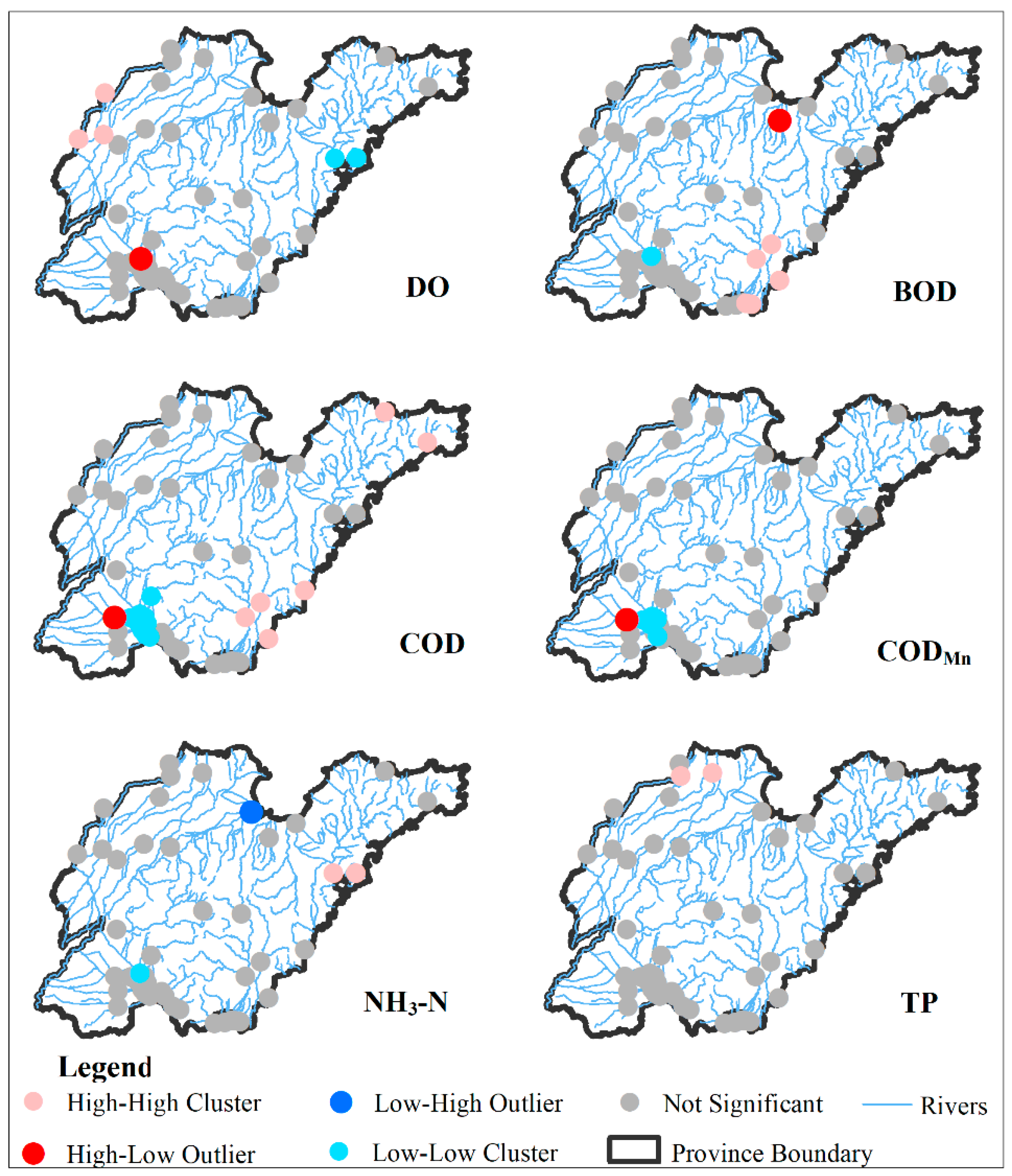

Figure 4. Spatial distribution of Local Moran’s I for water quality trends at 45 monitoring stations.
Figure 4. Spatial distribution of Local Moran’s I for water quality trends at 45 monitoring stations.
Ijerph 16 02149 g004
Ijerph 16 02149 g005 550

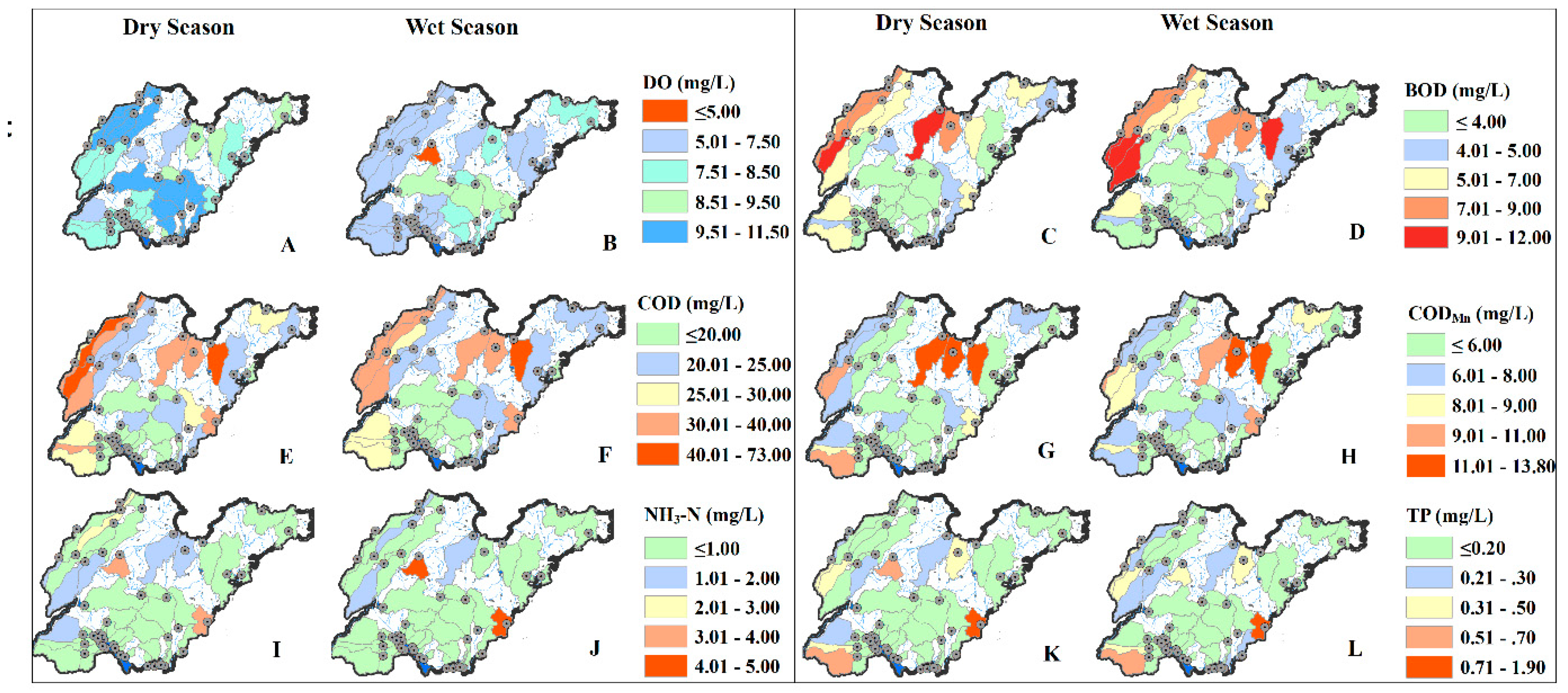

Figure 5. Spatial variations in water quality current status at 45 control units in wet and dry season from 2015 to 2017 (A: the variation of DO in Dry Season; B: the variation of DO in Wet Season; C: the variation of BOD in Dry Season; D: the variation of BOD in Wet Season; E: the variation of COD in Dry Season; F: the variation of COD in Wet Season; G: the variation of CODMn in Dry Season; H: the variation of CODMn in Wet Season; I: the variation of NH3-N in Dry Season; J: the variation of NH3-N in Wet Season; K: the variation of TP in Dry Season; L: the variation of TP in Wet Season).
Figure 5. Spatial variations in water quality current status at 45 control units in wet and dry season from 2015 to 2017 (A: the variation of DO in Dry Season; B: the variation of DO in Wet Season; C: the variation of BOD in Dry Season; D: the variation of BOD in Wet Season; E: the variation of COD in Dry Season; F: the variation of COD in Wet Season; G: the variation of CODMn in Dry Season; H: the variation of CODMn in Wet Season; I: the variation of NH3-N in Dry Season; J: the variation of NH3-N in Wet Season; K: the variation of TP in Dry Season; L: the variation of TP in Wet Season).
Ijerph 16 02149 g005
Table
Table 1. Abbreviations and descriptions of landscape configuration metrics.
Table 1. Abbreviations and descriptions of landscape configuration metrics.
Metrics CategoryLandscape MetricsAbbreviationDescription
Area and Edge metricsMean Patch AreaAREA_MNThe average mean surface of patches
Total Class AreaCAMeasures the total area of all patches of the corresponding patch type
Percentage of LandscapePLANDProportion of the landscape occupied by patch type
Largest Patch IndexLPIArea of the largest patch of the corresponding patch type
Edge DensityEDTotal length of all edge segments, divided by the total landscape area
Shape metricsArea-Weighted Mean Shape IndexSHAPE_AMA larger value of SHAPE_AM means the area is more complex and irregular in shape
Area-Weighted Mean Fractal Dimension IndexFRAC_AMFractal dimension: ratio of perimeter per unit area. Increases as patches become more irregular
Aggregation metricsMean Euclidean nearest-neighbor distanceENN_MNThe average distance to the nearest neighboring patch of the same type
Interspersion and juxtaposition indexIJIProximity of patches in each class. High values correspond to proportionate distribution of patch type adjacencies
Landscape Shape IndexLSIA standardized measure of total edge or edge density that adjusts for the size of the landscape.
Patch Cohesion IndexCOHESIONPatch cohesion index at the class level measures the physical connectedness of the corresponding patch type.
Patch DensityPDNumber of patches per 100 ha
Table
Table 2. Z values of Global Moran’s I spatial autocorrelation of the trend.
Table 2. Z values of Global Moran’s I spatial autocorrelation of the trend.
IndexDOCODMnBODNH3-NCODTP
Z values4.56 **2.23 *3.40 **2.28 *4.68 **0.73
Moran’s Index0.5110.240.370.240.530.06
* Significant at the 0.05 level. ** Significant at the 0.01 level.
Table
Table 3. National quality standards for surface waters in China (GB3838-2002).
Table 3. National quality standards for surface waters in China (GB3838-2002).
ParametersFirs LevelSecond LevelThird LevelFourth LevelFifth Level
DO≥7.56532
BOD≤334610
COD≤1515203040
CODMn≤2461015
NH3-N≤0.150.511052
TP≤0.020.10.20.30.4
Table
Table 4. Pearson correlation coefficients between land use types and water quality.
Table 4. Pearson correlation coefficients between land use types and water quality.
ParametersSeasonFarmlandForestGrasslandWaterUrban Land
DOdry0.0350.0080.2130.114−0.456 **
wet−0.1960.2620.340 *0.317 *−0.514 **
CODMndry0.304 *−0.26−0.407 **−0.1380.291
wet0.213−0.185−0.301 *−0.150.249
BODdry0.299 *−0.221−0.375 *−0.323 *0.233
wet0.373 *−0.279−0.408 **−0.375 *0.213
CODdry0.374 *−0.234−0.419 **−0.2160.119
wet0.347 *−0.224−0.414 **−0.2390.173
NH3-Ndry−0.0080.02−0.286−0.1110.439 **
wet−0.0880.087−0.226−0.040.426 **
TPdry0.0370.011−0.252−0.0460.288
wet0.082−0.006−0.245−0.0260.19
* Significant at the 0.05 level. ** Significant at the 0.01 level.
Table
Table 5. Regression analysis of water quality parameters and land use percentage.
Table 5. Regression analysis of water quality parameters and land use percentage.
ParametersSeasonFunctionR2FsigVIFmax
DOdry−0.456UR0.1890.0021
wet−0.491UR + 0.275WA0.30801.007
CODMndry−0.407GR0.1460.0061
wet−0.301GR0.0700.0441
BODdry−0.365GR − 0.312WA0.2020.0031.001
wet−0.397GR − 0.362WA0.2650.0011.001
CODdry−0.419GR0.1560.0041
wet−0.414GR0.1520.0051
NH3-Ndry0.439UR0.1740.0031
wet0.426UR0.1620.0041
TPdry————
wet————
WA: water; UR: urban; GR: grassland; Fsig: the significance of F-tests; VIFmax: the maximum variance inflation factor.
Table
Table 6. Relationships between configuration of land use patterns and water quality parameters.
Table 6. Relationships between configuration of land use patterns and water quality parameters.
ParametersSeasonR2CAPLANDPDLPIEDLSIAREA_MNSHAPE_AMFRAC_AMENN_MNIJICOHESION
DOwet0.583FO−UR−FO
dry0.293−UR
CODMnwet0.254WA
dry0.632−FOWA, FA−FO
BODwet0.605−FAGRFA
dry0.788−FOWA, FAFOGR
CODwet0.345−FA
dry0.544−FAGRFA
NH3-Nwet0.254UR
dry0.552−WAUR, FOFA
TPwet—
dry—
FO: forests; FA: farmland.
Table
Table 7. Regression analysis of water quality parameters and landscape pattern metrics.
Table 7. Regression analysis of water quality parameters and landscape pattern metrics.
ParametersSeasonEquationR2Fsig.VIFmax
BODdry0.453 AREA_MN_WA + 0.499 ENN_MN_GR + 0.592SHAPE_AM_FO − 0.373LPI_FO + 0.256 AREA_MN_FA0.78801.568
CODMndry0.536AMEA_MN_WA + 0.46AMEA_MN_FA − 0.566ENN_MN_FO − 0.437PD_FO0.63202.081
BODwet−0.603ED_FA + 0.483COHESION_FA + 0.341IJI_GR0.60501.309
DOwet−0.371PLAND_UR − 0.59SHAPE_AM_FO + 0.697CA_FO0.58301.975
NH3-Ndry0.536AREA_MN_UR + 0.948COHESION_FA + 0.619AREA_MN_FO − 0.407LSI_WA0.55202.942
CODdry−0.533ED_FA + 0.531COHESION_FA + 0.321IJI_GR0.54401.309
CODwet−0.609ED_FA0.3450.0011
DOdry−0.566PLAND_UR0.2930.0021
CODMnwet0.532SHAPE_AM_WA0.2540.0041
NH3-Nwet0.532PLAND_UR0.2540.0041
TPwet————
TPdry————

Share and Cite

MDPI and ACS Style

Hu, X.; Wang, H.; Zhu, Y.; Xie, G.; Shi, H. Landscape Characteristics Affecting Spatial Patterns of Water Quality Variation in a Highly Disturbed Region. Int. J. Environ. Res. Public Health 2019, 16, 2149. https://doi.org/10.3390/ijerph16122149

AMA Style

Hu X, Wang H, Zhu Y, Xie G, Shi H. Landscape Characteristics Affecting Spatial Patterns of Water Quality Variation in a Highly Disturbed Region. International Journal of Environmental Research and Public Health. 2019; 16(12):2149. https://doi.org/10.3390/ijerph16122149

Chicago/Turabian Style

Hu, Xinqi, Hongqi Wang, Yi Zhu, Gang Xie, and Huijian Shi. 2019. "Landscape Characteristics Affecting Spatial Patterns of Water Quality Variation in a Highly Disturbed Region" International Journal of Environmental Research and Public Health 16, no. 12: 2149. https://doi.org/10.3390/ijerph16122149

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
