Indoor Environmental Quality in Mechanically Ventilated, Energy-Efficient Buildings vs. Conventional Buildings
Abstract
:1. Introduction
2. Methods and Material
Parameter | Number of Homes Where Measurements Were Performed | |||
---|---|---|---|---|
TG M1 | CG M1 | TG M2 | CG M2 | |
VOC | 61 | 61 | 61 | 59 |
Aldehydes | 62 | 61 | 61 | 59 |
Mould spores | 61 | 61 | 61 | 59 |
Dust mite allergens | 62 | 60 | 57 | 56 |
CO2 | 62 | 61 | 61 | 59 |
Volume of supplied air | 62 | - | 61 | - |
Radon (1 year) | 62 | 60 | - | - |
Noise | 14 | - | - | - |
Temperature | 62 | 59 | 61 | 58 |
Relative humidity | 62 | 60 | 61 | 59 |
3. Results and Discussion
3.1. Results

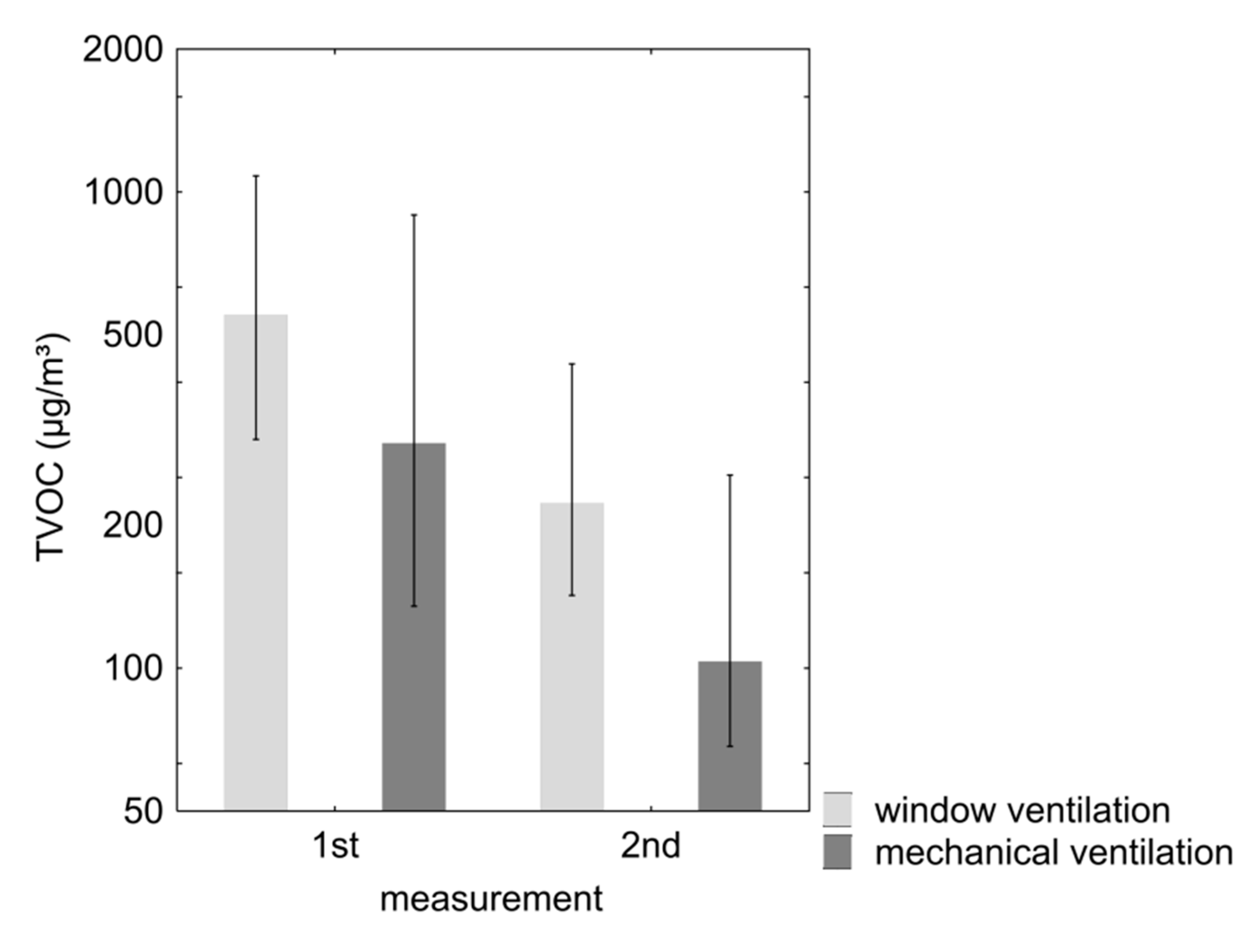

3.1.1. Volatile Organic Compounds (VOC)
TG M1 | CG M1 | TG M2 | CG M2 | |
---|---|---|---|---|
TVOC | ||||
Median (µg/m3) | 300 | 560 | 120 | 230 |
95th percentile | 2100 | 4000 | 470 | 2500 |
>1000 µg/m3 | 19% | 28% | 1% | 11% |
Formaldehyde | ||||
Median | 27 | 40 | 22 | 31 |
95th percentile | 53 | 67 | 46 | 59 |
>100 µg/m3 | 2% | 1% | 0% | 0% |
Sum of saturated acyclic aliphatic aldehydes | ||||
Median | 52 | 81 | 32 | 50 |
95th percentile | 170 | 258 | 80 | 110 |
>100 µg/m3 | 19% | 33% | 2% | 9% |
CO2 | ||||
Median | 1,360 | 1830 | 1280 | 1740 |
Maximum | 3010 | 7190 | 2250 | 3780 |
>1000 ppm | 84% | 92% | 89% | 92% |
>1400 ppm | 45% | 80% | 33% | 69% |

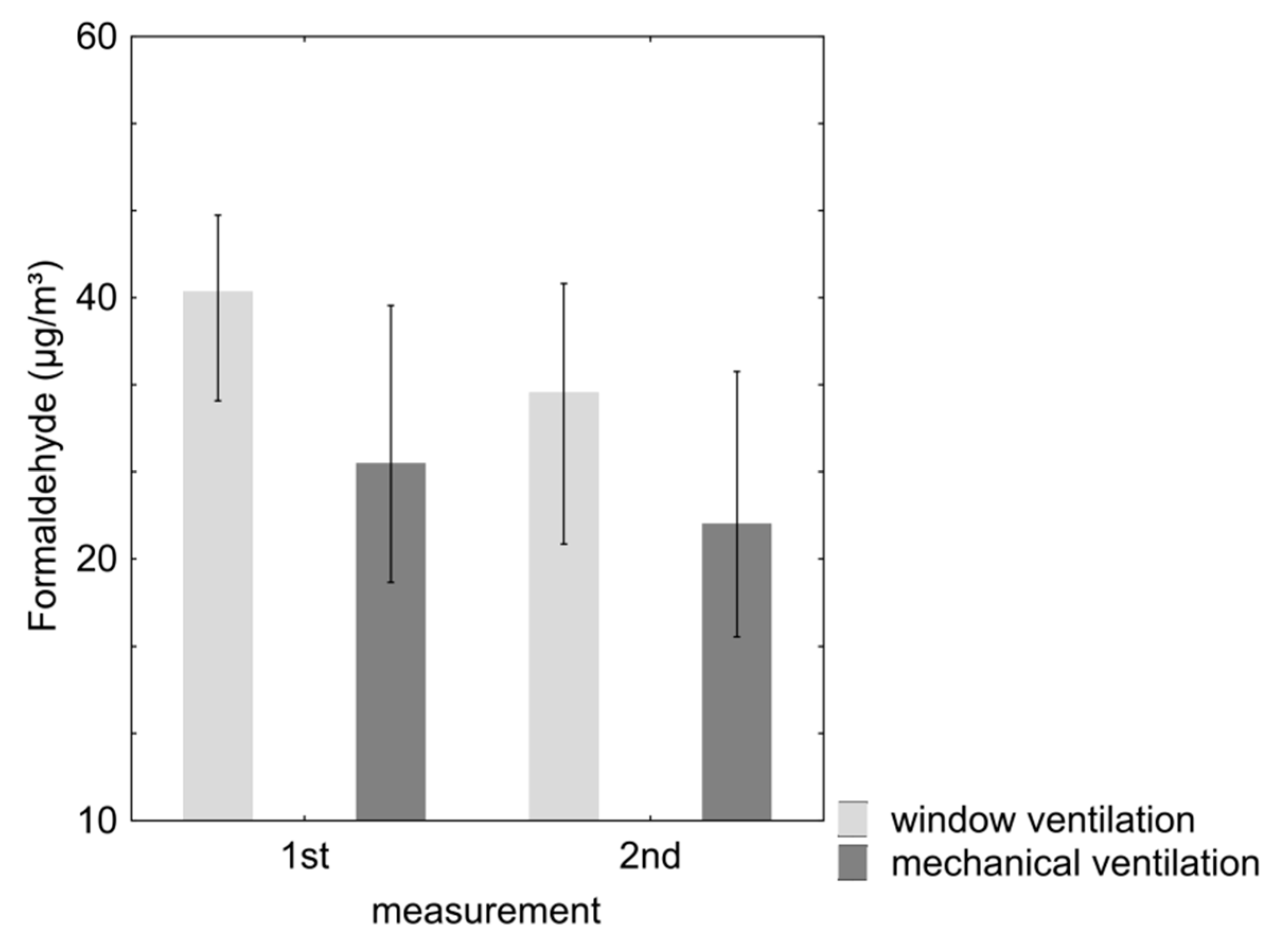

3.1.2. Aldehydes
3.1.3. Mould Spores
3.1.4. Dust Mite Allergens

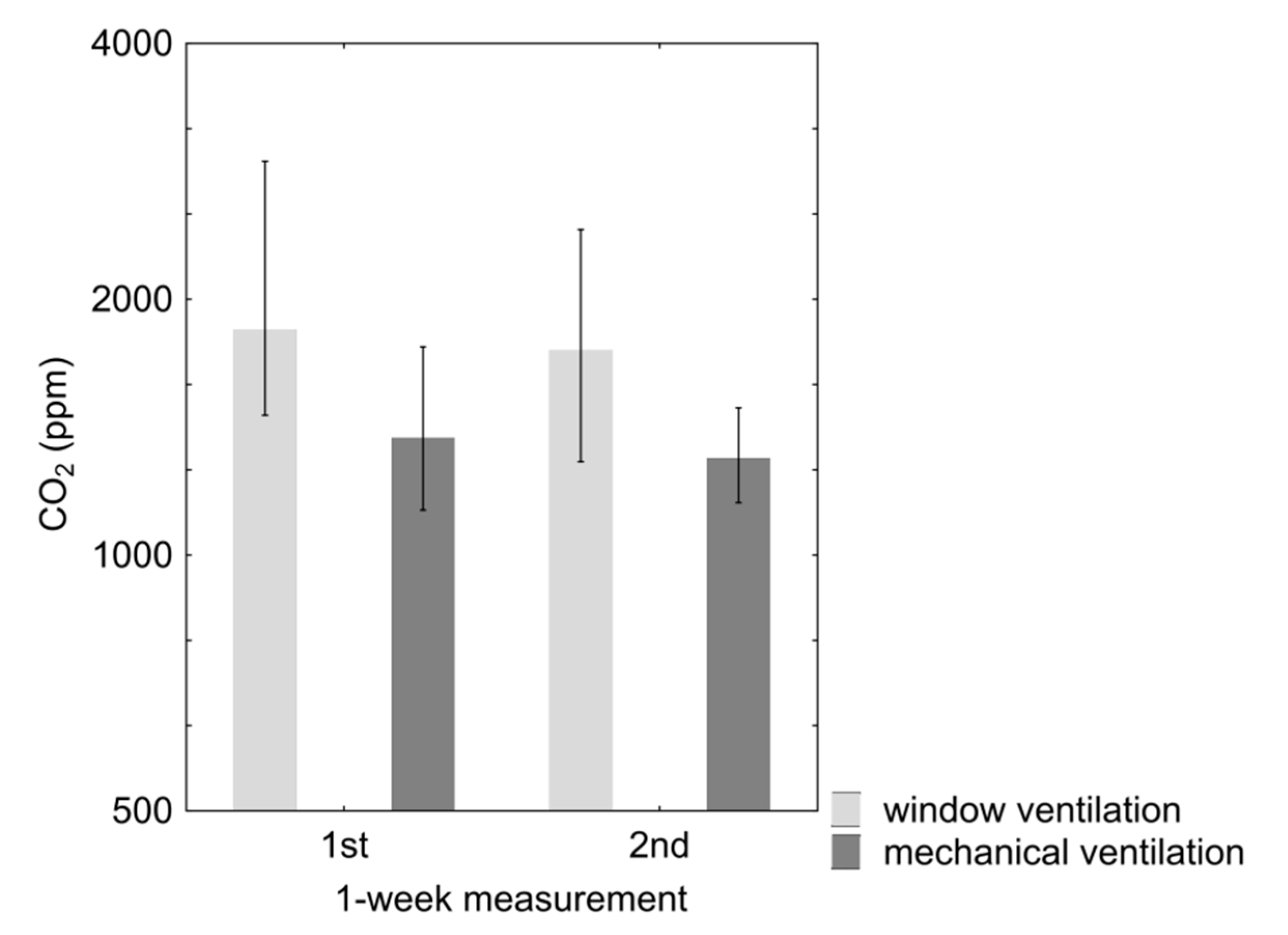

3.1.5. Carbon Dioxide
3.1.6. Volume of Supplied Air
3.1.7. Radon
3.1.8. Noise
3.1.9. Temperature and Humidity
3.2. Discussion
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Whole-House Ventilation. Available online: http://energy.gov/energysaver/articles/whole-house-ventilation (accessed on 22 August 2015).
- Leech, J.A.; Raizenne, M.; Gusdorf, J. Health in occupants of energy efficient new homes. Indoor Air 2004, 14, 169–171. [Google Scholar] [CrossRef] [PubMed]
- Eick, S.A.; Richardson, G. Investigation of different approaches to reduce allergens in asthmatic children’s homes—The Breath of Fresh Air Project, Cornwall, United Kingdom. Sci. Total. Environ. 2011, 409, 3628–3633. [Google Scholar] [CrossRef] [PubMed]
- Hutter, H.-P.; Moshammer, H.; Wallner, P.; Tappler, P.; Twrdik, F.; Ganglberger, E.; Geissler, S.; Wenisch, A. Auswirkungen Energiesparender Maßnahmen im Wohnbau Auf Die Innenraumluftqualität und Gesundheit. Available online: https://books.google.com.vn/books/about/Auswirkungen_energiesparender_Ma%C3%9Fnahmen.html?id=ssJOmgEACAAJ&hl=vi (accessed on 29 September 2015).
- Passivhaus-Projektbericht: Energie & Raumluftqualität: Messtechnische Evaluierung und Verifizierung der energetischen Einsparpotentiale und Raumluftqualität an Passivhäusern in Nürnberg. Available online: http://www.amazon.de/Passivhaus-Projektbericht-Raumluftqualit%C3%A4t-Messtechnische-Verifizierung-Einsparpotentiale/dp/3980842819 (accessed on 29 September 2015).
- Rohracher, H.; Kukovetz, B.; Ornetzeder, M.; Zelger, T.; Enzensberger, G.; Gadner, J.; Zelger, J.; Buber, R. Acceptance and Improvement of Low-Energy-House Components As A Mutual Learning Process of Users And Producers. Available online: http://www.hausderzukunft.at/results.html/id1773 (accessed on 29 September 2015).
- IPHA (International Passive House Association). Passive House Guidelines. Available online: http://www.passivehouse-international.org/index.php?page_id=80 (accessed on 29 August 15).
- Thermal Protection in Building Construction—Part 1: Declaration for Thermal Protection of Low Energy Buildings and Lowest Energy Buildings—Heating Demand and Cooling Demand. Available online: http://www.beuth.de/en/standard/oenorm-b-8110-1/147446979 (accessed on 29 September 2015).
- Richtlinie zur Bewertung der Luftqualität von Innenräumen. Available online: http://www.bmlfuw.gv.at/umwelt/luft-laerm-verkehr/luft/innenraumluft/richtlinie_innenraum.html (accessed on 29 September 2015).
- Messen von Innenraumluft-Verunreinigungen—Gaschromatographische Bestimmung organischer Verbindungen—Teil 2: Aktive Probenahme durch Anreicherung auf Aktivkohle—Lösemittelextraktion. Available online: https://shop.austrian-standards.at/action/de/public/details/86961/OENORM_M_5700-2_2002_04_01;jsessionid=014364DA8B1508DCD544DAD3050F4843 (accessed on 29 September 2015).
- Indoor Air—Part 2: Sampling Strategy for Formaldehyde. Available online: http://www.iso.org/iso/iso_catalogue/catalogue_tc/catalogue_detail.htm?csnumber=29048 (accessed on 29 September 2015).
- Indoor Air—Part 3: Determination of Formaldehyde and Other Carbonyl Compounds in Indoor Air and Test Chamber Air—Active Sampling Method. Available online: http://www.iso.org/iso/catalogue_detail.htm?csnumber=51812 (accessed on 29 September 2015).
- Indoor Air—Part 16: Detection and Enumeration of Moulds—Sampling by Filtration. Available online: http://www.iso.org/iso/iso_catalogue/catalogue_tc/catalogue_detail.htm?csnumber=40796 (accessed on 29 September 2015).
- Indoor Air—Part 19: Sampling Strategy for Moulds. Available online: http://www.iso.org/iso/iso_catalogue/catalogue_tc/catalogue_detail.htm?csnumber=44326 (accessed on 29 September 2015).
- Measurement of Indoor Air Pollution: Measurement Strategies for Determination of Mould Fungi in Indoor Environment. Available online: http://www.beuth.de/en/technical-rule/vdi-4300-blatt-10/107497618 (accessed on 29 September 2015).
- ÖNORM S 5280–1—Radon—Measuring Methods and Their Range of Applications. Available online: http://www.bdb.at/Service/NormenDetail?id=292903 (accessed on 29 September 2015).
- VDI Guideline 4300 Part 9: Measurement of Indoor Air Pollution: Measurement Strategy for Carbon Dioxide (CO2). Available online: http://www.vdi.eu/uploads/tx_vdirili/pdf/9627892.pdf (accessed on 29 September 2015).
- WHO Regional Office for Europe. WHO Guidelines for Indoor Air Quality: Selected Pollutants. Available online: http://www.euro.who.int/__data/assets/pdf_file/0009/128169/e94535.pdf (accessed on 29 September 2015).
- Calderón, M.A.; Linneberg, A.; Kleine-Tebbe, J.; De Blay, F.; Hernandez Fernandez de Rojas, D.; Virchow, J.C.; Demoly, P. Respiratory allergy caused by house dust mites: What do we really know? J. Allergy Clin. Immunol. 2015, 136, 38–48. [Google Scholar] [CrossRef] [PubMed]
- EN 13779—Ventilation for Non-Residential Buildings—Performance Requirements for Ventilation and Room-Conditioning Systems. Available online: http://www.bdb.at/Service/NormenDetail?id=196208 (accessed on 29 September 2015).
- Ventilation and Air Conditioning Plants—Controlled Residential Ventilation Including Heat Recovery—Planning, Installation, Operation and Maintenance. Available online: http://infostore.saiglobal.com/store/details.aspx?ProductID=1712059 (accessed on 15 February 2014).
- Austrian Federal Ministry of Agriculture, Forestry, Environment and Water Management (BMLFUW). Radon in Österreich. Available online: http://www.bmlfuw.gv.at/umwelt/strahlen-atom/strahlenschutz/radon/radonpotenzial.html (accessed on 30 August 2015).
- OIB Guideline 5, Protection against Noise. Available online: http://www.oib.or.at/en/oib-guidelines (accessed on 29 September 2015).
- Brown, S.K. Volatile organic pollutants in new and established buildings in Melbourne, Australia. Indoor Air 2002, 12, 55–63. [Google Scholar] [CrossRef] [PubMed]
- Ad-hoc-Arbeitsgruppe der Innenraumlufthygiene-Kommission des Umweltbundesamtes und der Obersten Landesgesundheitsbehörden. Beurteilung von Innenraumluftkontaminationen mittels Referenz- und Richtwerten. Bundesgesundheitsblatt Gesundheitsforschung Gesundheitsschutz 2007, 50, 990–1005. [CrossRef] [PubMed]
- Innenraumluft—Flüchtige organische Verbindungen in der Innenraumluft in Haushalten mit Kindern in Deutschland. Available online: https://www.umweltbundesamt.de/sites/default/files/medien/419/publikationen/4011.pdf (accessed on 29 September 2015).
- Raw, G.J.; Coward, S.K.; Brown, V.M.; Crump, D.R. Exposure to air pollutants in English homes. J. Expo. Anal. Environ. Epidemiol. 2004, 14, S85–S94. [Google Scholar] [CrossRef] [PubMed]
- Hutter, H.-P.; Moshammer, H.; Wallner, P.; Damberger, B.; Tappler, P.; Kundi, M. Volatile organic compounds and formaldehyde in bedrooms: results of a survey in Vienna, Austria. Proc. Indoor Air 2002, 2, 239–243. [Google Scholar]
- Lux, W.; Mohr, S.; Heinzow, B. Presence of volatile organic compounds in indoor air of newly erected private homes. Bundesgesundheitsblatt Gesundheitsforschung Gesundheitsschutz 2001, 44, 619–624. [Google Scholar] [CrossRef]
- Schleibinger, H.; Hott, U.; Marchl, D.; Braun, P.; Plieninger, P.; Rüden, H. VOC concentrations in Berlin indoor environments between 1988 and 1999. Gefahrst. Reinhalt. Luft 2001, 61, 26–38. [Google Scholar]
- AGOeF Guidance Values for Volatile Organic Compounds in Indoor Air. Available online: http://agoef.de/agoef/oewerte/orientierungswerte.html (accessed on 30 August 2015).
- Coutalides, R.; Eymann, L. Indoor air quality—Quality assurance for new and renovated buildings. Gefahrst. Reinhalt. Luft 2014, 74, 105–111. [Google Scholar]
- WHO Regional Office for Europe. Indoor Air Quality: Organic Pollutants. Available online: http://www.tandfonline.com/doi/abs/10.1080/09593338909384805 (accessed on 29 September 2015).
- Jensen, B.; Wolkoff, P.; Wilkins, C.K.; Clausen, P.A. Characterization of linoleum, Part 1: Measurement of Volatile Organic Compounds by use of the Field and Laboratory Emission Cell, “FLEC”. Indoor Air 1995, 5, 38–43. [Google Scholar] [CrossRef]
- Indoor Air Pollution by Formaldehyde in European Countries. Available online: http://www.inive.org/medias/ECA/ECA_Report7.pdf (accessed on 29 September 2015).
- Panzhauser, E.; Fail, A.; Ertl, H.; Bednar, H.; Hanappi, G.; Heindl, W.; Knötig, G.; Scheidl, K.; Terschak, S.; Wogrolly, E. Formaldehydbelastung in österreichischen Wohnungen; Archivum Oecologiae Hominis: Wien, Vienna, 1987. [Google Scholar]
- Krause, C.; Chutsch, M.; Henke, M.; Huber, M.; Kliem, C.; Leiske, M.; Mailahn, W.; Schulz, C.; Schwarz, E.; Seifert, B.; et al. Messung und Analyse von Umweltbelastungsfaktoren in der Bundesrepublik Deutschland. Available online: https://www.irb.fraunhofer.de/bauforschung/baufolit/projekt/Messung-und-Analyse-von-Umweltbelastungsfaktoren-in-der-Bundesrepublik-Deutschland/85007000436 (accessed on 29 September 2015).
- Indoor Air Guide Values for Acetaldehyde. Announcement of the German Ad-hoc Working Group on Indoor Guidelines of the Indoor Air Hygiene Committee and of the States’ Supreme Health Authorities. Available online: http://www.ncbi.nlm.nih.gov/pubmed/24325007 (accessed on 29 September 2015).
- Indoor Air Guideline Values for Saturated Acyclic Aliphatic C4–C11 Aldehyde. Available online: http://www.ncbi.nlm.nih.gov/pubmed/19557457 (accessed on 29 September 2015).
- Mücke, W.; Lemmen, C. Bioaerosole und Gesundheit; Ecomed-Storck GmbH: Landsberg, Germany, 2008. [Google Scholar]
- Hutter, H.-P.; Moshammer, H.; Kundi, M.; Wallner, P.; Neuberger, M. Moulds in housing: Visual inspection and spore counts comparison—Implications for future strategies in the public health setting. Cent. Eur. J. Public Health 2002, 10, 93–96. [Google Scholar] [PubMed]
- Liao, C.M.; Luo, W.C. Use of temporal/seasonal- and size-dependent bioaerosol data to characterize the contribution of outdoor fungi to residential exposures. Sci. Total Environ. 2005, 347, 78–97. [Google Scholar] [CrossRef] [PubMed]
- Verein komfortlüftung.at (2014): Komfortlüftungsinfo Nr. 21, Schall. Available online: http://www.komfortlüftung.at/fileadmin/komfortlueftung/EFH/komfortlueftung.at_-_Info_Nr._21_Schall_EFH_V_2.0.pdf (accessed on 30 August 2015).
