Marine Drugs 2017, 15(9), 265; doi:10.3390/md15090265

Review
Antifouling Compounds from Marine Macroalgae
Hans Uwe Dahms 1,2,3 and Sergey Dobretsov 4,5,*
1
Department of Biomedical Science and Environmental Biology, Kaohsiung Medical University, No. 100, Shin-Chuan 1st Road, Kaohsiung 80708, Taiwan; Tel.: +886-(0)7-312-1101-2695
2
Department of Marine Biotechnology and Resources, National Sun Yat-sen University, No. 70, Lienhai Road, Kaohsiung 80424, Taiwan
3
Research Center for Environmental Medicine, Kaohsiung Medical University, Kaohsiung 80708, Taiwan
4
Center of Excellence in Marine Biotechnology, Sultan Qaboos University, Muscat 123, Oman
5
Department of Marine Science and Fisheries, College of Agricultural and Marine Sciences, Sultan Qaboos University, Muscat 123, Oman
*
Correspondence: Tel.: +968-2414-3570
Received: 30 March 2017 / Accepted: 12 July 2017 / Published: 28 August 2017

Abstract

:
Marine macroalgae produce a wide variety of biologically-active metabolites that have been developed into commercial products, such as antibiotics, immunosuppressive, anti-inflammatory, cytotoxic agents, and cosmetic products. Many marine algae remain clean over longer periods of time, suggesting their strong antifouling potential. Isolation of biogenic compounds and the determination of their structure could provide leads for the development of environmentally-friendly antifouling paints. Isolated substances with potent antifouling activity belong to fatty acids, lipopeptides, amides, alkaloids, lactones, steroids, terpenoids, and pyrroles. It is unclear as yet to what extent symbiotic microorganisms are involved in the synthesis of these compounds. Algal secondary metabolites have the potential to be produced commercially using genetic and metabolic engineering techniques. This review provides an overview of publications from 2010 to February 2017 about antifouling activity of green, brown, and red algae. Some researchers were focusing on antifouling compounds of brown macroalgae, while metabolites of green algae received less attention. Several studies tested antifouling activity against bacteria, microalgae and invertebrates, but in only a few studies was the quorum sensing inhibitory activity of marine macroalgae tested. Rarely, antifouling compounds from macroalgae were isolated and tested in an ecologically-relevant way.
Keywords:
macroalgae; antifouling; biofouling; biogenic compounds; quorum sensing; marine natural products

1. Introduction

Biofouling is the undesirable growth of micro- (bacteria and protists) and macro-fouling (invertebrates and algae) organisms on submerged surfaces [1]. Clean substrates in the marine environment will be quickly fouled by such organisms [2,3]. Biofouling of marine installations costs billions of US dollars for the maritime industry and navies around the world [4]. The majority of antifouling technologies use toxic biocides, like copper, that kill organisms and accumulate in the environment [4,5,6]. While there are non-toxic antifouling methods on the market, they are costly and not as effective as traditional biocidal solutions [4,5]. Thus, new non-toxic antifouling methods are urgently needed.
The term biofouling is applicable not only to man-made structures but to marine organisms. Several studies state that most marine organisms stay relatively free from biofouling [3]. This suggests that these organisms have evolved different antifouling strategies. By investigating such strategies, we may find and develop new antifouling methods.
How can marine organisms defend themselves from biofouling? Surface wettability and surface microstructures were proposed as critical antifouling mechanisms [3,7]. Many organisms excrete secondary metabolites that repel or deter biofouling species [8]. Additionally, it was shown that specific microorganisms associated with surfaces of marine algae, sponges, and corals can prevent the colonization of hosts by other fouling organisms [2,3,5]. In most cases, marine species rely not only on one mechanism, but use combined physical, chemical, and biological strategies to prevent biofouling [3].
Macroalgae represent a large multicellular polyphyletic group of photosynthetic eukaryotic organisms [9]. Classification of seaweed follows the genealogy of their plastids. The main groups include green algae (division Chlorophyta), brown algae (division Phaeophyta) and red algae (division Rhodophyta) [9]. Some investigators also include prokaryotic blue-green algae (phylum Cyanobacteria), which are excluded from this review. Marine macroalgae are quite dominant in polar, temporal, and tropical waters [9]. Large biomasses of drifting marine macroalgae are wasted and only a few species are currently in use as human foods, cosmetics, fertilizers, biofuel and source of natural products [10]. Additionally, marine macroalgae can be easily cultivated and have a great biotechnological potential.
Since 2010, more than 160 scientific publications about antifouling products from marine algae have been published (Figure 1a). These include articles, reviews and book chapters. An analysis of this literature suggested that most publications were about macroalgae, while researchers published articles dealing with microalgal antifouling compounds 1.7 times less frequently. Among macroalgal publications, the majority of articles were dealing with green algae (Figure 1a). Publications about brown and red algae were less abundant. Approximately 16% of all publications about antifouling (AF) compounds from algae were published by researchers from China (Figure 1b), and 76% of publications were produced by researchers from China, France, Germany, Japan, USA, and UK.
Marine macroalgae are ubiquitous at rocky shores and have a high biotechnological potential. A comprehensive review about antifouling (AF) compounds from marine algae was published in 2004 [10]. After that, several reviews about compounds of marine organisms with potential AF properties have been published. These include several publications about antifouling natural products from all groups of marine organisms [8,11,12,13], as well as from marine microbes, including cyanobacteria and fungi [2,14,15,16]. The present publication is aimed to review scientific publications dealing with AF compounds of macroalgae from 2010 to February 2017, to examine current progress and highlight future trends. We review the antifouling compounds from green, brown, and red macroalgae, their mechanisms of action, and provide future perspectives.

2. Antifouling Compounds from Marine Macroalgae

2.1. Green Macroalgae (Chlorophyta)

Chlorophyta algae belonging to the genera Ulva, Codium, Caulerpa, and Ulva (Enteromorpha), in particular, were studied for their antimicrobial (antibacterial and antialgal) effects in laboratory experiments (see Table 1). Only a few algal species were tested against bacterial quorum sensing (QS, see below). The compounds were rather undefined in these studies, ranging from alkaloid phenolic acids, to organic extracts and included, in one case, polar and non-polar extracts. Several structures of the identified substances were provided in Figure 2. Only the alga Ulva rigida was tested for, and showed, general AF activity [17]. In this study the investigators tested the polymeric replica of brown algae Saccharina latissima and Fucus guiryi doped with 3-bromo-5-(diphenulene)-2(5H)-furanone isolated from the green alga U. rigida. The study demonstrated that both chemical and physical properties of algae were important for antifouling defense [17]. Prabhakaran and co-workers [18] studied the antifouling potential of various extracts from seaweeds, seagrasses, and mangroves. When comparing the inhibitory activity of all extracts, mangrove plants had the highest inhibitory activity against tested biofilm-forming bacteria compared to seaweeds and seagrasses. In contrast, tests conducted with micro-fouling bacteria obtained from biofilms developed on PVC sheets showed that extracts of seaweeds had a better antimicrobial activity than those of seagrasses and mangroves [18]. Ethanol extracts of seaweed U. reticulata had maximal antibacterial activity against Flavobacterium sp. and a minimum activity against the remaining three biofilm bacteria of that study. The inhibitory activity was correlated with the major functional groups of the extracts, such as hydroxyl, amino, carbonyl and phosphoryl functionalities, aliphatic (fatty acids), NH2 (amide I and II). The authors claim that molecular bonds, such as O–H stretch, H-bond, C–H stretch, –C=C– stretch, C–O stretch, and C-Br stretch, were involved in the inhibitory activity of all the extracts. Bonds such as O–H stretch, H-bond, C–H stretch, –C=C– stretch, C–O stretch, and C–Br stretch were found in all the extracts [18]. Hence, compounds with such bonds can be considered as potential anti-biofilm molecules.

2.2. Brown Macroalgae (Phaeophyta)

Brown algae were, by far, the best investigated macroalgae within the report frame of this review (see Table 2). They showed primarily anti-bacterial (including anti-QS) effects, followed by anti-algal, anti-diatom, and anti-larval effects. Most of the responsible compounds remained undefined, but were extracted primarily by alcoholic polar extracts (Table 2). Several of the identified substances causing AF are provided in Figure 3. Ethanol extract of the seaweed Sargassum wightii showed maximal antibacterial activity against Flavobacterium sp. and Bacillus sp., which was similar to that of extracts of the green algae Ulva reticulata and Halimeda macroloba [18]. Several investigators studied the seasonal variation of AF defense of Fucus vesiculosus [25,26,27]. It was found that the defense varied spatially and temporally. Surface extracts of the alga allowed the isolation of surface-attached AF compounds from F. vesiculosus that were identified as dimethylsulphopropionate (DMSP) and proline [28]. Several investigators studied AF compounds from Sargassum spp. (Table 2), which included phlorotannins [29], galactoglycerolipids [30], stigmasta-5,22-E-,28-triene-3β,24α-diol [31], and chromanols [32] (Figure 3). Extracts of the invasive Sargassum muticum were more effective against the growth of diatoms, bacteria, and the settlement of Bugula neritina larvae than native Sargassum species [33]. Similarly, in another study the anti-diatom effect of S. muticum extract was 10-fold lower than AF booster biocides, but algal extracts were less toxic [34].

2.3. Red Macroalgae (Rhodophyta)

In terms of AF activity, red algae provided the second best investigated macroalgal group (see Table 3). Several genera led by Laurencia spp. and Asparagopsis spp. were shown to have antimicrobial (particularly anti-bacterial, including anti-QS, and anti-diatom) effects, followed by spore, anti-larval and, generally, AF inhibition. It is interesting that fatty acid derivatives with AF activity, mainly docosane, hexadecanoic acid, and cholesterol trimethylsilyl ether, were not only produced and secreted by cortical cells, but also deposited on the surface of Laurencia translucida [44].
In most studies, only AF of extracts of red macroalgae was tested. The majority of the extracts with AF activity were polar (either methanol or ethanol). Several of the identified AF substances are provided in Figure 4. 2,10-dibromo-3-chloro-7-chamigrene 12-hydroxyisolaurene from L. obtusa inhibited barnacle Balanus amphitrite settlement at a concentration three-fold lower than the biocide copper sulfate [45]. Laurencia sp. also produced omaezallene, which, in the barnacle settlement assay, has an EC50 0.22 μg/mL, while it shows a low toxicity LC50 of 4.8 µg/mL [46]. In another study, saiyacenols B and C, dehydrothyrsiferol, as well as 28-hydroxysaiyacenols B and A, were isolated from L. viridis [47]. AF activity of these compounds was investigated against bacteria, fungi, diatoms and algal spore settlement. All compounds at micromolar concentrations were effective only against diatoms Navicula cf. salinicola and Cylindrotheca sp., while 28-hydroxysaiyacenols B and A also inhibited the germination of Gayralia oxysperma spores.

3. Quorum Sensing Inhibitors from Macroalgae

QS is a population-density dependent communication between bacteria [53]. During this process, bacteria produce small signal QS molecules, which accumulate in the environment until, at a threshold concentration, the change of density-dependent behavior of bacteria is triggered [15]. Well-known examples of QS molecules are N-acyl homoserine lactones (AHLs) that are part of this intercellular signaling system in Gram-negative bacteria [54]. Bacterial quorum sensing (QS) has been proposed as a potential new approach for controlling biofouling [8]. Since the discovery of bacterial QS communication, many investigators have searched for molecules that can disrupt or block QS signaling in bacteria [55].
Marine macroalgae are able to stimulate, inhibit, or compromise QS signals in bacteria [56,57]. The first QS inhibitory compound was isolated from the marine red macroalga Delisea pulchra [57]. This alga secretes furanones that mimic bacterial AHL signals (Figure 5). Later studies have shown that other macroalgal species, as well, produce QS and biofilm formation inhibitors (see Table 1, Table 2 and Table 3). Jha et al. [50] studied 30 macroalgal species, but only 2-dodecanoyloxyethanesulfonate from the red alga Asparagopis taxiformis inhibited QS of the reporter strains Chromobacterium violaceum CV026 and Serratia liquefaciens MG44. In addition, compounds demonstrated significant toxicity, but QS inhibition was observed at non-toxic concentrations. Hypobromous acid produced by the brown alga Laminaria digitata interferes with bacterial QS signals and genes [58]. The brown alga Spatoglossum sp. produces the QS inhibitor dulcitol [59]. This compound compromised luminescence production of E. coli-based reporters in the presence of acyl homoserine lactones (QS signals). Batista and co-workers [21] found that about 91% of polar (methanol/water) extracts of tested macroalgae inhibited the QS of the reporter bacterium C. violaceum CV017. Additionally, polar extracts of algae were found to show considerable antibacterial activity exhibited against biofilm forming bacteria. The higher bioactivity of polar extracts could be due to a higher solubility of QS-inhibitory compounds in seawater that was used in this study. The minimal inhibitory concentrations (MICs) of non-polar extracts were 10- to 1000-fold higher than the effective concentrations, suggesting that the extracts were not toxic. Another study that used green, brown, and red macroalgae from the Brazilian coast showed that their extracts inhibited QS of the reporter C. violaceum CV017 [35]. Additionally, bacteria from the surface of the green algae Ulva sp. and Colpomenia sinuosa can inhibit QS and prevent biofouling [60]. There is no clear understanding about the true biosynthetic origin of QS inhibitors from macroalgae, which may be produced by the algae themselves, by their associated bacteria, or by both [56]. In most of cases, the mechanisms of QS inhibition by algal metabolites are not clear and need to be studied in the future.

4. Potential of Macroalgal Extracts in Biological Synthesis of Nanoparticles

Nanotechnology is currently affecting many aspects of science and applied technologies, which include the design, synthesis, and manipulation of small structures for several applications, e.g., in medicine and life sciences. Nanoparticles and nanostructures are currently used in various applications, such as catalytic activity, water purification, chemical and biological sensors, and wireless electronic logic and memory schemes [61]. Particularly, metal and metal oxide nanoparticles, such as silver, gold, and platinum, have been used in the sector of bioelectronics, medicine, and pharmaceuticals [62]. Recently, antifouling activity of metal and metal oxide nanostructures has been reported [63,64,65,66].
Biological synthesis of nanoparticles is an emerging technical tool to address eco-friendly, cost effective, energy-efficient, and reliable production method of metal nanoparticles. Among these are silver nanoparticles (AgNPs), one of the most widely used due to their size, shape, and applications [67]. AgNPs are proven to have AF activity [64]. Chemical synthesis of metal nanoparticles requires reducing and capping agents, such as surfactants, which are toxic. In contrast, biological synthesis requires only extracts with a reducing agent, and a capping agent at low energy requirements [68]. Seaweeds can effectively be synthesized to metal nanoparticles [69]. Green synthesis of nanoparticles using seaweeds attracts significant research attention nowadays, which also holds for antifouling applications. Ramkumar et al. [70] synthesized biocompatible and functionalized silver nanoparticles by using an aqueous extract of the green seaweed Ulva (Enteromorpha) compressa as a reductant, as well as a stabilizing agent. They also demonstrated that these nanoparticles have strong antimicrobial and anticancer activity. Metal nanoparticles synthesized by macroalgae could potentially be utilized in AF applications.

5. Antifouling Defense

Macroalgae need several factors in order to survive in the marine environment. These include the availability of nutrients and light. They have to cope with grazing pressure, competition for space and resources, as well as parasites and diseases [71]. Biofouling on the surface of macroalgae (called epibiosis) leads to a reduction of algal access to light, gases and nutrients, and probably increases grazing and infections by pathogens [3]. Marine macroalgae evolved different chemical, physical and biological mechanisms to prevent epibiosis [8,11]. Understanding these ecological strategies is of importance for the successful development of AF technologies for marine installations. Macroalgae prevent biofouling by a combination of different, not only chemical, AF strategies. For example, experiments with polymeric surfaces mimicking thalli of Saccharina latissima and Fucus guiryi demonstrated that doping of such synthetic matrices with brominated furanones would increase their AF performance by 40% [17]. This clearly suggests that both chemistry and microtopography are important for the successful defense of algae from fouling.
Marine macroalgae may have a complex, largely unknown, AF compound delivery system. This includes different structures at the thallus cortex, such as gland cells in Delisea and Asparagopsis species [72], intracellular organelles “corps en cerise” in some Laurencia species [73], and specific vacuoles, mevalonosomes, in Plocamium brasiliense [74].
Most of the research has been performed with common green (Ulva spp.), brown (Fucus spp., Sargassum spp., Dyctiota spp.), and red (Ceramium spp.) macroalgal species (Table 1, Table 2 and Table 3). As yet, macroalgae from tropical environments were poorly investigated. Species in tropical environments probably experience higher fouling pressure compared to temperate or polar species [75]. Thus, tropical and subtropical algal species may hide a high number of AF compounds [75,76]. Invasive macroalgal species can be another potent source of AF compounds. Recent studies suggested that extracts of the invasive alga Sargassum muticum from Japan have higher anti-bacterial, anti-diatom, anti-larval, and quorum sensing (QS) inhibitory activity in Oman waters compared to Sargassum spp., which are endemic here [33].
Most studies investigating AF activity of algal extracts or compounds in laboratory experiments were using monocultures of bacteria, diatoms, larvae of invertebrates, and spores of algae. To the contrary, there is a multitude more of different micro- and macro-fouling organisms in the marine environment [77]. It is estimated that less than 2% of bacteria taken from environmental samples can be grown in laboratory conditions [78]. Thus, successful performance of AF compounds in the laboratory does not guarantee that these compounds will be active under field conditions. In the laboratory, extracts of Sargassum spp. inhibited the growth of pathogens and environmental bacteria, while in field experiments these extracts embedded in a Phytagel matrix stimulated the growth of marine bacteria [33].
Investigators commonly use the whole thalli of macroalgae in order to extract bioactive compounds under laboratory conditions. Such methods do not allow for understanding the production of bioactive compounds and their concentrations under in vivo conditions. Moreover, in most cases it is not possible to compare the effective concentrations of algal AF compounds with ones that are produced in the environment. Only a few studies developed and used gentle soaking techniques to extract algal surface metabolites without destroying the integrity of algal cells, which leads to contamination with intracellular compounds [25,28,36,37]. Gentle soaking techniques include quick (5–10 s) soaking of algal thalli in organic solvents, like hexanes or dichloromethane [26,79]. Recent studies demonstrated new AF mechanisms that included the production of fatty acid derivatives by corticoid cells of the red alga Laurencia translucida and their deposition on the surface of the algal thallus [44]. A novel, robust method of the extraction of surface-bound metabolites was proposed [80]. It is based on the powdering of wet algal surfaces with C18 solid phase material. Later, the authors recovered algal metabolites and analyzed them through liquid or gas chromatography coupled with mass spectrometry. The development of new methods is required to study the production of AF compounds by algae in vivo and estimate their realistic effective concentrations.

6. Role of Epibiotic Organisms

Surfaces of marine macroalgae are commonly covered by different species of bacteria, microalgae, and fungi (epibionts), whose composition and density vary with environmental conditions and algal parts ([25]; Figure 6). In some cases, several epibionts are known to penetrate the thalli of macroalgae [76]. There is growing evidence that microbial communities associated with algae are different from other substrata and surrounding waters (see review [3]). Several studies demonstrated that epibionts associated with algae can produce antifouling compounds that defend their hosts [16,81,82,83]. For example, Vibrio sp. isolated from the green alga Ulva reticulata produces an AF waterborne compound [84,85]. Another study demonstrated that most of the bacteria isolated from the surface of the brown alga Colpomenia sinuosa produce QS inhibitory compounds [60].
Investigators usually do not take into account that epibiotic microorganisms are associated with macroalgae (Figure 6). This may result in the extraction of both algal and microbial metabolites. In contrast to previous studies that used extracts of algae and their natural microflora [50,55], Batista et al. [21] used an ethanol treatment [86] to eliminate surface-attached bacteria and diatoms. Their data indicated that microorganisms living on the surface of some algae could be responsible for the production of QS inhibitory compounds [21]. Although extracts of U. fasciata, Caulerpa racemosa, and Codium sp. had some QS inhibitory activity in the absence of microbes, the activities of extracts from these algae with microbes were significantly higher [21]. Polar extracts of those macroalgae mentioned above with attached microorganisms, but never without them, inhibited the attachment of Pseudomonas aeruginosa PAO1. This confirms the notion that epibiotic bacteria are important for the production of antibacterial compounds [87]. Other studies also have shown the importance of bacteria isolated from the surface of seaweeds for protecting the host from fouling by other organisms [3,56]. On the other hand, microorganisms located in the thalli of marine algae probably would not be responsible for the production of surface-associated or excreted AF compounds [76].

7. Conclusions and Future Outlook

This review demonstrated that marine macroalgae provide a potent source of novel AF compounds. Additionally, macroalgae can be used for green synthesis of nanoparticles that can be utilized in AF applications. In most cases, researchers tested crude extracts of algae, but neither isolated nor elucidated the structure of AF compounds (see Table 1, Table 2 and Table 3). Thus, it is difficult to tell if these extracts contain novel AF compounds or not. In contrast to a Scopus publication search (Figure 1), we found that most of AF compounds were isolated from brown and red algae, but not from green macroalgae. This could be explained by the fact that, traditionally, these groups were studied more intensively or reflect the fact that these algae could be better defended against micro- and macrofouling. In previous studies many authors have failed to elucidate AF chemicals compounds from green algae from different regions [88,89]. Moreover, previous screening programs indicated that red, but not brown, seaweeds are the most potent in terms of production of AF compounds [88,89]. Isolation of bioactive compounds from algae involves a bioassay-guided approach, whereas imaging-based high-content screening (HCS) has been proposed as a promising tool for screening of algal bioactive potential [90]. However, screening and isolation of more AF compounds from macroalgae are needed in the future.
Isolation of these potentially-important biogenic compounds from marine algae is currently very expensive and time consuming. Combinatorial genetic or metabolic engineering [91], or hybrids [92], might be possible remedies for this problem. In addition to offering a secure supply of naturally-occurring metabolites, such technologies could be used to produce more-diverse chemicals. Although research is relatively new within this area, with only a few studies published to date, it seems that soon it will be possible to transfer the genes responsible for the production of these active secondary metabolites from one organism to more productive organisms. Then, sustainable compound production will become cheaper, fostering sustainable antifouling practices in aquaculture [92] or in the food industry [93].
Progress in isolating and producing marine algal bioactive compounds is expected to involve the integration of biochemistry-validated post-genomic methods and techniques, as well as smart bioprocessing. Levels of toxicity and capacities for biological degradation of these compounds in the aquatic environment need to be studied before they will be applicable in AF coatings for the prevention of biofouling. Once biogenic compounds become incorporated into AF paints, monitoring needs to be done over longer periods. The identification of these biogenic compounds with antifouling properties requires a wide range of expertise from the fields of biology, as well as chemistry. Metabolic engineering may provide a possible approach for future exploitation of secondary metabolites with AF properties from marine macroalgae.
There are several issues to be studied with priority concerning AF compounds from macroalgae. In particular, new antifouling compounds from tropical macroalgae should be isolated and tested in field experiments. Compounds need to be isolated in an ecologically-relevant way in order to prevent contamination by algal intracellular metabolites and compounds from epibiotic microorganisms. Finally, a multidisciplinary approach involving organic chemistry, biology, microbiology, and ecology specialists is required in the search for promising AF compounds and their biotechnological applications.

Acknowledgments

S.D. would like to acknowledge financial support from The Research Council (TRC) (grant RC/AGR/FISH/16/01) and internal SQU (grant IG/AGR/FISH/15/02). We further acknowledge a grant from MOST 104-2621-M-037-001 and MOST 105-2621-M-037-001 to T.H.S. This work was partly supported by the grant from Research Center for Environmental Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan. Special thanks to Charli Deepak for assistance in drawing compound chemical structures.

Author Contributions

Both authors are equally contributed to this review.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wahl, M. Marine epibiosis. I. Fouling and antifouling: Some basic aspects. Mar. Ecol. Prog. Ser. 1989, 58, 175–189. [Google Scholar] [CrossRef]
  2. Dobretsov, S.; Dahms, H.U.; Qian, P.Y. Inhibition of biofouling by marine microorganisms and their metabolites. Biofouling 2006, 22, 43–54. [Google Scholar] [CrossRef] [PubMed]
  3. Wahl, M.; Goecke, F.; Labes, A.; Dobretsov, S.; Weinberger, F. The second skin: Ecological role of epibiotic biofilms on marine organisms. Front. Microbiol. 2012, 292. [Google Scholar] [CrossRef] [PubMed]
  4. Yebra, D.M.; Kiil, S.; Dam-Johansen, K. Antifouling technology—Past, present and future steps towards efficient and environmentally friendly antifouling coatings. Prog. Org. Coat. 2004, 50, 75–104. [Google Scholar] [CrossRef]
  5. Trepos, R.; Pinori, E.; Berglin, M.; Svenson, J.; Coutinho, R.; Lausmaa, J.; Hellio, C. Innovative approaches for the development of new copper-free marine antifouling paints. J. Ocean Technol. 2014, in press. [Google Scholar]
  6. Callow, M.E.; Callow, J.E. Marine biofouling: A sticky problem. Biologist 2002, 49, 10–14. [Google Scholar] [PubMed]
  7. Bers, A.V.; Prendergast, G.S.; Zurn, C.M.; Hansson, L.; Head, R.M.; Thomason, J.C. A comparative study of the anti-settlement properties of Mytilid shells. Biol. Lett. 2006, 2, 88–91. [Google Scholar] [CrossRef] [PubMed]
  8. Qian, P.-Y.; Xu, Y.; Fusetani, N. Natural products as antifouling compounds: Recent progress and future perspectives. Biofouling 2010, 25, 223–234. [Google Scholar] [CrossRef] [PubMed]
  9. Lee, R.E. Phycology; Cambridge University Press: Cambridge, UK, 2008. [Google Scholar]
  10. Bhadury, P.; Wright, P.C. Exploitation of marine algae: Biogenic compounds for potential antifouling applications. Planta 2004, 219, 561–578. [Google Scholar] [CrossRef] [PubMed]
  11. Blunt, J.W.; Copp, B.R.; Keyzers, R.A.; Munro, M.H.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2014, 31, 160–258. [Google Scholar] [CrossRef] [PubMed]
  12. Fusetani, N. Antifouling natural products. Nat. Prod. Rep. 2011, 28, 400–410. [Google Scholar] [CrossRef] [PubMed]
  13. Qian, P.Y.; Chen, L.; Xu, Y. Mini-Review: Molecular mechanisms of antifouling compounds. Biofouling 2013, 29, 381–400. [Google Scholar] [CrossRef] [PubMed]
  14. Abed, R.; Dobretsov, S.; Kumar, S. Applications of cyanobacteria in biotechnology. J. Appl. Microbiol. 2009, 106, 1–12. [Google Scholar] [CrossRef] [PubMed]
  15. Dobretsov, S.; Abed, R.; Teplitski, M. Mini-Review: Inhibition of biofouling by marine microorganisms. Biofouling 2013, 29, 423–441. [Google Scholar] [CrossRef] [PubMed]
  16. Satheesh, S.; Ba-akdah, M.A.; Al-Sofyani, A.A. Natural antifouling compound production by microbes associated with marine macroorganisms—A review. Electron. J. Biotechnol. 2016, 21, 26–35. [Google Scholar] [CrossRef]
  17. Chapman, J.; Hellio, C.; Sullivan, T.; Brown, R.; Russell, S.; Kiterringham, E.; Le Nor, L.; Regan, F. Bioinspired synthetic macroalgae: Examples from nature for antifouling applications. Int. Biodeterior. Biodegrad. 2014, 86, 6–13. [Google Scholar] [CrossRef]
  18. Prabhakaran, S.; Rajaram, R.; Balasubramanian, V.; Mathivanan, K. Antifouling potentials of extracts from seaweeds, seagrasses and mangroves against primary biofilm forming bacteria. Asian Pac. J. Trop. Biomed. 2012, 2, 316–322. [Google Scholar] [CrossRef]
  19. Sun, Y.; Wang, H.; Guo, G.; Pu, Y.; Yan, B.; Wang, C. Green alga Ulva pertusa—A new source of bioactive compounds with antialgal activity. Environ. Sci. Pollut. Res. 2015, 22, 10351–10359. [Google Scholar]
  20. Águila-Ramírez, R.N.; Arenas-González, A.; Hernández-Guerrero, C.J.; González-Acosta, B.; Borges-Souza, J.M.; Véron, B.; Pope, J.; Hellio, C. Antimicrobial and antifouling activities achieved by extracts of seaweeds from Gulf of California, Mexico. Hidrobiologica 2012, 22, 8–15. [Google Scholar]
  21. Batista, D.; Carvalho, A.P.; Costa, R.; Coutinho, R.; Dobretsov, S. Extracts of macroalgae from the Brazilian coast inhibit bacterial quorum sensing. Bot. Mar. 2014, 57, 441–447. [Google Scholar] [CrossRef]
  22. Grosser, K.; Zedler, L.; Schmitt, M.; Dietzek, B.; Popp, J.; Pohnert, G. Disruption-free imaging by Raman spectroscopy reveals a chemical sphere with antifouling metabolites around macroalgae. Biofouling 2012, 28, 687–696. [Google Scholar] [CrossRef] [PubMed]
  23. Smyrniotopoulos, V.; Abatis, D.; Tziveleka, L.A.; Tsitsimpikou, C.; Roussis, V.; Loukis, A.; Vagias, C. Acetylene sesquiterpenoid esters from the green alga Caulerpa prolifera. J. Nat. Prod. 2003, 66, 21–24. [Google Scholar] [CrossRef] [PubMed]
  24. Bhagavathy, S.; Sumathi, P.; Bell, I.J.S. Green algae Chlorococcum humicola—A new source of bioactive compounds with antimicrobial activity. Asian Pac. J. Trop. Biomed. 2011, 1, S1–S7. [Google Scholar] [CrossRef]
  25. Saha, M.; Wahl, M. Seasonal variation in the antifouling defence of the temperate brown alga Fucus vesiculosus. Biofouling 2013, 29, 661–668. [Google Scholar] [CrossRef] [PubMed]
  26. Lachnit, T.; Fischer, M.; Künzel, S.; Baines, J.F.; Harder, T. Compounds associated with algal surfaces mediate epiphytic colonization of the marine macroalga Fucus vesiculosus. FEMS Microbiol. Ecol. 2013, 84, 411–420. [Google Scholar] [CrossRef] [PubMed]
  27. Lachnit, T.; Wahl, M.; Harder, T. Isolated thallus-associated compounds from the macroalga Fucus vesiculosus mediate bacterial surface colonization in the field similar to that on the natural alga. Biofouling 2010, 26, 245–255. [Google Scholar] [CrossRef] [PubMed]
  28. Saha, M.; Rempt, M.; Gebser, B.; Grueneberg, J.; Pohnert, G.; Weinberger, F. Biofouling Dimethylsulphopropionate (DMSP) and proline from the surface of the brown alga Fucus vesiculosus inhibit bacterial attachment. Biofouling 2012, 28, 593–604. [Google Scholar] [CrossRef] [PubMed]
  29. Nakajima, N.; Sugimoto, N.; Ohki, K.; Kamiya, M. Diversity of phlorotannin profiles among sargassasacean species affecting variation and abundance of epiphytes. Eur. J. Phycol. 2016, 51, 307–316. [Google Scholar] [CrossRef]
  30. Plouguerné, E.; Hellio, C.; Cesconetto, C.; Thabard, M.; Mason, K.; Véron, B.; Pereira, R.C.; da Gama, B.A.P. Antifouling activity as a function of population variation in Sargassum vulgare from the littoral of Rio de Janeiro (Brazil). J. Appl. Phycol. 2010, 22, 717–724. [Google Scholar] [CrossRef]
  31. Li, Y.X.; Wu, H.X.; Xu, Y.; Shao, C.L.; Wang, C.Y.; Qian, P.Y. Antifouling activity of secondary metabolites isolated from Chinese marine organisms. Mar. Biotechnol. 2013, 15, 552–558. [Google Scholar] [CrossRef] [PubMed]
  32. Cho, J.Y. Antifouling chromanols isolated from brown alga Sargassum horneri. J. Appl. Phycol. 2013, 25, 299–309. [Google Scholar] [CrossRef]
  33. Schwartz, N.; Dobretsov, S.; Rohde, S.; Schupp, P.J. Comparison of antifouling properties of native and invasive Sargassum (Fucales, Phaeophyceae) species. Eur. J. Phycol. 2017, 52, 116–131. [Google Scholar] [CrossRef]
  34. Silkina, A.; Bazes, A.; Mouget, J.-L.; Bourgougnon, N. Comparative efficiency of macroalgal extracts and booster biocides as antifouling agents to control growth of three diatom species. Mar. Pollut. Bull. 2012, 64, 2039–2046. [Google Scholar] [CrossRef] [PubMed]
  35. Carvalho, A.P.; Batista, D.; Dobretsov, S.; Coutinho, R. Extracts of seaweeds as potential inhibitors of quorum sensing and bacterial growth. J. Appl. Phycol. 2016. [Google Scholar] [CrossRef]
  36. Othmani, A.; Briand, J.F.; Ayé, M.; Molmeret, M.; Culioli, G. Surface metabolites of the brown alga Taonia atomaria have the ability to regulate epibiosis. Biofouling 2016, 32, 801–813. [Google Scholar] [CrossRef] [PubMed]
  37. Othmani, A.; Bunet, R.; Bonnefont, J.-L.; Briand, J.-F.; Culioli, G. Settlement inhibition of marine biofilm bacteria and barnacle larvae by compounds isolated from the Mediterranean brown alga Taonia atomaria. J. Appl. Phycol. 2016, 28, 1975–1986. [Google Scholar] [CrossRef]
  38. Suresh, M.; Iyapparaj, P.; Anantharaman, P. Optimization, characterization and partial purification of bacteriocin produced by Staphylococcus haemolyticus MSM an isolate from seaweed. Biocatal. Agric. Biotechnol. 2014, 3, 161–166. [Google Scholar] [CrossRef]
  39. El Hattab, M.; Genta-jouve, G.; Bouzidi, N.; Orthalo-magn, M.; Hellio, C.; Marechal, J.P. Cystophloroketals A-E, unusual phloroglucinol-Meroterpenoid hybrids from the brown alga Cystoseira tamariscifolia. J. Nat. Prod. 2015, 78, 1663–1670. [Google Scholar] [CrossRef] [PubMed]
  40. Busetti, A.; Thompson, T.P.; Tegazzini, D.; Megaw, J.; Maggs, C.A.; Gilmore, B.F. Antibiofilm activity of the brown alga Halidrys siliquosa against clinically relevant human pathogens. Mar. Drugs 2015, 13, 3581–3605. [Google Scholar] [CrossRef] [PubMed]
  41. Othmani, A.; Bouzidi, N.; Viano, Y.; Alliche, Z.; Seridi, H.; Blache, Y.; El Hattab, M.; Briand, J.-F.; Culioli, G. Anti-microfouling properties of compounds isolated from several Mediterranean Dictyota spp. J. Appl. Phycol. 2014, 26, 1573–1584. [Google Scholar] [CrossRef]
  42. Ktari, L.; Ismail-ben, A.A.; Ben, R.Y.; Langar, H.; El Bour, M. Antifouling activity and chemical investigation of the brown alga Dictyota fasciola (Dictyotales) from Tunisian coast. Cah. Biol. Mar. 2010, 51, 109–115. [Google Scholar]
  43. Muñoz, J.; Culioli, G.; Köck, M. Linear diterpenes from the marine brown alga Bifurcaria bifurcata: A chemical perspective. Phytochem. Rev. 2013, 12, 407–424. [Google Scholar] [CrossRef]
  44. Paradas, W.C.; Salgado, L.T.; Pereira, R.C.; Hellio, C.; Atella, G.C.; de Lima Moreira, D.; do Carmo, A.P.B.; Soares, A.R.; Amado-Filho, G.M. A Novel Antifouling Defense Strategy from Red Seaweed: Exocytosis and Deposition of Fatty Acid Derivatives at the Cell Wall Surface. Plant Cell Physiol. 2016, 57, 1008–1019. [Google Scholar] [CrossRef] [PubMed]
  45. Al-Lihaibi, S.S.; Abdel-Lateff, A.; Alarif, W.M.; Nogata, Y.; Ayyad, S.E.N.; Okino, T. Potent Antifouling Metabolites from Red Sea Organisms. Asian J. Chem. 2015, 27, 2252–2256. [Google Scholar] [CrossRef]
  46. Umezawa, T.; Oguri, Y.; Matsuura, H.; Yamazaki, S.; Suzuki, M.; Yoshimura, E.; Furuta, T.; Nogata, Y.; Serisawa, Y.; Matsuyama-Serisawa, K.; et al. Omaezallene from red alga Laurencia sp.: Structure elucidation, total synthesis, and antifouling activity. Angew. Chem. Int. Ed. 2014, 53, 3909–3912. [Google Scholar] [CrossRef] [PubMed]
  47. Cen-Pacheco, F.; Santiago-Benítez, A.J.; García, C.; Álvarez-Méndez, S.J.; Martín-Rodríguez, A.J.; Norte, M.; Martín, V.S.; Gavín, J.A.; Fernández, J.J.; Daranas, A.H. Oxasqualenoids from Laurencia viridis: Combined Spectroscopic–Computational Analysis and Antifouling Potential. J. Nat. Prod. 2015, 78, 712–721. [Google Scholar] [CrossRef] [PubMed]
  48. Gomez-Lemos, L.A.; Diaz-Pulido, G. Crustose coralline algae and associated microbial biofilms deter seaweed settlement on coral reefs. Coral Reefs 2017, 36, 453–462. [Google Scholar] [CrossRef]
  49. Martinez-Garcia, M.; van der Maarel, M.J.E.C. Floridoside production by the red microalga Galdieria sulphuraria under different conditions of growth and osmotic stress. AMB Express 2016, 6, 2–8. [Google Scholar] [CrossRef] [PubMed]
  50. Jha, B.; Kavita, K.; Westphal, J.; Hartmann, A.; Schmitt-Kopplin, P. Quorum sensing inhibition by Asparagopsis taxiformis, a marine macroalga: Separation of the compound that interrupts bacterial communication. Mar. Drugs 2013, 11, 253–265. [Google Scholar] [CrossRef] [PubMed]
  51. Manilal, A.; Sujith, S.; Sabarathnam, B.; Kiran, G.S.; Selvin, J.; Shakir, C.; Lipton, A. Antifouling potentials of seaweeds collected from the Southwest Coast of India. World J. Agric. Sci. 2010, 6, 243–248. [Google Scholar]
  52. Chambers, L.D.; Stokes, K.R.; Walsh, F.C.; Wood, R.J.K. Modern approaches to marine antifouling coatings. Surf. Coat. Technol. 2006, 201, 3642–3652. [Google Scholar] [CrossRef]
  53. Williams, P.; Camara, M.; Hardman, A.; Swift, S.; Milton, D.; Hope, V.J.; Winzer, K.; Middleton, B.; Pritchard, D.I.; Bycroft, B.W. Quorum sensing and the population-dependent control virulence. Philos. Trans. Biol. Sci. 2000, 355, 667–680. [Google Scholar] [CrossRef] [PubMed]
  54. Dobretsov, S.; Teplitski, M.; Paul, V.J. Mini-Review: Quorum sensing in the marine environment and its relationship to biofouling. Biofouling 2009, 25, 413–427. [Google Scholar] [CrossRef] [PubMed]
  55. Kim, J.S.; Kim, Y.H.; Seo, Y.W.; Park, S. Quorum sensing inhibitors from the red alga, Ahnfeltiopsis flabelliformis. Biotechnol. Bioprocess Eng. 2007, 12, 308–311. [Google Scholar] [CrossRef]
  56. Goecke, F.; Labes, A.; Wiese, J.; Imhoff, J.F. Chemical interactions between marine macroalgae and bacteria. Mar. Ecol. Prog. Ser. 2010, 409, 267–300. [Google Scholar] [CrossRef]
  57. Saurav, K.; Costantino, V.; Venturi, V.; Steindler, L. Quorum Sensing Inhibitors from the Sea Discovered Using Bacterial N-acyl-homoserine Lactone-Based Biosensors. Mar. Drugs 2017, 15, 53. [Google Scholar] [CrossRef] [PubMed]
  58. Borchardt, S.A.; Allian, E.J.; Michels, J.J.; Stearns, G.W.; Kelly, R.F.; McCoy, W.F. Reaction of acylated homoserine lactone bacterial signaling molecules with oxidized halogen antimicrobials. Appl. Environ. Microbiol. 2001, 67, 3174–3179. [Google Scholar] [CrossRef] [PubMed]
  59. Dobretsov, S.; Teplitski, M.; Bayer, M.; Gunasekera, S.; Proksch, P.; Paul, V. Inhibition of marine biofouling by bacterial quorum sensing inhibitors. Biofouling 2011, 27, 893–905. [Google Scholar] [CrossRef] [PubMed]
  60. Kanagasabhapathy, M.; Yamazaki, G.; Ishida, A.; Sasaki, H.; Nagata, S. Presence of quorum-sensing inhibitor-like compounds from bacteria isolated from the brown alga Colpomenia sinuosa. Lett. Appl. Microbiol. 2009, 49, 573–579. [Google Scholar] [CrossRef] [PubMed]
  61. Pugazhendhi, E.; Kirubha, P.; Palanisamy, K.; Gopalakrishnan, R. Synthesis and characterization of silver nanoparticles from Alpinia calcarata by Green approach and its applications in bactericidal and nonlinear optics. Appl. Surf. Sci. 2015, 357, 1801–1808. [Google Scholar] [CrossRef]
  62. Shankar, P.D.; Shobana, S.; Karuppusamy, I.; Pugazhendhi, A.; Ramkumar, V.C.; Arvindnarayan, S.; Kumar, G. A review on the biosynthesis of metallic nanoparticles (gold and silver) using bio-components of microalgae: Formation mechanism and applications. Enzyme Microb. Technol. 2016, 95, 28–44. [Google Scholar] [CrossRef] [PubMed]
  63. Al Naamani, L.; Dobretsov, S.; Dutta, J.; Burgess, G. Chitosan-ZnO nanocomposite coatings for the prevention of marine fouling. Chemosphere 2017, 168, 408–417. [Google Scholar] [CrossRef] [PubMed]
  64. Yang, J.-L.; Li, Y.-F.; Liang, X.; Guo, X.-P.; Ding, D.-W.; Zhang, D.; Zhou, S.; Bao, W.-Y.; Bellou, N.; Dobretsov, S. Silver nanoparticles impact biofilm communities and mussel settlement. Sci. Rep. 2016, 6, 37406. [Google Scholar] [CrossRef] [PubMed]
  65. Yang, J.-L.; Li, Y.-F.; Guo, X.-P.; Liang, X.; Xu, Y.F.; Ding, D.W.; Bao, W.-Y.; Dobretsov, S. The effect of carbon nanotubes and titanium dioxide incorporated in PDMS on biofilm community composition and subsequent mussel plantigrade settlement. Biofouling 2016, 32, 763–777. [Google Scholar] [CrossRef] [PubMed]
  66. Sathe, P.; Myint, M.T.Z.; Dobretsov, S.; Dutta, J. Self-decontaminating photocatalytic zinc oxide nanorod coatings for prevention of marine microfouling: A mesocosm study. Biofouling 2016, 32, 383–395. [Google Scholar] [CrossRef] [PubMed]
  67. Muthukumar, K.; Vignesh, S.; Dahms, H.-U.; Gokul, M.S.; Palanichamy, X.; Subramian, G.; James, R.A. Antifouling assessments on biogenic nanoparticles: A field study from polluted offshore platform. Mar. Pollut. Bull. 2015, 101, 816–825. [Google Scholar]
  68. Asmathunisha, N.; Kathiresan, K. A review on biosynthesis of nanoparticles by marine organisms. Coll. Surf. B Biointerfaces 2013, 103, 283–287. [Google Scholar] [CrossRef] [PubMed]
  69. Thakkar, K.N; Mhatre, S.S.; Parikh, R.Y. Biological synthesis of metal nanoparticles. Nanomed. Nanotechnol. Biol. Med. 2010, 6, 257–262. [Google Scholar] [CrossRef] [PubMed]
  70. Ramkumar, V.R.; Pugazhendhi, A.; Gopalakrishnan, K.; Sivagurunathan, P.; Saratale, G.D. Biofabrication and characterization of silver nanoparticles using aqueous extracts of seaweed Enteromorpha compressa and its biomedical properties. Biotechnol. Rep. 2017. [Google Scholar] [CrossRef] [PubMed]
  71. Stachowicz, J.J. Mutualism, facilitation and the structure of ecological communities. BioScience 2001, 51, 235–246. [Google Scholar] [CrossRef]
  72. Dworjanyn, S.A.; Wright, J.T.; Paul, N.A.; De Nys, R.; Steinberg, P.D. Cost of chemical defence in the red alga Delisea pulchra. Oikos 2006, 113, 13–22. [Google Scholar] [CrossRef]
  73. Harizani, M.; Ioannou, E.; Roussis, V. The Laurencia paradox: An endless source of chemodiversity. In Progress in the Chemistry of Organic Natural Products; Kinghorn, A.D., Galk, H., Gibbons, S., Kobayashi, J., Eds.; Springer: Berlin, Germany, 2016; Volume 102, pp. 91–252. [Google Scholar]
  74. Paradas, W.C.; Crespo, T.M.; Saldagi, L.T.; de Andrade, L.R.; Soares, A.R.; Hellio, C.; Paranhos, R.R.; Hill, L.J.; de Souza, G.M.; Kelecom, A.G.; et al. Mevalonosomes: Specific vacuoles containing the mevalonate pathway in Plocamium brasiliense cortical cells (Rhodophyta). J. Phycol. 2015, 51, 225–235. [Google Scholar] [CrossRef] [PubMed]
  75. Hellio, C.; Yebra, D.M. Advances in Marine Antifouling Coating and Technologies, 1st ed.; Woodhead publishing Limited: Boca Raton, FL, USA, 2009; p. 784. [Google Scholar]
  76. Da Gama, B.A.; Plouguerne, E.; Pereira, R.C. The antifouling defence mechanisms of marine macroalgae. Adv. Bot. Res. 2014, 71, 413–440. [Google Scholar]
  77. Dobretsov, S. Marine Biofilms. In Biofouling, 1st ed.; Dürr, S., Thomason, J.C., Eds.; Wiley-Blackwell: Oxford, UK, 2010; pp. 123–136. [Google Scholar]
  78. Wade, W. Unculturable bacteria—The uncharacterized organisms that cause oral infections. J. R. Soc. Med. 2002, 95, 81–83. [Google Scholar] [CrossRef] [PubMed]
  79. Nylund, G.M.; Gribben, P.E.; de Nys, R.; Steinberg, P.; Pavia, H. Surface chemistry versus whole-cell extracts: Antifouling tests with seaweeds metabolites. Mar. Ecol. Prog. Ser. 2007, 329, 73–84. [Google Scholar] [CrossRef]
  80. Cirri, E.; Grosser, K.; Pohnert, G. A solid phase extraction based non-disruptive sampling technique to investigate the surface chemistry of macroalgae. Biofouling 2016, 32, 145–153. [Google Scholar] [CrossRef] [PubMed]
  81. Holmstrøm, C.; Kjelleberg, S. Marine Pseudoalteromonas species are associated with higher organisms and produce active extracellular compounds. FEMS Microbiol. Ecol. 1999, 30, 285–293. [Google Scholar] [CrossRef]
  82. Burgess, J.G.; Boyd, K.G.; Armstrong, E.; Jiang, Z.; Yan, L.; Berggren, M.; May, U.; Pisacane, T.; Granmo, A.; Adams, D.R. The development of a marine natural product-based antifouling paint. Biofouling 2003, 19, 197–205. [Google Scholar] [CrossRef] [PubMed]
  83. De Oliveira, A.L.L.; de Felício, R.; Debonsi, H.M. Marine natural products: Chemical and biological potential of seaweeds and their endophytic fungi. Braz. J. Pharm. 2012, 22, 906–920. [Google Scholar] [CrossRef]
  84. Dobretsov, S.; Qian, P.Y. Effect of bacteria associated with the green alga Ulva reticulata on marine micro- and macrofouling. Biofouling 2002, 18, 217–228. [Google Scholar] [CrossRef]
  85. Harder, T.; Dobretsov, S.; Qian, P.Y. Waterborne polar macromolecules act as algal antifoulants in the seaweed Ulva reticulata. Mar. Ecol. Prog. Ser. 2004, 274, 133–141. [Google Scholar] [CrossRef]
  86. Kientz, B.; Thabard, M.; Cragg, S.M.; Pope, J.; Hellio, C. A new method for removing microflora from macroalgal surfaces: An important step for natural product discovery. Bot. Mar. 2011, 54, 2655–2661. [Google Scholar] [CrossRef]
  87. Yan, L.; Boyd, K.G.; Burgess, J.G. Surface attachment induced production of antimicrobial compounds by marine epiphytic bacteria using modified roller bottle cultivation. Mar. Biotechnol. 2009, 4, 356–366. [Google Scholar] [CrossRef] [PubMed]
  88. Hellio, C.; Berge, J.P.; Beapoil, C.; Le Gal, Y.; Bourgougnon, N. Screening of marine algal extracts for anti-settlement activities against microalgae and macroalgae. Biofouling 2002, 18, 205–215. [Google Scholar] [CrossRef]
  89. Da Gama, B.A.P.; Carvalho, A.; Weidner, K.; Soared, A.R.; Coutinho, R.; Fleury, B.G.; Texeira, V.L.; Pereira, R.C. Antifouling activity of natural products from Brazilian seaweeds. Bot. Mar. 2008, 51, 191–201. [Google Scholar] [CrossRef]
  90. Kremb, S.; Müller, C.; Schmitt-Kopplin, P.; Voolstra, C.R. Bioactive Potential of Marine Macroalgae from the Central Red Sea (Saudi Arabia) Assessed by High-Throughput Imaging-Based Phenotypic Profiling. Mar. Drugs 2017, 15, 18. [Google Scholar] [CrossRef] [PubMed]
  91. Dahms, H.-U.; Won, E.-J.; Kim, H.-S.; Han, J.H.; Park, H.G.; Souissi, S.; Raisuddin, S.; Lee, J.-S. Potential of the small cyclopoid copepod Paracyclopina nana as an invertebrate model for ecotoxicity testing. Aquat. Toxicol. 2016, 180, 282–294. [Google Scholar] [CrossRef] [PubMed]
  92. Dahms, H.-U.; Huang, D.-J.; Lee, S.H.; Chen, W.-Y.; Soong, K.; Hwang, J.-S. The challenging role of life cycle monitoring—Evidence from bisphenol A on the copepod Tigriopus japonicus. Hydrobiologia 2017, 784, 81–91. [Google Scholar] [CrossRef]
  93. Dahms, H.-U. Traditional microbiological methods. In Biofouling Methods, 1st ed.; Dobretsov, S., Thomason, J.C., Williams, D.N., Eds.; John Wiley & Sons: Oxford, UK, 2014; pp. 123–136. [Google Scholar]
Figure 1. (a) Antifouling algal-related publications in the scientific literature. To access the frequency of publications, we ran a search on Scopus for the period from 2010 to February 2017. Our search terms include “antifouling”, plus other keywords; and (b) affiliations of researchers of antifouling algal-related publications. To access the frequency of publications, we ran a search on Scopus for the period from 2010 to February 2017. Our search terms include “antifouling alga” plus “natural product”.
Figure 1. (a) Antifouling algal-related publications in the scientific literature. To access the frequency of publications, we ran a search on Scopus for the period from 2010 to February 2017. Our search terms include “antifouling”, plus other keywords; and (b) affiliations of researchers of antifouling algal-related publications. To access the frequency of publications, we ran a search on Scopus for the period from 2010 to February 2017. Our search terms include “antifouling alga” plus “natural product”.
Marinedrugs 15 00265 g001
Figure 2. Acetylene sesquiterpenoid esters (a,b) from Caulerpa prolifera.
Figure 2. Acetylene sesquiterpenoid esters (a,b) from Caulerpa prolifera.
Marinedrugs 15 00265 g002

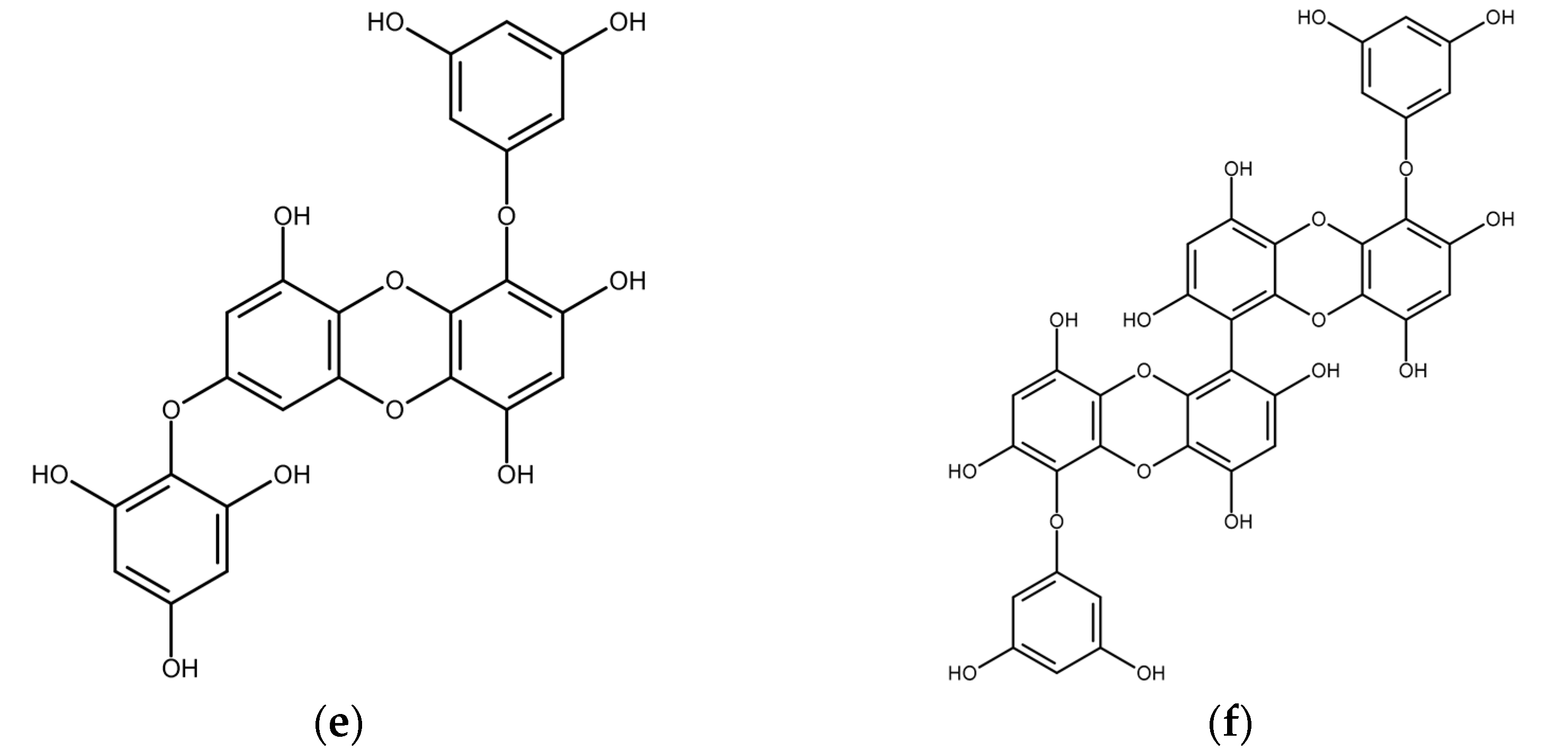

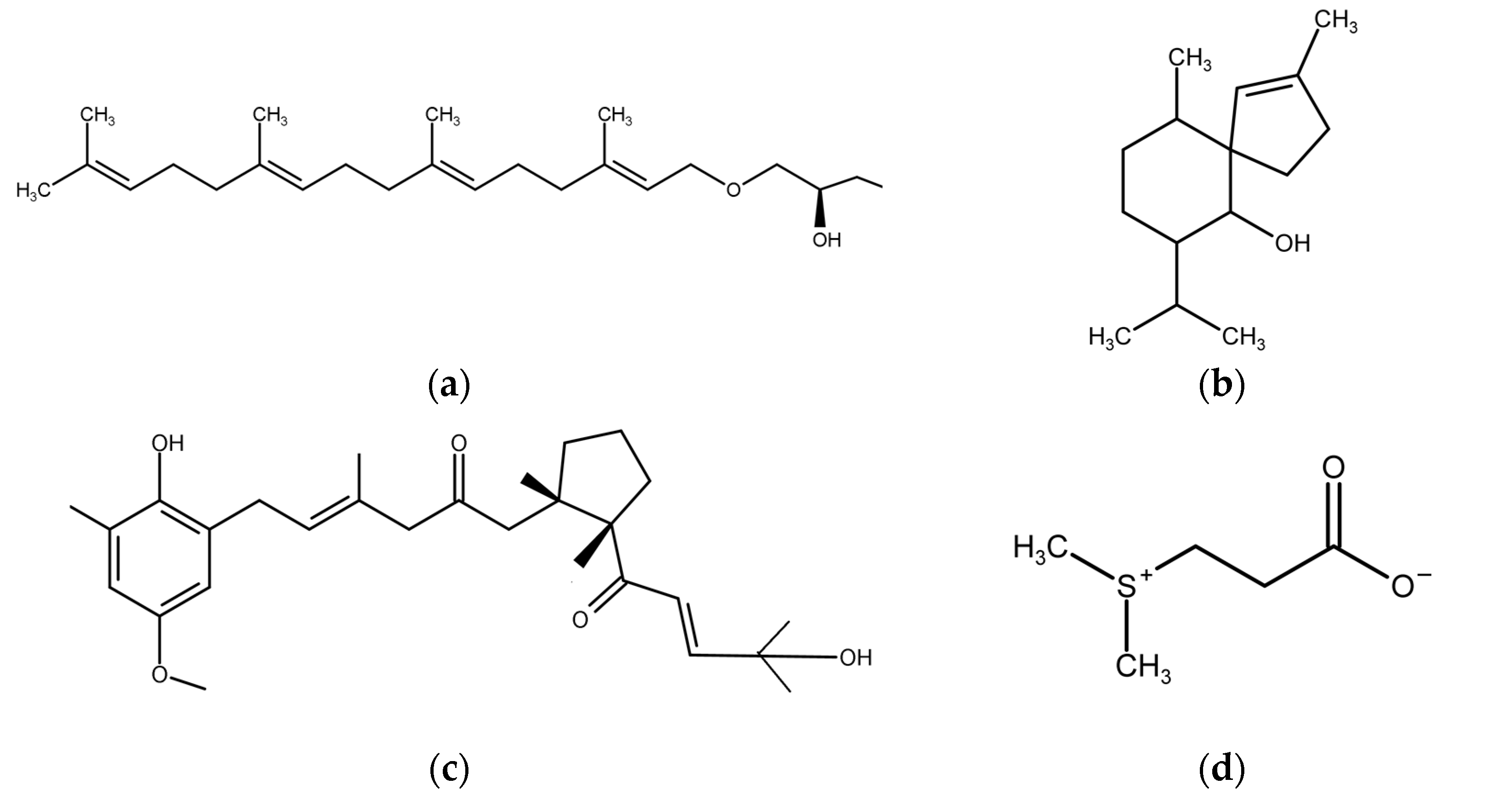

Figure 3. Antifouling compounds from brown macroalgae: (a) sn-3-O-(geranylgeranyl) glycerol from Taonia atomaria and Dyctiota sp.; (b) sesquiterpenoid (−)-gleenol from T. atomaria; (c) monocyclic meroditerpenoid from Cystoseira tamariscifolia; (d) dimethylsulphopropionate from Fucus vesiculosus; (e) 1-(3′,5′-dihydroxyphenoxy)-7-(2′′,4′′,6-trihydroxyphenoxy)-2,4,9-trihydroxydibenzo-1,4-dioxin; and (f) 6,6′-bieckol.
Figure 3. Antifouling compounds from brown macroalgae: (a) sn-3-O-(geranylgeranyl) glycerol from Taonia atomaria and Dyctiota sp.; (b) sesquiterpenoid (−)-gleenol from T. atomaria; (c) monocyclic meroditerpenoid from Cystoseira tamariscifolia; (d) dimethylsulphopropionate from Fucus vesiculosus; (e) 1-(3′,5′-dihydroxyphenoxy)-7-(2′′,4′′,6-trihydroxyphenoxy)-2,4,9-trihydroxydibenzo-1,4-dioxin; and (f) 6,6′-bieckol.
Marinedrugs 15 00265 g003aMarinedrugs 15 00265 g003b

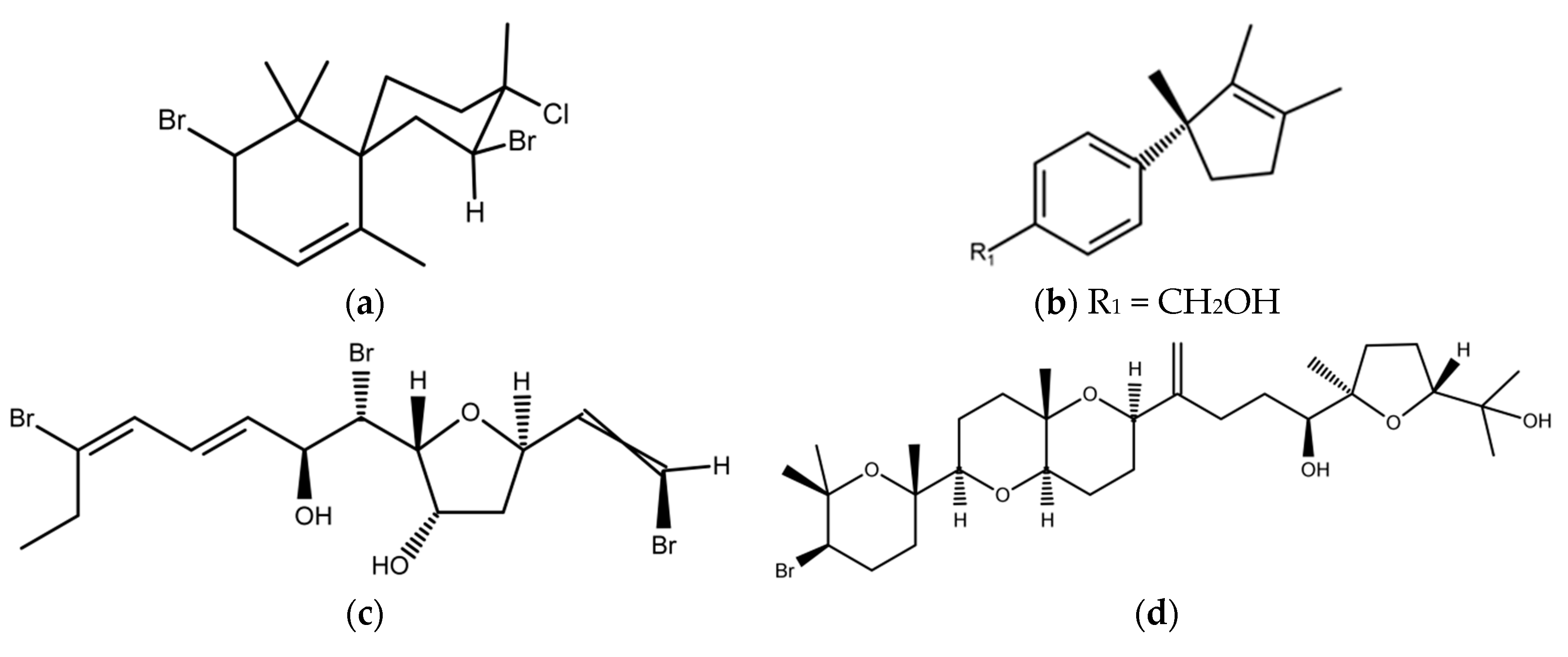

Figure 4. Some antifouling compounds from red macroalgae: (a) 2,10-dibromo-3-chloro-7-chamigrene from Laurencia obtusa; (b) 12-hydroxyisolaurene from Laurencia obtusa; (c) Omaezallene from Laurencia sp.; (d) Dehydrothyrsiferol; (e) Saiyacenols B; (f) Saiyacenols C; (g) 28-hydroxysaiyacenol B from Laurencia viridis; (h) 28-hydroxysaiyacenol A from L. viridis.
Figure 4. Some antifouling compounds from red macroalgae: (a) 2,10-dibromo-3-chloro-7-chamigrene from Laurencia obtusa; (b) 12-hydroxyisolaurene from Laurencia obtusa; (c) Omaezallene from Laurencia sp.; (d) Dehydrothyrsiferol; (e) Saiyacenols B; (f) Saiyacenols C; (g) 28-hydroxysaiyacenol B from Laurencia viridis; (h) 28-hydroxysaiyacenol A from L. viridis.
Marinedrugs 15 00265 g004aMarinedrugs 15 00265 g004b

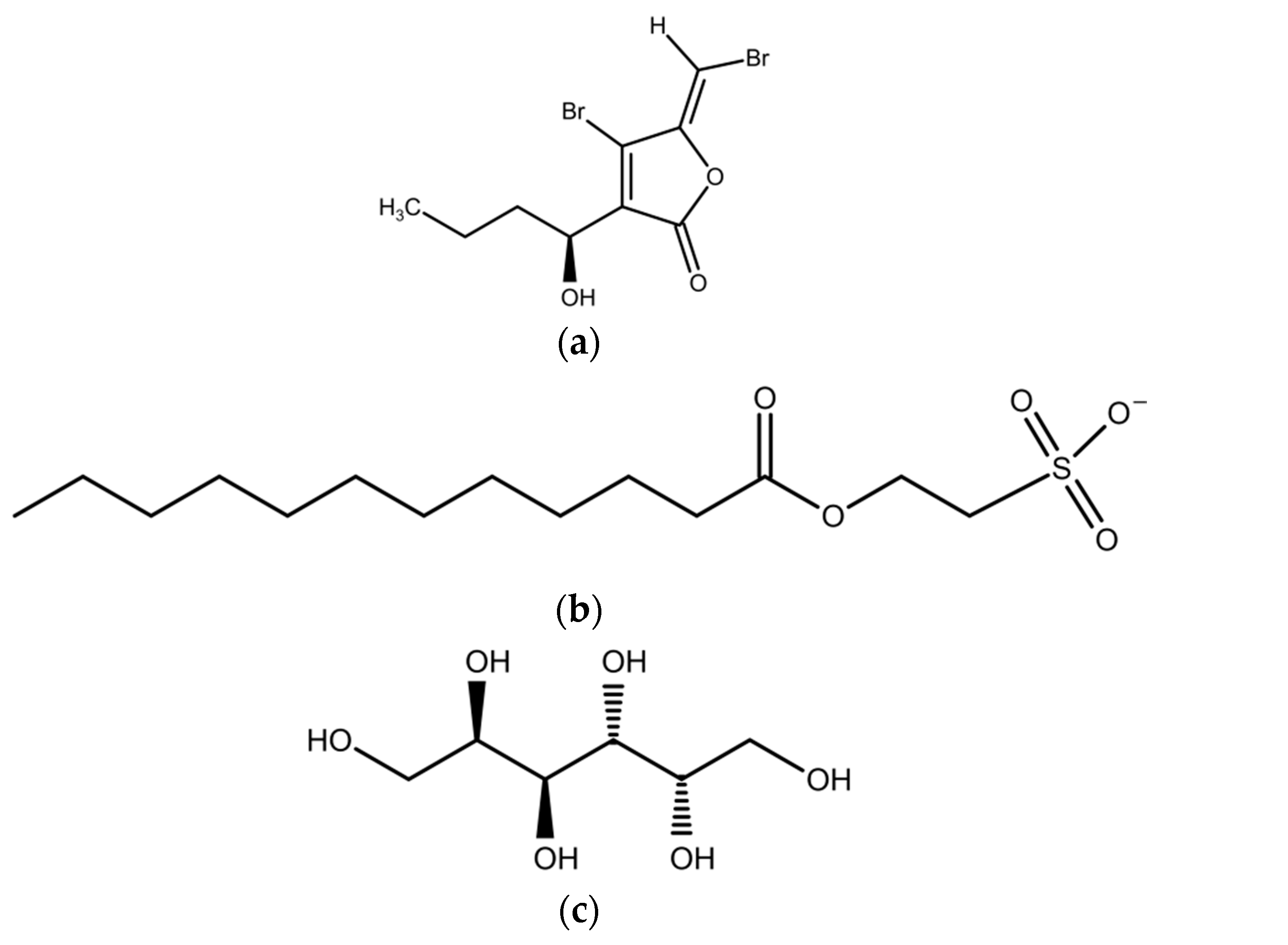

Figure 5. Quorum sensing (QS) inhibitors from marine macroalgae: (a) halogenated furanone from Delisea pulchra; (b) 2-dodecanoyloxyethanesulfonate from Asparagopis taxiformis; and (c) galactitol from Spatoglossum sp.
Figure 5. Quorum sensing (QS) inhibitors from marine macroalgae: (a) halogenated furanone from Delisea pulchra; (b) 2-dodecanoyloxyethanesulfonate from Asparagopis taxiformis; and (c) galactitol from Spatoglossum sp.
Marinedrugs 15 00265 g005
Figure 6. Biofouling on the surface of the green alga Ulva reticulata: (a) scanning electron microscopy (SEM) photo of the healthy part of the alga with low bacterial fouling; and (b) SEM photo of the old part of the same alga which was heavily fouled with fungi, microalgae, and bacteria. Magnification = 1900×; scale bar = 10 µm.
Figure 6. Biofouling on the surface of the green alga Ulva reticulata: (a) scanning electron microscopy (SEM) photo of the healthy part of the alga with low bacterial fouling; and (b) SEM photo of the old part of the same alga which was heavily fouled with fungi, microalgae, and bacteria. Magnification = 1900×; scale bar = 10 µm.
Marinedrugs 15 00265 g006
Table 1. Antifouling compounds from green macroalgae (Chlorophyta).
Table 1. Antifouling compounds from green macroalgae (Chlorophyta).
AlgaeType of ActivityCompoundReference 1
Ulva rigida Antifouling3-bromo-5-(diphenylene)-2(5H)-furanone[17]
Ulva pertusaAnti-algalAlkaloid phenolic acid[19]
Ulva reticulate Halimeda macrolobaAnti-bacterialOrganic extract 2[18]
Ulva lactucaAnti-bacterialOrganic extract 2
Codium fragileAnti-algalOrganic extract 2[20]
Caulerpa racemosa Codium spp. Ulva (Enteromorpha) fasciataAnti-QS, Anti-bacterialPolar and non-polar extracts 2[21]
Ulva sp.Antifoulingβ-carotene[22]
Caulerpa proliferaAntibacterial, antialgalAcetylene sesquiterpenoid esters[23]
Chlorococcum humicolaAntibacterial and anti AspergillusChlorophyll a and b[24]
1 The data are from research published from January 2010 to February 2017. 2 The structure is unknown. QS: quorum sensing.
Table 2. Antifouling compounds from brown macroalgae (Phaeophyta).
Table 2. Antifouling compounds from brown macroalgae (Phaeophyta).
AlgaeType of ActivityCompoundReference 1
Native and invasive Sargassum spp.Anti-QS Anti-larval Anti-diatomNon-polar extracts 2[33]
Sargassum spp.Anti-algalPhlorotannin[29]
Sargassum muticumAnti-diatomEthanol and Dichlormethane extracts 2[34]
S. muticumAnti-bacterialGalactoglycerolipids[30]
S. thunbergiiAnti-larvalStigmasta-5,22-E-,28-triene-3β,24α-diol[31]
S. horneriAnti-bacterial Anti-larval Anti-diatomChromanols[32]
S. vulgare Padina sp.Anti-QS Anti-bacterialPolar and non-polar extracts 2[35]
S. furcatum Dyctiota sp.Anti-QS Anti-bacterialPolar and non-polar extracts 2[21]
Taonia atomariaAnti-bacterialSesquiterpenoids[36]
Taonia atomariaAnti-bacterial Anti-larvalSesquiterpenoid (−)-gleenol sn-3-O-(geranylgeranyl)glycerol[37]
Padina tetrastromaticaAnti-bacterial Anti-diatom Anti-musselMethanol extracts (fatty acids) 2[38]
Cystoseira tamariscifoliaAnti-bacterial Anti-fungal, Anti-larval, Anti-algalCystophloroketals A-E monocyclic meroditerpenoid[39]
Halidrys siliquosaAnti-bacterialMethanolic extracts 2[40]
Dyctiota spp.Anti-bacterialDiterpenes 1-Ο-octadecenoylglycerol sn-3-Ο-(geranylgeranyl)glycerol[41]
Dyctiota sp.Anti-bacterial Anti-algalExtract 2[42]
Bifurcaria bifurcataAnti-bacterial Anti-foulingAcyclic linear diterpenoids[43]
Fucus vesiculosusAnti-bacterialSurface extracts 2[25]
F.vesiculosusAnti-bacterialSurface extracts 2[26]
F.vesiculosusAnti-bacterialDimethylsulphopropionate Proline[28]
Laurencia johnstoniiAnti-bacterialOrganic extract 2[20]
1 The data are from research published from January 2010 to February 2017. 2 The structure is unknown. QS: quorum sensing.
Table 3. Antifouling compounds from red macroalgae (Rhodophyta).
Table 3. Antifouling compounds from red macroalgae (Rhodophyta).
AlgaeType of ActivityCompoundReference 1
Crustose coralline algaeAnti-algalMethanol extract 2[48]
Galdieria sulphurariaAntifoulingFloridoside[49]
Laurencia translucidaAnti-bacterialFatty acid derivates[44]
Laurencia obtusaAnti-larval2,10-dibromo-3-chloro-7-chamigrene 12-hydroxyisolaurene[45]
Asparagopsis taxiformisAnti-bacterial
Anti-QS
Methanol extract 2-dodecanoyloxyethanesulfonate[50]
A. taxiformisAnti-bacterial
Anti-algal
Extract 2[51]
Ceramium botryocarpumAnti-diatomEthanol and Dichlormethane extracts 2[34]
Chondrus crispusAnti-algal
Anti-bacterial
Crude extracts 2[52]
Pterocladiella capillacea
Spyridia aculeata
Anti-QS
Anti-bacterial
Polar and non-polar extracts 2[35]
P. capillacea Peyssonnelia capensis Spyridia spp.Anti-QS Anti-bacterialPolar and non-polar extracts 2[21]
Laurencia sp.AntifoulingOmaezallene[46]
Laurencia translucidaAntifoulingFatty acid[44]
Laurencia viridisAnti-diatomDehydrothyrsiferol[47]
L. viridisAnti-diatomSaiyacenols B[47]
L. viridisAnti-diatomSaiyacenols C[47]
L. viridisAnti-algal28-hydroxysaiyacenols B and A[47]
1 The data are from research published from January 2010 to February 2017. 2 The structure is unknown. QS: quorum sensing.
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
