Pharmaceuticals 2004, 1(1), 1-30; doi:10.3390/ph1010001

Review
Specific Selection of Essential Oil Compounds for Treatment of Children’s Infection Diseases
Alexander Pauli a,* and Heinz Schilcher b
a
ReviewScience, 90513 Zirndorf, Fürther Str. 13, Germany
b
Heinz Schilcher, 81737 München, Alfred Neumann Anger 17, Germany
*
Author to whom correspondence should be addressed; Email: a.pauli@reviewscience.com
Received: 15 December 2003 / Accepted: 23 January 2004 / Published: 27 January 2004

Abstract

: Preparations with essential oils and their dosages applied in the therapy of children’s infectious diseases are well documented. In contrast, information is only sparingly available about uses of isolated pure essential oil compounds for the treatment of such infections. To find out safe antimicrobials from essential oils, microbiological inhibitory data of children pathogens were combined with oral and dermal acute toxicity data to calculate oral and dermal therapeutical indices (TI). The superiority of antibiotic drugs became obvious following calculating oral TIs of antimicrobials from higher plants, which suggests that oral administrations of essential oil compounds are not suitable to cure severe infections. A few selected compounds from higher plants show moderate effectiveness against gram-positive bacteria, yeast and fungi, but not gram-negative bacteria. Topical application or inhalation of selected compounds for the treatment or additional treatment of mild infections is reasonable.
Keywords:
Antibiotics; Antimycotics; Drugs Used in Dermatology; Essential Oils; Therapeutic Index

1. Introduction

Essential oils possess a wide spectrum of pharmacological activities, e.g. anti-inflammatory, hyperemic, spasmolytic, expectorant, diuretic, choleretic, carminative or antiseptic effects [1]. For this reason, essential oils became officinal drugs in many countries (Table 1), which is documented in their respective pharmacopoeias [2].

However, essential oils are not free of side effects and skin, respiratory- and gastrointestinal tract irritations, allergic reactions, phototoxicity, abortive as well as mutagenic and carcinogenic properties may be caused [1]. Even cases of poisoning of children by volatile oils, such as eucalyptus, sassafras, turpentine, wintergreen, chenopodium and citronella oil had occurred [3]. Moreover, care has to be taken with essential oils or preparations containing menthol 1 or camphor 2.

Pharmaceuticals 01 00001 i001

In infants both compounds may cause respiratory depression or even death (Kratschmer Reflex), when given directly into the nose or close to the nose onto skin [4]. Adverse effects similar to the ‘Kratschmer Reflex’ may occur also with other compounds from essential oils and can not be predicted from animal experiments.

The use of essential oils for healing purposes is recommended especially in the treatment of catarrhal diseases. Their administration to children presupposes the selection of safe oils and the determination of appropriate doses to avoid side effects. Among officinal essential oils only a few oils come into question. Table 2 shows their appropriate doses that are calculated from adult doses and respect body weight, size and surface area of children [5].

Table Table 1. Officinal Essential Oils Listed in Various Pharmacopoeias.

Click here to display table

Table 1. Officinal Essential Oils Listed in Various Pharmacopoeias.
CountryAustriaEuropeFranceGermanyItalyJapanSwitzerlandUnited KingdomUSA
Essential OilBotanical Origin
Anise (Staranise)Pimpinella anisum L.; Illicium verum Hook XXXX X
AmbroseChenopodium ambrosioides L. X
Bitter-Orange-FlowerCitrus aurantium L. subspecies aurantium XXX X
CamelliaCamellia japonica L. X
CarawayCarum carvi L.X X XX
CardamomElettaria cardamomum Maton var. minuscula Burkill X
ChamomileMatricaria chamomilla L.X X
ChiaSalvia lavandulifolia Vahl (Salvia hispanica) XX
CinnamonCinnamomum cassia Blume; C. ceylanicum NeesX X XXX
CitronellaCymbopogon winterianus JovittX X
CloveSyzygium aromaticum Merril et L.M. Perry XXXXX X
CorianderCoriandrum sativum L. X
DillAnethum graveolens L. X X
EucalyptusEucalyptus globulus Labillardiere etc. XXXXX X
FennelFoeniculum vulgare Miller var. vulgareX X XX
JuniperJuniperus communis L.X X
LaurelLaurus nobilis L.X
LavenderLavandula angustifolia Miller XXX X
LemonCitrus limon (L.) Burman filius XXXX X
MenthaMentha arvensis L. var. piperascens Holmes ex Christy X
Mint dementholized XX X
Norway sprucePicea abies (L.) Karsten; Abies sibirica Ledebour XX
NutmegMyristica fragrans HouttuynX X XX
OrangeCitrus sinensis Osbeck X XX X
PeppermintMentha piperita L. XXXX XX
Pine needlePinus silvestris L. X
Pumilio PinePinus mugo Turra var. pumilio ZenariX X
RoseRosa gallica L. etc. X
RosemaryRosmarinus officinalis L.X X X
SageSalvia officinalis L. X X
SpearmintMentha spicata L.; Mentha cardiaca Bak. XX X
TangerineCitrus reticulata Blanco (Citrus nobilis Andreus) X X
Tea treeMelaleuca alternifolia Cheel etc. X
ThymeThymus vulgaris L. X X X
Turpentine rectifiedPinus palustris Miller; Pinus pinaster AitonX X XXX
Table Table 2. Essential Oils Used in the Treatment of Catarrhal Diseases of Children.

Click here to display table

Table 2. Essential Oils Used in the Treatment of Catarrhal Diseases of Children.
AetherolumCommon oil nameAdministrationAge of children in years
route0 – 1>1 – 4>4 – 10>10 – 16
EucalyptiEucalyptusInhalation b1 – 2 dr4 – 6 dr4 – 6 dr4 – 6 dr
FoeniculiFennelOral----------------0,05 – 0,2 ml0,1 – 0,6 ml
Menthae arvensisJapanese peppermintInhalation c--------1 – 3 dr2 – 4 dr3 – 6 dr
Menthae piperitaePeppermintInhalation c1 dr1 – 2 dr2 – 3 dr3 – 4 dr
PiceaeNorway spruce fir, Siberian pine needleInhalation a2 dr/l2 – 4 dr/l3 – 4 dr/l3 – 4 dr/l
PiniDwarf or Scots pine needle, Austrian or French turpentineInhalation c1 – 2 dr2 – 3 dr3 – 4 dr/l3 – 4 dr/l
Terebinthinae rect.Rectified turpentineInhalation a----------------3 – 4 dr/l3 – 4 dr/l

Notes: a) Inhalation with hot water, b) pure oil is given on a pillow, c) a) or b). Abbreviations used: dr = drops

Most essential oils consist of many, in part over 100 individual compounds, which are responsible as individuals or in their natural composition for beneficial and adverse effects of the respective entire oil. In this paper some effort was done to select safe compounds from essential oils with simultaneously antimicrobial activity against children pathogens and to compare the selected compounds with medicinal antibiotics used for the therapy of children diseases.

Information about treatment of children infections with pure, individual compounds from essential oils is not much available from literature. A very early report described the rectal administration of eugenol 3, the main constituent of clove oil (Syzygium aromaticum), in the trheatment of systemic infections of several children. Eugenol decreased body temperature and reduced fever, however, this was not sufficient to prevent death among all treated patients [6].

Pharmaceuticals 01 00001 i002

Further, oral, topical and inhalative administration of camphor 2, the main constituent of rosemary oil (Rosmarinum officinale), is recommended in supportive therapy of respiratory tract infection [7].

Because of the limited availability of pharmacological data obtained with living organisms, another selection strategy was necessary as a substitute in the selection of promising antimicrobials. In pharmacology the so-called ‘Therapeutic-Index’ (TI) is a measure for the effectiveness of pharmacological active drugs [8]. It is deduced from laboratory test results and the animal toxicity of compounds, respectively. The use of the TIs presupposes a collection of microbiological inhibitory and toxicological data. Such a collection is already available as a computer database [9], which was used for calculating TIs for children pathogenic microorganisms. The so-selected compounds were controlled for side effects as they are documented in materials safety data sheets (MSDS) or in ‘Toxicology Reports’ [10]. The effectiveness on the basis of TI-calculations of the selected compounds was then compared to antibiotics used in the therapy of children infections [11,16].

2. Material and Methods

The volume of the database used for the data analysis exceeds 153.000 data records [9]. It contains information about 6800 compounds and over 2500 species of bacteria, fungi and yeast, which is scheduled from almost 3000 microbiology and over 4500 toxicology references (Figure 1).

Pharmaceuticals 01 00001 g001 1024

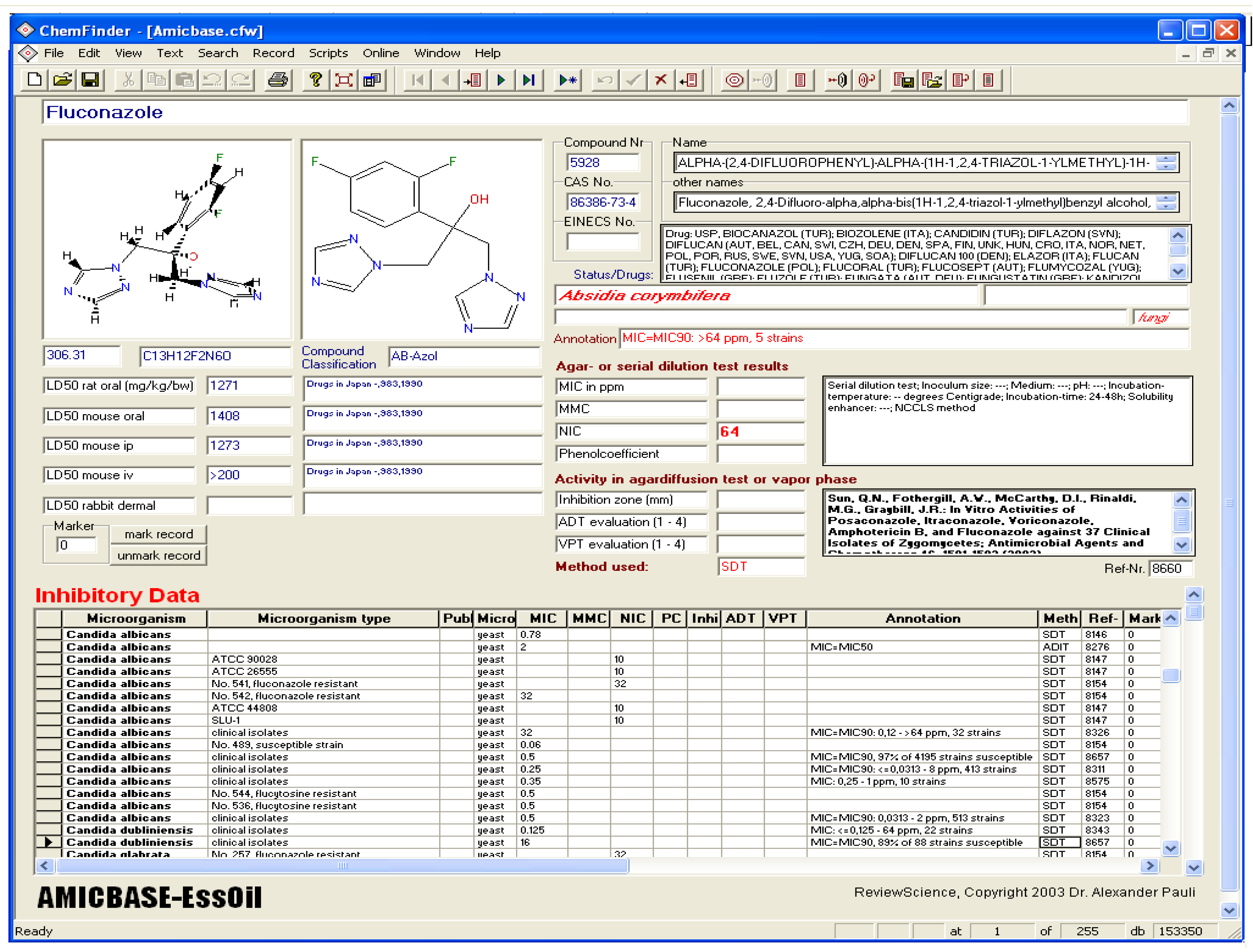

Figure 1. Example of one data record of the antimicrobial database.

Click here to enlarge figure

Figure 1. Example of one data record of the antimicrobial database.
Pharmaceuticals 01 00001 g001 1024

Among constituents of higher plants, terpenoids (20.000 data records) and aliphatic compounds (16.000 data records) are the largest groups in the database. The antibiotics database comprises 84.000 data records, of which 53.000 data records relate to officinal drugs being available in Japan, Europe and USA.

The calculation of ‘Therapeutic Indices’ (TI) is done usually by combining ED50 and LD50: the effective dose 50 (ED50) is the amount causing 50% of a desired effect, and the lethal dose 50 (LD50) is the amount causing 50% death of test animals [8].

TI calculation used for pharmaceutical products and substances: Pharmaceuticals 01 00001 i003.

In the case of antimicrobials the concentration preventing microbial growth (minimal inhibitory concentration, MIC in ppm) is of interest and was used instead of ED50.

Among toxicity data towards animals different types exist depending on the route of administration. Comprehensive toxicological data material exists following oral administration. In the case of skin affections the dermal toxicity of a compound is of interest. Therefore, oral ‘Therapeutic Indices’ (oral TI) and dermal ‘Therapeutic Indices’ (dermal TI) are given both.

TI calculation used for antimicrobials:

Pharmaceuticals 01 00001 i004

The 1530 compounds presented in the database are characterized by their oral toxicity and 523 compounds by their dermal toxicity. Defined inhibitory concentrations (MIC) are necessary to calculate ‘Therapeutic Indices’ (TIs). About 40.000 data records of the entire database yield MIC-data of compounds from higher plants. The number of TIs calculated from combined antimicrobial and toxicological data exceeds 30.000 without antibiotics.

Typical children’s diseases, infection sites and causative microorganisms were compiled together (Table 3) from the ‘Merck Manual of Diagnosis and Therapy’ [11].

Table Table 3. Diseases caused by Important Children’s Pathogens.

Click here to display table

Table 3. Diseases caused by Important Children’s Pathogens.
Causative MicroorganismChildren diseaseLocalization
Streptococcus pneumoniaePneumoniaRespiratory tract
MeningitisNasopharynx
Rhinitis, SinusitisNose, nasal cavity
Otitis mediaEar
Conjunctivitis, Orbital cellulitisEye
Bacteremia, SepsisBloodstream
Staphylococcus aureusRhinitis, SinusitisNose, nasal cavity
Conjunctivitis, Orbital cellulitisEye
Infectious gastroenteritisGastrointestinal tract
SepsisBloodstream
Impetigo, Staphylococcal skin infectionsSkin
Staphylococcal scalded skin syndromeSkin
Escherichia coliPneumoniaRespiratory tract
MeningitisNasopharynx
Urinary tract infectionsUrinary tract
Infectious gastroenteritisGastrointestinal tract
Salmonella spec.Bacteremia, SepsisBloodstream
Infectious gastroenteritisGastrointestinal tract
Mycobacterium tuberculosis, M. bovis, M. africanumPulmonary tuberculosis LymphadenopathyRespiratory tract Lymph nodes
Microsporum audouinii, M. canis, M. gypseum, Trichophyton tonsurans, T. violaceumTinea capitisSkin, hair
Candida albicansPneumonia Bloodstream, respiratory tract
Nappy (diaper) rushSkin
Oral candidiasisMouth
Bordetella pertussisPertussisRespiratory tract
Haemophilus influenzaeEpiglottisRespiratory tract
Clostridium tetaniTetanusSkin, wounds

The most hazardous infectious for children - according to the statistics of the World Health Organization dating from the year 2001 [12] - are shown in Table 4. Among children’s diseases caused by bacteria in particular respiratory infections followed by diarrhea, pertussis, syphilis, meningitis and tetanus are most frequent causes of death.

Table Table 4. WHO Statistic on Causes of Death among Children in the Year 2001.

Click here to display table

Table 4. WHO Statistic on Causes of Death among Children in the Year 2001.
No. cases of death in age group 0 – 4 years No. cases of death in age group 5 – 14 years
MaleFemaleBoth MaleFemaleBoth
Lower respiratory infect.10707399630962033836 Measles8643587434173868
Diarrhoeal diseases6859796671491353128 Other infectious diseases6249553268115763
Malaria454970502027956997 Lower respiratory infect.5784943601101450
Other infectious diseases308522310123618645 Diarrhoeal diseases549673901693983
Measles276372277156553527 Malaria543882939183779
HIV/AIDS178049174069352118 Tuberculosis172571758434842
Pertussis142430142111284541 HIV/AIDS151021390429006
Tetanus100657100784201441 Tetanus128401274625587
Syphilis7808464292142376 Meningitis126231060523229
Meningitis429993647379471 Trypanosomiasis61831112517309
Tuberculosis279792135149330 Leishmaniasis7135966316797
Upper respiratory infect.161791867234851 Dengue190411713075
Dengue273063939123 Hepatitis B 118015002680
Leishmaniasis483340408872 Upper respiratory infect.10878351922
Japanese encephalitis213344906623 Trichuriasis8789071785
Diphtheria247019764446 Ascariasis8697391608
Trypanosomiasis223712453482 Japanese encephalitis11303571487
Hepatitis B 166817823450 Hepatitis C 5637361299
Otitis media14209972417 Otitis media622222843
Ascariasis105910942153 Schistosomiasis159659818
Hepatitis C 6468311476 Diphtheria518212730
Other intestinal infections5175401057 Pertussis254252506
Leprosy206169375 Other intestinal infections111115226
Other STDs184140324 Leprosy6852120
Trichuriasis22795323 Poliomyelitis455297
Schistosomiasis11021131 Chlamydia74074
Poliomyelitis463480 Syphilis101525
Gonorrhoea03333 Other STDs369
Trachoma31031 Hookworm disease909
Lymphatic filariasis31031 Chagas disease415
Hookworm disease537 Gonorrhoea011
Onchocerciasis606 Trachoma011
Chagas disease415 Lymphatic filariasis000
Chlamydia000 Onchocerciasis000

Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12, Table 13, Table 14, Table 15, Table 16, Table 17 summarize data about the effectiveness of antimicrobials from higher plants and antibiotic drugs against children pathogens. The selected compounds possess ‘Therapeutic Indices’ equal and higher than 100 units. Thus, the toxic dose towards animals is in minimum over 100 - fold higher than the inhibitory dose towards microorganism.

The results of natural antimicrobials are compared to results of antibiotic drugs obtained with resistant and non-resistant microbial strains. Because of the data variety additional information was included, which is the reported minimum and maximum MIC, the minimum and maximum TI, the number of tested strains. Of antibiotic drugs the MIC-breakpoints have frequently been determined [13]. This allows to distinguished between strains that are regarded as normal or as resistant. The minimum MIC of resistant strains is given as MIC-res for each antibiotic drug. When the quality data range for antibiotic drugs is given only [14], the double amount of the highest concentration was taken as MIC-res. TI-res is the ‘Therapeutic Index’ calculated from MIC-res for resistant strains, respectively. Side effects are characterized and annotated in the status field, which indicates whether a compound is used as drug (‘Drug’) or is listed by the Unites States Food and Drug Administration as compound that may occur in food (‘Food’) [15].

3. Results

The results of effective compounds against causative microorganisms of children’s diseases are scheduled according to Table 3.

3.1. Streptococcus pneumoniae

Streptococci are human parasites, which colonize skin and mucous membranes and can be isolated from alimentary, respiratory and genital tracts. Among Pneumococci several types exist, of which capsulated strains are regarded as pathogen. Antibiotic resistances of Pneumococci isolated from children in Germany are as follows: penicillin G 8,6%, cefotaxime 3,1%, erythromycin 27,4%, tetracycline 10,7% [16]. In addition, resistances of Pneumococci towards trimethoprim, sulfonamides and chloramphenicol are reported [17]. Table 5 shows the calculations on pharmaceutical drugs used for the treatment of Pneumococcus infection and the calculations of most successful compounds from higher plants in comparison. The data is sorted first by TI-res and if not available by minimum TIs.

When Pneumococci strains without resistance mechanisms were tested, the approved antibiotics dominate the list of oral TIs (Table 5), of which penicillin G is preferably be used in the therapy of Pneumococcus infections in children. The TIs of compounds from higher plants including essential oils are inferior to such therapeutically used drugs.

Pneumococci resistant to penicillin G are characterized by MIC-res >=1 ppm, however, even at this concentration the TI-calculation for penicillin G is much better than for compounds from higher plants. Tetracycline, cotrimoxazol and chloramphenicol are not much different at their lowest level of effectiveness (TI-res) from meta-menthene-thymol 4, meta-menthene-phenol 5, alpha-bisabolol 6, a component from chamomile (Matricaria recutita) essential oil, or lupulone 7, a component present in hop extract (Humulus lupulus). However, only a small number of strains of Pneumococci have been tested with these compounds, which impairs the drawing of general conclusions.

Table Table 5. Effective Inhibitors of Streptococcus pneumoniae, oral TI max.>= 100.

Click here to display table

Table 5. Effective Inhibitors of Streptococcus pneumoniae, oral TI max.>= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC-range in ppmTI max. - TI min.MIC-resTI-resStatus
CefotaximeMou-o>20000>1000,004 – 4>5000000 - 5000>2<10000Drug
ErythromycinMou-o2580>1000,0008 – 643225000 - 80>0,5<5160Drug
Penicillin GMou-o>5000>1000,008 –16625000 – 312>1<5000Drug
Linoleic acidMou-o>50000213>3846------Food*
n-DodecanolRat-o>12800213>984------Food*
m-Menthene-phenolMou-o290013966---------
Lauric acidRat-o12000213923------Food*
Lauric aldehydeRat-o23000225920------Food*
LupuloneMou-o150023,3454------Food
SulfamethoxazoleMou-o230051 – 82300 - 340------Drug
TetracyclineMou-o678>1000,12 – 45650 - 170>2<340Drug
CotrimoxazolMou-o3740>1000,12 – 3231000 - 233>32<233Drug
alpha-BisabololRat-o14850>432 - 64464 - 232---------
Myristic acidRat-o>10000250>200------Food
ChloramphenicolMou-o1500>1001 – 321500 - 46>8<184Drug
m-Menthene-thymolMou-o1925112160----------
Lauramine HClMou-o1160210 – 12,5116 - 93------Food*
Palmitic acidRat-o>1000037 – 125>1428 - >80------Food
TrimethoprimMou-o2764>100<0,06 – 128>2750 - 80------Drug
Oleic acidRat-o7400044 – 10001850 - 74------Food*
Undecylenic acidMou-o8150250 – 1000163 - 8------Drug
Stearic acidRat-o460037 – 1000657 - 4,6------Food

Notes: * may cause digestive tract irritation. Abbreviations used: -o = orally administered, Mou = mouse

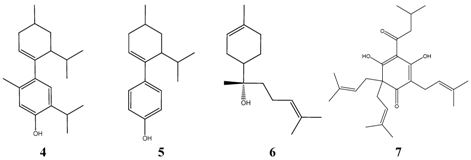

Pharmaceuticals 01 00001 i005

The in vitro activity of fatty acids like oleic, linoleic and linolenic acid is inactivated by addition of blood serum [18]. Such compounds might have no practical significance in systemic treatment of infectious diseases, and therefore, they are not discussed in the following tables. The low toxicity of oleic acid and related long-chain aliphatic compounds indicate a possible use as topical antiseptics.

Treating respiratory tract infections by inhalation of volatile compounds lies near by hand. Very active compounds against Streptococcus pneumoniae in the vapor phase are shown in Table 6.

Table Table 6. Strong Inhibitors of Streptococcus pneumoniae in the Vapor Phase.

Click here to display table

Table 6. Strong Inhibitors of Streptococcus pneumoniae in the Vapor Phase.
Trivial nameMicroorganismActivity evaluationStatus
Thymol 8Streptococcus pneumoniae type II++++Food *
ThymolStreptococcus pneumoniae type III ++++Food *
ThymolStreptococcus pneumoniae type VI++++Food *
Carvacrol 9Streptococcus pneumoniae type III++++Food *?
Cinnamic aldehyde 10Streptococcus pneumoniae type VI++++Food *
Limonene 11Streptococcus pneumoniae++++Food *
Citronellol 12Streptococcus pneumoniae++++Food *
Citronellal 13Streptococcus pneumoniae++++Food *
Geraniol 14Streptococcus pneumoniae++++Food *

Notes: * may cause respiratory tract irritation, ++++: strong inhibitory activity

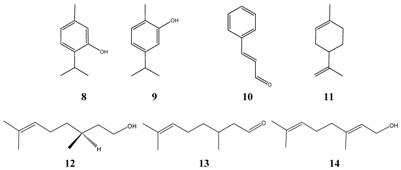

Pharmaceuticals 01 00001 i006

Almost all compounds listed in Table 6. may cause irritation of the respiratory system, and therefore, their use as therapeutics via inhalation is questionable, although thymol 8 superimposes the germicidal activity of phenol, which has a long history as disinfecting agent, about 5 to 30 times towards gram-positive bacteria. The antimicrobial properties of alpha-bisabolol are unexamined in the vapor phase. No toxic signs were observed in animal experiments following inhalation (7h exposure in a highly enriched and/or saturated atmosphere at 20 °C, Worksafe Australia). In toxicology studies alpha-bisabolol 6 was found to be safe [19]. Alpha-bisabolol strongly inhibits Streptococcus pneumoniae in the serial dilution tests (MIC = 32 - 64 ppm). This may explain why inhalation of vapors of chamomile flowers is recommended in German traditional medicine.

3.2. Staphylococcus aureus

Staphylococci are found mainly on human skin, skin glands and mucous membranes and sometimes in the mouth, blood, mammary glands, intestinal, genitourinary and upper respiratory tracts. Pathogenic strains are known to form toxins. Antibiotic resistance is reported towards ß-lactam antibiotics (oxacillin, ampicillin), aminoglycosides (gentamycin), macrolides (erythromycin), quinolones (ciprofloxacin), clindamycin, chloramphenicol, tetracycline, trimethoprim [17] and the reserve antibiotic vancomycin in 1999 [20].

In the antibiotic therapy first choice drugs are flucloxacillin (methicillin susceptible strains, MSSA), vancomycin and teicoplanin (methicillin resistant strains, MRSA) and vancomycin + flucloxacillin or vancomycin + gentamycin (glycopeptide intermediate resistant strains, GISA). Recommendations as second choice antibiotics are: cefaclor, cefuroximaxetil, and loracarbef (MSSA), quinopristin + dalfopristin, linezolid and further alternatives: vancomycin + rifampicin, cefazolin + vancomycin + netilmycin, imipenem + vancomycin + netilmycin, fusidic acid + rifampicin, Cotrimoxazol + fusic acid or rifampicin, minocycline, fosomycin + cefotaxime, and cotrimatzol + nitrofurantoin (MRSA), and quinopristin + dalfopristin, ampicillin + sulbactam, and linezolid (GISA). No differences were made in the choice of antibiotic treatment between grownups and children [16].

Table Table 7. Effective Inhibitors of Staphylococcus aureus, oral TI max. > 100.

Click here to display table

Table 7. Effective Inhibitors of Staphylococcus aureus, oral TI max. > 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. – TI min.MIC-resTI-resStatus
NetilmicinRat-oSu: >10000>1000,125 – 32>80000 – 312>1>10000Drug
CefazolinMou-oNa: >11000>1000,01 - >256>110000 - <430,25 – 1**<5500Drug
FlucloxacillinMou-oNa: 7600>1000,125 – 3260800 – 238***0,125 – 13800Drug
MinocyclineMou-o3100>100<0,015 - 12,5>206666 – 2480,06 - 0,5**<3100Drug
Fusidic acidMou-o1500>1000,032 – 1646875 - 94>0,5<3000Drug
CefotaximeMou-oNa: >20000>1000,12 - >60>166666 - <3330,5 - 4**<2500Drug
CefaclorMou-o>20000>1000,25 – 128>80000 - 1561 – 4**<2500Drug
VancomycinMou-o5000>1000,125 – 840000 – 625>2<2500Drug
BakuchiolMou-o256011,41828---------
Oleic acidRat-o74000315 – 904933 - 822------Food
MupirocinMou-o5000>1000,05 – 512100000 – 10>8625Drug
GentamicinMou-o>10000>1000,035 - >256>285714 - <39>16<624Drug
CefuroximeMou-o>10000>1000,13 - >60>76923 - <167>32<624Drug
RifampicinMou-o500>1000,002 - 3,1250000 - 161>1<500Drug
LoracarbefDog-o>2000>1000,5 – 16>4000 - 1250,5 – 2**<500Drug
FosfomycinMou-oCa: >3500>1000,5 - >128>7000 - <270,5 - 4**<440Drug
n-TridecanolRat-o17200320 – 50860 – 344------Food*
ImipenemMou-o>5000>1000,006 – >256>833333 – <20>16<312Drug
TeicoplaninMou-o1000>1000,125 - 6,38000 - 160>4<250Drug
Linoleic acidMou-o>50000104 - >200>12500 - <250------Food*
LupuloneMou-o150072 - 6,25750 – 240------Food
CotrimoxazolMou-o3740>1000,015 - 2,86249333 – 1300>16<234Drug
LauricidinRat-o****53400 1110 – 2505340 – 213------Food
3-HeptylacroleinRat-o5000325200------Food
ShikoninMou-o>100024 – 5>250 – 200---------
SwartziadioneMou-o*****>30011,56>192---------
alpha-BisabololMou-o11350932 – 100354 - 113---------
m-Menthene-phenolMou-o2900128103---------
Sorbic acidRat-o73605050 – 100147 - 73------Food
ButylparabenMou-o132002060 – 270220 - 49------Food
Ampicillin-sulbactamMou-o>6000>100<=0,06 – 128>100000 - 47------Drug
o-Methoxy-cinnamaldehydeRat-o>5000350 – 200>100 - 25------Food
Dimethyl fumarateRat-o2240210 – 100224 - 22---------
Diethyl fumarateRat-o1780210 – 100178 - 18---------
Lauric aldehydeRat-o23000850 - >2000460 - <11,5------Food*
ortho-PhenylphenolRat-o20001015,6 – 200128 - 10------Food
NitrofurantoinMou-o360>1000,75 – 32480 - 11>32<11Drug
n-DodecanolRat-o>128001512,5 - >2000>1024 - <6,4------Food*
Linolenic acidMou-o>320085 – 500640 – 6,4------Food*
Undecylen aldehydeRat-o>5000550 – 1000>100 - 5------Food
Lauric acidRat-o120002222 – 2500545 - 4,8------Food*
FalcarindiolMou-oca. 10031 – 25100 – 4---------
HinokitiolMou-o760510,2 – 2003800 -3,8---------
Capric alcoholMou-o65001640 – 2000162 - 3,2------Food
n-TetradecanolRat-o32,5 ml/kg440 - >10000812 - <3,2------Food
FarnesolMou-o74001625 – 2000123 - 3,7------Food
IsoborneolRat-o5200450 – 2000104 - 2,6------Food
HyacinthinMou-o3890632 - >2000121 – 2------Food
NerolidolMou-o150002525 - >10000600 - <1,5------Food
EugenolMou-o30004925 – 2100120 - 1,4------Food
n-Undecyl alcoholRat-o30001325 - >2000120 - <1,3------Food
CitralMou-o60004912,5 – 5000480 - 1,2------Food
DiacetylRat-o158011<9,75 – 1000>162 - 0,16------Food
Linezolid------>1000,5 – 8--->4---Drug
Quinupristin-dalfopristin------>1000,06 – 32--->2---Drug

Notes: * may cause digestive tract irritation, ** calculated with double MIC max. of quality data range [14], *** range of 87 clinical isolates [21] assumed as quality data range, **** 53,4 ml/kg calculated with density = 1, ***** LDL = lethal dose lowest. Abbreviations used: Na = Na-salt, Ca = Ca-salt, Su = sulfate-salt,

The list of effective inhibitors of Staphylococcus aureus is dominated again by therapeutics in use (Table 7). According to TI calculations, bakuchiol 15, a natural long-chain phenol occurring in Malaya tea (Psoralea corylifolia) was the most successful compound from higher plants and it superimposes antibiotics towards which Staphylococci strains had developed a high level of resistance, e.g. mupirocin, fosfomycin or nitrofurantion. Bakuchiol was further examined on its activity against dental plaque forming microorganisms and the authors concluded that the compound is of value as food additive or as additive in mouth washes [22]. Promising in vitro results were again obtained with lupulone 7. Swartziadione 16, a constituent of the African tree Swartzia madagascariensis, was patented for treatment or inhibition of microbial infections. Shikonin 17, another patented constituent of higher plants [23], occurs in the extract of Groomwell root (Arnebia euchroma), which is used traditionally in China as topical wound healing therapeutic.

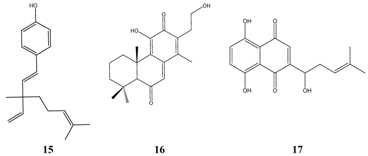

Pharmaceuticals 01 00001 i007

Further compounds having in part good results in the TI calculation are citral 18 from e.g. lemongrass (Cymbopogon citratus), hinokitiol 19 from the heartwood of Thuja trees, which possesses an extraordinary tropolone-ring substructure, and eugenol 3. The wide range of activity of these compounds points to the existence of microbial resistance mechanisms and to a natural variability towards antimicrobials, which can not be explained alone with variations of the testing methods used in the examinations of the respective compounds.

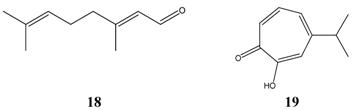

Pharmaceuticals 01 00001 i008

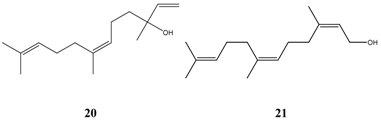

Highly calculated compounds from essential oils are the sesquiterpenes nerolidol 20 and farnesol 21, which are both methyl-substituted long-chain C-12 alcohols, and further primary alcohols having a carbon chain of 12 to 14 atoms and the monocyclic sesquiterpene alpha-bisabolol 6.

Pharmaceuticals 01 00001 i009

Because S. aureus is also prominent for skin and wound infections, a second list on the basis of dermal ‘Therapeutic indices’ was calculated (Table 8).

Table Table 8. Effective Inhibitors of Staphylococcus aureus, dermal TI max. >= 100.

Click here to display table

Table 8. Effective Inhibitors of Staphylococcus aureus, dermal TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
TriclosanRabbit-dermal9300100,01 - 0,03930000 - 310000Drug*,**
HaloprogineRabbit-dermal162561,56 - 3,121041 - 520Drug*,**
HexetidineRabbit-dermal1,86 ml/kg15372Drug
Linolenic acidRabbit-dermal>2000025 – 100>4000 - 200Food*
HexachloropheneRabbit-dermal>600100,3 - 3>2000 - 200Drug*
HinokitiolRabbit-dermal>2000140,2 - 12,5>10000 - 160---
3-HeptylacroleinRabbit-dermal3400225136 Food*
Oxolinic acidRabbit-dermal>200090,4 - 25>5000 - 80Drug
HydroquinoneMammal-dermal59701110 – 90597 - 66Drug*,**
o-Methoxy-cinnamaldehydeRabbit-dermal>5000350 – 200>100 - 25Food*,**
Dimethyl fumarateRabbit-dermal1250210 – 100125 - 12,5---*
beta-NaphtholRabbit-dermal>100002100 - 1000>100 - 10---*,**
Isobornyl acetateRabbit-dermal>200006200 - >2000>100 - 10Food
n-TridecanolRabbit-dermal5600320 - >800280 - 7Food*
DiacetylRabbit-dermal>5000119,75- 1000>512 - 5Food*
HyacinthinRabbit-dermal>5000632 - >1000>156 - 5Food*
IsoborneolRabbit-dermal>5000550 - >1000>100 - 5Food*
Undecylen aldehydeRabbit-dermal>5000550 – 1000>100 - 5Food*
alpha-Amylcinnamyl alcoholRabbit-dermal>5000650 - >2000>100 - 2,5Food
n-Undecyl alcoholRabbit-dermal4,76 ml/kg1325 - >2000190 - 2,4Food*
n-DodecanolRabbit-dermal>10 ml/kg1612,5 - >10000>800 - 1Food*
n-TetradecanolRabbit-dermal7,13 ml/kg2540 - >10000173 - <0,7Food*
NerolidolRabbit-dermal>5000825 - >10000>200 - 0,5Food*

Notes:* may cause skin irritation ** mutagen

The most effective inhibitors of Staphylococcus aureus are again approved drugs used to treat skin infections. Almost all compounds listed in Table 8 are classified as skin irritants. The dermal toxicity of alpha-bisabolol 6 has not been determined in numbers, however, it is regarded as safe and allergic reaction is not reported although humans are exposed to it to a large extend, because it is widely used in cosmetics. Interestingly, (+)-epi-alpha-bisabolol from Peperomia galioides turned out to be as active wound healing agent, when a series of commercial available terpenoids was studied [24]. A good result in the dermal TI calculation was obtained with linolenic acid 22. It is the main constituent of the fatty oil of ‘evening primrose’ (Oenanthera biennis), which is used internally for the adjuvant treatment of neurodermitis in Germany.

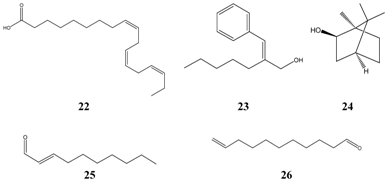

Pharmaceuticals 01 00001 i010

Other active compounds are long-chain alcohols (C11 – C14), nerolidol 20, alpha-amylcinnamyl alcohol 23, isoborneol 24 and its acetate ester, unsaturated aldehydes (3-heptylacrolein 25, undecylen aldehyde 26) and hinokitiol 19.

3.3. Escherichia coli

Escherichia coli belongs to the normal intestinal microflora of humans. Pathogenic strains are characterized by the ability to form toxins. Diarrhea is caused by enteropathogenic Escherichia coli strains. Antibiotic resistance is reported towards ß-lactam antibiotics (ampicillin), aminoglycosides, quinolones, chloramphenicol, tetracycline (doxycycline), and trimethoprim [17]. Diarrhea is treated with orally administered colistin in children and infants [16].

Table Table 9. Effective Inhibitors of Escherichia coli, oral TI max. >= 100.

Click here to display table

Table 9. Effective Inhibitors of Escherichia coli, oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
ColistinMou-oLD >200030,5 – 10>4000 –200Drug
trans-NerolidolMou-o***150001****125120Food
para-ThymolMou-o6280260 – 96104 - 65---
Diethyl fumarateRat-o1780210 – 100178 – 18---
HinokitiolRat-o>500121,56 – 120>320 – 6---
Sorbic acidRat-o73601150 - <2000147 - <3,7Food*, **
ButylparabenMou-o132006120 – 4000110 – 3,3Food
VanillinMou-o3925525 – 2000157 – 2Food
EugenolMou-o300023<25 – 2100>120 – 1,4Food*
Linoleic acidMou-o>50000290 - >100000>555 - <0,2Food*
CitralMou-o60001612,5 – 6660480 – 0Food**
NerolidolMou-o150004400 – 950037,5 – 1,6Food
ThymolMou-o64031100 – 10006,4 – 0,6Food**

Notes: * may cause digestive tract irritation ** mutagen *** calc. with nerolidol toxicity, **** minimal bactericidal conc.

Only a few compounds are effective inhibitors of Escherichia coli (Table 9). The most interesting one, a synthetic isomer of thymol 8 with the name para-thymol 27, is about 10 times less toxic than thymol (TI max. = 6,4) itself. Not much data is available for para-thymol, e.g. spectrum of antimicrobial activity, side effects. The trans-isomer of nerolidol had strong inhibitory properties, but further testing is necessary, because stereochemically undefined nerolidol 20 was much less active. The results of hinikitiol 19 vary and were influenced by different test conditions. Variation of data is given also with citral 18, vanillin 28 and eugenol 3.

Pharmaceuticals 01 00001 i011

3.4. Salmonella species

Salmonella species have been isolated from humans and almost all animals throughout the world and they constitute another genus being prominent for causing diarrhea in humans all kind of age. Humans present the only known reservoir for Salmonella typhi and paratyphi serotypes. Resistances of Salmonella species towards antibiotics are reported from tetracycline, trimethoprim, quinolones and chloramphenicol [17]. In diarrhea treatment caused by Salmonella infections the drug of first choice is amoxicillin. Alternatively, quinolones, ceftriaxone and cotrimoxazol can be used [16].

Table Table 10. Effective Inhibitors of Salmonella sp., oral TI max. >= 100.

Click here to display table

Table 10. Effective Inhibitors of Salmonella sp., oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
CeftriaxoneMou-o>10000900,031 – 0,25322000 - 40000Drug
AmoxicillinMou-o>25000>1000,01 - >100>2500000 - <250Drug
IsoborneolRat-o5200150104Food
CiprofloxaxinMou-o5000>1000,008 – >64625000 - <78Drug
CotrimoxazolMou-o3740>100<0,015 - >100250000 - <37Drug
ButylparabenMou-o132006125 – 1000105 – 13Food
p-BenzylphenolMou-o>200002*160 – 2170>125 – 9---
Allyl isothiocyanateMou-o30851 – 47308 – 6,5Food

Notes: * bactericidal after15 min. exposure

Similar to Escherichia coli, not many compounds are selected (Table 10). Allyl isothiocyanate 29 or with its more common name ‘oil of mustard’ (German “Senföl”) is a very irritant compound with pungent taste. Its inhibitory data as well as the data of the preservative butylparaben 30 is not conclusive due to the small number of tested Salmonella strains, respectively. Nevertheless, butylparaben was shown previously as effective compound against E. coli. Only one data record exists with isoborneol 24, which occurs together with borneol as main constituents of the essential oil of annual wormwood (Artemisia annua), a plant growing in India.

Pharmaceuticals 01 00001 i012

3.5. Mycobacterium tuberculosis

Most species of Mycobacteria are living in soil or water in contrast to microorganisms belonging to the Mycobacterium tuberculosis complex (M. bovis, M. microti, and M. africanum, M. tuberculosis), which are found in diseased tissues of humans and warm-blooded animals suffering on tuberculosis. Resistances are found in particular towards all antibiotic drugs (ethambutol, rifampicin, streptomycin, isoniazid, and pyrazinamide), which represents a global problem [17]. The calculation of TIs resulted in a new ranking favoring compounds from higher plants (Table 11).

Table Table 11. Effective Inhibitors of Mycobacterium tuberculosis, oral TI max. >= 100.

Click here to display table

Table 11. Effective Inhibitors of Mycobacterium tuberculosis, oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.MIC-resTI-resStatus
cis-PhytolRat-o**>500012>2500---------
EthambutolMou-o8700>100,95 – 7,59157 – 1160***10870Drug
SclareolRat-o>500016>833---------
FarnesolMou-o740018825------Food
PropylparabenMou-o633218791------Food
Phenyl salicylateRat-o300014750------Drug
trans-PhytolRat-o**>500042 – 8>2500 – 625---------
StreptomycinRat-o9000>300,1 – 1005000 - 5***16560Drug
RifampicinMou-o500>1000,01 – 1650000 – 31***2250Drug
beta-NaphtholRat-o196018245------Drug
alpha-NaphtolRat-o187018233---------
MethylparabenMou-o>8000140>200------Food
PyrazinamideMou-o>3000>204 - 4000>750 – 0,7***16187Drug
asym.-m-XylenolRat-o3200140160---------
Retinoic acidRat-o1960313150------Food
IsoniazidMou-o133>500,01 – 10013300 – 1***1133Drug
4-HexylresorcinolMou-o10402* 1 - 81040 - 130------Drug
BakuchiolMou-o2560110 - 20256 – 128---------
RetinolMou-o4000340 - 50100 - 80------Food
LupuloneMou-o15001310 – 110150 – 14---------
ThymolRat-o98078 – 100122 – 10------Food

Notes: * bactericidal conc., ** calc. both with toxicity of pythol, *** estimated MIC for resistant strains

The results indicate that several constituents from higher plants seem to be superior to antibiotic drugs being used for therapy of tuberculosis, however, only a small number of strains have been tested so far. Beside sclareol 31 from Clary Sage (Salvia sclarea) the hop (Humulus lupulus) constituent lupulone 7 was selected among most effective inhibitors. The latter was once tested in tuberculosis infected mice, which had received intramuscularly injections of 60 mg/kg body weight over a 4 weeks period, but the renal toxicity of lupulone prevented its development as pharmaceutical drug [25].

Pharmaceuticals 01 00001 i013

Other compounds of Table 11 can be classified in three groups: long-chain aliphatic compounds, aromatic acid esters and phenols.

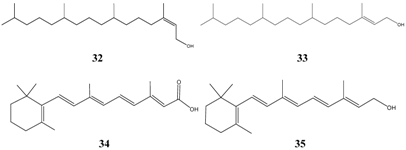

The selected compounds of group 1, cis- 32 and trans-phytol 33, farnesol 21, retinoic acid 34 and retinol 35 possess structural similarities, which are in particular a long side chain consisting of 3 to 4 isoprene-units plus a terminal polar group. Similarly, fatty acids were strong inhibitors in vitro (data not shown). However, the effectiveness in vivo of all selected lipophilic compounds seems to be questionable due to their possible adsorption to lipophilic lung tissue and inactivation.

Pharmaceuticals 01 00001 i014

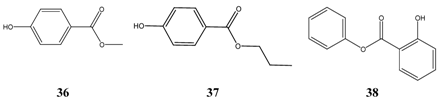

Surprisingly, preservatives like methyl- 36 and propylparaben 37 are very successful in the TI-calculations. A further ester of aromatic acids, phenyl salicylate 38, is well known as anti-infective drug for a long time.

Pharmaceuticals 01 00001 i015

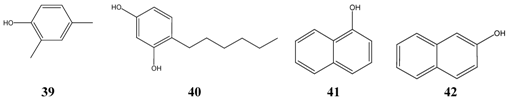

The third group consists of phenols (asym.-m-xylenol 39, 4-hexylresorcinol 40, alpha- 41 and beta-naphtol 42, bakuchiol 15) having a similar range of lipophilicity, of which bakuchiol is the most fat-soluble representative.

Pharmaceuticals 01 00001 i016

In comparison with the water solubility of antitubercular drugs, all investigated compounds are less soluble in water, which might prevent their use as lung therapeutics.

3.6. Dermatophytes

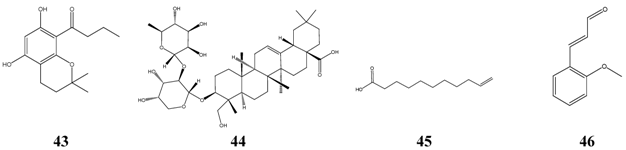

Skin and hair infections of children (Tinea capitis) are caused by dermatophytes belonging to the genera Trichophyton and Microsporum. They occur either in soil or possess host preference (humans or animals), e.g. Microsporum canis infections are often result of contact between susceptible children and stray kittens [17]. The calculations made with Microsporum species, compounds from higher plants and orally administered antifungal drugs are shown in Table 12.

Pharmaceuticals 01 00001 i017

Interestingly, a series of 1’-oxo-substituted phloroglucinols 43 turned out to be as successful and non-toxic inhibitors of Microsporum species. Good results were obtained again with bakuchiol 15 and alpha-hederin 44, which originates from hederasaponine C, the main saponine of Common Ivy (Hedera helix). Alpha-hederin was found to be non-toxic following oral administration, but it was rather toxic when given intravenously. Undecylenic acid 45, a naturally occurring compound, has a long history as antifungal drug. When compared with the lowest level of activity of antibiotics, the effectiveness of alpha-bisabolol 6 was similar to griseofulvin, nystatin, fluconazole, itraconazole and ketoconazole. Other compounds seem be to of minor importance, e.g. o-methoxycinnamaldehyde 46, due to their mutagenic or tumorigenic properties.

Table Table 12. Effective Inhibitors of Microsporum Species, oral TI max. >= 100.

Click here to display table

Table 12. Effective Inhibitors of Microsporum Species, oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
TerbinafineMou-o4000>400,002 - 1 2000000 – 4000Drug
Oenanthic acidMou-o6400223200Food
Amphotericin BMou-o>8000>1000,125 - 8>64000 - 1000Drug
Decanoic acidRat-o>10000212,5>800Food*
o-MethoxycinnamaldehydeMou-o443023,13 - 6,251415 - 708Food***
Pelargonic acidRat-o320022 – 51600 – 640Food*
1-(2,4,6-Trihydroxy- 3-isobutyl-phenyl)-hexan-1-oneMou-o>100011,6>625---
BakuchiolMou-o256050,5 - 527777 - 512---
1-(3-Butyryl-2,4,6-trihydroxy-phenyl)-butan-1-oneMou-o>100013>333---
4-(1,1-Dimethylethyl)phenolRat-o3250210325---**
alpha-HederinMou-o>4000112,5>320---
ThiabendazoleMou-o2400100,2 - 7,812000 – 307Drug
alpha-Bisabolol ****Rat-o14850150 297 Food
GriseofulvinMou-o>5000>1000,25 - 25>20000 – 200Drug
4-Methyl-1-(2,4,6-trihydroxy-3-isobutyl-phenyl)-pentan-1-oneMou-o100016166---
Cyclohexyl-(2,4,6-trihydroxy-3-isobutyl-phenyl)-methanoneMou-o>100016>166---
1-(3-Allyl-2,4,6-trihydroxy-phenyl)-propan-1-oneMou-o>100016>166---
1-(3-Allyl-2,4,6-trihydroxy-phenyl)-hexan-1-oneMou-o>100016>166---
1-(3-Allyl-2,4,6-trihydroxy-phenyl)-4-methyl-pentan-1-oneMou-o>100016>166---
1-(3-Benzyl-2,4,6-trihydroxy-phenyl)-4-methyl-pentan-1-oneMou-o100016166---
1-(5,7-Dihydroxy-2,2-dimethyl-chroman-8-yl)-butan-1-oneMou-o>100016>166---
NystatinMou-o800010<0,1 - 5080000 - 160Drug
Lauric acidRat-o12000100100120Food*
Undecylenic acidMou-o8150625 - 100326 - 81Drug*
FluconazoleMou-o1408>1000,06 - >6423467 - 33Drug
ItraconazoleMou-o>320>1000,03 - 10>10666 - 32Drug
CitralMou-o6000320 - 190288 - 31Food***
KetoconazoleMou-o618>1000,01 - 5061800 - 12Drug
MiconazoleMou-iv*****90>1000,01 - 169000 – 6Drug

Notes: * may cause digestive tract irritation, ** tumorigen, *** mutagen, **** active against ‘dermatophytes’, ***** intravenous LD50

When the activity of essential oil and related compounds was examined on their effectiveness against Trichophyton species three sesquiterpene alcohols and two C-11 alcohols were selected (Table 13).

Table Table 13. Effective Inhibitors of Trichophyton Species, oral TI max. >= 100.

Click here to display table

Table 13. Effective Inhibitors of Trichophyton Species, oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
Undecylenic alcoholRat-o>5000110500Food*
FarnesolRat-o6000112,5480Food
NerolidolRat-o>5000112,5400Food
4-(1,1-Dimethylethyl)phenolRat-o3250 ul/kg510325---***
n-Undecyl alcoholRat-o3000112,5240Food*
alpha-BisabololRat-o14850650 – 100297 – 149Food
PiperonalRat-o2700125108Food*, **
cis-JasmoneRat-o5000150100Food*
Cinnamic aldehydeRat-o2220185 – 400444 – 1Food*, **

Notes: * may cause skin irritation, ** mutagen, *** tumorigen

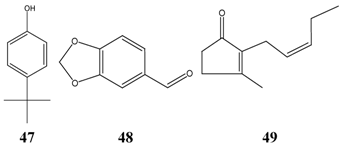

The structures of further effective inhibitors (4-(1,1-dimethylethyl)phenol 47, piperonal 48, cis-jasmone 49) are shown next, which are all reported to have undesired side effects.

Pharmaceuticals 01 00001 i018

To get information about the most successful compounds by the way of dermal application, the TIs of compounds against Microsporum species were calculated. As result, only a few compounds were selected as effective inhibitors and none of the investigated natural compounds were free of side effects. The highest calculations were obtained with the synthetic antifungal drugs haloprogine and triclosan (Table 14).

Table Table 14. Effective Inhibitors of Microsporum Species, dermal TI max. >= 100.

Click here to display table

Table 14. Effective Inhibitors of Microsporum Species, dermal TI max. >= 100.
Trivial nameAnimal testLD50-dermal mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
HaloprogineRabbit-dermal1625100,001 - 0,41625000 - 4062Drug
TriclosanRabbit-dermal930051 – 109300 - 930Drug
o-MethoxycinnamaldehydeRabbit-dermal>500023,13 – 6,25>1597 – 625Food*
4-(1,1-Dimethylethyl)phenolRabbit-dermal2520110252---**
CitralRabbit-dermal2250320,8 – 190108 - 12Food*
HexachloropheneRat-dermal>60071 – 100>600 - 6Drug

Notes: *mutagen, ** tumorigen

It would be desirable to compare dermal TIs of natural compounds with drugs used to treat topical fungal infection. However, the dermal toxicity of most of topical antifungal drugs is not published [10]. A list of TIs calculated with oral toxicity data is shown below (Table 15).

Table Table 15. Effectiveness of Topical Antifungals towards Microsporum Species.

Click here to display table

Table 15. Effectiveness of Topical Antifungals towards Microsporum Species.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
TolciclateMou-o4000>200,001 - 0,131000000 - 64516Drug
SulconazoleMou-onitrate: 24752<0,04 – 0,08>61875 – 30937Drug
SiccaninMou-o>600020,8 - 1,6>7500 - 3750Drug
OxiconazoleMou-onitrate: 263020,3 - 18766 - 2630Drug
TioconazoleMou-o1870100,2 - 1,569350 - 1200Drug
FenticonazoleMou-o>300012,5>1200Drug
Amphotericin BMou-o>8000>1000,125 - 8>64000 - 1000Drug
AmorolfinMou-o400500,001 - 0,2400000 - 800Drug
BifonazoleMou-o2629>1000,025 - 5105000 - 525Drug
TriclosanMou-o453040 - 104530 – 453Drug
FlutrimazoleMou-o>1000140,025 - 2,5>40000 – 400Drug
EconazoleMou-onitrate: 463100,03 - 12,515433 – 370Drug
ClotrimazolMou-o923>1000,01 - 2,6992300 – 369Drug
CiclopiroxMou-o1740>400,98 - 101775 – 174Drug
NystatinMou-o800010<0,1 - 5080000 - 160Drug
NatamycinMou-o1500112,5120Drug
HaloprogineMou-oLD >3000731,2>2000000 - 96Drug
MiconazoleMou-o519>1000,01 - 1651900 - 16Drug
KetoconazoleMou-o618>1000,01 - 5061800 - 12Drug
TolnaftateMou-o10000>600,0015 - 10006666666 - 10Drug
ProtiofateMou-o42380,78 - 50542 - 8Drug

3.7. Candida albicans

Yeasts live as normal microorganisms in and on the human body. Many species are without any clinical significance, however, some of them develop pathological changes in debilitated persons, e.g. following administration of anticancer drugs or immunsuppressive agents such as corticosteroids and by overuse of broad-spectrum antibiotics [17]. Candida albicans causes systemic and topical infections in children, and therefore, respective TIs are calculated for oral (Table 16) and topical (Table 17) administration routes.

Table Table 16. Effective Inhibitors of Candida albicans, oral TI max. >= 100.

Click here to display table

Table 16. Effective Inhibitors of Candida albicans, oral TI max. >= 100.
Trivial nameAnimal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
LapacholMou-o48710,0316233---
DodecanalRat-o23000125920Food*
Linoleic acidMou-o>500001125>400Food*
SwartziadioneMou-oLDL0 >30010,78>384---
CeruleninMou-o5471<1,5>364---
Amphotericin BMou-o>8000>1000,02 - 25>400000 - 320Drug
KetoconazoleMou-o618>1000,039 - 219776 - 309Drug
NystatinMou-o8000>1000,78 - 3310256 - 242Drug
Oenanthic acidMou-o6400132,5197Food
FluconazoleMou-o1408>100<=0,0313 - 8>45000 - 176Drug
FlucytosineMou-o>15000>1000,005 - >128>3000000 - <117Drug
4-(1,1-Dimethylethyl)phenolRat-o3250131,25104---**
ButylparabenMou-o13200675 - 130176 - 101Food
o-MethoxycinnamaldehydeRat-o>5000350>100Food***
Decylenic alcoholRat-o>100001100>100---
Octanoic acidRat-o10080218 – 145560 – 69Food*
alpha-BisabololMou-o113504100 – 500113 - 22---
MiconazoleMou-iv90820,02 - >254500 - <3,6Drug
CitralMou-o60001610 – 10000600 – 0Food
n-DodecanolRat-o>12800225 – 100000>512 - 0Food*
Undecylenic acidMou-o8150170 – 1000116 - 8Drug*
Sorbic acidMou-o3200125 – 10000128 - 0Food

Notes: * may cause digestive tract irritation, ** tumorigen, *** mutagen

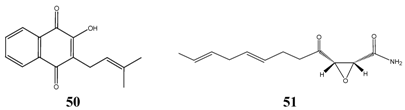

The most successful compound against Candida albicans was lapachol 50 according to the oral TI calculations. Lapachol is a green-yellow substance found in the inner bark of Brazilian Taheboo tree (Tabebuia avellanedae), which is traditionally used in South America to treat Candida and bacterial infections. Lapachol inhibited growth of Candida albicans at a very low concentration, but the germicidal concentration was found to be much higher (32 ppm). Beside long-chains aliphatics having a terminal polar group and 8 to 12 carbon atoms, swartziadione 16 was selected, a structurally related compound to lapachol, and in addition, cerulenin 51 from microbial origin (e.g. Cephalosporium caerulens). Cerulenin was found to inhibit growth of yeast-type fungi by inhibiting the biosynthesis of fatty acids [26]. All before mentioned compounds superimpose the minimum TIs of orally administered antibiotics usually taken to treat Candida infections. Among terpenoids only alpha-bisabolol resulted in promising a TI, while acute toxicity data of other interesting compounds have not been determined.

Pharmaceuticals 01 00001 i019

When calculating dermal TIs of anti-candidal drugs no results were calculable with standard therapeutics amphothericin B, nystatin, clotrimazole and miconazol due to missing acute dermal toxicity data [10]. The residual calculations of the most effective compounds are shown in Table 17.

Table Table 17. Effective Inhibitors of Candida albicans, dermal TI max. >= 100.

Click here to display table

Table 17. Effective Inhibitors of Candida albicans, dermal TI max. >= 100.
Trivial name Animal testLD50-oral mg/kg bwn-strainsMIC range in ppmTI max. - TI min.Status
CapsaicinMou-dermal>5121<1,5>340Food**, ***
TriclosanRabbit-dermal93001210 - 33930 - 282Drug
HaloprogineRabbit-dermal1625>1000,05 - 6,2532500 - 260Drug
SclareolRabbit-dermal>5000132>156---
UndecanalRabbit-dermal>5000150>100Food*
o-MethoxycinnamaldehydeRabbit-dermal>5000250>100Food**
CloconazoleRabbit-dermalHCl: >310>1000,12 - 8>160 - 39Drug
Caprylic acidRabbit-dermal>5000418 - 1000>277 - 5Food*
CamphorRabbit-dermal>5000550 - 2000>100 - 2,5Food*
CitralRabbit-dermal22501710 - 10000225 - 0Food*, **

Notes: * may cause skin irritation, **mutagen, *** tumorigen

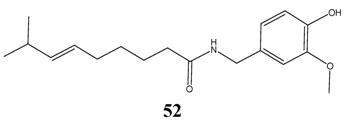

Only a few effective compounds were found, of which the most successful compound is sclareol 31 from Clary Sage (Salvia sclarea). This compound was patented to treat human fungal infections and its recommended to be used internally at daily doses of 1 to 1000 mg/kg [27]. Other compounds may have undesired side effects, such as capsaicin 52, the main compound in Chilly (Capsicum frutescens) or Red Pepper (Capsicum annuum).

Pharmaceuticals 01 00001 i020

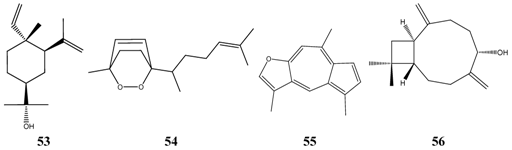

Alpha-bisabolol (MIC = 100 ppm) 6 is widely used in topical cosmetic preparations and it is regarded as safe on human skin, although its numeric dermal LD50 value has not been published [19]. A few other compounds show also promising activity against Candida albicans, however, their acute toxicity is unknown. These compounds are commercially available elemol (MIC = 70 ppm) 53, while others (3,6-epoxydioxy-bisabola-1,10-diene: MIC: 6,25 ppm 54, linderazulene: 12,5 ppm 55 and caryophyllodienol: 12,5 ppm 56) are isolated from plants only in a few cases.

Pharmaceuticals 01 00001 i021

3.8. Other Important Microorganisms Causing Children’s Infections

About causative microorganism of other important diseases typical for children, such like pertussis, epiglottis, tetanus and diphtheria, not much information is obtained about effective inhibitors in TI calculations.

Bordetella pertussis (responsible for pertussis) was found to be susceptible towards aliphatic acids. No effective compound was found in the cases of Haemophilus influenzae (epiglottis) and Clostridium tetani (tetanus). Alpha-bisabolol (oral TI > 200) 6 and to a lesser extend camphor (oral TI = 90) 2 were effective against the diphtheria causing microorganism Corynebacterium diphtheriae.

4. Discussion

The effectiveness of antibiotics used to treat children’s diseases is superior to that of compounds produced by higher plants according to the before mentioned criteria and data analysis.

The antimicrobial plant constituents differ in their spectrum of activity from antibiotic drugs and show only poor effectiveness against gram-negative pathogens, such like Escherichia coli, Salmonella species, Bordetella pertussis and Haemophilus influenzae. Several effective inhibitors of low mammalian toxicity (TI min. >100) were selected in the analysis with gram-positive bacteria: Streptococcus pneumoniae (m-menthene-phenol 5, alpha-bisabolol 6, lupulone 7), Staphylococcus aureus (m-menthene-phenol 5, alpha-bisabolol 6, lupulone 7, bakuchiol 15, swartziadione 16, shikonin 17, hinokitiol 19) and Mycobacterium tuberculosis (bakuchiol 15, farnesol 21, sclareol 31, cis- 32 and trans-phytol 33, vitamin A acid 34, methyl- 36 and propylparaben 37, phenylsalicylate 38, asym.-m-xylenol 39, hexyresorcinol 40, alpha- 41 and beta-naphthol 42). As effective inhibitors of dermatophytic fungi were found: alpha-bisabolol 6, bakuchiol 15, nerolidol 20, farnesol 21, a series of phenylbutanone derivatives 43, alpha-hederin 44, o-methoxycinnamaldehyde 46, 4-(1,1-dimethylethyl)phenol 47, piperonal 48, and cis-jasmone 49. As the most successful compound against Candida albicans turned out to be: swartziadione 15, sclareol 31, lapachol 50, capsaicin 52. In addition, alpha-bisabolol 6 was effective against Corynebacterium diphtheriae.

Among the typical components of essential oils especially sesquiterpene and diterpene alcohols were selected (alpha-bisabolol 6, nerolidol 20, farnesol 21, cis- 32 and trans-phytol 33, sclareol 31). Monoterpenes, such as thymol 8 or carvacrol 9, and phenylpropanes, such as eugenol 3, being prominent for their antimicrobial activity failed in this analysis due to their comparatively high mammalian toxicity.

Not many of the isolated natural inhibitors of children’s pathogens have been tested against a greater number of microbial strains of one species as it the case with standard therapeutics. Thus, the ranges of antimicrobial activity are generally unknown, which are important for the judgement about the usefulness of such compounds as therapeutic agent. Another important topic aspect is the use of non-standardized test methods in microbiology, which also causes variation of data.

The calculation of oral TIs aimed to analyze the effectiveness of compounds by oral application. Other than in laboratory in vitro experiments an orally administered compound undergoes metabolic changes inside the body of living organism. For instance, the metabolites of trans-anethole 57, the main constituent of the essential oil of anise (Pimpinella anisum), were studied in two human volunteers [28]. Following ingestion of 1 mg methoxy 14C-labelled trans-anethole approx. 21% of the administered dose was demethylated within 8 hours as it could be determined by the amount of exhaled 14CO2. Within 24 hours approx. 65% of the totally administered radioactivity was found in the urine, while about 10% of the radioactivity was not recovered (Figure 2).

Pharmaceuticals 01 00001 g002 1024

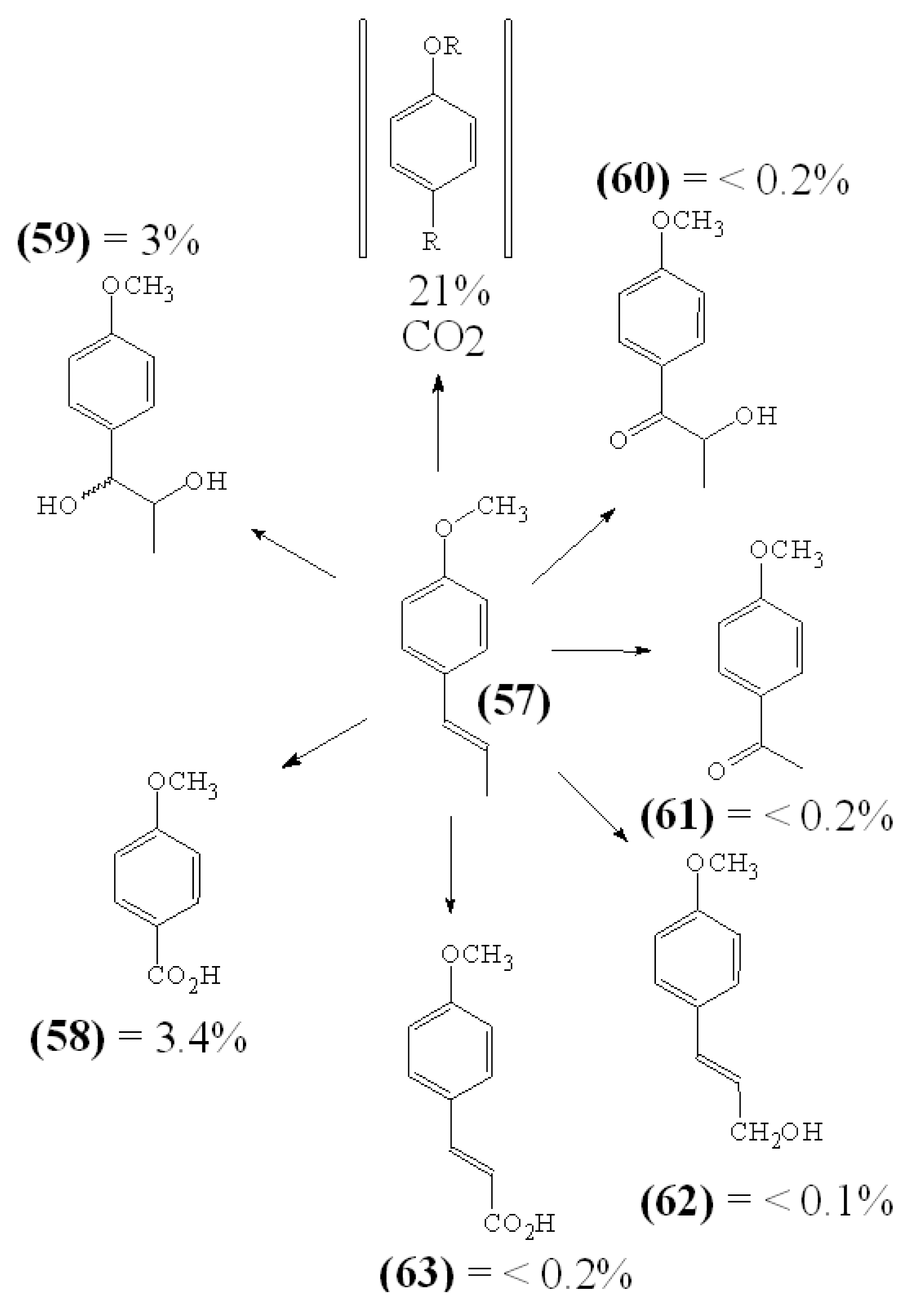

Figure 2. Metabolization of Orally Administered trans-Anethole in Humans.

Click here to enlarge figure

Figure 2. Metabolization of Orally Administered trans-Anethole in Humans.
Pharmaceuticals 01 00001 g002 1024

Among urinary metabolites main conversion products were O-demethylated compounds and compounds of known structure 57 to 62. This rapid biotransformation of a trans-anethole may help to interpret the findings obtained in a comparative in vivo - in vitro study with mycobacteria and trans-anethole [29]. Anethole was most effective in tuberculosis protection of guinea pigs in vivo, but failed to have considerable activity in vitro (Table 18).

Table Table 18. Comparison of the in vitro Inhibition of Mycobacterium tuberculosis by Essential Oils and some of their Components with the in vivo Disease Protection by such Materials of Guinea Pigs Infected with Tubercle bacilli.

Click here to display table

Table 18. Comparison of the in vitro Inhibition of Mycobacterium tuberculosis by Essential Oils and some of their Components with the in vivo Disease Protection by such Materials of Guinea Pigs Infected with Tubercle bacilli.
Test materialsin vivoin vitro
Anethole++++++
Lemon oil++++
Nutmeg oil +++
Terpineol++++++
d-Limonene++++
l-Limonene++++
Geraniol+++
Eugenol+++++
d-Pinene++++
l-Pinene-++

Notes: ++++ very active, +++ moderate active, ++ active, poor effect, - no effect

By means of these results, it is obvious that the effects of test compounds can not be explained with in vitro testing alone, although this method-strategy was successful many times in antibiotic research.

If a metabolizing system, however, is absent or plays a minor role, the active compound is available without major losses. Treatment of localized infections of outer and inner surfaces of the body with antimicrobials from higher plants is imaginable, e.g. topical application onto skin, inhalation (respiratory tract) and ingestion (gastrointestinal tract).

The compounds selected on the basis of dermal toxicity data are may be useful in the therapy or support of therapy of localized skin infections. Especially, several alcohols occurring in essential oils were effective against hair and skin pathogens, which are n-undecanol, n-undecenol, alpha-bisabolol 6, nerolidol 20 and farnesol 21.

Inhalation of volatile antimicrobials causes direct contact to undesired microorganisms present on mucous membranes of the respiratory tract. Similar to entire essential oils, a treatment of respiratory tract diseases with selected compounds from essential oils is imaginable.

In the gastrointestinal tract structural changes of essential oil compounds are known and influence in part markedly the chemical constitution. For instance, reports exist on rapid rearrangement of linalool to geraniol 14 through influence of gastric juice in the stomach [30], or the formation 3,4-dihydroxy-propylbenzene from methyl isoeugenol (3,4-dimethoxy-1-propenylbenzene) by action of the caecal microbial flora [31].

Appearance of essential oil compounds in the bloodstream following administration to skin and percutaneous resorption [32] or following inhalation [33] was demonstrated in humans and animals, respectively, which implies further pharmacological effects.

Among compounds found in essential oils, alpha-bisabolol 6 from Chamomile turned out to be safe following inhalation and simultaneously it is inhibitory to several microbial species pathogenic for children.

5. Conclusion

A comparison of the effectiveness of natural compounds with such of antibiotics on the basis of oral ‘Therapeutic Indices’ calculations revealed that natural compounds are inferior to antibiotics in general. The natural compounds are mild oral antimicrobials and they are unfit to treat severe infections of children.

Only in the case of tuberculosis several natural compounds of low mammalian toxicity and strong in vitro activity exist, however, these findings need further verification in living organisms.

Despite the limited value of essential oil compounds as oral antibiotics, the dermal ‘Therapeutic Index’ calculations may lead to findings, which are helpful in the therapy or in the supportive therapy of skin infections in children. Inhalation of isolated compounds from essential oil may be also useful in the support of therapy of respiratory tract infections.

This data analysis shows that the natural resources of antimicrobials are not fully explored. The effectiveness of most of the natural compounds as antimicrobials cannot be fully evaluated due to many missing toxicity data. The existing data material on volatile sesquiterpenes indicates their low mammalian toxicity and relatively strong antimicrobial activity, and therefore, this group of compounds turned out to be the most interesting one.

References

  1. Schilcher, H. Pharmakologie und Toxikologie ätherischer Öle. Therapiewoche 1986, 36, 1100–1112. [Google Scholar]
  2. Österreichisches Arzneibuch (1990) + supplements 1-6 (1990-1999), European Pharmacopoeia 3 (1997) + supplements (1998 – 2000), Pharmacopée Française X + supplements 1-13 (1983 – 1996), Deutsches Arzneibuch (2000) and Deutscher Arzneimittel-Codex (1997-2000), Farmacopea Ufficiale della Repubblica Italiana IX + supplements I-IV (1985 – 1996), The Japanese Pharmacopoeia XIII (1996) + supplements I + II (1999), Pharmacopoeia Helvetica 8 (1997) + supplements (1998-1999), Britisch Pharmacopoeia (1999) and US National Formulary 19 (2000) + supplements (2000)..
  3. Craig, J.O. Poisoning by the Volatile Oils in Childhood. Archives of Disease in Childhood 1953, 28, 475–483. [Google Scholar]
  4. Schilcher, H. Sind pflanzliche Arzneimittel bzw. ist die “NATURMEDIZIN” eine Gefahr für den Anwender. Ärztezeitschrift für Naturheilverfahren 2002, 43, 253–254. [Google Scholar]
  5. Dorsch, W.; Loew, D.; Meyer-Buchtela, E.; Schilcher, H. Kinderdosierungen von Phytopharmaka. Teil I. Empfehlungen zur Anwendung und Dosierungen von Phytopharmaka, monographierte Arzneidrogen und ihren Zubereitungen in der Pädiatrie, 2nd ed.; Kooperation Phytopharmaka GbR: Bonn, 1998; pp. 9–185.ISBN 3-929964-14-7. [Google Scholar]
  6. Giacosa, P. Studj sulla azione fistologica di alcune sostanze aromatiche messa in rapporto collo loro struttura atomica. Ann. Chim. Medicofarm. Farm. Ser. 1886, 3, 273–293. [Google Scholar]
  7. Schilcher, H. Phytotherapie in der Kinderheilkunde – Handbuch für Ärzte und Apotheker, 3rd ed.; Wissenschaftliche Verlagsgesellschaft mbH Stuttgart: Stuttgart, 1999. ISBN 3-8047-1644-X. [Google Scholar]
  8. Kuschinski, G.; Lüllmann, H.; Peters, T. Kurzes Lehrbuch der Pharmakologie und Toxikologie, 10th ed.; Georg Thieme Verlag: Stuttgart – New York, 1984. ISBN 3-13-368510-4. [Google Scholar]
  9. Pauli, A. AMICBASE-EssOil: Database on Natural Antimicrobials and Officinal Antiinfectives. ReviewScience, 2003. Zirndorf. Available online: http://www.reviewscience.com. [Google Scholar]
  10. Woodard, D.; Stuart, R. Toxicology Reports; Vermont Safety Information Resources, Inc.: Vermont, 2003. Available online: http://www.hazard.com/msds.
  11. Merck Sharp and Dohme Research Laboratories <Rahway, N.Y.>. Merck Manual of Diagnosis and Therapy, 16th ed.; Urban & Schwarzenberg: München – Wien – Baltimore, 1993. ISBN 3-541-01855-0.
  12. World Healh Organization. World Health Report: Global Burden of Disease Estimates; Geneva, 2002.
  13. Kahlmeter, G.; Olsson-Liljequist, B. Species related MIC-breakpoints; Landstinget Kronoberg: Kronoberg, 2003. Available online: http://www.ltkronoberg.se.
  14. World Health Organization: Department of Communicable Disease Surveillance and Response. Whonet 5: Microbiology Laboratory, Database Software; World Health Organization (Geneva) and WHO Collaborating Centre for Surveillance of Antimicrobial Resistance: Microbiology Department, Brigham and Women's Hospital, Boston, 1999.
  15. United States Food and Drug Administration. Code of Federal Regulations. Title 21. Food and Drugs; Rockville, 2003.
  16. Daschner, F. Antibiotika am Krankenbett, 11th ed.; Springer Verlag: Berlin – Heidelberg – New York – Barcelona – Hongkong – London – Mailand – Paris – Singapur – Tokio., 2002. [Google Scholar]
  17. Manual of Clinical Microbiology; Murray, P.R., Baron, E.J., Pfaller, M.A., Tenover, F.C., Yolken, R.H., Eds.; ASM Press: Washington, D.C., 1995. ISBN 1-55581-086-1.
  18. Lamar, R.V. Some Further Observations Upon the Action of Certain Soaps on the Pneumococcus and its Experimental Infection. Journal of Experimental Medicine (New York) 1911, 14, 256–264. [Google Scholar]
  19. Final report on the Safety Assessment of Bisabolol. International Journal of Toxicology 1999, 18 (Supplement 3), 33–40.
  20. Sieradzki, K.; Roberts, R.B.; Haber, S.W.; Tomasz, A. The Development of Vancomycin Resistance in a Patient with Methicillin-Resistant Staphylococcus aureus Infection. The New England Journal of Medicine 1999, 340, 517–523. [Google Scholar]
  21. Endtz, H.P.; Mouton, J.W.; Den Hollander, J.G.; Van den Braak, N.; Verbrugh, H.A. Comparative in vitro Activities of Trovafloxacin (CP-99,219) against 445 Gram-positive Isolates from Patients with Endocarditis and those with other Bloodstream Infections. Antimicrobial Agents and Chemotherapy 1997, 41, 1146–1149. [Google Scholar]
  22. Katsura, H.; Tsukiyama, R.-I.; Suzuki, A.; Kobayashi, M. In Vitro Antimicrobial Activities of Bakuchiol against Oral Microorganisms. Antimicrobial Agents and Chemotherapy 2001, 45, 3009–3013. [Google Scholar]
  23. Lin, Y. Compositions for Treatment of Antibiotic-Resistant Gram-Positive Bacterial Infections and Methods for Using and Preparing the Same. United States Patent 6025400, 2000. [Google Scholar]
  24. Villegas, L.F.; Marcalo, A.; Martin, J.; Fernandez, I.D.; Maldonado, H.; Vaisberg, A.J.; Hammond, G.B. (+)-epi-Alpha-bisabolol [correction of bisbolol] is the Wound-Healing Principle of Peperomia galioides: Investigation of the in Vivo Wound-Healing Activity of Related Terpenoids. Journal of Natural Products 2001, 64, 1357–1359.2002, 65, 248 (erratum). [Google Scholar]
  25. Chin, Y.; Anderson, H.H.; Alderton, G.; Lewis, J.C. Antituberculous Activity and Toxicity of Lupulon for the Mouse. Proceedings of the Society for Experimental Biology and Medicine 1949, 70, 158–162. [Google Scholar]
  26. Royer, G.P.; Townsend, C.A. Cerulenin Compounds for Fatty Acid Synthesis Inhibition. United. States Patent 5539132, 1996. [Google Scholar]
  27. Nozoe, S.; Takahashi, A.; Masuda, J.; Segawa, T. Antifungal Agent. Japanese Patent 10298070, 1998. [Google Scholar]
  28. Sangster, S.S.; Caldwell, J.; Hutt, A.J.; Anthony, A.; Smith, R.L. The Metabolic Disposition of [Methoxy-14C]-Labelled trans-Anethole, Estragole and p-Propylanisole in Human Volunteers. Xenobiotica 1987, 17, 1223–1232. [Google Scholar]
  29. Imura, K. On the Influence of the Ethereal Oils Upon the Culture of Tubercle Bacilli and Upon Development of Experimental Tuberculosis in Animals. Journal of the Shanghai Science Institute (Section 4) 1935, 1, 235–270. [Google Scholar]
  30. Franchomme, P. Analytical and Pharmacological Approach of Aforementioned Species; Lecture. In 4th International Scientific Aromatherapy Symposium, Grasse, March 2 – 4; 2001. [Google Scholar]
  31. Solheim, E.; Scheline, R.R. Metabolism of Alkenebenzenes in the Rat. II. Eugenol and Isoeugenol Methyl Ethers. Xenobiotica 1976, 6, 137–150. [Google Scholar]
  32. Schalter, R. Perkutane Resorption ätherischer Öle mit und ohne Zusatz von Nicotinsäuerestern. Dissertation, München, 1985. [Google Scholar]
  33. Buchbauer, G.; Jirovetz, L.; Jäger, W.; Plank, C.; Dietrich, H. Fragrance Compounds and Essential Oils with Sedative Effects Upon Inhalation. Journal of Pharmaceutical Sciences 1993, 82, 660–664. [Google Scholar]
Pharmaceuticals EISSN 1424-8247 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
