Sensors 2007, 7(4), 548-577; doi:10.3390/s7040548
Article

Simulated Effects of Soil Temperature and Salinity on Capacitance Sensor Measurements

1,*  and 2
Received: 28 February 2007; Accepted: 23 April 2007 / Published: 26 April 2007
View Full-Text   |   Download PDF [1083 KB, uploaded 21 June 2014]

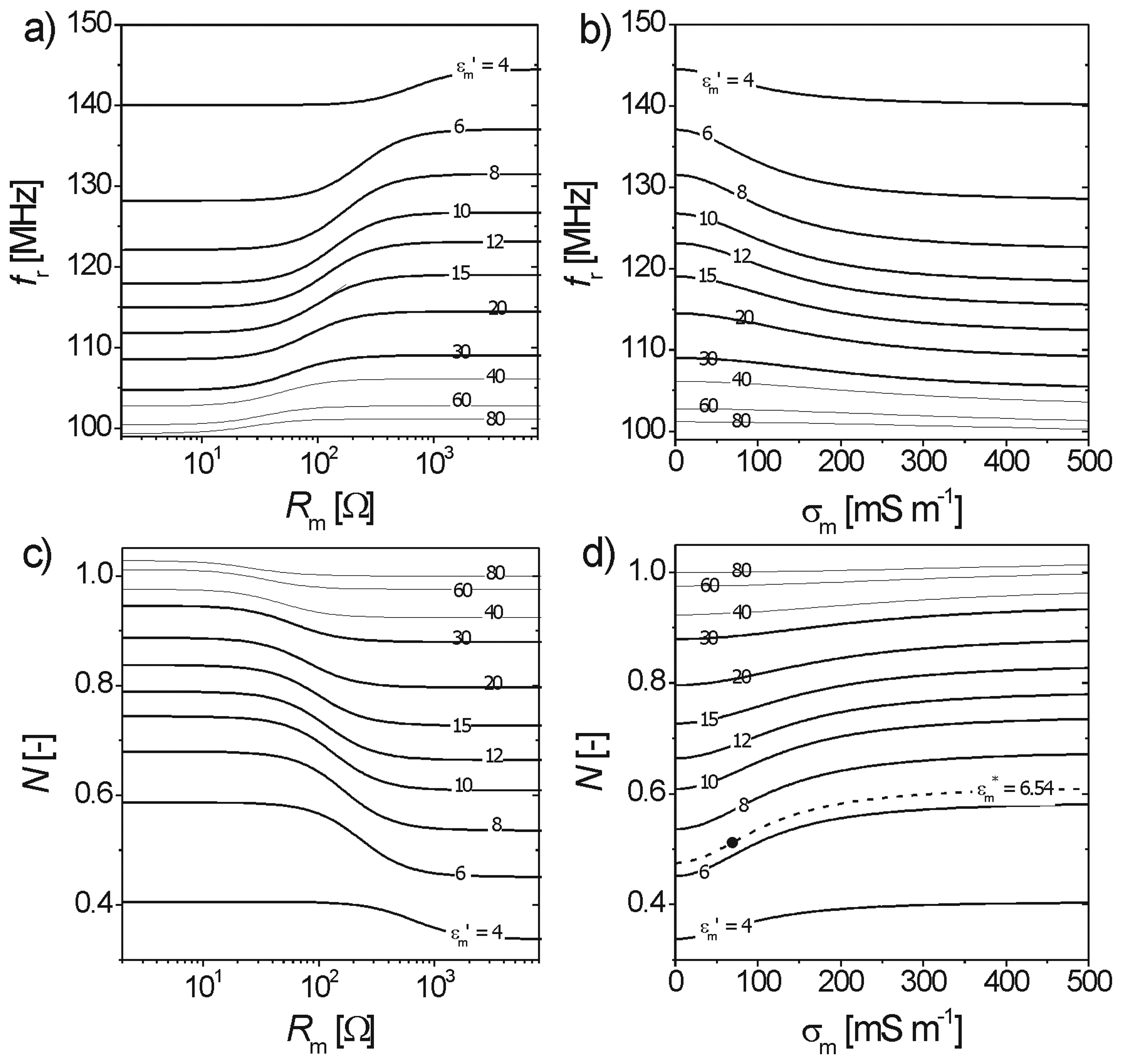

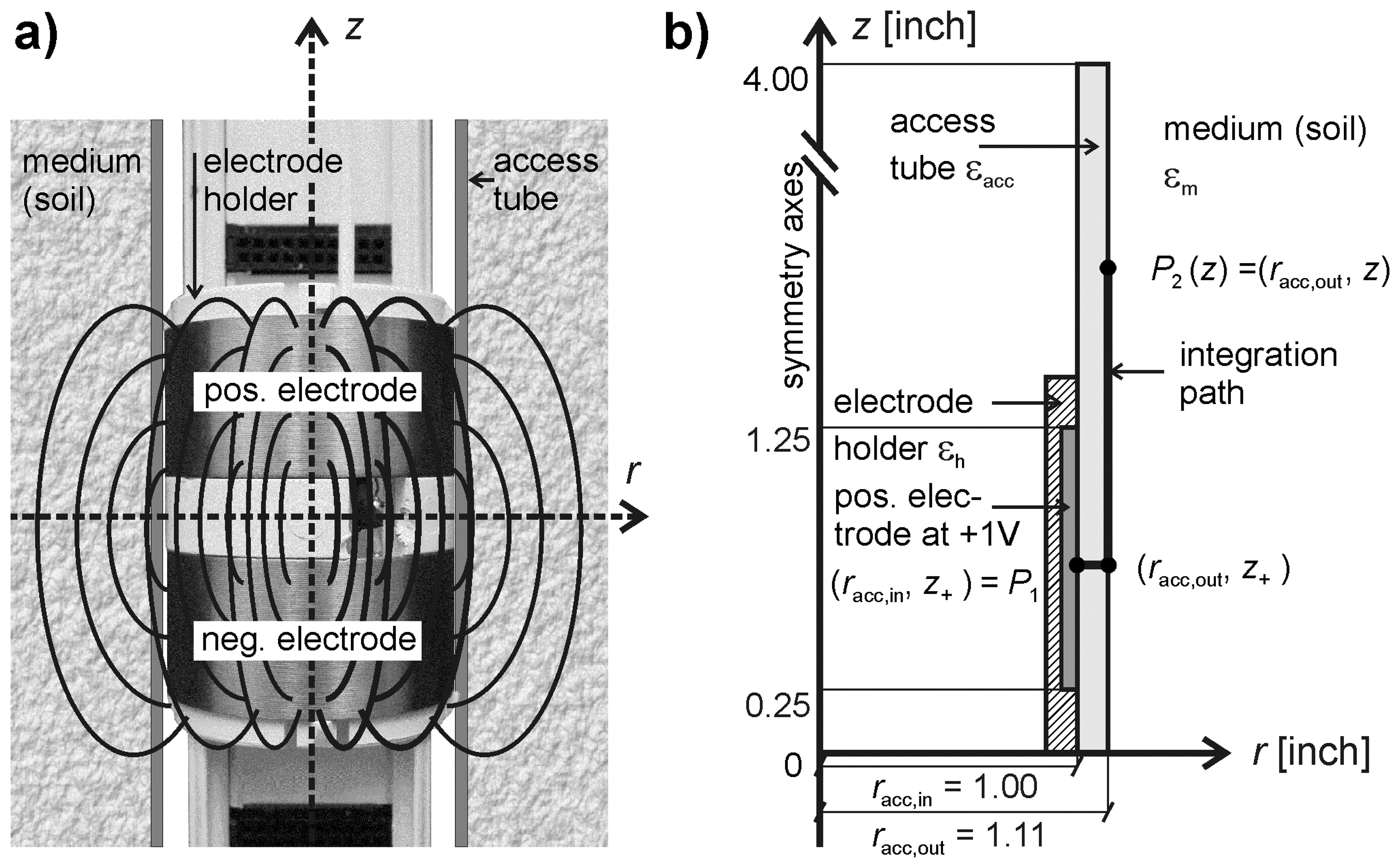

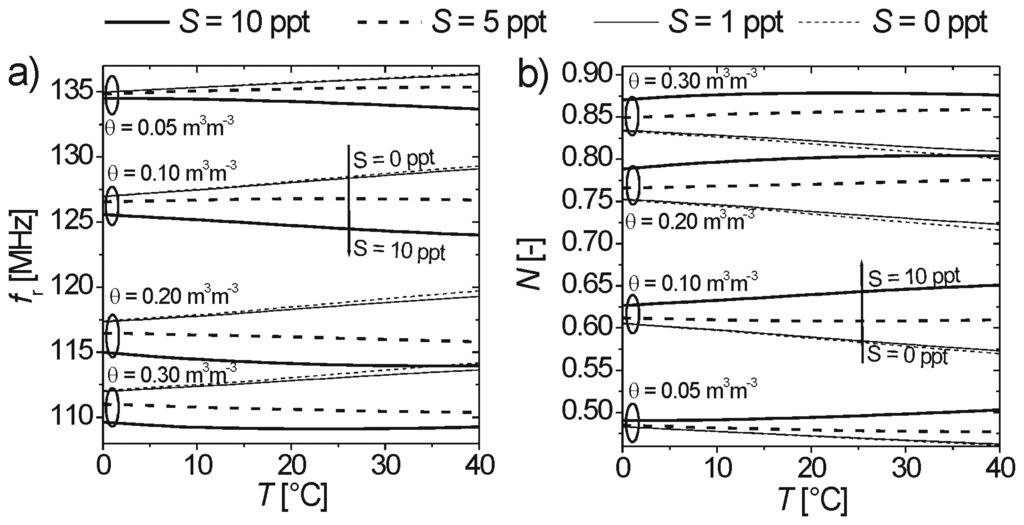

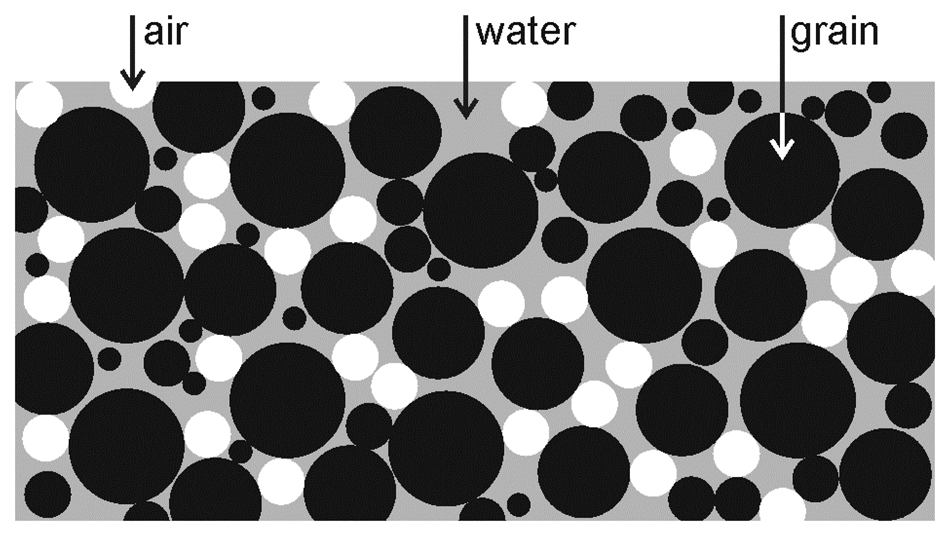

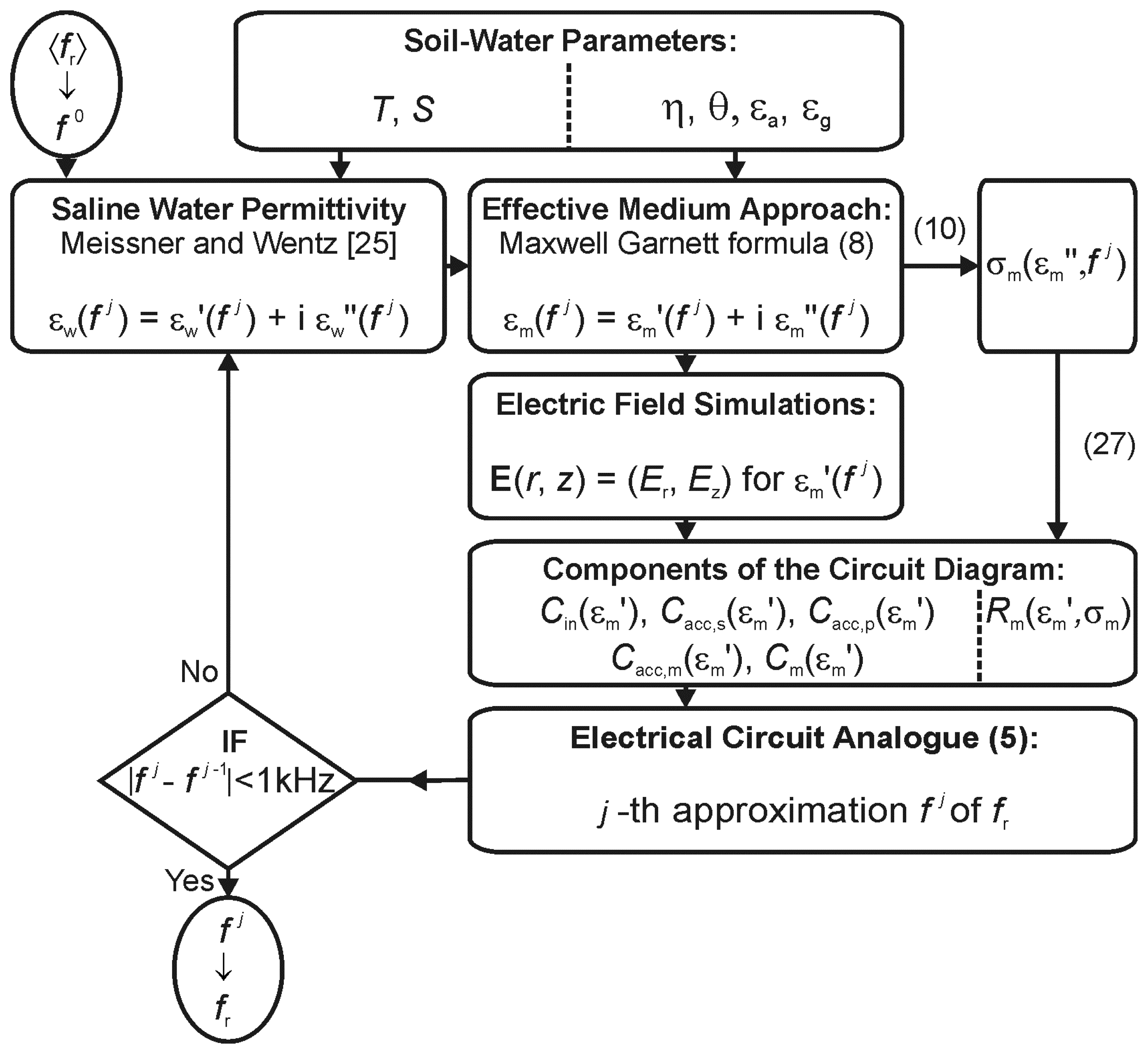

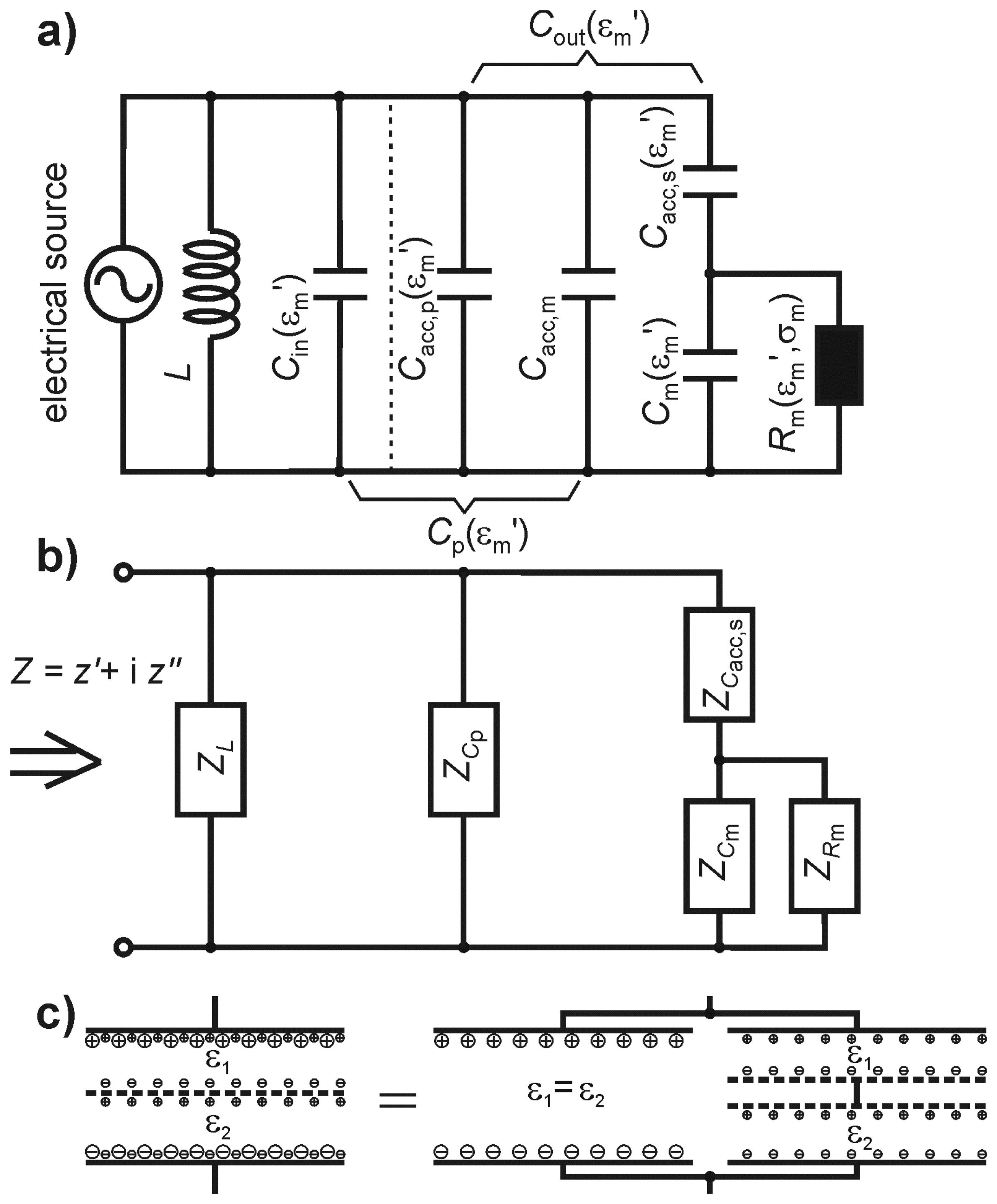

Abstract: Dielectric measurement techniques are used widely for estimation of water contentin environmental media. However, factors such as temperature and salinity affecting thereadings require further quantitative investigation and explanation. Theoretical sensitivities ofcapacitance sensors to liquid salinity and temperature of porous media were derived andcomputed using a revised electrical circuit analogue model in conjunction with a dielectricmixing model and a finite element model of Maxwell’s equation to compute electrical fielddistributions. The mixing model estimates the bulk effective complex permittivities of solid-water-air media. The real part of the permittivity values were used in electric field simulations,from which different components of capacitance were calculated via numerical integration forinput to the electrical circuit analogue. Circuit resistances representing the dielectric losses werecalculated from the complex permittivity of the bulk soil and from the modeled fields. Resonantfrequencies from the circuit analogue were used to update frequency-dependent variables in aniterative manner. Simulated resonant frequencies of the capacitance sensor display sensitivitiesto both temperature and salinity. The gradients in normalized frequency with temperatureranged from negative to positive values as salinity increased from 0 to 10 g L-1. The modeldevelopment and analyses improved our understanding of processes affecting the temperatureand salinity sensitivities of capacitance sensors in general. This study provides a foundation forfurther work on inference of soil water content under field conditions.
Keywords: soil water content; capacitance; permittivity; electrical conductivity; resonant frequency. soil water content; capacitance; permittivity; electrical conductivity; resonant frequency.
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Schwank, M.; Green, T.R. Simulated Effects of Soil Temperature and Salinity on Capacitance Sensor Measurements. Sensors 2007, 7, 548-577.

AMA Style

Schwank M, Green TR. Simulated Effects of Soil Temperature and Salinity on Capacitance Sensor Measurements. Sensors. 2007; 7(4):548-577.

Chicago/Turabian Style

Schwank, Mike; Green, Timothy R. 2007. "Simulated Effects of Soil Temperature and Salinity on Capacitance Sensor Measurements." Sensors 7, no. 4: 548-577.
